Lumi United Technology RTCGQ11LM Occupancy Sensor User Manual The Occupancy Sensor User s Manual

Lumi United Technology Co., Ltd Occupancy Sensor The Occupancy Sensor User s Manual

Users Manual

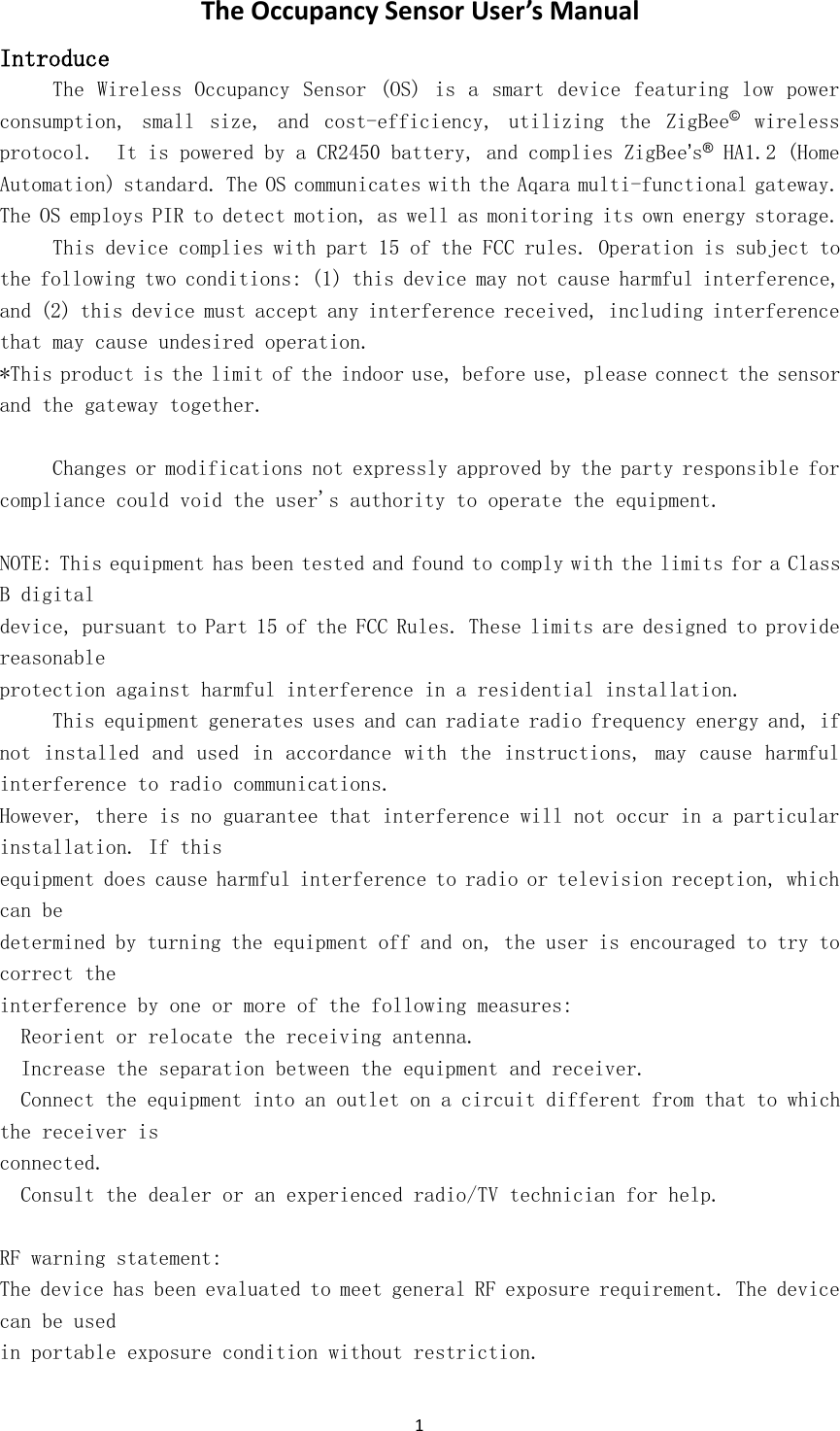

1The Occupancy Sensor User’s ManualIntroduceThe Wireless Occupancy Sensor (OS) is a smart device featuring low powerconsumption, small size, and cost-efficiency, utilizing the ZigBee©wirelessprotocol. It is powered by a CR2450 battery, and complies ZigBee’s®HA1.2 (HomeAutomation) standard. The OS communicates with the Aqara multi-functional gateway.The OS employs PIR to detect motion, as well as monitoring its own energy storage.This device complies with part 15 of the FCC rules. Operation is subject tothe following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interferencethat may cause undesired operation.*This product is the limit of the indoor use, before use, please connect the sensorand the gateway together.Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a ClassB digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonableprotection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, ifnot installed and used in accordance with the instructions, may cause harmfulinterference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If thisequipment does cause harmful interference to radio or television reception, whichcan bedetermined by turning the equipment off and on, the user is encouraged to try tocorrect theinterference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to whichthe receiver isconnected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposure requirement. The devicecan be usedin portable exposure condition without restriction.

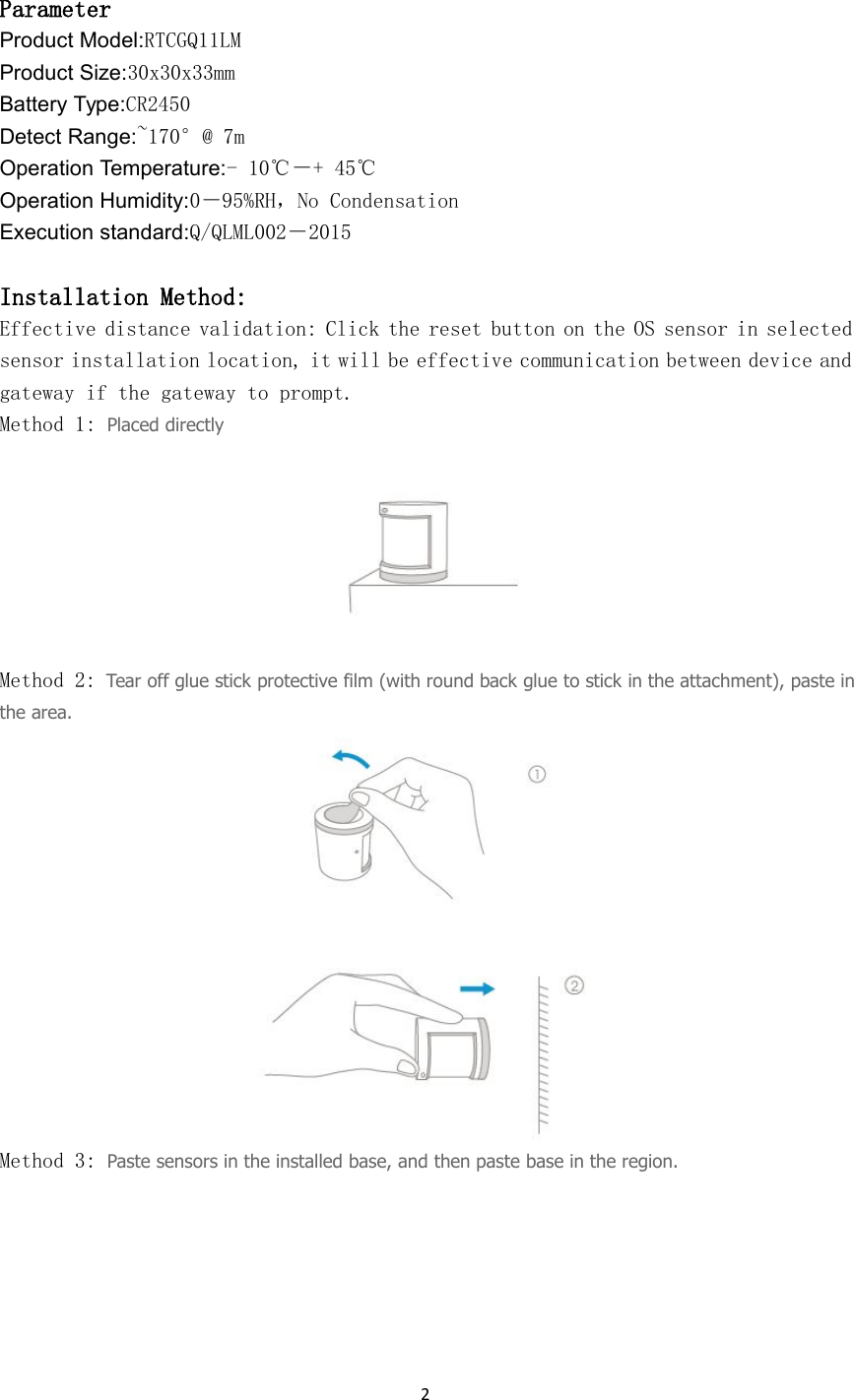

2ParameterProduct Model:RTCGQ11LMProduct Size:30x30x33mmBattery Type:CR2450Detect Range:~170°@ 7mOperation Temperature:- 10℃-+ 45℃Operation Humidity:0-95%RH,No CondensationExecution standard:Q/QLML002-2015Installation Method:Effective distance validation: Click the reset button on the OS sensor in selectedsensor installation location, it will be effective communication between device andgateway if the gateway to prompt.Method 1: Placed directlyMethod 2: Tear off glue stick protective film (with round back glue to stick in the attachment), paste inthe area.Method 3: Paste sensors in the installed base, and then paste base in the region.
3*Suggest installation height is 1.2 2.1 m, less than 1.2 meters detection range has shrunk, but does notaffect the use;Sensor will appear at the bottom of the blind area is greater than 2.1 m, parts can't detect.Effective Detection Area--Side View*To pay attention to the lens alignment need detection area, when placed or paste sensor close to thedesktop or edge of cabinet put oneself in another's position.Effective Detection Area--Top View
