Lumi United Technology SJCGQ11LM Water Leak Sensor User Manual

Lumi United Technology Co., Ltd Water Leak Sensor Users Manual

Users Manual

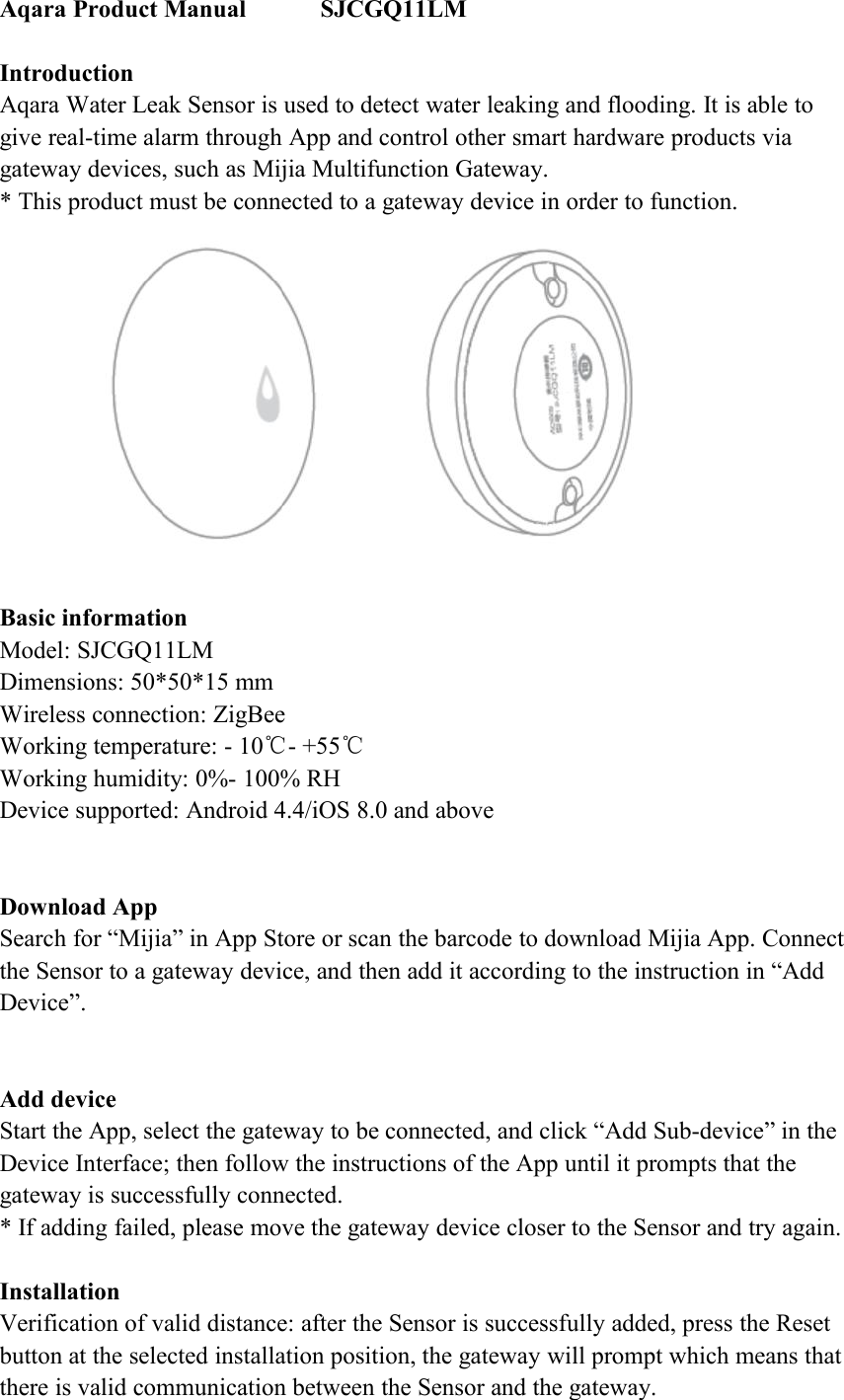

Aqara Product Manual SJCGQ11LMIntroductionAqara Water Leak Sensor is used to detect water leaking and flooding. It is able togive real-time alarm through App and control other smart hardware products viagateway devices, such as Mijia Multifunction Gateway.* This product must be connected to a gateway device in order to function.Basic informationModel: SJCGQ11LMDimensions: 50*50*15 mmWireless connection: ZigBeeWorking temperature: - 10℃- +55℃Working humidity: 0%- 100% RHDevice supported: Android 4.4/iOS 8.0 and aboveDownload AppSearch for “Mijia” in App Store or scan the barcode to download Mijia App. Connectthe Sensor to a gateway device, and then add it according to the instruction in “AddDevice”.Add deviceStart the App, select the gateway to be connected, and click “Add Sub-device” in theDevice Interface; then follow the instructions of the App until it prompts that thegateway is successfully connected.* If adding failed, please move the gateway device closer to the Sensor and try again.InstallationVerification of valid distance: after the Sensor is successfully added, press the Resetbutton at the selected installation position, the gateway will prompt which means thatthere is valid communication between the Sensor and the gateway.

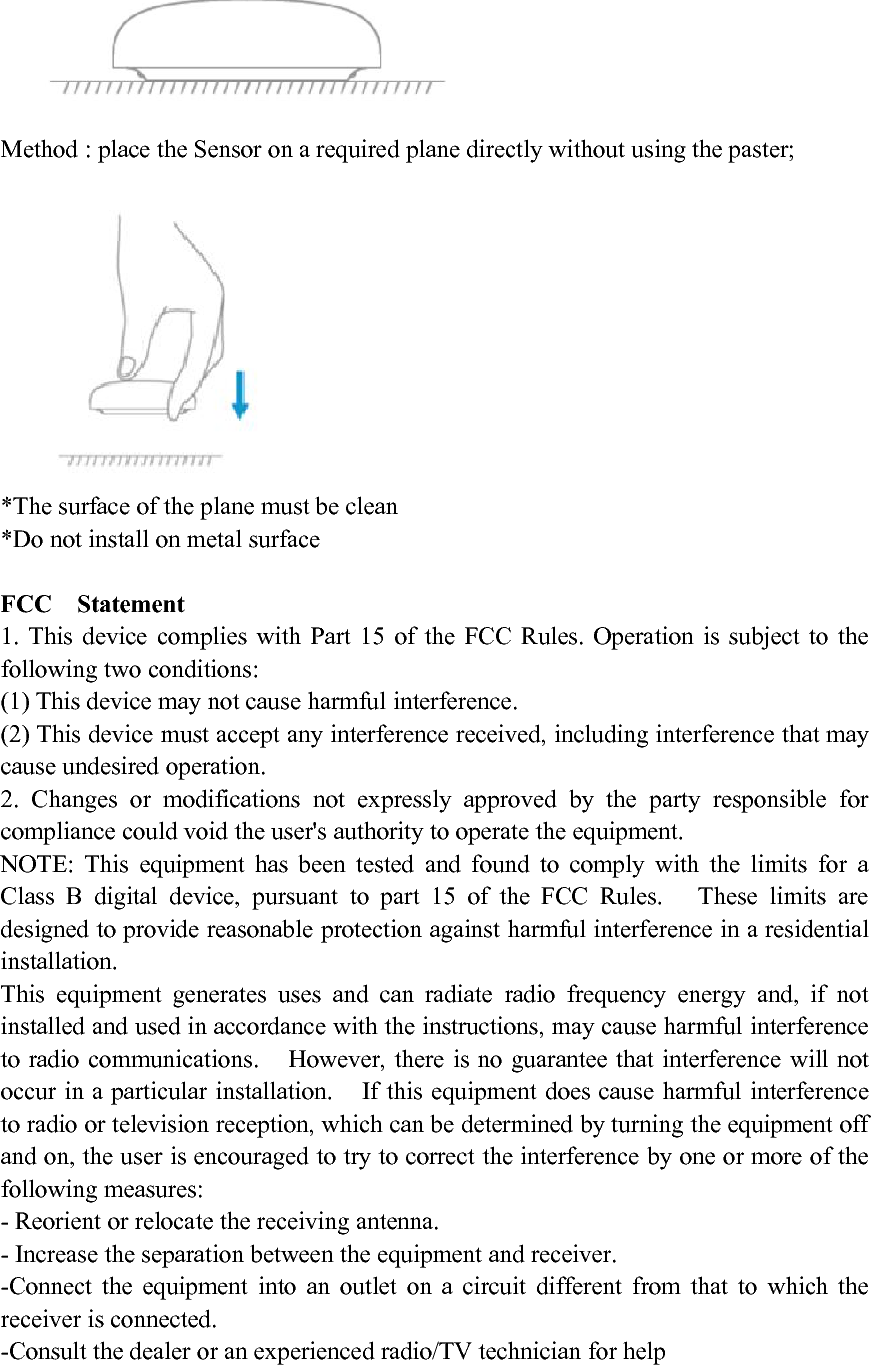

Method : place the Sensor on a required plane directly without using the paster;*The surface of the plane must be clean*Do not install on metal surfaceFCC Statement1. This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that maycause undesired operation.2. Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.-Consult the dealer or an experienced radio/TV technician for help
IC NOTICE TO CANADIAN USERSThis device complies with Industry Canada license‐exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not causeinterference, and (2) This device must accept any interference, including interferencethat may cause undesired operation of the device. This device complieswith RSS‐247 of Industry Canada. Operation is subject to the condition that thisdevice does not cause harmful interference. This Class B digital apparatus complieswith Canadian ICES‐003 (Cet appareil numérique de la Classe B conforme à lanorme NMB‐003 du Canada).This equipment complies with FCC & IC radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated withminimum distance of 20 cm between the radiator and your body. This transmittermust not be co-located or operating in conjunction with any other antenna ortransmitter.Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux deux conditionssuivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur del'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage estsusceptible d'en compromettre le fonctionnement.Cet équipement est conforme aux limites FCC & IC d'exposition aux radiationsdéfinies pour un environnement non contrôlé. Cet équipement doit être installé etutilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cetémetteur ne doit pas être situé ou opérant en conjonction avec une autre antenne ouémetteur.
