Lumisound Technologies LMS40 LED Wireless Bulb Speaker User Manual

Lumisound Technologies, Inc. LED Wireless Bulb Speaker

User manual

Lumisound LMS-40 User Manual Features  No wires, no power recharge, no remote control, easy to install  Easy to control, dimmable LMS-40 downlight bulb speakers, plug and play  Save money from energy saving technology of LED while enjoy high quality stereo audio system  Compatible with most Smartphones, tablets and computers which support Bluetooth technology  Lumisound+ IOS/Android Apps provides great functionality and control  Support Spodify, Pandora, etc. music media Box Contents  LMS-40 Speaker , include: - One LMS-40 bulb speaker -Quickstart Guide -User Manual -Warranty

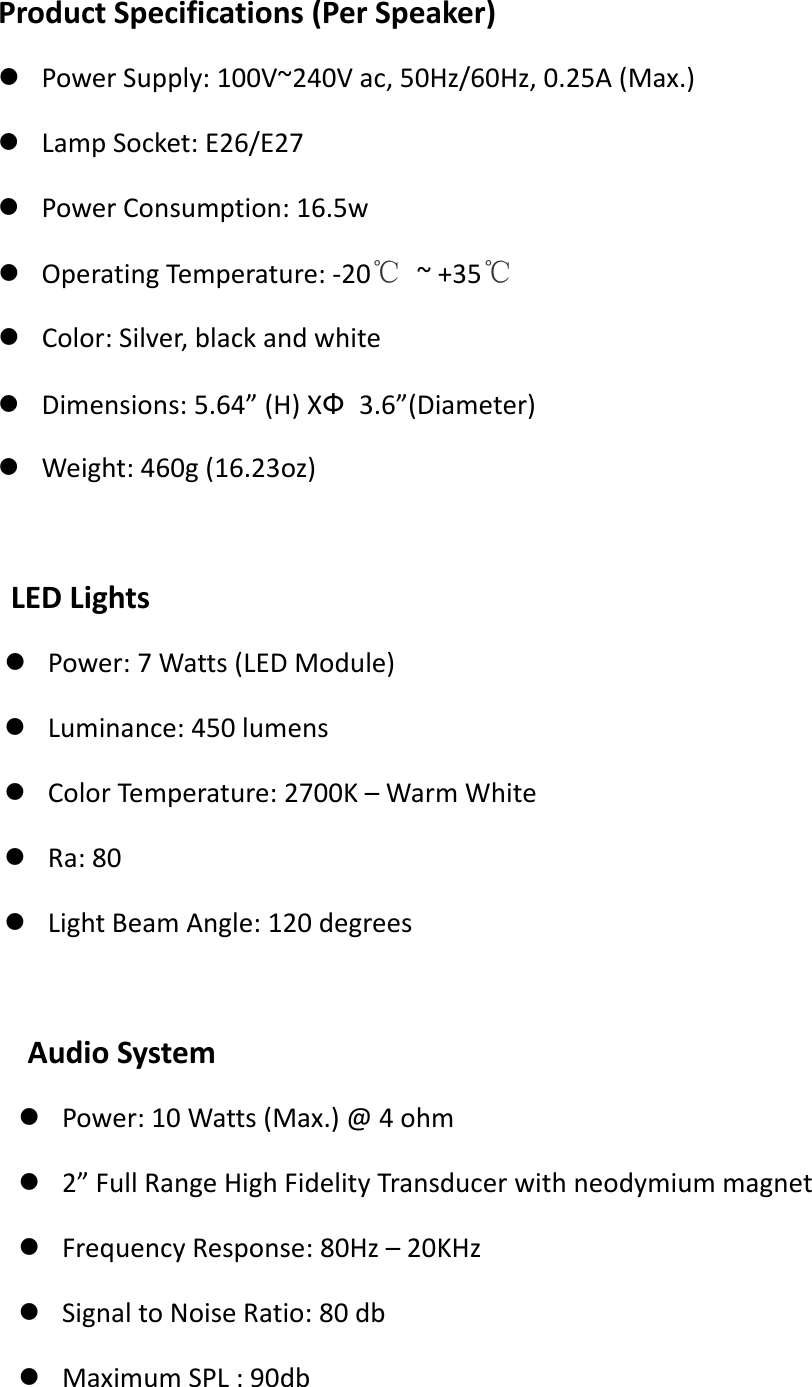

Product Specifications (Per Speaker)  Power Supply: 100V~240V ac, 50Hz/60Hz, 0.25A (Max.)  Lamp Socket: E26/E27  Power Consumption: 16.5w  Operating Temperature: -20℃ ~ +35℃  Color: Silver, black and white  Dimensions: 5.64” (H) XФ 3.6”(Diameter)  Weight: 460g (16.23oz) LED Lights  Power: 7 Watts (LED Module)  Luminance: 450 lumens  Color Temperature: 2700K – Warm White  Ra: 80  Light Beam Angle: 120 degrees Audio System  Power: 10 Watts (Max.) @ 4 ohm  2” Full Range High Fidelity Transducer with neodymium magnet  Frequency Response: 80Hz – 20KHz  Signal to Noise Ratio: 80 db  Maximum SPL : 90db
 Wireless Standard: 802.11.b/g/n  Transmitter Power: 15dbm (max.) INSTALLATION INSTRUCTIONS WARNING –TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, USE IN DRY LOCATIONS ONLY AND DO NOT EXPOSE TO RAIN OR LIQUIDS. WARNING –TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Please TURN OFF the light switch before installing the Lumisound into an E26/E27 light bulb socket; and DO NOT USE WITH EXTERNAL OR OUTSIDE DIMMERS. 2. Turn the power on after screw the Speaker into an E26/E27 socket. The LED light will turn on with default maximum brightness. NOTICE: Affected by the installation position in the lighting fixture,the stereo sound effect will vary with the distance between bulbs and the room space etc. To achieve the best stereo effect, please make sure the LED plastic cover is at the same level of the lighting fixtures horizontally, or stick out a little bit, and a distance around 2 to 5 meters between speakers is recommended.
3. Make sure Wifi is turned on your portable smart devices (e.g. smartphone, tablet, or computer). Then via Lumisound+ Apps, connect the smart device with the Wifi. A “Wifi Connected”Prompt will be heard from Speaker .Once connected, you can launch any media APP on the smart device to enjoy music via Lumisound speakers. The default volume of Speaker is the maximum and you can, by your smart device, control the volume and light brightness of speaker. 4. Search for the ‘Lumisound+’ APP for corresponding operating system, download and install it on your smart device: Get APP from Google Play Store for Android Devices; Get APP from App store for Apple IOS Devices. 5. Open the Lumisound+applicaton, and a ‘Welcome’ page appears. The Lumisound+ App will search and connect to the speaker automatically. The wizard guides you through the steps for connecting your smart device to the speaker. If the application doesn’t detect the speaker, restart the application and setup wizard again. 6. Once the smart device has been successfully connected to the speaker, the application will display the main control screen. Press the ‘Lights’ or ‘Sounds’ tab to switch between them and achieve different functions, such as Light Brightness and Sound
Volume. 7. Using Lumisound+ Apps, you can group up to 6 speakers to play a same song. And you can organize up to 5 groups to play different songs, respectively. IMPORTANT SAFETY INSTRUCTIONS  This product is intended for indoor use only.  DO NOT use this product outdoors.  Read and keep these safety instructions.  Please follow all user’s manual instructions when installing the product.  Heed all warnings contained within these instructions.  Clean the Lumisound product with a dry towel only.  DO NOT get this product wet and DO NOT use near any water source.  The product should not be exposed to dripping or splashing liquids of any kind.  DO NOT install the product near any heat sources, such as heater, radiators, stove, heat registers or other apparatus that produce heat.  To prevent product failure, the speaker should only be
installed in operating environments ranging between -4 degrees Fahrenheit and +95 degrees Fahrenheit (-20 degrees Celsius and +35 degrees Celsius )  To reduce the risk of electric shock, DO NOT remove the cover or take part. There are no serviceable parts inside.  Ensure that the product is stable and secured in place during installation. If the product is dropped or falls out of the light socket, it may cause bodily harm.  DO NOT block any ventilation openings on the product as shown below.  Never push any objects into the openings or slots on the product. Doing so may create an electric shock or fire hazard.  Maintain sufficient distance around your product for sufficient ventilation; do not put anything within at least 6 inches oflight bulb socket.  For best protection against lighting, unscrew the product from it power source during a storm.  Refer all servicing to qualified Lumisound service technician.  Only use accessories specifically recommended by the manufacturer.  Servicing is required when the product: 1. Has been damaged in any way;

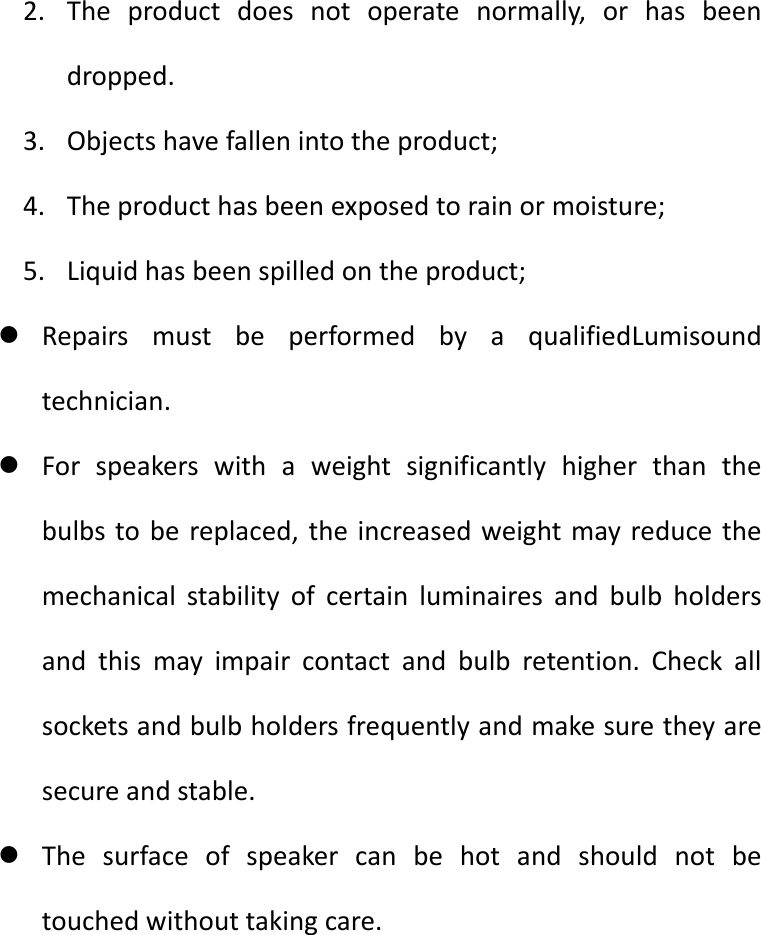

2. The product does not operate normally, or has been dropped. 3. Objects have fallen into the product; 4. The product has been exposed to rain or moisture; 5. Liquid has been spilled on the product;  Repairs must be performed by a qualifiedLumisound technician.  For speakers with a weight significantly higher than the bulbs to be replaced, the increased weight may reduce the mechanical stability of certain luminaires and bulb holders and this may impair contact and bulb retention. Check all sockets and bulb holders frequently and make sure they are secure and stable.  The surface of speaker can be hot and should not be touched without taking care.
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC STATEMENT This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The distance between user and products should be no less than 20cm La distance entre les produits utilisateur et ne doit pas être inférieure à 20cm
