LUMISOURCE, LLC. Wireless Kit Page 1
user manual
OWNER’S MANUAL
2
Congratulations!
You are now the proud owner of a BOOMCHAIR®. Prepare to experience your entertainment on a whole new level. BOOMCHAIR®
allows you to HEAR the sound and FEEL the excitement. You’ll experience every crash, bang, and boom while enjoying your favorite
game, music, or movie. BOOMCHAIR® is also a great game seat built to endure the rigors of today’s gaming environment. Take a
moment to review your owner’s manual before connecting your BOOMCHAIR®. Assembly and operation of the BOOMCHAIR® is
simple.
If you need further assistance visit us at www.pbteen.com or www.BoomChair.com

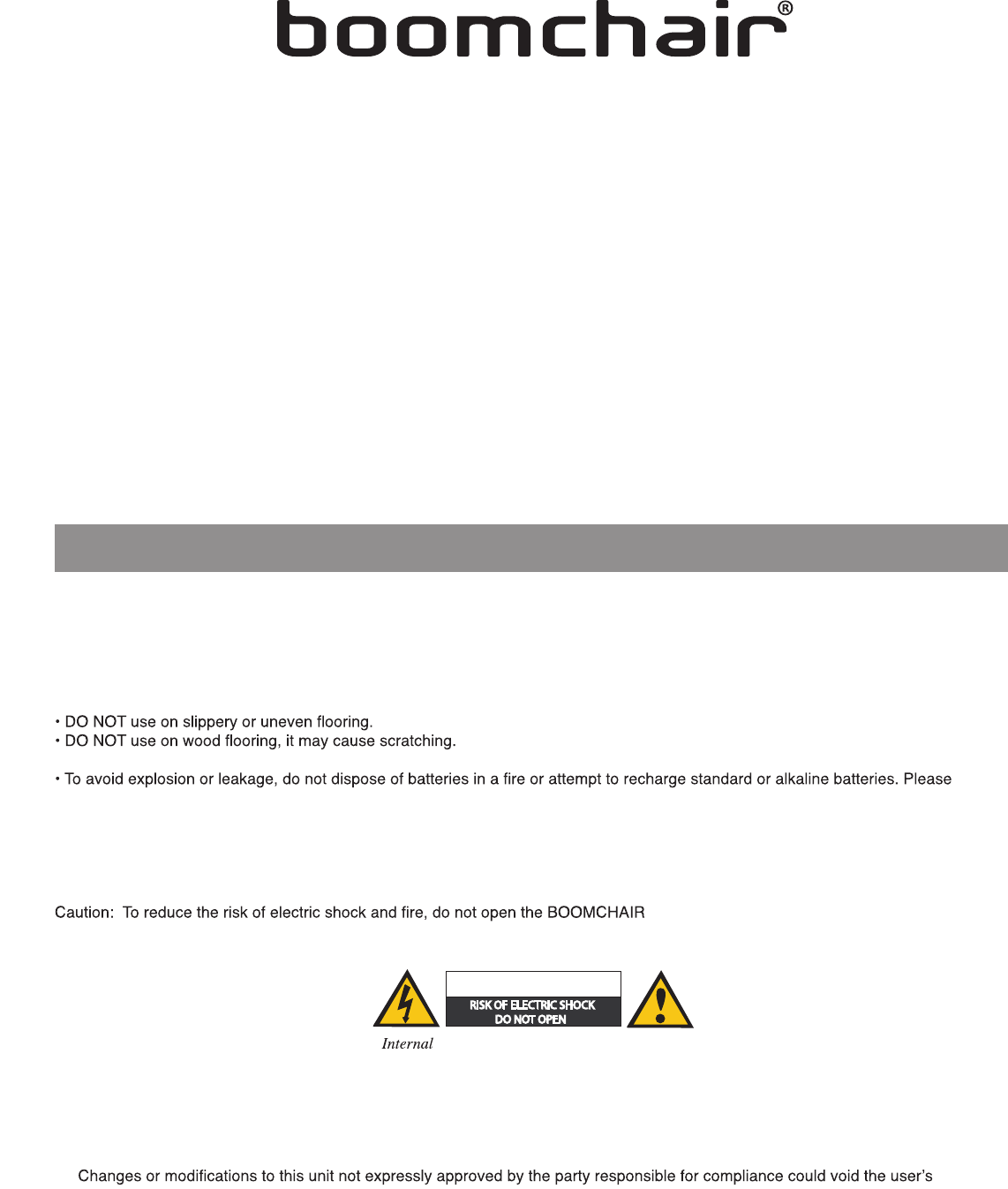

READ BEFORE USE
• DO NOT wash or soak with water. If BOOMCHAIR® gets wet, disconnect power immediately and do not use until completely dry.
• Turn power off and unplug BOOMCHAIR® when not in use.
• Children under 5 years old should not use this product without parental supervision.
• For INDOOR use only/ DO NOT expose to direct sunlight, moisture, or extreme temperatures.
• DO NOT Mix Old And New Batteries. Do Not Mix Alkaline, Standard (Carbon - Zinc), Or Rechargeable (Nickel - Cadmium) Batteries.
dispose of batteries safely according to the battery manufacturers instructions or recycle battery per state and local codes. If battery
leakage occurs and comes in contact with the skin or eyes, wash immediately with plenty of water. Batteries should be handled under
adult supervision. If the device is not to be used for a long period of time, remove the batteries to prevent injury from possible battery
leakage.
• Excessive exposure to audio equipment at high volume may lead to hearing loss.
• DO NOT TAMPER WITH OR OPEN
®. There are no user serviceable parts inside. Refer
to your warranty for service information.
authority to operate the equipment.
FCC ST AT EM ENT
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION
CAUTIONS
3
1
The BOOMCHAIR® comes with the following: PARTS LIST:
1) PULSE BOOMCHAIR®
2b) RCA TO MINI AUDIO CORD
2c) RCA CORD (audio left & right channel connectors)
3) ADJUSTABLE HEADREST
4) SPEAKERS
5) HOOK & LOCK MECHANISM
6) ADJUSTABLE RECLINE STOPPERS
7) POWER RECEPTACLE
8) 12V POWER ADAPTOR
9) DASHBOARD CONTROL PANEL
Wireless
W1) WIRELESS TRANSMITTER
(4 AA BATTERIES REQUIRED, NOT INCLUDED)
5
3
Dimensions: 24 in. L x 18 in. W x 36 in. H
61 cm. L x 46 cm. W x 92 cm. H
2 x 3 in. (7.5 cm.) coaxial mid-high speakers @ 3W 4 Ohms
4 in. (10 cm) sub-woofer speakers @ 15W 4 Ohms
SYSTEM SPECS:
8
7
9
Wireless
Transmitter
TRANSMITTER
W1
4
6
SET-UP GUIDE
DASHBOARD CONTROL PANEL
2a 2b 2c
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
RCA AUDIO INPUTS
VIBRATION CONTROL
BASS/TREBLE CONTROL
POWER SWITCH / VOLUME
CONTROL
LED POWER INDICATOR
WIRELESS ON/OFF &
CHANNEL SWITCH
HEADPHONE JACK
RCA AUDIO OUTPUTS
2d
(headphone jack to audio
left & right channel connectors)
2a) RCA AUDIO COUPLER
2d) AUDIO CORD
4

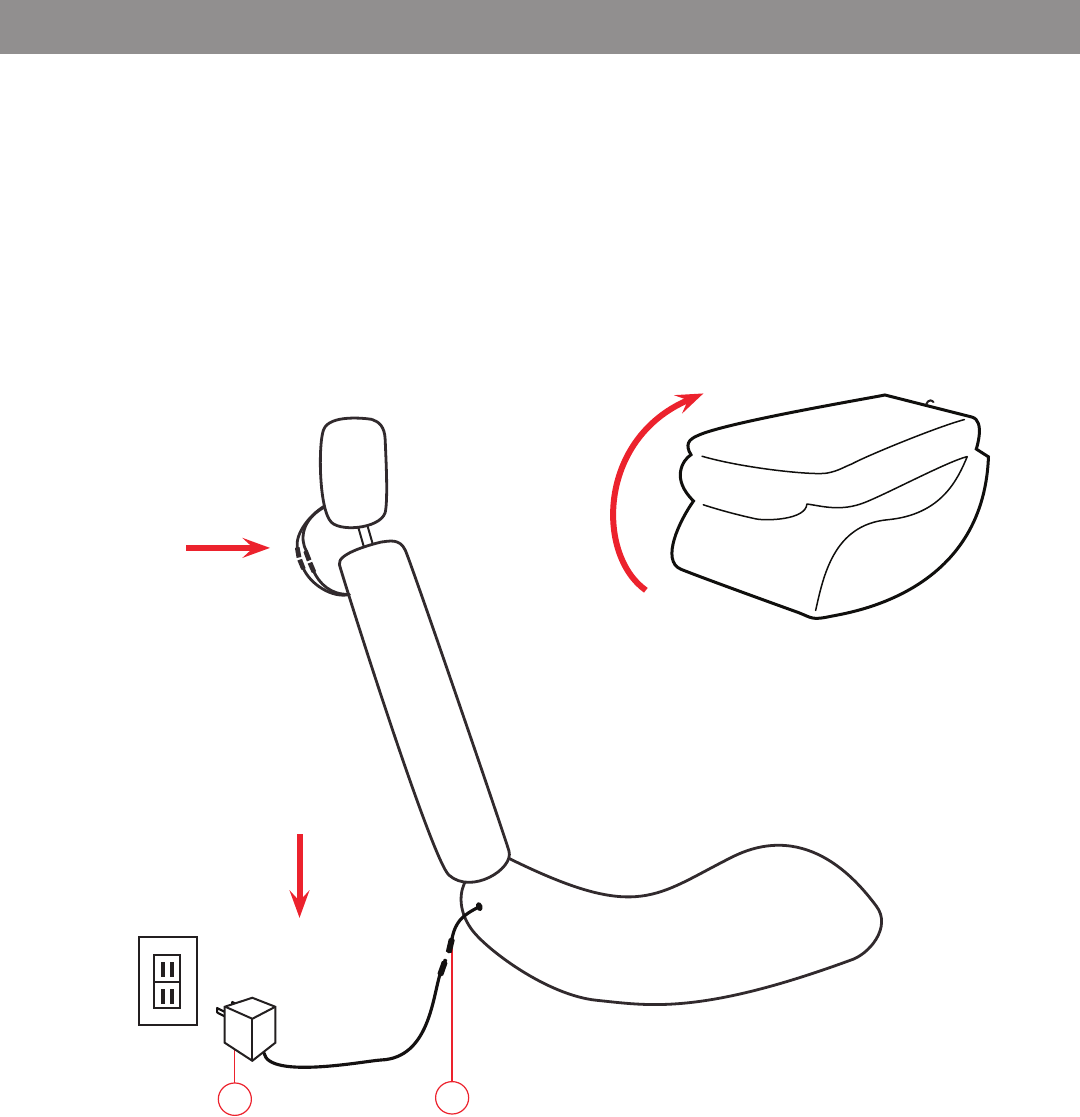

Step 1: Secure the seat back using attached HOOK & LOCK MECHANISM (5).
Step 2: Insert ADJUSTABLE HEADREST (3) into BOOMCHAIR® (1) and connect audio cords from backrest and headrest.
Step 3: Insert 12V POWER ADAPTOR (8) into the POWER RECEPTACLE (7).
Step 4: Plug 12V POWER ADAPTOR (8) into power outlet.*
Step 5: Turn BOOMCHAIR® (1) on by turning POWER SWITCH/VOLUME CONTROL clockwise.
ASSEMBLY INSTRUCTIONS
*CAUTION: Use only provided adaptor! Different voltage may cause permanent damage.
8
STEP 2
STEP 3 & 4
7
STEP 1
5

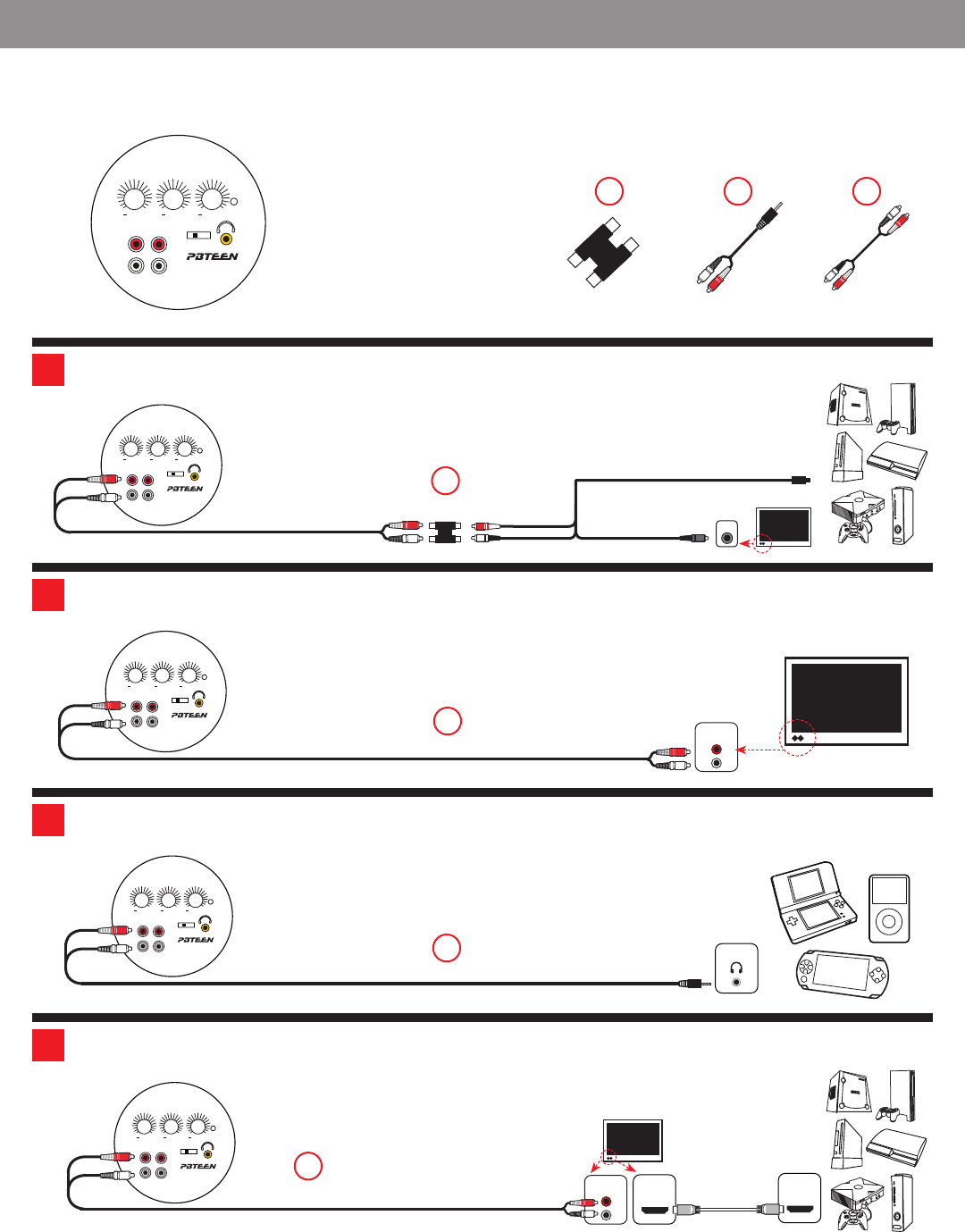

CONNECTING YOUR GAMES, MUSIC and MOVIES
DIRECT CONNECTION
CONNECTING GAME CONSOLES
4
CONNECTING TV / DVD
CONNECTING HANDHELD / MP3 / PORTABLE DEVICES
CONNECTING WHILE USING YOUR HDMI CABLE
AUDIO
OUT
HDMI
IN
TV
HDMI
OUT
• HDMI cable
not included
3
2
1
HEADPHONE
AUDIO
OUT
TV
• Cable from game console
IN TV
2a 2c
2b
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
2a
2c
2c
2c
2b
6

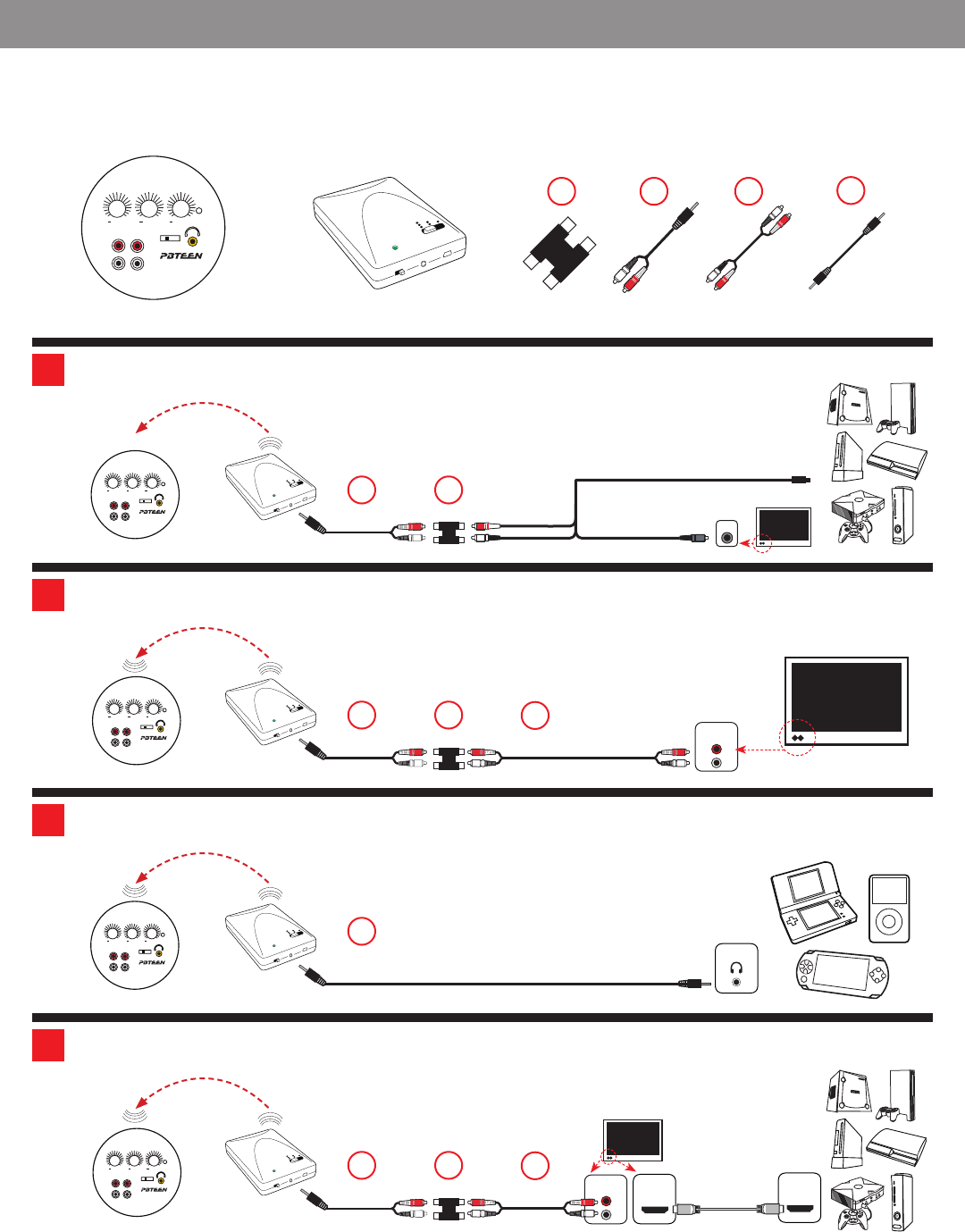

CONNECTING YOUR GAMES, MUSIC and MOVIES
WIRELESS CONNECTION
CONNECTING GAME CONSOLES
4
CONNECTING TV / DVD
CONNECTING HANDHELD / MP3 / PORTABLE DEVICES
CONNECTING WHILE USING YOUR HDMI CABLE
AUDIO
OUT
HDMI
IN
TV
HDMI
OUT
• HDMI cable
not included
2c
2a
HEADPHONE
AUDIO
OUT
TV
• Cable from game console
IN TV
3
2
1
TRANSMITTER
TRANSMITTER
2b
TRANSMITTER
2d
2c
2a
TRANSMITTER
2b
2a
TRANSMITTER
2b
2a 2c
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
2d
2b
7

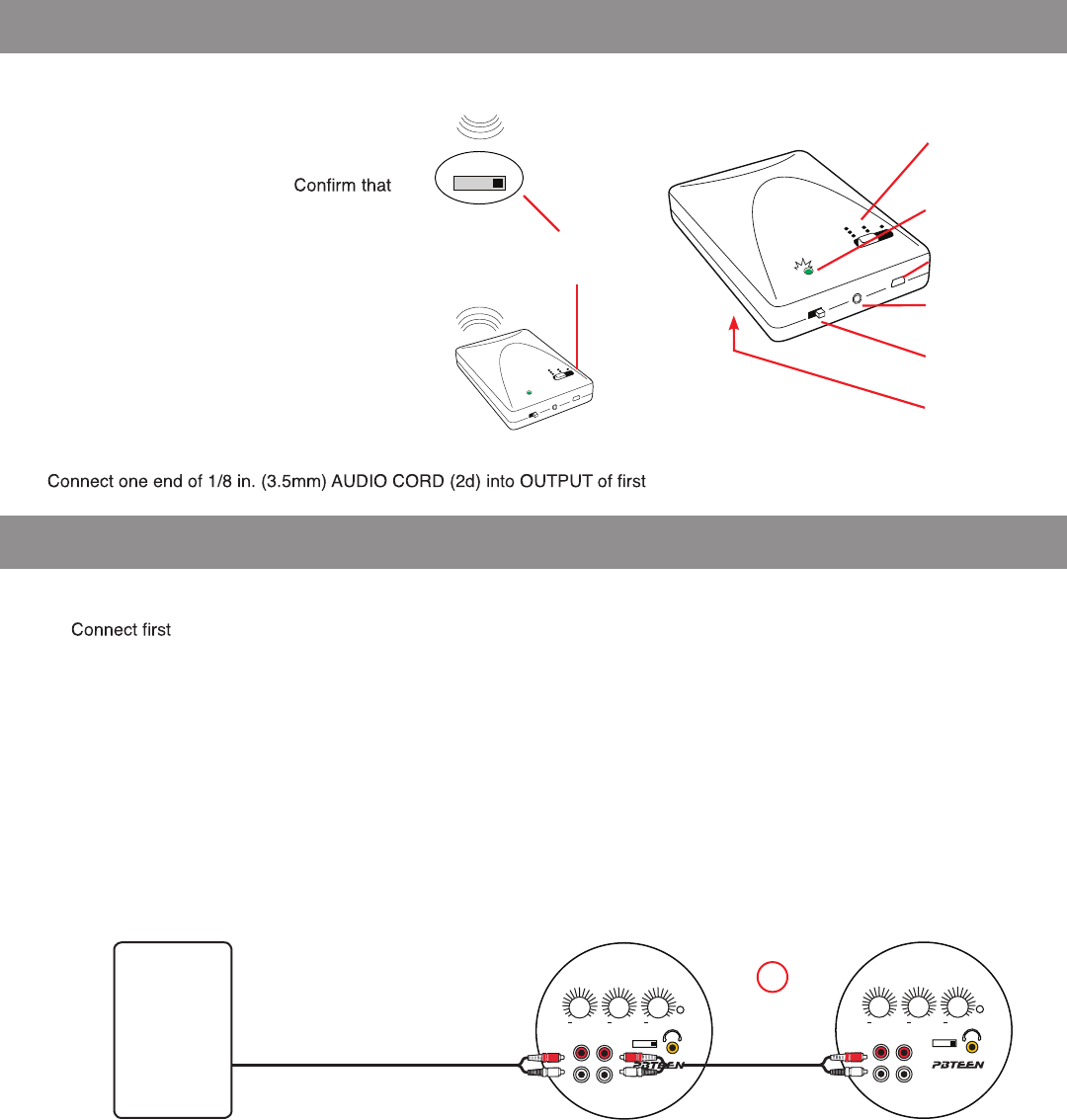

DAISY CHAINING CHAIRS TOGETHER
Step 1: BOOMCHAIR® to any media device using the Direct Connection method as described on page 5.
Step 2: BOOMCHAIR®.
Step 3: Connect other end of RCA AUDIO CORD (2c) into INPUT of second BOOMCHAIR®.
Step 4: Repeat steps 2 and 3 starting from second chair to connect more BOOMCHAIRS®.
Step 5: Turn all BOOMCHAIRS® on by turning POWER SWITCH / VOLUME CONTROL clockwise.
Up to 4 BOOMCHAIRS® can be connected when using the direct connection method.
WIRELESS CONNECTION
DIRECT CONNECTION
Step 1: Connect BOOMCHAIR® to any media device using the Wireless Method as described on page 6.
Step 2:
Step 3: Turn all BOOMCHAIRS® on by turning POWER SWITCH / VOLUME CONTROL clockwise.
Up to 4 BOOMCHAIRS® can be connected using the wireless method.
SECOND CHAIR
Connected to First Chair
FIRST CHAIR:
Connected to Media Device
2b
TRANSMITTER
TRANSMITTER
Should interference occur, switch the channel on
the WIRELESS TRANSMITTER & DASHBOARD
CONTROL PANEL to a corresponding number of
dots using the top slider bar (Fig. 1).
all cables are securely connected.
Make sure 4 AA batteries are correctly installed
in the WIRELESS TRANSMITTER and that the
power is on, as indicated by the LED (Fig. 2).
If you experience static or poor reception from
your wireless connection, you may need to select
the direct connection method to ensure the best
possible sound quality.
WIRELESS CONNECTION TIPS
Fig. 2
Power Switch
Channel
Selector
LED Power
Indicator
Fig. 1
Channel
Selector Power Port
Audio Port
Battery
Compartment
0 1 2 3
POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+POWER
INPUT OUTPUT
RR
LL
0 3 2 1
VIBRATION BASS/TREBLE VOLUME
+
+
+
Media
Device
Connect one end of RCA AUDIO CORD (2c) into OUTPUT of first
Repeat Steps 2 through 4 of the Direct Connection method to connect more BOOMCHAIRS®. OR, if using wirelessly, change the
wirelss switcher number of every BOOMCHAIR® to the corresponding number of dots on the Transmitter.
8
CLEANING/CARE INSTRUCTIONS
Fabric: Use a clean cloth to dab lightly with soap and water. DO NOT rub.
DO NOT immerse in water. DO NOT use detergent.
NOTE: PLEASE DO NOT USE ON HARDWOOD FLOORS, IT MAY CAUSE SCRATCHING.
If a problem occurs while using this product, please contact us. DO NOT open unit or attempt to repair on your own. It may result in
serious injury from electric shock and void your product warranty.
MAINTENANCE AND REPAIR
Q: Why isn’t there sound coming from any of my speakers?
A: Ensure your BOOMCHAIR® is connected as described in the Assembly Instructions. Check that the power to the unit is on and the
volume is turned up. Make sure your audio device is not set to “MUTE” and volume is turned up.
Q: Why isn’t there sound coming from one of my speakers?
A: Ensure the audio cord to the BOOMCHAIR® is securely connected as described in the Connecting sections. Make sure that both the
left and right channel audio inputs and outputs are securely connected to the BOOMCHAIR® and audio device. Make sure your audio
device is not set to “MUTE” and volume is turned up.
Q: Where can I get more information?
A: Contact www.pbteen.com or www.boomchair.com
TROUBLESHOOTING BOOMCHAIR™
This product is not manufactured or distributed by Microsoft®, the owner of the trademark Xbox™; by Nintendo®, the owner of the trademark Wii™, GameCube™, and DS™; by Sony®, the owner of the trademarks
Playstation™ PS3™, PS2™, and PSP™; or by Apple Computer, Inc., the owner of the trademark iPod™.
