Lutron Electronics 0060 Pico transmitter User Manual
Lutron Electronics Company Inc Pico transmitter
User Manual
Installation
Radio Frequency Wireless Controller
One Touch Favorite Button
Sivoia® QS wireless English
Wireless Controller Operation
1
OPEN
PRESET
CLOSE
OPEN
ADJUST
CLOSE
XXX-XXX XXX-XXX
1. Do not paint Wireless Controller.
2. Clean Wireless Controllers with a soft damp cloth only. Do not use
any chemical cleaners.
3. Do not mix LR,LRA or LRB frequency products.
4. Device uses two (2) CR 2016 batteries.
5. Meets the Society of Automotive Engineers (SAE) temperature
standards:-40°F (-40°C) to 235°F (113°C)
6. The range and performance of the Sivoia® QS Wireless system is
highly dependent on a variety of complex factors such as: Distance
between system components.Geometry of the home. Construction
of walls seperating system components or electrical equipment locate
near system components.
Important Notes:
Please read before installing.
OPEN
PRESET
CLOSE
OPEN
ADJUST
CLOSE
XXX-XXX XXX-XXX
Open:
Tap once: shades or drapes go to
open limit
Preset:
Tap once to recall a favorite shade or
drape position. The preset button can
be set up for any light level (see the
next section: Setting Preset and Favorite
Buttons on the wireless contoller
Close:
Tap once: shades or drapes go to
close limit
Raise:
Press upper white triangle button
to move shades or drapes toward
open limit.
Lower:
Press lower gray triangle button to move
shades or drapes toward close limit.
These Wireless Controllers are compatible with most Homelink equipped
vehicles. Please see the vehicle manufacturer’s instructions for
programming information. (LR prefix)
Notes:
· The wireless EDU’s must be paired with the Wireless Contoller in order for
it to operate the wireless EDU.
· Batteries are included and are pre-installed. Battery lifetime is
approximately 5 years.
System Capacity:
· Each wireless controller can be paired with as many wireless EDU’s that
are within its range
· Each wireless EDU can be paired with up to 20 wireless controllers.
Basic Programming
2
Pairing an EDU and wireless controller
Enter pairing mode
a. Press and hold the Open Limit button
on the EDU until its LED flashes green
then turns steady to enter pairing mode.
b. Press and hold the Close Limit button
on the EDU until its LED flashe green
the LED on the external antenna flashes
green.
2.1
Pairing controller to EDU
a. Simultaneously press and hold Open,
Preset, and Close buttons on the
wireless controller to be paired
(3 seconds) until the LED on the
antenna flashes green.
b. EDU will jog shade or drape back
and forth two times to confirm pairing
is complete.
2.2
Pairing additional controllers
a. Repeat step 2
2.3
Exit pairing mode
a. Press and hold Open Limit button
on the EDU until its LED flashes green
b. Press and hold Close Limit button
until LED flashes green then goes off.
2.4
OPEN
PRESET
CLOSE
OPEN
ADJUST
CLOSE
OR
Note:
For all Wireless Switches set up to a Wireless Contoller the Raise Button
move shades or drapes toward open limit. The Lower Button will produce
no change.
Symptom Solution
Shade or drape will not move using
adjustment buttons on EDU.
EDU is not powered - check EDU Power
by unplugging and re-plugging in EDU.
LED should flash for 5 seconds.
Shade or drape is obstructed on something -
Remove obstruction.
Shade or drape does not fully open or
fully close.
Limits have been set incorrectly - refer to
“Set open limit” and “Set close limit” sections.
Shade or drape is obstructed - Remove
obstruction.
IR controls will not operate shade
or drape.
IR transmitter does not have line-of-sight
to IR receiver
Out of range - move to within 40 ft (12 m)
of IR receiver
EDUs not assigned to IR receiver
IR receiver not plugged into any EDU within range
IR remote control batteries are not providing
power - replace them
Troubleshooting
3

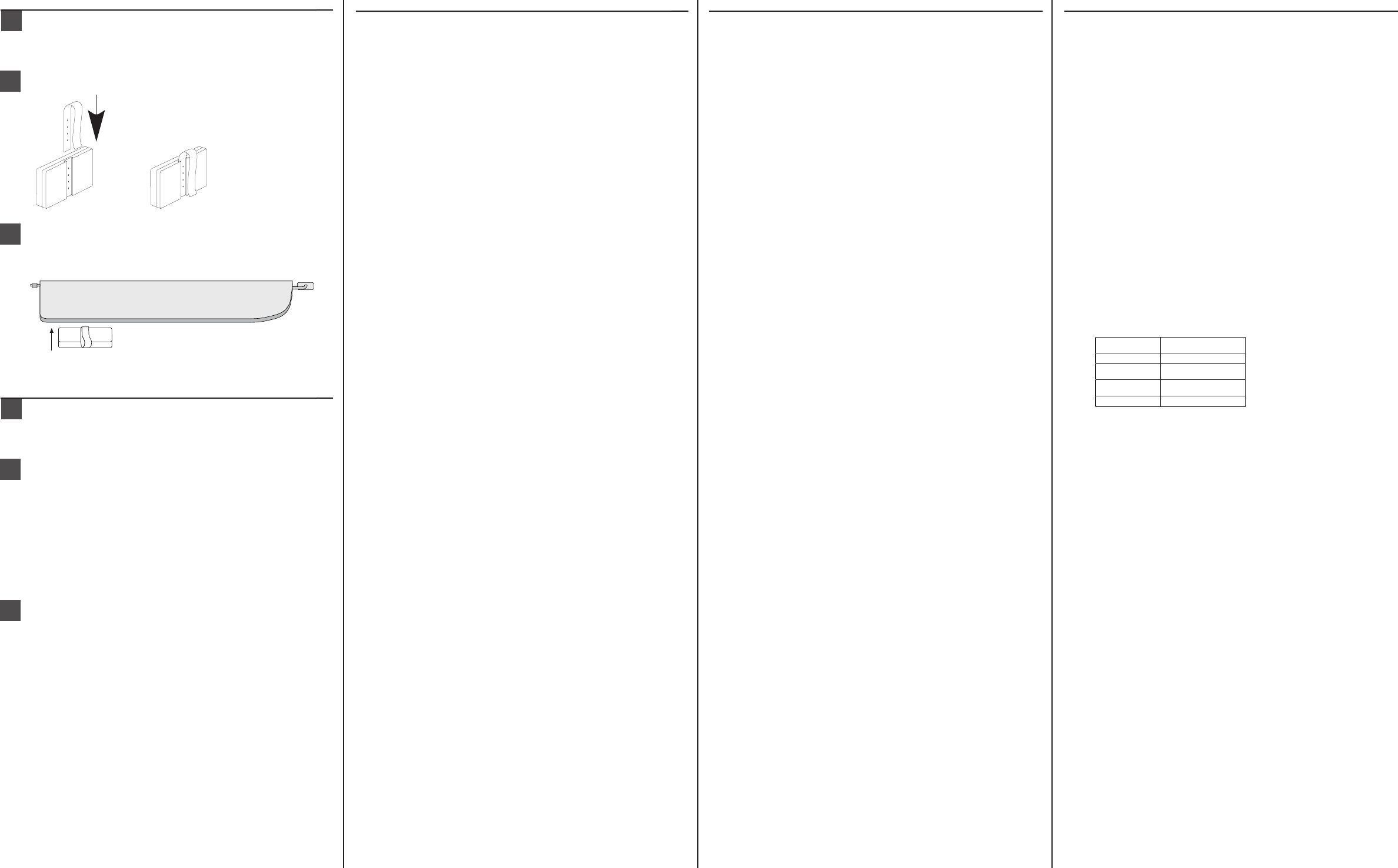

Car Visor Mounting
4
The Wireless Controller can be mounted to a vehicle’s visor, using
the supplied visor clip.
Attach the visor clip to Wireless Contoller.
4.1
Mount the Wireless Controller to vehicle’s visor.
4.2
Wall Mounting
5
The Wireless Controller can be mounted to a vehicle’s visor, using
the supplied visor clip.
Attach a wall clip to the wall using the supplied screws and wall anchors.
When Mounting the Wireless Controller horizontally, make sure that the
end stop is at the bottom. Note: Drill pilot holes for the wall anchors using
a 3/16 in drill bit.
5.1
Slide Wireless Controller onto wall clip. The wall clip slides into the channel
on the back of the Wireless Controller.
5.2
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device,pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.This equipment generates,uses and
can radiate radio frequency energy and,if not installed and used in ac-
cordance with the instructions,may cause harmful interference to radio and
television reception,which can be determined by turning the equipment off
and on.The user is encouraged to try to correct the interference by one or
more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
Note:
Changes or modifications not expressly approved by Lutron
Electronics Co.could void the user’s authority to operate this equipment.
* This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received,including interference
that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Information Technical Assistance Limited Warranty
WORLD
HEADQUARTERS
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA
18036-1299 USA
TEL: +1.610.282.3800
FAX:+1.610.282.1243
Technical support:
1.800.523.9466
or +1.610.282.6701
Toll-free: 1.888.LUTRON1
EUROPEAN
HEADQUARTERS
Lutron EA Ltd
6 Sovereign Close
London, E1W 3JF, UK
TEL: +44.(0)20.7702.0657
FAX: +44.(0)20.7480.6899
Technical support: +44.
(0)20.7680.4481
FREEPHONE: 0800.282.107
ASIAN
HEADQUARTERS
Lutron GL Ltd.
15 Hoe Chiang Road
#07-03
Singapore 089316
TEL: +65.6220.4666
FAX: +65.6220.4333
Technical support:
800.120.4491
lutronsea@lutron.com
CUSTOMER SERVICE/
ORDERING
UK +44.(0)20.7702.0657 –
09.00 - 18.00 GMT
USA +1.610.282.3800 –
08.00 - 20.00 EST
CUSTOMER SERVICE
/E-MAIL
shadinginfo@lutron.com
INTERNET:
www.lutron.com
ADDITIONAL LUTRON
SALES OFFICES:
Germany
TEL: +49.309.710.4590
FAX: +49.309.710.4591
FREEPHONE
00800.5887.6635
France
Lutron Ltc, S.A.R.L.-Paris
90 rue Villiers
92300 Levallois Perret,
France
TEL: +33.1.41.05.42.80
FAX: +33.1.41.05.01.80
FREEPHONE: 0800.90.12.18
lutronfrance@lutron.com
Spain-Madrid
TEL: +34.91.567.84.79
FAX: +34.91.567.84.78
FREEPHONE 0900.948.944
Spain-Barcelona
TEL: +34.93.496.57.42
FAX: +34.93.496.57.50
FREEPHONE 0900.948.944
Hong Kong
TEL: +852.2104.7733
FAX: +852.2104.7633
Beijing
TEL: +86.10.5877.1817
FAX: +86.10.5877.1816
Singapore
LUTRON GL Ltd. -
Singapore
15 Hoe Chiang Road
#7-03 Tower 15
Singapore 089316
TEL: +65.6220.4666
FAX: +65.6220.4333
Japan
TEL: +81.3.5575.8411
FAX: +81.3.5575.8420
www.lutron.com/shadingsolutions
USA and Canada (24 hrs/7days):
call: 800.523.9466
Other countries (8 a.m. – 8 p.m. EST)
call: +1.610.282.3800
fax: +1.610.282.3090
email: shadinginfo@lutron.com
SCOPE
This limited warranty (“Warranty”) covers the Lutron
supplied (a) Sivoia® Shade System (“Sivoia Shade
System”), (b) Sivoia Shade System (“Sivoia Shade
System”), (c) manual shade system and (d) alternating
current or a/c shade system (each of the foregoing being
a “System”). Customer acknowledges and agrees that
use of the System constitutes acceptance of all terms and
conditions of this Warranty.
LIMITED WARRANTY
Subject to the exclusions and restrictions described
below, Lutron warrants that each System will be free from
manufacturing defects from the date of shipment by Lutron
for a period of (a) one year as to the wall controls, interfaces
and system accessories of the Sivoia Shade System
(“External Sivoia® Components”) and (b) eight years as
to the other Systems and the electronic drive unit, shade
fabric and shade hardware of the Sivoia Shade System. If
any manufacturing defect exists in the External Sivoia® QS
Components, so long as Customer promptly notifies Lutron
of the defect within the one year warranty period and, if
requested by Lutron, returns the defective part(s), Lutron
will, at its option, either repair the defective part(s) or provide
comparable replacement part(s). If any manufacturing
defect exists in any of the components of a System other
than the External Sivoia Components, so long as Customer
promptly notifies Lutron of the defect within the eight year
warranty period and, if requested by Lutron, returns the
defective part(s), Lutron will, at its option, either repair the
defective part(s) or issue a credit to the Customer against
the purchase price of comparable replacement part(s)
purchased from Lutron as provided below:
Replacement parts for the System provided by Lutron or,
at its sole discretion, an approved vendor may be new,
used, repaired, reconditioned, and/or made by a different
manufacturer.
EXCLUSIONS AND RESTRICTIONS
This Warranty will be void, and Lutron and its suppliers
will have no responsibility under this Warranty, if Lutron or
its representatives cannot access any components of the
System to inspect, diagnose problems with or repair the
System or any of its components as a result of concealment
or inaccessibility of such components within a building
structure.
This Warranty does not cover, and Lutron and its suppliers
are not responsible for:
1. Damage, malfunction or inoperability diagnosed by Lutron
or a Lutron approved third party as caused by normal
wear and tear, abuse, misuse, incorrect installation,
neglect, accident, interference or environmental factors,
such as (a) use of incorrect line voltages fuses or circuit
breakers; (b) failure to install, maintain and operate
the System pursuant to the operating instructions
provided by Lutron and the applicable provisions of the
National Electrical Code and of the Safety Standards
of Underwriter’s Laboratories; (c) use of incompatible
devices or accessories; (d) improper or insufficient
ventilation; (e) unauthorized repairs or adjustments or
alterations; (f) vandalism; (g) an act of God, such as fire,
lightning, flooding, tornado, earthquake, hurricane or
other problems beyond Lutron’s control; or (h) direct
exposure to corrosive materials.
2. On-site labor costs to diagnose issues with, and remove,
repair, replace, adjust, reinstall and/or reprogram the
System or any of its components.
3. Components and equipment external to the System,
such as, non-Lutron lighting and automation systems;
building wiring audio-visual equipment; and non-Lutron
time clocks, photosensors and motion detectors.
4. The cost of repairing or replacing other property that is
damaged when any System does not work properly, even
if the damage was caused by the System.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS
WARRANTIES. ALL IMPLIED WARRANTIES,
INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO EIGHT
YEARS FROM THE DATE OF SHIPMENT, EXCEPT
THAT SUCH IMPLIED WARRANTIES ARE LIMITED TO
ONE YEAR FROM THE DATE OF SHIPMENT AS TO
THE EXTERNAL Sivoia COMPONENTS.
NO LUTRON AGENT, EMPLOYEE OR
REPRESENTATIVE HAS ANY AUTHORITY TO BIND
LUTRON TO ANY AFFIRMATION, REPRESENTATION
OR WARRANTY CONCERNING THE SYSTEMS.
UNLESS AN AFFIRMATION, REPRESENTATION OR
WARRANTY MADE BY AN AGENT, EMPLOYEE OR
REPRESENTATIVE IS SPECIFICALLY INCLUDED
HEREIN, OR IN STANDARD PRINTED MATERIALS
PROVIDED BY LUTRON, IT DOES NOT FORM A PART
OF THE BASIS OF ANY BARGAIN BETWEEN LUTRON
AND CUSTOMER AND WILL NOT IN ANY WAY BE
ENFORCEABLE BY CUSTOMER.
IN NO EVENT WILL LUTRON OR ANY OTHER PARTY
BE LIABLE FOR EXEMPLARY, CONSEQUENTIAL,
INCIDENTAL OR SPECIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO DAMAGES FOR PERSONAL
INJURY, FAILURE TO MEET ANY DUTY, INCLUDING
OF GOOD FAITH OR REASONABLE CARE,
NEGLIGENCE, OR ANY OTHER LOSS WHATSOEVER),
NOR FOR ANY REPAIR WORK UNDERTAKEN
WITHOUT LUTRON’S PRIOR WRITTEN CONSENT
ARISING OUT OF OR IN ANY WAY RELATED TO
THE INSTALLATION, DEINSTALLATION, USE OF OR
INABILITY TO USE THE SYSTEM OR OTHERWISE
UNDER OR IN CONNECTION WITH ANY PROVISION
OF THIS WARRANTY, EVEN IN THE EVENT OF THE
FAULT, TORT (INCLUDING NEGLIGENCE), STRICT
LIABILITY, BREACH OF CONTRACT OR BREACH OF
WARRANTY OF LUTRON OR ANY OTHER PARTY,
AND EVEN IF LUTRON OR SUCH OTHER PARTY WAS
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOTWITHSTANDING ANY DAMAGES THAT
CUSTOMER MIGHT INCUR FOR ANY REASON
WHATSOEVER (INCLUDING, WITHOUT LIMITATION,
ALL DIRECT DAMAGES AND ALL DAMAGES LISTED
ABOVE), THE ENTIRE LIABILITY OF LUTRON AND
OF ALL OTHER PARTIES UNDER THIS WARRANTY
ON ANY CLAIM FOR DAMAGES ARISING OUT OF
OR IN CONNECTION WITH THE MANUFACTURE,
SALE, INSTALLATION, DELIVERY, USE, REPAIR, OR
REPLACEMENT OF THE SYSTEM, AND CUSTOMER’S
SOLE REMEDY FOR THE FOREGOING, WILL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMER
FOR THE SYSTEM. THE FOREGOING LIMITATIONS,
EXCLUSIONS AND DISCLAIMERS WILL APPLY TO
THE MAXIMUM EXTENT ALLOWED BY APPLICABLE
LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL
PURPOSE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU.
WARRANTY CLAIMS, TECHNICAL ASSISTANCE
AND WARRANTY INFORMATION.
Contact the Lutron Technical Support Center at the
numbers provided below or your local Lutron sales
representative with questions concerning the installation
or operation of the System or this Warranty, or to make a
warranty claim. Please provide the exact model number
when calling.
The product may be covered under one or more of the
following U.S. patents: D456,783; and corresponding
patents pending. U.S. and foreign patents pending.
Lutron and the Sunburst logo are registered trademarks,
and Sivoia is a trademark of Lutron Electronics Co., Inc.
Worldwide Headquarters | USA
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299 USA
TEL: 1.610.282.3800
FAX: 1.610.282.3090
Technical Support: 1.800.523.9466 or 1.610.282.6701
Toll Free: 1.888.LUTRON
EMAIL: shadinginfo@lutron.com
WEB: www.lutron.com/shadingsolutions
Europe Headquarters | United Kingdom
Lutron EA Ltd
6 Sovereign Close
London, E1W 3JF, UK
TEL: +44.(0)20.7702.0657
FAX: +44.(0)20.7480.6899
Technical Support: +44.(0)20.7480.6899
FREEPHONE: 0800.282.107
Asian Headquarters | Singapore
Lutron GL Ltd
15 Hoe Chiang Road
#07-03
Singapore, 089316
TEL: +65.6220.4666
FAX: +65.6220.4333
Technical Support: 800.120.4491
©2009 LUTRON Electronics Co., Inc.
P/N 045-170 REV. A
Number of years from date
of shipment
Percentage of cost of
replacement parts credited by Lutron
Up to 2 100%
More than 2 but
not more than 5 50%
More than 5 but
not more than 8 25%
More than 8 0%
