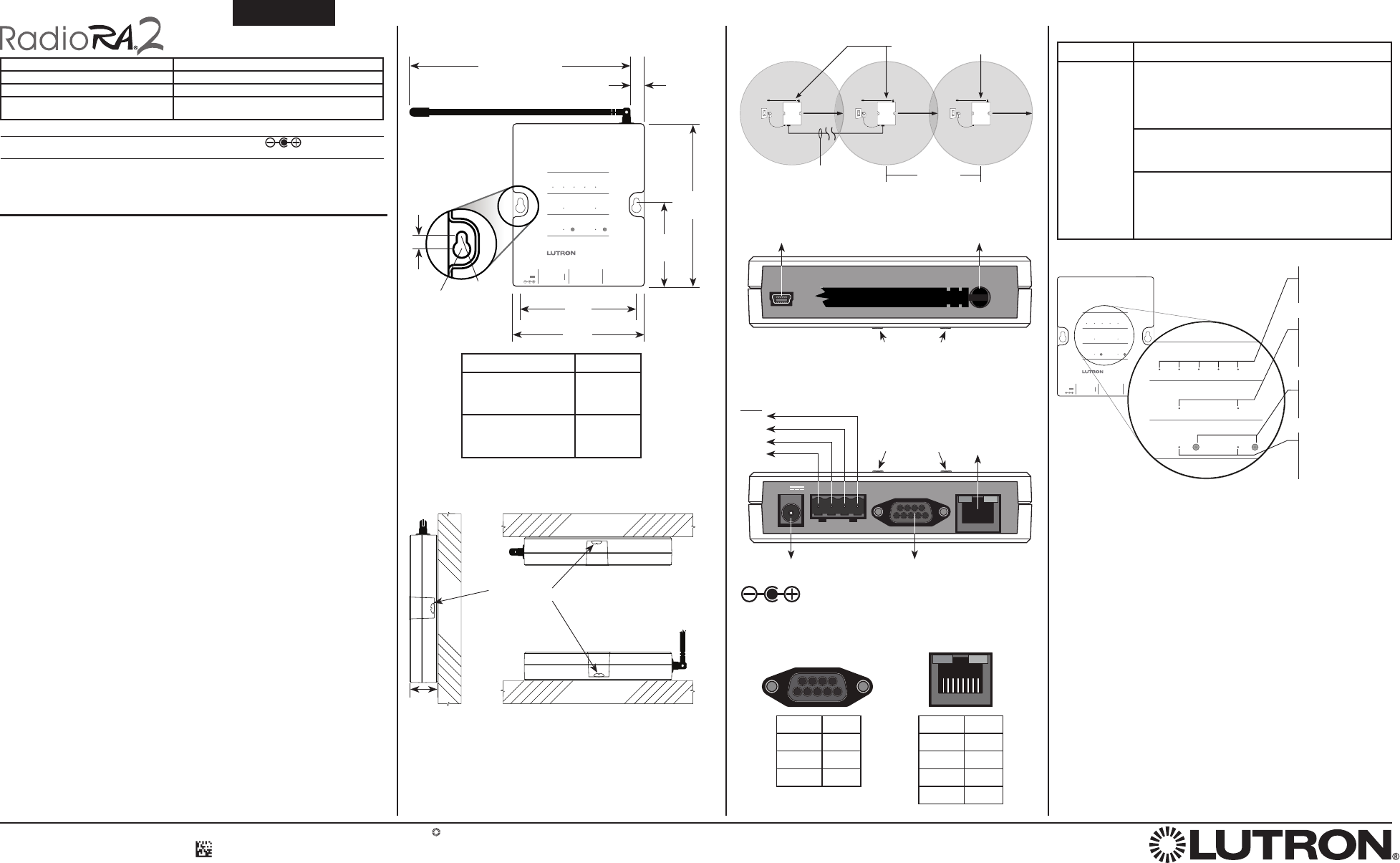

Lutron Electronics 0103 Radio Ra Main Repeater User Manual 044300b RadioRA 2 Main Repeater Install
Lutron Electronics Company Inc Radio Ra Main Repeater 044300b RadioRA 2 Main Repeater Install
Contents
- 1. User manul compliance
- 2. User manual Installation
User manual Installation
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
USB
Integrate
Program / Integrate
RS232 Ethernet
Main Repeater
Wall
#6 (M3) screw
recommended
(2 included)
Vertical
Ceiling
Horizontal
1.06
(26.9)
Level Surface
0.19
(4.8)
dia.
Use these instructions to install the model number listed above.
For system Setup Guide and tools visit: www.lutron.com/radiora2
Features
• Supports system setup and ensures error-free communication between system
components.
• Add up to (4) Auxiliary Repeaters to extend range for larger system applications.
• Test button - enters the system diagnostic mode.
- Verify that the Repeaters in a system are communicating effectively.
• Add button - enters the system address mode.
- Allows new devices to be easily added into a system.
• RS485 port to connect to other Repeaters through a wired link (daisy-chain).
• RS232 port for integration.
• Ethernet port for integration and PC connectivity.
Important Notes
Environment
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity,
non-condensing. Indoor use only.
Codes
Install in accordance with all local and national electrical codes.
Cleaning
To clean, wipe with a clean damp cloth. DO NOT use any chemical cleaning solutions.
DC Adapter Power
NOTICE - Using a DC adapter not rated at the proper specifications could damage the
Repeater and possibly overheat the DC adapter. Use only the DC adapter that meets the
specification listed above.
For California residents only
The batteries in these devices contain Perchlorate Material – special handling may apply.
For more information visit www.dtsc.ca.gov/hazardouswaste/perchlorate
RF Device Placement
All dimmers, switches, keypads and shades / draperies must be located within 30 ft
(9 m) of a Repeater. All Repeaters must be within 60 ft (18 m) of another Repeater.
Programming
For programming instructions, see the system Setup Guide included with the Main
Repeater or visit the website listed above.
Installation
1. Find a suitable location for the Main Repeater. For more information regarding the proper
placement of a Main Repeater in a system see the system Setup Guide.
2. Mount vertically or horizontally, as shown in the Mounting Diagram, using two #6 (M3)
screws (included). When mounting, allow 7 in (177.8 mm) clearance for the antenna and
ensure convenient access to the power plug. In order to achieve proper RF performance,
do not mount unit in a metal enclosure.
3. Attach the DC adapter cord to the power jack on the Main Repeater and insert the DC
adapter plug into a receptacle.
Technical Assistance:
U.S.A. / Canada: 1.800.523.9466
Mexico: +1.888.235.2910
Brazil: +55 11 3257 6745
United Kingdom: +44.(0)20.7680.4481
India: +91.12.4471.1900
United Arab Emirates: +971.4.299.1224
China: 10.800.120.1536
Singapore: 800.120.4491
Other Countries: +1.610.282.3800
