Description
The Ketra VER006 2.4GHz ZigBee Module (Ketra Part Number: 830-000057-xx) is
utilized in Ketra lighting and control systems. The module is used for
communication over private wireless network and not used for other commercial
purposes not designated by Ketra.
Ketra, Inc. designed the ZigBee Module compliant with the IEEE 802.15.4 standard.
The module is based upon the EM385x ZigBee SOC. The module’s key application is
for use with Ketra lighting control systems.
The Silicon Laboratories EM358x is a fully integrated System-on-Chip that
integrates a 2.4 GHz, IEEE 802.15.4-2003-compliant transceiver, 32-bit ARM®
CortexTM-M3 microprocessor, flash and RAM memory, and peripherals of use to
designers of ZigBee-based systems.
The transceiver uses an efficient architecture that exceeds the dynamic range
requirements imposed by the IEEE 802.15.4-2003 standard by over 15 dB. When
operating on channel 26, the radio transmit power shall be set no higher than
+10dBm. When operating on channels 11-25 the transmit power may be set as high
as +20dBm. The integrated receive channel filtering allows for robust co-existence
with other communication standards in the 2.4 GHz spectrum, such as IEEE 802.11-
2007 and Bluetooth. The integrated regulator, VCO, loop filter, and power amplifier
keep the external component count low.
The Zigbee Module uses a FEM from RFMD. The RF6525 FEM integrates the PA plus
harmonic filter in the transmit path and the LNA with bypass mode in the receive
side. It also integrates a diversity switch that is connected to PCB antenna and to
RFOUT castellation pin of the edge 33-pin connector. Antenna designs that use the
Aux RFOUT must have a gain of less than 6dBi.
The Zigbee Module communicates over wireless network to control the color point
and intensity (among other items) of the end product lamp and/or luminaire. The
Zigbee module can be designed into various end products for communication needs.
Examples are Ketra S38 lamp, Keypad wireless controller and Satellite controller.
Software and firmware are defined by Ketra per product as required.
The ZigBee Module is intended to interface with compatible Ketra products and is
powered and controlled per manufacturers recommended operating conditions.
Title
Ketra VER006 2.4GHz ZigBee Module - User Manual
Size
A
Ketra Part Number
830-000057-xx
Rev
B
Date
July 20, 2015
Sheet
3 of 7
Electrical Requirements
ABSOLUTE MAXIMUM RATINGS
Description
Ketra ZigBee Module
Unit
Min
Max
Power Supply Voltage (VDD)
-0.3
3.6
VDC
Voltage on any I/O Line
-0.3
VDD + 0.3
VDC
Storage Temperature Range
-40
125
°C
Reflow Soldering Temperature
–
260
°C
Note: Exceeding the maximum ratings may cause permanent damage to the module or devices.
RECOMMENDED OPERATING CONDITIONS
Description
Ketra ZigBee Module
Unit
Min
Typ
Max
Power Supply Voltage (V
DD
)
2.1
3.3
3.6
VDC
Input Frequency
2405
–
2480
MHz
Ambient Temperature Range
-40
25
85
°C

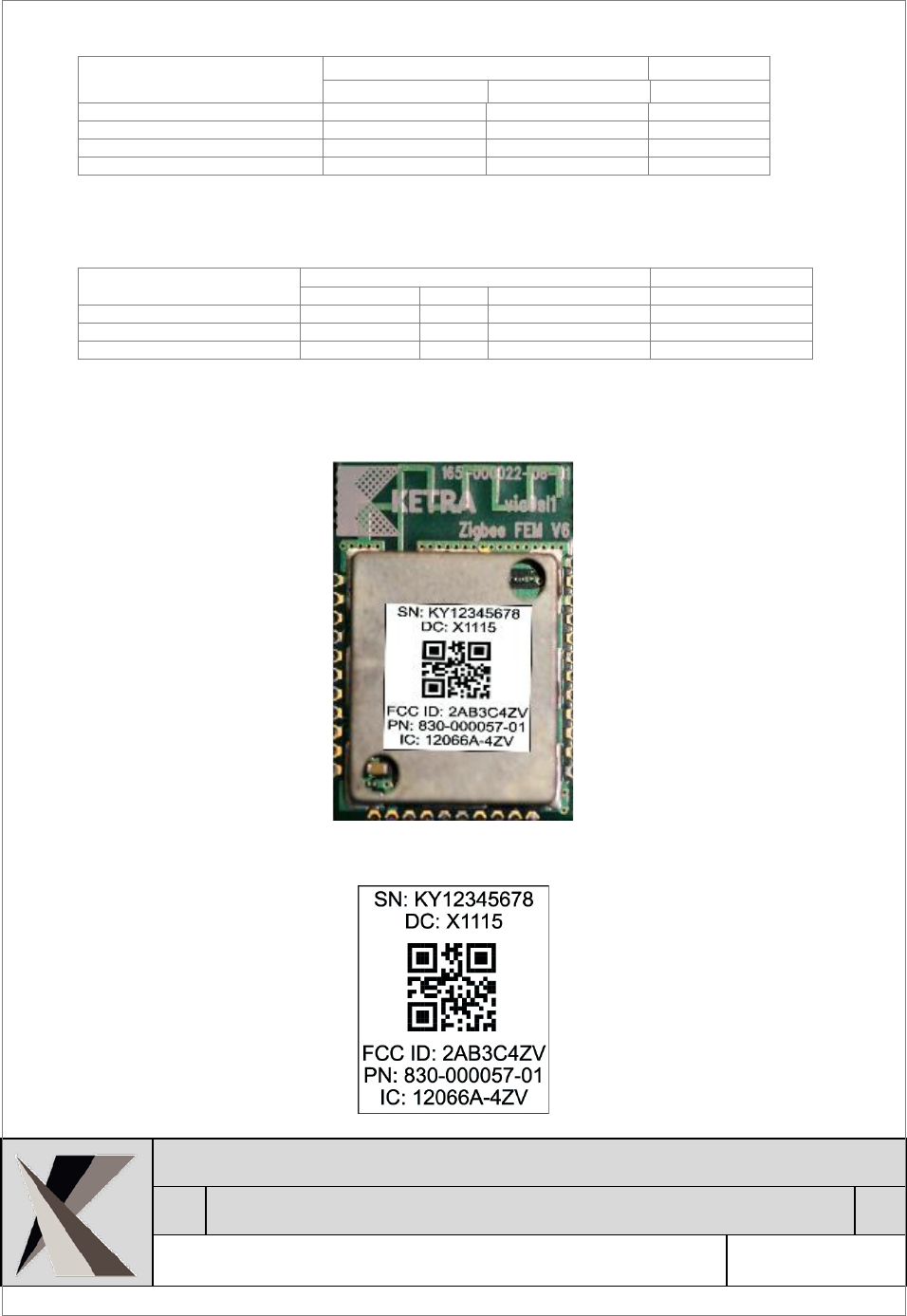

Device Label
Figure 1 Device Label
Title
Ketra VER006 2.4GHz ZigBee Module - User Manual
Size
A
Ketra Part Number
830-000057-xx
Rev
B
Date
July 20, 2015
Sheet
4 of 7
FCC ID
FCC ID: 2AB3C4ZV
Title
Ketra VER006 2.4GHz ZigBee Module - User Manual
Size
A
Ketra Part Number
830-000057-xx
Rev
B
Date
July 20, 2015
Sheet
5 of 7
AGENCY CERTIFICATIONS
FCC Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by Ketra could void the user's authority
to operate the equipment.
40 mm Separation Distance
To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure,
the antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 40 mm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
OEM Responsibility to the FCC Rules and Regulations
The VER006 2.4GHz ZigBee Module has been certified per FCC Part 15 rules for integration
into products without further testing or certification. To fulfill the FCC certification
requirements, the OEM of the Module must ensure that the information provided on the
Label is placed on the outside of the final product. The Module is labeled with its own FCC
ID Number. If the FCC ID is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label
referring to the enclosed module. This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: 2AB3C4ZV” or “Contains FCC ID: 2AB3C4ZV”
The OEM of the VER006 2.4GHz ZigBee Module must only use the approved antenna, (PCB
Trace Antenna) that has been certified with this module. The OEM of the VER006 2.4GHz
ZigBee Module must test their final product configuration to comply with Unintentional
Radiator Limits before declaring FCC compliance per Part 15 of the FCC rules.
