TALONCV001UserManual

MONTAGESYSTEMS,INC.

65ENTERPRISE,ALISOVIEJO,CA92656

2



Contents

1Specification..............................................................................................................................3

2Installation.................................................................................................................................4

3LED’s..........................................................................................................................................5

4Caution......................................................................................................................................6



TALONCV001UserManual

MONTAGESYSTEMS,INC.

65ENTERPRISE,ALISOVIEJO,CA92656

3



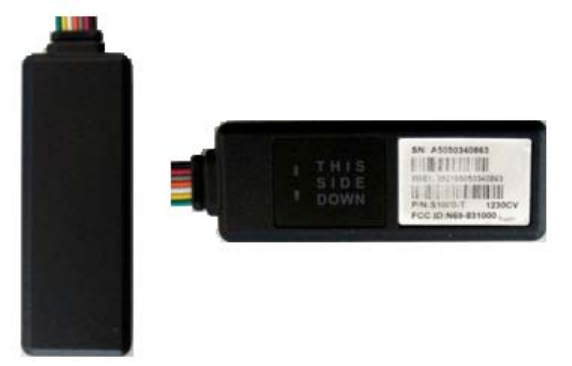

1 Specification

 CDMA20001x800/1900MHz;GPS

 Voltage:12VDCInput（1Acurrent）

 Dimension:86.7(L)*30.8(W)*10.7(H)mm

 Weight:75g

 OperationTemperature:‐40°Cto85°C

 StorageTemperature:‐50°Cto+100°C

 OperationHumidity:20%to90%

 StorageHumidity:10%to95%

 Altitude:‐500to+18,000m

 GPS:L1‐band(1.57542GHz)

TALONCV001UserManual

MONTAGESYSTEMS,INC.

65ENTERPRISE,ALISOVIEJO,CA92656

4



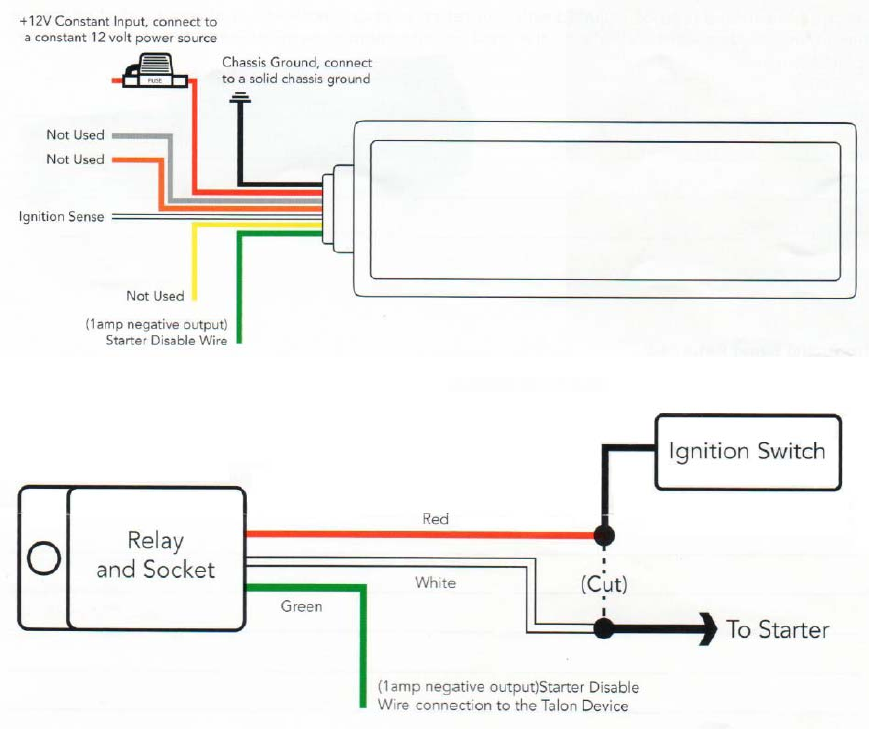

2 Installation





TALONCV001UserManual

MONTAGESYSTEMS,INC.

65ENTERPRISE,ALISOVIEJO,CA92656

5



3 LED’s

TwoLEDstatusindicatorsareprovidedtoverifycorrectinstallationandoperation.

ThestatusLEDsarecolorcodedanddirectlyconveythestatusoftheCDMAandGPS

subsystemsasdescribedinthetablebelow.Theirvalidoperationalsoindicates

operationalstatusandpower.



LED Function Status

Red GPS On:GPSsatellitesacquiredand

Locked

FlashSlow:GPSsatellitesearch

isinprogress

Off:NopowerorGPS

subsystemfault

Green CDMA/CDMA

Connection

On:IndicatesCDMA

connectionismade

FlashSlow:CDMAsubsystem

initializedbutnoconnection

FlashFast:CDMAinitialization

inprocess

Off:NopowerorCDMA

subsystemfault

TALONCV001UserManual

MONTAGESYSTEMS,INC.

65ENTERPRISE,ALISOVIEJO,CA92656

6



4 Caution



Thedevisecannotbeusedwithin20cmofanypersonsandmustnotbeco‐located

within20cmofothertransmitterantennas.


