1 Introduction
The LTE-V and derivatives are self-contained vehicle tracking device that combines GPS
location with LTE CAT1 cellular connectivity. It is primarily a location reporting device that
responds to requests (user, server) and events (timers, geo-fences). Data reports consist of a
single record that contains all location data and system status.
The device comes pre-configured from the factory. It is ready to use. The LTE-V appears to a
user or a server application as an endpoint device. It can be queried, updated and configured
either through a serial connection, an over the air IP connection, or through SMS messaging.
The LTE-V presents itself over these connections as an enhanced cellular modem with attached
functional elements. These elements include:
• GPS location engine
• Accelerometer
• Input/outputs dedicated for ignition, relay, buzzer, and general purpose
• Serial UART port
• Timers
• Watchdog lockup protection
• Power management
• Event reporting
• Voltage monitoring
Access to these elements and general purpose interfaces is done through an extended AT
command set. Configuration parameters are stored to flash memory and are automatically used
on the next power up event. For more details, please reference the AT Command document.

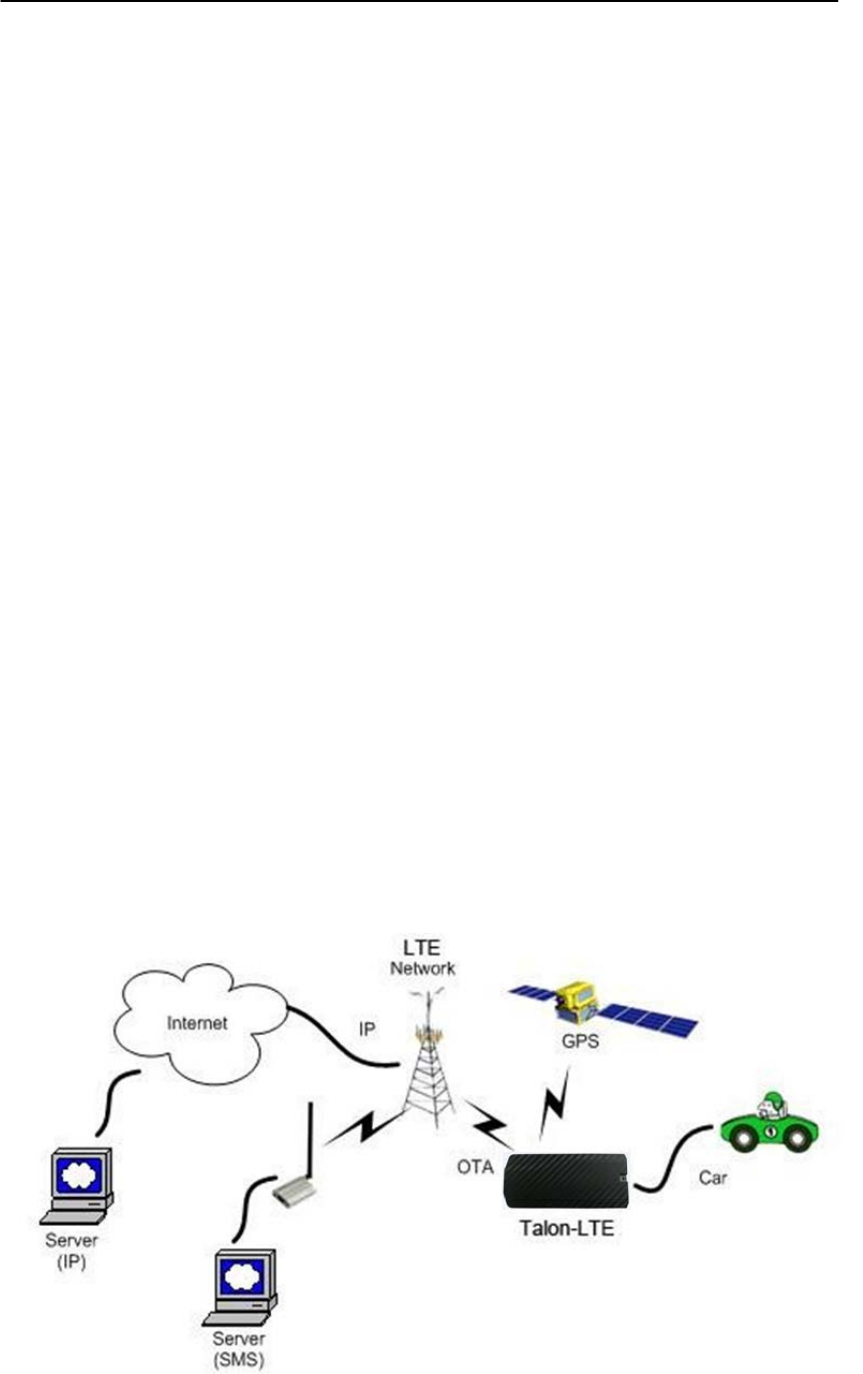

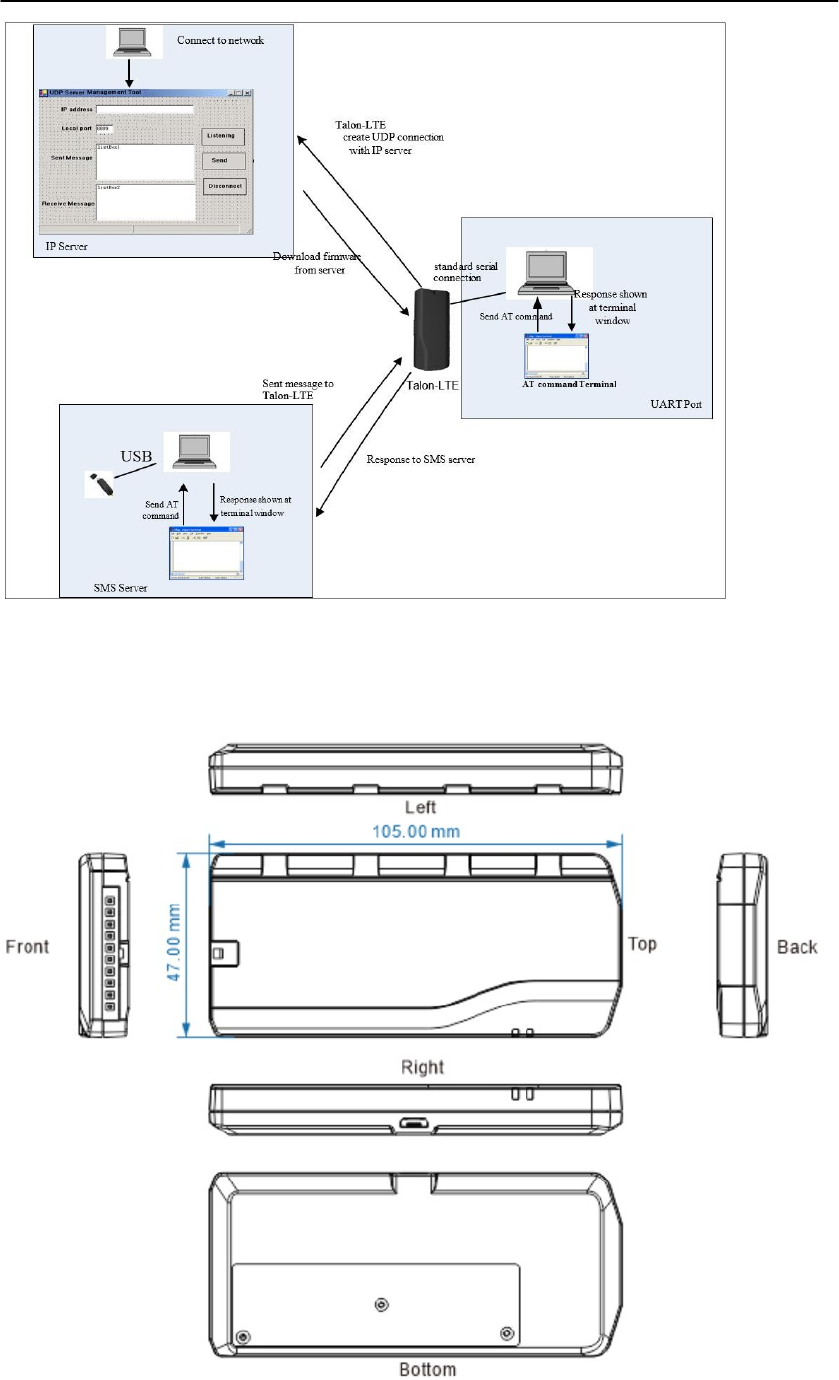

Diagram
This product is designed based on the Sequans Communications VZ120 Q (4G LTE CAT 1, wireless
© 2017 M-Labs Technologies LLC
5 / 15
data/SQN3223) b
aseband module, which includes an ARM CPU, 4M serial flash,
LTE_B2&B4&B12 RF transceiver, and triple-band RF front end circuit.
Antennas for cellular and GPS are internal to the device.
2 Hardware Design
2.1 Basic Hardware
Items
Requirement
VZ120Q Baseband Module
Based on SQN3223 baseband chipset and
SQN3241 RF 4G Transceiver
Cellular Network Interface
Support for LTE B13 and B4
Frequency
B4(MHZ): TX(1710-1755) RX(2110-2155)
B13(MHZ): TX(777-787) RX(746-756)
Antenna
Internal Dual Antennas
（
Main & Diversity
）
[B4&B13]
GPS Antenna
Dedicate high performance ceramic antenna
UIM requirement
Support
：
2FF SIM Interrupt Mode
No Support：Hot Plug/Unplug
Battery Monitor
Internal analog input
Build in battery manager
Yes
Interface
Debug UART
Application UART
USB
12V DC Input
（
1A current
）,
Ground
Relay Drive (12V Output ,500mA current)
Dedicated Output for buzzer control
Ignition Input
GPIO
Dedicate Timers
Yes
Watchdog
External HW via MCU
Motion Detect
Supported
（
GPS/G-Sensor
）
LED
2 LED Supported
1- RED; 1- Green
Battery
Build in battery
（
80MAH Lion
）
Working Time
4 hours
Power switch
No
Power Cable color
10 colors
Power Cable connector type
10-pin connector
Power Consumption
< 5Watts
The LTE-V provides support for specialized hardware features through extended AT commands.
The features supported include the following:
© 2017 M-Labs Technologies LLC
6 / 15
GPS
GPS location functionality is provided by the device GPS receiver. NMEA GPS records can be
extracted in real time from the unit via the UART connection using special debug commands that
are outside the scope of this document.
GPIO
One dedicated input, two dedicated outputs, and one general purpose IO are presented to the
external
environment
on the main connector. They are capable of providing system interrupts to
generate a report or drive logic levels to external devices. These lines are 2.8V logic level and are
16V tolerant. These pins default to input and are pulled down representing 0 when disconnected.
They should be asserted to a known value if used.
LED’s
Two LED status indicators are provided to verify correct installation and operation. The status
LEDs are color coded and directly convey the status of the cellular and GPS subsystems as
described in the table below. Their valid operation also indicates operational status and power.
LED
Function
Status
Red
GPS
On: GPS satellites acquired and Locked
Flash Slow: GPS satellite search is in progress
Off: No power or GPS subsystem fault
Green
Cellular
Connection
On:
Indicates LTE connection is made
Flash Slow: LTE subsystem initialization in progress
Flash Fast:
LTE initialization but no data connection available
Off: No power or LTE subsystem fault
The LTE-V provides user control allowing the LEDs to be extinguished once installation is
verified. This feature reduces power and further conceals the LTE-V Tracker from untrained
parties wishing to defeat its operation.
UART
There are two UART’s provided. A debug UART port is provided for AT commands, data
interaction and optionally for application specific control. A second, application UART is
provided to be used as an expansion port for sensors and other peripherals
USB
The USB port is provided for provisioning or debug.
Relay Driver
A 500mA sink capable output pin is provided. This pin is meant to drive a relay coil indented to
interrupt the starter solenoid relay for the ignition circuit to a car.
© 2017 M-Labs Technologies LLC
7 / 15
Power and Battery
The battery monitor is internal analog input scaled such that the DC value of the power input
pin to the LTE-V system is measured. This value is scaled to span the most significant 8 bits of
the A/D and consequently covers a scale from 0 to 25.5 Volts.
Timers
Timers resident on the baseband chip generate periodic interrupts for power down wakeup,
watchdog support, periodic report generation and other timer related functions.
Watchdog
SQN3223 chipset provides internal software Watchdog. Also the LTE-V includes an MCU that
acts as a failsafe external watchdog. The MCU power cycles the system, if no activity is
detected for 1 hour.
Accelerometer
The accelerometer can be used for motion detection and driver behavior monitoring.
2.2 Basic RF Performance
Items Requirements
Remark
TRP free space B4/B13: >= 20 dBm TRP free space
TIS free space
Main: <= -91dBm
Div: <= -88dBm
TIS free space
Antenna loss <= -3dB TRP-TX Power Conducted
Antenna Loss
<= -3dB
RX receive sensitivity conducted
– TIS
Board RF Specification
LTE_B4 RX
B4 Frequency range
2110-2155MHZ
Sensitivity
-99.5dBm (10MHZ_50RB_Downlink)
Dynamic range
-23～-99.5dBm
LTE_B4 TX
B4 Frequency range
1710MHz～1755MHz
Maximum Frequency error
±10Hz
Maximum output power
23dBm
Minimum control output power
<-40dBm
ACLR UTRA2: 46.48 UTRA1: 41.21 E-UTRA1:39.23
UTRA2: 43.87 UTRA1: 40.51 E-UTRA2:38.05
OBW
8.87MHZ (10MHZ Nominal)
IQ OFFSET
< -55.6dbc
© 2017 M-Labs Technologies LLC
8 / 15
EVM
<3%
LTE_B13_RX
Frequency range
746MHz ~ 756MHz
Sensitivity
-100dBm (10MHZ_50RB_Downlink)
Dynamic range
-23 ~ -100dBm
LTE_B13 _TX
Frequency range
777MHz ~ 787MHz
Maximum Frequency error
±10Hz
Maximum output power
23dBm
Minimum control output power
<-40dBm
ACLR UTRA2: 45.48 UTRA1: 41.41 E-UTRA1:39.43
UTRA2: 44.87 UTRA1: 41.51 E-UTRA2:38.25
OBW
8.87MHZ (10MHZ Nominal)
IQ OFFSET
< -54.7dbc
EVM
<3%
GPS
Frequency Support
L1-band (1.57542GHz)
Channels: 210 PRN， 66 Search， 22 Simultaneous
tracking
Sensitivity
Sensitivity (UHIS):
Tracking: -156dBm
Reacquisition: -153dBm
Acquisition: -144dBm
Tracking Time Requirement
Acquisition time:
Hot: <2s
Warm: <15s
Cold: <60s
Reacquisition: 2s - 10s Depends on signal level
2.3 Certification and Safety
Items
Requirement
Drop Design
1.2 meter 6 direction standard drop test
Temperature Range
-20 to 40°C Operation
-30 to +80° C Storage
Humidity:
20% to 90% Operation
10% to 95% Storage
Altitude:
-500 to +18,000m
Vehicle ISO Test
ISO7637-2-2004; ISO7637-3-2007; ISO10605-2008;
ISO16750-2-2010
FCC Certification
FCC 47 CFR Part 22 and Part 24
Other Certifications
Industry Canada (optional)
ESD Requirement
10KV non-Conductive
Operator Certifications Verizon
© 2017 M-Labs Technologies LLC
11 / 15
3 Software Features
3.1 Basic Software
Items
Requirement
Network Interface
LTE B4, B13
IP Stack
IPV4/IPV6
Upgrade Method
Remote update/ PC tool
Remote Update
Supported – including OMA DM
Power Modes
Supported
AT Commands
Supported
Report
Supported
:
3000 records
Drivers
GPIO
，
LED
，
GPS
，
UART, USB Accelerometer
GPIOs
Interrupt for Ignition Status, Buzzer, Relay
LEDs
GPS Status, Network Status
Watch Dog
Supported
Reset
Soft reset, hard reset, GPS reset, RF reset
Startup Banner
Supported
3.2 Remote Update
The LTE-V supports OTA field upgrades of the resident application. An over the air
TFTP
(Trivial File Transfer Protocol) connection is made over a
n IP
connection. A replacement file is
then transferred from a server to the LTE-V and that file replaces the previous application
image. Additionally the whole stack can be updated using an OMA- DM protocol.
3.3 Power Modes
The LTE-V device supports several power modes that are set by AT commands. In full power
mode the GPS is active and the cellular subsystem will maintain a persistent cellular
connection whenever service is available. IP connection is maintained according to the
configuration of the device.
The device can be put in low power mode whenever it runs on a backup battery or if the external
battery is low or if it is not moving. In low power mode the GPS is not running and the LED’s
are off. The device would return to full power whenever an event occurs that triggers a report.
Those events include:
• Periodic report
• GPIO change
• IP change
• Battery threshold
• Heartbeat
• Watchdog
© 2017 M-Labs Technologies LLC
12 / 15
• Power-up
• Ignition
• Trip start and stop
Any hardware or software reset will return the device to full power mode.
3.4 AT Commands
Extended AT commands are specific to the LTE-V device. They are closely based on commands
that are as similar as possible industry common devices and are essentially subsets of standard
LTE-V commands. Native AT commands supported by the SQN3223 modules are also available
via the serial and USB interfaces.
Command Summary
The following commands are specific to the LTE-V. The commands listed are intended to be
similar to counterparts found in other tracking products by the same vendor.
1. AT+IONAA: Set append mode
2. AT+IONACK: Set acknowledgement mode
3. AT+IONAPN: Set APN
4. AT+IONBIN: Read the factory core software version (read only)
5. AT+IONBZ: Buzzer setting
6. AT+IONCV: Configuration version
7. AT+IONDI: Set distance interval interrupt
8. AT+IONDTE: Set driving time events
9. AT+IONFR: Restore factory defaults
10. AT+IONGF: Set geo fence borders
11. AT+IONGFH: Set geo fence around current location
12. AT+IONGPIO: GPIO Read/Write
13. AT+IONGS: GPS State report
14. AT+IONHB: Heartbeat
15. AT+IONHC: Heading Change
16. AT+IONINFx: List system information segments
17. AT+IONIP: Set target server IP address and port number
18. AT+IONIPC: IP Change report
19. AT+IONIS: Ignition State
20. AT+IONLT: LEDs’ Timing and Intensity
21. AT+IONLPORT: Set the local IP port number
© 2017 M-Labs Technologies LLC
13 / 15
22. AT+IONNR: Set time before IP session is closed and restarted
23. AT+IONNW: Set watchdog timeout if no network found
24. AT+IONPM: Set auto power down mode
25. AT+IONRF: Report Format – Binary
26. AT+IONRI: Set report timer interval
27. AT+IONRM: Report Mask
28. AT+IONRN: Queue report record for transmission
29. AT+IONRR: Set reset report
30. AT+IONRS: Reset setting - soft/hard, periodic
31. AT+IONSD: Set SMS response destination
32. AT+IONSI: Set interrupt
33. AT+IONSQ: Set queue length
34. AT+IONSR: Set relay driver (GP3) state high or low
35. AT+IONSV: Read the factory application software version (read only)
36. AT+IONTA: Tow Alert
37. AT+IONTID: CDMA tower ID and location data
38. AT+IONUA: Update application firmware OTA
39. AT+IONUC: Update configuration files OTA
40. AT+IONVO: Virtual Odometer
41. AT+IONVTO: Virtual Trip Odometer
3.5 Ack’ed Mode
UDP is not a 100% reliable connection and occasional reports or command/responses may be
lost. Since all commands have responses, the server can repeat any command to which there is no
response. In order to assure reliable reception of reports, LTE-V devices can be configured either
in Normal or Ack’ed mode to send the reports. In the Normal mode the reports are simply sent “as
is” with no acknowledgment from the server. In the Ack’ed mode every report sent is expected to
be acknowledged by the server by sending back an ACK message back. If
acknowledgement
is
not received within the specified timeout, the report is re-sent. If the report is not acknowledged
after the specified number of attempts, it is queued. If acknowledgement is received after the
report is queued (i.e. past timeout of the last attempt), it is ignored.
Report is not considered “complete” until its acknowledgement is received. Thus, if report X is
sent and report X+1 is triggered while waiting for acknowledgement of X, report X+1 will be
queued until such acknowledgement is received and only then sent. The LTE-V will attempt to
re-send queued report(s) every time a new report is triggered. If there is more than one report
© 2017 M-Labs Technologies LLC
14 / 15
queued, the reports will attempt to be sent in the order of triggering and only once the report is
acknowledged, the next report is attempted. This assures that reports are sent and received in
order
Ack’ed mode assures that all reports are received, but adds overhead in time and data. Report
that is not
acknowledged
is sent again and
eventually
will be queued and sent again. The number
and frequency of re-tries is configurable via the Report Acknowledgement command.
3.6 Event Report Format
Reports are encoded as binary hex. It is also echoed to the debug UART in ASCII format.
3.7 Reset
There are a number of resets available on the device. Soft reset only restarts the software
running on the device. Hard reset is caused by resetting the whole basband module via a reset
pin. There is also an option to reset the GPS and the cellular sub-systems individually.
3.7.1 Context Preservation
When a self-initiated reset is performed due to Network Watchdog or by the Reset command
(modes 0,1), the context of the system is being preserved and is restored after the reset. The
context includes all the periodic timers, the report queue, the odometer, etc. This allows to
reset the unit as a troubleshooting
or preventive
measure without losing reports that are already in
the queue or are pending on running timers. Note that the reset process may cause 1-2min of
inaccuracy in the timers and should not be considered as very precise.
3.8 Startup Banner
After a reset a startup banner is printed through the UART only.
© 2017 M-Labs Technologies LLC
15 / 15
4 Test Method
4.1 Hardware
Test Item
Description
Baseband Function Test
• Power Input Test
• Power Consumption and Current Test
• Heat Dissipation Test
• UART Stability Test
• GPIO Level Test
• LED Stability Test
• Drop Down Test
• ESD Test
• High/Low Temperature Test
• Humidity Test
RF Test
• RF Performance Test
• GPS Performance Test
• Antenna Performance Test
4.2 Software Test
Test Environment Construct
Message Test environment
1. USB dongle and PC as message server
2. Send message to LTE-V
UDP Test environment
1. Connect dongle to PC and create dialup as ip server
2. LTE-V create IP connection to server
UART Test environment
1. Connect LTE-V to PC with com serial cable
2. Open Terminal tool and send at command
3. Response can be shown at terminal window
© 2017 M-Labs Technologies LLC
16 / 15
Mechanical Structure (mm)
© 2017 M-Labs Technologies LLC
17 / 15
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
RF Exposure Warning Statements:
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons during the normal operations.
ISEDC STATEMENT
This device complies with Industry Canada’s licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
In order to avoid the possibility of exceeding the ISEDC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la ISEDC CNR102, la
proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement
normal.
