M3 Mobile M3ORANGE Industrial PDA phone User Manual
M3 Mobile Co., Ltd Industrial PDA phone
Users Manual
www.m3mobile.net
It is available to download contents of this user manual and programs
provided by software CD from M3 Mobile homepage.
ORANGE
Please be sure to read the “Warnings and Safety Precautions”
in order to use the product safely and correctly.
2 M3 Orange User Manual
All contents of this user manual are protected by the copyright laws, and M3 Mobile s
owns all rights related to them.
Any part of this document cannot be copied, reproduced, modified, or translated to s
other languages without the prior written consent of M3 Mobile.
The contents of this user manual were written based on the “current state” of the product, and s
the details of this manual are subject to change without the prior notice.
M3 Mobile does not provide any guarantee including the implied guarantee on the product’s s
characteristics in this user manual and suitability for special purposes, and any other guarantees not
limited to them.
Microsoft, Windows, MS Office, Outlook, ActiveSync, Internet Explorer, Windows Logo, and s
Windows CE 5.0 Logo are registered trade marks or trademarks of Microsoft in the USA
or other countries. The license for OEM of Microsoft products was provided by Microsoft
Licensing Inc., subsidiary company of Microsoft.
All product names and services used in the manual and product are company names, s
service marks, trademarks, or registered trademarks of the corresponding right owners.
Notice
User Manual M3 Orange 3
The contents of this user manual were made based on the “current state” of the product, s
and this manual may contain technical and editing errors or omissions.
When separate application programs are developed and provided by the product s
providers using the product, refer to the program users manual provided by the product
providers.
The companies that produce separate application programs besides the basic s
installation programs must include the contact telephone number for inquiring about
these programs on the product, program, or product box separately when distributing
the equipment.
M3 Mobile does not guarantee the quality of the programs produced by third party s
software companies installed after the release from the factory of M3 mobile.
M3 Mobile may request programs from the program manufacturers in order to guarantee s
the quality of the product to meet the requests of mobile network service providers.
All contents of this user manual are protected by the copyright laws, and unauthorized s
copying, modification, or distribution of the software is considered as criminal action
according to the Software Copyright Law.
Windows, MS Office, Outlook, ActiveSync, Internet Explorer are registered trademarks of s
Microsoft.
M3 Orange is a trademark of M3 Mobile.s
Other product or service used in this manual is registered trademarks of the corresponding s
right owners.
Copyright and Agreement on Usage
4 M3 Orange User Manual
Customer Cautions
If the device is lost or stolen, then immediately report the incident to the service s
provider.
Do not lend the device to other people.s
Refrain from using the device while driving.s
When you need service for the product, request service from the designated place such s
as the service center of our company.
For inquires about the application programs and other work programs besides the s
hardware and the basic installation, directly contact the corresponding program
manufacturers.
Do not use any battery adapter or accessories other than the designated ones provided s
with the product.
Free warranty service may not be allowed if failures occur due to unauthorized use or s
misuse of the product.
Cautions in Carrying and Storing
Do not use the product in high temperature or high humidity environments as this may s
quickly cause damage to the product.
The product was designed to be suitable for work environments, but avoid impacts or s
dropping the product. This may cause fatal damage to the product.
Fully charge the battery before using the product for the first time.s
Warnings and Cautions for Safety
User Manual M3 Orange 5
Do not modify the product
Do not try to modify the product by any means. s
Modifications may cause fire, injury, electric shock, or serious damage to the equipment s
and users.
The warranty service is not provided for troubles due to unauthorized modification.s
Prohibition against illegal copy of mobile
There is ‘ESN(Electronic Serial Number)’ recognizing its product on mobile phone. s
Copying ESN is illegal and illegally copied mobile is limited to conduct business such
as becoming new member, changing the mobile, checking call history, inspecting the
pirate cell-phone.
A phone-cloner or copied phone’s user will be sentenced to 3 years’ imprisonment or s
imposed a fine of 20 million won by Radio regulation law.
Anyone who provides or is provided ESN of mobile phone will be sentenced to 3 years’ s
imprisonment or imposed a fine of 20 million won by the privacy protection law.
Anyone who holds or uses program for cloning ESN of mobile will be sentenced to s
3 years’ imprisonment or imposed a fine of 50 million won by the Protection Act of
Computer Program.
Using the lost or stolen mobile phone is the act of receiving stolen goods.s
Holding a found mobile phone as turing off the power is a larcenous act or embezzlement s
of deserted articles.
6 M3 Orange User Manual
Table of Contents
Notice ............................................................ 2
Copyright and Agreement on Usage ............... 3
Warnings and Cautions for Safety ................... 4
Table of Contents ........................................... 6
M3 Orange Introduction ..................7
Specification and Characteristics .................... 8
Product Configuration ................................... 10
Name and Function of Each Part .................. 11
Inserting and Removing the Battery .............. 13
Charging ...................................................... 14
LED Information ............................................ 15
Inserting and Removing USIM CARD ............ 16
Basic Instructions .........................17
Button Information ........................................ 18
Soft Reset .................................................... 19
Main Window .............................................. 20
Using the Stylus ........................................... 21
Transcriber / Keyboard ................................. 22
ActiveSync ................................................... 24
Inserting and Removing Micro SD Card ........ 28
Usage for various functions ...........29
Using Mobile phone ...................................... 30
Using Internet ............................................... 34
Using Camera .............................................. 36
Using Scanner .............................................. 38
Bluetooth communication ............................. 40
Breakdown Diagnosis ...................41
Breakdown Diagnosis ................................... 42
Customer Support & A/S ..............43
Customer Support & A/S ............................. 44
Product Warranty ......................................... 45
Specification and Characteristics
Product Configuration
Name and Function of Each Part
Inserting and Removing the Battery
Charging
LED Information
Inserting and Removing USIM CARD
M3 Orange Introduction
8 M3 Orange User Manual
Specification and Characteristics
Classification Information
Product Name M3 Orange
System
CPU MARVELL PXA-320 806Mhz
OS Windows Mobile 6.5
ROM NAND 128 / 256MB / 1G
RAM 256MB
Display 240 x 320, 3.5”, Color TFT LCD(260,000Color)
Backlight LED Type
Commnication
Function
WWAN The Americas - EGSM-850 / GSM-1900
Europe - EGSM-900 / GSM-1800 / WCDMA2100
Bluetooth Bluetooth 2.0 EDR
Wi-Fi 802.11 a / b / g
General
Function
Barcode Scanner 1D Laser or 2D Imager
GPS Integrated GPS
BDR Only
9
User Manual M3 Orange
Classification Information
Etc.
Expanstion Slot Micro SD Card
Keypad Numeric
3 x 4 Dial, Direction, Function (front, 4side), 1 Power
Input Method Touch Screen
PEN Stylus Pen
I / O USB Host, USB Client, External Serial Port, Micro-
phone, Speaker, Receiver, Stereo Ear-mic jack
Operating Temperature
(Main Unit / Adapter) -10 ˚C ~ + 50 C
Adapter Power Input : AC 220V
Output : DC 5.2V / 5A
Battery Lithium Ion 3,300mA/h
IP IP54(DUST & WATER PROOF)
Impact 1.5m drop
Specification and Characteristics
10 M3 Orange User Manual
Product Configuration

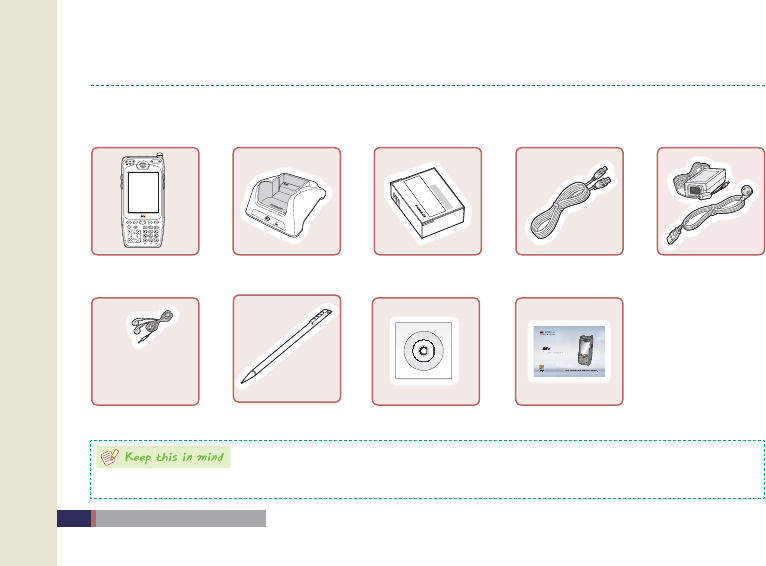

Check if all following items are included when you open the box for the first time.s
M3-Orange Main Unit Craddle Two Standard Batteries USB Cable Portable Adapter
Earphone Stylus Pens Manual CD
www.m3mobile.net
ORANGE
Manual
Not all items above may be included according to the shipment option.s
It is available to download contents of this user manual and programs provided
by software CD from M3 Mobile homepage.
11
User Manual M3 Orange

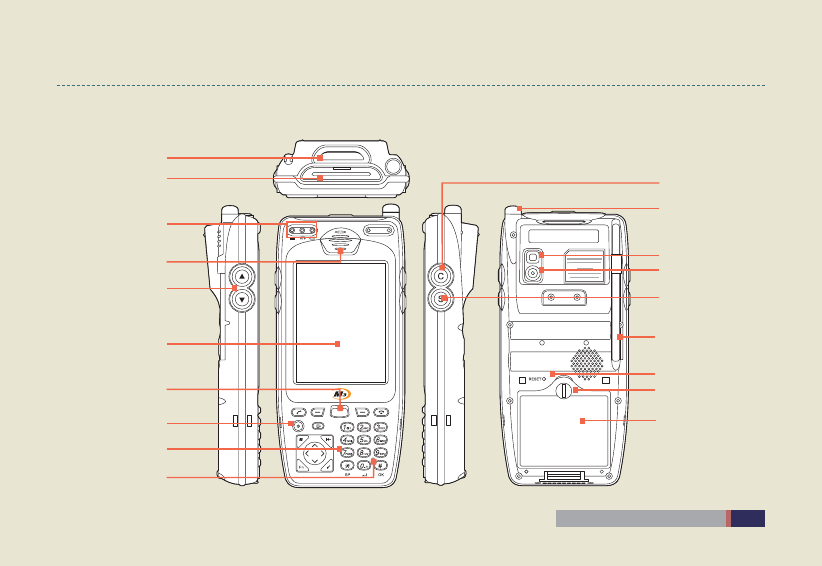

Name and Function of Each Part
Receiver
Battery Detachment Button
Reset button
Battery cover
Barcode Scanner
Window
External memory card
cover
Volume
Microphone
M3-Orange Main Unit
LCD Touch Screen
Keypad
Power Supply
Scanner Button
Camera
Flash
Antenna
Camera Button
Scanner button
Stylus
Scanner LED(left)
GSM/WCDMA LED(mid)
Charging LED(right)
12 M3 Orange User Manual
Name and Function of Each Part

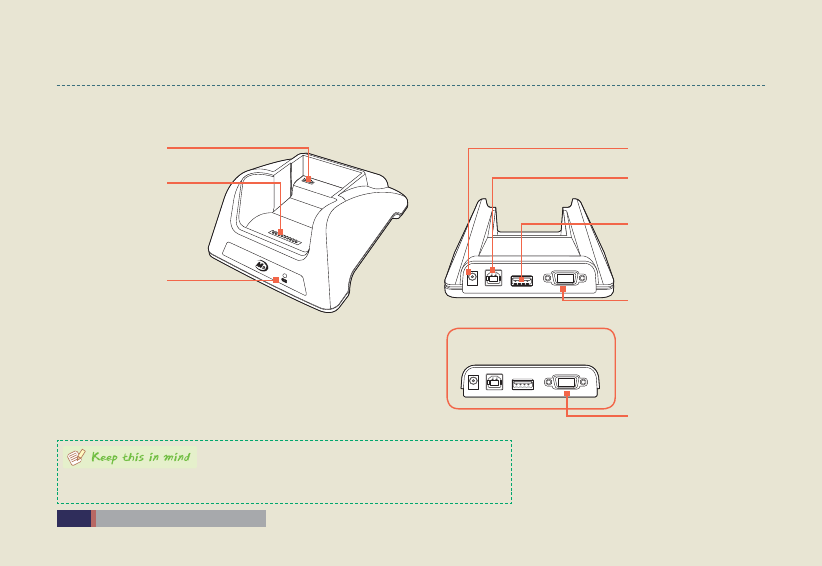

Power Supply
Aux. Battery Charging Slot
Main Unit Charging Slot
Cradle Charging LED
(When Charging Aux.
Battery)
USB Client:
PC Connection (Active Sync)
USB Host:
For USB host use (keyboard,
memory, etc)
USB to Serial:
USB to Serial function
(External serial connection, etc)
Cradle
Ethernet:
Enables use of Ethernet function
for Main Unit
When using Ethernet Cradle
USB Host and USB Ethernet are optional functions.s
Optional functions or items that were not purchased cannot be used.s
13
User Manual M3 Orange

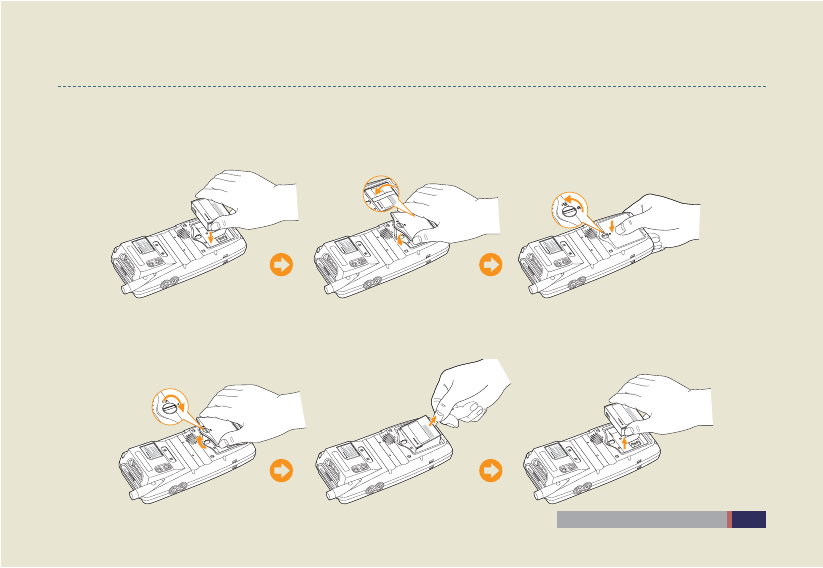

Inserting and Removing the Battery

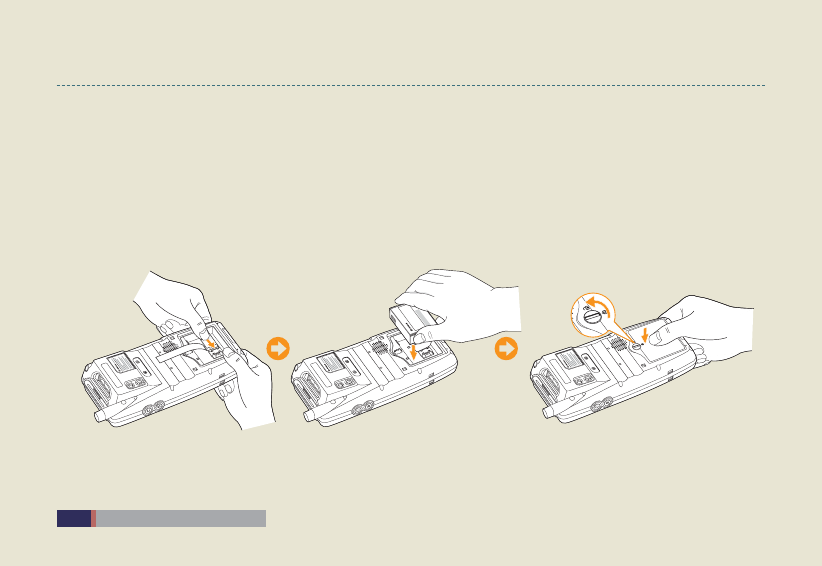

Inserting Battery
Insert the battery to the battery pack position, and then cover the ribbon. After putting the battery cover, tighten a screw in a s
counterclockwise direction.
Removing Battery
Loosen a screw in a clockwise direction, and remove the battery cover. After removing the battery cover, pull out the battery by s
drawing the ribbon.
14 M3 Orange User Manual
Charging
Charging the battery

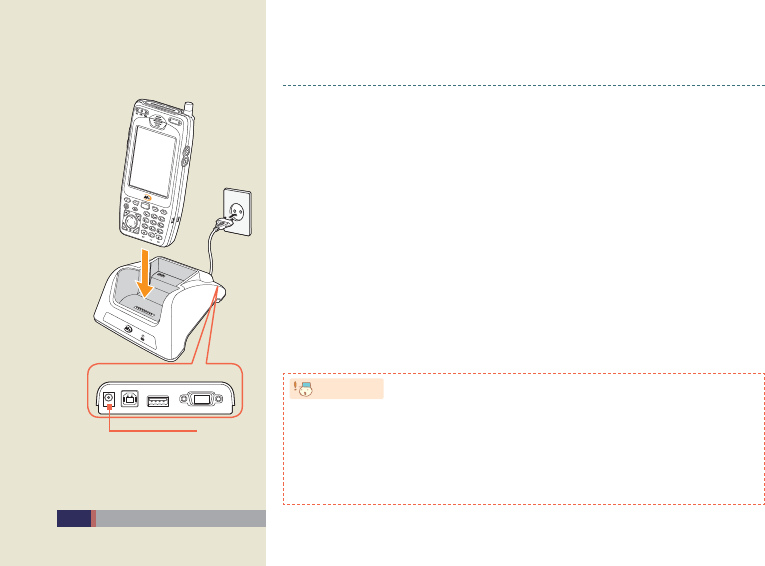

Connect the provided adapter plug to the charging jack of the cradle, and place the s
Main Unit or battery to be charged on the cradle.
Attach the battery to the Main Unit.s
Start charging when charging LED turns on Red light.s
Charge the battery until charging LED turns on Green light.s
Insert chaging adapter
Power port
8BSOJOH
Do not use any other adapters except for the power supply device (5.2V/5A) that comes with s
the product.
Do not use excessive force to plug in the Main Unit or battery. Otherwise, this may cause s
problems and you may not receive free warranty service since the problem is due to the fault
of the user.
Improper battery replacement may cause an explosion.s
When the battery is completely discharged, connect the adapter and reset the device to check s
whether the LCD turns on, and then use the device after charging for at least 10 minutes.
15
User Manual M3 Orange

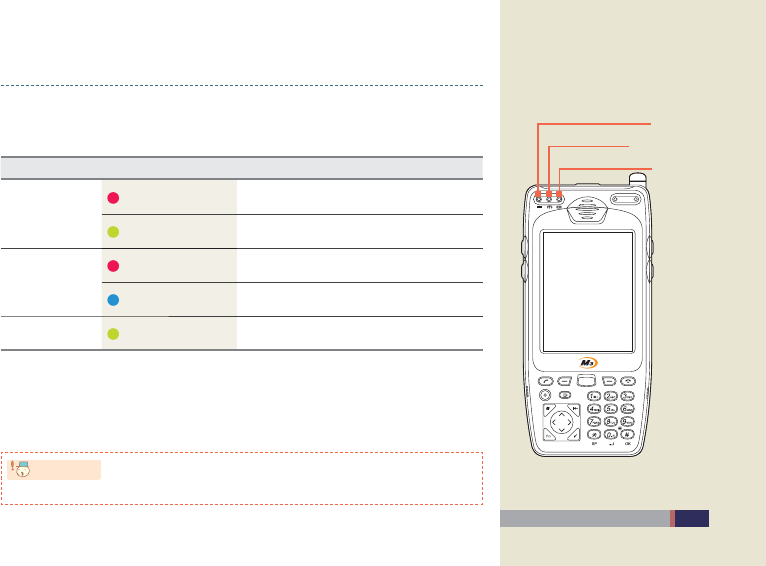

LED Information
Main Unit : LED notice
It shows the status of charging or scanner. s
Classification LED status Description
Charging LED
Red Charging
Green Charging completed
GSM / WCDMA
LED
Red GSM / WCDMA Weak Signal (Communicatio problem)
Blue GSM / WCDMA Noraml Signal
Scanner LED Green When the Scanner succeed in reading the Bar code.
8BSOJOH
When you insert or remove the battery during operating the program, errors can be occured.s
Scanner LED
Charging LED
GSM/WCDMA LED
The charging status of the battery attached to the M3 Orange can be checked through s
LED on the upper left side of the M3 Orange. The charging status of the aux. battery can
be checked through the LED on the lower right corner of the cradle.
Charging is conducted in order of ‘the battery attached the Main Unit’ > ‘Cradle s
battery’.
16 M3 Orange User Manual
Inserting and Removing USIM CARD
Inserting USIM CARD
Check USIM CARD provided by the membership mobile center.s
Remove the battery on the back of the lower part of the Main Unit.s
Insert USIM CARD with the terminals facing downward.s
Insert the battery and cover the Ribbon, tighten up the battery cover.s
Turn on the power of terminals and check if it is installed correctly.s
Button Information
Soft Reset
Main Window
Using the Stylus
Transcriber / Keyboard
ActiveSync
Inserting and Removing Micro SD Card
Basic Instructions
18 M3 Orange User Manual

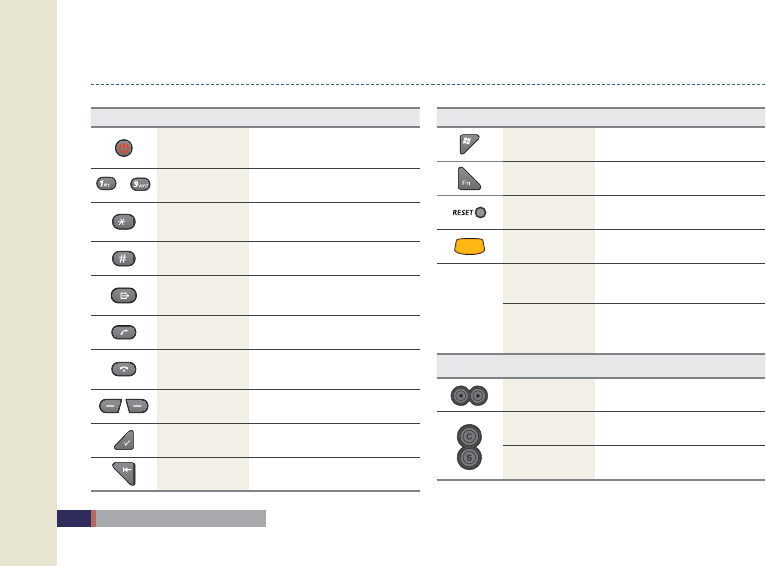

Button Information
Button Name Function
Power button Short Press: Back light ON/OFF
Long Press: Power ON/OFF
~ Number Button Number input
Star(*) Button Short Press: * input
Long Press: Vibration mode On/Off
Sharp(#) Button # input
Alphanumeric press to switch between alphabet
and number input
Call Button Connet the phone call
End Button Short Press: End the call
Long Press: Phone On/Off
-Function mode
Enter Button Operation Button
BackSpace Delete the letter
Button Name Function
Start Button Open the main menu
Function -
Reset Button Soft Reset
Scan Button Barcode scan function
LCD Click
One-Click Same function as One-click function
of computer
Tab & Hold
Long press
Long press the stylus pen
Select the option
(Copy, Delete, Paste)
Side Button Name Function
Up / Down Button Volume up and down
Camera Button Execute camera / Take picture
Scanner Button Scanner beam operation
19
User Manual M3 Orange
Soft Reset
Soft Reset

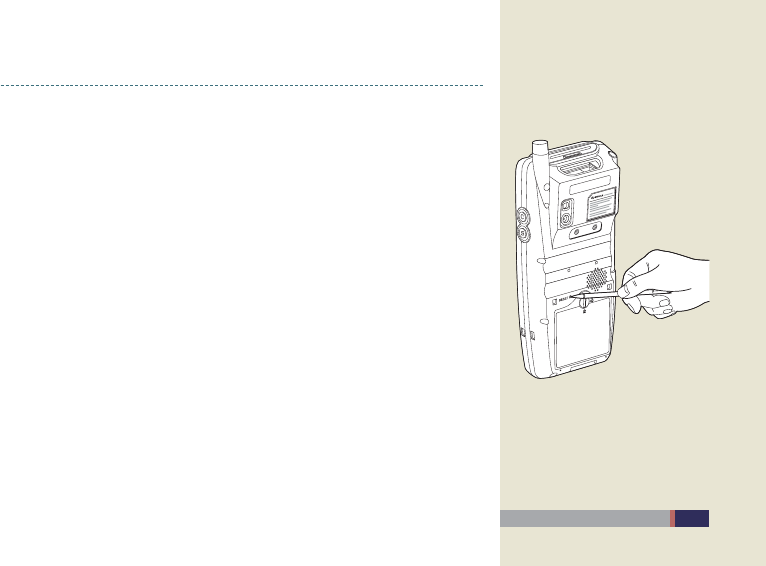

Press the reset groove in one second as shown in the picture.s
Click the Reset Button when one of installed software programs causes unexpected problems -
while you use the device.
All currently running software will be terminated upon software reset and working files or data -
might be lost, but the existing stored data of files are not affected.
Soft Reset
20 M3 Orange User Manual
Main Window
Start
Date / Time
User
Information
Task Information
Lock Screen
Phone
Wireless information
Status Bar
Quick guide
Message information
Contact
Button Function
Start menu Select the program you want to use
Status bar Show the Power, Modem, Sound, Input
mode, connection information
Date / Time Show the current date and time
Wireless information Show the wireless power and its status
User information Show the personal information
Message information Show the received message
Task information Show the task information
Quick guide Show the simplified user manual
Lock screen Show the screen or lock the information
Phone / Contact Operate the phone program

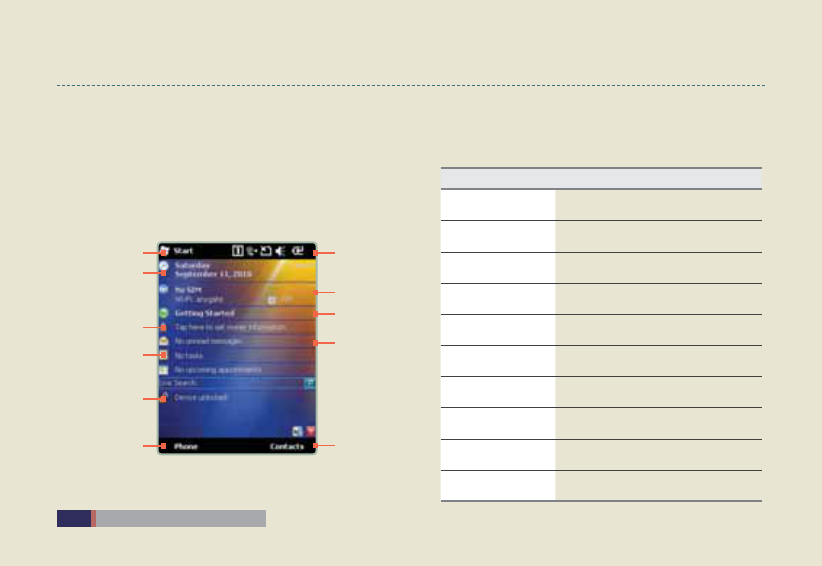

Main Window (Today)
The most basic screen of the mobile that helps users’ convenience, s
and it contains basic functions.
21
User Manual M3 Orange
Using the Stylus

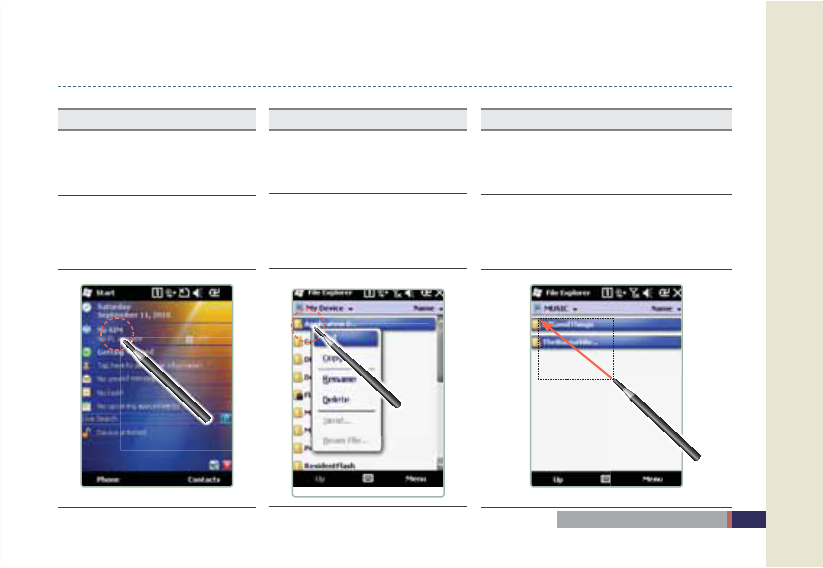

Click
Item selection / Click
Click the item once to select or execute
Drag
Select a group or move icons like
dragging a mouse in PC
Drag the cursor to the desired position while pressing
the touch screen.
(In case of excuting the scroll bar, drag function will not
be excuted.)
Long Press
Press the stylus pen without releasing, and
select the menu. (Copy, Cut, Paste)
Press and hold the stylus on the touch
screen. This function is frequently used for
file copy, cut, and paste functions, or to use
the keyboard.
22 M3 Orange User Manual
Transcriber / Keyboard
Transcriber (Block Recognizer, Transcriber, Letter Recognizer)
This program recognizes handwriting and automatically converts it into computer text s
when you write text using the stylus pen when entering text for documents or settings.
Select the input method by clicking s icon at the bottom of screen.
Block/Letter Recognizer : In the input mode screen, you can enter the text in ‘abc’ section, -
and enter the number in ‘123’ section on the screen.
Transcriber : When you enter the letter, number, symbol with stylus, this program -
automatically writes where the cursor is positioned. You don’t have to care about the input
section.

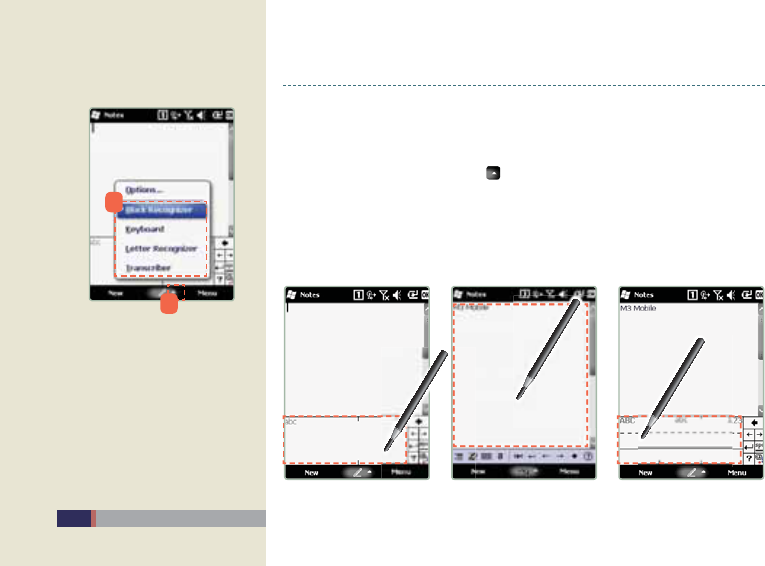

Screen for selecting Transcriber
Block Recognizer Transcriber Letter Recognizer
1
2
23
User Manual M3 Orange
Keyboard
The keyboard input is the way of entering the text using the stylus pen by touching the s
virtual keyboard which is the same shape as the actual keyboard on the screen.
You choose the input method by clicking s icon at the bottom of screen.
You can enter the text by touching the keyboard directly.s
Transcriber / Keyboard

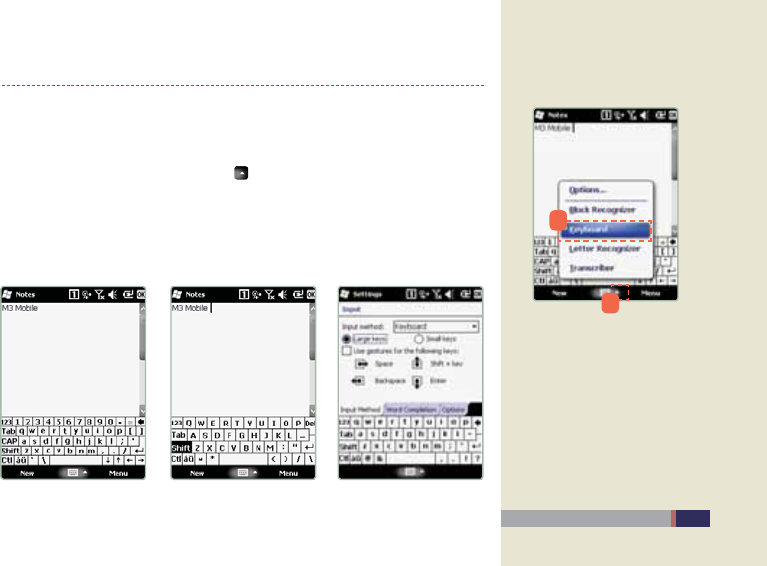

Screen for selecting Keyboard
Small Keybard Big Keyboard Options
1
2
24 M3 Orange User Manual
ActiveSync
ActiveSync Introduction
Sync is an abbreviation of Synchronization. In our case, it means to sync data between s
the PDA and PC by connecting them so that the data on both devices is the same.
When the data is modified in either the PDA or PC, the Sync function conveniently updates -
the data on the other device with the latest data between two of them.
Not all data is synchronized, and it depends on the option setting for Microsoft’s ActiveSync. -
You can connect the PDA and computer to synchronize the data between them, or s
install work programs, copy, move, or delete the files.
The ActiveSync program must be installed for work program installation, data s
synchronization, and backup and synchronization of contacts such as your phonebook.
8BSOJOH
Never connect the USB of the cradle to the USB port of the PC before installing the Active-s
Sync program. As Microsoft’s PDA device driver software is included in the ActiveSync, con-
necting before installing may cause problems since the PDA device may not be recognized
by your PC.
25
User Manual M3 Orange
ActiveSync
To install ActiveSync
Insert the CD included with this product, and select ActiveSync from the Auto-run screen to install the program.s
Select the Next button, and select the Cancel button when you see the [Your device was not detected] screen.s
s
Connect the USB cable between the cradle and USB port of your PC, and place the PDA on the cradle while the LCD power is on.
When you see the [New hardware detection wizard] screen, double click the Next button to automatically install the driver, s
and then select the Finish button.
When you see the [Set Up a Partnership] screen, make the Partnership, and then continue by selecting the [Next] button.s
Select the Finish button from the [Setup Complete] screen to complete the installation.s
The [Microsoft ActiveSync] window will pop up, and the programs selected while setting up the partnership will begin s
synchronization.
About Partnership
Partnership is a procedure for mutual certification so that PC and PDA can exchange the data.s
The device cannot be synchronized with Outlook Express that comes with Windows, and Microsoft Outlook or later versions of the
program must be installed on the PC.
8BSOJOH
Strong external noise from static electricity around the system may disturb the connection. In this case, retry the synchronization.s
26 M3 Orange User Manual
ActiveSync
Synchronizing Data
There is an Option icon if you see the Microsoft ActiveSync window option,” “Sync mode,” s
“Sync mode”and“Rules” tabs will appear.
“Sync option” is the menu for selecting the items to synchronize.s
Contact, schedule, work, files, and channel can be selected. -
“Sync mode” is for selecting the method of synchronization, and you can use one of the s
three following methods depending on the selected Sync mode.
Continue while the device is connected: ActiveSync starts the synchronization, and whenever -
modified items will be synchronized when are entered in the PC or PDA.
Only when connected: After the first synchronization is completed, click the Sync button in -
order to manually execute the synchronization.
Manually: ActiveSync does not work automatically. Click the Sync button to synchronize the -
data in this mode.
The synchronization process compares the data on the PC and PDA, and updates the s
data on both sides with the latest data. Personal schedule manager data or files can also
be synchronized with the corresponding files on the PC.
27
User Manual M3 Orange
ActiveSync
When ActiveSync does not work
Check whether the USB cable is properly connected to the cradle and the PC’s USB port.s
Check whether the power of the M3 and LCD is on.s
Select File > Connection Setting from the ActiveSync program, and then open the window.s
Check whether the - [Allow USB connection with this desktop computer] item is checked.
If not checked, then check the option and try Sync again. -
Conduct a soft or hard reset, and then try Sync again. The currently running software must be terminated and data must be s
saved before the reset.
Double click the Device Manger button in the - [Hardware] tab from Start > Setting > Control Panel > System menu of PC.
Check whether there is a yellow exclamation mark on any of the items below - [General Purpose Serial Bus Controller] in the [Windows
CE USB Device] folder.
If there are any yellow exclamation marks shown on the icons.
1. Select Microsoft USB Sync in Windows CE USB Devices folder.
2. Select the Driver Update button in [Driver] tab.
3. When the [Device driver update wizard] window appears, press the Next button, select ‘Search Appropriate Driver’, and
then click the [Next] button.
4. Check the Microsoft Windows Update and click the Next button.
5. The latest USB driver will be automatically downloaded from MS over the internet.
6. Reboot the PC and run ActiveSync again.
28 M3 Orange User Manual
Inserting and Removing Micro SD Card
Inserting Micro SD Card
Open the memory card cover on the top of the main unit.s
After inserting Micro SD Card as shown in the picture, cover it.s
Micro SD Card Usage

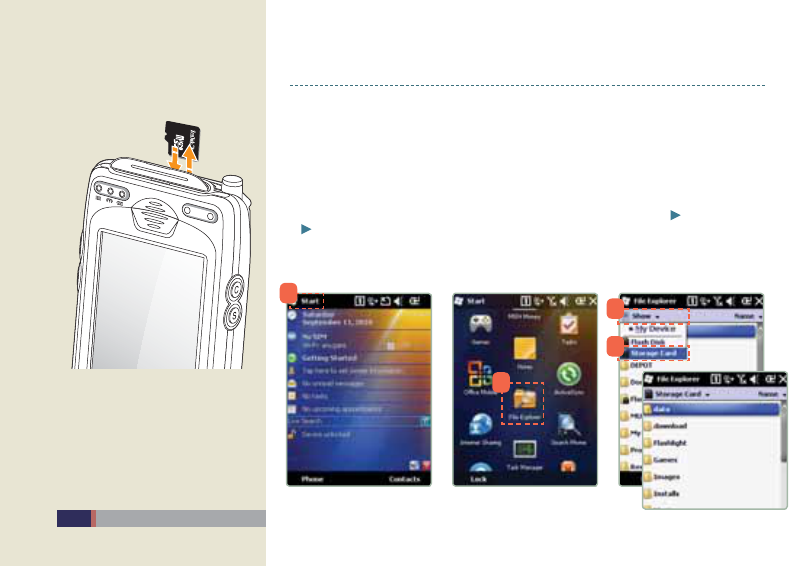

Once inserting Micro SD Card, s [Storage Card] icon appears in [Start] [File Explorer]
[Show] as below.
Click s [Storage Card] icon and check the contents in Micro SD Card.
(Refer to the progress below.)
Inserting the Memory card
1
2
3
4
Using Mobile phone
Using Internet
Using Scanner
Using Camera
Bluetooth communication
Usage for various functions
30 M3 Orange User Manual
Using Mobile phone
Status bar
Status indi-
cated screen
Number key
Recent list
Call key
On / Off
Turning ons
Press the end button for 5 sec. when the phone is off. -
The phone turns on with the initialization sound. -
Turning offs
Press the end button for 5 sec. when the phone is on. -
Answering the phone
Select ‘Answering phone’ in the screen of incoming calls s
and make calls.
Select ear-microphone button in the screen of incoming s
calls and make calls.
When choosing the mute mode in the screen of incoming s
calss, the screen keeps appeaing but there is no sound.

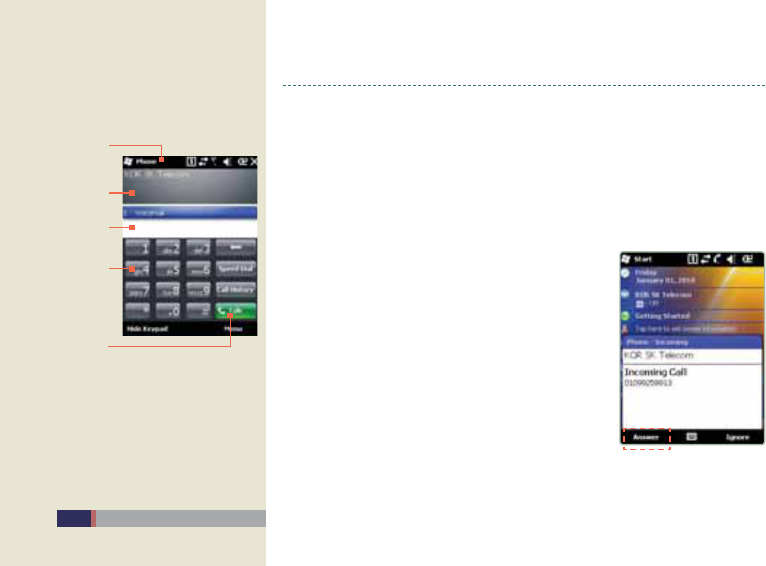

Screen for incoming calls
Main screen
31
User Manual M3 Orange
Using Mobile phone

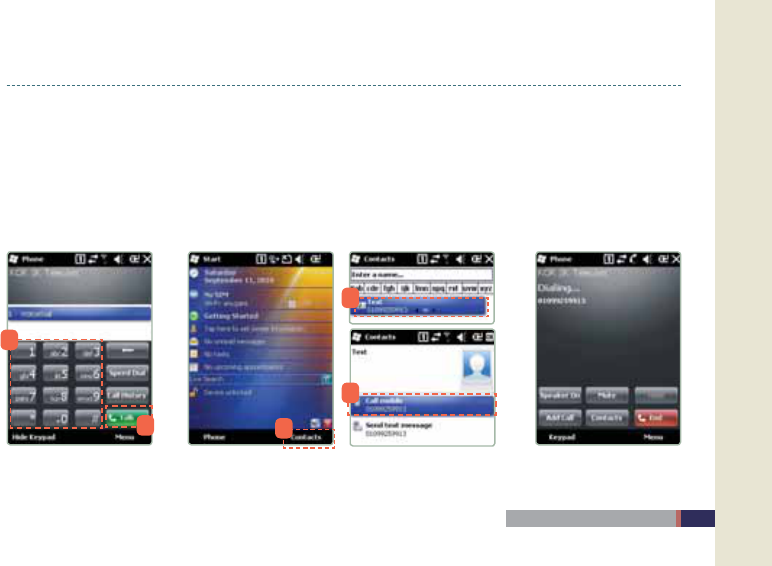

Making a call
Enter the phone number with keypad in the main screen and press the ‘Call’ button.s
Make a call by choosing the phone number in the Contact list, receiver / caller list, SMS list.s
When the phone number is registered as the shortcut key, you can make a call with the shortcut key by pressing long the s
corresponding number.
Make a call with the recent list by pressing long the button of ear-microphone.s
Make a call by dialing Make a call by searching the
contact list
Screen of dialing
1
21
2
3
32 M3 Orange User Manual
Using Mobile phone

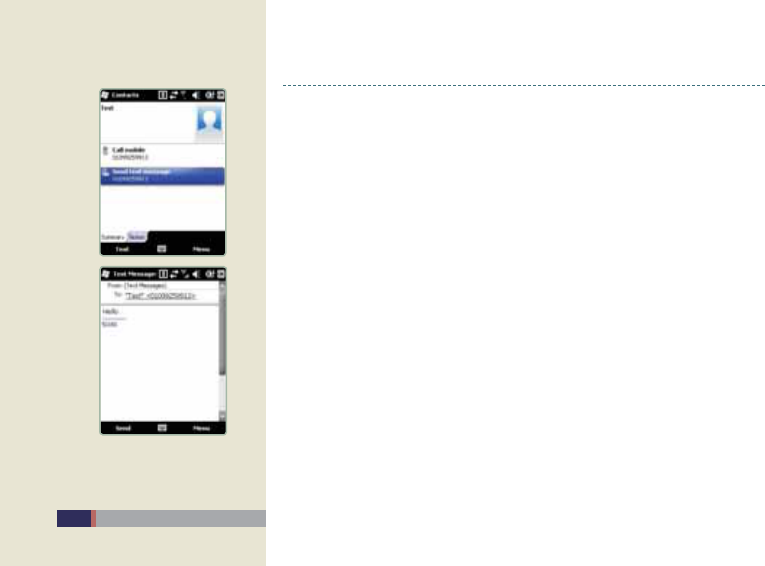

Receiving SMS
It shows the contents received in the screen of receiging SMS.s
To check SMS, tap into the receiving / sending list in SMS message menu and select s
what you want to check.
Unchecked massage will be displayed on the left-top side of status bar as a Message s
icon. (When you choose the icon, it moves to ‘Message’ section.)
Sending SMS
When you send SMS, tap into ‘Message’ and enter the text, and then enter or search s
the phone number and press Send button.
When the content of message exceeds over 80 bite, seperate the page.s
After entering the phone number you will send to, select the ‘Call’ button, and you can s
send ‘Call message’
You can send the message according to the priority. (Normal / Express / Urgent)s
Message that you often use can be put in the input box as using the saved message.s
Sent message will be saved automatically in the SMS sent list.s
Screen of sending SMS
33
User Manual M3 Orange
Using Mobile phone
Setting up the phone
Execute s [Menu] ►[Options] at the bottom of phone.
Phone : You can chage the setting of ring tone or keypad. -
Security : You can set up security service. -
Services : You can change the setting of mobile service. -
Network : You can change the setting of mobile center. -
Phone setting
1
2
34 M3 Orange User Manual
Using Internet
You can use Internet with Wireless LAN. Wireless LAN supports IEEE 802.11 a.b.g.s
Connecting Wireless LAN
Turn on AP device that supports IEEE 802.11 a, b, g.s
Select s [Wireless Manager] in Today screen.
After choosing AP device that you want to connect in the Wireless connection program, s
and connet.
If you get correct IP after connecing Wireless LAN, you can use the Internet service. s

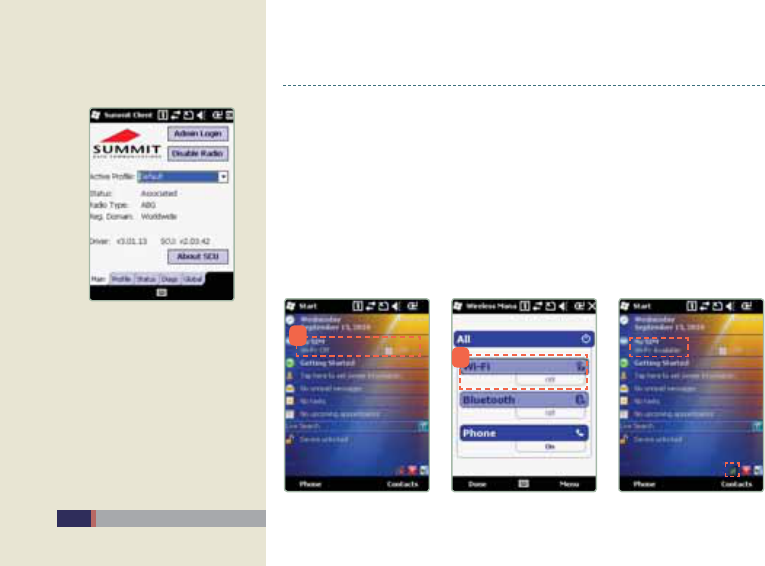

Wi-Fi setting
1
2
35
User Manual M3 Orange

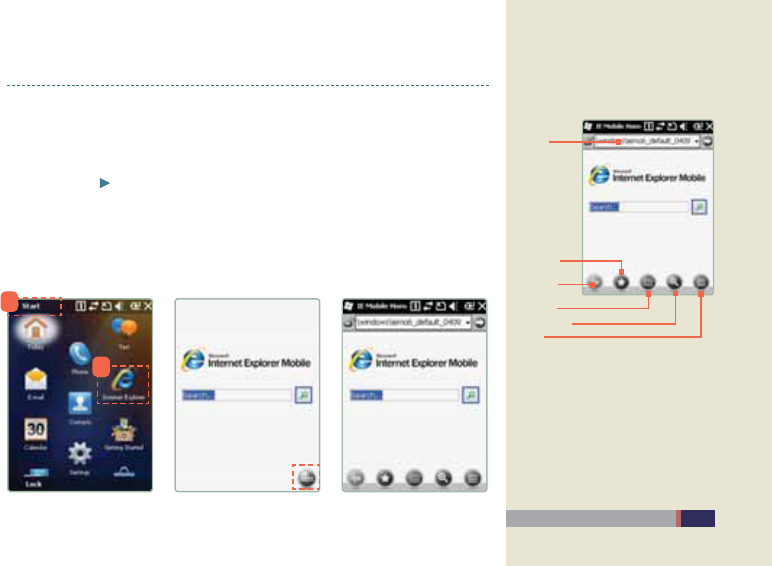

Internet explorer menu
Using Internet
If the internet is connected through Wireless LAN connection, you can use the Internet s
via Web Browser.
Web Site Browsing
Executes [Start] [Internet Explorer]
You can seach the Internet on the main site or move to the other site by entering the s
web address in the address bar.
Internet
address bar
Previous
Menu
Zoom in / out
Keyboard
Bookmark
2
1
36 M3 Orange User Manual
Using Camera
Running Camera program
The camera mode will be executed by pressing Camera button on the right side of s
mobile.
Still : Camera modes
Video : Video modes
Select - [Menu] [Video]/[Still], and it converts video / camera mode mutually.
My Pictures : Check the photograph/ video taken.s
Select - [Thumbnails] in the shooting mode.
Camera button

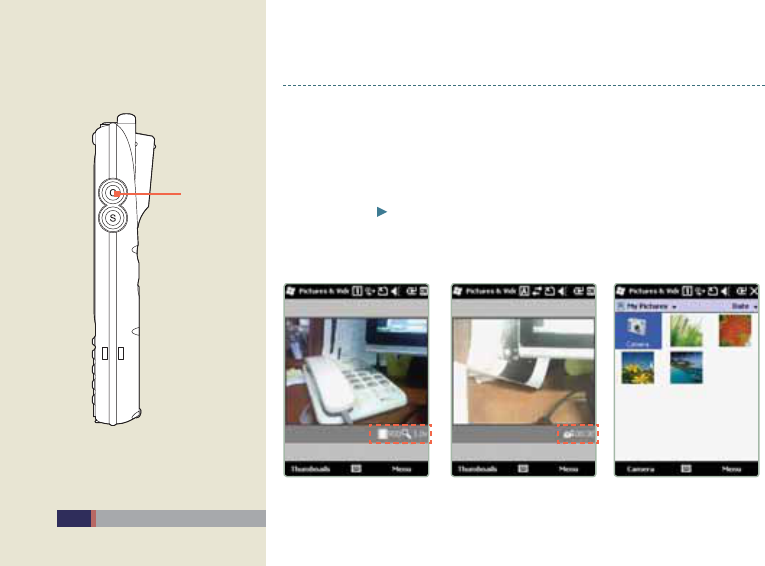

STILL MODE VIDEO MODE My Pictures
37
User Manual M3 Orange
Using Camera
Camera setting menu
Convert mode: You can select among ‘General’, ‘Continuous’, ‘Timer’ for taking a s
photo by choosing the mode.
Brightness : You can take a picture brighter or darker by choosing Brightness. (Adjust s
the left / right direction key)
Resolution : You can select image size by selecting Resolution.s
Zoom-in /Zoom-out : Press Zoom-in or Zoom-out to adjust the size of the image.s
(Adjust the up / down direction key)
White Balance : You can adjust White Balance by selecting Auto / Bright / Cloudy / s
fluorescent / incandescent.
Flash On /Off : You can turn the flash on or off by pressing the Flash button.s
Taking a photograph
Auto-focus : Adjust the fucus automatically by selecting Trigger AF in menu before s
shooting.
Shooting : In Camera-on mode, take a picture, record or end a video by pressing s
Camera or Enter key.

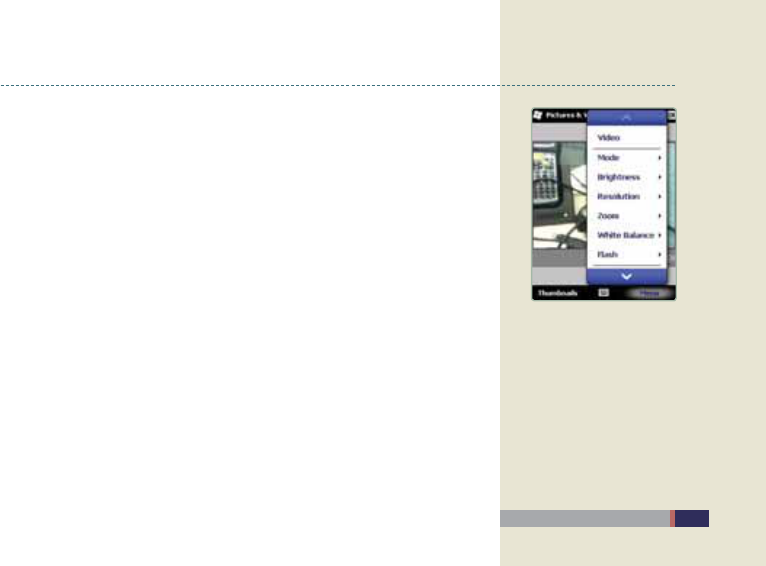

Camera menu
38 M3 Orange User Manual
Using Scanner
Usage for laser scanner
8BSOJOH
Scanner is Option item. When Scanner is not set up in your product, you cannot use Scanner function. s

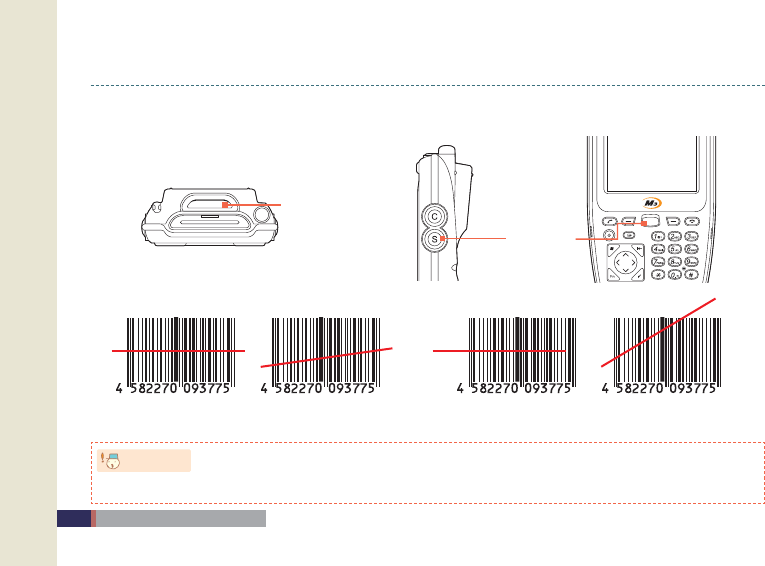

Correct method for scanning Incorrect method for scanning
Barcode Scanner
Scanner Button
39
User Manual M3 Orange
Using Scanner
8BSOJOH
Mid-guideline of scanning turns ‘Green’.s
If you put Mid-guideline too closely to Barcode or it is dislocated, it cannot be read. s

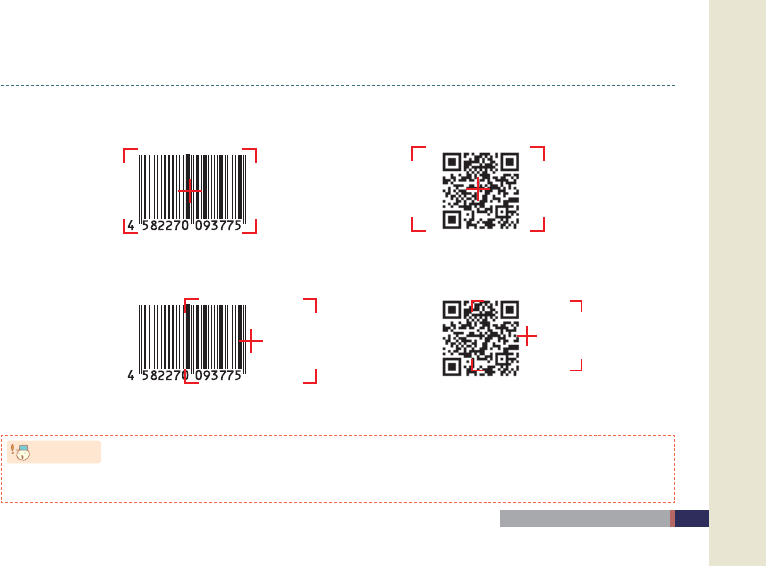

Usage for image scanner
Correct method for scanning Correct method for scanning
Incorrect method for scanning Incorrect method for scanning
40 M3 Orange User Manual

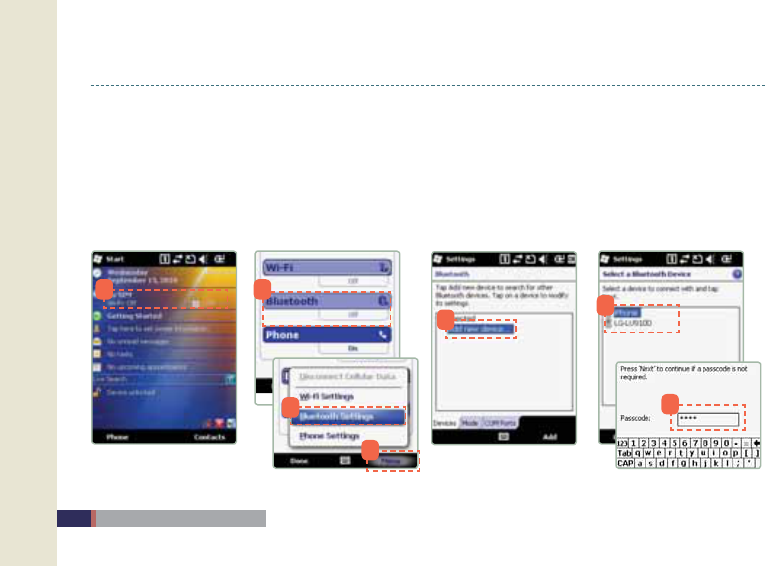

Bluetooth communication
Turning Bluetooth On/Off
Turn on the mobile and BT device that will be conncted. s
Select s [Wireless Manager] in Today screen.
Connect it after choosing the BT device in the BT connection program.s
Enter Passcode, and use the BT device. s
1 2
3
4
56
7
Breakdown Diagnosis
Breakdown Diagnosis
42 M3 Orange User Manual
Breakdown Diagnosis
Cannot turn on the power
Remove tha battery or adapter to check its connection status, and insert it again. s
(If the charging LED lights on when you connect the adapter, the connection status is ok.)
Cannot operate some functions (Phone)
Try again after fully charging the battery or authorizing adapter power. When the rest amount of battery is low, it is limited to s
operate some functions to protect system.
Cannot boot up
Long press the power button. (Short-press: Sleep/Wake up, Long-press: Power on/off)s
Try Soft reset.s
Reset button can be malfunctioned. If there’s no sound of clicking or no response from PDA, contact with the service s
center.
Cannot charge the mobile
Check whether the mobile is installed to Cradle correctly.s
Check whether the adapter jack is inserted well.s
Check whether LED that diplays the charging status lights on.s
Keep touching the LCD screen in the unintentional spot.
Try to adjust the monitor. s
Customer Support & A/S
Product Warranty
Customer Support & A/S
44 M3 Orange User Manual
Customer Support & A/S
When you have a probem with the product or feel uncomfortable while you’re using it, s
contact the service center (refer to the number below) before you visit there for A/S.
In case of the program for tasks, contact the suppliers written in the product box or s
program and you will get quick service.
Customer center: Representative 02)574-0037 / FAX :02)574-0292 -
Head office: (135-080) 725-30 Dong-Won B/D 1st. floor Yoek-Sam dong, Gang-Nam gu, -
Seoul.
Product line : 202 Chun-ui Techno park 2, 201-610, Chun-ui dong, Won-Mi gu, Bucheon -
Service hours: 9am~6pm, weekdays. -
No service on holidays. -
Inquiries about the program / Requisition A/S via Web-site
You can access Korean internet domain M3 Mobile.s
Korean domain: Website: http://www.m3mobile.co.krs
Part 15.21 statement
" Change or Modifications that are not expressly approved by the manufacturer could void
the user's authority to operate the equipment. “
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Part 15 Class B Compliance
This device and its accessories comply with part15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device & its accessories may not cause harmful interference.
(2) This device & its accessories must accept any interference received,
including interference that may cause undesired operation.
About the service
M3 Mobile conducts the warranty for this product according to s
the itemized compensation regulation for avoiding customer’s
damage.
Contact the place you purchased when the breakdown occurs. s
(If you can’t visit the place, contact the cusomer service
center.)
Warranty period without charging starts from your purchase date, s
so register the purchase date.
(If you don’t make sure about the
purchase date, it will be calculated after 6 months from the
manufacture date.)
No charging service
You can get the free charge of service when the problem occurs. s
This is only when you use the product correctly within 1 year of
purchase.
Type of harming customers
Contents for warranty
Within the waranty
period
After the warranty
period
Quality issues occur within 10 days from your
purchase date. Exchange
Can
repair
The same problems occur over
4 times. Free charging service Charging service
The same problems occur over
5 times. Exchange Charging service
Can’t
repair
Equipped with components for repairs
(within the warranty period) Exchange Exchange after reducing
a price
Not equipped with components for
repairs (within the warranty period) Exchange Exchange after adding
10% of a reduction price
Model name
Purchase date year month date
Purchase place
Serial No
Charging service
If it has no problem..s
If you ask for the sercive when there’s no problem, you will be charged. So, -
read the instruction carefully. (In case that it can’t be repaired, it will applied
extra standards.
When the problem occurs by a customer’s fault..s
The problem occurs by a careless treat or fix, convert at customer’s own -
judgement.
The problem occurs when the product is repaired by the other person, not a -
regular salesman or service man.
The problem occurs by using extra accessories, not provided by the -
purchasing department.
The problem occurs when you fall it down as moving after the installation. -
The problem occurs by using accessories or options unauthorized by M3 -
Mobile.
etc.s
The problem occurs by natural disaster(conflagration, damage from sea -
wind, flood)
The problem occurs when consumable supplies’ life ends up.(battery) -
This warranty card can be used only in Korea and will not be printed again.
Please keep it well.
Product Warranty
