Users Manual

FCC Information to User

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Information to User

Caution

Modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user

that changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment. In cases where the manual is provided only in a form

other than paper, such as on a computer disk or over the Internet, the information required by this

section may be included in the manual in that alternative form, provided the user can reasonably be

expected to have the capability to access information in that form.

FCC RF EXPOSURE INFORMATION

In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report

and Order FCC 96-326 adopted an updated safety standard for human exposure to radiofrequency (RF)

electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the

safety standard previously set by both U.S. and international standards bodies. The design of this MC-

7100S complies with the FCC guidelines and these international standards. Use only the supplied or an

approved antenna. Unanthorized antennas, modifications, or attachments could impair call quality,

damaged your “MC-7100S ”, or result in violation of FCC regulations. Do not use the phone with a

damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result.

Please contact your local dealer for replacement antenna.

This device was tested for typical body-worn operations with the back of the device kept 2cm from the

body. To maintain compliance requirements, use only belt-clips, holsters or similar accessories that

maintain a 2 cm separation distance between the user’s Body and the back of the phone, including

the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic

components in its assembly. The use of accessories that do not satisfy these requirements may not

comply with FCC RF exposure requirements, and should be avoided. For more information about RF

exposure, please visit the FCC website at www.fcc.gov.

Note

lThis manual is subject to copyright protection along with all relevant rights.

lNo part of this document can be copied, reproduced, changed or translated in whole or in part by any means

without prior written consent of M3 Mobile Co., Ltd.

lThe content of the manual is provided “as-is” and be subject to change at any time without notice.

lM3 Mobile Co., Ltd. makes no warranty of any kind with regard to this manual, including, but not limited to, the

implied warranties of merchantability and fitness for a particular purpose.

lMicrosoft, ActiveSync, Windows, Windows logos, Windows Mobile 5.0 logos are trademarks, or registered

trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft OEM products are

licensed by Microsoft Licensing Inc., a entirely owned subsidiary of Microsoft Corporation.

lAll other product names in this document or product are company names, trademarks or registered trademarks

of the respective owners.

lThis user manual is provided “as-is”. It may contain editing error or omitting due to the difficulty of expressing

technical feature.

lIf an application program provided by other supplier using by M3 SKY, refer to the supplier for a program

manual.

lThe application program providers have the responsibility of indicating their contact number for customer

service on M3 SKY terminal, item box, or program.

lM3 Mobile Corporation do not warranty any programs produced and added by the third software companies

after M3 SKY products are distributed from factories.

lM3 Mobile Corporation has the right to ask warranty of any programs to the program providers to meet the

needs of mobile networking companies.

lThe contents in the user’s manual are protected under the Software Copyright Act. Copy, reproduction,

distribution of the contents in the user’s manual without any written agreement notice of M3 Mobile Co. Ltd., is

considered as criminal actions.

lWindows, MS Office, Outlook, ActiveSync, Internet Explorer programs are the registered brand of Microsoft.

lM3 SKY is the registered brand of M3 Mobile Co. Ltd.

lThe brands of other products and service referred in this manual belong to corresponding providers.

Caution when using M3 SKY (1)

lUser Caution

–When the unit is lost or stolen, notify to network provider immediately.

–Do not rent the unit to third person without authorized permission.

–Do not use the unit while driving.

–For technical help, contact designated service centers.

–Contact responding suppliers directly for questions on applications and work programs other than

hardware and basic installed applications.

–Use supplied adapter and accessories by M3 Mobile Co. Ltd.

–Any defect on a unit while using other batteries, chargers and accessories can not get warranty.

lCarrying and Storage Caution

–Avoid to use the device under high temperature and humidity. It may cause fatality to the device.

–Avoid intentional dropping from high elevation. It may cause fatality to the device.

–Charge batteries fully before the first time use of the device.

Caution when using M3 SKY (2)

lDo not reconstruct

–Do not reconstruct M3 SKY for any purpose.

–It may cause fire in the unit, and wound or electric shock to users.

–Any defect caused by reconstructing units, can not get warranty.

lIllegal copy of mobile phone is prohibited

–The person who reproduces mobile phone and uses this mobile phone is considered as criminals.

–The use of lost or stolen mobile phone is considered as a criminal act.

–Keeping the lost or stolen mobile phone after turning power off, is considered as a criminal act.

Used frequency band

WCDMA : 2100 / GSM 850 (TX) 824 ~ 849 MHz / (RX) 869 ~ 894 MHz

WCDMA : 1900 / GSM 900 (TX) 880 ~ 915 MHz / (RX) 925 ~ 960 MHz

WCDMA : 850 / GSM 1800 (TX) 1710 ~ 1785 MHz / (RX) 1805 ~ 1880 MHz

GSM 1900 (TX) 1850 ~ 1910 MHz / (RX) 1930 ~ 1990 MHz

WLAN : 802.11b/ 802.11g (2412~2462MHz)

B T : 2402~2480MHz

Band width 200 KHz (GSM) / 5MHz (3G)

External appearance 78.6 x 163.5 x 24.9mm (Width x length x height)

Weight 320g

Operational

Temperature

Main

body -10 ℃~ +50 ℃

Adapter -10 ℃~ +50 ℃

Relative Humidity 5% ~ 80%

AC Power Input : AC 100 ~ 250V, 50 ~ 60Hz

Output : DC +5.2V, 3.0A

Size and Features

Supported Frequency Bands can differ depending on the supplied antenna.

Contents

CONTENTS

lNote 2

lCopyright and Agreement 3

lCaution when using M3 4

lSize and Features 6

1. M3 Introduction 9

Product Composition 10

Name and function of each part 12

Input Buttons 13

Soft/Hard Reset 15

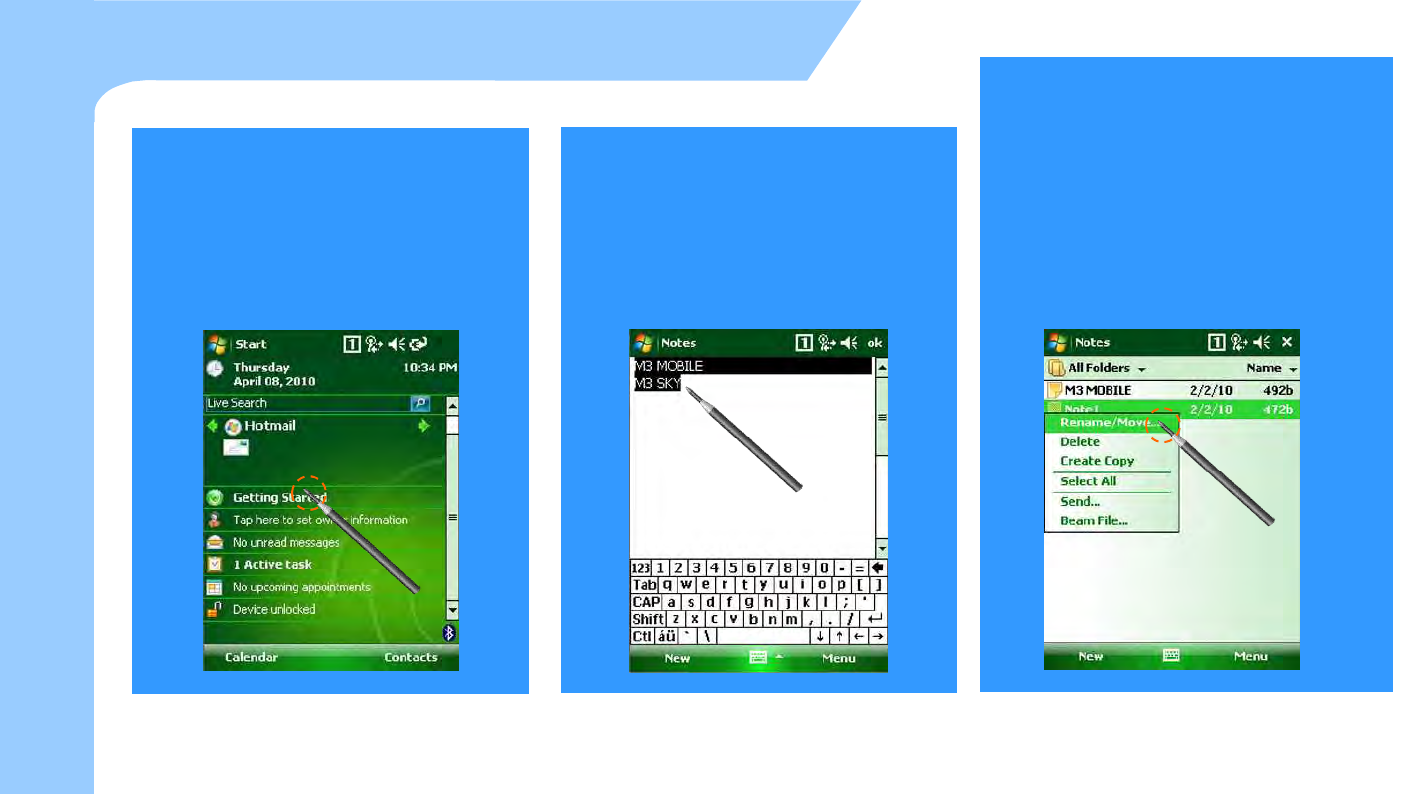

How to use stylus pen 16

LED/Battery attaching/detaching 17

Charging 18

How to connect to PC 19

2. Basic Usage 20

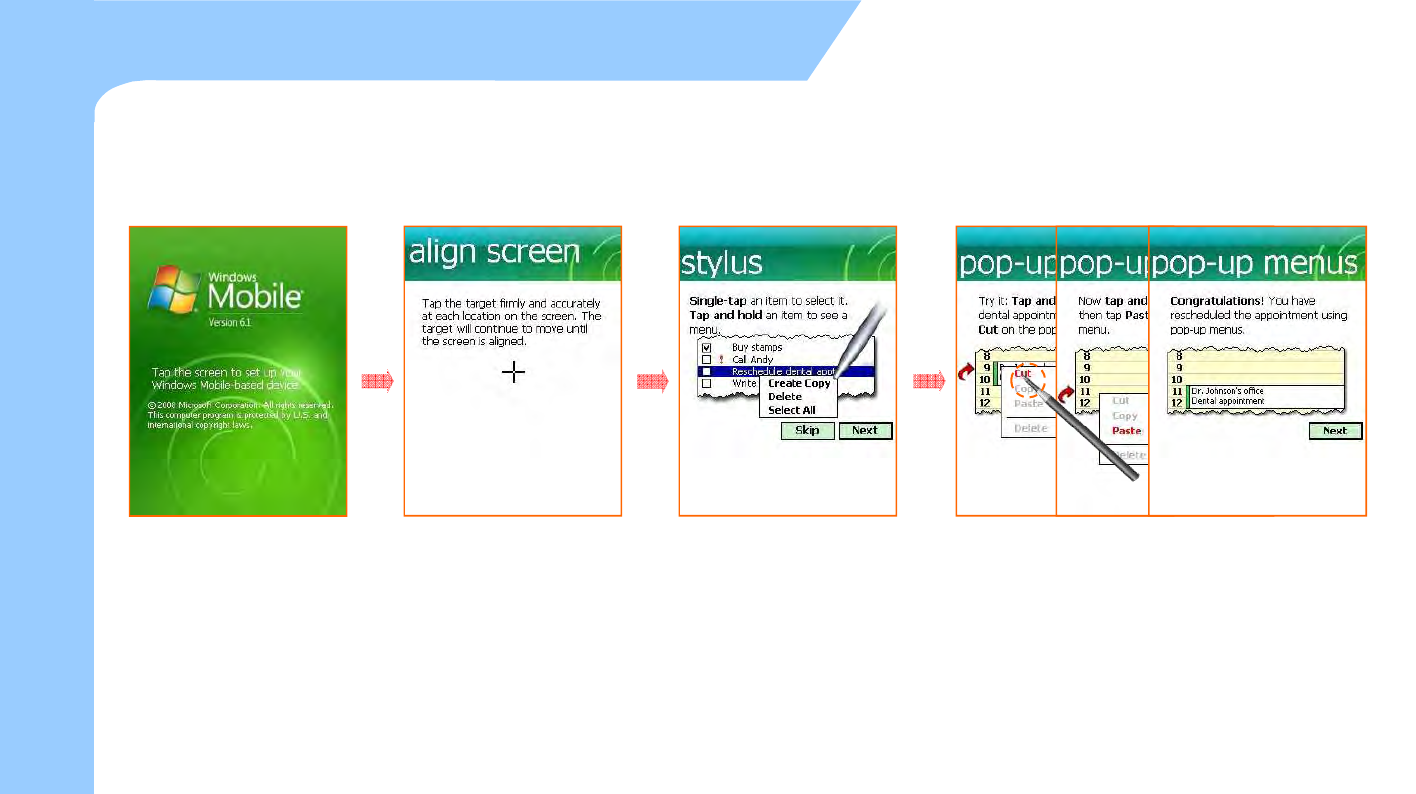

Calibration 21

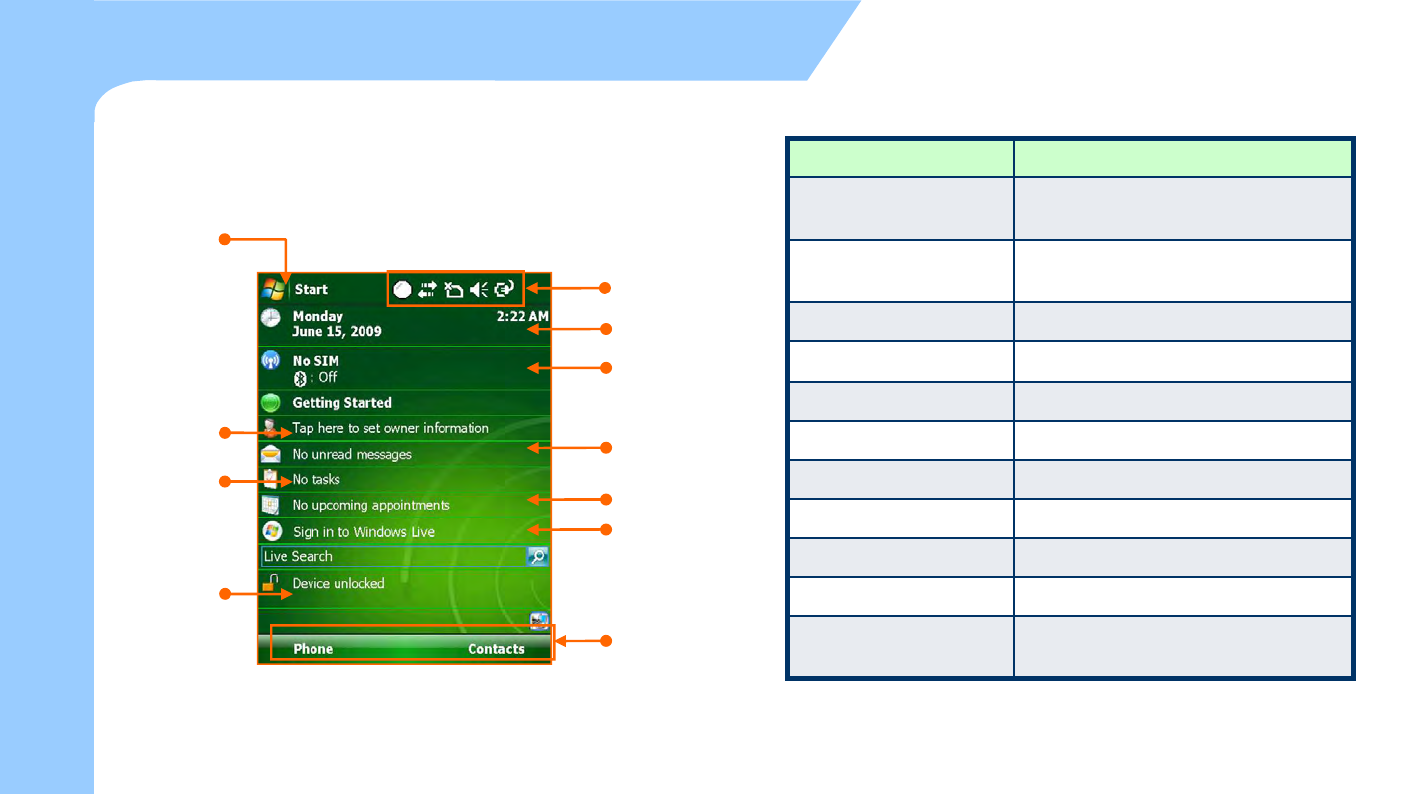

Main screen 23

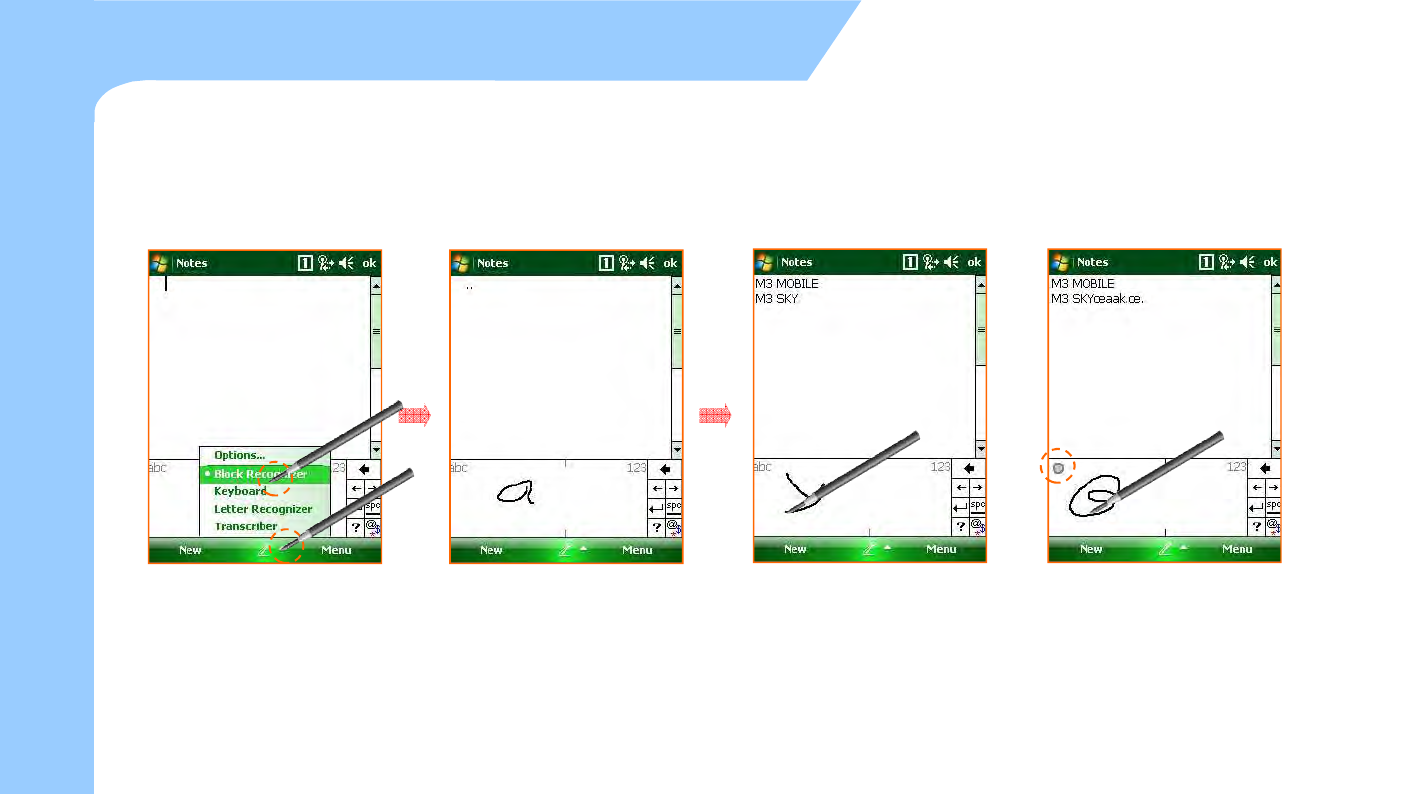

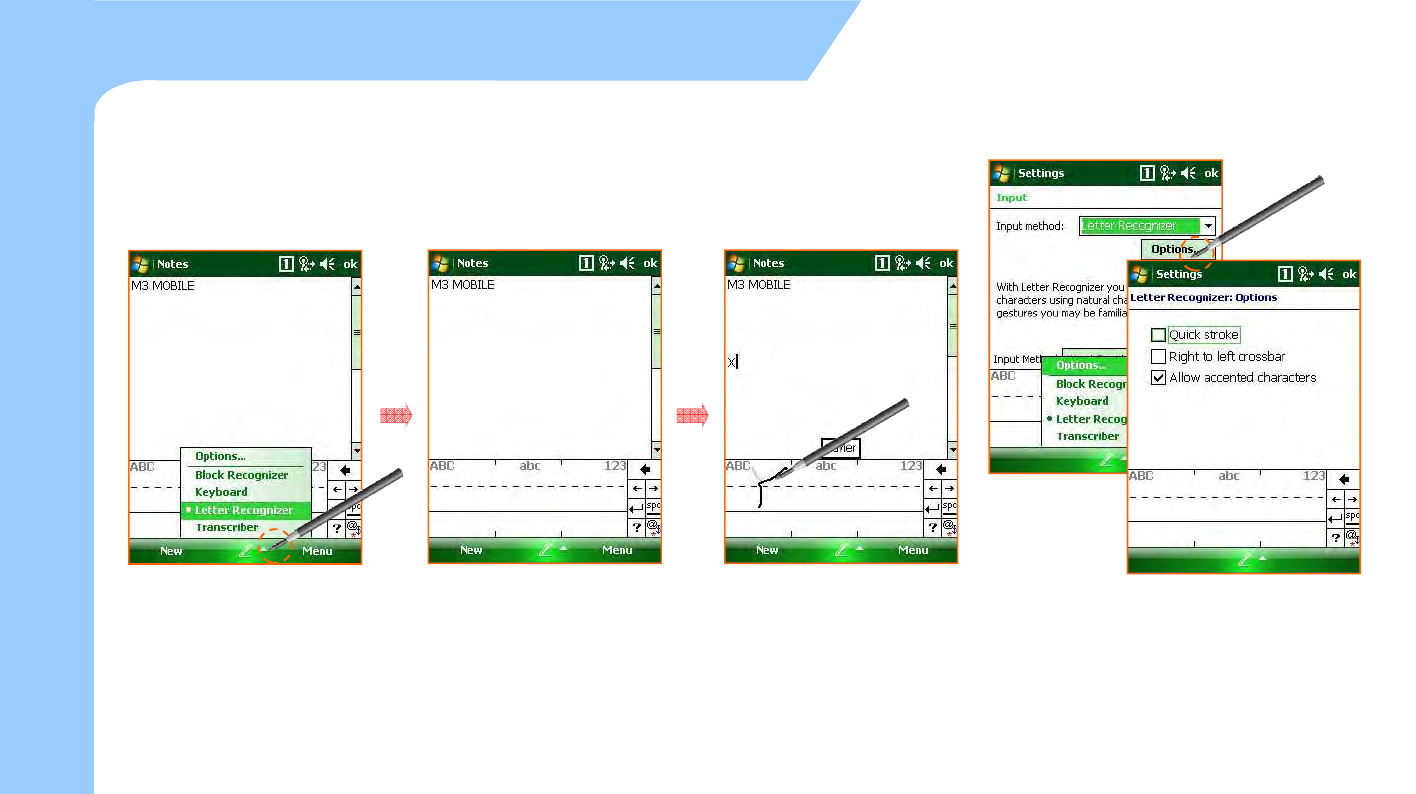

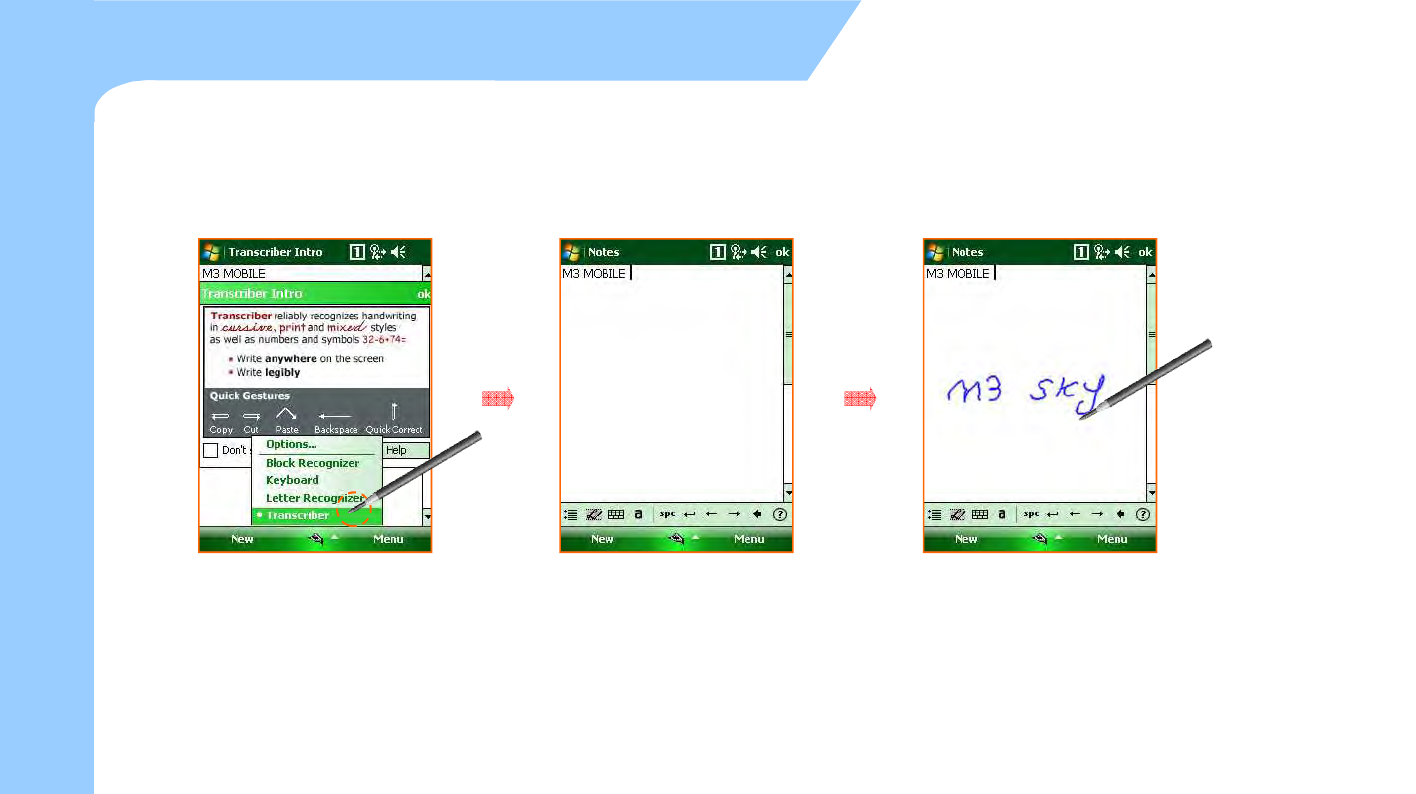

Input screen 24

3. ActiveSync 29

ActiveSync Introduction 30

Installing ActiveSync 31

Synchronization of data 32

CONTENTS

4. How to use internet 33

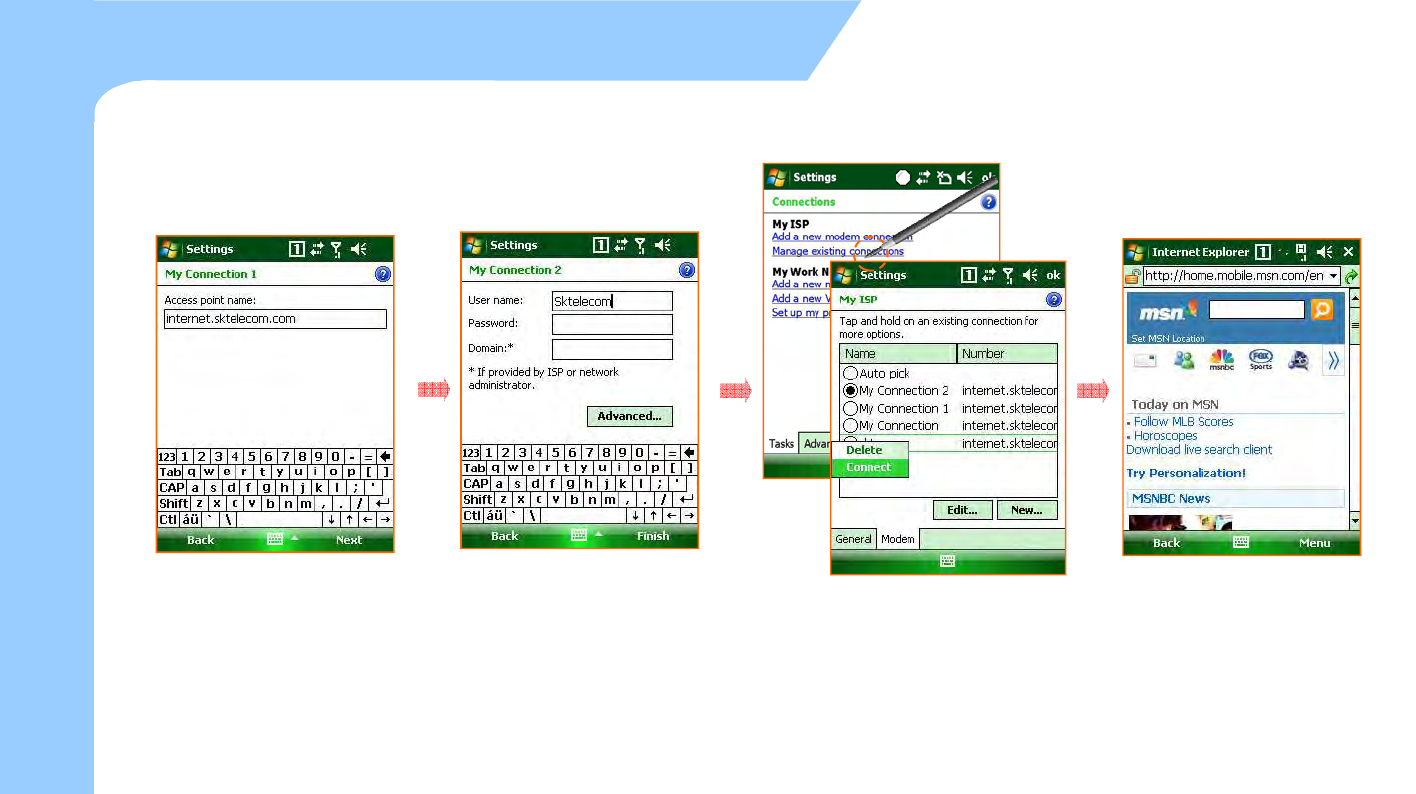

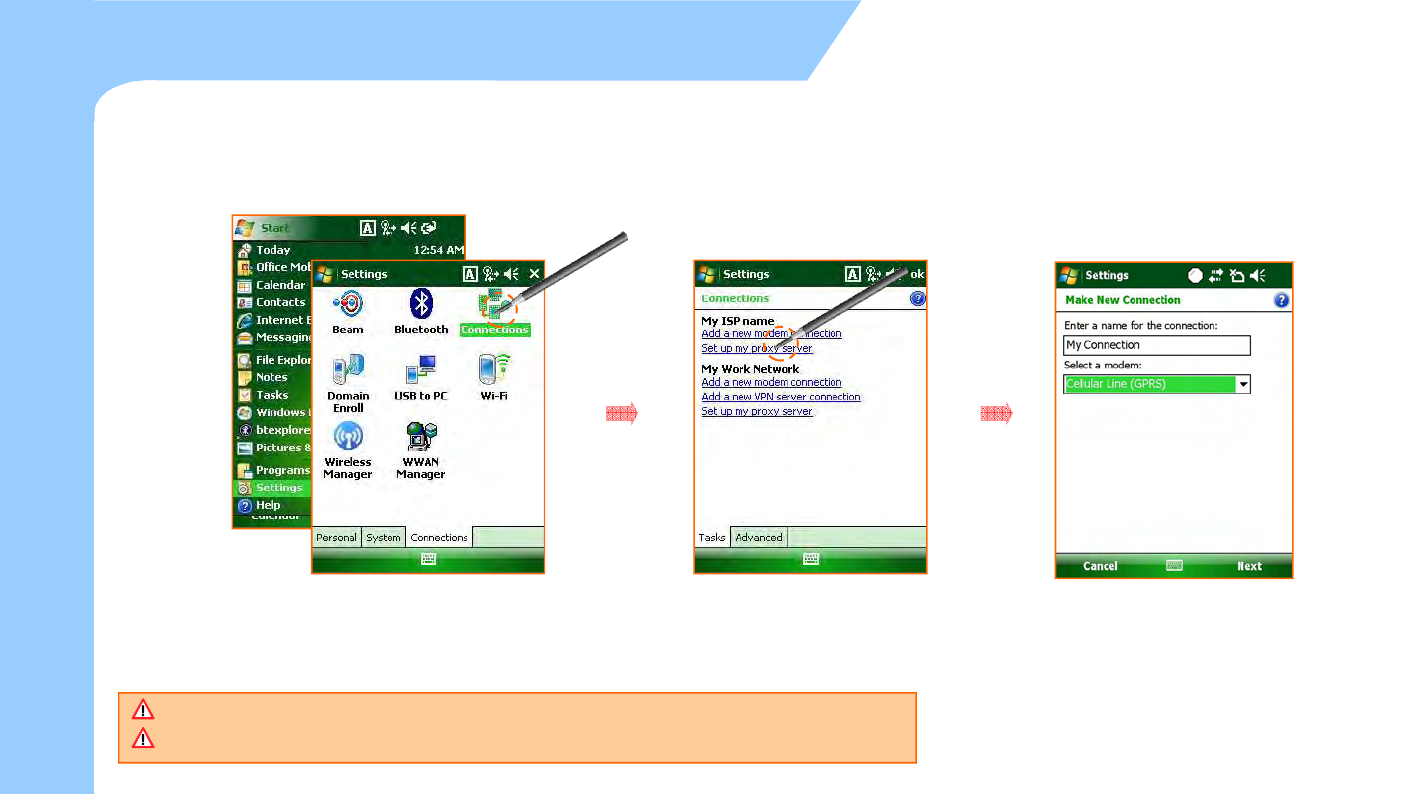

Via HSDPA 34

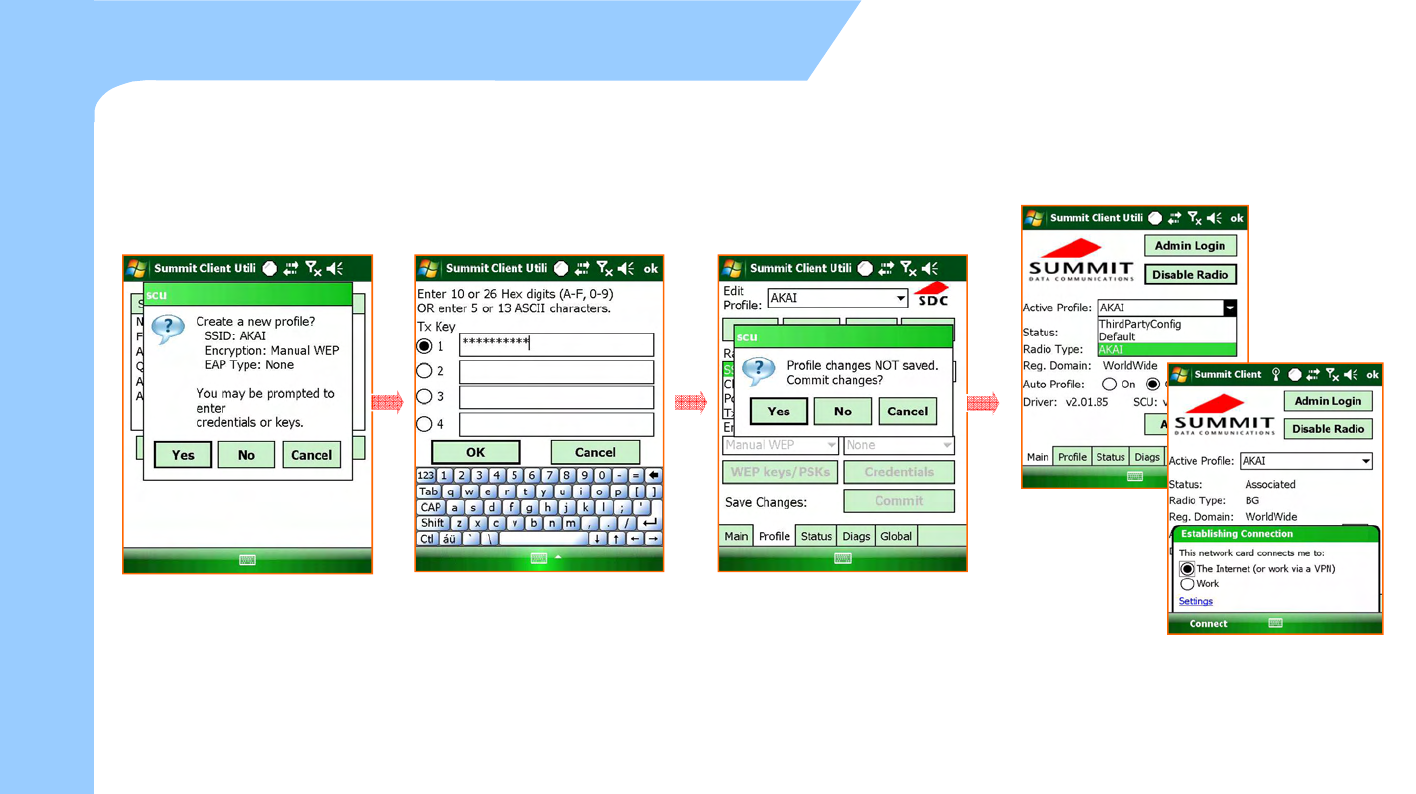

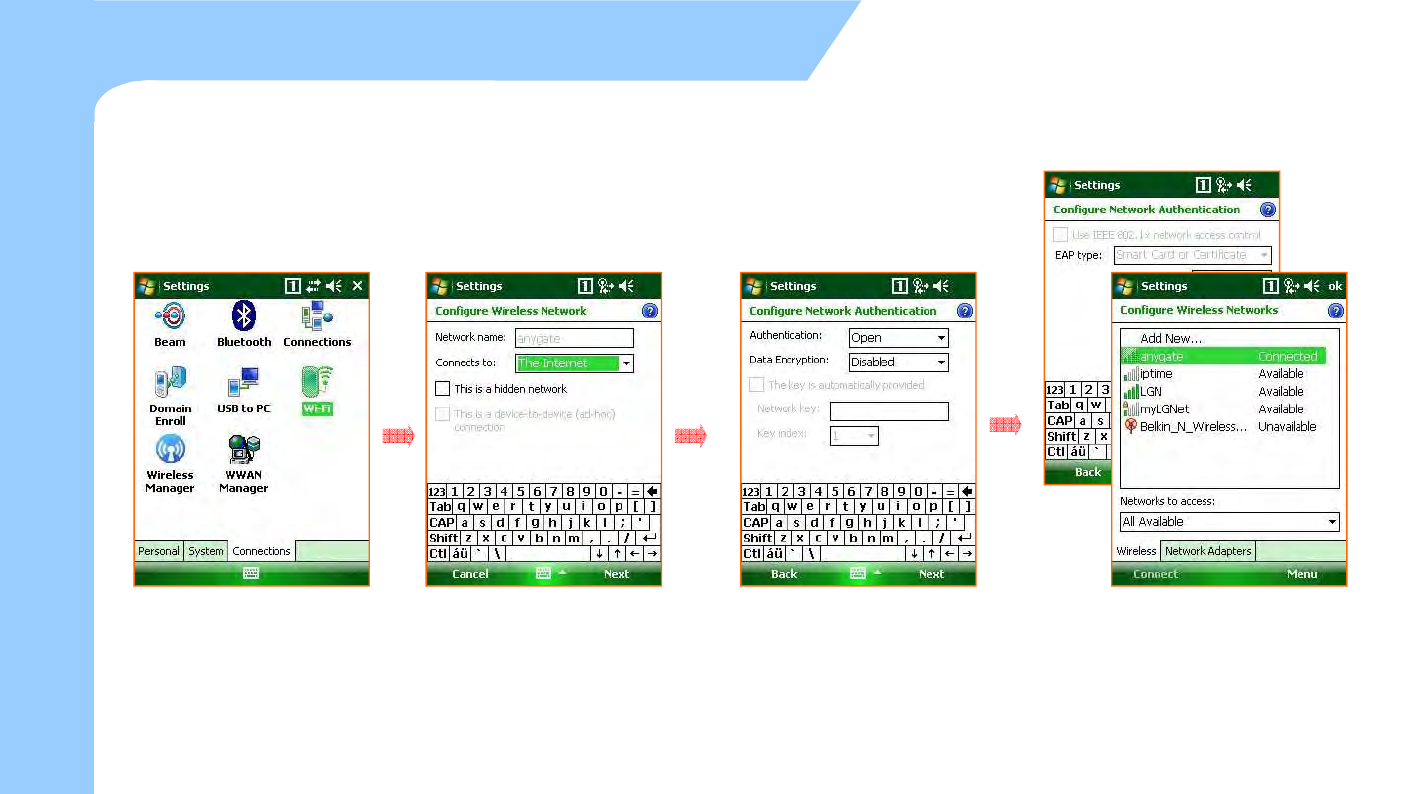

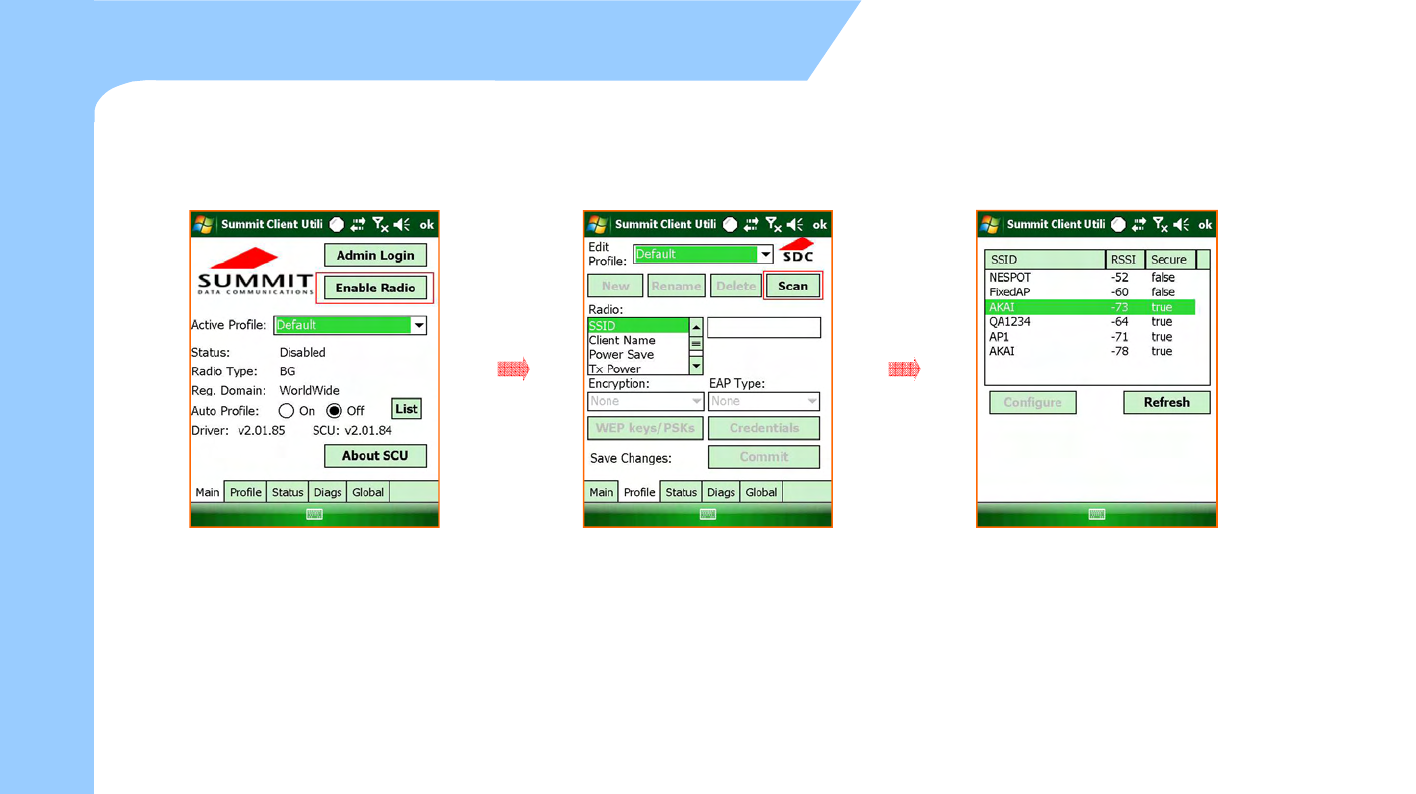

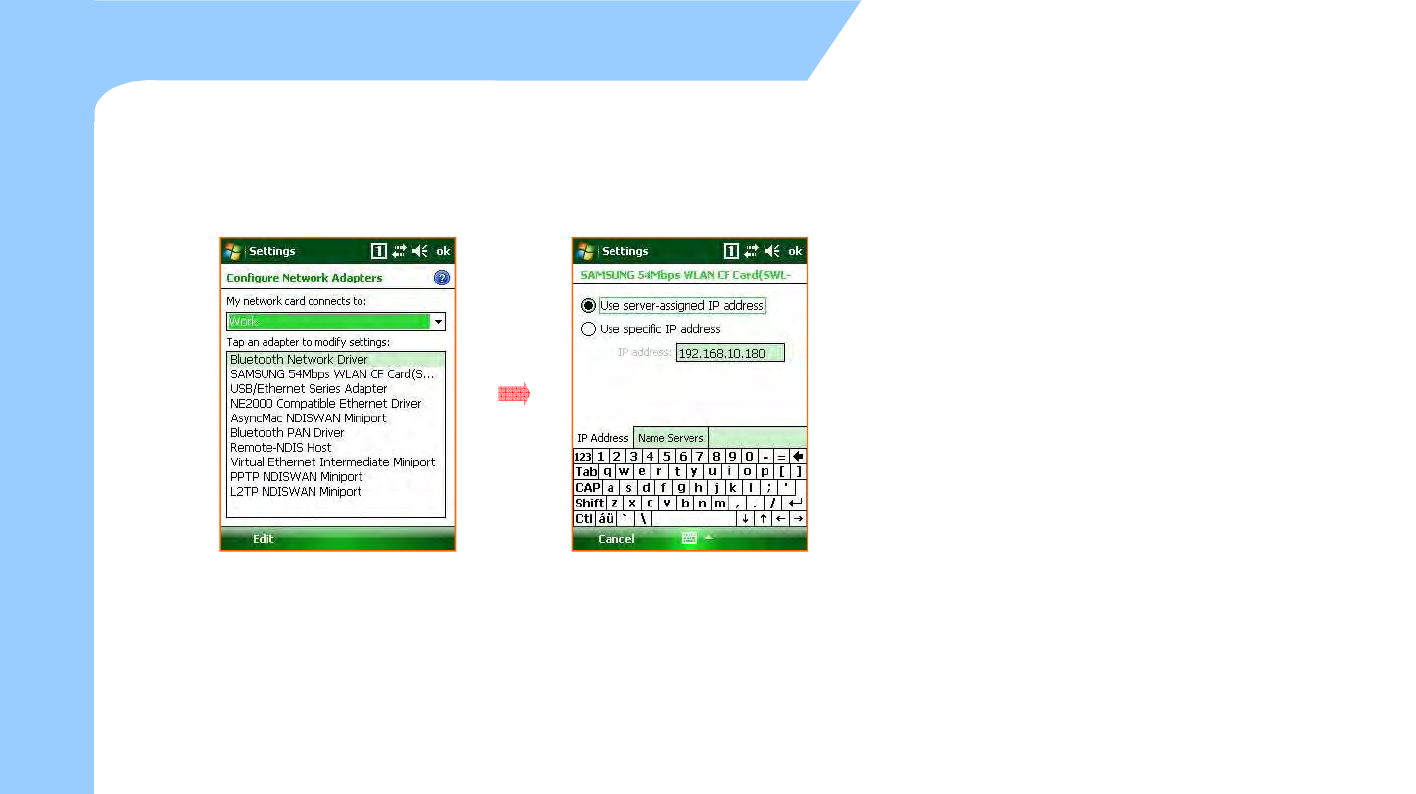

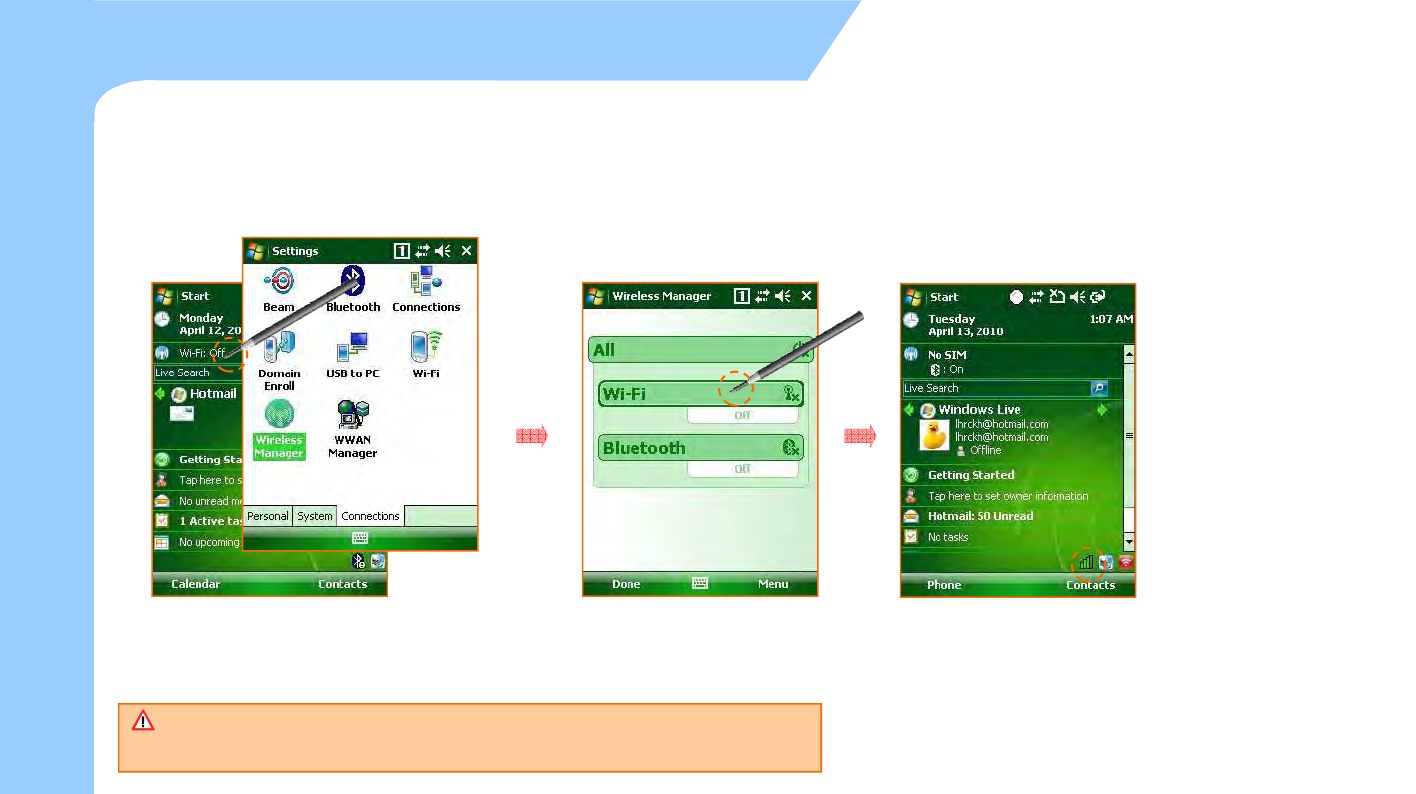

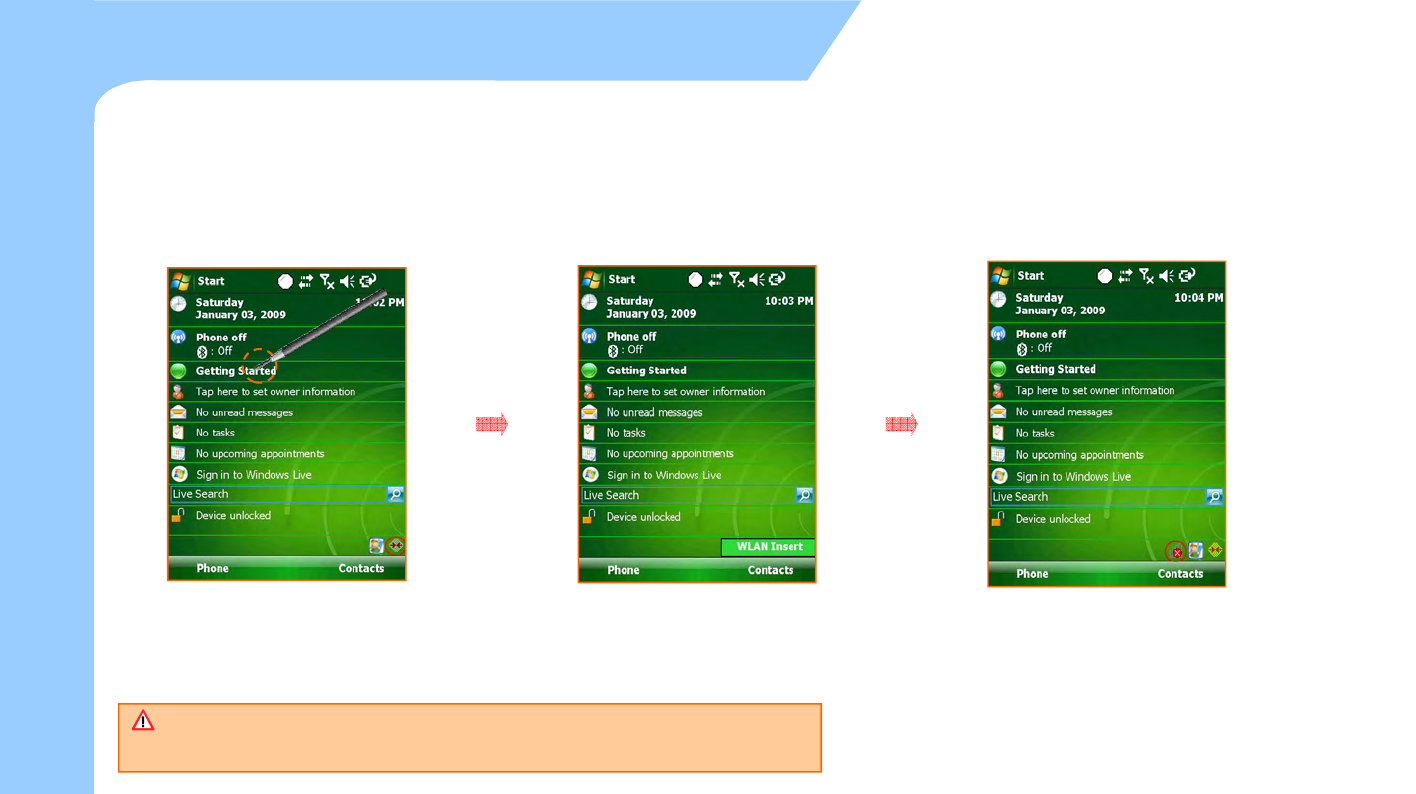

Via Wireless LAN 36

Via Wireless WLAN 39

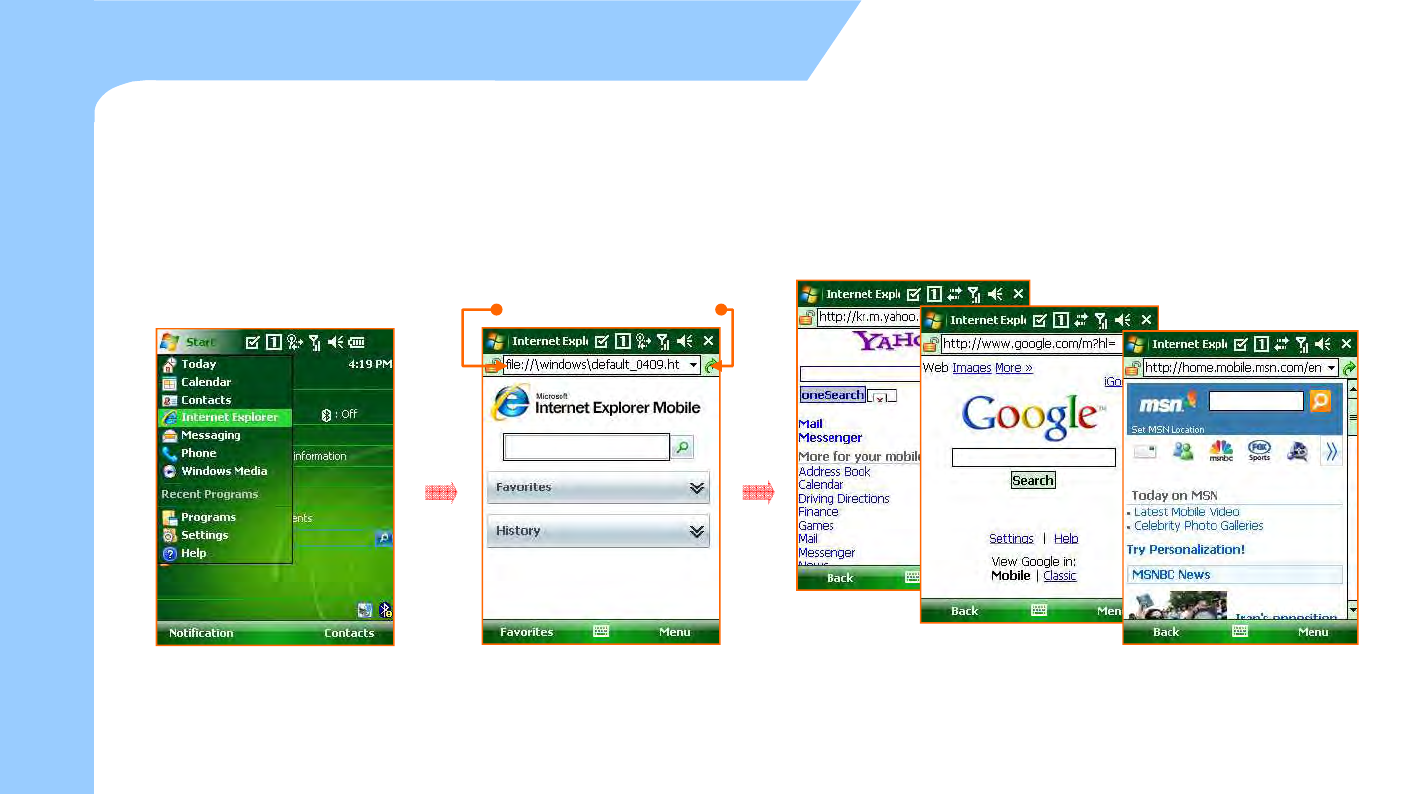

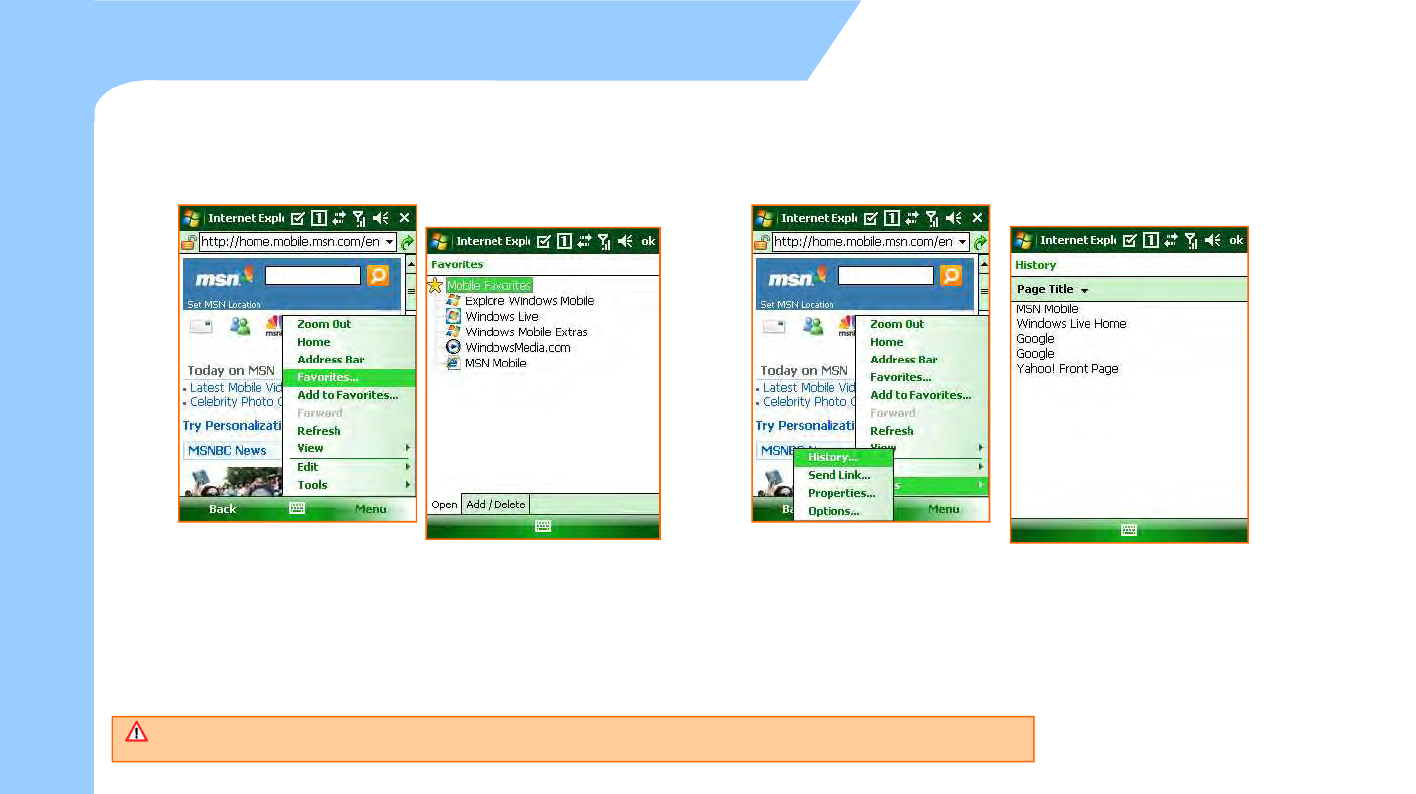

Browsing the Web Site 42

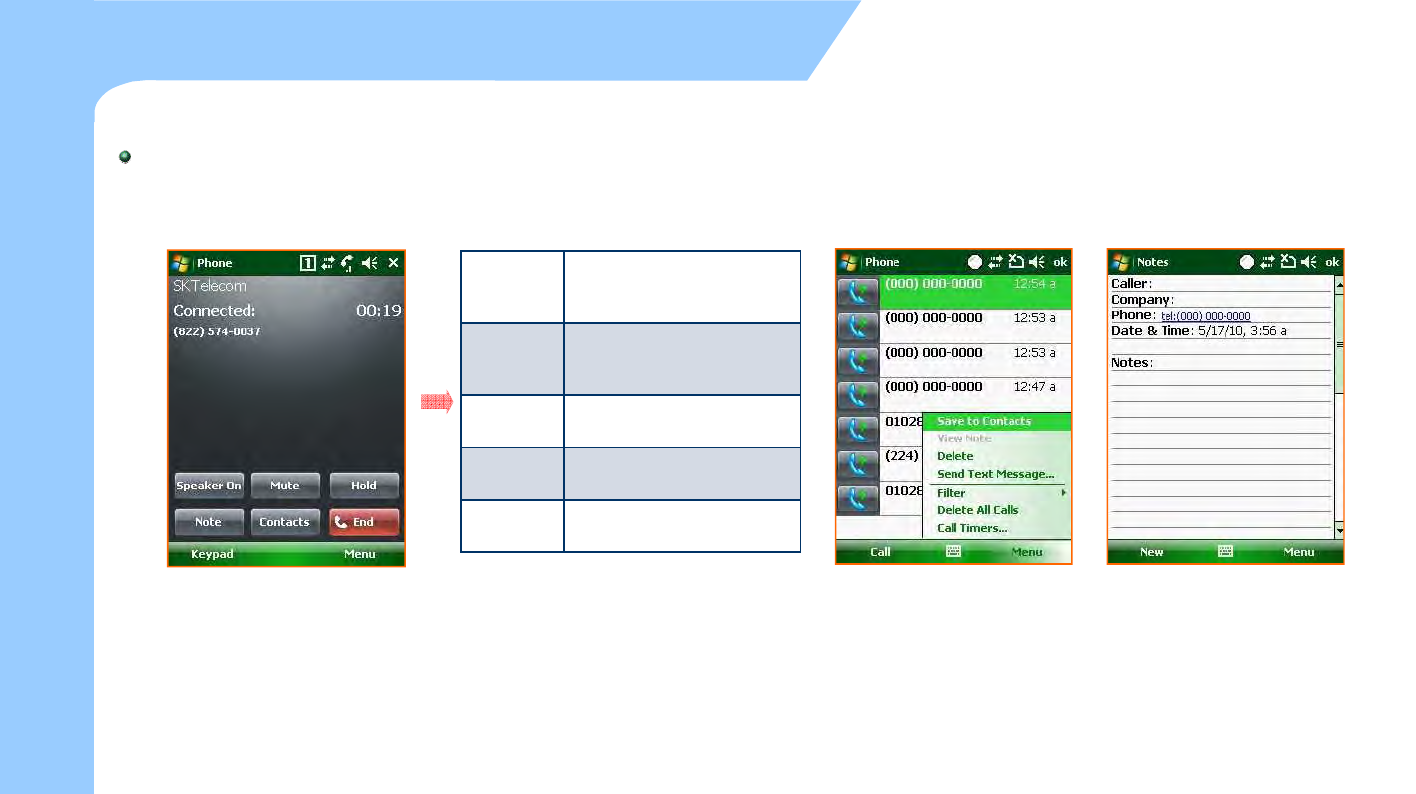

5. How to use the Phone 47

Init Screen 48

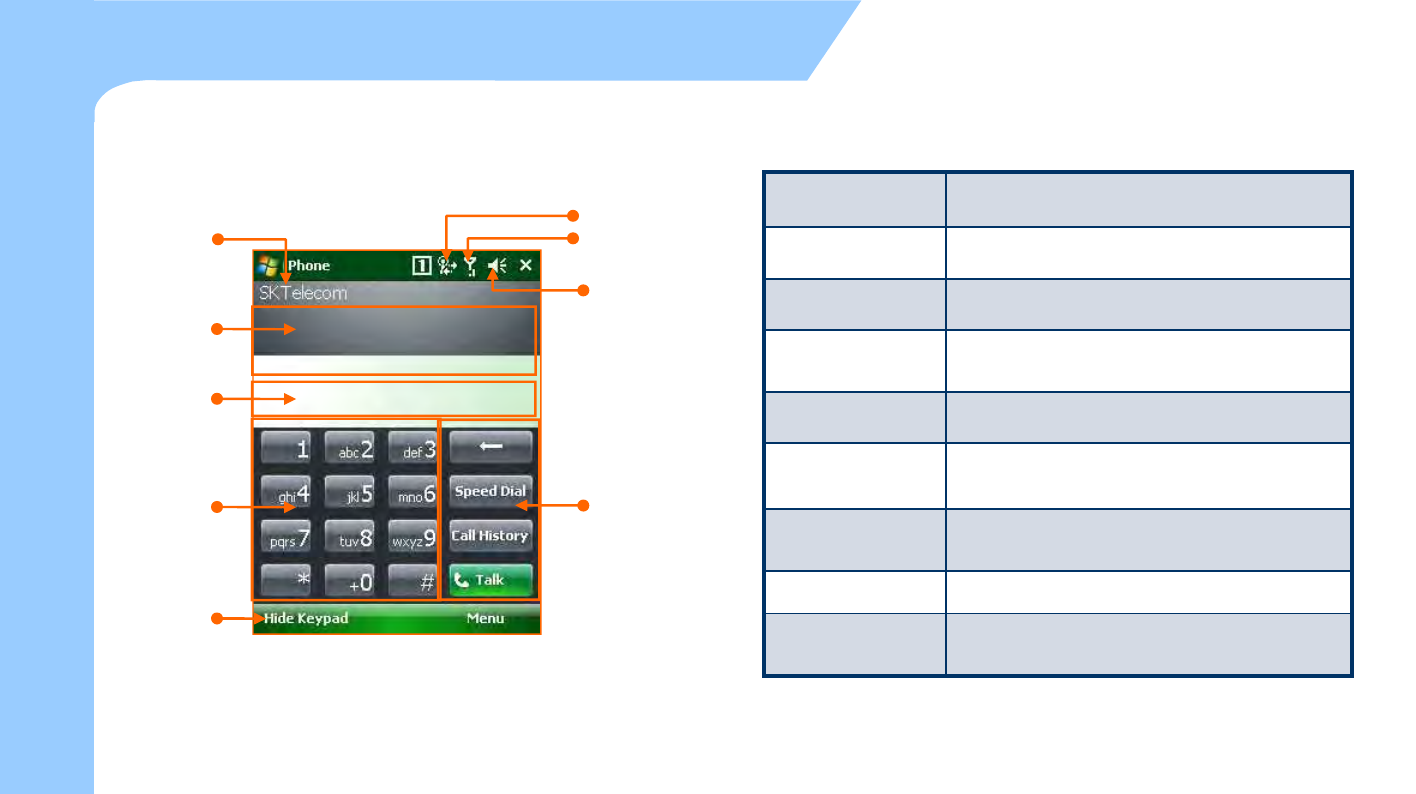

Phone Control 49

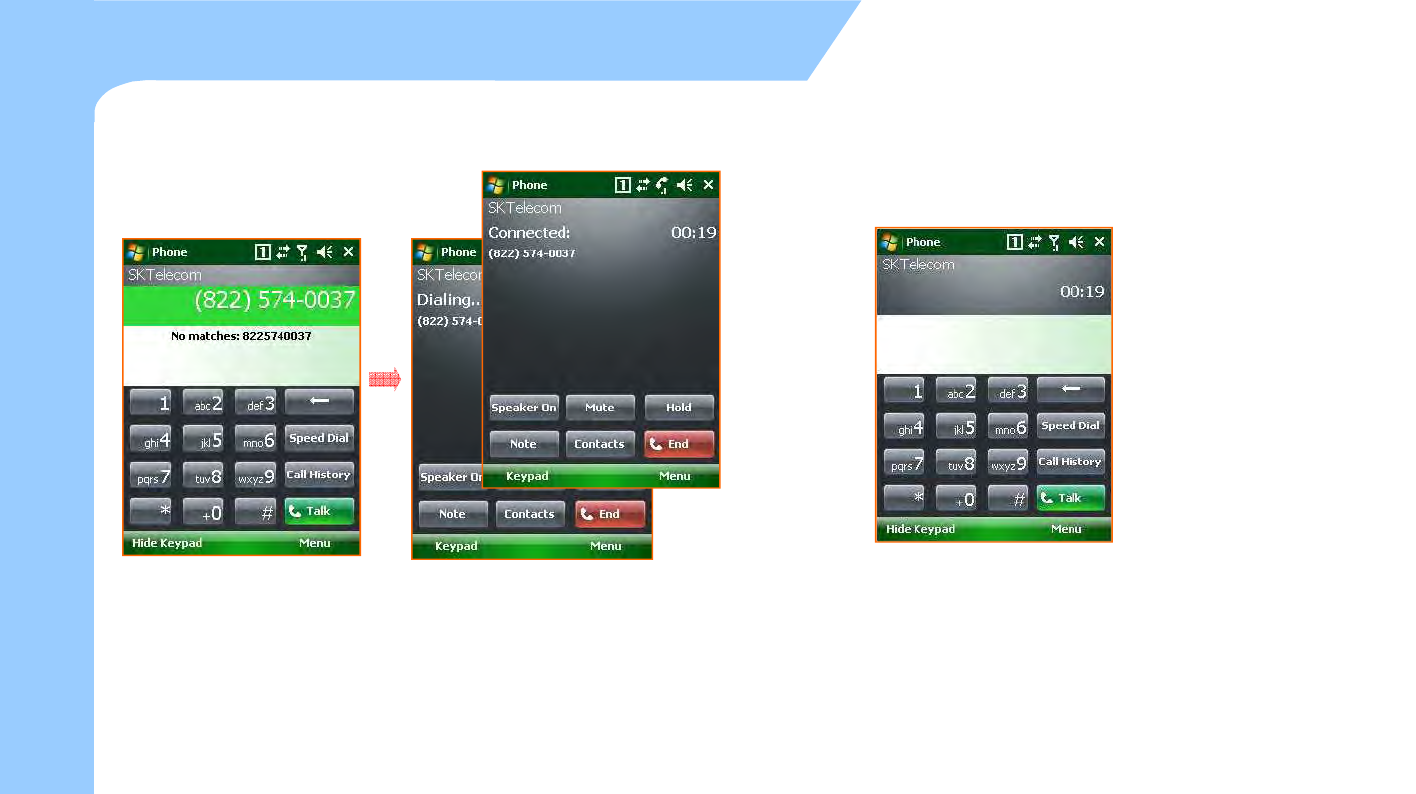

Phone call and receive 50

Phone book 51

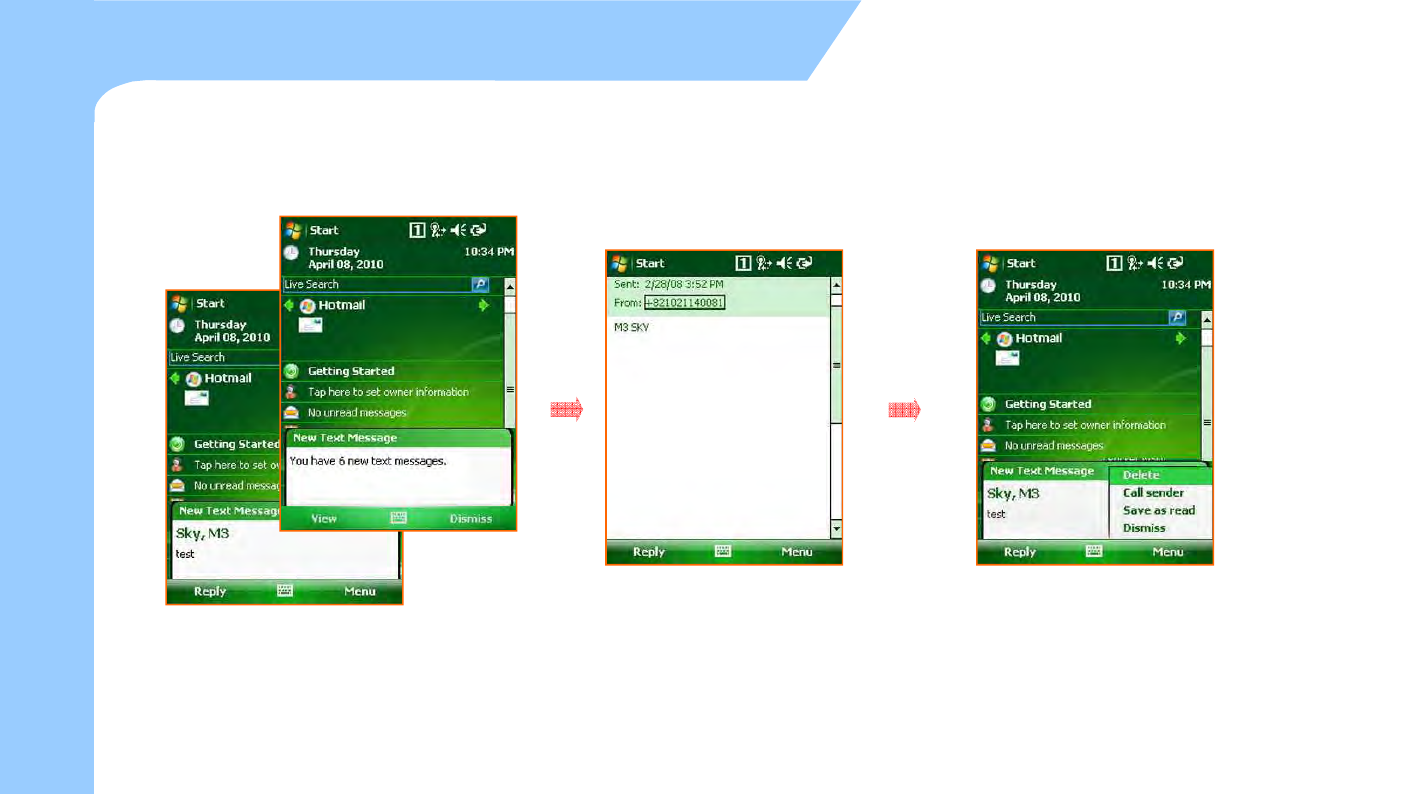

SMS send and receive 52

Phone function 54

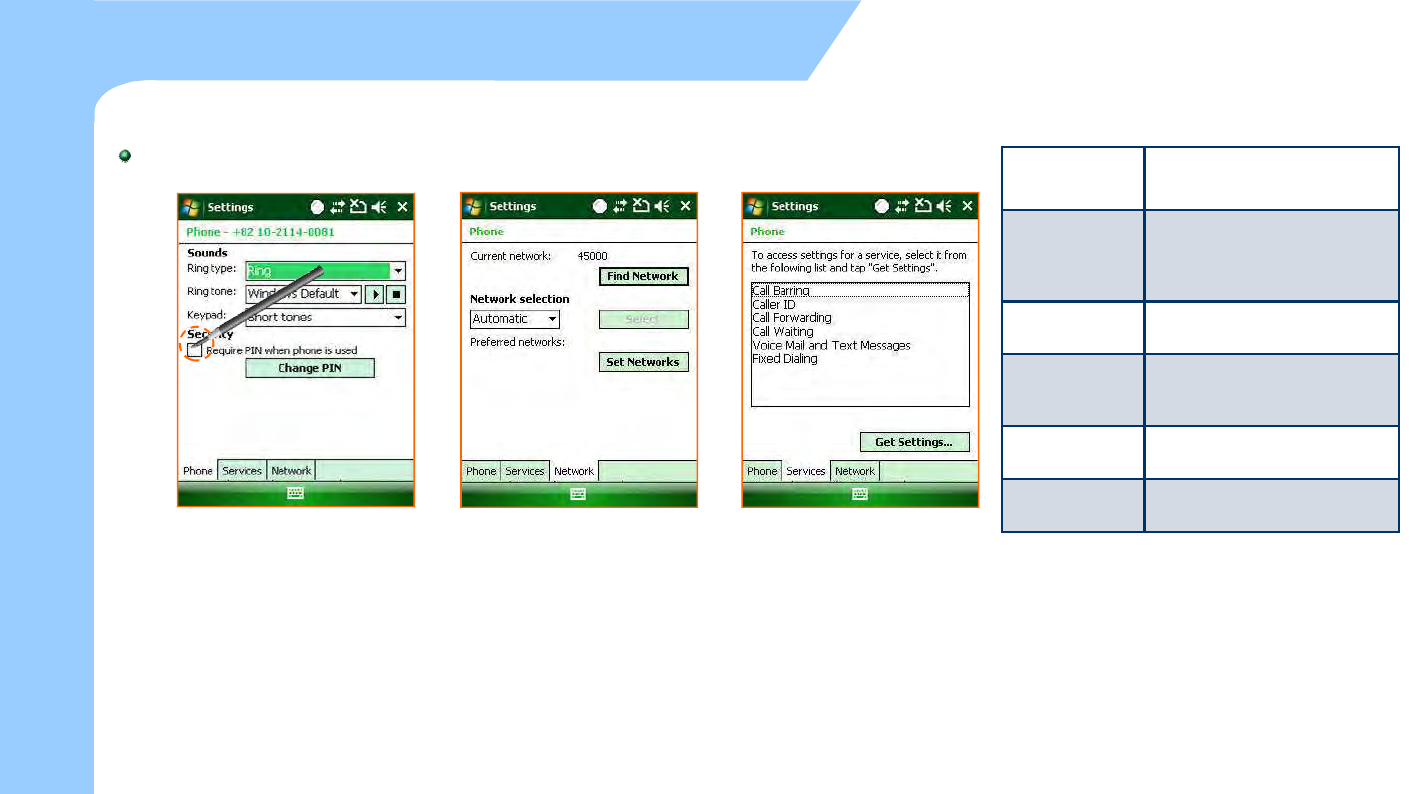

Phone setting 55

Contents

6. Usage of Device 56

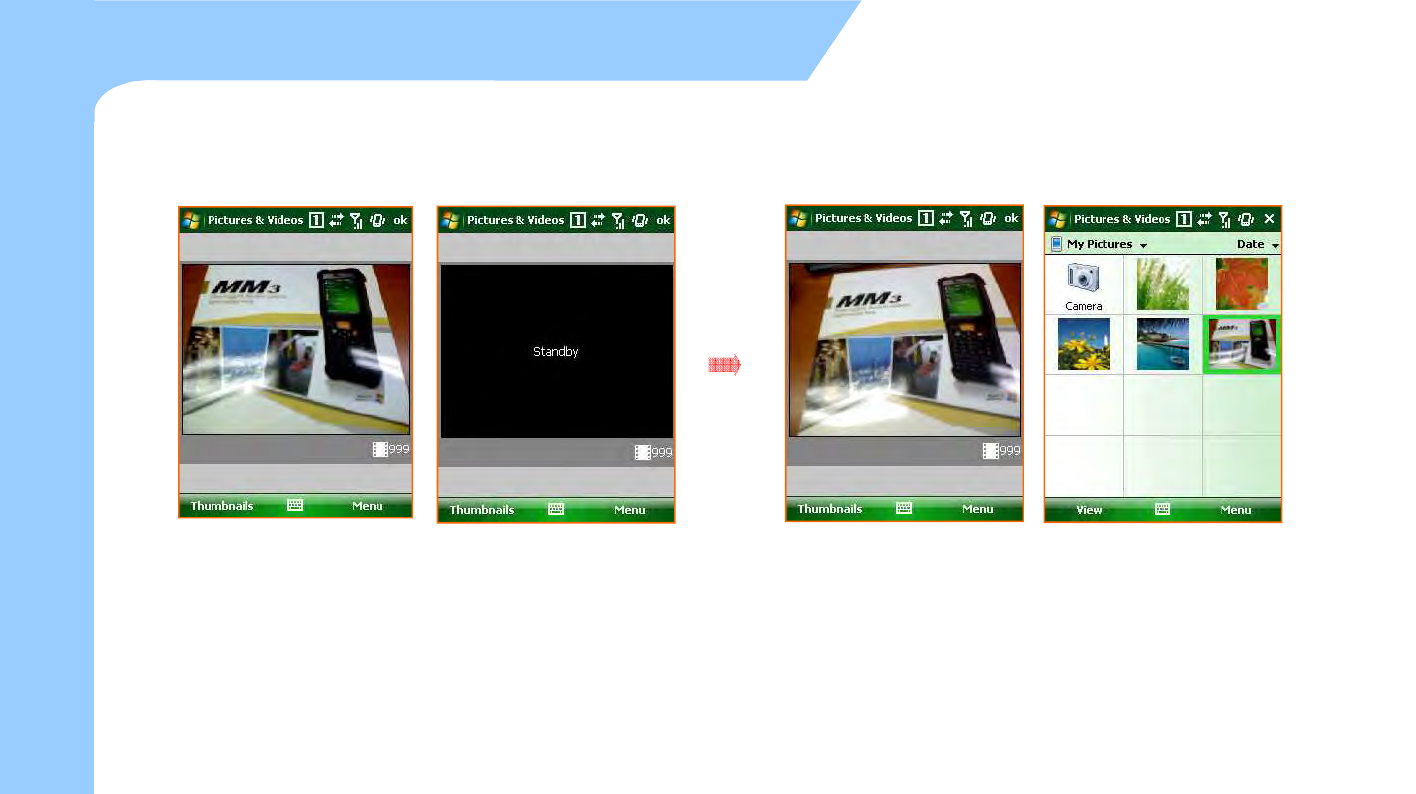

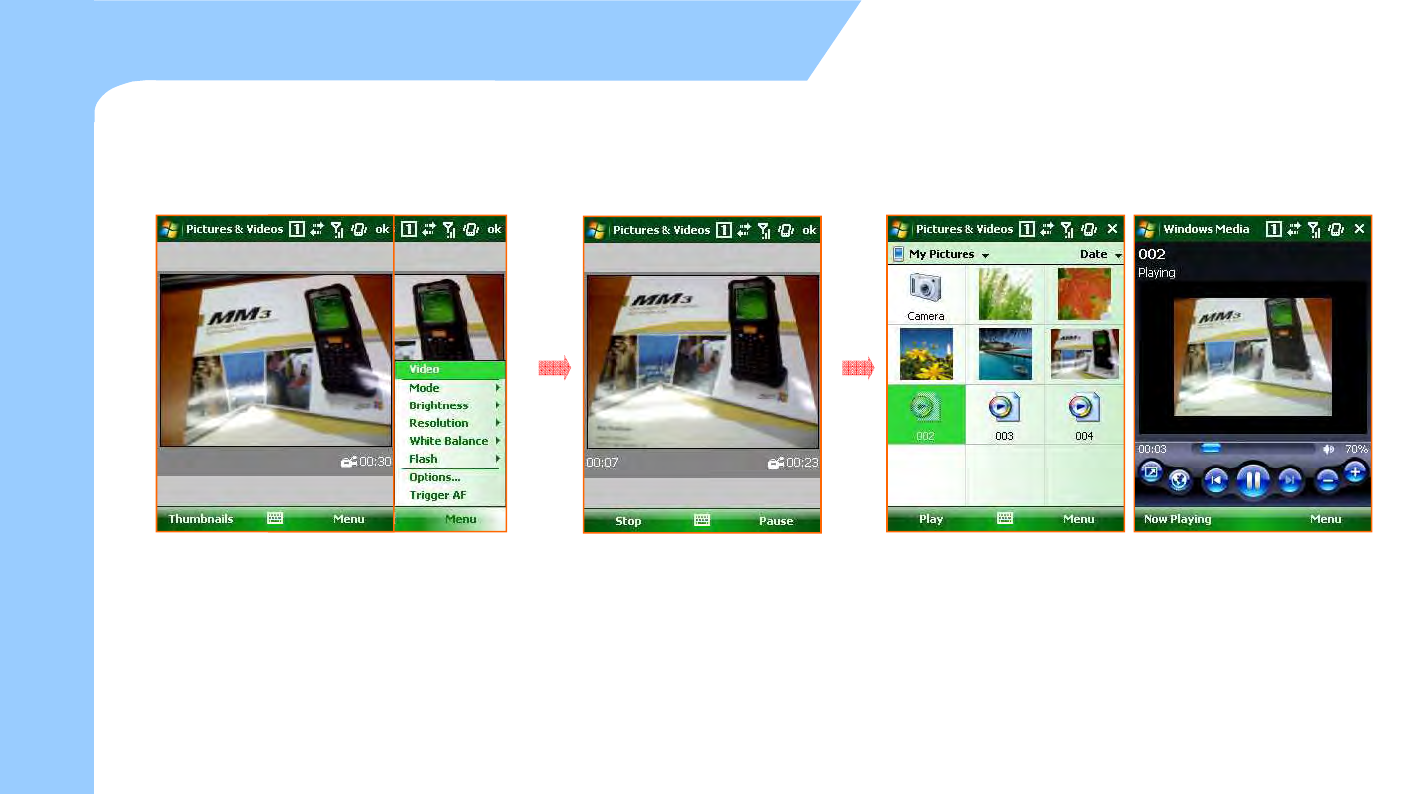

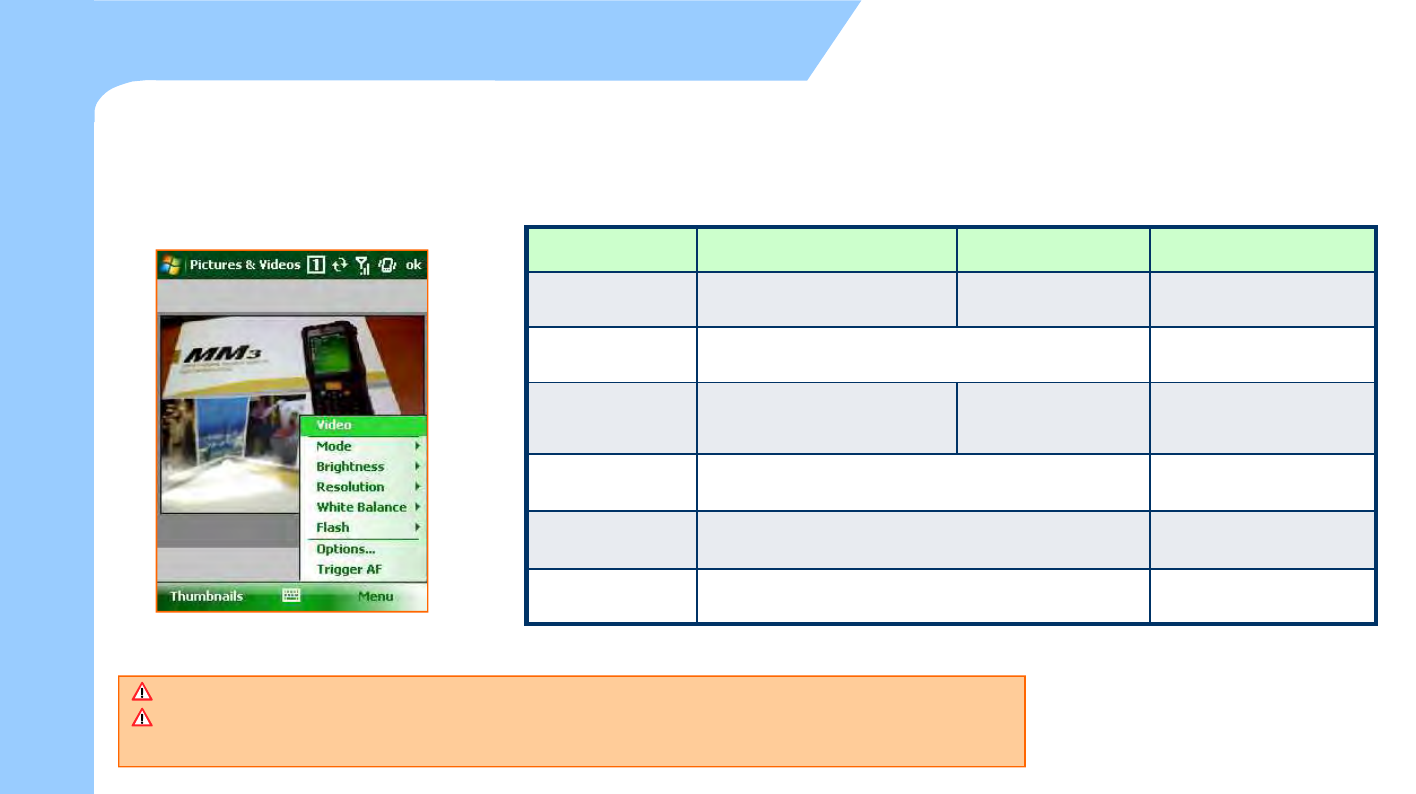

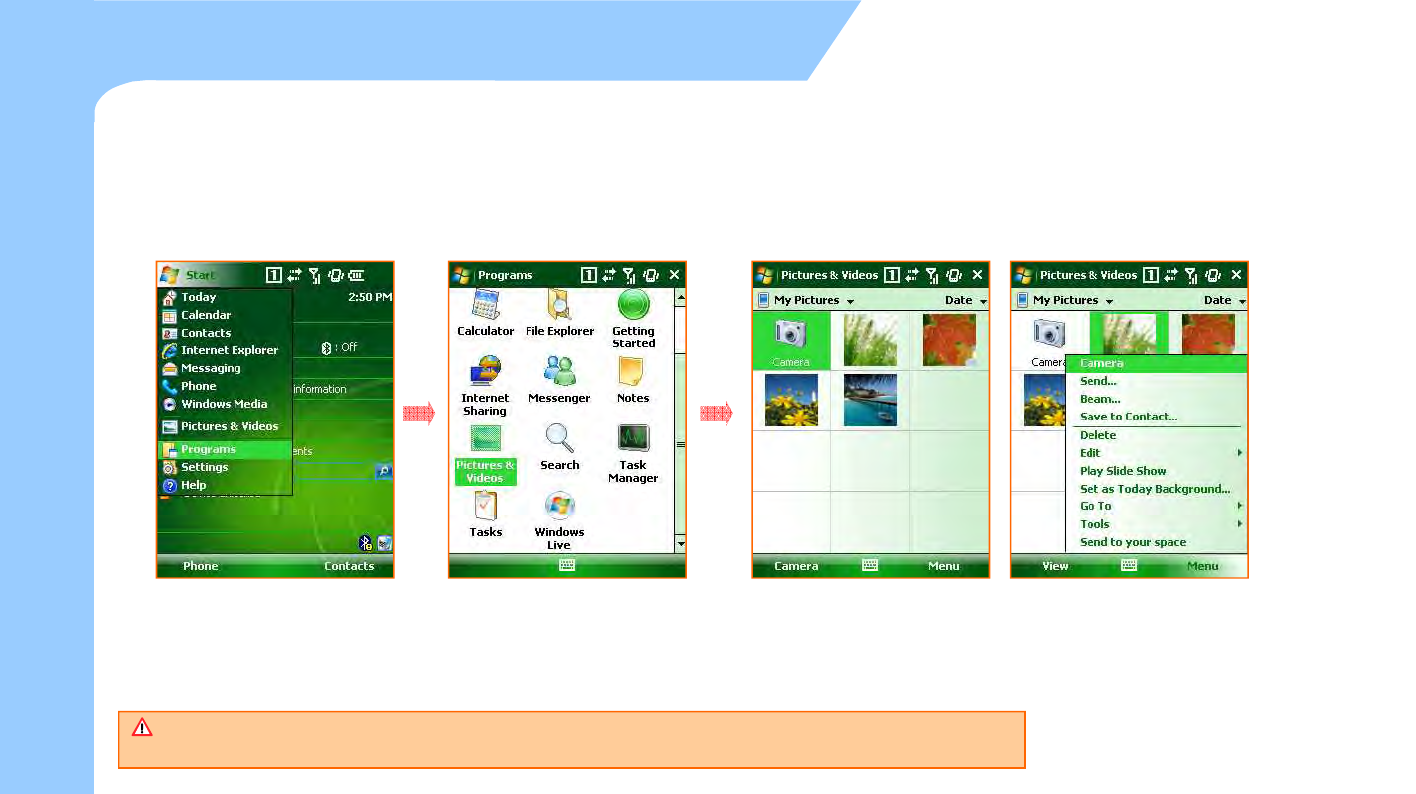

Camera 57

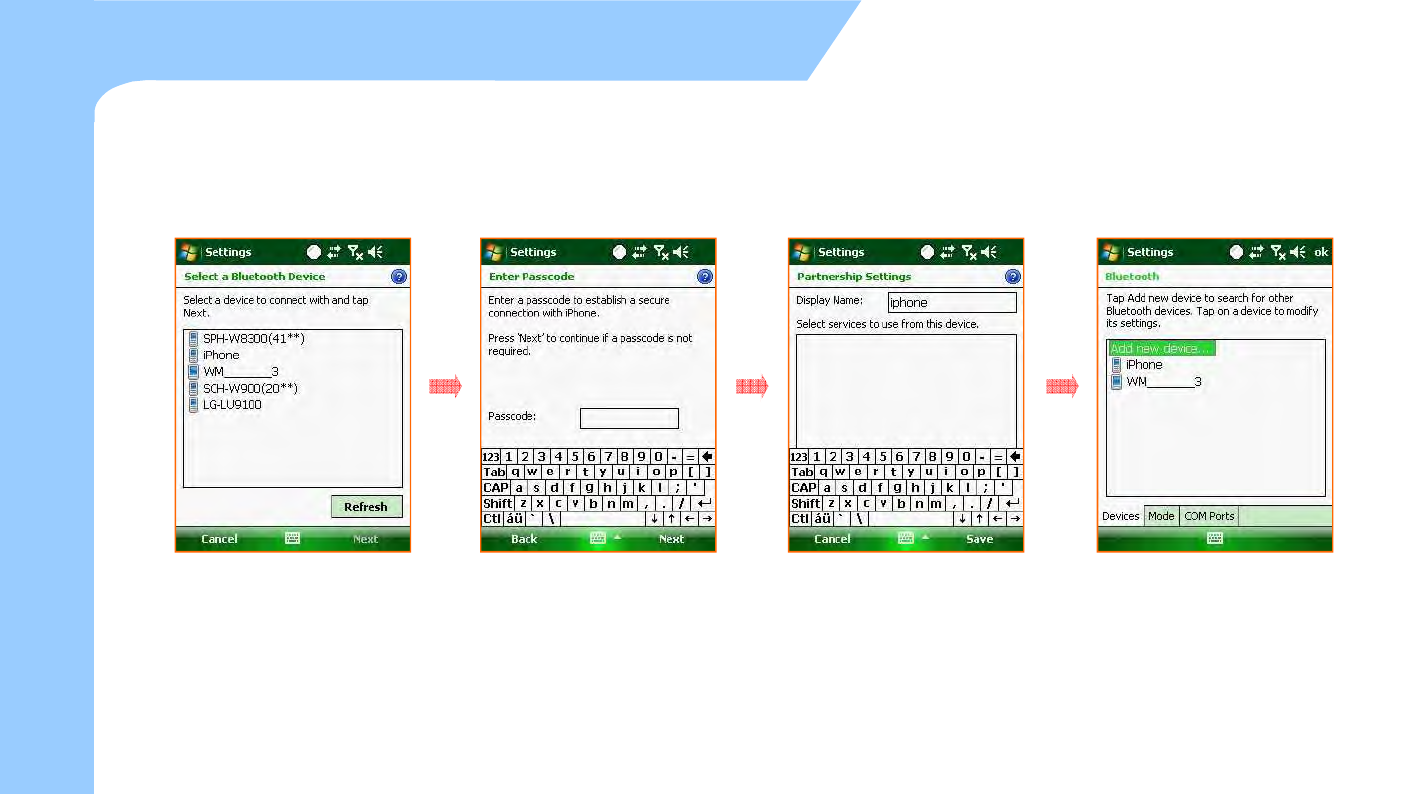

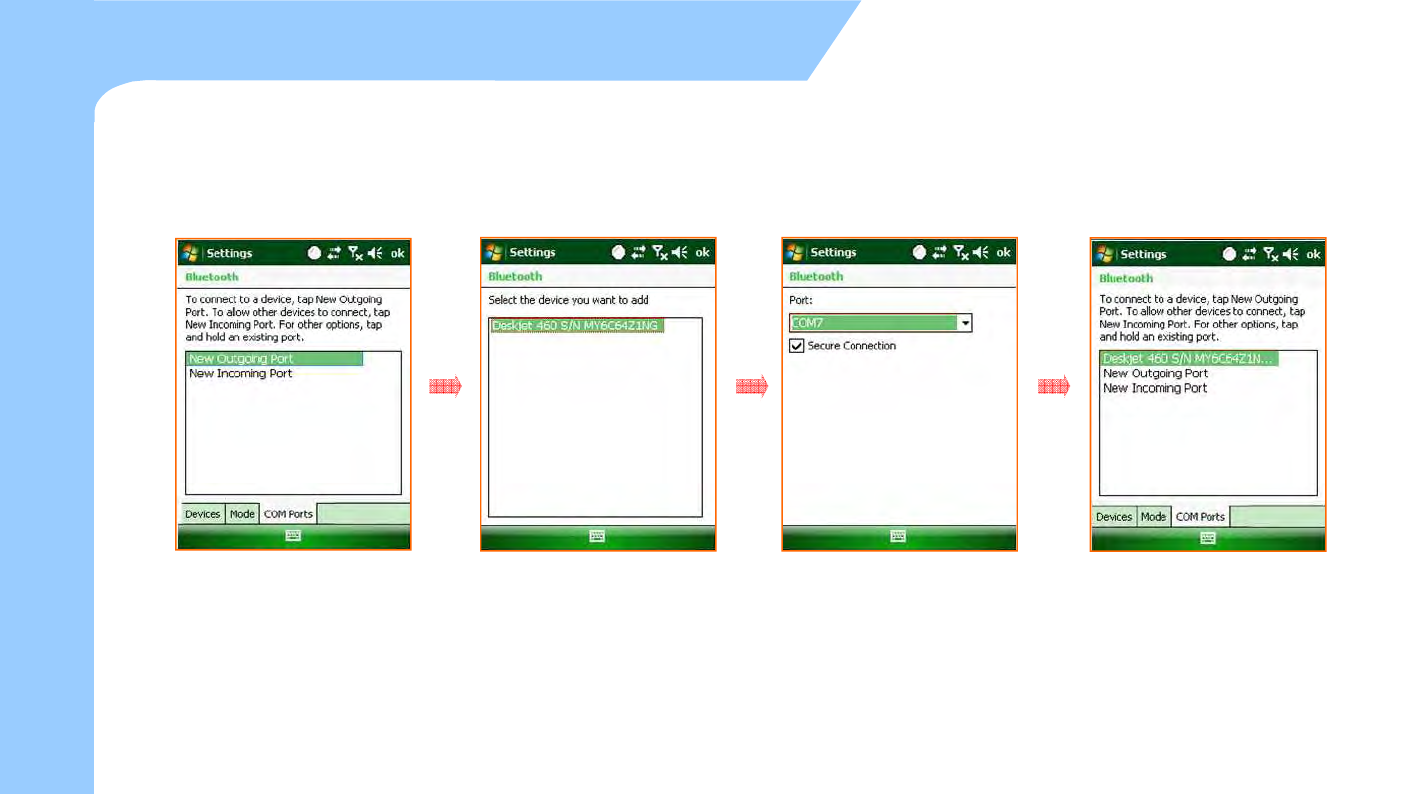

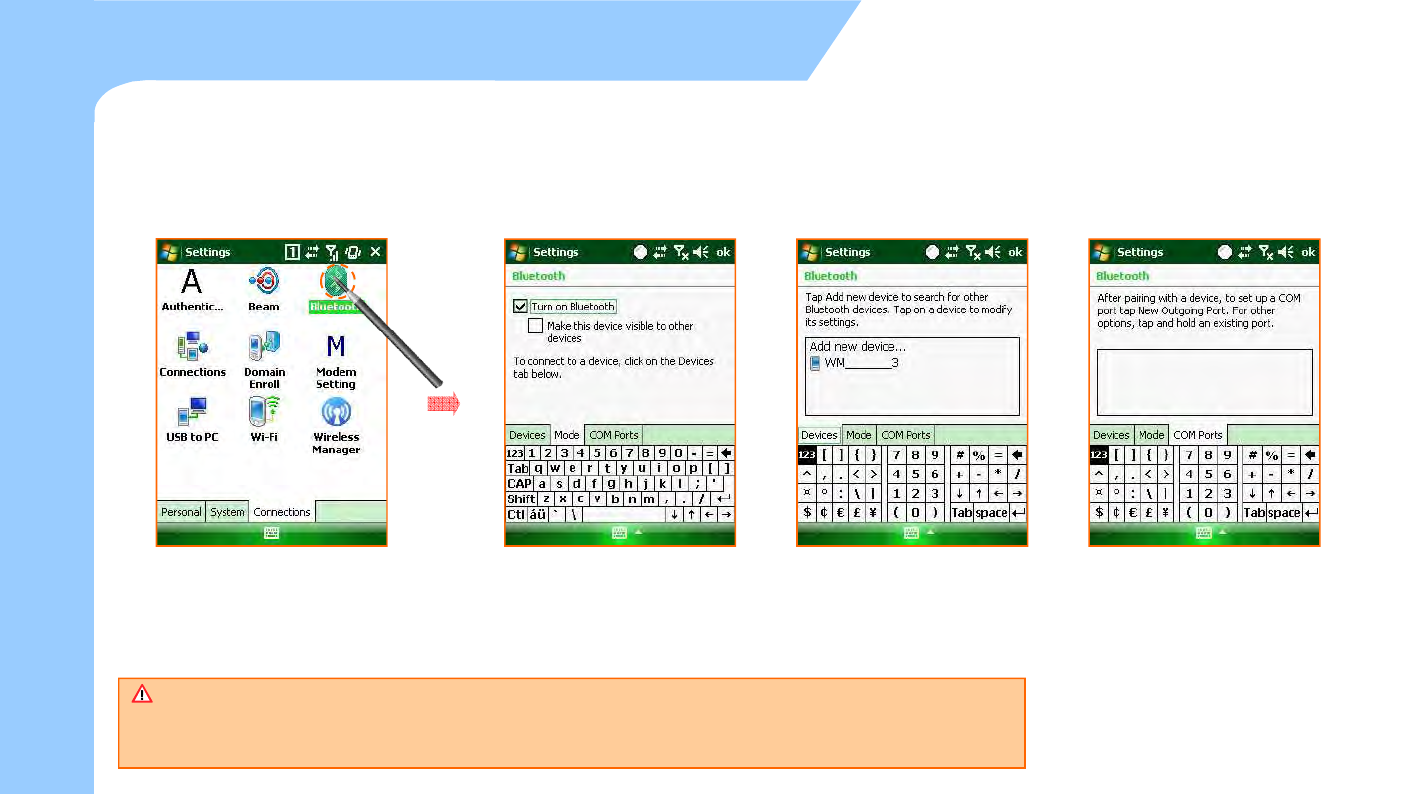

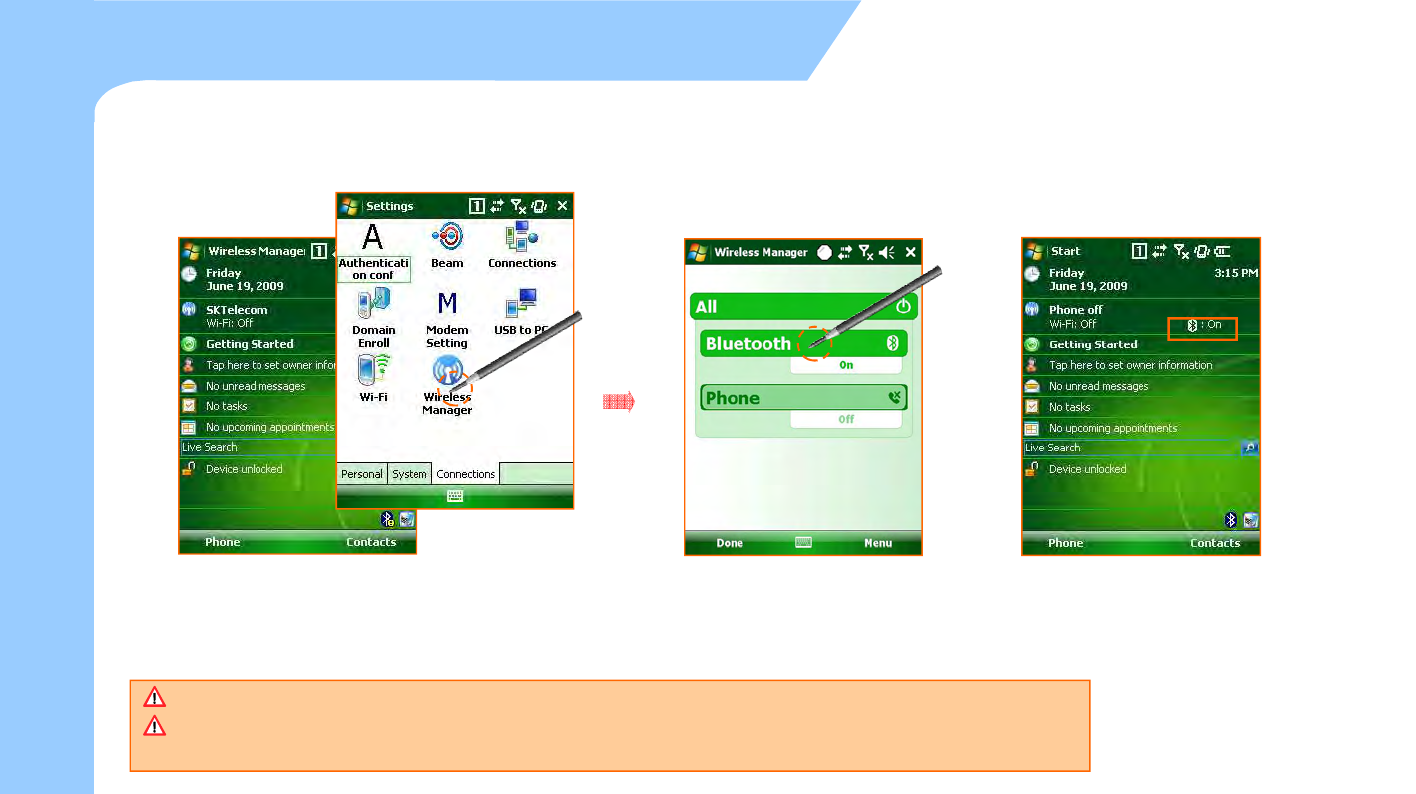

Bluetooth 61

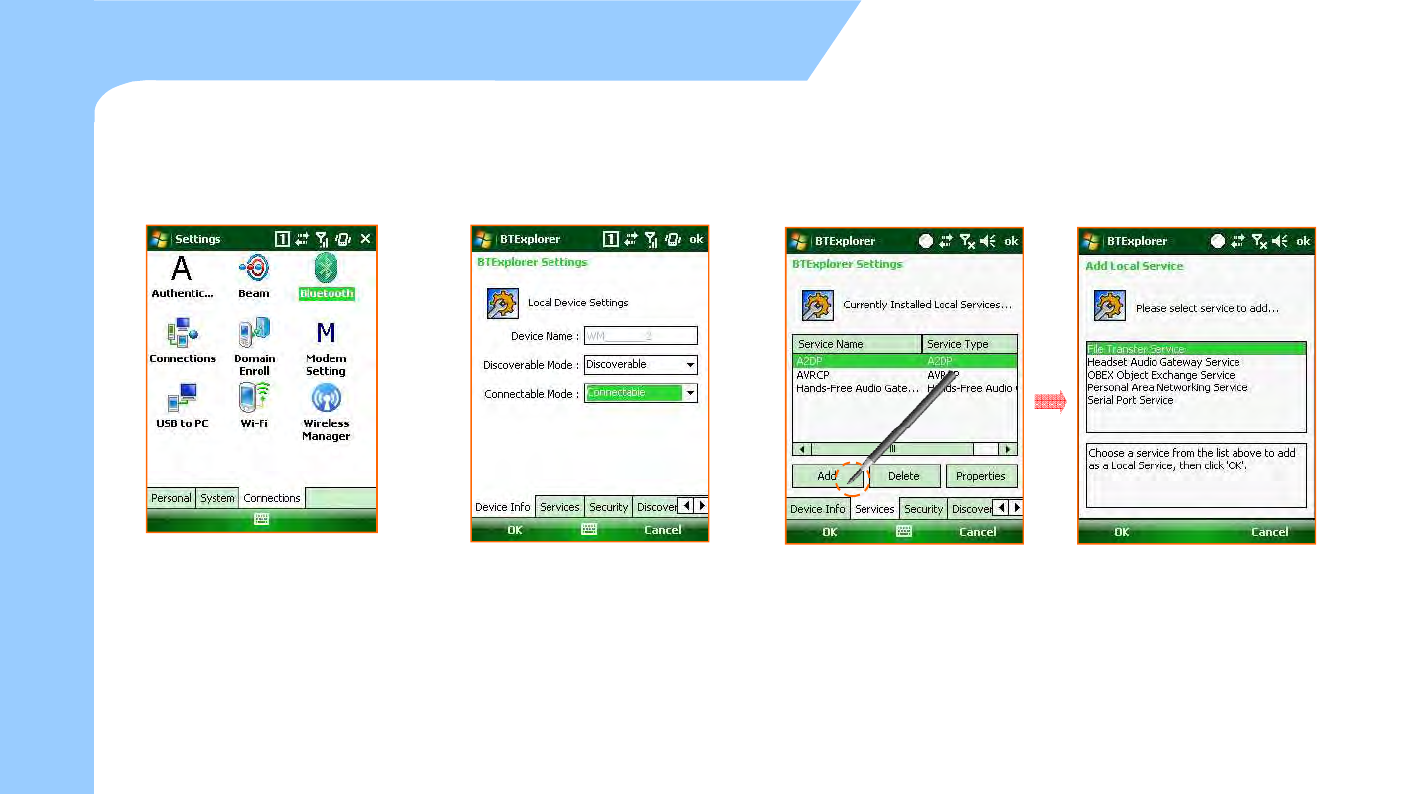

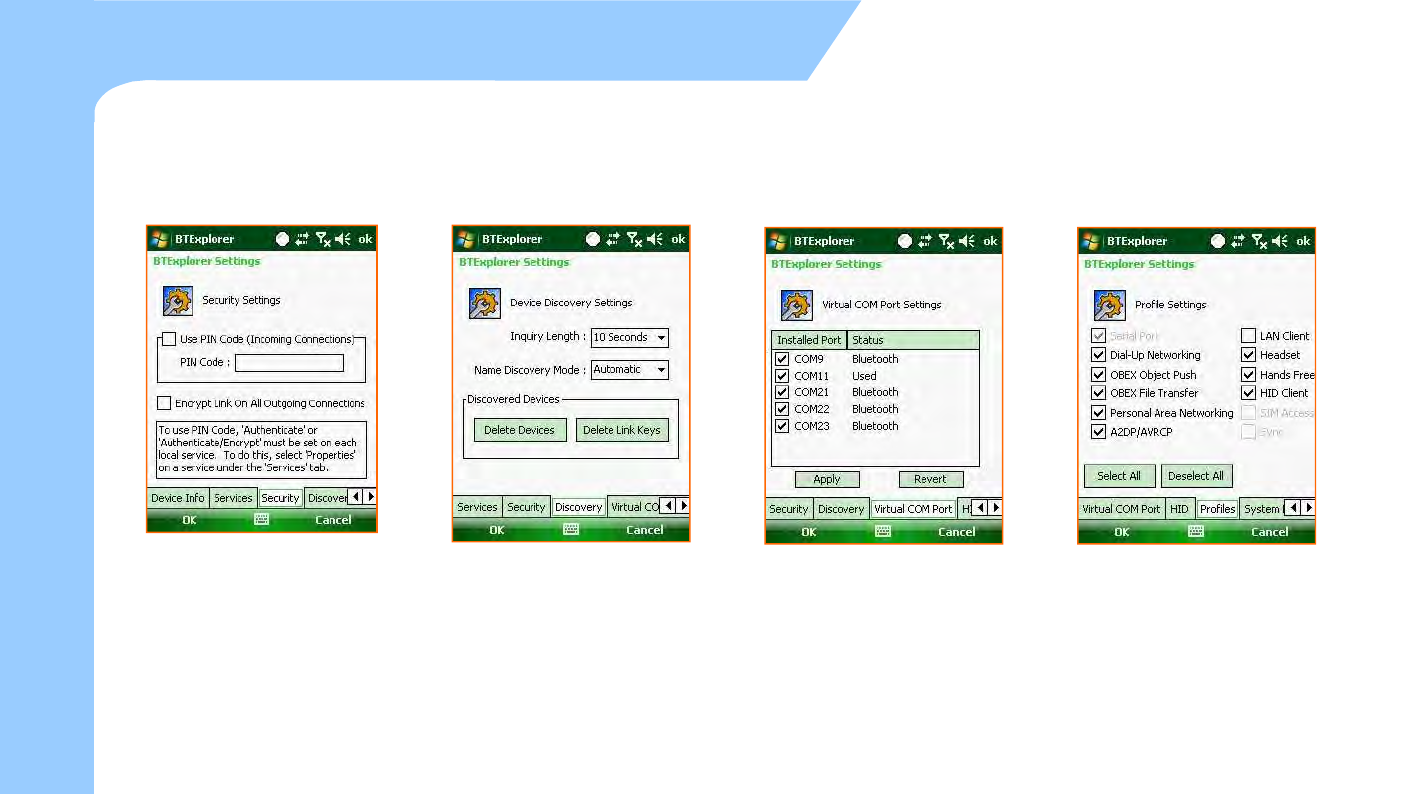

BTexplorer 66

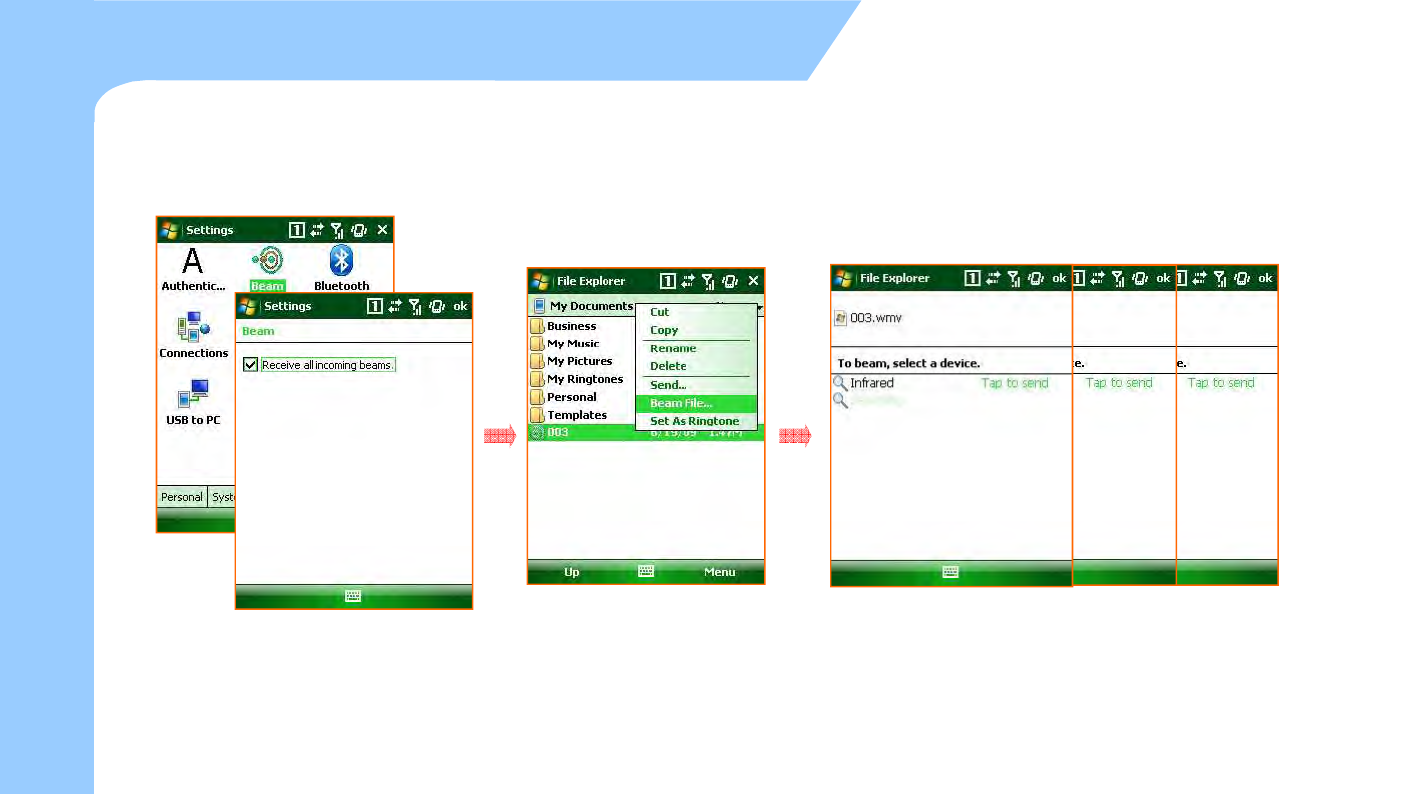

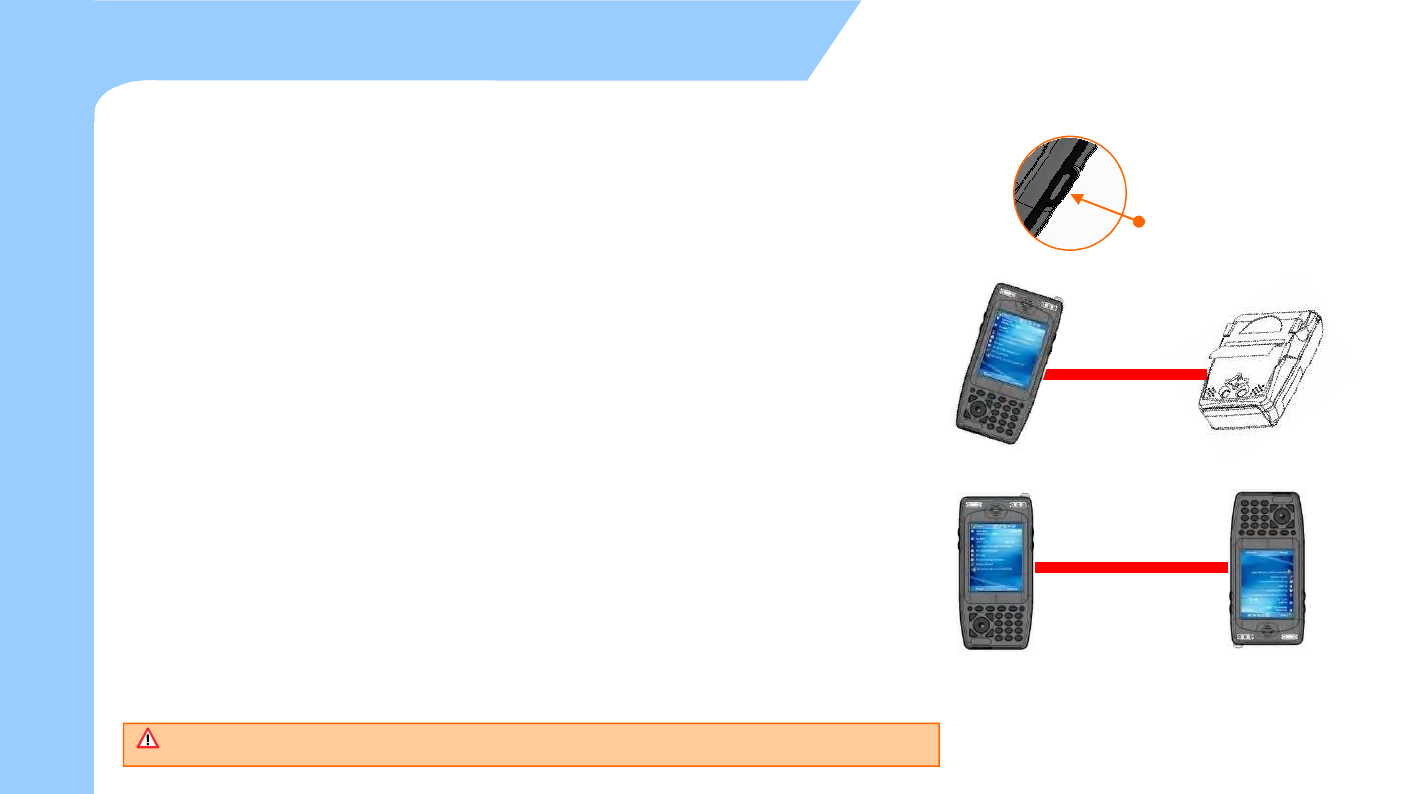

IrDA 69

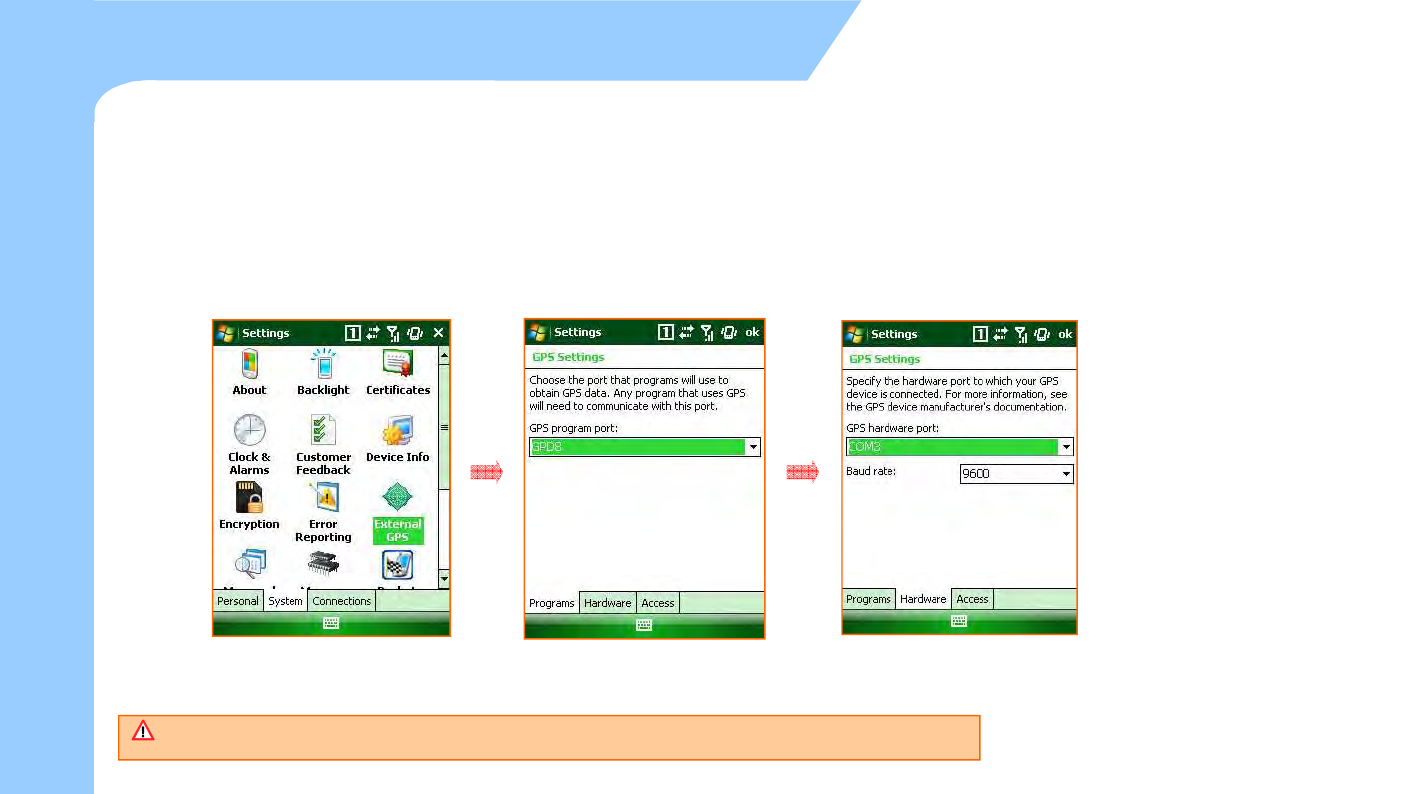

GPS 70

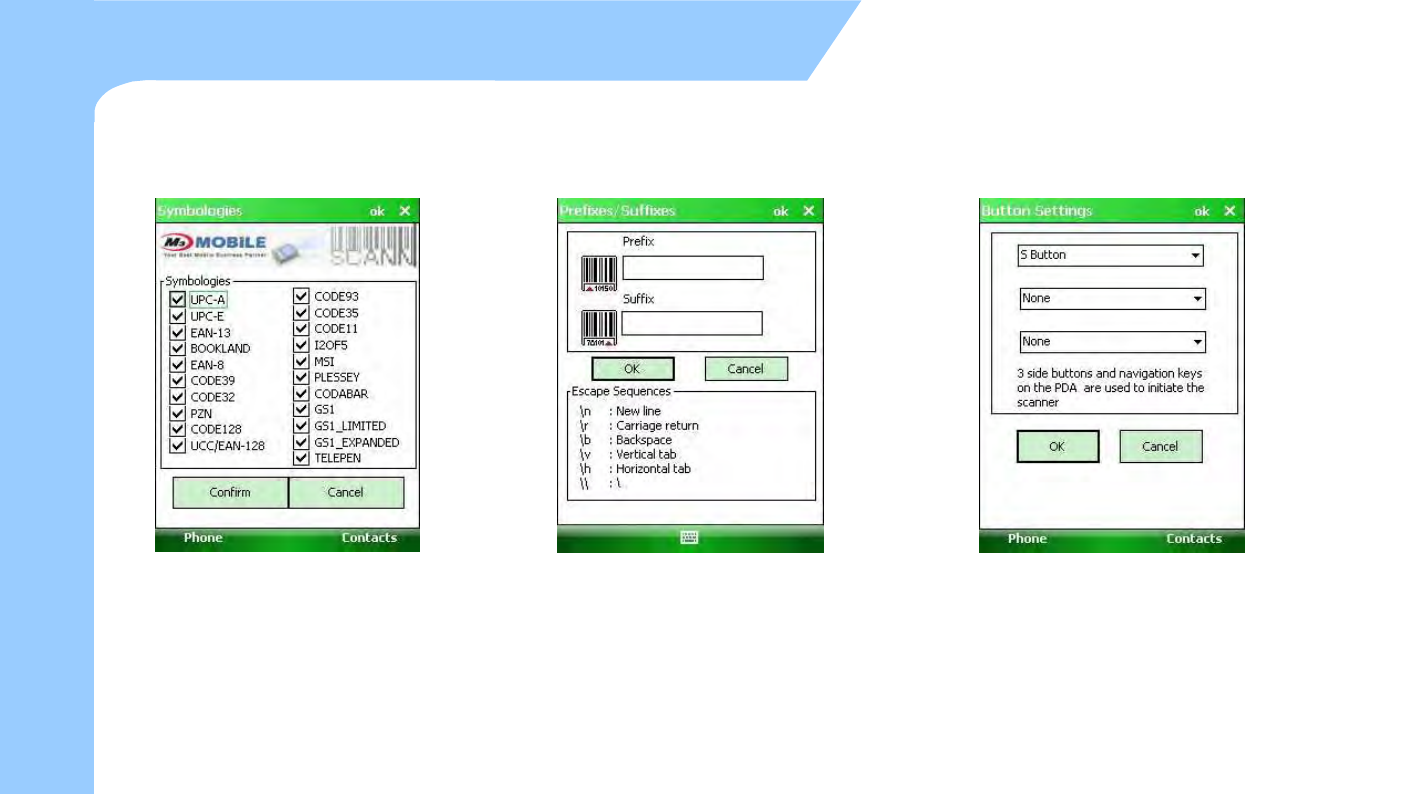

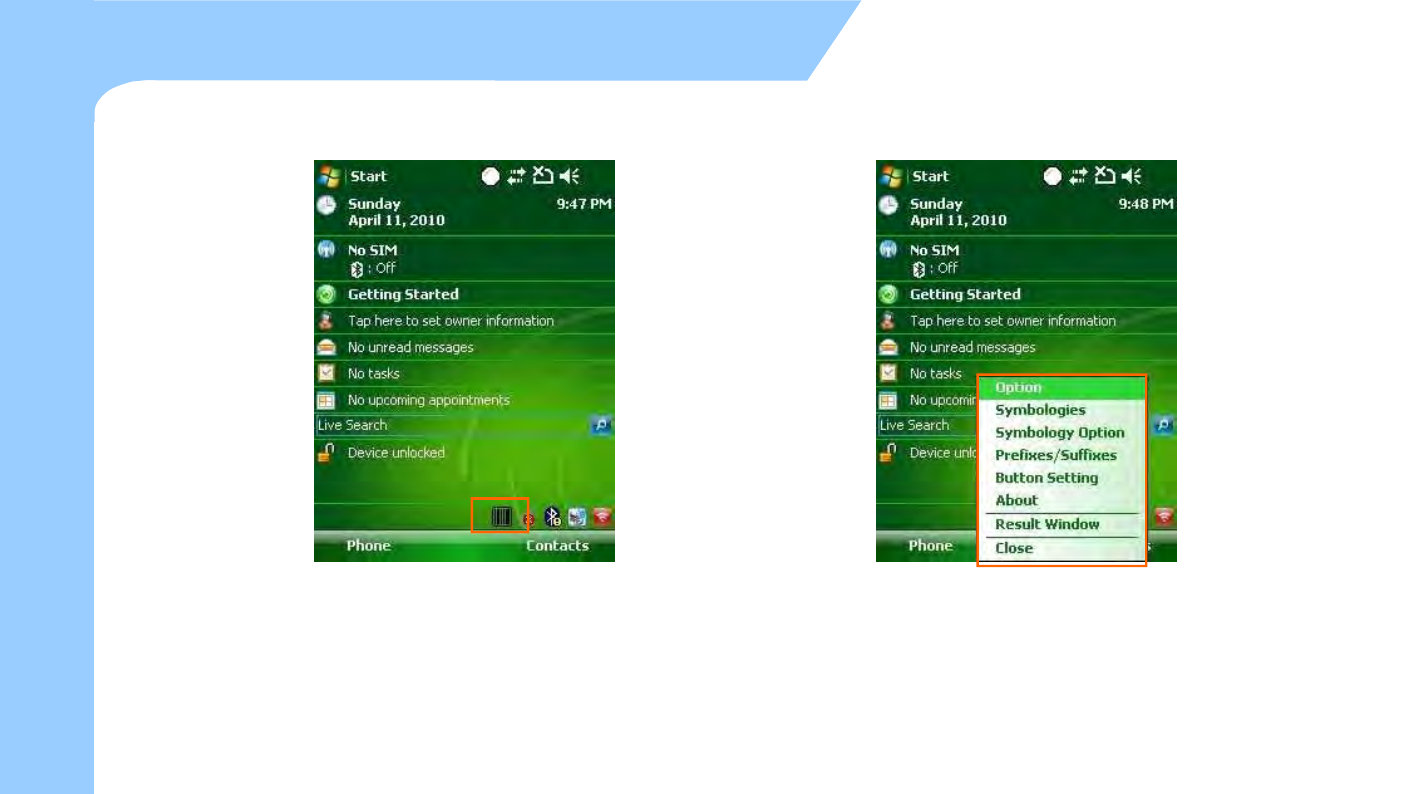

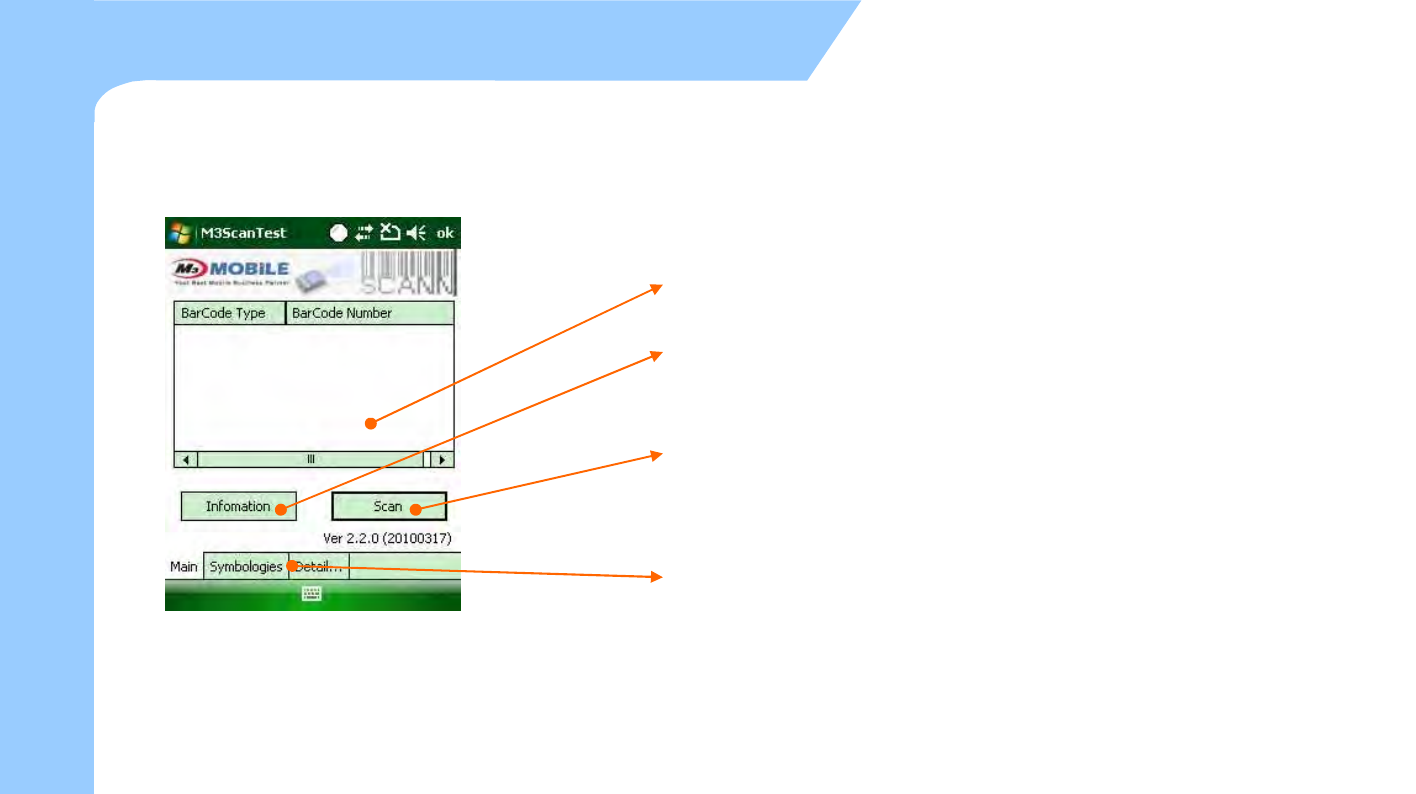

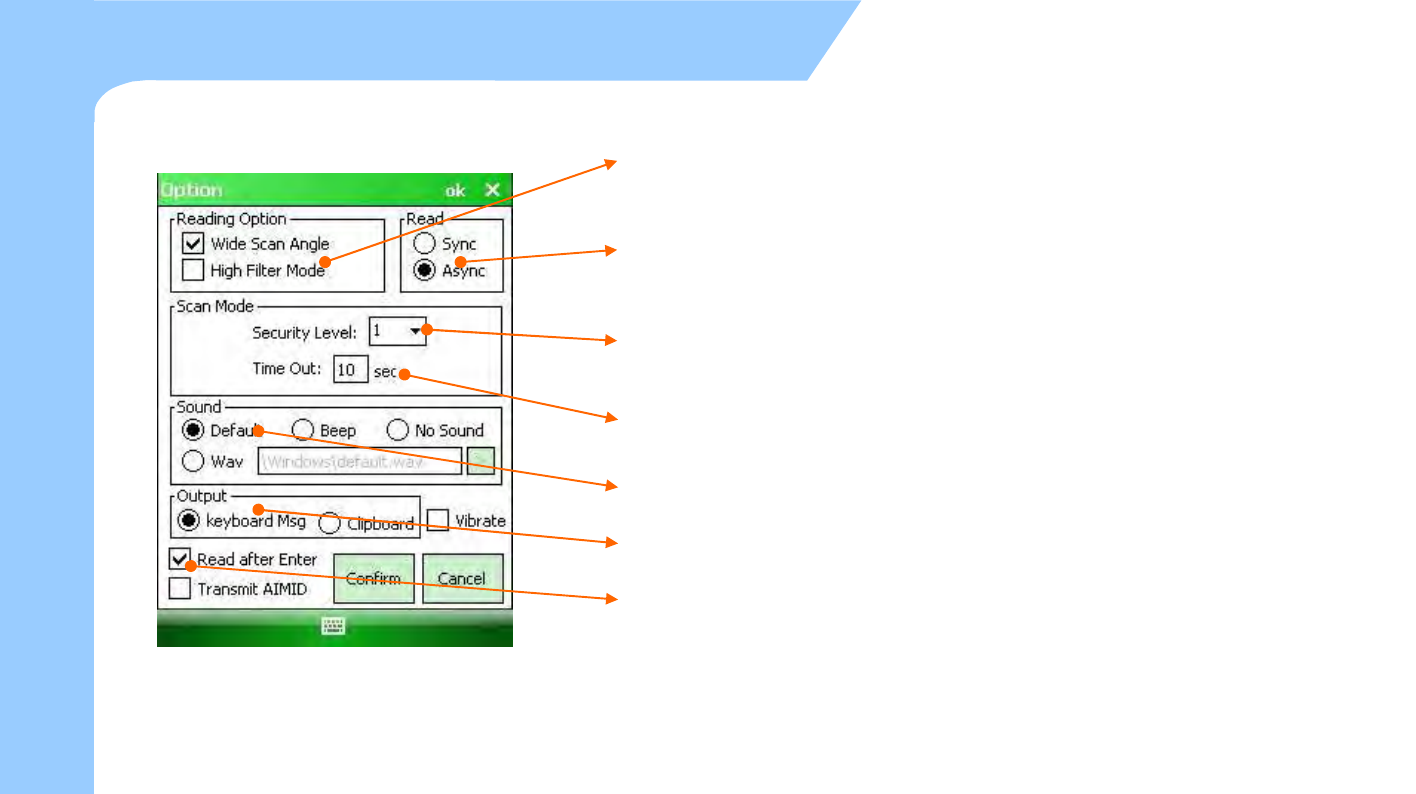

Scanner 72

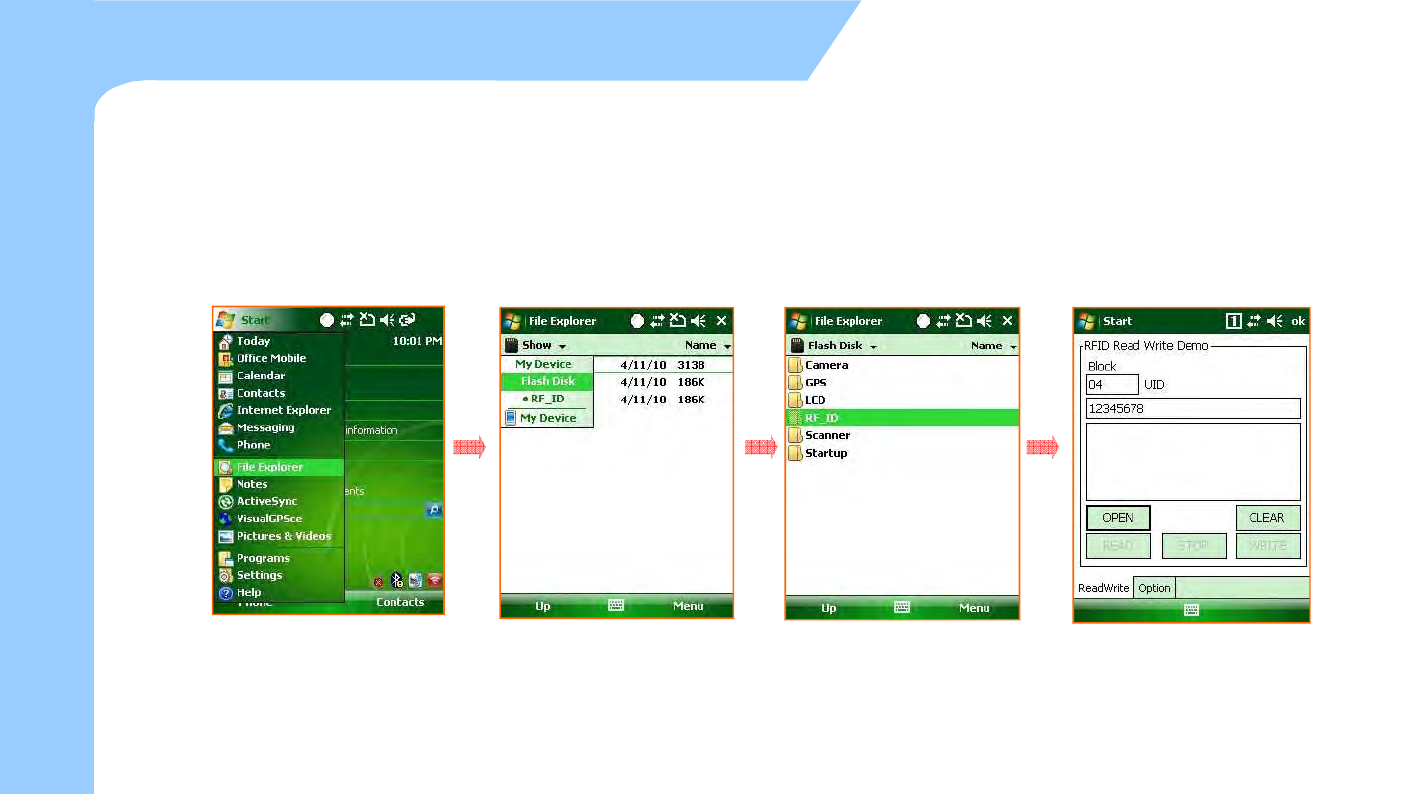

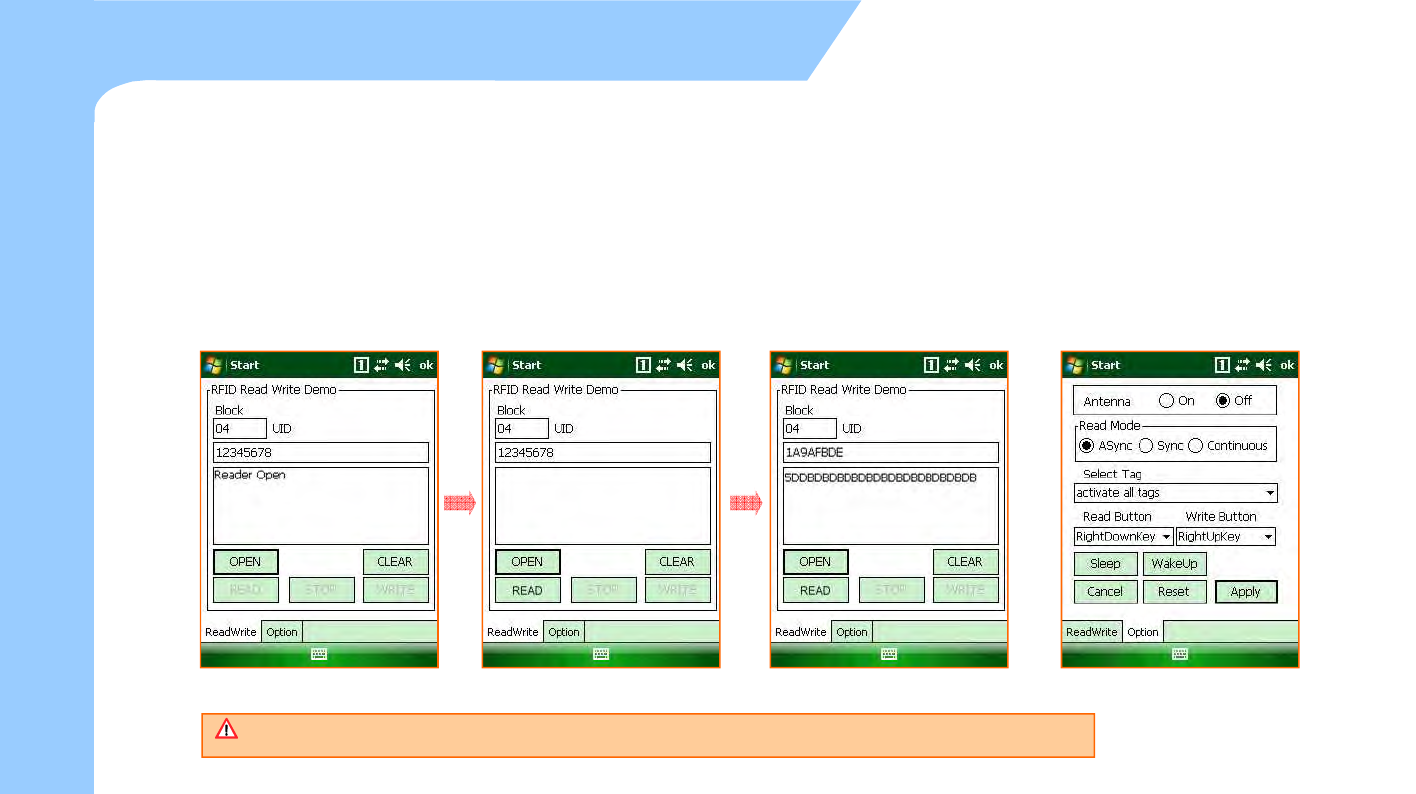

RF-ID 78

1. Introduction

Product Composition

Name and Function of each part

Input Buttons

Soft/Hard Reset

How to use Stylus pen

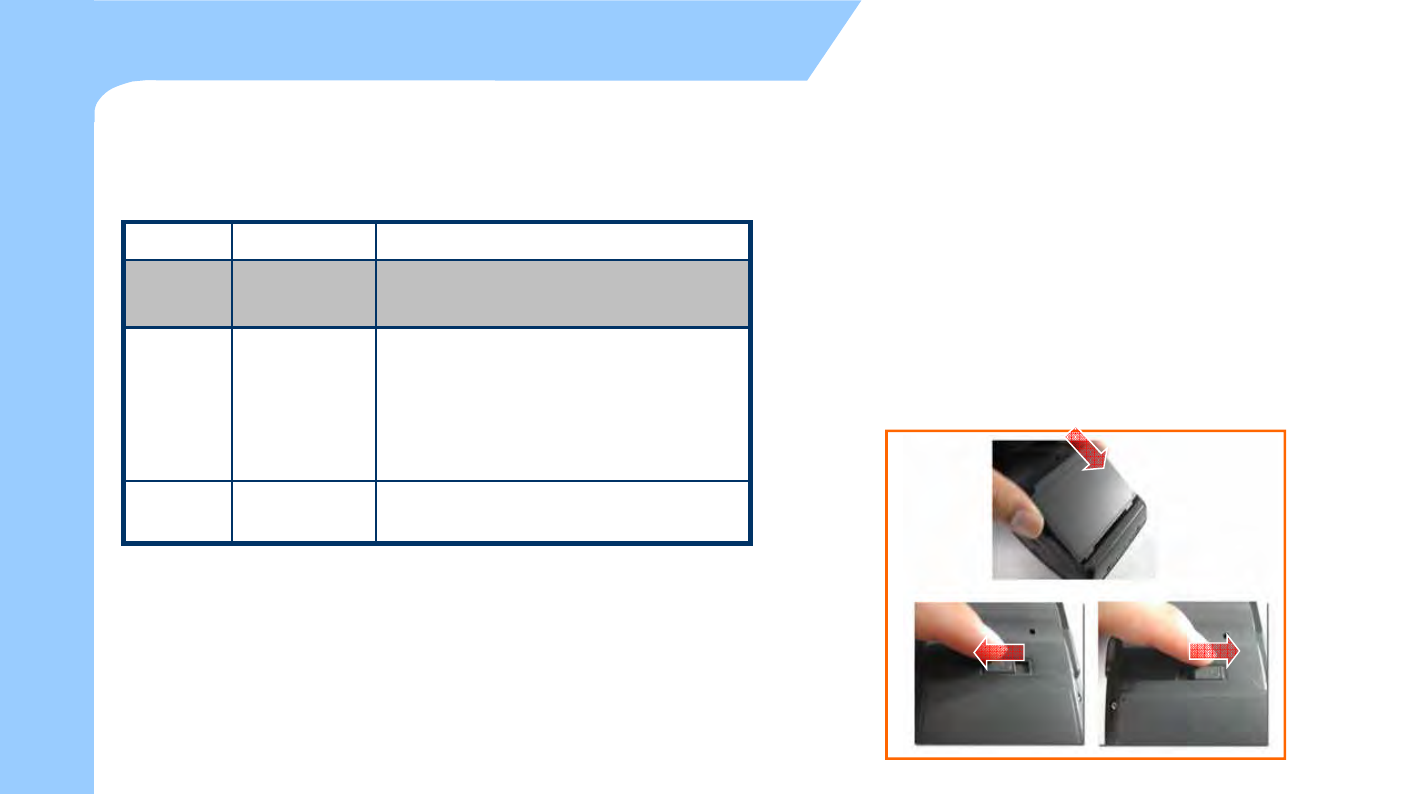

LED Battery Attaching/Detaching

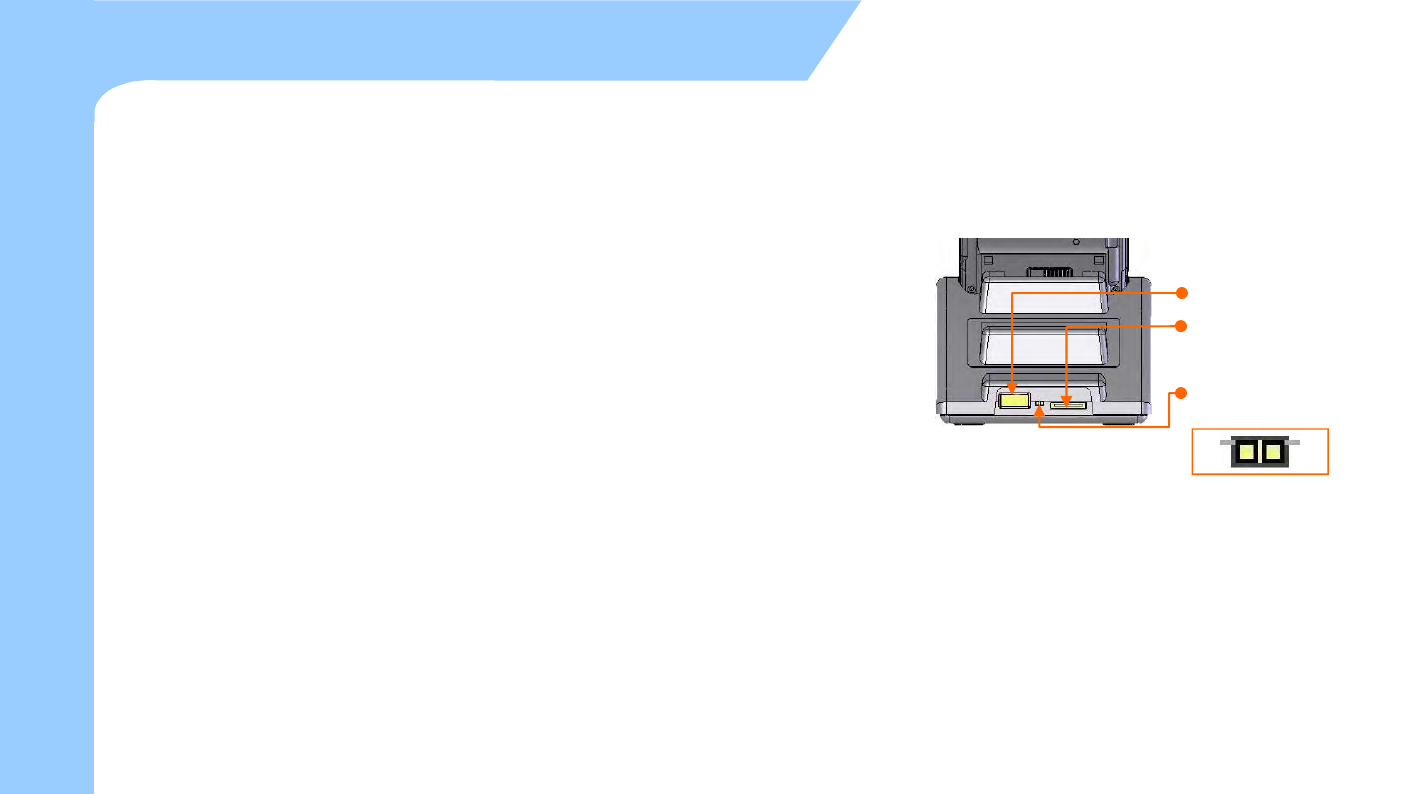

Charging

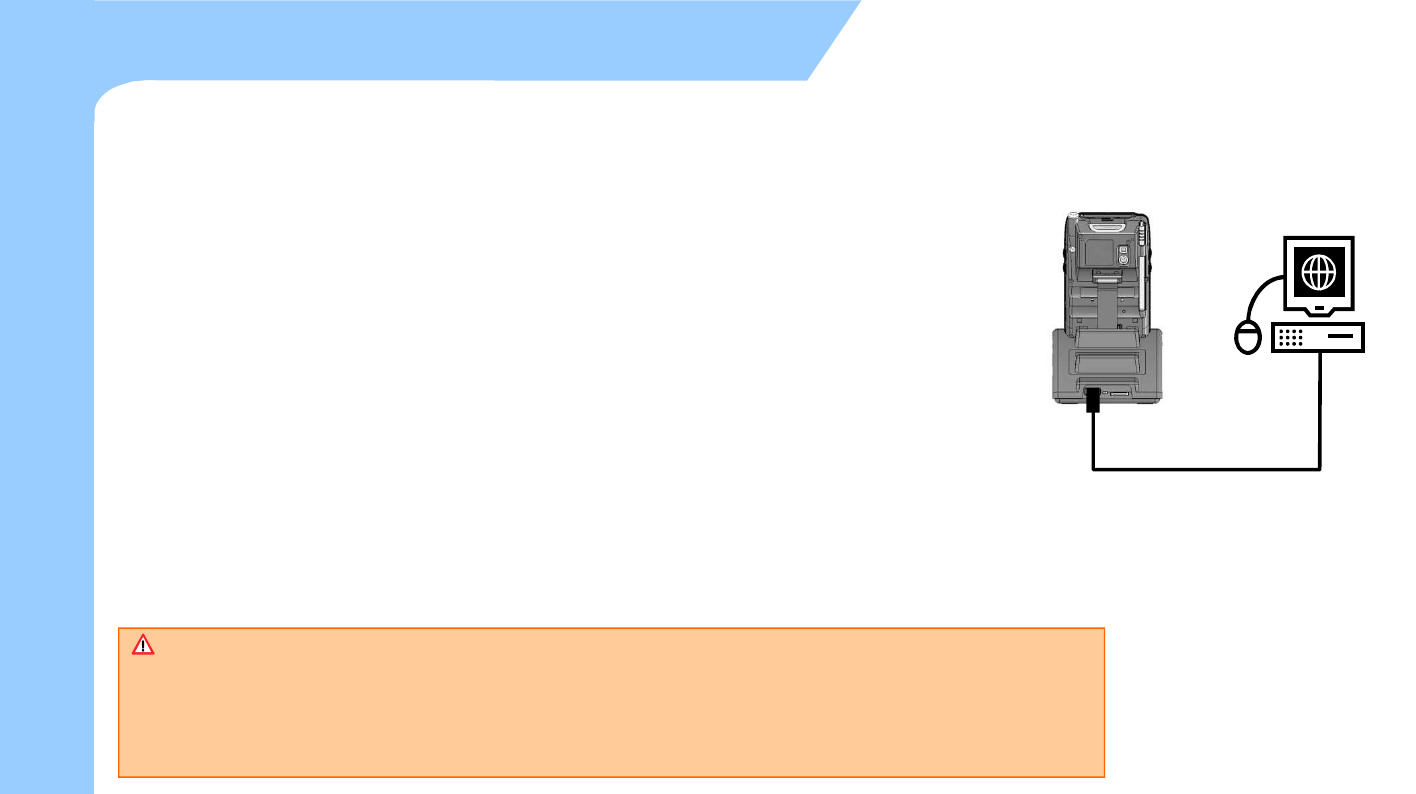

How to connect to PC

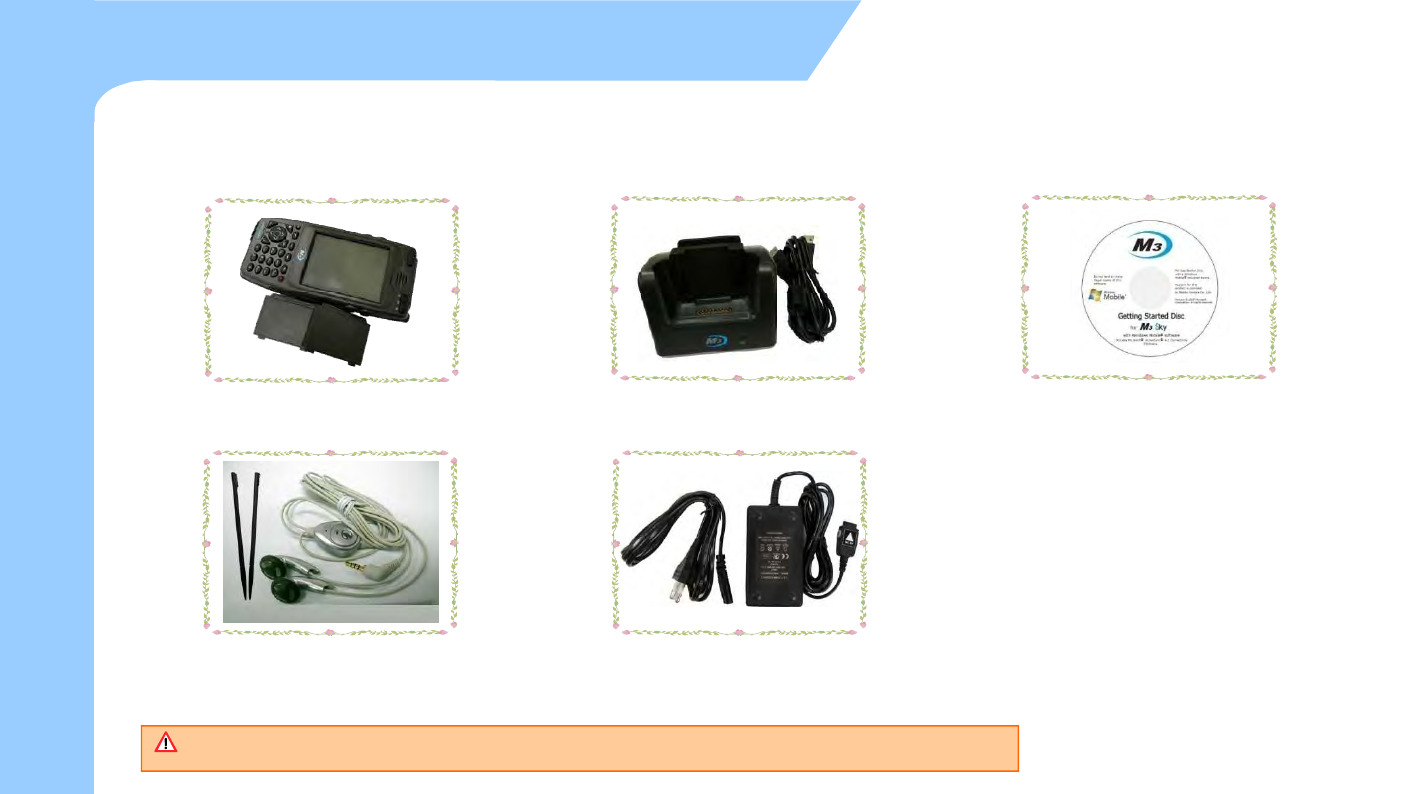

Product Composition (1)

lAt the first time of opening the product box, please check if it contains all the basic components, listed as

following.

Introduction

M3 SKY main terminal

+ 2 units of standard battery Cradle + USB cable CD + ActiveSync 4.x

Ear Mic Phone

+ 2 units of Stylus pen

Portable Adapter

13 The product components may differ depending on the supplied products.

lHow to use the manual

–This manual provides detailed information to make using the device easier and faster.

–The content related to phone or communication in this manual is only applicable when the device is

equipped with HSDPA module for Voice and Data communication.

–The features described in this manual can not be used when it is not equipped in the device (WWAN,

WLAN, Bluetooth, IrDA, Scanner, Camera, GPS).

–The content of this manual is subject to change without prior notice due to product improvement or

modification of its functions, etc.

Product Composition (2)

Introduction

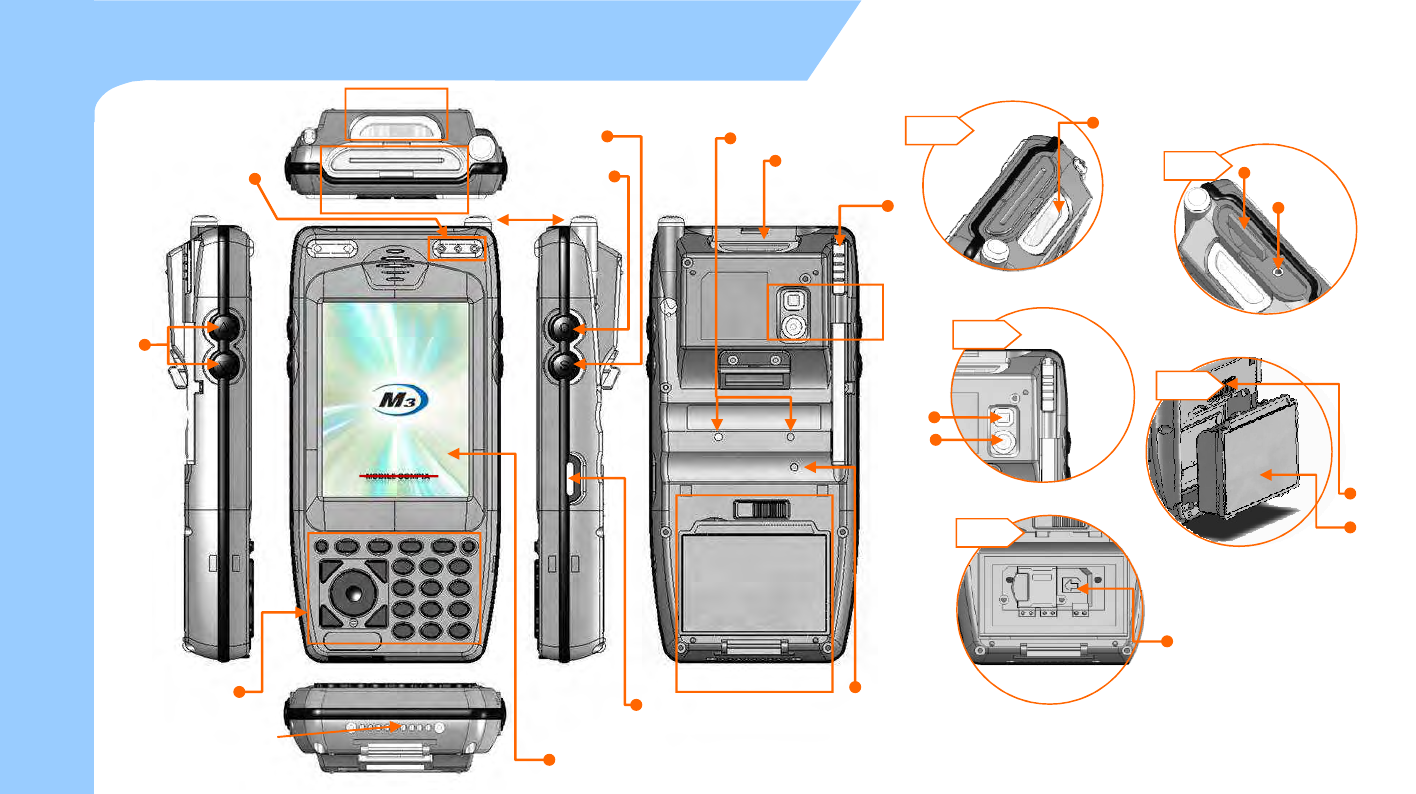

Name and function of each part

Introduction

Volume

Button

Antenna

Scanner Button

Battery Lock

Battery

Infrared Communication

Port (IrDA)

Key Pad

Charge & USB/serial port

Lower (Cradle) use

Charge Ramp (Left)

HSDPA Status

Ramp (Center)

Scanner Ramp (Right)

LCD touch Screen

Reset Switch

Pistol Grip Connecter

d, e

Stylus Pen

Barcode Scanner

Window

bMini SD Extension Slot

Ear Mic Plug

Flash

Camera

SIM Card Slot

Camera Button

Battery(built in)

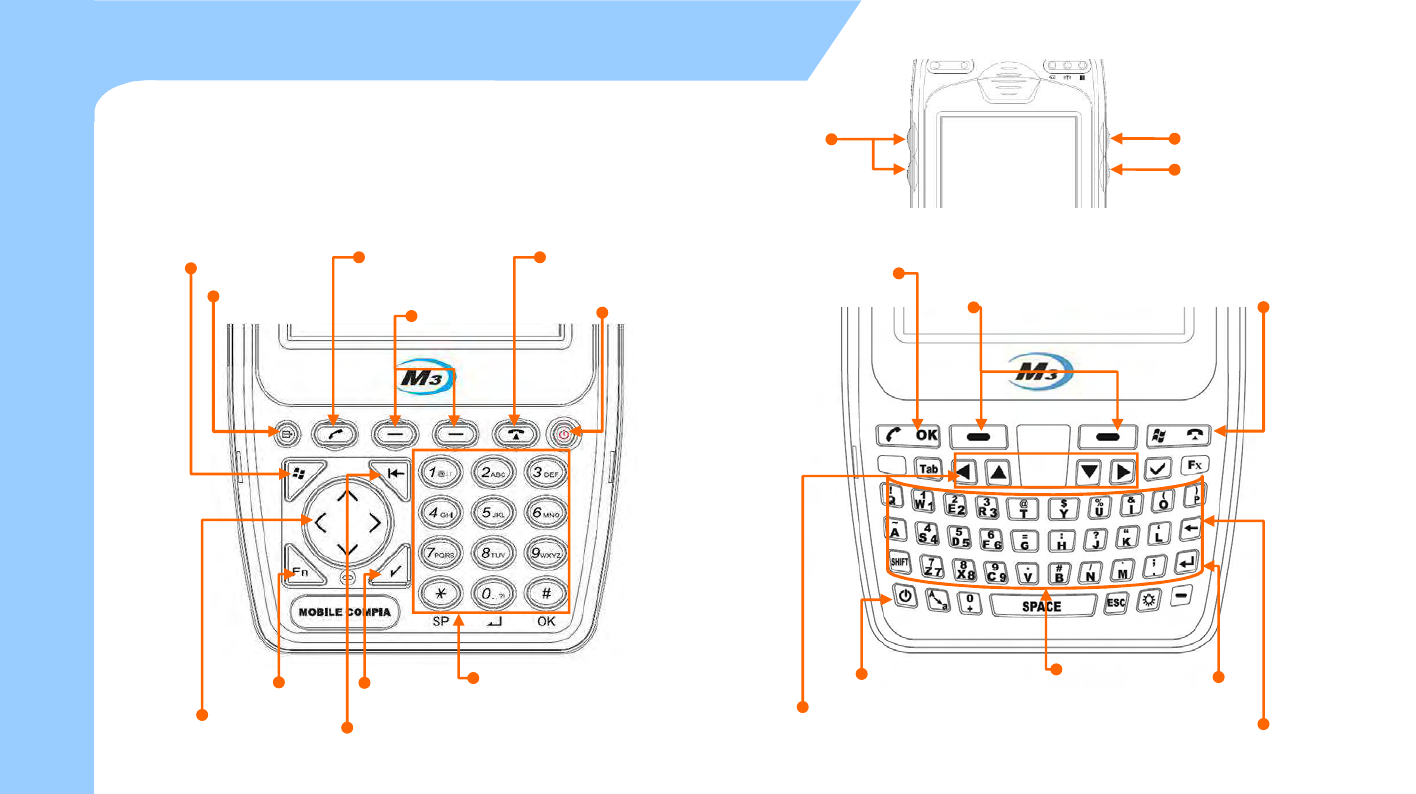

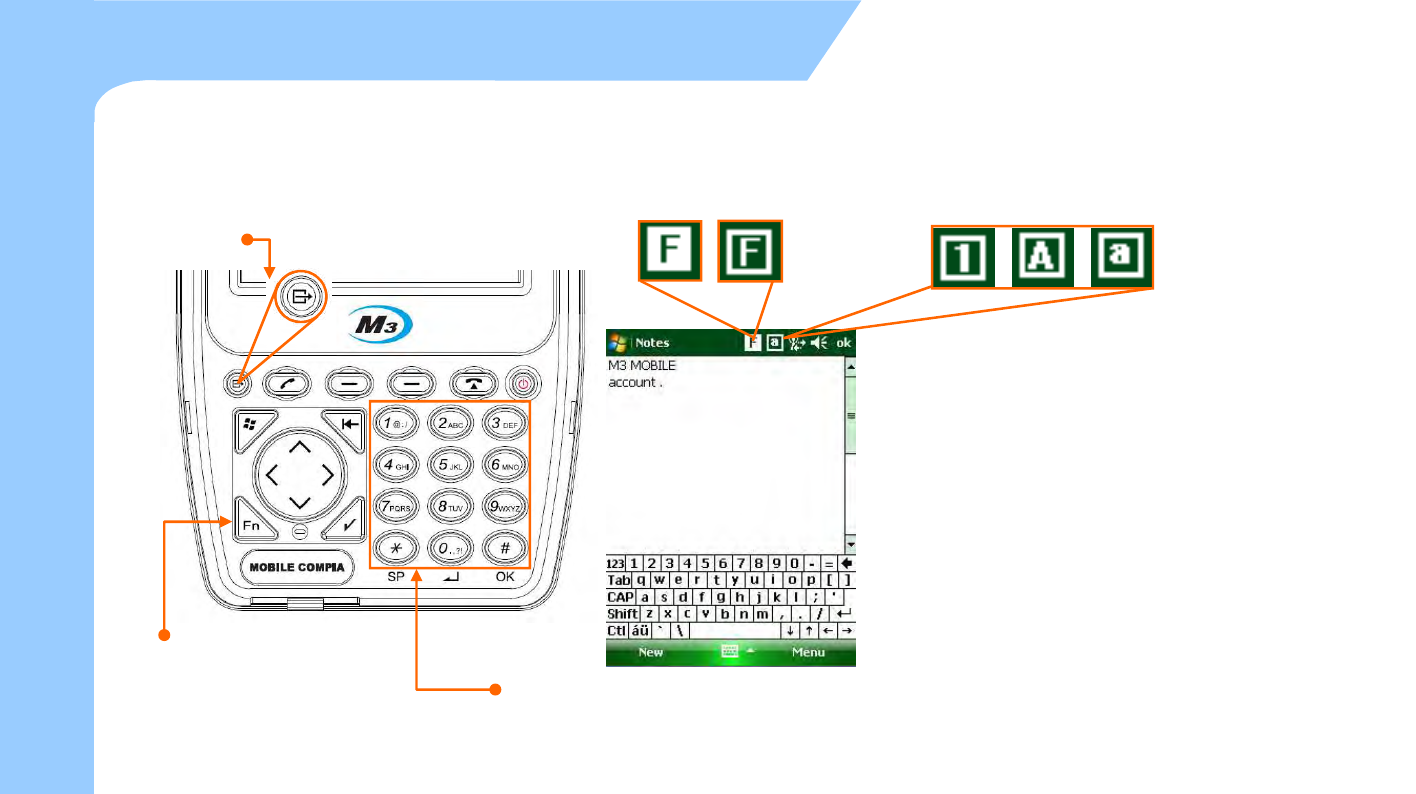

Input Button

Introduction

Function button

Direction Button

Start button

Power button

Input keys

Alphanumeric

button

Phone/Call button End button

Left, right

function button

Backspace button

Return button

Volume

Button Scanner Button

Camera Button

방향 버튼

Start / End button

Input keys

Phone/Call button

Left, right function button

Power button

Backspace button

Return button

Direction Button

Component Description

Power button

Press to toggle the device on/off.

Long press to menu (Backlight, Display, etc) Function

Phone/Call function press to accept the call or to execute the phone

End function press to hang-up/reject the call.

Input keys Press to input alphabet characters or numbers

Left, right function button press to lunch an assigned application or function

Alphanumeric press to switch between alphabet and number input

Start button Press to display the Start menu.

Backspace button press to move back

Function button press to Function Key with (*, 0, #)

Direction button press to move left,right and up,down

Return button press to confirm the action

Scanner button Press to launch the barcode data scan application

Camera button Press to launch the Pictures & Videos

Volume button Press the top key to increase volume, press the bottom key to decrease volume.

Input Button

Introduction

17 Some key functions might not be supported, depending on the option.

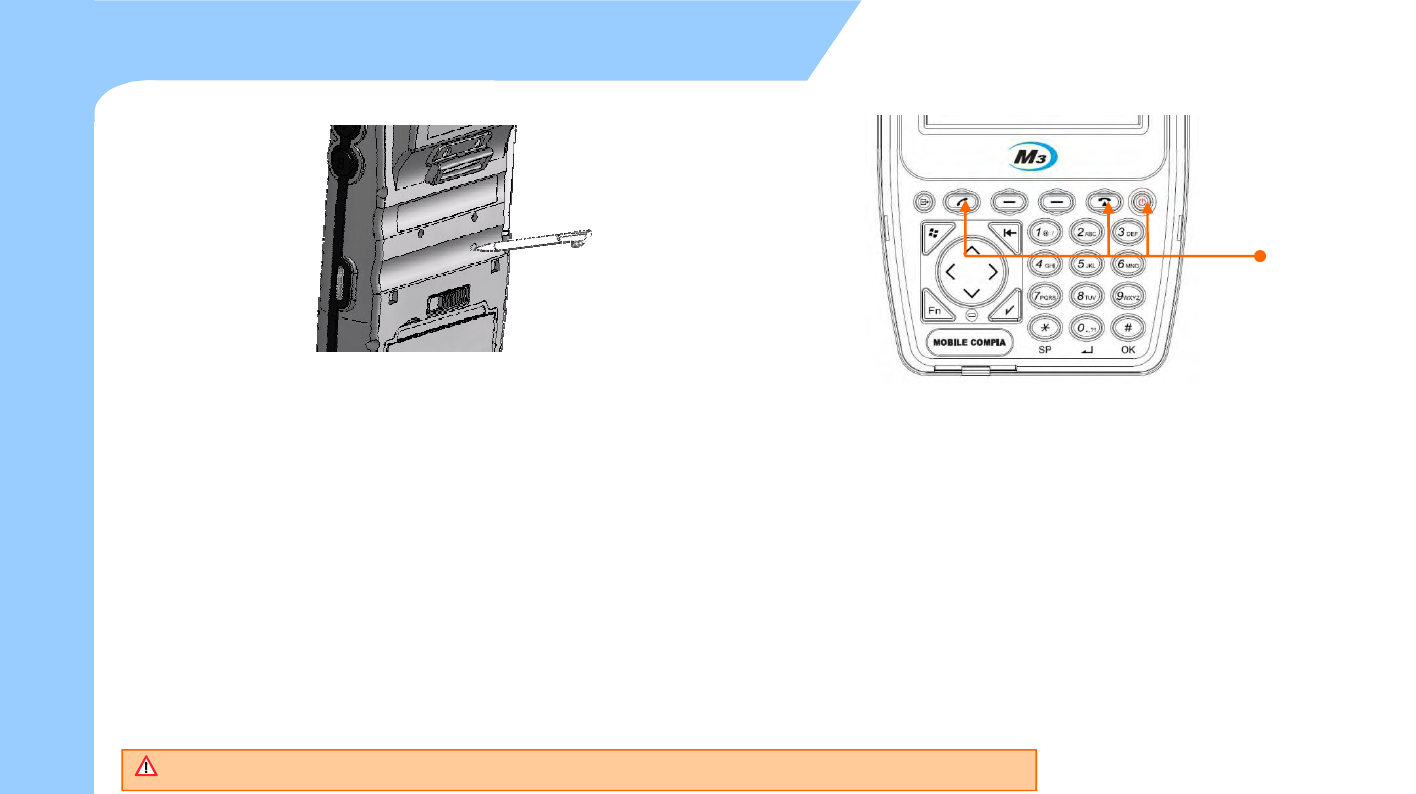

lSoft Reset

- A soft reset allows your device to get a fresh start,

similar to rebooting a computer.

- This restarts your device and adjusts memory

allocation.

- All records and entries are retained after a soft reset.

- Unsaved data in open programs may in some cases be

lost.

Introduction

Soft/Hard Reset

① ② ③

Press ①+②

and ③power button

lHard Reset

- A hard reset removes power to your device.

- This erases all records and entries, deletes all additional

programs you have installed, and restores the device’s default

factory settings.

- Never perform a hard reset unless a soft reset does not correct

your problem.

lTo perform a hard reset :

àPress the power button for more than 12 seconds to turn off the power (can be confirmed by LCD off)

àWhile pressing call and end button, please press the power button shortly.

àWhen the [CLEAN BOOT WARNING] window will pop up with message “All data will be lost! Do you want to continue?”

“1. YES 0. NO, please press 1 to perform the Hard Reset.

Please mind that you need to set up the standard timezone date, and time. After power off.

How to use Stylus Pen

Introduction

lLong Press

Leave Stylus pen touching the screen

for long and you can select the menu

on the pop-up screen.

You can also select functions available

in the designated item using the pop-

up menu. The function of the pop-up

menu can be different according to

the program.

lDrag

It is used when you select the text.

Please drag the desired part with

stylus pen attached on the screen.

lTap

Tap the touch screen one time using

a Stylus pen to select and execute

items and files.

LED / Battery attaching/detaching

Introduction

lLED Alarm

–Informs Charging, Scanner Status.

Type LED Status Details

LED for

charging

Red

Green

Charging

Charging complete

WWAN

Status

LED

Blue Blinking

Blue On

Blue OFF

WWAN Standby

(within range of phone/internet)

WWAN in use

(phone/SMS/internet in use)

WWAN is off or out of range

Scanner

LED Green When the barcode data is successfully

read

lBattery attaching/detaching

–Attaching Battery

As picture shown, put the battery pack to

back of PDA, and lock the battery pack with

locking device.

–Detaching Battery

Press locking device to the right, then using

upper notch, detach the battery from main

body.

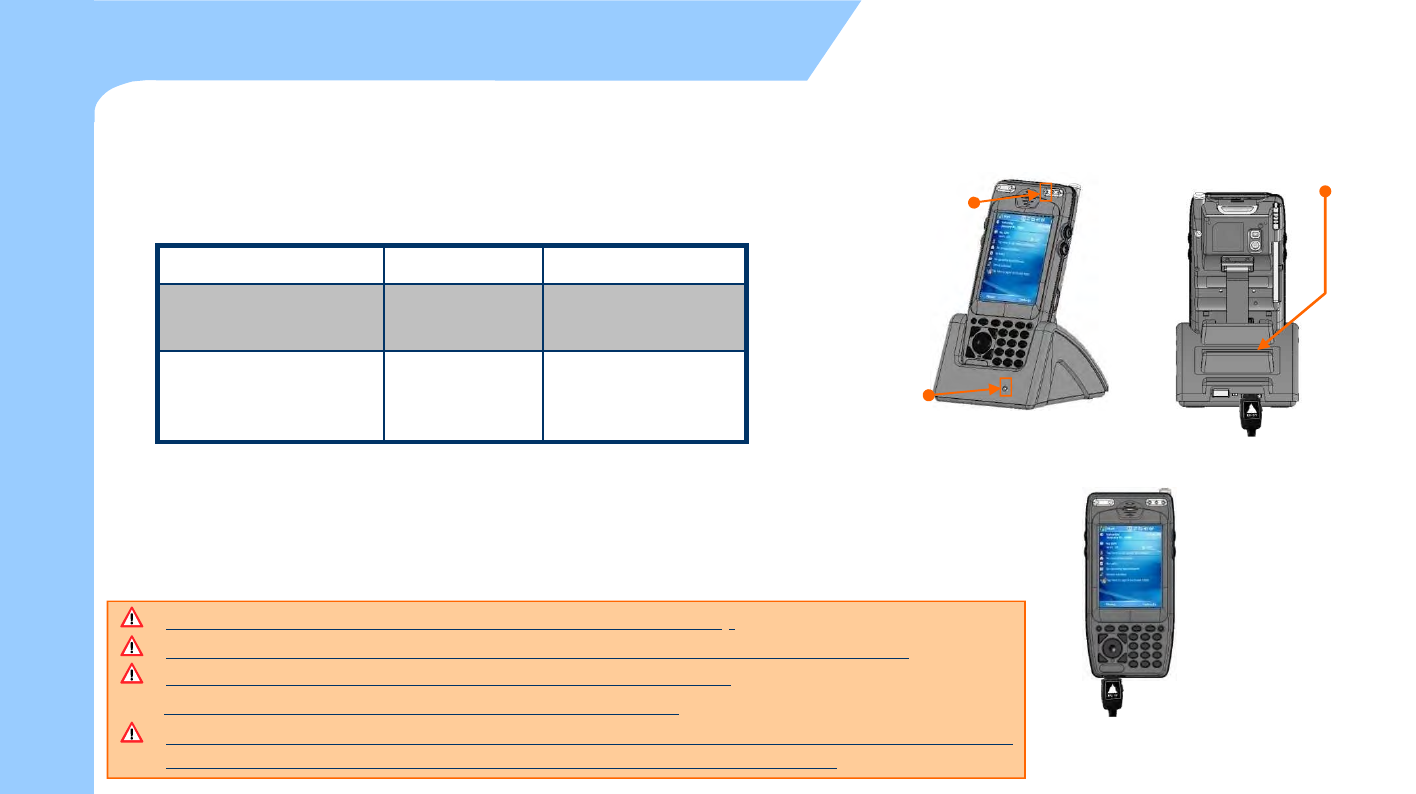

Charging

Introduction

lConnect plug-in from charger to charge jack of main

body, or charge jack of cradle, and then place main

body onto cradle.

lCharging LED

lWhen charging, the status of the battery attached to

main body can be confirmed by the LED left of upper

corner of main body. Also the status of Sub-battery

can be confirmed by the LED right of low corner of

Cradle.

Type LED Status Details

Direct charging to

main body

Red

Green

Charging

Charging Complete

Cradle Charging

(Extra battery

charging)

Red

Green

Charging

Charging Complete

lCharging in Cradle

lCharging using portable adapter

Separate Battery

Main body

Charging LED

Separate Battery

Charging LED

Do not use any other charger except one (5.2 V / 3A) provided .

Make sure to handle it gentle; damage with excessive force may cause no warranty.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

When attached battery is completely discharged, plug charger to main body, then reset the

device to check if screen is back on. To use, do at least 10 minute charging.

How to connect to PC

lA cradle of M3 SKY supports charging and USB connection.

lConnecting step of cradle of M3 SKY is as following.

–Connect charger to USB cradle. (24pin connector)

–Connect charger to power source. (to wall)

–Connect USB cable of USB cradle to USB port of desktop PC.

–Place M3 SKY onto docking cradle then execute Synchronization with

Desktop PC.

lThe location of USB port can be at the back, front or side of PC

and the shape of USB port is identical on Desktop PC and

Notebook.

lUSB host function is available by putting USB cable into USB port

of Cradle.

Connecting to Cradle

USB Host/Client

AC Power

USB Host/Client

changeover switch

Introduction

2. Basic Usage

Calibration

Main screen

Input Screen

lCalibrate the touch screen as shown below, at first time use or when cold (hard) booted.

Calibration (1)

Basic Usage

Tap the screen one time with

a Stylus pen

Tap the (+) mark with the

Stylus pen as it moves around.

You can see the screen how

to use the Stylus. If you

don't need it, click the Skip.

①Press and hold the Stylus pen on the screen then

select the Cut on the pop-up menu.

②Press and hold the Stylus pen like the arrow on screen,

Tap the Paste on the pop-up menu.

③When all processes are complete, click the Next.

① ② ③

lCalibration continue....

Basic Usage

Calibration (2)

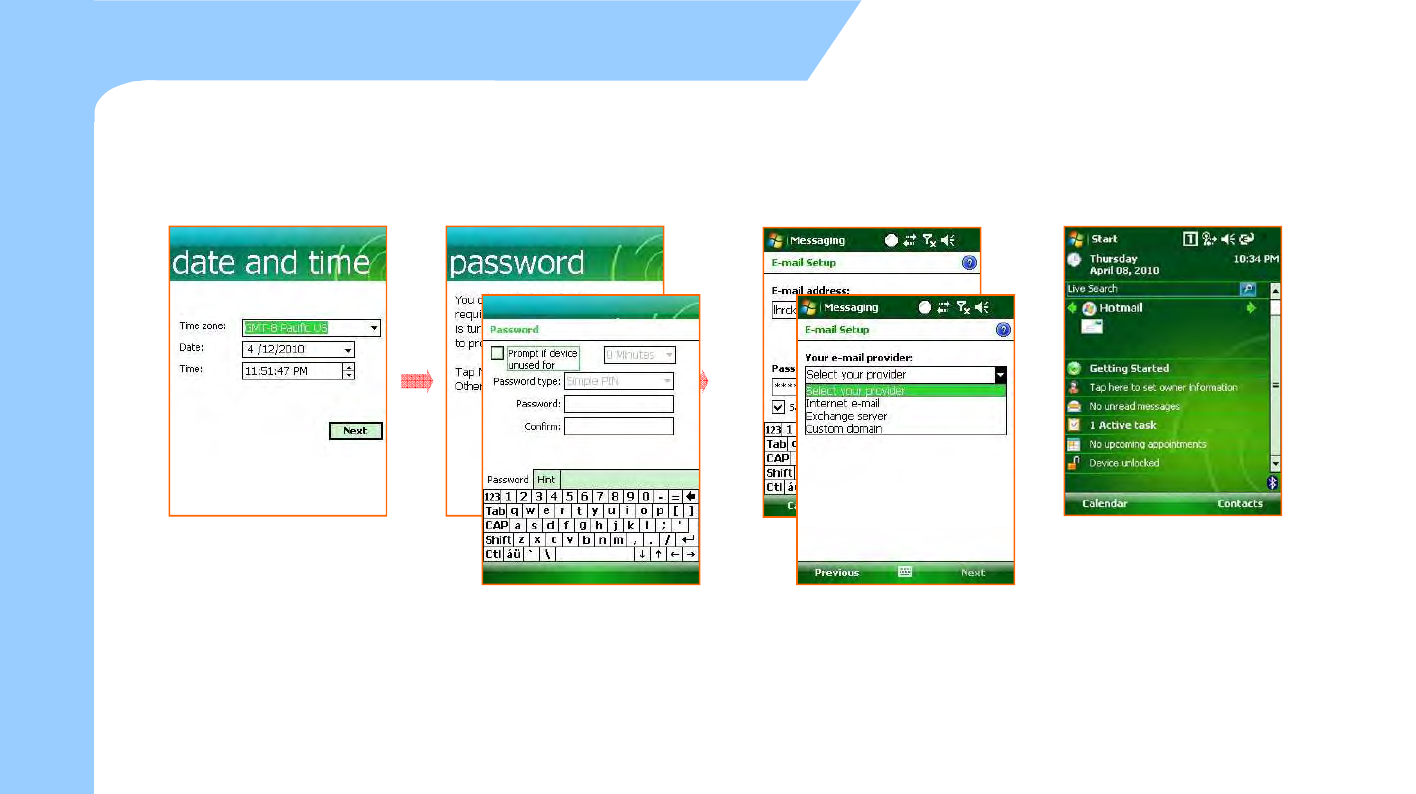

Set up the standard time zone

date, and time.

To set up a password, tap 'Next'

otherwise tap 'Skip'.

To set up a password set up a

password type and password.

You can see the screen above

after the Calibration.

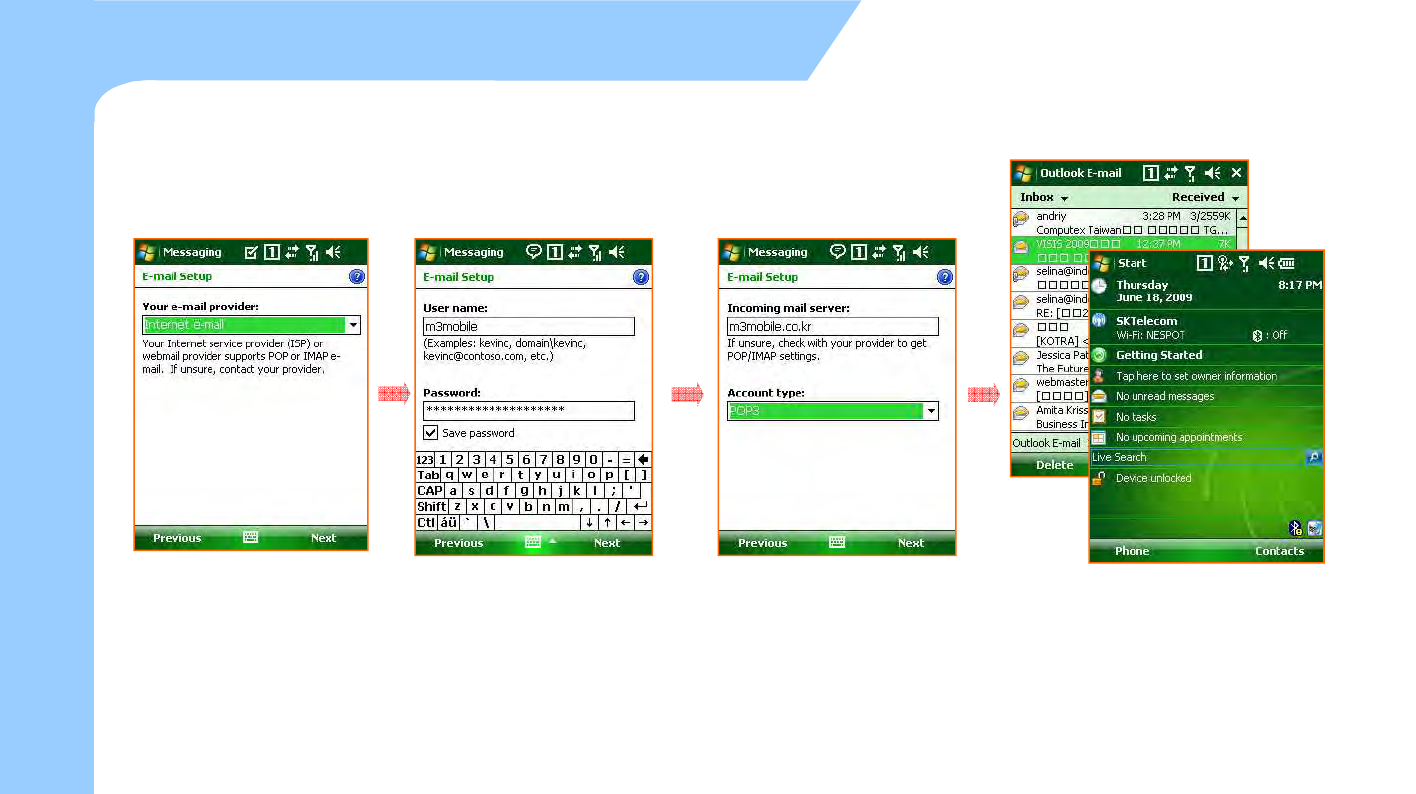

Choose outlook e-mail to set up an e-mail

account and then tap the 'Next'.

(POP3/IMAP/Outlook/E-mail)

If you choose outlook E-mail or POP3/IMAP

and then tap the 'Next', you should set up it

Step by step.

Main Screen

lMain screen

–Main Screen is set below

Basic Usage

Start menu

Day/Time info

Wireless info

User info

Info bar

Messages info

Task info

Today info

Lock info

Pocket MSN info

Left / Right function info

Button function

Start menu Select the program you want to

use.

Info bar View the power, modem, sound,

input mode and connecting view.

Day/Time info View the current date and time.

Wireless info View the Wireless power and state.

User info View the personal information.

Messages info View the Messages received.

Task info View the task information.

Today info View the Today’s information.

Lock info View the screen / Lock information.

Pocket MSN info View the Pocket MSN information.

Left/Right Function

info View the Left / Right information.

lTo use Input

- Process this program " Start > Programs > Word Mobile".

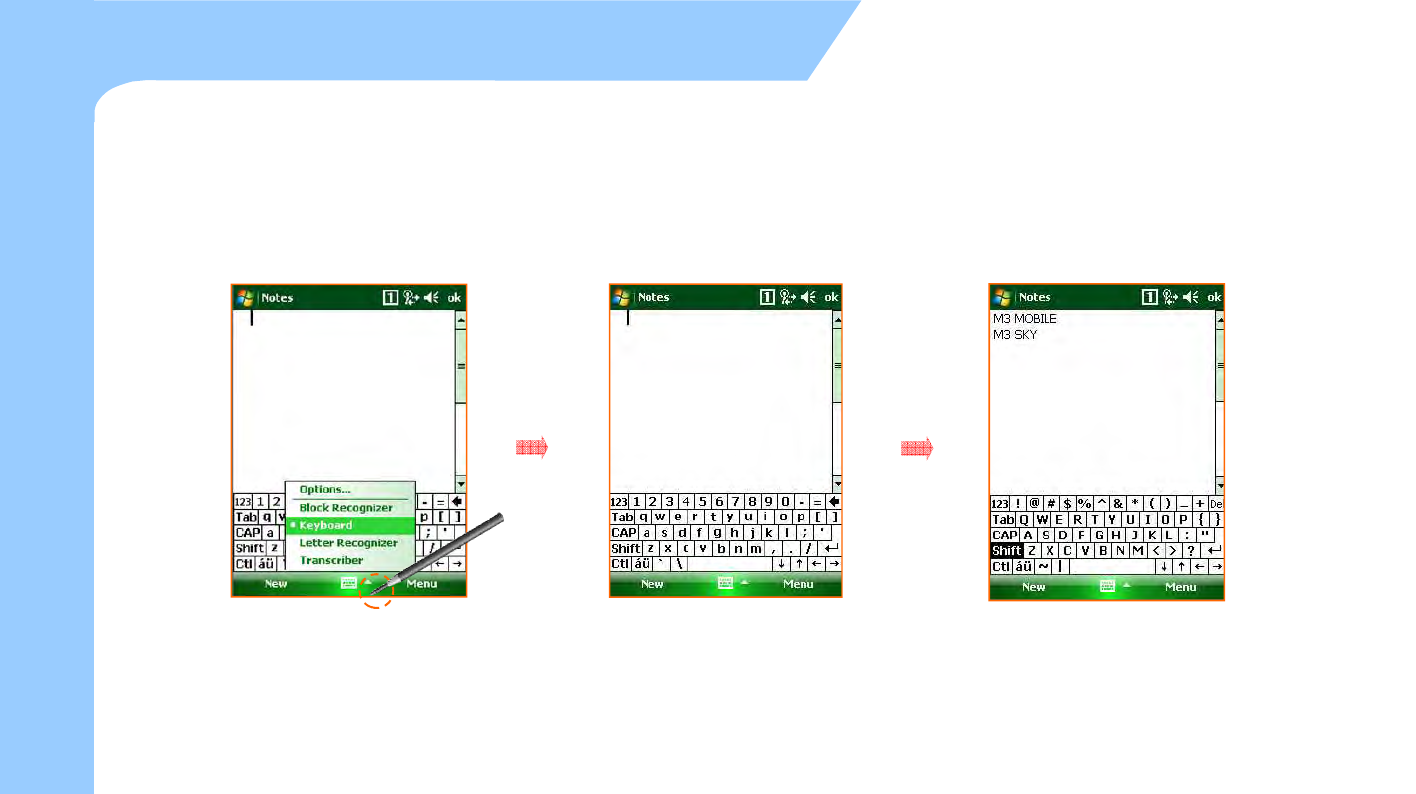

lTo use the Keyboard Input

Basic Usage

Tap the arrow next to the

keyboard icon and then select

the keyboard on the menu

screen as a picture above.

This is the Keyboard Input

Screen.

You can input the letter, number

and characters when you click

the each icon on the keyboard

Input screen.

Input Screen (1)

lUsage of Block Recognizer input.

Input Screen (2)

Basic Usage

Tap the arrow next to the

keyboard icon and then select the

Block Recognizer on the menu

screen as a picture above

It is the screen of block

recognizer input.

In this input screen you can input

letters in 'abc' and numbers in '123 ‘

each in the input box seen on the

screen.

In the input screen of block

recognizer you can input special

letters and characters by tapping

the input box once.

lUsage of Letter Recognizer

Input Screen (3)

Basic Usage

Select the arrow next to the

keyboard icon and then Select the

'Letter Recognizer' on the menu

screen as the picture above.

This is the 'Letter Recognizer'

screen.

In the ‘Letter Recognizer' input

screen, you can input the capital

letters in 'ABC', the small letters

in 'abc' and numbers in '123' each

in the input box seen on the screen.

Please choose ‘Options…’ on the input menu.

Select ‘Letter Recognizer’ as input method and

then click ‘Options…’. Here you can configure the

input modes.

lUsing transcriber input

–Transcriber is a writing recognizer program. It provides you various writing input and input menu.

Input Screen (4)

Basic Usage

Select the arrow next to the

keyboard icon and then select the

Transcriber on the menu like the

picture.

This is the Transcriber input

screen.

If you input letters, numbers and

characters on the screen with the

stylus pen, it would be written

automatically on the place where

the cursor is blinking. You do not

have to concern about the input

box when using transcriber.

lInput by using Keypad

–You can input numbers and letters by using Keypad.

Input Screen (5)

Basic Usage

Convert ‘1 ,A, a’ using the input convert button

on the input screen as the left picture. Then you

can input capital letters, small letters, numbers

and characters using keypads.

For example, in the case of inputting the M3

SKY, Convert to ‘a’ > Keypad 6 > convert to ‘1’>

Keypad 3 > Convert to ‘A’ > Keypad 7(4 times)

> Keypad 5(twice) > Keypad 9 (3 times)

By pressing ‘*’, ‘0’,’#’ while ‘Fn’ button is

pressed, you can apply ‘Space’, ‘Enter’ and ‘OK’

function respectively.

Pressing ‘Fn’ Key will change the function mode

in following order : ‘Fn’ one time mode -> ‘Fn’

hold mode -> ‘Fn’ disable mode

Alphanumeric button

Input Key button

Function button

3. ActiveSync

ActiveSync Introduction

Installing ActiveSync

Synchronization of Data

ActiveSync Introduction

lSync is an abbreviation of “Synchronization” and refers to the process of making data in PDA

and desktop computer to be same by linking both data.

–Sync is an abbreviation of ‘Synchronization” and refers to the process of making data in PDA and desktop

computer to be same by linking both data. When either PDA or PC modifies data, it updates others to the

most recent data.

–Not all the data is synchronized at same time. It follows the option settings of ActiveSync, provided by

Microsoft.

lBy linking M3 SKY and computer, you can make data in both devices in the same status

(synchronization) or install, copy, move, delete programs for business purpose and others.

lIt is compulsory to install this program in order to install business programs, synchronize data,

back up and synchronize contact numbers in an address book, etc.

Do not connect USB of Cradle to desktop PC before installing Active Sync to desktop PC..

It may cause a desktop PC cannot recognize PDA since Active Sync contains PDA program

driver.

ActiveSync

lTo install ActiveSync

- Select the ActiveSync program in the CD provided, and then install it to

the computer.

–Once the installation is complete, connecting window will start. Connect

the cradle with PC using USB cable, and then dock the device on the

cradle.

–When the device is recognized on the PC, Connection will be established

after assigning the port for it automatically.

lThe definition of Partnership

–It is the process of paring PC with PDA in order to exchange the data each

other. Via this process, the data on the PC and on the PDA can be

synchronized.

※The synchronization is available with Outlook 2003 or above version. It is

not supported on the outlook express which is provided together with

Windows OS.

ActiveSync install / connect

ActiveSync

Please re-try the synchronization if connection is disturbed by strong noise or static.

–To install ActiveSync on the host computer, download version 4.1 or higher from the Microsoft web

site at http://www.microsoft.com. Refer to the installation included with the ActiveSync software.

–Microsoft recommends installing ActiveSync on the host computer before connecting the mobile

computer.

USB connection to PC

ActiveSync

Synchronization of Data

lIf you see the Microsoft ActiveSync window in the desktop PC, you can find an option icon. If you click this

option icon, taps such as “Sync Options”, “Sync Mode”, “Rules” will appear.

l“Sync Options” is a menu that you can select an item to synchronize.

–Contact, Calendar, E-mail, Tasks, Memo, Favorite, Files, Media, etc.

l“Sync Mode” enables you to choose synchronization methods. According to the selected synchronization mode,

there are 3 following methods:

–Continuously while the device is connected: In this mode, if you want to carry out synchronization, connect the device to the

desktop computer. ActiveSync will immediately start synchronization and synchronize according to the user’s input of changes in

a computer or the device.

–Only upon connection: If you want to carry out the synchronization after the first synchronization on a manual basis, click Sync.

–Manually: In this mode, ActiveSync will not run automatically. In order to carry out synchronization, click Sync.

lSynchronization is the process of updating M3 and desktop PC after comparing their data. Any files including

personal organizer management data, etc in M3 can synchronize with those in the desktop PC.

When Troubleshooting the ActiveSync, Check the solutions below.

lEnsure the correct USB cable is used in the cradle with USB port of the PC.

lEnsure the power input cable of M3 Sky or LCD.

lPlease re-try the Synchronization after Soft-reset or Hard-reset. Finish the running program

and save the data for sure before resetting.

Via Wireless WAN

Via Wireless LAN

Browsing the Web Site

4. How to use Internet

Via HSDPA (1)

How to use Internet

lTo connect to the Internet via Wireless WAN (1)

Tab ‘Start > Settings > Connections’ Select ‘Add a new modem connection’

of ‘My ISP’ in the ‘Connections’.

Put the name you want into the

‘Enter a name for the connection’.

Then select the ‘cellular Line(GPRS)’

in the ‘Select a modem’.

WWAN service is optional.

It is not available in the device which does not have WWAN module installed.

lTo connect to the Internet via Wireless WAN (2)

Via HSDPA (2)

How to use Internet

Input the Access point name

suitable to the SIM Card / Operator

company of Network then Tab the

‘Next’.

Tap the ‘Finish’ after input the

User name and password

according to the setting.

(In some cases, it is required to

set IP address at the advanced

menu.)

Select the ‘Manage existing connections’

on the Connections. Choose the ISP which

you want to connect to as picture above.

* The saved settings automatically applied

at connecting.

You can explore the Internet using

WWAN connection.

Via Wireless LAN (1)

How to use Internet

lYou can use the Wireless Network Via Wireless LAN.

lM3 SKY supports IEEE 802.11b and 802.11g.

lTo connect the Wireless LAN (AP must be on and functioning)

Wireless LAN is optional. You can only use WLAN, when the WLAN

module is built in to the device.

On the Today Main screen, you select

Wireless state bar or go to ‘Start >

Settings > Connections>’ Wireless Manager.

Tap the WI-Fi on the ‘Wireless

Manager' to turn WLAN on.

When the dialogue box is appeared, Select the AP you want and

then, you can connect the Network with it.

To connect directly on the Main Screen

lTo connect via Wi-Fi menu

Via Wireless LAN (2)

How to use Internet

On the settings screen, you select

Wi-Fi Icon.

You can also tap Start > Settings >

Connections>Wi-Fi.

Configure the connect type then

click the 'Next'.

Configure the connect type then click the 'Next'.

Input the authentification data then click

the 'Next'.

After configure Network authentification,

tap the 'Finish'. You can see the wireless

Networks available.

lContinue from the last page

–Configure DHCP / Static IP

How to use Internet

Via Wireless LAN (3)

Tap an adapter to modify setting

on the wireless LAN card and

select the 'Edit'.

If you configure the IP as DHCP,

Click the 'Use Server-assigned IP address.

If you configure the IP as Static,

Click the 'Use Specific IP address.

Via Wireless WLAN (1)

How to use Internet

lYou can use the Wireless Network Via Wireless LAN.

lMM3 supports IEEE 802.11b and 802.11g.

lTo connect the Wireless LAN (AP must be on and functioning)

Wireless LAN is optional. You can only use WLAN, when the WLAN

module is built in to the device.

On the Today Main screen, you select

Wireless state bar or go to ‘Start >

Settings > Connections>’ Wireless Manager.

Tap the WI-Fi on the ‘Wireless

Manager' to turn WLAN on.

When the dialogue box is appeared, Select the AP you want and

then, you can connect the Network with it.

To connect directly on the Main Screen

lTo connect via Wi-Fi menu

Via Wireless WLAN (2)

How to use Internet

On the settings screen, you select

Wi-Fi Icon.

You can also tap Start > Settings >

Connections>Wi-Fi.

Configure the connect type then

click the 'Next'.

After configure Network authentification,

tap the 'Finish'. You can see the wireless

Networks available.

lContinue from the last page

–Configure DHCP / Static IP

How to use Internet

Via Wireless WLAN (3)

How to use Internet

Browsing the Web Site (1)

lMicrosoft Internet Explorer

- Via Wireless WAN , Wireless LAN and Active sync connection, you can browse the web.

- You can download programs and files by accessing the Internet.

To use the Internet Explorer

Tap 'Start > Internet Explorer This is the Internet Explorer

processing screen.

Address Window

Searching

Input the address you want on the address window in upper of the screen, then

click the 'search'. It will try to connect to that web address via Wireless network

that is connected.

lContinue from the last page.

How to use Internet

Browsing the Web Site (2)

On the 'Menu > Favorites...' you can see the list of sites that you

have saved and browse to it directly. The favorite page is like the

picture above.

On the Menu > History... You can see the list of sites that you have

recently visited. The history page is like the picture above.

See the 'Start > Help' if you want to know more about how to use the Internet Explorer

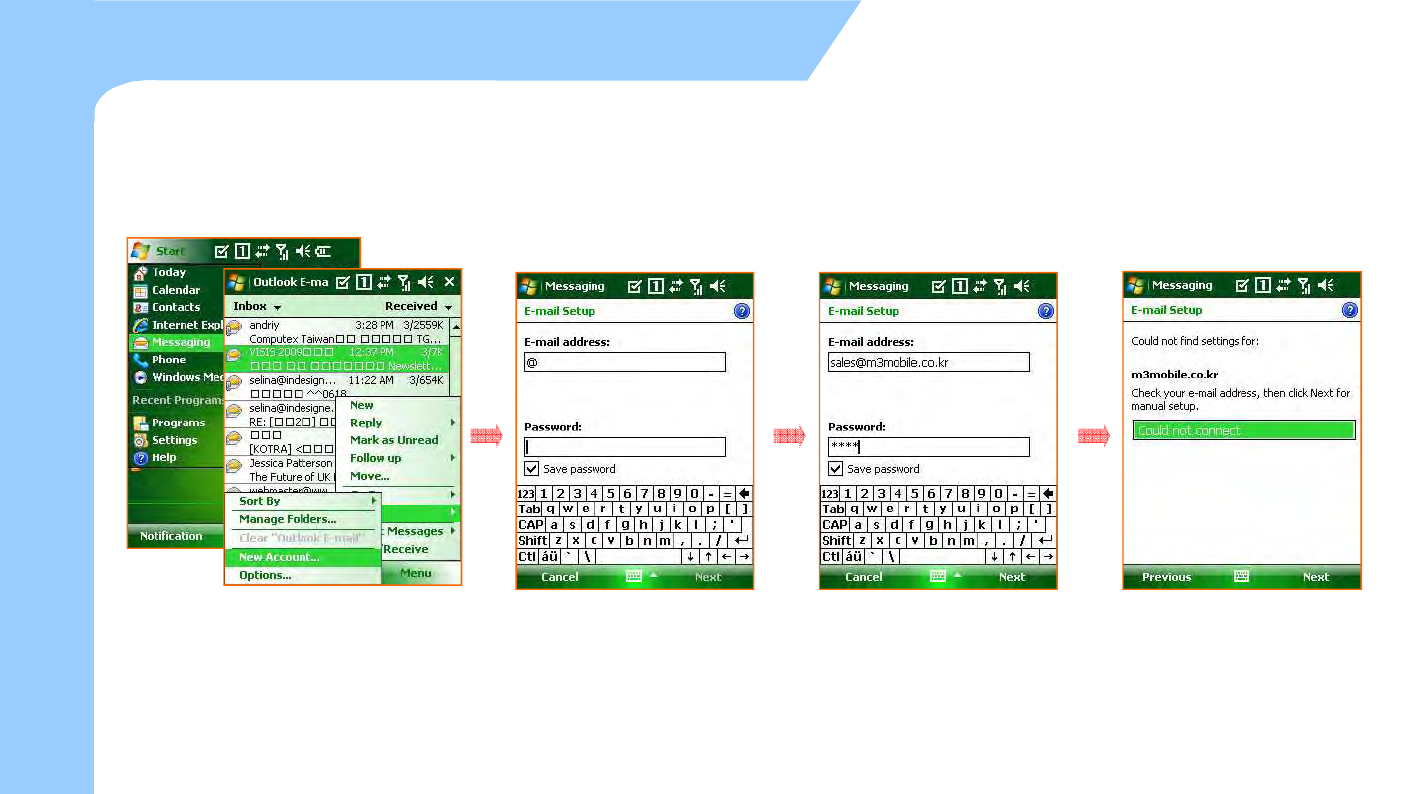

lTo set up an e-mail account

How to use Internet

Browsing the Web Site (3)

Process the 'Start > Messaging'. Select the

'Menu > Tools > New Account...in the outlook

E-mail box.

Set an E-mail provider for 'other‘

then tap 'Next.'

Input the E-mail address on the

Enter e-mail address , then tap ‘

Next '.

When the Status is for completed,

tap the 'Next'.

lContinue from last page

How to use Internet

Browsing the Web Site (4)

Set an E-mail provider for 'other‘

then tap 'Next'.

Select the Account Type and put

the Name then tap 'Next'.

Input the 'Incoming mail, Outgoing

mail, Domain' then select 'Finish'.

* For detailed setting menu, please

click ‘Options’.

After finishing the setting you can send and

receive E-mail using the e-mail account.

lTo send and receive an E-mail

How to use Internet

Browsing the Web Site (5)

< To receive an e-mail>

Select the 'Message' on the 'Today'

Select the 'Send / Receive' in the 'Menu' and check the received mail.

After process the 'Message' program , select the 'New' .

You can send an e-mail when you select the 'Send' after writing a new

e-mail.

5. How to use the Phone

Init Screen

Phone Control

Phone call and receive

Phone book

SMS send and receive

Phone functions

Phone setting

Init Screen

How to use the Phone

lPhone Main Screen

GSM Operator

Network Type

HSDPA / Network Status

Volume

Call Status

Input Number

Key Pad

Contacts

Phone Menu

GSM Operator It indicates the current Network Provider.

Call Status It shows Call Status.

Input Number It shows Inputted Numbers.

Key Pad It is used to dial the number and can be

used as speed-dial.

Contact It shows Phone Book Dialog.

Network Type It displays the availability of GPRS and

EDGE / HSDPA connection.

GSM/Network

Status It indicates the signal strength.

Volume It is Volume on/off and vibrate

Phone Menu Talk, End, Speed Dial, Call History, etc

menu…

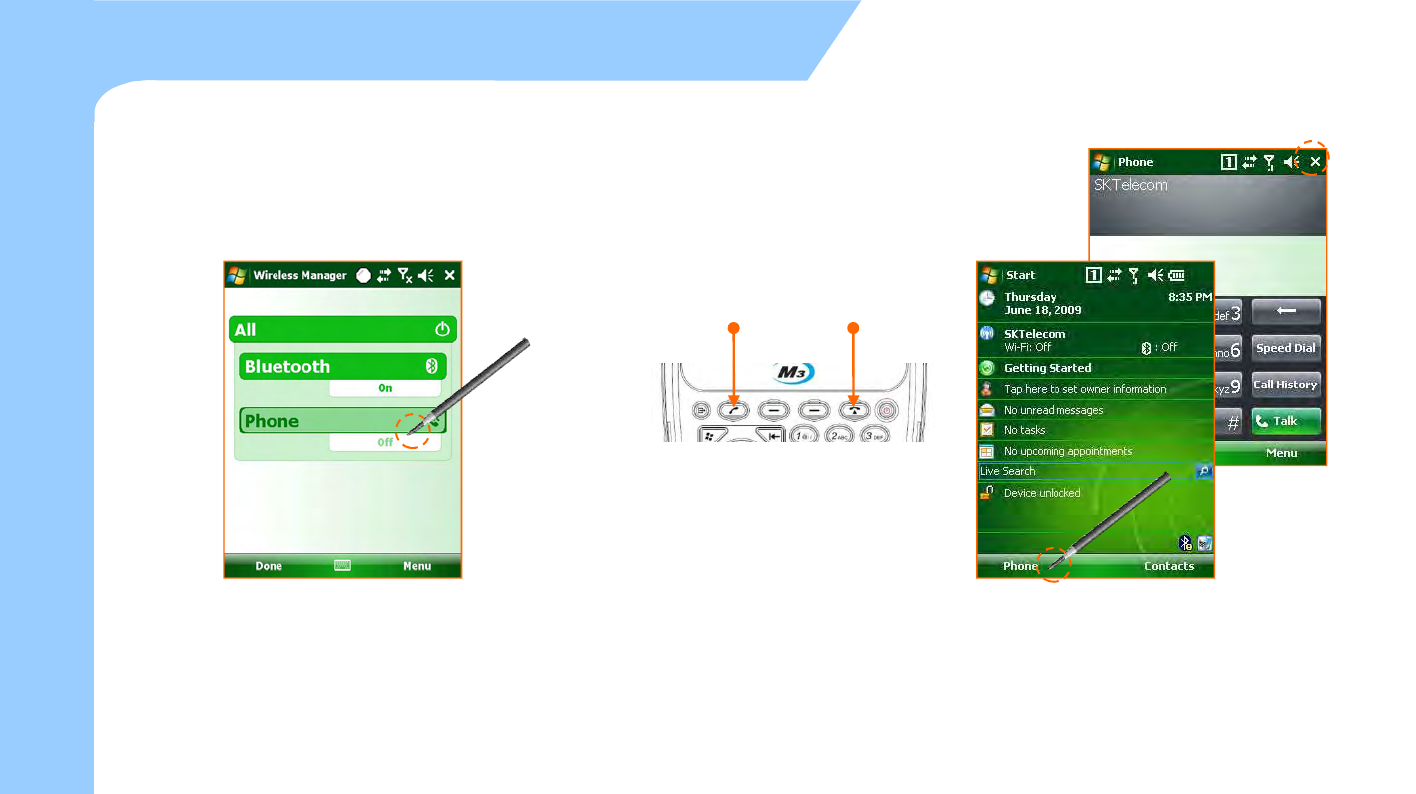

lPhone Program On/Off

Phone Control

How to use the Phone

You can turn on and off phone

in Wireless Manager

lPhone Call Send/End

SEND END

Tap the Phone button on the left bottom of

the Today Screen and then you can process the

Phone program. Also you can finish the program

using the X button.

Select the SEND and END button like

the picture above to start and finish

the Phone program.

lPhone Call

How to use the Phone

Phone Call and Receive

To make a call:

1.Input number via program keypad

or device keypad.

2.Make a call by pressing the ‘Talk’

button on the program, or pressing

‘SEND’ button on the device.

To hang up:

Press the ‘END’ button on the program or

on the device.

lPhone Receive

When you get the Incoming Call, you can receive

the phone call tapping the Answer button. If you

don’t want to receive it just tap the Ignore button.

Phonebook

lTo use Phonebook

How to use the Phone

Searching

A name or

Number.

Contacts Menu Contacts Option

Searching Contacts You can search the contacts by writing the

name and number or tapping.

Contacts

New Contact Input the new contact

New SIM Contact Input the contact to the SIM Card.

Send Contact Transmit the information of Contact by BEAM

or SMS.

Copy/Delete Copy or delete the Contact

Options Set the Options for Contact.

View By See the Contact by Type ( Name , Company,

Number … )

Filter Filter the information you want.

Contacts

Option

Call W/H/M Call by the number on the Contact.

Send E-mail Send an E-mail by the address on the Contact.

Send SMS Send SMS by the number on the Contact.

Add to Speed Dial Add the number on the Contact to Speed Dial.

Send Contact Send the information of Contact by BEAM or

SMS.

Copy/Delete Copy and Delete the Contact.

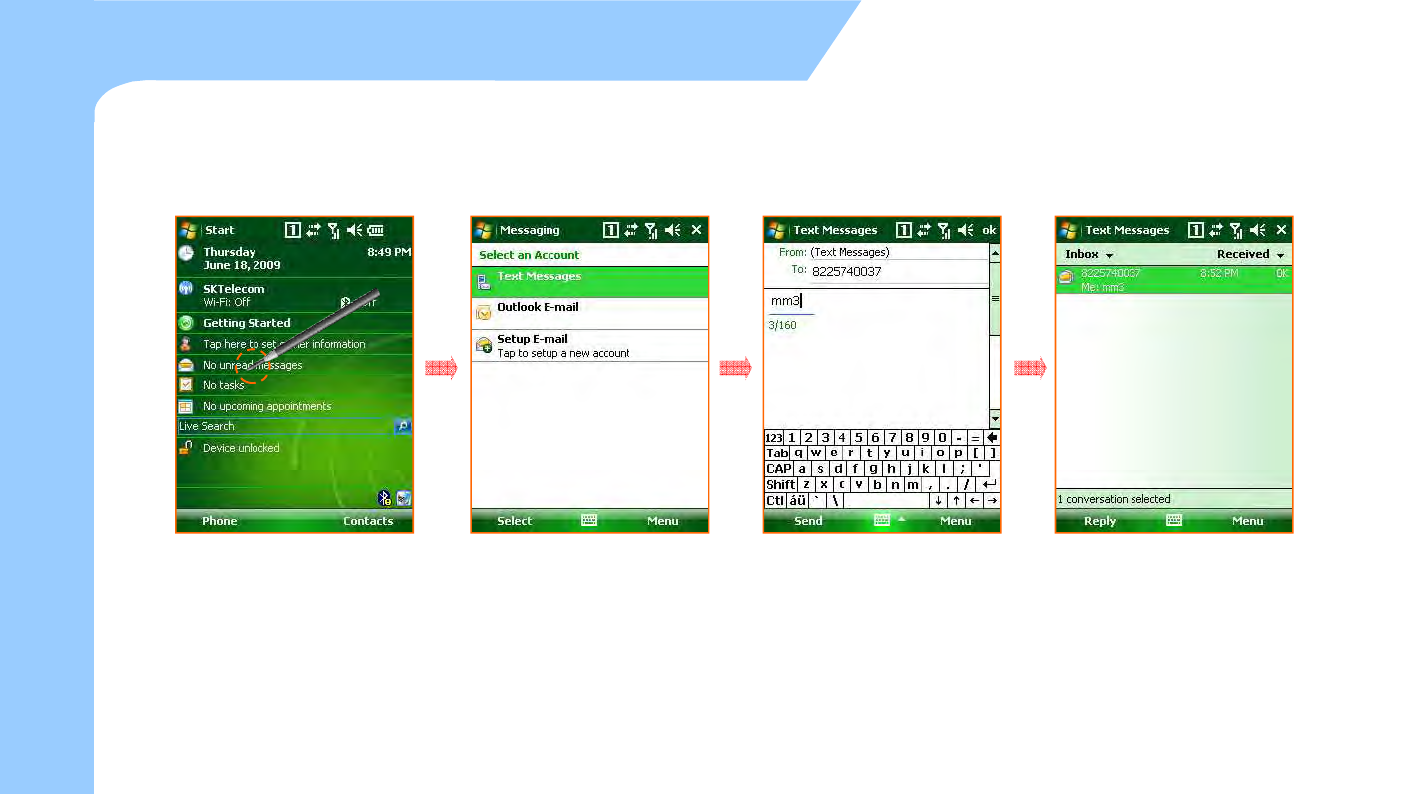

lHow to send SMS

How to use the Phone

SMS send and receive (1)

Select ‘message information’ menu

on the main screen to send SMS.

You can also send SMS by selecting

‘SMS send’ menu on Contacts or any

other applications.

Change to the ‘Text Messages’ on

the Message Program like the

picture above and tap the ‘New’ on

the bottom.

Input the phone number and

message. Tap the send to send

SMS.

You can see the pop-up screen

when SMS is sent successfully.

lHow to receive SMS

How to use the Phone

SMS sent and receive (2)

When connected to the GSM network,

new message arrival will be alerted a

picture above.

By tapping one of the received messages, the

content will be displayed on the separate

window as picture above.

Controlling received SMS can be done by using

the menu on the ‘New Text Message' alert

window or on the Text Messages program.

Controls while on the phone

Functions while on the phone

How to use the Phone

You can use various functions

when you select the button on

the bottom while talking on the

phone.

You can see the list of recent

calls by selecting ‘Call History’.

You can take a memo While talking

on the phone by selecting the Note.

Keypad

Change to Mode available to

input the Number on the

screen.

Mute

Setting for receiver not to

hear my voice while on the

phone.

Hold Hold for a moment while on

the phone

Contact Move to Contact

End End phone call

Featured functions while on the phone

Phone setting

How to use the Phone

Tap the ‘Start > Settings > Personal

tap > Phone’ and in that menu you

can set the Security and Sounds.

Check the ‘Require PIN when phone

is used’ check box when PIN lock is

required.

Tap the ‘Start > Personal Tab >

Phone > Network’ to set an

information related to the Network.

( Change the Network ..)

Tap the ‘Start > Personal Tab >

Phone > Services Tab ‘ to set an

information related to the Service.

( In the Network or SIM )

Call Barring Block the calling to the specific

number.

Caller ID

Turn on or off the Caller ID

function. If it is enabled, your

number will be shown to the

receiver.

Call Forwarding You can forward the incoming

call to the other number.

Call Waiting

You can receive another call

while you are talking on the

phone.

Voice Mail Text

Messages

Set the SMS Service Center

number and Voice Mail number.

Fixed Dialing Limit the available phone

functions using PIN2.

Description of Service Menus

6. Usage of Device

Camera

Bluetooth

BTExplorer

IrDA

GPS

Scanner

RF-ID

To use the Camera (1)

lNotice before taking pictures

- The camera equipped with the M3 Sky is supported 2 mega pixels.

Usage of Device

Function Still Video Comment

Mode Normal, Burst, Timer N/A Setting for taking photo

Brightness -3, -2, -1, 0, +1, +2, +3 Setting for Brightness

Resolution QCIF, QVGA, CIF,

VGA ,SVGA, SXGA, UXGA QCIF, QVGA Setting for size

White Balance Automatic, Sunny, Cloudy, Fluorescent, Incandescent Setting for White

balance

Flash Flash ON, Flash OFF Setting for Flash

ON/OFF

AF Trig AF Setting for Auto Focus

Camera Program Processing Screen

Camera is optional. On the device with no built-in camera, Camera function can not be used.

QCIF(176x144), QVGA(320x240), CIF(352x288), VGA(640x480), SVGA(800x600)

SXGA(1280x960), UXGA(1600x1200)

lTo process the camera program

- You can process the camera program when you tap the camera button or tap the camera icon on the

'picture or video'.

To use the camera (2)

Usage of Device

Select the 'Start > Programs > Pictures & Video. You can process the camera program when you select the camera

icon on the Picture & Video or select the camera icon in the menu.

Tap the ‘Menu > Options … > Camera Tab’ and then you can set the route of the storage memory ,

name and quality. You can set the Video on the Video Tab.

lTaking a Still photo

Usage of Device

Execute the camera program first. Move around to focus the desired

item.

Finally press the camera button to take a picture.

After executing the camera program , Preview mode will be changed

to standby mode after certain amount of time.

In order to start Preview Mode again, just tap the screen or press the

camera button.

After taking a picture, the captured image will be displayed on the screen.

If you want to execute the camera program, tap the camera button at the

bottom or click the camera icon on the left of window.

You can see the list of pictures taken previously by tapping ‘Thumbnails’ in

the Camera shooting mode.

To use the camera (3)

lTaking videos

Usage of Device

If you want to take a video, select ‘Menu >

Videos' after executing the camera program.

While taking a video, you can

either stop (by tapping stop

button) or pause. (by tapping

pause button)

If you want to watch the video taken, Select the 'Thumbnails' first

to see the list of video files available.

When you select the video you want, you can play the video

recorded.

To use the camera (4)

lBluetooth On / Off

Bluetooth Communication (1)

Usage of Device

On the 'Today Main Screen' , select the Wireless State

bar or Tap 'Start > Settings > Connections and select

‘Wireless Manager’.

Bluetooth is optional. Device without built-in Bluetooth can not use Bluetooth service.

Bluetooth support the transmission and reception of files between the serial connecting service and

Windows Mobile device.

To turn on/off Bluetooth, tap the

Bluetooth on the Wireless Manage

The status of Bluetooth can be seen

on the wireless status bar on the

main screen.

lSetting the Bluetooth

-On the Bluetooth setting screen, you can set the Mode, connecting to BT device and COM settings

Usage of Device

You can set the Bluetooth mode

and establish connection when

you tap the 'Bluetooth' icon on

the Start > Settings > Connections.

In the Mode tab, you can turn

on/off Bluetooth and make visible

or invisible the device from outside.

In the device tab, you can search

and connect to other Bluetooth

devices.

In the COM Ports tab, you can

set incoming Port and outgoing

Port.

Bluetooth Communication (2)

There are two ways that you can set up Bluetooth; StoneStreetOne/ Microsoft.

-It can be changed by operating BT Select in the ’Settings > System’.

-’StoneStreetOne’ is the way of using ‘BTExplorer’, and it is set up as the basic mode in the mobile.

lTo connect the Bluetooth

- you can establish the connection by searching, matching pin code and selecting the service.

Usage of Device

You can search the Bluetooth device

available when you select the 'Add

new device...' on the Device Tab.

Select a device to connect with and

tap 'Next' . Also you can select

the 'Refresh' button if there is no

device available.

Enter a Passcode to establish a

secure connection.

The passcode can be fixed one

or the one which is negotiated

between two parties in before

hand.

It shows the service available

on the Bluetooth device.

It shows the registered devices.

To add more device, please tab

‘Add new device’.

Bluetooth Communication (3)

lHow to make the serial connection via Bluetooth

–It is possible to assign the registered device to the COM port.

Usage of Device

Once the device is registered,

please tap ‘COM Ports’ tab and

then select ‘New Outgoing Port’.

Select the device you wand to add

and tap 'Next'.

Select the port which is available,

and then tab ‘Finish’.

Once the connection is made, you

can use the available service.

Bluetooth Communication (4)

lTransferring files via Bluetooth connection.

- It is possible to transfer files between Windows Mobile devices via Bluetooth.

Usage of Device

In order to transfer files via Bluetooth

connection, please go to 'Start > Settings >

Connections > Beam‘ and then Check

the 'Receive all incoming Beams ‘.

Select the file you want to transfer

in the File Explorer. Press the file

name long and tab ‘Beam File’.

By tapping ‘Beam File’, the list of available Bluetooth devices

shown. Please choose the device to transfer the file to.

Bluetooth Communication (5)

Usage of Device

BTExplorer(1)

lSet up Bluetooth using BTExplorer

-The user can set up mode, connecting BT device, COM setting by using BTExplorer.

If you click the ‘Bluetooth’ in the

‘Start> Settings> Connections’, you

can set up and connect the

Bluetooth mode.

Use the Device Info tab to configure

the M3 Sky’s Bluetooth connection

modes.

Use the Services tab to add or delete Bluetooth services.

To add a service:

1. Tap Add. The Add Local Service window displays.

2. In the list, select a service to add.

3. Tap OK. The Edit Local Service window displays for the selected service.

4. Select the appropriate information and then tap OK. See the following sections

for information on the available

services.

Usage of Device

BTExplorer(2)

lSet up Bluetooth using BTExplorer

Security settings allows you to set

global security policies for Bluetooth.

Note that these settings are only

active on local Services that are set

to Authenticate or Authenticate/

Encryption. You can set

authentication on local Services

under the Services tab.

Virtual COM Port defines which

COM ports BTExplorer attempts to

use for virtual COM ports. Check the

appropriate checkbox to use the

port as a virtual COM port. When

finished, choose Apply to enforce

changes, or Revert to restore the

original settings.

Use the Discovery tab to set and

modify discovered devices.

Use the Profile tab to load or

remove Bluetooth services profiles.

If a profile is not used, it can be

removed to save memory.

lConnect Bluetooth using BTExplorer

– The user can access Bluetooth by searching, matching the password, and selecting the service.

Press ‘BTExplorer’ in the

‘Start>Programs’

Press ‘New Connection’ in the

menu where’s at the bottom of the

screen

It displays the service list you can

set up. Set up your choice and press

the ‘Next’.

It displays the device list that you

can connect. Click the device you

want and press the ‘Next’.

Usage of Device

BTExplorer(3)

lTo connect via IrDA

M3 Sky can communicate with desktop, notebook, pocket PC as

well as other PDA that has OBEX protocol for the IrDA

communication.

To use infrared communication

§Locate Infrared communication port to be in series with an infrared

(IrDA) port with other device.

§Press a quick link icon > Infrared communication menu.

§Infrared communication program is started and you can exchange

data.

§If you want to have a serial communication with the device like

printer, it is possible by connecting the COM Port.

※It is advised to communicate within the shortest distance.

Shorter distance makes data transmission faster.

Usage of Device

IrDA Communication

IrDA Communication Port

Connecting to IrDA Printer

File transmission between PDA

IrDA port is optional. Device without IrDA port can not use this feature.

lTo set the GPS

–Tap the ‘Start > Settings > System Tab > GPS’ and then you can set the information related to the GPS.

–You don’t have to set additional information when there is a single program which uses GPS data. When

there are more than one program which use GPS data, you need to set the program port and hardware

port required for each program.

Usage of Device

To use the GPS (1)

Select the GPS on the System Tab. Set the GPS Program Port which

is not yet used.

Set the Hardware port of the device.

GPS hardware port for M3 sky is

COM2 and with baud rate of 9600.

GPS is optional. GPS feature is not available on the unit with no GPS module integrated.

lTo Connect the GPS

- When there is a single GPS program, please use the GPS hardware port (COM2). When there are more

than one GPS program, please use the pre-defined GPS program port.

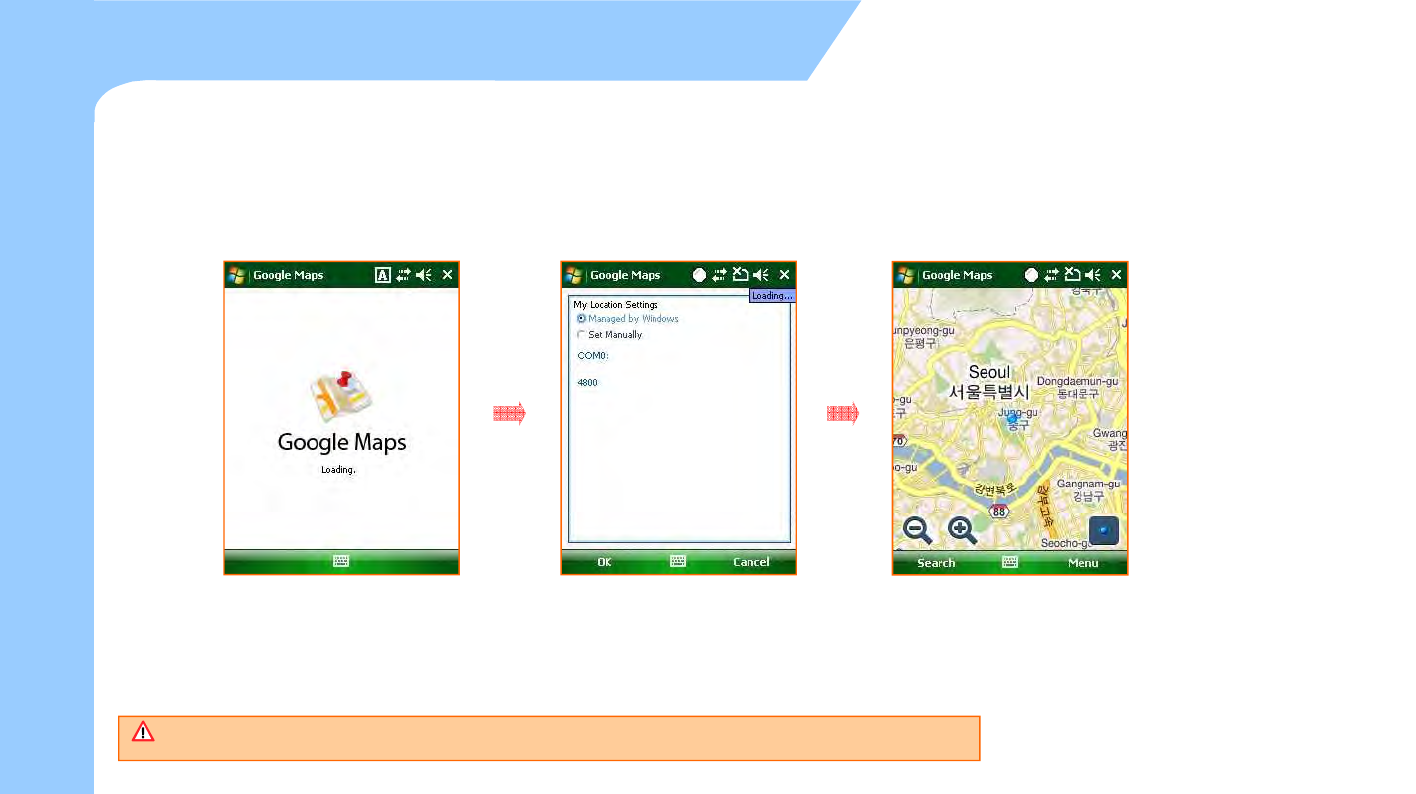

Usage of Device

To use the GPS (2)

Execute the GPS program you want. Set the COM Port and Baud Rate. It is available to use various

application using GPS like searching

the current location.

Sample GPS map is not provided by M3Mobile.

To use the Scanner (1) Scanner Manual

lTo scan the barcode, there are two scanner programs installed on the device

1. M3 ScanTest

-It is a sample test program. It is only for testing the scanning feature of the device.

It can not be used for business application.

2. ScanEmul

-It is a program which can be used to output the scanned data on the application.

(like MS Word-Pad, Internet Explorer or Business Application)

- The ScanEmul program must be running if you want to scan barcodes.

Usage of Device

lThis program is located under Flash Disk -> Scanner folder

The Scanned Data will be displayed here

You can get the information like Firmware version,

DLL version and Decoder version.

It is to trigger the scan beam.

You can also Use ‘S’ button on the right side of Device

to trigger it.

You need to select this tab to configure Settings

Usage of Device

To use the Scanner (2) M3 Scan Test

Usage of Device

To use the Scanner (3) Scan Emul

When Scan Emul program operates, program

icon is appeared in the tray bar.

The user can access the various menus using

this icon.

When you click the barcode

icon, you will get This menu

popped up.

You can set the Reading Option.

Sync: Scan Beam shoots until the

Barcode is scanned or it’s timed out

Async: Scan Beam Shoots while trigger

button is pressed or until it’s timed out.

Security Level: number of times to check scanned data.

(ex, when it is set to 2, it will scan two times

and compare the data whether it is same or not.

Time Out: Scanner beam will be shoot for this time set.

Sound: you can choose the sound which will ring when the data

is scanned.

Output: you can select the output method.

When it is checked Enter code will be inserted after the barcode data.

Usage of Device

To use the Scanner (4) Scan Emul

Usage of Device

To use the Scanner (4) Scan Emul

You can select the symbol

(Symbology) to activate.

You can create the prefix and

suffix that will be used in the

beginning and ending of the

bar code data.

You can set the button

that will be used as the

scan button.

Usage of Device

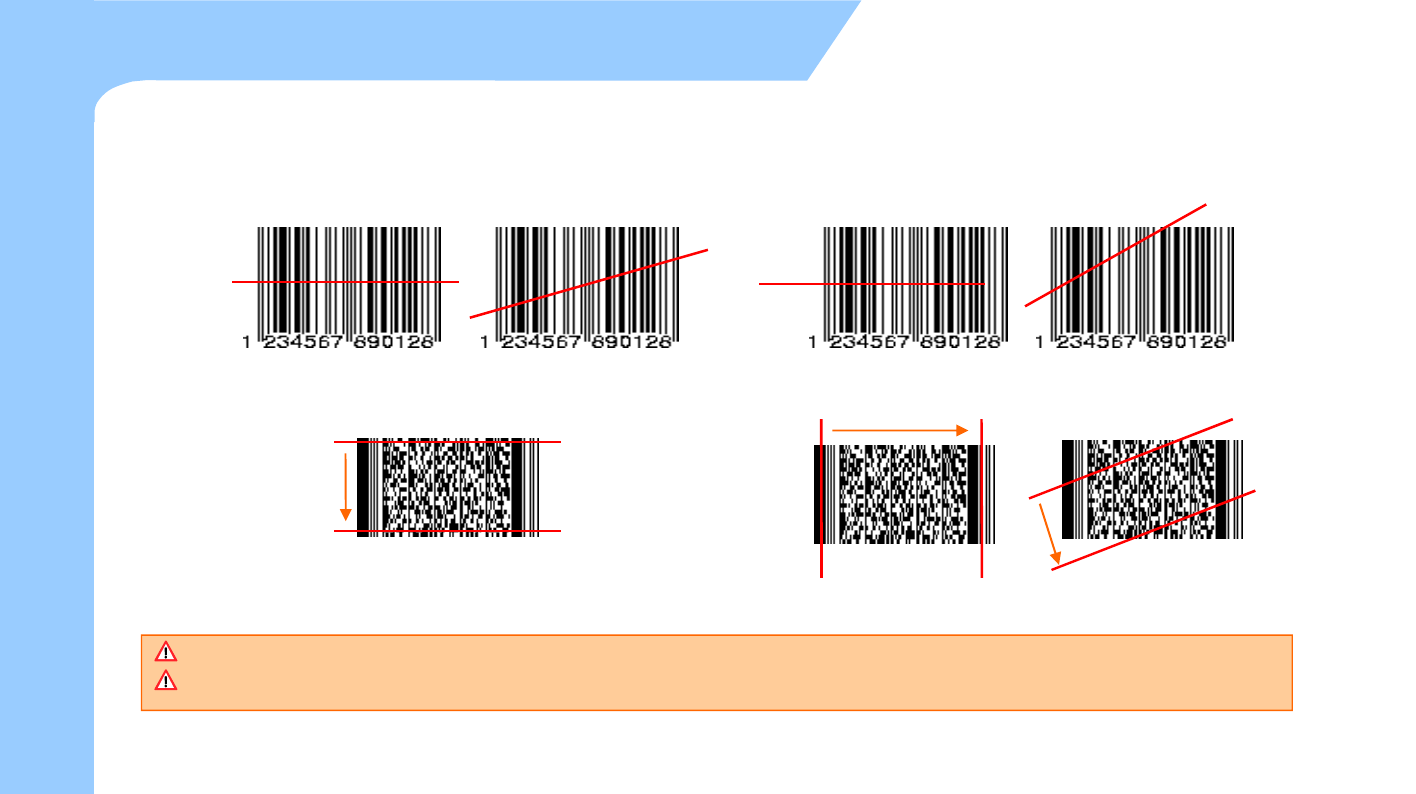

lHow to use scanner

–Usage of 1D Scanner (MC-7100S, MC-7500S)

–Usage of 2D Scanner (MC-7700S)

Correct way Incorrect way

Scanner is optional. You can not use scan feature with no scanner enabled device.

2D Barcode Scanner is optional. Only with 2D Barcode scanner enabled device, you can do 2D barcode scan. (MC-7700S)

Correct way Incorrect way

To use the Scanner (6) Scan Test

To use the RFID (1)

lTo Connect the RFID

–Tap the ‘Start > File Explorer > Flash Disk > RFID’and then you can run RFID.

Usage of Device

To use the RFID (2)

lTo Connect the RFID

–Let the upper back of the terminal touch the tag and then tap READ. RFID reader located in the

upper-back of the terminal will recognize the tag.

–You can select Read Mode in Option. In Sync mode, the terminal should reach the tag to read the

information. In Async mode, the terminal automatically search around and read the tag.

In Continuous mode, the terminal continues to read the tag unless you command to stop.

Note that Continuous mode consumes the battery faster.

You can select Read

Mode in Option.

Usage of Device

To use the RFID (3)

lSupport Tag

RF-ID is optional. Device without RF-ID can not use this feature.

Frequency supported only 13.56MHz

Usage of Device

M3 Mobile MC-7100S M3 SKY, Industrial PDA User Manual

M3 Mobile Co., Ltd M3 SKY, Industrial PDA Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
