Users Manual
![](/img.php?id=3264009&img=bg1.png)
1
Content
Content.................................................................................................................................................... 1
1 Introduction.......................................................................................................................................... 2
1.1 Acknowledgement..................................................................................................................... 2
1.2 Announcements......................................................................................................................... 2
1.3 Safety Instruction...................................................................................................................... 2
1.4 Abbreviation/Terminology........................................................................................................ 3
2 MID Introduction................................................................................................................................. 3
2.1 MID Operation and Preparation................................................................................................ 3
2.2 MID Status and Reminder......................................................................................................... 3
3 Quick Start Guide................................................................................................................................. 4
3.1 Keys Function........................................................................................................................... 4
3.2 Startup and Shutdown button.................................................................................................... 5
3.3 Open and Close of the Screen................................................................................................... 5
3.4 Usage of Touch Screen.............................................................................................................. 5
3.5 Home Page................................................................................................................................ 6
3.6 Visit Application Procedures..................................................................................................... 7
3.7 USB Connection....................................................................................................................... 8
3.8 Typing words............................................................................................................................. 8
3. 9 Operation Technique................................................................................................................ 9
4 Basic Setting...................................................................................................................................... 10
4.1 SIM Management.................................................................................................................... 10
4.2 Wireless and Internet................................................................................................................11
4.3 Bluetooth................................................................................................................................. 13
4.4 Data Usage .............................................................................................................................. 15
4.5 More........................................................................................................................................ 15
4.6 Contextual Model.................................................................................................................... 17
4.7 Display.................................................................................................................................... 19
4.8 Storage .................................................................................................................................... 21
4.9 Battery..................................................................................................................................... 22
4.10 Application program ............................................................................................................. 23
4.11 Add account........................................................................................................................... 24
4.12 Location................................................................................................................................ 25
4.13 Security................................................................................................................................. 25
4.14 Language and Input Method................................................................................................. 27
4.15 Backup and Reset.................................................................................................................. 29
4.16 Date and Time ....................................................................................................................... 29
4.17 Accessibility.......................................................................................................................... 30
4.18 Developer options................................................................................................................. 30
4.19 About Tablet .......................................................................................................................... 30
5 Multi-Media....................................................................................................................................... 31
5.1 Music....................................................................................................................................... 31
5.2 Video ....................................................................................................................................... 31
5.3 Photo Gallery.......................................................................................................................... 32
5.4 Camera .................................................................................................................................... 33
5.5 FM Radio................................................................................................................................ 33
6 Communication Function................................................................................................................... 34
6.1 Phone....................................................................................................................................... 34
6.2 Text Message........................................................................................................................... 35
6.3 Contact List............................................................................................................................. 35
7 Internet ............................................................................................................................................... 36
7.1 Browser................................................................................................................................... 36
7.2 Email....................................................................................................................................... 36
8 Other Application Procedures............................................................................................................ 38
8.1 Clock ....................................................................................................................................... 38
8.2 Calculator................................................................................................................................ 38
8.3 File Manager........................................................................................................................... 39
8.4 Recorder.................................................................................................................................. 40
9 Installation of Procedures................................................................................................................... 41
9.1 Installation............................................................................................................................... 41
9.2 Uninstall.................................................................................................................................. 42
10 Troubles Shooting.............................................................................................................................42
![](/img.php?id=3264009&img=bg3.png)
2
1 Introduction
1.1 Acknowledgement
Thanks for your purchase of our product. Nitro Phablet 71S is high definition tablet PC. Its CPU is
MT8312, it is based on Android 5.1 operation system, and easy to expand the third application
procedure.
The product is designed with various functions, including WIFI, BT, GPS, FM, voice call and so on. It
is easy to achieve wireless communication and internet, you have access to surf the internet anytime
and anywhere; it is also built with high accuracy GPS module, so that it can be used for navigating
through installing map software. There are many sensors which offer you brand-new operation and
entertainment; besides, it has camera shooting, which leads electronic consumption to enter into a fresh
palm internet entertainment time.
The manual systemically introduces the functions, use techniques and announcements, please read this
manual carefully before your operation.
Note: pictures and content are only used in the tablet as a function of signal, may be
related to the actual product is different, please in kind prevail.
1.2 Announcements
Preventive maintainance
Please always keep the MID dry. To avoid the device short trouble, corrosion fault and electric short,
please prevent the device, battery and charger from water and moisture, and don’t operate the device or
charger by wet hand.
To avoid failure of device, battery and charger, please prevent the device, battery, charger from
violent shock or shake.
To avoid failure of device, battery and charger, please prevent the device, battery, charger of all
over heating or too cold circumstance.
Never shock, throw, prod the MID, or drop, extrude, bend the MID.
Never disassemble the device and accessories arbitrarily, otherwise the device and accessories are
not in our company warranty scope.
1.3 Safety Instruction
Before the operation of the MID, please read this chapter and teach your kids about these information.
For further details, please refer to the safety instructions and announcement.
Never use the MID when driving car, in order to ensure safe driving.
In the medical area, please abide by related rules and regulations. Please shut down the MID when it
is near to the medical area.
To avoid the wireless signal to interrupt the plane- controlled signal, please shut down the MID or
using airplane mode when you are boarding a flight,
![](/img.php?id=3264009&img=bg4.png)
3
z To avoid electronic equipment failure, please shut down the MID in the vicinage of high-accuracy
electronic equipments.
z Please don’t disassemble the MID and accessories. Only authorized agent has access to service the
MID.
z Please keep the MID far away from magnetic equipments, the radiation of MID may erase the data
stored in the magnetic equipments.
z Never use the MID in the vicinage of high temperature, inflammable gas (gas station).
z Protect the MID and accessories from kids reach scope, and avoid the kids to use the MID without
parents’ supervision.
z Please comply with related rules and regulations, and respect others’ privacy and legal rights while
using the MID.
z Please strictly adhere to related instructions in the manual when using USB cable to ensure the
safety of the MID or PC.
z Never use the MID in bathroom or other humid environment, and please protect the MID from
liquid wash or wet.
1.4 Abbreviation/Terminology
Abbreviation/Terminology Full Name Description
MID Mobile Internet Device Mobile Internet Terminal
WIFI Wireless Fidelity Base on IEEE 802.11bgn standard
wireless LAN
T F TransFlash Alternative name Micro SD, super
miniature memory card
2 MID Introduction
2.1 MID Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
Apply the power adaptor to charge for MID.
2.2 MID Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column and slip the
screen to open the reminder list. Choose the menu you need, and confirm the information. Then you
can close the reminder window through clicking the column to slide up. Please refer to below status
icons:
![](/img.php?id=3264009&img=bg5.png)
4
New email Airplane Mode on
USB connected
USB debugging connected
Return button
Downloading
Display recently-used
application
Home button
Current electric volume
WIFI connected, internet is
available
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the reminder board to
view the detailed information.
Open the reminder board
When the reminder column shows new reminder icon, please hold the column and slip down your
finger, then the reminder board is opened.
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description:
Power button Short press to sleep/wake up, long press to startup and
shutdown.
Vo l u m e + (up) increase the volume
Vo l u m e - (down) decrease the volume
HOME(home) Click it in any interface will return to main interface.
Back button(back) click it in any interface will return to previous menu
Display recently-used application
display recently browsed history
Screenshot
Intercept the current picture
![](/img.php?id=3264009&img=bg6.png)
5
3.2 Startup and Shutdown button
Startup
Long press POWER key for three seconds, you can enter into startup picture. The system enters into
screen lock status, please unlock it
Notice: When the MID has crashed, long press POWER key for eleven seconds to reset.
Shutdown
1. Long press POWER, it will popoup shutdown window.
2. Shutdowm window contains Power off, Airplane mode and Audio profiles three options.
3. Click Power off is the last step.
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save battery power
2. When screen is open, press POWER key, the screen will be closed immediately.
Open the screen when it is closed.

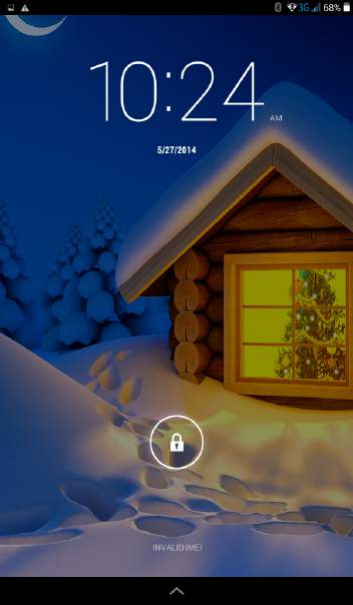

If the screen is closed, short press POWER to open the screen. The screen will be locked open it, it will
show the picture as below picture, slide around to unlock the screen.
=
Picture 3.1
3.4 Usage of Touch Screen
MID operating methods
![](/img.php?id=3264009&img=bg7.png)
6
There are below methods to view the main screen, menu and application procedure in your MID.
Click
When you want to use the screen keyboard typing or choose application in the main interface, you only
need to touch it by your finger.
Press on
If you want to open some item(textbox or the link in the webpage), or shortcut and main procedure
move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizontal movement by finger.
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you want.
Rotate
For most pictures, you only need to rotate the MID sidewise to change the screen direction from
horizontal to vertical. For instance, when you are typing works, and watching movies.

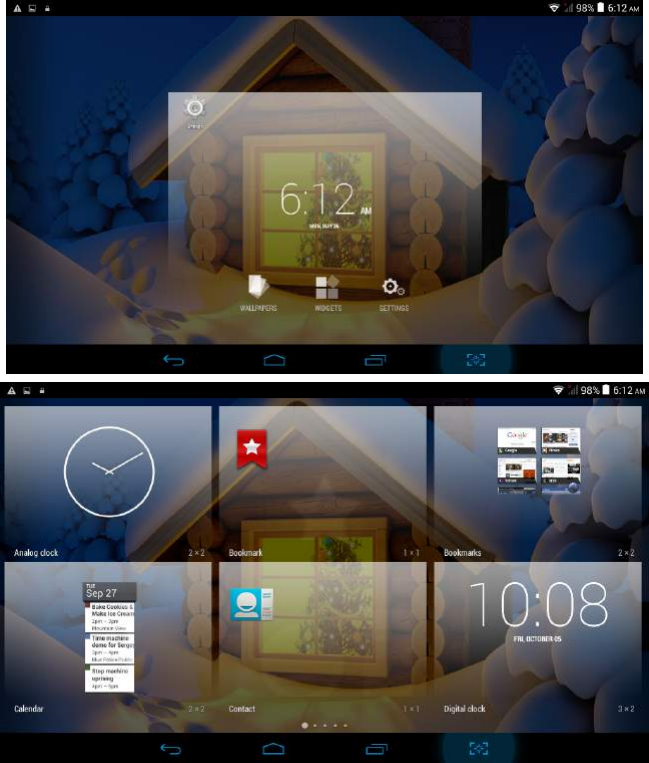

3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set wallpaper.
Picture 3.2
The extended home page
The home page can be extended beyond the wideness of screen to provide more space, which
you can put new-added shortcuts and widgets. Click the blank space in home page then slide
right or left to extend to the right or left of the screen. In the home page, there are two extended
pictures, as Picture 3.3.
Search
Screenshot
Home
Time
Battery volume Notice column
Return
View recently-used
application
![](/img.php?id=3264009&img=bg8.png)
7
Picture 3.3

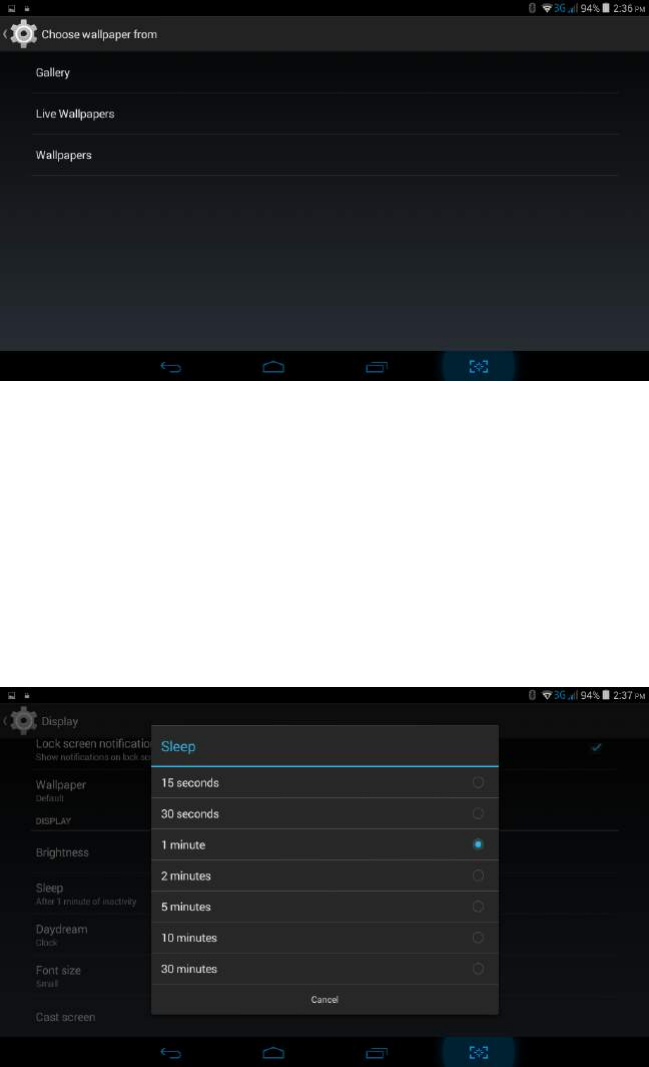

Change the wallpaper of desktop
1. In home page, long press any blank space in main screen, it will popup a window to select
WALLPAPERS.
2. Click the Pick image or default wallpaper to select the wallpaper.
3.6 Visit Application Procedures
Click in the middle right of Picture 3.2, enter into main interface, choose the application
procedure you want to visit.
Picture 3.6
![](/img.php?id=3264009&img=bg9.png)
8
3.7 USB Connection
MID storage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the MID and computer by USB cable, the reminder column will show the remind
information.
2. Open the reminder board; please view the MID status and reminder to learn how to open the
board.
3. In the reminder board, click the “USB Connected”, it will as below Picture 3.7, then click “open
USB storage configuration”.
4. Now the USB is connected successfully.
Picture 3.7
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the MID is connected with USB cable, and you open the USB storage configuration, you
can’t view the memory card through the MID. Only after you detach the USB cable, you can view the
memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show the screen
keyboard. The keyboard contains below typing options:
Android keyboard
Choose the typing method you want
![](/img.php?id=3264009&img=bga.png)
9
1. Click setting application in main menu interface.
2. Click Language and Keyboard.
3. In the text setting area will reveal all the installed words-typing methods in your MID.
4. Tick the typing method you want.
Use and switch of input method
Picture 3.8
3. 9 Operation Technique
Enter widgets interface
In home page, long press any blank space in main screen, it will popup a window to enter widgets.
Long press any widget to create its shortcut, then you can enter into the application through the shortcut
icon.
1 switch the capital and small letter
2 Input options
3 click to insert the space
4 Next\click input to execute
5 delete the character in the left of cursor, click and hold to delete all the characters in the
left on the cursor.
①
②③
⑤
④
![](/img.php?id=3264009&img=bgb.png)
10
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch into desktop
automatically, drag and hold the icon, you can move to any position in the desktop.
Remind: If the target position has no space, the widget won’t be add in the main screen.
4 Basic Setting
4.1 SIM Management
Click settings in main menu, choose SIM Management, as Picture 4.1
![](/img.php?id=3264009&img=bgc.png)
11
Picture 4.1
Data Connection
Click setting application in main menu, choose SIM management, click data connection, choose off or
on, as Picture 4.2
Picture 4.2
4.2 Wireless and Internet
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, MID will automatically search the available Wifi wireless internet. As
Picture 4.3
3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the password
window, enter password, click connect.
![](/img.php?id=3264009&img=bgd.png)
12
Picture 4.3
2. Add Network
1) Click icon in right top, as Picture 4.4
Picture 4.4
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture 4.5
Picture 4.5
3. Network Notice
![](/img.php?id=3264009&img=bge.png)
13
If you open Network Notice, when WIFI signal appears, the right bottom will remind you available
WLAN network.
4. Keep WI-FI on during sleep
1. Click icon in right top of Picture 4.5, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.6
Picture 4.6
4.3 Bluetooth
Bluetooth function operation
1. Click setting application in main menu interface
2. Click bluetooth and open it.
3. If somebody open bluetooth in your surroudings, click search device in right above, then MID will
automatically search the bluetooth device nearby. As picture 4.7
Picture 4.7
4. Click the available Bluetooth device, it will popup request window, enter into related password, and
match the device to connect.
5. After match successfully, choose the operation you want to, click to enter into Picture 4.8.
![](/img.php?id=3264009&img=bgf.png)
14
Picture 4.8
Bluetooth setting
1. Rename tablet
Click icon in right top of Picture 4.7, as Picture 4.9, select rename tablet, you can rename it as you
want
Picture 4.9
2. Check visibility timeout
Select visibility timeout setting in Picture 4.9, choose the time you want to set, as Picture 4.10(Note:
check overtime setting is the time setting when Bluetooth is checked)
Picture 4.10
![](/img.php?id=3264009&img=bg10.png)
15
4.4 Data Usage
Check SIM card data usage, as Picture 4.11
Picture 4.11
Check WI-FI usage, as Picture 4.12
Picture 4.12
4.5 More
4.5-1 Airplane Mode
Airplane Mode can turn off WIFI and GSM card function quickly, when airplane mode is turned on,
WIFI and GSM can’t get any signal, then airplane mode is turned off, WIFI and GSM module will
recover to previous state.
4.5-2 VPN
Open VPN, click add VPN network, as Picture 4.13. Input name and server address, then save.
![](/img.php?id=3264009&img=bg11.png)
16
Picture 4.13
Click VPN, as Picture 4.14, input VPN user name and password, click connect.
Picture 4.14
4.5-3 Network sharing and portable hotspots
Portable WI-FI hotspots
1. Click setting application in main menu.
2. Click more when wifi is well connected, open Tethering & portable hotspot
Picture 4.15
![](/img.php?id=3264009&img=bg12.png)
17
Picture 4.16
3. Click keep WI-FI hotspots on, choose open time.
4. Return to previous menu, open portable WLAN hotspots, click configure WI-FI hotspots.
Picture 4.17
5. Set passwords you want to, password should be more than 8 numbers.
4.6 Contextual Model
1. Open settings, click contextual model, as Picture 4.18,
Picture 4.18
![](/img.php?id=3264009&img=bg13.png)
18
2. Click General to enter into Picture 4.19
Picture 4.19
1. Vibrate
In picture 4.19, click vibrate, MID will vibrate when someone calls you.
2. Volume
In picture 4.19, click volume, you can set ringtone, notice, and alarm volume, as Picture 4.20
Picture 4.20
3. Voice call Ringtone
In picture 4.19, click voice call ringtone to choose voice call ringtone, as Picture 4.21
Picture 4.21
![](/img.php?id=3264009&img=bg14.png)
19
4. Video call ringtone
In Picture 4.19, click video call ringtone to choose video call ringtone, as Picture 4.22
Picture 4.22
(Note: Except general, silent, meet, outdoor are only for selection, they can’t be set.)
4.7 Display
4.7-1 Adjust the screen brightness
1 Click Setting application procedure.
2. Click display, choose brightness,
3. Drag the portlito to adjust the brightness volume.As Picture 4.23
Picture 4.23
4. Click OK after brightness is adjusted.
4.7-2 Wallpapers
1. Click setting application.
2. Click display, click wallpaper.
3. You can choose different wallpapers as you like---gallery(user defined)---Live
wallpapers---wallpaper, as Picture 4.24
![](/img.php?id=3264009&img=bg15.png)
20
Picture 4.24
4.7-3 Auto rotation
System is defaulted as open auto rotation, when it is turned off, system won’t rotate MID screen by
G-sensor.
4.7-4 Sleep
1. Click setting appliation.
2. Click display.
3. Click sleep.
4. Set the sleep time as you want, as Picture 4.25
Picture 4.25
4.7-5 Font size
Click font size to adjust the font size, as Picture 4.26
![](/img.php?id=3264009&img=bg16.png)
21
Picture 4.26
4.8 Storage
Open setting function, click memory, click preferred install location, you can choose
isntall new application to choose preferred install location.
Check SD card and MID storage space.
1. Enter into setting application.
2. Click storage, check storage space.
1. Internal storage
(1) System storage
System storage is the spcae MID leave for system file, as Picture 4.27. it can’t be viewed.
Picture 4.27
(2)Internal storage
Internal storage is MID local NAND storage, as Picture 4.28, if you need to check the storage content,
you can check it in main menu.
![](/img.php?id=3264009&img=bg17.png)
22
Picture 4.28
2. SD card
You can check storage space, SD card available space, unmount SD card and erease SD
card, as Picture 4.29
Picture 4.29
Safely remove SD card
1. Click setting application.
2. Click memory.
3. Click uninstall SD card.
4. Now you can remove SD card safely.
Note: Removing SD card safely can protect SD card and increase its lifetime.
4.9 Battery
Click setting function, select battery, you can view the battery situation, as Picture 4.30
![](/img.php?id=3264009&img=bg18.png)
23
Picture 4.30
4.10 Application program
1. Click setting application in Apps.
2. Select application, after enter, you can manage and delete installed application and check system
used storage space and left space. (As Picture 4.31)
Picture 4.31
3. View internal storage used space and left space, as Picture 4.32
![](/img.php?id=3264009&img=bg19.png)
24
Picture 4.32
4. View the working device, used space and available space, as Picture 4.33
Picture 4.33
4.11 Add account
1. Click add an account, as Picture 4.34,Select setting application
Picture 4.34
![](/img.php?id=3264009&img=bg1a.png)
25
2. For example: choose google, fter successfully load, it will open the sync function, as Picture
4.36
Picture 4.35
4.12 Location
Click setting, select location/Mode, as Picture 4.36
Picture 4.36
4.13 Security
Set locked screen
Lock the touch screen by unlock icon, none, slide, face unlock, voice unlock, pattern , pin, password to protect
your MID.
Note: After setting screen locked, you should enter the passcode each time when you startup or screen
is locked
Set unlocked picture
1. Click setting application in main interface.
2. Click security
![](/img.php?id=3264009&img=bg1b.png)
26
3. Click locked the screen.
4. Choose picture in text setting area.
5. Click next following the remind message.
6. The unlocked pattern board pop up, there are nine touch spots, connect 4 points from vertical,
horizontal or diagonal direction. Move your finger from the screen when finish. The system will record
yous new unlock pattern.
7. Click continue.
8. When you see the reminder, enter the unlock pattern, then click confirm.
Picture 4.37
Set unlock PIN code
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Choose PIN in text setting area.
5. Enter new PIN code(numbers) and click continue.
6. Ener new PIN code again and click confirm.
Set unlock password
1. Click setting application in main interface.
2. Click security.
3. Click screen locked.
4. Set password in text setting area.
5. Set new password(letters and numbers) and then click continue.
6. Enter the password again and the click confirm.
Unknown sources
1. In main interface, click setting.
2. Click security
3. Click unknown source,as Picture 4.38
![](/img.php?id=3264009&img=bg1c.png)
27
Picture 4.38
Note: Manual installing APK files needs to turn on unknown source.
4.14 Language and Input Method
Click setting, select language and input method, choose language to switch language, as Picture 4.39
Picture 4.39
Click setting, choose language and input, choose Android keyboard setting, click input language, as
Picture 4.40
![](/img.php?id=3264009&img=bg1d.png)
28
Picture 4.40
Choose the language you want to change in the language list, as Picture 4.41
Picture 4.41
Return to langauge and input method, click default, as Picture 4.42, select input method you want to
use
Picture 4.42
![](/img.php?id=3264009&img=bg1e.png)
29
4.15 Backup and Reset
Connect WIFI and login your google account, choose backup my data, system will backup your data
into google server.
If you need to recovery factory reset, please click Factory data reset, as Picture 4.43, if you need to
formulate NAND, please click DRM reset.
Picture 4.43
4.16 Date and Time
According to the preset, system will voluntorily apply the date, zone, and time provided by internet.
Manual set date, time and zone
1. Click Setting application procedure.
2. Slide down the screen, then click date and time.
3. Turn off “auto setting of date and time”.
4. Turn off “auto setting zone’.
5. Click Zone Selecting, then choose the zone lists. Slide down the list to view more zones.
6. Click Date setting, then click upper or down buton to adjust date, month, and year, click setting
when you finish selection.
7. Click Time setting, then click upper or down button to adjust hour and minute, click AM or PM
to change morning or afternoon ( there is no such selection when you se 24-hour format). Click Setting
to finish.
8. Click 24-hour format, switch between 12-hour or 24-hour formay, the time format you choose
will be used on the alarm clock.
9. Click date format setting, then choose the time format you want to show on MID.
![](/img.php?id=3264009&img=bg1f.png)
30
Picture 4.44
Note: If you use the time internet provided, you will not able to set the date, time and time zone.
4.17 Accessibility
1. Large text
Click it to make system font large size
2. Power button to ends call
When Click call, press “power” button, call will end but not hold.
4.18 Developer options
4.18-1 USB adjustment
After opening USB adjustment, you can use some software to read MID software, but when USB
adjustment is turned on, USB storage needs to manual adjust.
4.18-2 Desktop backup password
Click Desktop backup password, you can set and change password.
4.18-3 Stay awake
If you open keep awaken state, it wll never auto sleep when your MID is charging.
4.19 About Tablet
Check MID state
1. Check Setting application.
2. Click about tablet, check system updates, status, model number, Android version and so on.
3. Click status, check battery status, battery level, SIM status and so on.
![](/img.php?id=3264009&img=bg20.png)
31
5 Multi-Media
5.1 Music
Enter into music player: in menu or desktop click music icon to enter into music player, click the
music you want to play, as Picture 5.1:
Picture 5.1
Picture 5.2
z Drag the progress bar to adjust play progress.
z Operation of music player button as Picture 5.2
5.2 Video
z Enter video player: choose application in main menu, choose the video you want to play.
z Operation of video player button as Picture 5.3
Artis
Pause/play
Next song
Previous song
Song name
Album
Random play
![](/img.php?id=3264009&img=bg21.png)
32
Picture 5.3
5.3 Photo Gallery
Photo gallery application can auto search photos and video files in SD card, and photo gallery will
classify these photos and videos in folder. You can apply photo gallery to view and edit photos, set the
photos as wallpaper and watch the video.
View pictures
1. Click gallery application in main interface.
2. Enter into gallery, click the folder you want to view.
3. Click the picture you want to view, the system will play it in full screen mode automatically.
4. The pictures can be zoom in and zoom out, put two fingers on the screen, the separete the
fingers(gather up the fingers, the picture will be zoom in) or double click the screen.
Note: when you browse the pictures, slide left or right to view more pictures.
Edit and set pictures
When check the pictures in full screen mode, click menu key to display menu selection, you can choose
the selection you need to edit and setting pictures.
z Slide Show
1. Open a picture, use virtual key to click menu key, display menu selection.
2. Click slide show, it will auto loop play(or choose button in picture folder)
z Crop
1. Click menu key to display menu selection.
2. Then click crop, click and drag related area to adjust the cropper.
3. Click cropper and drag it inside and outside to adjust the image.
4. After adjust the size you want, click crop.
5. If you wish to give up to crop, click cancel to return to picture browse.
z Edit
1. Click menu key, display the menu selection.
2. Click edit.
Choose
the
screen
mode
Adjust
play
progress
Play/pause
![](/img.php?id=3264009&img=bg22.png)
33
3. Adjust teh brightness, style, color, antialias setting in selection.
4. Click save.
5. If you want to give up edit, click return key, click not to return to picture browse.
5.4 Camera
In the main interface or desktop, click camera application procedure , enter into camera
z Operation of camera ,Switch camera: choose Menu key, click switch front/back camera, as
Picture 5.4
Picture 5.4
5.5 FM Radio
Click in the main interface or desktop to enter into FM radio interface:
z Radio button operation instruction as Picture 5.5:
Picture 5.5
Click search to search FM band, as Picture 5.6
Enter into
channel list
Save
button
Previous
channel Next channel
Current
frequency
Switch front/back
camera
Click it to
take
p
ictures
camera shooting
mode
![](/img.php?id=3264009&img=bg23.png)
34
Picture 5.6
z Save channels: Click button in the main interface to save the channel,
and the channel will be saved in channels list.
Note: You need to insert earphone as antenna when using FM radio, If no antenna, your
MID can’t search any frequency band.
6 Communication Function
6.1 Phone
1 Click Phone application procedure
2 Operate as Picture 6.1
Picture 6.1
The area of
dial phone
Call history
![](/img.php?id=3264009&img=bg24.png)
35
6.2 Text Message
1 Enter into main menu, choose application procedure.
2 Click “Edit new message”
Picture 6.2
6.3 Contact List
Click Contact list in the main interface, enter into the contact list as Picture 6.3
Picture 6.3
z Search contact: click button, enter into search function
z Add contact: click button, enter into add contact interface.
Directly input
phone number
Attach
some files
Menu(discard, insert
text and settings)
Add receiver
Send
message
![](/img.php?id=3264009&img=bg25.png)
36
7 Internet
7.1 Browser
In case of Wi-Fi or mobile internet is connected well (Please refer to Chapter 4.1 for wireless and
internet setting), click IE browser in the main menu or desktop to enter the IE interface, as
Picture 7.1
Picture 7.1
Click address bar to input the website, click start, enter into related webpage, then you can browse the
website information, as Picture 7.2 and you can click the menu you can refresh ,save to
bookmarks,,share page,bookmarks,,history and setting the webpage.
7.2 Email
Email application procedure contains email setting guide, you can add the external POP3 OR IMAP
email account of normal web email service provider (For instance, Yahoo, Gmail, Hotmail and 163),as
Picture 7.3
Picture 7.3
a. Email Setting
Address
column menu
Save bookmark
![](/img.php?id=3264009&img=bg26.png)
37
1. After you click the sending email icon , you can see the email setting guide, which can help
you to set.
2. Input your email address and password.
3. Click “Next step” button, choose your email type is POP3 or IMAP.
4. Click “Next Step” button to check whether the email box servicer can receive or send emails
5. Input the email account and display the email subiject, and click finish.
6. If the email box is available, you will enter into your mail box automatically.
b. Delete the email account
You can delete setted POP3 or IMAP email account from your MID.
Click .
1. Enter into your mail box.
2. Press Menu key.
3. Click Account
4. Press the account you want to delete.
5. Click confirm to remove.
c. Send E-mail
1. Click to display your mail box.
2. Click the inbox, it will refresh the new emails automatically; click it to read new email.
3. Press Menu key. Menus will popup.
4. Click Edit to enter into new email editing interface.
5. Input the receiver’s email address.
6. Input the subject and email content.
7. If you want to add attachment, click menu key, the menu popup.
8. Click “Attach file” (photo,music, video,contacts).
9. Click “send” to send the email out.
Picture 7.4
![](/img.php?id=3264009&img=bg27.png)
38
8 Other Application Procedures
8.1 Clock
Click Clock procedure, enter into below interface as Picture 8.1.
There are clock, picture, music and homepage buttons.
Picture 8.1
8.2 Calculator
1. Click .
2. Enter into the basic board of calculator.
3. Soft touch the numbers or operator in calulator to calculate.
Pictuer 8.2
Set alarm
![](/img.php?id=3264009&img=bg28.png)
39
8.3 File Manager
File manager will copy, cut, delete, rename the documents or the folder in the TF card, it also will share
the files, install apk etc.
In the main menu or desktop, click the document manager icon to enter into documents
manager.
Picture 8.3
a. Choose right top icon to paste file, choose right top icon to cut file Picture 8.4, choose
right top icon to enter into Picture 8.5
Picture 8.4
RAM
External
SD card
![](/img.php?id=3264009&img=bg29.png)
40
Picture8.5
b. Share file:choose any file, long press it, it will popup “share”, choose the share way you want in the
list as Picture 8.6
Picture 8.6
c. Install apk file:Choose the file suffixed .apk in the file manager, you can install the third part
software as reminder.
d. Build new folder: Choose the menu you want to build the file, click icon in right top, choose
new folder, you can build new folder as reminder.
8.4 Recorder
In the main interface or desktop, click recorder icon to enter into record interface as
picture8.7, click record key to start record. Click Stop key to stop recording. Click Play
key to play the recorded sound. The system will auto remind you to use or abandon this record,
please choose it manually.
Play the record: choose the video player to play the recorded sound, choose the recorded sound in the
source manager, and click it to play.
![](/img.php?id=3264009&img=bg2a.png)
41
Picture8.7
8.5 Calendar
Click calendar icon to into calendar interface as picture8.8.Click icon to choose the
type.Click icon to add calendar.Click icon to main menu.
picture8.8
9 Installation of Procedures
9.1 Installation
Install the third party application procedure
1. Click “file manager” application procedure; choose the application procedure you need to install.
2. Hold the application procedure you need to install.
3. It popup install, click install apk.
42
4. Finish the installation as guide, it will operate.
Note: The third party procedure searched from internet to use on the system are all suffixed
with .apk.
9.2 Uninstall
Uninstall application procedure
1. Click setting icon in main interface.
2. Click manage application procedure, list all the application procedures insralled in the system.
3. Click the APK you want to uninstall, click uninstall.
4. Click confirm to finish uninstallation.
Skill: The procedure manager installed by system has many convinent methods to uninstal after
opening procedure manager, click uninstall, it will list all the application procedures installed by
system.
10
Troubles Shooting
1. The first startup of MID is slow
After the MID system upgraded, the first startup need to install the pre-installed application softwares,
the lead time is around 2-3 minutes, the startup afterwards will be much quicker.
2. MID can’t connect Wi-Fi
z Make sure the wireless router of internet service can work in normal.
z Ensure the MID and wireless router in certain distance, and no wall or other barrier between them.
z Ensure the user name and password both correct.
3. MID feels hot
When many application procedures are used in meanwhile, or the brightness of screen open to the
lightest or under charging, MID may feel fever. It is normal.
4. Email can’t be set or Registeration of application procedure.
z Ensure your internet is well connected.
z Make sure your email setting way is correct.
z Keep your system time and local time consitent.
5. The system is abnormal and can’t work.
When you install some third party application procedure, it may cause abnormal work, you can press
Reset key to reset the system.
6. The webpage can’t be opened
z Please keep the distance between from route to MID in effective range.
z Please restart WIFI and try again.
7. MID works terribly slow sometimes
It is normal phenomenon. Please turn off some application you don’t need in advanced task
management, or uninstall some third party application to release more system resource.
![](/img.php?id=3264009&img=bg2c.png)
Tablet will be saled together with protective jacket.
Note: the Leather Sheath is part of the product,
it can't be separated from Tablet.
Warning:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
SAR tests are conducted using standard operating positions accepted by the FCC with the
transmitting at its highest certified power level in all tested frequency bands, although
the SAR is determined at the highest certified power level, the actual SAR level of the
while operating can be well below the maximum value, in general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model is a available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the exposure limit established by the FCC, Tests for each
are performed in positions and locations (e.g. at the ear and worn on the body)as
required by the FCC.
For body worn operation, this model has been tested and meets the FCC RF exposure
guidelines when used with an accessory designated for this product.
Non-compliance with the above restrictions may re sult in violation of RF exposure guidelines.
tablet
tablet
tablet
tablet
tablet
![](/img.php?id=3264009&img=bg2e.png)
