LMC1071AAB _k eng.fm Page I Thursday, April 8, 2004 2:I710,I

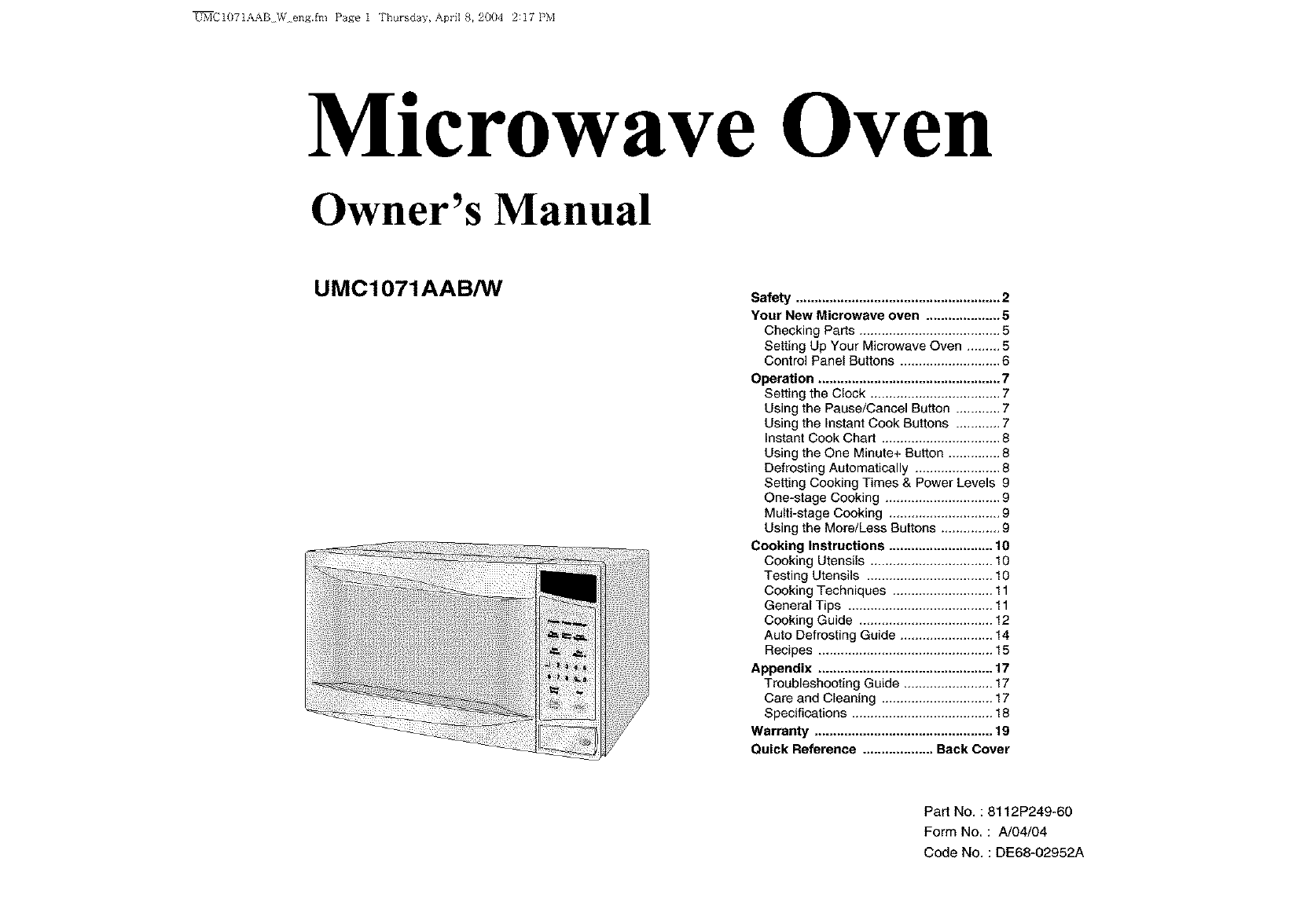

Microwave Oven
Owner's Manual
UMC1071AAB/W Safety ....................................................... 2
Your New Microwave oven .................... 5
Checking Parts ...................................... 5
Setting Up Your Microwave Oven ......... 5
Control Panel Buttons ........................... 6
Operation ................................................. 7

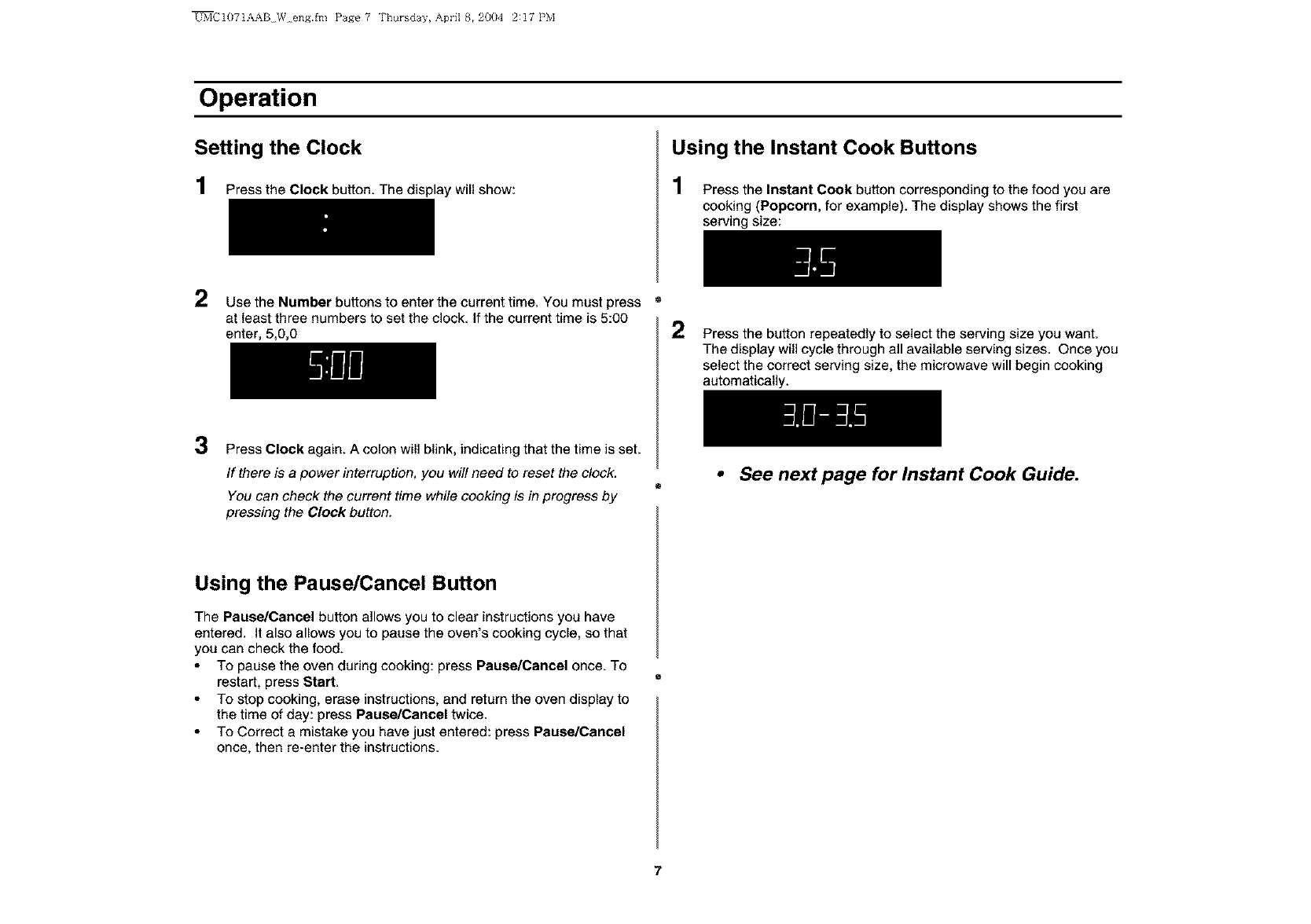

Setting the Clock ................................... 7
Using the Pause/Cancel Button ............ 7
Using the Instant Cook Buttons ............ 7

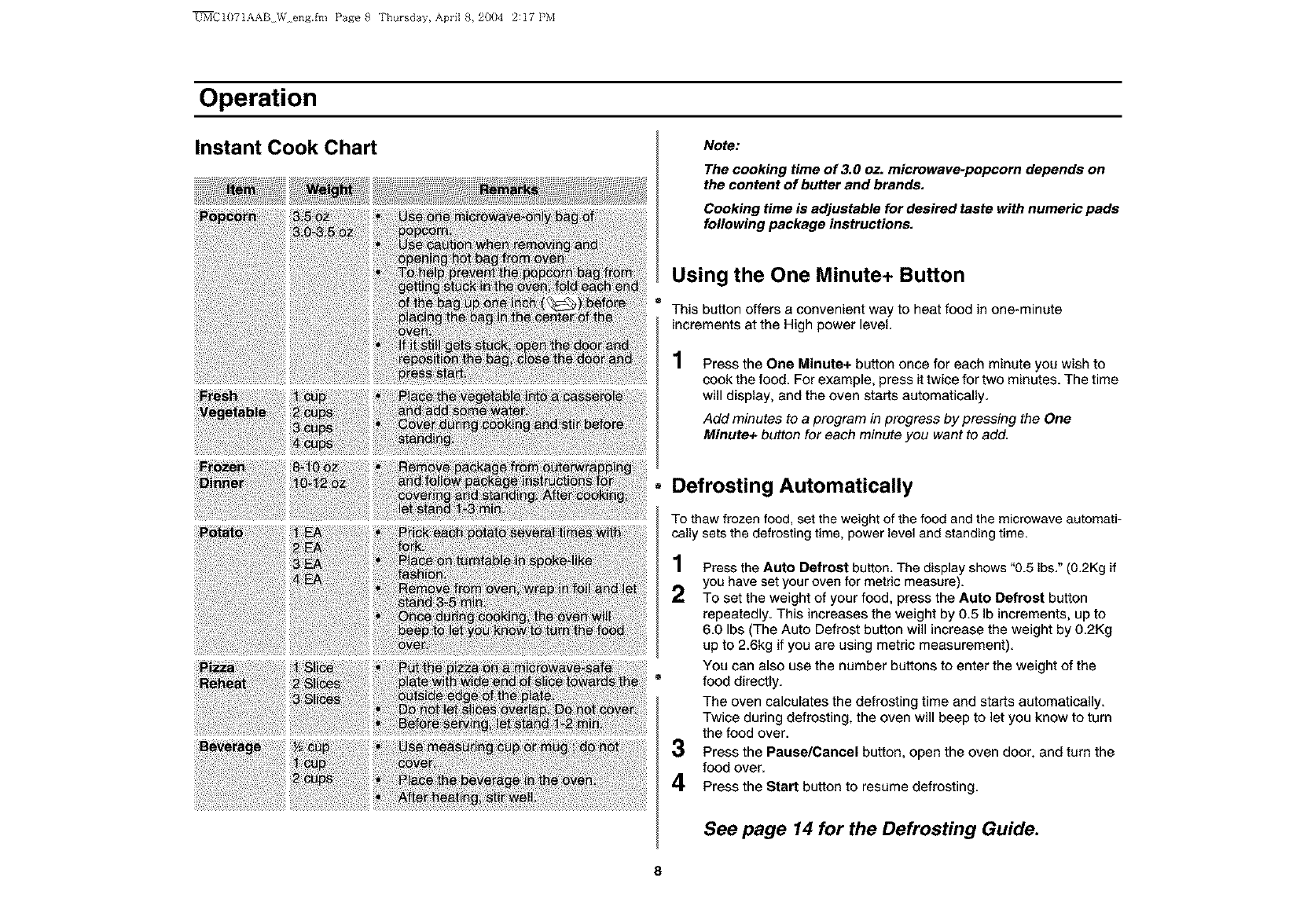

Instant Cook Chart ................................ 8
Using the One Minute+ Button .............. 8
Defrosting Automatically ....................... 8

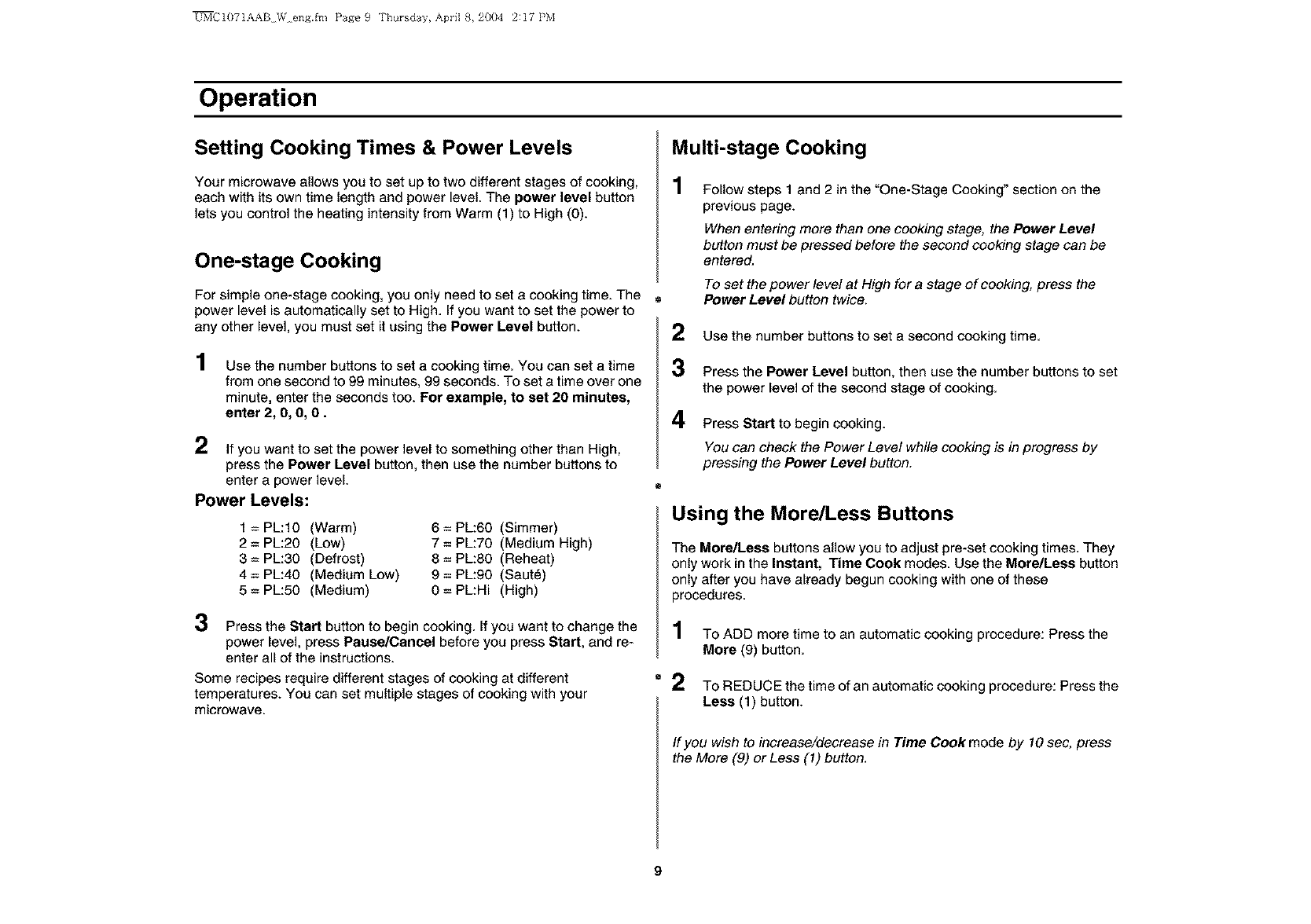

Setting Cooking Times & Power Levels 9
One-stage Cooking ............................... 9
Multi-stage Cooking .............................. 9
Using the More/Less Buttons ................ 9
Cooking Instructions ............................ 10

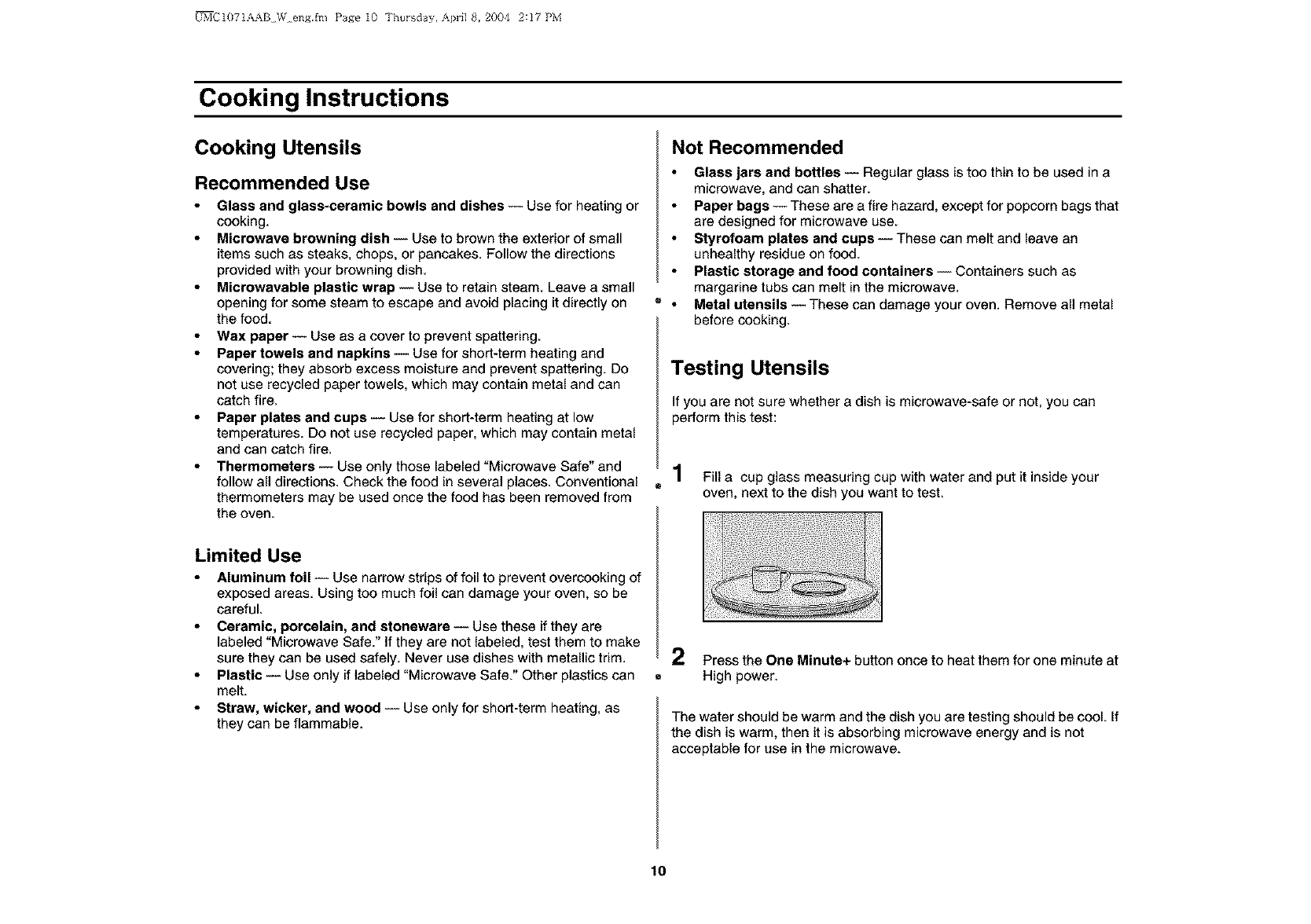

Cooking Utensils ................................. 10
Testing Utensils .................................. 10

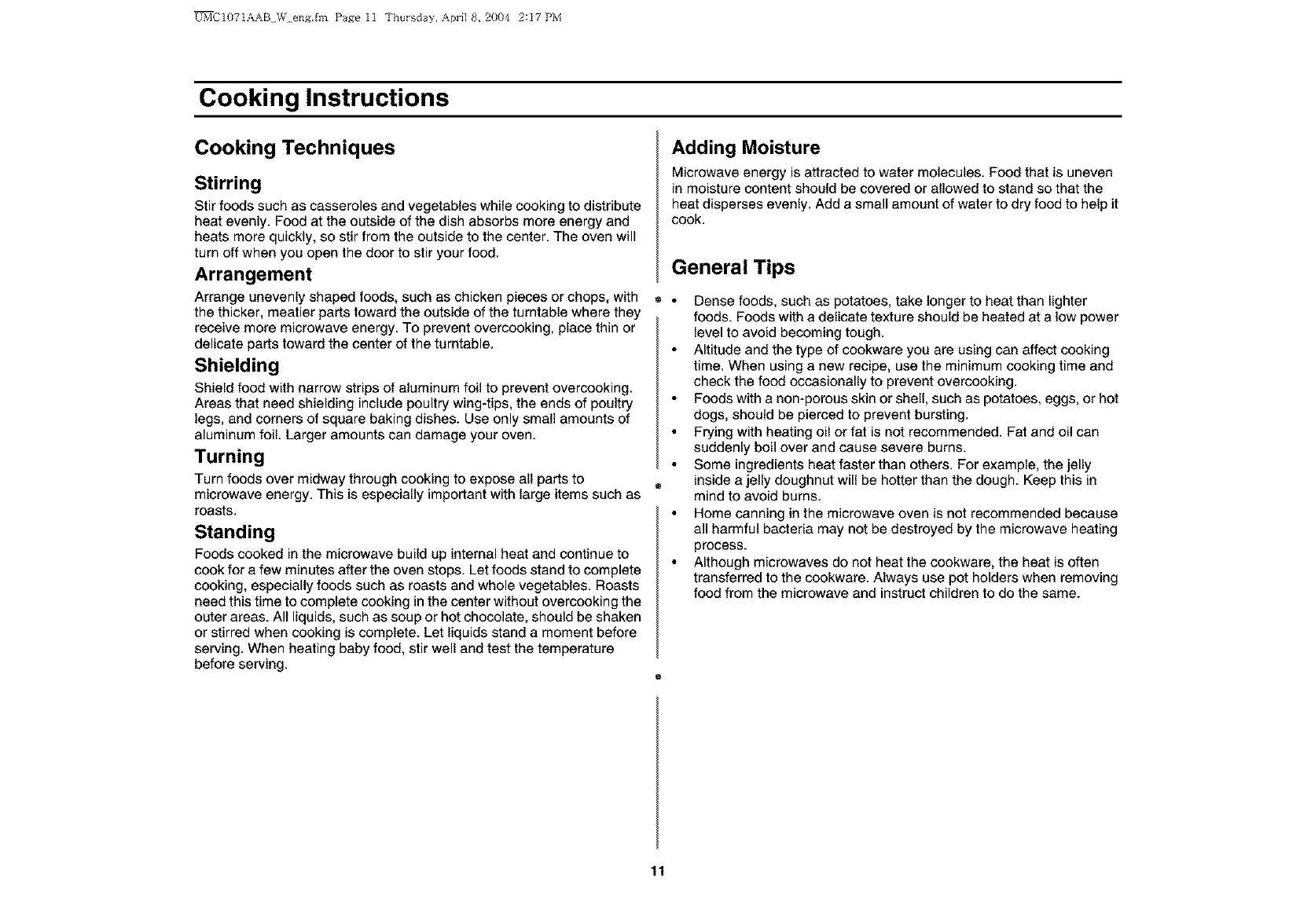

Cooking Techniques ........................... 11
General Tips ....................................... 11
Cooking Guide .................................... 12

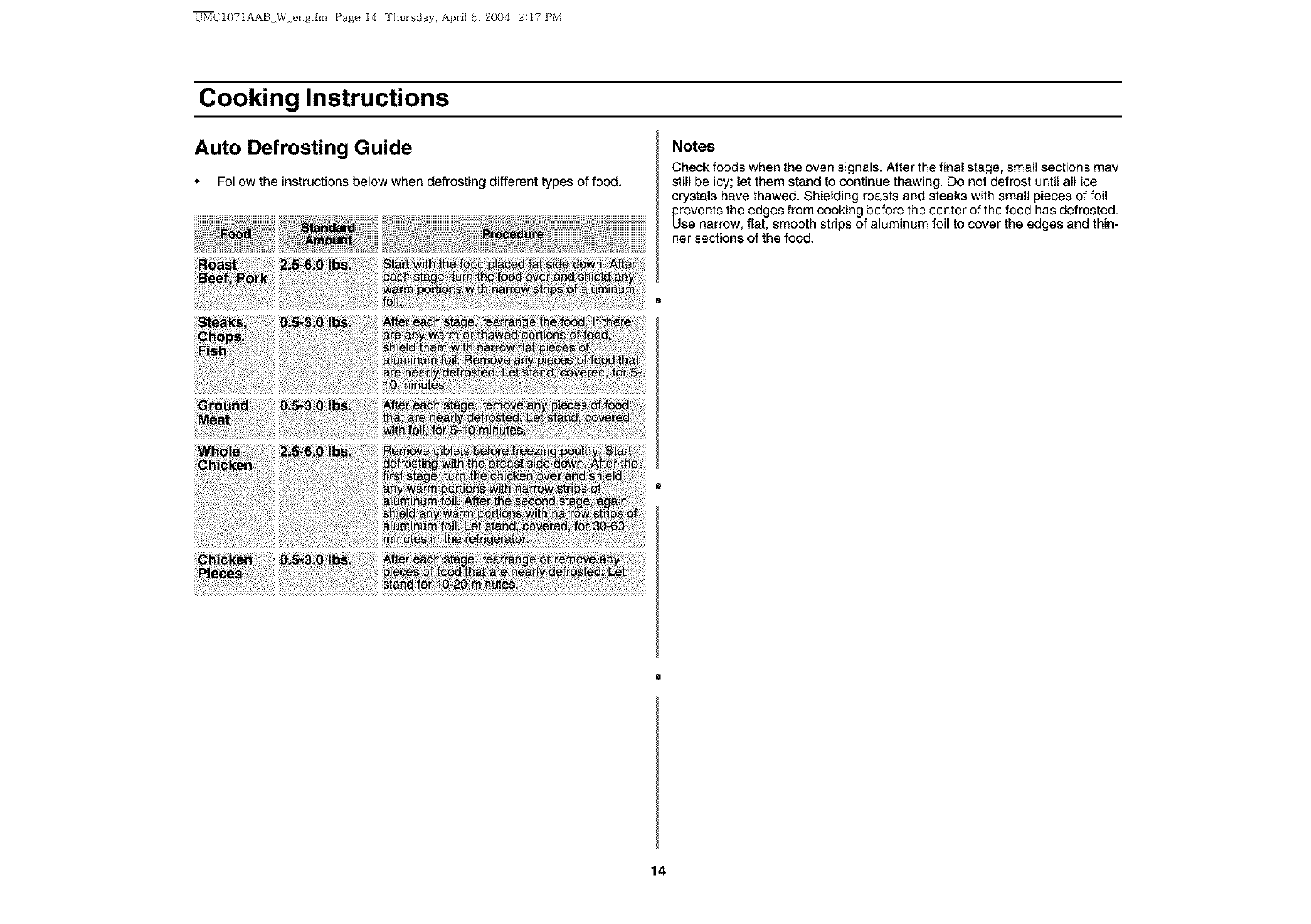

Auto Defrosting Guide ......................... 14

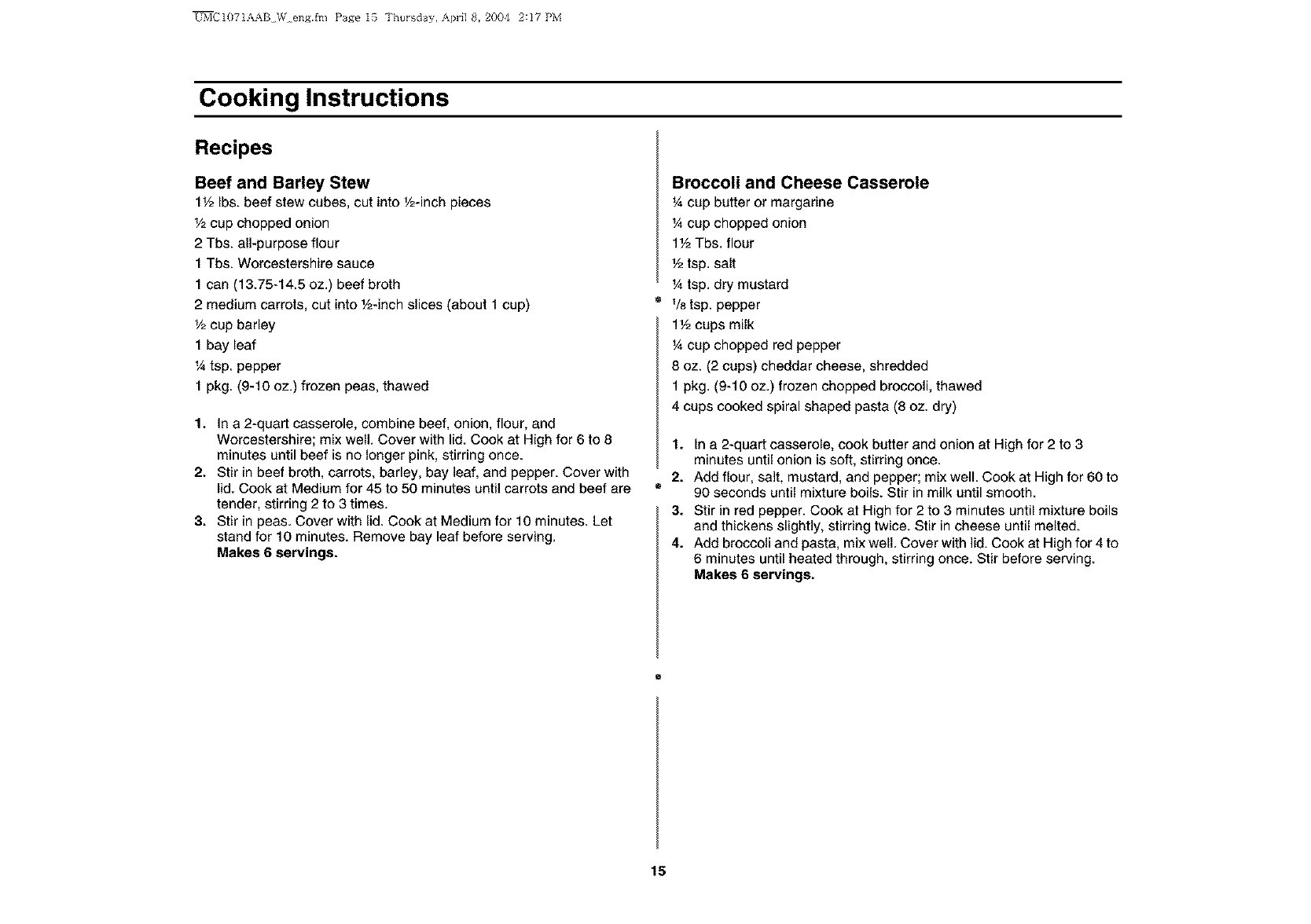

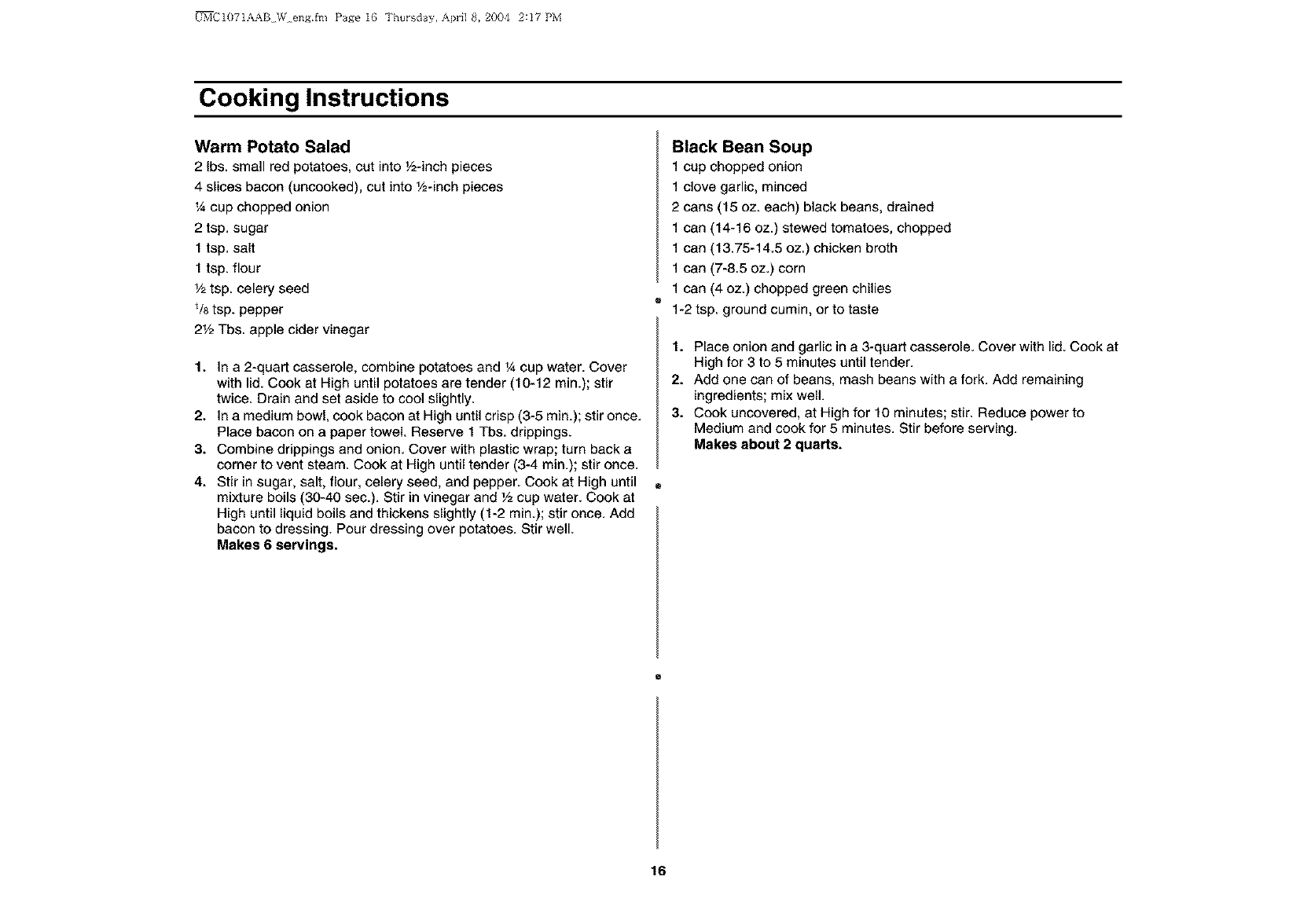

Recipes ............................................... 15

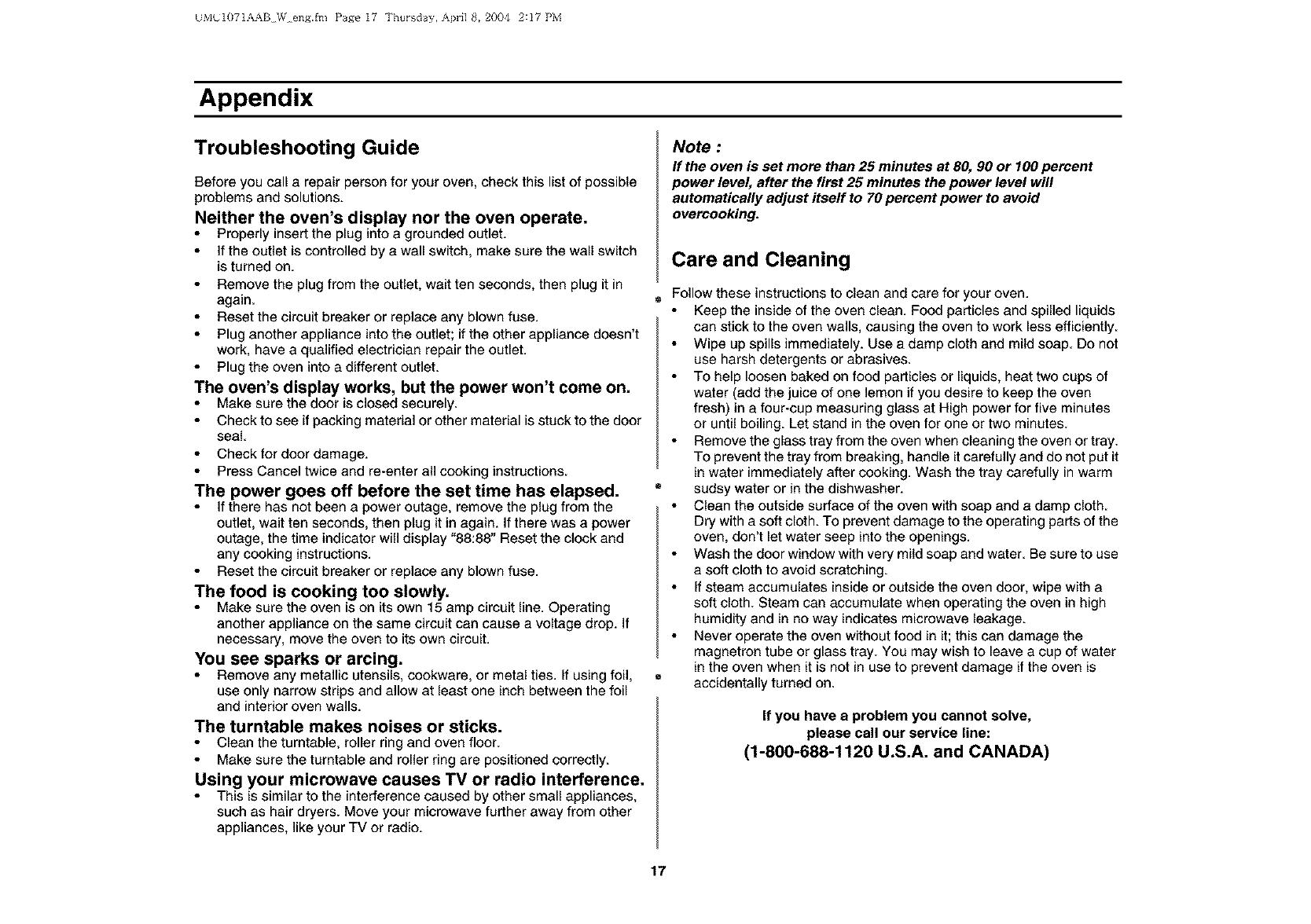

Appendix ............................................... 17
Troubleshooting Guide ........................ 17
Care and Cleaning .............................. 17

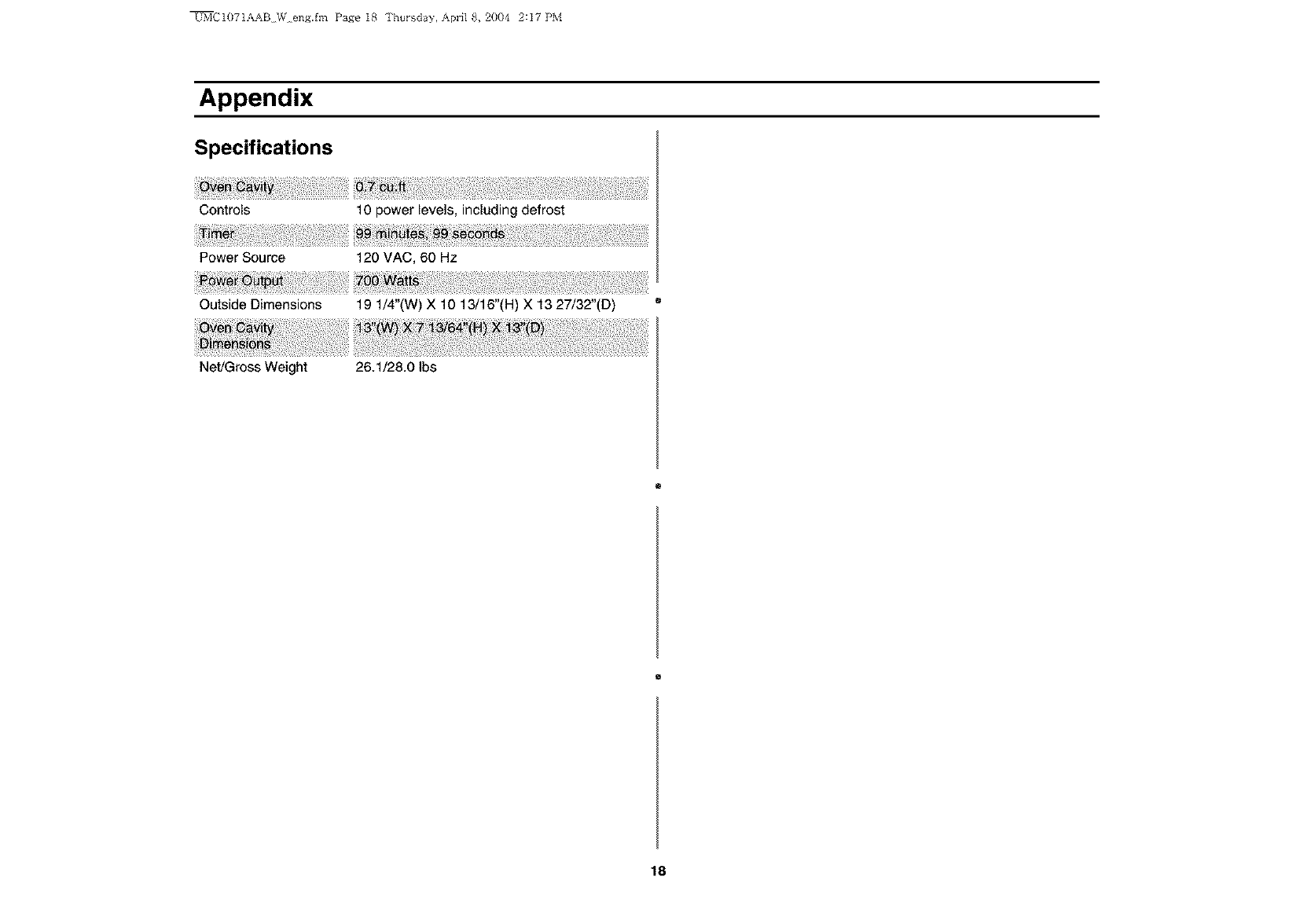

Specifications ...................................... 18

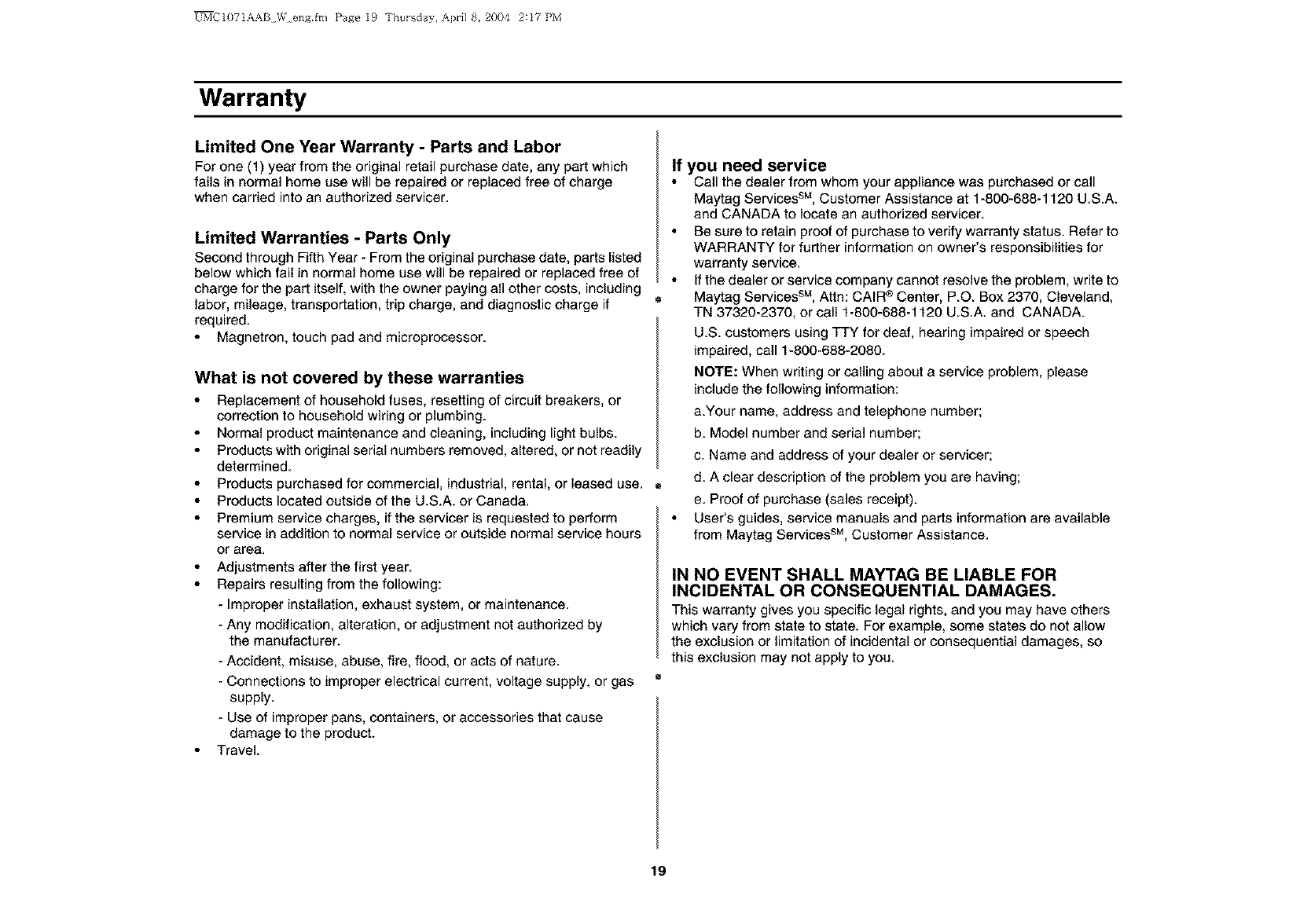

Warranty ................................................ 19

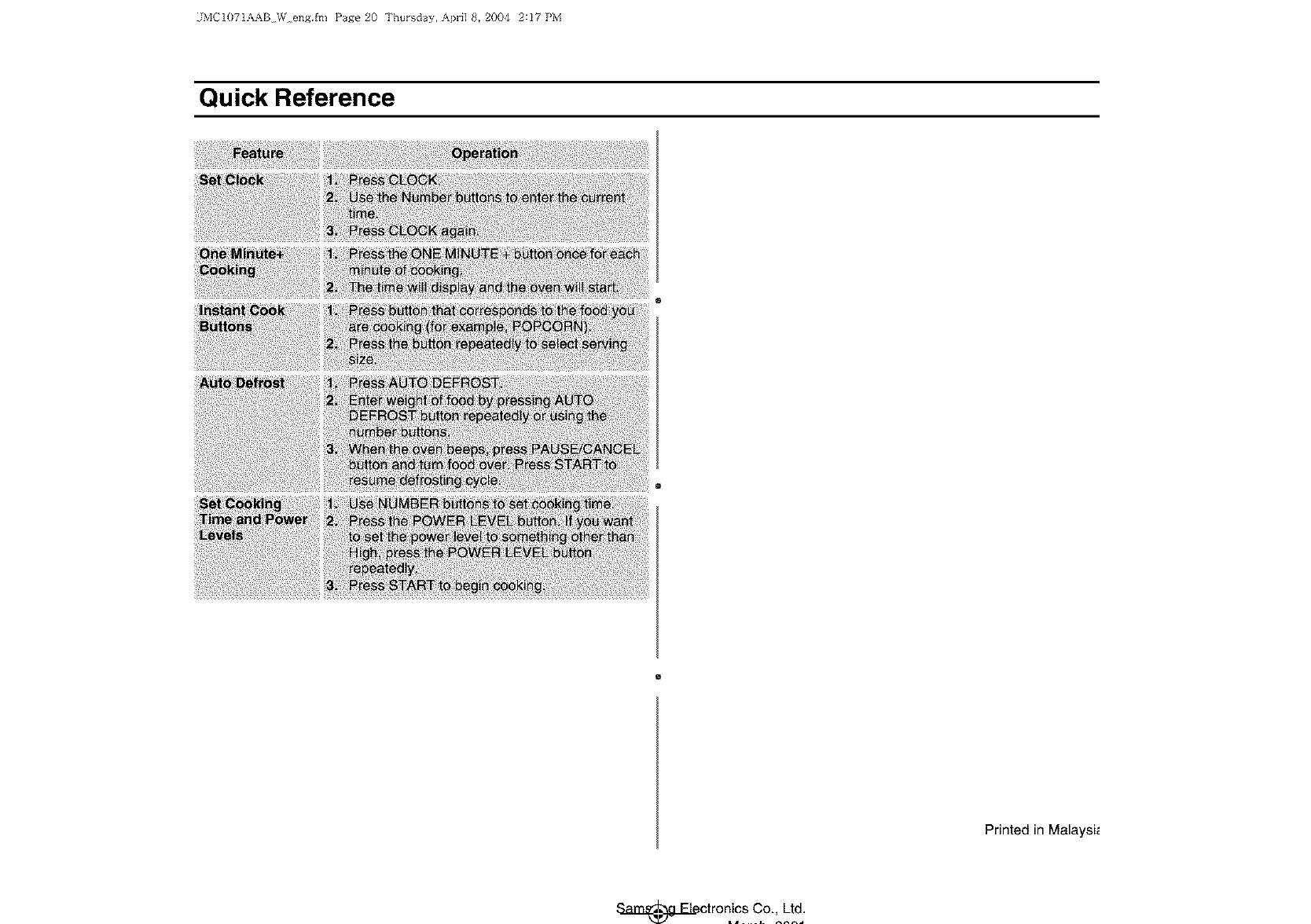

Quick Reference ................... Back Cover
Part No. : 8112P249-60
Form No : A/04/04
Code No. : DE68-02952A
m
LMC1071AAI3 _k eng.fm Page2 Thursday',April8,2004 2:I71'_,I

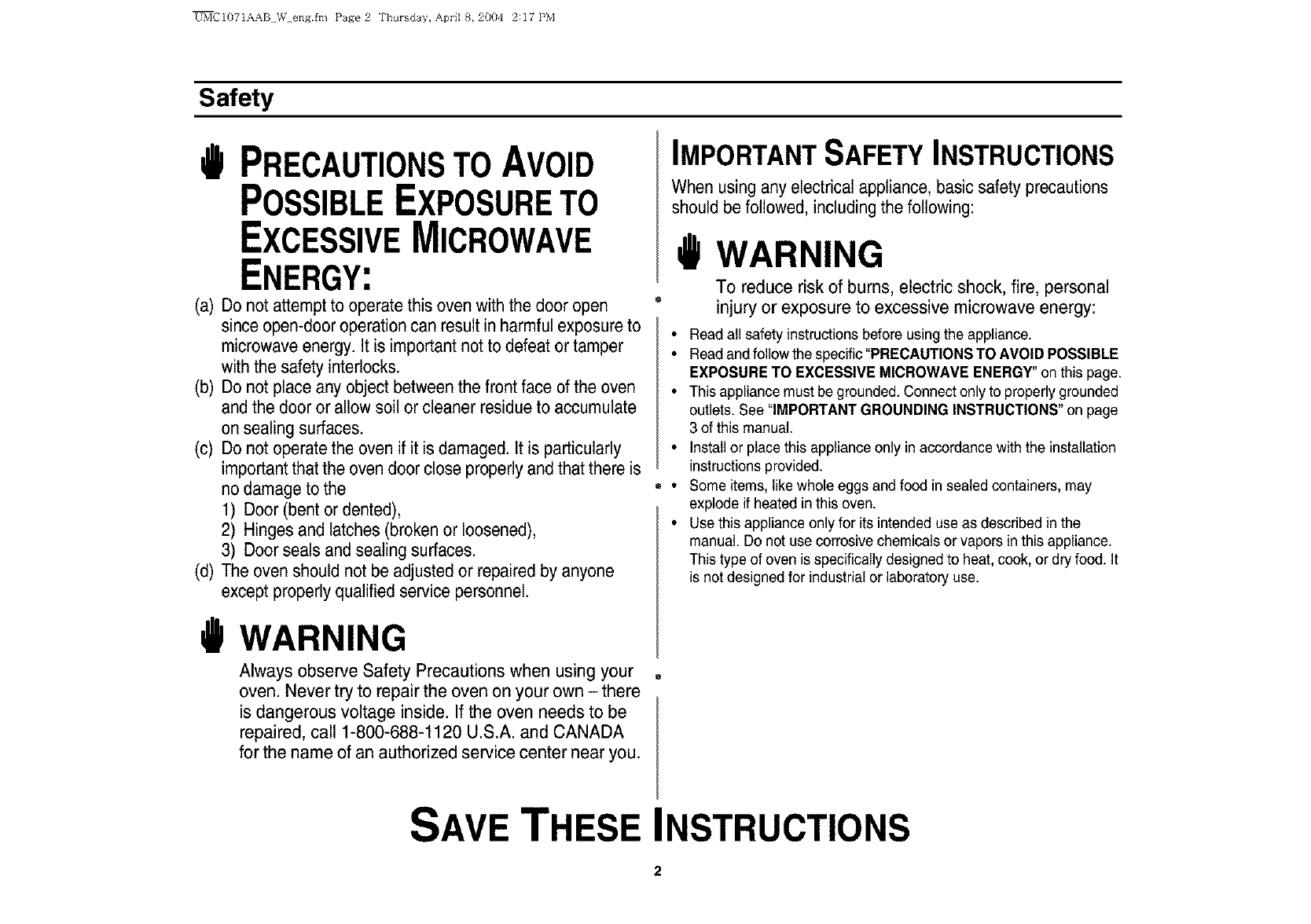

Safety
0PRECAUTIONSTOAVOID
POSSIBLEEXPOSURETO
EXCESSIVEMICROWAVE
ENERGY:
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the front face of the oven
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the
1) Door (bent or dented),
2) Hinges and latches (broken or loosened),
3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Always observe Safety Precautions when using your
oven. Never try to repair the oven on your own - there
is dangerous voltage inside. If the oven needs to be
repaired, call 1-800-688-1120 U.S.A. and CANADA
for the name of an authorized service center near you.
IMPORTANTSAFETYINSTRUCTIONS
When using any electrical appliance, basic safety precautions
should be followed, including the following:
WARNING
To reduce risk of burns, electric shock, fire, personal
injury or exposure to excessive microwave energy:
•Read all safety instructionsbefore using the appliance.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on this page.
• This appliance must be grounded. Connect only to properly grounded
outlets. See "IMPORTANT GROUNDING INSTRUCTIONS" on page
3 of this manual.
• Install or place this appliance onlyinaccordance with the installation
instructions provided.
* • Some items,like whole eggs and food in sealed containers, may
explode if heated in this oven.
• Use this appliance only for its intended use as described inthe
manual. Do not use corrosive chemicals or vapors inthis appliance.
This type of oven is specifically designed to heat, cook, or dry food. It
is not designed for industrialor laboratory use.
SAVE THESE INSTRUCTIONS
_C1071AAB W eng.fm Page3 Thursday, April 8, 2004 2:I7PM

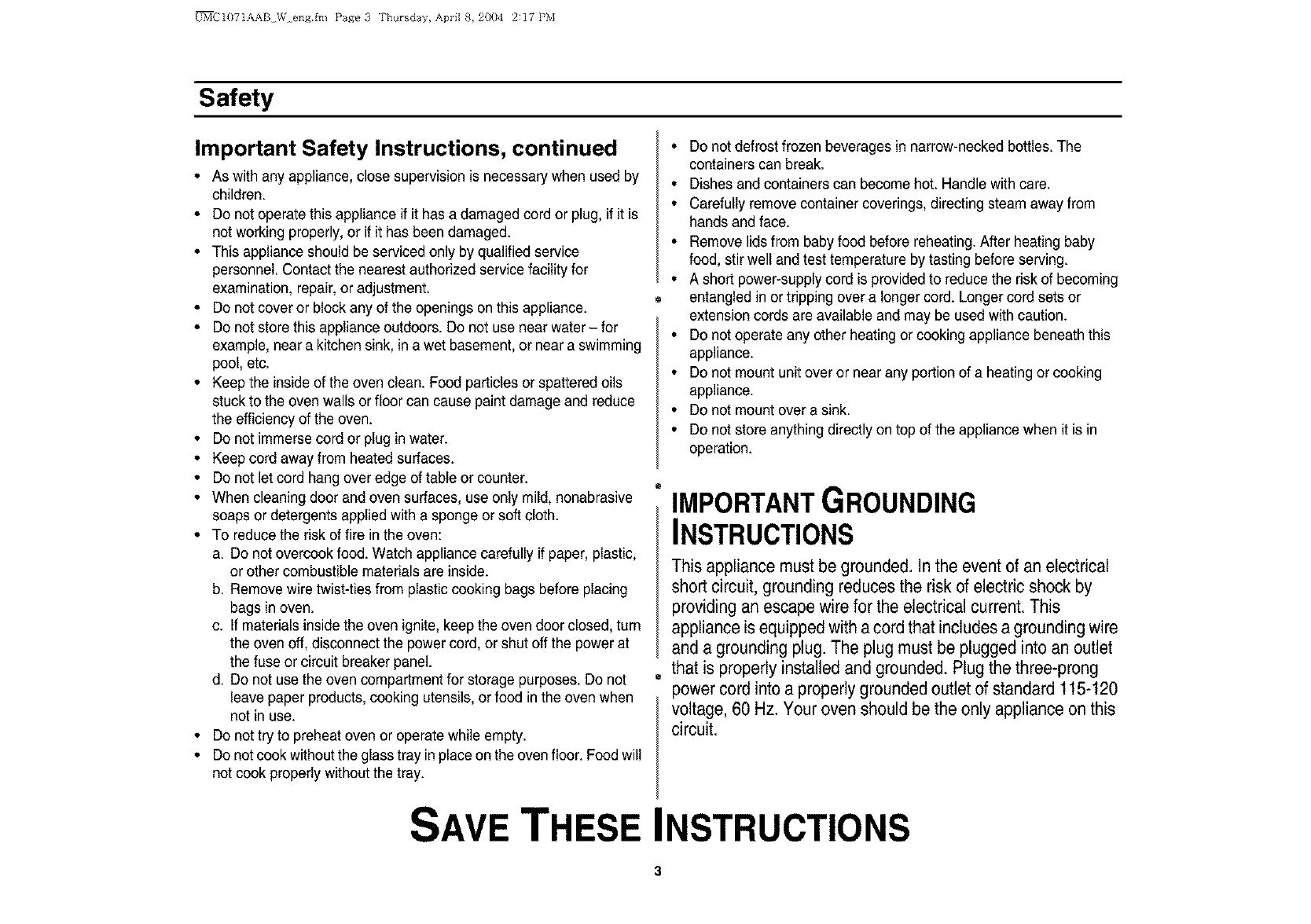

Safety
Important Safety Instructions, continued
• As with any appliance, close supervision is necessary when used by
children.
• Do not operate this appliance if it has a damaged cord or plug, if it is
not working properly, or if it has been damaged.
• This appliance should be serviced only by qualified service
personnel. Contact the nearest authorized service facility for
examination, repair, or adjustment. O
• Do not cover or block any of the openings on this appliance.
• Do not store this appliance outdoors. Do not use near water - for
example, near a kitchen sink, in a wet basement, or near a swimming
pool, etc.
• Keep the inside of the oven clean. Food particles or spattered oils
stuck to the oven walls or floor can cause paint damageand reduce
the efficiency of the oven.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• When cleaning door and oven surfaces, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven:
a. Do not overcook food. Watch appliance carefully if paper, plastic,
or other combustible materials are inside.
b. Remove wire twist-ties from plastic cooking bags before placing
bags in oven.
c. If materials inside the oven ignite, keep the oven door closed, turn
the oven off, disconnect the power cord, or shut off the power at
the fuse or circuit breaker panel.
d. Do not use the oven compartment for storage purposes. Do not *
leave paper products, cooking utensils, or food in the oven when
not in use.
• Do not try to preheat oven or operate while empty.
• Do not cook without the glass tray inplace on the oven floor. Food will
not cook properly without the tray.
• Do not defrost frozen beverages in narrow-necked bottles. The
containers can break.
• Dishes and containers can become hot. Handle with care.
• Carefully remove container coverings, directing steam away from
hands and face.
• Remove lids from baby food before reheating.After heating baby
food, stir well end test temperature by tasting before serving.
• A short power-supply cord is provided to reduce the risk of becoming
entangled in or tripping over a longer cord. Longer cord sets or
extension cords are available and may be used with caution.
• Do not operate any other heating or cooking appliance beneath this
appliance.
• Do not mount unit over or near any portion of a heating or cooking
appliance.
• Do not mount over a sink.
• Do not store anything directly on top of the appliance when it is in
operation.
" IMPORTANTGROUNDING
INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electrical current. This
appliance is equipped with a cord that includes a grounding wire
and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded. Plug the three-prong
power cord into a properly grounded outlet of standard 115-120
voltage, 60 Hz. Your oven should be the only appliance on this
circuit.
SAVE THESE INSTRUCTIONS
m
LMC1071AAI3 _k eng.fm Page _ Thursday',April8,2004 2:I71'_,I

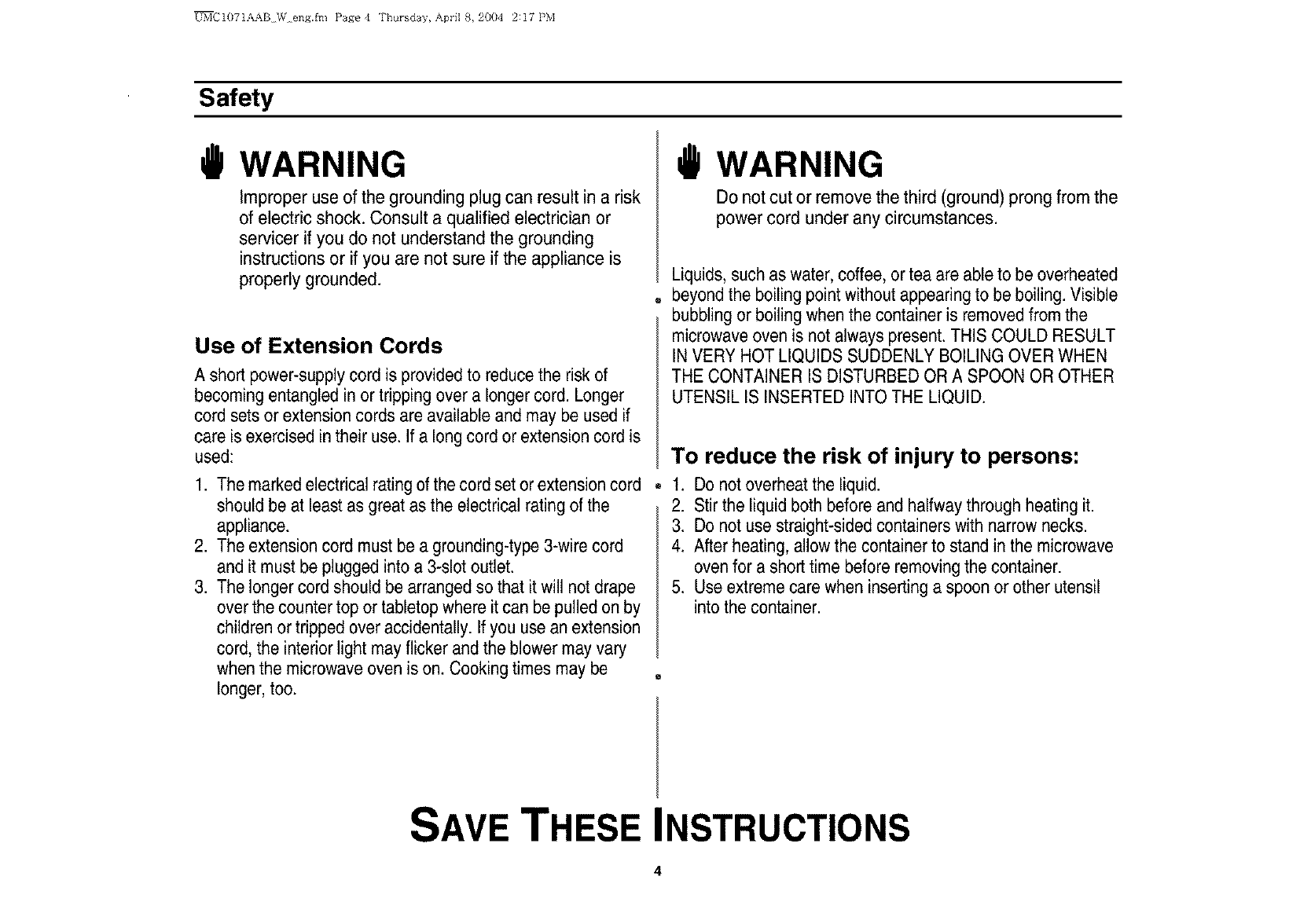

Safety
WARNING
Improper use of the grounding plug can result in a risk
of electric shock. Consult a qualified electrician or
servicer if you do not understand the grounding
instructions or if you are not sure if the appliance is
properly grounded.
Use of Extension Cords
A short power-supply cord is provided to reduce the risk of
becoming entangled in or tripping over a longer cord. Longer
cord sets or extension cords are available and may be used if
care is exercised in their use. If a long cord or extension cord is
used:
1. The marked electricalrating of the cord set or extension cord ,
should be at least as great as the electrical rating of the
appliance.
2. The extension cord must be a grounding-type 3-wire cord
and it must be plugged into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over accidentally. If you use an extension
cord, the interior light may flicker and the blower may vary
when the microwave oven is on. Cooking times may be ,,
longer, too.
WARNING
Do not cut or remove the third (ground) prong from the
power cord under any circumstances.
Liquids, such as water, coffee, or tea are able to be overheated
beyond the boiling point without appearing to be boiling. Visible
bubbling or boiling when the container is removed from the
microwave oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through heating it.
3. Do not use straight-sided containers with narrow necks.
4. After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
5. Use extreme care when inserting a spoon or other utensil
into the container.
SAVE THESE INSTRUCTIONS
m
[MCI()71AAB _k eng.fm Page5 Thursday',April8,2004 2:I71'M

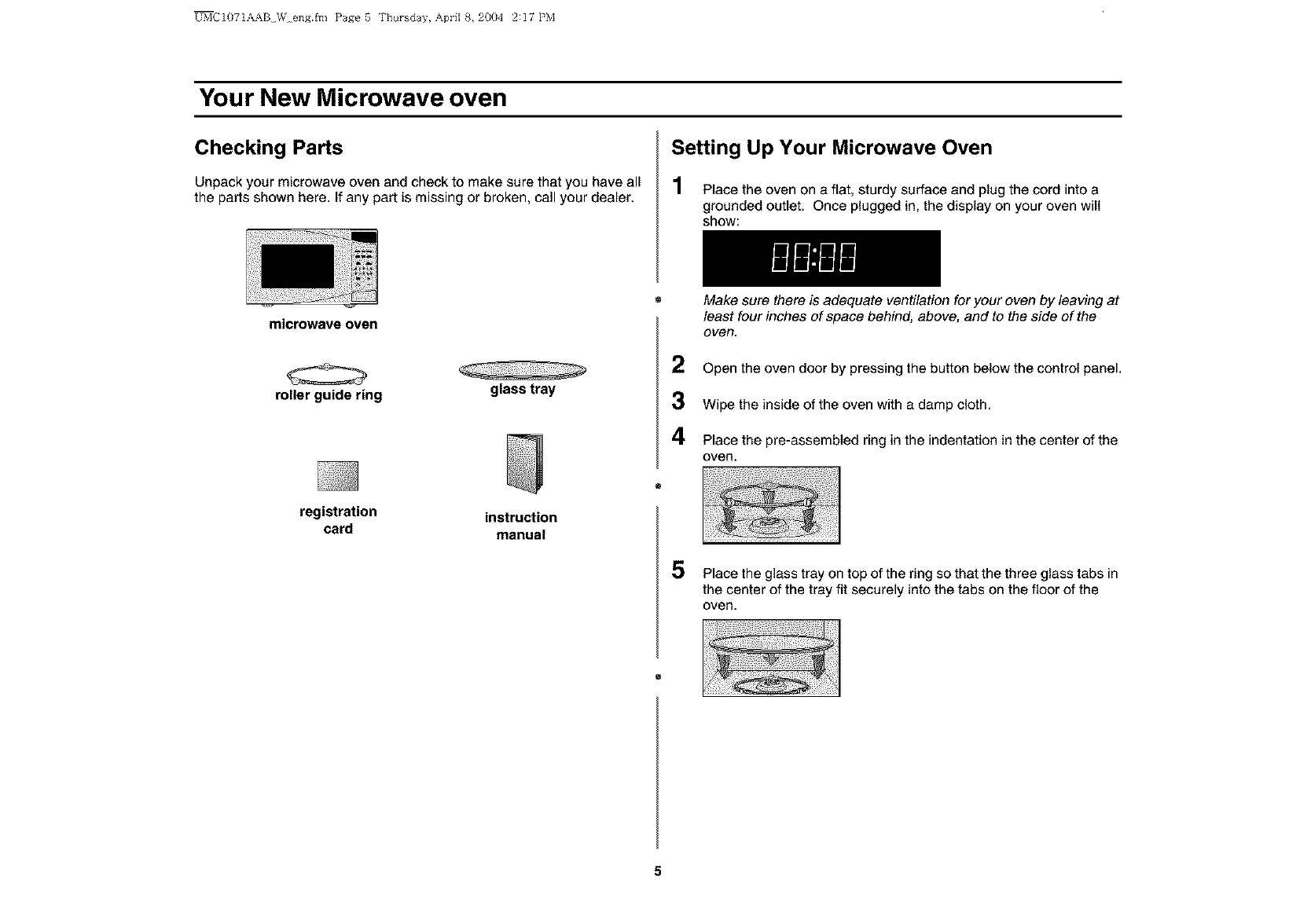

Your New Microwave oven
Checking Parts
Unpack your microwave oven and check to make sure that you have all
the parts shown here. If any part is missing or broken, call your dealer.
microwave oven
Setting Up Your Microwave Oven
1Place the oven on a flat, sturdy surface and plug the cord into a
grounded outlet. Once plugged in, the display on your oven will
show:
roller guide ring glass tray
registration instruction
card manual
Make sure there is adequate ventilation for your oven by leaving at
least four inches of space behind, above, and to the side of the
oven.
2Open the oven door by pressing the button below the control panel.
3 Wipe the inside of the oven with a damp cloth
4Place the pre-assembled ring in the indentation in the center of the
oven.
5Place the glass tray on top of the ring so that the three glass tabs in
the center of the tray fit securely into the tabs on the floor of the
oven.
LMC1071AAI3 _k eng.fm Page6 Thursday, April 8, 2004 2:I71'_,I
Your New Microwave oven
Control Panel Buttons
2 --
____
__
4 ----
7 --
iiiiiiY!!i¸i{iiiii;¸ i!il:iiiii;iiii_!i!_ii!ii;ii!!i!_!ii{!!!!iili_i;iii!ilSiiii!i:;i¸
popcorn Pol:oto 8everoge
Reheot: Dinner Vegetable
Ruto One
Defrost ....... Minute
....
Level Clock
--1
1. One Minute+ p.8
Press once for every minute of cooking at High power.
2. Instant Cook Buttons p,7
Instant settings to cook popular foods.
3. Number buttons
Sets cooking times.
4. Power Level p,9
Sets power to level other than high.
5. Auto Defrost p.8
Sets weight of the food to be defrosted.
6. Clock p.7
Sets current time.
7. Pause/Cancel p.7
Press to pause oven or correct a mistake.
8. Start
Press to start cooking.
9. More/Less p.9
Increase or decrease cooking time.
m
LMCI()71AAI3 _ eng.fm Page7 Thursday',April8,2004 2:I7 I'M
Operation
Setting the Clock
1Press the Clock button. The display will show:
Using the Instant Cook Buttons
1Press the Instant Cook button corresponding to the food you are
cooking (Popcorn, for example). The display shows the first
serving size:
2
II IIIII
_IIIli
3
Use the Number buttons to enter the current time. You must press
at least three numbers to set the clock. If the current time is 5:00
enter, 5,0,0
Press Clock again. A colon will blink, indicating that the time is set.
If there is a power interruption, you will need to reset the clock.
You can check the current time while cooking is in progress by
pressing the Clock button.
2Press the button repeatedly to select the serving size you want.
The display will cycle through all available serving sizes. Once you
select the correct serving size, the microwave will begin cooking
automatically.
• See next page for Instant Cook Guide.
Using the Pause/Cancel Button
The Pause/Cancel button allows you to clear instructions you have
entered. It also allows you to pause the oven's cooking cycle, so that
you can check the food.
To pause the oven during cooking: press Pause/Cancel once. To
restart, press Start.
To stop cooking, erase instructions, and return the oven display to
the time of day: press Pause/Cancel twice.
To Correct a mistake you have just entered: press Pause/Cancel
once, then re-enter the instructions.
m
LMCI()71AAI3 _k eng.fm Page8 Thursday, April 8, 2004 2:I7 I'M
Operation
Instant Cook Chart Note:
The cooking time of 3.0 oz. microwave-popcorn depends on
the content of butter and brands.
Cooking time is adjustable for desired taste with numeric pads
following package instructions.
Using the One Minute+ Button
* This button offers a convenient way to heat food in one-minute
increments at the High power level.
Press the One Minute+ button once for each minute you wish to
cook the food. For example, press it twice for two minutes. The time
will display, and the oven starts automatically.
Add minutes to a program in progress by pressing the One
Minute+ button for each minute you want to add.
Defrosting Automatically
To thaw frozen food, set the weight of the food and the microwave automati-
cally sets the defrosting time, power level and standing time.
1Press the Auto Defrost button. The display shows "0.5 Ibs." (0.2Kg if
you have set your oven for metric measure).
2TO set the weight of your food, press the Auto Defrost button
repeatedly. This increases the weight by 0.5 ]b increments, up to
6.0 Ibs (The Auto Defrost button will increase the weight by 0.2Kg
up to 2.6kg if you are using metric measurement).
You can also use the number buttons to enter the weight of the
food directly.
The oven calculates the defrosting time and starts automatically.
Twice during defrosting, the oven will beep to let you know to turn
the food over.
Press the Pause/Cancel button, open the oven door, and turn the
food over.
4Press the Start button to resume defrosting.
See page 14 for the Defrosting Guide.
m
LMC1071AAI3 _k eng.fm Page9 Thursday, April 8, 2004 2:I7 I'M
Operation
Setting Cooking Times & Power Levels
Your microwave allows you to set up to two different stages of cooking,
each with its own time length and power level. The power level button
lets you control the heating intensity from Warm (1) to High (0).
One-stage Cooking
For simple one-stage cooking, you only need to set a cooking time. The
power level is automatically set to High. If you want to set the power to
any other level, you must set itusing the Power Level button.
Use the number buttons to set a cooking time. You can set a time
from one second to 99 minutes, 99 seconds. To set a time over one
minute, enter the seconds too. For example, to set 20 minutes,
enter 2, O,O, 0.
2If you want to set the power level to something other than High,
press the Power Level button, then usethe number buttons to
enter a power level.
Power Levels:
I = PL:10 (Warm)
2 = PL:20 (Low)
3 = PL:30 (Defrost)
4 = PL:40 (Medium Low)
5 = PL:50 (Medium)
6 = PL:60 (Simmer)
7 = PL:70 (Medium High)
8 = PL:80 (Reheat)
9 = PL:90 (Saute)
0 = PL:Hi (High)
3Press the Start button to begin cooking If you want to change the
power level, press Pause/Cancel before you press Start, and re-
enter all of the instructions.
Some recipes require different stages of cooking at different
temperatures. You can set multiple stages of cooking with your
microwave.
Multi-stage Cooking
Follow steps 1 and 2 in the "One-Stage Cooking" section on the
previous page.
When entering more than one cooking stage, the Power Level
button must be pressed before the second cooking stage can be
entered.
To set the power level at High for a stage of cooking, press the
Power Level button twice.
2use the number buttons to set asecond cooking time
Press the Power Level button, then use the number buttons to set
the power level of the second stage of cooking.
4Press Start to begin cooking.
You can check the Power Level while cooking is in progress by
pressing the Power Level button.
Using the More/Less Buttons
The More/Less buttons allow you to adjust pre-set cooking times. They
only work in the Instant, Time Cook modes. Use the More/Less button
only after you have already begun cooking with one of these
procedures.
1
2
To ADD more time to an automatic cooking procedure: Press the
More (9) button.
To REDUCE the time of an automatic cooking procedure: Press the
Less (1) button.
If you wish to increase/decrease in Time Cook mode by 10 sec, press
the More (9) or Less (1) button.
_ClS71AAB W eng.fm Page I0 Thursday, Ai)rilS, 2004 2:17 PM
Cooking Instructions
Cooking Utensils
Recommended Use
Glass and glass-ceramic bowls and dishes -- Use for heating or
cooking.
Microwave browning dish -- Use to brown the exterior of small
items such as steaks, chops, or pancakes. Follow the directions
provided with your browning dish.
Micrewavable plastic wrap -- Use to retain steam. Leave a small
opening for some steam to escape and avoid placing it directly on
the food.
Wax paper -- Use as a cover to prevent spattering.
Paper towels and napkins -- Use for short-term heating and
covering; they absorb excess moisture and prevent spattering. Do
not use recycled paper towels, which may contain metal and can
catch fire.
Paper plates and cups -- Use for short-term heating at low
temperatures. Do not use recycled paper, which may contain metal
and can catch fire.
Thermometers -- Use only those labeled "Microwave Safe" and
follow all directions. Check the food in several places. Conventional
thermometers may be used once the food has been removed from
the oven.
Limited Use
Aluminum foil -- Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful.
Ceramic, porcelain, and stoneware -- Use these if they are
labeled "Microwave Safe." if they are not labeled, test them to make
sure they can be used safely. Never use dishes with metallic trim.
Plastic -- Use only if labeled "Microwave Safe." Other plastics can
melt.
Straw, wicker, and wood -- Use only for short-term heating, as
they can be flammable.
Not Recommended
Glass jars and bottles -- Regular glass is too thin to be used in a
microwave, and can shatter.
Paper bags -- These are a fire hazard, except for popcorn bags that
are designed for microwave use.
Styrofoam plates and cups -- These can melt and leave an
unhealthy residue on food.
Plastic storage and food containers -- Containers such as
margarine tubs can melt in the microwave.
Metal utensils -- These can damage your oven. Remove all metal
before cooking.
Testing Utensils
if you are not sure whether a dish is microwave-safe or not, you can
perform this test:
1Fill a cup glass measuring cup with water and put it inside your
oven, next to the dish you want to test.
2Press the One Minute+ button once to heat them for one minute at
High power.
The water should be warm and the dish you are testing should be cool. If
the dish is warm, then it is absorbing microwave energy and is not
acceptable for use in the microwave.
10
m
_MC1071AAB _ eng.fm Page II Thursday',AprilS, 2004 2:I7PM
Cooking Instructions
Cooking Techniques
Stirring
Stir foods such as casseroles and vegetables while cooking to distribute
heat evenly. Food at the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to the center. The oven will
turn off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops, with
the thicker, meatier parts toward the outside of the turntable where they
receive more microwave energy. To prevent overcooking, place thin or
delicate parts toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum foil to prevent overcooking.
Areas that need shielding include poultry wing-tips, the ends of poultry
legs, and corners of square baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to expose all parts to
microwave energy. This is especially important with large items such as
roasts.
Standing
Foods cooked in the microwave build up internal heat and continue to
cook for a few minutes after the oven stops. Let foods stand to complete
cooking, especially foods such as roasts and whole vegetables. Roasts
need this time to complete cooking in the center without overcooking the
outer areas. All liquids, such as soup or hot chocolate, should be shaken
or stirred when cooking is complete. Let liquids stand a moment before
serving. When heating baby food, stir well and test the temperature
before serving.
Adding Moisture
Microwave energy is attracted to water molecules. Food that is uneven
in moisture content should be covered or allowed to stand so that the
heat disperses evenly. Add a small amount of water to dry food to help it
cook.
General Tips
•Dense foods, such as potatoes, take longer to heat than lighter
foods. Foods with a delicate texture should be heated at a low power
level to avoid becoming tough.
Altitude and the type of cookware you are using can affect cooking
time. When using a new recipe, use the minimum cooking time and
check the food occasionally to prevent overcooking.
Foods with a non-porous skin or shell, such as potatoes, eggs, or hot
dogs, should be pierced to prevent bursting.
Frying with heating oil or fat is not recommended. Fat and oil can
suddenly boil over and cause severe burns.
Some ingredients heat faster than others. For example, the jelly
inside a jelly doughnut will be hotter than the dough. Keep this in
mind to avoid burns.
Home canning in the microwave oven is not recommended because
all harmful bacteria may not be destroyed by the microwave heating
process.
Although microwaves do not heat the cookware, the heat is often
transferred to the cookware. Always use pot holders when removing
food from the microwave and instruct children to do the same.
11
m
UMC1071AAI3 _k eng.fm Page I2 "I'hursda,;, Ai)ril 8, 2004 2:17 I:'M
Cooking Instructions
Cooking Guide
GUIDE for Cooking Meat in Your Microwave
Place meat on a microwave-safe roasting rack in a microwave-safe
dish.
Start meat fat-side down. Use narrow strips of aluminum foil to shield
any bone tips or thin meat areas.
Check the temperature in several places before letting the meat
stand the recommended time.
The following temperatures are removal temperatures. The
temperature of the food will rise during the standing time.
GUIDE for Cooking Poultry in Your Microwave
Place poultry on a microwave-safe roasting rack in a microwave-safe
dish.
Cover poultry with wax paper to prevent spattering.
Use aluminum foil to shield bone tips, thin meat areas, or areas that
start to overcook.
,, •Check the temperature in several places before letting the poultry
stand the recommended time.
12
m
UklC1071AAB _k eng.fn_ Page I3 Thursday, Ai)ri18, 2004 2:17 I:'M

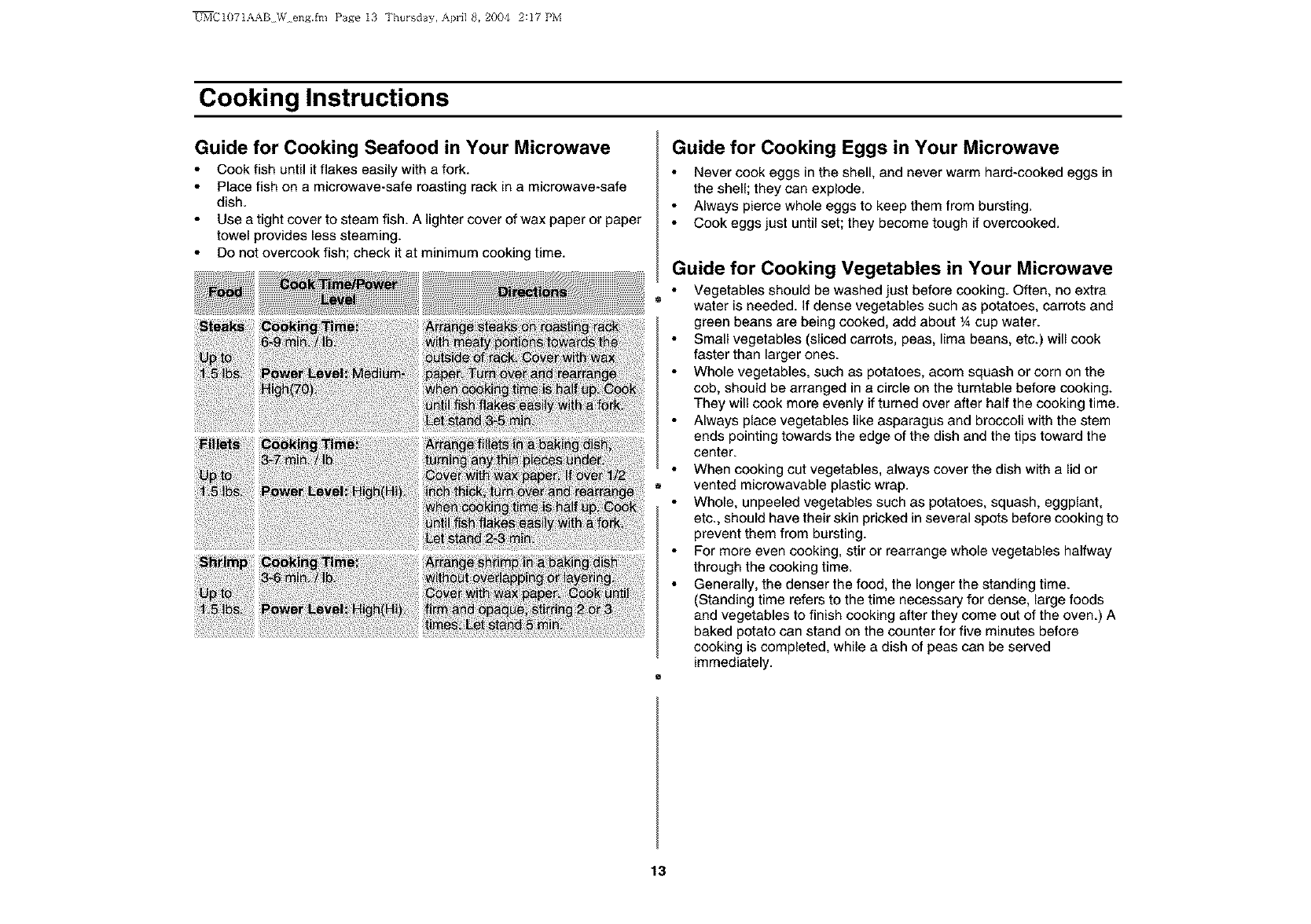

Cooking Instructions
Guide for Cooking Seafood in Your Microwave
Cook fish until it flakes easily with a fork.
Place fish on a microwave-safe roasting rack in a microwave-safe
dish.
Use a tight cover to steam fish. A lighter cover of wax paper or paper
towel provides less steaming.
Do not overcook fish; check it at minimum cooking time.
Guide for Cooking Eggs in Your Microwave
Never cook eggs in the shell, and never warm hard-cooked eggs in
the shell; they can explode.
Always pierce whole eggs to keep them from bursting.
Cook eggs just until set; they become tough if overcooked.
O
Guide for Cooking Vegetables in Your Microwave
Vegetables should be washed just before cooking Often, no extra
water is needed. If dense vegetables such as potatoes, carrots and
green beans are being cooked, add about ¼ cup water.
Small vegetables (sliced carrots, peas, lima beans, etc.) will cook
faster than larger ones.
Whole vegetables, such as potatoes, acorn squash or corn on the
cob, should be arranged in a circle on the turntable before cooking.
They will cook more evenly if turned over after half the cooking time.
Always place vegetables like asparagus and broccoli with the stern
ends pointing towards the edge of the dish and the tips toward the
center.
When cooking cut vegetables, always cover the dish with a lid or
vented microwavable plastic wrap.
Whole, unpeeled vegetables such as potatoes, squash, eggplant,
etc., should have their skin pricked in several spots before cooking to
prevent them from bursting.
For more even cooking, stir or rearrange whole vegetables halfway
through the cooking time.
Generally, the denser the food, the longer the standing time.
(Standing time refers to the time necessary for dense, large foods
and vegetables to finish cooking after they come out of the oven.) A
baked potato can stand on the counter for five minutes before
cooking is completed, while a dish of peas can be served
immediately.
13
m
UklC1071AAI3 _k eng.fn_ Page I4 Thursday, Ai)ri18, 2004 2:17 l:'_,I
Cooking Instructions
Auto Defrosting Guide
Follow the instructions below when defrosting different types of food.
Notes
Check foods when the oven signals. After the final stage, small sections may
still be icy; let them stand to continue thawing. Do not defrost until all ice
crystals have thawed. Shielding roasts and steaks with small pieces of foil
prevents the edges from cooking before the center of the food has defrosted.
Use narrow, flat, smooth strips of aluminum foil to cover the edges and thin-
ner sections of the food.
14
m
UklC1071AAI3 _k eng.fn_ Page I5 Thursday, Ai)ri18, 2004 2:17 l:'_,I
Cooking Instructions
Recipes
Beef and Barley Stew
lY2 Ibs. beef stew cubes, cut into Y2-inch pieces
Y2cup chopped onion
2 Tbs. all-purpose flour
1 Tbs. Worcestershire sauce
1 can (13.75-14.5 oz.) beef broth
2 medium carrots, cut into Y2-inch slices (about 1 cup)
Y2cup barley
1 bay leaf
¼ tsp. pepper
1 pkg. (9-10 oz.) frozen peas, thawed
1. In a 2-quart casserole, combine beef, onion, flour, and
Worcestershire; mix well. Cover with lid. Cook at High for 6 to 8
minutes until beef is no longer pink, stirring once.
2. Stir in beef broth, carrots, barley, bay leaf, and pepper. Cover with
lid. Cook at Medium for 45 to 50 minutes until carrots and beef are
tender, stirring 2 to 3 times.
3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let
stand for 10 minutes. Remove bay leaf before serving.
Makes 6 servings.
Broccoli and Cheese Casserole
¼ cup butter or margarine
¼ cup chopped onion
1Y2Tbs. flour
Y2tsp. salt
¼ tsp. dry mustard
V8tsp. pepper
1Y2cups milk
¼ cup chopped red pepper
8 oz. (2 cups) cheddar cheese, shredded
1 pkg. (9-10 oz.) frozen chopped broccoli, thawed
4 cups cooked spiral shaped pasta (8 oz. dry)
1. In a 2-quart casserole, cook butter and onion at High for 2 to 3
minutes until onion is soft, stirring once.
2. Add flour, salt, mustard, and pepper; mix well. Cook at High for 60 to
90 seconds until mixture boils. Stir in milk until smooth.
3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils
and thickens slightly, stirring twice. Stir in cheese until melted.
4. Add broccoli and pasta, mix well. Cover with lid. Cook at High for 4 to
6 minutes until heated through, stirring once. Stir before serving.
Makes 6 servings.
15
_ClS71AAB W eng.fm Page I6 Thursday, Ai)rilS, 2004 2:17 PM
Cooking Instructions
Warm Potato Salad
2 Ibs small red potatoes, cut into Y2-inch pieces
4 slices bacon (uncooked), cut into Y2-inchpieces
'A cup chopped onion
2 tsp. sugar
1 tsp. salt
1 tsp. flour
Y2tsp. celery seed
1/8tsp. pepper
2Y2Tbs. apple cider vinegar
1. In a 2*quart casserole, combine potatoes and 'A cup water. Cover
with lid. Cook at High until potatoes are tender (10-12 min.); stir
twice. Drain and set aside to cool slightly.
2. In a medium bowl, cook bacon at High until crisp (3-5 min.); stir once.
Place bacon on a paper towel. Reserve 1 Tbs. drippings.
3. Combine drippings and onion. Cover with plastic wrap; turn back a
corner to vent steam. Cook at High until tender (3-4 rain.); stir once.
4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High until
mixture boils (30-40 sec.). Stir in vinegar and Y2cup water. Cook at
High until liquid boils and thickens slightly (1-2 min.); stir once. Add
bacon to dressing. Pour dressing over potatoes. Stir well.
Makes 6 servings.
Black Bean Soup
1 cup chopped onion
1 clove garlic, minced
2 cans (15 oz. each) black beans, drained
1 can (14-16 oz.) stewed tomatoes, chopped
1 can (13.75-14.5 oz.) chicken broth
1 can (7-8.5 oz.) corn
1 can (4 oz.) chopped green chilies
1-2 tsp. ground cumin, or to taste
1. Place onion and garlic in a 3-quart casserole Cover with lid Cook at
High for 3 to 5 minutes until tender.
2. Add one can of beans, mash beans with a fork. Add remaining
ingredients; mix well.
3. Cook uncovered, at High for 10 minutes; stir. Reduce power to
Medium and cook for 5 minutes. Stir before sewing.
Makes about 2 quarts.
16
UMClU71AAB W eng.hn Page I7 Thursday, Ai)rilS, 2004 2:17 PM
Appendix
Troubleshooting Guide
Before you call a repair person for your oven, check this list of possible
problems and solutions.
Neither the oven's display nor the oven operate.
Properly insert the plug into a grounded outlet.
If the outlet is controlled by a wall switch, make sure the wall switch
is turned on.
Remove the plug from the outlet, wait ten seconds, then plug it in
again.
Reset the circuit breaker or replace any blown fuse.
Plug another appliance into the outlet; if the other appliance doesn't
work, have a qualified electrician repair the outlet.
Plug the oven into a different outlet.
The oven's display works, but the power won't come on.
Make sure the door is closed securely.
Check to see if packing matedal or other material is stuck to the door
seal.
Check for door damage.
Press Cancel twice and re-enter all cooking instructions.
The power goes off before the set time has elapsed.
If there has not been a power outage, remove the plug from the
outlet, wait ten seconds, then plug it in again. If there was a power
outage, the time indicator will display "88:88" Reset the clock and
any cooking instructions.
Reset the circuit breaker or replace any blown fuse.
The food is cooking too slowly.
Make sure the oven is on its own 15 amp circuit line. Operating
another appliance on the same circuit can cause a voltage drop. If
necessary, move the oven to its own circuit.
YOU see sparks or arcing.
Remove any metallic utensils, cookware, or metal ties. If using foil,
use only narrow strips and allow at least one inch between the foil
and interior oven walls.
The turntable makes noises or sticks.
Clean the turntable, roller ring and oven floor.
Make sure the turntable and roller ring are positioned correctly.
Using your microwave causes TV or radio interference.
This is similar to the interference caused by other small appliances,
such as hair dryers. Move your microwave further away from other
appliances, like your TV or radio.
Note :
If the oven is set more than 25 minutes at 80, 90 or 100 percent
power level, after the first 25 minutes the power level will
automatically adjust itself to 70 percent power to avoid
overcooking.
Care and Cleaning
Follow these instructions to clean and care for your oven.
Keep the inside of the oven clean. Food particles and spilled liquids
can stick to the oven walls, causing the oven to work less efficiently.
Wipe up spills immediately. Use a damp cloth and mild soap. Do not
use harsh detergents or abrasives.
To help loosen baked on food particles or liquids, heat two cups of
water (add the juice of one lemon if you desire to keep the oven
fresh) in a four-cup measuring glass at High power for five minutes
or until boiling. Let stand in the oven for one or two minutes.
Remove the glass tray from the oven when cleaning the oven or tray.
To prevent the tray from breaking, handle it carefully and do not put it
in water immediately after cooking. Wash the tray carefully in warm
sudsy water or in the dishwasher.
Clean the outside surface of the oven with soap and a damp cloth.
Dry with a soft cloth. To prevent damage to the operating parts of the
oven, don't let water seep into the openings.
Wash the door window with very mild soap and water. Be sure to use
a soft cloth to avoid scratching.
If steam accumulates inside or outside the oven door, wipe with a
soft cloth. Steam can accumulate when operating the oven in high
humidity and in no way indicates microwave leakage.
Never operate the oven without food in it; this can damage the
magnetron tube or glass tray. You may wish to leave a cup of water
in the oven when it is not in use to prevent damage if the oven is
accidentally turned on.
If you have a problem you cannot solve,
please call our service line:
(1-800-688-1120 U,S.A. and CANADA)
17
m
LMC1071AAB _ eng.fm Page I8 Thursday',AprilS, 2004 2:I7PM
Appendix
Specifications
Controls
Power Source
Outside Dimensions
Net/Gross Weight
10 power levels, including defrost
120 VAC, 60 Hz
19 1/4"(W) X 10 13/16"(H) X 13 27/32"(D)
26.1/28.0 Ibs
18
m
UMC1071AAI3 _k eng.fm Page I9 "I'hursda,;, Ai)ril 8, 2004 2:17 I:'M
Warranty
Limited One Year Warranty - Parts and Labor
For one (1) year from the original retail purchase date, any part which
falls in normal home use will be repaired or replaced free of charge
when carried into an authorized servicer.
Limited Warranties -Parts Only
Second through Fifth Year -From the original purchase date, parts listed
below which fail in normal home use will be repaired or replaced free of
charge for the part itself, with the owner paying all other costs, including
labor, mileage, transportation, trip charge, and diagnostic charge if
required.
Magnetron, touch pad and microprocessor.
What is not covered by these warranties
Replacement of household fuses, resetting of circuit breakers, or
correction to household wiring or plumbing.
Normal product maintenance and cleaning, including light bulbs.
Products with original serial numbers removed, altered, or not readily
determined.
Products purchased for commercial, industrial, rental, or leased use.
Products located outside of the U.S.A. or Canada.
Premium service charges, if the servicer is requested to perform
service in addition to normal service or outside normal service hours
or area.
Adjustments after the first year.
Repairs resulting from the following:
- Improper installation, exhaust system, or maintenance.
- Any modification, alteration, or adjustment not authorized by
the manufacturer.
- Accident, misuse, abuse, fire, flood, or acts of nature.
- Connections to improper electrical current, voltage supply, or gas
supply.
- Use of improper pans, containers, or accessories that cause
damage to the product.
Travel.
yOU need service
Call the dealer from whom your appliance was purchased or call
Maytag Services sM,Customer Assistance at 1-800-688-1120 U.S.A.
and CANADA to locate an authorized servicer.
Be sure to retain proof of purchase to verify warranty status. Refer to
WARRANTY for further information on owner's responsibilities for
warranty service.
If the dealer or service company cannot resolve the problem, write to
Maytag Services sM, Attn: CAIR ®Center, P.O. Box 2370, Cleveland,
TN 37320-2370, or call 1-800-688-1120 U.S.A. and CANADA.
U.S. customers using TTY for deaf, hearing impaired or speech
impaired, call 1-800-688-2080.
NOTE: When writing or calling about a service problem, please
include the following information:
a.Your name, address and telephone number;
b Model number and serial number;
c. Name and address of your dealer or servicer;
d A clear description of the problem you are having;
e. Proof of purchase (sales receipt).
User's guides, service manuals and parts information are available
from Maytag Services sM,Customer Assistance.
IN NO EVENT SHALL MAYTAG BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights, and you may have others
which vary from state to state. For example, some states do not allow
the exclusion or limitation of incidental or consequential damages, so
this exclusion may not apply to you.
19
IJklC1071AAI3 _k eng.fn_ Page 20 ThursdaY, Ai)ril 8, 2004 2:17 l:'_,I
Quick Reference
Printed in Malaysi_
,__[ect ronits=Co._ Ltd.

Navigation menu
