Instruction Manual of Multi-function
lnduction Cooker
Model: MC-ESH13C
Thank you for purchasing the Midea induction cooker, please read this
instructions manual carefully before using and keep it cautiously after
reading for your future reference.
8
88
:
IMPORTANT SAFEGUARDS
Save These Instructions.
When using electrical appliances, basic safety precautions should always be
followed including the following:
1. Read all instructions before use the induction cooker.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs in water or other
liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the
nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil
or other hot liquids.
12. Do not use appliance for other than intended use.
13. WARNING – To prevent electric shock, unplug before cleaning.
14.This appliance has polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit into a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician, Do not attempt to
modify the plug in any way.
15. Do Not cook on broken-Top –If cook-top should break, cleaning solution and
spillovers may penetrate the broken cook-top and create a risk electric shock.
16. Clean Cook-Top with Caution – if a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn, some
cleaners can produce noxious fumes if applied to a hot surface.
17. Any other servicing should be performed by an authorized services
representative.
1

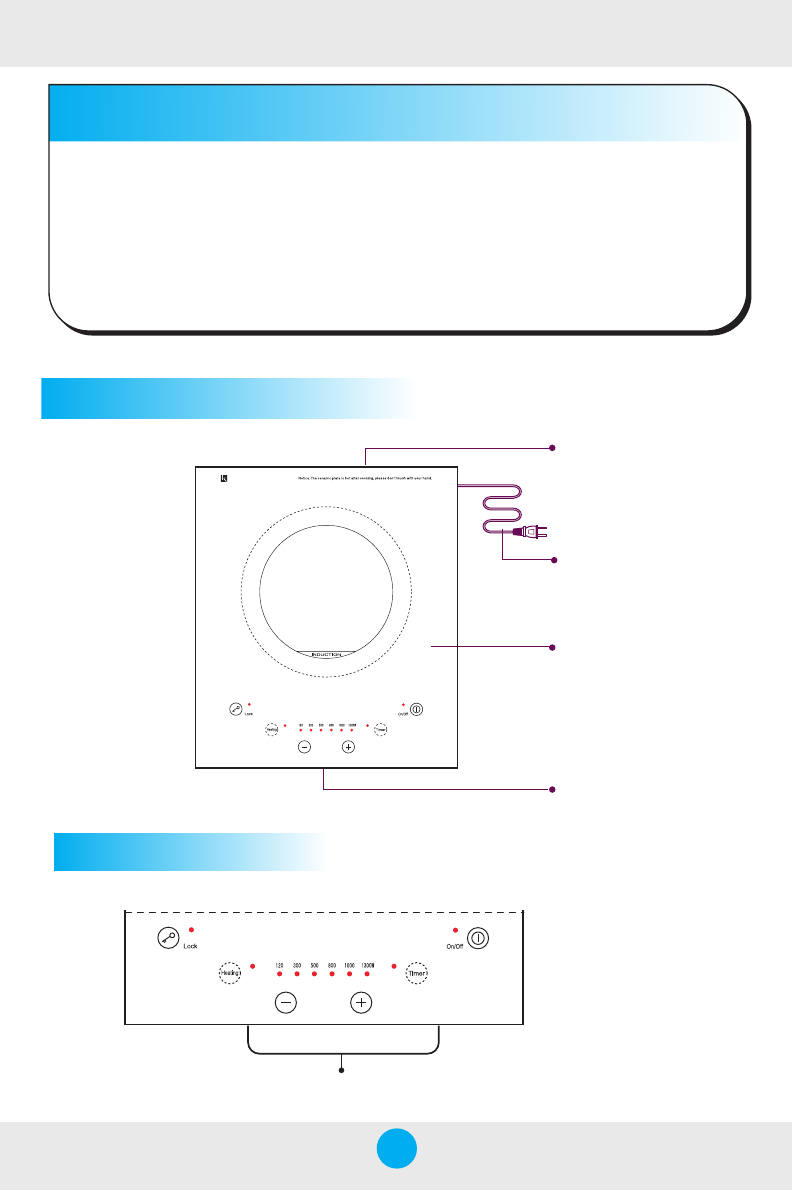

Designations of Parts
Product Introduction
Control panel
Midea MC-ESH13C induction cooker comes with micro-computerized
control and complete functions, is able to meet various kinds of cuisine
demands by electromagnetic heating. It is the optimal choice.
Midea induction cooker is made from imported material and advanced
process for reliable performance, making cooking an enjoyable part of
your life.
6 levels of power
2
tne
v
ri
A
drocr
e
wo
P
et
a
lpc
i
mareC
yrtneriA
Micro-computerized control, multiple functions
Simple operation interface: personalized man-machine conversation interface,
easy for operation.
Multiple heating power choice: 6 levels of heating power choice, making your
different cuisine demands come true.
Flexible timing function: the timer can be set from 1 minutes to 180 minutes.
Auto alarm function: relying on its internal detecting system, it is able to identify
whether a pot is put on or whether the pot material satisfies the requirement.
MC-ESH13C 1300W 355*302*66
120W-1300W
110-120V~50/60Hz
Model
Performance parameters
Applied
voltage/frequency
2.98
Power adjustment
range Appearance
dimension(mm) Weight
(Kg)
Performance Characteristics
Rated
power
2
3
3
High efficiency, saving time and electricity.
Strong heating level with high heat efficiency makes cooking time-saving &
convenient.Several protection functions make it safe & reliable.
Over-heat protection: The induction cooker will shut down automatically when the
temperature of the pot body is too high or the temperature inside the cooker is too
high.
Over current or voltage abnormality protection: In case voltage is abnormal or
current changes suddenly, the induction cooker will shut down automatically.
Having the function of detecting small articles: When the pot is less than 80 mm
in diameter or small articles (knife, fork, nipper, forceps, key, etc.) exist or non-
magnetic pots (such as aluminum pot) are detected, the buzzer will give out an alarm
lasting for about 1 minute. In case the user has not put a proper pot in time, the
induction cooker will shut down automatically.
1 minute automatic shut down protection: when the pot is removed, the induction
cooker will shut down 1 minute later.
Power mode
Press the "Heating" button, the buzzer sounds, the "ON/OFF" and the "Power"
indicator light up, the hotplate entering the heating working state.
When in heating working mode, the default power level shall be level 4, you can
make a regulation by pressing the "+" or "-" key.
Childproof Lock
When the hotplate is in working state, to prevent children from operation, you can
activate the childproof lock by pressing the childproof lock button, the buzzer will
sound at the same time. In the childproof lock state, "Childproof Lock" button and
"ON/OFF" button can be operated, other buttons are non effective.
You can deactivate the childproof lock by holding the childproof lock button.
The buzzer wiil sound.
Operation Instructions
4
5
4
Free from any dangerous accidents such as leakage, explosion, flame burn
that commonly happen to gas cookers. During the cooking, it does not generate
any flame or smoke and facilitates the improvement of household environment
and personal health, making cooking easy and safe.
Advanced ceramic plate, resistant to high temperature and easy to clean and
maintain.
After the power supply is connected, the buzzer will sound and the
cooker is in the state of "OFF".
Press the "ON/OFF" button, the buzzer will sound, the "ON/OFF"
indicator lights up, the LED display "-:--", indicating the cooker enters
into the standby mode. If you don't press any key within 2 minutes,
the cooker will shut down automatically 2 minutes later.
Note: Don't put the empty pot on the ceramic plate. Put the pot which has water or food
on the center of the ceramic plate. If there is no pot or no suitable pot on the center of the
ceramic plate, after the buzzer sounds one minute, the cooker will shut down automatically,
and return to the state of "OFF".
Timer
In working or standby state, after the "Timer" button is pressed, the buzzer gives
out a sound, the nixie tube flashes and displays the "0", indicating that the induction
hotplate enters timing working state. Each time the "+" or "-" is pressed, the time
can increase or decrease by 1 minute. If it is held, the time will increase or decrease
minutes quickly with 10 minutes as an increment.
In the timing setting state, press the timer button again will cancel the timing. After
timing period is set, the time stabilizes after the nixie tube flashes for 5 seconds
to confirm the period to be effective. If the timer is 0, the timer is noneffective.
In the timing working state, hold the timer button to cancel the timing.
When the working time reaches, the hotplate will shut down automatically.
Automatic Shutdown Protection:
The induction hotplate will shut down when the hotplate default timer of program
is reached unless the user sets the timer himself.
The default timer of each level are as follow:
E2
E3
E4
E1 E6
E7
E8
E5
Eb
EC
Open circuit (abnormality
of the main transducer)
Short circuit (abnormality
of the main transducer)
High temperature (abnormality
of the main transducer)
Low voltage protection
High voltage protection
Open circuit (abnormality of the
transducer of the heat sink)
Short circuit (abnormality of the
transducer of the heat sink)
Invalidation of the main
transducer
High temperature (abnormality
of thetransducer of the
heat sink)
fan failure
Level
Default timer
(hour)
14
2356
443322
5
Shut down
Press the "ON/OFF" button in the standby state or working
state, the buzzer will sound and the cooker will in off mode.
Failure and Protection Code:
If anything unusual happened, the induction cooker will enter into
protection mode automatically and display corresponding protection code.
Code CodeFailure Failure
Please use an individual socket
of more than 13A, and never
use a universal socket or share
a socket with other appliances.
During the use, the induction
cooker shall be placed
horizontally, with at least 4
inch from its sides and back to
the wall.
Never use the induction
cooker in high temperature
environments such as near a
gas stove or kerosene stove.
>13A
Never wash the induction
cooker with water directly so
as to avoid danger.
Be sure not to insert foreign
matters such as an iron wire or
block the air vent and air entry
so as to avoid danger.
Never heat the iron piece on
the ceramic plate so as to avoid
any danger due to high
temperature.
For sealed food such as
canned goods, do not heat
them before opening the
cover so as to avoid any
danger of explosion due to
heating expansion.
Never have the induction
cooker to work on utensil
without food inside. It may
affect its performance and
cause danger.
4 inch

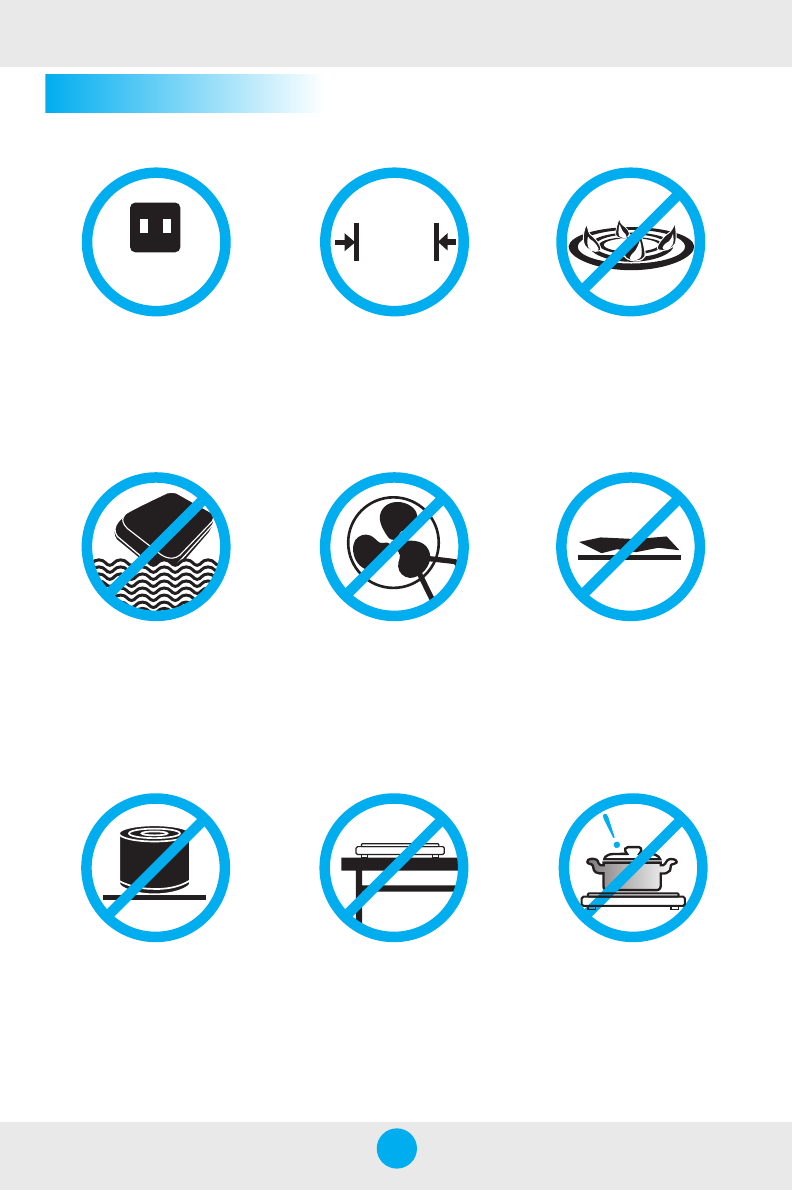

Safety Notice
Never place the induction
cooker on an iron plate or
iron table during use.
6
Enamel stainless
steel kettle
Iron oil frying pan Stainless steel pot Iron pan Iron kettle
Enamel cooking
utensil Iron plate

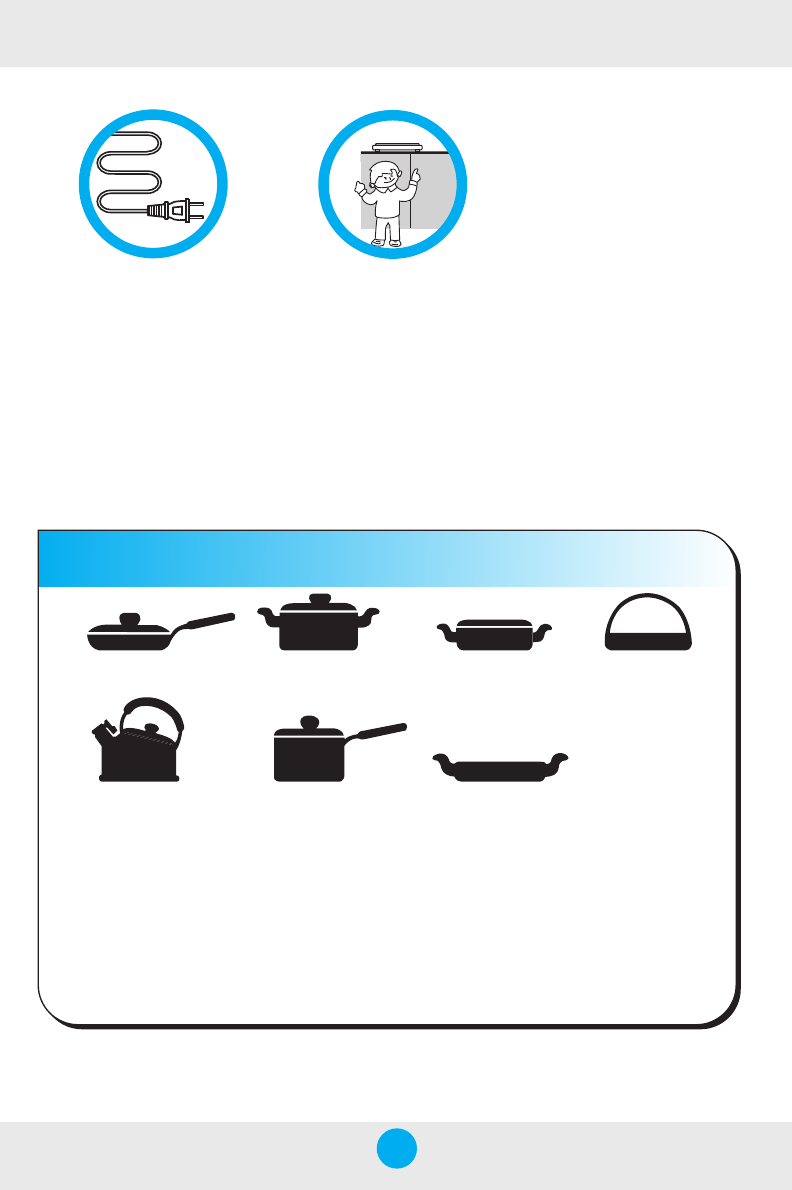

Applicable Pots
Do not allow children to operate
induction cooker alone to prevent
any danger.
*Please use the pots sold along with the unit by recommended. It is better not to use other
alternatives so as to avoid any unfavorable influence on the operational performance. If
using other pots, please observe the following conditions:
Requirement for pot materials: containing magnetic inducting materials.
Shape requirement: flat bottom, the range of the diameter is 12cm to 26cm
*
*
7
If the power cord of the
appliance is damaged, it
must be replaced by the
manufacturer, its service
agent or similar qualified
technician.
After power is supplied, the "ON/OFF"
indicator lamp fails to light up
The "ON/OFF" indicator lamp lights
up, but heating does not start
Whether the plug is inserted tightly
Whether the switch, socket, fuse and
power line are in good condition
the induction cooker enters the state of standby. This will contribute
to prolonging the service lifetime of the induction cooker.
Please unplug the unit after use.
Trouble shooting Guide
Possible cause
problem
Ceramic panel and control panel
Slight dirt: please clean with soft wet cloth.
Oily dirt: clean with soft wet cloth dipped in little toothpaste or neutral
detergent and clean with soft wet cloth until no residue exists.
During the cleanness, never clean the cooker surface with a rigid brush.
Methods for Cleanness and Maintenance
The induction cooker body shall be cleaned lightly with flexible dry
cloth.
The dust around the air entry and air vent can be cleaned with a
flexible brush or cleaner.
If there is improper connection between the plug and the socket, the
induction cooker may be easily damaged. Therefore, please check the
plug and socket for contact condition before use.
Never pull out the plug when the induction cooker is operating. You
should press the "ON/OFF" button first and then pull out the plug after
Whether the pot materials are acceptable
Other reasons, contact the special
maintenance department
8
Before cleaning, please unplug the cooker and make sure the ceramic board is not hot.
9
Heating stops suddenly during
operation
Whether the ambient temperature is too
high
Whether the air entry or the air vent is
blocked
Whether the timing period reaches
The system protection functions are
activated, wait for a moment then restart,
it will operate as usual.
The above are the judgment and inspection of common failures.
Please do not disassemble the cooker by yourself to avoid any dangers
and damage to the induction cooker.
*
*
Code
of
failure
E3,E6
Wait a moment and press the "ON/OFF"
button when the temperature of the
cooker become normal, the induction
cooker will operate as usual.
Press the "ON/OFF" button when the
supply voltage become normal, the
induction cooker will operate as usual.
Please contact the special maintenance
department.
All the contents in this material have been subjected to careful check. For any mistakes
and omissions in printing or misunderstanding of the contents, the company keeps the
right of interpretation.
Addition: any technical improvements shall be placed in the revised manual without
notice; for any changes in appearance and color, those of the actual product shall prevail.
E7,E8
E1,E2,E4, E5, Eb, EC
SPECIAL DECLARATION
5
EN
FCC Requirements
>(9505.!(U`JOHUNLZVYTVKPÄJH[PVUZTHKL[V[OPZ\UP[UV[L_WYLZZS`
approved by Rena Ware could void the user’s authority to operate the
equipment.
NOTE:
;OPZLX\PWTLU[OHZILLU[LZ[LKHUKMV\UK[VJVTWS`^P[O[OLSPTP[ZMVY 
 JVUZ\TLY0:4LX\PWTLU[W\YZ\HU[[V7HY[VM[OL-**9\SLZ
;OLZLSPTP[ZHYLKLZPNULK[VWYV]PKLYLHZVUHISLWYV[LJ[PVUHNHPUZ[OHYTM\S 
 PU[LYMLYLUJL
;OPZLX\PWTLU[NLULYH[LZ\ZLZHUKJHUYHKPH[LYHKPVMYLX\LUJ`LULYN`HUK 
 PMUV[PUZ[HSSLKHUK\ZLKPUHJJVYKHUJL^P[O[OLPUZ[Y\J[PVUTHU\HSTH`JH\ZL
 OHYTM\SPU[LYMLYLUJL[VYHKPVJVTT\UPJH[PVUZ
0M[OPZLX\PWTLU[KVLZJH\ZLOHYTM\SPU[LYMLYLUJL[VYHKPVJLSSWOVULVY 
 [LSL]PZPVUYLJLW[PVU^OPJOJHUILKL[LYTPULKI`[\YUPUNP[VMMHUKVU[OL\ZLY
 PZLUJV\YHNLK[V[Y`[VJVYYLJ[[OLPU[LYMLYLUJLI`VULVYTVYLVM[OLMVSSV^PUN
measures:
  9LVYPLU[VYYLSVJH[L[OLYLJLP]PUNHU[LUUH
  0UJYLHZL[OLZLWHYH[PVUIL[^LLU[OLLX\PWTLU[HUKYLJLP]LY
  *VUULJ[[VHUV\[SL[VUHJPYJ\P[KPMMLYLU[MYVT[OLYLJLP]LY
  *VUZ\S[HUL_WLYPLUJLKYHKPVVY[LSL]PZPVU[LJOUPJPHUMVYOLSW
7SLHZLYLHK`V\Y<ZL*HYLIVVRSL[[OVYV\NOS`ILMVYL\ZPUN`V\Y0UK\J[PVU 
 *VVRLYMVY[OLÄYZ[[PTL-HPS\YL[VMVSSV^[OLN\PKHUJLWYV]PKLKI`[OL<ZL
 *HYL^PSS]VPK[OL^HYYHU[`

Navigation menu
