MD Consumer Electric MC-ESH13I Induction Cooker User Manual
Guangdong MD Consumer Electric Manufacturing Co., Ltd Induction Cooker Users Manual
Users Manual
Model: MC-ESH13I
Manual of Multi-function lnduction Cooker
Thank you for purchasiong the Midea induction cooker. Please this instuction
manual carefullybefore using and keep it cautiously in order to refer to in future
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ............................................................. 1
AD DITIONAL SAFEGUARS ............................................................. 2

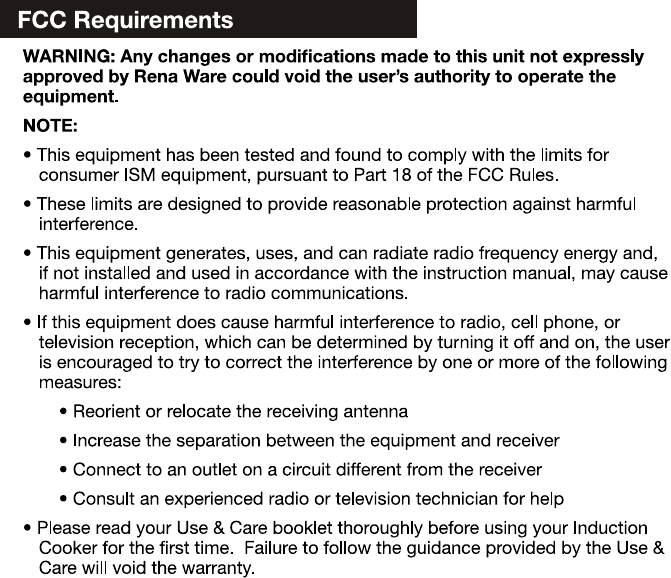

FCC Requirements ............................................................................. 3
Product Introduction ............................................................................ 4
Designations of parts .......................................................................... 4
Performance Parameters .................................................................... 4
Operation Instructions ......................................................................... 4
Suitable cookware ............................................................................... 7
Cleaning and Maintenance .................................................................. 7
Trouble shooting .................................................................................. 8
Special Declaration .............................................................................. 8
IMPORTANT SAFEGUARDS
1. Read all instructions before use the induction cooker.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs in water or
other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair,
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an applian ce containing hot oil
or other hot liquids.
12. Do not use appliance for other than intended use.
When using electrical appliances, basic safety precautions should always be
followed including the following:
1
13. WARNING To prevent electric shock, unplug before cleaning.
16. Clean Cook-Top with Caution if a wet sponge or cloths used to wipe spills
on a hot cooking area, be careful to avoid steam burn, some cleaners can
produce noxious fumes if applied to a hot surface.
17. Any other servicing should be performed by an authorized services
representative.
18. Metallic objects such as knives, forks, spoons and lids should not be placed
on the plate to avoid this vessel to heat.
19. HOUSEHOLD USE ONLY.
20. DO NOT IMMERSE IN WATER.
14. This appliance has polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit into a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician, Do not attempt to
modify the plug in any way.
15. Do Not cook on broken-Top If cook-top should break, cleaning solution and
spillovers may penetrate the broken cook-top and create a risk electric shock.
2
Save These Instructions.
1. A short power-supply cord should be used to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
2. Longer extension cords are available and may be used if care is
exercised in their use.
3. If a longer extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be
at least as great as the electrical rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally.
AD DITIONAL SAFEGUARDS
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR
IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
3
Product Introduction
Midea MC-ESH13I series multi-functional induction cookers, with micro-
computerized control and complete functions, are able to meet various
kinds of cuisine demands by electromagnetic heating, really the optimal
choice.
Performance Parameters
Model Applied
voltage/frequency
Rated
power
Dimension
(mm)
Weight
(kg)
MC-ESH13I 120V~ /60Hz 1500W
Designations of parts
Operation Instructions
1. Put the pot on the hotplate.
Put the pot which has food in the center of the ceramic plate.
Make sure the air vent and the air entry are not blocked and there are not
metallic objects around the hot plate.
Ceramic plate
Airvent
Control panel
Air entry
4
350x350x64 4.0
Supply cord
When the “on/off ” button is pressed, the buzzer sounds. The “ON/OFF”
indicator lamp lights up, the LED display “--”, indicating that the hotplate is
in the state of standby.
If you don’t press any key within 2 minutes, the induction hotplate will shut
down automatically.
5. Childproof Lock:
After the power supply is connected, press the “ON/OFF” button, then press
the “ ” button, the buzzer sounds, the “ON/OFF” and the “ ” indicator
lamp light up, the default power level shall be level 4, you can tune the
power level to the max. level by holding the “+” key.
You can make a regulation by pressing the “+” or “-” key.
When the hotplate is in working state, to prevent children from operation, you
can activate the childproof lock by pressing the childproof lock button, the
buzzer will sound at the same time. In the childproof lock state, “Childproof
Lock” button and “ON/OFF” button can be operated, other buttons are non
effective.
You can deactivate the childproof lock by holding the childproof button again.
The buzzer will sound.
4. Heating:
2. Plug in
After the power on, the buzzer sounds.
3. Power on:
5
6. Timer:
In working state, after the "Timer" key is pressed, the buzzer gives out a
sound, the nixie tube flashes and displays “0”, indicating that the induction
hotplate enters timing setting state. Each time the "+" or "-" key is pressed,
the time can increase or decrease by 1 minute. If it is held, the time will
increase or decrease quickly with 10 minutes as an increment. When the
timer is max., then press the “+” key, the time will resume min.. When the
timer is min., then press the “-” key, the time will resume max..
After timing period is set, the time stabilizes after the nixie tube flashes for 5
seconds to confirm the period to be effective. If the time is 0, the timer is non
effective.
In the timing setting state, pressing the timer button again will confirm the time.
In the timing setting state, if you hold the timer key, the timer will be cancelled,
the LED displays “--”.
Timer (hour)
Level 1 3 4 578
6 4 4 3 2 2
7. Shut down
After using, please press the “ON/OFF” key, the unit will stop heating.
6
When the working time reaches, the hotplate will shut down automatically.
If the timer function isn’t selected, the hotplate will shut down automatically
when the default shut down time of each level reaches. The default shut
down time of each level are as follow:
2
6
6
3
If the pan has been removed or the hob has been switched off, and the
hotplate is still hot. The indicator will display “H”, therefore, avoid touching
the hotplate when the indicator is shown.
8. Residual heat indicator
Suitable cookware
Iron oil frying
pan
Stainless steel por Iron pan Iron kettle
Iron pIateEnamel cooking
utensil
Enamel stainless
steel kettle
1. Please use the pots sold along with the unit by recommend. It is better
not to use other alternatives so as to avoid any unfavorable influence
on the operational performance. If using other pots, please observe the
following conditions:
Requirement for pot materials: containing magnetic inducting materials;
Shape requirement: plat bottom, with the diameter within the range of 12
cm and 26 cm.
2.
4.
After first use, some white spots would appear at the bottom of the pot.
This is normal. Please pour some vinegar into the pot, heat it at about
60-80℃,then wipe the spots away with brush.
3. The induction cooker can identify mostly pot except the non-magnetism
steels.
If the have no cookerware or the unsuitability cookerware. The buzzer
sounds about 10 seconds, it will turn off.
Cleaning and Maintenance
Please pull out the plug and wait the remain heat is cool before maintenance.
1. Ceramic panel and control panel
Slight stains: Please wipe off plate with soft moistened cloth .
Tough stains: Please clean with soft moistened cloth dipped in little
toothpaste or neutral liquid cleaner and clean with soft moistened cloth
until no residue exists.
During the cleaning, never clean the cooker surface with a rigid brush.
2. The induction cooker body shall be cleaned lightly with soft dry cloth.
The dust around the air entry and air outlet can be cleaned with a
flexible brush or cleaner.
7
Trouble shooting
Special Declaration
1. Power cord replacement
If the power cord is damaged, please contact the relevant after-sale service
agent, who will dispatch personnel for the repair. For the purpose of your
safety, please never replace it by yourself.
2. Trouble shooting
8
E1 E2
E3 E6
E4 E5
Eb EC
E7 E8
