MD Consumer Electric MC-STW1521 Induction Cooker User Manual 1

Guangdong MD Consumer Electric Manufacturing Co., Ltd Induction Cooker 1

3842CR User manual Rev 1

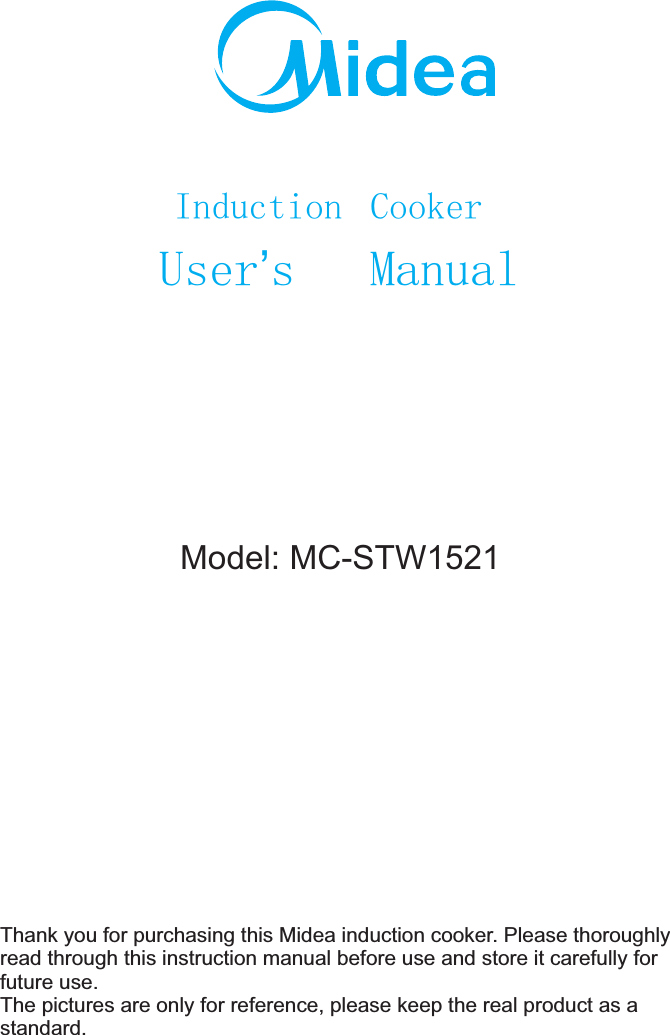

Model: MC-STW1521Induction CookerUserʼs ManualThank you for purchasing this Midea induction cooker. Please thoroughly read through this instruction manual before use and store it carefully for future use.The pictures are only for reference, please keep the real product as a standard.

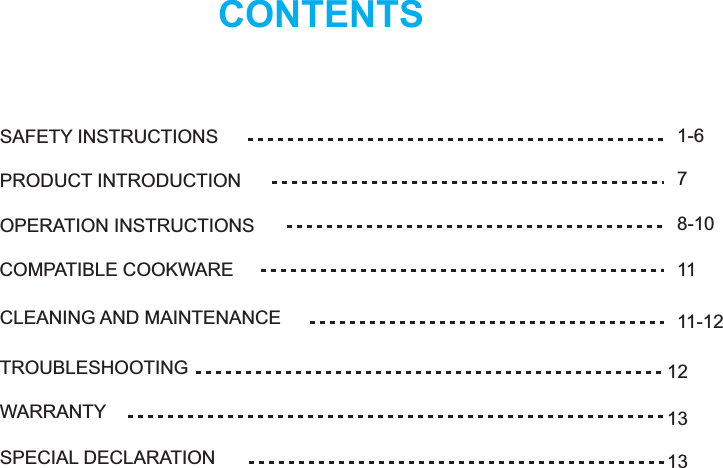

CONTENTSSAFETY INSTRUCTIONSPRODUCT INTRODUCTIONOPERATION INSTRUCTIONSCOMPATIBLE COOKWARECLEANING AND MAINTENANCETROUBLESHOOTINGWARRANTYSPECIAL DECLARATION1-68-1071111-12121313

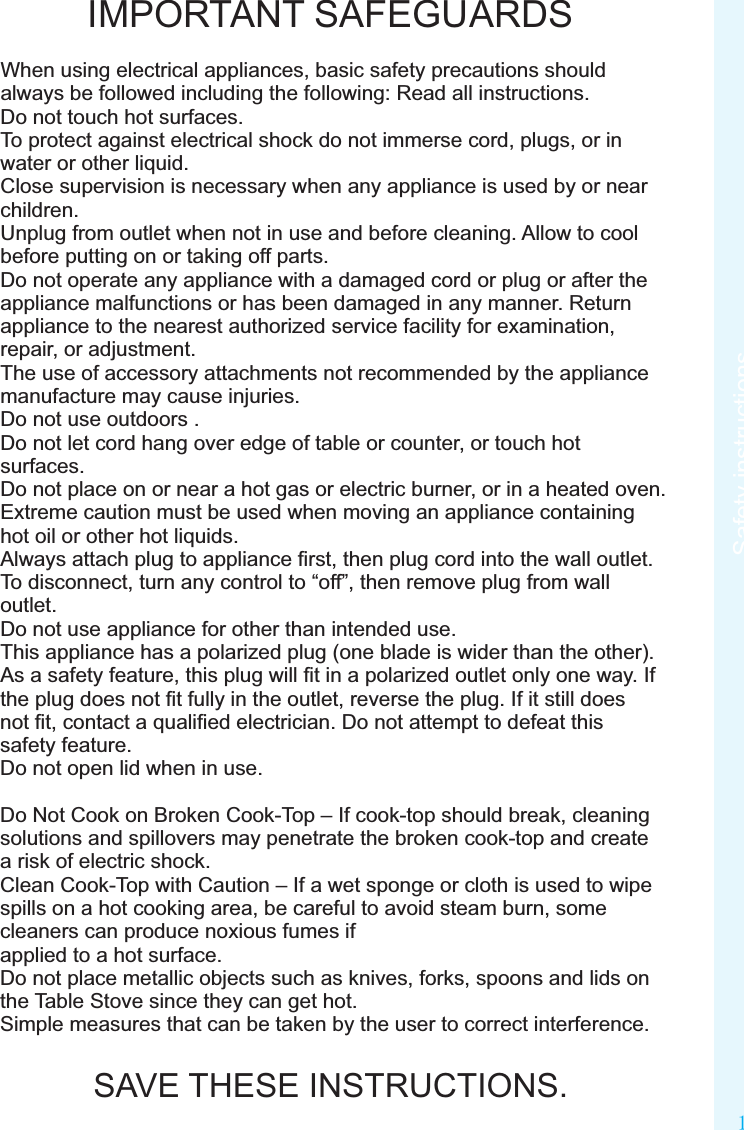

1Safety instructionsIMPORTANT SAFEGUARDSWhen using electrical appliances, basic safety precautions should always be followed including the following: Read all instructions.Do not touch hot surfaces.To protect against electrical shock do not immerse cord, plugs, or in water or other liquid.Close supervision is necessary when any appliance is used by or near children.Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.The use of accessory attachments not recommended by the appliance manufacture may cause injuries.Do not use outdoors .Do not let cord hang over edge of table or counter, or touch hot surfaces. Do not place on or near a hot gas or electric burner, or in a heated oven.Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.Do not use appliance for other than intended use.This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.Do not open lid when in use.Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock.Clean Cook-Top with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes ifapplied to a hot surface.Do not place metallic objects such as knives, forks, spoons and lids on the Table Stove since they can get hot.Simple measures that can be taken by the user to correct interference.SAVE THESE INSTRUCTIONS.Safety instructions

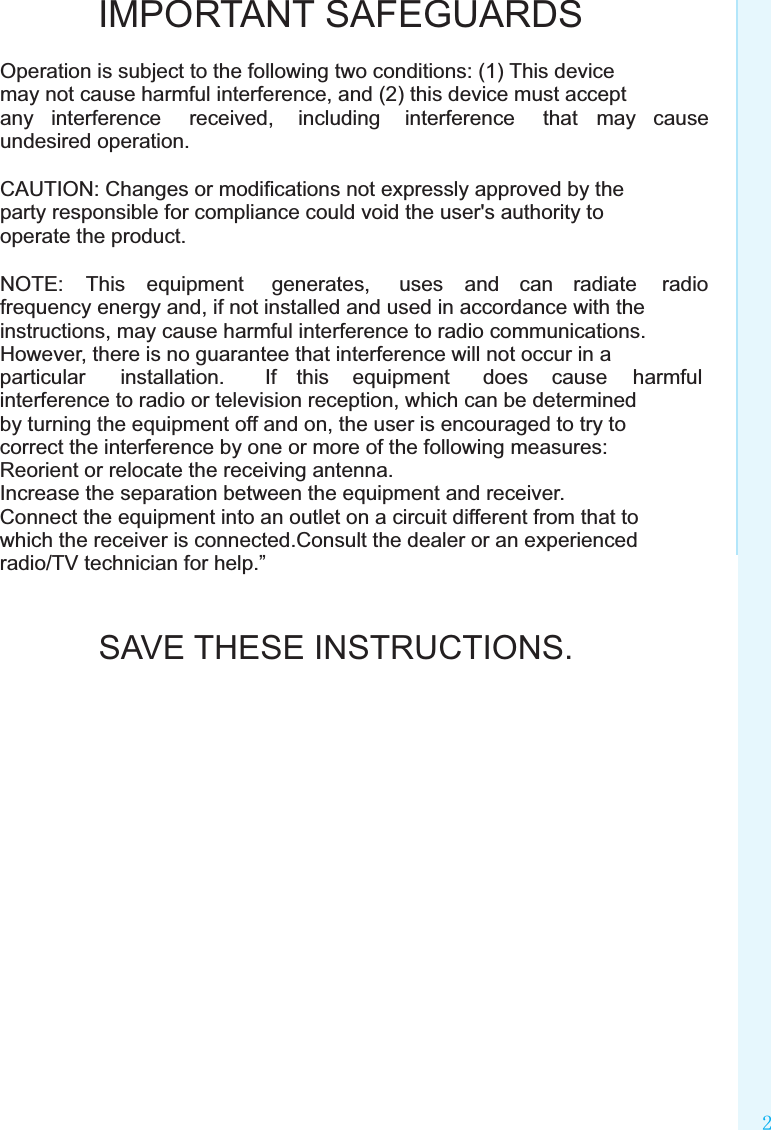

Safety instructionsOperation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.”IMPORTANT SAFEGUARDSSAVE THESE INSTRUCTIONS.2

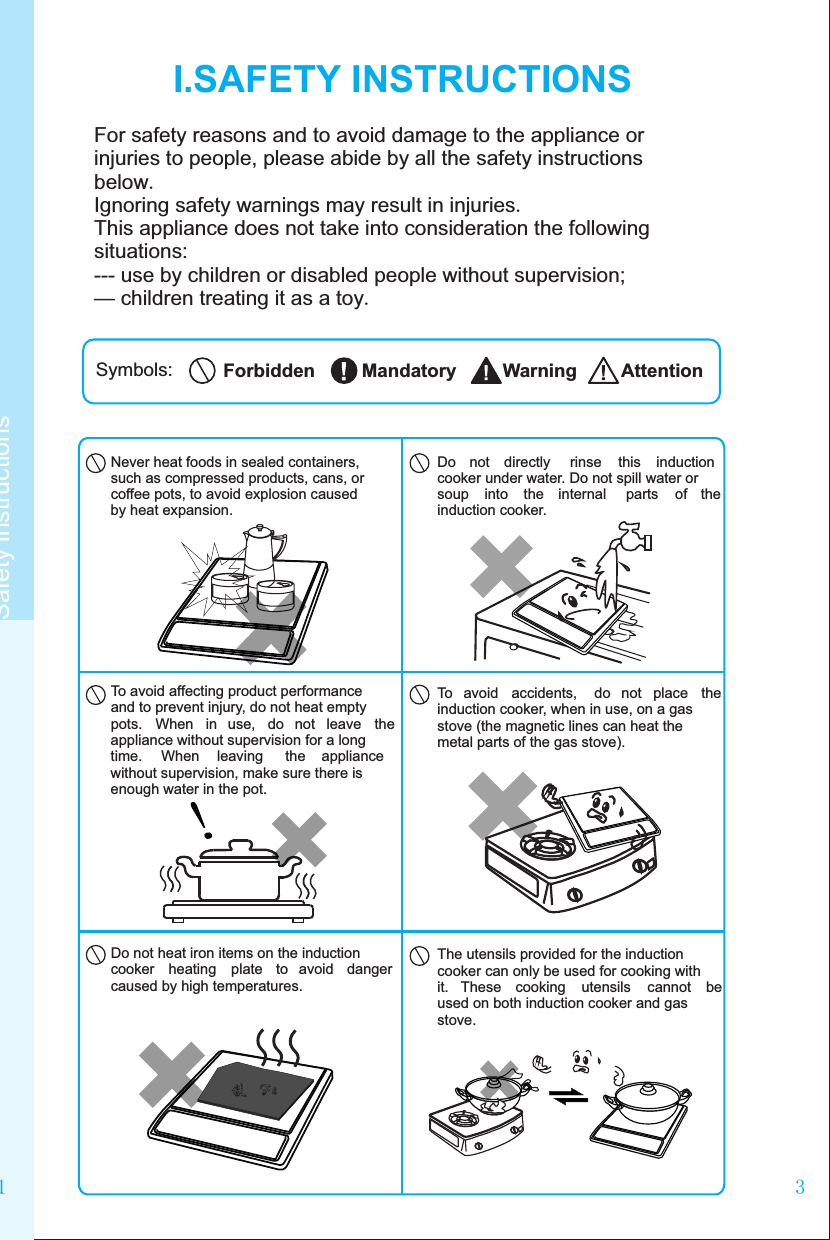

31I.SAFETY INSTRUCTIONSFor safety reasons and to avoid damage to the appliance or injuries to people, please abide by all the safety instructions below.Ignoring safety warnings may result in injuries.This appliance does not take into consideration the following situations:--- use by children or disabled people without supervision;— children treating it as a toy.Symbols: AttentionWarningMandatoryForbiddenSafety instructionsDo not directly rinse this induction cooker under water. Do not spill water or soup into the internal parts of the induction cooker.Never heat foods in sealed containers, such as compressed products, cans, or coffee pots, to avoid explosion caused by heat expansion.To avoid affecting product performance and to prevent injury, do not heat empty pots. When in use, do not leave the appliance without supervision for a long time. When leaving the appliance without supervision, make sure there is enough water in the pot.To avoid accidents, do not place the induction cooker, when in use, on a gas stove (the magnetic lines can heat the metal parts of the gas stove).The utensils provided for the induction cooker can only be used for cooking with it. These cooking utensils cannot be used on both induction cooker and gas stove.Do not heat iron items on the induction cooker heating plate to avoid danger caused by high temperatures.

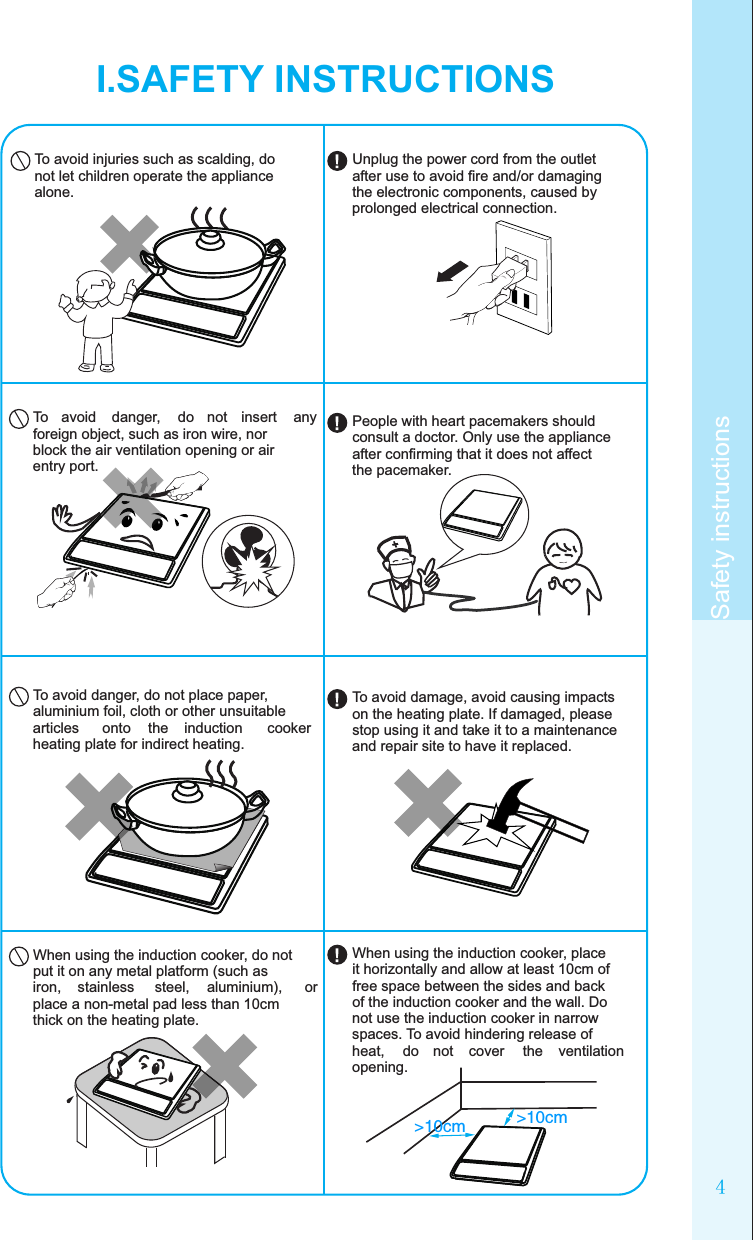

4Safety instructionsI.SAFETY INSTRUCTIONSTo avoid injuries such as scalding, do not let children operate the appliance alone.To avoid danger, do not insert any foreign object, such as iron wire, nor block the air ventilation opening or air entry port.To avoid danger, do not place paper, aluminium foil, cloth or other unsuitable articles onto the induction cooker heating plate for indirect heating.When using the induction cooker, do not put it on any metal platform (such as iron, stainless steel, aluminium), or place a non-metal pad less than 10cm thick on the heating plate.>10cm >10cmUnplug the power cord from the outlet after use to avoid fire and/or damaging the electronic components, caused by prolonged electrical connection.People with heart pacemakers should consult a doctor. Only use the appliance after confirming that it does not affect the pacemaker.To avoid damage, avoid causing impacts on the heating plate. If damaged, please stop using it and take it to a maintenance and repair site to have it replaced.When using the induction cooker, place it horizontally and allow at least 10cm of free space between the sides and back of the induction cooker and the wall. Do not use the induction cooker in narrow spaces. To avoid hindering release of heat, do not cover the ventilation opening.

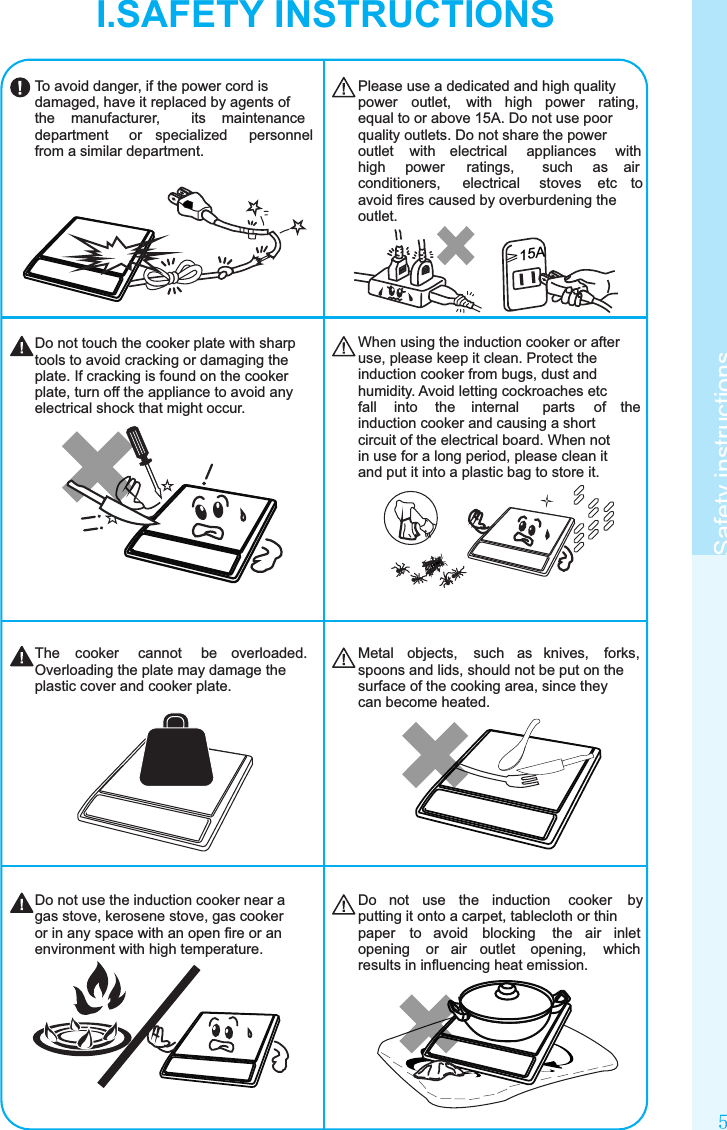

5Safety instructions≥15ATo avoid danger, if the power cord is damaged, have it replaced by agents of the manufacturer, its maintenance department or specialized personnel from a similar department.Please use a dedicated and high quality power outlet, with high power rating, equal to or above 15A. Do not use poor quality outlets. Do not share the power outlet with electrical appliances with high power ratings, such as air conditioners, electrical stoves etc to avoid fires caused by overburdening the outlet.When using the induction cooker or after use, please keep it clean. Protect the induction cooker from bugs, dust and humidity. Avoid letting cockroaches etc fall into the internal parts of the induction cooker and causing a short circuit of the electrical board. When not in use for a long period, please clean it and put it into a plastic bag to store it.Do not touch the cooker plate with sharp tools to avoid cracking or damaging the plate. If cracking is found on the cooker plate, turn off the appliance to avoid any electrical shock that might occur.Do not use the induction cooker by putting it onto a carpet, tablecloth or thin paper to avoid blocking the air inlet opening or air outlet opening, which results in influencing heat emission.Do not use the induction cooker near a gas stove, kerosene stove, gas cooker or in any space with an open fire or an environment with high temperature.Metal objects, such as knives, forks, spoons and lids, should not be put on the surface of the cooking area, since they can become heated.The cooker cannot be overloaded. Overloading the plate may damage the plastic cover and cooker plate.I.SAFETY INSTRUCTIONS
63Safety instructionsAlways clean the induction cooker to prevent mess from getting into the fan, which could influence the normal operation of the appliance.When operating the appliance or after moving the pot, the cooking area will remain hot for a period of time. Do not touch it, be careful of scalding caused by the high temperature.Danger of scaldingWarningChildren should be supervised to ensure that they do not play with the appliance.MandatoryThis appliance is not intended for use by persons (including children ) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. concerning use of the appliance by a person responsible for their safety.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices a n d o t h e r w o r k i n g environments; -farm houses;-by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.Indoor use only.Never have the induction cooker to work without food inside, otherwise its operational performance may be affected and danger may happen.We suggest that you should periodically check that there are no object (glass, paper, etc) that could obstruct the inlet under your induction cooker.Keep electrical appliance out of reach from children or inform person. Do not let them use the appliances without supervision.MandatoryMandatoryWarningWarningI.SAFETY INSTRUCTIONSThe instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.Warning

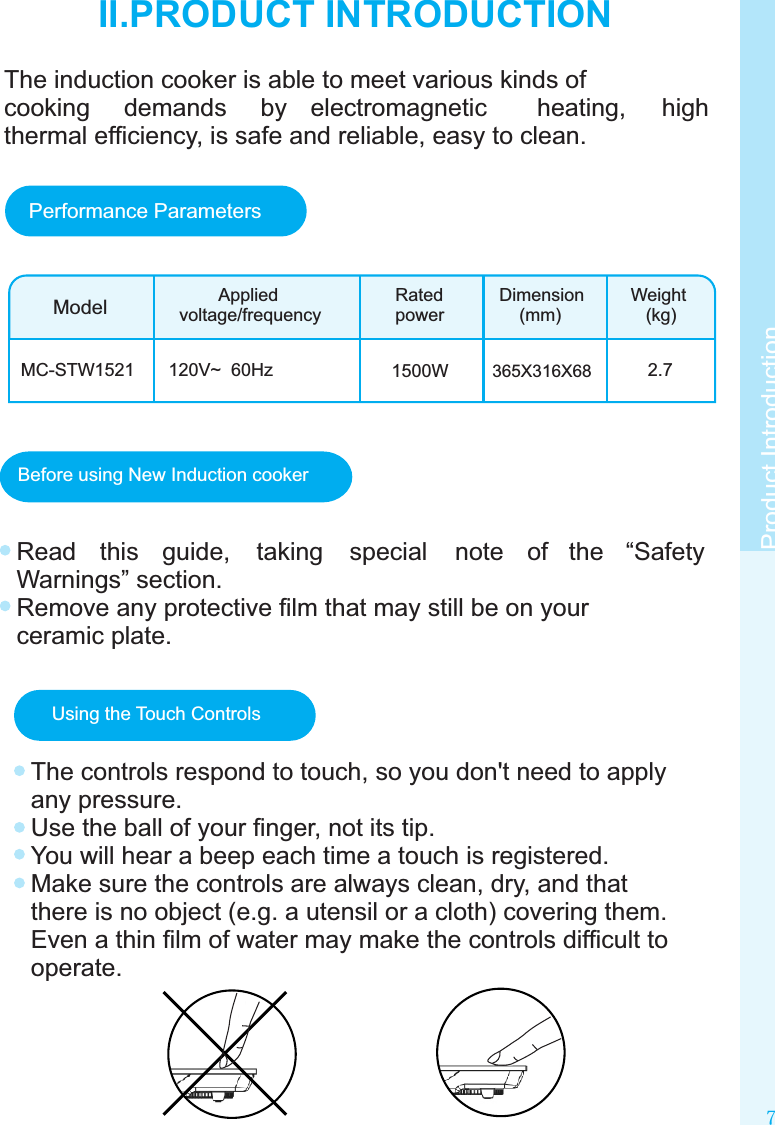

Before using New Induction cookerRead this guide, taking special note of the “Safety Warnings” section.Remove any protective film that may still be on your ceramic plate.Using the Touch ControlsThe controls respond to touch, so you don't need to apply any pressure.Use the ball of your finger, not its tip.You will hear a beep each time a touch is registered.Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.7Product IntroductionII.PRODUCT INTRODUCTIONModelMC-STW1521 Appliedvoltage/frequencyRatedpowerDimension (mm)Weight (kg)120V~ 60Hz 1500W 365X316X68 2.7Performance ParametersThe induction cooker is able to meet various kinds of cooking demands by electromagnetic heating, high thermal efficiency, is safe and reliable, easy to clean.

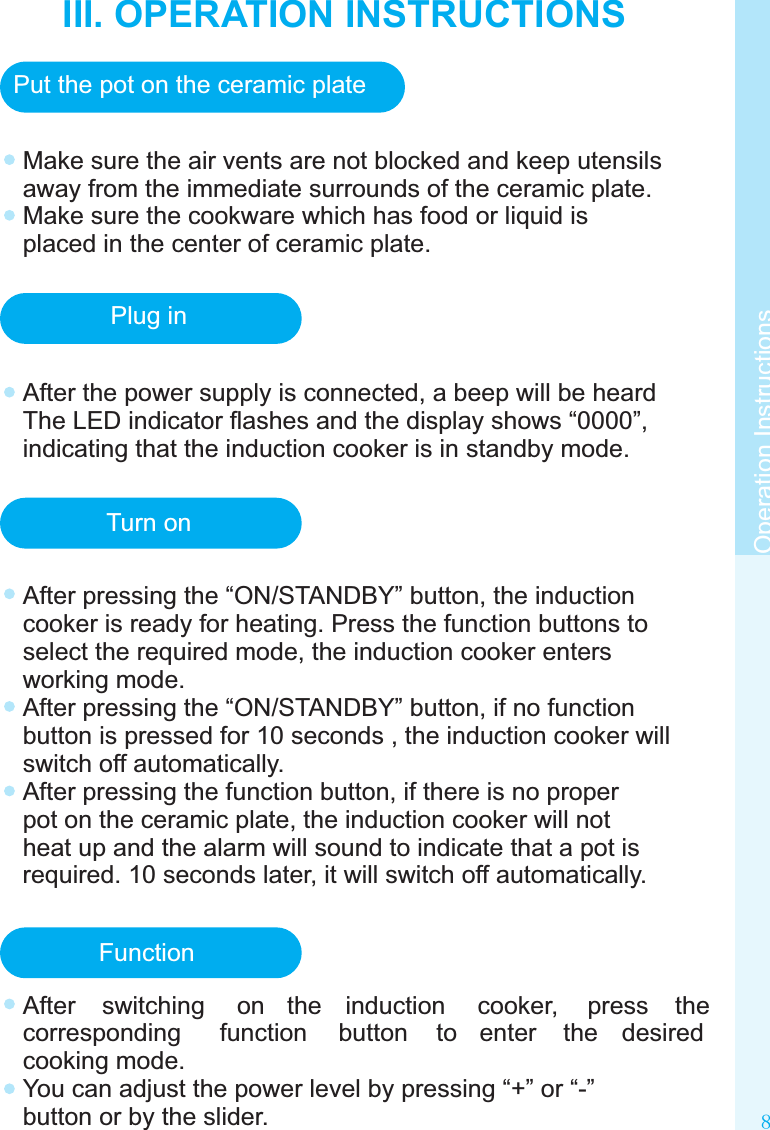

III. OPERATION INSTRUCTIONS8Make sure the air vents are not blocked and keep utensils away from the immediate surrounds of the ceramic plate.Make sure the cookware which has food or liquid is placed in the center of ceramic plate.Operation InstructionsPut the pot on the ceramic platePlug inAfter the power supply is connected, a beep will be heard The LED indicator flashes and the display shows “0000”, indicating that the induction cooker is in standby mode.Turn onAfter pressing the “ON/STANDBY” button, the induction cooker is ready for heating. Press the function buttons to select the required mode, the induction cooker enters working mode.After pressing the “ON/STANDBY” button, if no function button is pressed for 10 seconds , the induction cooker will switch off automatically.After pressing the function button, if there is no proper pot on the ceramic plate, the induction cooker will not heat up and the alarm will sound to indicate that a pot is required. 10 seconds later, it will switch off automatically.FunctionAfter switching on the induction cooker, press the corresponding function button to enter the desired cooking mode.You can adjust the power level by pressing “+” or “-” button or by the slider.
How To LockPress the “Lock” button to start lock function. The “Lock” indicator lights up. Now only the “ON/STANDBY” button can be used to switch off the appliance, all the other operations are forbidden.Press the “Lock” button for several seconds to quit the lock function. The “lock” indicator turns off. 9III. OPERATION INSTRUCTIONS7Operation InstructionsFunctionPower modePress the “Function” button, choose “Power”mode, the buzzer sounds, the “ON/STANDBY”and the “power” indicator lamp lights up, the induction cooker entering the temperature state.Temperature modePress the “Function” button, choose “Temp.”mode, the buzzer sounds, the “ON/STANDBY”and the “Temp.” indicator lamp lights up, the induction cooker entering the temperature state.TimerPress the “Timer” button to enter the timer mode. When the timer indicator lights up and the numbers blink on the display, press the “+” or “-” button to adjust the time duration.When the adjustment is finished, the number on the display will be shown after blinking for several seconds. The induction cooker starts counting down.When the counting down is over, the induction cooker automatically stops heating and switches off.The induction cooker will shut down when the default timer is reached unless the user sets the timer himself.

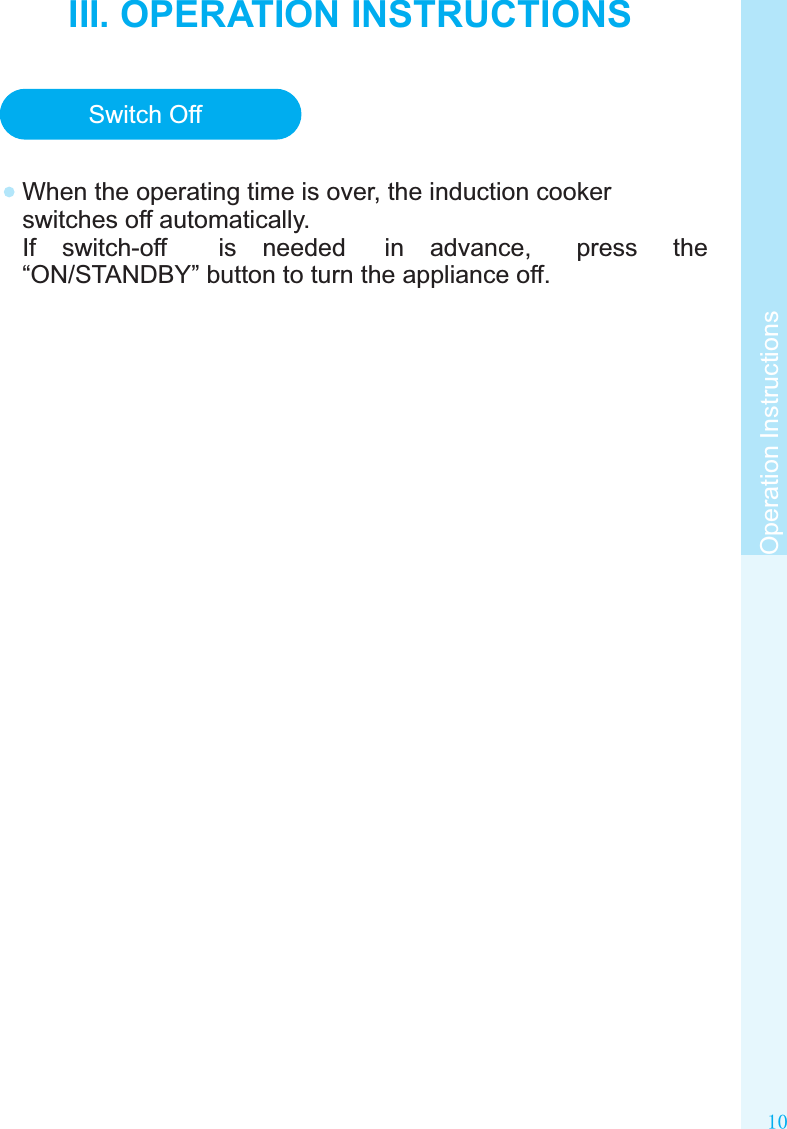

10Operation InstructionsIII. OPERATION INSTRUCTIONSTimerSwitch OffWhen the operating time is over, the induction cooker switches off automatically.If switch-off is needed in advance, press the “ON/STANDBY” button to turn the appliance off.
11IV. COMPATIBLE COOKWAREIron oil fryingpanStainless steel por Iron pan Iron kettleEnamel stainlesssteel kettleEnamel cookingutensilIron plateRequirement for pot materials: containing magnetic inducting materials.Shape requirement: plat bottom, with the diameter more than 12 cm and less than 20 cm.After the first use, some white spots would appear at the bottom of the pot. This is normal.Please pour some vinegar into the pot, heat it at about 60-80 C, then wipe the spots away with brush.Incompatible pots material: glass, ceramic, aluminium, copper and other non magnetic material.If the pot removed, the induction cooker will stop heating immediately. After the buzzer sounds for 1 minute, it will go into standby mode automatically. V. CLEANING AND MAINTENANCEBefore cleaning, please switch off the appliance first and then disconnect the power plug from the power outlet. Wait till the cooker plate of the induction cooker is not hot and start cleaning.After using the induction cooker for a long time, the opening of air inlet/air outlet will pile up with dust or other dirt, please wipe it with a soft dry cloth. Dust in the air inlet and outlet can be cleaned by using a soft brush or a mini vacuum cleaner.Note: Please do not rinse it with water.9Compatible Cookware

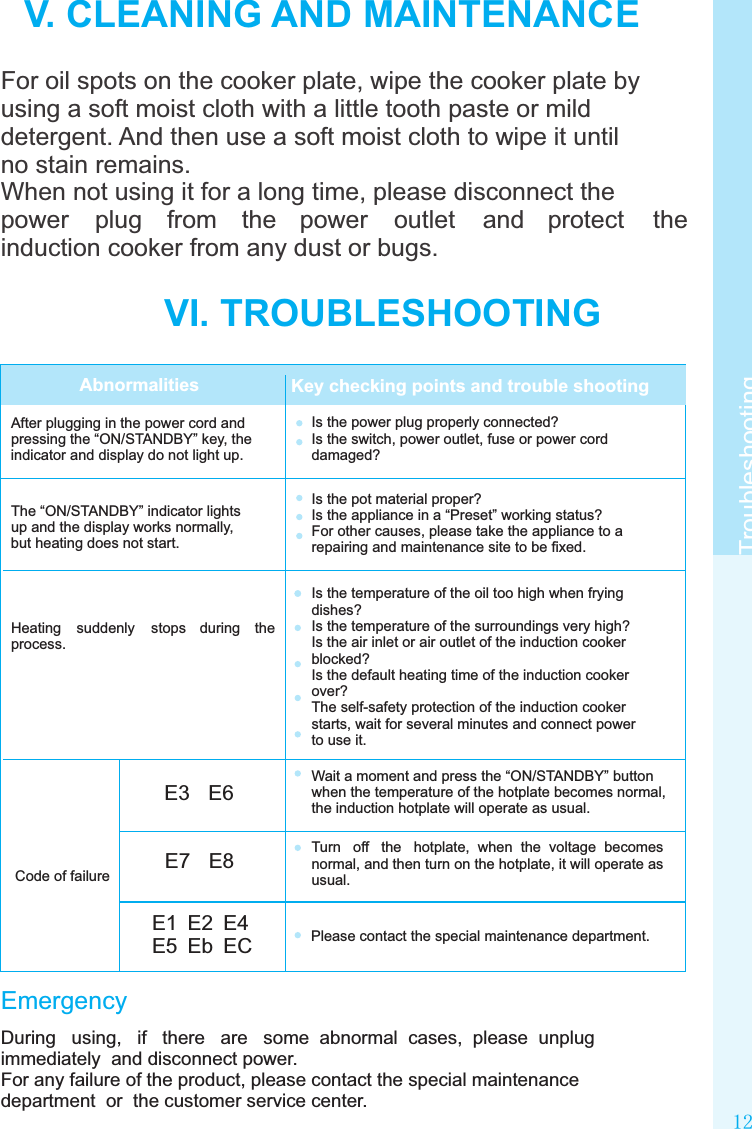

12V. CLEANING AND MAINTENANCEFor oil spots on the cooker plate, wipe the cooker plate by using a soft moist cloth with a little tooth paste or mild detergent. And then use a soft moist cloth to wipe it until no stain remains.When not using it for a long time, please disconnect the power plug from the power outlet and protect the induction cooker from any dust or bugs.VI. TROUBLESHOOTINGAbnormalities Key checking points and trouble shootingAfter plugging in the power cord and pressing the “ON/STANDBY” key, the indicator and display do not light up.The “ON/STANDBY” indicator lights up and the display works normally, but heating does not start.Heating suddenly stops during the process.Is the power plug properly connected?Is the switch, power outlet, fuse or power cord damaged?Is the pot material proper?Is the appliance in a “Preset” working status?For other causes, please take the appliance to a repairing and maintenance site to be fixed.Is the temperature of the oil too high when frying dishes?Is the temperature of the surroundings very high?Is the air inlet or air outlet of the induction cooker blocked?Is the default heating time of the induction cooker over?The self-safety protection of the induction cooker starts, wait for several minutes and connect power to use it.Code of failureE3 E6Wait a moment and press the “ON/STANDBY” button when the temperature of the hotplate becomes normal, the induction hotplate will operate as usual. E7 E8 Turn off the hotplate, when the voltage becomes normal, and then turn on the hotplate, it will operate as usual. E1 E2 E4E5 Eb EC Please contact the special maintenance department.EmergencyDuring using, if there are some abnormal cases, please unplug immediately and disconnect power.For any failure of the product, please contact the special maintenance department or the customer service center. Troubleshooting
1311VII.WARRANTYwarrantyIf problems occur with the product, please contact our specific repair and maintenance site or service center.One year warranty for the induction cooker.The starting warranty date refers to the invoice opening date of the product.Any problem caused by the following items is not included in the warranty:1. Damage caused by incorrect use, storing or maintenance by the customer.2. Disassembling or repairing the appliance by a repair agent that is not appointed by our company, resulting in damage to the appliance.3. The model number on the invoice is different from the one of the product to be repaired, or the model number on the invoice is modified.4. No valid invoice.5. Damage due to force majeure.6. Putting the induction cooker to commercial use.7. We are not responsible for accidents arising due to the use of our accessories not designed for utlilisation with this product.8. Using the product in a non-household environment is not covered by the warranty scope.9. Man-made issue or problems caused by incorrect use are not covered by the warranty scope.For those products beyond the warranty, the customer service center of the company will still serve you warmly.If there is technical amendment for the product, it will be edited into the updated version of the instruction manual. Please be aware that we will not inform customers of this separately. If the appearance or color of the product is modified, please refer to the real appliance as a standard..Guangdong Midea Consumer Electric Manufacturing Co.,LtdAddress: NO.19 San Le Road, Beijiao, Shunde, Foshan, Guangdong, ChinaWeb: www.midea.com.cnVIII.SPECIAL DECLARATION
