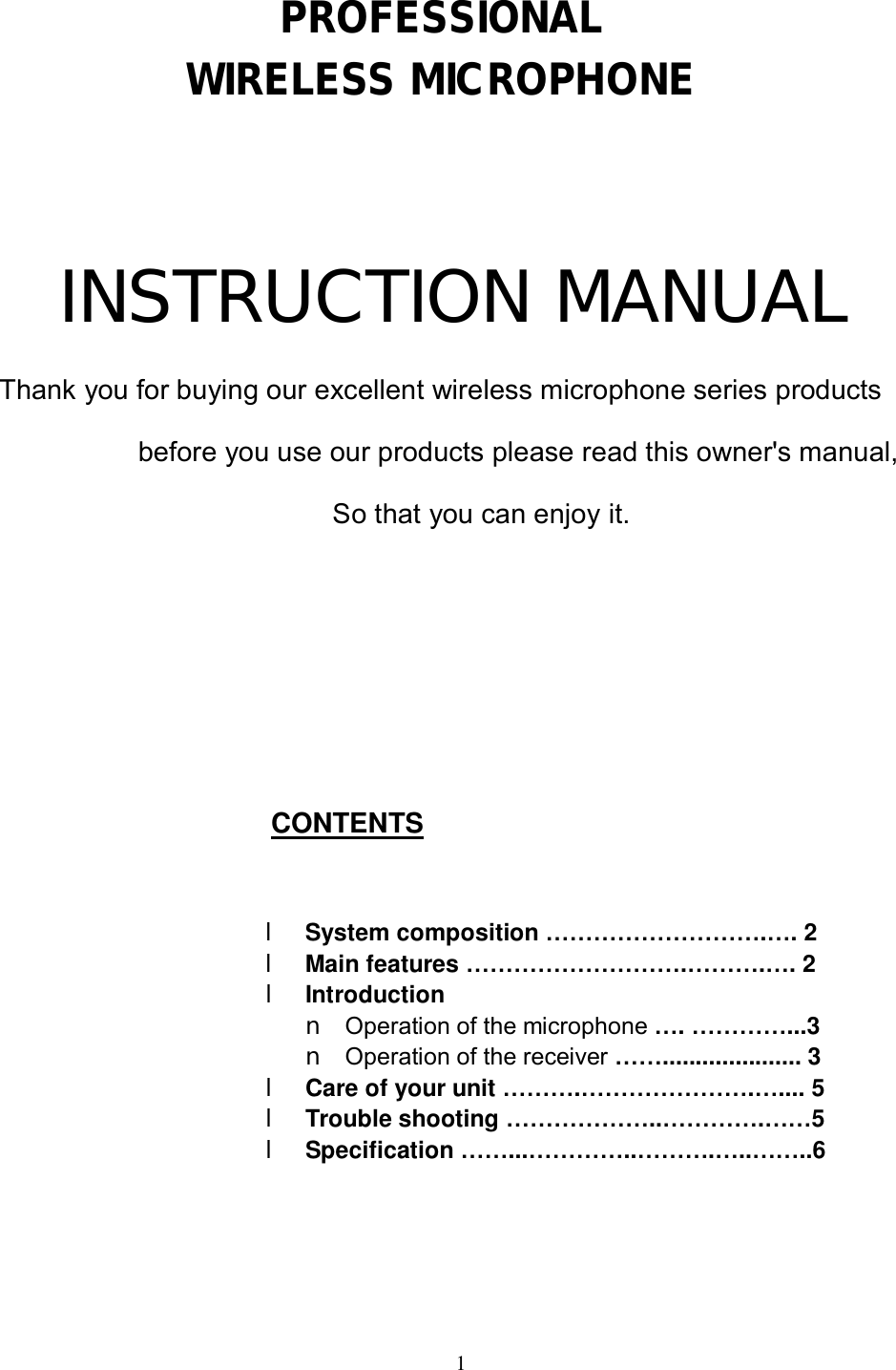

1 PROFESSIONAL WIRELESS MICROPHONE INSTRUCTION MANUAL Thank you for buying our excellent wireless microphone series products before you use our products please read this owner's manual, So that you can enjoy it. CONTENTS l System composition ……………………….…. 2 l Main features ……………………….……….…. 2 l Introduction n Operation of the microphone …. …………...3 n Operation of the receiver ……..................... 3 l Care of your unit ……….………………….….... 5 l Trouble shooting ………………..………….……5 l Specification ……...…………..……….…..……..6

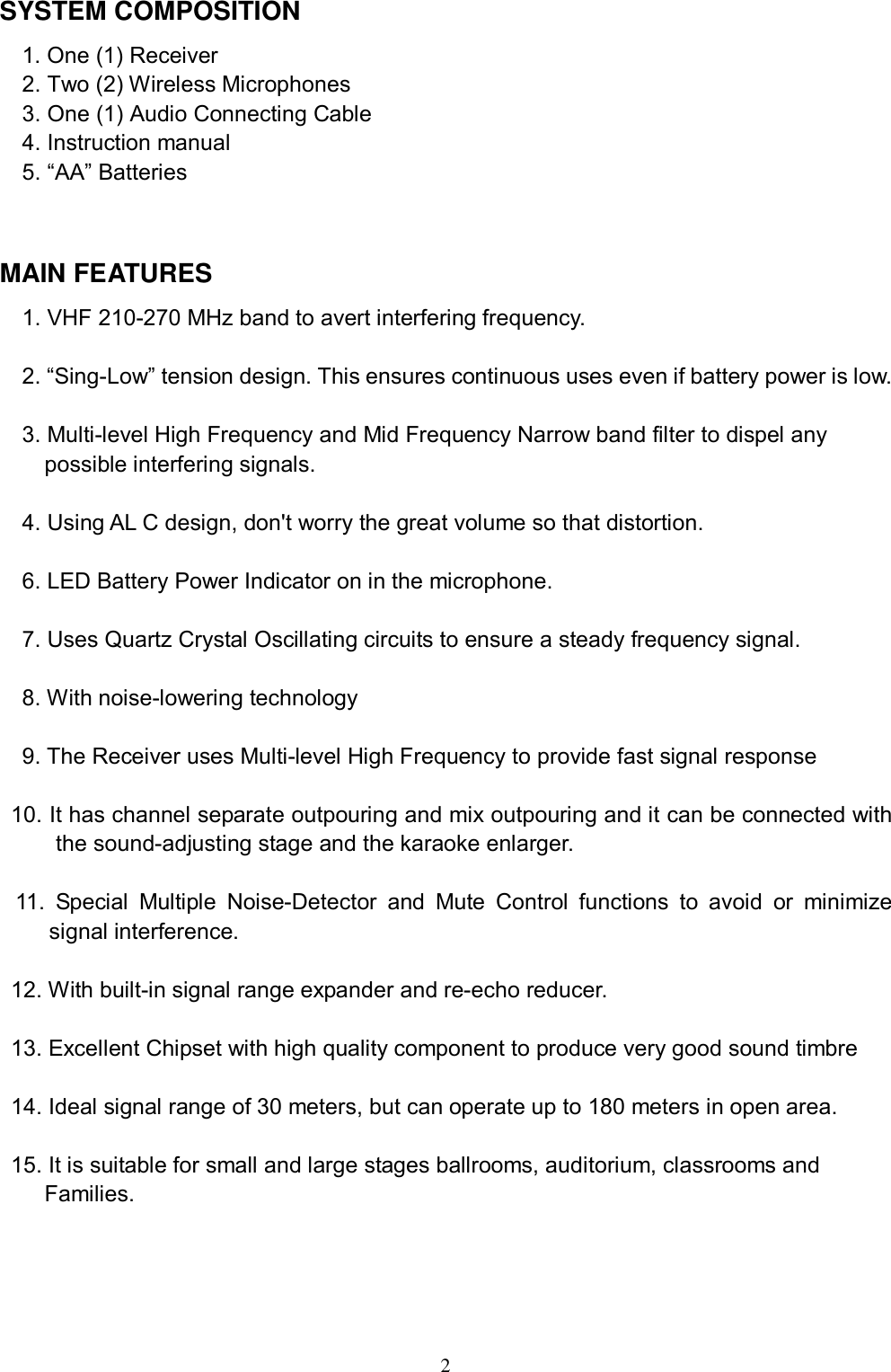

2 SYSTEM COMPOSITION 1. One (1) Receiver 2. Two (2) Wireless Microphones 3. One (1) Audio Connecting Cable 4. Instruction manual 5. “AA” Batteries MAIN FEATURES 1. VHF 210-270 MHz band to avert interfering frequency. 2. “Sing-Low” tension design. This ensures continuous uses even if battery power is low. 3. Multi-level High Frequency and Mid Frequency Narrow band filter to dispel any possible interfering signals. 4. Using AL C design, don't worry the great volume so that distortion. 6. LED Battery Power Indicator on in the microphone. 7. Uses Quartz Crystal Oscillating circuits to ensure a steady frequency signal. 8. With noise-lowering technology 9. The Receiver uses Multi-level High Frequency to provide fast signal response 10. It has channel separate outpouring and mix outpouring and it can be connected with the sound-adjusting stage and the karaoke enlarger. 11. Special Multiple Noise-Detector and Mute Control functions to avoid or minimize signal interference. 12. With built-in signal range expander and re-echo reducer. 13. Excellent Chipset with high quality component to produce very good sound timbre 14. Ideal signal range of 30 meters, but can operate up to 180 meters in open area. 15. It is suitable for small and large stages ballrooms, auditorium, classrooms and Families.

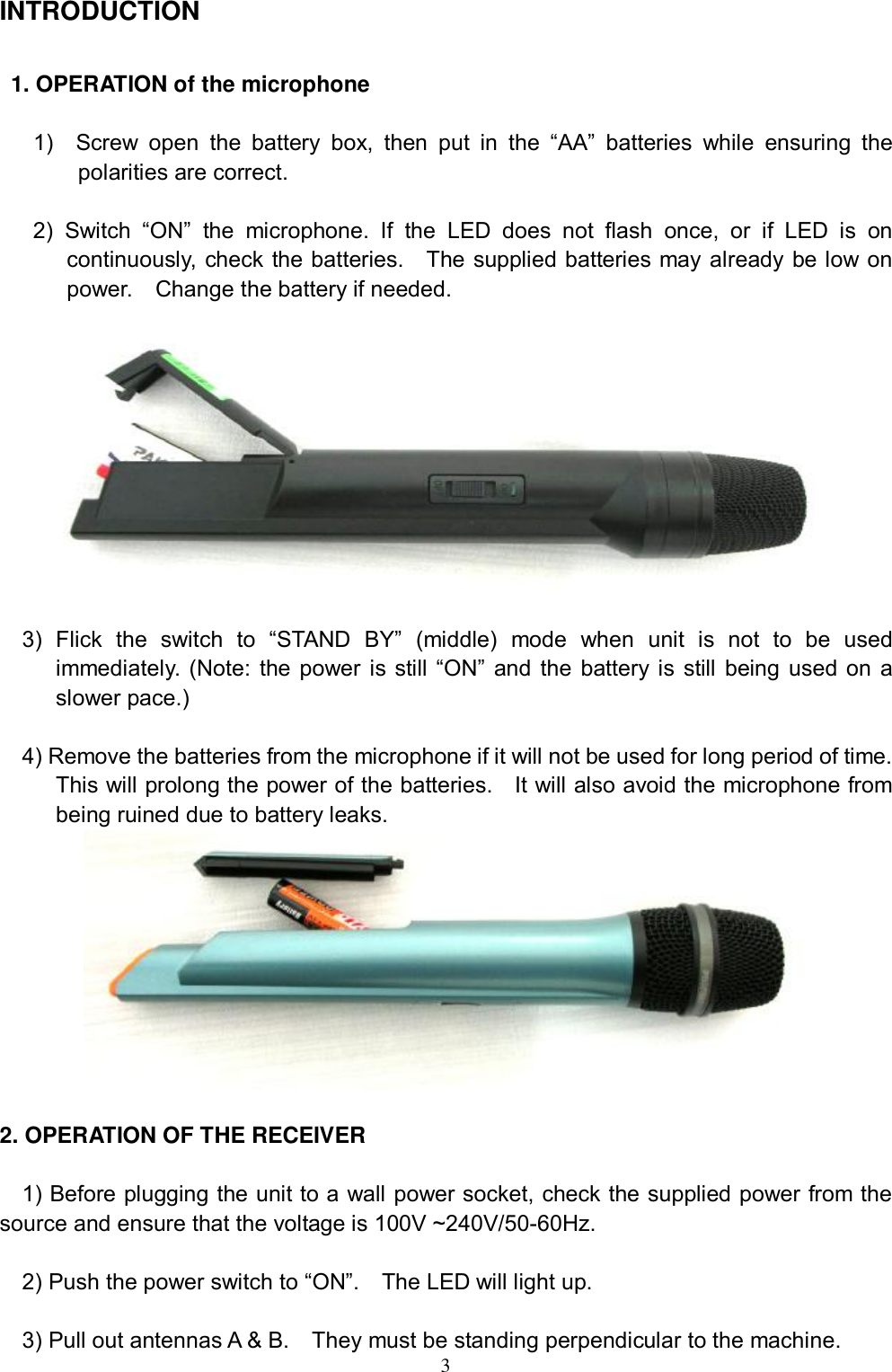

3 INTRODUCTION 1. OPERATION of the microphone 1) Screw open the battery box, then put in the “AA” batteries while ensuring the polarities are correct. 2) Switch “ON” the microphone. If the LED does not flash once, or if LED is on continuously, check the batteries. The supplied batteries may already be low on power. Change the battery if needed. 3) Flick the switch to “STAND BY” (middle) mode when unit is not to be used immediately. (Note: the power is still “ON” and the battery is still being used on a slower pace.) 4) Remove the batteries from the microphone if it will not be used for long period of time. This will prolong the power of the batteries. It will also avoid the microphone from being ruined due to battery leaks. 2. OPERATION OF THE RECEIVER 1) Before plugging the unit to a wall power socket, check the supplied power from the source and ensure that the voltage is 100V ~240V/50-60Hz. 2) Push the power switch to “ON”. The LED will light up. 3) Pull out antennas A & B. They must be standing perpendicular to the machine.

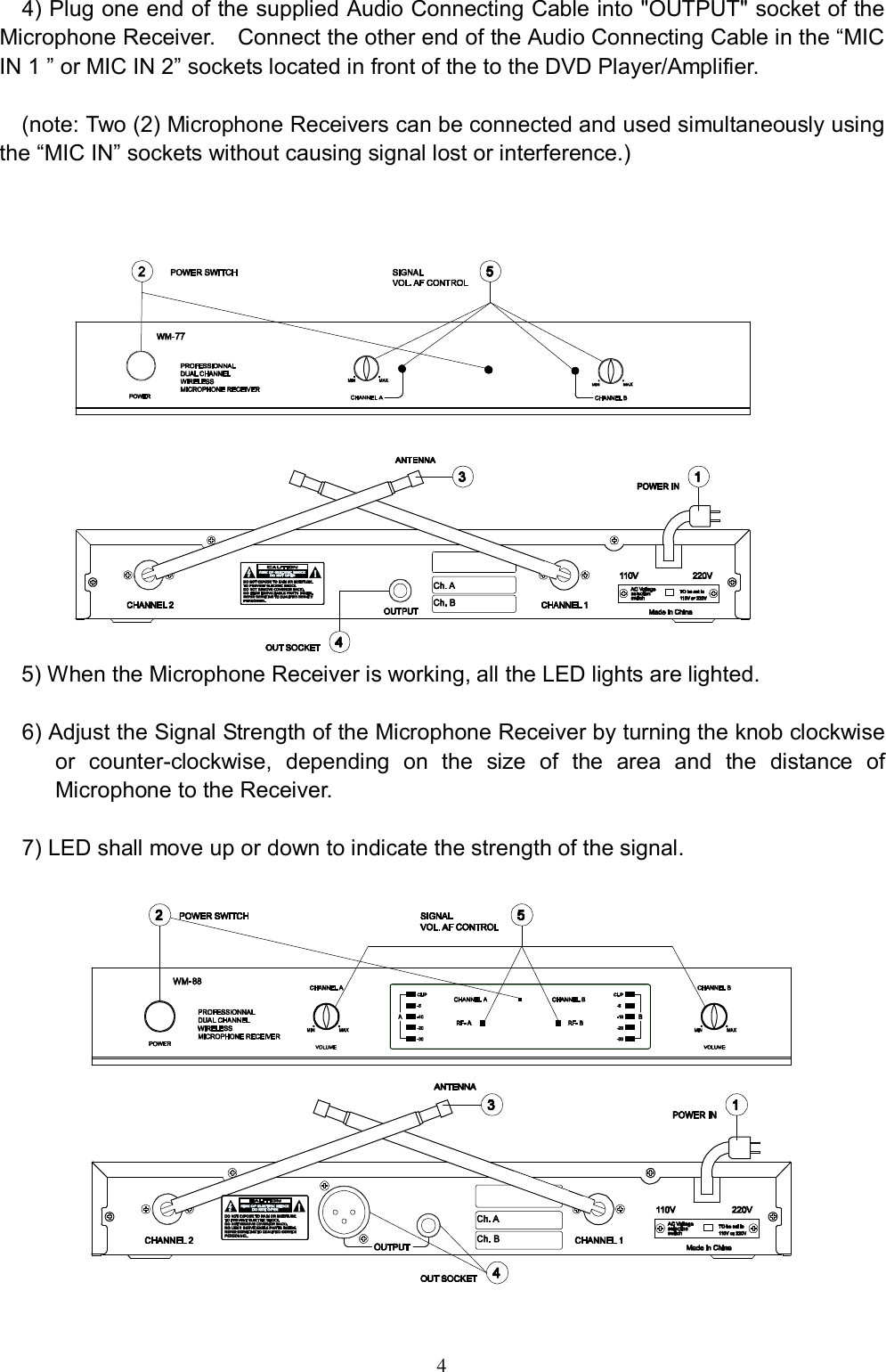

4 4) Plug one end of the supplied Audio Connecting Cable into "OUTPUT" socket of the Microphone Receiver. Connect the other end of the Audio Connecting Cable in the “MIC IN 1 ” or MIC IN 2” sockets located in front of the to the DVD Player/Amplifier. (note: Two (2) Microphone Receivers can be connected and used simultaneously using the “MIC IN” sockets without causing signal lost or interference.) 5) When the Microphone Receiver is working, all the LED lights are lighted. 6) Adjust the Signal Strength of the Microphone Receiver by turning the knob clockwise or counter-clockwise, depending on the size of the area and the distance of Microphone to the Receiver. 7) LED shall move up or down to indicate the strength of the signal.

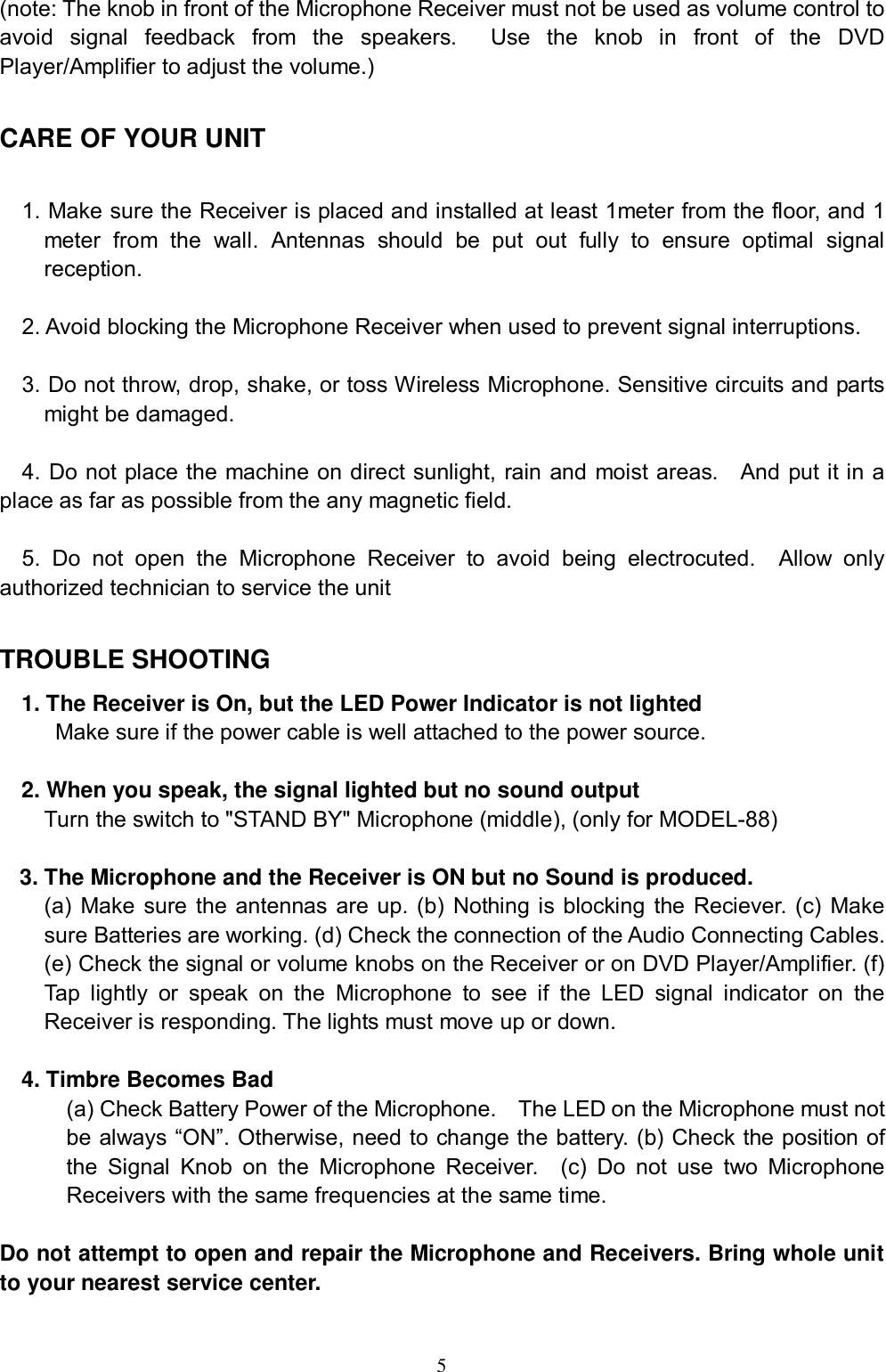

5 (note: The knob in front of the Microphone Receiver must not be used as volume control to avoid signal feedback from the speakers. Use the knob in front of the DVD Player/Amplifier to adjust the volume.) CARE OF YOUR UNIT 1. Make sure the Receiver is placed and installed at least 1meter from the floor, and 1 meter from the wall. Antennas should be put out fully to ensure optimal signal reception. 2. Avoid blocking the Microphone Receiver when used to prevent signal interruptions. 3. Do not throw, drop, shake, or toss Wireless Microphone. Sensitive circuits and parts might be damaged. 4. Do not place the machine on direct sunlight, rain and moist areas. And put it in a place as far as possible from the any magnetic field. 5. Do not open the Microphone Receiver to avoid being electrocuted. Allow only authorized technician to service the unit TROUBLE SHOOTING 1. The Receiver is On, but the LED Power Indicator is not lighted Make sure if the power cable is well attached to the power source. 2. When you speak, the signal lighted but no sound output Turn the switch to "STAND BY" Microphone (middle), (only for MODEL-88) 3. The Microphone and the Receiver is ON but no Sound is produced. (a) Make sure the antennas are up. (b) Nothing is blocking the Reciever. (c) Make sure Batteries are working. (d) Check the connection of the Audio Connecting Cables. (e) Check the signal or volume knobs on the Receiver or on DVD Player/Amplifier. (f) Tap lightly or speak on the Microphone to see if the LED signal indicator on the Receiver is responding. The lights must move up or down. 4. Timbre Becomes Bad (a) Check Battery Power of the Microphone. The LED on the Microphone must not be always “ON”. Otherwise, need to change the battery. (b) Check the position of the Signal Knob on the Microphone Receiver. (c) Do not use two Microphone Receivers with the same frequencies at the same time. Do not attempt to open and repair the Microphone and Receivers. Bring whole unit to your nearest service center.

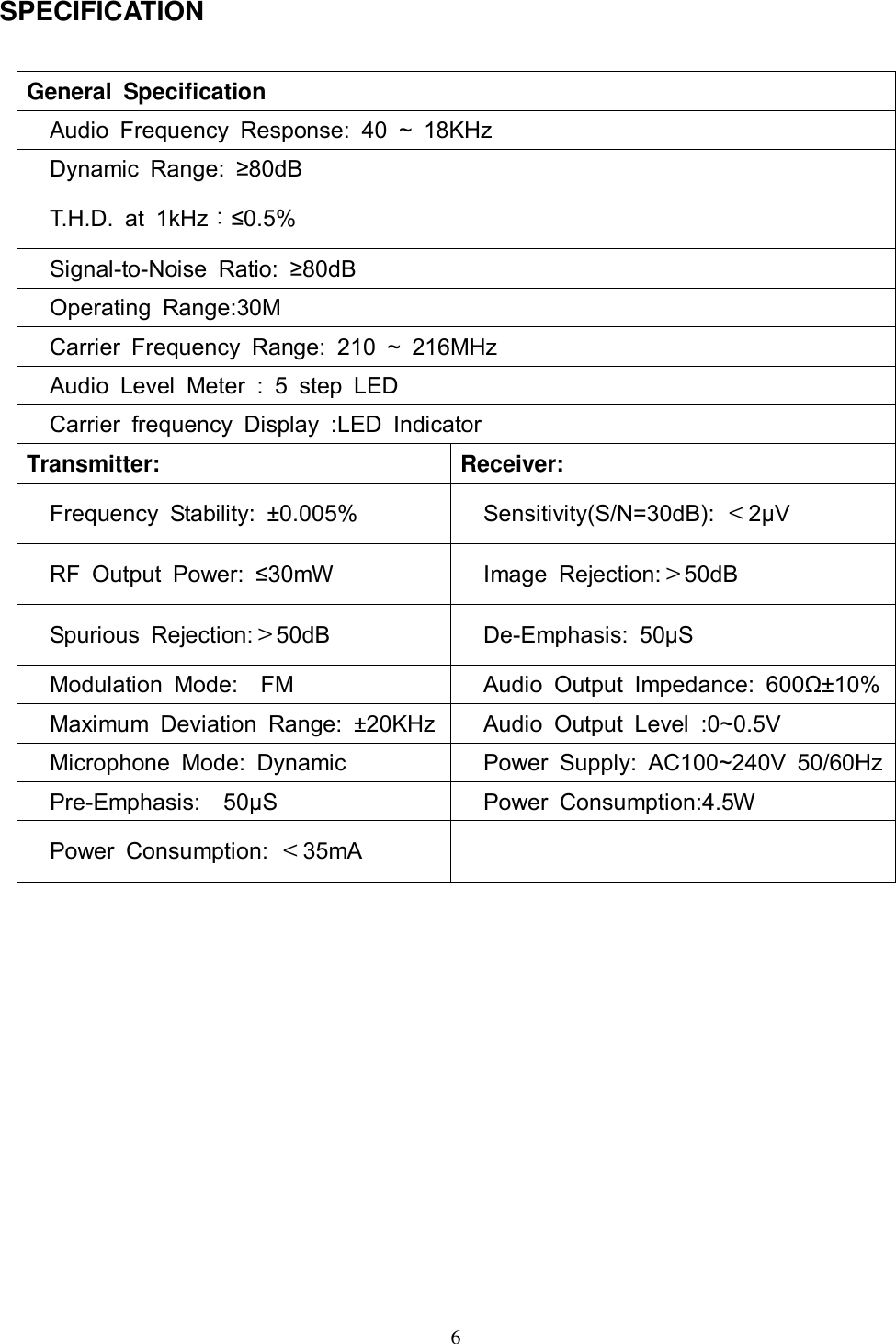

6 SPECIFICATION General Specification Audio Frequency Response: 40 ~ 18KHz Dynamic Range: ≥80dB T.H.D. at 1kHz：≤0.5% Signal-to-Noise Ratio: ≥80dB Operating Range:30M Carrier Frequency Range: 210 ~ 216MHz Audio Level Meter : 5 step LED Carrier frequency Display :LED Indicator Transmitter: Receiver: Frequency Stability: ±0.005% Sensitivity(S/N=30dB): ＜2μV RF Output Power: ≤30mW Image Rejection:＞50dB Spurious Rejection:＞50dB De-Emphasis: 50μS Modulation Mode: FM Audio Output Impedance: 600Ω±10% Maximum Deviation Range: ±20KHz Audio Output Level :0~0.5V Microphone Mode: Dynamic Power Supply: AC100~240V 50/60Hz Pre-Emphasis: 50μS Power Consumption:4.5W Power Consumption: ＜35mA

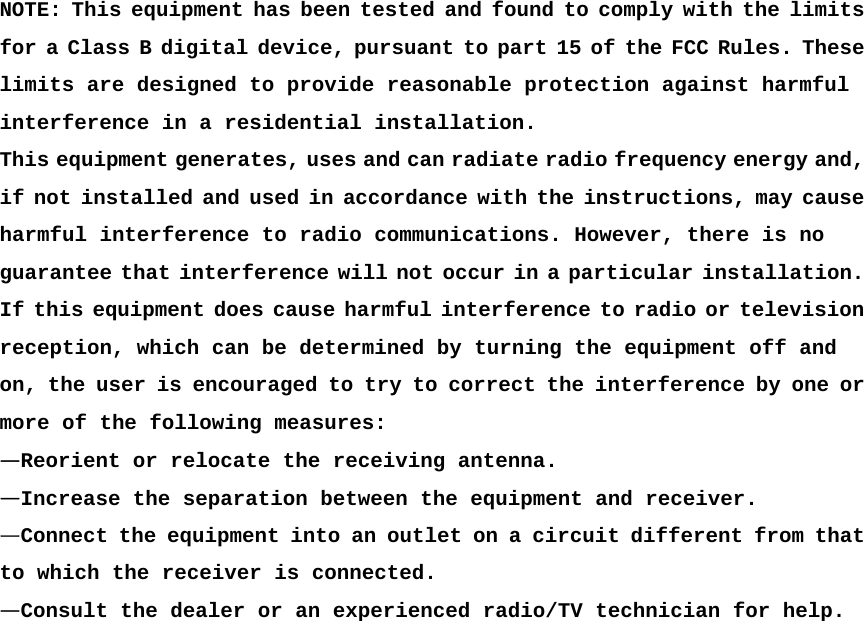

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
