MEILOON WHT510 Wireless 5.1CH Home Theater Speaker System User Manual WHT 510
Meiloon Industrial Co., Ltd. Wireless 5.1CH Home Theater Speaker System WHT 510
MEILOON >
Users Manual
WHT-510
OPERATION MANUAL
23
1
Power on
Plug into power
Connect Audio/Video
2
3
4-5
6
1
9
10
11
12
7-8
Table of Content
Caution
System
Remote Control Button Layout
Operation
Specifications
Troubleshooting
Emergency
Warranty Informatioin
Overview
1 2 3 Solution
Page
..
2
Cautions
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: SHOCK HAZARD-DO NOT OPEN
AV IS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
Important Safety：Caution
This product can use both AC 115V~60Hz To Prevent electrical shock, do not open product
and AC 230V~50Hz power supply. casing. there are no user-serviceable parts therein.
Check local voltage output before plugging Seek only qualified service personnel for repairs. A
into AC outlet. lightning flash within an equilateral triangle marks the
presence of harmful voltage, which constitutes a risk of
Caution：electric shock.
Limited Warranty does not cover any damage The lightning flash with arrowhead
to the product caused by an incorrect input symbol within an equilateral triangle is in
voltage or damage related therein. tendedto alert the user to the presence of
Warning：uninsulated “dangerous” voltage within
the product's enclosure that may be of
In order to prevent the risk of fire or electrical sufficient magnitude to constitute a risk of
shock do not expose product to heating sources electric shock to humans.
or humid climate. Keep speakers away from
microwave oven.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important operating
and maintenance(servicing) instructions in
this manual
Before using the product please read the operating 8.Foreign Material:
instructions carefully. Take special Never push objects of any kind into this product
care to follow the indicated warnings both through openings as they may touch dangerous
within this manual and on the product itself. voltage points or short-out parts that could result
1.Power Source: in a fire or electric shock.
This product should only be powered by the power 9.Maintenance:
sources suggested within this manual or on the Never clean the product with alcohol, benzene,
product itself. gasoline, naphtha or other volatile liquids. Clean
2.Power Cord Protection: the product with a polishing cloth or a soft dry
Be sure to route power supply cords so they are cloth only.
unlikely to interfere with people walking or items 10.Carts and Stands:
being moved. Pay close attention to protect the The product should be transported
plugs' point-of-entry into a wall or the product with care when used with a
itself. cart or stand. Quick stop, excess
3.Ground and Polarization: force, and uneven surface may
Beware of the appliance's grounding and cause the cart and product
polarization. combination to overturn. may
cause both the cart and product to
4.Ventilation: overturn.
Do not place objects atop of the product. Allow 5 11.Nonuse period:
cm clearance between the rear of the product and
the wall. Never stand product on un-firm ground When the product is left unused for an extend
(i.e. bed, sofa, carpet, etc.) period of time unplug the product from the wall
outlet.
5.Moisture:
12.Unusual Smell:
Do not use this product where contact with water
is likely or possible. If smoke or an unusual smell is detected,
immediately turn off the power and unplug the
6.Temperature: product then contact your local service personnel.
The product may not function properly in extreme 13.Servicing:
low temperature conditions. Ideal working
temperature is above 5°C(41°F). Do not attempt to service this product yourself by
opening or removing that may expose you to
7.Heat: dangerous voltage or other hazards. Refer all
The product should be situated away from heat servicing to qualified service personnel.
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
Important Safety Precautions
3

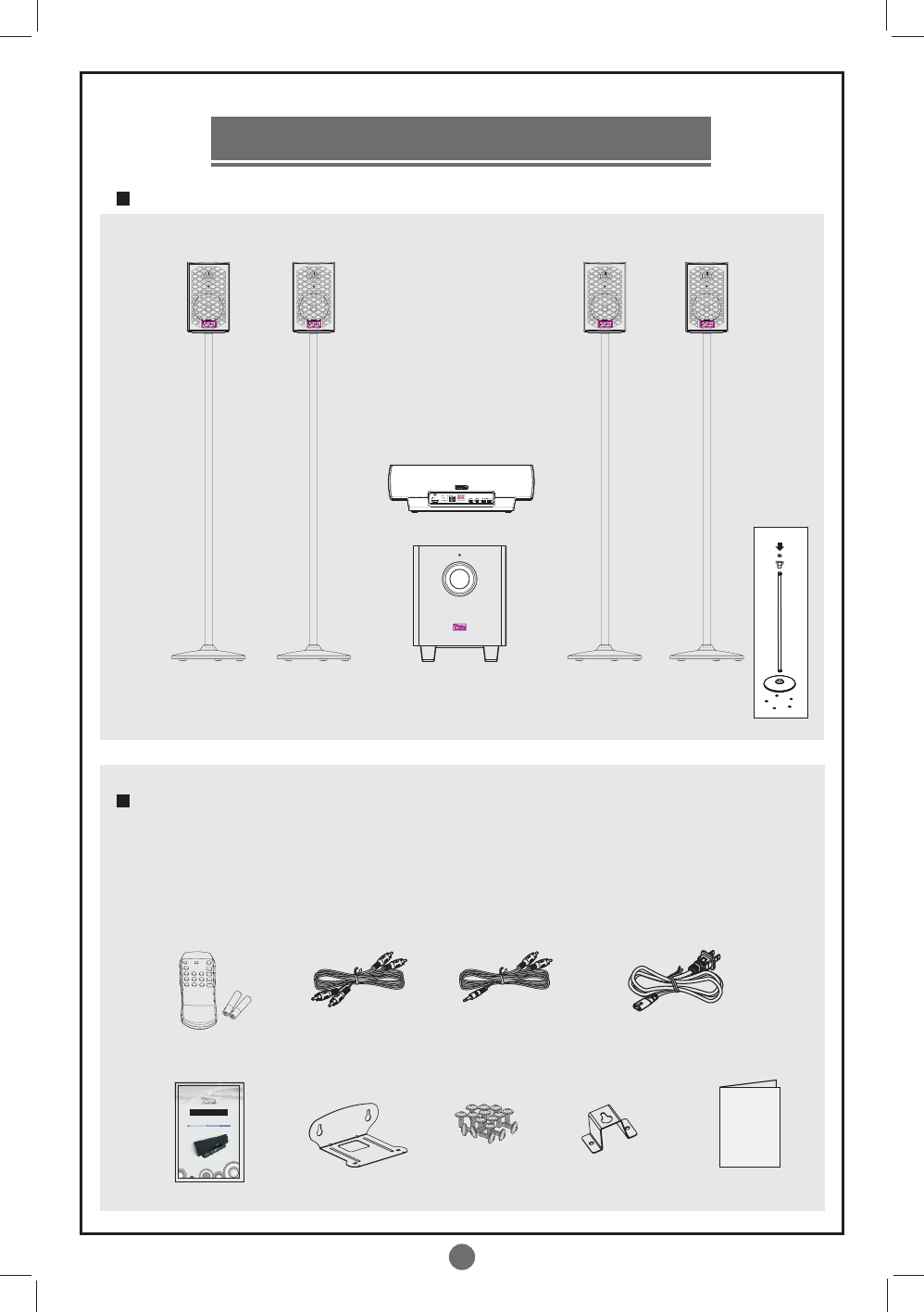

System Overview
System
Audio CableX1
(RCA to RCA)
Audio CableX1
(3.5mm to RCA)
Remote Control,
BatteriesX2
AC power cord 6 feet X 2
AC power cord 9 feet X 4
Operation Manual Satellite Speaker
BracketX8
Center Speaker
BracketX1
ScrewsX18
(M4x8mm)
Template
Accessories
Please check and identify all supplied accessories. Keep the original packaging and cardboard
boxes for future needs.
Center channel speaker
+
(Wireless transmitter)
Front (left) speakers
Front (right) speakers
Sub woofer
Surround (right) speakers
Surround (left) speakers
Stand Setup
23
1
Power on
Plug into pow er
Connect Aud io /Vide o
WHT-510
OPERATION MANUAL
4
POW ER CON SUM PTION :
30 Watts
AC
100V-240V
50-60Hz
L
R
ID
1234
AUDIO OUT
RL
DVD with 5.1 output
AUDIO OUT
L
R
Ls
Rs
C
SUB
RDS
C
S
CARD READER
AUDIO/VIDEO
STAND BY
A/V Receiver with 5.1 output
A/V Receiver with stereo output
DVB
SET-TOP-BOX
TV/DTV
RDS
C
S
CARD READER
AUDIO/VIDEO
STAND BY
DVD With stereo output
1 2 3 Solution
..
MP3/CD PLAYER/WALKMAN
B
C
A

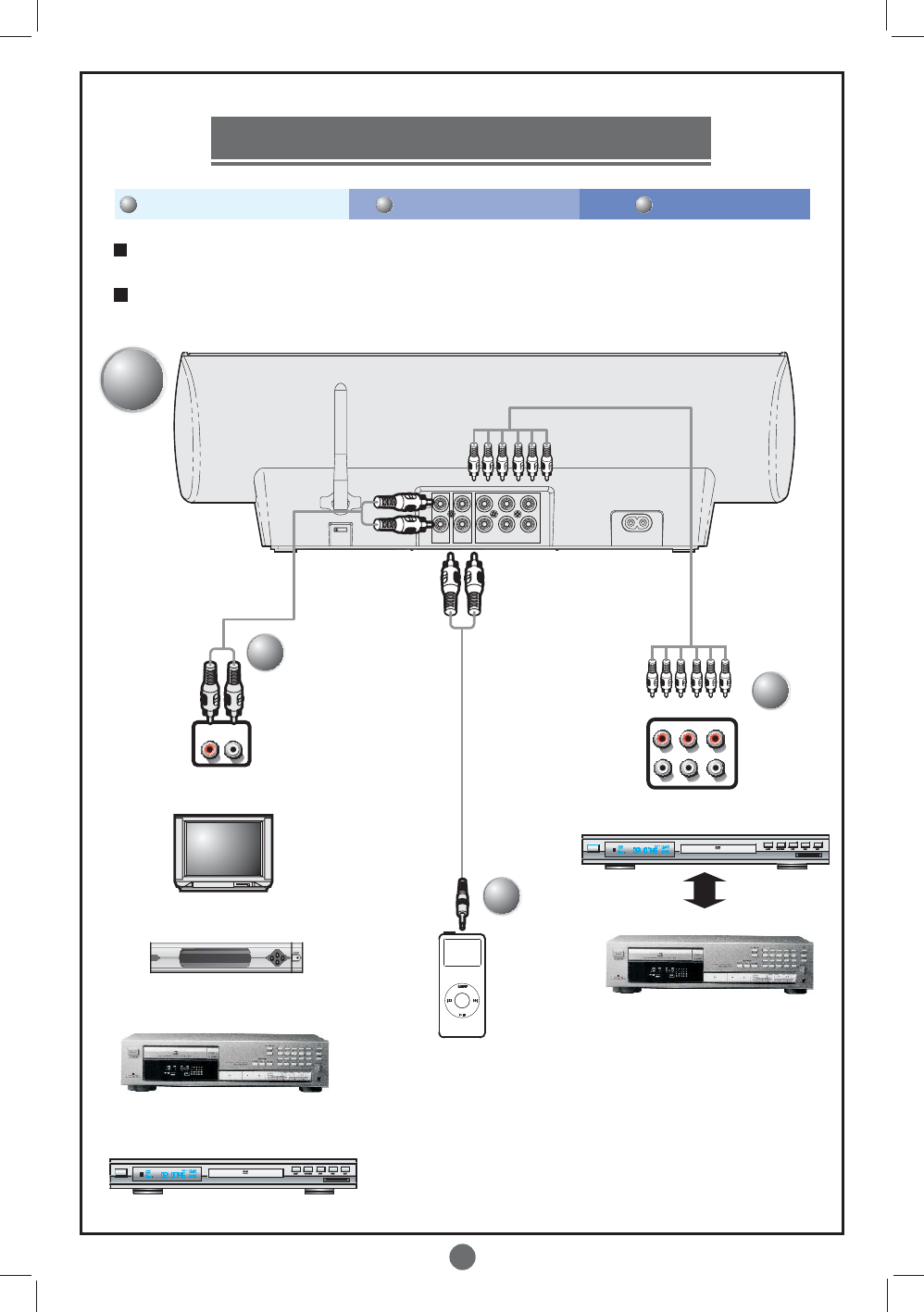

Before beginning, set all speakers, including subwoofer, to the same ID channel
(i.e. 1,2,3, or 4) located on the backside of each speaker/sub woofer.
NOTE: For audio sources with Digital Decoding (i.e. DTS, Dolby Digital, THX, etc.) foll example
C for connecting audio.
Connect Audio/Video Plug into power Power on
1 2 3
1
OR
POWE R CONSU MPTION :
30 Watts
AC
100V -2 40 V
50-6 0Hz
L
R
ID
1234
5
1 2 3 Solution
OR

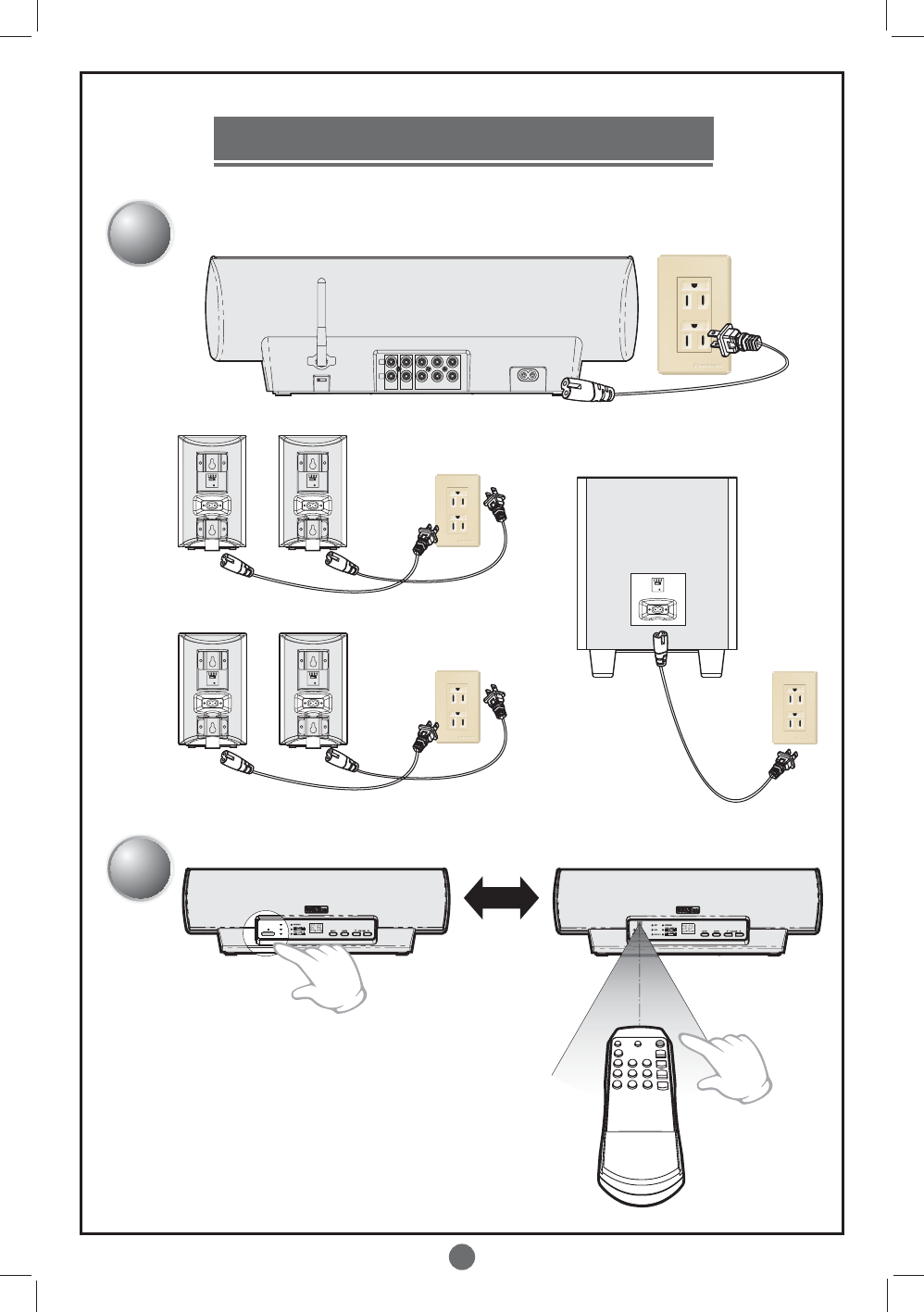

POWER ON
..
Connect power cord
PLUG INTO POWER
2
3
6
Remote controller (Operation buttons)
POWER：Powers On/Off
MUTE：Sound On/Off, light flashes
RESET：Reset front speakers volume
INPUT：Audio input
STEREO：Turn on stereo
MUSIC：Turn on (music mode)
MOVIE：Turn on (movie mode)
VOLUME：( 0dB~ 40dB)
：( 9dB~ -9dB)Front speakers volume
L/R：Adjust front speakers volume
Ls/Rs：Adjust surround speakers volume
CENTER：Adjust center channel speaker volume
SUB：Adjust subwoofer volume
(MUSIC) (MOVIE)
11
1
2
1
3
11
1
2
1
3
PRO LOGIC PRO LOGIC

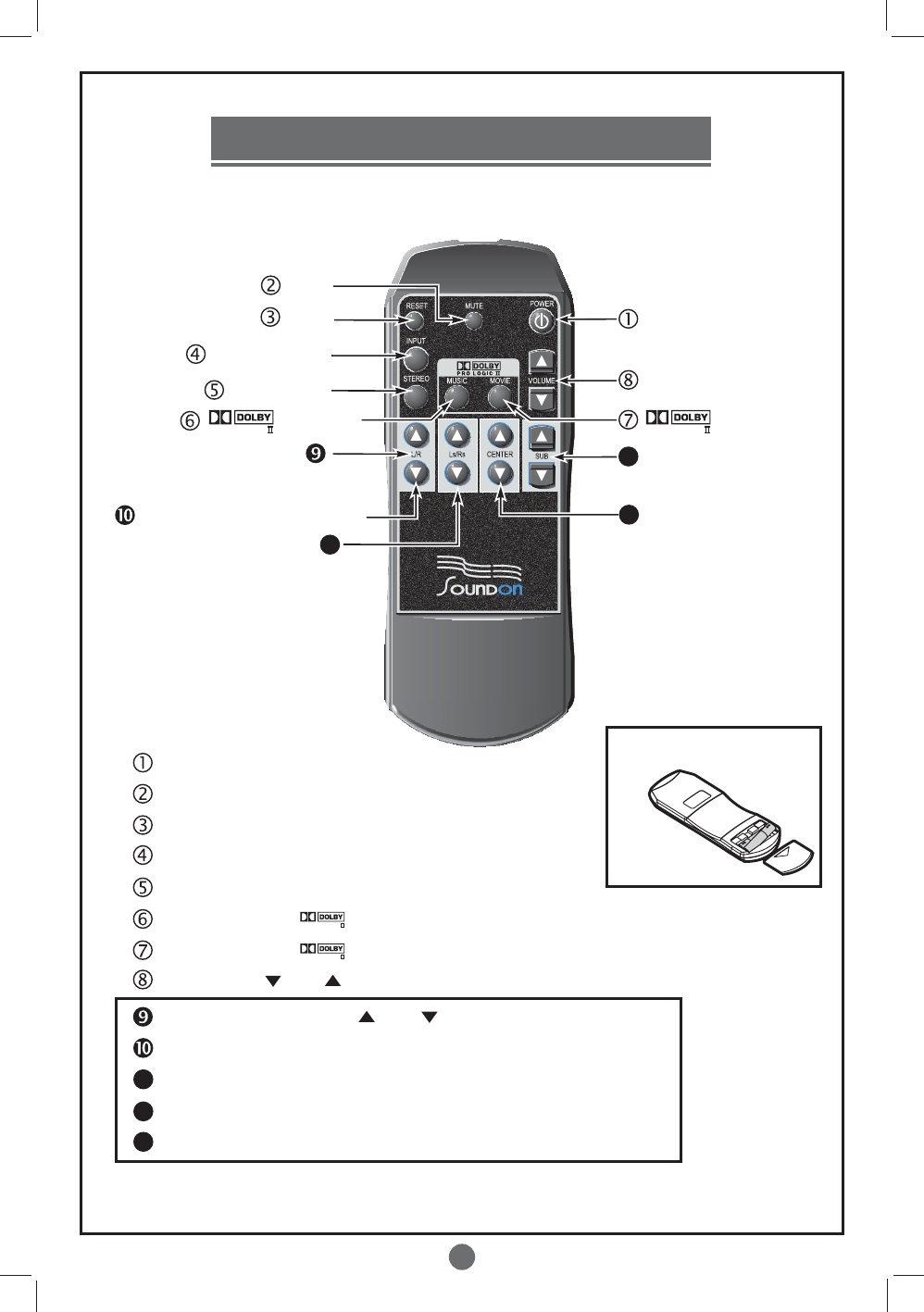

Remote Control Button Layout
Power
Moster Volume Keys
Subwoofer Volume Keys
Center Channel Speaker
Volume Keys
Reset
Mute
Input Selection
Stereo sound
Front Speakers Volume Control
Front Speakers Volume Keys
Surround Speakers Volume Keys
Warning: Polarity of battery must be
installed correctly for the remote control
to function.
PRO LOGIC
PRO LOGIC
After restart, all settings are returned to previous memory before power off.
7
AV1 AV2
DVD5.1
STEREO MUSIC MOVIE
PRO L OGIC PRO L OGIC
STEREO MUSIC MOVIE
PRO L OGIC PRO L OGIC

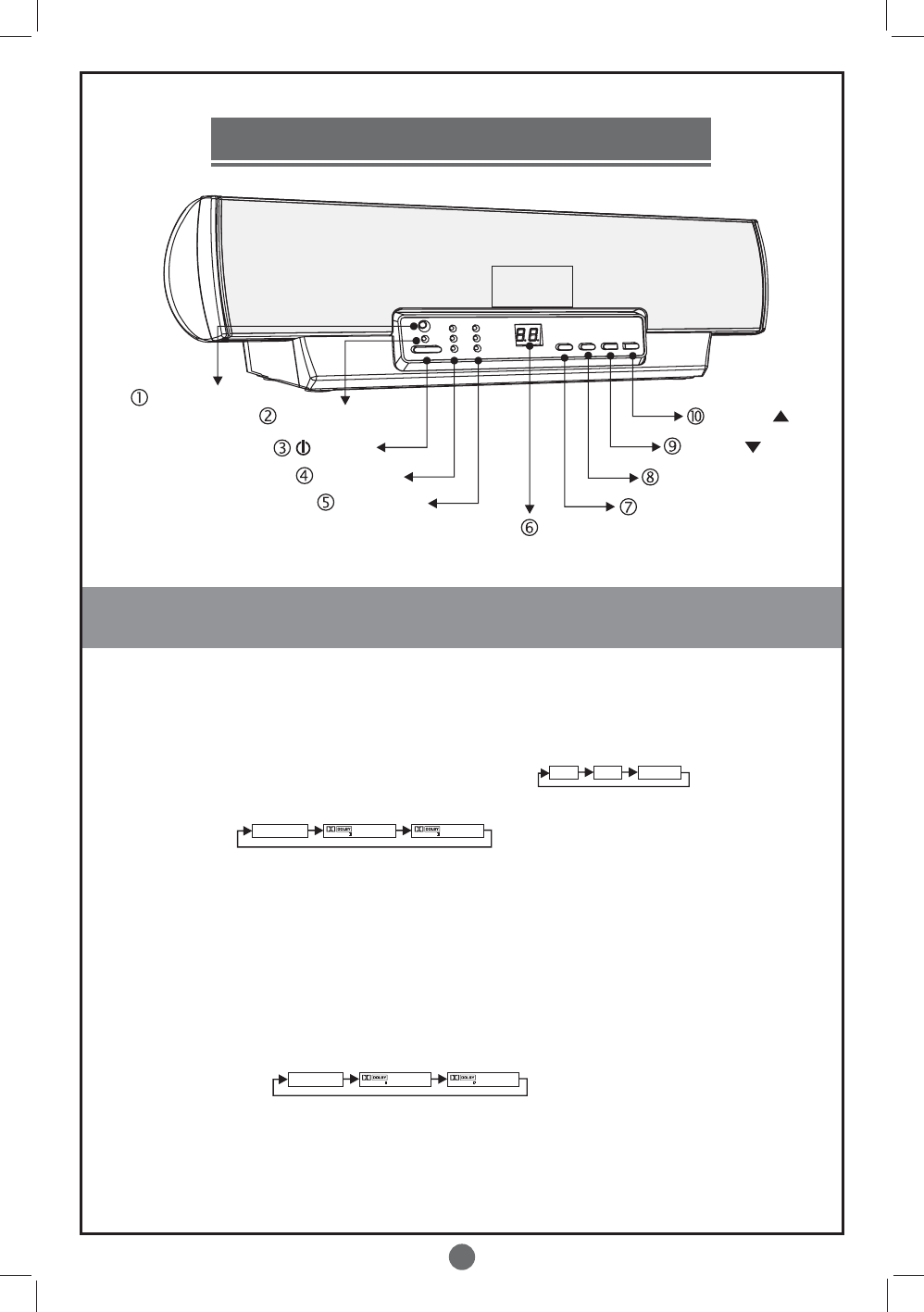

Operation
1.Infrared Receiver：Remote control receiving window; Effective range: 10 meters.
2.On/Off Indicator：Power ON (light off)/Power off (light on).
3.On/Off：Power ON/Off.
4.Input type：indicates current input selection among
5.Mode type：When input selection is in AV1 or Av2, you can select playing mode to
This function is not available when input is DVD5.1.
6.Parameter display：Displays the main volume level. When adjusting a component's
volume control, the digital display will show that particular
component volume level for 3 seconds, then switch back to display
main volume level.
7.Input selection：select among AV1, AV2, DVD5.1
8.Mode selection：When input selection is in AV1 or AV2, you can select playing mode to
This function is not available when input is DVD5.1.
9.Volume：Decrease Main volume.
10.Volume：Increase Main volume.
Infrared Receiver
On/Off Indicator
On/Off
Input type
Mode type
Parameter display
Input selection
Mode selection
Volume
Volume
When activating the system, by turning on the center speaker, allow the system a few seconds to
automatically search for and inhabit the clearest frequency channel before hearing any sound.
8
I Code selection
Operation
POW ER CON SUMPT ION:
30 Watts
AC
100V-240V
50- 60Hz
L
R
ID
1234
D
1234
ID Channel Switch enlarged
5.1 Speaker Configuration

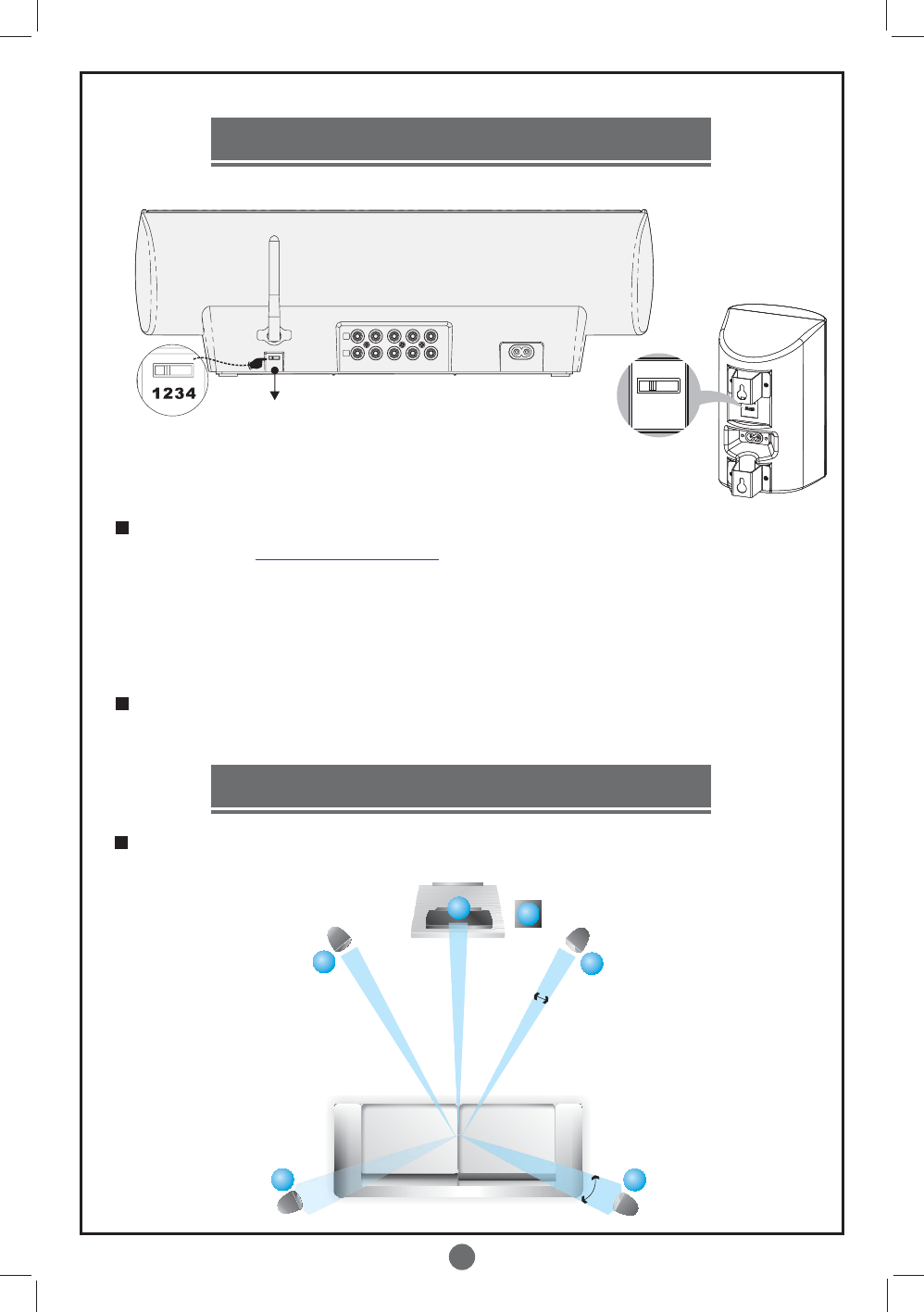

I.D. Code Selection:
The system speakers should be kept away from microwave oven, 2.4GHz cordless
phone, WiFi transmitter, etc. at a distance greater than 2 meters.
The I.D. Code Selection function allows the WHT-510 to operate with additional
speakers (visit for more information on additional speakers
sold separately) set up in other rooms or to avoid interference with another systems
of its kind.
If there are additional speakers or systems in the house they can be synced or un-
synced by either setting them on the same ID Code Selection or on a different ID
Code Selection as the other speakers/systems.
www.soundonusa.com
For the best 5.1 Surround Sound experience, configure the WHT-510 according to
the diagram below.
C
Front_R
90o
110o
30o
0o
22o
Sub
Front_L
LSRS
8
9
Specifications
Specifications are subject to change without notice.
WHT-510 Specifications
Audio
Radio Frequency
Input Sensitivity (1KHz, 15W) 1V RMS
THD+N <1% (@ 1K, with 10~22K LPF)
SNR >85 dB (@ 1KHz with A-weighted)
Frequency Response 20 Hz ~ 20 KHz (±3dB without EQ)
Crosstalk, (L to R ) >75 dB
Input Impedance 12 KΩ
Latency 15mS
Audio Sampling 16 bit per channel, 48 KHz
Audio Compression Non Compression
Frequency 2.400~2.483 GHz (License Free ISM Band)
Modulation CCK (Complementary Code Keying)
Channel Width 22 MHz
Number of Channels 3 RF Channels (Auto switch to stable channel)
P.E.R (Packet Error Rate) 0.05% (@ -85 dBm)
Sensitivity -85 dBm (@ PER<0.1%)
Output Power 17.5 dBm Typical
10
◎Unplug power before doing any maintenance
◎Clean the cabinet and panel with a soft cloth lightly moistened with mild detergent solution.
◎Do not rinse in water or use gasoline, alcohol, benzene, etc.
Troubleshooting
When having difficulties, see the suggestion below. Some simple checks or minor
adjustment may eliminate the problem. If the problem persists, contact service personnel
for instructions
Maintenance
Item Conditions Reasons Suggestion
Power Can not turn
on the power
Remote control batteries are low
Connect power supply cord according
to the operating manual
Replace remote control batteries
Remote
control
No response
from the remote
control
Batteries installed in reverse
Dead batteries
Not pointing at the
infrared receiver
Correctly install batteries
Replace remote control batteries
Sound No sound
Incorrect sound mode setting
Volume adjusted to minimum
or muted
Select correct sound mode setting
Turn the volume up
or press mute button
Audio cable failure Replace bad cables with new cables
ID code selection wrong Make sure all speakers are set at
the same ID code (1.2.3or4)
Make sure there are no objects
between the remote control and
infrared receiver on the Center
Speaker
Power cord not plugged in
properly
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Federal Communication Commission Interference Statement
11
◎Contact local authorized personnel
◎Contact local authorized personnel
◎Do not attempt to service this product .
Contact local authorized personnel

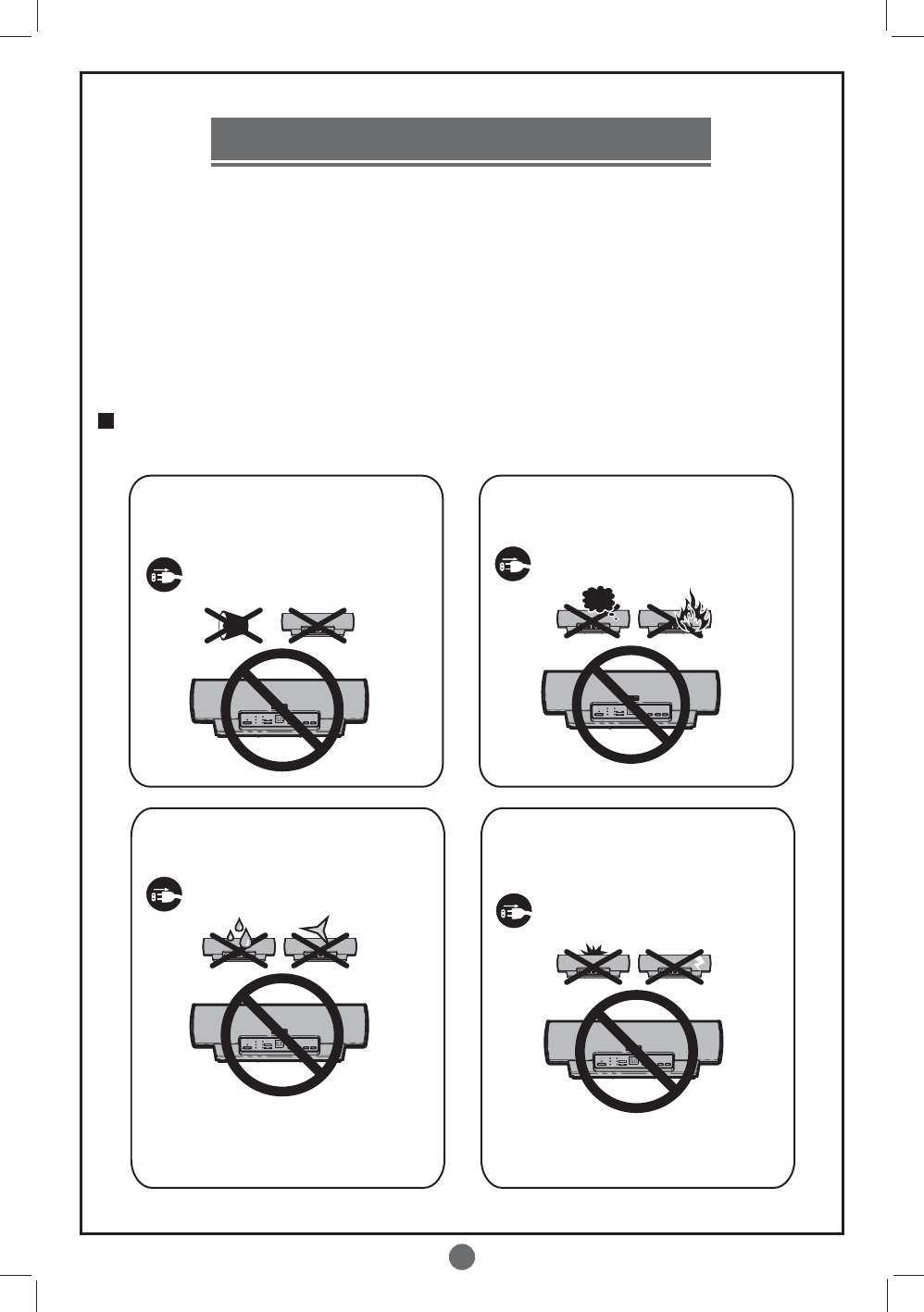

Emergency
Unplug from AC Power Unplug from AC Power
Unplug from AC Power Unplug from AC Power
Liquids or metal objects into the unit will
lead short-circuit and improper grounding,
which will overload cause fire, shock hazard
and other defects.
Stop using this product when the external
cabinet is damaged. Unplug the power cord
from the power outlet.
Whenever unusual situations are detected immediately turn off the power and unplug
the WHT-510 system and contact your local authorized personnel.
Stop using this product when objects fall into
or liquids are spilled into the unit.
Unplug the power cord from the power outlet.
Stop using this product when it does not
operate or can not output sounds. Unplug
the power cord from the power outlet.
Stop using this product when smoke,
excessive heat or unusual smell is detected.
Unplug the power cord from the power outlet.
FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your
body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
12
Warranty Informatioin
Model:
Serial #:
Purchase date:
Retailer:
Address：
E-mail：
Name
Tel.
User
For fastest Warrant Registration visit www.soundonusa.com
Important: Warranty information must be registered within two weeks of the purchase
date in order to be valid.
◎ Defects as a result of normal use are covered by warranty for one year.
◎ Normal wear and tear is not covered by the warranty (see Warranty Details)
◎ Attach a copy of your receipt to the completed Warranty Card below and mail
to: Soundon Corp., Lakewood Drive West, Suite 8, Lakewood, WA, 98499
Warranty Details:
◎ Limited parts replacement and repair
◎ Warranty covers only those defects which arise as a result of normal use of the product
◎ If unable to provide evidence of the date of the date when the product was purchased then
the date of manufacture will be considered as the beginning of the warranty period.
◎ A fee will be charged when repair or replacement of parts is required for the following
reasons:
1.Manmade damages：
(1)Failure to “operate” the WHT-510 as specified in this manual.
(2)Any self repairs and/or modifications done without prior written permission.
2.Accidental damages：
(1)Damage due to improper packaging during return shipment
(2)Damage due to the acts of a force outside of our control
◎ If lost or misplaced, the warranty card can not be reissued. Please keep the warranty card
safe or visit www.soundonusa.com
