Quadcopter
Operation Manual
IMPORTANT :
Radio controlled model
NOT A TOY !
!
● This high performance model must be assembled and operated
according to the instructions.
● May cause serious injury to persons or property if not used
responsibly.
● Unsuitable for children under 18 years old.
P.2
Index
What’s included?................................................................................3
Basic Function Introduction..........................................................3
The Remote Control.........................................................................7
Function Description........................................................................8
How to achieve the maximum distance?..................................9
The Quadcopter...............................................................................10
The Quad-copter Specications.................................................10
Un-fold the Quadcopter..............................................................12
Fold the Quadcopter...................................................................13
Charging the battery.......................................................................13
Battery Storage................................................................................14
Flight....................................................................................................14
Install the battery pack.............................................................14
Arm & disarm the motors..............................................................14
Motor arming...............................................................................14
Disarm the motors.......................................................................15
GPS hold.....................................................................................15
Altitude hold.................................................................................15
Return to “Launch point”................................................................16
Intelligent altitude mode................................................................17
Fail safe................................................................................................17
Low battery fail safe.....................................................................17
DISCLAIMER & WARNING....................................................................18
INSTRUCTIONS.....................................................................................18
CAUTIONS..................................................................................19
USING BATTERY........................................................................20
LIMITATION OF LIABILITY..........................................................20
WARNING...................................................................................22
NOTE........ .................................................................................22
Relative information download............................................................24
P.3
What’s Included?
Package Contents:
1. Assembled Quadcopter
2. 8 Channel 2.4GHz Remote Control
3. DC-DC Charger (may change or remove depended on nal conguration for
different regions)
4. AC-DC Adaptor (may change or remove depended on nal conguration for
different regions)
5. 5200Ah 4S LiPo Battery (may change or remove depended on nal conguration
for different regions)
6. Telemetry Kit
7. OTG Cable
8. Operation Manual.
Basic Function Introduction :
● Inside the quadcopter :
■ A flight controller which is powered by a 32 bit MCU.
■ An integrated sensor module including accelerometer, gyro, compass &
barometer sensors.
■ A GPS module.
■ Four sets of speed controllers, motors, and foldable self-tighten CW & CCW
propellers.
■ Built-in telemetry system
● An 8 Channel radio control system has control range about 1000 meters, (depends
on circumstances).

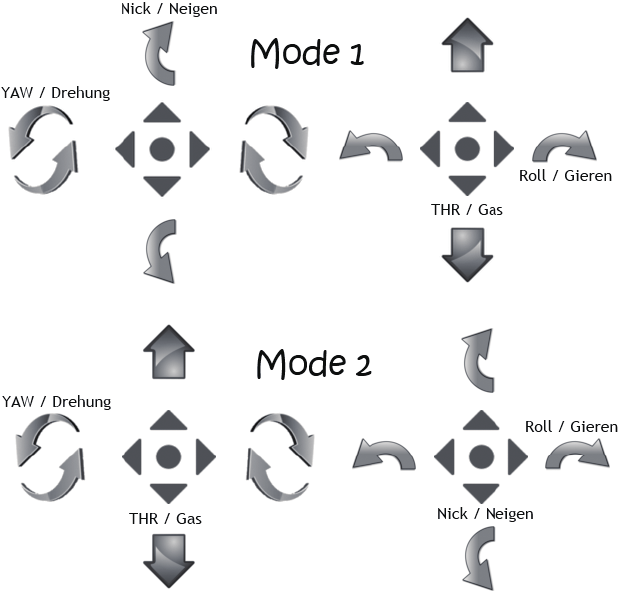

● The 2 control sticks control the 4 Axis (Roll, Pitch, Yaw, Up/Down) flight control. A
mode switch near the middle of the bottom of the remote control can change the
stick mode between Mode 1 / Mode 2. (Mode 1: right-hand throttle , Mode 2: left-
hand throttle)
● A 3-position switch, at the top right corner of the remote control, controls 3 flight
modes: GPS Hold (for outdoor), Altitude Hold (no GPS signal/indoor), and Return
to “Launch point”.
![](/img.php?id=2916041&img=bg4.png)
P.4
■ GPS hold - When GPS is located, this function will hold the Quadcopter where it
is. When “GPS hold” is turned on, the Quadcopter can’t takeoff if the GPS signal
is too weak. ( Suggest: the wind speed shall be under 4~5 level or lower than
15km/hr )
■ Attitude hold – The Quadcopter will hold the altitude & keep stabilized
automatically while not getting any control input from the pilot or fail safe action.
Note: the Quadcopter may slight shift in the air by wind or any un-notable
foreign force on it. “Attitude hold” is for ying indoor or without GPS located
situation. ( Suggest: the wind speed shall be under 5 level or lower than 25km/
hr )

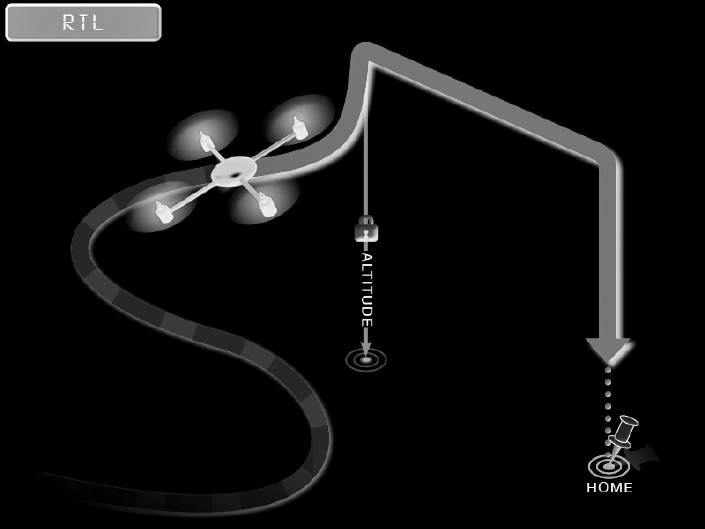

■ Return to “Launch point” – When the GPS is located, when RTL is activated by
the pilot or failsafe, Quad-copter will y back to the “Launch point” and land.
When RTL is activated, if the Quad-copter is lower than safe height 10m, it will
pull to 10m and process RTL. ( Suggest: the wind speed shall be under 4~5
level or lower than 15km/hr )
● A 3 position switch, at the top left of the remote control, controls 2 orientation
control modes: Normal and Intelligent altitude mode.
■ Normal - As the regular RC ight, the Quad-copter attitude & orientation control
is based on the orientation of the Quad-copter’s heading. The orange propellers
point to the front. (The picture below shows an example of mode2 )
■ Intelligent altitude mode – designed for ight beyond visual range. It uses the
vehicle’s position relative to home instead of the vehicle’s initial heading when
it was armed. This means no matter where the vehicle is, pulling the pitch back
will cause it to return towards home regardless of the vehicle’s actual heading.
(The picture below shows an example of mode2 )
Usually
In home lock
Home point
![](/img.php?id=2916041&img=bg5.png)
P.5
● PC software & USB interface
adapter is for connecting to
a computer, for updating &
setting up.
● There is system reset switch
on the top of the airframe,
it is easy to rest the ight
controller without unplug &
plug the power battery.
● There are plug pins under
& above the Quad-copter,
which are for connecting to
the Camera gimbal controls,
Video in/out, external servos,
OSD unit, Video remote
control….etc, no modication
needed, just plug & play.
● There is a at platform on
the rear and bottom of the
airframe, the optional devices
could be attached to the
Quad-copter easily. ( Optional
modules: FPV + gimbal
module, ofoad hook, spot
light… etc)
![](/img.php?id=2916041&img=bg6.png)
P.6
● Here are other port extensions :
1. ▲▲▲: video signal / ★★★ : audio signal
2. CH7: external module control port, connecting to the top right knob on remote
control.
3. CH8: external module control port, connecting to the top left knob on remote
control.
4. CH9&CH10: default no function.
5. DATA IN&DATA OUT: for connecting OSD system.
★★★
▲▲▲
Upper port extensions Lower port extensions
![](/img.php?id=2916041&img=bg7.png)
P.7
The Remote Control :
Function Description :
LED indicator Green &
Red
CH.8 Knob CH.7- Knob
CH.6- Orientation
Attitude mode switch
CH.5- Flight mode
switch
Joystick 2 &
Digital trims Joystick 1 &
Digital trims
Bind switch Stick mode switch Main power switch
![](/img.php?id=2916041&img=bg8.png)
P.8
Function Description :
1. Specication:
● Output: <100mW, Meet the FCC, CE, Telec, NCC regulations.
● Control range: 1000 Meters.
● Power source: “AA” (UM3) alkaline battery x 4 pieces.
2. Joystick 1 (at right side):
● Stick Mode 1: Roll, Altitude control.
● Stick Mode 2: Roll, Pitch control
3. Joystick 2 (at left side):
● Stick Mode 1: Yaw, Pitch control
● Stick Mode 2: Yaw, Altitude control.
P.9
4. CH. 5 - Flight mode switch:
● Up: GPS Hold
● Middle: Altitude Hold
● Down: Return to “Launch point”
6. CH.7 & 8 Knobs: Control the RC devices connected to CH.7 & 8 port extension at
the The Quad-copter bottom.
7. Stick mode switch: Select stick mode 1 or mode 2.
8. Bind switch: Trigger binding function with other multi-copter.
9. Main power switch:
● Up: Turn on the remote control.
● Down: Turn off the remote control.
10. LED indicator Green: Bind
11. LED indicator RED: Power
12. Digital trims: trim the middle point of joystick
How to achieve the maximum distance?
1. Check if the antenna on the landing gear is vertical to the ground
2. Check if the antenna on remote control is vertical to the sky
3. Check if there is no obstacle between the remote control and the Quad-copter
4. Please avoid the Quad-copter to fly over any radio wave building. ex.: high-
voltage tower, radio station, or mobile signal base.
P.10
The Quad-copter :

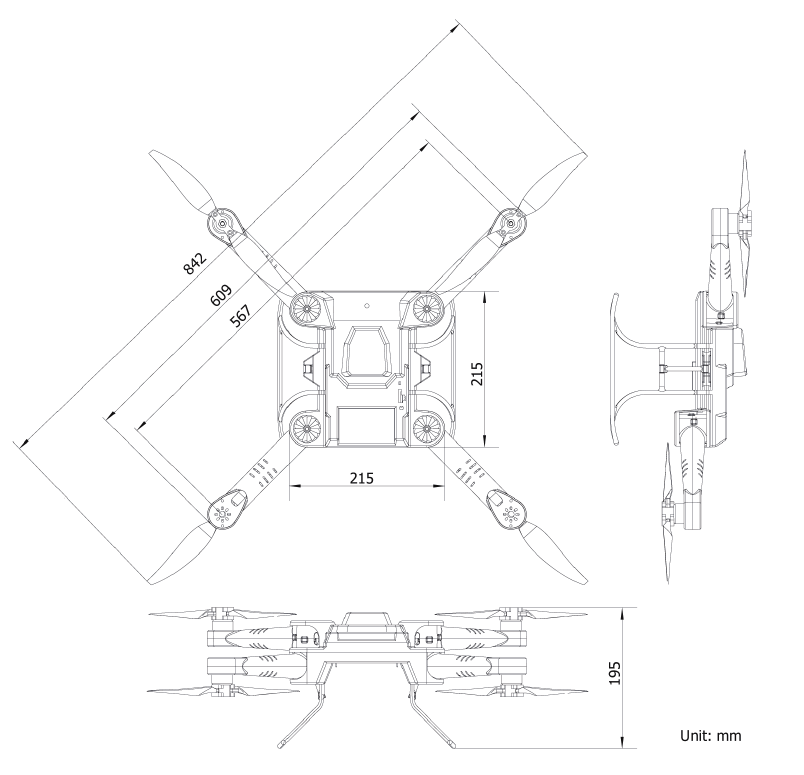

The Quad-copter Specications :
● Carry & storage dimensions: 215mm x 215mm x H 195mm.
● Ready to y dimensions (Propeller folded): 609.0mm x 609mm x H 195.0mm
● Ready to y dimensions (11 in. Propeller extended): 842.0mm x 842.0mm x H
195.0mm
● Maximum motor to motor dimension: Ø 567.0mm
● Motor: 2826 size 920KV. (Various motors are available as option for higher
payload.)
● Empty RTF weight: 985g (Fully assembled, battery not attached.)
● Payload Capability: 1,000g (Include: battery(s), camera, gimbal, FPV…. etc.)
● Maximum Gross Take-Off Weight: 2,000g
● Air Duration: 22 min. (With 4S 5,200mAh battery, take-off weight 1,200g)
● Battery: 4S / 5200mAh, 15C battery pack with XT60 connector.
● Propeller: 11”x 4.5”CW & CCW folding Propeller.
● Motors (up to 40mm size), batteries & propellers (up to 12.5 in) are upgradable.
● Quick clip on platform for optional module.
● Suggest wind speed: GPS & RTL mode: lower than 20km/hr, altitude mode: lower
than 25km/hr, auto landing: lower than 15km/hr
![](/img.php?id=2916041&img=bgb.png)
P.11
![](/img.php?id=2916041&img=bgc.png)
P.12

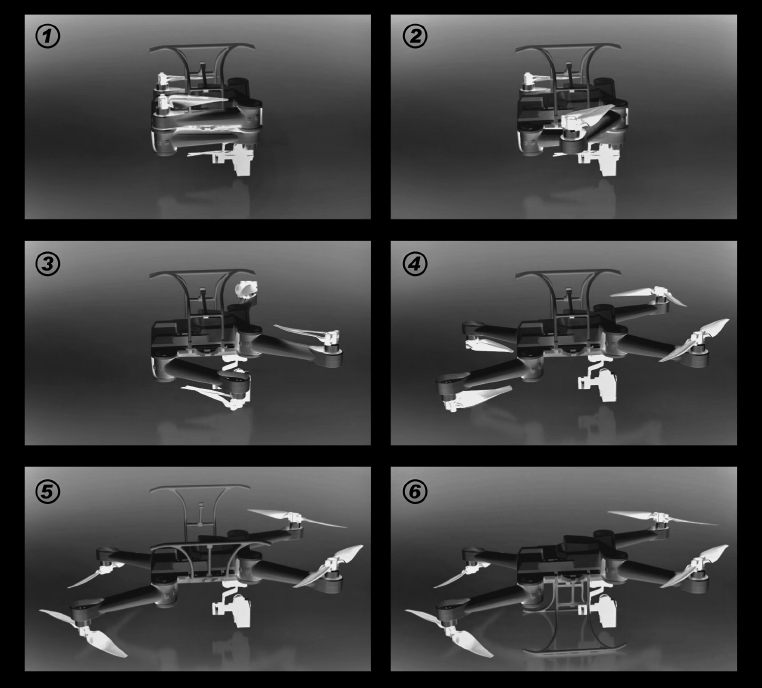

Un-fold the Quad-copter :
● Rotate two front arms forward till the end.
● Rotate the two rear arms backward till the end.

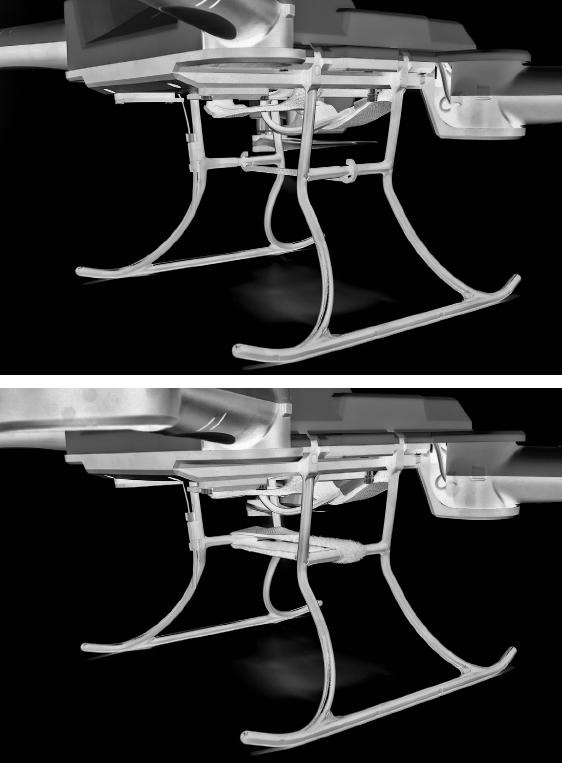

● Flip the two landing gear downward.
● Fix the landing gear by the support hook or the velcro strap.
● Unfold the propellers. (Note: if the propellers are not unfolded completely, it may
cause strong vibration and lead the take-off to failure.)
![](/img.php?id=2916041&img=bgd.png)
P.13
Fold the Quad-copter :
● Reverse the process of "unfold the Quad-copter".
● Use one hand to hold the main body, the other hand to “PUSH” the arm inward to
the main body. Never hold single arm while carrying the Quad-copter.
Charging the Battery :
The following descriptions vary according to different accessories.
● Connect the included balance charger to a power adapter.
● Insert the smaller connector into the charger. Check the connector pin is inserted
properly.
● Once the battery is fully charged, the LED red light will change to a green light.
● Never charge a battery when it has not had the time to cool down from the
previous use.
![](/img.php?id=2916041&img=bge.png)
P.14
Battery Storage :
● Never store fully charged battery for over two days. Storing fully charged battery
overtime may cause damage to the cell and decrease the ight time.
● Make sure that the battery is kept in a cool and dry storage.
● Stabbing or disposing battery may cause re.
Flight :
Install the Battery Pack
● Whatever the payload (Battery, Camera, … etc, anything except the Quad-copter
itself.) is assembled on the Quad-copter, the CG (center gravity) should be located
close to the center of all 4 motors for better ying performance.
● Battery should be the last payload to be installed on the Quad-copter. So the
battery installation is the nal adjustment of the best CG balance.
● A single or two parallel batteries can be installed under the bottom side of the main
body. Adjust the location to get the best balance CG then secure the battery with
Velcro straps.
● Before connect the battery, please make sure the RESET
switch is in DOWN position. Then move the RESET
switch to UP position AFTER power ON and the LEDs
will light up and ash. Wait for the orange LED becoming
static ON, which means GPS signal is good and the
Flexify is ready to take off.
Arm & Disarm the Motors :
Motor arming
● The motor arming is only available in GPS and ALT-Hold ight mode.
● Make sure the propeller is fully unfolded. Pilot should keep a 5m safe distance
from the Quad-copter, and the wind speed should lower than 20km/hr.
● Pull the joysticks as the picture below and stay 2 seconds.
● The blue LED on the right corner of the Quad-copter will ash once, and the
motors will start to spin in slow speed. Release the throttle stick. The motor
arming is completed.
MOTOR ARM
MODEL 1 MODEL 2
DOWN
UP
![](/img.php?id=2916041&img=bgf.png)
P.15
Motor disarming :
● When the Quad-copter nish landing, move the throttle stick in low position. Make
sure the motors are spinning in slow speed; or the Quad-copter will rotate quickly.
● Pull the joysticks as the picture above and stay 2 seconds -the blue LED on the
right corner of the Quad-copter will ash once.
● Pull the joysticks till the motor is fully stopped. The motor disarming is completed.
GPS Hold :
● In GPS located situation, GPS-Hold (CH.5 at top position) ight mode will keep
the Quad-copter’s stabilization and locked at a xed altitude, coordinate and
orientation. The Quad-copter won’t drift in the air due to the GPS lock to locate the
coordinate in this ight mode.
● If GPS is not well located, the motor will not be armed.
● If the GPS failed to locate in the air but the pilot activates GPS mode, the Quad-
copter will response as altitude hold mode.
Altitude Hold :
● ALT-Hold (CH.5 at middle position) ight mode will keep the Quad-copter’s
stabilization and locked at a xed altitude & orientation, but the Quad-copter may
drift in the air due to no GPS help to locate he The Quad-copter coordinate..
● In a no GPS condition (as indoor), it will be the only available ight mode; the
GPS-Hold and RTL will be unvalid.
MOTOR DISARM
MODEL 1 MODEL 2
![](/img.php?id=2916041&img=bg10.png)
P.16
Return to “Launch point”
● When the motors are armed in GPS located situation, the “launch point” coordinate
will be saved in The Quad-copter.
● Whatever how the RTL function is activated, by the ight mode switch (CH.5 at
low position)” or because the failsafe, the Quad-copter will keep at least a 15M or
higher altitude then y back to the launch point and land.
● In failsafe RTL, the ight mode can be changed anytime when the CH.5 switch is
ipped to other ight mode. (Please beware in this kind of operation. )
![](/img.php?id=2916041&img=bg11.png)
P.17
Intelligent Attitude Mode :
● Usually, intelligent attitude mode is activated when the Quad-copter ies beyond
visual range.
● When the intelligent attitude mode is activated by CH.6, it uses the vehicle’s
position relative to home instead of the vehicle’s initial heading when it was
armed. This means no matter where the vehicle is, pulling the pitch back will
cause it to return towards home regardless of the vehicle’s actual heading.
Intelligent attitude mode:
Controls are applied based
on the Quad-copter’s GPS
position relative to home.
The orientation is not
updated when the vehicle
is within 10m of home.
When the pilot y the
Quad-copter to the right,
wherever the Quad-copter
nose points, the Quad-
copter will y to the right
of the launch point; when
the pilot y the Quad-
copter to forward, the
Quad-copter will y away
from the launch point.
Fail Safe:
Low Battery Fail Safe
● When the battery voltage reaches to failsafe voltage setting, all 4 arm LEDs will
blink to warn the pilot, and the Quad-copter will activate RTL mode automatically.
● Note: The Quad-copter will activate RTL mode automatically; but the voltage
is possibly too low to nish landing. Usually pilot has 1 minute or less to nish
landing.
P.18
● We suggest pilot to activate ALT-Hold (CH.5 at middle position) and land manually.
● Please reserve about 30% power for return and landing. Do not use the low battery
fail safe as a ight time alarm – it will decrease the battery using time; there is risk
that the Quad-copter couldn’t make it to launch point.
DISCLAIMER & WARNING :
● Please read this disclaimer carefully before using this product. This product is
not suitable for people under age of 18. By using this product, you hereby agree
to this disclaimer and signify that you have read it fully. You agree that you are
responsible for your own conduct and content while using this product, and for
any consequence thereof. You agree to use this product only for purposes that are
proper and in accordance with local regulations, terms and any applicable polices
and guidelines KP FUN INC may make available.
1. Any part of this disclaimer is subject to change without prior notice; refer to
www.kp-fun.com for the latest version.
2. KP FUN INC reserves the right of nal interpretation of this disclaimer.
3. This disclaimer is made in various language versions; in the event of
divergence among different versions, English version shall prevail.
INSTRUCTIONS :
● Please read international and domestic airspace regulations and rules before
using this product, should never use this product in a way that infringes upon or
contravenes international or domestic laws and regulations. You agree that you
are solely responsible for your own conduct and content while using this product,
and for any direct or indirect consequences caused by not following this manual,
violate or disregard any other applicable local laws, administrative rules and social
habits thereof.
● This product is ying quad-copter that offers easy ight both indoors and out when
powered normally and in a good working order.
1. These product woks most efciently with genuine KP FUN INC accessories.
KP FUN INC shall not be liable for any damage or legal responsibilities to this
product and/ or accidents resulting from malfunctions of non KP FUN INC
accessories.
P.19
2. This product features a built-in autopilot system and we have made its operation
as safe as possible. However, it is good practice to remove all propellers before
switching it on to for calibration and parameter setting.
3. Be sure to check all connections and keep children and animals a safe distance
away during rmware upgrades, system calibration and parameter setting.
CAUTIONS :
Carry out each of the following steps carefully before before every ight.
1. Fly safe. Stay away from obstacles, crowds, high-voltage lines and other
possible sources of electromagnetic interference,
2. Check that you aren't overloading the aircraft.
3. Check that the propellers and the motors are installed properly and rmly
before each ight check that the rotation direction of each propeller is correct.
Do not get close to or touch working motors or propellers to avoid serious injury
4. Avoid interference between the remote control or on-board Wi-Fi device and
other wireless equipment
5. Check that ight battery, controller battery and range extender battery are full.
6. Switch on remote control rst, then power on the quad-copter. Upon landing,
power off the quad-copter rst and then switch off the remote control.
7. Check that all parts are in good condition. Do not y with aging or damaged
parts.
8. Do not y near areas with magnetic or radio interference. These include
but are not limited to: high voltage lines, large scale power transmission
stations, mobile base stations and broadcasting towers. Failing to do so may
compromise the transmission quality of this product, cause remote control and
video transmission errors and may affect ight orientation and location accuracy
9. Do not use in severe weather condition including rain, snow, heavy wind, hail,
lighting, tornado or hurricane.
10. Read and familiarize yourself with the quick start guide and the detailed user
guide, as well as information available on the package and www.kp-fun.com
regularly.
P.20
USING BATTERY :
1. Do not soak the battery. Make sure that the battery is kept in a cool and dry
storage.
2. Do not mix-use ight battery and single-use battery. Do not mix battery brands
inside the controller.
3. Keep battery out of the reach of children. If a child swallowed the battery
accidently, ask for medical help as soon as possible.
4. Do not charge battery near ammable materials or on a ammable surfaces
such as carpet or wood
5. Always use a KP FUN INC approved adapter.
6. Make sure the battery is installed properly while operation.
7. Do not attach the battery to the wall or car charger sockets directly.
8. Do not heat battery or dispose of batteries in re.
9. Do not short'-circuit the battery terminals.
10. Do not store battery with other metal objects; such as necklace or hair clips.
11. Do not drop, hit, or throw batteries.
12. Do not solder battery terminals.
13. Do not strike or stab battery
14. Do not attempt to dismantle a battery in any way.
15. Do not expose battery to extreme temperatures including excessive heat. Do
not leave the battery inside of the vehicle on hot days.
16. Do not place or use battery on strong electrostatic or electromagnetic surfaces
or surrounding areas. This may result in battery damage.
17. Avoid direct contact with the electrolyte contained within the battery. The
electrolyte and electrolysis vapors are harmful to your health.
18. Never use a swollen, leaky or damaged battery
19. Clean battery terminals with a dry and clean cloth.
20. Before disposing battery, discharge and insulate the battery.
21. Only use KP FUN INC battery.
22. Use the battery under the instructions from Flexify instruction manual, KP FUN
INC ofcial guideline, Flexify tutorial, and the disclaimer.
LIMITATION OF LIABILITY :
● KP FUN INC accepts no liability for damage(s), injuries or any legal
responsibilities incurred directly or indirectly from the use of this product in the
following conditions :
P.21
1. Damage(s), injuries or any legal responsibilities incurred when users are drunk,
taking drugs, under the inuence of anesthesia, dizziness, fatigue, nausea and
any other conditions both physical and mental that could impair your ability
2. Damage(s), injuries or any legal responsibilities caused by subjective intentional
operations.
3. Any mental damage compensation caused by accident.
4. Damage(s), injuries or any legal responsibilities caused by ying in no-y zones
such as natural reserve.
5. Failure to follow the guidance of the manual in assembly or operation.
6. Malfunctions caused by ret or replacement with non-KP FUN INC accessories
and parts.
7. Damage(s), injuries or any legal responsibilities caused by using third party
products or fake KP FUN products,
8. Damage(s), injuries or any legal responsibilities caused by improper
operation or subjective misjudgment.
9. Damage(s), injuries or any legal responsibilities caused by mechanical failures
due to product aging.
10. Damage(s), injuries or any legal responsibilities caused by continued ying
after low voltage protection alarm is triggered.
11. Damage(s), injuries or any legal responsibilities caused by knowingly ying
the aircraft in abnormal conditions (such as when water, oil, soil, sand or
other unknown material are inside the aircraft, incomplete assembly, the main
components have obvious faults, obvious defect or missing accessories)
12. Damage(s), injuries or any legal responsibilities caused by ying in the following
situations such as the aircraft in magnetic interference areas (such as high
voltage lines, power stations, broadcasting towers and mobile base stations),
radio interference areas, government regulated no-y zones, if the pilot loses
sight of the aircraft, suffer from poor eyesight or are otherwise not suitable for
aircraft operation.
13. Damage(s), injuries or any legal responsibilities caused by use in bad weather,
such as a rain, heavy wind, snow, hail, lightning, tornadoes and hurricanes.
14. Damage(s), injuries or any legal responsibilities caused when the aircraft is in
the following situations: collision, re, explosion, oods, tsunamis, subsidence,
ice trapped, avalanche, debris ow, landslide, earthquake, etc.
15. Damage(s), injuries or any legal responsibilities caused by infringement such
as any data, audio or video material recorded by the use of aircraft.
![](/img.php?id=2916041&img=bg16.png)
FCC
This device was tested for RF exposure in an uncontrolled environment, the measured
Body SAR value is 0.071 W/kg.
NOTE :
CAUTION :
![](/img.php?id=2916041&img=bg17.png)
![](/img.php?id=2916041&img=bg18.png)
