MET METYH1293 CD Boombox User Manual MD 6972 0712

MET INDUSTRIAL LTD CD Boombox MD 6972 0712

Users Manual

MODEL: MD6949
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
OWNER'S MANUAL
CD BOOMBOX
with AM/FM Radio and
Bluetooth® Wireless Technology
Size: 148.5(W) x 210(H)mm (A5)

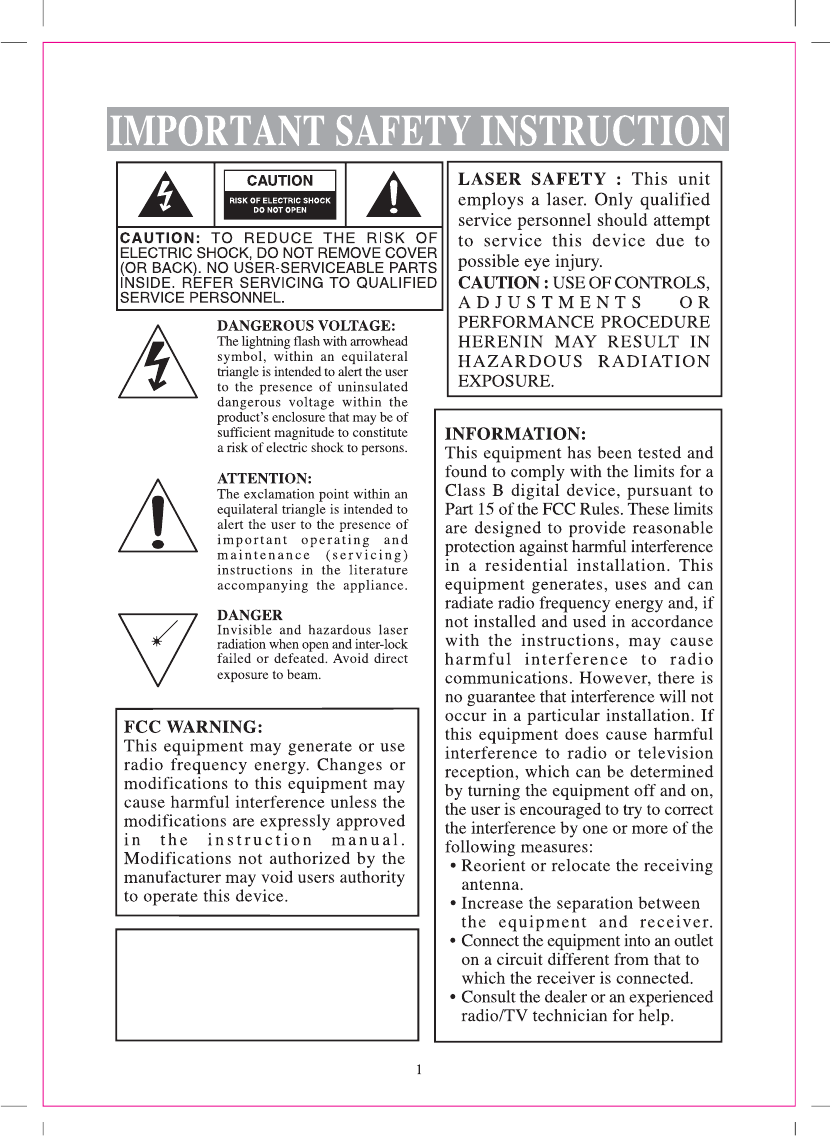

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
this unit may not have the capability to be connected to an outdoor antenna.
For example,


7KHGHYLFHKDVEHHQHYDOXDWHGWRPHHWJHQHUDO5)H[SRVXUHUHTXLUHPHQW
7KHGHYLFHFDQEHXVHGLQSRUWDEOHH[SRVXUHFRQGLWLRQZLWKRXWUHVWULFWLRQ
This unit can be powered by either AC power or six (6) “C” size batteries (not included) as below:
AC Operation:
To operate the unit using AC power, connect the small plug from the supplied AC Cord to the AC IN Jack
on the rear of unit. Plug the AC Cord to the AC wall outlet having AC 120V~, 60 Hz as illustrated below.
Notes:
This AC Cord is equipped with a polarized AC plug which has one blade wider than the other. This is
a safety feature to reduce the likelihood of electric shock. This polarized AC plug will only fit in a
polarized AC outlet.
If you find that you cannot insert this plug in your outlet, you may have an obsolete non-polarized outlet.
Please do not try to defeat this safety feature by using a non-polarized adaptor or by filling the wider
blade to make it fit into your outlet.
If this plug does not fit into your outlet, you should contact a qualified licensed electrician to replace
your obsolete outlet.
If long period of time will not use the unit. Unplug the AC Cord from wall outlet.
Battery Operation:
Install (or replace the batteries when it is drained) as below
1. Slide the Battery Door (on the bottom of unit) out then lift it off.
2. Insert six (6) “C” size batteries (not included) according to the polarity diagram inside the battery
compartment.
3. Replace the battery door.
Note:
When the AC plug was inserted into the AC IN Jack, the battery power will be cut off automatically. To use
battery power, make sure the plug was detached off from the AC IN Jack. Otherwise, the unit can NOT be
powered on.
BATTERY PRECAUTIONS:
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment.
A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with
fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove
the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery
manufacturer’s instructions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
POWER SOURCE:
5
AC IN~
LOCATION OF CONTROLS
1. PROG (Program) Button
2. (Stop) Button
3. (Skip/Fast Search Forward) Button
4. POWER Indicator
5. LED Display
6. PROG (Program) Indicator
7. PLAY/PAUSE Indicator
8. RPT (Repeat) Indicator
9. RPT (Repeat) button
10. /BT (Play/Pause/Bluetooth) Button
11. (Skip/Fast Search Backward) Button
12. TUNING Knob
13. AUX IN Jack
14. AM-FM-OFF(Power)-CD/BT/AUX IN
Function Selector
15. VOLUME Control Knob
16. CD Door
17. AC IN ~ Jack
18. Battery Compartment (On the bottom)
19. Carry Handle
20. BT (Bluetooth) Indicator
21. Speakers
TUNING
PAIR
AC IN~
POWER
PLAY/PAUSE
RPT
1 11 2 10 3 9
15 12
4
6
18
5
20
8
7
19
17
13
14
16
21
21
6
7
OPERATION
RADIO:
1. Slide the Function Selector to AM or FM position to turn on the radio and set to desired band.
The POWER Indicator will illuminate.
2. Turn the TUNING Knob to receive the desired radio station.
3. Turn the VOLUME Control Knob to adjust volume level as desire.
4. When finished listening, slide the FUNCTION Selector to OFF position to shut off the unit.
The POWER Indicator will turn off.
Antenna:
This unit has a built-in AM/FM antenna, which provides adequate reception in most areas. If reception
is weak, turn the unit to improve reception.
CD:
1. Slide the Function Selector to CD/BT/AUX IN position to turn on the CD.
The POWER Indicator will illuminate.
The LED Display will illuminate and indicate “--” then “no” will appear.
2. Open the CD Door then place a CD disc on the center spindle, with the printed side faced up.
3. Close the CD door. Wait a few seconds; the number of the total tracks will appear on the LED Display.
4. Press the /BT (Play/Pause/BT) Button to start playback the first track on the disc. The
PLAY/PAUSE Indicator will illuminate.
5. During playback:
Turn the VOLUME Control Knob to adjust volume level as desired.
Press the /BT (Play/Pause/BT) Button to pause, the PLAY/PAUSE Indicator will start
blinking. Press the button again to resume normal playback, the PLAY/PAUSE Indicator will
stop blinking.
Press the or Buttons repeatedly to skip the tracks.
Press and hold the or Buttons to fast search the specific section then release the button to
play.
6. To stop CD playback, press the (Stop) Button. The total number of tracks will appear on the display.
7. When finished listening, slide the Function Selector to OFF position to shut off the unit. The
POWER Indicator will turn off.
Programmed Playback:
Up to 20 tracks can be programmed playback as follows:
1. In CD stop playback mode, press the PROG (Program) Button. "01” will appear on the display
and blink. The PROG (Program) Indicator will illuminate and blink too.
2. Select the first specific track to be programmed by pressing the or Buttons repeatedly.
3. Press the PROG (Program) Button to store the selected track into the memory.
4. Repeat steps 2 and 3 until all the specific tracks stored into the memory.
5. Press the /BT (Play/Pause/BT) Button to start program playback. The PROG (Program)
Indicator will stop blinking.
6 To stop program playback, press the (Stop) Button. Press the /BT (Play/Pause/BT) Button
again to resume program playback.
7. To erase the program, press the (Stop) Button again in stop mode. The PROG (Program) Indicator
will turn off.
8
Repeat/Random Playback:
1. During playback (or program playback), press the RPT (Repeat) Button once. The RPT (Repeat) Indicator
will illuminate and blink. The current track will playback repeatedly.
2. During playback (or program playback), press the RPT (Repeat) Button twice. The RPT (Repeat) Indicator
will illuminate and stop blink. All the tracks on the current disc (or program) will be playback repeatedly.
3. To cancel the repeat playback, press the RPT (Repeat) Button repeatedly until the RPT (Repeat) Indicator
is turn off.
BT (Bluetooth):
For first time use or re-pairing the unit to a new BT Device, follow instructions below:
1. Slide the Function Selector to CD/BT/AUX IN position to turn on the CD.
The POWER Indicator will illuminate.
The LED Display will illuminate and indicate “--” then “no” will appear.
2. Press and hold the /BT (Play/Pause/BT) Button until “bt” appear on the display and blink to enter
to BT mode.
The BT (Bluetooth) Indicator will illuminate and blink too.
3. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen
instructions from the external BT Device. When paired, the LED display and BT (Bluetooth) Indicator
will stop blinking.
4. If pairing is complete you may now play music with your external BT Device.
5. During playback:
Turn the VOLUME Control Knob to adjust volume level as desired.
Press the /BT (Play/Pause/BT) Button to pause; press again to resume normal playback.
Press the or Buttons repeatedly to skip the tracks.
6. When finished listening, slide the Function Selector to OFF position to shut off the unit. The POWER
Indicator will turn off.
Notes:
When the external BT Device searches for the unit, our model number “MD6949” will appear on the
display of external BT Device.
If while pairing you are asked for a code please try "0000" or "1234".
Normal operation after pairing:
1. Power on the external BT Device and enter to BT mode.
2. Slide the Function Selector to CD/BT/AUX IN position to turn on the CD.
The POWER Indicator will illuminate.
The LED Display will illuminate and indicate “--” then “no” will appear.
3. Press and hold the /BT (Play/Pause/BT) Button until “bt” appear on the display and blink to enter
to BT mode.
The BT (Bluetooth) Indicator will illuminate and blink too.
4. Wait a few seconds until the unit automatically pairs to the BT Device. The LED display and BT
(Bluetooth) Indicator will stop blinking.
5. If pairing is complete you may now play music and answer the phone with your external BT Device.
6. When finished listening, slide the Function Selector to OFF position to shut off the unit. The POWER
Indicator will turn off.
AUX IN:
1. Insert one end of the Audio Connect Cable (not included) to the AUX Out; Line Out or Phones Jack on
the external Audio Player.
2. Insert the other end to the AUX IN Jack on the rear of unit.
3. Slide the Function Selector to CD/BT/AUX IN position to turn on the unit. The POWER Indicator will
illuminate and the unit will automatically switch to AUX IN mode.
4. Play the music on the connected external Audio Player as usual.
5. Turn the VOLUME Control Knob to adjust volume level as desired.
6. When finished listening, slide the Function Selector to OFF position to shut off the unit. The POWER
Indicator will turn off.
NOTES:
If the Audio Connection Cable was inserted into the AUX IN Jack, CD/BT will not function.
Disconnect the cable from the AUX IN Jack before use CD/BT.
Make sure the sound output level of the connected external Audio Player is in high level. Otherwise,
sound will be weak.
If sound is distorting, reduce the volume of the connected external Audio Player or set the EQ mode
of it to normal.
CARE AND MAINTENANCE
10
1 x Owner’s Manual
1 x AC Power Cord
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
TROUBLESHOOTING
GENERAL SPECIFICATIONS
ACCESSORIES
Power Source: AC 120 V~; 60 Hz; 14 W, Or
DC 9 V; 6 x “C” size batteries (Not included)
BT Version: 2.1
Radio Frequency:
Disc Compatible:
Impedance of Speakers:
Audio power:
AM: 5 - 1710 kHz
FM: 87.5 - 108 MHz
CD; CD-R; CD-RW
[:ȍ
1 W per Channel (Total 2W, RMS)
Check the following before requesting service:
SYMPTOM
POSSIBLE CAUSE
No power
AC Power cord had not connected
Cannot use battery power
The batteries was drained
The AC Cord was inserted into the AC IN Jack
No sound or sound weak
Volume of the unit was set to minimum
position
Volume level of paired/connected external
A
udio Player is in low level
xternal Audio Player
Sound distortion
Volume level too high
OLUME Control Knob counterclockwise
Volume level of the paired/connected external
A
udio Player too high
xternal Audio Player
CD not functioning
Audio Connection Cable was
i
nserted into the AUX IN Jack
Disc is dirty or scratched
CD disc incorrect install
printed side face up
BT not functioning
Audio Connection Cable was
inserted into the AUX IN Jack
The external BT Device had NOT paired to the
unit
Pair the external BT Device to the unit
as pagH
The external BT Device too far from the unit
Craig Electronics warrants this product to be free from manufacturing defects in material
and workmanship under normal use for a period of 180 days from date of purchase. If
service is required, please return the product to the store where it was purchased for
exchange; or, pack the unit in the original packing material with all accessories if
applicable, a copy of your sales receipt and a Cashier’s check or Money Order for $10 (to
cover shipping and handling costs) payable to Craig Electronics Inc. For consumers in
Canada, please make sure that the cashier check or money order is redeemable through
a U.S. bank. Ship your product freight pre-paid. Your unit will be repaired, replaced or if
the unit cannot be repaired or replaced, a refund will be forwarded to you within four
weeks of receipt of your unit. Please ship your unit to:
Craig Electronics Inc.
1160 NW 163 Drive
Miami, Fl 33169
This warranty is void if the product has been: a) Used in a commercial application or
rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by
anyone other than an authorized Craig service center. d) Damaged because it is
improperly connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s
Manual which can be performed by the customer. b) Damage to equipment not properly
connected to the product. c) Any cost incurred in shipping the product for repair. d)
Damage to the product not used in the USA.
This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period
of this expressed warranty and no warranty whether expressed or implied shall apply to
the product thereafter.
Under no circumstance shall Craig be liable for any loss or consequential damage arising
out of the use of this product. This warranty gives specific legal rights. However, you may
have other rights which may vary from state to state. Some states do not allow limitations
on implied warranties or exclusion of consequential damage. Therefore, these
restrictions may not apply to you.
This product has been manufactured by and is sold under the responsibility of Craig
Electronics Inc, and Craig Electronics Inc is the warrantor in relation to this product.
MAGNAVOX and SMART. VERY SMART are registered trademarks of Koninklijke Philips
N.V. and are used under license from Koninklijke Philips N.V.
To Obtain Service on your Product
email:service@craigelectronics.com
Printed in China MD6949_WC_E0GZ1_B0US
LIMITED WARRANTY

Navigation menu
