Microchip Technology CX8753PB JukeBlox Networked Media Module User Manual

MICROCHIP TECHNOLOGY INC. JukeBlox Networked Media Module

User manual

SMSC CX Module Revision 2.8 (09-30-12) SMSC CONFIDENTIAL JukeBlox Networked Media Module CX Series Datasheet • Complete audio networking system on a small module • Integrated Ethernet + USB 2.0 • WiFi-certified 802.11b/g • Built-in strip antenna • Optional 2X Diversity Antenna • Glueless audio, video and control ports • FCC certified • Ideal for enabling network and USB audio playback for iPod docks, audio systems, AV Receivers, active speaker systems, internet radios, network playback adaptors
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 2 Revision 2.8 (09-30-12) Copyright © 2012 SMSC or its subsidiaries. All rights reserved. Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders. The Microchip name and logo, and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 3 Revision 2.8 (09-30-12) Table of Contents 1INTRODUCTION...............................................................................................................42BLOCK DIAGRAM ............................................................................................................. 43BOARD PICTURES............................................................................................................53.1TOP VIEW OF CX MODULE ................................................................................................. 53.2BOTTOM VIEW OF CX MODULE ............................................................................................ 63.2.1CX Module Bottom View w/64-pin Low Density Connector........................................... 63.2.2CX Module Bottom View w/120-pin Media Connector ................................................. 63.3PRODUCTION MODULE WITH TOP AND RF SHIELDS IN PLACE – TOP VIEW............................................. 73.4PRODUCTION MODULE WITH 64-PIN CONNECTOR OPTION – SIDE VIEW.............................................. 73.5EXAMPLE PRODUCTION MODULE SHOWING SOLDERED RF SHIELD..................................................... 83.6PRODUCTION MODULE WITH BOTTOM SHIELD (PART NUMBERS WITH A “B” AFTER THE CONFIGURATION LETTER)93.6.1Including J3 Low Density 64-pin connector – Bottom View.......................................... 93.6.2Including J2 High Density 120-pin connector – Bottom View ....................................... 94ORDERING GUIDE ......................................................................................................... 104.1PART NUMBER SYNTAX ....................................................................................................105ELECTRICAL SPECIFICATIONS....................................................................................... 115.1ABSOLUTE MAXIMUM RATINGS............................................................................................125.2OPERATING CONDITIONS..................................................................................................125.3WIFI SPECIFICATION (CX870 ONLY) ...................................................................................136REGULATORY COMPLIANCE AND QUALITY .................................................................... 146.0.1 Antenna Considerations ..........................................................................................156.0.2 CX Power Settings Used For Modular Approval............................................................166.1ROHS.......................................................................................................................166.2ENVIRONMENTAL TEST.....................................................................................................166.3ESD AND TRANSIENT TEST (APPLIES TO LAN AND USB EXTERNAL CONNECTIONS ONLY)..........................166.4MAGNETIC FIELD TEST ....................................................................................................166.5MTBF.......................................................................................................................166.6MECHANICAL SPECIFICATIONS............................................................................................166.7MODULE QUALITY ..........................................................................................................167BOARD DIMENSIONS AND WEIGHT............................................................................... 177.1TOP & BOTTOM VIEW OF CX870 MODULE WITHOUT BOTTOM SHIELD ...............................................177.1.1Top & Bottom View of CX Module with Bottom Shield................................................177.2SIDE VIEW OF CX870 MODULE WITHOUT BOTTOM SHIELD............................................................187.2.1Side View of CX Module with Bottom Shield except CX870-3JB...................................187.2.2Side View of CX870 Module with Bottom Shield part number CX870-3JB only...............197.33D VIEW OF CX870 MODULE WITHOUT BOTTOM SHIELD.............................................................197.4MODULE WEIGHT ..........................................................................................................208CONNECTORS AND CONNECTIONS ................................................................................ 208.1WLAN UFL ANTENNA CONNECTOR (OPTIONAL)........................................................................208.2MODULE CONNECTORS ....................................................................................................208.2.1Pin Descriptions ..................................................................................................218.2.2Connector PIN Assignments ..................................................................................268.2.3GPIO Assignments...............................................................................................289APPLICATION GUIDELINES ........................................................................................... 289.1POWER SUPPLY SEQUENCING AND RESET TIMING.......................................................................289.1.1Power up, Reset and Power Down Timing................................................................299.2RF CONSIDERATIONS......................................................................................................2910REVISION CONTROL.................................................................................................... 3011APPENDIX 1: CERTIFICATION NOTICES ...................................................................... 39

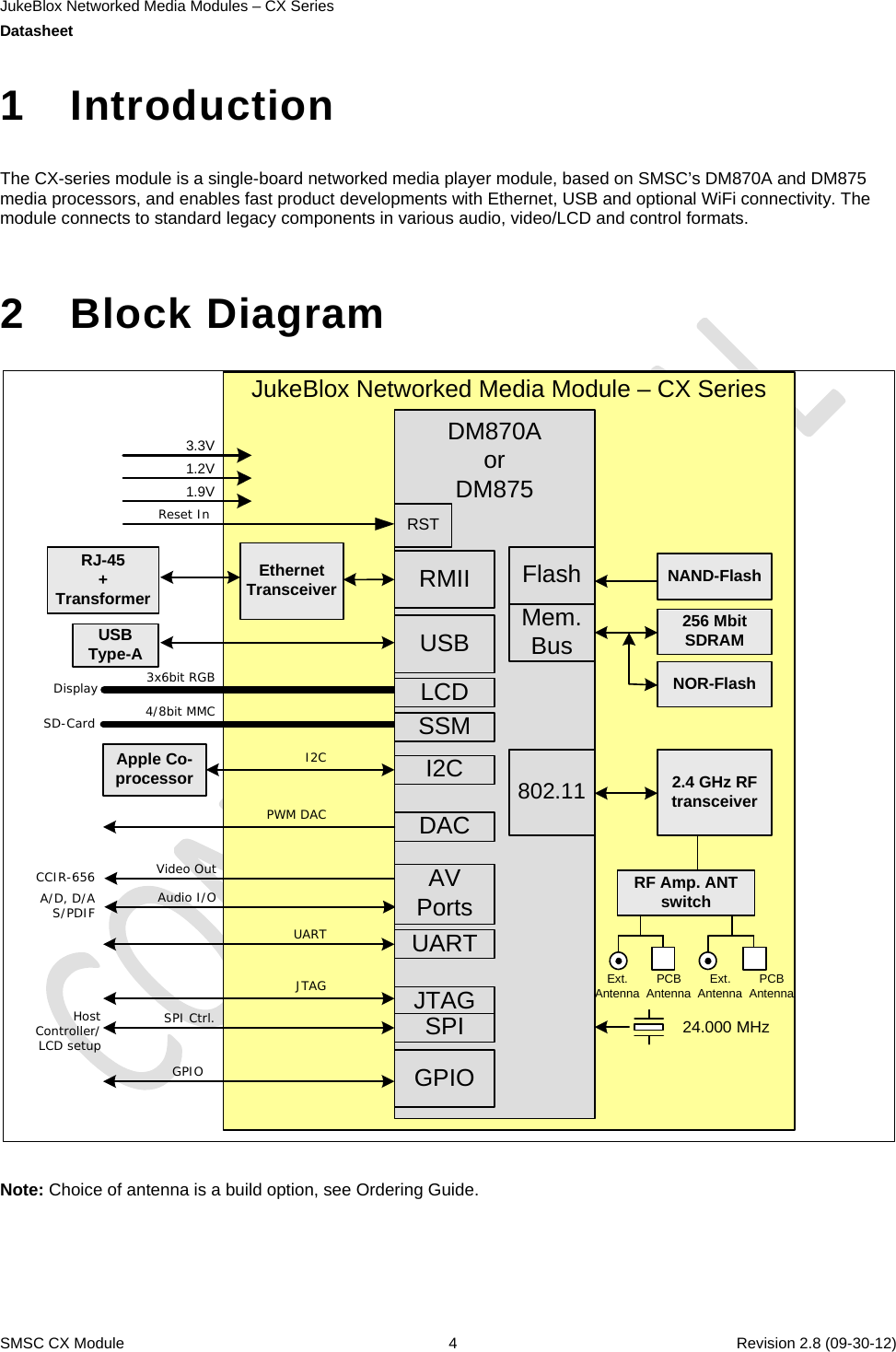

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 4 Revision 2.8 (09-30-12) 1 Introduction The CX-series module is a single-board networked media player module, based on SMSC’s DM870A and DM875 media processors, and enables fast product developments with Ethernet, USB and optional WiFi connectivity. The module connects to standard legacy components in various audio, video/LCD and control formats. 2 Block Diagram Ethernet TransceiverDM870AorDM875 256 MbitSDRAMRJ-45+ Transformer Mem. BusUSBGPIO24.000 MHzNAND-Flash2.4 GHz RF transceiver802.11RMIIUSBType-AUART3.3VJukeBlox Networked Media Module – CX Series1.2VUARTGPIODACPCBAntennaRF Amp. ANT switchExt.AntennaPWM DAC1.9VFlashNOR-FlashI2CApple Co-processorI2CJTAGJTAGLCD3x6bit RGBDisplaySSM4/8bit MMCSD-CardRSTReset InVideo OutAudio I/OA/D, D/AS/PDIFCCIR-656 AV PortsSPISPI Ctrl.Host Controller/LCD setupPCBAntennaExt.Antenna Note: Choice of antenna is a build option, see Ordering Guide.

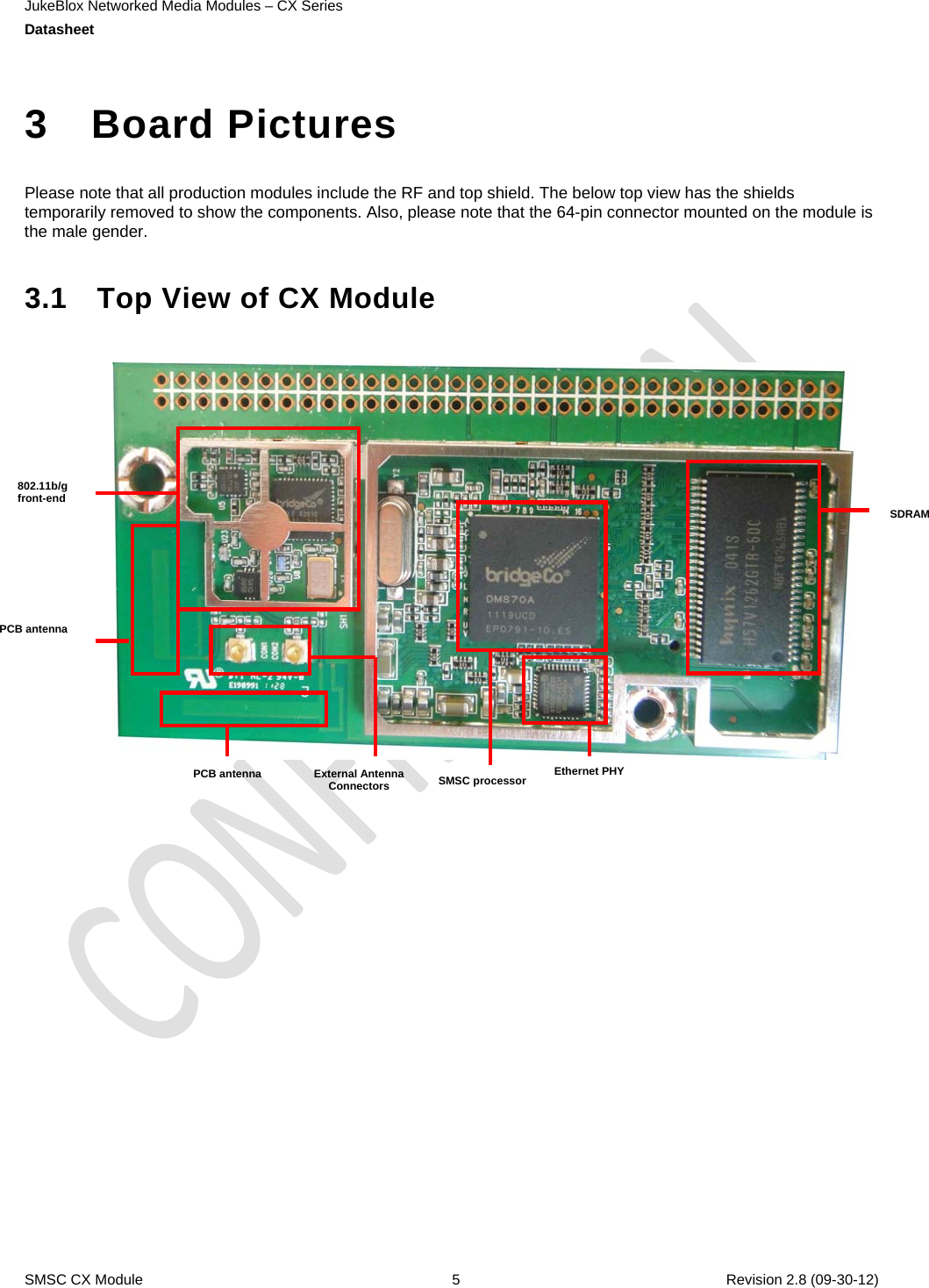

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 5 Revision 2.8 (09-30-12) 3 Board Pictures Please note that all production modules include the RF and top shield. The below top view has the shields temporarily removed to show the components. Also, please note that the 64-pin connector mounted on the module is the male gender. 3.1 Top View of CX Module PCB antenna External Antenna Connectors SMSC processor Ethernet PHY PCB antenna SDRAM802.11b/g front-end
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 6 Revision 2.8 (09-30-12) 3.2 Bottom View of CX Module 3.2.1 CX Module Bottom View w/64-pin Low Density Connector 3.2.2 CX Module Bottom View w/120-pin Media Connector LCD connector FLASH Media connector LCD connector FLASH Low density connector
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 7 Revision 2.8 (09-30-12) 3.3 Production Module with Top and RF shields in place – Top View 3.4 Production Module with 64-pin Connector Option – Side View
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 8 Revision 2.8 (09-30-12) 3.5 Example Production Module Showing Soldered RF Shield

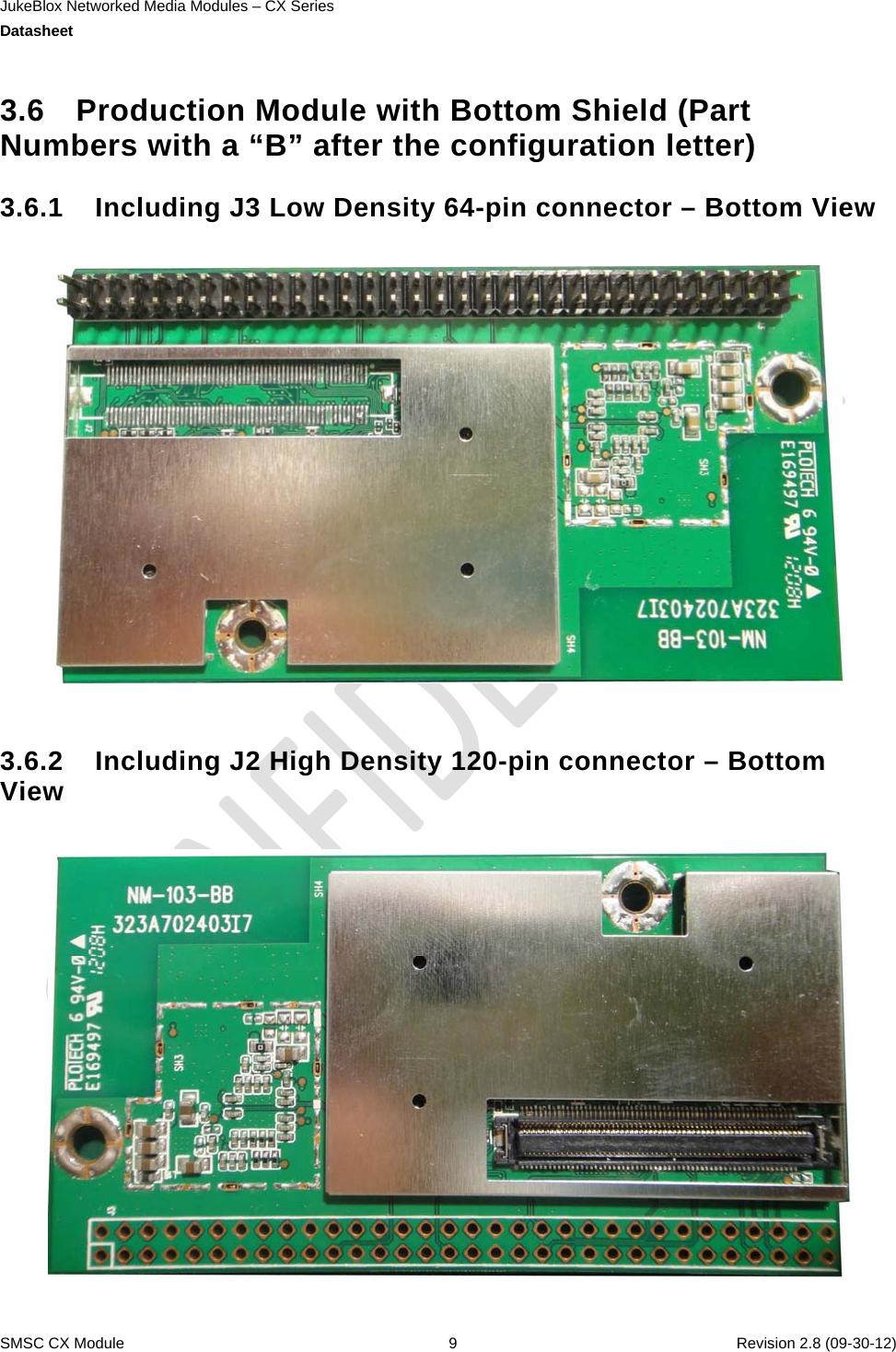

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 9 Revision 2.8 (09-30-12) 3.6 Production Module with Bottom Shield (Part Numbers with a “B” after the configuration letter) 3.6.1 Including J3 Low Density 64-pin connector – Bottom View 3.6.2 Including J2 High Density 120-pin connector – Bottom View
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 10 Revision 2.8 (09-30-12) 4 Ordering Guide Note: Please note that the Apple Authentication Coprocessor will not be provided on the CX module. The Apple Authentication Coprocessor should be provided on the product motherboard, connected to the SDA, SCL signals from the CX module. Note: Shaded rows indicate Custom or Obsolete configuration - NOT TO BE USED FOR NEW/STANDARD MP DESIGNS. Status code: C - Custom | S - Standard | O - Obsolete | A - Available * Connector on board, but requires board modification to enable the connector. + The position of the X in the One Ant. column indicates that there is one external antenna connector provided. The position of the X in the Two Ant. column indicates that there are two external antenna connectors provided. Do not use a module which has two external antenna connectors with only one external antenna connected. Leaving one antenna socket open will degrade WiFi performance. SMSC recommends always using modules with two external antennas for best performance. % The CX870-3DS is the same as CX870-3D, except that the RF shield is soldered in place. 4.1 Part Number Syntax Part Number Status SMSC ICs Internal PCB Diversity Antennas Ext. Diversity Antennas (UFL Conn.)+ Ethernet USB HostLow density 64-pin Conn.Hi density 120-pin Conn.Hi density LCD Conn.32MB SDRAM 16MB SDRAM 8MB SDRAM 1Gb NAND 8MB NOR Top Module Shield Bottom Module Shield One Ant. Two Ant. CX870-3A CO DM870A+T6201 X (X)* X X X X X X X CX870-3B O DM870A+T6201 X X X X X X X CX870-3D CO DM870A+T6201 X X X X X X X CX870-3DS CO % DM870A+T6201 X X X X X X X CX870-3F O DM870A+T6201 X X X X X X X CX870-3G O DM870A+T6201 X X X X X X CX870-3H O DM870A+T6201 X X X X X X X CX870-3I O DM870A+T6201 X X X X X X CX870-3J O DM870A+T6201 X X X X X X CX870-3K CO DM870A+T6201 X X X X X X X CX870-3BB SA DM870A+T6201 X X X X X X X X CX870-3HB SA DM870A+T6201 X X X X X X X X CX870-3IB SA DM870A+T6201 X X X X X X X CX870-3JB SA DM870A+T6201 X X X X X X X CX870-3KB CA DM870A+T6201 X X X X X X X X CX780-3LB CA DM870A+T6201 X X X X X X X X X CX870-3MB CA DM870A+T6201 X X X X X X X X X CX875-3PB SA DM875+T6201 X X X X X X X
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 11 Revision 2.8 (09-30-12) 5 Electrical Specifications Parameter State Model Voltage Symbol min. typ. max. UnitsPower Supply Input Voltage VIN 3.0 1.081.8 3.3 1.2 1.9 3.6 1.322.0 V V V Logic Input high voltage VIH 1.7 5.5 V Logic Input low voltage VIL -0.3 0.7 V Logic Input threshold voltage VIT 1.29 1.39 1.5 V Schmitt-trigger input low to high threshold voltage VIT+ 1.58 1.65 1.71 V Schmitt-trigger input high to low threshold voltage VIT- 0.95 1.01 1.06 V Logic Output high voltage VOH 2.4 V Logic Output low voltage VOL 0.4 V Logic Low-level output current (VOL=0.4V) IOL -9.6 -15.6 -19.3 mA Logic High-level output current (VOH=2.4V) IOH 11.1 22.5 35.3 mA 3.3 I3.3 60 78 mA 1.2 I1.2 32 42 mA Reset State 1.9 I1.9 18 23 mA 3.3 I3.3 185 241 mA 1.2 I1.2 337 438 mA Operating in idle state 1.9 I1.9 257 334 mA 3.3 I3.3 240 312 mA 1.2 I1.2 347 451 mA Current Consumption Playback over WiFi high mips & rate condition CX8701.9 I1.9 258 335 mA Note: The maximum current values are 30% larger than the typical values. The maximum values are intended to be used for power supply sizing calculations.

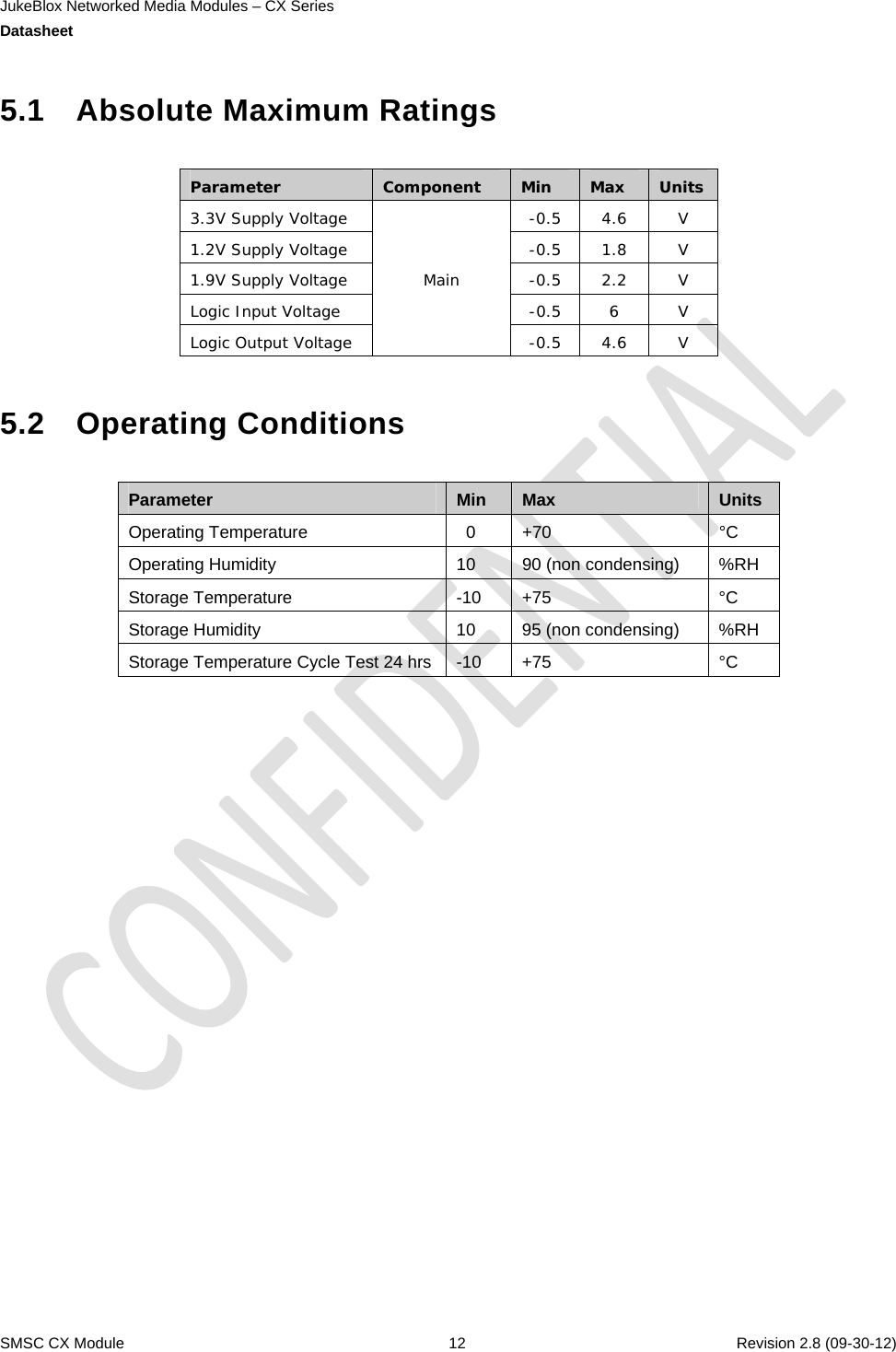

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 12 Revision 2.8 (09-30-12) 5.1 Absolute Maximum Ratings Parameter Component Min Max Units 3.3V Supply Voltage -0.5 4.6 V 1.2V Supply Voltage -0.5 1.8 V 1.9V Supply Voltage -0.5 2.2 V Logic Input Voltage -0.5 6 V Logic Output Voltage Main -0.5 4.6 V 5.2 Operating Conditions Parameter Min Max Units Operating Temperature 0 +70 °C Operating Humidity 10 90 (non condensing) %RH Storage Temperature -10 +75 °C Storage Humidity 10 95 (non condensing) %RH Storage Temperature Cycle Test 24 hrs -10 +75 °C
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 13 Revision 2.8 (09-30-12) 5.3 WiFi Specification (CX870 only) Feature Description WLAN Standards IEEE 802.11b IEEE 802.11g Frequency Band 2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels) Channel 1 - Channel 13 North America FCC, Japan Telec, Europe ETSI Modulation 802.11b mode (DS-SS: IEEE 802.11b) 802.11g mode (OFDM: IEEE 802.11g) Transmission Speed 802.11b mode 11Mbps, 5.5Mbps, 2Mbps, 1Mbps 802.11g mode 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps Tx Power 802.11b mode: 16.5dBm, +/-1dB 802.11g mode: 15.0dBm, +/-1dB Using nominal production settings as follows: Channel RF11 Rate: 11B ='3' (11Mbps), 11G = '8' (54Mbps) MIB: 11B=9, 11G=1 (Reference for Tx Power Tuning) Room temperature The above TX Power specifications will apply to modules shipped from Liteon after 9 April 2012. Power-on Ramp < 2us RF Carrier Suppression < 15dBc TX EVM 802.11b mode: <-22dB 802.11g mode: <-25dB Rx Sensitivity (incl. CE2 Mother board) 802.11b mode: <=-82dBm @ 1Mbps, <=81dBm @ 2Mbps, <=-81dBm @ 5.5Mbps, <=-78dBm @ 11Mbps 802.11g mode: <=-82dBm @ 9Mbps, <=-81dBm @ 18Mbps, <=-75dBm @ 36Mbps, <=-70dBm @ 54Mbps Throughput Rate (measured for each module) See factory test specification Note: About Tx Power, different (higher/lower) RF output power settings may be used for specific regions, antennas and/or enclosures, in which case re-certification may be required.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 14 Revision 2.8 (09-30-12) 6 Regulatory Compliance and Quality Description Country Compliance Module Versions Passed Electromagnetic Compatibility (Prescan) USA Europe FCC CFR47 Part15BEN 55022 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 Radio Regulations (CX870 only) USA Japan Canada Europe New Zealand/Australia China Korea FCC Part 15C Telec IC RSS-210 CE AZ/NZS:4268 SRRC KCC B, D, F, H, I, J B B, D, F, H, I, J B SMSC does not certify all module variants for all countries. Please see above table for those module versions for which certain certifications have already been done. Please contact your SMSC sales office for the latest information about which modules are certified for which countries, and arranging for additional certification for your chosen module if needed. Any additional certifications will need to be paid for by the customer. Product manufacturers are responsible for the end product certification. SMSC can help manufacturers to prepare for the WiFi Alliance tests by providing an example test plan and the required commands to enable special test modes. Please contact your SMSC sales office about WiFi Alliance logo certification assistance. The CX module has received Limited Module Approval (LMA) from FCC. This is because the CX module does not have a built-in +1.9V regulator circuit. SMSC recommends that customers follow the +1.9V supply voltage requirements given in this data sheet, and follow the +1.9V power supply design given in “CX Module Power Supply_V1.1.pdf” document or later version. If the power supply recommendations are followed, then customers will not need to go through formal certification of the product for WiFi related RF behavior for FCC. It is the product manufacturers responsibility to make sure that the power supply recommendations are followed, and that the RF behavior meets the certification requirements when the module is installed in the final product. Please check the SMSC/BridgeCo Customer Portal at https://portal.bridgeco.net/ for documents about WiFi certification and recommended interfacing and power supply schematics.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 15 Revision 2.8 (09-30-12) 6.0.1 Antenna Considerations Here are the antennas used for certification: Cfg Code Ant. Type Ant. Gain (dBi) Ant. Model Name CX870-3F Printed on PCB 3.56 Liteon N/A CX870-3J Dipole 2 MAG. LAYERS EDA-8709-2G4C1-A66 CX870-3K PIFA 2.1 MAG. LAYERS MSA-3612-2G4C1-A1 CX870-3IB Dipole 2 MAG. LAYERS EDA-8709-2G4C1-A66 CX870-3B-D60 PIFA 2 2 1.7 1.7 1.7 1.7 1.7 1.7 MSA-0354-2G4C1-A3, black 200mm (max) MSA-0345-2G4C1-A3, gray 200mm (max) MSA-5103-2G4C1-A1, black 200mm MSA-5403-2G4C1-A1, gray 200mm MSA-5103-2G4C1-A3, black 300mm MSA-5403-2G4C1-A3, gray 300mm MSA-5103-2G4C1-A2, black 400mm MSA-5403-2G4C1-A2, gray 400mm CX870-3BB Dipole 3.2 5.03 WINiZEN W1E-WO-08 DAM-L0-B-N0-000-04-02(INPAO) CX870-3HB Dipole 2 MAG. LAYERS EDA-8709-2G4C1-A66 CX870-3HB PIFA 3 2.8 3010000243ID (DA-E670) 3010000218ID (DA-E750) CX870-3LB Linear polarization 0.84 2.4 1-888-241-00 CX875-3PB Dipole 2.0 EDA-8709-2G4C1-A66 Notes about antenna changes: 1) Equivalent antennas from other manufacturers may be substituted, and then marketed without a Class II permissive change 2) Equivalent antennas must be of the same type (e.g. dipole, PIFA, etc.), must be of equal or less gain than the antennas listed and previously authorized under the same FCC ID, and must have similar in band and out of band characteristics (consult specification sheet for cutoff frequencies). 3) In case of new antenna types, or higher gain antennas, a Class II permissive change is required and compliance with FCC section 15.203 must be met.

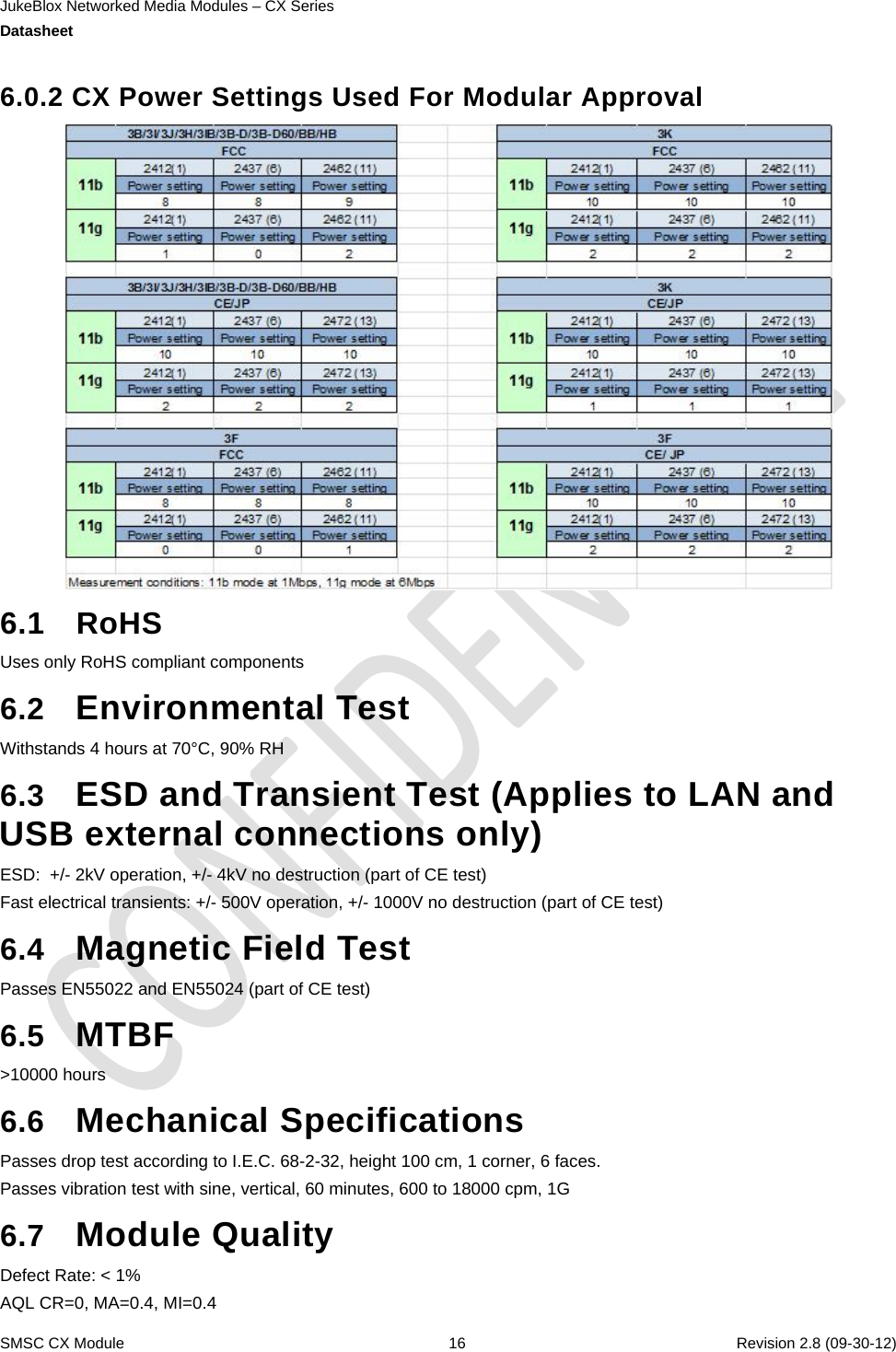

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 16 Revision 2.8 (09-30-12) 6.0.2 CX Power Settings Used For Modular Approval 6.1 RoHS Uses only RoHS compliant components 6.2 Environmental Test Withstands 4 hours at 70°C, 90% RH 6.3 ESD and Transient Test (Applies to LAN and USB external connections only) ESD: +/- 2kV operation, +/- 4kV no destruction (part of CE test) Fast electrical transients: +/- 500V operation, +/- 1000V no destruction (part of CE test) 6.4 Magnetic Field Test Passes EN55022 and EN55024 (part of CE test) 6.5 MTBF >10000 hours 6.6 Mechanical Specifications Passes drop test according to I.E.C. 68-2-32, height 100 cm, 1 corner, 6 faces. Passes vibration test with sine, vertical, 60 minutes, 600 to 18000 cpm, 1G 6.7 Module Quality Defect Rate: < 1% AQL CR=0, MA=0.4, MI=0.4
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 17 Revision 2.8 (09-30-12) 7 Board Dimensions and Weight 7.1 Top & Bottom View of CX870 Module without Bottom Shield 7.1.1 Top & Bottom View of CX Module with Bottom Shield
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 18 Revision 2.8 (09-30-12) 7.2 Side View of CX870 module without Bottom Shield 7.2.1 Side View of CX Module with Bottom Shield except CX870-3JB Note: 1. All dimensions are measured in millimetres (mm). 2. PCB’s thickness: 1.00 +/- 0.10mm 3. Tolerance: +/-0.10mm 4. Outline Tolerance: +/-0.10mm 5. NPTH Hole: +/-0.05mm 6. PTH Hole: +/-0.075mm 7. Connector positions, board dimensions, mounting hole positions and sizes are the same for all module variants. 8. Connector position tolerance: +/- 0.38mm 9. The 64-pin connector mounted on the module along one edge is the male gender. 10. Not all module variants have all connectors. Please see the Ordering Guide table for details of connector options.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 19 Revision 2.8 (09-30-12) 7.2.2 Side View of CX870 Module with Bottom Shield part number CX870-3JB only 7.3 3D View of CX870 Module without Bottom Shield Note: A 3D file of the CX module in .stp format is available from the SMSC Customer Portal.

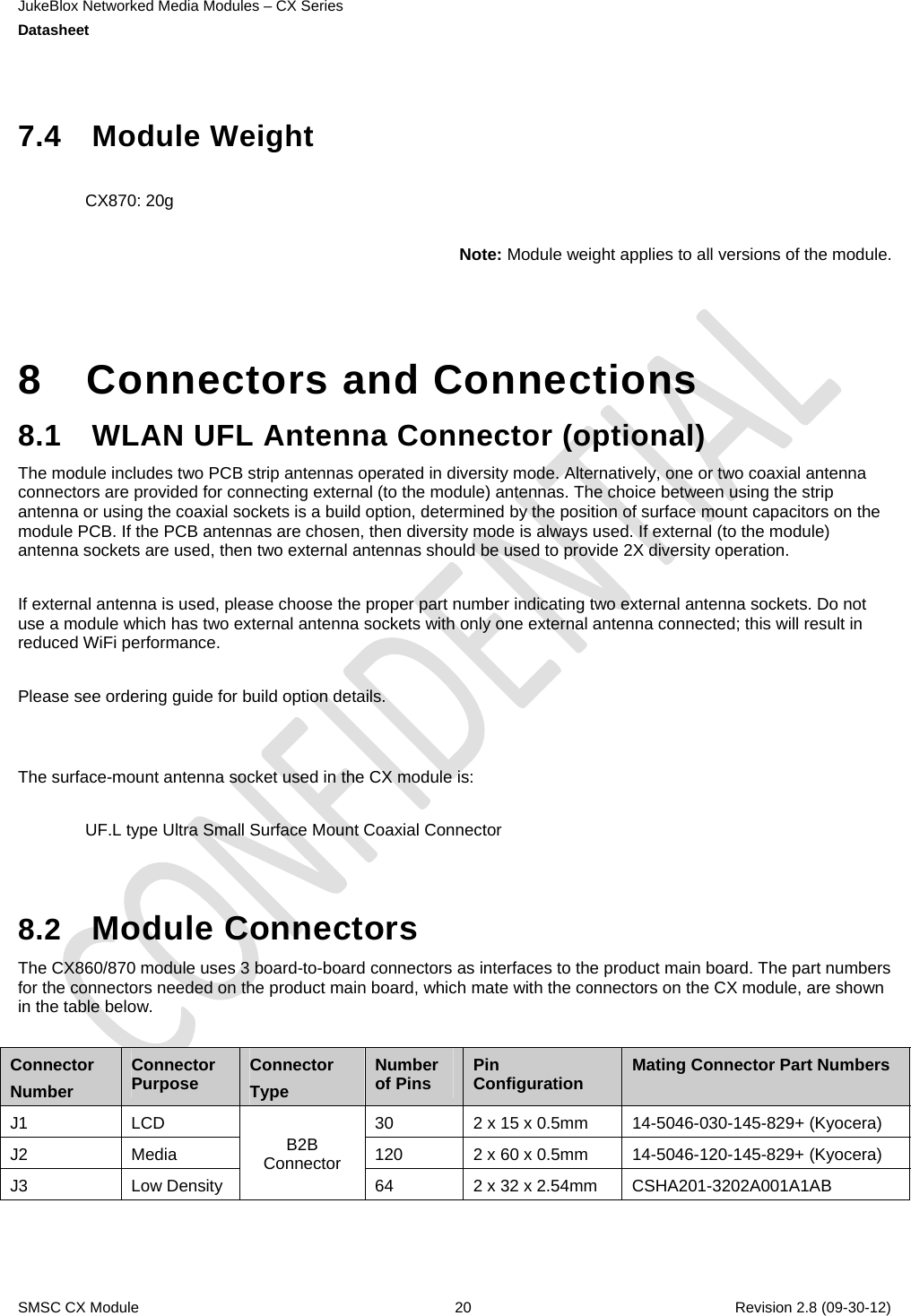

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 20 Revision 2.8 (09-30-12) 7.4 Module Weight CX870: 20g Note: Module weight applies to all versions of the module. 8 Connectors and Connections 8.1 WLAN UFL Antenna Connector (optional) The module includes two PCB strip antennas operated in diversity mode. Alternatively, one or two coaxial antenna connectors are provided for connecting external (to the module) antennas. The choice between using the strip antenna or using the coaxial sockets is a build option, determined by the position of surface mount capacitors on the module PCB. If the PCB antennas are chosen, then diversity mode is always used. If external (to the module) antenna sockets are used, then two external antennas should be used to provide 2X diversity operation. If external antenna is used, please choose the proper part number indicating two external antenna sockets. Do not use a module which has two external antenna sockets with only one external antenna connected; this will result in reduced WiFi performance. Please see ordering guide for build option details. The surface-mount antenna socket used in the CX module is: UF.L type Ultra Small Surface Mount Coaxial Connector 8.2 Module Connectors The CX860/870 module uses 3 board-to-board connectors as interfaces to the product main board. The part numbers for the connectors needed on the product main board, which mate with the connectors on the CX module, are shown in the table below. Connector Number Connector Purpose Connector Type Number of Pins Pin Configuration Mating Connector Part Numbers J1 LCD 30 2 x 15 x 0.5mm 14-5046-030-145-829+ (Kyocera) J2 Media 120 2 x 60 x 0.5mm 14-5046-120-145-829+ (Kyocera) J3 Low Density B2B Connector 64 2 x 32 x 2.54mm CSHA201-3202A001A1AB
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 21 Revision 2.8 (09-30-12) The pinout and signal names are shown on the next page. The following table provides an overview for the most important control and interface signals. 8.2.1 Pin Descriptions Signal(s) Type Description POWER VIN(+3.3V) P Power supply input ; +3.3V. VIN (+1.2V) P Power supply input ; +1.2V. VIN (+1.9V) P Power Supply input; +1.9V for powering RF section. Make sure this is a clean supply. 3V3RTC P The RTC function is no longer supported. This pin should be left open. GND P Ground (GND) connection for power supply 0V, signal returns and shielding. SPI SPI_DOUT O SPI data from DM870A to host controller. SPI_DIN I SPI data from host controller to DM870A. SPI_CLK I SPI clock from host controller to DM870A. Maximum recommended frequency is 2MHz, typical frequency is 1MHz. See Note 2 below. SPI_NCS0 I SPI chip select from host controller to DM870A. PDOUT1 O This signal is used as SPI_REQ, SPI request signal, from DM870A to host controller for eDMP applications. Logic 1 indicates that there is an SPI message waiting to be read, the host controller should start the SPI clock and read any changed registers. Logic 0 indicates that all changed register messages have been read and the message buffer is empty. Also GPIO-06. SPI_NCS1 I Not used. Leave open. UART RXD1 I UART1 input to the DM870A, used for shell access. SMSC recommends providing a connection to an external RS-232 transceiver and DB9 connector to connect to a PC COM port. Such a connection can be used for product development debugging, and for module programming control on the product manufacturing line and for module control during certification procedures. TXD1 O UART1 output from the DM870A, used for shell access. SMSC recommends providing a connection to an external RS-232 transceiver and DB9 connector to connect to a PC COM port. Such a connection can be used for product development debugging, and for module programming control on the product manufacturing line and for module control during certification procedures. RXD0 I UART0 input. Optionally used for controlling an iPod via UART. TXD0 O UART0 output. Optionally used for controlling an iPod via UART.

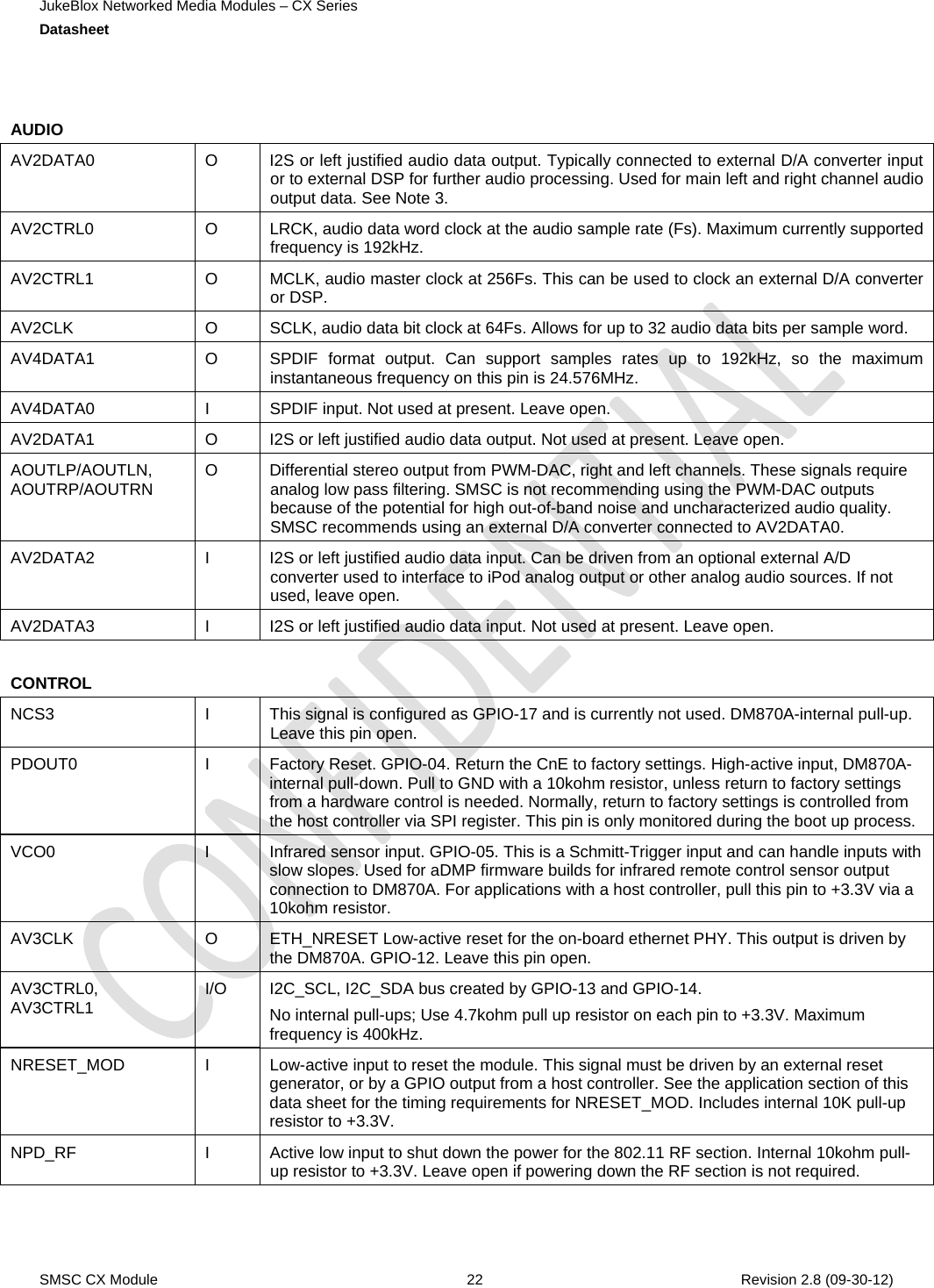

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 22 Revision 2.8 (09-30-12) AUDIO AV2DATA0 O I2S or left justified audio data output. Typically connected to external D/A converter input or to external DSP for further audio processing. Used for main left and right channel audio output data. See Note 3. AV2CTRL0 O LRCK, audio data word clock at the audio sample rate (Fs). Maximum currently supported frequency is 192kHz. AV2CTRL1 O MCLK, audio master clock at 256Fs. This can be used to clock an external D/A converter or DSP. AV2CLK O SCLK, audio data bit clock at 64Fs. Allows for up to 32 audio data bits per sample word. AV4DATA1 O SPDIF format output. Can support samples rates up to 192kHz, so the maximum instantaneous frequency on this pin is 24.576MHz. AV4DATA0 I SPDIF input. Not used at present. Leave open. AV2DATA1 O I2S or left justified audio data output. Not used at present. Leave open. AOUTLP/AOUTLN, AOUTRP/AOUTRN O Differential stereo output from PWM-DAC, right and left channels. These signals require analog low pass filtering. SMSC is not recommending using the PWM-DAC outputs because of the potential for high out-of-band noise and uncharacterized audio quality. SMSC recommends using an external D/A converter connected to AV2DATA0. AV2DATA2 I I2S or left justified audio data input. Can be driven from an optional external A/D converter used to interface to iPod analog output or other analog audio sources. If not used, leave open. AV2DATA3 I I2S or left justified audio data input. Not used at present. Leave open. CONTROL NCS3 I This signal is configured as GPIO-17 and is currently not used. DM870A-internal pull-up. Leave this pin open. PDOUT0 I Factory Reset. GPIO-04. Return the CnE to factory settings. High-active input, DM870A-internal pull-down. Pull to GND with a 10kohm resistor, unless return to factory settings from a hardware control is needed. Normally, return to factory settings is controlled from the host controller via SPI register. This pin is only monitored during the boot up process. VCO0 I Infrared sensor input. GPIO-05. This is a Schmitt-Trigger input and can handle inputs with slow slopes. Used for aDMP firmware builds for infrared remote control sensor output connection to DM870A. For applications with a host controller, pull this pin to +3.3V via a 10kohm resistor. AV3CLK O ETH_NRESET Low-active reset for the on-board ethernet PHY. This output is driven by the DM870A. GPIO-12. Leave this pin open. AV3CTRL0, AV3CTRL1 I/O I2C_SCL, I2C_SDA bus created by GPIO-13 and GPIO-14. No internal pull-ups; Use 4.7kohm pull up resistor on each pin to +3.3V. Maximum frequency is 400kHz. NRESET_MOD I Low-active input to reset the module. This signal must be driven by an external reset generator, or by a GPIO output from a host controller. See the application section of this data sheet for the timing requirements for NRESET_MOD. Includes internal 10K pull-up resistor to +3.3V. NPD_RF I Active low input to shut down the power for the 802.11 RF section. Internal 10kohm pull-up resistor to +3.3V. Leave open if powering down the RF section is not required.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 23 Revision 2.8 (09-30-12) ETHERNET ETH_RXN, ETH_RXP, ETH_TXN, ETH_TXP M Ethernet signals between the PHY on the module and the external magnetics (transformer). See Note 4. Maximum bit rate is 100Mbps. ETH_LED_SPEED, ETH_LED_ACT O 3.3V push-pull outputs (max. ±12mA) to drive the ethernet LEDs. 100Mbps speed mode and activity are indicated by the outputs being low. Connect to LEDs through 220ohm resistors. USB USB_DN, USB_DP M USB data signals, normally connected to type A connector, USB switch or iPod dock connector. Maximum bit rate is USB High Speed at 480Mbps. USB_VBUS M Analog input for monitoring USB type A connector power. Connect to the +5V power which is driving the USB type A connector power pins. If this pin drops below 4.6V, then the DM870A will drive the USBVBUSDRV signal low to control an external power MOSFET to disconnect +5V power from the USB type A connector. See Note 5. USBVBUSDRV O Logic output to control an external MOSFET that is in series with USB type A connector power. See USB_VBUS above and Note 5. JTAG TMS,TCK,TDI, TDO I/O JTAG port for DM870A. Leave open. SSM SSMD4, SSMD5, SSMD6, SSMD7 I/O Can be used to drive external shift registers to make extended GPIO signals (see Note 6), or as individual GPIO signals, or to make an SD card interface. SD card firmware is not supported at present in JB2. Can be mapped to GPIO #s 08,09,10,11. Leave open if not used. SSMD0, SSMD1, SSMD2, SSMD3, SSMCLK, SSMCP, SSMCMD, SSMWP I/O Used to make an SD card interface. SD card firmware is not supported at present in JB2. Leave open. VIDEO AV0CLK, AV0CTRL0, AV0CTRL1, AV0CTRL2, AV0DATA0, AV0DATA1, AV0DATA2, AV0DATA3, AV1DATA0, AV1DATA1, AV1DATA2, AV1DATA3 O ITU-R BT.656 digital video output signals. Optionally used to make a TVout menu display, or to display decoded album art. Can be connected to video D/A converter (see Note 7), or connected to a video DSP.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 24 Revision 2.8 (09-30-12) GPIO (not already mentioned elsewhere in this table) A22 O GPIO18 Reserved for NOR flash address A22. Leave open. A23 O GPIO-16 Reserved for NOR flash address A23. Leave open. NWAIT I/O GPIO-15 Not currently assigned. Leave open. NCS2 I GPIO-19 Assigned to iPod dock connector iPod NDETECT. See Note 8. VCO1 I/O GPIO-07 Not currently assigned. Leave open. MIICRS I/O GPIO-00 Not currently assigned. Leave open. MIICOL I/O GPIO-01 Not currently assigned. Leave open. MIITXER I/O GPIO-02 Not currently assigned. Leave open. MIITXCLK I/O GPIO-03 iPod dock connector Accessory Power signal. See Note 8. MII MIITXD0, MIITXD1, MIIRXD0, MIIRXD1 I/O Can be used, with GPIO signals above, to drive an external ethernet PHY. This is not supported by JB2 firmware. Leave open. LCD LCDD0, LCDD1, LCDD2, LCDD3, LCDD4, LCDD5, LCDD6, LCDD7, LCDD8, LCDD9, LCDD10, LCDD11, LCDD12, LCDD13, LCDD14, LCDD15, LCD16, LCDD17, LCDCLK, LCDCTRL0, LCDCTRL1, LCDCTRL2, LCDCTRL3 O Uses optional J1 LCD connector. Connect to local LCD display. See Note 9. Leave open if not used.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 25 Revision 2.8 (09-30-12) Notes: 1. Signal type codes: I – 3.3V level Digital Logic Input into the DM870A O – 3.3V level Digital Logic Output from the DM870A IO – 3.3V level Digital Logic Input and Output (bi-directional) signal M – Miscellaneous, see text for description P – Power Supply 2. For SPI timing diagram for eDMP applications, please see: BridgeCo_JB2x - DeviceControlProtocol_Registers_v_2_1.pdf, or later version. For detailed setup and hold timing details, see DM870A IC data sheet: DM870A DS rev. 1.3_12-15-11.pdf, or later version. 3. For audio port timing diagrams, and for detailed setup and hold timing, please see DM870A IC data sheet: DM870A DS rev. 1.3_12-15-11.pdf, or later version. 4. For example ethernet external schematic, see: CX Module Ethernet (RJ45 + Ext.Magnetics)_V1.2.pdf, or later version. This schematic is typically compressed into a zip file, for example: CX Module_Interface Schematics_one_page_V1.2_Jun_11.rar 5. For example USB schematics, see: CX Module USB_V1.2.pdf, or later version. This schematic is typically compressed into a zip file, for example: CX Module_Interface Schematics_one_page_V1.2_Jun_11.rar 6. For example use of extended GPIO shift registers, see CE2 schematic: A EVMCE2-4_schematic.pdf, or later version. 7. For example connection to a video D/A converter, see CE2 schematic: A EVMCE2-4_schematic.pdf, or later version. 8. iPod dock connector pin and GPIO assignments are under discussion. Please contact SMSC for recommendations for iPod dock connections to CX870 module. 9. For example connection to an LCD display, see CE2 schematic: A EVMCE2-4_schematic.pdf, or later version. 10. All the above signals are brought out to J2 pins. Not all the above signals are brought out to J3, the 64-pin low density connector. The J3 pin assignments table shows which signals are brought out to the J3 pins. 11. SMSC has a set of example motherboard schematics that shows example external circuitry that is typically connected to the module. Please check the SMSC/BridgeCo customer portal at https://portal.bridgeco.net/ for a copy of these example schematics. These schematics are typically compressed into a zip file, for example: CX Module_Interface Schematics_one_page_V1.2_Jun_11.rar 12. Please check the SMSC/BridgeCo Customer Portal Download area for the latest version of the SMSC documents. Go to https://portal.bridgeco.net/. If you do not have an account, please contact SMSC.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 26 Revision 2.8 (09-30-12) 8.2.2 Connector PIN Assignments J2 – Media Connector Function GPIO IC PIN Signal Signal IC PIN GPIO FunctionGND 1 2 GNDVIN (+3.3V) 3 4 VIN (+3.3V)VIN (+3.3V) 5 6 VIN (+3.3V)GND 7 8 GNDVIN (+1.2V) 9 10 VIN (+1.2V)VIN (+1.2V) 11 12 VIN (+1.2V)GND 13 14 GNDVIN (+1.9V) 15 16 VIN (+1.9V)GND 17 18 GND3V3RTC 19 20 GNDGND 21 22 TMS B15GND 23 24 TCK C14D15 SPI_DOUT 25 26 TDI A16D14 SPI_DIN 27 28 TDO A15B16 SPI_CLK 29 30 SPI_NCS0 C15C13 TXD0 31 32 SPI_NCS1 B17B14 RXD0 33 34 NRESET_MOD Module reset inputA14 RXD1 35 36 SSMD6 C12 GPIO-10 SPI_E_CLKB13 TXD1 37 38 SSMD4 A12 GPIO-08 SPI_E_SDOGND 39 40 SSMD2 C11SPI_E_NCS GPIO-11 D12 SSMD7 41 42 SSMD1 B11SPI_E_SDI GPIO-09 B12 SSMD5 43 44 SSMCMD A13D11 SSMD3 45 46 SSMWP D9A11 SSMD0 47 48 NCS3 H18 GPIO-17 BIST activateC10 SSMCLK 49 50 NCS2 J17 GPIO-19 iPod NDETECTD10 SSMCP 51 52 GNDGND 53 54 USB_VBUS D2A1 USB_DN 55 56 GNDB1 USB_DP 57 58 AOUTRN L3E3 USBVBUSDRV 59 60 AOUTRP L4GND 61 62 GNDK4 AOUTLP 63 64 PDOUT1 J1 GPIO-06 SPI_REQL2 AOUTLN 65 66 VCO1 J2 GPIO-07GND 67 68 PDOUT0 K1 GPIO-04 Factory resetGPIO-16 H17 A23 69 70VCO0 K2 GPIO-05 IR inputGPIO-18 H16 A22 71 72AV3CLK R4 GPIO-12 ETH NRESETI2C SDA GPIO-14 T3 AV3CTRL1 73 74 AV0CTRL0 M1I2C SCL GPIO-13 U2 AV3CTRL0 75 76 AV1DATA3 N4M3 AV0CTRL2 77 78 AV1DATA2 P1M2 AV0CTRL1 79 80 AV1DATA1 P2L1 AV0CLK 81 82 AV1DATA0 P3M4 AV0DATA3 83 84 GNDN1 AV0DATA2 85 86 AV2CTRL1 T1 MCLKN2 AV0DATA1 87 88 GNDN3 AV0DATA0 89 90 AV2CLK R1 SCLKGND 91 92 GNDLRCK T1 AV2CTRL0 93 94 AV4DATA1 U3 SPDIF outputA/D data 1 P4 AV2DATA3 95 96 AV4DATA0 V2 SPDIF inputA/D data 0 R3 AV2DATA2 97 98 GNDD/A data 1 T2 AV2DATA1 99 100 ETH_LED_ACTD/A data 0 U1 AV2DATA0 101 102 ETH_LED_SPEEDGND 103 104 MIICRS R14 GPIO-00ETH_RXN 105 106 MIICOL T13 GPIO-01ETH_RXP 107 108 MIITXER T11 GPIO-02109 110 MIITXCLK R12 GPIO-03 iPod Access PowerETH_TXN 111 112 MIITXD0 U10ETH_TXP 113 114 MIITXD1 V10GND 115 116 MIIRXD0 U12GPIO-15 K18 NWAIT 117 118 MIIRXD1 V12NPD_RF 119 120 GNDUSBVideo OutputEthernetUSBVideo OutputEthernetPIN NumberSPIDebug UARTJTAGSPI Note: The IC PIN column indicates the pin number on the DM860A or DM870A integrated circuit. This allows for easy cross-reference to the DM860A or DM870A data sheet information.

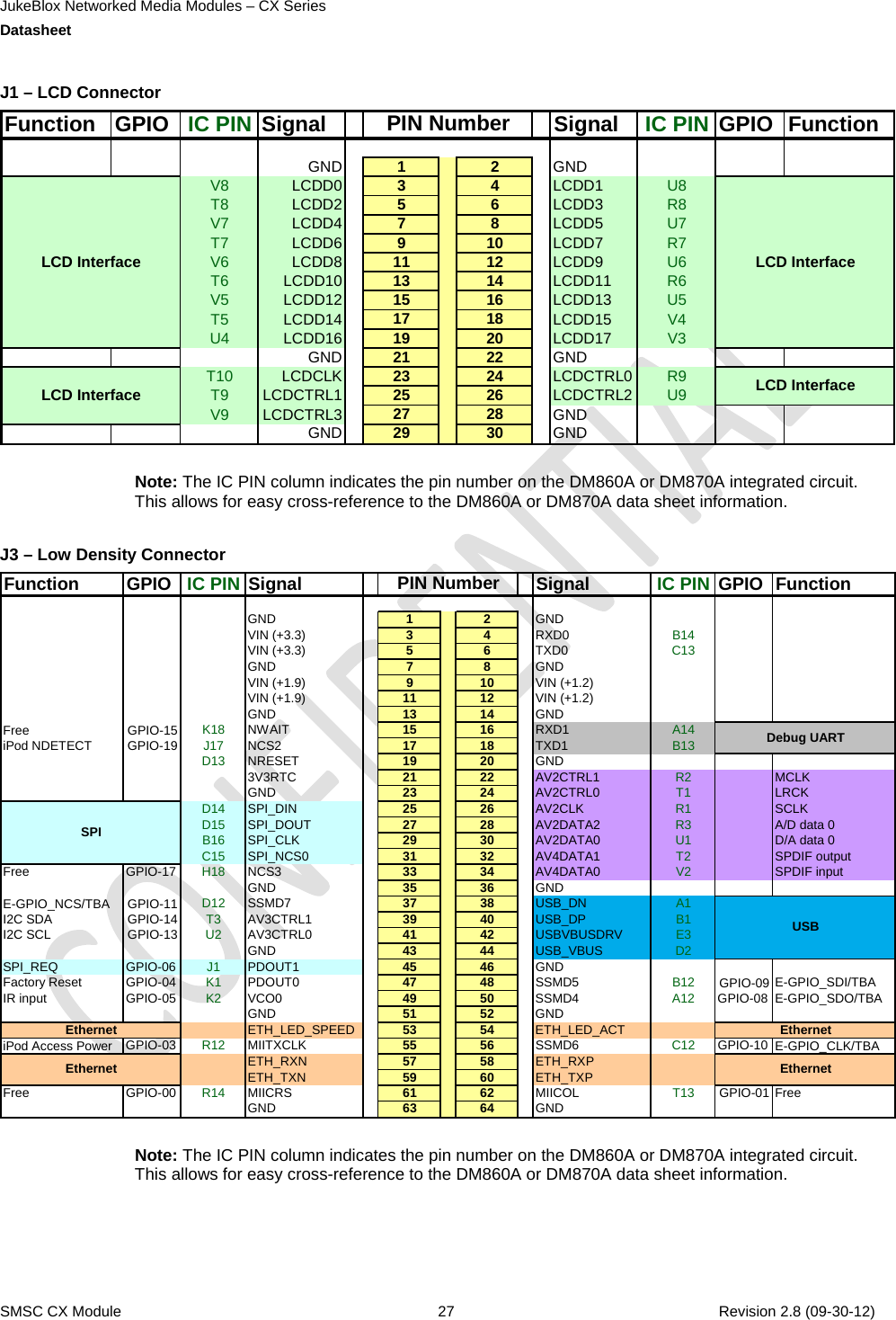

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 27 Revision 2.8 (09-30-12) J1 – LCD Connector Function GPIO IC PIN Signal Signal IC PIN GPIO FunctionGND 12GNDV8 LCDD0 34LCDD1 U8T8 LCDD2 56LCDD3 R8V7 LCDD4 78LCDD5 U7T7 LCDD6 910LCDD7 R7V6 LCDD8 11 12 LCDD9 U6T6 LCDD10 13 14 LCDD11 R6V5 LCDD12 15 16 LCDD13 U5T5 LCDD14 17 18 LCDD15 V4U4 LCDD16 19 20 LCDD17 V3GND 21 22 GNDT10 LCDCLK 23 24 LCDCTRL0 R9T9 LCDCTRL1 25 26 LCDCTRL2 U9V9 LCDCTRL3 27 28 GNDGND 29 30 GNDPIN NumberLCD InterfaceLCD InterfaceLCD InterfaceLCD Interface Note: The IC PIN column indicates the pin number on the DM860A or DM870A integrated circuit. This allows for easy cross-reference to the DM860A or DM870A data sheet information. J3 – Low Density Connector Function GPIO IC PIN Signal Signal IC PIN GPIO FunctionGND 12GNDVIN (+3.3) 34RXD0 B14VIN (+3.3) 56TXD0 C13GND 78GNDVIN (+1.9) 910VIN (+1.2)VIN (+1.9) 11 12 VIN (+1.2)GND 13 14 GNDFree GPIO-15 K18 NWAIT 15 16 RXD1 A14iPod NDETECT GPIO-19 J17 NCS2 17 18 TXD1 B13D13 NRESET 19 20 GND3V3RTC 21 22 AV2CTRL1 R2 MCLKGND 23 24 AV2CTRL0 T1 LRCKD14 SPI_DIN 25 26 AV2CLK R1 SCLKD15 SPI_DOUT 27 28 AV2DATA2 R3 A/D data 0B16 SPI_CLK 29 30 AV2DATA0 U1 D/A data 0C15 SPI_NCS0 31 32 AV4DATA1 T2 SPDIF outputFree GPIO-17 H18 NCS3 33 34 AV4DATA0 V2 SPDIF inputGND 35 36 GNDE-GPIO_NCS/TBA GPIO-11 D12 SSMD7 37 38 USB_DN A1I2C SDA GPIO-14 T3 AV3CTRL1 39 40 USB_DP B1I2C SCL GPIO-13 U2 AV3CTRL0 41 42 USBVBUSDRV E3GND 43 44 USB_VBUS D2SPI_REQ GPIO-06 J1 PDOUT1 45 46 GNDFactory Reset GPIO-04 K1 PDOUT0 47 48 SSMD5 B12 GPIO-09 E-GPIO_SDI/TBAIR input GPIO-05 K2 VCO0 49 50 SSMD4 A12 GPIO-08 E-GPIO_SDO/TBAGND 51 52 GNDETH_LED_SPEED 53 54 ETH_LED_ACTiPod Access Power GPIO-03 R12 MIITXCLK 55 56 SSMD6 C12 GPIO-10 E-GPIO_CLK/TBAETH_RXN 57 58 ETH_RXPETH_TXN 59 60 ETH_TXPFree GPIO-00 R14 MIICRS 61 62 MIICOL T13 GPIO-01 FreeGND 63 64 GNDPIN NumberDebug UARTUSBSPIEthernetEthernetEthernetEthernet Note: The IC PIN column indicates the pin number on the DM860A or DM870A integrated circuit. This allows for easy cross-reference to the DM860A or DM870A data sheet information.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 28 Revision 2.8 (09-30-12) 8.2.3 GPIO Assignments GPIO Assignments for J3 64-pin Low Density Connector GPIO PIN Name PIN Number Function 00 MIICRS 61 Free 01 MIICOL 62 Free 03 MIITXCLK 55 iPOD Access Power04 PDOUT0 47 Factory Reset 05 VCO0 49 IR Input 06 PDOUT1 45 Host NIREQ 08 SSMD4 50 E_GPIO_SDO/TBA09 SSMD5 48 E_GPIO_SDI/TBA 10 SSMD6 56 E_GPIO_CLK/TBA 11 SSMD7 37 E_GPIO_NCS/TBA13 AV3CTRL0 41 I2C_SCL 14 AV3CTRL1 39 I2C_SDA 15 NWAIT 15 Free 17 NCS3 33 Free 19 NCS2 17 IPOD NDETECT Note: Not all 20 GPIO signals are brought out to J3 64-pin low density connector. For the CX870-3K, GPIOs 00, 01 and 03 are not brought out to J3 64-pin low density connector. J3 pin numbers 61, 62 and 55 are not connected to any signal in the CX870-3K module. 9 Application Guidelines 9.1 Power Supply sequencing and Reset Timing There are strict power sequencing and reset timing requirements. • Power up the I/O voltage (3.3V) first and hold NRESET_MOD low. • The core voltage (1.2V) must never be higher than (I/O voltage +0.5 V). • The core voltage (1.2V) must be within the specified core voltage limits less than 300ms after the I/O voltage (3.3V) reaches the specified I/O voltage limits. • Throughout the power down process, the 3.3V supply must maintain a higher voltage than the 1.2V supply, until both have reached ground potential. • To assure a proper IC reset, the power supplies must be present for a minimum time of 2ms before NRESET_MOD is de-asserted. Please see the power and reset timing figure in Section 9.1.1 below. About 1.9V, the arrival of 1.9V supply should lag behind the arrival of the 3.3V. The delay between the 1.9V and the 3.3V is not critical. Typical delay is approximately 10ms, for example using 10kohm resistor and 0.1uF capacitor on the enable pin of a 1.9V dc-to-dc converter.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 29 Revision 2.8 (09-30-12) 9.1.1 Power up, Reset and Power Down Timing TimeVoltageNRESET_MOD0V+1.2V+3.3V< 300ms>= 2msPower Up Power Down 9.2 RF Considerations Note that overall system, RF and WiFi performance is significantly affected by the product design, environment and the application. It is the responsibility of the product designer to ensure proper system level shielding (if required) and to verify performance and fitness for the given product features and applications. The WiFi performance will be affected by the RF environment surrounding the CX module. Please ensure that the CX module is positioned in a “quiet” RF environment, as far away as possible from high frequency clock signals and any other sources of RF energy. Also, make sure the antenna is not shielded by any metal objects, for example loudspeakers or other metal parts. Please make sure that the power supplies, in particular the +1.9V supply, are quiet and free from noise. SMSC recommends that systems implementing AirPlay should use a module configuration that includes on-module shielding, as well as paying particular attention to system configuration and shielding. In particular, SMSC is recommending the use of the Bottom Shield versions of the modules, which allows greater freedom in antenna positioning. Also, please see the SMSC Application Note: SMSCAppNote - CX870_Antenna_Placement_V1_4.pdf regarding antenna positioning guidelines. Please see below picture for the recommended keep out area and cable routing for the antennas.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 30 Revision 2.8 (09-30-12) 10 Revision Control Revision Date / Author Details of Change Reason for Change V2.8 (093012) Sept 30, 2012 / SHs Updated Section 4 Ordering Guide with 2 new rows for CX870-3LB & CX870-3MB and moved the row for CX870-3KB to be with them. New SKUs available. Updated cover page with new Microchip logo; removed SMSC logo from header; removed SMSC logo & address from legal text (page 2); added info about Microchip to legal text; updated © to 2012. Microchip purchased SMSC. Updated filename to ‘CX_Module_DS_Rev2-8_MM-DD-YY.pdf’. Data covers all CX modules. Removed CX860 from Section 7.4 Module Weight. No CX860 module available. Updated left side of footer to ‘SMSC CX Module’. Data sheet is for all CX modules. Updated title of Section 7.1.1 to ‘Top & Bottom View of CX Module with Bottom Shield’. Drawings are for all CX modules. Updated title of Section 7.2.1 to ‘Side View of CX Module with Bottom Shield except CX870-3JB’. Drawings are for all CX modules. In Sections 3.1, 3.2, 3.2.1 & 3.2.2, updated occurrences of ‘CX870’ to ‘CX Module’. Pictures are for all CX modules. Updated Section 4 Ordering Guide to remove rows for CX870-3DB and CX870-3DBS, and add a row for CX870-3KB. Updated to show actual status. V2.8 (092412) Sept 24, 2012 / SHs Removed ‘I2C’ box, arrow & label in Section 2 Block Diagram. Correction. Updated Section 2 Block Diagram to show obscured black lines leading out from LCD & SSM blocks. Correction. In Section 2 Block Diagram changed “DM860A or DM870A” to “DM870A or DM875” CX module uses DM870A and DM875. In Section 1 Introduction, changed “DM860A and DM870A” to “DM870A and DM875” CX module uses DM870A and DM875. In Section 4 Ordering Guide, added a ‘Status’ column and status code key. To show current availability status of each module version. In Section 4 Ordering Guide, added row for CX875-3PB. To give details of newly available module version. In Section 4 Ordering Guide, changed “SMSC IC’s” heading to “SMSC ICs”. Correction. In Section 6.0.1 Antenna Considerations, replaced text list with a new table. Updated information and in a clearer format. Added a new section 6.0.2 CX Power Settings Used For Modular Approval. To provide more details about CX module power settings. In Section 6 Regulatory Compliance and Quality, updated the Compliance entry for New Zealand / Australia for Radio Regulations from “CE” to “AZ/NZS:4268” Updated information. In Section 9.2 RF Considerations, changed the application note file path from “App Note Antenna Placement recommendation CX870 modules rev1.1.pdf” to “SMSCAppNote - CX870_Antenna_Placement_V1_4.pdf” Provide most up to date Application Note file. V2.8 (090912) Sept 9, 2012 / SHs In Section 9.2 RF Considerations, added note & Provide information about keep out areas and
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 31 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change picture regarding recommended keep out area and cable routing for antennas. cable routing. In Notes of Section 8.2.1 Pin Descriptions, added text regarding schematics being compressed into zip files to Notes 4, 5 & 11. Provide further information about schematic files. V2.7 (061312) June 13, 2012 / SHs In Section 4 Ordering Guide, made rows for CX870-3B, 3H, 3I, 3J shaded. All new designs should use modules with a bottom shield, so modules without a bottom shield are now marked as "NOT TO BE USED FOR NEW/STANDARD MP DESIGNS" by shading the rows in the Ordering Guide table for those modules with no bottom shield. V2.6 (050812) May 8, 2012 / SHs Removed entries in ‘8MByte NOR’ column for modules 3A, 3B, 3D, 3DS in Section 4 Ordering Guide Correction. Updated title of Section 7.2.1 Side View of CX870 Module with Bottom Shield to include “…except CX870-3JB” Reflect addition of separate section (7.2.2) for the CX870-3JB module. V2.5 (042212) April 22, 2012 / SHs Added Section 7.2.2 Side View of CX870 Module with Bottom Shield part number CX870-3JB only CX870-3JB has thinner bottom shield than other modules. Added IC PIN entry for MIICRS in J3 Low Density Connector table in Section 8.2.2 Connector PIN Assignments. CX module uses DM870A. Changed "MMIICRS" to "MIICRS" in Section 8.2.3 GPIO Assignments. Correction. Changed "MMIICRS" to "MIICRS" in J3 Low Density Connector table in Section 8.2.2 Connector PIN Assignments. Correction. Changed "MMIICRS" to "MIICRS" in GPIO table in Section 8.2.1 Pin Descriptions. Correction. Added important note text to Tx Power row in Section 5.3 WiFi Specification. To indicate which modules the Tx Power specifications relate to. V2.4 (032312) March 23, 2012 / SHs Removed the ‘m’ from "+/-1dBm" in the Tx Power row in Section 5.3 WiFi Specification. Correction. In Section 5.3 WiFi Specifications, updated Transmission Speed entry Add missing 2Mbps speed. In Section 4 Ordering Guide, changed all occurrences of DM870 to DM870A & DM860 to DM860A CX module uses DM870A. In Section 2 Block Diagram, changed all occurrences of DM870 to DM870A & DM860 to DM860A CX module uses DM870A. In Section 1 Introduction, changed all occurrences of DM870 to DM870A & DM860 to DM860A CX module uses DM870A. In Section 8.2.1 Pin Descriptions, changed all occurrences of DM870 to DM870A CX module uses DM870A. In the Notes for Section 8.2.1 Pin Descriptions, changed dat_DM870_16_datasheet.pdf to DM870A DS rev. 1.3_12-15-11.pdf CX module uses DM870A. Changed all occurrences of DM870 to DM870A throughout the datasheet. CX module uses DM870A. Updated J1, J2 & J3 tables in Section 8.2.2 Connector PIN Assignments, changing DM870 to DM870A. CX module uses DM870A. V2.4 (031712) March 17, 2012 / SHs Changed "WiFi (on-module PCB diversity)" column heading to "Internal PCB Diversity Antennas" in Section 4 Ordering Guide Improve clarity of meaning.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 32 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change Added ‘FCC’ to North America in Frequency Band entry in Section 5.3 WiFi Specification Specify North American WiFi regulatory certification body. Updated TX EVM entry in Section 5.3 WiFi Specifications Update values to better reflect actual performance. Updated Rx Sensitivity entry in Section 5.3 WiFi Specifications Update values to better reflect actual performance. Updated Tx Power entry in Section 5.3 WiFi Specifications Show test conditions. Added Section 3.6 Production Module with Bottom shield (Part Numbers with a "B" after the configuration letter) Show module versions with bottom shield. Added Section 3.6.1 Including J3 Low Density 64-pin connector - Bottom View Show bottom shield. V2.4 (031212) March 12, 2012 / SHs Added Section 3.6.2 Including J2 High Density 120-pin connector - Bottom View Show bottom shield. Updated Section 4 Ordering Guide & Section 4.1 Part Number Syntax drawing with bottom shield versions Bottom shield versions added to table and Syntax drawing. Added another note to Section 8.2.3 GPIO Assignments Document missing GPIOs for CX870-3K. Updated TX Power row in Section 5.3 WiFi Specification (CX870 only) Show improved tolerances for TX power. Added Section 7.1.1 Top & Bottom View of CX870 Module with Bottom Shield Show drawings of module with Bottom Shield. Added Section 7.2.1 Side View of CX870 Module with Bottom Shield Show drawings of module with Bottom Shield. Added a note to Section 7.3 3D View of CX870 Module To indicate availability of digital copy of 3D view of module. V2.4 (031012) March 10, 2012 / SHs Added additional text to Section 9.2 RF Considerations Providing further recommendations regarding the use of bottom shield versions and to indicate the availability of a pdf about antenna positioning guidelines. V2.3 (112011) November 20, 2011 / SHs Added CX870-3DS option to Section 4 Ordering Guide To indicate soldered shield version. V2.2 (110811) November 8, 2011 / SHs Added CX870-3K option to Section 4 Ordering Guide. Added -3K option. Updated title of Section 6.1 from “1 RoHS” to “RoHS”. Correcting typo. In Section 10 Revision Control table, updated an entry for V2.0 b in the Reason for Change column from “RTV” to “RTC” Correcting typo. Removed “Preliminary Datasheet” from the footer. CX module is in production, so the datasheet is no longer preliminary. V2.1 (100711) October 7, 2011 / SHs Removed the word “Preliminary” from the title page. CX module is in production, so the datasheet is no longer preliminary. Updated Section 5.3 WiFi Specification “TX Power” entry for 802.11g Correspond to actual production test limits. Updated Section 6.0.1 Antenna Considerations with updated module numbering scheme Revert to original module numbering scheme. Updated Section 6.7 Module Quality with new Defect Rate Data is now available. Updated Section 4.1 Part Number Syntax with removal of Antenna Configuration number and Note Revert to original part numbering scheme. V2.0 (100211) October 2, 2011 / SHs Updated Section 10 Revision Control with new Reason for Change column Corporate standard.
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 33 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change Change from BridgeCo logos and disclaimer text to SMSC logos and disclaimer text Corporate standard. Updated location of red boxes in Section 3.2.1 CX870 Bottom View with 64-pin Low density connector Improve alignment of red box to photo. Updated location of red boxes in Section 3.2.2 CX870 Bottom View with 120-pin Media connector Improve alignment of red box to photo. Moved Section 5.3 WiFi Specification on to one page Improve readability. Updated Customer Portal information in Section 6 Regulatory Compliance and Quality Easier to access URL directly. Reverted Antenna Considerations back to Section 6.0.1; subsequently all subsections in Section 6 reverted back to original numbering Decided to keep original part numbering scheme to avoid unnecessary paper work and the need to redo certifications. Updated Notes 11 & 12 in Section 8.2.1 Pin Descriptions with updated Customer Portal information Easier to access URL directly. V2.0 (092611) Sept. 26, 2011 / SHs Updated Table of Contents Keep TOC aligned with actual content. Updated font styling of Table of Contents Easier to read. Update Section 2 Block Diagram : moved RJ45+Transformer & USB Type A boxes inside the drawing boundary Improve accuracy of drawing. Updated Section 5.3 WiFi Specification (CX870 only) TX Power Description entry Align data with test limits. Updated Section 5.3 WiFi Specification (CX870 only) Rx Sensitivity Description entry Align data with test limits. Updated Section 5.3 WiFi Specification (CX870 only) : add a Note underneath the table Clarification of the possible effect of changing the TX Power setting. Updated Section 4 Ordering Guide : changed CX870-3D row Two Ant entry from (X)* to X Change to match final CX870-3D configuration. V2.0 c Sept. 14, 2011 / SHs Updated Section 4 Ordering Guide : removed the two blank rows Improve readability.

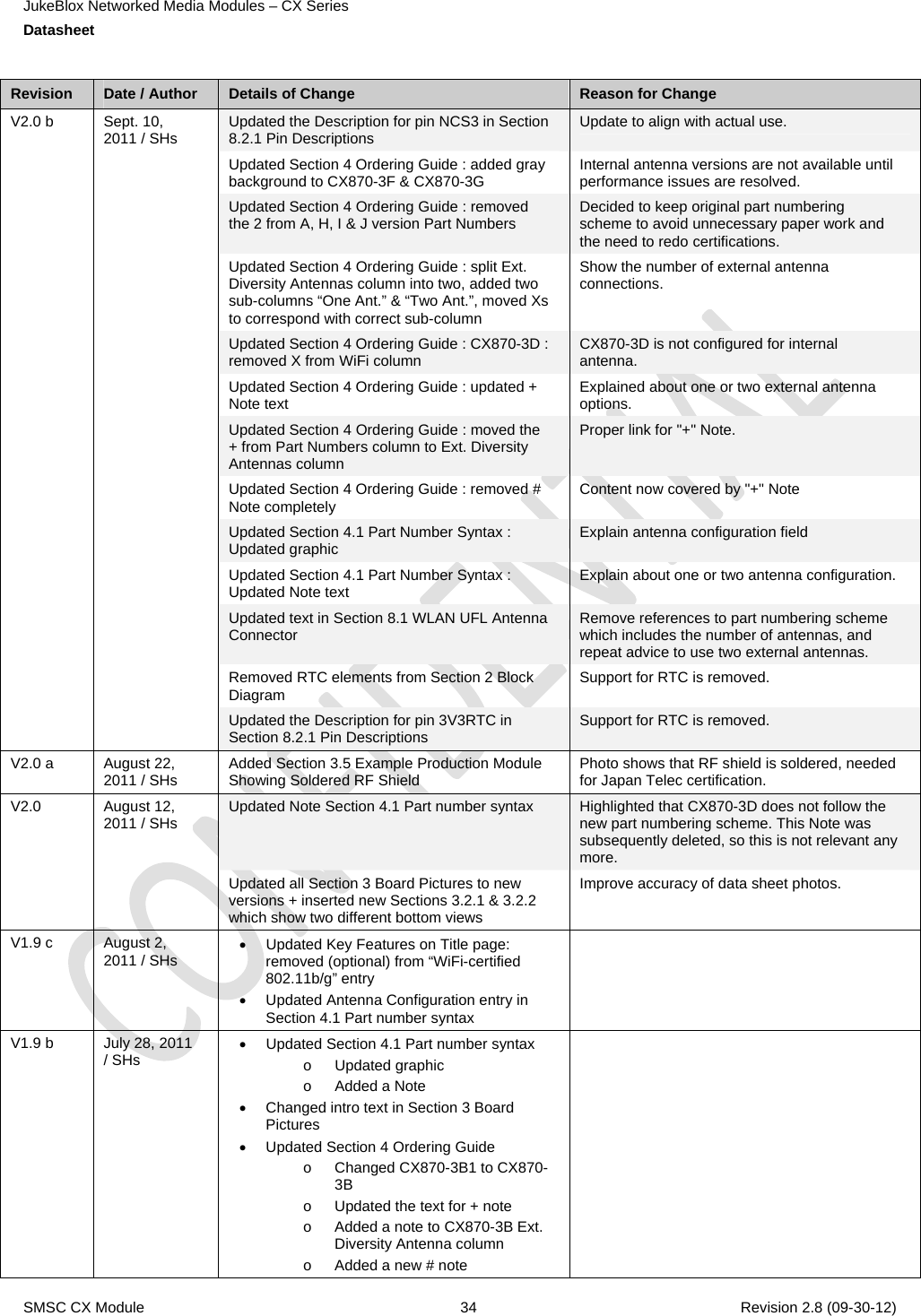

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 34 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change Updated the Description for pin NCS3 in Section 8.2.1 Pin Descriptions Update to align with actual use. Updated Section 4 Ordering Guide : added gray background to CX870-3F & CX870-3G Internal antenna versions are not available until performance issues are resolved. Updated Section 4 Ordering Guide : removed the 2 from A, H, I & J version Part Numbers Decided to keep original part numbering scheme to avoid unnecessary paper work and the need to redo certifications. Updated Section 4 Ordering Guide : split Ext. Diversity Antennas column into two, added two sub-columns “One Ant.” & “Two Ant.”, moved Xs to correspond with correct sub-column Show the number of external antenna connections. Updated Section 4 Ordering Guide : CX870-3D : removed X from WiFi column CX870-3D is not configured for internal antenna. Updated Section 4 Ordering Guide : updated + Note text Explained about one or two external antenna options. Updated Section 4 Ordering Guide : moved the + from Part Numbers column to Ext. Diversity Antennas column Proper link for "+" Note. Updated Section 4 Ordering Guide : removed # Note completely Content now covered by "+" Note Updated Section 4.1 Part Number Syntax : Updated graphic Explain antenna configuration field Updated Section 4.1 Part Number Syntax : Updated Note text Explain about one or two antenna configuration. Updated text in Section 8.1 WLAN UFL Antenna Connector Remove references to part numbering scheme which includes the number of antennas, and repeat advice to use two external antennas. Removed RTC elements from Section 2 Block Diagram Support for RTC is removed. V2.0 b Sept. 10, 2011 / SHs Updated the Description for pin 3V3RTC in Section 8.2.1 Pin Descriptions Support for RTC is removed. V2.0 a August 22, 2011 / SHs Added Section 3.5 Example Production Module Showing Soldered RF Shield Photo shows that RF shield is soldered, needed for Japan Telec certification. Updated Note Section 4.1 Part number syntax Highlighted that CX870-3D does not follow the new part numbering scheme. This Note was subsequently deleted, so this is not relevant any more. V2.0 August 12, 2011 / SHs Updated all Section 3 Board Pictures to new versions + inserted new Sections 3.2.1 & 3.2.2 which show two different bottom views Improve accuracy of data sheet photos. V1.9 c August 2, 2011 / SHs • Updated Key Features on Title page: removed (optional) from “WiFi-certified 802.11b/g” entry • Updated Antenna Configuration entry in Section 4.1 Part number syntax V1.9 b July 28, 2011 / SHs • Updated Section 4.1 Part number syntax o Updated graphic o Added a Note • Changed intro text in Section 3 Board Pictures • Updated Section 4 Ordering Guide o Changed CX870-3B1 to CX870-3B o Updated the text for + note o Added a note to CX870-3B Ext. Diversity Antenna column o Added a new # note
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 35 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change • Added Section 6.0.1 Antenna Considerations V1.9 a July 25, 2011 / SHs • Inserted new photo for Section 3.1 Top View of CX870 • Inserted new photo for Section 3.2 Bottom View of CX870 • Added new Section 3.3 Production Module with Top & RF shields • Added new Section 3.4 Production Module with 64-pin Connector Option • Updated Section 4 Ordering Guide o Added gray background to CX870-3D o Changed CX870-3A to CX870-3A2 o Changed CX870-3B to CX870-3B1 o Changed CX870-3H to CX870-3H2 o Changed CX870-3I to CX870-3I2 o Changed CX870-3J to CX870-3J2 o Added a Note to the Part Number title • Updated Section 8.1 WLAN UFL Antenna Connector with new text • Updated Section 5.3 WiFi Specification TX EVM entry to -9dB@6MHz • Updated Section 6 Regulatory Compliance & Quality with Module Versions Passed for Radio Regulations entries • Replaced the Note in Section 6 to be main body text and updated the text. • Added new Section 4.1 Part number syntax • Updated module weight to 20g V1.8 a July 10, 2011 / SHs • Update section 8.1 WLAN UFL Antenna Connector • Deleted section 8.1.1 Coaxial antenna connector dimensions V1.8 July 5, 2011 / SHs • Updated the acceptable surface-mount receptacle parts in Section 8.1 WLAN UFL Antenna Connector • Added Appendix 1: Certification Notices V1.7 c May 13, 2011 / SHs • Updated “Module Quality” Defect Rate field entry • Updated “Board Dimensions & Weight” drawings • Updated the “Electrical Specifications” table • Added another Note to the “Pin Descriptions” section V1.7 b May 11, 2011 / SHs • Updated Note 8 in “Pin Descriptions” table • Re-imported “Board Dimensions & Weight” drawings • Updated “Board Pictures” images • Updated board photo on Cover page
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 36 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change • Updated the Feature list on Cover page • Updated J1, J2 & J3 “Connector PIN Assignments” tables: removed Power column & re-organised columns • Changed “Application Notes” title to “Application Guidelines” • Updated Copyright date to “2011” • Updated Table of Contents font styling V1.7 a May 6, 2011 / SHs • Re-imported Block Diagram as a wmf file • Updated “Power up, Reset & Power down Timing” figure • Updated “Pin Descriptions” table • Re-organised text in “Power Supply sequencing & Reset Timing” • Re-imported J2 & J3 Connector PIN Assignment tables V1.7 May 4, 2011 / SHs • Added note to Module Weight section • Updated the Ordering Guide – Part Numbers & added new J version • Added new text to the Board Pictures section • Updated all Mechanical Drawings and added & removed Notes • Updated the J3 Low Density Connector table • Updated the GPIO Assignment table • Added new Power Supply & Timing figure • Updated the text in the “Power Supply sequencing and Reset Timing” section • Updated the Key Connections table • Updated “Key Connections” section title to “Pin Descriptions” • Updated “Detailed Connector PIN Descriptions” section title to “Connector PIN Assignments” • Updated J2 Media Connector table V1.6 d March 3, 2011 / SHs • Updated J3 Low Density Connector table • Update GPIO Assignments section and table V1.6 c February 24, 2011 / SHs • Updated all mechanical drawings in “Board Dimensions and Weights” section • Deleted warning note in “Board Dimensions and Weights” section V1.6 b February 23, 2011 / SHs • Updated “J3-Low density connector” pin description table • Updated “GPIO Assignments” table V1.6 February 11, 2011 / SHs • Entirely updated the “Ordering Guide” • Added a Note to the “Ordering Guide” • Updated the subsection titles for the “Board Pictures” section • Updated the Block Diagram – changed ‘WiFi Antenna’ to ‘Ext. Antenna’ V1.5 b January 27, 2011 / SHs • Added Note to “Board Dimensions and Weight” section V1.5 a January 24, 2011 / SHs • Updated the “Ordering Guide” – removed Mfg column and consolidated into one table
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 37 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change • Updated the Header to reflect Preliminary nature of datasheet V1.5 January 22, 2011 / SHs • Updated the datasheet to be a Preliminary Datasheet • Added new feature to Summary on Front Page • Updated “J3 - Low Density Connector” table • Updated “GPIO Assignments” table • Added note to “Board Dimensions & Weight – Side Views of CX870 module” section • Updated text in “Application Notes – Power Supply Sequencing & Reset Timing” section • Updated “Block Diagram” • Updated text in “Connectors & Connections – WLAN UFL Antenna Connector” section V1.4 b January 11, 2011 / SHs • Updated the Application Notes, RF Considerations section V1.4 January 3, 2011 / SHs • Updated the module photo on the Title page • Updated the Application Notes, RF Considerations section V1.3 December 23, 2010 / SHs • Updated Ordering Guide • Added Notes to Ordering Guide • Updated Block Diagram • Updated “J3 – Low Density Connector” table • Updated “Electrical Specifications” table • Added Power Consumption data to “Electrical Specifications” table • Updated the Board Dimensions and Weight images • Updated the “GPIO Assignments” table • Added another Application Note • Added titles to Application Notes V1.2 December 19, 2010 / SHs • Inserted CX860 and CX870 Module Weights • Updated module image on Front Page V1.1 December 13, 2010 / SHs • Added the Ordering Guide. • Updated the Block Diagram. • Updated the “Electrical Specifications” table • Updated the “Absolute Maximum Ratings” table • Updated the Notes for “Regulatory Compliance and Quality” section • Updated “Key Connections” table • Updated “J2 – Media Connector” table • Updated “J3 – Low Density Connector” table • Updated “GPIO Assignments” table • Added Board Pictures • Replaced Mechanical Drawings in “Board Dimensions and Weight” section
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 38 Revision 2.8 (09-30-12) Revision Date / Author Details of Change Reason for Change V1.0 October 18, 2010 / SHs • Initial Version
JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 39 Revision 2.8 (09-30-12) 11 Appendix 1: Certification Notices Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Labeling requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. This device is intended for OEM integrators only. Please see the full Grant of Equipment document for other restrictions. This device must be operated and used with a locally approved access point. Information To Be Supplied to the End User by the OEM or Integrator The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Host system must be labeled with "Contains FCC ID:ZQO-CX870-3”X”“, FCC ID displayed on the label. The label text should be updated according to the table shown in Ordering Guide section of this document. The proper letter shown in Ordering Guide Part Number column should be substituted for “X”. For example, for the CX870-3B module, the label text should be “Contains FCC ID:ZQO-CX870-3B“.

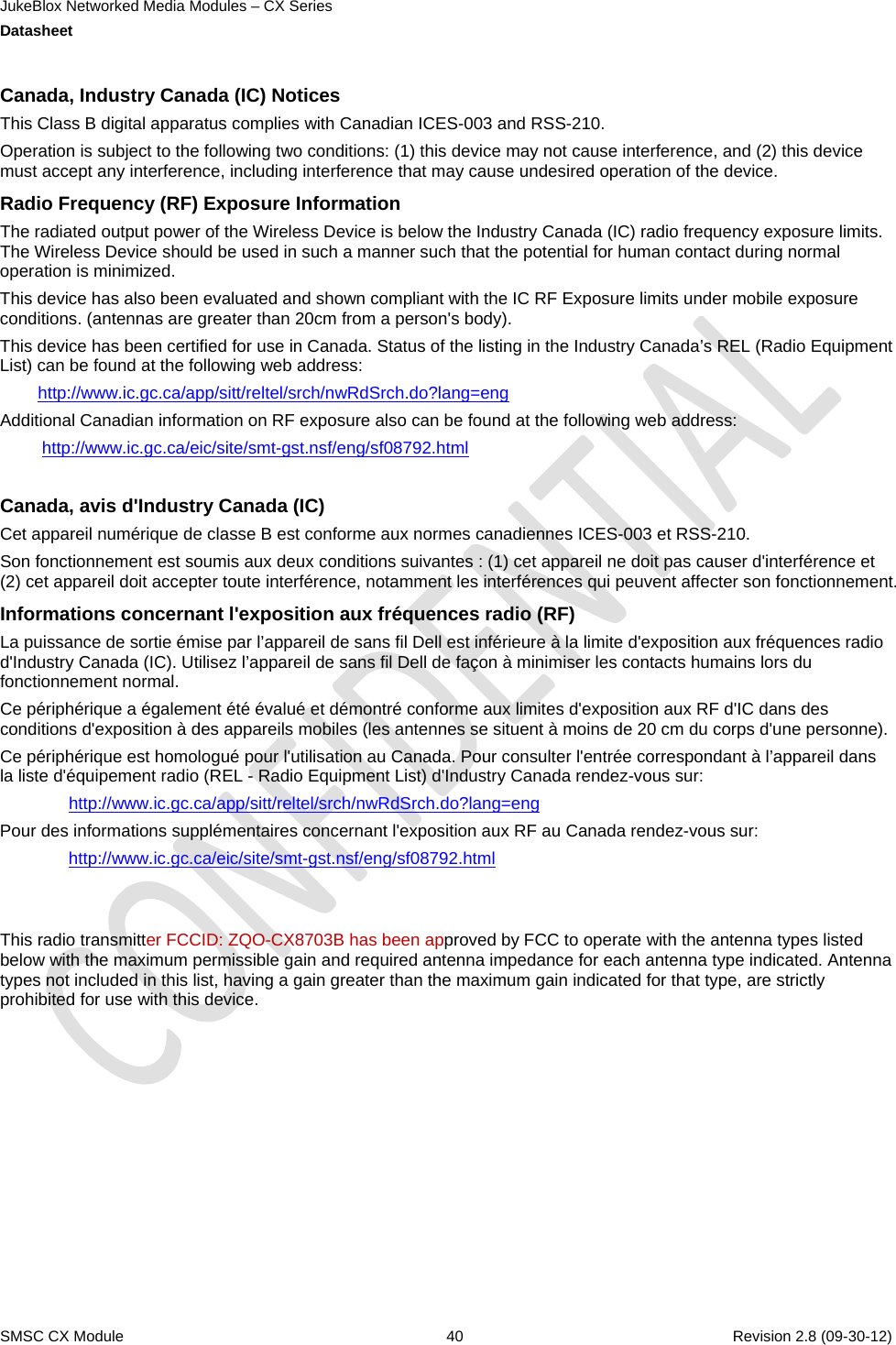

JukeBlox Networked Media Modules – CX Series Datasheet SMSC CX Module 40 Revision 2.8 (09-30-12) Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil Dell de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous sur: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html This radio transmitter FCCID: ZQO-CX8703B has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

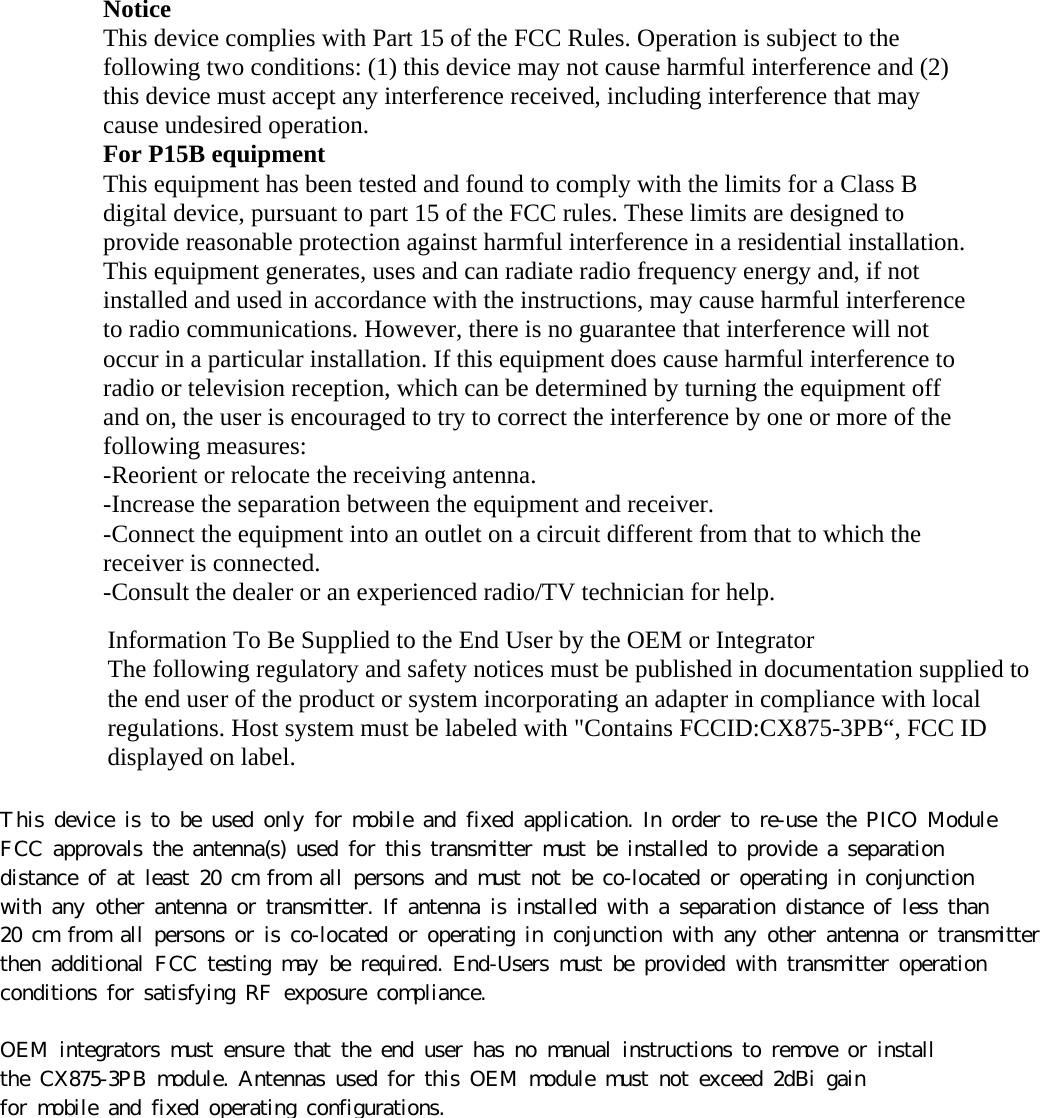

Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. For P15B equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Information To Be Supplied to the End User by the OEM or Integrator The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Host system must be labeled with "Contains FCCID:CX875-3PB“, FCC ID displayed on label. This device is to be used only for mobile and fixed application. In order to re-use the PICO Module FCC approvals the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. If antenna is installed with a separation distance of less than 20 cm from all persons or is co-located or operating in conjunction with any other antenna or transmitter then additional FCC testing may be required. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must ensure that the end user has no manual instructions to remove or install the CX875-3PB module. Antennas used for this OEM module must not exceed 2dBi gain for mobile and fixed operating configurations.
