MRF24J40MC

Features:

• IEEE Std. 802.15.4™ Compliant RF Transceiver

• Supports ZigBee®, MiWi™ Development

Environment Proprietary Wireless Networking

Protocols

• Small 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface

Mountable – Pin Compatible with MRF24J40MB

• Integrated Crystal, Internal Voltage Regulator,

Matching Circuitry, Power Amplifier, Low Noise

Amplifier

• External antenna connector: ultra miniature

coaxial (U.FL), 50Ω

• Easy Integration into Final Product – Minimize

Product Development, Quicker Time to Market

• Radio Regulation Certified for United States

(FCC), Canada (IC), Europe (ETSI) and

Australia/New Zealand (C-TICK)

• Compatible with Microchip microcontroller

families (PIC16F, PIC18F, PIC24F/H, dsPIC33

and PIC32)

• Range up to 4000 ft.

Operational:

• Operating Voltage: 2.7V – 3.6V (3.3V typical)

• Temperature Range: –40°C to +85°C Industrial

• 4-Wire Serial Peripheral Interface (SPI)

• Low-Current Consumption:

- 25 mA (typical) in RX mode

- 120 mA (typical) in TX mode

-5 μA (typical) in Sleep mode

RF/Analog Features:

• ISM Band 2.405 GHz – 2.475 GHz Operation

• Data Rate: 250 kbps

• -108 dBm Typical Sensitivity with –23 dBm

Maximum Input Level

• +19 dBm Typical Output Power with 56 dB TX

Power Control Range

• Integrated Low Phase Noise VCO, Frequency

Synthesizer and PLL Loop Filter

• Digital VCO and Filter Calibration

• Integrated RSSI ADC and I/Q DACs

• Integrated LDO

• High Receiver RSSI Dynamic Range

MAC/Baseband Features:

• Hardware CSMA-CA Mechanism, Automatic ACK

Response and FCS Check

• Independent Beacon, Transmit and GTS FIFO

• Supports all CCA modes and RSS/LQI

• Automatic Packet Retransmit Capable

• Hardware Security Engine (AES-128) with CTR,

CCM and CBC-MAC modes

• Supports Encryption and Decryption for MAC Sub

layer and Upper Layer

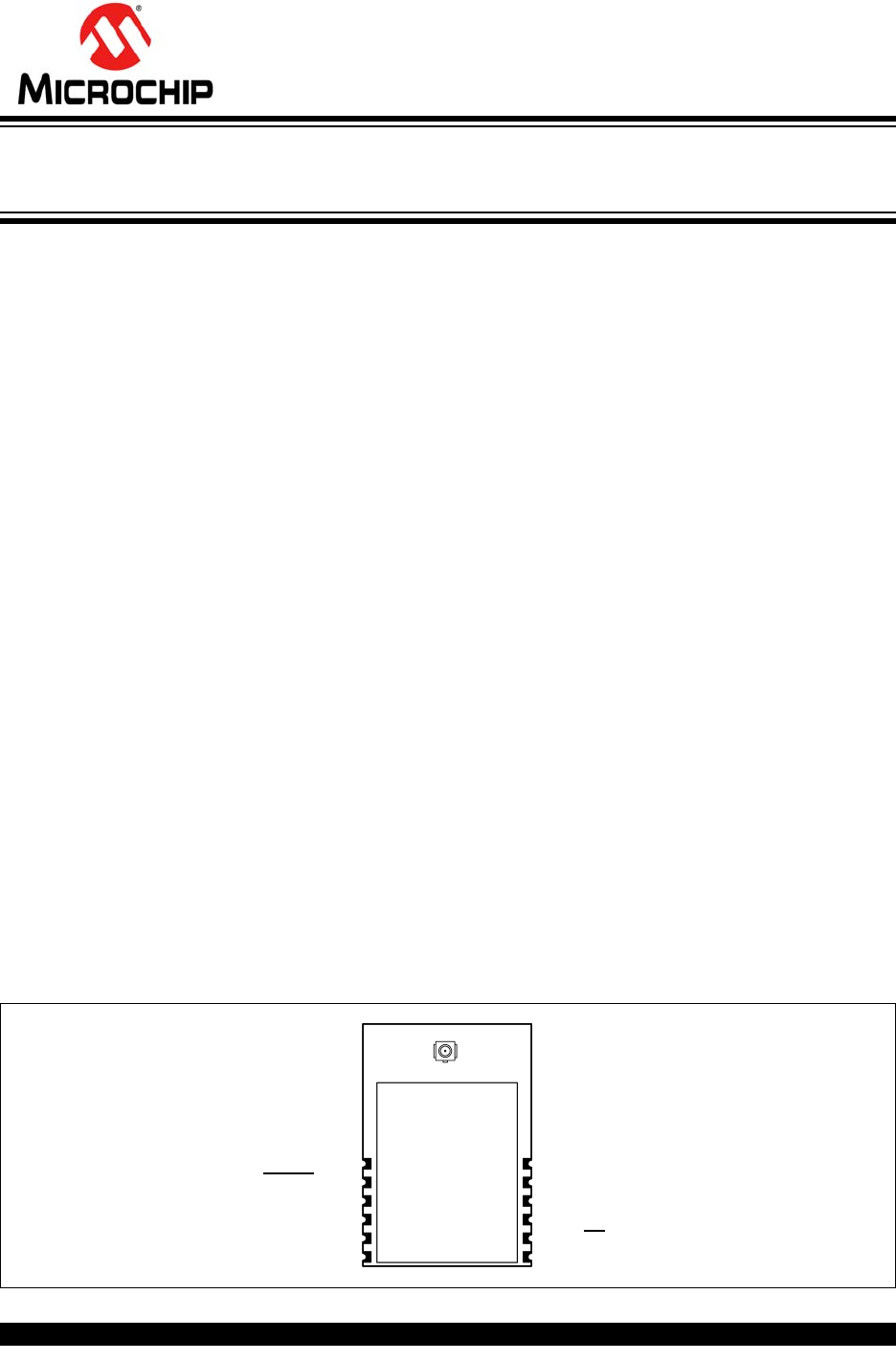

Pin Diagram:

VIN

GND

RESET

WAKE

SDO

SDI

SCK

GND

INT

11 GND

2.4 GHz IEEE Std. 802.15.4™ RF Transceiver Module with

PA/LNA and External Antenna Connector

MRF24J40MC

Table of Contents

1.0 Device Overview .......................................................................................................................................................................... 3

2.0 Circuit Description ...................................................................................................................................................................... 11

3.0 Regulatory Approval................................................................................................................................................................... 17

4.0 Electrical Characteristics ........................................................................................................................................................... 25

Appendix A: Revision History............................................................................................................................................................... 27

The Microchip Web Site ....................................................................................................................................................................... 29

Customer Change Notification Service ................................................................................................................................................ 29

Customer Support ................................................................................................................................................................................ 29

Reader Response ................................................................................................................................................................................ 30

Product Identification System............................................................................................................................................................... 31

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip

products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and

enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via

E-mail at docerrors@microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We

welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.

The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current

devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision

of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

MRF24J40MC

1.0 DEVICE OVERVIEW

The MRF24J40MC is a 2.4 GHz IEEE Std. 802.15.4™

compliant, surface mount module with integrated

crystal, internal voltage regulator, matching circuitry,

Power Amplifier (PA), Low Noise Amplifier (LNA) with

50Ω external antenna connector. The MRF24J40MC

module operates in the non-licensed 2.4 GHz

frequency band. The integrated module design frees

the integrator from extensive RF and antenna design,

and regulatory compliance testing, allowing quicker

time to market.

The MRF24J40MC module is compatible with

Microchip’s ZigBee®, and MiWi™ Development

Environment software stacks. The MiWi Development

Environment software stack is available as a free

download, including source code, from the Microchip

web site: http://www.microchip.com/wireless.

The MRF24J40MC module has received regulatory

approvals for modular devices in the United States

(FCC) and Canada (IC). Modular approval removes the

need for expensive RF and antenna design, and allows

the end user to place the MRF24J40MC module inside

a finished product and not require regulatory testing for

an intentional radiator (RF transmitter). To maintain

conformance, refer to module settings in Section 3.1.1,

MRF24J40MC SETTINGS for the United States and

Section 3.2.1, MRF24J40MC SETTINGS for Canada.

The MRF24J40MC module has been tested and

conforms to ETS EN 300 328 V1.7.1 (2006-10)

European Standards. The module tests can be applied

toward final product certification and Declaration of

Conformity (DoC). To maintain conformance, refer to

module settings in Section , . Additional testing may be

required depending on the end application.

1.1 Interface Description

Figure 1-1 shows a simplified block diagram of the

MRF24J40MC module. The module is based on the

Microchip Technology MRF24J40 IEEE 802.15.4™

2.4 GHz RF Transceiver IC. The module interfaces to

many popular Microchip PIC® microcontrollers

through a 4-wire SPI interface, interrupt, wake, reset,

power and ground, as shown in Figure 1-2. Table 1-1

provides the pin descriptions.

Serial communication and module configuration for the

MRF24J40MC module are documented in the

“MRF24J40 IEEE 802.15.4™ 2.4 GHz RF Transceiver

Data Sheet” (DS39776). Refer to the “MRF24J40 Data

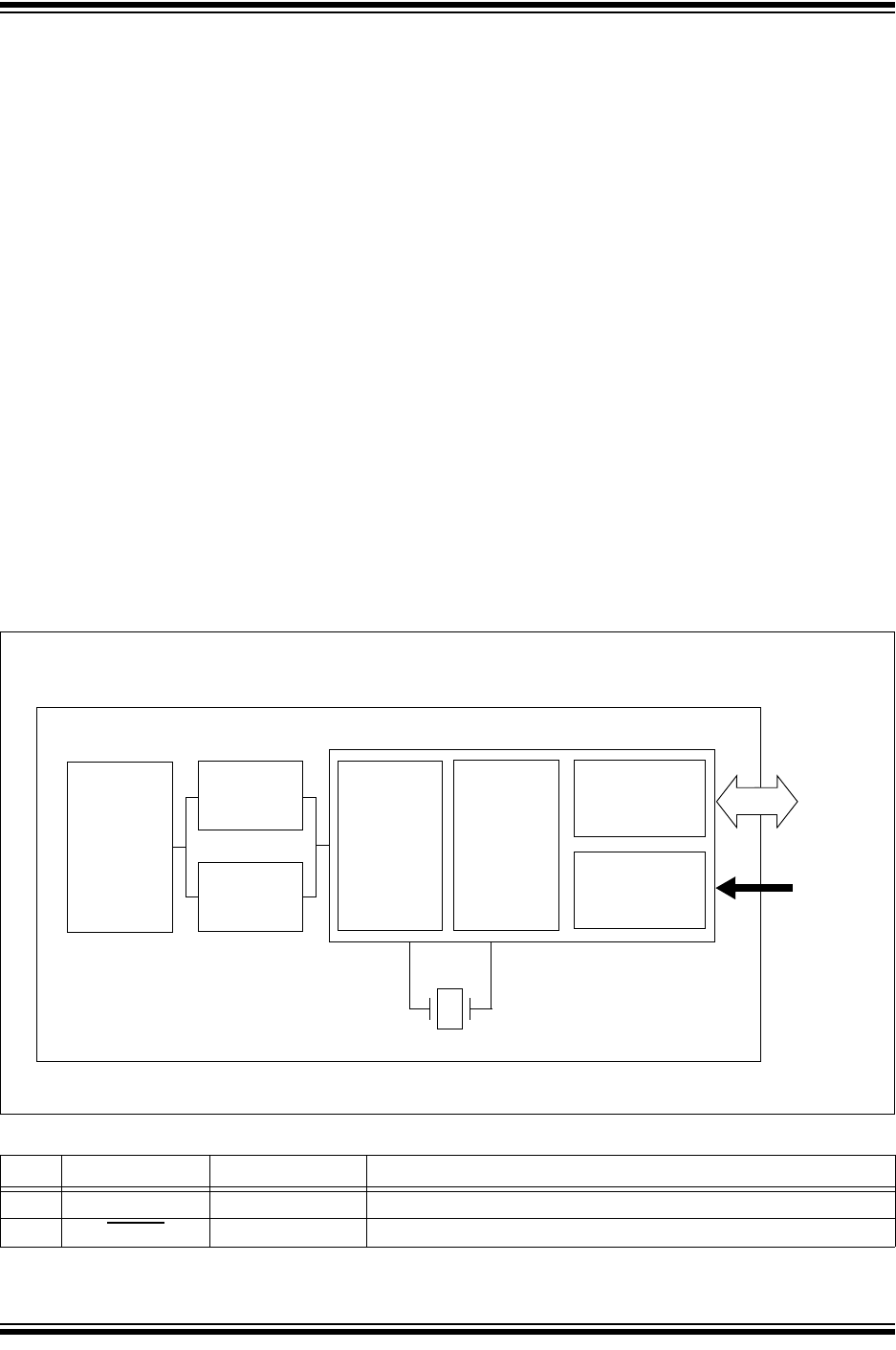

FIGURE 1-1: PIC18FXXXX BLOCK DIAGRAM

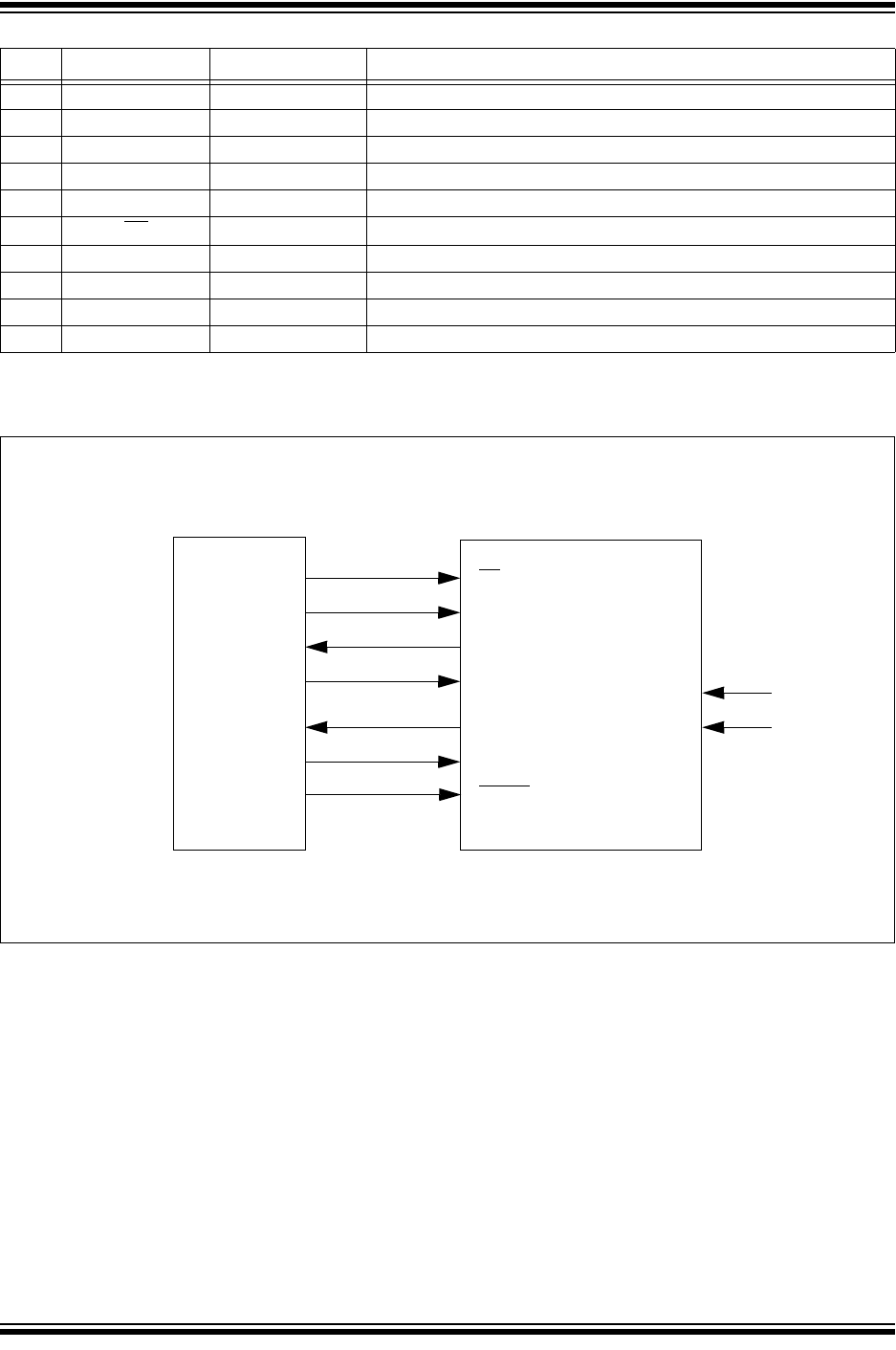

TABLE 1-1: PIN DESCRIPTION

Pin Symbol Type Description

1 GND Ground Ground

2 RESET DI Global hardware Reset pin

Legend: Pin type abbreviation: D = Digital, I = Input, O = Output

Antenna

U.FL

Physical MAC

Interface

Power

Management

SPI

20 MHz

Crystal

Digital

I/O

Power

PIC18FXXXX IEEE Std. 802.15.4™ Module

MRF24J40

LNA

Connector

MRF24J40MC

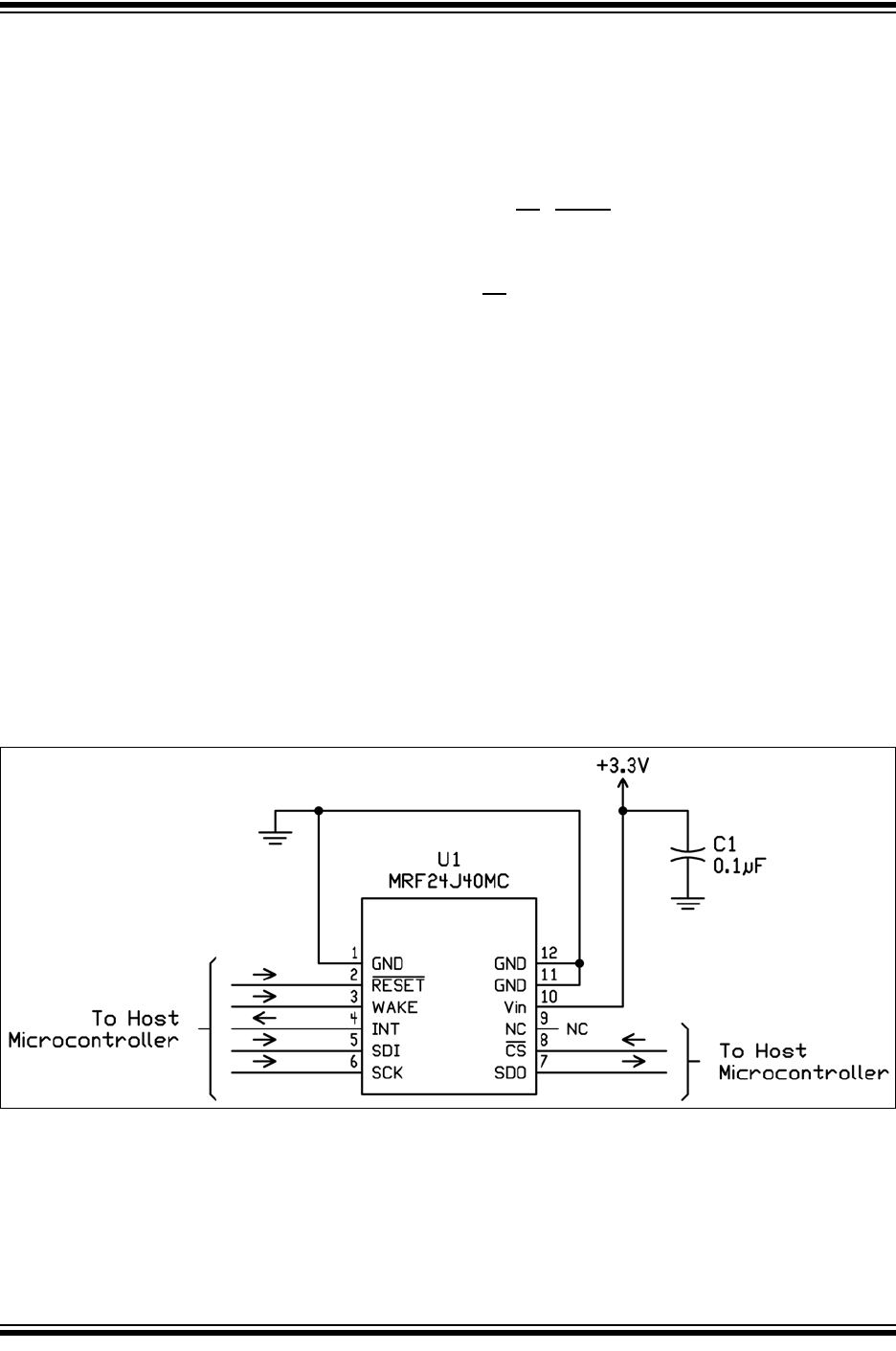

FIGURE 1-2: MICROCONTROLLER TO MRF24J40MC INTERFACE

3 WAKE DI External wake-up trigger

4 INT DO Interrupt pin to microcontroller

5 SDI DI Serial interface data input

6 SCK DI Serial interface clock

7 SDO DO Serial interface data output from MRF24J40

8CS DI Serial interface enable

9 NC — No connection

10 VIN Power Power supply

11 GND Ground Ground

12 GND Ground Ground

TABLE 1-1: PIN DESCRIPTION

Pin Symbol Type Description

Legend: Pin type abbreviation: D = Digital, I = Input, O = Output

SDO

I/O

SDI

SCK

INTX

MRF24J40MC

SDI

SDO

SCK

INT

I/O WAKE

VIN

GND

PIC® MCU

I/O RESET

MRF24J40MC

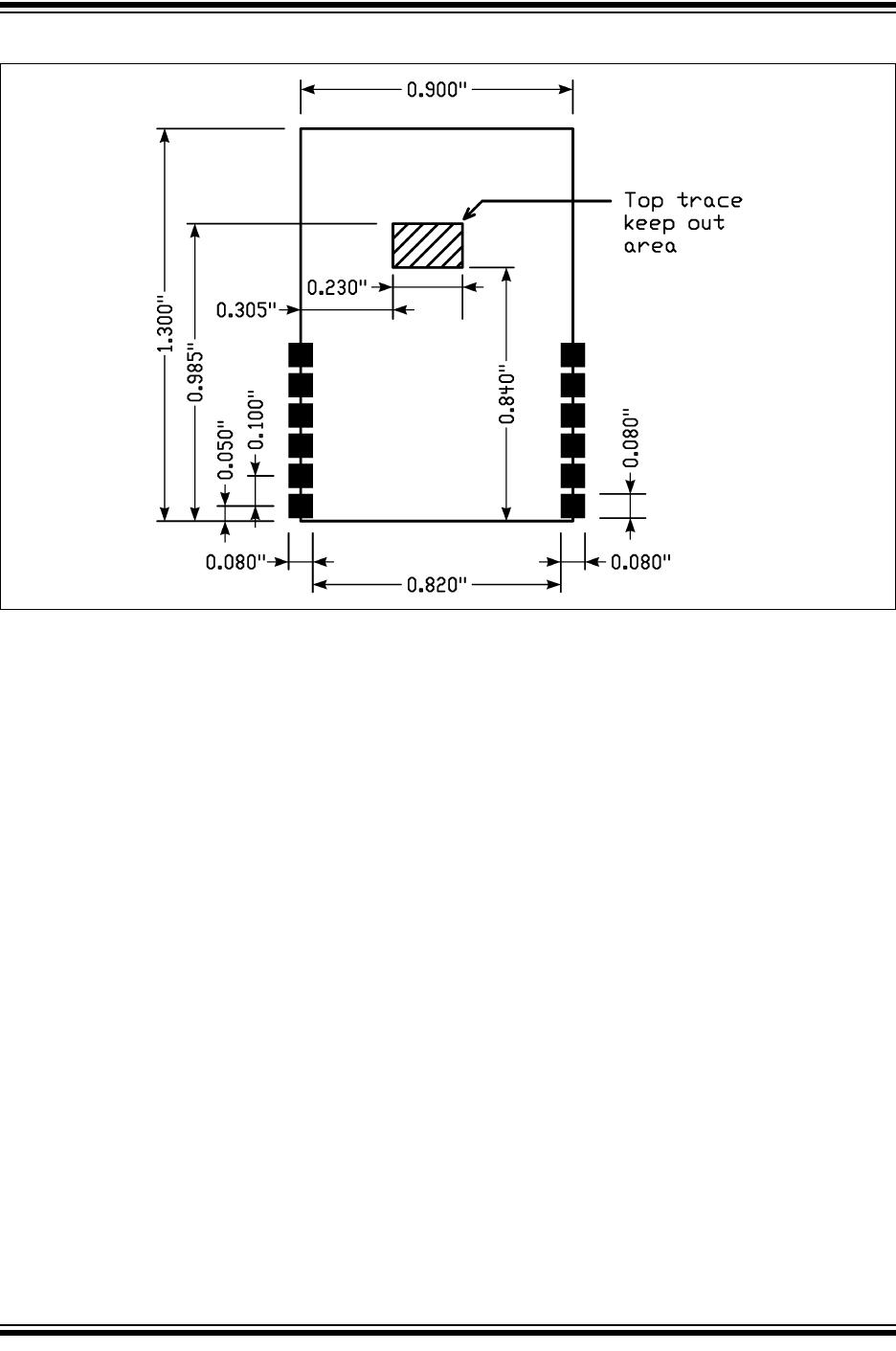

1.2 Mounting Details

The MRF24J40MC is a surface mountable module.

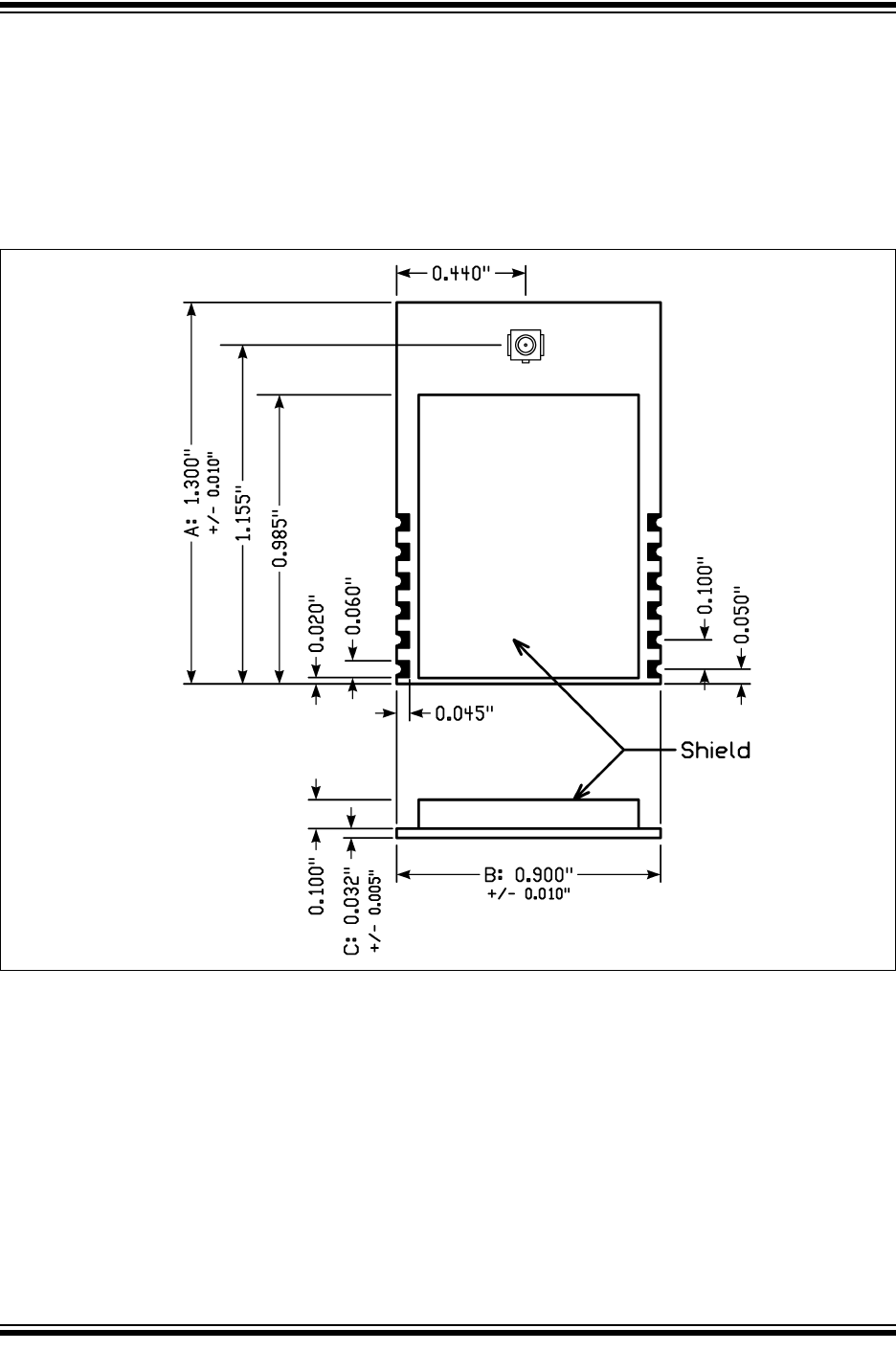

Module dimensions are shown in Figure 1-3. The

module Printed Circuit Board (PCB) is 0.032" thick with

castellated mounting points on the edge. Figure 1-4 is

a recommended host PCB footprint for the

MRF24J40MC .

The MRF24J40MC has 50Ω ultra miniature coaxial

(U.FL) connector.

FIGURE 1-3: MODULE DETAILS

MRF24J40MC

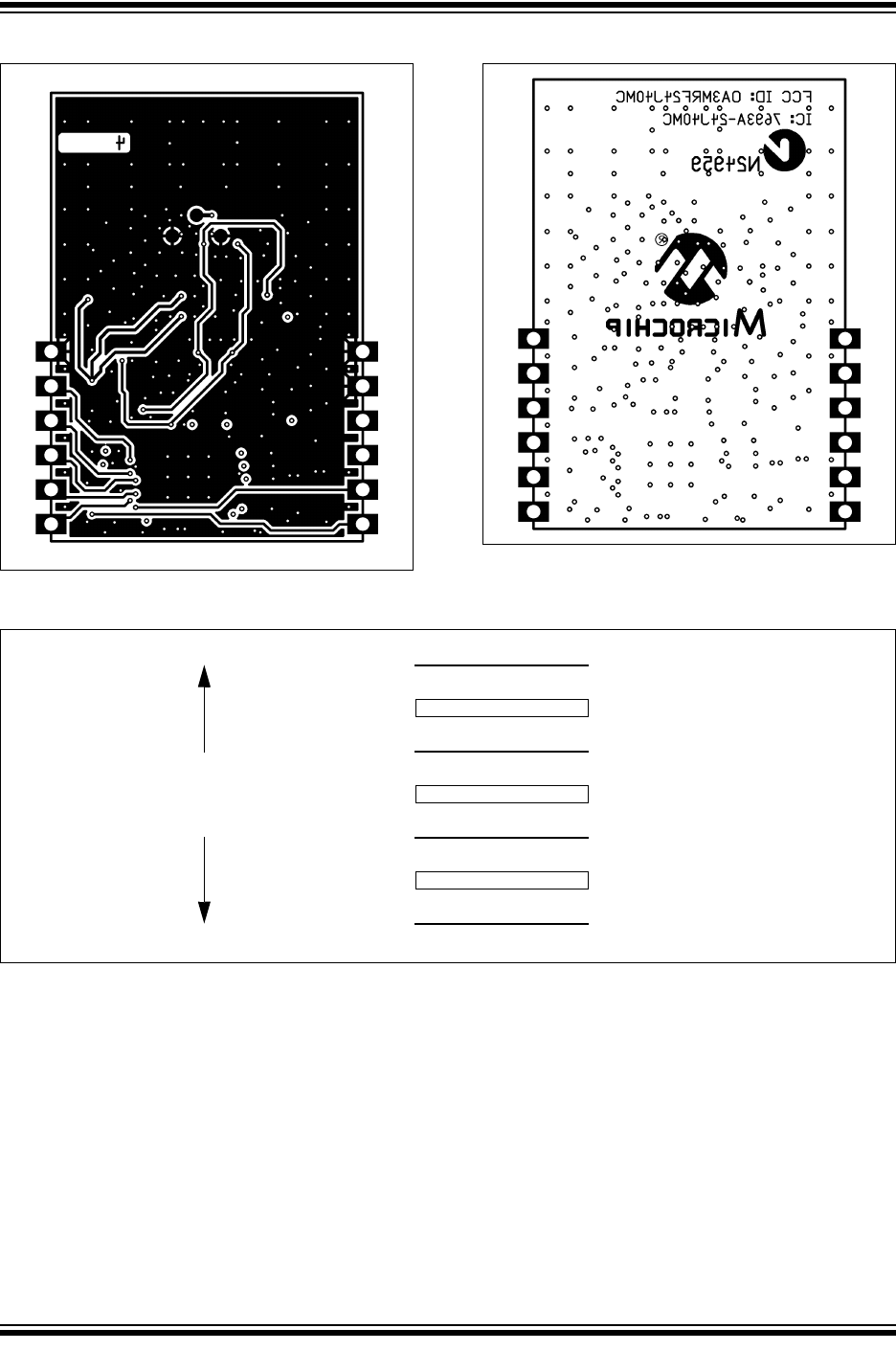

FIGURE 1-4: RECOMMENDED PCB FOOTPRINT

MRF24J40MC

1.3 Operation

The MRF24J40MC module is based on the Microchip

Technology MRF24J40 2.4 GHz IEEE 802.15.4 RF

Transceiver IC. Serial communication and

configuration are documented in the “MRF24J40 Data

Sheet” (DS39776).

This section emphasizes operational settings that are

unique to the MRF24J40MC module design that must

be followed for proper operation.

1.3.1 PA/LNA CONTROL

Operation of the PA U3 and LNA U2 is controlled by the

MRF24J40 internal RF state machine through RF

switches, U1 and U4, and the GPIO1 and GPIO2 pins on

the MRF24J40. Figure 1-5 shows the PA/LNA block

diagram. Figure 2-2 is the schematic diagram for the

module.

The internal RF state machine is configured for the PA/

LNA mode by setting TESTMODE (0x22<2:0>) = 111.

Pins GPIO1 and GPIO2 control the RF switches, PA

and LNA automatically when the MRF24J40 receives

and transmits data.

Voltage regulator U5 supplies a regulated 2.2V to the

PA. This provides a stable voltage to the PA over the VIN

voltage range of the module. U5 is enabled or shutdown

from GPIO3. Ensure that the GPIO3 direction has been

set to output (TRISGP3 (0x34<3>) = 1). Setting a logic

high (GPIO3 (0x33<3>) = 1) enables the voltage

regulator and supplies voltage to the PA. Setting a logic

low (GPIO3 (0x33<3>) = 0) will shutdown the voltage

regulator, disabling the PA, and provides the lowest

shutdown current.

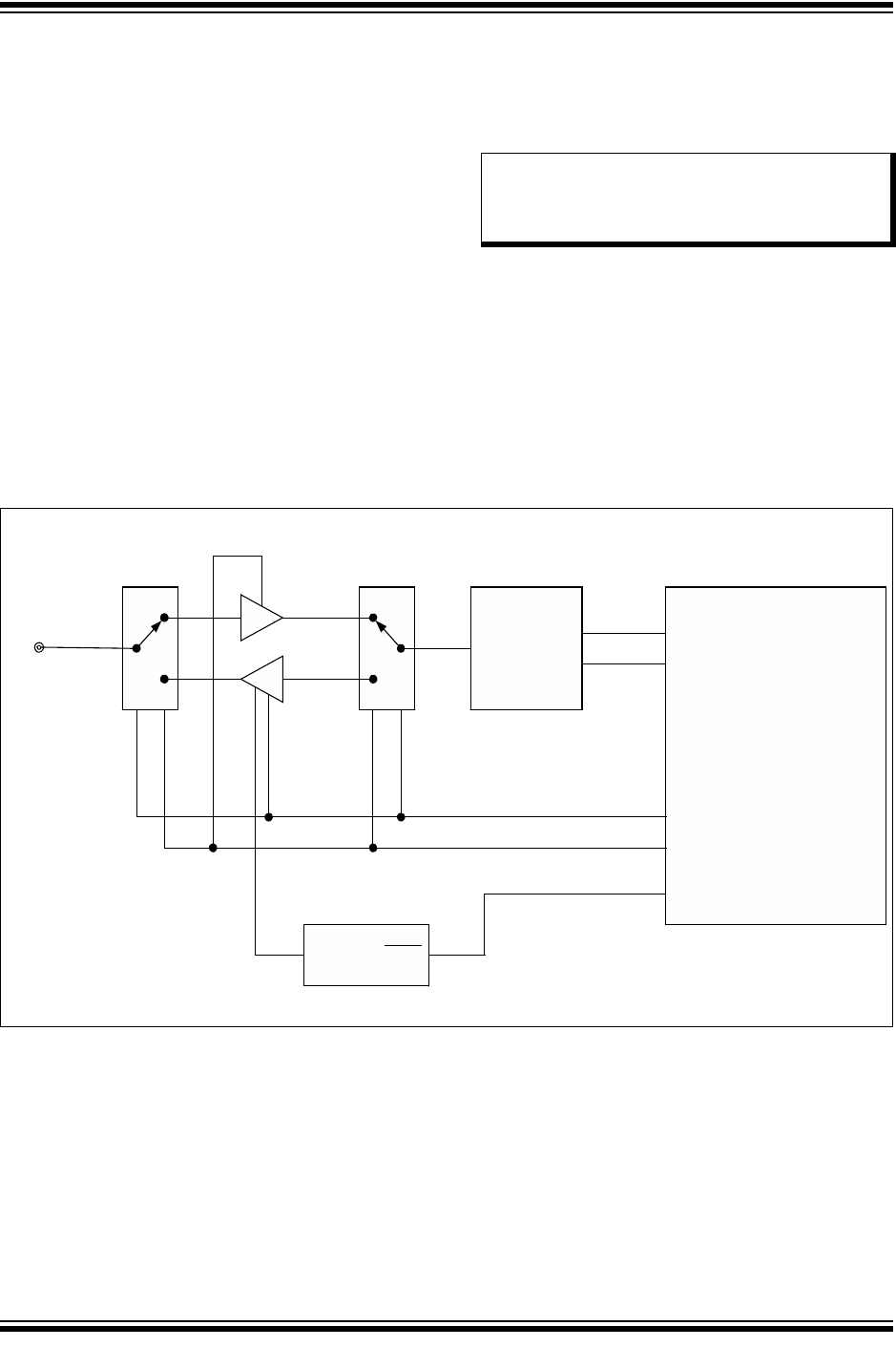

FIGURE 1-5: PA/LNA BLOCK DIAGRAM

Note: A complete explanation of the operation of

the PA/LNA control is documented in the

“MRF24J40 Data Sheet” (DS39776),

Section 4.2 “External PA/LNA Control”.

MRF24J40

GPIO1

GPIO2

U.FL

Connector

Balun

RFP

RFN

uPG2250T5N

LNA

RF Switch

UPG2179TB

RF Switch

UPG2179TB

LNA

uPC8233TK

V2 V1 V2 V1

GPIO3

Voltage Regulator

TC1187VCT713

OUT

SHDN

50 ohm

MRF24J40MC

1.3.2 ENERGY DETECTION (ED)

Before performing an energy detection (see Section

3.6.1 “RSSI Firmware Request (RSSI Mode 1)” in the

“MRF24J40 Data Sheet” (DS39776)), perform the

following steps:

1. Configure the internal RF state machine to normal

operation (TESTMODE (0x22F<2:0>) = 000).

2. Configure GPIO2 and GPIO1 direction for

output (TRISGP2 (0x34<2>) = 1 and TRISGP1

(0x34<1>) = 1).

3. Set GPIO2 (0x33<2>) = 1 and GPIO1

(0x32<1>) = 0. This enables the LNA and

disables the PA.

4. Perform the energy detection following the steps

in Section 3.6.1 “RSSI Firmware Request (RSSI

Mode 1)” in the “MRF24J40 Data Sheet”

(DS39776).

1.3.3 SLEEP

To get the lowest power consumption from the

MRF24J40MC module during Sleep, it is necessary to

disable the PA, PA voltage regulator and LNA. To do

this, perform the following steps:

1. Configure the internal RF state machine to normal

operation (TESTMODE (0x22F<2:0>) = 000).

2. Configure the GPIO3, GPIO2 and GPIO1

direction for output (TRISGP3 (0x34<3>) = 1,

TRISGP2 (0x34<2>) = 1 and TRISGP1

(0x34<1>) = 1).

3. Set GPIO2 (0x33<2>) = 0 and GPIO1 (0x32<1>)

= 0. This disables the LNA and the PA.

4. Set GPIO3 (0x33<3>) = 0. This shuts down the

voltage regulator U5 that supplies 2.2 volts to

the PA.

5. Put the MRF24J40 to Sleep following the steps

in the “MRF24J40 Data Sheet” (DS39776).

When waking the module, re-enable the PA/LNA mode.

Note: The LNA will amplify the received signal.

The RSSI value will include the receive

signal strength plus the LNA amplification.

MRF24J40MC

1.3.4 TRANSMIT POWER SETTINGS

Table 1-2 lists the power settings in register RFCON3

(0x203<7:3>) and the output power at antenna

connector J1.

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

TABLE 1-2: TRANSMIT POWER SETTINGS

RFCON3 (0x203<7:3>) MRF24J40 Power Setting Output Power(1) (dBm)

11111 –36.3 –26.4

11110 –34.9 –25.2

11101 –33.7 –24.1

11100 –32.8 –23.4

11011 –31.9 –22.7

11010 –31.2 –22.4

11001 –30.5 –21.9

11000 –30.0 –21.6

10111 –26.3 –15.7

10110 –24.9 –14.5

10101 –23.7 –13.7

10100 –22.8 –12.9

10011 –21.9 –12.3

10010 –21.2 –11.8

10001 –20.5 –11.5

10000 –20.0 –11.1

01111 –16.3 –6.6

01110 –14.9 –5.5

01101 –13.7 –4.7

01100 –12.8 –4.0

01011 –11.9 –3.4

01010 –11.2 –2.9

01001 –10.5 –2.5

01000 –10.0 –2.0

00111 –6.3 10.7

00110 –4.9 18.0

00101 –3.7 18.5

Note: Refer to Section 3.0, Regulatory Approval

for the required maximum power setting

necessary to maintain certification

requirements for each country the module

will be used.

MRF24J40MC

NOTES:

MRF24J40MC

2.0 CIRCUIT DESCRIPTION

The MRF24J40MC is a 2.4 GHz IEEE Std. 802.15.4™

compliant surface mount module with integrated crystal,

internal voltage regulator, matching circuitry, power

amplifier, low noise amplifier with 50Ω external antenna

connector.

The MRF24J40MC module interfaces to many popular

Microchip PIC microcontrollers through a 4-wire SPI

Interface, interrupt, wake, reset, power and ground. An

example application schematic is illustrated in

Figure 2-1.

Serial communications and register definitions for the

MRF24J40MC module are documented in the

“MRF24J40 IEEE 802.15.4™ 2.4 GHz RF Transceiver

Data Sheet” (DS39776). Refer to the “MRF24J40 Data

Sheet” for specific serial interface protocol and register

definitions. Also, see Section 1.3, Operation for specific

module.

2.1 External Antenna

The MRF24J40MC module has a 50Ω ultra miniature

coaxial (U.FL) connector to connect to an external 2.4

GHz antenna. The choice of antenna is limited to the

antenna types the module has been tested with. Refer

to the respective country in Section 3.0, Regulatory

Approval for a list of tested and approved antenna

types that may be used with the MRF24J40MC

module.

2.2 Module Schematic

A schematic diagram of the module is illustrated in

Figure 2-2 and the Bill of Materials (BOM) is shown in

Table 2-1.

The MRF24J40MC module is based on the Microchip

Technology MRF24J40 IEEE 802.15.4™ 2.4 GHz RF

Transceiver IC (U6). The Serial I/O (SCK, SDI, SDO

and CS), RESET, WAKE and INT pins are brought out

to the module pins. The SDO signal is tri-state buffered

by U7 to solve a silicon errata, where the SDO signal

does not release to a high-impedance state, after the

CS pin returns to its inactive state.

Crystal, X1, is a 20 MHz crystal with a frequency

tolerance of ±10 ppm @ 25°C to meet the IEEE Std.

802.15.4 symbol rate tolerance of ±40 ppm.

A balun is formed by components: L11, L12, L13, C25,

C27 and C31. L12 is also a pull-up for the RFP and

RFN pins on the MRF24J40. C25 also acts as a DC

block capacitor. RF switches, U1 and U2, switch

between the power amplifier, U3, when transmitting

and low noise amplifier, U2, when receiving. A

band-pass filter FL1 is placed after the PA U3 to reduce

harmonics. The remaining passive components

provide bias and decoupling.

FIGURE 2-1: MRF24J40MC APPLICATION SCHEMATIC

MRF24J40MC

FIGURE 2-2: MRF24J40MC SCHEMATIC

MRF24J40MC

TABLE 2-1: MRF24J40MC BILL OF MATERIALS

Designator Value Description Manufacturer Part Number Comments

C27, C31 0.5 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

Johanson Technology 500R07S0R5BV4T do not

substitute

C25 0.7 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

Johanson Technology 500R07S0R7BV4T do not

substitute

C1, C15 1.0 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H1R0

CB01D

—

C9 1.2 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

Johanson Technology 500R07S1R2BV4T do not

substitute

C2 1.5 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H1R5

CB01D

—

C18 2.4 pF Capacitor, Ceramic, 50V,

±-0.25 pF, HI-Q C0G,

SMT 0402

Murata Electronics GJM1555C1H2R4

CB01D

—

C7 5.6 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H5R6

CB01D

—

C8 6.8 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H6R8

CB01D

—

C3, C6 10 pF Capacitor, Ceramic, 50V,

±5%, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H100J

B01D

—

C11 12 pF Capacitor, Ceramic, 50V,

±5%, HI-Q C0G, SMT

0402

Murata Electronics GJM1555C1H120J

B01D

—

C38, C41 18 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

Murata Electronics GRM1555C1H180

JZ01D

do not

substitute

C19, C26,

C30, C32,

C37, C40,

C42

47 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

Murata Electronics GRM1555C1H470

JZ01D

—

C4, C5, C12,

C17, C21,

C22, C36

100 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

Murata Electronics GRM1555C1H101

JZ01D

—

C10, C13,

C14, C16,

C29

1000 pF Capacitor, Ceramic, 50V,

±10%, X7R, SMT 0402

Murata Electronics GRM155R71H102

KA01D

—

C24, C34,

C43

0.01 μFCapacitor, Ceramic, 25V,

±10%, X7R, SMT 0402

Murata Electronics GRM155R71E103

KA01D

—

C20, C23,

C33, C44

0.1 μFCapacitor, Ceramic, 10V,

±10%, X5R, SMT 0402

Murata Electronics GRM155R61A104

KA01D

—

C28, C35,

C39

1 μFCapacitor, Ceramic, 6.3V,

±20%, X5R, SMT 0402

Murata Electronics GRM155R60J105

ME19D

—

FL1 —Filter, Bandpass, 2.4 GHz Johanson Technology 2450BP15B100E —

J1 — Connector, Receptical,

Ultra-mini coax SMD

Hirose Electric Co Ltd U.FL-R-SMT(10) —

MRF24J40MC

L1, L2, L3 2.4 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C2N4SV6T do not

substitute

L8 2.7 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C2N7SV6T do not

substitute

L10 3.3 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C3N3SV6T do not

substitute

L6 3.9 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C3N9SV6T do not

substitute

L11, L12 4.7 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C4N7SV6T do not

substitute

L7, L9 5.6 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

Johanson Technology L-07C5N6SV6T do not

substitute

L13 7.5 nH Inductor, Ceramic, ±5%,

SMT 0402

Johanson Technology L-07C7N5JV6T do not

substitute

L4 18 nH Inductor, Ceramic, ±5%,

SMT 0402

Johanson Technology L-07C18NJV6T do not

substitute

R5 2.2 ohms Resistor, 1%, ±100

ppm/C, SMT 0402

Vishay/Dale CRCW04022R00F

KED

—

R2 360 ohms Resistor, 1%, ±100

ppm/C, SMT 0402

Panasonic – ECG ERJ-2RKF3600X —

R1 1.60 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

Panasonic – ECG ERJ-2RKF1601X —

R3 470 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

Yageo RC0402FR-07470

—

R4 560 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

Panasonic – ECG ERJ-2RKF5603X —

U6 MRF24J40 Transceiver, 2.4 GHz,

IEEE 802.15.4 QFN

Microchip Technology

Inc.

MRF24J40-I/ML —

U7 NC7SZ125P5X Buffer, Tri-State, SC-70-5 Fairchild

Semiconductor

NC7SZ125P5X —

U5 TC1187VCT713 Regulator, LDO Microchip Technology

Inc.

TC1187VCT713 —

U1, U4 UPG2179TB Switch, RF, SPDT,

6-SMINI

CEL/NEC UPG2179TB-E4-A —

U2 UPC8233TK Amplifier, Low-noise,

6MINIMOLD

CEL/NEC UPC8233TK-A —

U3 UPG2250T5N Amplifier, RF, 6-TSON CEL/NEC UPG2250T5N-E2-

—

X1 20.000 MHz Crystal, 20.000 MHz, 3.5

x 2.5 mm SMD

Abracon ABM8-156-20.000

MHz

—

TABLE 2-1: MRF24J40MC BILL OF MATERIALS (CONTINUED)

Designator Value Description Manufacturer Part Number Comments

MRF24J40MC

2.3 Printed Circuit Board

The MRF24J40MC module PCB is constructed with

high temperature FR4 material, four layers and

0.032 inches thick. The layers are illustrated in

Figure 2-3 through Figure 2-7. The stack up of the PCB

is illustrated in Figure 2-9.

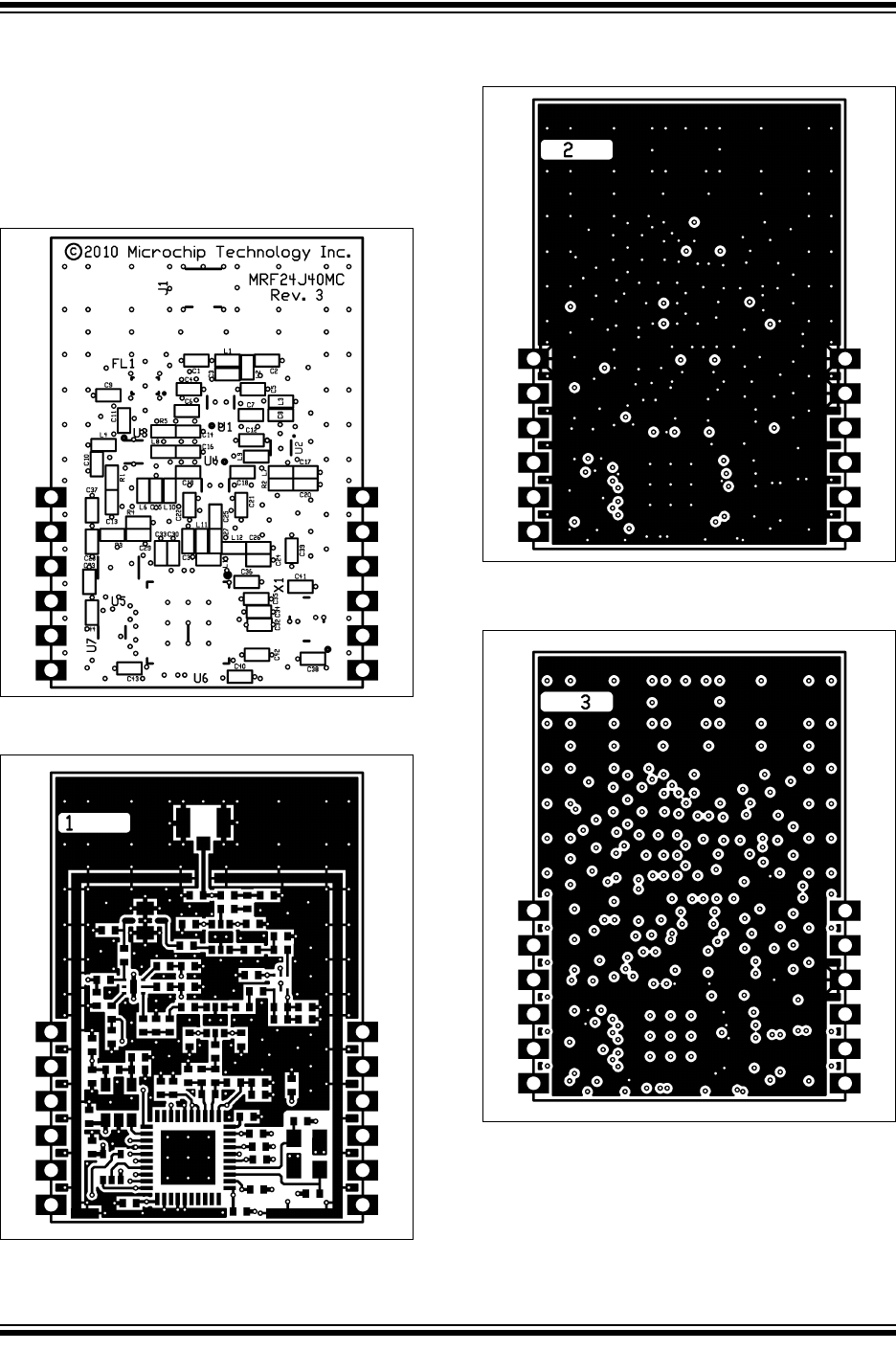

FIGURE 2-3: TOP SILK SCREEN

FIGURE 2-4: TOP COPPER

FIGURE 2-5: LAYER 2 – GROUND

PLANE

FIGURE 2-6: LAYER 3 – POWER

PLANE

MRF24J40MC

FIGURE 2-7: BOTTOM COPPER FIGURE 2-8: BOTTOM SILK SCREEN

FIGURE 2-9: PCB LAYER STACK UP

Top Copper

Ground Plane

Power Plane

Bottom Copper

1/2 oz. Copper

8 mil FR4

12 mil FR4

8 mil FR4

0.032”

±0.005”

MRF24J40MC

3.0 REGULATORY APPROVAL

The MRF24J40MC module has received regulatory

approvals for modular devices in the United States and

Canada. Modular approval allows the end user to place

the MRF24J40MC module inside a finished product

and not require regulatory testing for an intentional

radiator (RF transmitter), provided no changes or

modifications are made to the module circuitry.

Changes or modifications could void the user’s

authority to operate the equipment. The end user must

comply with all of the instructions provided by the

Grantee, which indicate installation and/or operating

conditions necessary for compliance.

The MRF24J40MC module has been tested and

conforms to EN 300 328 V1.7.1 (2006-10), European

Standards. The module tests can be applied toward

final product certification and Declaration of Conformity

(DoC). Additional testing may be required depending

on the end application.

The integrator is still be responsible for testing the end

product for any additional compliance requirements

required with this module installed (digital device

emission, PC peripheral requirements, etc.) in the

specific country that the end device will be marketed.

Annex F of the IEEE Std. 802.15.4 document has a good

summary of regulatory requirements in various countries

concerning IEEE Std. 802.15.4 devices. The standard

can be downloaded from the IEEE Standards web page:

http://standards.ieee.org/getieee802/802.15.html.

For more information on details on regulatory

compliance, refer to the specific country radio

regulations in the following sections.

3.1 United States

The MRF24J40MC has received Federal

Communications Commission (FCC) CFR47

Telecommunications, Part 15 Subpart C “Intentional

Radiators” 15.247 and modular approval in accordance

with FCC Public Notice DA 00-1407 Released: June

26, 2000, Part 15 Unlicensed Modular Transmitter

Approval. The MRF24J40MC module can be

integrated into a finished product without obtaining

subsequent and separate FCC certification.

The MRF24J40MC module has been labeled with its

own FCC ID number, and if the FCC ID is not visible

when the module is installed inside another device,

then the outside of the finished product into which the

module is installed must also display a label referring to

the enclosed module. This exterior label can use

wording as following:

The user’s manual should include the following

statement:

Contains Transmitter Module FCC ID:

OA3MRF24J40MC

-or-

Contains FCC ID: OA3MRF24J40MC

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

OFF and ON, the user is encouraged to try to correct

the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

MRF24J40MC

3.1.1 MRF24J40MC SETTINGS

To meet the FCC requirements, the following settings

must be observed by the integrator:

• The MRF24J40MC transmit power setting shall

not exceed 18.5 dBm (RFCON3 0x203<7:3> =

00101). Refer to Section 1.3.4, Transmit Power

Settings.

• Only channels 11 through 25 may be selected

(RFCON0 0x200).

3.1.2 APPROVED EXTERNAL ANTENNA

TYPES

To maintain modular approval in the United States, only

the antenna types that have been tested shall be used.

It is permissible to use different antenna manufacturer

provided the same antenna type, antenna gain (equal

to or less than), and MRF24J40MC power setting is

used for the same antenna type tested.

Testing of the MRF24J40MC module was performed

with the antenna types listed in Table 3-1

3.1.3 RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. OET Bulletin 65 “Evaluating

Compliance with FCC Guidelines for Human Exposure

to Radio Frequency Electromagnetic Fields” provides

assistance in determining whether proposed or existing

transmitting facilities, operations or devices comply

with limits for human exposure to RF fields adopted by

the Federal Communications Commission (FCC). The

bulletin offers guidelines and suggestions for

evaluating compliance.

If appropriate, compliance with exposure guidelines for

mobile and unlicensed devices can be accomplished

by the use of warning labels and by providing users

with information concerning minimum separation

distances from transmitting structures and proper

installation of antennas.

The following statement must be included as a

CAUTION statement in manuals and OEM products to

alert users of FCC RF Exposure compliance:

If the MRF24J40MC module is used in a portable

application (antenna is less than 20 cm from persons

during operation), the integrator is responsible for

performing Specific Absorption Rate (SAR) testing in

accordance with FCC rules 2.1091.

3.1.4 HELPFUL WEB SITES

Federal Communications Commission (FCC)

http://www.fcc.gov

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

To satisfy FCC RF Exposure requirements for mobile

and base station transmission devices, a separation

distance of 20 cm or more should be maintained

between the antenna of this device and persons

during operation. To ensure compliance, operation at

closer than this distance is not recommended.

The antenna(s) used for this transmitter must not be

co-located or operating in conjunction with any other

antenna or transmitter.

TABLE 3-1: APPROVED EXTERNAL ANTENNA TYPES

Type Manufacture Part Number Gain Output Power1

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 18.5 dBm

MRF24J40MC

3.2 Canada

The MRF24J40MC module has been certified for use

in Canada under Industry Canada (IC) Radio

Standards Specification (RSS) RSS-210 and

RSS-Gen. Modular approval permits the installation of

a module in a host device without the need to recertify

the device.

Labeling Requirements for the Host Device (from

Section 3.2.1, RSS-Gen, Issue 3, December 2010):

The host device shall be properly labeled to identify the

module within the host device.

The Industry Canada certification label of a module

shall be clearly visible at all times when installed in the

host device, otherwise the host device must be labeled

to display the Industry Canada certification number of

the module, preceded by the words “Contains

transmitter module”, or the word “Contains”, or similar

wording expressing the same meaning, as follows:

User Manual Notice for License-Exempt Radio

Apparatus (from Section 7.1.3 RSS-Gen, Issue 3,

December 2010):

User manuals for license-exempt radio apparatus shall

contain the following or equivalent notice in a

conspicuous location in the user manual or

alternatively on the device or both.

3.2.1 MRF24J40MC SETTINGS

To meet Industry Canada (IC) requirements, the

following settings must be observed by the integrator:

• The MRF24J40MC transmit power setting shall

not exceed 18.5 dBm (RFCON3 0x203<7:3> =

00101). Refer to Section 1.3.4, Transmit Power

Settings.

• Only channels 11 through 25 may be selected

(RFCON0 0x200).

3.2.2 APPROVED EXTERNAL ANTENNA

TYPES

Transmitter Antenna (from Section 7.1.2 RSS-Gen,

Issue 3, December 2010):

The MRF24J40MC module can only be sold or

operated with antennas with which it was approved.

Transmitter may be approved with multiple antenna

types. An antenna type comprises antennas having

similar in-band and out-of-band radiation patterns.

Testing shall be performed using the highest gain

antenna of each combination of transmitter and

antenna type for which approval is being sought, with

the transmitter output power set at the maximum level.

Any antenna of the same type having equal or lesser

gain as an antenna that had been successfully tested

with the transmitter, will also be considered approved

with the transmitter, and may be used and marketed

with the transmitter.

When a measurement at the antenna connector is

used to determine RF output power, the effective gain

of the device's antenna shall be stated, based on

measurement or on data from the antenna

manufacturer. For transmitters of output power greater

than 10 milliwatts, the total antenna gain shall be added

to the measured RF output power to demonstrate

compliance to the specified radiated power limits. User

manuals for transmitters shall display the following

notice in a conspicuous location:

The above notice may be affixed to the device instead

of displayed in the user manual.

Contains transmitter module IC: 7693A-24J40MC

This device complies with Industry Canada

license-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this

device may not cause interference, and (2) this

device must accept any interference, including

interference that may cause undesired operation of

the device.

Le présent appareil est conforme aux CNR

d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux

deux conditions suivantes: (1) l'appareil ne doit pas

produire de brouillage, et (2) l'utilisateur de l'appareil

doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d'en

Under Industry Canada regulations, this radio

transmitter may only operate using an antenna of a

type and maximum (or lesser) gain approved for the

transmitter by Industry Canada. To reduce potential

radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than

that necessary for successful communication.

Conformément à la réglementation d'Industrie

Canada, le présent émetteur radio peut fonctionner

avec une antenne d'un type et d'un gain maximal (ou

inférieur) approuvé pour l'émetteur par Industrie

Canada. Dans le but de réduire les risques de

brouillage radioélectrique à l'intention des autres

utilisateurs, il faut choisir le type d'antenne et son

gain de sorte que la puissance isotrope rayonnée

équivalente (p.i.r.e.) ne dépasse pas l'intensité

nécessaire à l'établissement d'une communication

satisfaisante.

MRF24J40MC

User manuals for transmitters equipped with

detachable antennas shall also contain the following

notice in a conspicuous location.

Immediately following the above notice, the

manufacturer shall provide a list of all antenna types

approved for use with the transmitter, indicating the

maximum permissible antenna gain (in dBi) and

required impedance for each.

Approved external antenna types for the

MRF24J40MC module are listed in Table 3-2.

3.2.3 HELPFUL WEB SITES

Industry Canada: http://www.ic.gc.ca/

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance

This radio transmitter (identify the device by

certification number, or model number if Category II)

has been approved by Industry Canada to operate

with the antenna types listed below with the

maximum permissible gain and required antenna

impedance for each antenna type indicated.

Antenna types not included in this list, having a gain

greater than the maximum gain indicated for that

type, are strictly prohibited for use with this device.

Conformément à la réglementation d'Industrie

Canada, le présent émetteur radio peut fonctionner

avec une antenne d'un type et d'un gain maximal (ou

inférieur) approuvé pour l'émetteur par Industrie

Canada. Dans le but de réduire les risques de

brouillage radioélectrique à l'intention des autres

utilisateurs, il faut choisir le type d'antenne et son

gain de sorte que la puissance isotrope rayonnée

équivalente (p.i.r.e.) ne dépasse pas l'intensité

nécessaire à l'établissement d'une communication

satisfaisante.

TABLE 3-2: APPROVED EXTERNAL ANTENNA TYPES

Type Manufacture Part Number Gain Output Power(1) E.I.R.P.

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 18.5 dBm 23.5 dBm

MRF24J40MC

3.3 Europe

The MRF24J40MC module conforms to the emission

standards summarized in Table 3-3. The module tests

can be applied toward product Declaration of

Conformity (DoC).

The European Standards do not provide a modular

approval similar to the USA (FCC) and Canada (IC).

However, the completed compliance testing can be

used as part of the customer’s application for product

compliance approvals. The module test report data can

be used as part of the customer’s product test plan and

can significantly lower customer’s compliance burden.

Depending on the end application, additional testing

may be required. The integrator is responsible for testing

the end product for any additional compliance

requirements that become necessary with this module

installed (for example, digital device emission, PC

peripheral requirements and so on) in the specific

country where end device is marketed)

Note: To maintain conformance tested ETSI

standards, the module shall not be

modified and settings in Section 1.3,

Operation must be observed.

TABLE 3-3: EMISSIONS STANDARDS TESTED

Specification Test Method

Emission Standards

EN 300 328 V1.7.1 (2006-10) 4.3.1 Maximum Transmit Power 5.7.2

EN 300 328 V1.7.1 (2006-10) 4.3.2 Maximum EIRP Spectral Density 5.7.3

EN 300 328 V1.7.1 (2006-10) 4.3.3 Frequency Range 5.7.4

EN 300 328 V1.7.1 (2006-10) 4.3.6 Transmitter Spurious Emissions 5.7.5

EN 300 328 V1.7.1 (2006-10) 4.3.7 Receiver Spurious Emissions 5.7.6

MRF24J40MC

3.3.1 MRF24J40MC SETTINGS

To meet ETSI requirements, the following settings must

be observed by the integrator:

• The MRF24J40MC transmit power setting shall

not exceed 10.7 dBm (RFCON3 0x203<7:3> =

00111). Refer to Section 1.3.4, Transmit Power

Settings. This is to meet the requirements of ETSI

EN 300 328 v1.7.1 (2006-10), Maximum e.i.r.p.

spectral density limit, Section 4.3.2.2, “For

wideband modulations other then FHSS (DSSS,

OFDM, etc.), the maximum e.i.r.p. spectral

density is limited to 10 mW per MHz”.

• Only channels 11 through 25 may be selected

(RFCON0 0x200).

3.3.2 APPROVED EXTERNAL ANTENNA

TYPES

The MRF24J40MC module was tested with the

antenna types listed in Table 3-4. In order to use the

emissions testing listed in Table 3-3, the same antenna

type, antenna gain (equal to or less than), and

MRF24J40MC power setting as listed in Table 3-4

should be used. Additional emissions testing will be

required by the integrator for any antenna types not

tested with the module and listed in Table 3-4.

3.3.3 HELPFUL WEB SITES

A helpful document that can be used as a starting point

in understanding the use of Short Range Devices

(SRD) in Europe is the European Radio

Communications Committee (ERC) Recommendation

70-03 E, downloadable from the European Radio

Communications Office (ERO): http://www.ero.dk/.

Radio and Telecommunications Terminal Equipment

(R&TTE):

http://ec.europa.eu/enterprise/rtte/index_en.htm

European Conference of Postal and Telecommunications

Administrations (CEPT): http://www.cept.org

European Telecommunications Standards Institute

(ETSI): http://www.etsi.org

European Radio Communications Office (ERO):

http://www.ero.dk

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

TABLE 3-4: APPROVED EXTERNAL ANTENNA TYPES

Type Manufacture Part Number Gain Output Power(1)

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 10.7 dBm

MRF24J40MC

3.4 Australia/New Zealand

The MRF24J40MC module conforms to compliance

levels 1, 2 and 3 in Australia and levels of conformity 1,

2 and 3 in New Zealand as required by notices under:

• Section 182 of the Australian

Radiocommunications Act 1992;

• Section 407 of the Australian Telecommunications

Act 1997; and

• Section 134 of the New Zealand

Radiocommunications Act 1989.

3.4.1 MRF24J40MC SETTINGS

To meet ETSI requirements, the following settings must

be observed by the integrator:

• The MRF24J40MC transmit power setting shall

not exceed 10.7 dBm (RFCON3 0x203<7:3> =

00111). Refer to Section 1.3.4, Transmit Power

Settings. This is to meet the requirements of ETSI

EN 300 328 v1.7.1 (2006-10), Maximum e.i.r.p.

spectral density limit, Section 4.3.2.2, “For wide

band modulations other then FHSS (DSSS,

OFDM, etc.), the maximum e.i.r.p. spectral

density is limited to 10 mW per MHz”.

• Only channels 11 through 25 may be selected

(RFCON0 0x200).

3.4.2 APPROVED EXTERNAL ANTENNA

TYPES

The MRF24J40MC module was tested with the

antenna types listed in Table 3-5. In order to use the

emissions testing listed in Table 3-3, the same antenna

type, antenna gain (equal to or less than), and

MRF24J40MC power setting as listed in Table 3-5

should be used. Additional emissions testing will be

required by the integrator for any antenna types not

tested with the module and listed in Table 3-5.

3.4.3 HELPFUL WEBSITES

Australian Communications and Media Authority –

Radiocommunications (Short Range Devices)

Standard:

http://www.acma.gov.au/WEB/STANDARD/pc=PC_10

0141

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

TABLE 3-5: APPROVED EXTERNAL ANTENNA TYPES

Type Manufacture Part Number Gain Output Power(1)

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 10.7 dBm

MRF24J40MC

NOTES:

MRF24J40MC

4.0 ELECTRICAL CHARACTERISTICS

TABLE 4-1: RECOMMENDED OPERATING CONDITIONS

Parameters Min Typ Max Units

Ambient Operating Temperature –40 —+85 °C

Supply Voltage for RF, Analog and

Digital Circuits

2.7 —3.6 V

Supply Voltage for Digital I/O 2.7 3.3 3.6 V

Input High Voltage (VIH)0.5 x VDD — VDD + 0.3 V

Input Low Voltage (VIL)–0.3 —0.2 x VDD V

TABLE 4-2: CURRENT CONSUMPTION

(TA = 25°C, VDD = 3.3V)

Chip Mode Condition Min Typ Max Units

Sleep Sleep Clock and PA voltage

regulator Disabled

—5 μA— μA

TX At Maximum Output Power — 120 mA — mA

RX — — 25 mA — mA

TABLE 4-3: RECEIVER AC CHARACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO Frequency = 2.445 GHz

Parameters Condition Min Typ Max Units

RF Input Frequency Compatible to

IEEE Std. 802.15.4™, 2003

2.405 — 2.480 GHz

RF Sensitivity — — –108 — dBm

Maximum RF Input 50Ω ——–23dBm

LO Leakage Measured at Balun Matching

Network Input at Frequency,

2.405 GHz – 2.48 GHz

—–60—dBm

Input Return Loss 50Ω–8 –12 — dB

Noise Figure

(including matching)

— — 1.8 — dB

Adjacent Channel

Rejection

@ ±5 MHz 30 — — dB

Alternate Channel

Rejection

@ ±10 MHz 40 — — dB

RSSI Range — — 50 — dB

RSSI Error — –5 — 5 dB

MRF24J40MC

Note 1: Output power at antenna connector J1.

TABLE 4-4: TRANSMITTER AC CHARACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO Frequency = 2.445 GHz

Parameters Condition Min Typ Max Units

RF Carrier Frequency — 2.405 — 2.475 GHz

Maximum RF Output

Power

50Ω—19

(1) —dBm

RF Output Power

Control Range

——56—dB

TX Gain Control

Resolution

Programmed by Register — 1.25 — dB

Carrier Suppression — — –0 — dBc

TX Spectrum Mask for

O-QPSK Signal

Offset Frequency >3.5 MHz,

at 0 dBm Output Power

–33 — — dBm

TX EVM — — 15 — %

MRF24J40MC

APPENDIX A: REVISION HISTORY

Revision A (February 2011)

This is the initial release of the document.

MRF24J40MC

NOTES:

MRF24J40MC

THE MICROCHIP WEB SITE

Microchip provides online support via our WWW site at

www.microchip.com. This web site is used as a means

to make files and information easily available to

customers. Accessible by using your favorite Internet

browser, the web site contains the following

information:

•Product Support – Data sheets and errata,

application notes and sample programs, design

resources, user’s guides and hardware support

documents, latest software releases and archived

software

•General Technical Support – Frequently Asked

Questions (FAQ), technical support requests,

online discussion groups, Microchip consultant

program member listing

•Business of Microchip – Product selector and

ordering guides, latest Microchip press releases,

listing of seminars and events, listings of

Microchip sales offices, distributors and factory

representatives

CUSTOMER CHANGE NOTIFICATION

SERVICE

Microchip’s customer notification service helps keep

customers current on Microchip products. Subscribers

will receive e-mail notification whenever there are

changes, updates, revisions or errata related to a

specified product family or development tool of interest.

To register, access the Microchip web site at

www.microchip.com, click on Customer Change

Notification and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance

through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor,

representative or field application engineer (FAE) for

support. Local sales offices are also available to help

customers. A listing of sales offices and locations is

included in the back of this document.

Technical support is available through the web site

at: http://support.microchip.com

MRF24J40MC

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip

product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our

documentation can better serve you, please FAX your comments to the Technical Publications Manager at

(480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this document.

TO: Technical Publications Manager

RE: Reader Response

Total Pages Sent ________

From: Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

Application (optional):

Would you like a reply? Y N

Device: Literature Number:

Questions:

FAX: (______) _________ - _________

DS00000AMRF24J40MC

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

MRF24J40MC

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, for example, on pricing or delivery, refer to the factory or the listed sales office.

Device MRF24J40MC: 2.4 GHz IEEE Std. 802.15.4 RF Transceiver

Module with PA/LNA External Antenna Connector

Temperature

Range

I = -40ºC to +85ºC (Industrial)

Example:

a) PIC18F1220/1320-I/MQ: Industrial

temperature, tray.

b) MRF24J40MCT-I/RM: Industrial

temperature, tape and reel.

PART NO

Device

Module

Type

Tape and

Reel

-X

Temperature

Range

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: 480-792-7200

Fax: 480-792-7277

Technical Support:

http://support.microchip.com

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: 678-957-9614

Fax: 678-957-1455

Boston

Westborough, MA

Tel: 774-760-0087

Fax: 774-760-0088

Chicago

Itasca, IL

Tel: 630-285-0071

Fax: 630-285-0075

Cleveland

Independence, OH

Tel: 216-447-0464

Fax: 216-447-0643

Dallas

Addison, TX

Tel: 972-818-7423

Fax: 972-818-2924

Detroit

Farmington Hills, MI

Tel: 248-538-2250

Fax: 248-538-2260

Kokomo

Kokomo, IN

Tel: 765-864-8360

Fax: 765-864-8387

Los Angeles

Mission Viejo, CA

Tel: 949-462-9523

Fax: 949-462-9608

Santa Clara

Santa Clara, CA

Tel: 408-961-6444

Fax: 408-961-6445

Toronto

Mississauga, Ontario,

Canada

Tel: 905-673-0699

Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: 852-2401-1200

Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733

Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100

Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511

Fax: 86-28-8665-7889

China - Chongqing

Tel: 86-23-8980-9588

Fax: 86-23-8980-9500

China - Hong Kong SAR

Tel: 852-2401-1200

Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460

Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355

Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533

Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829

Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660

Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300

Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252

Fax: 86-29-8833-7256

China - Xiamen

Tel: 86-592-2388138

Fax: 86-592-2388130

China - Zhuhai

Tel: 86-756-3210040

Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-3090-4444

Fax: 91-80-3090-4123

India - New Delhi

Tel: 91-11-4160-8631

Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512

Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166

Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301

Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200

Fax: 82-2-558-5932 or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857

Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870

Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065

Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870

Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-6578-300

Fax: 886-3-6578-370

Taiwan - Kaohsiung

Tel: 886-7-213-7830

Fax: 886-7-330-9305

Taiwan - Taipei

Tel: 886-2-2500-6610

Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351

Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39

Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828

Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20

Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0

Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611

Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399

Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90

Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869

Fax: 44-118-921-5820

Worldwide Sales and Service

08/04/10

MICROCHIP TECHNOLOGY MRF24J40MC Modular Data Transmitter User Manual manual

Microchip Technology Inc Modular Data Transmitter manual

manual

Navigation menu

Namespaces

Views

Navigation
