Model Description
E2-B Rectangle shape, black waterproof case with 3M adhesive sticker and screws ,
CE&FCC certified module including 4 x AA batteries and packaging box, RoHS
E2-W Rectangle shape, white waterproof case with 3M adhesive sticker and screws ,
CE&FCC certified module including 4 x AA batteries and packaging box, RoHS
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 2
Minew Technologies
E2 MaxBeacon
Datasheet V1.0
The robust MaxBeacon E2 is an enterprise-level iBeacon with ARM core chipset nRF51822 and leverage BLE
4.0 technology; it has a strong & waterproof case, accurate hardware and robust firmware. It is designed for
the commercial advertising and indoor location-based service.
Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be
heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
- Programmed MiniBeacon standard firmware
- Powered by 4pcs AA batteries, alkaline
- Omni-directional PCB antenna
- The max. 200 meters advertising distance
- Waterproof IP65
- Ultra-low power consumption chipset nRF51822 with ARM core
CERTIFICATIONS
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)
SPECIFICATION

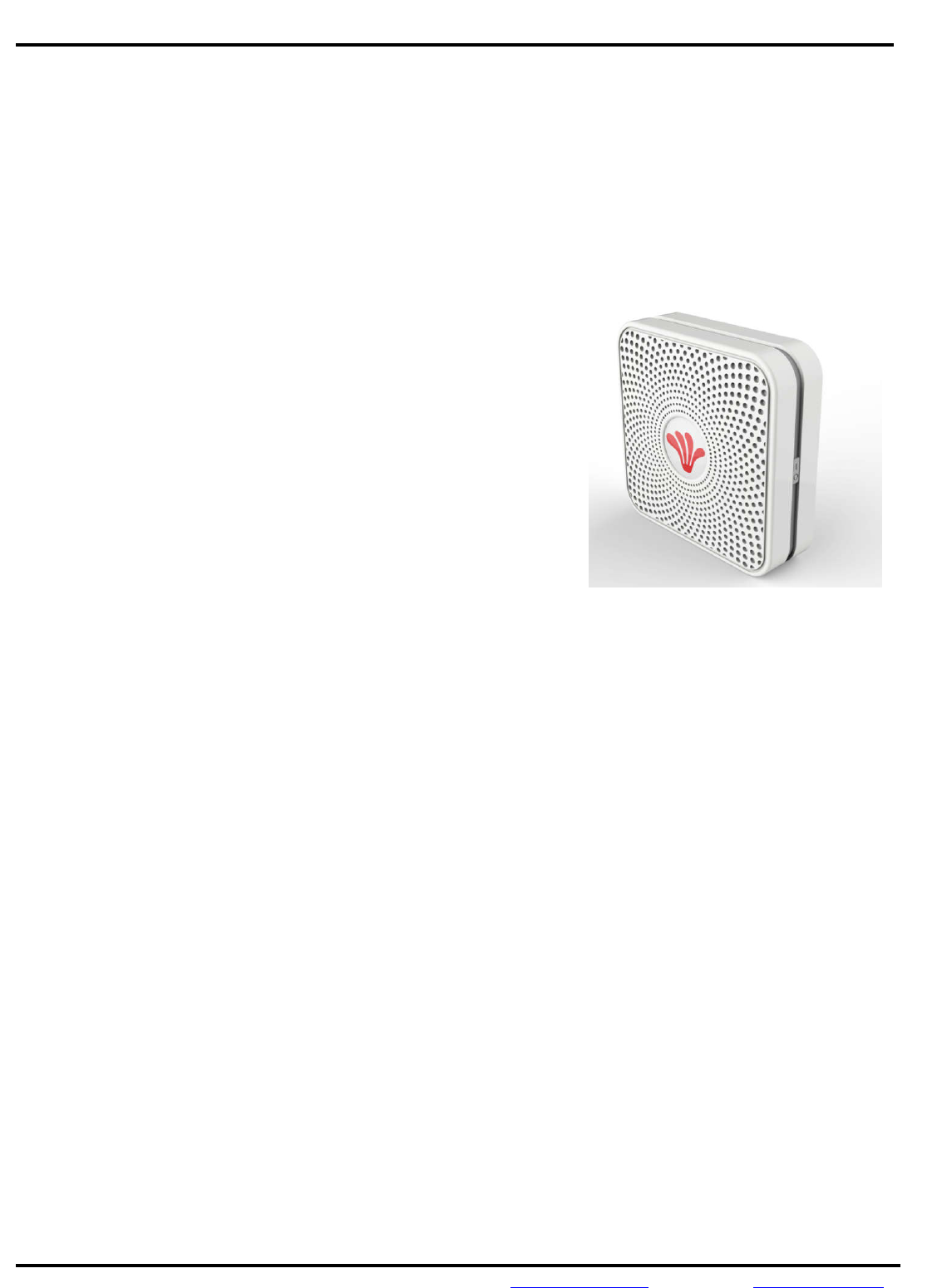

E2 MaxBeacon
Image 1
Compatibility
- Supported iOS 7.0+ and Android 4.3+ system;
- Compatible with Apple iBeaconTM standard;
- Compatible with all Bluetooth 4.0 (BLE) devices;
Long Battery Lifetime and Battery Level
- More than 5 years, with the default settings;
- LED will be flashing when battery low;
- Easy to get the real-time battery level notification;
Soft-reboot
- Reboot the device via command without any tools;
OTA and J-Link
- Supported upgrade via Over-The-Air;
- Reserved J-Link port on the board for programming;
Connection Mode
- Advertising mode, non-connectable;
- Configuration mode, connectable;
Configurable Parameters
- UUID, Major, Minor, Device Name, Password etc.
- Special Configuration APP;
Transmission Power Levels
- 8 adjustable levels, range from 0 to 7
- Transmission power range: -30dBm to +4dBm;
Long Range
- The max. Range 200 meters in the open space;
- The range depends on the physical environment;
Security
- 8 characters password (Lock/Unlock parameters);
- Broadcast the encrypted data if needed;
- AES HW encryption
Mounting
- 3M branded adhesive for direct mounting to wall;
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 3
Minew Technologies
E2 MaxBeacon
Datasheet V1.0
TECHNICAL SUPPORT
Item Version File Name Updated Date
Datasheet V1.0 E2_MiniBeacon Datasheet_1.0.pdf 1
st
March, 2016
Instruction V2.03 Instructions_MiniBeacon_V2.03.pdf 25
th
May, 2015
SDK V1.0 Android Reference Source Code;
iOS Reference Source Code; 28th February, 2015
APP Tools V2.0 iBeaconCFG; iBeaconDFU; 3rd March, 2015
* Minew sales team will send you these documents after the sample arrived.
CONFIGURABLE PARAMETERS
Characteristic
Item Default Settings
0xFFF1 UUID E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)
0xFFF2 Major 0
0xFFF3 Minor 0
0xFFF4 Measured Power -59 (0xC5)
0xFFF5 Transmission Power 6 (0dBm)
0xFFF6 Change Password minew123 (Must be 8 characters)
0xFFF7 Broadcasting Interval 5(500mS)
0xFFF8 Serial ID Random (Unique serial ID for beacon)
0xFFF9 iBeacon Name MiniBeacon_ (the maximum 14 characters)
0xFFFE Connection Mode 0 (connectable, configuration mode)
0xFFFF Soft Reboot minew123 (it is same as the value of Change Password)
ELECTRONIC PARAMETERS
Item Value Remarks
Case Color Black, white Other colors can be customized
Battery Model 4 x AA (LR6) 4pcs Alkaline battery, 2500mAh, 3.0V
Operation Voltage 1.8-3.6V DC
Transmission Circuit 10.5mA (Max.) Tested at 0dBm transmission power
Transmission Range 200 meters Maximum
Antenna 50ohm On board / PCB Antenna
Accessories Double adhesive
1pc, high-strength, 3M brand;
Screws 2pcs screws and 2pcs plastic holders
Net Weight 65.0g Without battery and package box
Size 72 x 72 x 23MM Null
