MINEW TECHNOLOGIES MS47SF1 Bluetooth 4.0 Module User Manual USERS MANUAL

Shenzhen Minew Technologies Co.,Ltd. Bluetooth 4.0 Module USERS MANUAL

USERS MANUAL

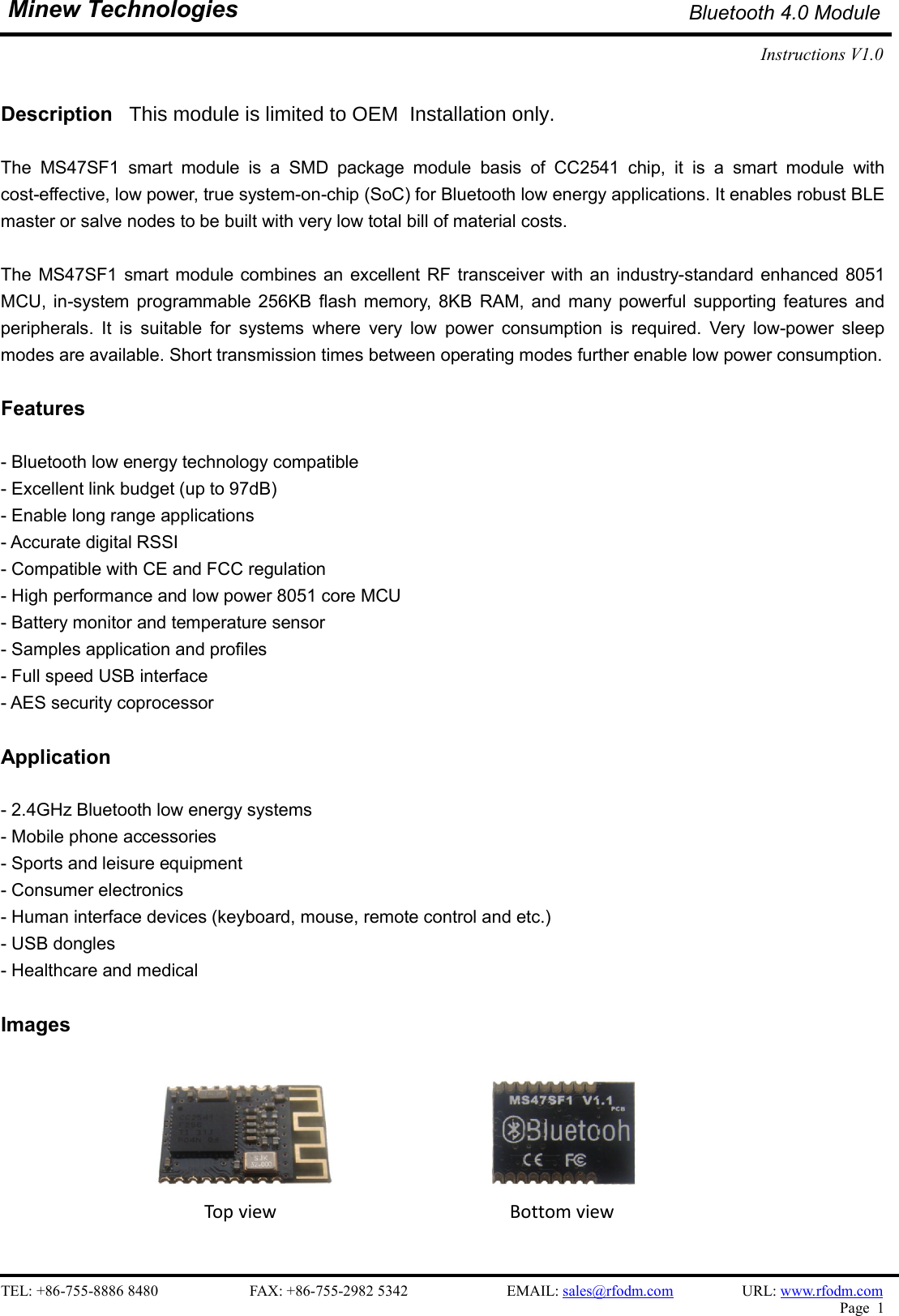

   TEL: +86-755-8886 8480                        FAX: +86-755-2982 5342                          EMAIL: sales@rfodm.com                  URL: www.rfodm.com   Page  1  Minew Technologies  Bluetooth 4.0 Module Instructions V1.0    Description   This module is limited to OEM  Installation only. The  MS47SF1  smart  module  is  a  SMD  package  module  basis  of  CC2541  chip,  it  is  a  smart  module  with cost-effective, low power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or salve nodes to be built with very low total bill of material costs.  The MS47SF1  smart module combines  an excellent RF transceiver with an industry-standard  enhanced 8051 MCU,  in-system  programmable  256KB  flash  memory, 8KB  RAM, and  many powerful  supporting  features and peripherals.  It  is  suitable  for  systems  where  very  low  power  consumption  is  required.  Very  low-power  sleep modes are available. Short transmission times between operating modes further enable low power consumption.  Features  - Bluetooth low energy technology compatible - Excellent link budget (up to 97dB) - Enable long range applications - Accurate digital RSSI - Compatible with CE and FCC regulation - High performance and low power 8051 core MCU - Battery monitor and temperature sensor - Samples application and profiles - Full speed USB interface - AES security coprocessor  Application                                    - 2.4GHz Bluetooth low energy systems - Mobile phone accessories - Sports and leisure equipment   - Consumer electronics - Human interface devices (keyboard, mouse, remote control and etc.) - USB dongles - Healthcare and medical  Images                                              Top view                                              Bottom view

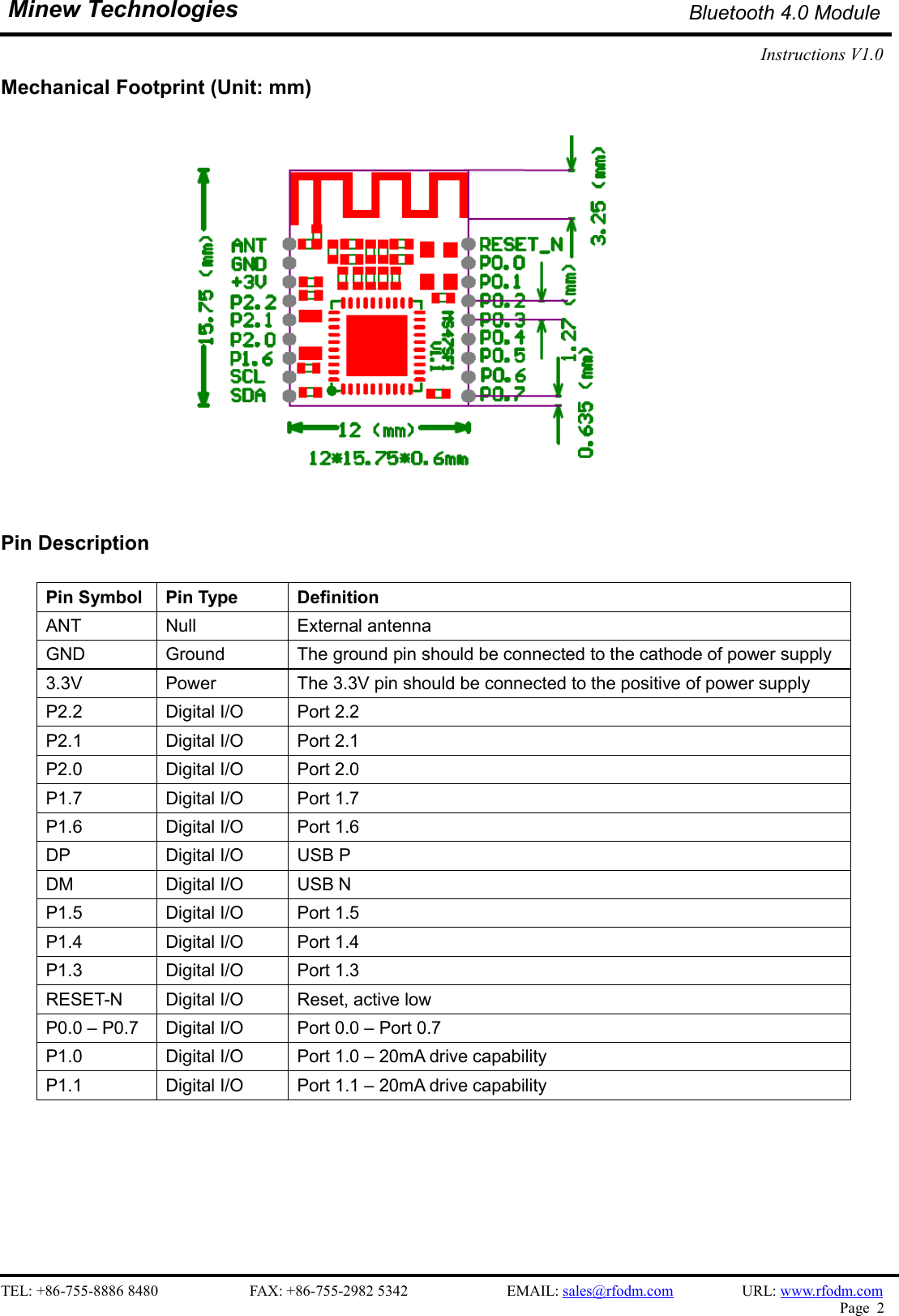

   TEL: +86-755-8886 8480                        FAX: +86-755-2982 5342                          EMAIL: sales@rfodm.com                  URL: www.rfodm.com   Page  2  Minew Technologies Bluetooth 4.0 Module Instructions V1.0    Mechanical Footprint (Unit: mm)       Pin Description  Pin Symbol  Pin Type  Definition ANT  Null  External antenna GND  Ground  The ground pin should be connected to the cathode of power supply 3.3V  Power  The 3.3V pin should be connected to the positive of power supply P2.2  Digital I/O  Port 2.2 P2.1  Digital I/O  Port 2.1 P2.0  Digital I/O  Port 2.0 P1.7  Digital I/O  Port 1.7 P1.6  Digital I/O  Port 1.6 DP  Digital I/O  USB P DM  Digital I/O  USB N P1.5  Digital I/O  Port 1.5 P1.4  Digital I/O  Port 1.4 P1.3  Digital I/O  Port 1.3 RESET-N  Digital I/O  Reset, active low P0.0 – P0.7  Digital I/O  Port 0.0 – Port 0.7 P1.0    Digital I/O  Port 1.0 – 20mA drive capability P1.1  Digital I/O  Port 1.1 – 20mA drive capability

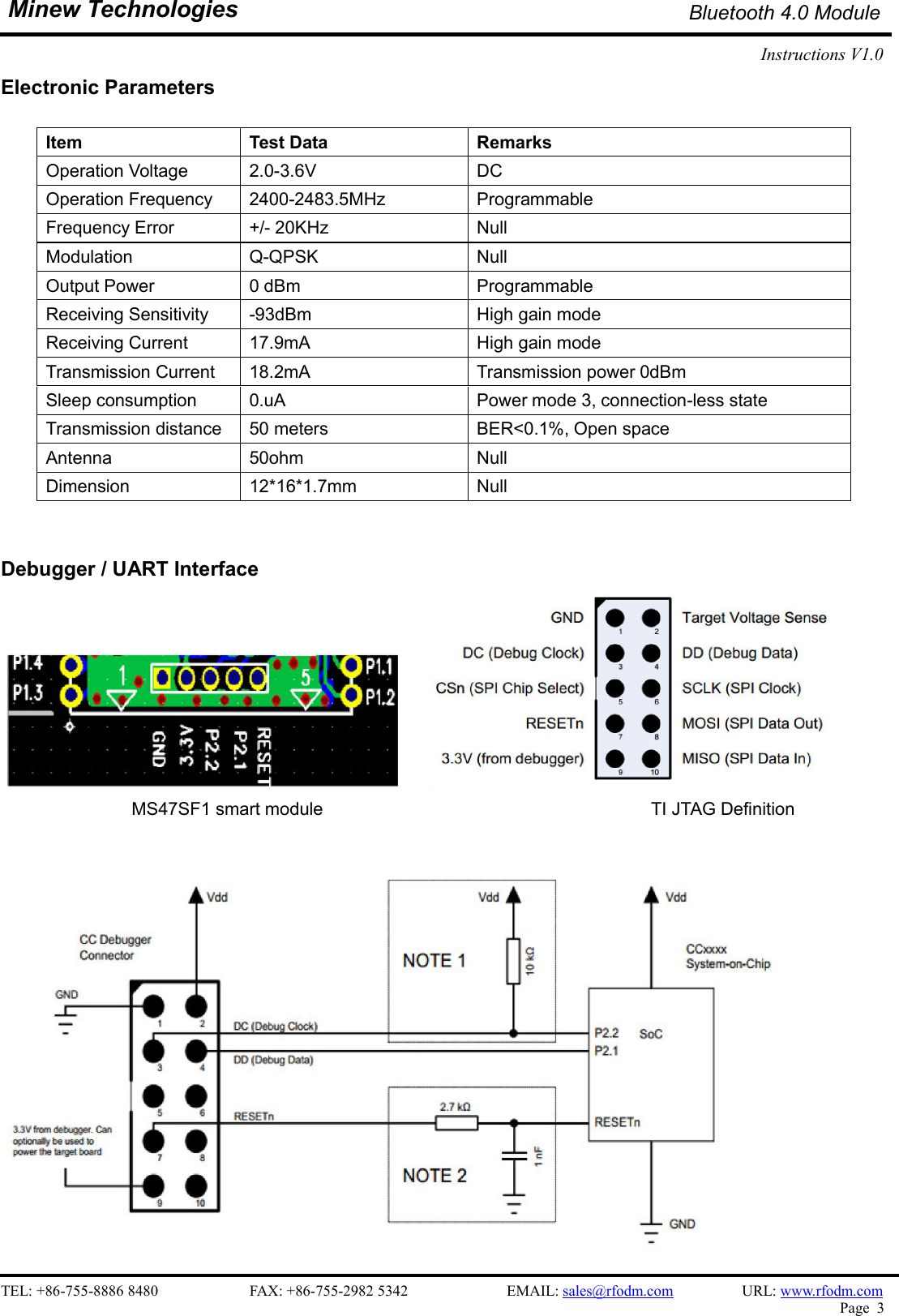

   TEL: +86-755-8886 8480                        FAX: +86-755-2982 5342                          EMAIL: sales@rfodm.com                  URL: www.rfodm.com   Page  3  Minew Technologies Bluetooth 4.0 Module Instructions V1.0    Electronic Parameters  Item    Test Data  Remarks Operation Voltage  2.0-3.6V  DC Operation Frequency  2400-2483.5MHz  Programmable Frequency Error  +/- 20KHz  Null Modulation  Q-QPSK  Null Output Power  0 dBm  Programmable Receiving Sensitivity  -93dBm  High gain mode Receiving Current  17.9mA  High gain mode Transmission Current  18.2mA  Transmission power 0dBm Sleep consumption  0.uA  Power mode 3, connection-less state Transmission distance  50 meters  BER<0.1%, Open space Antenna  50ohm  Null Dimension  12*16*1.7mm  Null   Debugger / UART Interface                    MS47SF1 smart module                                                                          TI JTAG Definition

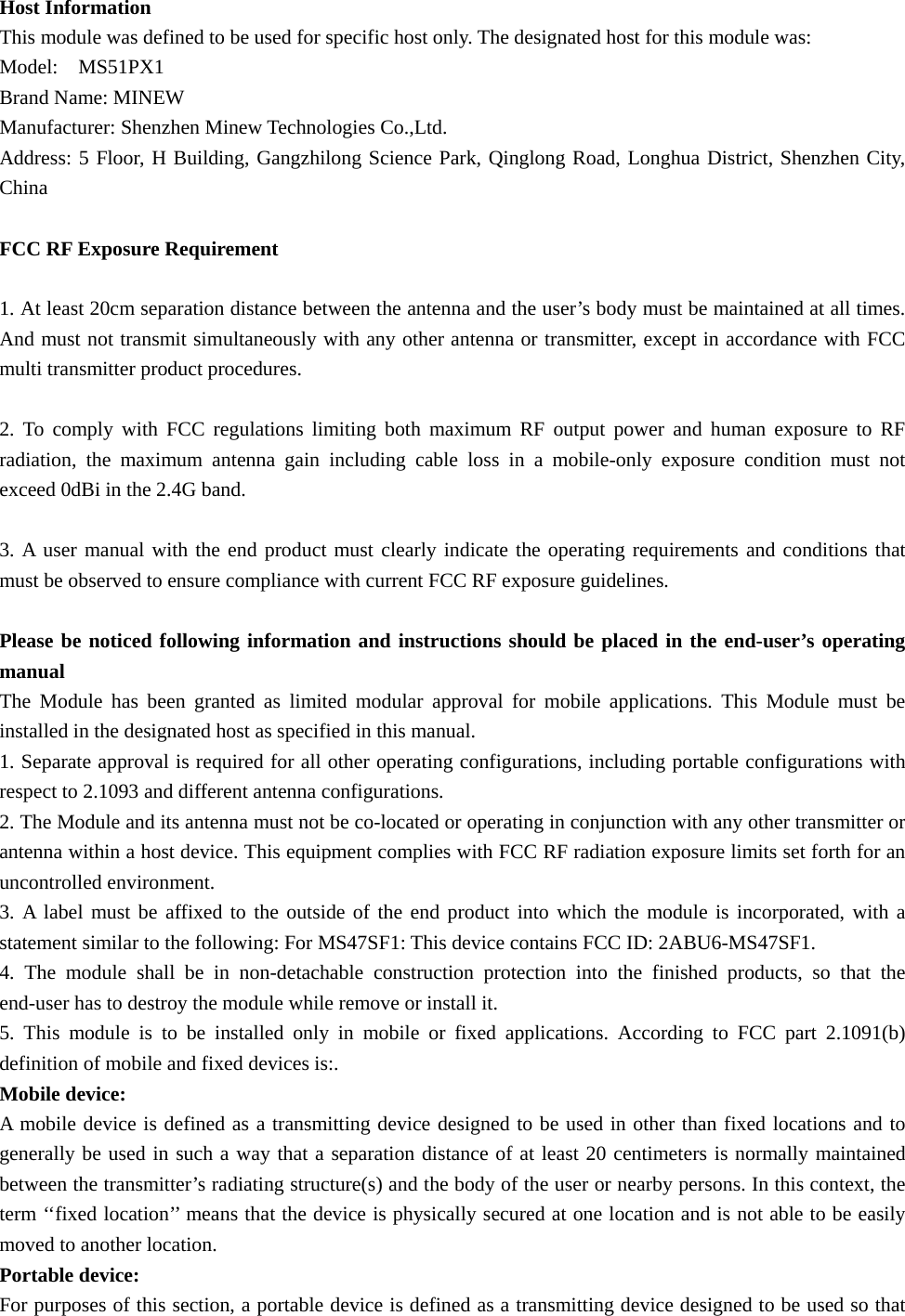

Host Information This module was defined to be used for specific host only. The designated host for this module was: Model:  MS51PX1 Brand Name: MINEW Manufacturer: Shenzhen Minew Technologies Co.,Ltd. Address: 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China  FCC RF Exposure Requirement  1. At least 20cm separation distance between the antenna and the user’s body must be maintained at all times. And must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi transmitter product procedures.  2. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-only exposure condition must not exceed 0dBi in the 2.4G band.    3. A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC RF exposure guidelines.  Please be noticed following information and instructions should be placed in the end-user’s operating manual The Module has been granted as limited modular approval for mobile applications. This Module must be installed in the designated host as specified in this manual.   1. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.   2. The Module and its antenna must not be co-located or operating in conjunction with any other transmitter or antenna within a host device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.   3. A label must be affixed to the outside of the end product into which the module is incorporated, with a statement similar to the following: For MS47SF1: This device contains FCC ID: 2ABU6-MS47SF1.   4. The module shall be in non-detachable construction protection into the finished products, so that the end-user has to destroy the module while remove or install it.   5. This module is to be installed only in mobile or fixed applications. According to FCC part 2.1091(b) definition of mobile and fixed devices is:. Mobile device: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. In this context, the term ‘‘fixed location’’ means that the device is physically secured at one location and is not able to be easily moved to another location. Portable device: For purposes of this section, a portable device is defined as a transmitting device designed to be used so that
the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. 6. Separate approval is required for all other operating configurations, including portable configurations with respect to FCC Part 2.1093 and different antenna configurations.   7. A certified modular has the option to use a permanently affixed label, or an electronic label. For a permanently affixed label, the module must be labelled with an FCC ID: 2ABU6-MS47SF1. The OEM manual must provide clear instructions explaining to the OEM the labelling requirements, options and OEM user manual instructions that are required. For a host using a this FCC certified modular with a standard fixed label, if (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not have straightforward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC ID: 2ABU6-MS47SF1” or “Contains FCC ID: 2ABU6-MS47SF1” must be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID.  8. Host product is required to comply with all applicable FCC equipment authorizations regulations, requirements and equipment functions not associated with the transmitter module portion. compliance must be demonstrated to regulations for other transmitter components within the host product; to requirements for unintentional radiators (Part 15B). To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. If a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this maydepend on the details of how the module is integrated with the host, we suggest the host device to recertify part 15B to ensure complete compliance with FCC requirement: Part 2 Subpart J Equipment Authorization Procedures , KDB784748 D01 v07, and KDB 997198 about importation of radio frequency devices into the United States.  FCC Certification Requirement: The end product with an embedded Module may also need to pass the FCC Part 15 unintentional emission testing requirements and be properly authorized per FCC Part 15.  Note: If this module is intended for use in a portable device, you are responsible for separate approval to satisfy the SAR requirements of FCC Part 2.1093.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by Shenzhen Minew Technologies Co.,Ltd. may void the FCC authorization to operate this equipment.
