MIR Medical Research MIR061 SmartOne User Manual

MIR Medical International Research SmartOne

User Manual

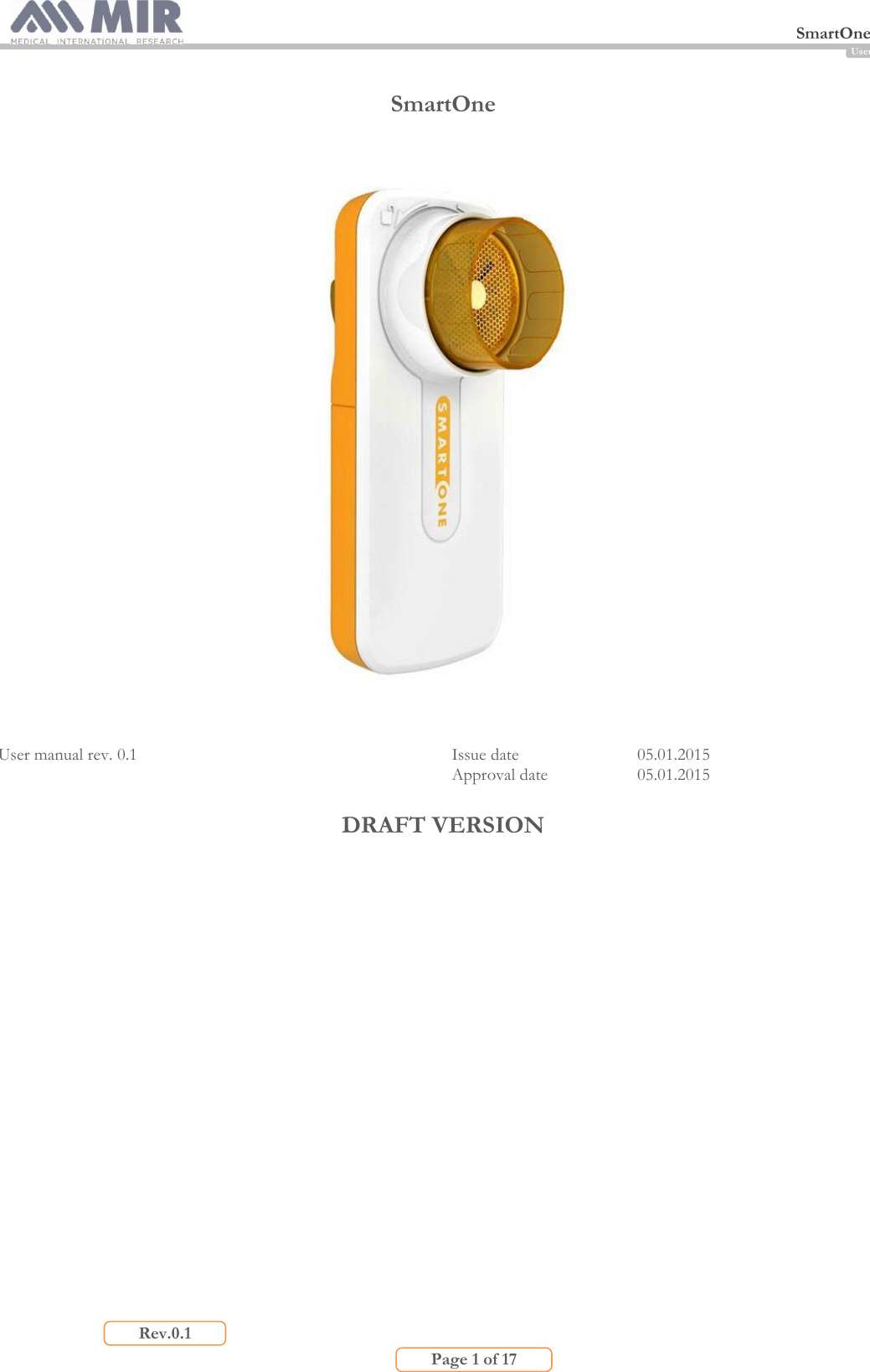

 SmartOne                         Page 1 of 17 Rev.0.1 User manual  SmartOne       DRAFT VERSION     User manual rev. 0.1 Issue date    05.01.2015 Approval date    05.01.2015

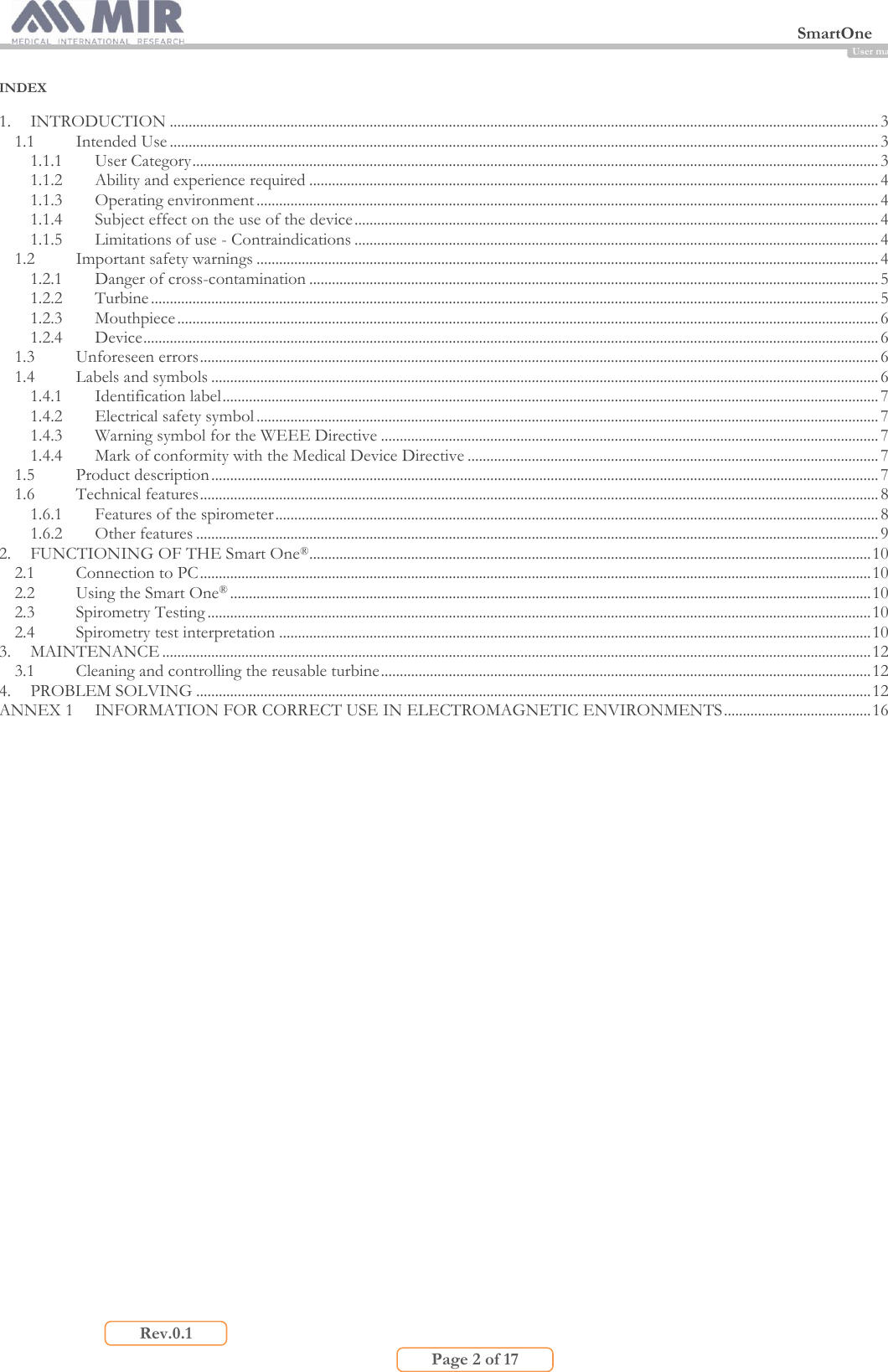

 SmartOne                         Page 2 of 17 Rev.0.1 User manual INDEX  1. INTRODUCTION ............................................................................................................................................................................................ 3 1.1 Intended Use ............................................................................................................................................................................................ 3 1.1.1 User Category ...................................................................................................................................................................................... 3 1.1.2 Ability and experience required ....................................................................................................................................................... 4 1.1.3 Operating environment ..................................................................................................................................................................... 4 1.1.4 Subject effect on the use of the device ........................................................................................................................................... 4 1.1.5 Limitations of use - Contraindications ........................................................................................................................................... 4 1.2 Important safety warnings ..................................................................................................................................................................... 4 1.2.1 Danger of cross-contamination ....................................................................................................................................................... 5 1.2.2 Turbine ................................................................................................................................................................................................. 5 1.2.3 Mouthpiece .......................................................................................................................................................................................... 6 1.2.4 Device ................................................................................................................................................................................................... 6 1.3 Unforeseen errors .................................................................................................................................................................................... 6 1.4 Labels and symbols ................................................................................................................................................................................. 6 1.4.1 Identification label .............................................................................................................................................................................. 7 1.4.2 Electrical safety symbol ..................................................................................................................................................................... 7 1.4.3 Warning symbol for the WEEE Directive .................................................................................................................................... 7 1.4.4 Mark of conformity with the Medical Device Directive ............................................................................................................. 7 1.5 Product description ................................................................................................................................................................................. 7 1.6 Technical features .................................................................................................................................................................................... 8 1.6.1 Features of the spirometer ................................................................................................................................................................ 8 1.6.2 Other features ..................................................................................................................................................................................... 9 2. FUNCTIONING OF THE Smart One® ..................................................................................................................................................... 10 2.1 Connection to PC .................................................................................................................................................................................. 10 2.2 Using the Smart One® .......................................................................................................................................................................... 10 2.3 Spirometry Testing ................................................................................................................................................................................ 10 2.4 Spirometry test interpretation ............................................................................................................................................................. 10 3. MAINTENANCE ............................................................................................................................................................................................ 12 3.1 Cleaning and controlling the reusable turbine .................................................................................................................................. 12 4. PROBLEM SOLVING ................................................................................................................................................................................... 12 ANNEX 1 INFORMATION FOR CORRECT USE IN ELECTROMAGNETIC ENVIRONMENTS ....................................... 16
 SmartOne                         Page 3 of 17 Rev.0.1 User manual Thank you for choosing a product from MIR MEDICAL INTERNATIONAL RESEARCH   WARNING The paper mouthpiece, the nose clip and the disposable turbine with mouthpiece in the equipment should be considered disposable products.  Before using your Smart One® …  Read this manual carefully, plus all labels and other product information supplied.  Smart One® should only be connected to a computer manufactured in compliance with EN 60950/1992.   WARNING The winspiroPRO PC software supplied with the device MUST be installed correctly to the PC before connecting  Smart One® to the PC. At the end of the installation, connect the device to the PC and the hardware will be "recognised" by the PC. The device can then be used with the winspiroPRO software.  Keep the original packaging! In  the  event  that  your  device  requires  attention  then  always  use  the  original  packaging  to  return  it  to  the  distributor  or  the manufacturer.  In such an event then please follow these guidelines:   Return the complete device in the original packaging, and  The transport (plus any customs or taxes) costs must be prepaid.  Manufacturer’s address  MIR SRL: VIA DEL MAGGIOLINO, 125 00155 ROME (ITALY)  Tel ++ 39 0622754777 Fax ++ 39 0622754785 Web site: www.spirometry.com Email: mir@spirometry.com   MIR  has  a  policy  of  continuous  product  development  and  improvement,  and  the  manufacturer  therefore  reserves  the right  to  modify  and  to  update  the  information  contained  in  this  User’s  Manual  as  required  Any  suggestions  and  or comments regarding this product should be sent via email to: mir@spirometry.com. Thank you. MIR accepts no responsibility  for any loss or  damage  caused  by the  User  of the  device due  to the use  of  this  Manual and/or due to an incorrect use of the product. Copying this manual in whole or in part is strictly forbidden.  FEDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A PHYSICIAN  1. INTRODUCTION  1.1 Intended Use  Smart One® spirometer is intended to be used either by a physician, respiratory therapist or technician. The device is intended to test lung function and can make spirometry testing in people of all ages, excluding infants and neonates It can be used in any setting.  1.1.1 User Category Smart One® calculates a series of parameters relating to human respiratory function. The product is therefore intended for use by a doctor or by a trained paramedic or technician under the supervision of a doctor.

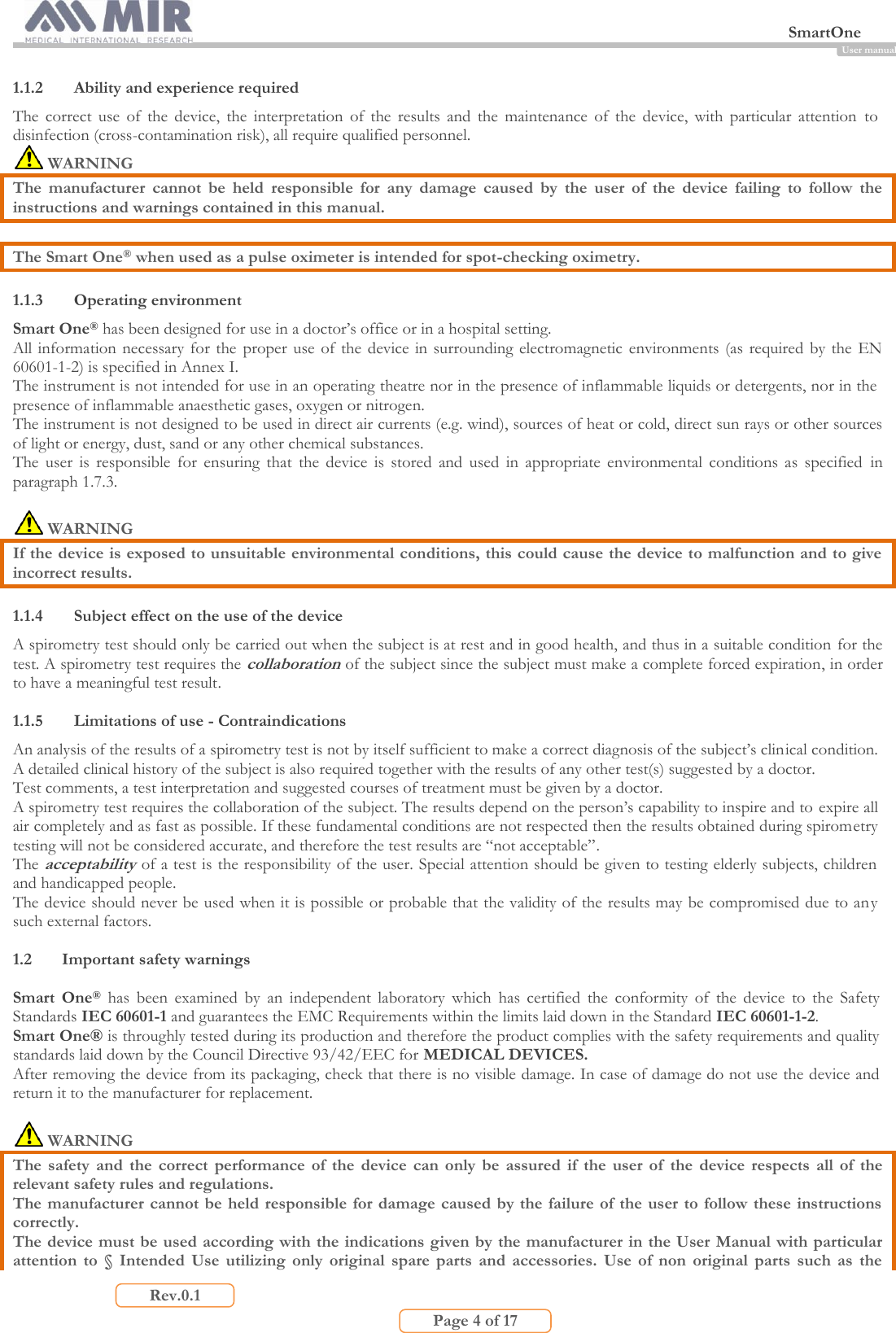

 SmartOne                         Page 4 of 17 Rev.0.1 User manual 1.1.2 Ability and experience required The  correct  use  of  the  device,  the  interpretation  of  the  results  and  the  maintenance  of  the  device,  with  particular  attention  to disinfection (cross-contamination risk), all require qualified personnel.  WARNING The  manufacturer  cannot  be  held  responsible  for  any  damage  caused  by  the  user  of  the  device  failing  to  follow  the instructions and warnings contained in this manual.  The Smart One® when used as a pulse oximeter is intended for spot-checking oximetry.  1.1.3 Operating environment Smart One® has been designed for use in a doctor’s office or in a hospital setting. All information necessary for  the  proper  use of the device in surrounding electromagnetic  environments (as required by the EN 60601-1-2) is specified in Annex I. The instrument is not intended for use in an operating theatre nor in the presence of inflammable liquids or detergents, nor in the presence of inflammable anaesthetic gases, oxygen or nitrogen. The instrument is not designed to be used in direct air currents (e.g. wind), sources of heat or cold, direct sun rays or other sources of light or energy, dust, sand or any other chemical substances. The  user  is  responsible  for  ensuring  that  the  device  is  stored  and  used  in  appropriate  environmental  conditions  as  specified  in paragraph 1.7.3.   WARNING If the device is exposed to unsuitable environmental conditions, this could cause the device to malfunction and to give incorrect results.  1.1.4 Subject effect on the use of the device A spirometry test should only be carried out when the subject is at rest and in good health, and thus in a suitable condition for the test. A spirometry test requires the collaboration of the subject since the subject must make a complete forced expiration, in order to have a meaningful test result.  1.1.5 Limitations of use - Contraindications An analysis of the results of a spirometry test is not by itself sufficient to make a correct diagnosis of the subject’s clinical condition. A detailed clinical history of the subject is also required together with the results of any other test(s) suggested by a doctor.  Test comments, a test interpretation and suggested courses of treatment must be given by a doctor. A spirometry test requires the collaboration of the subject. The results depend on the person’s capability to inspire and to expire all air completely and as fast as possible. If these fundamental conditions are not respected then the results obtained during spirometry testing will not be considered accurate, and therefore the test results are “not acceptable”. The acceptability of a test is the responsibility of the user. Special attention should be given to testing elderly subjects, children and handicapped people. The device should never be used when it is possible or probable that the validity of the results may be compromised due to any such external factors.  1.2 Important safety warnings  Smart  One®  has  been  examined  by  an  independent  laboratory  which  has  certified  the  conformity  of  the  device  to  the  Safety Standards IEC 60601-1 and guarantees the EMC Requirements within the limits laid down in the Standard IEC 60601-1-2. Smart One® is throughly tested during its production and therefore the product complies with the safety requirements and quality standards laid down by the Council Directive 93/42/EEC for MEDICAL DEVICES. After removing the device from its packaging, check that there is no visible damage. In case of damage do not use the device and return it to the manufacturer for replacement.   WARNING The  safety  and  the  correct  performance  of  the  device  can  only  be  assured  if  the  user  of  the  device  respects  all  of  the relevant safety rules and regulations.  The manufacturer cannot be held  responsible for damage caused by  the failure of the user to follow these instructions correctly. The device must be used according with the indications given by the manufacturer in the User Manual with particular attention  to  §  Intended  Use  utilizing  only  original  spare  parts  and  accessories.  Use  of  non  original  parts  such  as  the

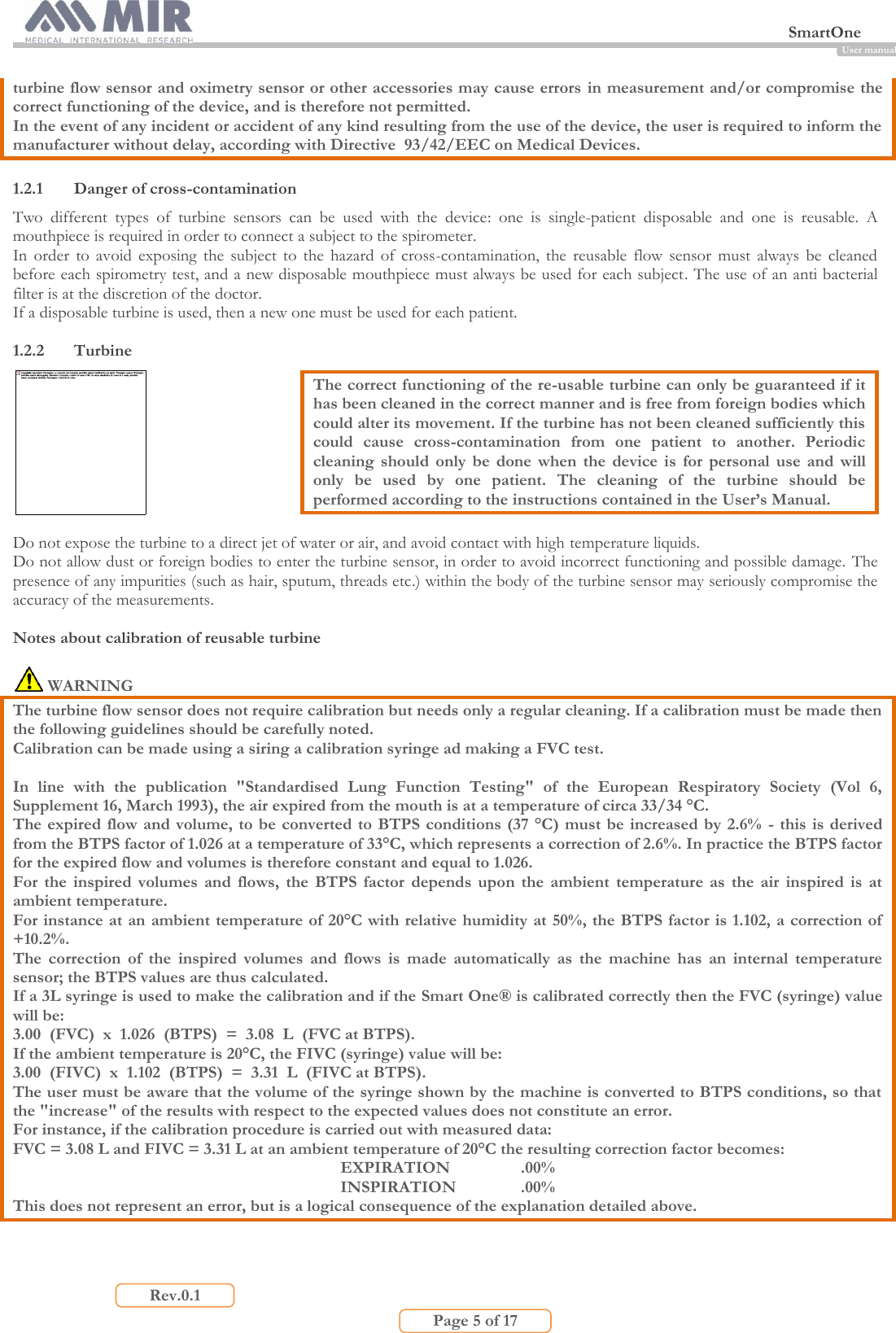

 SmartOne                         Page 5 of 17 Rev.0.1 User manual turbine flow sensor and oximetry sensor or other accessories may cause errors in measurement and/or compromise the correct functioning of the device, and is therefore not permitted. In the event of any incident or accident of any kind resulting from the use of the device, the user is required to inform the manufacturer without delay, according with Directive  93/42/EEC on Medical Devices.  1.2.1 Danger of cross-contamination Two  different  types  of  turbine  sensors  can  be  used  with  the  device:  one  is  single-patient  disposable  and  one  is  reusable.  A mouthpiece is required in order to connect a subject to the spirometer. In  order  to  avoid  exposing  the  subject  to  the  hazard  of  cross-contamination,  the  reusable  flow  sensor  must  always  be  cleaned before each spirometry test, and a new disposable mouthpiece must always be used for each subject. The use of an anti bacterial filter is at the discretion of the doctor.  If a disposable turbine is used, then a new one must be used for each patient.  1.2.2 Turbine  The correct functioning of the re-usable turbine can only be guaranteed if it has been cleaned in the correct manner and is free from foreign bodies which could alter its movement. If the turbine has not been cleaned sufficiently this could  cause  cross-contamination  from  one  patient  to  another.  Periodic cleaning  should  only  be  done  when  the  device  is  for  personal  use  and  will only  be  used  by  one  patient.  The  cleaning  of  the  turbine  should  be performed according to the instructions contained in the User’s Manual.  Do not expose the turbine to a direct jet of water or air, and avoid contact with high temperature liquids. Do not allow dust or foreign bodies to enter the turbine sensor, in order to avoid incorrect functioning and possible damage. The presence of any impurities (such as hair, sputum, threads etc.) within the body of the turbine sensor may seriously compromise the accuracy of the measurements.  Notes about calibration of reusable turbine   WARNING The turbine flow sensor does not require calibration but needs only a regular cleaning. If a calibration must be made then the following guidelines should be carefully noted. Calibration can be made using a siring a calibration syringe ad making a FVC test.  In  line  with  the  publication  "Standardised  Lung  Function  Testing"  of  the  European  Respiratory  Society  (Vol  6, Supplement 16, March 1993), the air expired from the mouth is at a temperature of circa 33/34 °C. The expired flow and volume,  to be converted to BTPS conditions (37 °C) must be increased by 2.6%  - this is derived from the BTPS factor of 1.026 at a temperature of 33°C, which represents a correction of 2.6%. In practice the BTPS factor for the expired flow and volumes is therefore constant and equal to 1.026. For  the  inspired  volumes  and  flows,  the  BTPS  factor  depends  upon  the  ambient  temperature  as  the  air  inspired  is  at ambient temperature. For instance at an ambient temperature of 20°C with relative humidity at 50%, the BTPS factor is 1.102, a correction of  +10.2%. The  correction  of  the  inspired  volumes  and  flows  is  made  automatically  as  the  machine  has  an  internal  temperature sensor; the BTPS values are thus calculated. If a 3L syringe is used to make the calibration and if the Smart One® is calibrated correctly then the FVC (syringe) value will be: 3.00  (FVC)  x  1.026  (BTPS)  =  3.08  L  (FVC at BTPS). If the ambient temperature is 20°C, the FIVC (syringe) value will be: 3.00  (FIVC)  x  1.102  (BTPS)  =  3.31  L  (FIVC at BTPS). The user must be aware that the volume of the syringe shown by the machine is converted to BTPS conditions, so that the "increase" of the results with respect to the expected values does not constitute an error.  For instance, if the calibration procedure is carried out with measured data: FVC = 3.08 L and FIVC = 3.31 L at an ambient temperature of 20°C the resulting correction factor becomes: EXPIRATION    .00% INSPIRATION   .00% This does not represent an error, but is a logical consequence of the explanation detailed above.

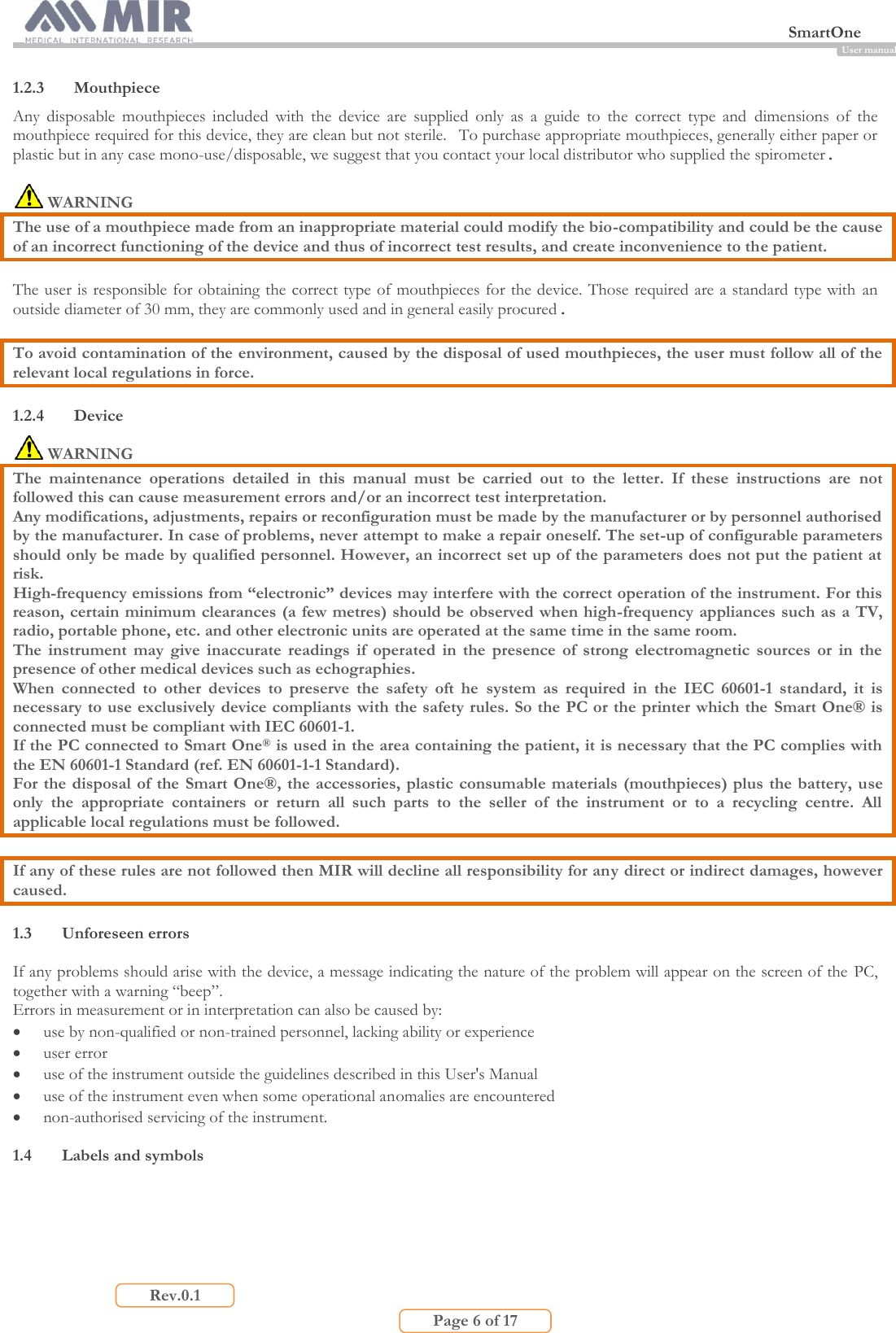

 SmartOne                         Page 6 of 17 Rev.0.1 User manual 1.2.3 Mouthpiece Any  disposable  mouthpieces  included  with  the  device  are  supplied  only  as  a  guide  to  the  correct  type  and  dimensions  of  the mouthpiece required for this device, they are clean but not sterile. To purchase appropriate mouthpieces, generally either paper or plastic but in any case mono-use/disposable, we suggest that you contact your local distributor who supplied the spirometer.   WARNING The use of a mouthpiece made from an inappropriate material could modify the bio-compatibility and could be the cause of an incorrect functioning of the device and thus of incorrect test results, and create inconvenience to the patient.  The user is responsible for obtaining the correct type of mouthpieces for the device. Those required are a standard type with an outside diameter of 30 mm, they are commonly used and in general easily procured.  To avoid contamination of the environment, caused by the disposal of used mouthpieces, the user must follow all of the relevant local regulations in force.  1.2.4 Device  WARNING The  maintenance  operations  detailed  in  this  manual  must  be  carried  out  to  the  letter.  If  these  instructions  are  not followed this can cause measurement errors and/or an incorrect test interpretation. Any modifications, adjustments, repairs or reconfiguration must be made by the manufacturer or by personnel authorised by the manufacturer. In case of problems, never attempt to make a repair oneself. The set-up of configurable parameters should only be made by qualified personnel. However, an incorrect set up of the parameters does not put the patient at risk. High-frequency emissions from “electronic” devices may interfere with the correct operation of the instrument. For this reason, certain minimum clearances (a few metres) should be observed when high-frequency appliances such as a TV, radio, portable phone, etc. and other electronic units are operated at the same time in the same room. The  instrument  may  give  inaccurate  readings  if  operated  in  the  presence  of  strong  electromagnetic  sources  or  in  the presence of other medical devices such as echographies. When  connected  to  other  devices  to  preserve  the  safety  oft  he  system  as  required  in  the  IEC  60601-1  standard,  it  is necessary to use exclusively device compliants with the safety rules. So the PC or the printer which the  Smart One® is connected must be compliant with IEC 60601-1. If the PC connected to Smart One® is used in the area containing the patient, it is necessary that the PC complies with the EN 60601-1 Standard (ref. EN 60601-1-1 Standard). For the disposal of the  Smart One®, the accessories, plastic consumable materials (mouthpieces) plus the battery, use only  the  appropriate  containers  or  return  all  such  parts  to  the  seller  of  the  instrument  or  to  a  recycling  centre.  All applicable local regulations must be followed.  If any of these rules are not followed then MIR will decline all responsibility for any direct or indirect damages, however caused.   1.3 Unforeseen errors  If any problems should arise with the device, a message indicating the nature of the problem will appear on the screen of the PC, together with a warning “beep”.  Errors in measurement or in interpretation can also be caused by:  use by non-qualified or non-trained personnel, lacking ability or experience  user error  use of the instrument outside the guidelines described in this User's Manual  use of the instrument even when some operational anomalies are encountered  non-authorised servicing of the instrument.  1.4 Labels and symbols

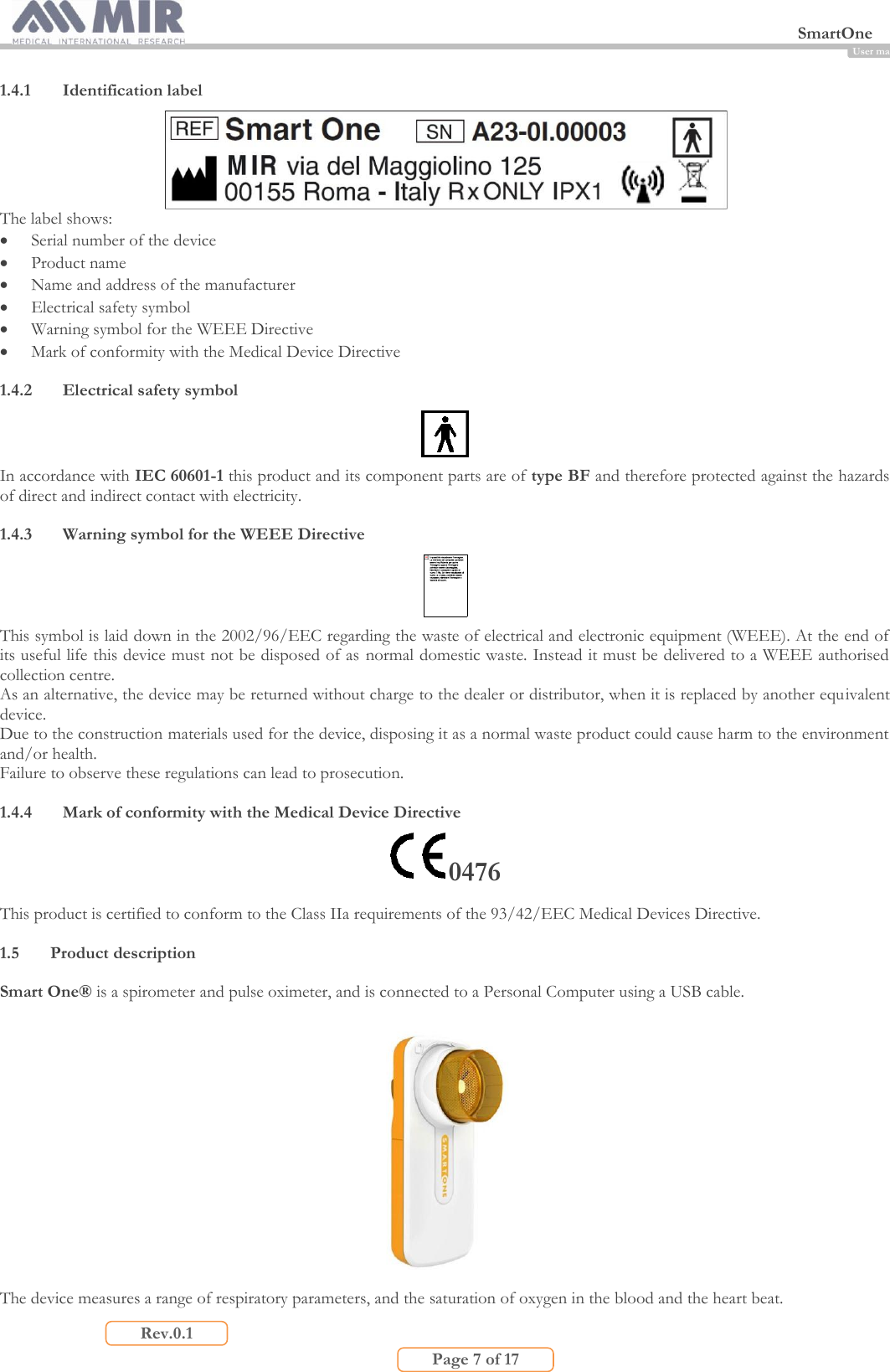

 SmartOne                         Page 7 of 17 Rev.0.1 User manual 1.4.1 Identification label  The label shows:  Serial number of the device  Product name  Name and address of the manufacturer  Electrical safety symbol  Warning symbol for the WEEE Directive  Mark of conformity with the Medical Device Directive  1.4.2 Electrical safety symbol  In accordance with IEC 60601-1 this product and its component parts are of type BF and therefore protected against the hazards of direct and indirect contact with electricity.  1.4.3 Warning symbol for the WEEE Directive  This symbol is laid down in the 2002/96/EEC regarding the waste of electrical and electronic equipment (WEEE). At the end of its useful life this device must not be disposed of as  normal domestic waste. Instead it must be delivered to a WEEE authorised collection centre. As an alternative, the device may be returned without charge to the dealer or distributor, when it is replaced by another equivalent device. Due to the construction materials used for the device, disposing it as a normal waste product could cause harm to the environment and/or health. Failure to observe these regulations can lead to prosecution.  1.4.4 Mark of conformity with the Medical Device Directive 0476 This product is certified to conform to the Class IIa requirements of the 93/42/EEC Medical Devices Directive.  1.5 Product description  Smart One® is a spirometer and pulse oximeter, and is connected to a Personal Computer using a USB cable.    The device measures a range of respiratory parameters, and the saturation of oxygen in the blood and the heart beat.

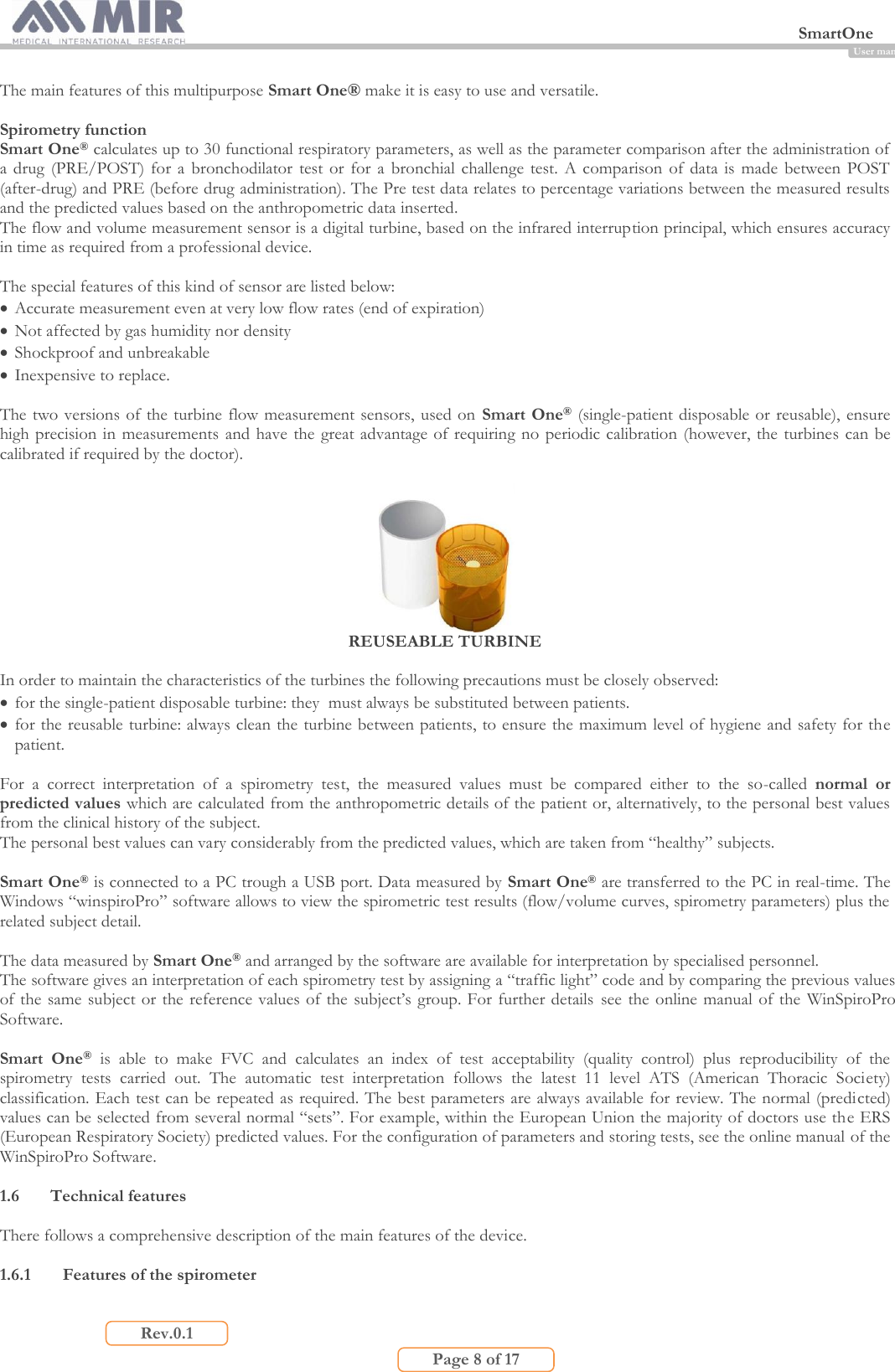

 SmartOne                         Page 8 of 17 Rev.0.1 User manual The main features of this multipurpose Smart One® make it is easy to use and versatile.  Spirometry function Smart One® calculates up to 30 functional respiratory parameters, as well as the parameter comparison after the administration of a  drug  (PRE/POST)  for  a  bronchodilator  test  or  for  a  bronchial  challenge  test.  A  comparison  of data  is  made  between  POST (after-drug) and PRE (before drug administration). The Pre test data relates to percentage variations between the measured results and the predicted values based on the anthropometric data inserted. The flow and volume measurement sensor is a digital turbine, based on the infrared interruption principal, which ensures accuracy in time as required from a professional device.  The special features of this kind of sensor are listed below:  Accurate measurement even at very low flow rates (end of expiration)  Not affected by gas humidity nor density  Shockproof and unbreakable  Inexpensive to replace.  The two versions of the turbine flow measurement sensors, used on  Smart One® (single-patient disposable or  reusable), ensure high precision in measurements  and have the great advantage of requiring no periodic calibration (however, the turbines can be calibrated if required by the doctor).   REUSEABLE TURBINE  In order to maintain the characteristics of the turbines the following precautions must be closely observed:  for the single-patient disposable turbine: they  must always be substituted between patients.  for the reusable turbine: always clean the turbine between patients, to ensure the maximum level of hygiene and safety for the patient.  For  a  correct  interpretation  of  a  spirometry  test,  the  measured  values  must  be  compared  either  to  the  so-called  normal  or predicted values which are calculated from the anthropometric details of the patient or, alternatively, to the personal best values from the clinical history of the subject. The personal best values can vary considerably from the predicted values, which are taken from “healthy” subjects.  Smart One® is connected to a PC trough a USB port. Data measured by Smart One® are transferred to the PC in real-time. The Windows “winspiroPro” software allows to view the spirometric test results (flow/volume curves, spirometry parameters) plus the related subject detail.  The data measured by Smart One® and arranged by the software are available for interpretation by specialised personnel. The software gives an interpretation of each spirometry test by assigning a “traffic light” code and by comparing the previous values of the same subject or the reference values of the subject’s group. For further details  see  the online manual  of the  WinSpiroPro Software.  Smart  One®  is  able  to  make  FVC  and  calculates  an  index  of  test  acceptability  (quality  control)  plus  reproducibility  of  the spirometry  tests  carried  out.  The  automatic  test  interpretation  follows  the  latest  11  level  ATS  (American  Thoracic  Society) classification. Each test can be repeated as required. The best parameters are always available for review. The normal (predicted) values can be selected from several normal “sets”. For example, within the European Union the majority of doctors use the ERS (European Respiratory Society) predicted values. For the configuration of parameters and storing tests, see the online manual of the WinSpiroPro Software.  1.6 Technical features  There follows a comprehensive description of the main features of the device.  1.6.1 Features of the spirometer

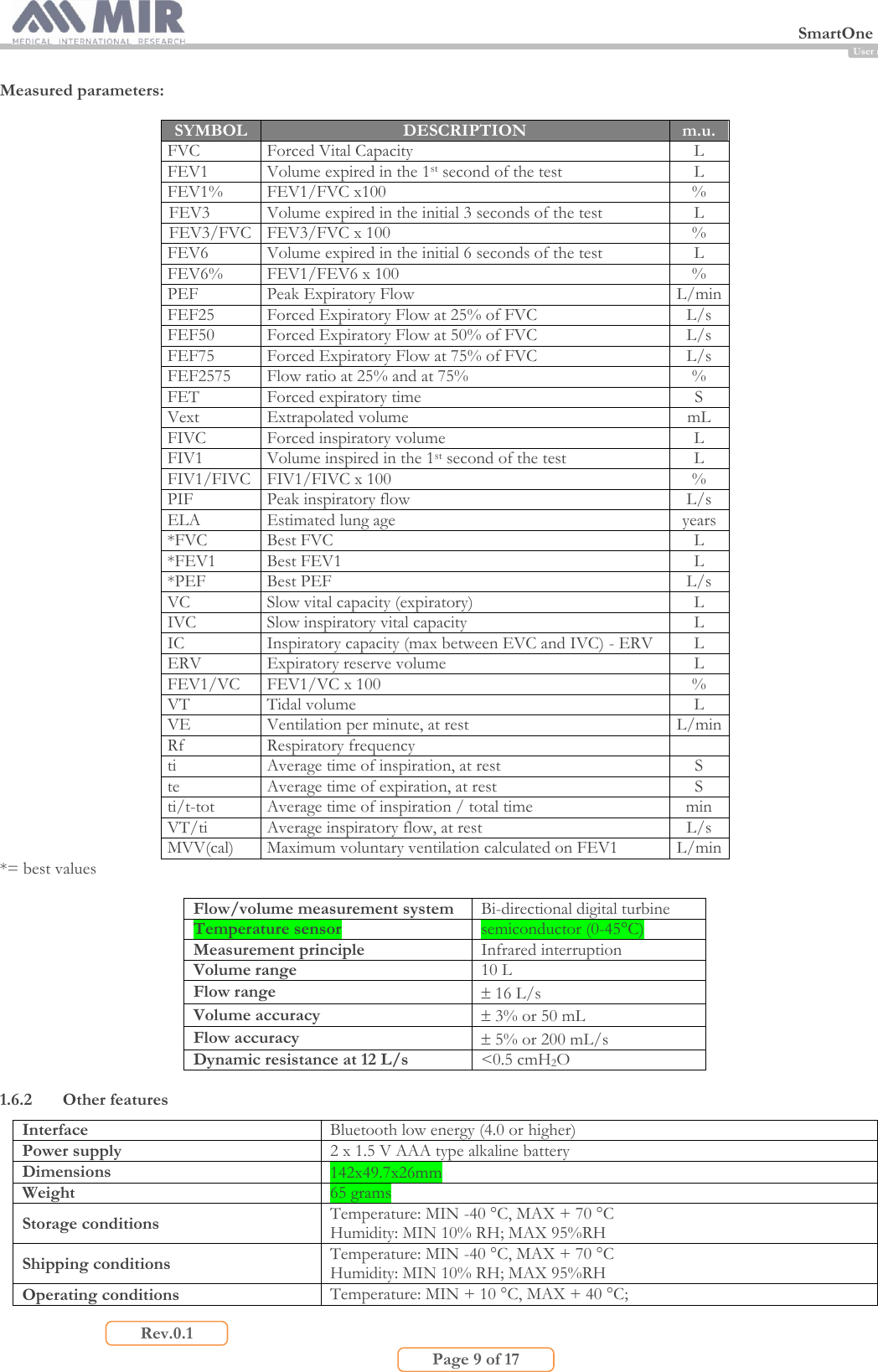

 SmartOne                         Page 9 of 17 Rev.0.1 User manual Measured parameters:  SYMBOL DESCRIPTION m.u.  FVC Forced Vital Capacity  L FEV1 Volume expired in the 1st second of the test L FEV1% FEV1/FVC x100 % FEV3 Volume expired in the initial 3 seconds of the test L FEV3/FVC FEV3/FVC x 100 % FEV6 Volume expired in the initial 6 seconds of the test L FEV6% FEV1/FEV6 x 100 % PEF Peak Expiratory Flow L/min FEF25 Forced Expiratory Flow at 25% of FVC L/s FEF50 Forced Expiratory Flow at 50% of FVC L/s FEF75 Forced Expiratory Flow at 75% of FVC L/s FEF2575 Flow ratio at 25% and at 75% % FET Forced expiratory time S Vext Extrapolated volume mL FIVC Forced inspiratory volume L FIV1 Volume inspired in the 1st second of the test L FIV1/FIVC FIV1/FIVC x 100 % PIF Peak inspiratory flow L/s ELA Estimated lung age years *FVC Best FVC L *FEV1 Best FEV1 L *PEF Best PEF L/s VC Slow vital capacity (expiratory) L IVC Slow inspiratory vital capacity L IC Inspiratory capacity (max between EVC and IVC) - ERV L ERV Expiratory reserve volume L FEV1/VC FEV1/VC x 100 % VT Tidal volume L VE Ventilation per minute, at rest L/min Rf Respiratory frequency  ti Average time of inspiration, at rest S te Average time of expiration, at rest S ti/t-tot Average time of inspiration / total time min VT/ti Average inspiratory flow, at rest L/s MVV(cal) Maximum voluntary ventilation calculated on FEV1 L/min *= best values  Flow/volume measurement system Bi-directional digital turbine Temperature sensor semiconductor (0-45°C) Measurement principle  Infrared interruption Volume range 10 L Flow range  16 L/s Volume accuracy  3% or 50 mL Flow accuracy  5% or 200 mL/s Dynamic resistance at 12 L/s <0.5 cmH2O  1.6.2 Other features Interface Bluetooth low energy (4.0 or higher) Power supply 2 x 1.5 V AAA type alkaline battery Dimensions 142x49.7x26mm Weight 65 grams  Storage conditions Temperature: MIN -40 °C, MAX + 70 °C Humidity: MIN 10% RH; MAX 95%RH Shipping conditions Temperature: MIN -40 °C, MAX + 70 °C Humidity: MIN 10% RH; MAX 95%RH Operating conditions Temperature: MIN + 10 °C, MAX + 40 °C;

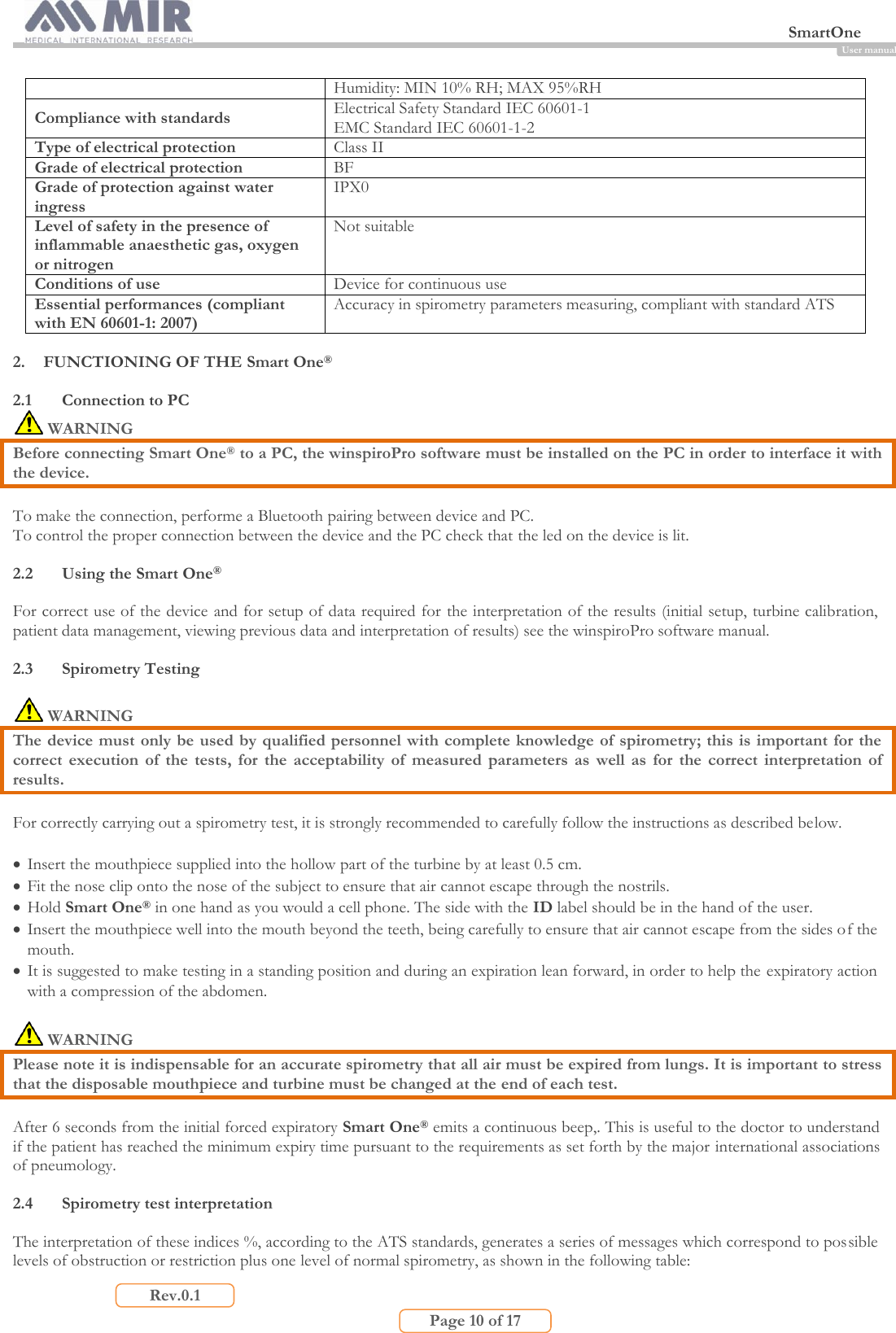

 SmartOne                         Page 10 of 17 Rev.0.1 User manual Humidity: MIN 10% RH; MAX 95%RH Compliance with standards Electrical Safety Standard IEC 60601-1 EMC Standard IEC 60601-1-2 Type of electrical protection Class II Grade of electrical protection BF Grade of protection against water ingress IPX0 Level of safety in the presence of inflammable anaesthetic gas, oxygen or nitrogen Not suitable  Conditions of use Device for continuous use Essential performances (compliant with EN 60601-1: 2007) Accuracy in spirometry parameters measuring, compliant with standard ATS  2. FUNCTIONING OF THE Smart One®  2.1 Connection to PC  WARNING Before connecting Smart One® to a PC, the winspiroPro software must be installed on the PC in order to interface it with the device.  To make the connection, performe a Bluetooth pairing between device and PC. To control the proper connection between the device and the PC check that the led on the device is lit.  2.2 Using the Smart One®  For correct use of the device and for setup of data required for the interpretation of the results (initial setup, turbine calibration, patient data management, viewing previous data and interpretation of results) see the winspiroPro software manual.  2.3 Spirometry Testing   WARNING The device must only be used by qualified personnel with complete knowledge of spirometry; this is important for the correct  execution  of  the  tests,  for  the  acceptability  of  measured  parameters  as  well  as  for  the  correct  interpretation  of results.  For correctly carrying out a spirometry test, it is strongly recommended to carefully follow the instructions as described below.   Insert the mouthpiece supplied into the hollow part of the turbine by at least 0.5 cm.  Fit the nose clip onto the nose of the subject to ensure that air cannot escape through the nostrils.  Hold Smart One® in one hand as you would a cell phone. The side with the ID label should be in the hand of the user.  Insert the mouthpiece well into the mouth beyond the teeth, being carefully to ensure that air cannot escape from the sides of the mouth.  It is suggested to make testing in a standing position and during an expiration lean forward, in order to help the expiratory action with a compression of the abdomen.   WARNING Please note it is indispensable for an accurate spirometry that all air must be expired from lungs. It is important to stress that the disposable mouthpiece and turbine must be changed at the end of each test.  After 6 seconds from the initial forced expiratory Smart One® emits a continuous beep,. This is useful to the doctor to understand if the patient has reached the minimum expiry time pursuant to the requirements as set forth by the major international associations of pneumology.  2.4 Spirometry test interpretation  The interpretation of these indices %, according to the ATS standards, generates a series of messages which correspond to possible levels of obstruction or restriction plus one level of normal spirometry, as shown in the following table:

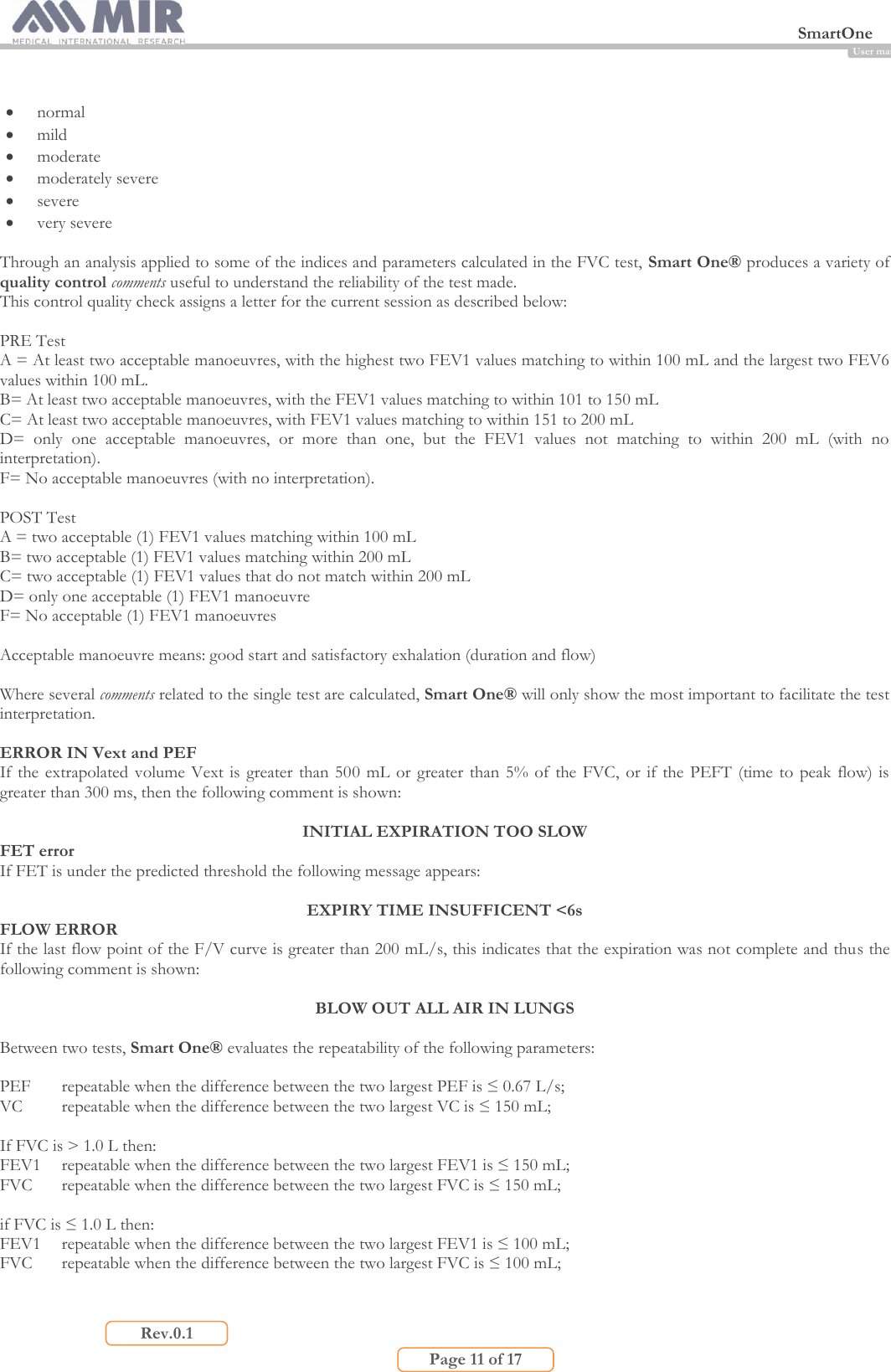

 SmartOne                         Page 11 of 17 Rev.0.1 User manual   normal   mild   moderate  moderately severe   severe   very severe  Through an analysis applied to some of the indices and parameters calculated in the FVC test, Smart One® produces a variety of quality control comments useful to understand the reliability of the test made. This control quality check assigns a letter for the current session as described below:  PRE Test A = At least two acceptable manoeuvres, with the highest two FEV1 values matching to within 100 mL and the largest two FEV6 values within 100 mL. B= At least two acceptable manoeuvres, with the FEV1 values matching to within 101 to 150 mL C= At least two acceptable manoeuvres, with FEV1 values matching to within 151 to 200 mL  D=  only  one  acceptable  manoeuvres,  or  more  than  one,  but  the  FEV1  values  not  matching  to  within  200  mL  (with  no interpretation). F= No acceptable manoeuvres (with no interpretation).  POST Test A = two acceptable (1) FEV1 values matching within 100 mL B= two acceptable (1) FEV1 values matching within 200 mL C= two acceptable (1) FEV1 values that do not match within 200 mL D= only one acceptable (1) FEV1 manoeuvre  F= No acceptable (1) FEV1 manoeuvres  Acceptable manoeuvre means: good start and satisfactory exhalation (duration and flow)  Where several comments related to the single test are calculated, Smart One® will only show the most important to facilitate the test interpretation.   ERROR IN Vext and PEF If the  extrapolated  volume  Vext  is greater than 500  mL or greater  than 5%  of  the FVC,  or if  the PEFT  (time to  peak  flow) is greater than 300 ms, then the following comment is shown:  INITIAL EXPIRATION TOO SLOW FET error If FET is under the predicted threshold the following message appears:   EXPIRY TIME INSUFFICENT <6s FLOW ERROR If the last flow point of the F/V curve is greater than 200 mL/s, this indicates that the expiration was not complete and thus the following comment is shown:  BLOW OUT ALL AIR IN LUNGS  Between two tests, Smart One® evaluates the repeatability of the following parameters:  PEF  repeatable when the difference between the two largest PEF is ≤ 0.67 L/s; VC repeatable when the difference between the two largest VC is ≤ 150 mL;  If FVC is > 1.0 L then: FEV1  repeatable when the difference between the two largest FEV1 is ≤ 150 mL; FVC  repeatable when the difference between the two largest FVC is ≤ 150 mL;  if FVC is ≤ 1.0 L then: FEV1  repeatable when the difference between the two largest FEV1 is ≤ 100 mL; FVC  repeatable when the difference between the two largest FVC is ≤ 100 mL;

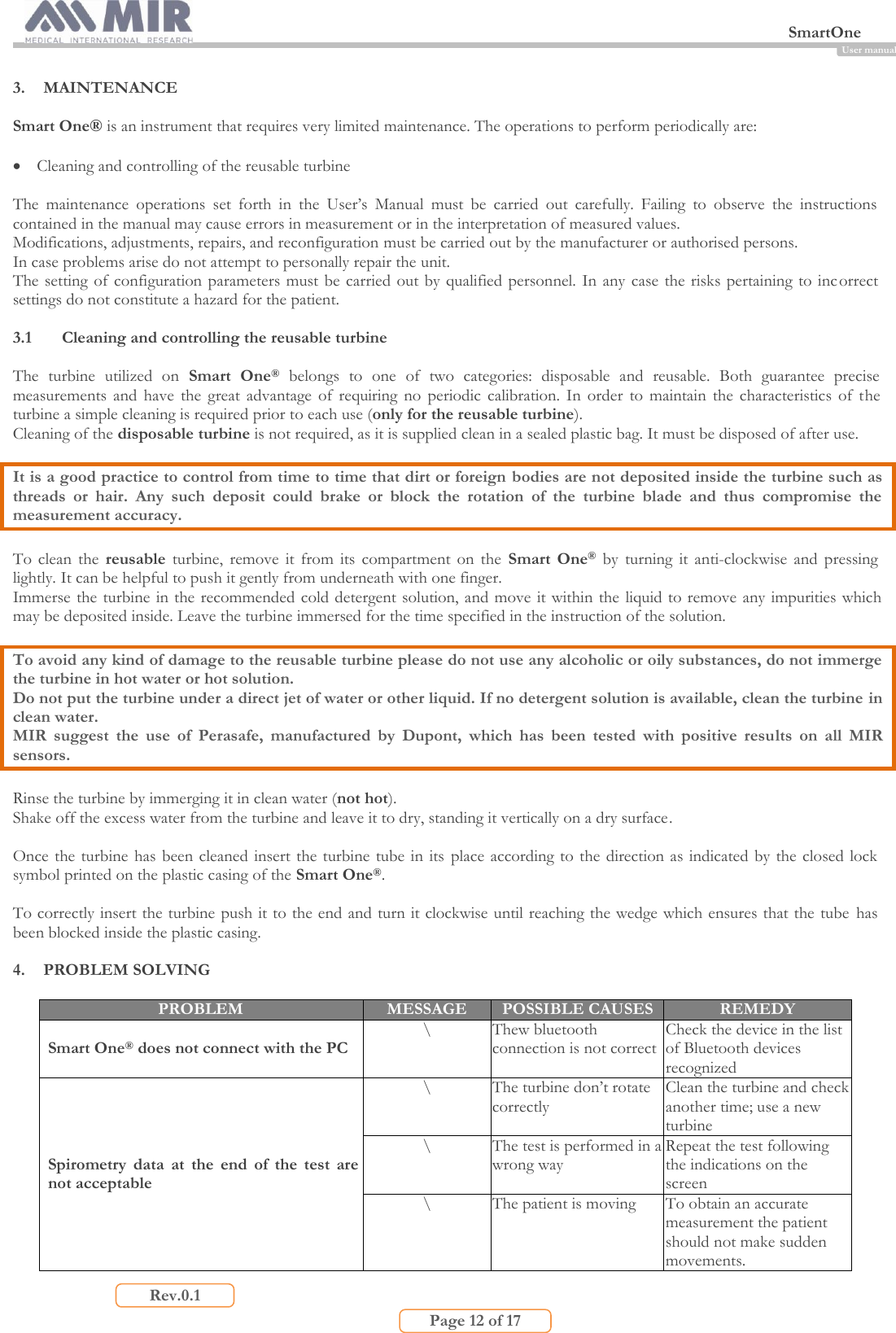

 SmartOne                         Page 12 of 17 Rev.0.1 User manual 3. MAINTENANCE  Smart One® is an instrument that requires very limited maintenance. The operations to perform periodically are:    Cleaning and controlling of the reusable turbine  The  maintenance  operations  set  forth  in  the  User’s  Manual  must  be  carried  out  carefully.  Failing  to  observe  the  instructions contained in the manual may cause errors in measurement or in the interpretation of measured values. Modifications, adjustments, repairs, and reconfiguration must be carried out by the manufacturer or authorised persons. In case problems arise do not attempt to personally repair the unit. The setting of configuration parameters must be carried  out by qualified personnel.  In any  case the risks pertaining to incorrect settings do not constitute a hazard for the patient.  3.1 Cleaning and controlling the reusable turbine  The  turbine  utilized  on  Smart  One®  belongs  to  one  of  two  categories:  disposable  and  reusable.  Both  guarantee  precise measurements  and  have  the  great  advantage  of  requiring  no  periodic  calibration.  In  order  to  maintain  the  characteristics  of  the turbine a simple cleaning is required prior to each use (only for the reusable turbine). Cleaning of the disposable turbine is not required, as it is supplied clean in a sealed plastic bag. It must be disposed of after use.  It is a good practice to control from time to time that dirt or foreign bodies are not deposited inside the turbine such as threads  or  hair.  Any  such  deposit  could  brake  or  block  the  rotation  of  the  turbine  blade  and  thus  compromise  the measurement accuracy.  To  clean  the  reusable  turbine,  remove  it  from  its  compartment  on  the  Smart  One® by  turning  it  anti-clockwise  and  pressing lightly. It can be helpful to push it gently from underneath with one finger. Immerse the turbine  in the recommended  cold detergent solution, and move it within the liquid to remove  any impurities which may be deposited inside. Leave the turbine immersed for the time specified in the instruction of the solution.  To avoid any kind of damage to the reusable turbine please do not use any alcoholic or oily substances, do not immerge the turbine in hot water or hot solution. Do not put the turbine under a direct jet of water or other liquid. If no detergent solution is available, clean the turbine in clean water. MIR  suggest  the  use  of  Perasafe,  manufactured  by  Dupont,  which  has  been  tested  with  positive  results  on  all  MIR sensors.  Rinse the turbine by immerging it in clean water (not hot). Shake off the excess water from the turbine and leave it to dry, standing it vertically on a dry surface.  Once the turbine has  been cleaned  insert the turbine tube in its  place according to the direction as indicated by the  closed lock symbol printed on the plastic casing of the Smart One®.  To correctly insert the turbine push it to the end and turn it clockwise until reaching the wedge which ensures that the tube has been blocked inside the plastic casing.  4. PROBLEM SOLVING  PROBLEM MESSAGE POSSIBLE CAUSES REMEDY Smart One® does not connect with the PC \ Thew bluetooth connection is not correct Check the device in the list of Bluetooth devices recognized Spirometry  data  at  the  end  of  the  test  are not acceptable \ The turbine don’t rotate correctly Clean the turbine and check another time; use a new turbine \ The test is performed in a wrong way Repeat the test following the indications on the screen \ The patient is moving To obtain an accurate measurement the patient should not make sudden movements.
 SmartOne                         Page 13 of 17 Rev.0.1 User manual
 SmartOne                         Page 14 of 17 Rev.0.1 User manual  MEDICAL INTERNATIONAL RESEARCH Via del Maggiolino, 125   00155 - Roma - ITALY  DECLARATION OF CONFORMITY CE (annex II excluding par.4)  We hereby declare that the following device:  Type        Spirometer Brandname      MIR Medical International Research Device name      Smart One® Class        IIa  Complies  with  the  Essential  Requirements  of  directive  93/42/EC  concerning  Medical  Devices,  and  its amendments, and its transposition in the Member States. This statement is made on the basis of the CE Certificate n. MED 9826 issued by Cermet, Notified Body n. 0476.  Rome ……………….     Paolo Sacco Boschetti The Chairman

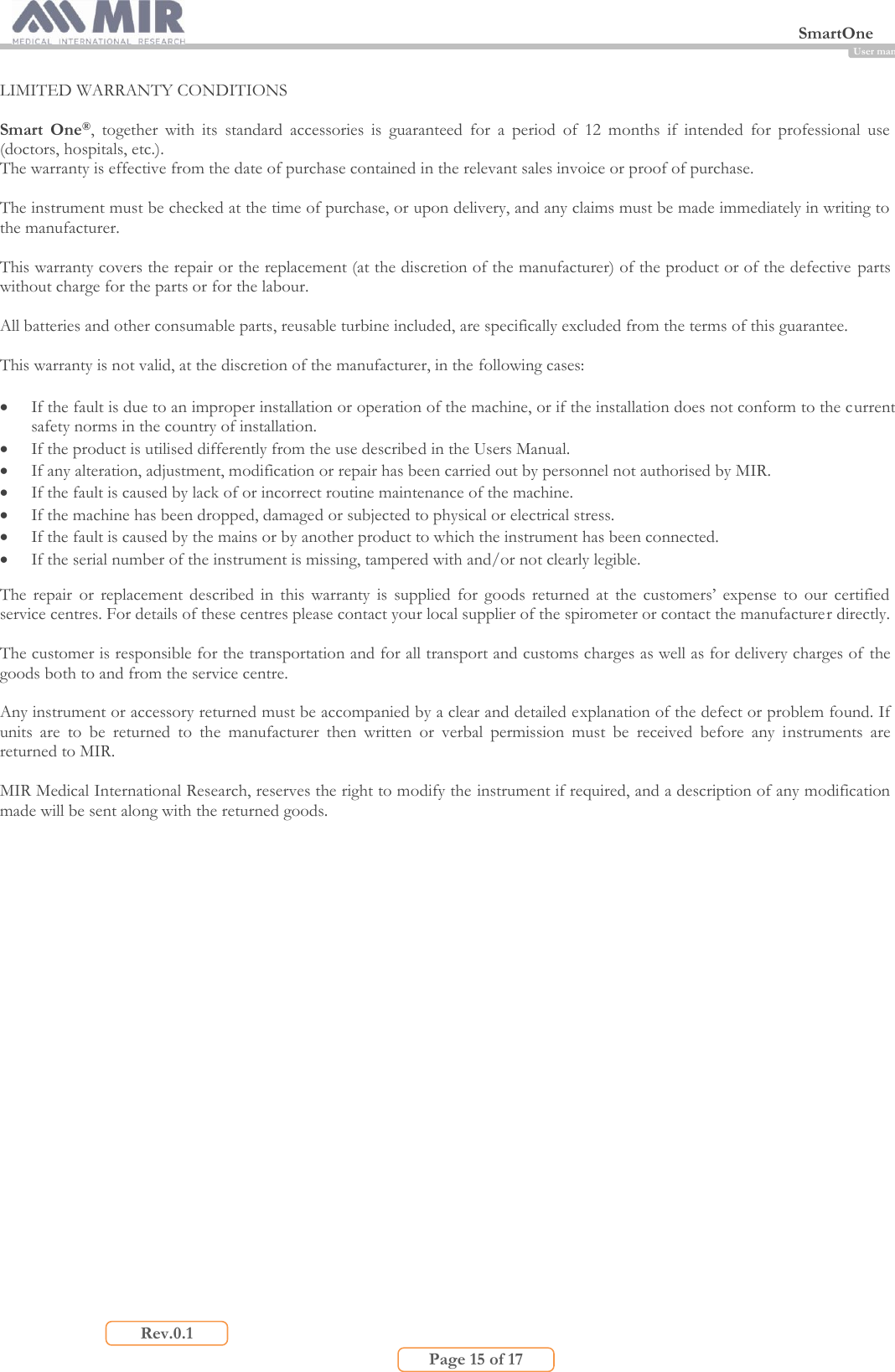

 SmartOne                         Page 15 of 17 Rev.0.1 User manual LIMITED WARRANTY CONDITIONS  Smart  One®,  together  with  its  standard  accessories  is  guaranteed  for  a  period  of  12  months  if  intended  for  professional  use (doctors, hospitals, etc.). The warranty is effective from the date of purchase contained in the relevant sales invoice or proof of purchase.  The instrument must be checked at the time of purchase, or upon delivery, and any claims must be made immediately in writing to the manufacturer.  This warranty covers the repair or the replacement (at the discretion of the manufacturer) of the product or of the defective parts without charge for the parts or for the labour.  All batteries and other consumable parts, reusable turbine included, are specifically excluded from the terms of this guarantee.  This warranty is not valid, at the discretion of the manufacturer, in the following cases:   If the fault is due to an improper installation or operation of the machine, or if the installation does not conform to the current safety norms in the country of installation.  If the product is utilised differently from the use described in the Users Manual.  If any alteration, adjustment, modification or repair has been carried out by personnel not authorised by MIR.  If the fault is caused by lack of or incorrect routine maintenance of the machine.  If the machine has been dropped, damaged or subjected to physical or electrical stress.  If the fault is caused by the mains or by another product to which the instrument has been connected.  If the serial number of the instrument is missing, tampered with and/or not clearly legible.  The  repair  or  replacement  described in this warranty is  supplied  for  goods returned  at  the customers’ expense  to  our certified service centres. For details of these centres please contact your local supplier of the spirometer or contact the manufacturer directly.  The customer is responsible for the transportation and for all transport and customs charges as well as for delivery charges of the goods both to and from the service centre.  Any instrument or accessory returned must be accompanied by a clear and detailed explanation of the defect or problem found. If units  are  to  be  returned  to  the  manufacturer  then  written  or  verbal  permission  must  be  received  before  any  instruments  are returned to MIR.  MIR Medical International Research, reserves the right to modify the instrument if required, and a description of any modification made will be sent along with the returned goods.
 SmartOne                         Page 16 of 17 Rev.0.1 User manual ANNEX 1  INFORMATION FOR CORRECT USE IN ELECTROMAGNETIC ENVIRONMENTS  Guidance and manufacturer’s declaration – electromagnetic emissions  The Smart One® is intended for use in the electromagnetic environment specified below.  The customer or the user of the Smart One® should assure that it is used in such an environment. Emissions test  Compliance  Electromagnetic environment – guidance RF emissions CISPR 11  Group 1  The  Smart One®  uses RF  energy  only for  its internal function.  Therefore,  its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B  The  (equipment  or  system)  is  suitable  for  use  in  all  establishments,  including domestic  establishments  and  those  directly  connected  to  the  public  low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions IEC 61000-3-2 Not applicable  Voltage fluctuations/ flicker emissions  IEC 61000-3-3 Not applicable   Guidance and manufacturer’s declaration – electromagnetic immunity The Smart One® is intended for use in the electromagnetic environment specified below.  The customer or the user of the Smart One® should assure that it is used in such an environment. Immunity test  IEC 60601 test level Compliance level  Electromagnetic environment –guidance Electrostatic discharge (ESD)  IEC 61000-4-2 ±6 kV contact  ±8 kV air  ±6 kV contact  ±8 kV air  Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %. Electrical fast transient/burst  IEC 61000-4-4 ±1  kV  for input/output lines Not  Applicable Mains power quality should be that of a typical commercial or hospital environment. Surge  IEC 61000-4-5  ±1  kV  differential mode   ±2  kV  differential mode Not  Applicable Mains power quality should be that of a typical commercial or hospital environment. Voltage dips, short interruptions and voltage variations on power supply input lines  IEC 61000-4-11  <5 % UT (>95 % dip in UT) for 0,5 cycle  40 % UT (60 % dip in UT) for 5 cycles  70 % UT (30 % dip in UT) for 25 cycles  <5 % UT (>95 % dip in UT) for 5 sec Not  Applicable Mains power quality should be that of a typical commercial or hospital environment. If the user of the  (equipment  or  system)  requires  continued  operation  during  power  mains  interruptions,  it  is recommended that the (equipment or system) be powered from an uninterruptible powe Power frequency (50/60 Hz) magnetic field  IEC 61000-4-8 3 A/m 3 A/m Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level.  Guidance and manufacturer’s declaration – electromagnetic immunity The Smart One® is intended for use in the electromagnetic environment specified below.  The customer or the user of the Smart One® should assure that it is used in such an environment.             Conducted RF  IEC 61000-4-6   Radiated RF              3 Vrms  150 kHz to 80 MHz   3 V/m              [3 ] V     [3 ] V/m Portable and mobile RF  communications equipment should be used no closer to any part of the Smart One®, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance  d=[ 3.5   ]  √P         3  d=[ 3.5   ]  √P  80 MHz to 800 GHz       3  d=[ 7    ]  √P  800 MHz to 2,5 GHz       3  where  P  is  the  maximum  output  power  rating  of  the  transmitter  in  watts  (W)  according  to  the transmitter manufacturer and d is the recommended separation distance in metres (m).  Field  strengths  from  fixed  RF  transmitters,  as  determined  by  an  electromagnetic  site  survey,

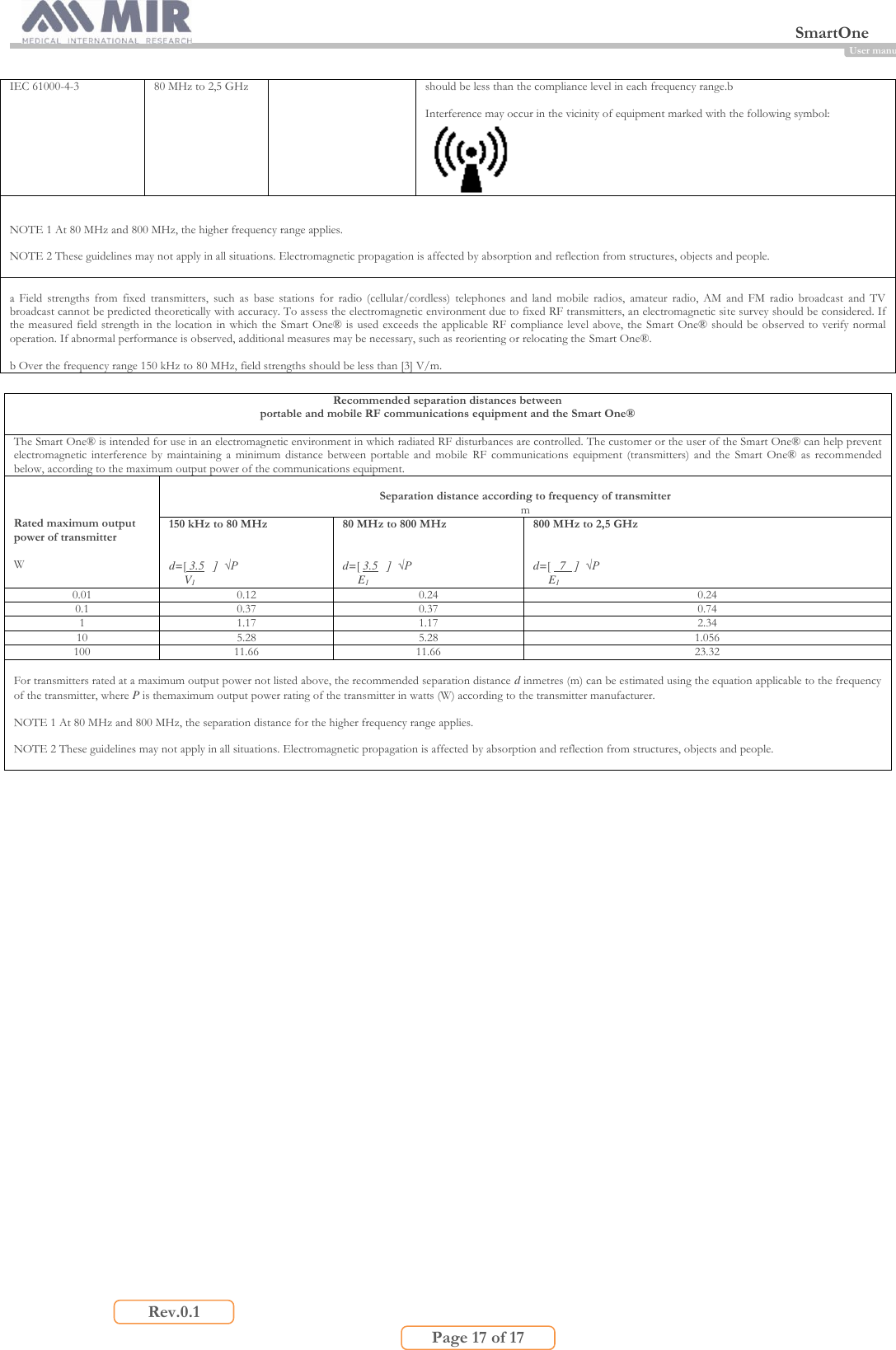

 SmartOne                         Page 17 of 17 Rev.0.1 User manual IEC 61000-4-3 80 MHz to 2,5 GHz should be less than the compliance level in each frequency range.b  Interference may occur in the vicinity of equipment marked with the following symbol:    NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.  NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.   a  Field  strengths  from  fixed  transmitters,  such  as  base  stations  for  radio  (cellular/cordless)  telephones  and  land  mobile  radios,  amateur  radio,  AM  and  FM  radio  broadcast  and  TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength  in the location in which the  Smart One® is  used exceeds the  applicable RF  compliance level above,  the Smart One® should be observed to  verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Smart One®.  b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [3] V/m.  Recommended separation distances between portable and mobile RF communications equipment and the Smart One®  The Smart One® is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Smart One® can help prevent electromagnetic  interference  by  maintaining  a  minimum  distance  between  portable  and  mobile  RF  communications  equipment  (transmitters)  and  the  Smart  One®  as  recommended below, according to the maximum output power of the communications equipment.    Rated maximum output power of transmitter  W   Separation distance according to frequency of transmitter m 150 kHz to 80 MHz   d=[ 3.5   ]  √P        V1 80 MHz to 800 MHz   d=[ 3.5   ]  √P        E1 800 MHz to 2,5 GHz   d=[   7   ]  √P        E1 0.01 0.12 0.24 0.24 0.1 0.37 0.37 0.74 1 1.17 1.17 2.34 10 5.28 5.28 1.056 100 11.66 11.66 23.32  For transmitters rated at a maximum output power not listed above, the recommended separation distance d inmetres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is themaximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.  NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.  NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

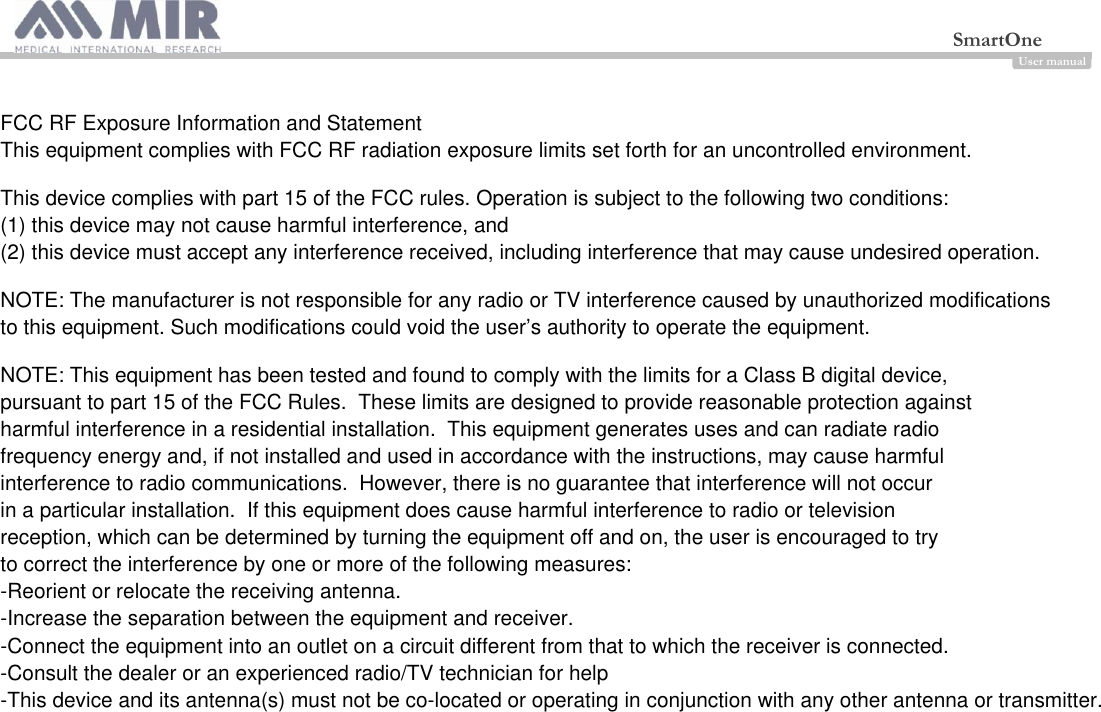

 SmartOne                                 User manual                                                                                                          FCC RF Exposure Information and Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation.  This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help-This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
