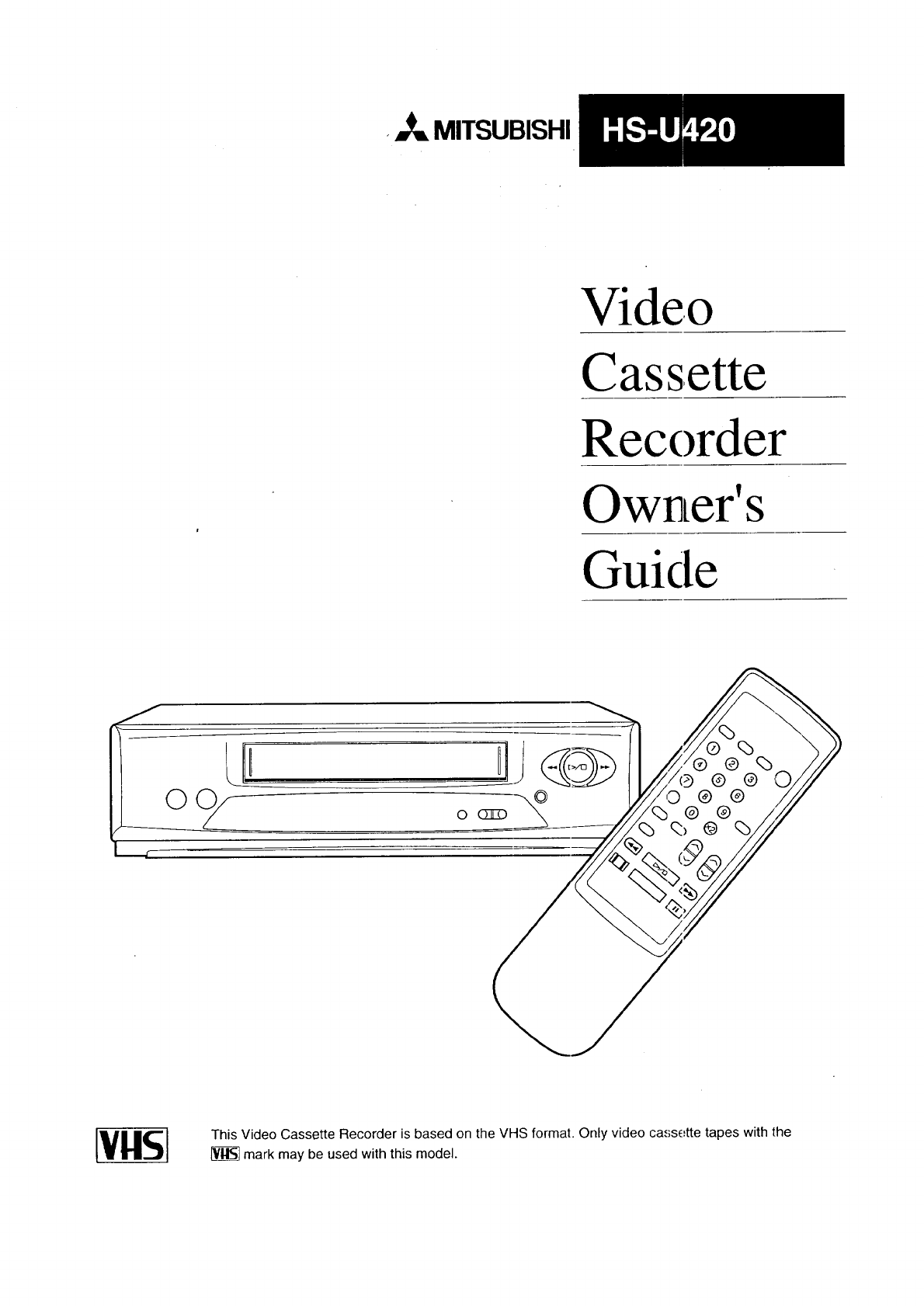

,,_ MITSUBISHI

Video

Cassette

Recorder

Owner's

Guide

This Video Cassette Recorder is based on the VHS format. Only video cassette tapes with the

[_ mark may be used with this model.

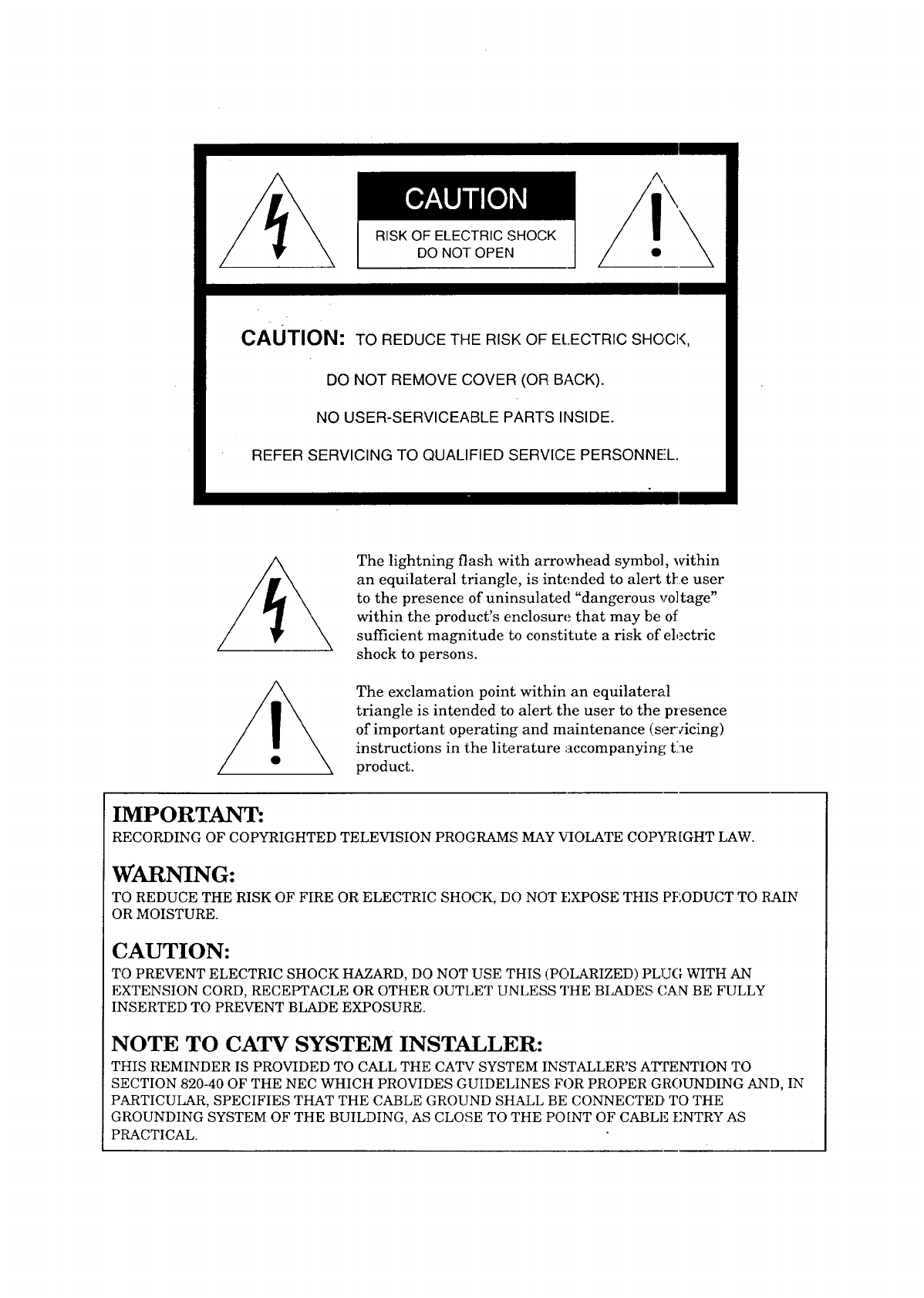

RISKOFELECTRICSHOCK

DONOTOPEN

!.._AU/ItL,PI_I" TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert tl:e user

to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the presence

of important operating and maintenance (serAcing)

instructions in the literature accompanying the

product.

IMPORTANT:

RECORDING OF COPYRIGHTED TELEVISION PROGRAMS MAY VIOLATE COP3fR [GHT LAW.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PI::ODUCT TO RAIN

OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT USE THIS (POLARIZED) PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

NOTE TO CATV SYSTEM INSTALLER:

THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO

SECTION 820-40 OF THE NEC WHICH PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN

PARTICULAR, SPECIFIES THAT THE CABLE GROUND StIALL BE CONNECTED TO THE

GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS

PRACTICAL.

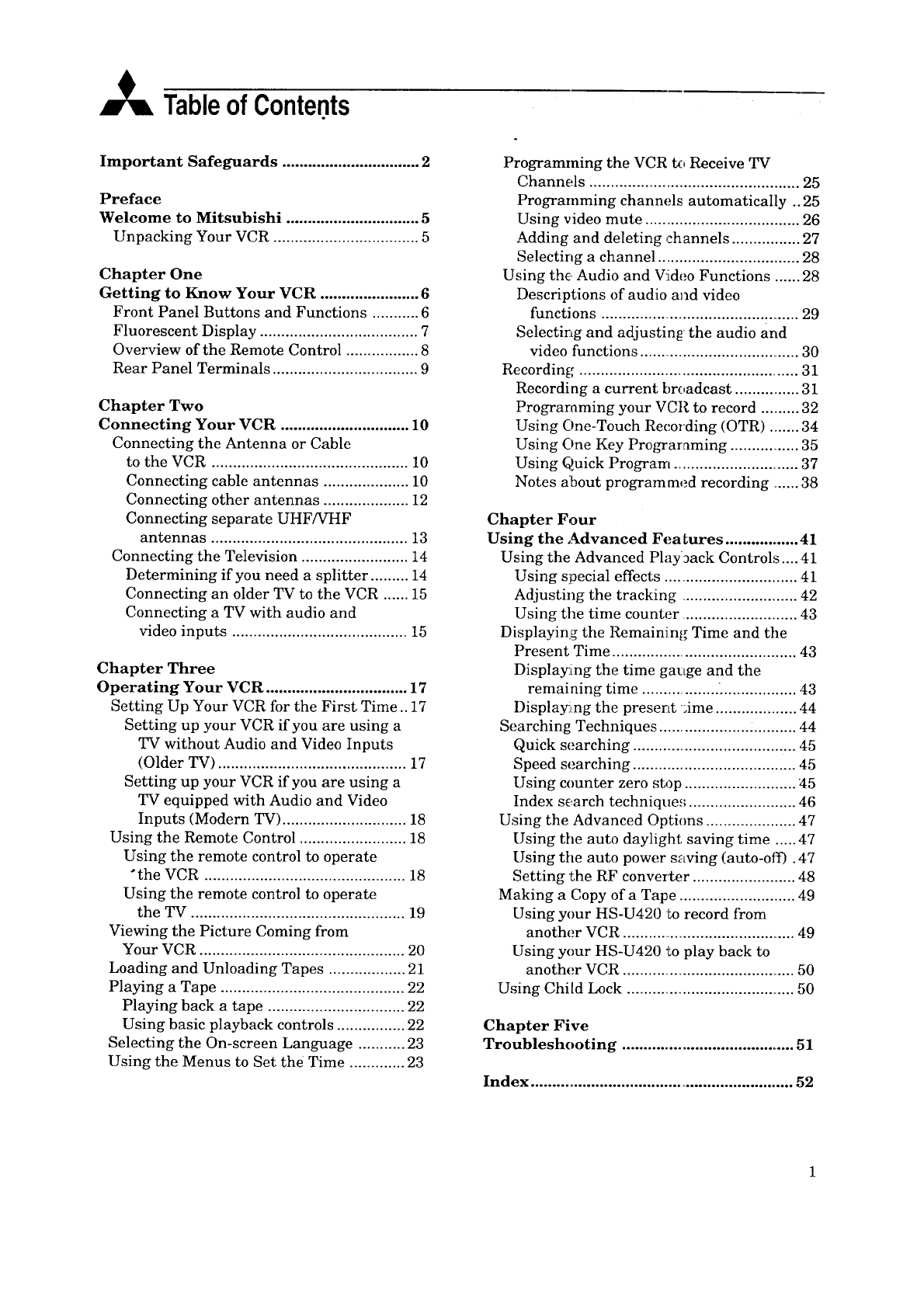

TableofContents

Important Safeguards ................................ 2

Preface

Welcome to Mitsubishi ............................... 5

Unpacking Your VCR .................................. 5

Chapter One

Getting to Know Your VCR ....................... 6

Front Panel Buttons and Functions ........... 6

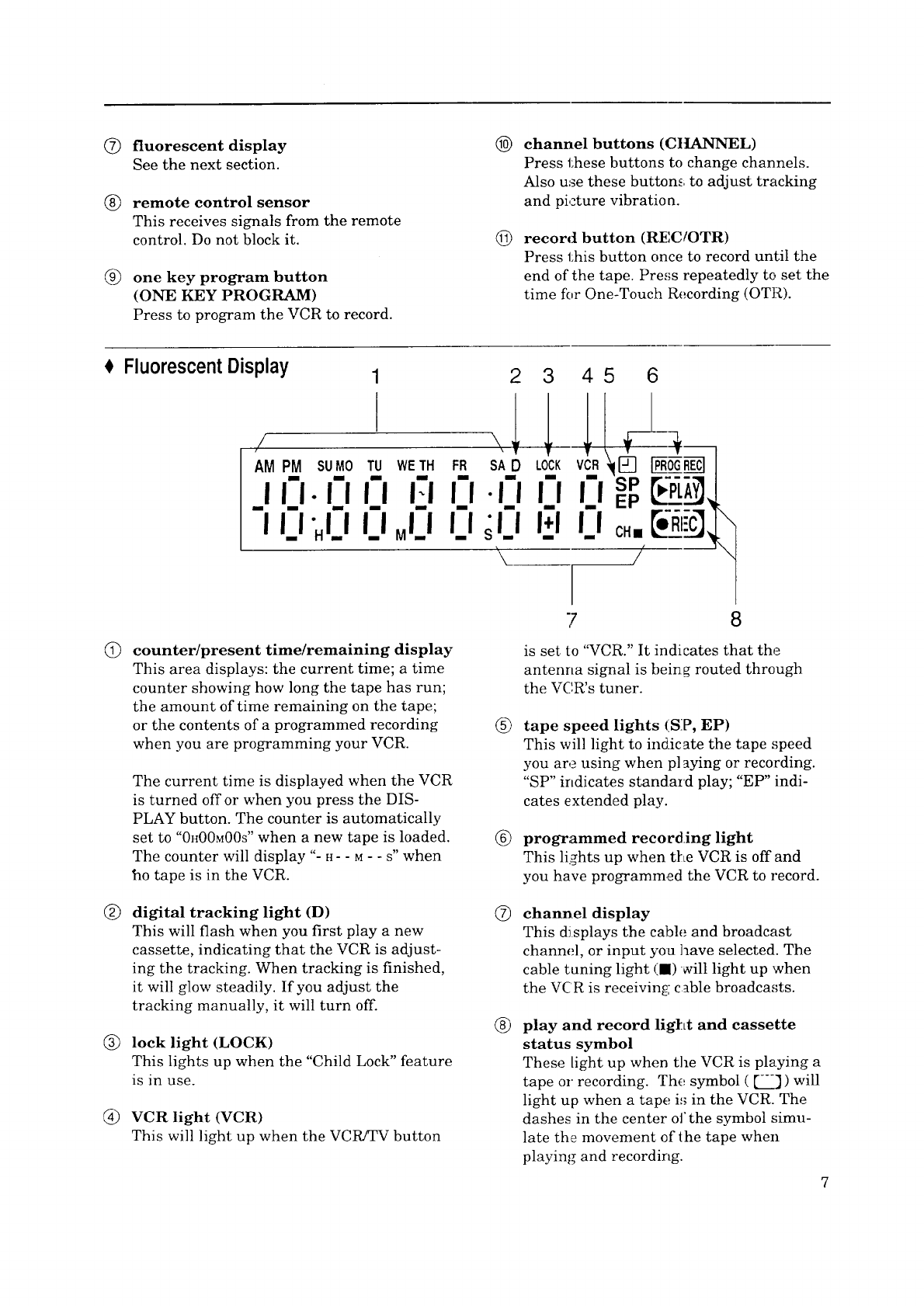

Fluorescent Display ..................................... 7

Overview of the Remote Control ................. 8

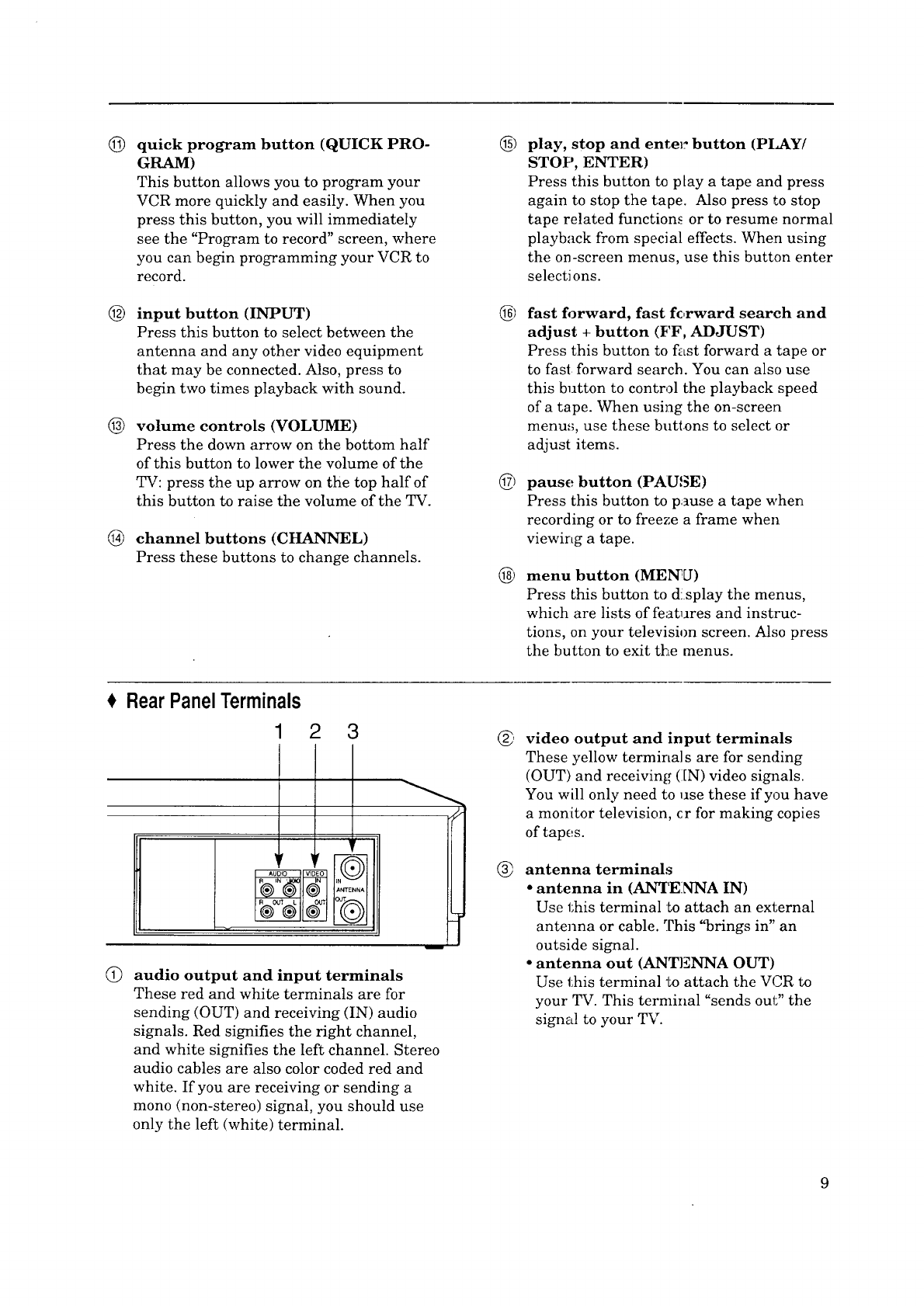

Rear Panel Terminals .................................. 9

Chapter Two

Connecting Your VCR .............................. 10

Connecting the Antenna or Cable

to the VCR .............................................. 10

Connecting cable antennas .................... 10

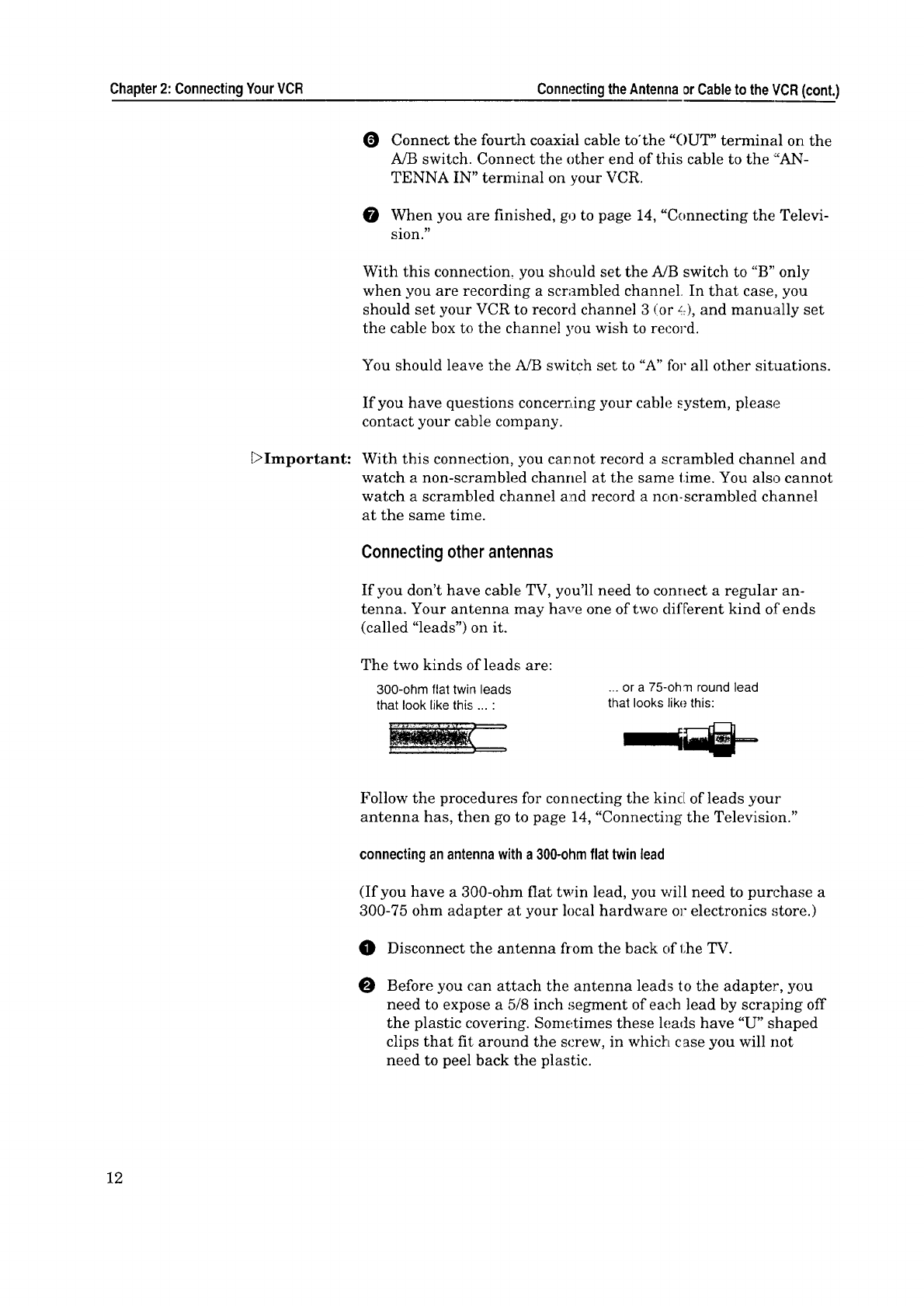

Connecting other antennas .................... 12

Connecting separate UHF/VHF

antennas .............................................. 13

Connecting the Television ......................... 14

Determining if you need a splitter ......... 14

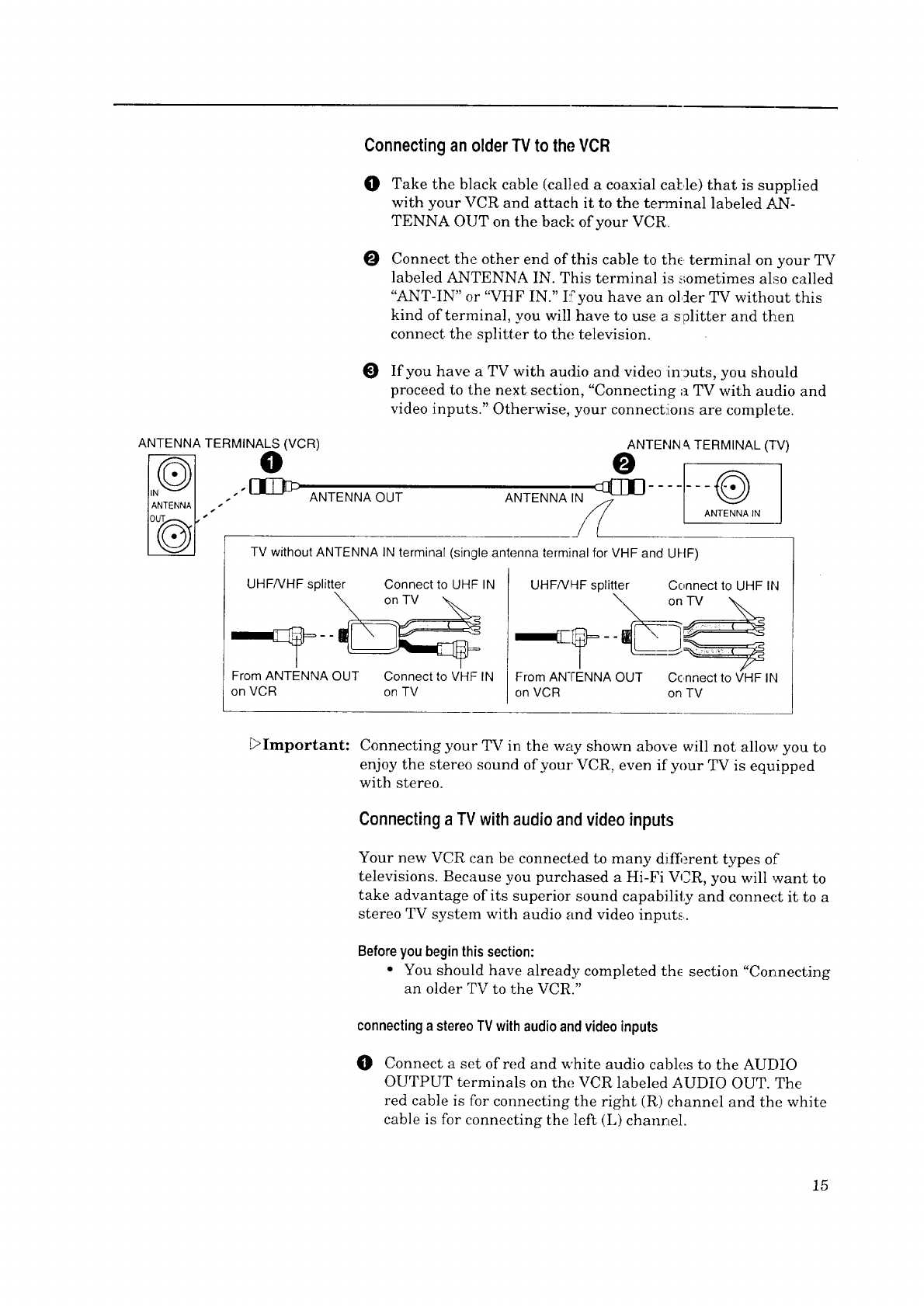

Connecting an older TV to the VCR ...... 15

Connecting a TV with audio and

video inputs ......................................... 15

Chapter Three

Operating Your VCR ................................. 17

Setting Up Your VCR for the First Time .. 17

Setting up your VCR if you are using a

TV without Audio and Video Inputs

(Older TV) ............................................ 17

Setting up your VCR if you are using a

TV equipped with Audio and Video

Inputs (Modern TV) ............................. 18

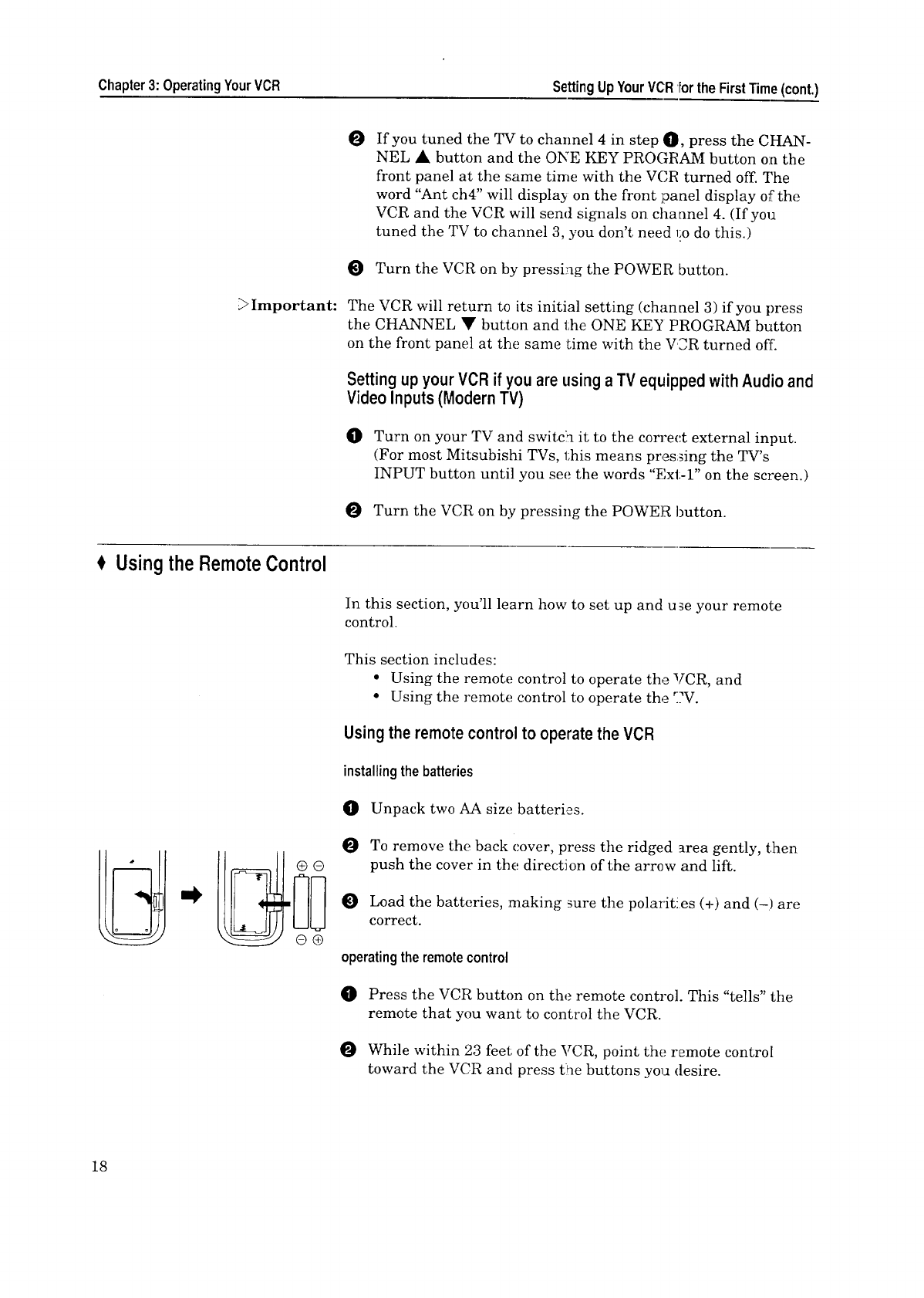

Using the Remote Control ......................... 18

Using the remote control to operate

"the VCR ............................................... 18

Using the remote control to operate

the TV .................................................. 19

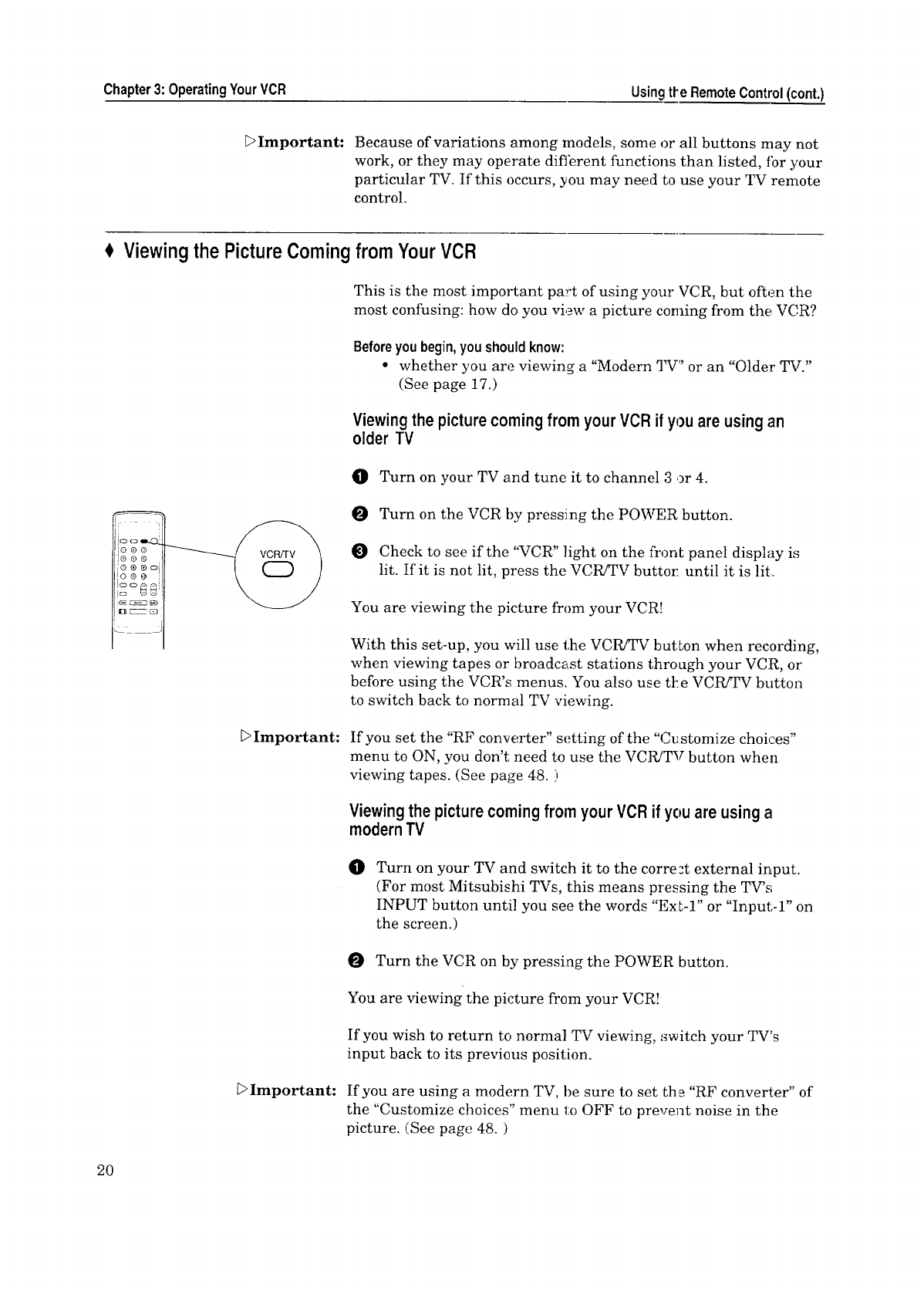

Viewing the Picture Coming from

Your VCR ................................................ 20

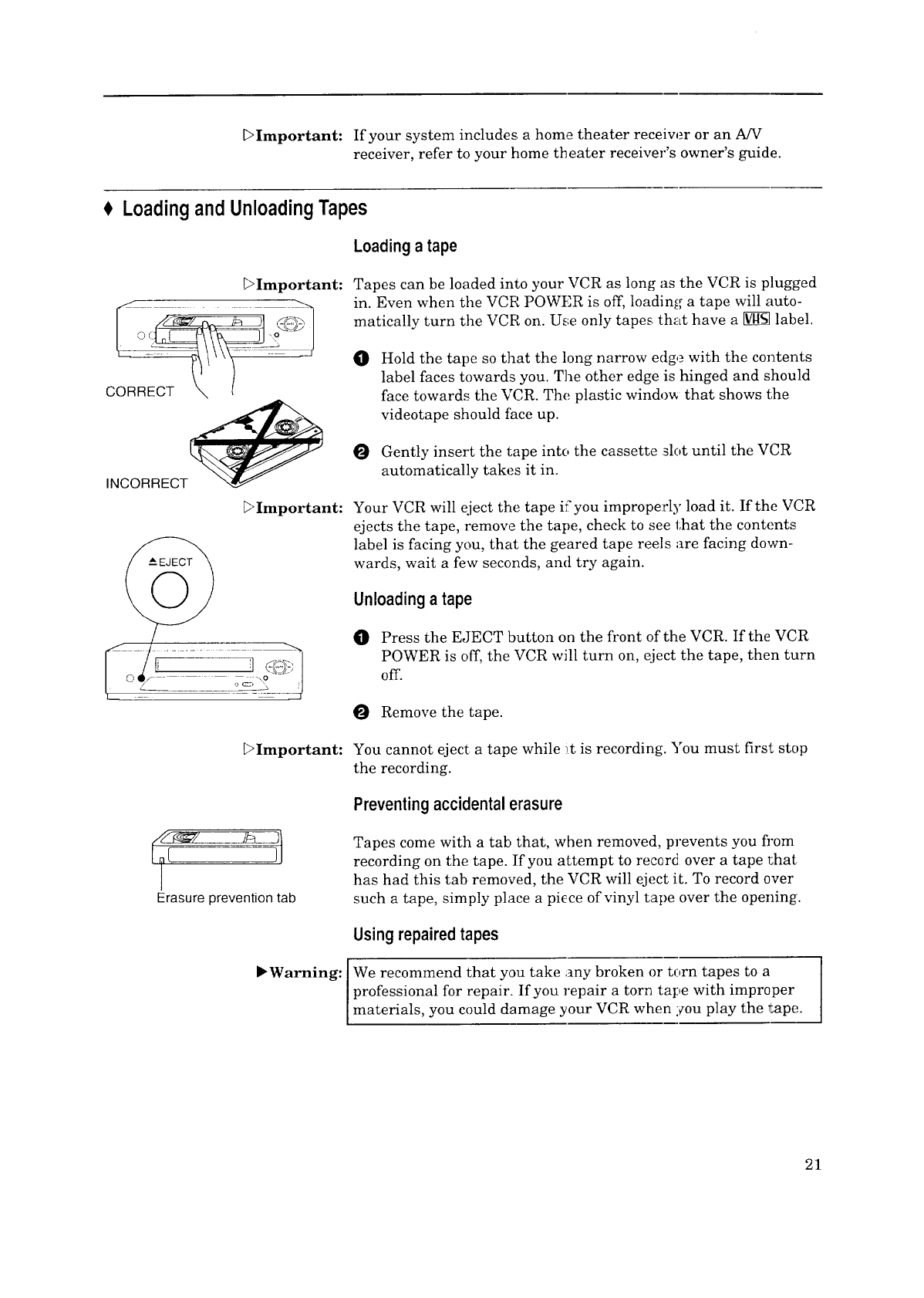

Loading and Unloading Tapes .................. 21

Playing a Tape ........................................... 22

Playing back a tape ................................ 22

Using basic playback controls ................ 22

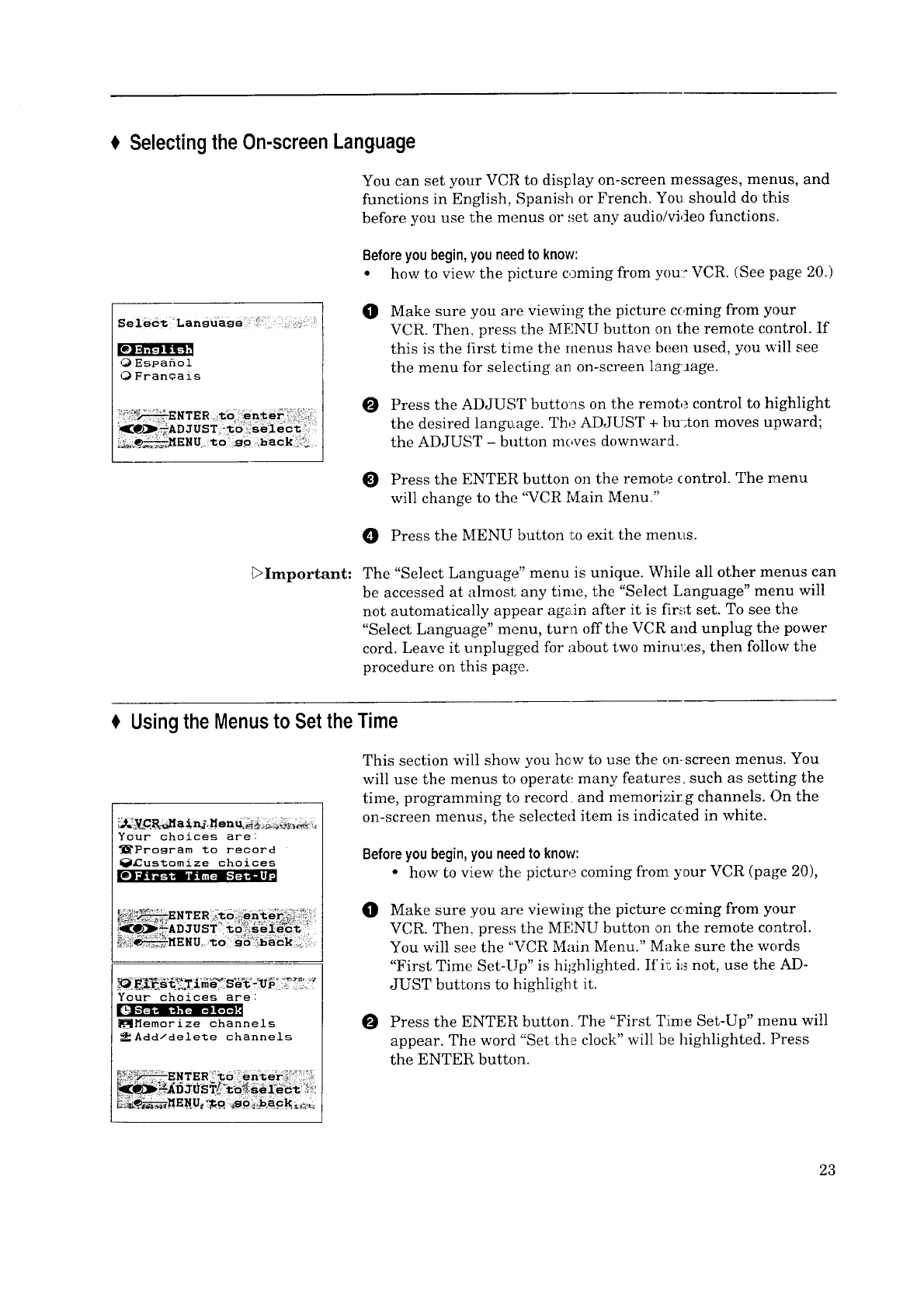

Selecting the On-screen Language ........... 23

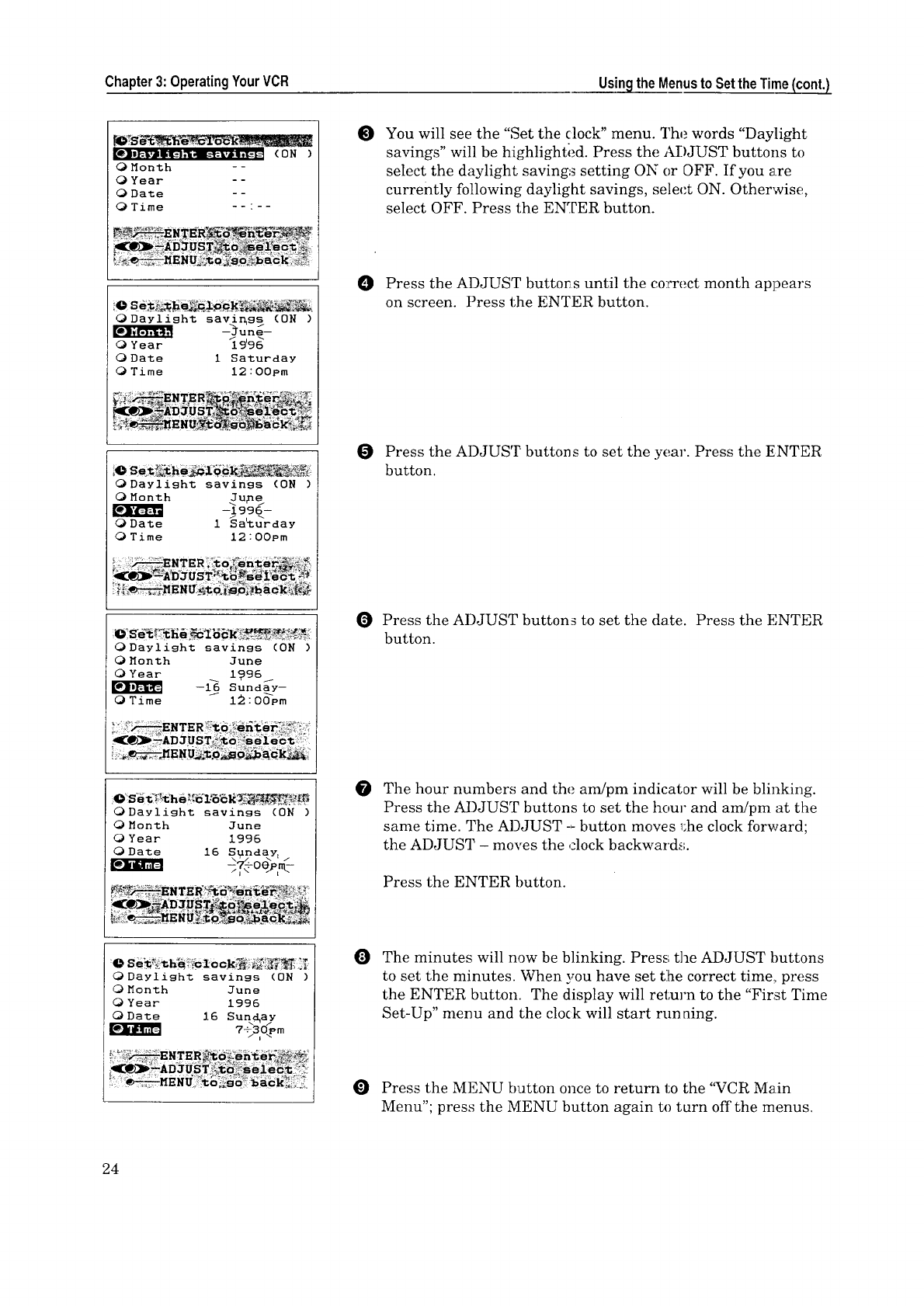

Using the Menus to Set the Time ............. 23

Programming the VCR to Receive TV

Channels ................................................. 25

Programming channels automatically .. 25

Using video mute .................................... 26

Adding and deleting channels ................ 27

Selecting a channel ................................. 28

Using the, Audio and Viideo Functions ...... 28

Descriptions of audio and video

functions ............................................... 29

Selecting and adjusting the audio and

video functions ....................................... 30

Recording ................................................... 31

Recording a current broadcast ............... 31

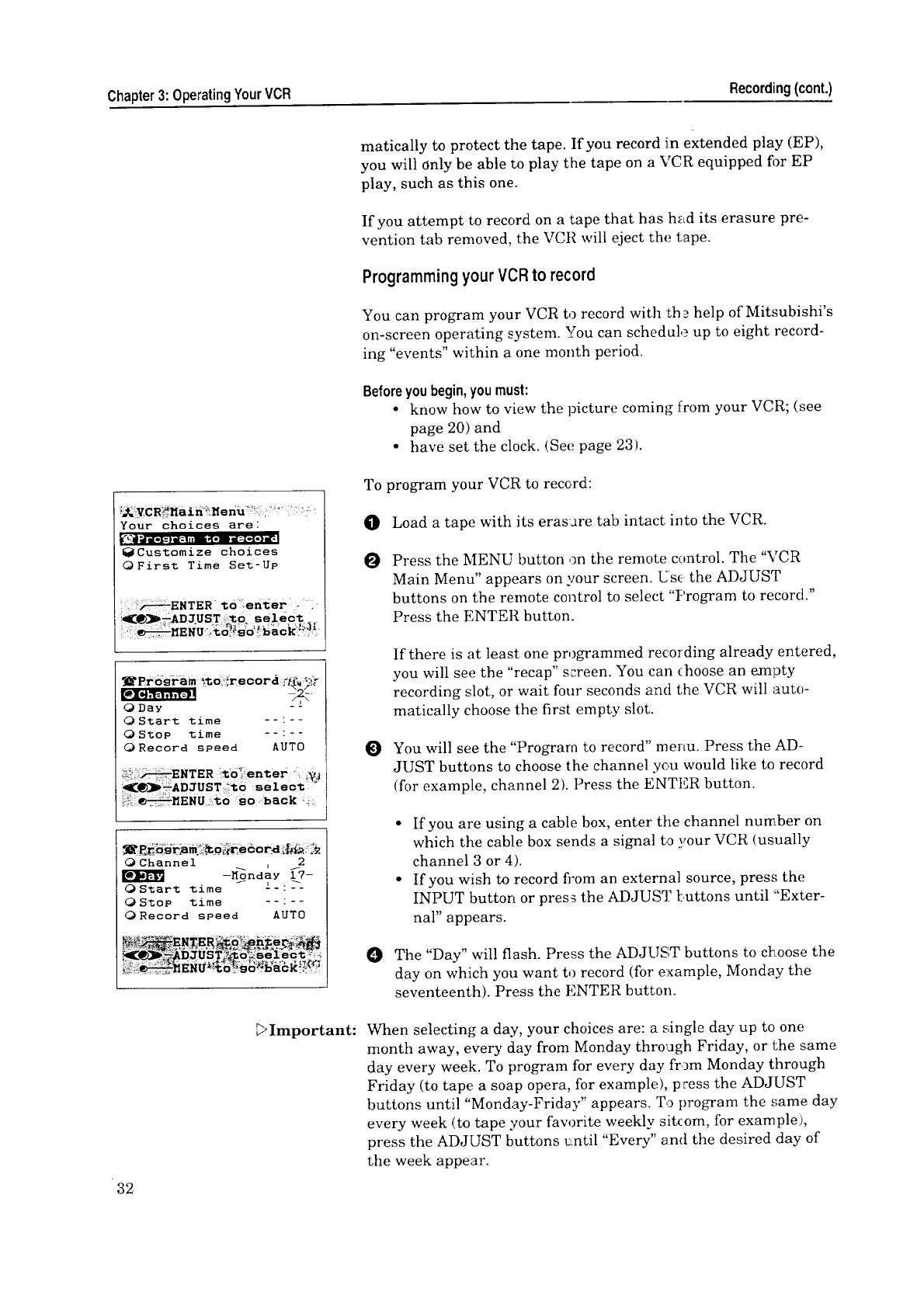

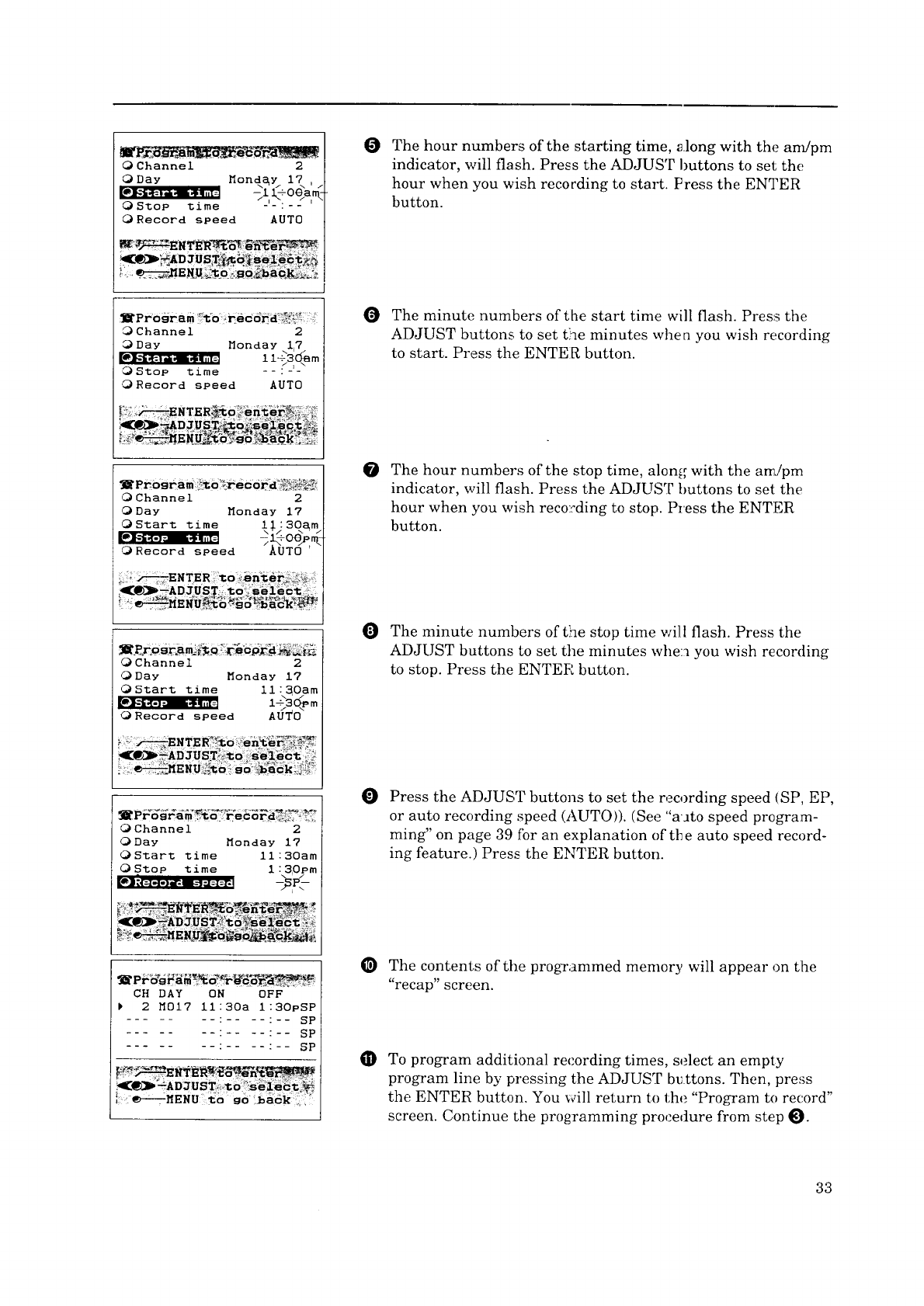

Programming your VCR to record ......... 32

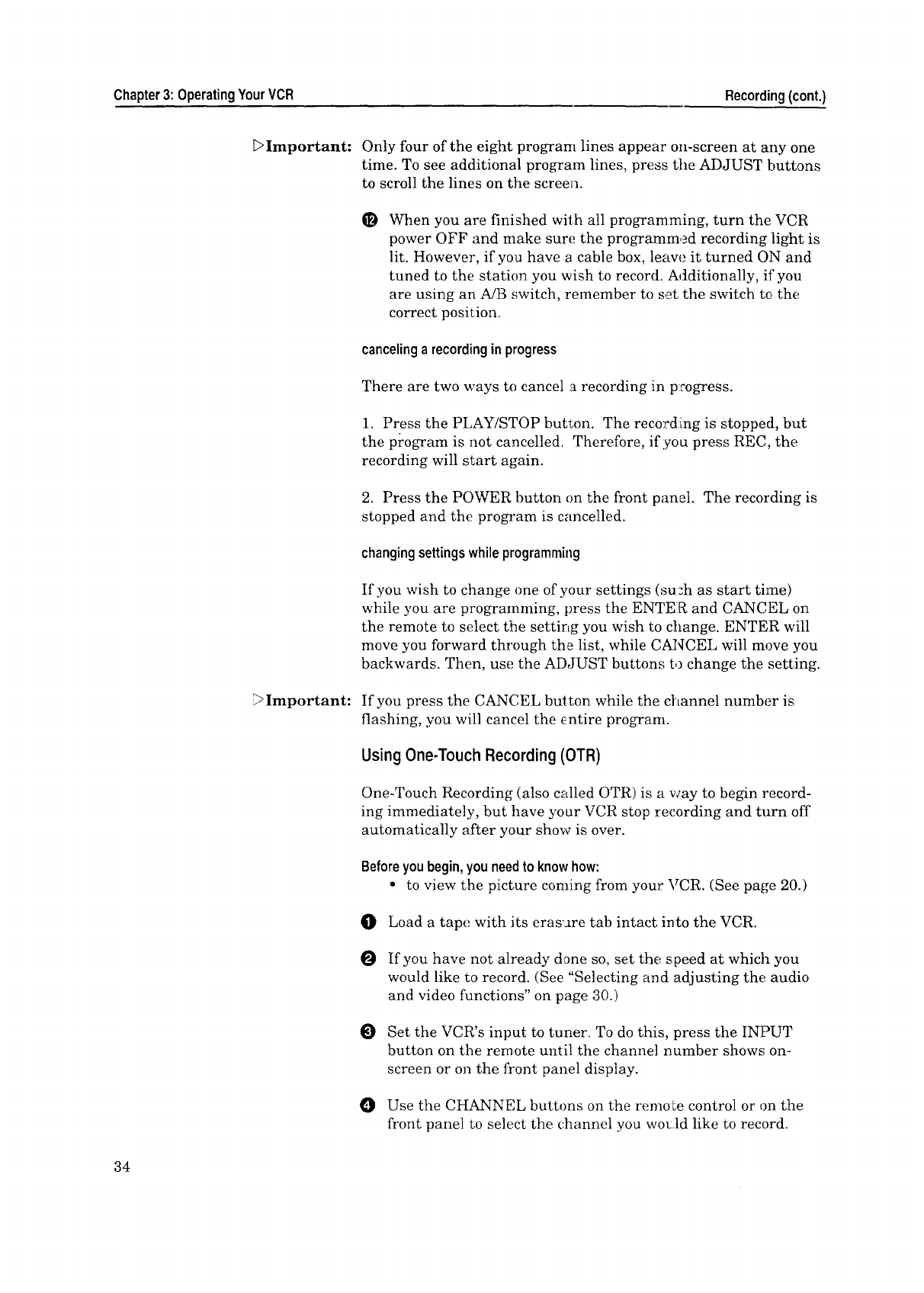

Using One-Touch Recording (OTR) ....... 34

Using One Key Prograraming ................. 35

Using Quick Program ............................... 37

Notes about programmed recording ....... 38

Chapter Four

Using the Advanced Fea Lures ................. 41

Using the Advanced Play _ack Controls .... 41

Using special effects ............................... 41

Adjusting the tracking ........................... 42

Using the time counter ........................... 43

Displaying the Remaining Time and the

Present Time ........................................... 43

Displaying the time gauge and the

remaining time .................. . ................. .43

Display_ng the present ;ime ................... 44

Searching Techniques ..................... ........... 44

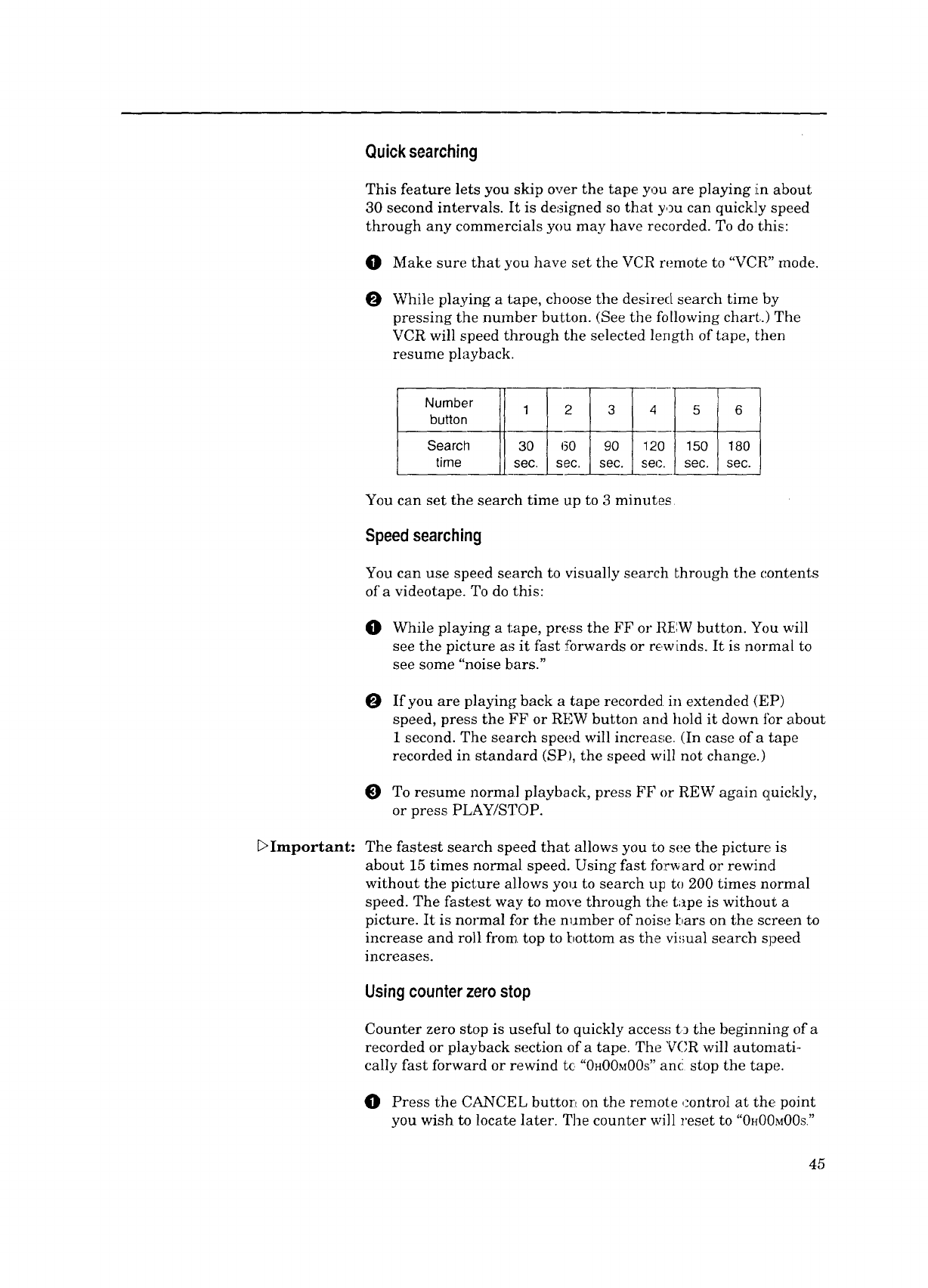

Quick searching ...................................... 45

Speed searching ...................................... 45

Using counter zero stop .......................... 45

Index so,arch technique,; ......................... 46

Using the Advanced Options ..................... 47

Using the auto daylight saving time ..... 47

Using the auto power saving (auto-ot_. 47

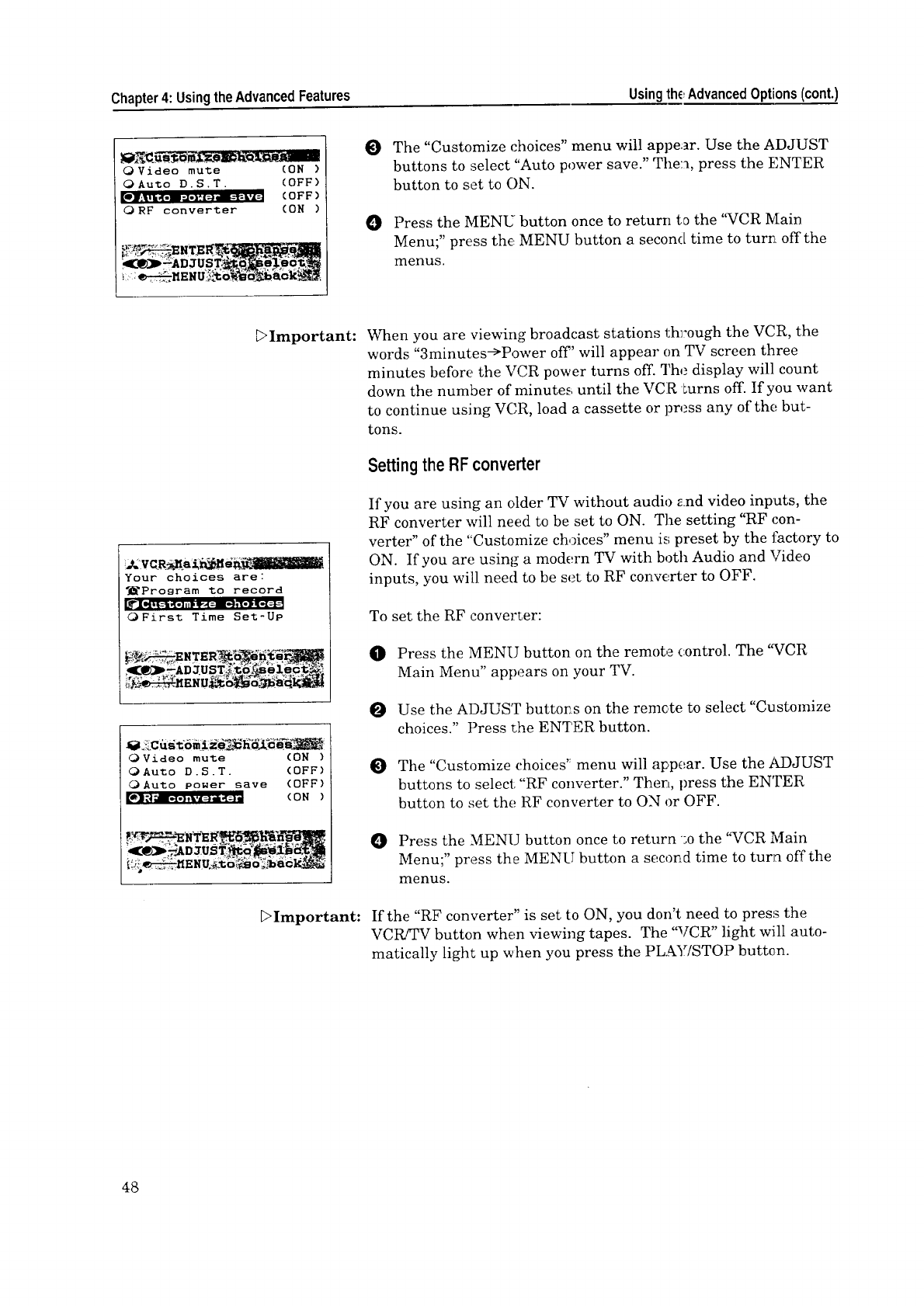

Setting the RF conver_er ........................ 48

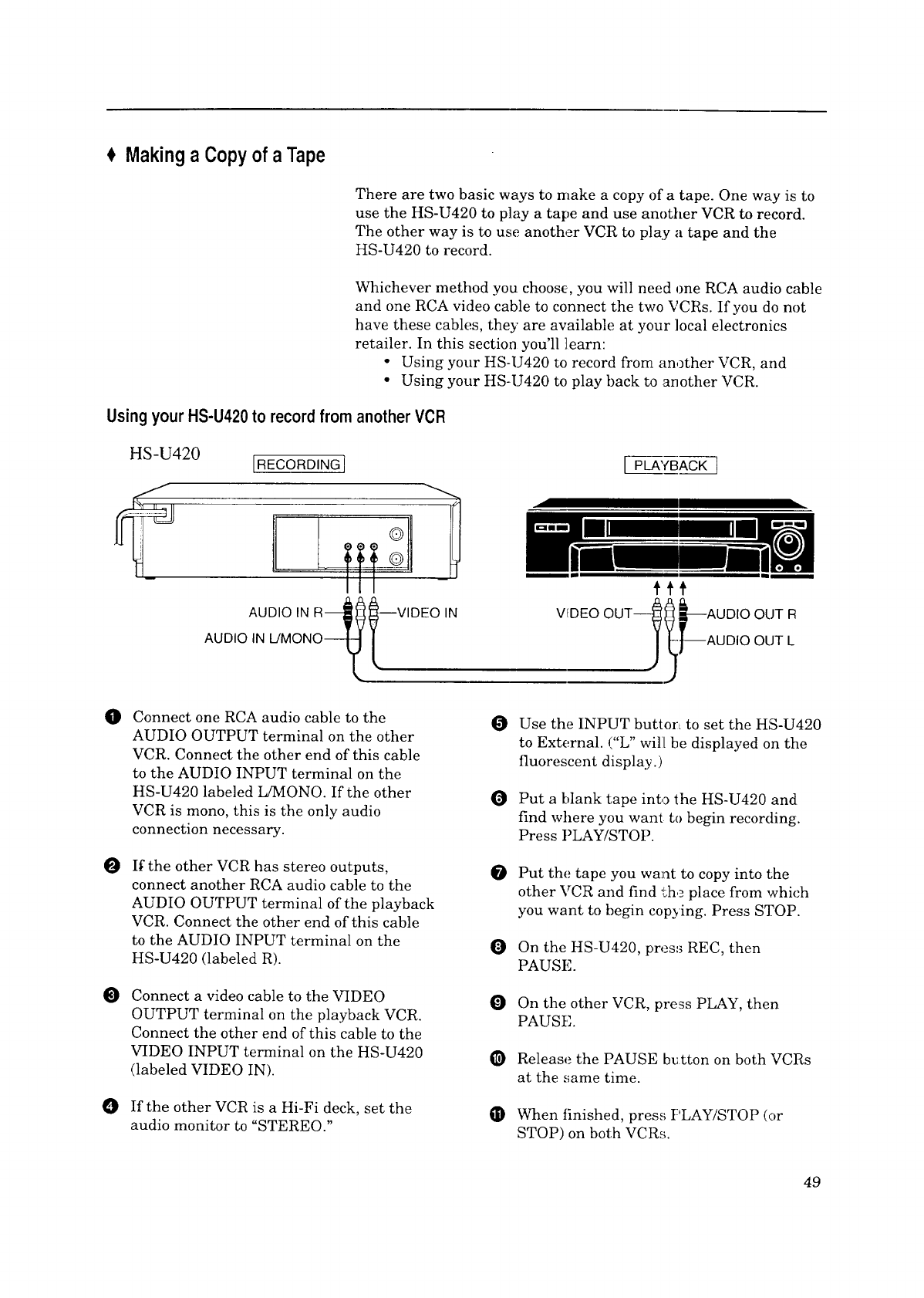

Making a Copy of a Tape ........................... 49

Using your HS-U420 to record from

another VCR .......................................... 49

Using your HS-U420 to play back to

another VCR .......................................... 50

Using Child Lock ........................................ 50

Chapter Five

Troubleshooting .......................................... 51

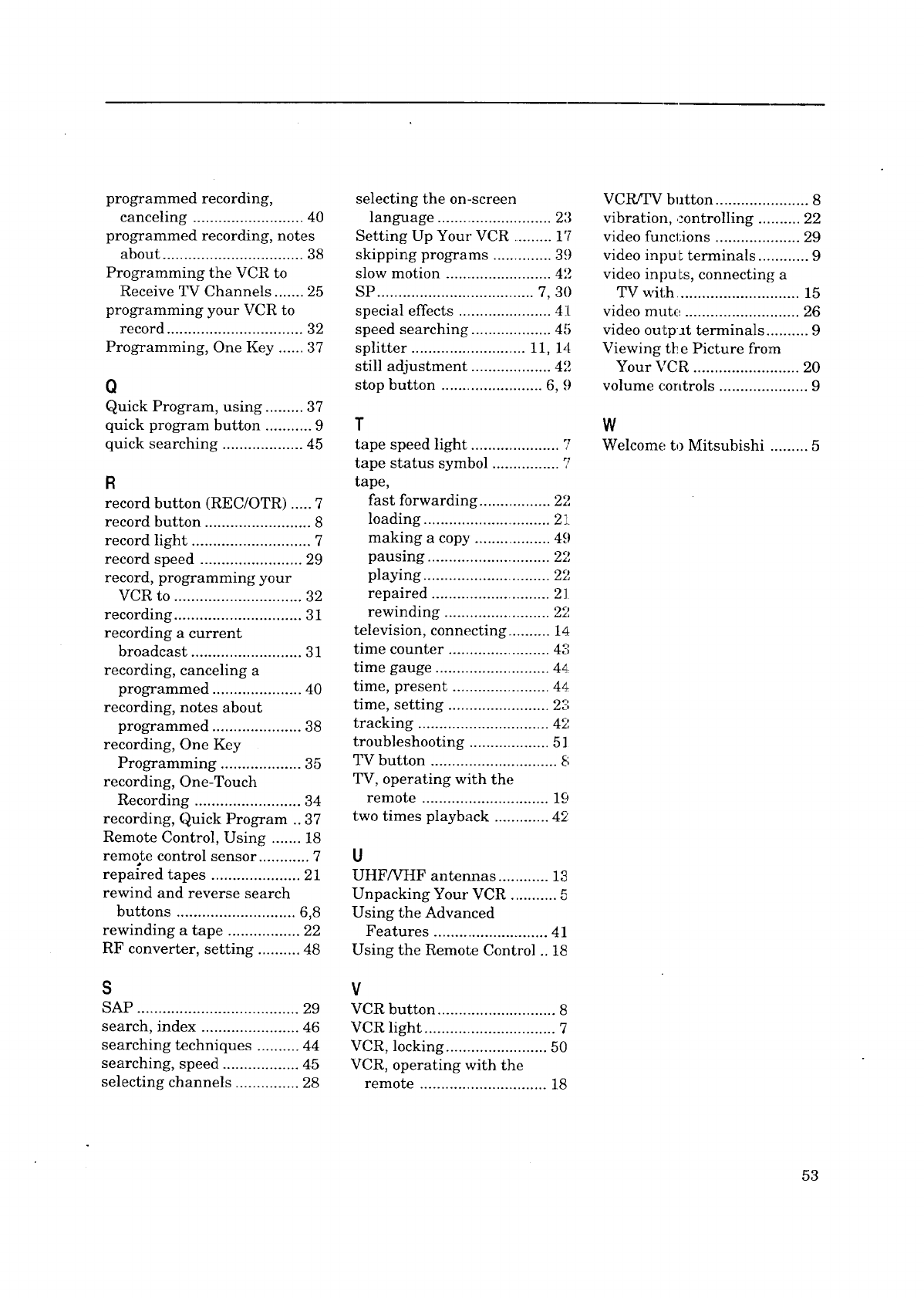

Index .............................................................. 52

IMPORTANTSAFEGUARDS

PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR VCR AND RETAIN FOR

FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE

VCR.

.Read Instructions

All the safety and operating instructions

should be read before the product is

operated.

2. Retain Instructions

The safety and operating instructions

should be retained for future reference.

.Heed Warnings

All warnings on the product and in the

operating instructions should be adhered

to.

Follow Instructions

All operating and use instructions should

be followed.

Cleaning

Unplug this product from the wall outlet

before cleaning. Do not use liquid cleaners

or aerosol cleaners. Use a damp cloth for

cleaning.

Attachments

Do not use attachments not recommended

by the product manufacturer as they may

cause hazards.

10. Ventilation

Slots and openings in the cabinet are

provided for ventilati _n and to ensure

reliable operation of the product and to

protect it from overheating, and these

openi:ags must not be blocked or covered.

The openings should never be blocked by

placing the product o:_ a bed, sofa, rug, or

other similar surface. This product should

not be placed in a built-in installation

such as a bookcase or rack unless proper

ventilation is provided or the

manufacturer's insl;ructions have been

adhered to.

Water and Moisture

Do not use this product near water -- for

example, near a bath tub, wash bowl,

kitchen sink, or laundry tub, in a wet

basement, or near a swimming pool, and

the like.

Accessories

Do not place this product on an unstable

°cart, stand, tripod, bracket, or table. The

product may fall, causing serious injury to

a child or adult, and serious damage to

the product. Use only with a cart, stand,

tripod, bracket, or table recommended by

the manufacturer, or sold with the prod-

uct. Any mounting of the product should

follow the manufacturer's instructions,

and should use a mounting accessory

recommended by the manufacturer.

A product and cart combination should be

moved with care. Quick stops, excessive

force, and uneven surfaces may cause the

product and cart combination to overturn.

1].

12.

Power Sources

This product should be operated only from

the type of power source indicated on the

marking label. If you are not sure of the

type of power supply Loyour home,

consult your product dealer or local power

company. For producl,s intended to

operaLe from battery power or other

sources, refer to the operating instruc-

tions.

Grounding or Polarization

This product may be equipped with a

polarized alternating.-current line plug (a

plug having one blade wider than Lhe

other}. This plug will fit into the power

outlet only one way. ']?his is a safety

feature. If you are unable to insert, the

plug fully into the outlet, try reversing

the plug. If the plug should still fail to fit,

contact your electrician to replace your

obsolete outlet. Do not defeat the safety

purpose of the polari2 ed plug.

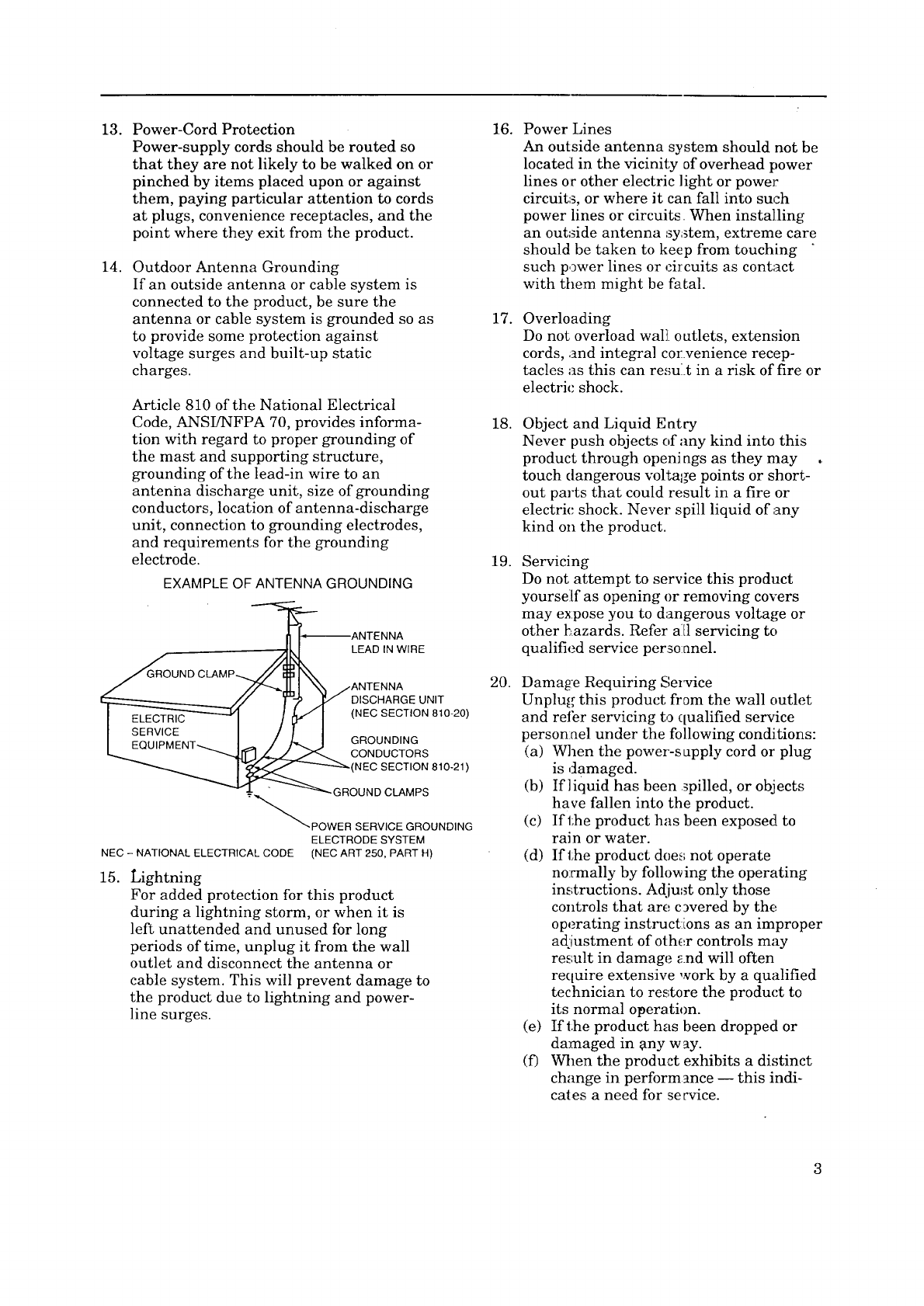

13. Power-Cord Protection

Power-supply cords should be routed so

that they are not likely to be walked on or

pinched by items placed upon or against

them, paying particular attention to cords

at plugs, convenience receptacles, and the

point where they exit from the product.

14. Outdoor Antenna Grounding

If an outside antenna or cable system is

connected to the product, be sure the

antenna or cable system is grounded so as

to provide some protection against

voltage surges and built-up static

charges.

Article 810 of the National Electrical

Code, ANSUNFPA 70, provides informa-

tion with regard to proper grounding of

the mast and supporting structure,

grounding of the lead-in wire to an

antenna discharge unit, size of grounding

conductors, location of antenna-discharge

unit, connection to grounding electrodes,

and requirements for the grounding

electrode.

EXAMPLE OF ANTENNA GROUNDING

' '_--_ANTENNA

- ----_k I LEAD IN WIRE

.,/_"_,_'11 _k_ /ANTENNA

,/ "F_ _ DISCHARGE UNIT

I EOU_PMENT--._I_ / /'-. J GROUNDING

__ CONDUCTORS

"-_'_'POWER SERVICE GROUNDING

ELECTRODE SYSTEM

NEC - NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)

15. Lightning

For added protection for this product

during a lightning storm, or when it is

left unattended and unused for long

periods of time, unplug it from the wall

outlet and disconnect the antenna or

cable system. This will prevent damage to

the product due to lightning and power-

line surges.

16.

17.

18.

19.

20.

Power Lines

An outside antenna system should not be

located in the vicinity of overhead power

lines or other electric light or power

circuit.,s, or where it can fall into such

power lines or circuits When installing

an out,Ade antenna sy_tem, extreme care

should be taken to keep from touching

such power lines or circuits as contact

with them might be fatal.

Overloading

Do not overload wal]i outlets, extension

cords, and integral co_:venience recep-

tacles as this can re,;ul t in a risk of fire or

electric shock.

Object and Liquid Entry

Never push objects of any kind into this

product through openi ags as they may

touch dangerous voltage points or short-

out parts that could result in a fire or

electric shock. Never spill liquid of any

kind on the product.

Servicing

Do not attempt to service this product

yourself as opening or removing covers

may expose you to dangerous voltage or

other l:,azards. Refer all servicing to

qualified service personnel.

Damage Requiring Service

Unplug this product from the wall outlet

and refer servicing to qualified service

personnel under the following conditions:

(a) When the power-sapply cord or plug

is damaged.

(b) If liquid has been spilled, or objects

have fallen into the product.

rain or water.

(d) If the product does not operate

no:rmally by following the operating

instructions. Adiu:st only those

controls that are c_vered by the

operating instruct:ions as an improper

adjustment of other controls may

result in damage _nd will often

require extensive work by a qualified

technician to restore the product to

its normal operation.

(e) If the product has been dropped or

damaged in ony way.

(f) When the product exhibits a distinct

change in performance -- this indi-

cates a need for service.

ImportantSafeguards

21.

22.

23.

Replacement Parts

When replacement parts are required, be

sure the service technician has used

replacement parts specified by the manu-

facturer or have the same characteristics

as the original part. Unauthorized substi-

tutions may result in fire, electric shock

or other hazards.

Safety Check

Upon completion of any service or repairs

to this product, ask the service technician

to perform safety checks to determine

that the product is in proper operating

condition.

Heat

The product should be situated away from

heat sources such as radiators, heat

registers, stoves, or other products (in-

cluding amplifiers) that produce heat.

PROTECTTHE POWERCORD

Do not damage the power cord. Damage to the

power cord may cause a fire or shock hazard.

When unplugging the power cord, please hold

it by the plug and remove it carefully.

DO NOTPLACEHEAVYOBJECTS ON THE

RECORDER

Heavy objects placed on the recorder will

cause damage. (This does not mean your cable

box). The _op of the recorder is also slotted to

provide ventilation. Do no1;obstruct these

ventilation slots.

WHENNOTIN USE

When you finish operating the recorder,

always unload the cassette and turn OFF the

VCR POWER.

CONDENSATION

Leave the VCR on, without a tape in it, for 2

hours if the VCR has been exposed to sudden

changes in temperature. Sudden temperature

changes cause moisture to form on the metal

parts inside the VCR. This moisture can cause

the tape to stick and damage the head.

Leaving the VCR on for a 2 hour period will

dry the inside of the VCR.

CARE OFTHE VIDEO CAS3ETTETAPES

•Avoid violent vibration or shock.

• Do not place in a location where strong

magnetic fields exist (near a motor, trans-

former or magnet).

• Never place or store in direct sunlight.

• Avoid dusty places.

• Place the cassette in tb _ cassette case and

store vertically.

• Never store tape in a high humidity loca-

tion.

INFORMATION

This equipment has been tested and found to comply with the limits for a Clas_ B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected;

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modificatioIts not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

If necessary, the user should consult the dealer or an experienced radio/televisi _n technician for

additional suggestions. The user may find the following booklet prepared by the Federal Commu-

nications Commission helpful:

"How to Identify and Resolve Radio-TV Interference Problems."

This booklet is available from the US Government Printing Office, Washington D.C., 20402,

Stock No. 004-000-00345-4.

PREFACE

Welcometo Mitsubishi

Congratulations on your purchase of this Mitsubishi Video

Cassette Recorder. Your new VCR produces superior sound and a

high resolution VHS picture available. It includes VHS Hi-Fi

audio recording and playback, delivering compact disc-quality

audio.

Your owner's guide has been designed with easy-to-follow expla-

nations and directions. In addition, your VCR comes with

Mitsubishi's exclusive_on-screen operat:Lng system. This

system has been developed to simplify the operation of your VCR

with clear, understandable language and design.

Thank you for selecting our product and welcome to Mitsubishi.

€UnpackingYourVCR

As you unpack your new VCR, please make su::e the following

items are included:

Remote control

ooo 0

©®®

®@®

®®®o

o®@

3°@8

2 "AA" size batteries •1 Audio cable with red and

__ white plugs at _,achend

•Registration card •1 Video c_ble

•1 Coaxial cable

[;>Important:

If any of these items are missing, please conta(t your dealer.

A few suggestions:

O Be sure to save the box and packing material your VCR came

in. Your VCR should always be transported in this box.

OBefore you hook up your VCR, please take a few minutes to:

• complete the registration card and send it back to us

immediately,

• file your sales receipt in a safe place, and

• place the VCR on a stable surface with safficient lighting to

do the hook-up.

Never place any heavy objects on top of the VC R. Do not place the

VCR on top of the television.

,_ CHAPTER ONE

GettingtoKnowYourVCR

Now that you have unpacked your player an J read through the

safety information, it's time to become familiar with the buttons

and controls.

If you are experienced with using VCRs, you may just want to

glance at this section and refer to it later. If VCRs are new to you,

you may want to take your time and become familiar with the

locations of all the controls.

On the following pages, you'll find information on:

$FrontPanel Buttonsand Functions

FluorescentDisplay

tOverviewof the RemoteControl

Rear PanelTerminals

FrontPanelButtonsand Functions

5 6 7

cassette slot

This is where you put the video cassette.

rewind and reverse search button

(REW)

Press to rewind a tape or to reverse

search. You can also use this button to

control the playback speed of a tape.

play and stop button (PLAY/STOP)

Press this button to play a tape and press

again to stop the tape. Also press to stop

tape related functions or to resume normal

playback from special effects.

234

'PLAy tOP IFF I

8 9 10 1

fast forward and fast forward search

button (FF)

Press this button to l_st forward a tape or

to fast forward search. You can also use

this to control the playback speed of a

tape.

_) power button (POWER)

Press this button to turn the VCR on or

off. You must turn ;;he VCR off after you

have programmed it to record.

_) eject button (EJECt)

Press this button to eject the cassette.

(7) fluorescent display

See the next section.

remote control sensor

This receives signals from the remote

control. Do not block it.

one key program button

(ONE KEY PROGRAM)

Press to program the VCR to record.

®channel buttons (CIIANNEL)

Press these buttons to change channels.

Also use these buttons to adjust tracking

and picture vibration.

©record button (REC/OTR)

Press this button once to record until the

end of the tape. Press repeatedly to set the

time for One-Touch Recording (OTR).

FluorescentDisplay

23 45 6

AM PM SUMO _WE_H FR V_I_-I _RE_-_

7 8

counter/present time/remaining display

This area displays: the current time; a time

counter showing how long the tape has run;

the amount of time remaining on the tape;

or the contents of a programmed recording

when you are programming your VCR.

The current time is displayed when the VCR

is turned off or when you press the DIS-

PLAY button. The counter is automatically

set to "0H00M00S" when a new tape is loaded.

The counter will display "- H- - M- - S" when

ho tape is in the VCR.

is set to "VCR." It indicates that the

antenna signal is being routed through

the VC,R's tuner.

tape speed lights (SP, EP)

This will light to indicate the tape speed

you are using when playing or recording.

"SP" indicates standard play; "EP" indi-

cates extended play.

programmed recording light

This lights up when tl_LeVCR is off and

you have programmed the VCR to record.

digital tracking light (D)

This will flash when you first play a new

cassette, indicating that the VCR is adjust-

ing the tracking. When tracking is finished,

it will glow steadily. If you adjust the

tracking manually, it will turn off.

lock light (LOCK)

This lights up when the "Child Lock" feature

is in use.

VCR light (VCR)

This will light up when the VCPVTV button

channel display

This di splays the cable and broadcast

channel, or input you have selected. The

cable tuning light Ill) _ill light up when

the VCR is receiving: cable broadcasts.

play and record lig[Lt and cassette

status symbol

These light up when the VCR is playing a

tape or recording. The symbol ([--']) will

light up when a tape is in the VCR. The

dashes in the center of the symbol simu-

late the movement of the tape when

playing and recording.

Chapter1:Gettingto KnowYourVCR

€Overviewofthe RemoteControl

8--

©@@

® @ @/o°,_

DISPLAY AUO_/I/IOEO VOLUME CHANNEL

(Z)

REW PLAYfSTOP_- FF

(_] I--__--] [E_

IADJUST ENTER ADJUSTI=

•"ilr-----i

OREC M E_,,x PAUSE

--10

12 13

--16

--17

TV and VCR buttons (TV, VCR)

In addition to operating your VCR, your

VCR remote control can be used to operate

most of the functions of many brands of

televisions. Press the VCR button to use

the remote to operate the VCR. After

setting up your remote for your particular

brand of television, press the TV button to

use the remote to operate your television.

See your TV owner's guide for more

information about operating your TV.

number buttons

Use these buttons to select TV stations or

to set Quick searching time.

cancel button (CANCEL)

Use this button to cancel selections on the

on-screen menus or to reset the counter

display to "0H00MOOs."

display button (DISPLAY)

Press this button to display the following

information on the television:

•how much time has elapsed on the

current tape,

• the channel numbe: and audio recep-

tion mode you are watching,

* the audio channel(s) you selected

during playback,

• the source that is supplying the VCR

with asignal,

• the present time,

• whc.ther the VCR is stopped, playing,

or recording, and

• how much time is l_.ft on the tape.

This button can also be used to turn on

and off the "Child Lock" feature.

function button (AUDIO/VIDEO)

Press this button to adjust the VCR's

audio and video functions.

mute button (MUTE)

Press this button to lsurn off the sound

completely or to restore it to its previous

volume.

rewind, reverse search and adjust

-button (REW, ADJUST)

Press t:his button to rewind a tape or to

reverse search. You can also use this

button to control the playback speed of a

tape. When using the on-screen menus,

use thi,_ button to selecL or adjust items.

record button (REC)

Press this button to start recording. When

recording, you can use ':he button to add a

manua] index mark.

VCR]TV button (VCB]TV)

Press this button to swi tch between the

VCR's tuner and the _r's tuner. When

you select "VCR," you c]aange channels on

the VCR; when you selcct "TV," you

change channels on the TV.

power button (POWl_:R)

Press this button to turn the VCR on or

off. If you have programmed the VCR to

record, you need to turz:Lthe VCR off.

quick program button (QUICK PRO-

GRAM)

This button allows you to program your

VCR more quickly and easily. When you

press this button, you will immediately

see the "Program to record" screen, where

you can begin programming your VCR to

record.

input button (INPUT)

Press this button to select between the

antenna and any other video equipment

that may be connected. Also, press to

begin two times playback with sound.

volume controls (VOLUME)

Press the down arrow on the bottom half

of this button to lower the volume of the

TV: press the up arrow on the top half of

this button to raise the volume of the TV.

channel buttons (CHANNEL)

Press these buttons to change channels.

@play, stop and enter: button (PICKY/

STOP, ENTER)

Press this button to play a tape and press

again to stop the tape. Also press to stop

tape related functions or to resume normal

playback from special effects. When using

the on-screen menus, use this button enter

selecti ons.

6) fast forward, fast fc,rward search and

adjust + button (FF, ADJUST)

Press this button to fast forward a tape or

to fast forward search. You can also use

this button to control the playback speed

of a tape. When using the on-screen

menus, use these buttons to select or

adjust items.

6) pause button (PAUSE)

Press this button to pause a tape when

recording or to freeze a frame when

viewing a tape.

®menu button (MEN'U)

Press this button to d!splay the menus,

which are lists of features and instruc-

tions, on your television screen. Also press

the button to exit the menus.

RearPanelTerminals

123

tANT[ INA

audio output and input terminals

These red and white terminals are for

sending (OUT) and receiving (IN) audio

signals. Red signifies the right channel,

and white signifies the left channel. Stereo

audio cables are also color coded red and

white. If you are receiving or sending a

mono (non-stereo) signal, you should use

only the left (white) terminal.

video output and input terminals

These yellow terminals are for sending

(OUT) and receiving (IN) video signals.

You will only need to use these if you have

a monitor television, cr for making copies

of tapes.

antenna terminals

• antenna in (A1VI'ENNA IN)

Use this terminal to attach an external

antenna or cable. This "brings in" an

outside signal.

• antenna out (ANTENNA OUT)

Use this terminal to attach the VCR to

your TV. This terminal "sends out" the

signal to your TV.

_k CHAPTER TWO

ConnectingYourVCR

Now that you're familiar with some of your VCR's features, you're

ready to connect the antenna and the television. You won't have

to complete all of the connections you see in this chapter --- make

only those connections that aF,ply to your equipment.

You should keep in mind that there are two steps you need to

take to connect your VCR: first, connect the antenna or cable to

the VCR, then connect the VCR to the television.

$ConnectingtheAntennaor Cableto the VCR

0ConnectingtheTelevision

Connectingthe Antennaor Cableto the VCR

The first thing you need to do is connect the antenna or cable.

Because there are at least three different typcs of antennas, this

chapter will show how to connect all of them. You don't need to

make all the connections. First, find out what kind of antenna you

have. Then, make the connection for that typ_ of antenna. You

can then go to the next section, "Connecting the Television.."

This section shows you:

• Connecting cable antennas,

• Connecting other antennas, and

• Connecting separate UttF/VHF antennas.

Connectingcableantennas

If you have cable TV, this is the only antenna you need to [look

up. Because some cable companies require 8.c_ble box (for un-

scrambling cable signals), there are two kinds of cable connec-

tions shown: with and without a cable box_

connectingcablewithouta cablebox

O Find the "source" cable. It usually comes out of the floor or out

of a wall. If it is connected to your TV, disconnect it.

Connect the cable to the ANTENNA IN te::minal on the back

of your VCR. Screw or puslh the cable onto the terminal until

it is tight.

O When you are finished, go to page 14, "Connecting the Televi-

sion."

connectingcablewitha cablebox,if allchannelsarescrambled

If your cable system scrambles all of its channels, follow the

directions below to connect your cable box to your VCR:

O Disconnect the cable box fcom the TV.

O Connect the cable coming from the cable kox to the AN-

TENNA IN terminal on the back of your VCR. Screw or push

the cable onto the terminal until it is tighl;.

When finished, go to page 14, "Connecting the Television."

If your cable company scrambles all of its channels, you cannot

record one channel while watching another.

connectingcablewitha cablebox,if onlysomechannelsare scrambled

If your cable company only requires the use of a cable box fbr

some channels, we suggest using the following connections. This

connection will allow you to watch one non-scrambled channel

while you record another non-scrambled channel.

Beforeyoubegin,youwillneed:

• a cable splitter,

• four lengths of co-axial cable, and

• a cable MB switch.

Find the "source" cable; it usually comes', out of the wall or the

floor. If it is connected to your cable box: disconnect it.

Connect the source cable to the "in" terminal on the cable

splitter.

Connect one end of a coaxial cable to an "out" terminal on the

splitter. Connect the other end of this came to the "A-IN"

terminal on the A/B switch.

0 Connect one end of the second coaxial cable to the other "out"

terminal on the splitter. Connect the other end of this cable to

the "ANTENNA IN" terminal on the cable box.

Connect the third coaxial cable to the "ANTENNA OUT"

terminal on the cable box. Connect the other end of this; cable

to the "B-IN" terminal on the A/B switch.

A/B Switch

'OUT

Cable box

Splitter

___,..... _ .......

Chapter2:ConnectingYourVCR ConnectingtheAntennaor Cableto the VCR(cont.)

_Important:

O Connect the fourth coaxial cable to'the "OUT" terminal on the

A/B switch. Connect the other end of this cable to the ':'AN-

TENNA IN" terminal on your VCR.

O When you are finished, go to page 14, "Connecting the Televi-

sion."

With this connection, you should set the A!B switch to "B" only

when you are recording a scrambled channel In that case, you

should set your VCR to record channel 3 (or _:), and manually set

the cable box to the channel you wish to record.

You should leave the A/B switch set to "A" for all other situations.

If you have questions concerrJng your cable system, please

contact your cable company.

With this connection, you ca_ not record a scrambled channel and

watch a non-scrambled channel at the same time. You also cannot

watch a scrambled channel a:ad record a non-scrambled channel

at the same time.

Connectingotherantennas

If you don't have cable TV, you'll need to connect a regular an-

tenna. Your antenna may have one of two different kind of ends

(called "leads") on it.

The two kinds of leads are:

300-ohm flat twin leads

that look like this ... :

... or a 75-oh'n round lead

that looks like this:

Follow the procedures for connecting the kind of leads your

antenna has, then go to page 14, "Connecting the Television."

connectingan antennawitha 300-ohmflat twinlead

(If you have a 300-ohm flat twin lead, you will need to purchase a

300-75 ohm adapter at your local hardware or electronics _,;tore.)

0 Disconnect the antenna from the back of the TV.

OBefore you can attach the antenna leads to the adapter, you

need to expose a 5/8 inch segment of each lead by scraping off

the plastic covering. Sometimes these leads have "U" shaped

clips that fit around the screw, in which case you will not

need to peel back the plastic.

Insert lead under screws

and tighten.

300-75 Ohm Adapter

Wrap each exposed end of wire once or twice around the screw

shanks of the adapter (or insert the clips under the screw

heads). Tighten the screws.

O Push the adapter firmly onto the anten:na terminal on the

VCR labeled ANTENNA IN.

O Go to page 14, "Connecting the Television."

Oconnectinganantennawitha75-ohmroundlead

O Disconnect the antenna from the back: of the TV.

O Connect the anterma to the ANTENNA IN terminal on the

back of the VCR. Screw or push the cable until it is tight.

O Go to page 14, "Connecting the Television."

Connecting separateUHF/VHFantennas

You may have two separate antennas (one UHF, one VHF) that

bring TV signals into your home. If you do, you'll need to combine

the two antennas before connecting them to the VCR. To do this,

you'll need an attachment called a combiner (which is available at

your electronics store).

If your UHF antenna wire looks

like this...

This chart will help you determine the kind of combiner you need.

... and your VHF antenqa wire ... then you need a combiner

looks like this ... like this.

)

To connect your antennas:

(please see the illustration on the next page.)

O Disconnect the antennas from the back of the TV.

Connect the antenna leads onto the combiner.

Screw or push the combiner onto the ANTENNA IN terminal

on the VCR.

When you are finished, see page 14, "Connecting the Televi-

sion."

Chapter2: ConnectingYourVCR ConnectingtheAntennacr Cableto theVCR(cont.)

VHF Antenna

)hm Flat Twin Lead

Ohm Coaxial Cable

300°75 Ohm Adapter

UHF Antenna

--300 Ohm Flat Twit Lead

Combiner

Connecting the Television

Now that you have completed the antenna connections to your

VCR, you're ready to connect the VCR to the FV. (If you haven't

connected the antenna to the VCR, go to page 10, "Connecting the

Antenna or Cable to the VCR.") Because every television is

different (especially older model TVs), your VCR may need to be

connected in one of a variety of ways. This section shows you:

• Determining if you need a splitter,

• Connecting an older TV to the VCR, and

• Connecting a TV with audio and video inputs.

Determining if you need a splitter

You should look at the back panel of your TV to see if you need

any special equipment to connect the TV to the VCR. You may

need an attachment called a UHF/VHF splitter (which is avail-

able at your local electronics ,_tore). The char_; below will tell you

if you need a splitter, and wh._t the splitter will look like.

If the TV's antenna terminal

looks like this...

UHF

VHF

O©

UHF

O©

VHF

... then you will need splitter that looks like t-fis.

No splitter needed

UHF/VHF splitter y. Connect to UHF IN

_ oq TV

L__J_ _--- Connect to VHF IN

From ANTENNA OUT on VCR on TV

UHF/VHF splitter _j, Connect to UHF IN

--I_F__" Oq TV

From ANTENNA OUT on VCR on TV

Connecting an older TV to the VCR

O Take the black cable (called a coaxial cal:,le) that is supplied

with your VCR and attach it to the terminal labeled AN-

TENNA OUT on the back of your VCR.

OConnect the other end of this cable to the terminal on your TV

labeled ANTENNA IN. This terminal is sometimes also called

"ANT-IN" or "VHF IN." I:f you have an older TV without this

kind of terminal, you will have to use a splitter and then

connect the splitter to the television.

I_ If you have a TV with audio and video in:_uts, you should

proceed to the next section, "Connecting a TV with audio and

video inputs." Otherwise, your connect!ions are complete.

ANTENNA TERMINALS (VCR)

.''@ ANTENNA OUT

ANTENNA IN

ANTENN & TERMINAL (TV)

TV without ANTENNA IN terminal (single antenna terminal for VHF and UHF)

UHFNHF splitter Connect to UHF IN

From ANTENNA OUT Connect to VHF IN

on VCR on TV

UHFNHF splitter Connect to UHF I1',1

From ANTENNA OUT Connect to VHF IN

on VCR on TV

_Important: Connecting your TV in the way shown above will not allow you to

enjoy the stereo sound of your VCR, even if your TV is equipped

with stereo.

Connecting a TVwith audio and video inputs

Your new VCR can be connected to many difS_rent types of

televisions. Because you purchased a Hi-Fi VCR, you will want to

take advantage of its superior sound capability and connect it to a

stereo TV system with audio and video inputs.

Beforeyou beginthis section:

° You should have already completed the section "Connecting

an older TV to the VCR."

connectinga stereoTVwithaudioandvideoinputs

0Connect a set of red and white audio cables to the AUDIO

OUTPUT terminals on the VCR labeled AUDIO OUT. The

red cable is for connecting the right (R) channel and the white

cable is for connecting the left (L) channel.

Chapter2: ConnectingYourVCR ConnectingtheTelevision(cont.)

If your TV has only one (rnono) audio input, connect only the

white (L) output from your VCR.

[:>Important: If you are connecting your VCR to a mono (non-stereo) TV, you

cannot take advantage of your VCR's Hi-Fi sound.

O Connect the other ends ofthis cable to the AUDIO INPUT

terminals on your TV labelled AUDIO IN.

Connect a single yellow video cable to the VIDEO OUTPUT

terminal labeled VIDEO OUT on the VCR

O Connect the other end of the video cable tc: the yellow VIDEO

INPUT terminal labeled VIDEO IN on the TV.

BACK PANEL (VCR)

AUDIO VIDEO

R OUT L OUT

®®®

AUDIO OUT R 4

AUDIO OUT L O

BACK PANEL (TV)

--VIDEO OUT AUDIO IN [._

AUDIO IN FI EO

ACHAPTER THREE

OperatingYourVCR

Now that you've completed your antenna, VCR, and TV connec-

tions, you're ready to start enjoying your equipment. To get the

most satisfaction out of your VCR, you shoul5 carefully read the

two sections, "Setting Up Your VCR for _he First Time" and

"Viewing the Picture Coming from Your VCF." Then you can start

exploring what your new VCR can do.

In this chapter, you'll learn:

+SettingUp YourVCRfor the FirstTime

$Usingthe RemoteControl

+Viewingthe PictureComingfrom YourVCR

$Loadingand UnloadingTapes

+Playinga Tape

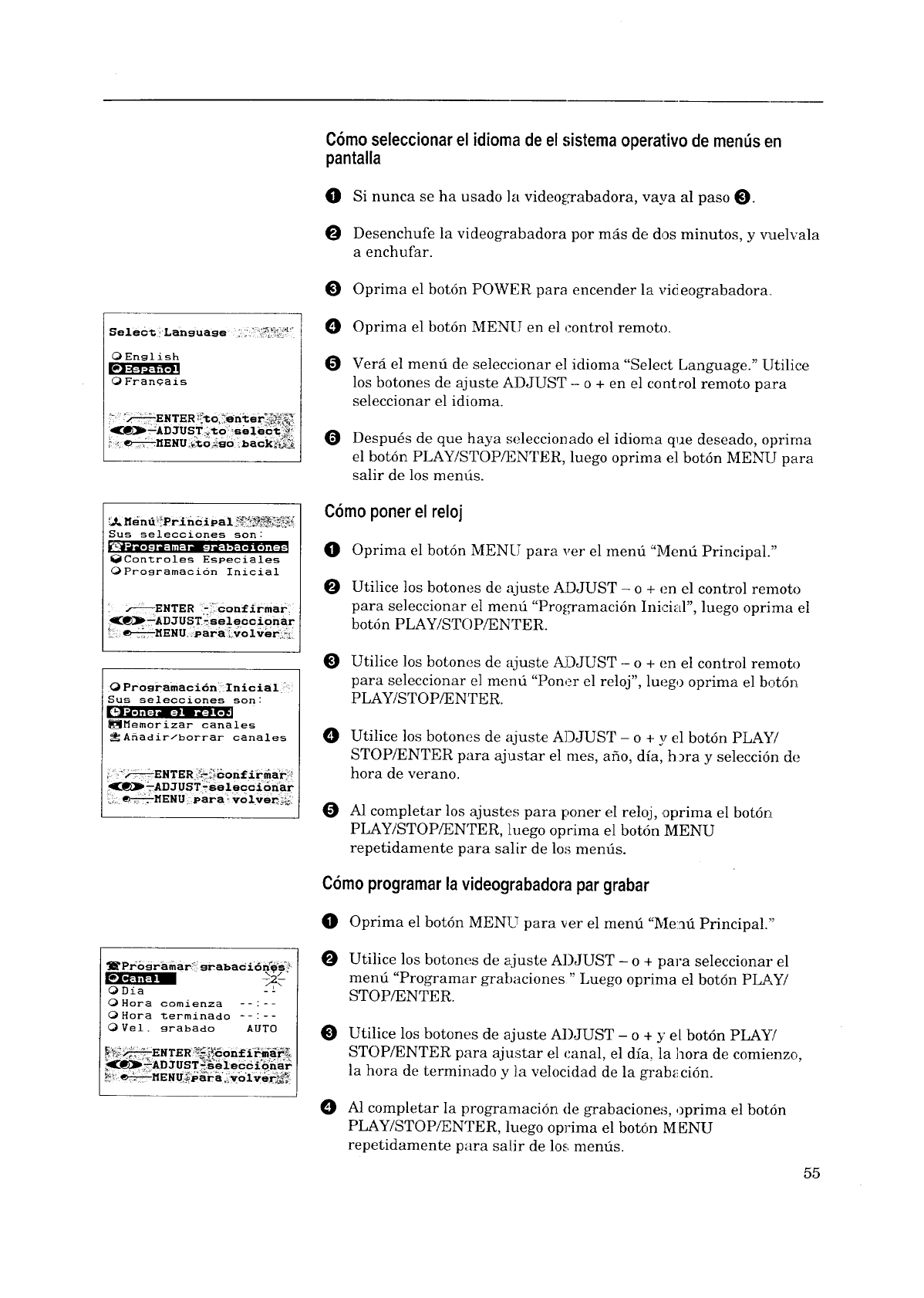

$ Selecting the On-screen Language

+ Using the Menusto Set the Time

$ Programming the VCRto Receive TV Channels

Using the Audio and Video Functions

$ Recording

I Setting Up YourVCRfor the First Time

It's important that your VCR is set up correcti[y before you try to

use it. If you carefully read this section, you will avoid confusion

later and get the most out of operating your system.

This section teaches you about.:

• Setting up your VCR if you are using a I'V without Audio

and Video Inputs (Older TV), and

• Setting up your VCR if you are using a 'IV equipped with

Audio and Video Inputs (Modern TV).

Beforeyou begin,you should:

• have completed your anl;enna, VCR, and TV connections.

Settingup yourVCR ifyou are using a TV withcutAudioand Video

Inputs(OlderTV)

O Turn on your TV and tune it to channel 3(,r 4, whichew_r is

NOT used for broadcast in your area.

Chapter3:OperatingYourVCR SettingUpYourVCRForthe FirstTime(cont.)

Important:

0If you tuned the TV to channel 4 in step O, press the CHAN-

NEL • button and the ONE KEY PROGRAM button on the

front panel at the same time with the VCR turned off. The

word "Ant ch4" will display on the front panel display of the

VCR and the VCR will send signals on chaanel 4. (If you

tuned the TV to channel 3, you don't need 1_odo this.)

Turn the VCR on by pressing the POWER button.

The VCR will return to its initial setting (chanael 3) if you press

the CHANNEL • button and the ONE KEY PROGRAM button

on the front panel at the same Lime with the V_R turned off.

Setting up yourVCR if you are using a TV equippedwithAudio and

Video Inputs(ModernTV)

Turn on your TV and switch it to the correct external input.

(For most Mitsubishi TVs, this means pres_ing the TV's

INPUT button until you see the words "F,xt-l" on the screen.)

Turn the VCR on by pressing the POWER button.

€Usingthe RemoteControl

In this section, you'll learn how to set up and u _e your remote

control.

This section includes:

• Using the remote control to operate the VCR, and

• Using the remote control to operate the UV.

Usingthe remotecontroltooperatethe VCR

installingthe batteries

O Unpack two AA size batteries.

To remove the back cover, press the ridged area gently, then

push the cover in the direction of the arrew and lift.

Load the batteries, making sure the polarit!es (+) and (-) are

correct.

operatingthe remotecontrol

O Press the VCR button on the remote control. This "tells" the

remote that you want to control the VCR.

While within 23 feet of the VCR, point the remote control

toward the VCR and press ti_e buttons you desire.

Brand of TV

Mitsubishi

Fisher

G.E.

Goldstar

Hitachi

JVC

Magnavox

NEC

Panasonic

Pioneer

Philips

Proscan

Quasar

RCA

Sanyo

Sharp

Sony

Toshiba

Zenith

Brand code

buttons

1,2,3

CANCEL

2,9

VOLUME V

2,9

6, MUTE

CHANNEL V

CANCEL

3,5

DISPLAY

INPUT

_>Important:

Usingthe remotecontrolto operatethe TV

The HS-U420 remote control can operate many of the frequently-

used functions of your TV. This way, you nc.ed to use only one

remote to operate both your VCR and TV.

The HS-U420 remote control :_spre-set to ope_'ate Mitsubishi

televisions, but it can also opc,rate TVs from ether manufacturers.

If you need to set your remote control for your particular brand of

television, follow the instructions below.

setting upyourremotecontrolto operateyour TV

Turn off your TV.

On the HS-U420 remote control, press the TV button.

While holding in the POWER button, press the code button

listed to the left that corresponds to the brand of your 'IV.

Once your TV has turned on, your remote is set up to operate

your brand of TV.

You do not need to perform this set-up again ,anless you change

the batteries, set up your remote for another brand of television,

or you get a new TV.

Once you have correctly set your remote control to operate your

TV, you will be able to use the POWER, CHANNEL, VOLUME,

MUTE and number buttons to operate your TV.

Depending on the model TV you have, all or some of the buttons

may not function, or they may operate different features than

indicated above. You :may need to use the TV's remote control.

Sometimes manufacturers will change the remote control codes

for their products, or they wilt use more th_,n one code. If this is

the case, your remote may no_;be able to cont:ol your TV.

When you replace the batteries in your remote, the remote will

return to its initial setting (code button "1"). Repeat the steps

above to reset your remote control. If you enter a new code, the

previous code will be erased.

operatingyourTVwiththe HS-U420remotecontrol

O Press the TV button on the HS-U420 rem _te control.

Point the remote control towards the remote sensor on the TV

and press the desired butl_ons.

O To once again control the VCR, press the VCR button.

Chapter3: OperatingYourVCR Usingtl'eRemoteControl(cont.)

_Important: Because of variations among models, some or all buttons may not

work, or they may operate different functions than listed, for your

particular TV. If this occurs, you may need to use your TV remote

control.

Viewingthe PictureComingfrom YourVCR

This is the most important part of using your VCR, but often the

most confusing: how do you view a picture coming from the VCR?

Before you begin, you should know:

• whether you are viewing a "Modern TV" or an "Older TV."

(See page 17.)

Viewingthe picture comingfrom yourVCR i! you are usingan

older TV

O Turn on your TV and tune it to channel 3 or 4.

Io o -=¢D.A

i®@®_il

ffl_EI

O Turn on the VCR by pressing the POWER button.

Check to see if the '_VCR" light on the front panel display is

lit. If it is not lit, press the VCR/TV buttor until it is lit.

You are viewing the picture from your VCRI

With this set-up, you will use the VCR/TV butLon when recording,

when viewing tapes or broadcast stations through your VCR, or

before using the VCR's menus. You also use tl: e VCR!TV button

to switch back to normal TV viewing.

_Important: If you set the "RF converter" setting of the ,u s_om_ze choices

menu to ON, you don't need to use the VCR/TV button when

viewing tapes. (See page 48. )

Viewingthe picturecomingfrom yourVCR if you are usinga

modernTV

0Turn on your TV and switch it to the corre :t external input.

(For most Mitsubishi TVs, this means pressing the TV's;

INPUT button until you see the words "ExL-I" or "Input-l" on

the screen.)

Turn the VCR on by pressing the POWER button.

You are viewing the picture from your VCR!

If you wish to return to normal TV viewing, ,_witch your TV's

input back to its previous position.

L>Important: If you are using a modern TV, be sure to set Lhe "RF converter" of

the "Customize choices" menu i:o OFF to prevent noise in the

picture. (See page 48. )

bImportant: If yoursystemincludesahometheaterreceiveroranA/V

receiver,referto yourhometheaterreceiver'sowner'sguide.

LoadingandUnloadingTapes

Loadingatape

[>Important:

INCORRECT_

[>Important:

Tapes can be loaded into your VCR as long as the VCR is plugged

in. Even when the VCR POWER is off, loading a tape will auto-

matically turn the VCR on. Use only tapes that have a [_ label.

OHold the tape so that the long narrow edge with the contents

label faces towards you. The other edge is hinged and should

face towards the VCR. The plastic windo_ that shows the

videotape should face up.

O Gently insert the tape into the cassette slot until the VCR

automatically takes it in.

Your VCR will eject the tape if you improperly load it. If the VCR

ejects the tape, remove the tape, check to see that the contents

label is facing you, that the geared tape reels are facing down-

wards, wait a few seconds, and try again.

Unloading a tape

q[]} Press the EJECT button on the front of the VCR. If the VCR

POWER is off, the VCR will turn on, eject the tape, then turn

off.

Remove the tape.

[>Important: You cannot eject a tape while !Ltis recording. You must first stop

the recording.

Erasure prevention tab

Preventing accidentalerasure

Tapes come with a tab that, when removed, prevents you from

recording on the tape. If you a_tempt to recard over a tape that.

has had this tab removed, the VCR will eject it. To record over

such a tape, simply place a piece of vinyl tape over the opening.

_Warning: I

Usingrepairedtapes

We recommend that you take any broken or torn tapes to a

professional for repair. If you repair a torn tape with improper

materials, you could damage your VCR when you play the tape.

Chapter3: OperatingYourVCR

€Playinga Tape

_>Important:

Now that your VCR is connected and properly set up, and you

know how to view a picture coming from your VCR, it's time to

play a tape.

This section describes:

• Playing back a tape, and

• Using basic playback controls.

Playing back a tape

Beforeyou begin, you needto know:

• how to view the picture coming from your VCR (page 20).

O To play a tape, load a pre-recorded cassette.

O Press the PLAY/STOP button on the front panel or on the

remote control.

The VCR will automatically play the tape at the correct speed.

When the VCR reaches the end of the tape, Jt will automatically

rewind the tape and stop. You can stop playing by pressing PLAY/

STOP.

Using basic playback controls

rewindinga tape

Press the REW button on the remote control o:" on the front panel.

If the tape is stopped, you will begin rewinding. If the tape is

playing, you will begin "reverse speed search.':

fast forwardinga tape

Press the FF button on the remote control or o n the front pane].

If the tape is stopped, you will begin fast forwarding. If the tape is

playing, you will begin "forward speed searchY

pausing atape

Press the PAUSE button on the remote control to freeze the

picture on the screen.

If you leave the VCR in pause tbr 5 minutes, tt:.e VCR will auto-

matically stop to prevent damage to the tape.

controllingvibrationduring stillframe

If the picture vibrates (luring sl;i]l frame, press the CHANNEL

buttons on the front panel untill the picture is steady.

iSelectingthe On-screenLanguage

You can set your VCR to display on-screen messages, menus, and

functions in English, Spanish or French. You should do this

before you use the menus or ,;et any audio/video functions.

Before you begin, you need to know:

• how to view the picture coming from you: VCR. (See page 20.)

Seled'r, Languase

_L_

0 Espafiol

0 Fran?ais

Make sure you are viewing the picture coming from your

VCR. Then. press the MF,NU button on the remote control. If

this is the first time the menus have been used, you will see

the menu for selecting an on-screen lang_age.

Press the ADJUST buttons on the remote control to highlight

the desired language. The ADJUST + bu:ton moves upward;

the ADJUST - button moves downward.

O Press the ENTER button on the remote control. The menu

will change to the '_VCR IvIain Menu."

O Press the MENU button _o exit the menus.

_Important: The "Select Language" menu is unique. While all other menus can

be accessed at almost any time, the "Select Language" menu will

not automatically appear again after it is fir_;t set. To see the

"Select Language" menu, turn off the VCR and unplug the power

cord. Leave it unplugged for about two minul;es, then follow the

procedure on this page.

iUsingthe Menusto Setthe Time

Your choices are:

_Prosram to record

_£usZomize choices

Your choices are:

_Memorize channels

Add/deleZe channels

This section will show you how to use the on-screen menus. You

will use the menus to operate many features, such as setting the

time, programming to record and memorizir g channels. On the

on-screen menus, the selected item is indicated in white.

Before you begin,youneedto know:

• how to view the picture coming from your VCR (page 20),

OMake sure you are viewing the picture coming from your

VCR. Then, press the ME',NU button on the remote control.

You will see the "VCR Main Menu." Make sure the words

"First Time Set-Up" is highlighted. If'it i=_not, use the AD-

JUST buttons to highlight it.

Press the ENTER button. The "First Time Set-Up" menu will

appear. The word "Set the clock" will be highlighted. Press

the ENTER button.

Chapter3:OperatingYourVCR Usin_lthe Menusto Setthe Time(cont.)

[e]l_&'_J_,,'lm-_L'bl,_ H(ON )

0Month --

0Year --

0Date --

0Time

OYou will see the "Set the clock" menu. The words "Daylight

savings" will be h:[ghlighti_d. Press the ADJUST buttons to

select the daylight savings setting ON or OFF. If you are

currently following daylight savings, select ON. Otherwise,

select OFF. Press the ENTER button.

<_)Daylisht savir%ss (ON)

_) Year 19'96

ODate 1 Saturday

_) Time 12 :OOpm

O Press the ADJUST buttors until the correct month appears

on screen. Press the ENTER button.

ODaylisht savinss (ON)

0Month Ju_ne

-1996-

ODa_e 1Sa'turday

0 Time 12:00Pm

Press the ADJUST buttons to set the yea]'. Press the ENTER

button.

ODaylisht savinss (ON)

0 Month June

0 Year _ 1996_

--16 Sunday--

OTime _ l_:OOpm

Press the ADJUST buttons to set the date. Press the ENTER

button.

ODaylisht savinss (ON)

0 Month June

<_Year 1996

ODate 16 S_nday,

0The hour numbers and the am/pm indicator will be blinking.

Press the ADJUST buttons to set the hour and am!pm at the

same time. The ADJUST -_ button moves l_he clock forward;

the ADJUST - moves the clock backward_,_.

Press the ENTER button.

ODaylisht savines (ON )

0 _onth June

0 Year 1996

ODa_e 16 Sunday

7_3Opm

The minutes will now be blinking. Press the ADJUST buttons

to set the minutes. When you have set tlhe correct time, press

the ENTER button. The display will return to the "First Time

Set-Up" menu and the clo(k will start run ning.

Press the MENU button once to return to the "VCR Main

Menu"; press the MENU button again to turn off the menus.

If youwantto adjustthe clockmanuallyforDaylightSavingTime,

After you have displayed the "Set the clock" menu, make sure

that the words "Daylight savings" is highligktcd. Then press the

ADJUST buttons to select ON or OFF. If you _.elect ON, the VCR

will set the clock forward one hour. If you select OFF, the VCR

will set the clock back one hour.

L>Important: If you want the VCR to adjust the clock automatically for Day-

light Saving Time, set the "Auto D.S.T." of the "Customize

choices" menu to ON. (For more information on this feature,

please see page 47.)

Ifyousetthe"Auto D.S.T."ofthe"Customizechoices"'menuto ON,

Your VCR will change automatically the clock from 2 AM to 3 AM

on first Sunday in April and turn the "Daylight savings" setting

to ON; your VCR will change the clock from 3 AM back to 2 AM

on last Sunday in October and turn the settin _ to OFF. This

means if you are currently following Daylight Saving Time, "ON"

will be displayed; otherwise, "OFF" will be displayed. (You

cannot change the "Daylight savings" setting manually.)

_>Important: Any time you adjust this setting, check youc programmed record-

ings to be sure they are set to the correct time.

Programmingthe VCRto ReceiveTV Channels

Before your VCR can receive _elevision channels, you need to

program all of the channels you can receive into your VCR.

Fortunately, our menu systera makes this an easy process. This

section will also explain some other channel-related functions.

This section explains:

• Programming channel:_ automatically,

• Using video mute,

• Adding and deleting channels, and

• Selecting a channel.

Programmingchannelsautomatically

Using this process, your VCR will automatically memorize all of

the local television s_ations you can receive. You can later get rid

of unwanted or unused stations.

A specialnote to

cableboxsubscribers

If your local cable box comp_,ny scrambles some or all stations,

and/or requires you to use a cable box, then your ability to pro-

gram channels will be limited. The cable box receives all of your

channels and then sends onJy one to your T'7 (and your VCR),

usually on channel 3 or 4.

If your cable box or cable system seems inc(;mpatible with your

new VCR, call your cable company. They may be able _o provide

solutions to your problems.

Chapter3: OperatingYourVCR Procjrammin_!the VCRto ReceiveTVChannels(cont.)

Your choices are:

_Prosram to record

Customize choices

B]I _1_=hi=t _llill I. [=ll_"f_ _l]

io! _i'_i__!Ti_'e_tSe__up'_';!_!i_ _

Your choices are:

OSet the clock

;." |_1:4 ill=) Ip ql-,4[:ll_l q_l:. | i| i1[:tl q

Add/delete channels

E>Important:

g Mem_rii ze !c h an ne 1s;_!)ii_i_:

Hhat type of sources are

connected to the VCR?

oIndoor/outdoor ant.

QMemorize channels

Now memorizins all the

stations you can receive

Channel 3

Stand by this may take

a few minutes

_>Important:

Beforeyoubegin,youshould:

•have completed all connections between your VCR, TV, and

cable or antenna; (see page,; 10-16)

• know how to view the picture coming from your VCR; (page 20)

• know how to use the menus. (See page 23.)

To program channels automat:ically:

OSet the VCR's input to tuner. To do this, p:ess the INPUT

button on the remote control until a channel number appears

on tlhe screen or on the front panel fluorescent display.

Press the MENU button on the remote co_:trol. You will see

the '%CR Main Menu" on the TV screen

Use the ADJUST buttons on the remote to select "First Time

Set-Up." Press the ENTER button.

The "First Time Set-Up" menu appears on your screen. Press

the ADJUST buttons to se:Lect "Memorize channels." Press the

ENTER button.

If you are recording, playing back a tape or receiving a video

signal fl'om an external input, the words "Not available" will

flash. To correct this, stop the tape or switch the VCR's input to

tuner.

OYou will see the menu for automatically memorizing chan-

nels. Using the list: below as a reference, p:_ess the ADJUST

buttons to select the kind of antenna you connected.

• If you are using any other cable combination, including a

cable box with an A/B switch, choose "Cable."

• If you are using an antenna that receiw!.s only over-tlhe-air

broadcasts, such as "rabbit ears" or a roof-mounted an-

tenna, choose "Indoor/outdoor ant."

After you have selected, press the ENTER button.

OYou will see an on-screen message and tlhe display on the

front of your VCR will show you that the VCR is memorizing

the stations you can receive. You can cancel the memorization

at any time by pressing CANCEL on the remote control.

After the VCR has programmed all the channels, the screen will

return the VCR's picture.

Automatic programming may include vacant channels if there are

stray signals or noise on those channels. If thi.,; occurs, you can

manually delete the channels using the procedure in the section

"Adding and deleting channels."

Using video mute

When you turn video mute ON, any blank sect;ion of tape, or any

station with a weak signal, will be replaced by a blue screen. The

Your choices are:

_'Prosram to record

First Time Set-UP

OAuto D.S.T. (OFF)

OAuzo power save (OFF)

RF converter (ON )

Your choices are:

_'Prosram to record

_Customize choices

DJ "-]&eei=.l_mi_ bm. [:mm-_E_J_1

Your choices are:

OSet the clock

_Memorize channels

_>Important:

sound will also be turned off. If there is a time when you would

like to try to tune in a weak station, turn video mute OFF.

Beforeyou begin,you shouldknow how:

• to view the picture coming from your VCR; (see page 20)

• to use the menus. (See page 23.)

O Press the MENU button on the remote control. The "VCR

Main Menu" appears on your TV.

Use the ADJUST buttons on the remote to select "Customize

choices." Press the ENTER button.

O The "Customize choices" menu appears on your screen. Use

the ADJUST buttons to select "Video mut_."

Press the ENTER button to set video mut_, to ON or OFF.

Press the MENU button once to return to ;:he "VCR Main

Menu" menu; pres,_ the MENU button a second time to turn

off the menus.

Adding and deleting channels

If necessary, you can manually add or delete channels after' you

have completed the automatic channel programming.

Beforeyou begin,you shouldknow how:

• to view the picture coming from your VCR; (see page 20)

• to use the menus. (See page 23.)

O Make sure that video mute is ON. (See above.)

Set the VCR's input, to tuner. To do this, p:'ess the INPUT

button on the remote control until a channel number appears

on the screen or on the front panel fluorescent display.

Press the MENU button on the remote control. The "VCR

Main Menu" appears on your TV.

Press the ADJUS_r buttons_ on the remote ,:ontrol to select

"First Time Set-Up." Press the ENTER, bu_ton.

You will see the "First Time Set-Up" menu. Press the AD-

JUST buttons to select "Add/delete channels." Press the

ENTER button.

If you are recording, playing back a tape, or re:eiving a video

signal from an external input, then the words 'Not available" will

flash. To correct this, stop the _ape or switch the VCR's input to

tuner.

Chapter3:OperatingYourVCR Programmingthe VCRto Reo.=iveTV ChanneNs(cont.)

Channel 39

No% in memory

Important:

_Important:

You will see the screen for adding or deleting channels. Use

the ADJUST buttons to select the channel that you want to

add or delete. Press the ENTER button to add the channel or

press the CANCEL button to delete it.

When you are finished adding or deleting channels, press the

MENU button once to return to the "Fir,_t ]_ime Set-Up"

menu; press the MENU button a second ti:zm to return to the

'_¢CR Main Menu"; press tlae MENU button a third time to

turn off the menu.

If you use automatic programming again, you will lose all of the

manual changes you made. All of the channels you deleted will be

added; all of the channels you added will be deleted.

Selectinga channel

Now that you have programmed your channel_;, and added or

deleted some, you will want to be able to select channels. (If you

have not yet programmed your channels, see _age 25, "Program-

ming channels automatically.")

There are two basic ways to select channels: sequentially or

directly.

selectingchannelssequentially

Press the CHANNEL buttons on the remote control or on the

VCR front panel. This will cycle through the channels in sequen-

tial numerical order.

selectingchannelsdirectly

Use the number buttons on the remote control. For example, to

choose channel 23, press the "_',"button, then the "3" button.

To select a single digit channel, such as channel 5, press the "0"

button, then the number button, "5." You can also press the

number button "5," then press the ENTER button.

If you selected Indoor/Outdoor antenna, the VCR can receive

UHF/VHF channels 2-4_9. If you selected Cabi[e Antenna the VCR

can receive cable channels 1-125. If you try to, select a channel

number that the VCR cannot receive, the VCI={will not change

channels.

Usingthe AudioandVideoFunctions

You can select many of the VCR's audio and video functions and

adjust their settings with function menu. You can also choose

some advanced features. The VCR will display the functions and

settings on the television's screen.

_Important:

Thissectionwill teachyouabout:

• Descriptionsofaudioandvideofunctions,and

• Selectingandadjustingtheaudioandvideofunctions.

Thefunctionsyoucanselectare:

-- audiomonitor,

-- normalrecord,

-- recordspeed,

-- tape,

-- index search, and

-- counter zero stop.

Descriptions of audioand videofunctions

Below are descriptions of the audio and vide_ functions, their uses

and their settings. To select these functions and adjust their

settings, refer to the section "Selecting and _djusting the audio

and video functions." (See page 30.)

audio monitor (Listento:)

The monitor function allows you to listen to the various audio

tracks that your VCR is capable of recording. You can choose to

listen to a MONO track, both channels of the STEREO track, or

either of the channels (left (L) and right (P)) of the stereo track.

• Choose "L" to listen tc the left channel of a stereo track.

• Choose "R" to listen to the right channel of the stereo track.

• Choose "Stereo" to listen t;oboth stereo channels.

• The MONO track is lcwer in quality than the others, and

the monitor is automatically set to "Mono" if you are

watching a tape that was not recorded in VHS Hi-Fi. Set

the audio monitor to "Mono" to hear an S.A.P. signal

recorded on the mono track of a Hi-Fi tape (see below)

If you have your VCR connected to a surround sound system, set

the audio monitor to "Stereo." Surround sound requires both left

and right channels to create the rear channel effects.

If you are receiving a stereo signal, the worc "Stereo" will display

on TV screen for 4 seconds, lfyou are receiv:ing an S.A.P. broad-

cast, the word "SAP" will display on TV screen for 4 seconds.

normalrecording (Record:)

When your VCR is recording, it actually records the audio portion

of a program twice: once on the stereo Hi-Fi tracks, and once on

the mono track. Additionally, your VCR is able to receive Sepa-

rate Audio Program broadcasts, also known as an S.A.P. broad-

cast. An S.A.P. broadcast is .an alternative audio soundtrack for a

program; it is often a soundtrack in another language.

You can use the normal recording function to record the S.A.P.

broadcast on the mono track by choosing"Stereo+SAP." Other-

wise, choose "Stereo." In either case, the main program is re-

corded on the stereo Hi-Fi track. Also, if there is no S.A.P. broad-

cast, the VCR will record the main program on the mono track.

Chapter3: OperatingYourVCR Usingthe AudioandVideoFunctions(cont.)

:Q 0 Q I

Be careful if you choose S.A.P. If you play your tapes on a non-

Hi-Fi VCR, you only [lear the mono track. You may have to watch

your favorite show in a language you don't an derstand!

recordingspeed(RECspeed)

The recording speed has an eifect on picture quality. SP produces

the best picture quality and records up to two hours of video on a

T-120 tape. Mitsubishi's EP speed has only slightly poorer qual-

ity, and records up to six hours on a T-120.

tape(Tape)

Adjust this function to ensure the accuracy of' the Tape Remain-

ing display. If you are using a tape that is two hours long or less

(labeled T-30 through T-120), set this function to "T-120." If you

are using a tape labeled T-160, select "T-160." If you are using a

tape labeled T-180, select "T-180." If you are using a tape labeled

T-210, select "T-210." You cannot use this fanction with a tape

that is less than 30 minutes long.

index search(Indexsearch)

Index search is a very useful way to find specific points on a tape.

(For more information on this feature, please see page 46.)

counterzerostop(Counterzerostop)

This function is used to autonmtically fas; tbrward or rewind to

"0H00M00S" and stop the tape. (For more information on this

feature, please see page 45.)

Selectingand adjustingthe audioandvideo functions

Below are instructions on how to select and adjust the audio and

video functions.

Beforeyoubegin,you needto know:

• how to view the pictur_ coming from your VCR (page 20).

O Press the AUDIO/VIDEO button on the. remote control[ to see

the function menu.

Press the AUDIONIDEO button until the function you want

to adjust appears.

,ooo OI

1o69® I

:i(o (,] (,)ol

I,OO

I !0[:J [::22:3 lS_j

VCR

REC speed SP

9[_--ADJUST 1;o selecz

Press the ADJUST buttons on the remot_ to adjust the

setting. The functions will[ disappear if you do not press any

buttons for 5 seconds.

_Important: ThefunctionmenudoesnotappearwhentheotherVCRmenus

aredisplayed;orduringspecialeffectsplayback.Therecording

speed(RECspeed)andtape:Functionsdonotappearduring

playback.

Recording

Important:

Your new VCR offers a wide variety of recording options that take

full advantage of our advanced electronics This section tells you

about the following recording procedures:

• Recording a current broadcast,

• Programming your VC,R to record,

• Using One-Touch Recording (OTR),

• Using One Key Programming,

• Using Quick Program, and

• Notes about programmed recording.

Recordinga current broadcast

Beforeyoubegin,youneedto knowhow:

• to view the pic',ture coming from your VCR. (See page 20.)

To record a TV program that is currently playing:

O Load a tape with its erasure tab intact into the VCR.

If you have not already done so, set the speed at which you

would like to record. (Se_ "Selecting and adjusting the audio

and video functions" on page 30.)

Set the VCR's input to tuner. To do this, press the INPUT

button on the remote until the channel number shows; on-

screen or on the fl'ont panel display.

OSelect the channel you would like to record by using tlhe

CHANNEL button on the remote control or on the front

panel. (If you are using a cable box, select channel 3 or 4 on

the VCR, and change the channel on the cable box, not on the

VCR. Additionally, if you are using an A_B switch, remember

to see the switch to the correct position.)

Press the record button (REC) on the remote control or the

record button (REC/OTRI on the front p_mel of the VCR.

Recording will start. When you reach the end of the tape, the

VCR will automatically rewind. You can stop recording at any

time by pressing the PLAY/SloOP or PAUSE button. To resume

recording from STOP, press REC. To resume recording from

PAUSE, press PAUSE. (You cannot use the REC/OTR button to

resume recording from PAUSE.)

If you pause the VCR for five minutes, recording will stop auto-

Chapter3:OperatingYourVCR Recording(cont.)

Your choices are:

L_II _II I[-I.P. | d+- I I tII _[.II II=I_ • | €

_Customize choices

OFirst Time Set-Up

Q Day - -

o start time

0 Stop time

ORecord speed AUTO

Channel , 2

0 Start time

Stop time

ORecord speed AUTO

_Important:

matically to protect the tape. If you record in extended play (EP),

you will only be able to play the tape on a VCR equipped fi>rEP

play, such as this one.

If you attempt to record on a tape that has had its erasure pre-

vention tab removed, the VCR will eject the tape.

Programming yourVCRto record

You can program your VCR to record with th _ help of Mitsubishi's

on-screen operating system. You can schedule up to eight record-

ing "events" within a one month period.

Beforeyoubegin,youmust:

•know how to view the picture coming from your VCR; (see

page 20) and

• have set the clock. (See page 23).

To program your VCR to recc.rd:

Load a tape with its erasure tab intact into the VCR.

OPress the MENU button on the remote control. The "VCR

Main Menu" appears on your screen. Use the ADJUST

buttons on the remote control to select "Program to record."

Press the ENTER button.

If there is at least one programmed recording already entered,

you will see the "recap" screen. You can (hoose an ampty

recording slot, or wait four seconds and the VCR will auto-

matically choose the first empty slot.

0 You will see the "Program to record" menu. Press the AD-.

JUST buttons to choose the channel you would like to record

(for example, channel 2). Press the ENTER button.

•If you are using a cable box, enter the channel number on

which the cable box sends a signal to your VCR (usually

channel 3 or 4).

• If you wish to record fi+om an external source, press the

INPUT button or press the ADJUST buttons until "'Exter-

nal" appears.

O The "Day" will flash. Press the ADJUST buttons to choose the

day on which you want to record (for example, Monday the

seventeenth). Press the ENTER button.

When selecting a day, your choices are: a sdngle day up to one

month away, every day from Monday through Friday, or the same

day every week. To program for every day from Monday through

Friday (to tape a soap opera, for example), press the ADJUST

buttons until "Monday-Friday" appears. To program the same day

every week (to tape your faw)rite weekly siU:om, for example),

press the ADJUST buttons until "Every" and the desired day of

the week appear.

0Channel 2

0Day Monday 17 ,I

1,1-0%a

0 Stop rime

Record speed AUTO

0The hour numbers of the starting time, along with the am/pm

indicator, will flash. Press the ADJUST buttons to set; the

hour when you wish recording to start. Fress the ENTER

button.

0 Channel 2

Day Monday 1,7

11¢3O_m

Stop time

ORecord speed AUTO

0The minute numbers of the start time will flash. Press the

ADJUST buttons to set the minutes when you wish recording

to start. Press the ENTER button.

0Channel 2

ODay Monday 17

OStart %ime l_:30_m

0 Record speed AUTO _

@The hour numbers of the stop time, along with the amJpm

indicator, will flash. Press the ADJUST buttons to set the

hour when you wish recording to stop. Press the ENTER

button.

0 Channel 2

Day Monday 17

O Start time ii _Oam

ORecord speed AUTO

0The minute numbers of the stop time will flash. Press the

ADJUST buttons to set the minutes when you wish recording

to stop. Press the ENTER button.

0 Channel 2

ODay Monday 17

OStar_ _ime ll:30am

OS%oP _ime l:30Pm

0Press the ADJUST buttons to set the recording speed (SP, EP,

or auto recording speed (AUTO)). (See "auto speed program-

ming" on page 39 for an explanation of tbe auto speed record-

ing feature.) Press the ENTER button.

CH DAY ON OFF

2 MOlT ll:30a I:30pSP

--: .... :-- SP

: : SP

The contents of the programmed memory will appear on the

"recap" screen.

To program additional recording times, select an empty

program line by pressing the ADJUST buttons. Then, press

the ENTER button. You will return to the "Program to record"

screen. Continue the programming procedure from step @).

Chapter3:OperatingYourVCR Recording(cont.)

_Important:

Important:

Only four of the eight program lines appear on-screen at any one

time. To see additional program lines, press the ADJUST buttons

to scroll the lines on the screen.

OWhen you are finished with all programming, turn the VCR

power OFF and make sure the programmed recording light is

lit. However, if you have a cable box, leaw_ it turned ON and

tuned to the station you wish to record. Additionally, if you

are using an A/B ,;witch, remember to set the switch to. the

correct position.

cancelinga recordinginprogress

There are two ways to cancel a recording in p:cogress.

1. Press the PLAY/STOP butson. The record:rag is stopped, but

the program is not cancelled. Therefore, if you press REC, the

recording will start again.

2. Press the POWER button on the front panel. The recording is

stopped and the program is cancelled.

changingsettingswhileprogramming

If you wish to change one of your settings (su:h as start time)

while you are programming, press the ENTER and CANCEL on

the remote to select the setting you wish to change. ENTER will

move you forward through the list, while CANCEL will move you

backwards. Then, use the ADJUST button.,; to change the setting.

If you press the CANCEL button while the channel number is

flashing, you will cancel the _ntire program.

UsingOne-Touch Recording(OTR)

One-Touch Recording (also called OTR) is a way to begin record-

ing immediately, but have your VCR stop recording and turn off

automatically after your show is over.

Before you begin, you need to knowhow:

• to view the picture coming from your VCR. (See page 20.)

O Load a tape with its erasure tab intact into the VCR.

If you have not already done so, set the speed at which you

would like to record. (See "Selecting and adjusting the audio

and video functions" on page 30.)

Set the VCR's input to tuner. To do this, press the INPUT

button on the remote until the channel number shows on--

screen or on the fi'ont panel display.

Use the CHANNEL buttons on the remoLe control or on the

front panel to select the channel you would like to record.

_Important:

If youareusingacablebox,selectchannel3 or4ontheVCR,

andchangethechannelonthecablebox.Additionally,if you

areusinganA/Bswitch,rememberto settheswitch1;othe

correctposition.

OPress the REC/OTR button on the fi'ont panel twice. The first

time you press the button, recording will begin. The second

time you press the button, 30 minutes is added to the OTR

timer, which is displayed on the front panel.

OPress the REC/OTR button for each 3(1 minutes you want to

add to the OTR timer, up to 4 hours. If you press the button

10 times, you will see the word "End" on the front panel

display. The VCR will record until the end of the tape. If you

press the button an elewmth time, the VCR will resume

normal recording.

The OTR timer will begin to count down. When it reaches zero,

the VCR will stop recording and turn off. ]if you have previously

programmed your VCR to record, the VCR will be ready to record

what you've programmed. If the end of the t_pe is reached before

OTR is finished, the VCR wil! stop and the power will turn off.

If you attempt to record on a tape that ha.,; t:ad its erasure pre-

vention tab removed, the VC R will eject the tape.

If youprogramtoo muchtime intothe OTRtimer,

continue pressing the REC/OTR button. You will "cycle" around

once you have reached the 4-hour point. Ym:: can start over,

adding time in 30 minute inl_ervals.

howOTRaffects othercontrols

If you press the PAUSE button during OTR: the VCR will pause

recording, but the OTR timer continues to count down.

If you press PLAY/STOP during OTR, you erase the OTR pro-

gramming.

You cannot use the REC/OTR button on the front panel to resume

recording from the record-pause mode.

Using One Key Programming

One Key Programming is a programming method that is simple

to use and easy to learn, without using the remote control.

Beforeyou begin,

• you need to know how to view the l:,icbure coming from your

VCR; (see page 20) and

• you must have set the clock. (See page 23.)

Chapter3: OperatingYourVCR Recording(cont.)

ODay - -

Start time

0 S_oP time

Record speed AUTO

Channel -_ , j2

--_gnaay.l__7--

OStart time

0Stop time

0 Record speed AUTO

To use One-Key Programming:

OLoad a tape with its erasure tab intact into the VCR.

OPress the ONE KEY PROGRAM button. (If you have not set

the time, the "Set the clock" menu will appear. Set the clock,

and then proceed.) If there is already a program in the VCR's

memory, you will see the "recap" screen. You can use the ONE

KEY PROGRAM button to select an empty programming slot,

or you can wait 4 seconds for the VCR to ,automatically select

an empty slot.

OYou will see the "Program to record" screen. Press the ONE

KEY PROGRAM button until the channel you would like to

record (for example, channel 2) appears. Then, wait for 4

seconds. The word "Day" will be automatically highlighted.

• If you are recording from a cable box, s_t the channel to 3

or 4, whichever the cable box sends signals on.

• If you wish to record from an external source, press the

ONE KEY PROGRAM button until "External" appears.

OPress the ONE KEY PROGRAM button to choose the day you

would like to record (for example, Monday the seventeenth).

Then, wait tbr 4 seconds. The hour numbers of the starting

time will flash.

0Channel 2

ODay Monday 17_

0 Stop time

Record speed AUTO

0Channel 2

Monday i_7

ll_30_m

Stop time " \

ORecord speed AUTO

Press the ONE KEY PROGRAM button to choose the hour

when you wish recording _o start. Then, wait for 4 seconds.

The minute numbers will begin to flash.

Press the ONE KEY PROGRAM button t,_ choose the minute

when you wish recording to start. Then, wait for 4 seconds.

The word "Stop time" will be highlighted.

Channel 2

0 Day Monday 17

OStart time i$:30_m

Record speed

@Press the ONE KEY PROGRAM button to choose the hour

when you wish recording to stop. Then, _ait for 4 seconds.

The minute numbers will begin to flash.

Channel 2

Day Honday 12

1.1.:_oam

1+3C_m

Record speed AUtO

0 Channel 2

Day Monday 17

OStart time Ii :30am

(_ S'coe time i:3ppm

-_,_-

_Important:

Press the ONE KEY PROGRAM button Lochoose the minute

when you wish recording to stop. Then, wait for 4 seconds.

The record speed will flash.

OPress the ONE KEY PROGRAM button to set the recording

speed. After 4 seconds, the menus will turn off.

@When you are finished with all programming, turn the VCR

power OFF and make sure the programraed recording light is

lit. However, if you have a cable box, leave it turned ON and

tuned to the channel you wish to record. Additionally,, if you

are using an A/B switch, remember to set the switch to the

correct position.

The VCR is ready to record what you've programmed.

changingsettingswhileprogramming

If you make a mistake when using One Key Program:

0Press the FF or REW buttons on the front panel to select the

setting you wish to change. Pressing the FF button will move

you forward, while pressing the REW bu Lton will move you

backward. If you wish to use the remote :ontrol, you can use

ENTER to move forward or CANCEl, to move backward.

Once you have chosen a setting, you can change it by using

the PLAY/STOP button on the front panel or the ADJUST

buttons on the remote control.

Once you have corrected the setting, pre_,;s the FF button or

press ENTER button to resume your place.

If you press CANCEL or REW while the channel number is

flashing, you will cancel the entire program. If you want to stop

using One Key Programming before you corn plete programming,

press the MENU button on the remote control.

Using Quick Program

Quick Program is an exclusive Mitsubishi feature that simplifies

the process of programming your VCR to record. When you press

the QUICK PROGRAM button on the remote control, you will

immediately see the "Prograra to record" menu and can begin

programming right away.

You can use this feature even when the VCR is stopped, playing,

recording, fast forwarding, rewinding, or off. However, the

QUICK PROGRAM button does not function during One Key

Programming.

To use quick program:

Chapter3: OperatingYourVCR Recording(cont.)

B,][-d'_

ODay --

OStart _ime

S_op time

ORecord speed AUTO

'_@_--ADJUST_oselec_

CH DAY

2 MOlT

i0 TH20

7 E-HE

29 FR21

8 TU25

33 M-F

15 SA 6

46 SU23

ON OFF

ll:30a I:30PSP

9:00pIO:OOpEP

8:OOa 9:00aEP

5:30p 5:45PEP

ll:OOP 0:30aSP

7:OOP 7:ISpEP

8:00p 9:00PEP

7:OOa 9:00aSP

_Important:

E>Important:

@Press the QUICK PROGRAM button on the remote control. If

the VCR is off, it will turn on. After tuning your TV to the

correct channel or input, you will see the _'Program to record"

screen, unless the VCR's memory is tiff].

If the VCR's memory is full, you will see the recap screen

(below left) instead of the "Program to record" screen. "You will

need to use the C,a_NCEL button to erase an entry before you

can add another one.

OComplete programming as described in "l)rogramming your

VCR to record." When you are finished, press the QUICK

PROGRAM button again. If the VCR is sl;opped, it will turn

off and be ready to record your program at a later time. If the

VCR is playing, recording, fast forwarding or rewinding, the

menus will turn off, but tlhe VCR power will remain on.

When you are finished with all prograraming, be sure to turn

the VCR power OFF and the programmed recording light is

lit. However, if you have a cable box, leave it turned ON and

tuned to the station you wish to record. Additionally, if you

are using an A/B switch, remember to ,_et the switch to the

correct position.

If you press the QUICK PROGRAM button, but the clock is not

set, you will see the "Set the clock" menu.

Notes aboutprogrammedrecording

You cannot use the VCR when the programmed recording light is

lit. If you want to use the.VCR before programmed recording

begins, press the POWER button on the rem _te once. This turns

the programmed recording light off and the VCR on.

If you use the POWER button on the front panel for this purpose,

you will have to press it twice. Pressing it once turns offthe

programmed recording light; pressing it a second time turns the

VCR on.

When you are finished using the VCR, turn 1;he VCR power off

again, either with the POWF, R button on the remote or the

POWER button on the front panel. Make sure the programmed

recording light is back on.

After a program has been recorded, the VCR memory is cleared

(unless you have scheduled the VCR to record the program every

day or every week).

If there is already a program in the VCR's memory, you will see

the "recap" screen when you bring up the menus for programming

to record (unless you are programming with QUICK PROGRAM).

If the VCR's memory is full, you must erase a program before you

can enter a new one.

E>Important:

If a tape runs out during programmed recording, the VCR ejects

the tape and the programmed recording light and the tape status

symbol will flash. Load a new tape and press the REC button. The

VCR will resume recording. Do not overlap the recording times

you program.

Remember that when your VCR is off, it may also be in stand-by

for programmed recording. A] so remember that the VCR, when

programmed, will record over the next section of tape. So, to avoid

recording over tapes you want to save, remernber that the VCR

automatically shuts off durin:g OTR recording and auto power

saving.

Your VCR will not record over a tape that has the erasure preven-

tion tab removed (see "Preventing accidental erasure"). All rental

movies have this tab removed, so they are sal'e from being acci-

dentally erased.

autospeedprogramming

Use auto speed programming if you want to record as much of the

program as possible in standard play (SP) speed, but you want

the VCR to automatically switch to extended play (EP) if there is

not enough tape left.

Auto speed programming is only available in one programming

slot. In the first, slot, the recording speed is automatically set to

AUTO. If you want to use auto speed prograrlming in this pro-

gramming slot, you don't need to change anything.

Make sure that the "Tape" video function ma Lches the kind of

tape you are using. (See "Selecting and adjus Ling the audio and

video functions" on page 30.)

Set the time for recording to end a minute or two beyond the

program's scheduled broadcast time.

programmingTVprogramsthatendonthedayafter

If you want to start the recording at 11:00 Phi and end it at 2:00

AM the next day, simply set the start time to 11:00 PM on the

recording start day and the end time to 2:00 AM. There is no need

to change the day of the week.

skipping programs

If you have already entered a program into your VCR's memory,

you can skip the program without going into Lhe VCR's menus.

Simply press the POWER button on the front panel once. The

programmed recording light will turn off, and the program will be

skipped. If you decide not to skip the program, press the POWER

button on the front panel twice; the programmed recording light

will light up again.

Chapter3:OperatingYourVCR Recording(cont.)

CH DAY ON OFF

2 NO17 ll:30a I:30pSP

i0 TH20 9:00pIO:OOPEP

..... : : SP

::SP

_Prosram 1;orecore_#:._a_

CH DAY ON OFF

2 MOlT ll:30a I:30PSP

i0 TH20 9:00pIO:OOPEP

..... : : SP

: : SP

changingprogrammedrecordingsettings

If you want to change the programmed recording settings:

O Press the MENU button on the remote c_ntrol. Your VCR

will turn on and the "VCR Main Menu" will appear on your

screen.

Press the ADJUST buttons to select "Program to record."

Press the ENTER button. You'll see the 'recap" screen.

O Press the ADJUST buttons to place the cursor next to the

program you wish to change. Press the F,NTER button. You

will see the "Program to record" menu.

O Repeatedly press the ENTER button to _;elect the item you

wish to change. Use the ADJUST buttorls to change it,.

Use the MENU button to turn off the menus. Then, use the

POWER button to turn off the VCR. Make sure the pro-

grammed recording light is on.

cancelinga programmedrecording

0Press the MENU button on the remote control. Your VCR will

turn on and the '_VCR Main Menu" appears on your screen.

Use the ADJUST buttons on the remote control to select

"Program to record." Press the ENTER button.

You will see the _'recap" ,_creen. Use the ADJUST buttons to

place the cursor next to the program yot. wish to cancel.

O Press the CANCEL button. The program is erased.

Press the MENU button once to return to the "VCR Main

Menu;" press it again to turn offthe n:tenus.

loadingatape forprogramming

If, after programming, you fi)rget to load a tape, or if you load a

tape with its erasure tab removed, then the programmed record-

ing light and the tape status symbol will fla_;h. A tape wkhout an

erasure tab will be ejected. To correct this, load a tape with its

erasure tab intact, and turn off the VCR.

mem0n]backup

If the VCR is without power for 30 seconds (,r less, it will retain

the time and the programmed settings, provided the VCP has

been plugged in for at least an hour beforehand. If the power is

lost for more than 30 seconds, the time and ;he programmed

settings will be lost.

ACHAPTER FOUR

U ng tlle AdvancedFeatures

Now that you've learned about the basic operation of your VCR,

you're ready to discover its advanced featul_e,_. You'll find :infor-

mation on:

Using the AdvancedPlayback Controls

Displayingthe RemainingTime andthe PresentTime

Searching Techniques

$ Using the Advanced Options

Makinga Copy of a Tape

t Using Child Lock

Before you use the advanced t'eatures, you should be familiar with

all of the VCR's basic operations, including viewing a picture

coming from your VCR (page 20), playing back a tape (page 22),

using the menus (page 23), and recording (page 31). If you find

any of the information in this section confusing, you may want to

review the previous chapters.

Using the AdvancedPlayback Controls

In this section, you'll discover some of the advanced playback

features of your VCR. These i[]clude:

• Using special effects,

• Adjusting the tracking, and

• Using the time counter.

Using special effects

You can use the FF and REW buttons to cont::ol the playback

speed of the tape in a step-by-step method.

using the FFandREWbuttonsto control theplayback=_peed

OWhile the VCR is playing a tape, press th,_ PAUSE button on

the remote control to free2:e the picture oi".the screen.

OPress the FF or REW button. Each press of the FF button

changes the playback speed by one step i_::the forward direc-

tion. Each press of the REW button chan_es the speed by one

step in the reverse direction. (See the .cha:'t on the next page.)

To resume normal playback, press the PLAY/STOP bu.tton.

_Important: After about five minutes in th,_ still or slow-motion mode, the

VCR will automatically stop to avoid damage to the tape.

Chapter4: UsingtheAdvancedFeatures UsingtheAdvancedPlaybackControls(cont.)

High speed search (EP mode only)

Speed search _> j

uic,

Press REW button Playback

1/5 slow-motion playback

1/10 slow-motion playback

1/30 slow-motion playback _>

Still ]

1/30 reverse slow-motion playback ] /,

1/10 reverse slow-motion playback ] /

1/5 reverse slow-motion playback |

Reverse playbac_ __ /Press I-F button

Reverse speed search _J

Reverse high _ _ (-_- _ o-_y) J '

_>Important:

E>Important:

D (digital tracking)light

II _111 II I_1 sPF.t_._

I_1,I. I.I ,,I.I I.I s

[:>Important:

Depending on the type of TV you are using, the picture may

vibrate vertically when you pause the VCI:"s picture.

usingstill adjustment

Sometimes during still frame, the picture may vibrate or shake.

To correct this problem, press the CHANNEL buttons on the front

panel until the vibration is reduced or stops. (Side-to-side vibra-

tion cannot be corrected.)

usingthetwo times playbackwithsound

You can see the contents of the videotape in double speed play-

back with Hi-Fi sound. Two times playback with sound is only

used if your tape was recorded in extended (EP) speed. To do this:

OWhile the VCR is playing; a tape, press the INPUT button on

the remote control. You'll see the picture in double speed

playback. A certain amount of"noise" :in the picture or the

sound is normal.

To resume normal playback, press the PLAY/STOP button.

If you are playing back a tape recorded in standard (SP) speed,

the sound is muted.

You cannot hear the sound if you set the audio monitor to "Mono."

Adjustingthe tracking

automatic tracking

Your VCR automatically adjusts the tape to give you the best;

quality picture. When you press the PLAY/STOP button to start

playback, the DIGITAL TRACKING light (l_) will flash, showing

that the VCR is adjusting the picture. When the VCR has; finished

adjusting the picture, the DIGITAL TRACKING light will shine

steadily.

A certain amount of"noise" in the picture or sound is normal

while the VCR is tracking a tape.

manualtracking

From time to time, you might play a tape that has excess "noise"

in the picture (often looking like vibration or interference at the

top or bottom of the screen). To correct the p: cture, you will have

to manually track the tape.

O While the tape is playing, press the CHANNEL buttons on

the front panel until the picture is clear of excess "noise."

O To continue automatic tracking, press both front panel

CHANNEL buttons at the same time. AtLtomatic tracMng will

also resume when you eject the tape.

slow tracking

Slow tracking is used to adjust the playback quality during slow

motion playback and still frame. You can only use slow tracking if

your tape was recorded in exl;ended play (FP) speed. To adjust the

slow tracking, put a tape into slow motion, then press the CHAN-

NEL buttons on the front panel of the VCR until the best picture

is obtained.

Time counter

I o

II .111 II I.I sP_-PEL_

I_1HI_I_1.I.I I.I s

Usingthe time counter

Your VCR has a time counter' that shows the amount of time the

tape has run in hours, minutes, and seconds. This counter is

useful when you want to find specific points on a tape. The

counter will not work with blank tapes, on b] ank sections of tape,

or when the VCR's power is off.

setting the counter

To set the counter to "0H00M00s," press the C_LNCEL button on

the remote control. (You cannot reset the counter if the VCR

channel number is being displayed on the _PVor if you are using

the VCR's menus.)

Your VCR will automatically reset the counter to "0u00._00s"

when you load a tape into the VCR. It will dL,;play "- H - - M- - s"

when there is no tape in the VCR.

Displayingthe RemainingTimeandthe PresentTime

This sections explains displaying the remaining time and present

time.

Displayingthe time gauge andthe remaining time

The time gauge is a graphic representation of your position on a

video tape. The left side of the gauge is the start (S) of the tape,

and the right side is the end (E) of the tape. For a T-120 length

tape, played at standard (SP) speed, each rnaFk on the gauge

represents about 15 minutes. The remaining .ime display shows

the time, in hours and minutes, left until tlqe end of a tape.

Chapter4:UsingtheAdvancedFeatures Displayingthe RemainingTimeandthe PresentTime(cont.)

Time gauge

¥CR

Stop

REH l:40--

Oh2OmO8s

Tape remaining display

I-II I'I "1 -ISP

I" -JU:J)

_Important:

Present time display

lPM $U

I'1. "! I'1 "1 "1sP [2_

l.] U-I _'l

VCR

Stop

Sun 7:30p_

Oh2OmOes_

Present time display

Thetimegaugeandthe remainingtimeautomaticallyappear:

during fast forward and rewind (from a stopped tape), during

counter zero stop and during index searches.

You can turn off the time gauge and the remaining time by

pressing the DISPLAY button twice.

To makethetime gaugeand theremainingtime appear:

Press the DISPLAY button once. The time gauge and remaining

time will appear on the TV screen, and the r<_.maining time will

appear on the fluorescent display. They will disappear after four

seconds when playing a tape. To turn off the display, press the

DISPLAY button twice.

The time gauge and remaining time work by detecting control

signals on recorded tapes. They will therefi)re not function with

tapes that have not yet been recorded. Also, you must have set

the "Tape" video function correctly.

Depending on the length of the tape being used, it may take a

moment for the display to appear.

The tape remaining display raay not show the correct remaining

time if the tape function is incorrectly set (see "Using the Audio

and Video Functions" on page 28), if you are using speed search, if

you are using a special length cassette (such as T-10 length), or if

you are using a cassette with an adapter.

Displaying the present time

The present time display on r.he fluorescent display panel or on

the TV screen shows the current time. If you have not set the

clock, or if there has been a power failure of ::onger than 30

seconds, the display will show - : - -. The current time will be

displayed when the VCR is off. To see the current time when the

VCR is on:

OPress the DISPLAY button on the remote control twice. The

counter will be replaced by the present t:me.

To turn offthe present time, press DISPLAY once.

4, Searching Techniques

The VCR lets you search through a tape in a number of ways.

These include:

• Quick searching,

• Speed searching,

• Using counter zero stop, and

• Index search techniques.

_Important:

Quicksearching

This feature lets you skip over the tape you are playing in about

30 second intervals. It is designed so that you can quickly speed

through any commercials you may have recorded. To do this:

O Make sure that you have set the VCR remote to "VCR" mode.

OWhile playing a tape, choose the desired search time by

pressing the number button. (See the following chart..) The

VCR will speed through the selected length of tape, then

resume playback.

Number

button

time

1 I 2 3 4 5 6

30 t 60 90 120 150 180

ii_sec, i sec. i sec. i see. i sec. ] sec. I

You can set the search time up to 3 minutes

Speed searching

You can use speed search to visually search Lhrough the contents

of a videotape. To do this:

O While playing a tape, press the FF or REW button. You will

see the picture as it fast forwards or rewinds. It is normal to

see some "noise bars."

OIf you are playing back a tape recorded in extended (EP)

speed, press the FF or REW button and hold it down ibr about

1 second. The search speed will increase. (In case of a tape

recorded in standard (SP), the speed will not change.)

O To resume normal playback, press FF or REW again quickly,

or press PLAY/STOP.

The fastest search speed that allows you to see the picture is

about 15 times normal speed. Using fast forward or rewind

without the picture allows you to search up to 200 times normal

speed. The fastest way to move through the tape is without a

picture. It is normal for the number of noise bars on the screen to

increase and roll from top to bottom as the vi_;ual search speed

increases.

Usingcounterzero stop

Counter zero stop is useful to quickly access t._ the beginning of a

recorded or playback section of a tape. The VCR will automati-

cally fast forward or rewind tc "0H00M00S" am! stop the tape.

O Press the CANCEL button on the remote ,:ontrol at the point

you wish to locate later. The counter will reset to "0H00M00S."

Chapter4: Usingthe AdvancedFeatures SearchingTechniques(cont.)

VCR

Counter zero s_op

_]_--ADJUST to select

_Important:

VCR

Index search

_-ADJUST to select

VCR Lookins

for index+ i

S[l .IE

REM 1:40

Oh2Om08s

0When you wish to return to the point specified in step O,

press the AUDIO/VIDEO button on the remote control. The

function menu appears on your screen. Press the AUDIO/

VIDEO button until the counter zero stop function appears.

i_ Press the ADJUST + button to start the counter zero sl;op.

The VCR will automatically search to tile counter "0H00M00s"

and then stop.

Indexsearchtechniques

Index search is a way to find ';pecific points on a tape. Before

using index search, index marks are placed al; important places

on a tape. Then, index search is used to find these marks. Index

marks are added automatically whenever your VCR starts a new

recording; you can also add index marks manually at any point

during recording.

automaticindexmarks

Whenever recording is begun from the STOP mode, an index

mark is automatically added to the tape. The on-screen message

will indicate that the mark is being recorded.

Index marks are not added when you press PAUSE to begin

recording from the record-pause mode.

manualindexmarks

To add an index mark yourself, press the RE C button on the

remote control while a tape i,; recording.

Index marks must be added at least one min ate apart.

To search for an index mark:

O Press the AUDIO/VIDEO button on the remote control. The

function menu appears on your screen. Press the AUDIO/

VIDEO button until the index search function appears.

OPress the ADJUST "+" button to start a tbrward search; press

ADJUST "-" to begin a search in the reverse direction. The

VCR will fast forward or rewind and index search display

(below left) appears on the TV. Once the VCR finds an index

mark, it will begin playing back the tape from that point.

OYou can press the plus (+) or minus (-) buttons up to !9 times

to search for that many index marks. For example, to find the

third index mark ahead, press the plus (+) button three times.

The on-screen display will count down the number of marks

to be passed before playback begins.

O To cancel index search, press PLAY!STOP.

+Usingthe AdvancedOptions

You can make some optional setup choices. This section explains:

• Using the auto daylight saving time,

• Using the auto power saving (auto-off): and

• Setting the RF converter.

Usingthe auto daylight saving time

When you set the daylight saving time setting to on, your VCR

will automatically adjust the ,:lock for Daylight Saving Time.

_>Important:

Your choices are:

_Program _o record

Ikll I+.'+III.4[.111| Ip_[,=] IDhl.l.lJ II._I

First Time Set-Up

With the auto daylight saving time is ON, your VCR will auto-

matically change the clock from 2 AM to 3 AM on first Sunday in

April, and change from 3 AM back to 2 AM on last Sunday in

October. Remember that when you programmed on these (lays,

your recording length may be affected becaus _ the VCR clock

automatically changes.

To use the auto daylight saving time:

O Press the MENU button on the remote control. The '_CR

Main Menu" appears on your TV.

_Video mute (ON )

(OFF)

Auto power save (OFF)

ORF converter (ON )

0Use the ADJUST buttons on the remote t,o select "Customize

choices." Press the ENTER button.

The "Customize choices" menu will appear. Use the ADJUST

buttons to select .Auto D.,_.T. Then, press the ENTER button

to select ON.

Press the MENU button once to return to the "VCR Main

Menu;" press the MENU button a second time to turn off the

menus.

_>Important: Do not use this feature if you live in an area that does not observe

daylight savings time, such as Arizona, Indiana, or Hawaii.

Usingthe auto powersaving(auto-off)

Your choices are:

_Program to record

0Firs_ Time Set-Up

With Auto power save on, your VCR will automatically turn off

after 30 minutes if you are not: using any of th e buttons and

control or there is no cassette loaded into the VCR.

To use the auto power saving:

O Press the MENU button on the remote control. The "VCR

Main Menu" appears on your TV.

Use the ADJUST buttons on the remote to select "Customize

choices" and press the ENTER button.

Chapter4:UsingtheAdvancedFeatures UsingtheAdvancedOptions(cont.)

0Video mute (ON )

OAu_o D.S.T. (OFF)

D] flk]ll,4 II-.l ] I[=-)a_.-"tt:i.j (OFF)

0RF converter (ON )

The "Customize choices" menu will appear. Use the ADJUST

buttons to select "Auto power save." Then, press the ENTER

button to set to ON.

Press the MENU" button once to return to the '_CR Main

Menu;" press the, MENU button a second time to turn off the

menus.

_>Important:

Your choices are:

_'Prosram zo record

Pllll!--i ,E.]. p_4:!1-991.) I_ =

OFirst Time Se_-Up

Video mu_e (ON )

OAuto D.S.T. (OFF)

OAuzo power save (OFF)

(ON)

_>Important:

When you are viewing broadcast stations through the VCR, the

words "3minutes->Power off' will appear on TV screen three

minutes before the VCR power turns off. The display will count

down the number of minute_,; until the VCR turns off. If you want

to continue using VCR, load a cassette or press any of the but-

tons.

Setting the RF converter

If you are using an older TV without audio and video inputs, the

RF converter will need to be set to ON. The setting "RF con-

verter" of the "Customize choices" menu is preset by the factory to

ON. If you are using a modern TV with both Audio and Video

inputs, you will need to be set to RF conw_rter to OFF.

To set the RF conver_er:

O Press the MENU button on the remote control. The '_VCR

Main Menu" appears on your TV.

Use the ADJUST buttors on the remote to select "Customize

choices." Press _he ENTER button.

O The "Customize choices '_menu will appear. Use the _DJUST

buttons to select "RF converter." Then, press the ENTER

button to set the RF converter to ON or OFF.

Press the MENU button once to return ;o the "VCR Main

Menu;" press the MENU button a second time to turn offthe

menus.

If the "RF converter" is set to ON, you don't need to press the

VCR!TV button when viewing tapes. The "VCR" light will auto-

matically light up when you press the PLAY/STOP button.

Makinga Copy ofa Tape

There are two basic ways to make a copy of a tape. One way is to

use the HS-U420 to play a tape and use another VCR to record.

The other way is to use another VCR to play a tape and the

HS-U420 to record.

Whichever method you choose, you will need one RCA audio cable

and one RCA video cable to connect the two VCRs. If you do not

have these cables, they are available at your local electronics

retailer. In this section you'll ]earn:

• Using your HS-U420 to record from another VCR, and

• Using your HS-U420 to play back to another VCR.

Usingyour HS-U420to recordfrom anotherVCR

HS-U420 [RECORDING I I PLAYBACK ]

mlm_ mm

tit

VEDEOOUT@0 _-AUDIO OUT R

OUT'

Connect one RCA audio cable to the

AUDIO OUTPUT terminal on the other

VCR. Connect the other end of this cable

to the AUDIO INPUT terminal on the

HS-U420 labeled L/MONO. If the other

VCR is mono, this is the only audio

connection necessary.

If the other VCR has stereo outputs,

connect another RCA audio cable to the

AUDIO OUTPUT terminal of the playback

VCR. Connect the other end of this cable

to the AUDIO INPUT terminal on the

HS-U420 (labeled R).

Connect a video cable to the VIDEO

OUTPUT terminal on the playback VCR.

Connect the other end of this cable to the

VIDEO INPUT terminal on the HS-U420

(labeled VIDEO IN).

O If the other VCR is a Hi-Fi deck, set the

audio monitor to "STEREO."

Use the INPUT button to set the HS-U420

to External. ("L" will[ be displayed on the

fluorescent display.)

Put a blank tape into the HS-U420 and.

find where you want to begin recording.

Press PLAY/STOP.

Put the tape you want to copy into the

other VCR and find the place from which

you want to begin copying. Press STOP.

O On the HS-U420, press REC, then

PAUSE.

On the other VCR, press PLAY, then

PAUSE.

Release the PAUSE bt_tton on both VCRs

at the same time.

OWhen tinished, press FLAY/STOP (or

STOP) on both VCRs.

Chapter4: UsingtheAdvancedFeatures Makinga Copyof a Tape(cont.)

Usingyour HS-U420to play backto anotherVCR

[RECORDING]

ii iiiiii

tit

VIDEO IN@ 0_-- R

AUDIO IN

_ _-AUDIO IN L

PLAYBACI< I HS-U420

oooolt

! .o.** GLI

AUDIO OUT _ _.,_VIDEO OUT

AUDIO OUT •

OConnect one RCA audio cable to the AUDIO

INPUT terminal on the other VCR. Connect

the other end of this cable to the AUDIO

OUTPUT terminal on the HS-U420 (labeled

L). If the other VCR is mono, you need a Y-

adapter to record both audio channels.

O Set the input of th,_ other VCR to "Exter-

nal."

OPut a blank tape into the other VCR land

find l:he place where you want to begin

recording. Press STOP.

If the other VCR has stereo outputs, con-

nect another RCA audio cable to the AU-

DIO INPUT terminal of the other VCR.

Connect the other end of this cable to the

AUDIO OUTPUT terminal on the HS-U420

(labeled R).

Connect a video cable to the VIDEO INPUT

terminal on the other VCR. Connect the

other end of this cable to the VIDEO

OUTPUT terminal on the HS-U420 (labeled

VIDEO OUT).

Set the audio monitor on the HS-U420 to

"Stereo." (See "Selecting and adjusting the

audio and video functions," on page 30.)

OPut, the tape you want to copy into the

HS-U420 and find tke place from which

you want to begin copying. Press PLAY/

STOP.

On the other VCR, press record (REC),

and 1;hen PAUSE.

O On the HS-U420, press PLAY/STOP and

then PAUSE.

O Release the PAUSE button on bol:h VCRs

at the same time.

O Press PLAY/STOP (or STOP) on both

VCRs when you are finished.

UsingChildLock

[II 1111 II II

II .I. I_l .liI I.I s

LOCK light

LOCK

-I _ s_

.I . _.

_>Important:

The child lock feature prevents others from using your VCR. To

lock the VCR:

O Press and hold down the DISPLAY button on the remote

control for about 8 seconds. The LOCK light on the fluores-

cent display will light ui3.

To cancel the child lock, press and hold down the DISPLAY

button for about 8 seconds, until the LOCK light goes out.

You can lock the VCR with the power ofT, even if the VCR is

standing by for a programmed recording. If you lock the VCR with

no cassette in it, the VCR will not accept a cassette.

A oul e l 00fing

Problems PossibleSolutions ForMoreInformation

The VCR won't turn on. Check the power cord and the AC outlet.

Is the LOCK light ON? If so, press and hold

the DISPLAY button for more than 8 seconds

until the LOCK light disappears.

See Chapter 1, "Getting to

Know Your VCR"

The VCR power is on but

no controls work. • Turn offthe VCR, unplug the POWER CORD

and then plug it again after leaving _.he VCR

off for about 2 minutes.

• Is the LOCK light ON? If so, press and hold

the DISPLAY button for more than 8 seconds

until the LOCK light disappears.

See Chapter 1, "Getting to

KJ_ow Your VCR."

You can't see the VCR's

picture on your TV.

• Check the TV's input setting.

• Check to see that your VCR is not set to "L."

Se _ Chapter 3, "Operating

Your VCR."

Poor picture when watch- • Check the video channe! setting.

ing the VCR's tuner on your • Check your TV's fine tuning.

TV.

Se ? Chapter 3, "Operating

Your VCR."

VCR REC button doesn't

function. • Check the erasure prevention tab on the

cassette. Se._ Chapter 3, "Operating

"gour VCR."

No picture during

recording.

• Check the hook-up.

• Check to see if your TV is set to the correct

channel or input.

Se,_ Chapter 2, "Connect-

Jn_: Your VCR" oi" Chapter

3, "Operating Your VCR."

VCR does not record TV. Check the VCR tuning.

Check the input selection on the VCR. Does

the front panel display show "L"? If so, you

must switch it to tuner by pressing the INPUT

button.

See Chapter 3, "Operating

"goar VCR."

The VCR timer recording

does not operate.

• Check that the programmed recordir, glight

lights up on the fluorescent display.

• Check the clock time.

See Chapter 3, "Operating

Yolr VCR."

Noise in the picture and • Check the tracking control. Adjust manually if See Chapter 4, "Using the

distorted sound, necessary. Ad canced Features."

Poor or no Hi-Fi sound. ° Check the monitor settings. See Chapter 3, "Operating

• Check the quality of the video tape. Yollr VCR."

Playback is noisy or • Clean the video heads using a dry-type video

"snowy". head cleaning cassette. Do not use a wet-type

cleaning cassette, as it may damage your VCR.

Excessive use of a cleaning cassette could

shorten head life. Be sure to follow the

cleaning instructions carefully.

• Have your VCR video heads c.leaned by a

qualified service technician.

VCR remote does not

function. • Press the VCR button on the remote control

before operating your VCR.

• Press the TV button on the remote control

before operating your TV.

Se,-: Chapter 3, "Operating

Your VCR."

Index

A/B switch ........................... 11

adding channels .................. 27

adjust button ......................... 8

adjusting the tracking ........ 42

advanced features, using .... 41

advanced playback

controls ............................. 41

advanced options ................. 47

antenna, connections .......... 10

antenna terminals ................ 9

audio functions .................... 28

audio input terminals ........... 9

audio inputs, connecting

a TV with .......................... 15

audio monitor ...................... 29

audio output terminals ......... 9

audio/video button ................ 8

auto-off ................................ 47

auto speed programming .... 39

backup, memory .................. 40

basic playback controls ....... 22

batteries, installing ............. 18

cable box, connecting .......... 11

cable, connecting ................. 10

cancel button ............. :........... 8

canceling a programmed

recording .......................... 40

cassette slot ........................... 6

changing programmed

recording settings ...... 34, 37

chapnel buttons ................. 7, 9

channel display ..................... 7

channels,

adding and deleting ......... 27

programming the VCR to

receive ........................... 25

selecting ........................... 28

child lock ............................. 50

cleaning, head ..................... 51

clock, setting ........................ 23

Connecting separate UHF/

VHF antennas .................. 13

Connecting the Antenna or

Cable to the VCR ............. 10

Connecting the Television .. 14

Connecting Your VCR ......... 10

controlling vibration ............ 22

controls, basic playback ...... 22

copy, making one of a tape. 49

counter display ...................... 7

counter, time ....................... 43

counter zero stop ........... 30, 45

daylight savings time .......... 24

daylight savings time, auto 47

deleting channels ................ 27

digital tracking .................... 42

digital tracking light (D). 7, 42

display button ........................ 8

displaying the time gauge

and present time .............. 43

dubbing ................................ 49

eject button ............................ 6

enter button ........................... 9

EP .......................................... 7

erasure, preventing ............. 21

espafiol ................................. 23

fast forward button ........... 6, 9

fast forwarding a tape ......... 22

flat twin leads, connecting.. J_2

fluorescent display ................. 7

fran_ais ................................ "!3

Front Panel Buttons and

Functions ........................... 6

function button ....................... 8

head cleaning ...................... 51

Important Safeguards ........... 2

index

marks ............................... 46

search ......................... 30, 46

input button .......................... 9

installing the batteries ....... 18

language .............................. '..)3

Loading and Unloading

Tapes ................................ 21

lock light ................................ 7

locking th_ VCR .................. 50

manual tracking .................. 43

marks, :index ........................ 46

memorize channels ............. 25

memory backup ................... 40

menu but';on .......................... 9

menus, using to set

the time ............................ 23

Modern TV .......................... 18

Modern TV, viewing the VCR's

picture _n ......................... 20

monitor' (audio monitor) ...... 29

mute button ............................ 8

mute, video ........................... 26

normal recording ................. 29

notes aboat programmed

recording ........................... 38

number' buttons ..................... 8

One Key Programming ....... 35

one key program button ........ 7

One-Touch Recording .......... 34

Operating Your VCR ........... 17

OTR ..................................... 34

pause button ......................... 9

pausing a tape ..................... 22

Picture, viewing the one from

your VCR .......................... 20

play button ........................ 6, 9

play light ............................... 7

playback controls ................ 22

playback speed .................... 41

Playing a Tape .................... 22

power tmtton ..................... 6, 8

present time ........................ 44

Program, Quick ................... 37

programmed recording light. 7

programrned recording

setting% changing ............ 40

programmedrecording,

canceling..........................40

programmedrecording,notes

about.................................38

ProgrammingtheVCRto

ReceiveTVChannels.......25

programmingyourVCRto

record................................32

Programming,OneKey......37

Quick Program, using ......... 37

quick program button ........... 9

quick searching ................... 45

record button (REC/OTR) ..... 7

record button ......................... 8

record light ............................ 7

record speed ........................ 29

record, programming your

VCR to .............................. 32

recording .............................. 31

recording a current

broadcast .......................... 31

recording, canceling a

programmed ..................... 40

recording, notes about

programmed ..................... 38

recording, One Key

Programming ................... 35

recording, One-Touch

Recording ......................... 34

recording, Quick Program .. 37

Remote Control, Using ....... 18

remote control sensor ............ 7

repaired tapes ..................... 21

rewind and reverse search

buttons ............................ 6,8

rewinding a tape ................. 22

RF converter, setting .......... 48

SAP ...................................... 29

search, index ....................... 46

searching techniques .......... 44

searching, speed .................. 45

selecting channels ............... 28

selecting the on-screen

language ........................... 23

Setting Up Your VCR .......... 1'7

skipping programs .............. 3!)

slow motion .......................... 42

SP ..................................... 7, 30

special effects ...................... 4;t

speed searching ................... 45

splitter ........................... 11, 14

still adjustment ................... 4'5

stop button ........................ 6, 9

tape speed light ..................... :7

tape status symbol ................ :7

tape,

fast forwarding ................. 22

loading ............................... 21_

making a copy .................. 49

pausing .............................. 22

playing ............................... 22

repaired ............................ 2]

rewinding ......................... 22

television, connecting ........... 14

time counter ........................ 43

time gauge ........................... 4_

time, present ....................... 44:

time, setting ........................ 23

tracking ............................... 42

troubleshooting ................... 51

TV button .............................. 8

TV, operating with the

remote .............................. 19

two times playback ............. 4_:

UHF/VHF antennas ............ 13

Unpacking Your VCR ........... 5

Using the Advanced

Features ........................... 41

Using the Remote Control .. 18

VCR button ............................ 8

VCR light ............................... 7

VCR, locking ........................ 50

VCR, operating with the

remote .............................. 18

VCR/TV bntton ...................... 8

vibration, ,mntrolling .......... 22

video funcl;ions .................... 29

video inpu Lterminals ............ 9

video intm _s, connecting a

TV with ............................. 15

video mute ........................... 26

video outp at terminals .......... 9

Viewing tt_e Picture from

Your VC R ......................... 20

volume controls ..................... 9

Welcome to Mitsubishi ......... 5

Gufa deOperacibnB sicadelaVideograbadora

Funcionesb_sicasde los botones

(_ VCR _PSR

G®®

® @ @ ou,cN

CANCEL INPUT

"0@@

DISPLAY AUZ_K3_ID_O VOtUME CHANNEt

ooGG

MUlE "

,E_ _,_,o_,_-

..-(?_ V--_--1 I_

=L_DJUST ENTER ADJUSTn

OREC MENU

--8

--6

__9

569

botdn de encendi.do (POWER)

Oprima este botdn p_!.ra encender y apagar

la videograbadora.

botdn de cancelaciSn (CANCEL)

Utilice este botSn para cancelar

selecciones en los raenfis en pantalla.

bot6n de grabaci6n (REC, REC/OTR)

Utili('.e este botdn para comenzar l.a

grabaciSn.

bot6n de pausa (PAUSE)

Utilice este bot6n pa::a pausar una cinta.

bot6n de rebobinado, bfisqueda hacia

atrfis y ajuste (REW, ADJUST -)

Optima este bot6n para rebobinar la einta

o hacer una bdsqueda hacia atr4s.

Tambi6n utilice esLe bot6n para

seleo2ionar o ajustar articu]os de menfi.

bot6n de reproducci6n, parada e

ingreso (PLAY, STOP, ENTER)

Oprima este botbn para comenzar la

reproducci6n de la cinta, oprima de nuevo

para detener la cint_;. Durante el uso de

los memis en pant alia, utilice este bot6n

para fijar seleceiones de menfi.

bot6n de modalidad (VCRYIW)

Oprima este bot6n para cambiar entre el

sintonizador o salida de la videograbadora,

y el sintonizador del televisor.

bot6n de canale,; ('CHANNEL)

Optima estos botones para cambiar

canales en la videograbadora.

bot6n de adelanta _o, bfisqueda hacia

adelante yajuste (FF, ADJUST+)

Optima este botSn para adelantar la cinta

o hater una btisqued a hacia adelante.

Tambidn, utilice este bot6n para

seleccionar o ajustm: artfculos de menfi.

([0) botSn de metal (MENU)

Optima este bot6n para utilizar e] sistema

operativo de mengLs an pantalla.

Si desea obtener una gufa para esta videograbadora en EspaiioI, sg'ase llamar al (80(I) .553-7278 o (77,9) 7?4-5526 .

C6moseleccionarel idioma de el sistema operativode mendsen

pantalla

O Si nunca se ha usado ]a video_abadora, vaya al paso 0.

Desenchufe la videograbadora por mils de dos minutos, y wuelvala

a enchufar.

Selecl; Lansuase

<:)English

O Fran?ais

0 Oprima el bot6n POWER para encender la videograbadora.

O Oprima el botdn MENU en el control remoto.

Verdi el mend de seleccionar el idioma "Select Language." Utilice

los botones de ajuste ADJUST - o + en el control remoto para

seleccionar el idioma.

ODespu4s de que haya seleccionado el idioma que deseado, oprima

el botdn PLAY/STOP/ENTER, luego optima ell botdn MENU para

salir de los men(ts.

Sus selecciones son :

L_lll I[.]_+ I if:- I ir'l+:-I i Ii_.| .-"_.l,_l_ II'. ). l =

Controles Especiales

OProsramaci6n Inicial

_EHTER_-_€onflrmar7

14K::_:_m_ADJUST_seleccionar

OProsramaci6ni!Iniciali!!!

Sus selecciones son:

+]l _l ol!l=JI _=]1 _ d[ _11I[o

_Memorizar canales

Anadir/borrar canales

_Pr6sramar:: srabad i:6_@_:

OHora comienza

OHora Zerminado

OVel. 9rabado AUTO

C6mo ponerel reloj

O Optima el bot6n MENU para vet el mend "Mend Principal."

O Utilice los botones de ajuste ADJUST - o + en el control remoto

para seleccionar el mend "Pro_amacidn Ini,:ial", luego oprima el

botdn PLAY/STOP/ENTER.

@) Utilice los botones de ajuste ADJUST - o + en el control remoto

para seleccionar el mend Pon,_r el reloj , luego optima el botdn

PLAY/STOP/ENTER.

O Utilice los botones de ajuste ADJUST - o + y cl botdn PLAY/

STOP/ENTER para ajustar el rues, ado, dfa, h ?ray seleccidn de

hora de verano.

A1 completar los ajustes para poner el reloj, oprima el botdn

PLAY/STOP/ENTER, luego optima el botdn MENU

repetidamente para sal[r de lo,_ memis.

C6moprogramarla videograbadorapar grabar

Optima el botdn MENU para vet el mend "Mend Principal.:"

Utilice los botones de _juste ADJUST - o + para seleccionar el

mend "Programar gra[ aciones ' Luego oprima el bot6n PIe,Y/

STOP!ENTER.

Utilice los botones de ajuste ADJUST - o + y el botdn PLAn!7

STOP/ENTER para ajustar el canal, el d_a, la hora de comienzo,

la hora de terminado y ]a velocidad de la gn:ab_ cidn.

A1 completar la programacidn de grabacione% ,)prima el botdn

PLAY/STOP!ENTER, luego optima el botdn MENU

repetidamente para salir de los memis.

MITSUBISHI

VIDEO CASSETTE RECORI-)ER

LIMITED WARRANTY

MITSUBISHI ELECTRONICS AMERICA, INC. ("M ELA") warrants to the original purchaser of this video cassette recorder if purchased

from an authorized MITSUBISHI Audio/Video Dealer that, should it prove defective by reason of improper workmanship and/or material:

a. Parts. For one year from the date of original purchase at retail, we will repair or replace, at our option, any defective part

including the video head without charge for the part. Parts used for replacement are warranted for the remainder of the original warranty period.

b. Labor. For six months from the date of original purchase at retail, we will provide the labor for ;:Lwarranty repair witho{Jt charge

at an authorized MITSUBISHI service center.

c. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service q-enter of any defect within the

applicable warranty time period.

1. TO OBTAIN WARRANTY SERVICE, deliver your VCR to the nearest MITSUBISHI service center.

Shipping expenses are your responsibility. The name and address of the nearest service ceqter can be obtained 'rom your MITSUBISHI Dealer,

or by writing or calling MELA at the address and telephone number below. Proof of purchase date from an authorized MITSUBISHI Dealer is

required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE

RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. Hov, ever, please detach and return

the Owner Registration Card so that we can contact you should a question of s_fety arise which could affect you.

2. THIS WARRANTY DOES NOT COVER damage caused by: modification, alteration, repair or service 3f this product by anyone other

than an authorized MITSUBISHI service center; physical abuse to, or misuse of, the VCR; op,aration in a manner contrary to the instructions which

accompany the VCR; freight damage; or any damage caused by acts of God such as lightning or fluctuation in ,_lectrical power. This warranty

also excludes all costs arising from installation, adjustment of user controls, external antenn_ systems, service of ;_roducts purchased or serviced

outside the U.S.A., initial technical adjustments (set-up) and user-required maintenance including head cleaning. Consult ".he operating

instructions enclosed with the product for information regarding user controls.

3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR -IHI S PROVISION, lvllGHT ARISE

BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANT-

ABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE E-XPRESSLY LIMITED TO A TERM OF: ONE YEAR.

4. UNDER NO CIRCUMSTANCES SHALL MELA BE LIABLE TO PURCHASER OR ANY OTHER PIERSON FOR ANY INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, B_EACH OF CONTRACT, OR

OTHERWISE.

5. Some state do not allow limitations on how long an implied warranty lasts, or ::he exclusion or limilation of incidental, special, or

consequential damages, so the above limitations or exclusions may not apply to you.

6. This warranty gives you specific legal rights and you may also have other rights which vary from stat_ to state.

7. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installa_:ion and correct customer control

adjustment. If the problem persists, contact your nearest MITSUBISHf Dealer for name(s) of authorized MITSUBISHI Service Center(s). If you

are unable to obtain the information, please call 1-800-332-2119, or write us at the address below.

MITSUBISHI ELECTRONICS AMERICA, INC.

P.O. Box 5025

Norcross, GA 30091-5025 MITSUBISHI

RETAIN THIS PORTION FOR YOUR RECORDS SERIAL NO.

CUSTOMER NAME

STREET ADDRESS

CITY ZIP

PHONE ( ) PURCHASE DATE / /

MO DAY YR

PLACE OF PURCHASE !

STATE

_,=MITSUBISHI

MITSUBISHI ELECTRONICS AMERICA, INC.

6100 Atlantic Boulevard

Norcross, GA 30071-1305

PRINTED IN sINGAPORE

8720151A2

MITSUBISHI VCR Manual 97110140

Navigation menu

Versions of this User Manual:

Views

Navigation
