DiGiTAL TELEVJBJDNS"

ViewPoin[

TV Unformation:

Use this space to record the model and seriaJ numbers of

your television. This information is on the back of your TV.

Model number

Serial number

HIGH DEFlOraTIONMULTI_4EDIA _NTE_FACE

v_stt our w÷bs_t÷

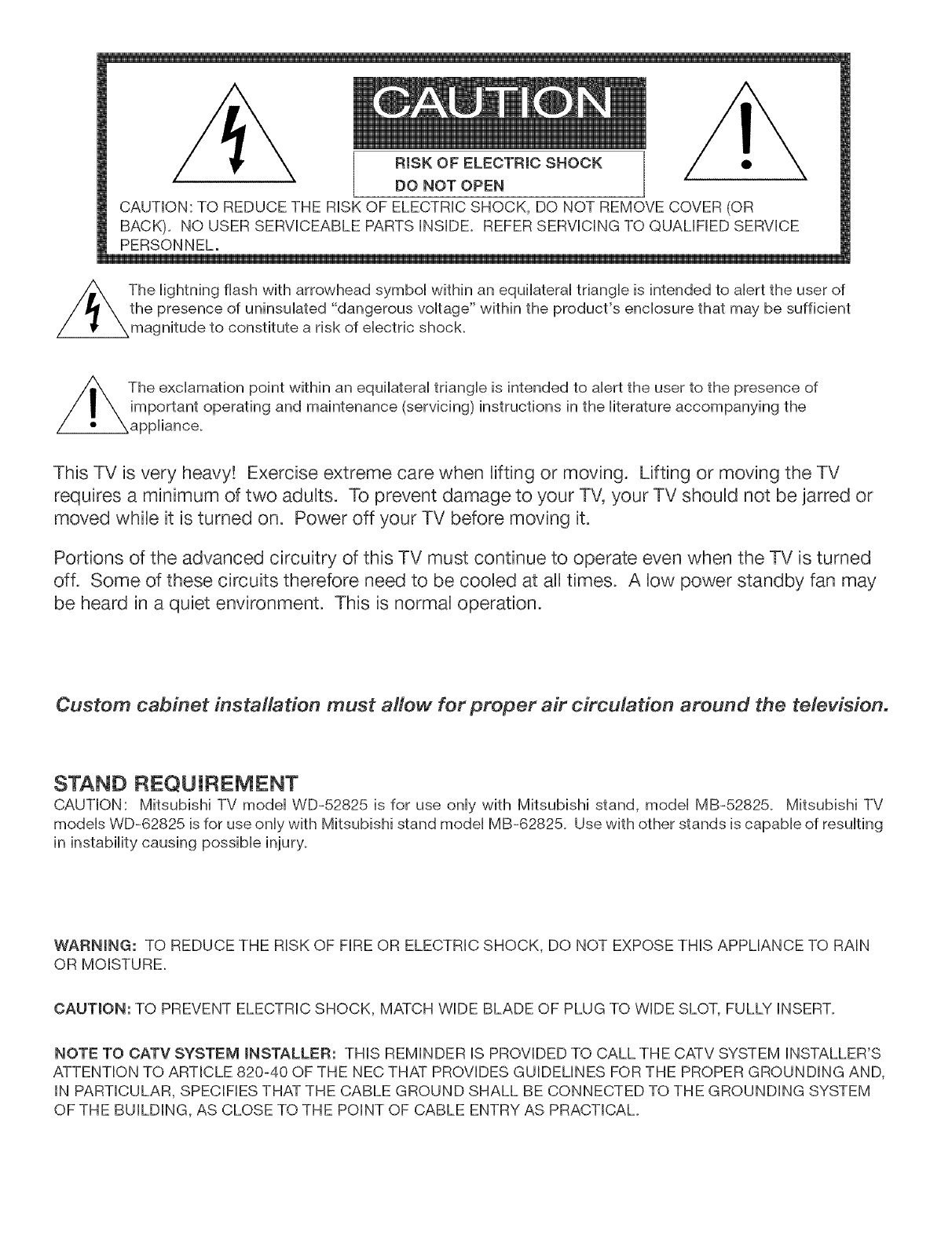

RISK OF ELECTRmC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RiSK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFED SERVICE

PERSONNEL.

The exclamation point within an equiHateraHtriangHe is intended to aHertthe user to the presence of

important operating and maintenance (servicing) instructions in the Hiterature accompanying the

)Hiance.

This TV is very heavy! Exercise extreme care when Uifting or moving. Lifting or moving the TV

requires a minimum of two aduUts. To prevent damage to your TV, your TV shouUd not be jarred or

moved whiUe it is turned on. Power off your TV before moving it.

Portions of the advanced circuitry of this TV must continue to operate even when the TV is turned

off. Some of these circuits therefore need to be cooled at all times. A low power standby fan may

be heard in a quiet environment. This is normal operation.

Custom cabinet instaflation must aflow for proper air circulation around the television.

STAND REQUIREMENT

CAUTION: Mitsubishi TV model WD-52825 is for use only with Mitsubishi stand, model MB-52825. Mitsubishi TV

models WD-62825 is for use only with Mitsubishi stand model MB-6282& Use with other stands is capable of resulting

in instability causing possible injury.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S

ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND,

IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM

OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

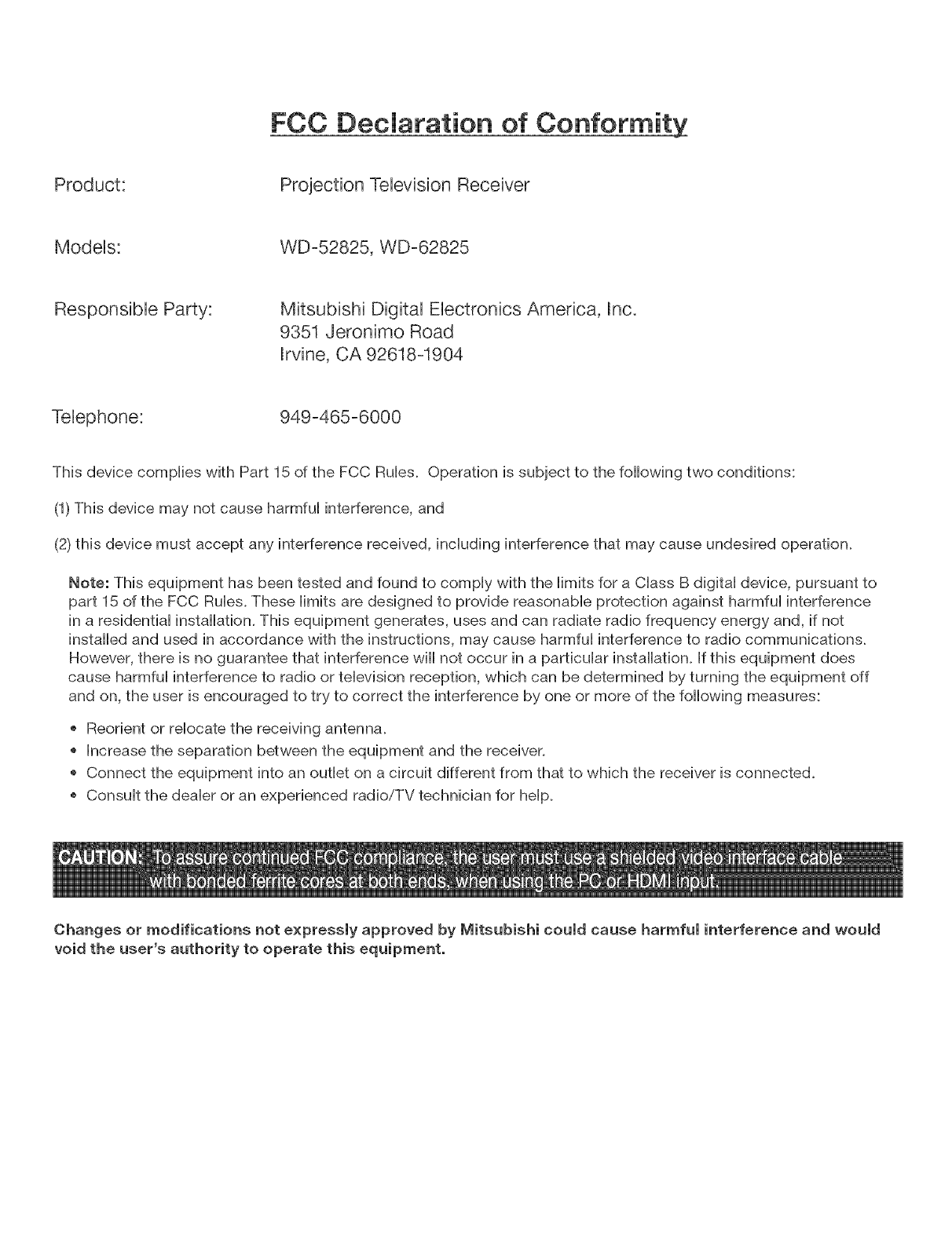

FCC Declaration of Conformity

Product: Projection Television Receiver

ModeUs: WD-52825, WD-62825

ResponsibUe Party: Mitsubishi DigitaU EUectronics America, Rnc.

9351 Jeronimo Road

Rrvine, CA 92618-1904

Telephone: 949-465-6000

This device compHies with Part 15 of the FCC RuHes. Operation is subject to the following two conditions:

(1) This device may not cause harmfuH interference, and

(2) this device must accept any interference received, incHuding interference that may cause undesired operation.

Note: This equipment has been tested and found to compHy with the Himitsfor a CHassB digitaH device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could cause harmful interference and would

void the user's authority to operate this equipment°

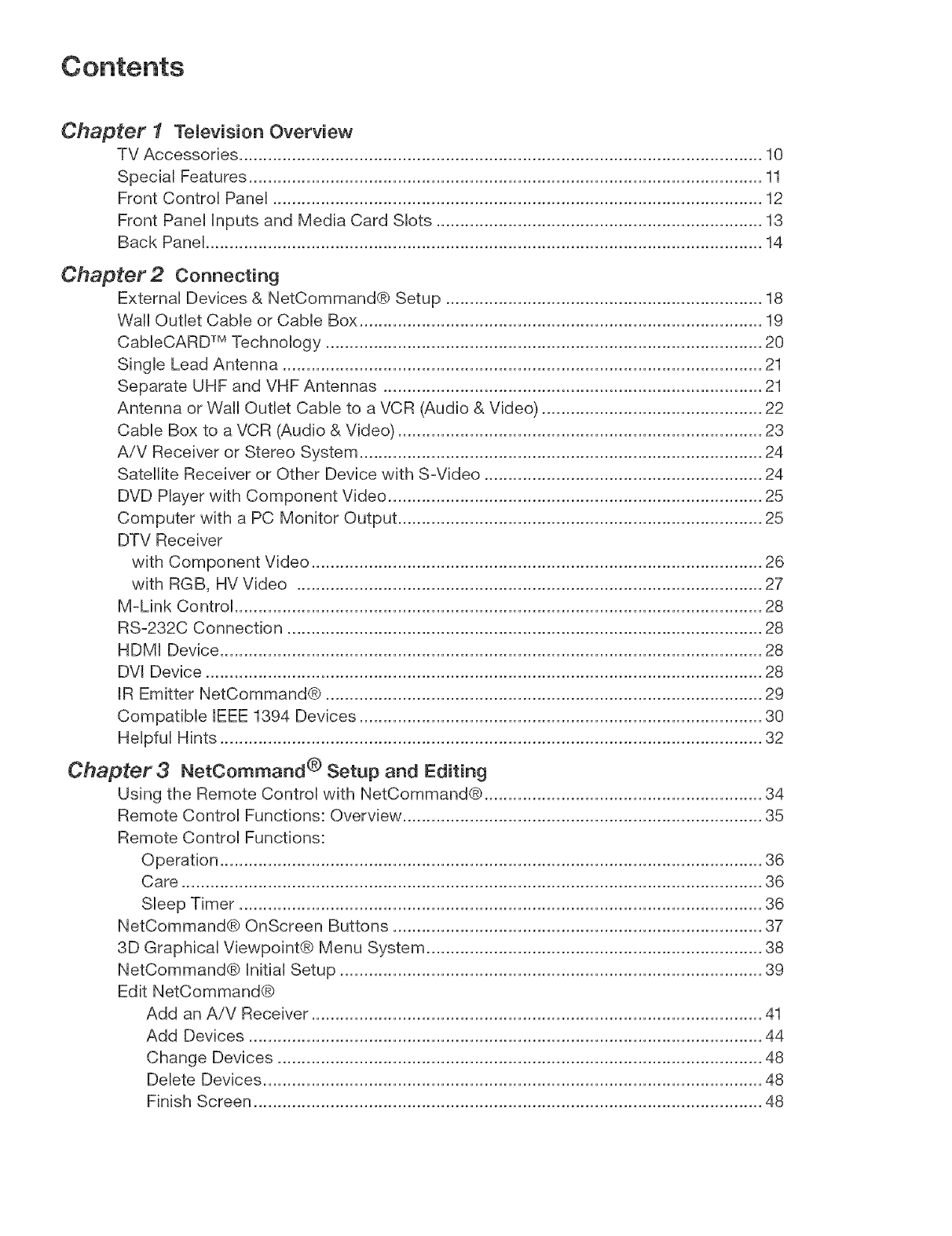

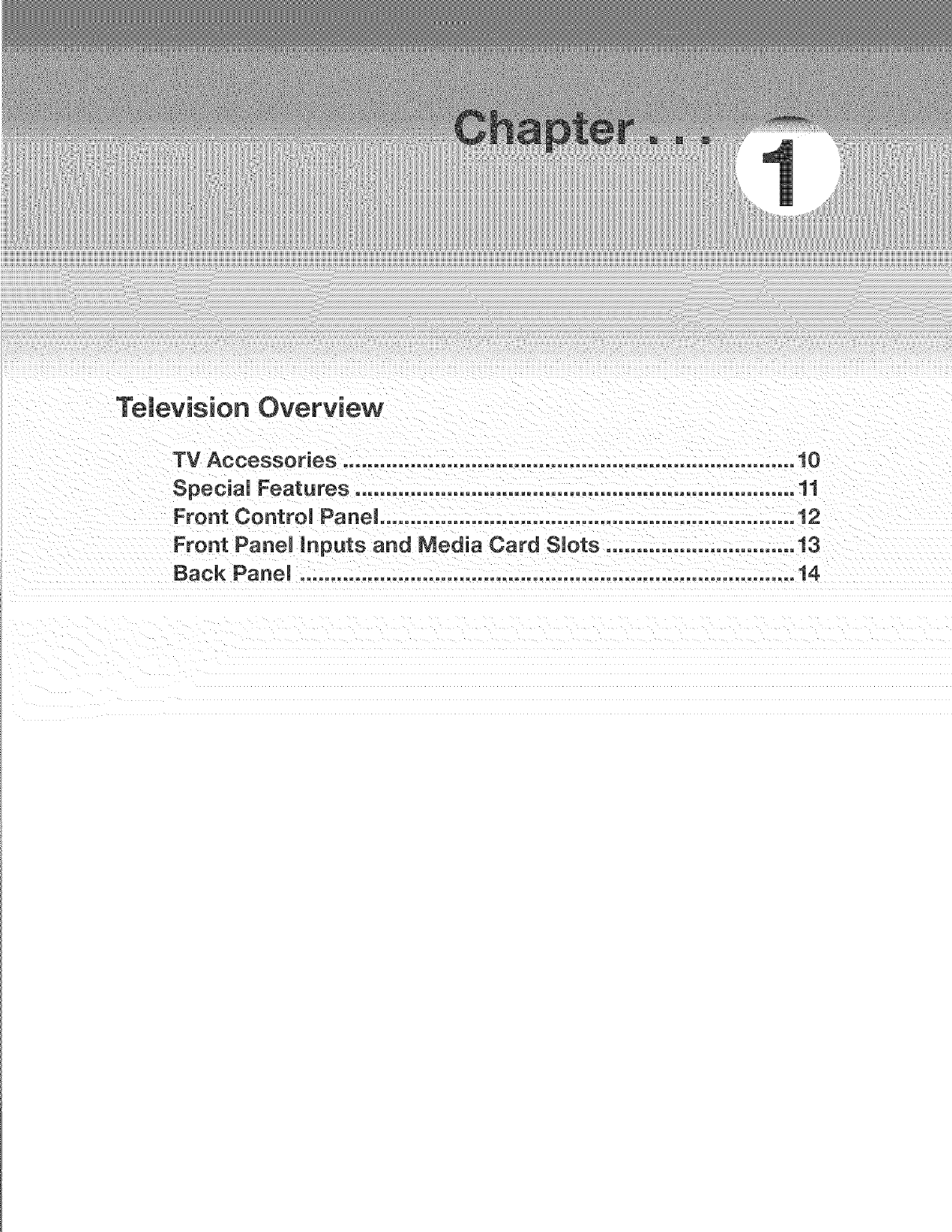

Chapter 1 TemevisionOverview

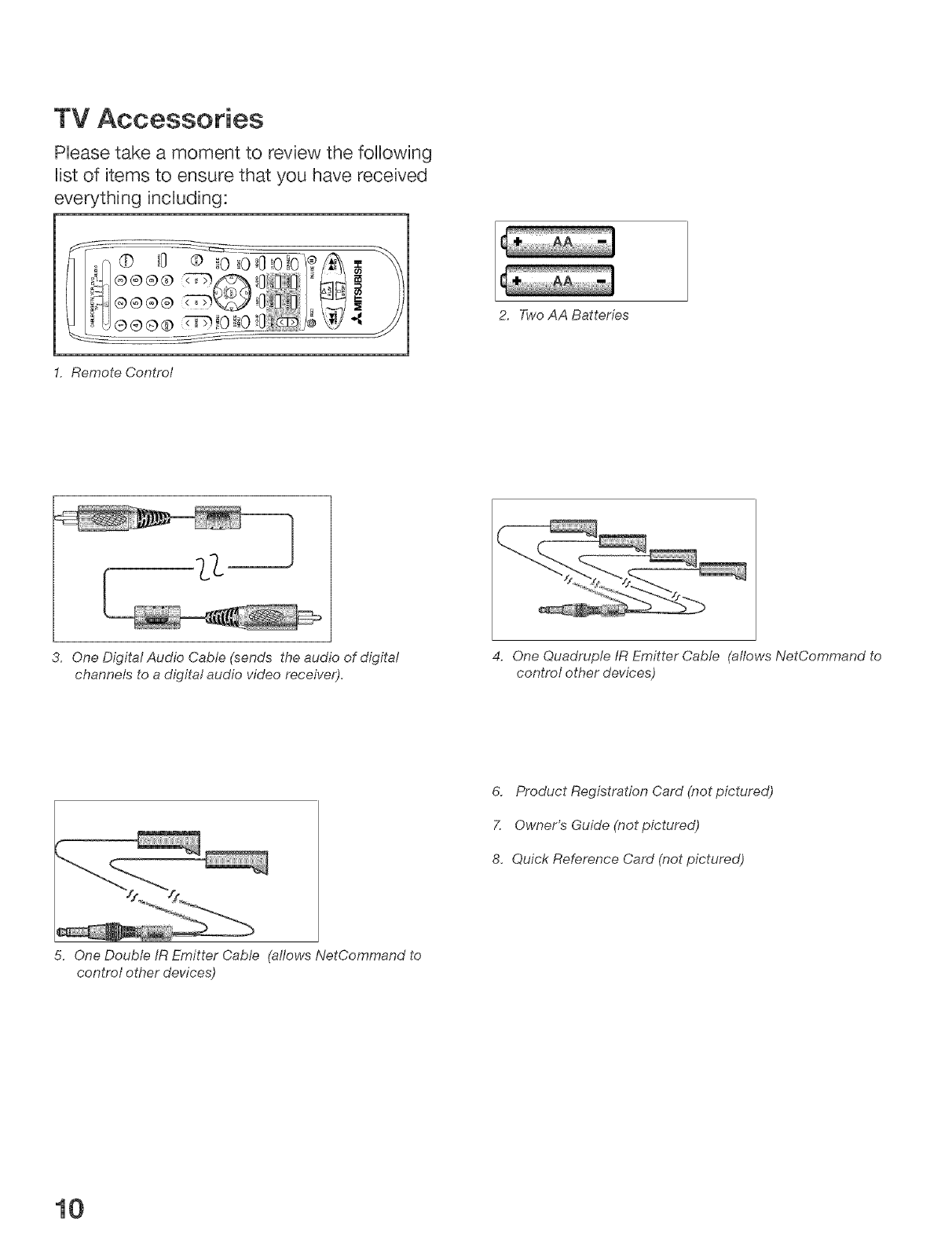

TV Accessories ............................................................................................................. 10

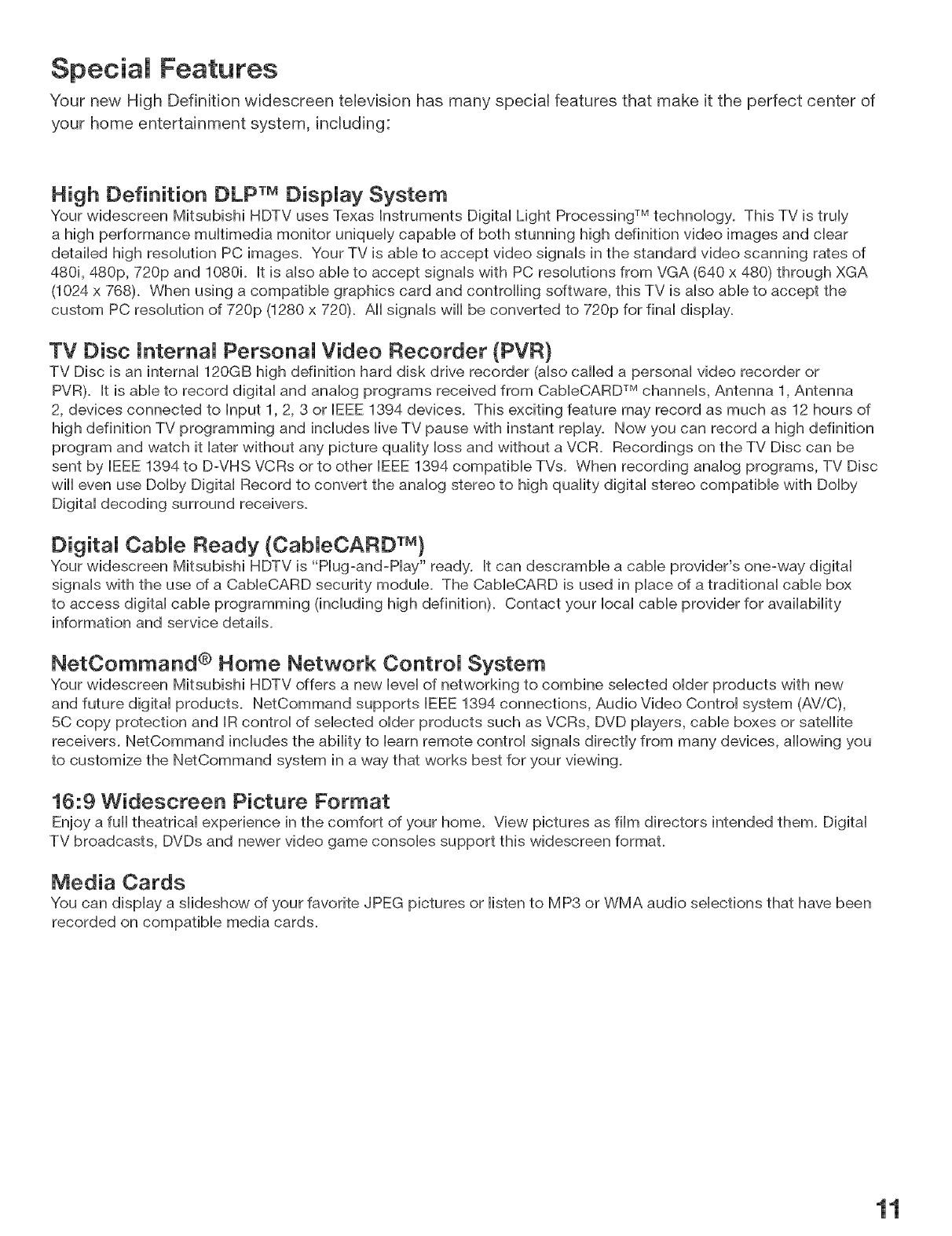

Special Features ........................................................................................................... 11

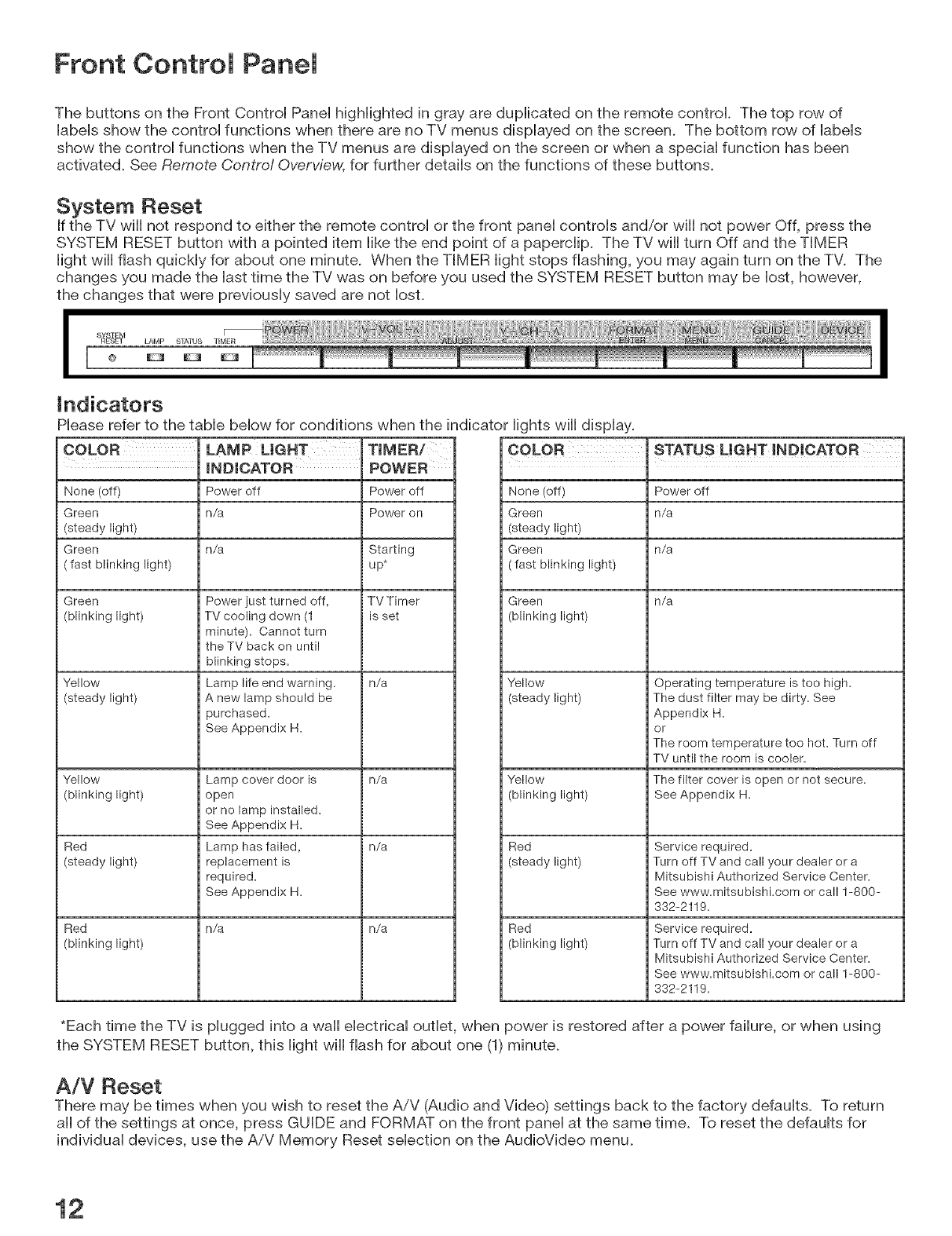

Front Control Panel ...................................................................................................... 12

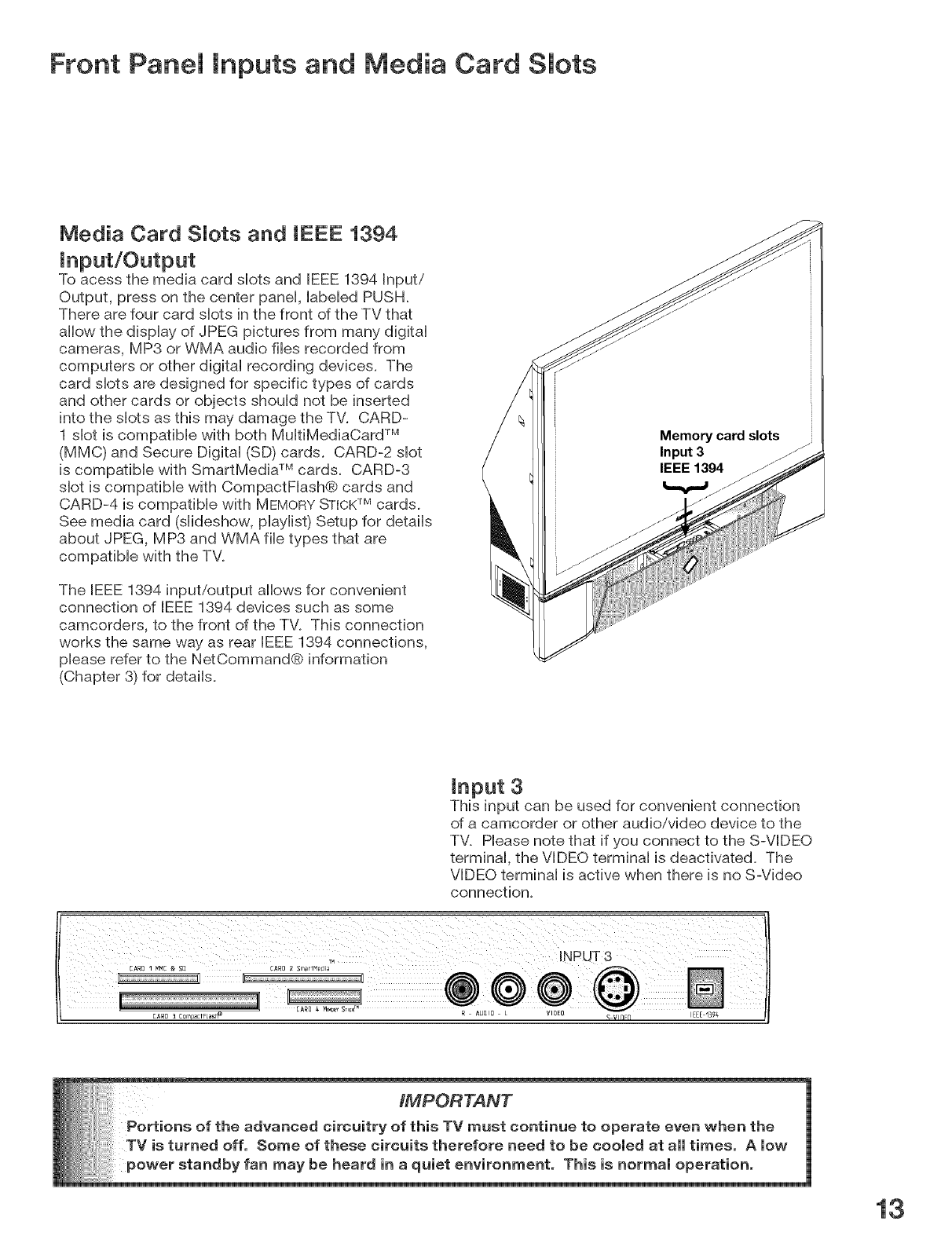

Front Panel Inputs and Media Card Slots .................................................................... 13

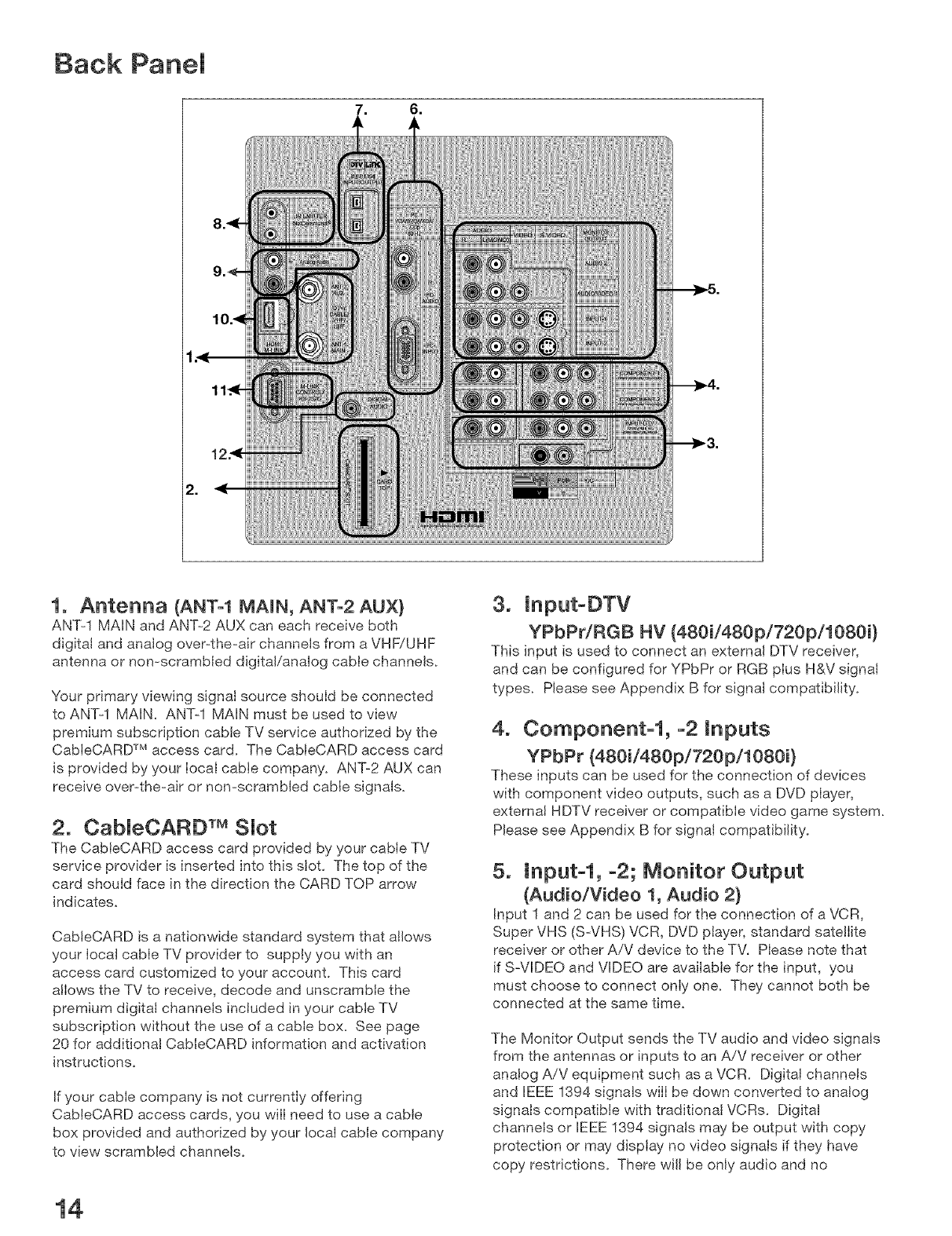

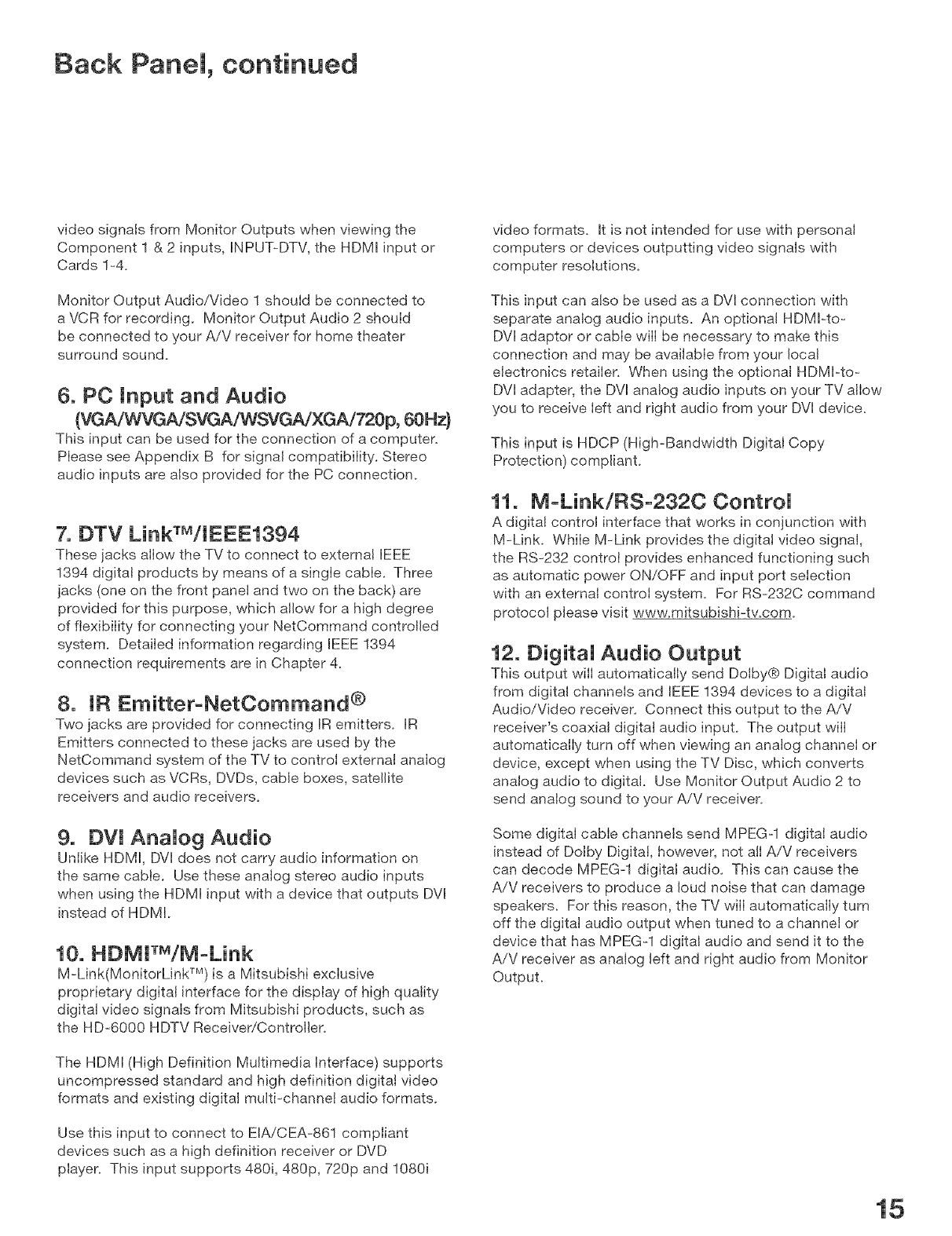

Back Panel .................................................................................................................... 14

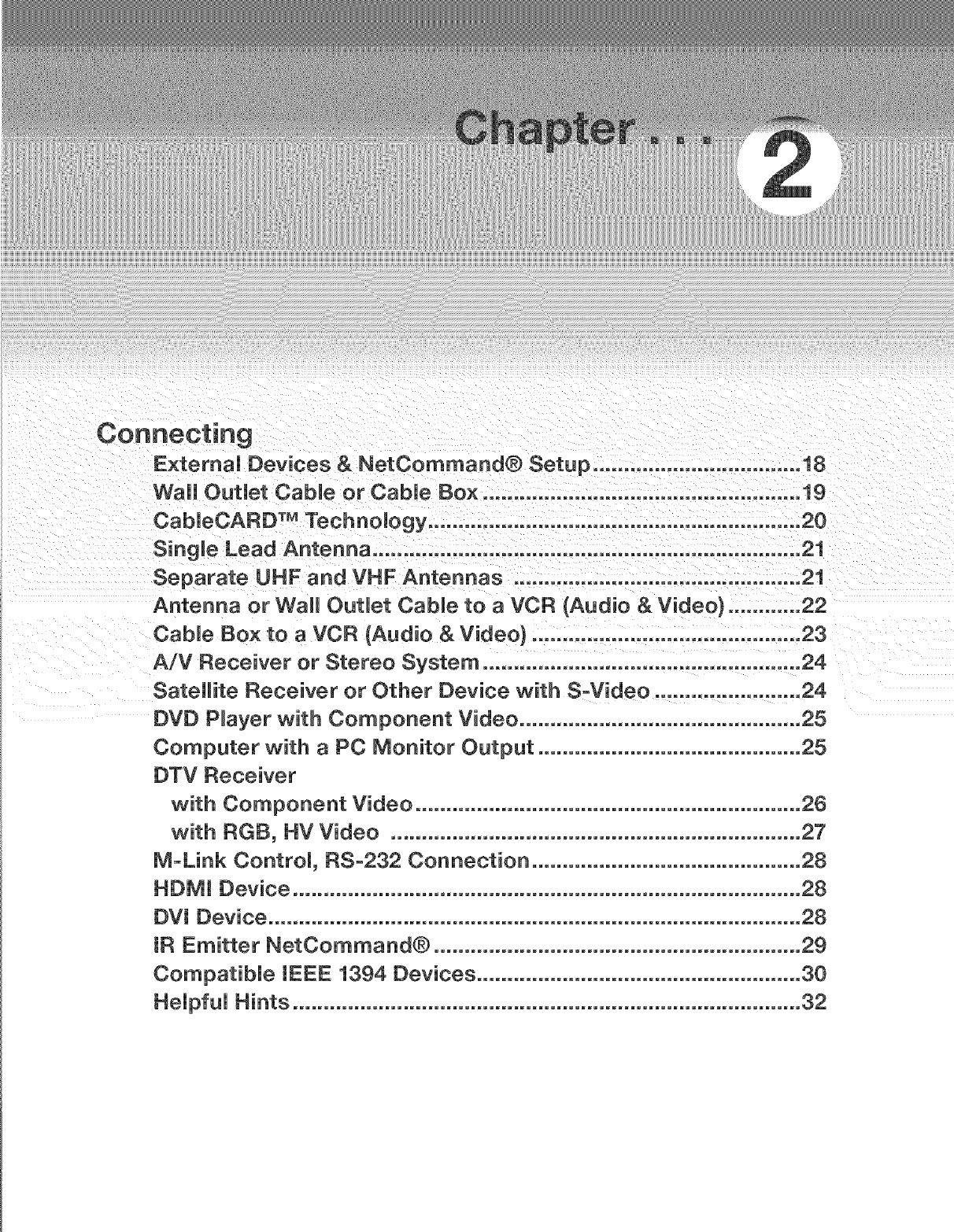

Chapter 2 Connecting

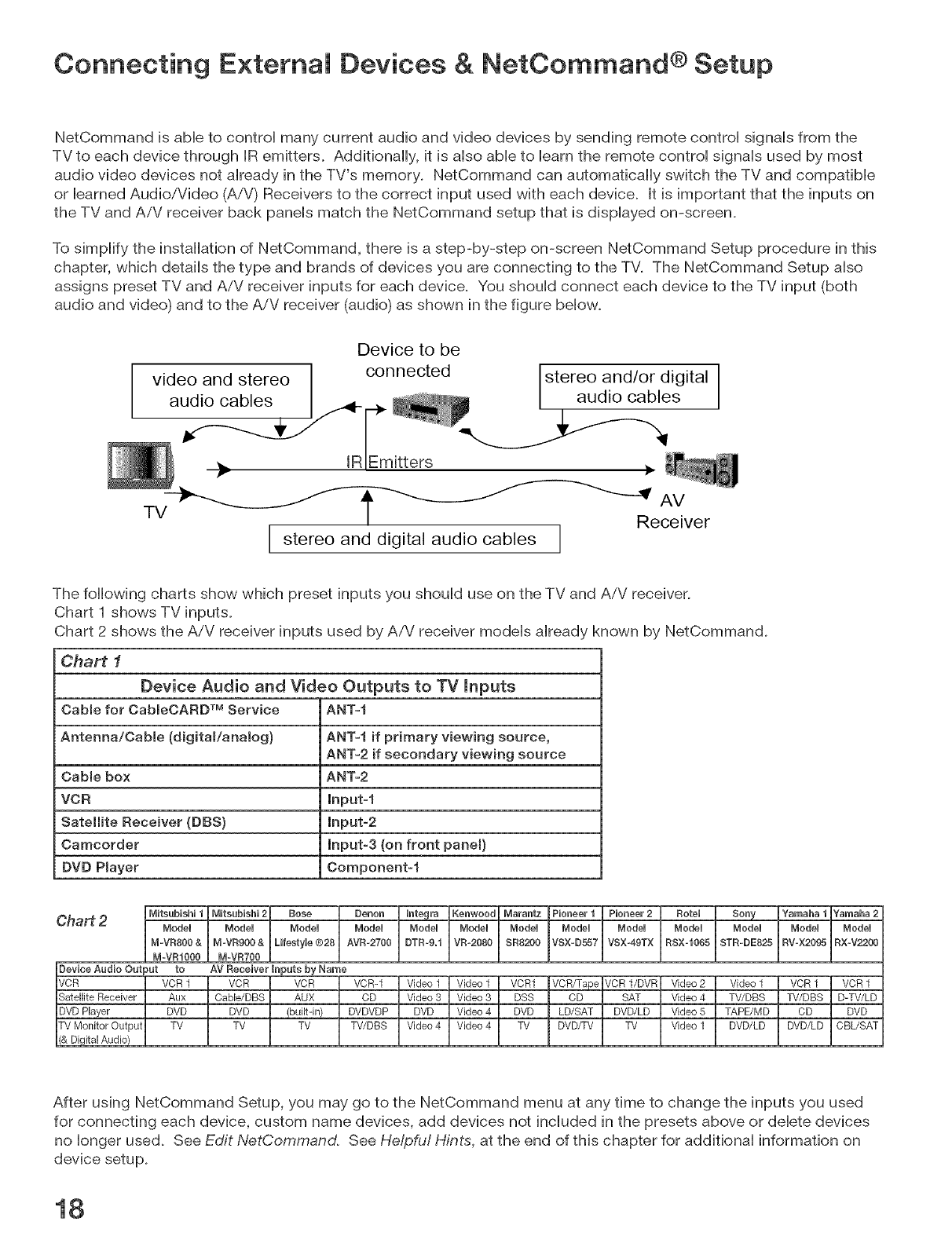

External Devices & NetCommand® Setup .................................................................. 18

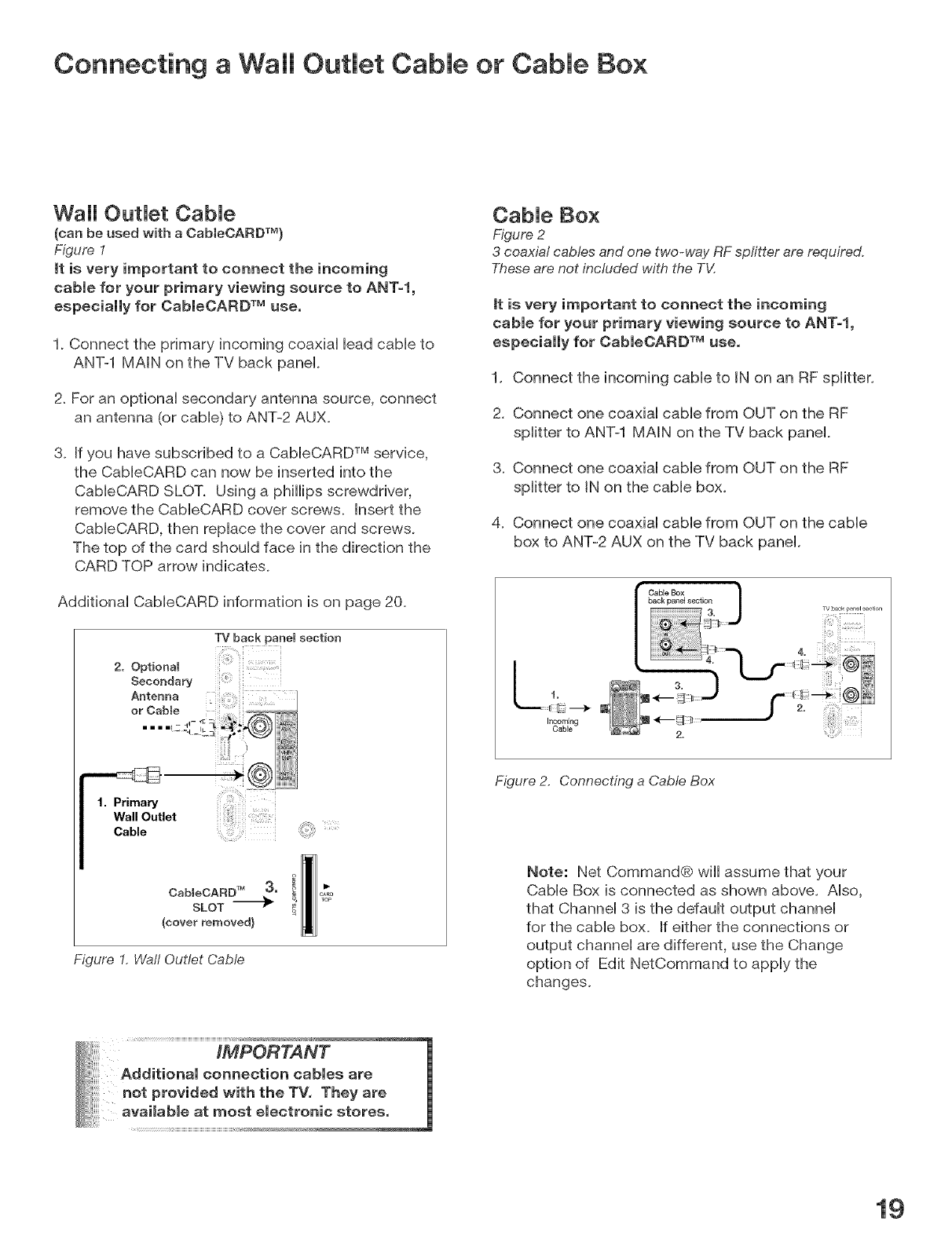

Wall Outlet Cable or Cable Box .................................................................................... 19

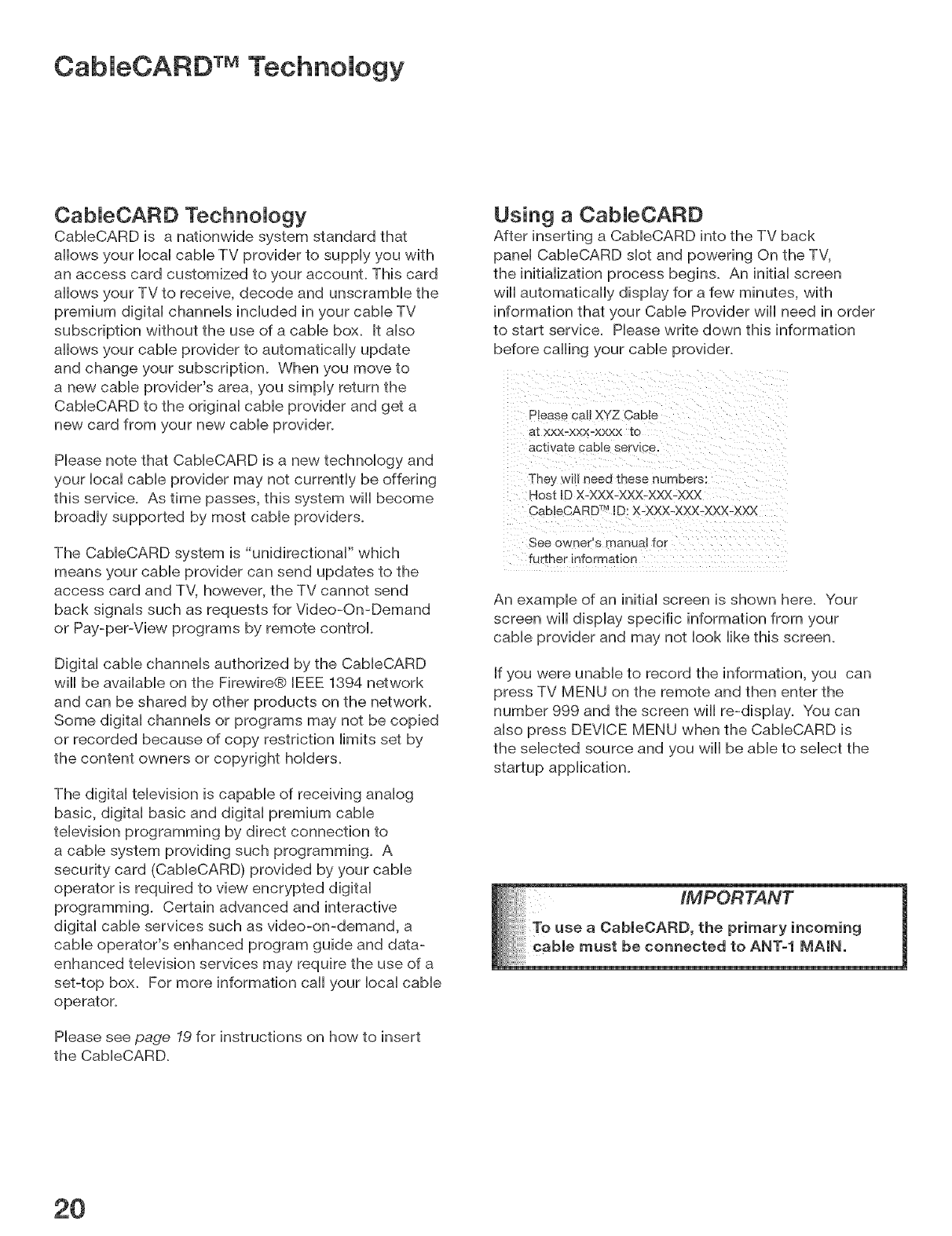

CableCARD TM Technology ........................................................................................... 20

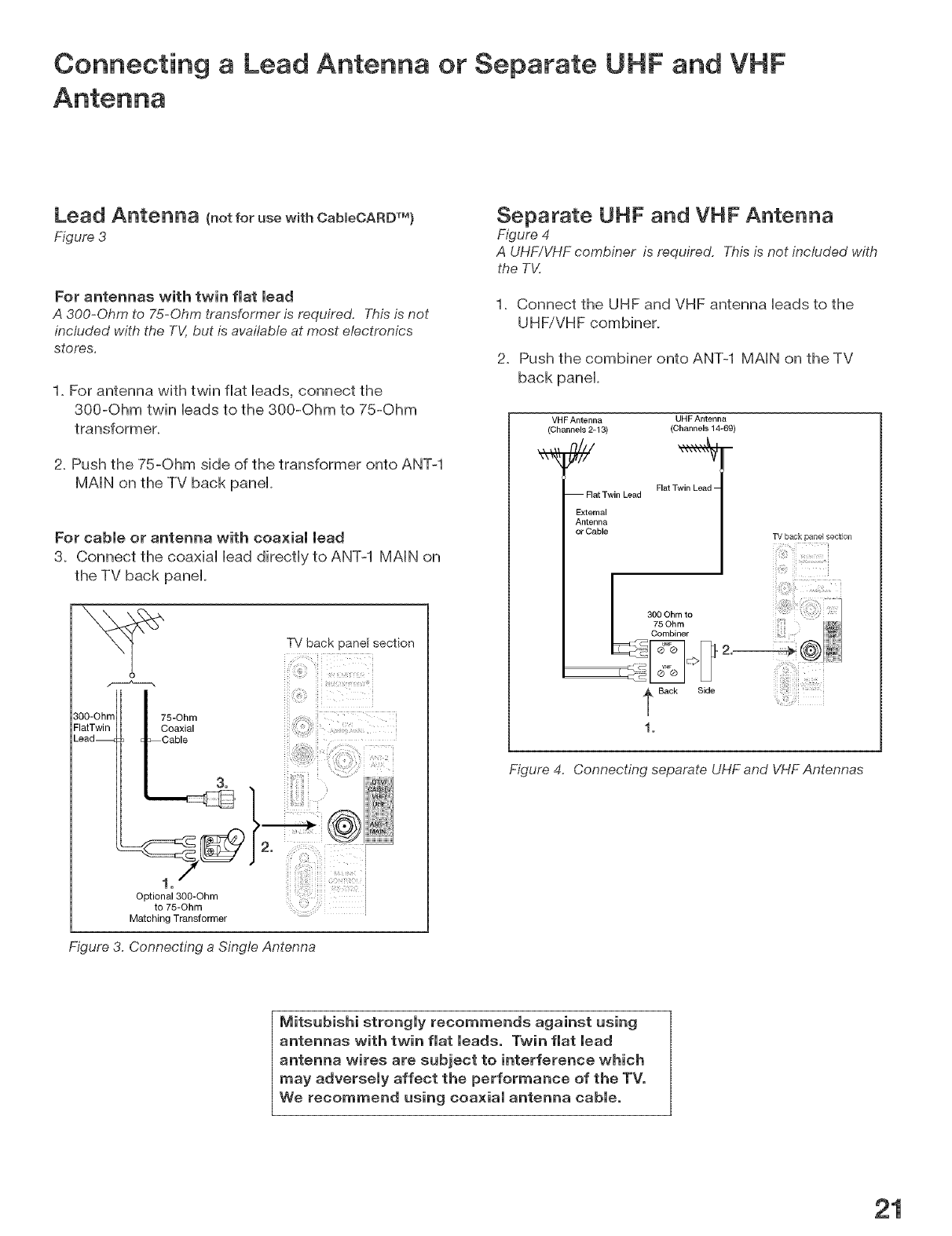

Single Lead Antenna .................................................................................................... 21

Separate UHF and VHF Antennas ............................................................................... 21

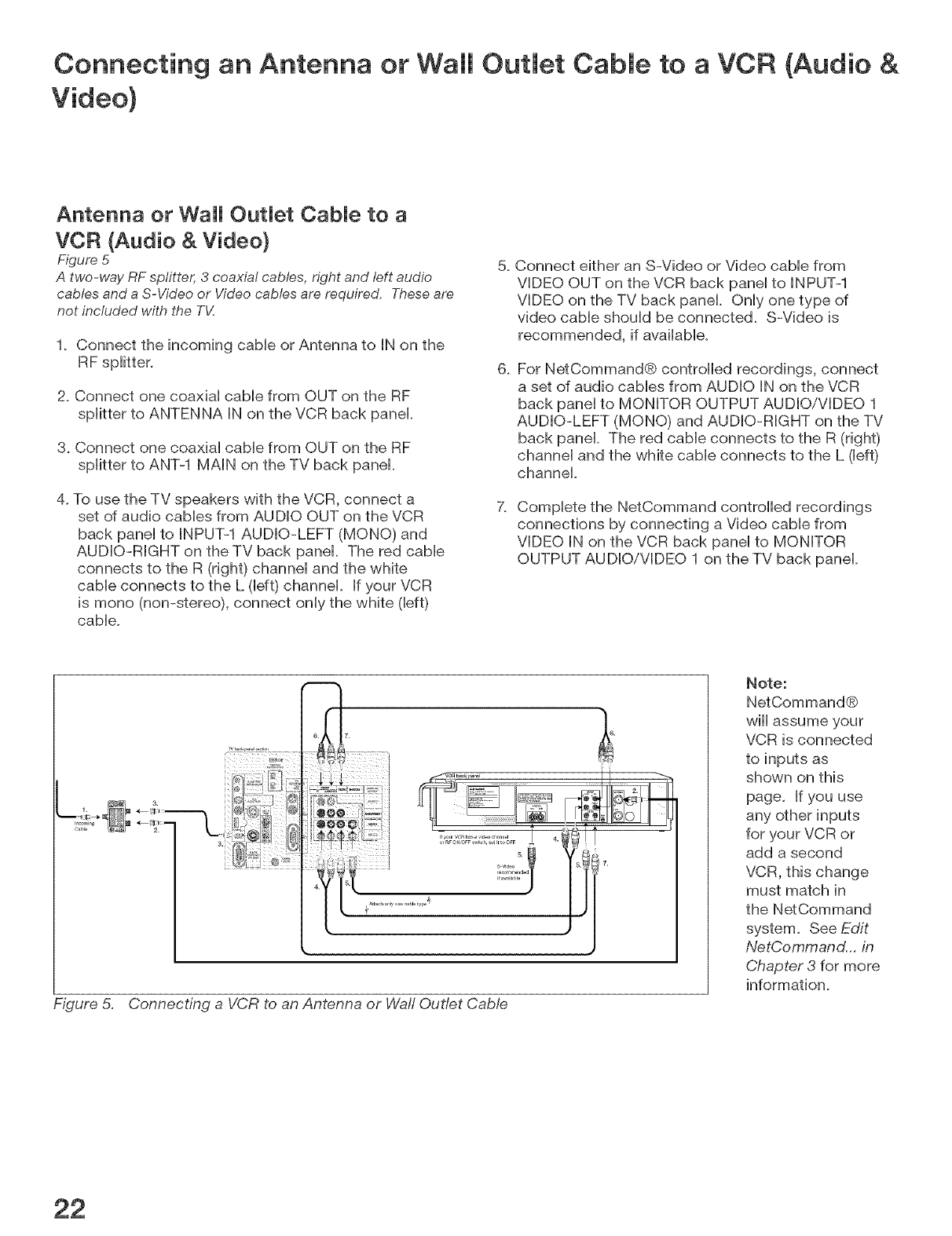

Antenna or Wall Outlet Cable to a VCR (Audio & Video) .............................................. 22

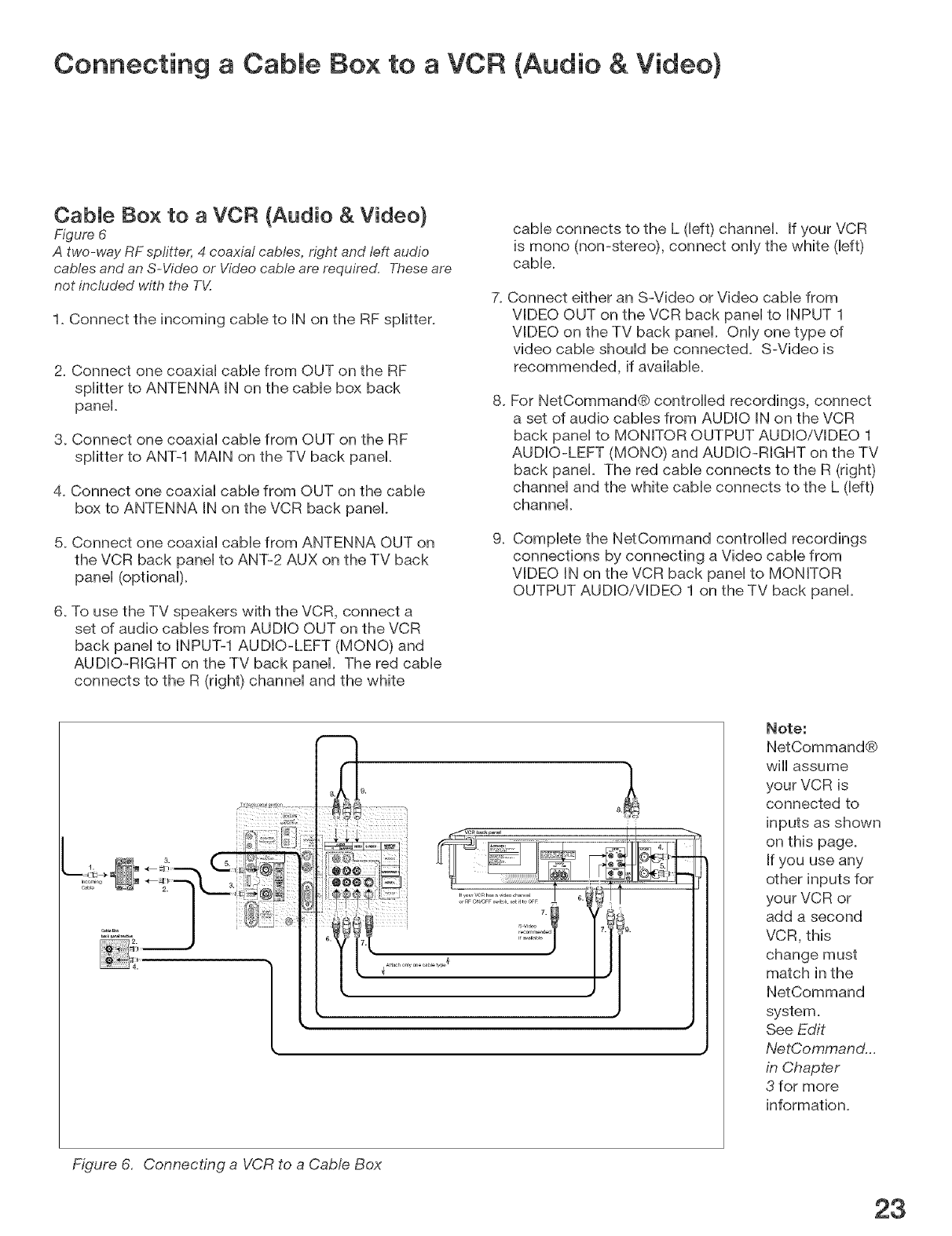

Cable Box to a VCR (Audio & Video) ............................................................................ 23

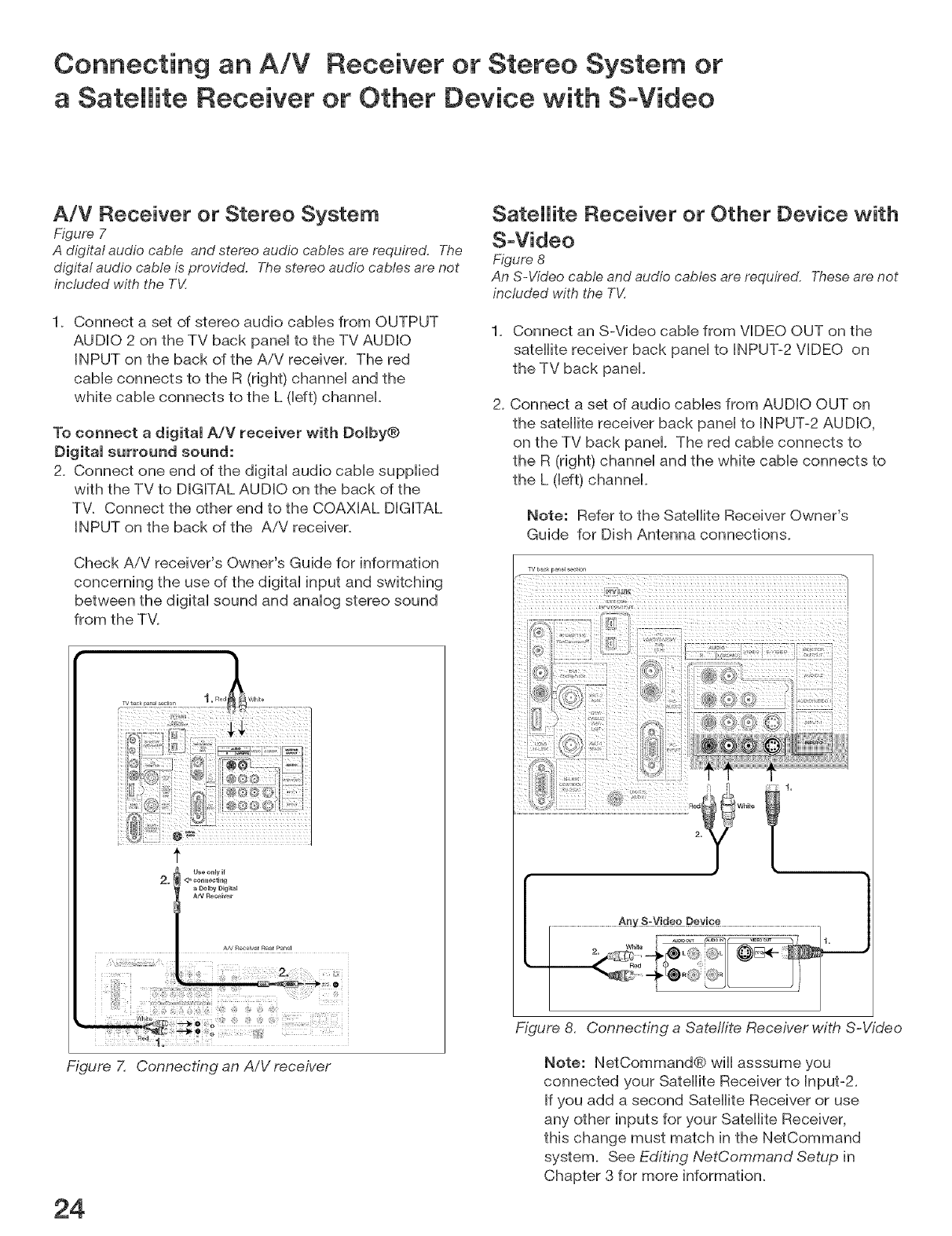

A/V Receiver or Stereo System .................................................................................... 24

Satellite Receiver or Other Device with S-Video .......................................................... 24

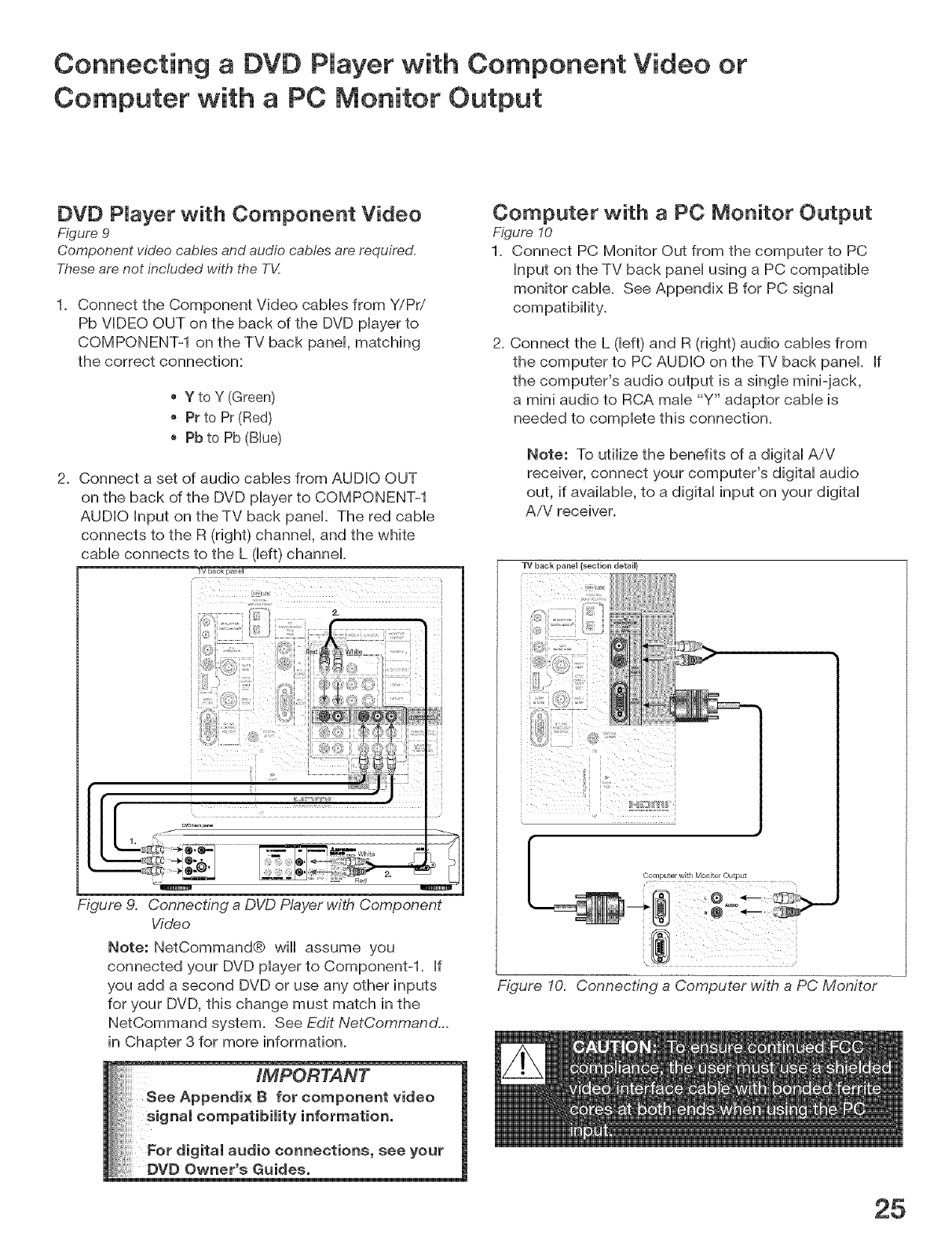

DVD Player with Component Video .............................................................................. 25

Computer with a PC Monitor Output ............................................................................ 25

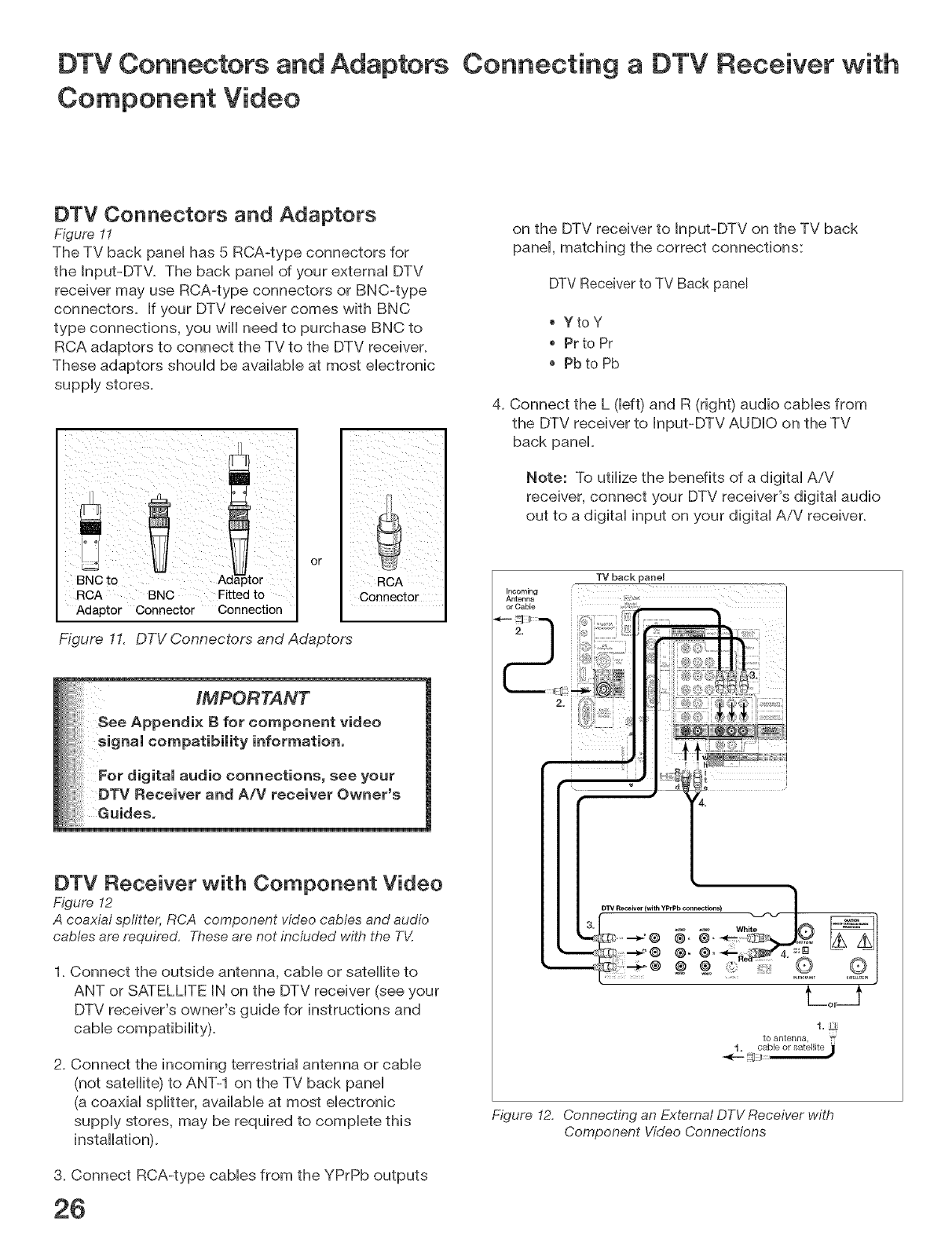

DTV Receiver

with Component Video .............................................................................................. 26

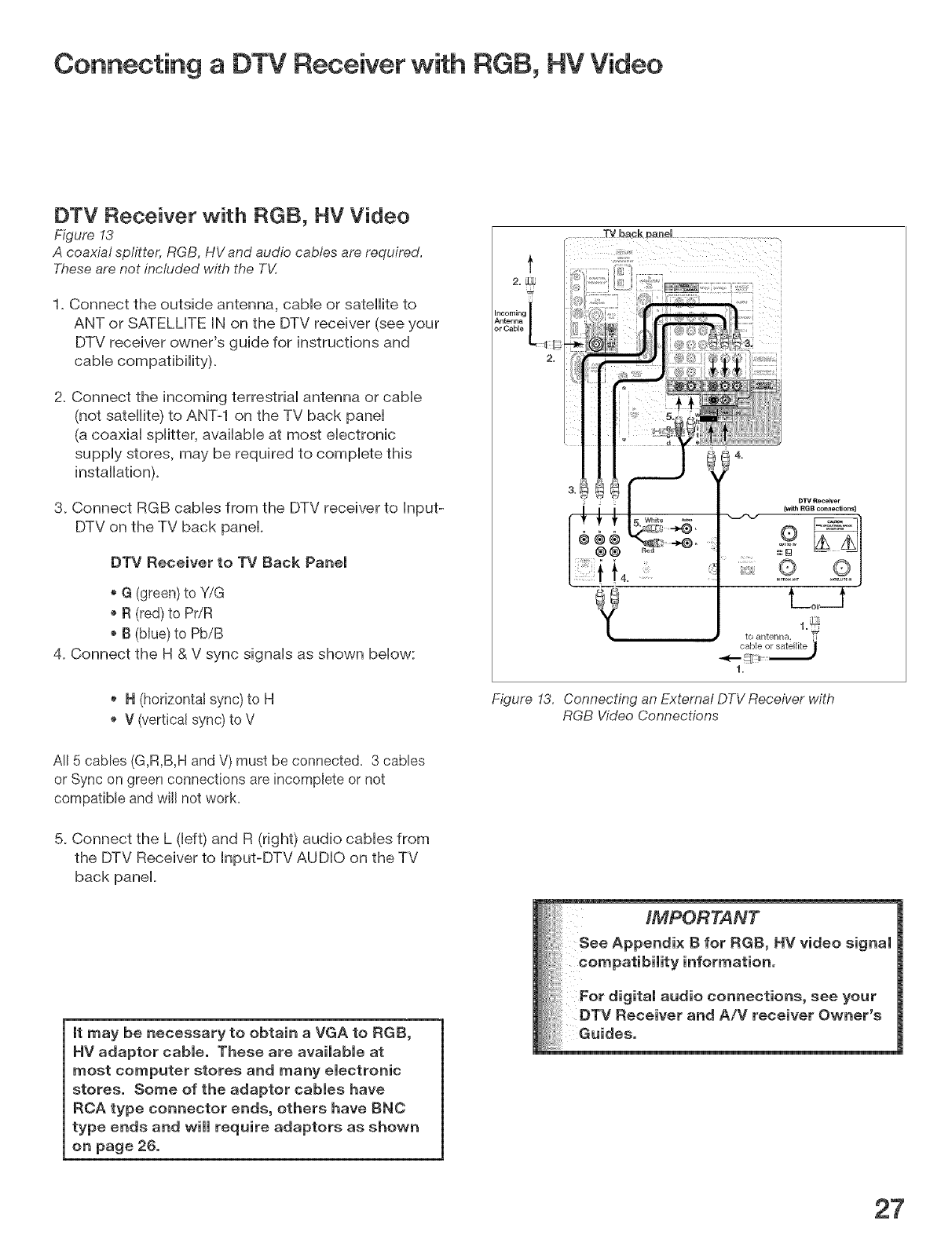

with RGB, HV Video ................................................................................................. 27

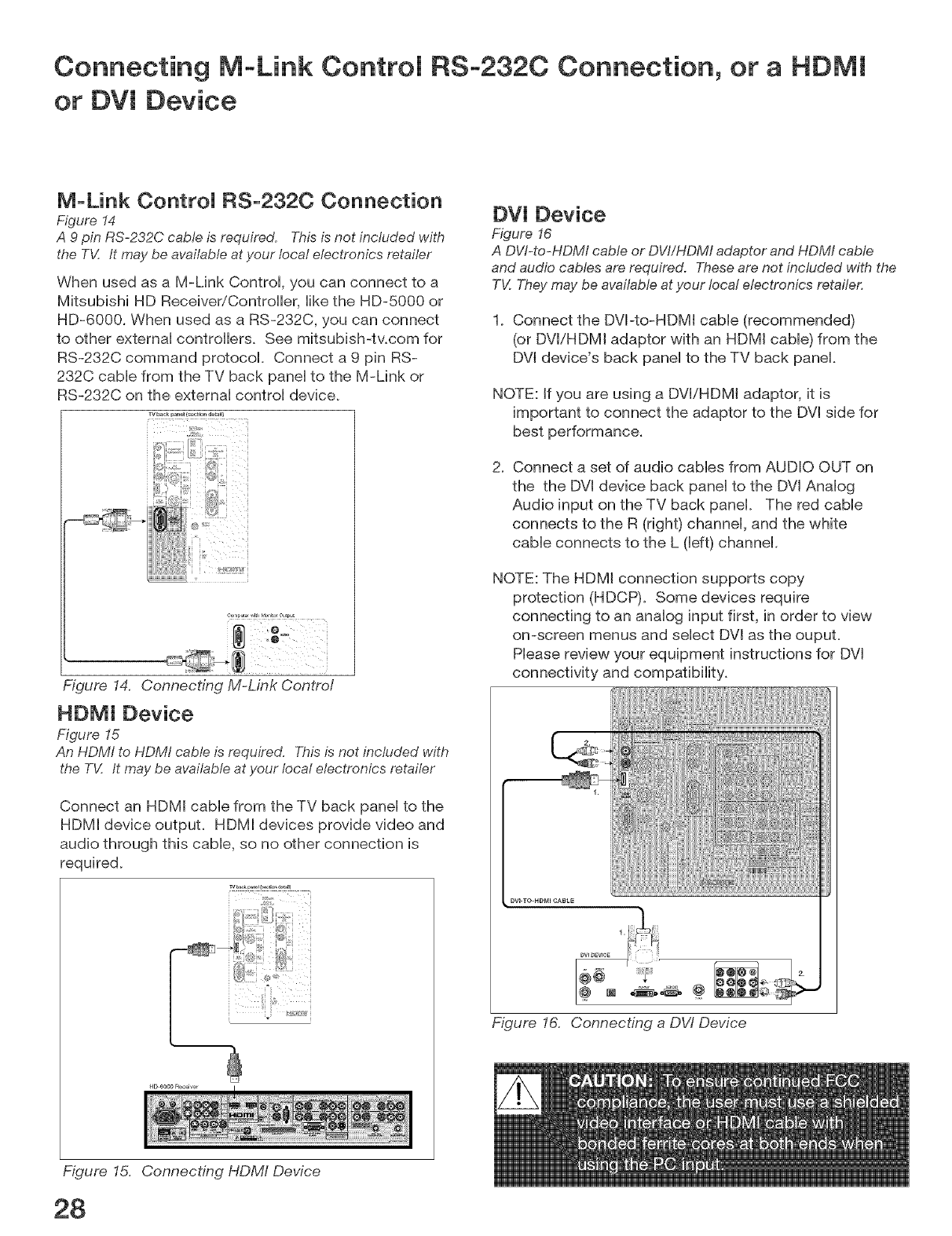

M-Link Control .............................................................................................................. 28

RS-232C Connection ................................................................................................... 28

HDMI Device ................................................................................................................. 28

DVl Device .................................................................................................................... 28

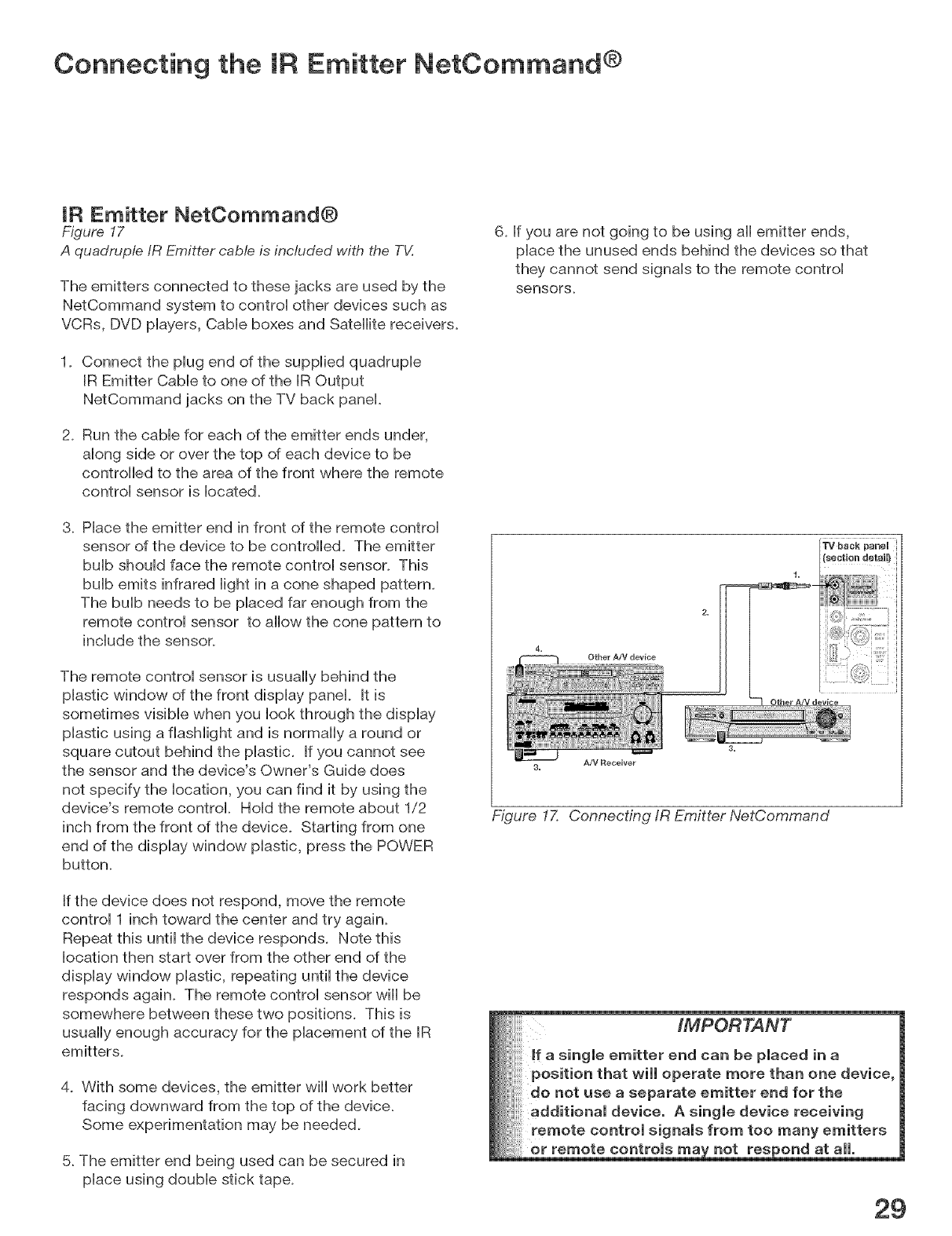

IR Emitter NetCommand® ........................................................................................... 29

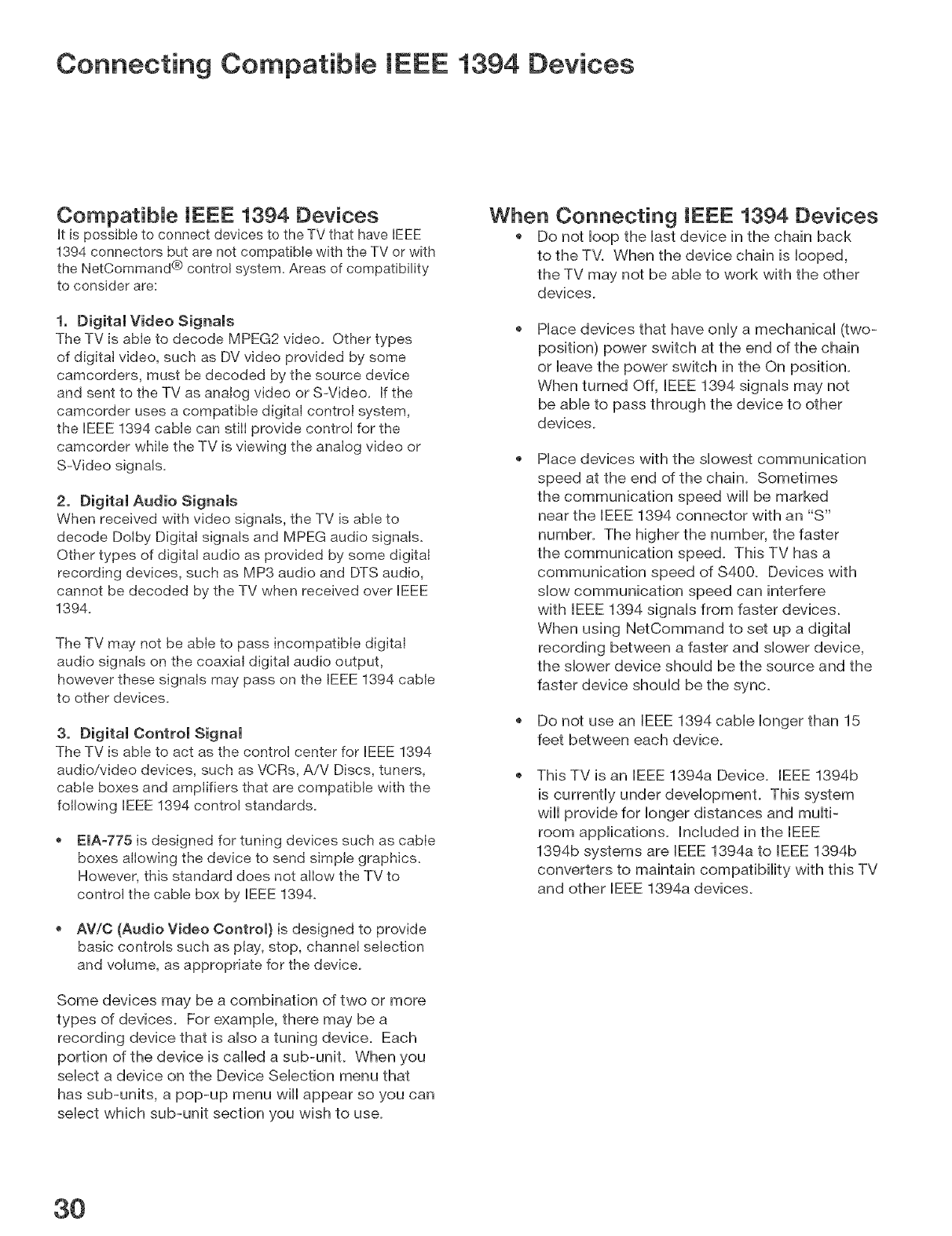

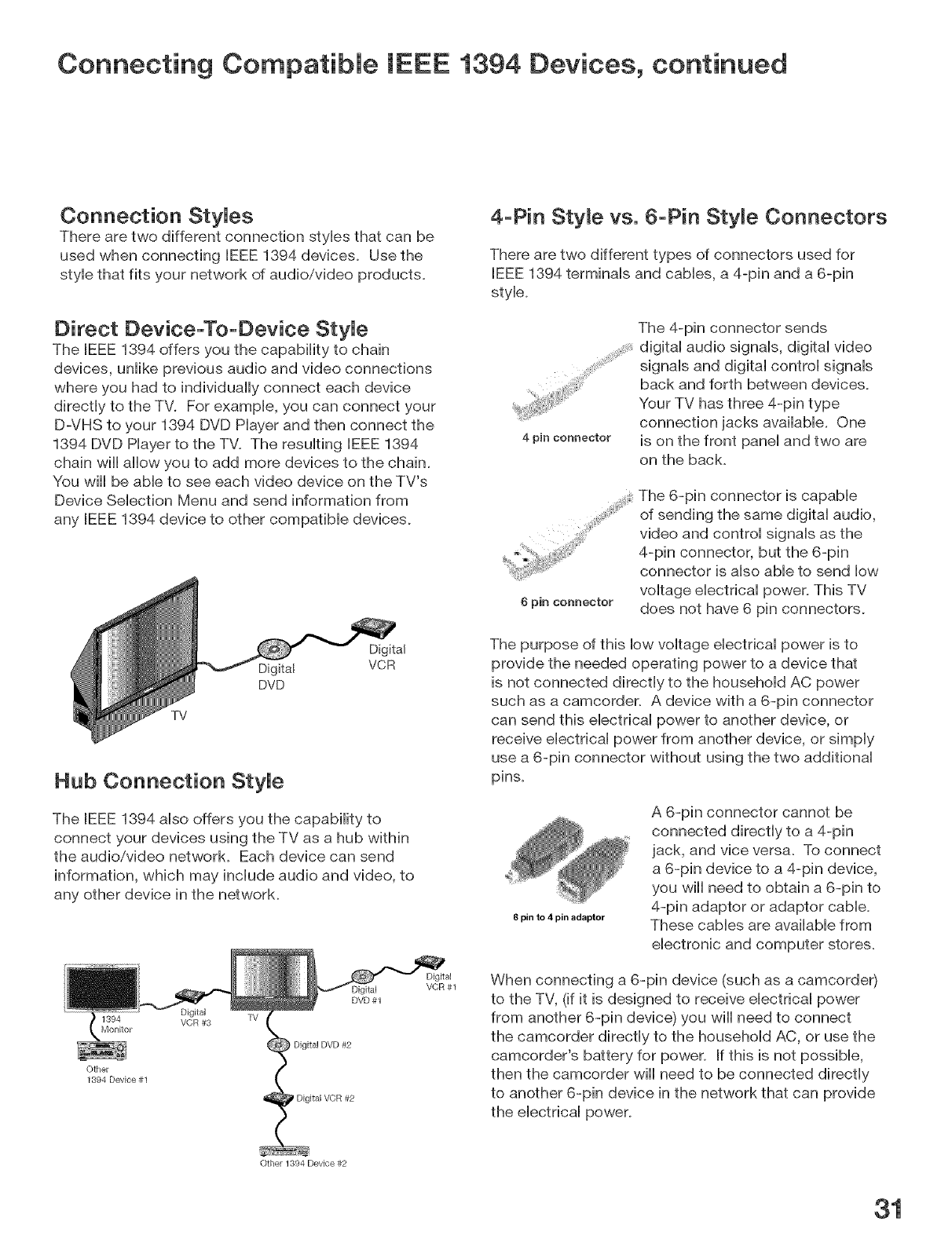

Compatible IEEE 1394 Devices .................................................................................... 30

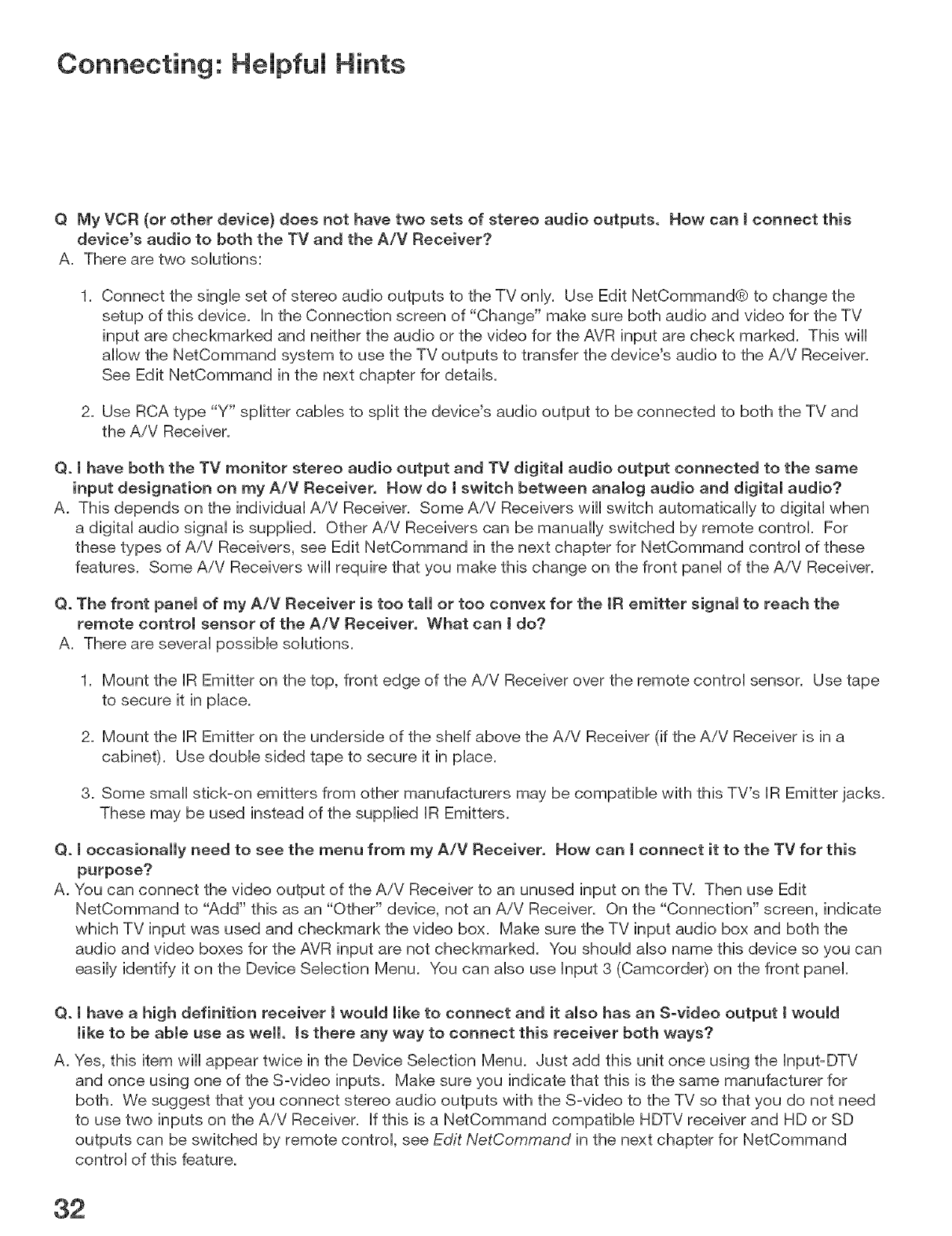

Helpful Hints ................................................................................................................. 32

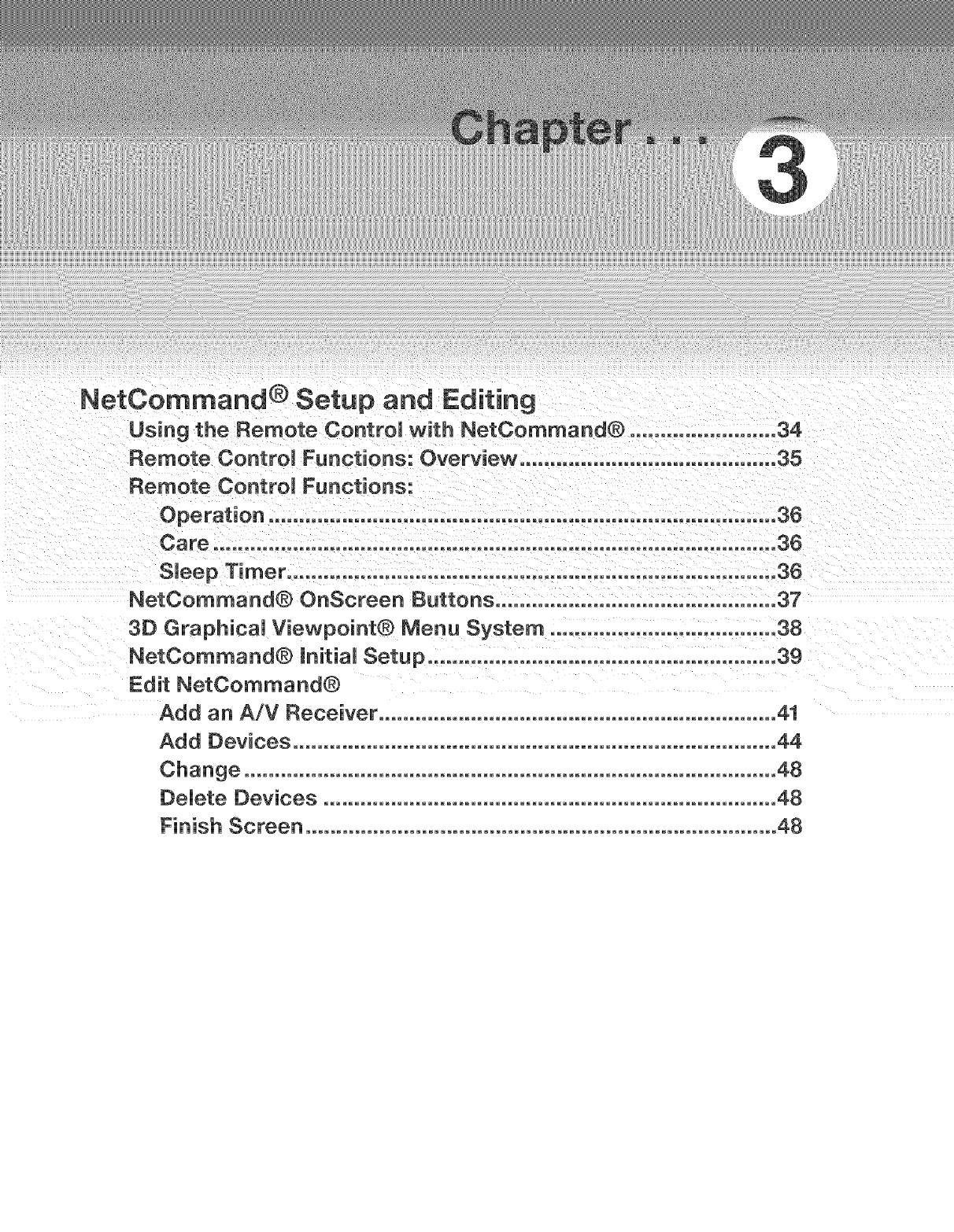

Chapter 3 NetOommand ® Setup and Editing

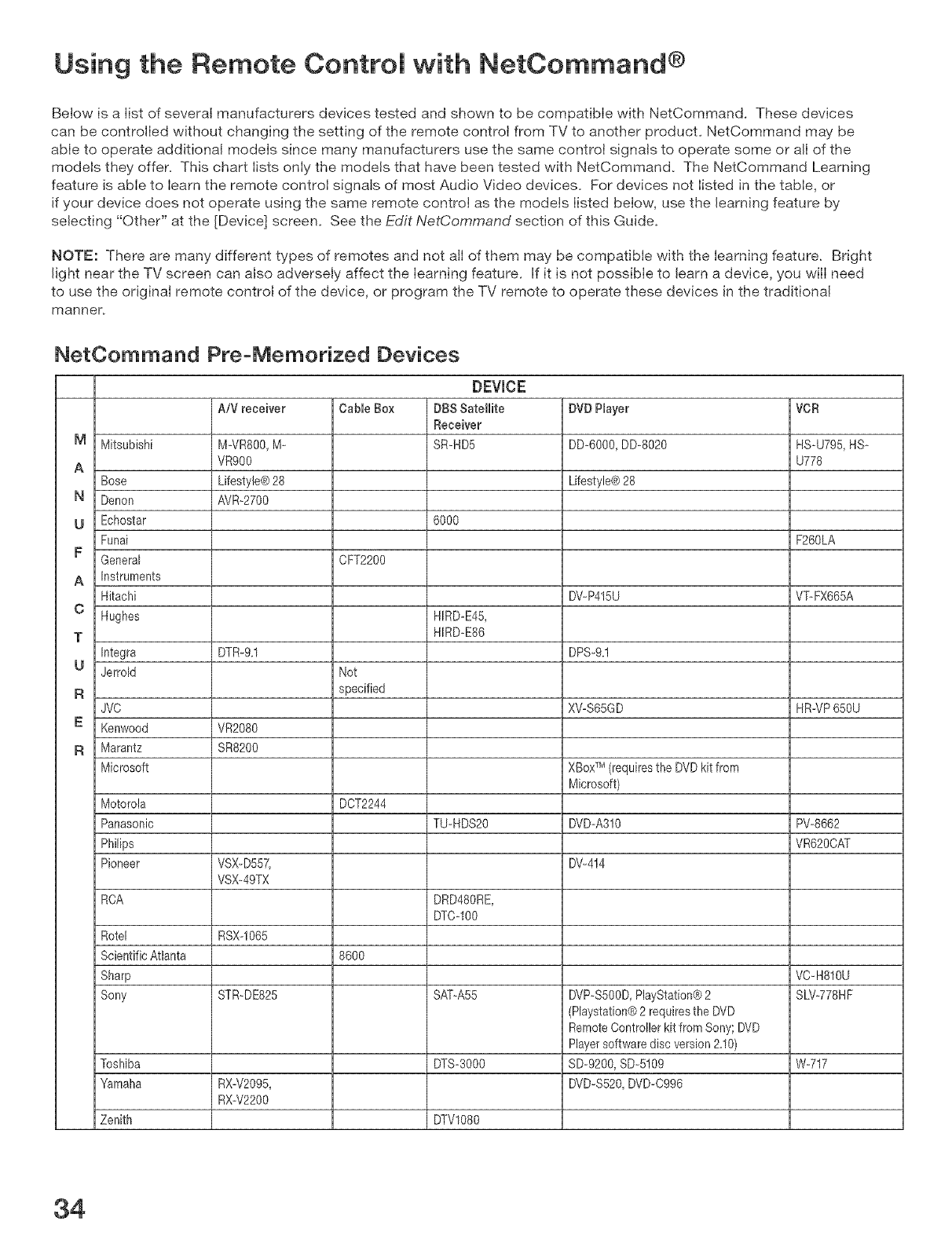

Using the Remote Control wkh NetCommand® .......................................................... 34

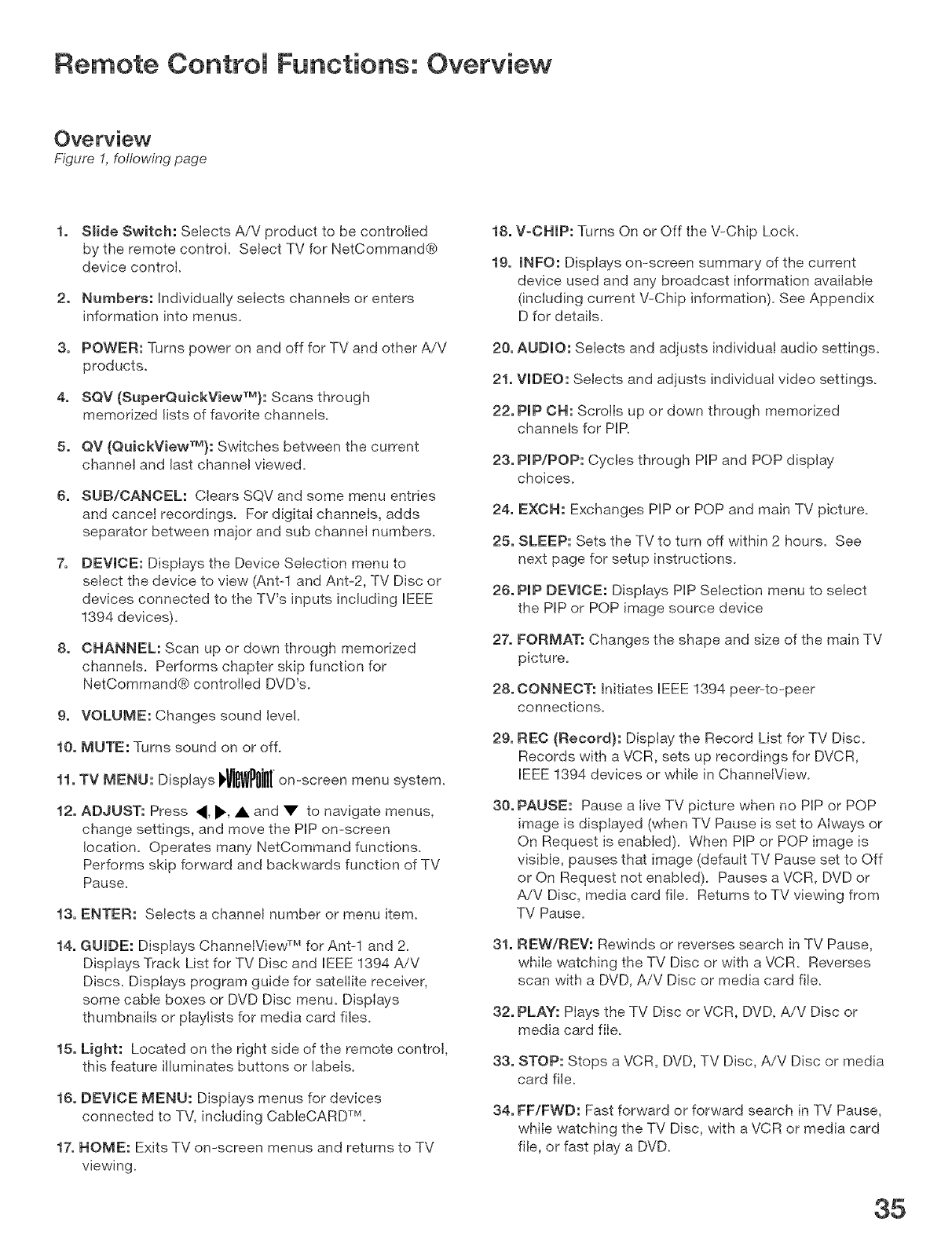

Remote Control Functions: Overview ........................................................................... 35

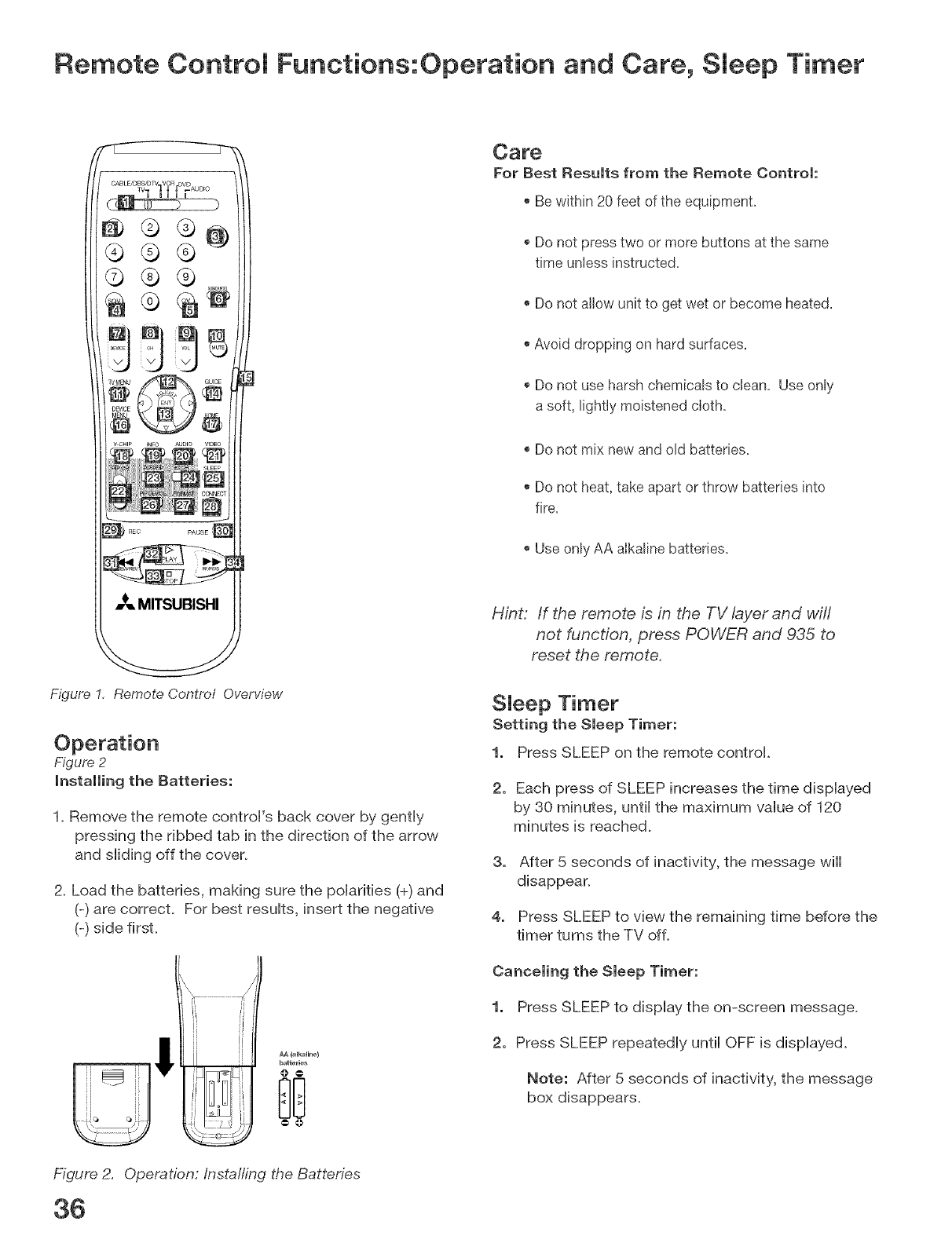

Remote Control Functions:

Operation ................................................................................................................. 36

Care ......................................................................................................................... 36

Sleep Timer ............................................................................................................. 36

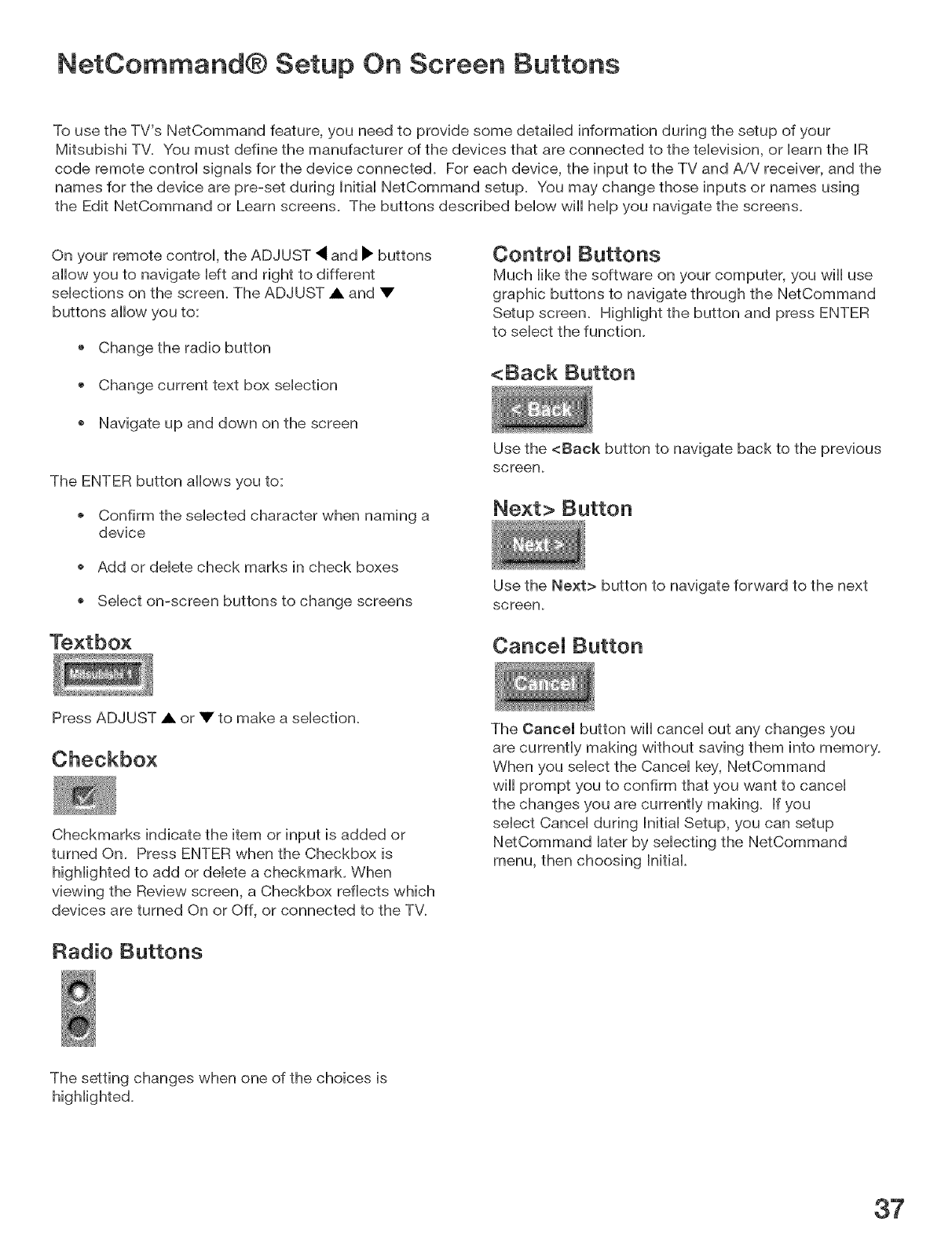

NetCommand® OnScreen Buttons ............................................................................. 37

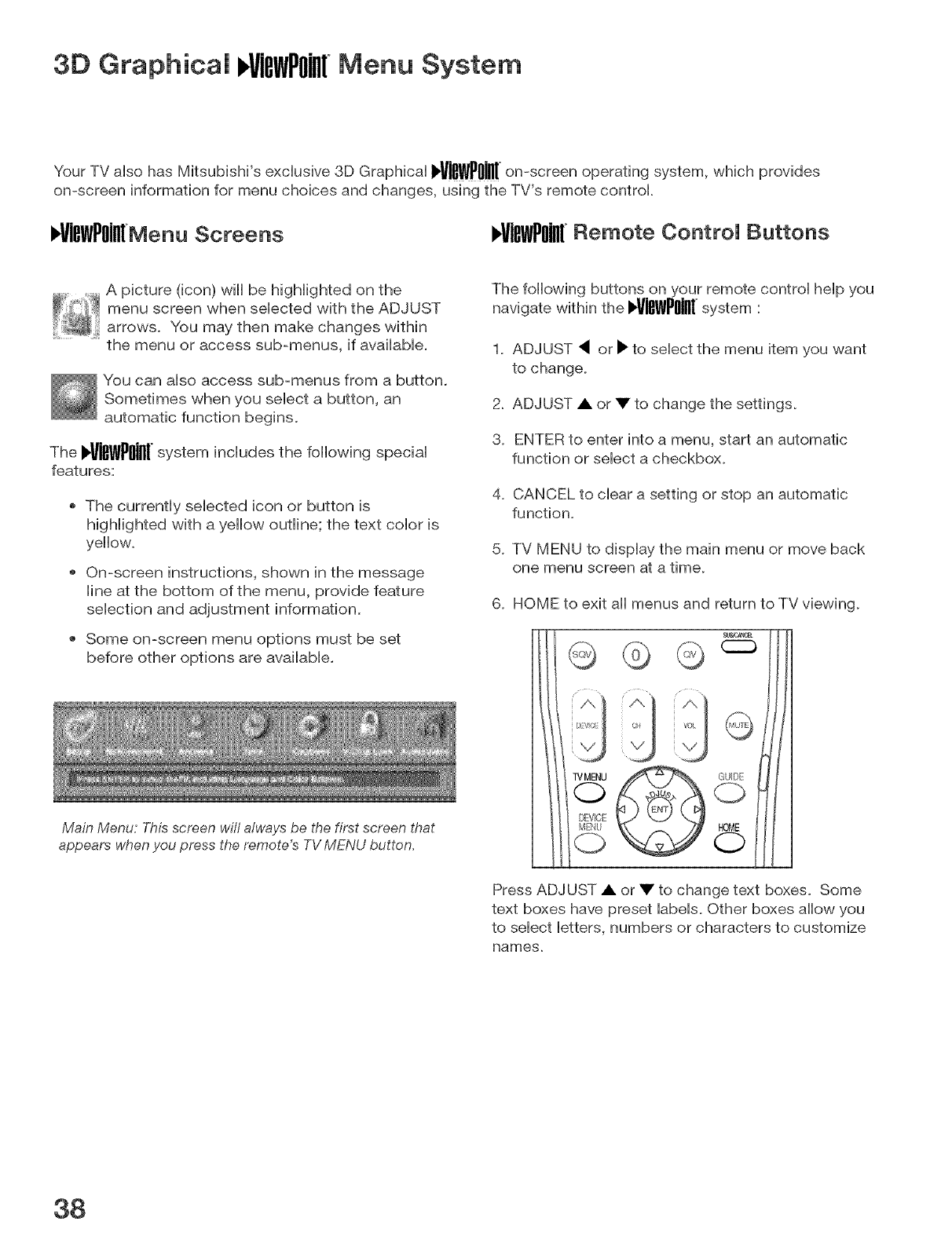

3D Graphical Viewpoint® Menu System ...................................................................... 38

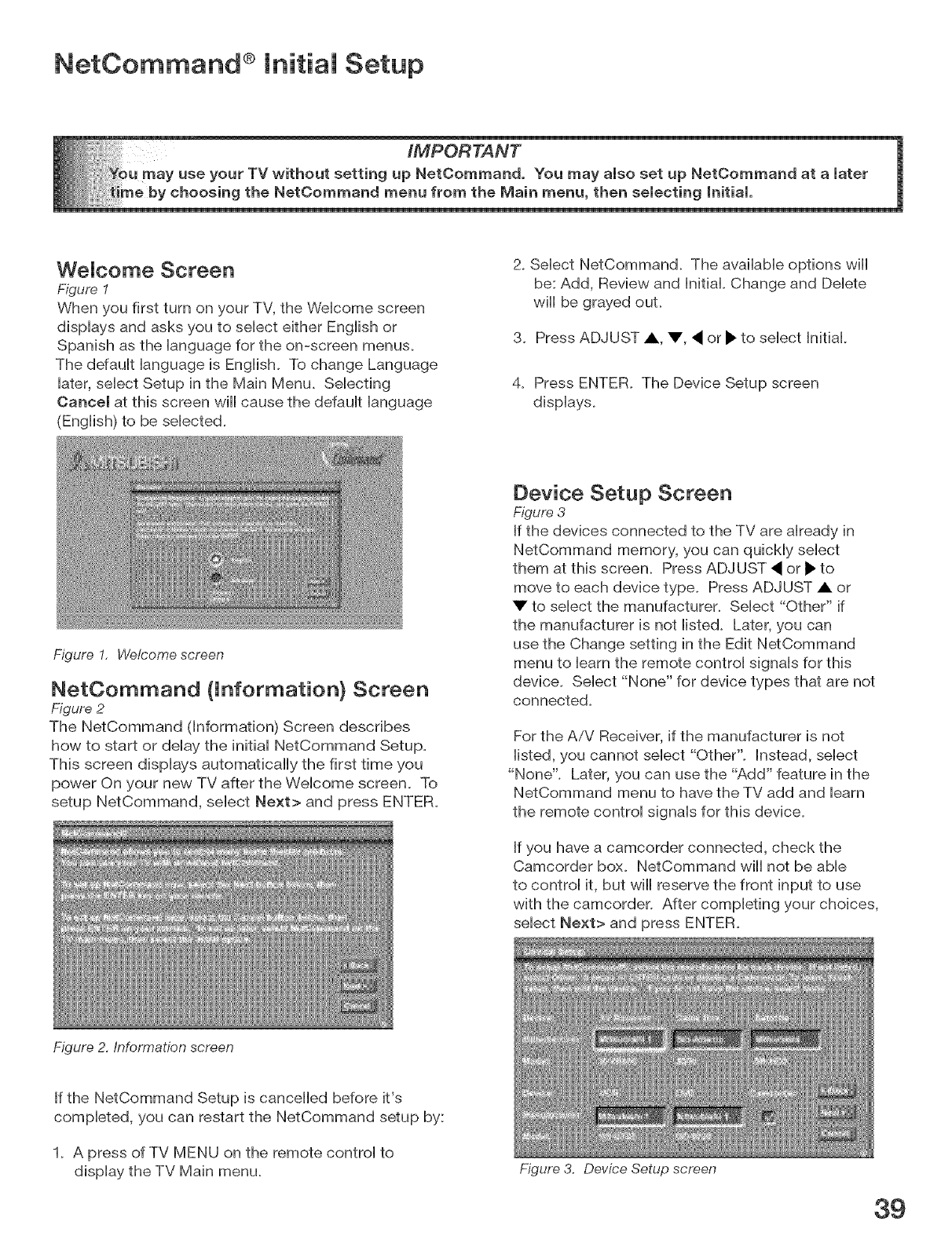

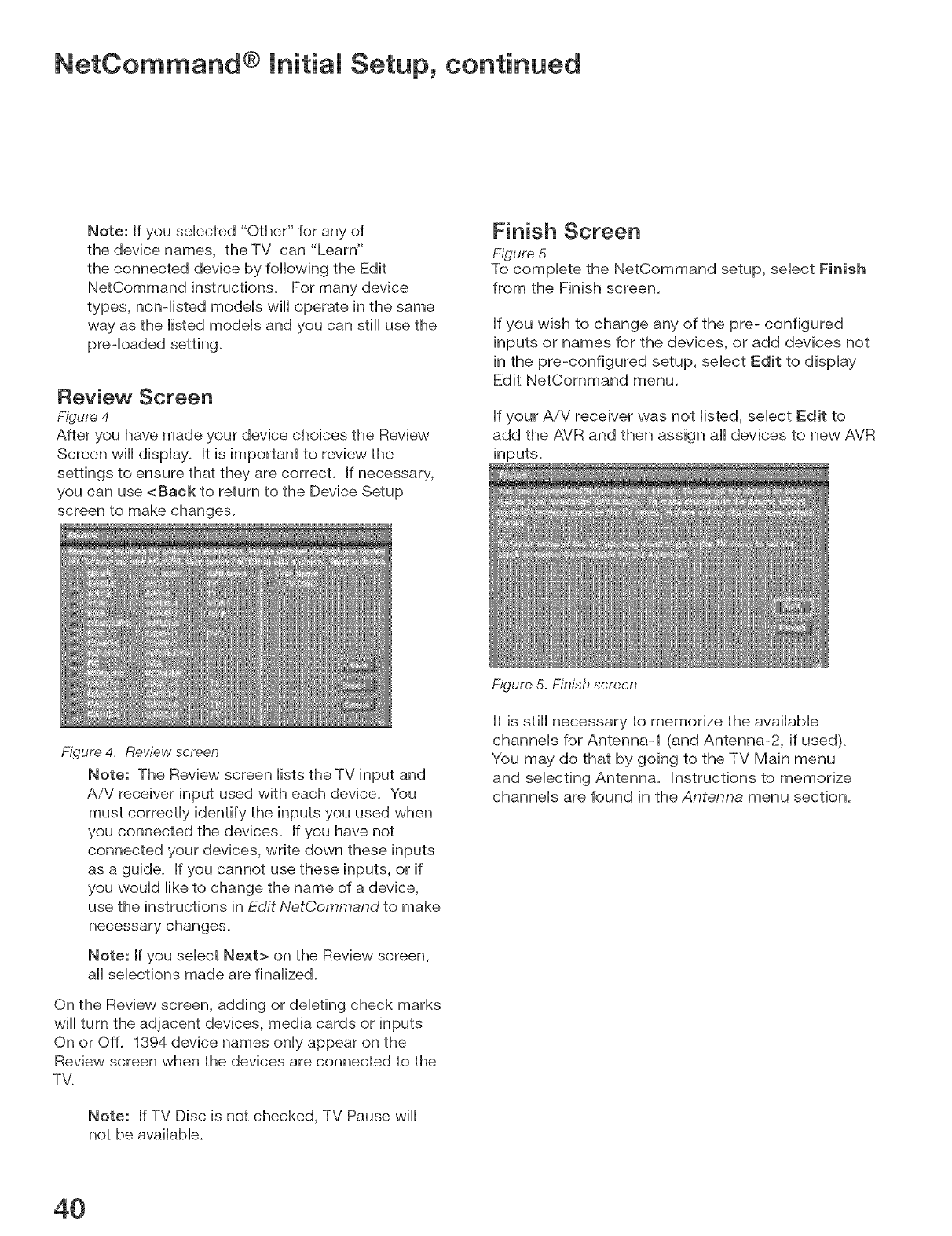

NetCommand® Inkial Setup ........................................................................................ 39

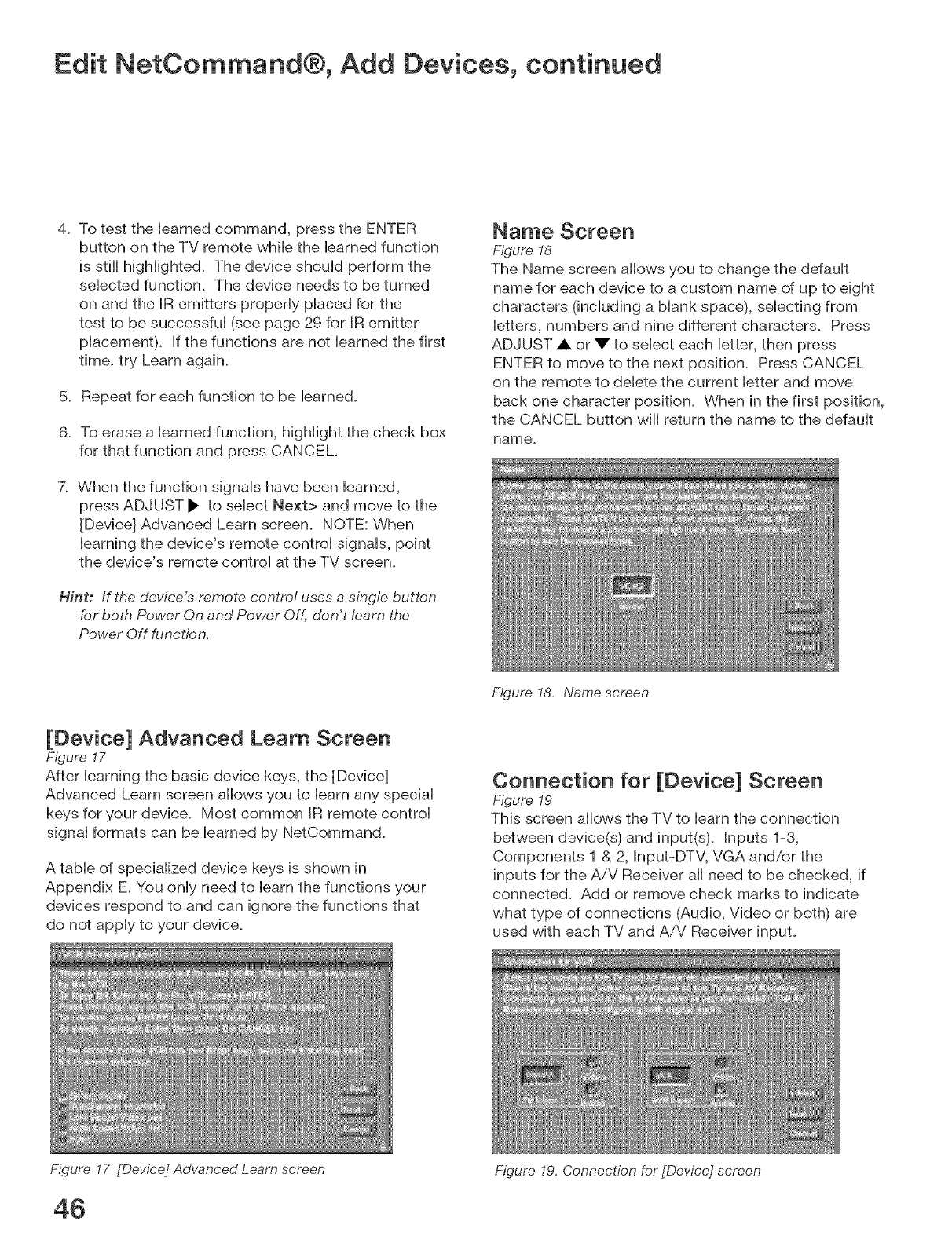

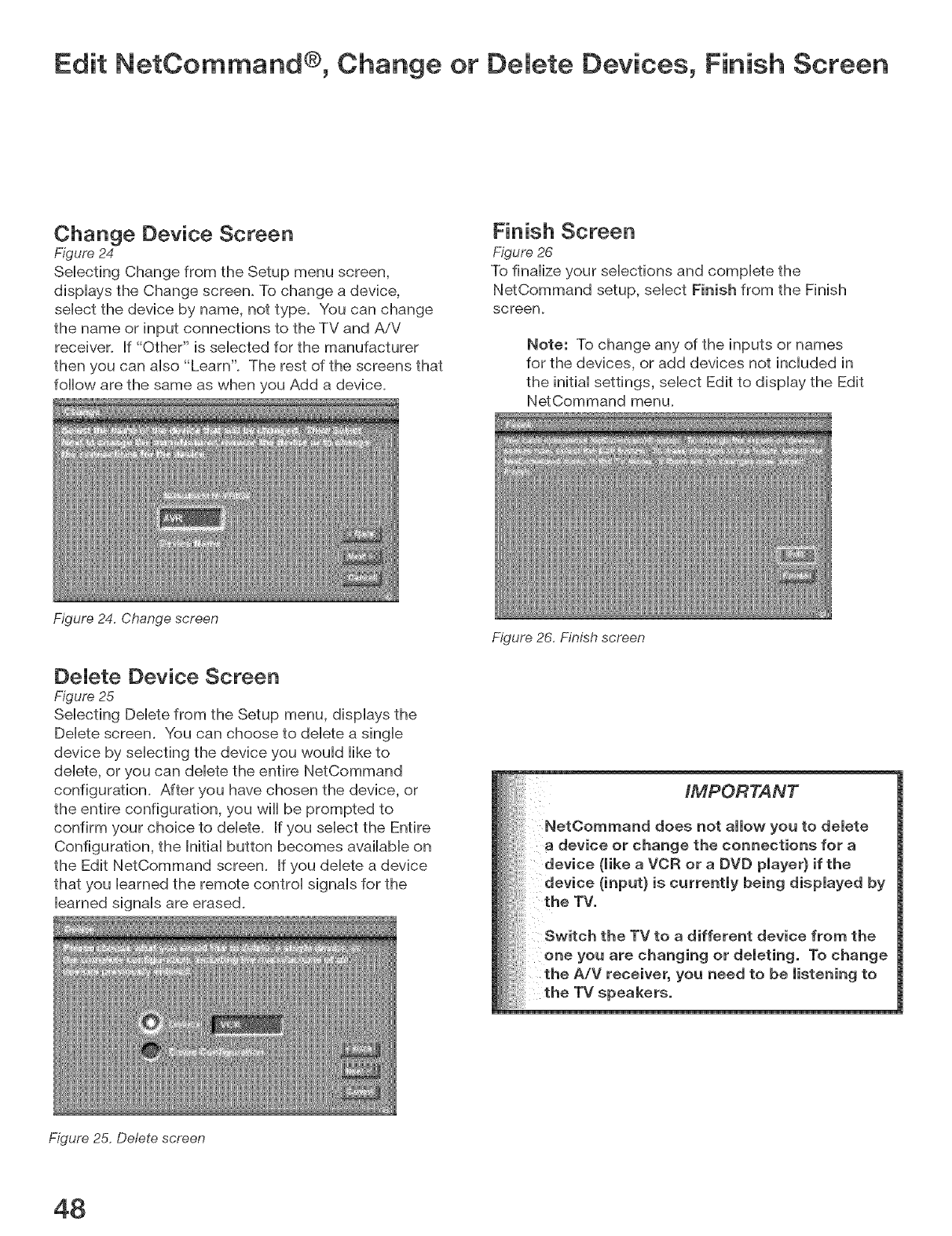

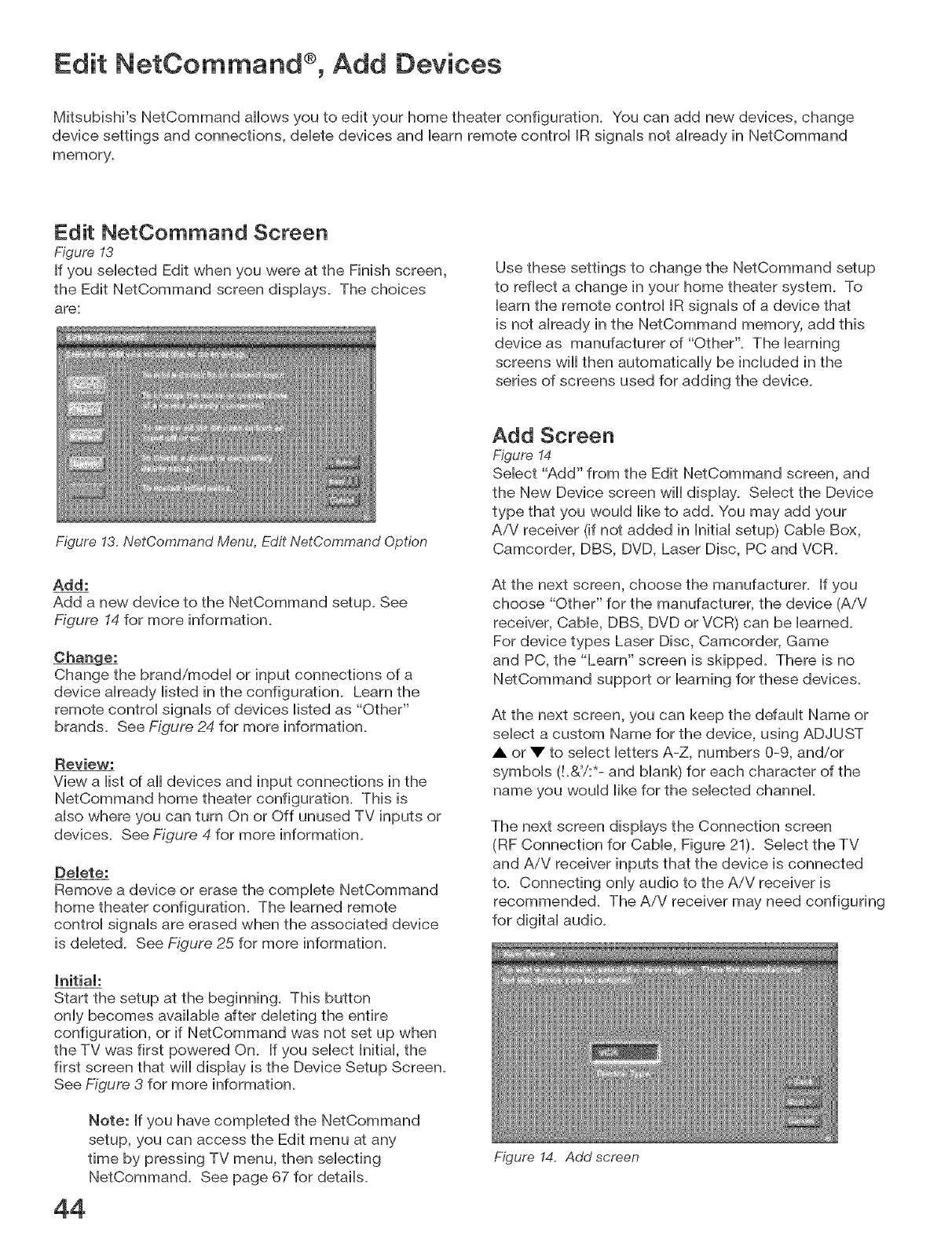

Edit NetCommand®

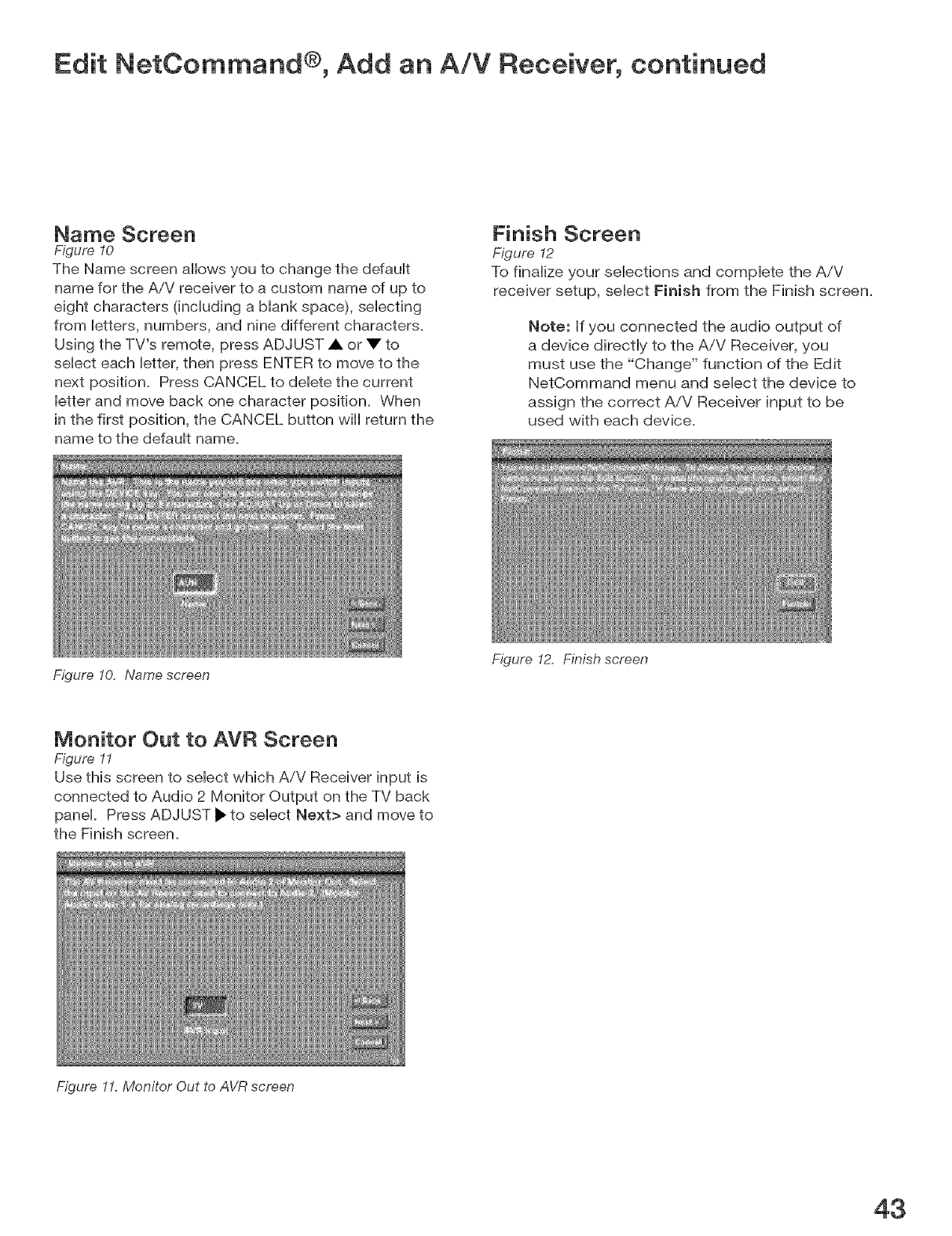

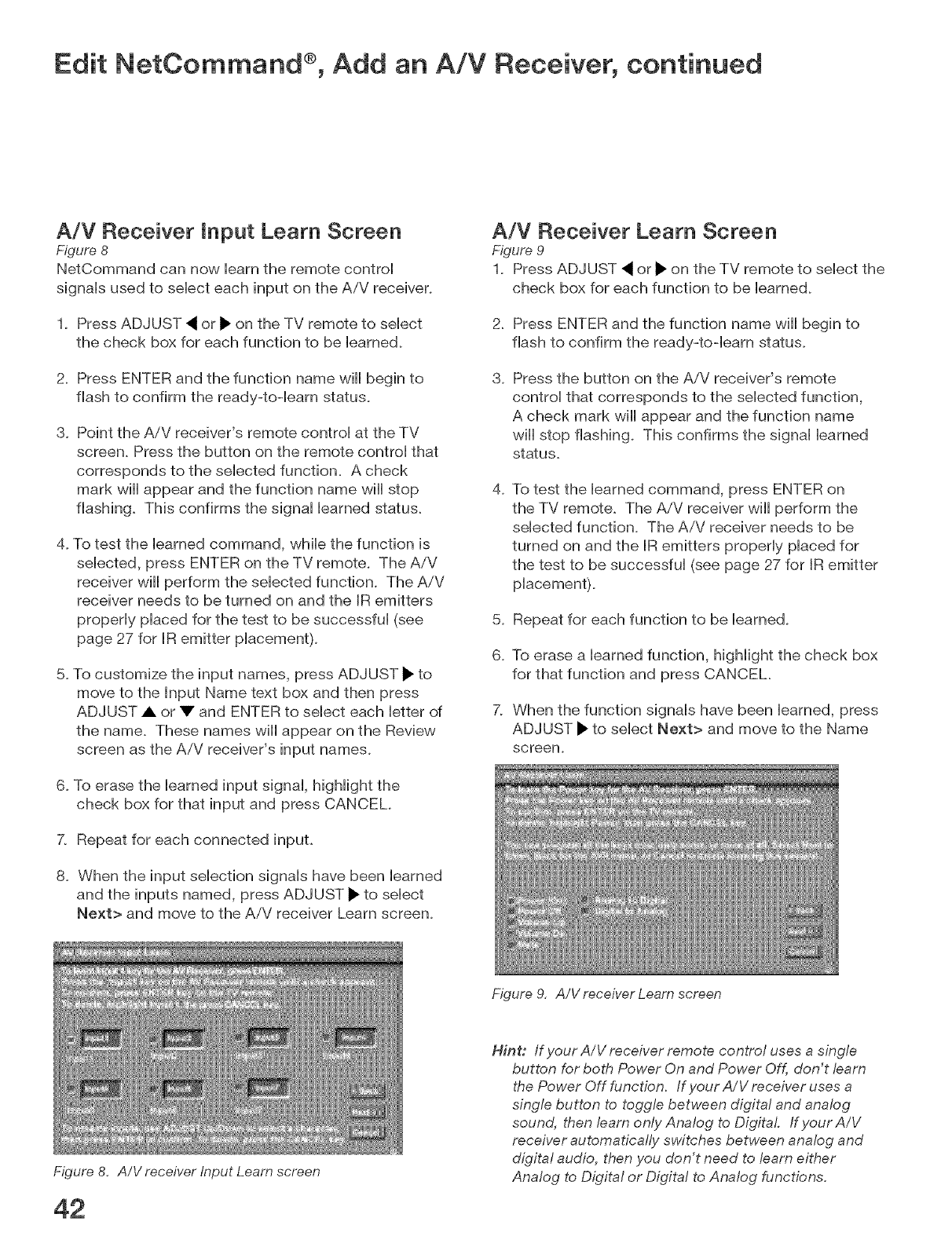

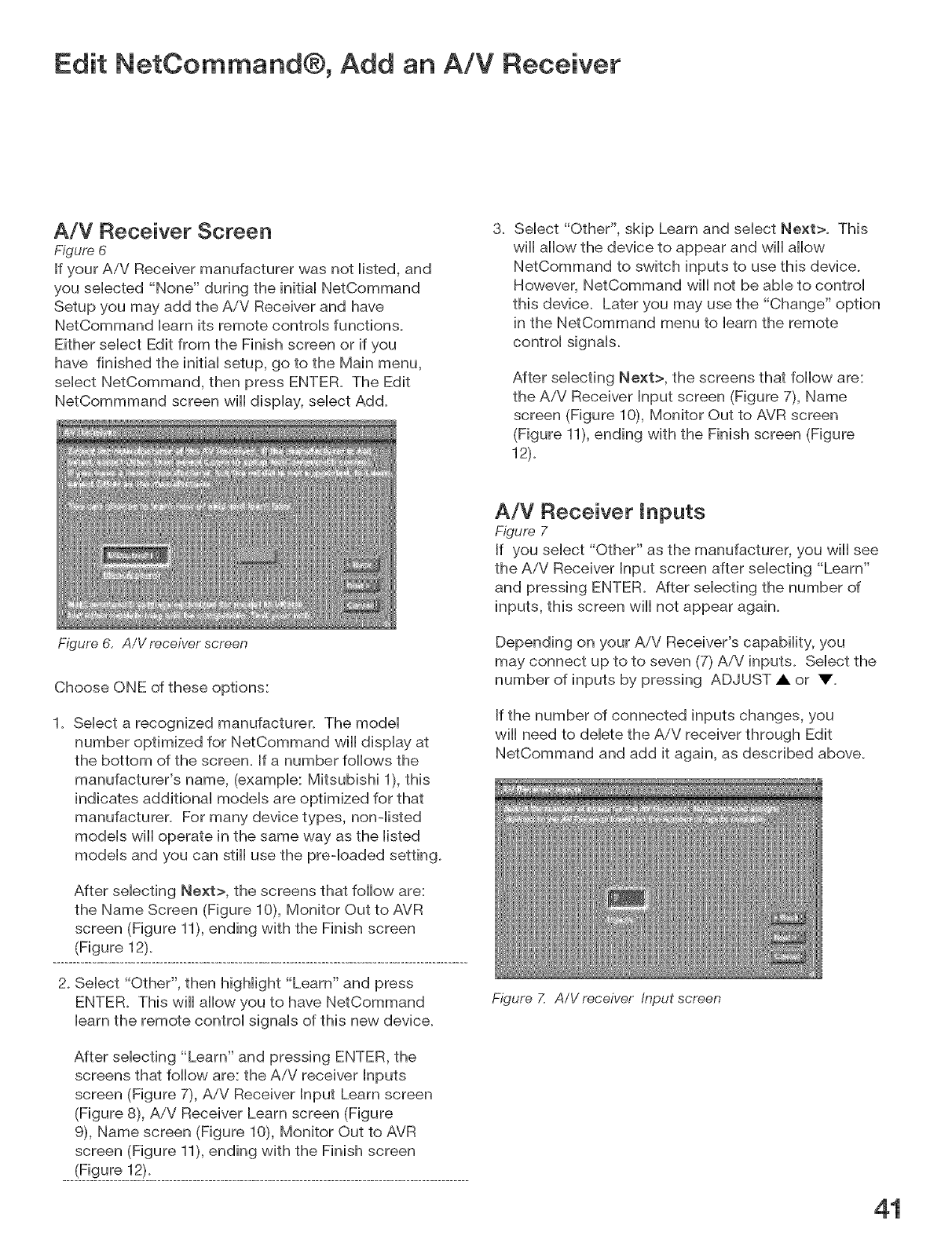

Add an A/V Receiver .............................................................................................. 41

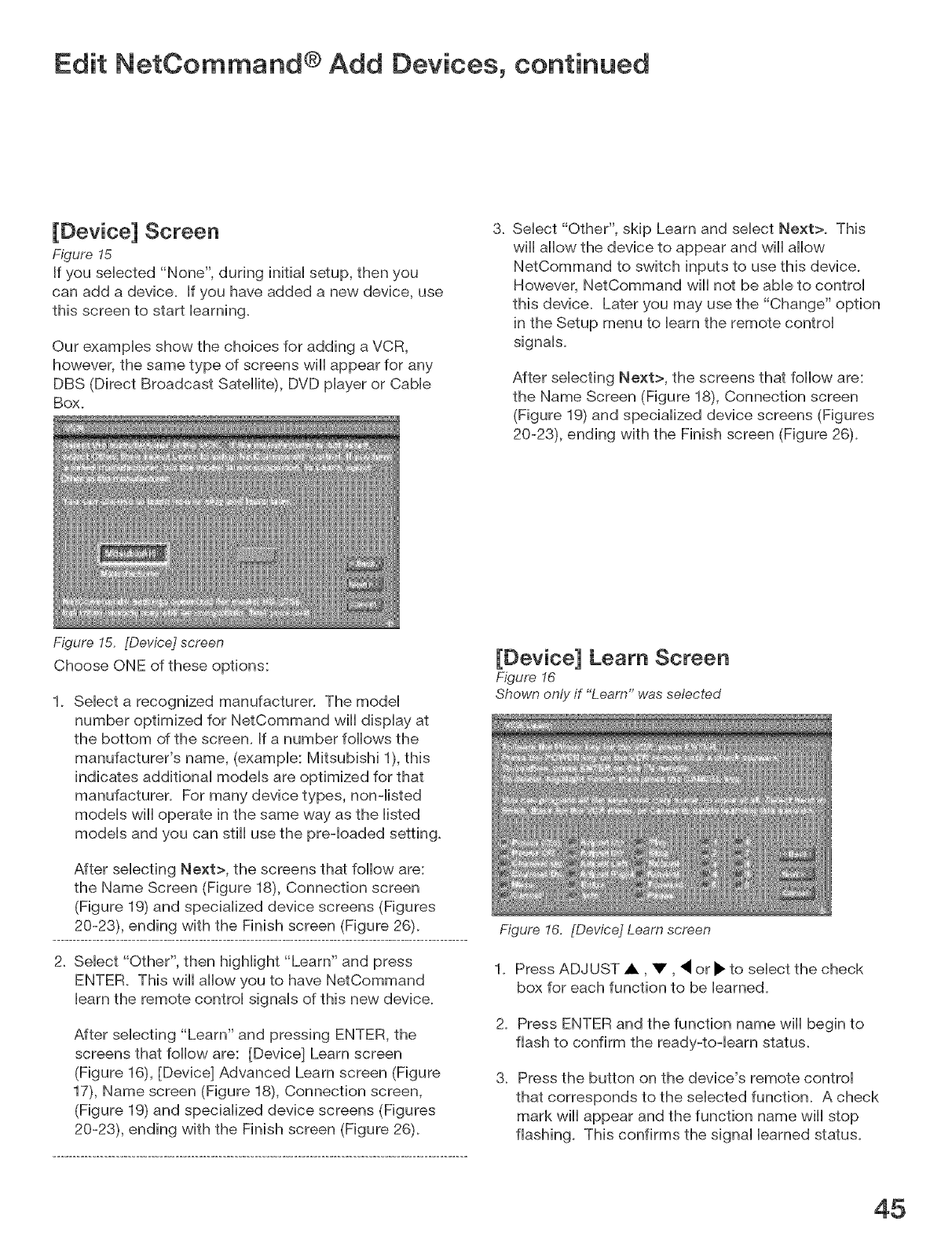

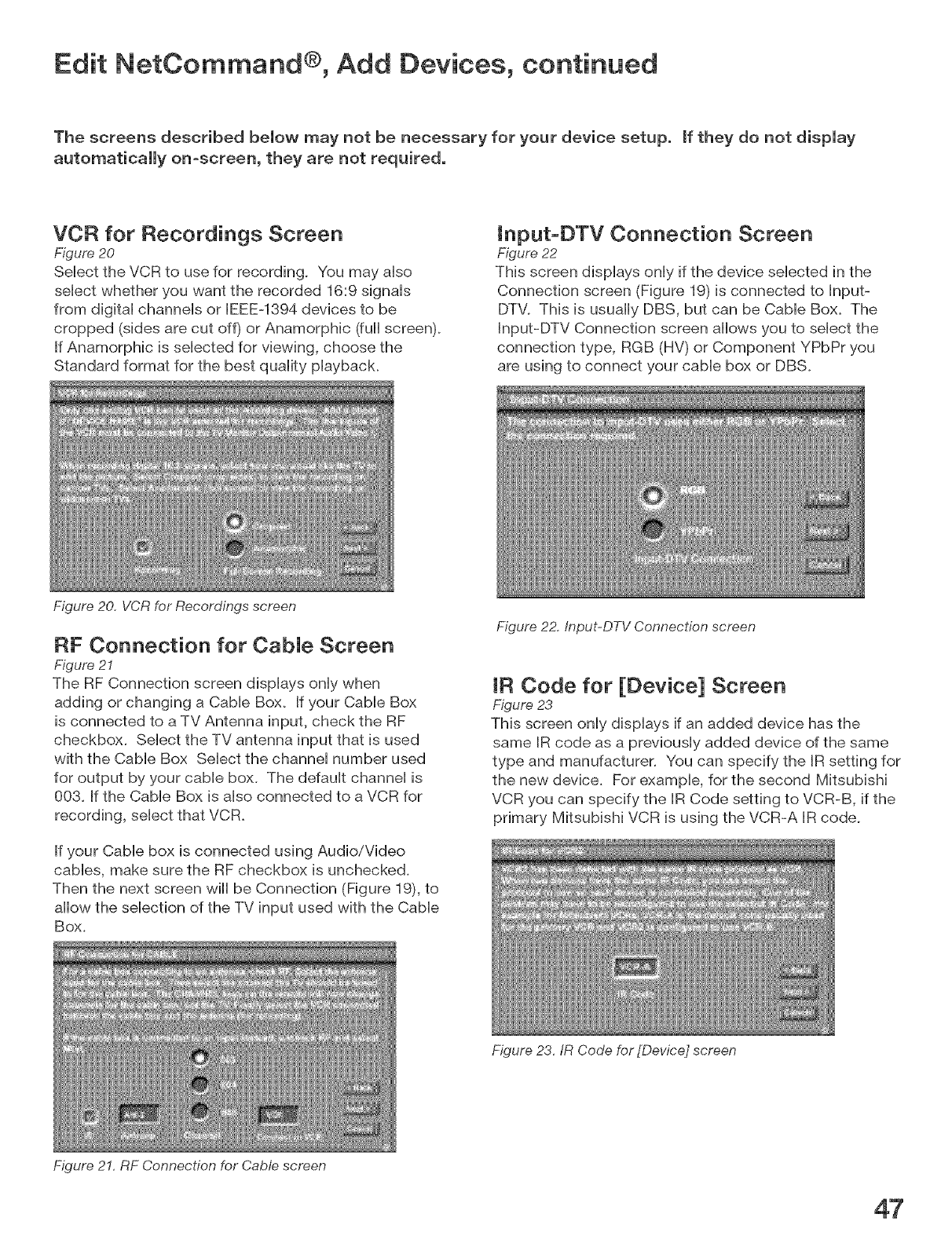

Add Devices ........................................................................................................... 44

Change Devices ..................................................................................................... 48

Delete Devices ........................................................................................................ 48

Finish Screen .......................................................................................................... 48

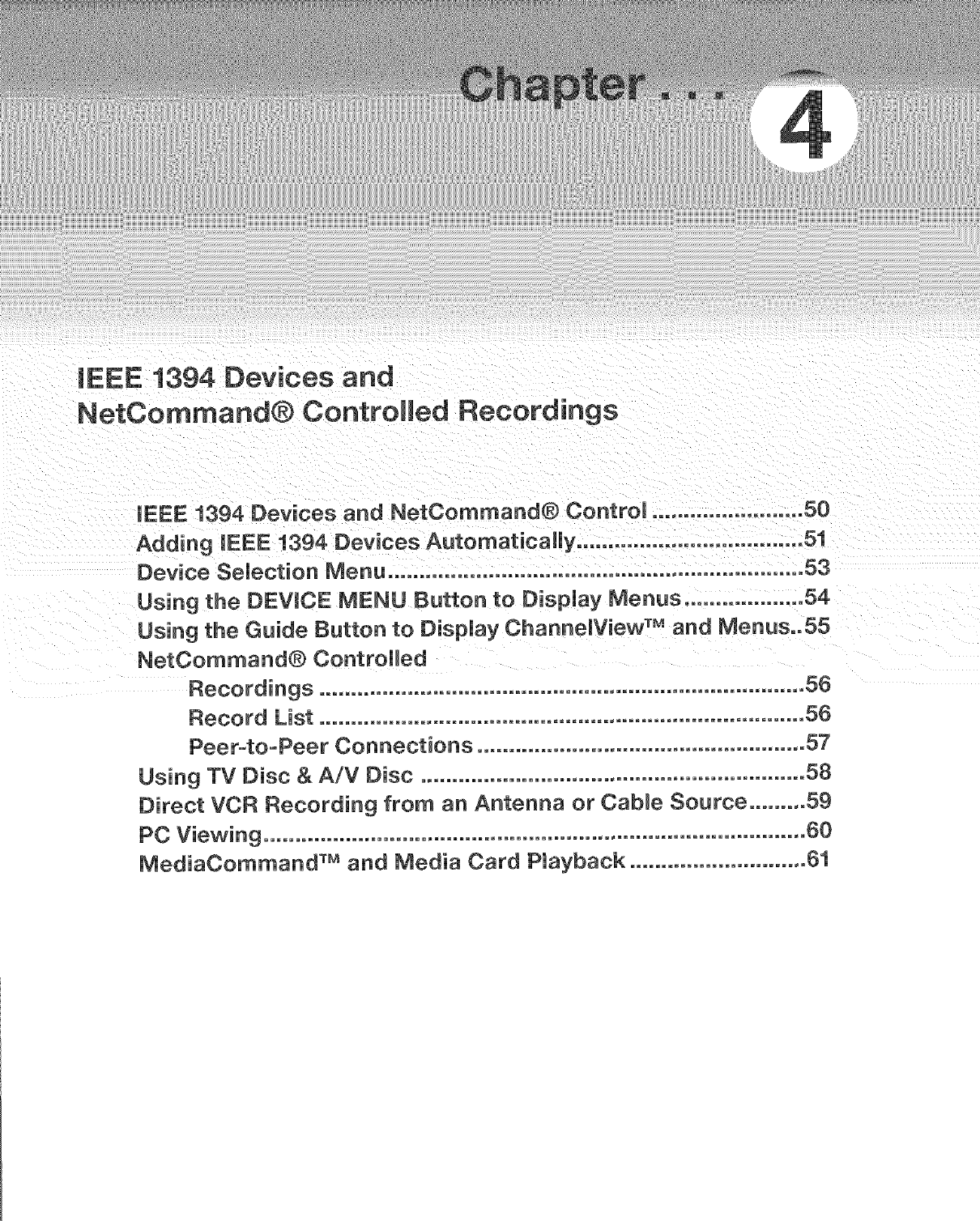

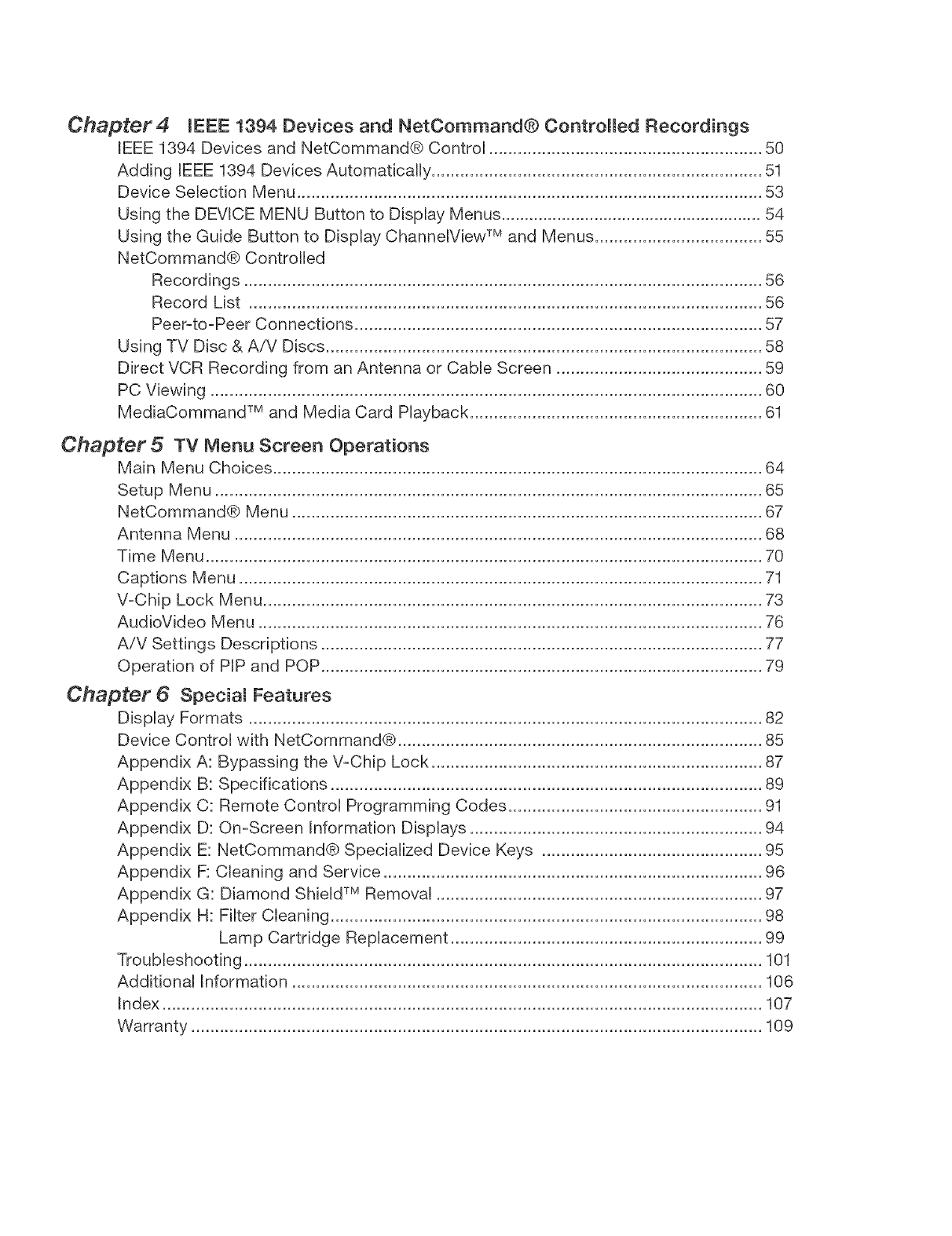

Chapter4 (EEE 1394 Dev(ces and NetCommand® Controlled Recordings

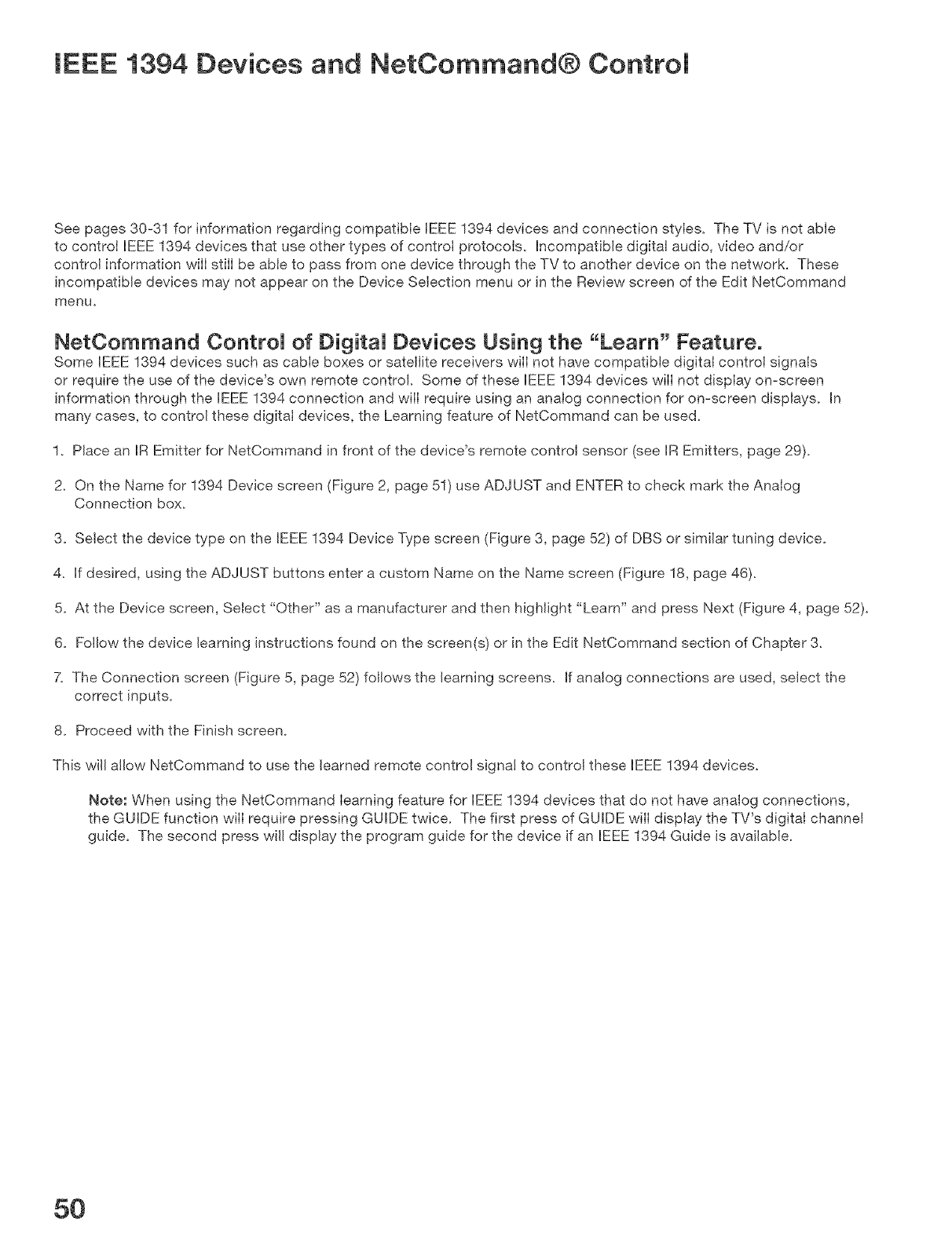

IEEE 1394 Devices and NetCommand® Control ......................................................... 50

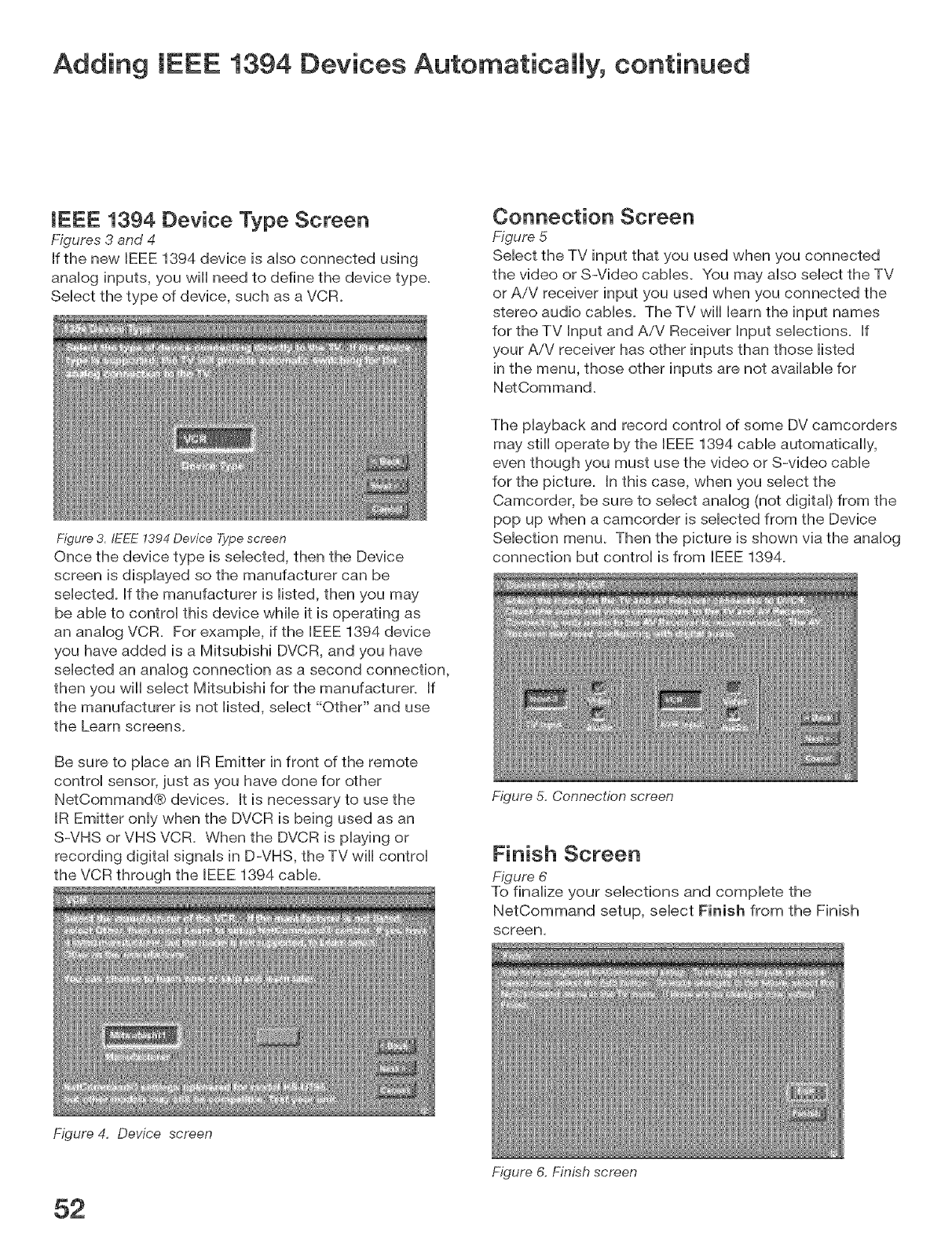

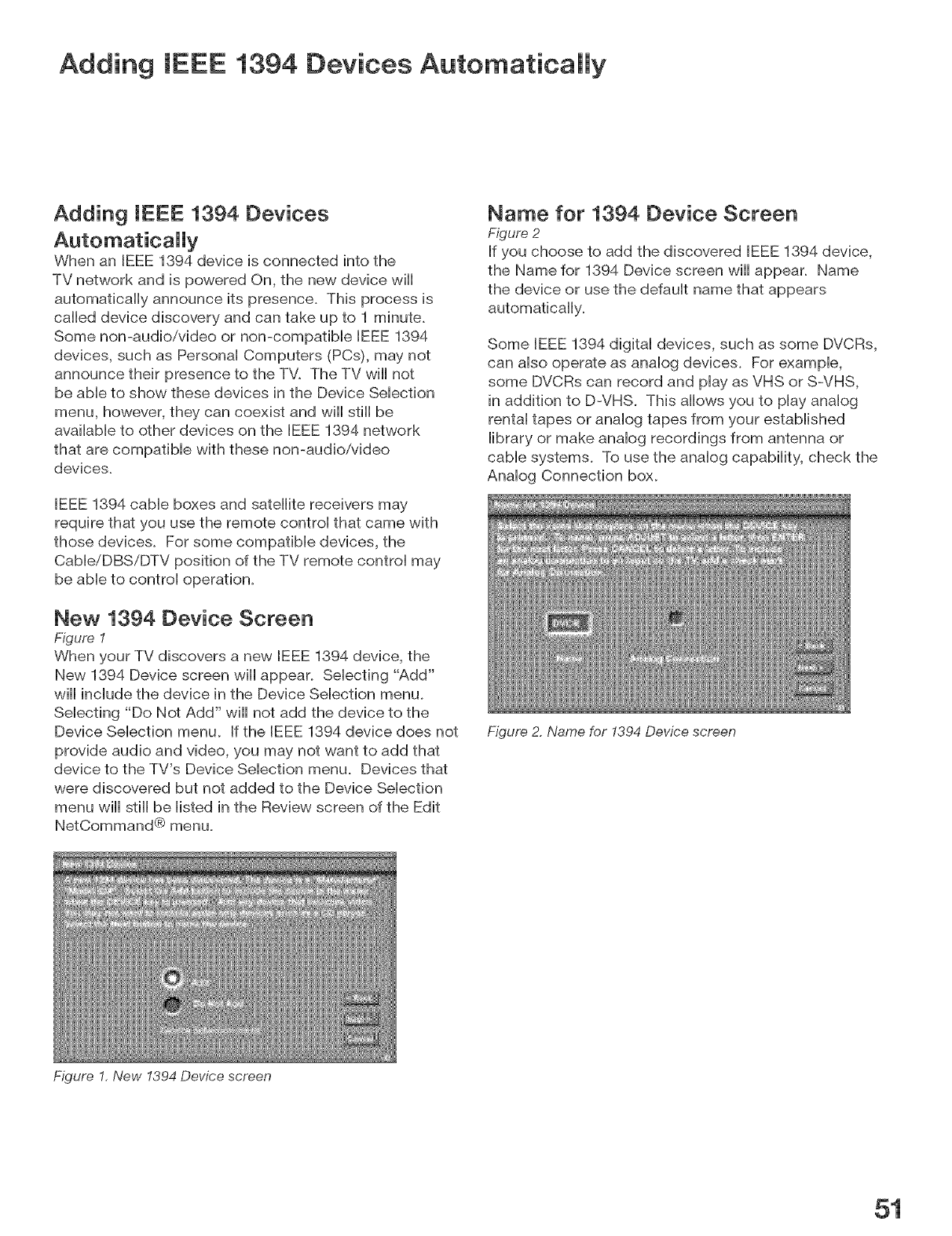

Adding IEEE 1394 Devices Automatically ..................................................................... 51

Device Selection Menu ................................................................................................. 53

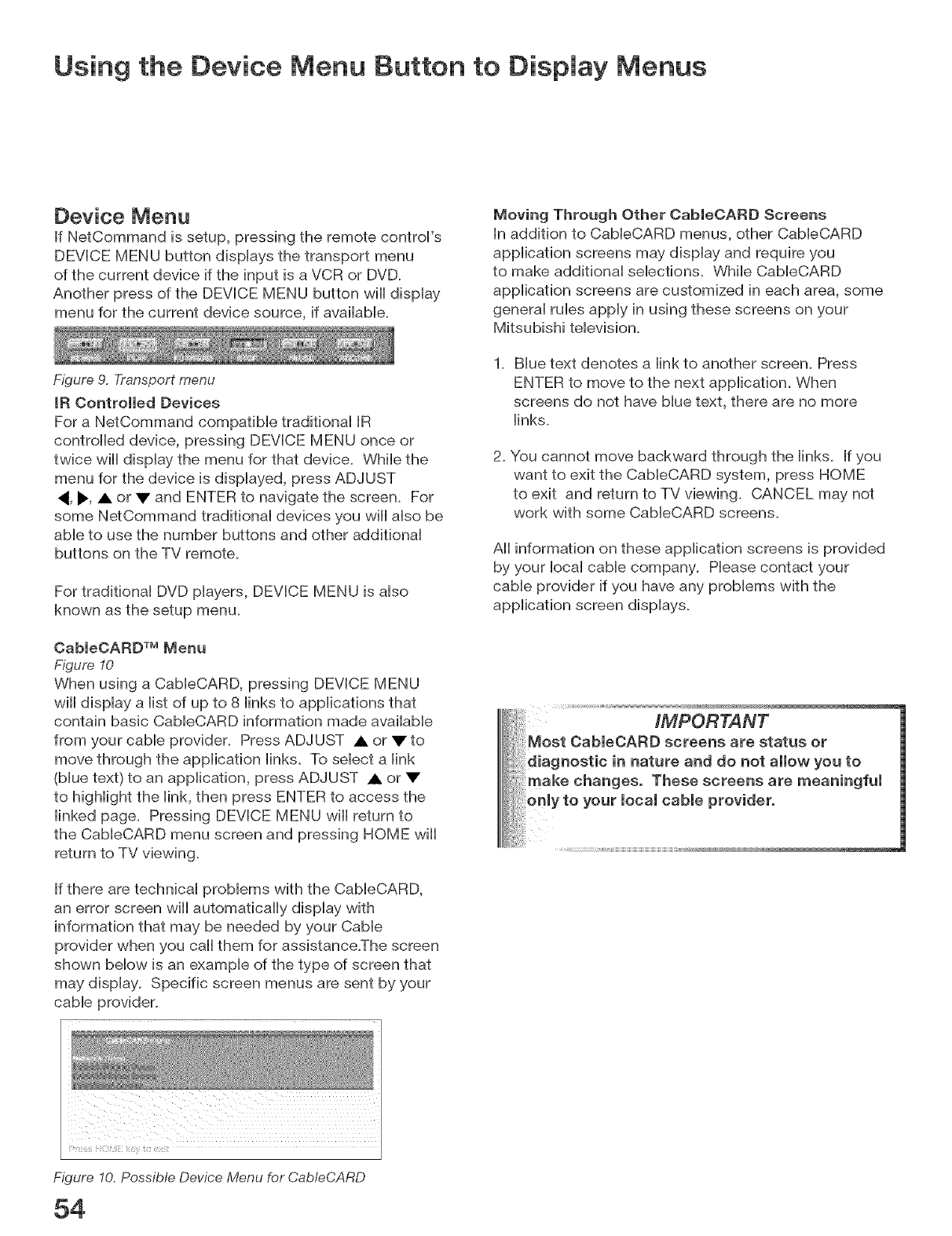

Using the DEVICE MENU Button to Display Menus ........................................................ 54

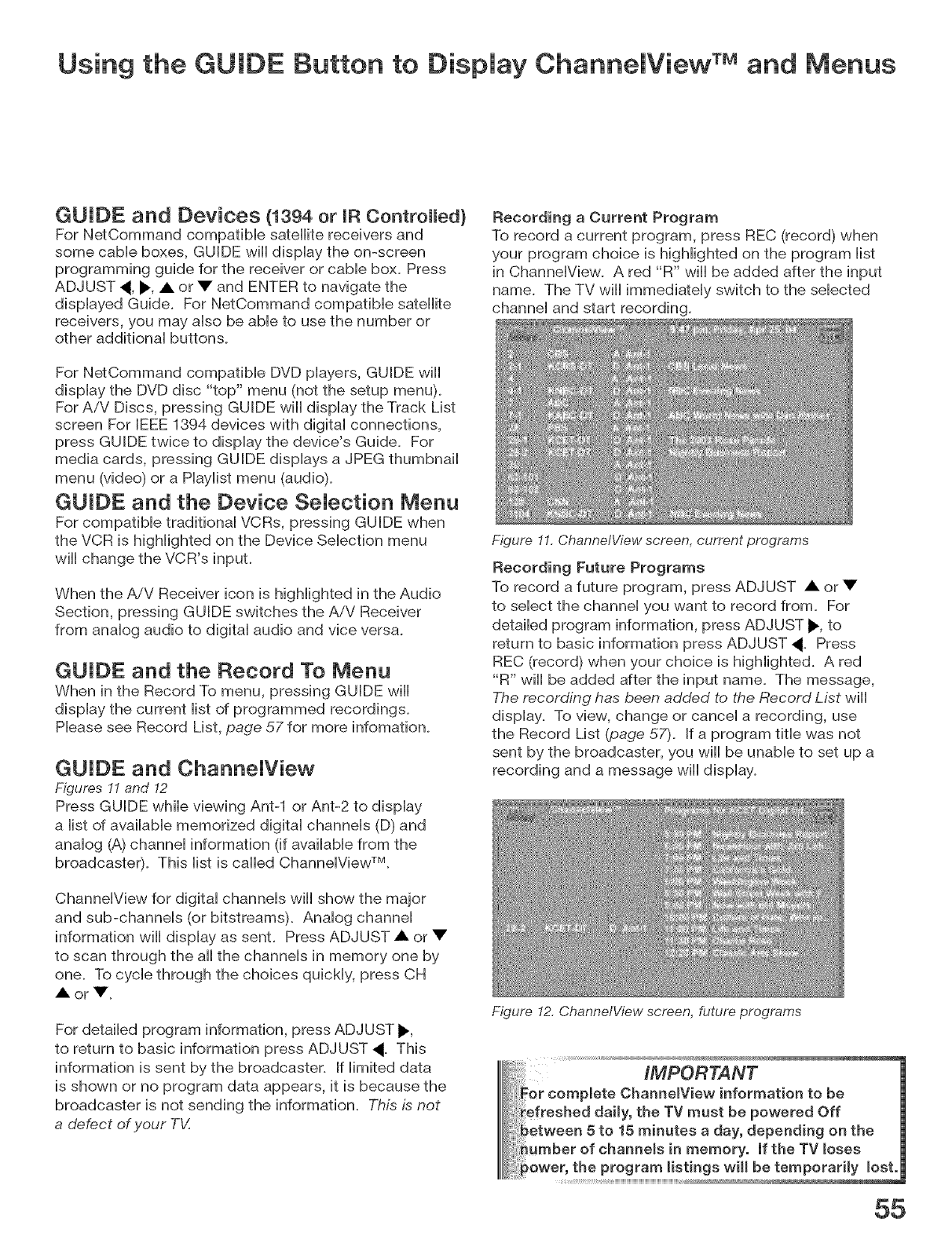

Using the Guide Button to Display ChannelView TM and Menus ................................... 55

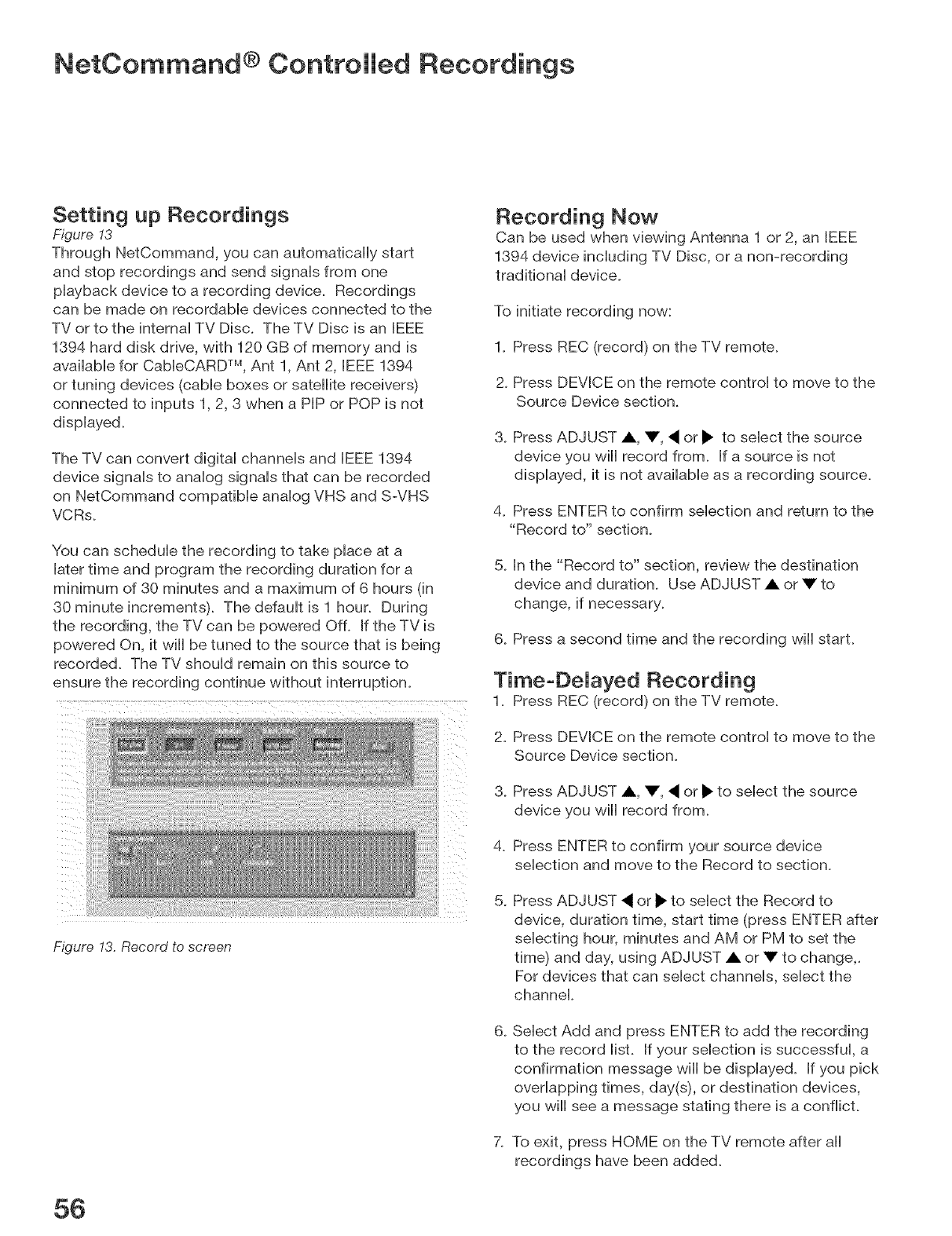

NetCommand® Controlled

Recordings ............................................................................................................ 56

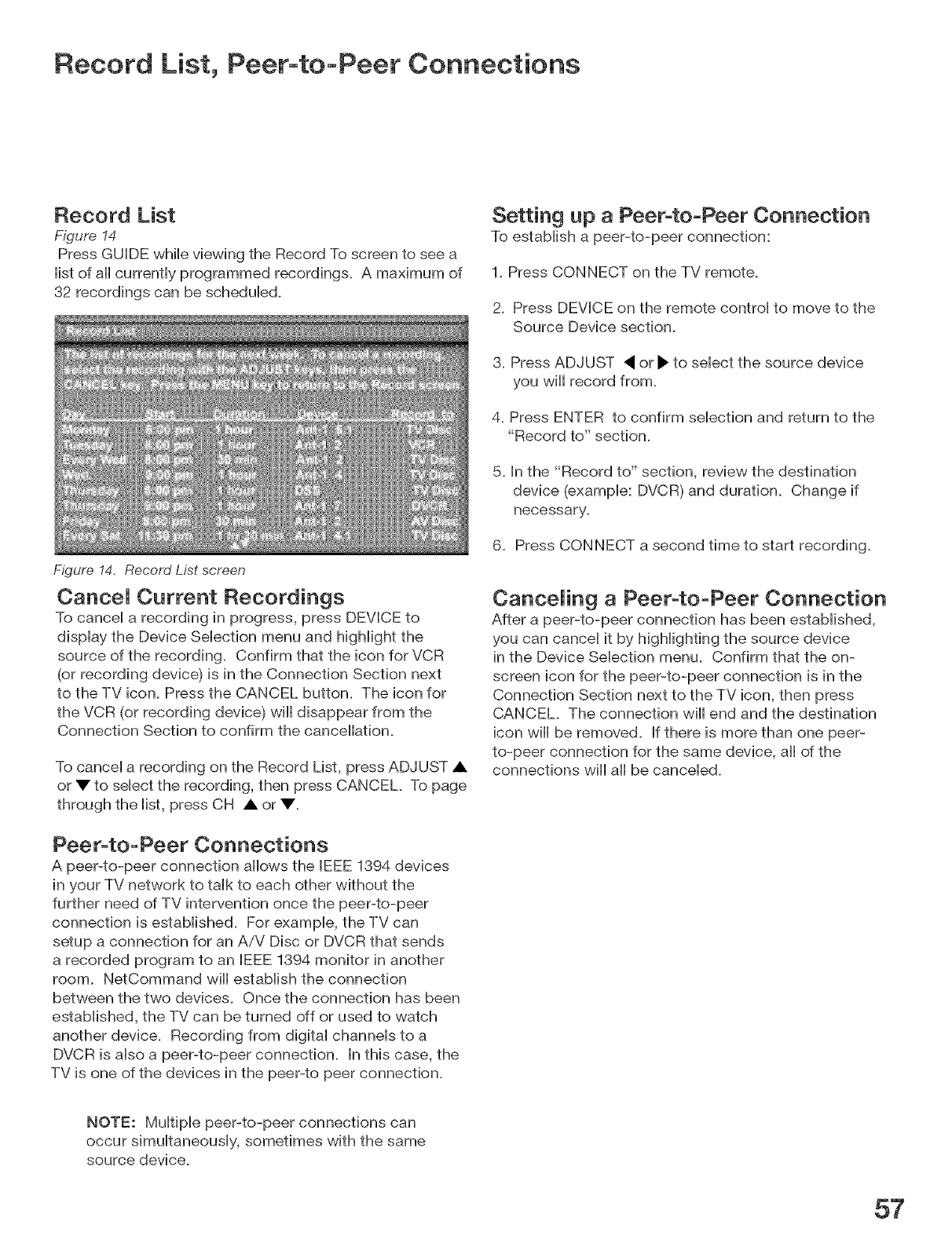

Record List ........................................................................................................... 56

Peer-to-Peer Connections ..................................................................................... 57

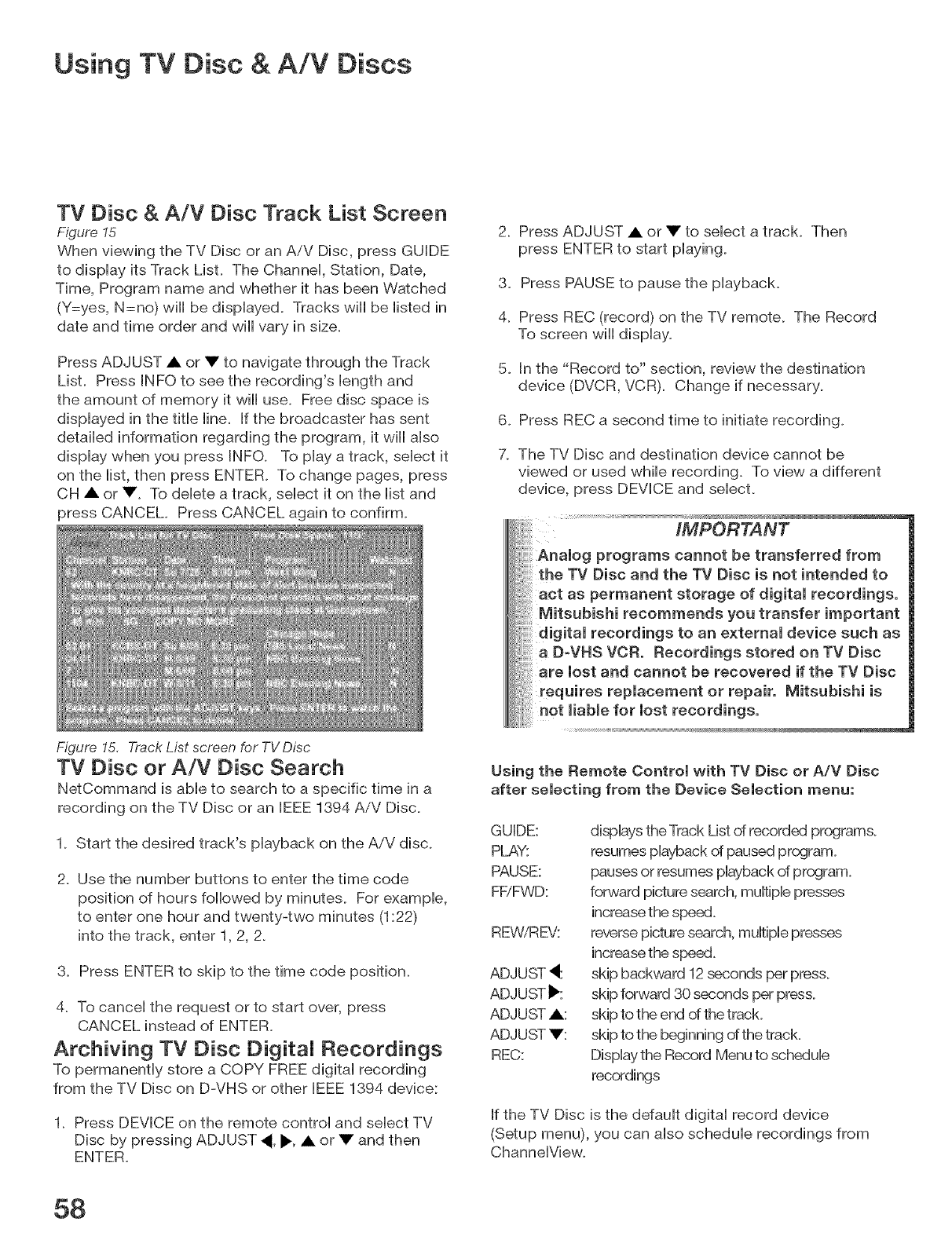

Using TV Disc & A/V Discs ........................................................................................... 58

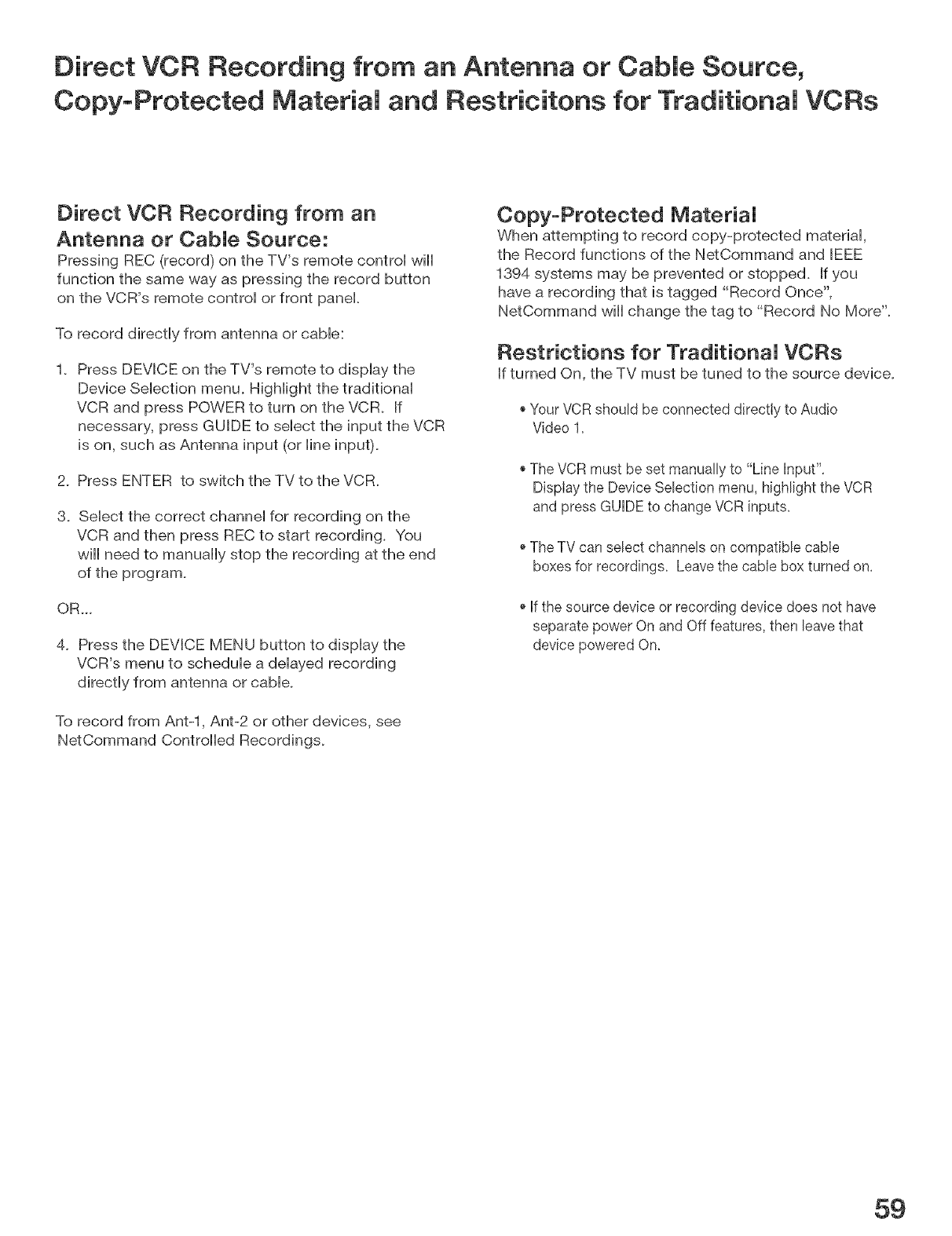

Direct VCR Recording from an Antenna or Cable Screen ........................................... 59

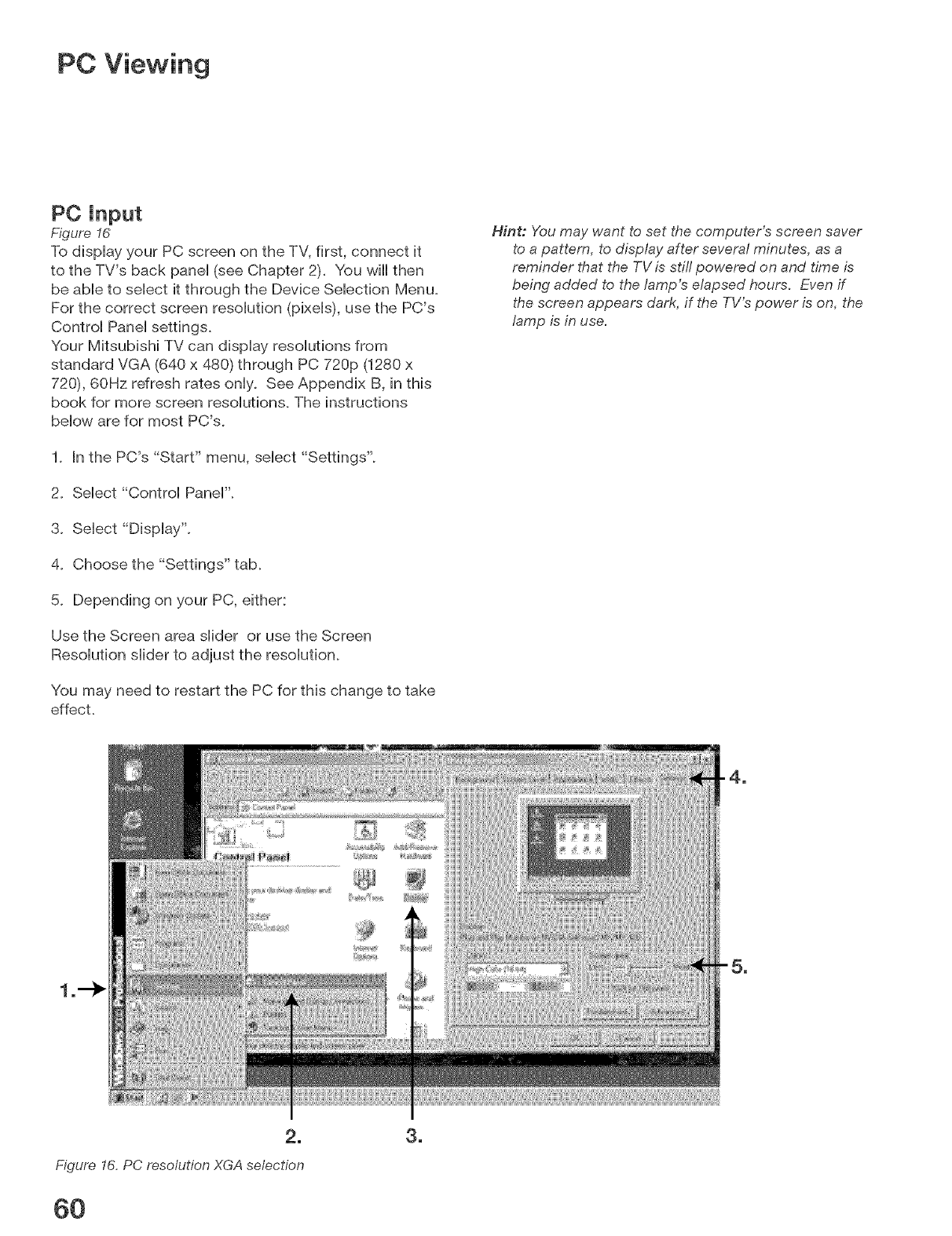

PC Viewing ................................................................................................................... 60

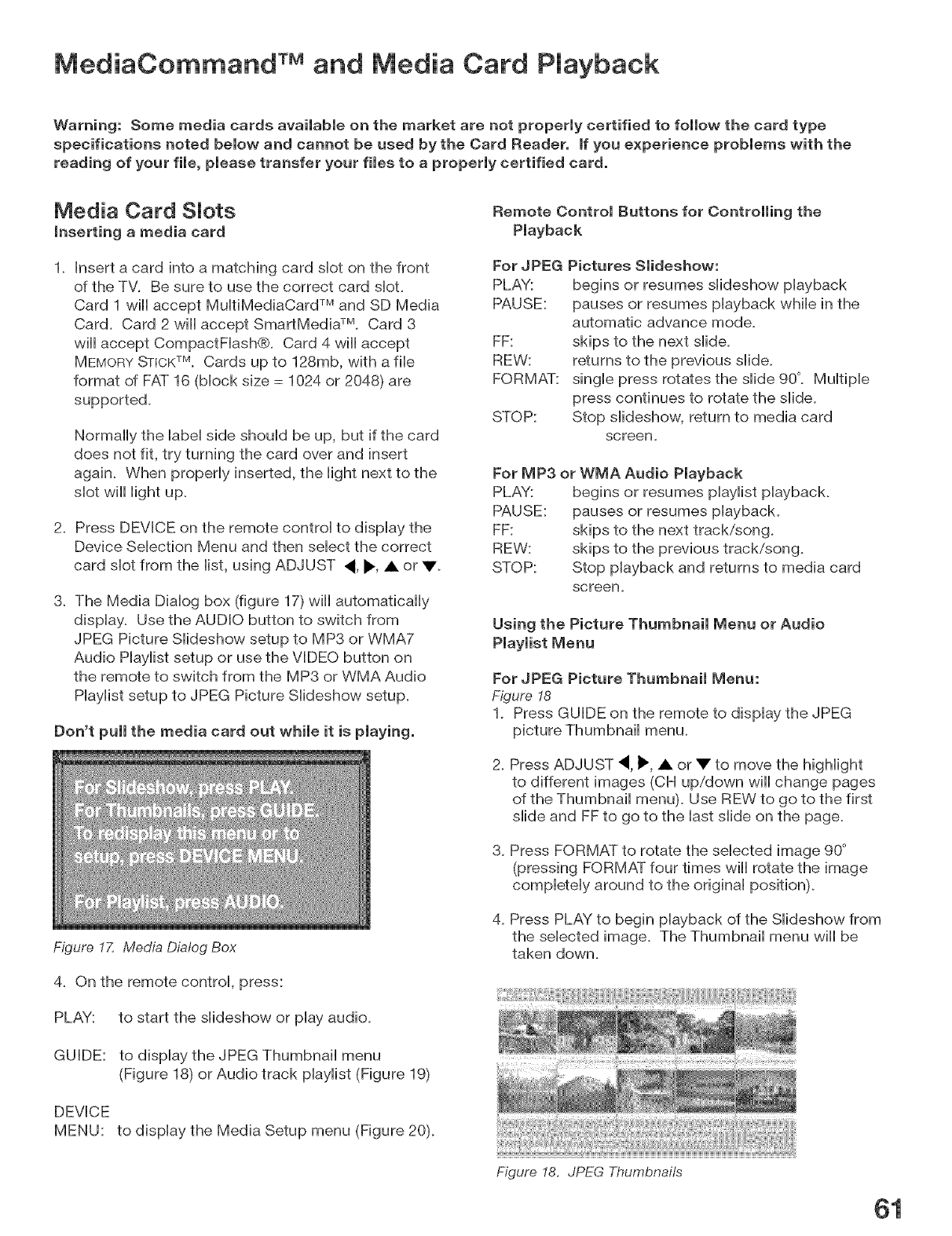

MediaCommand TM and Media Card Playback ............................................................. 61

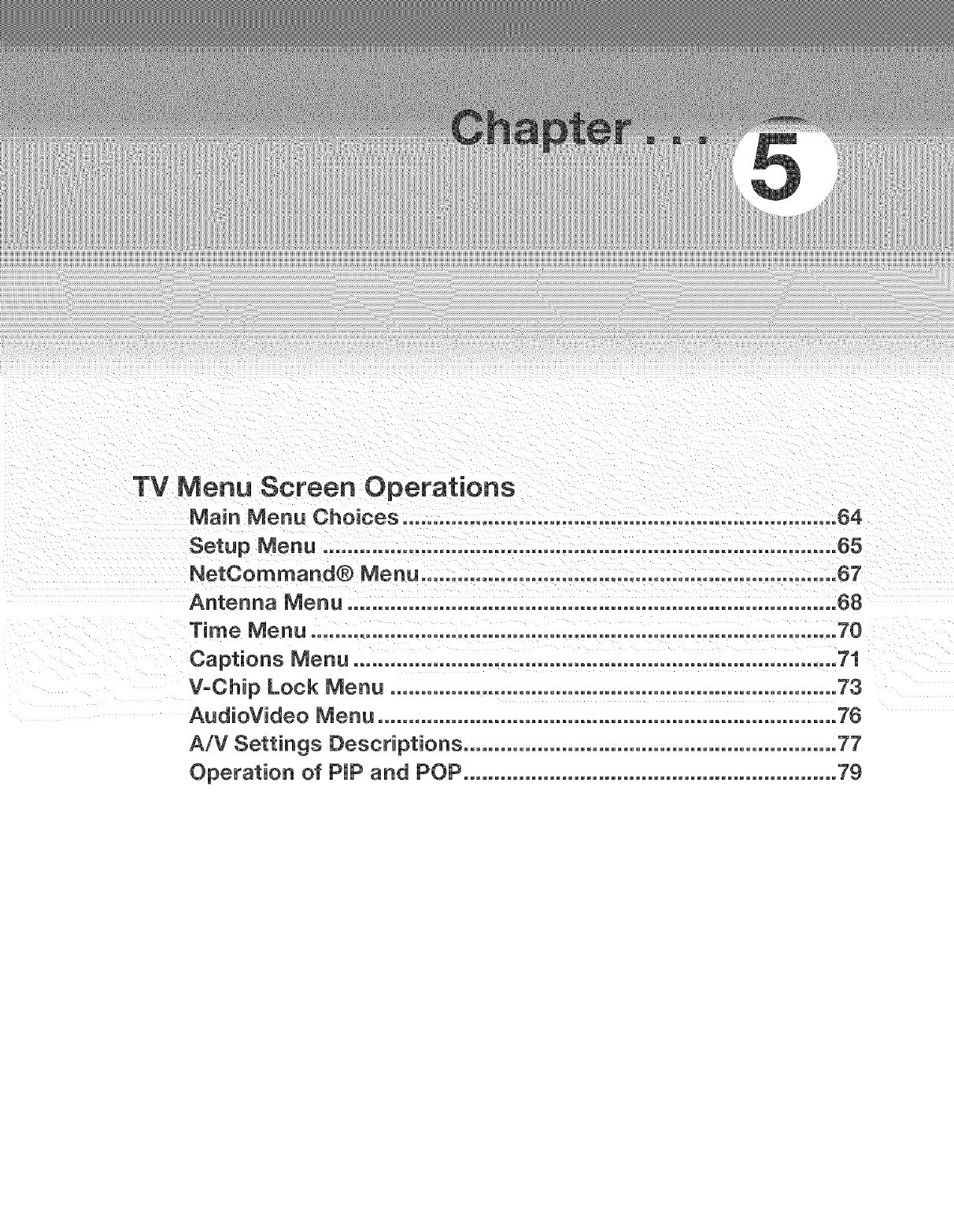

Chapter 5 Tv Menu Screen Operations

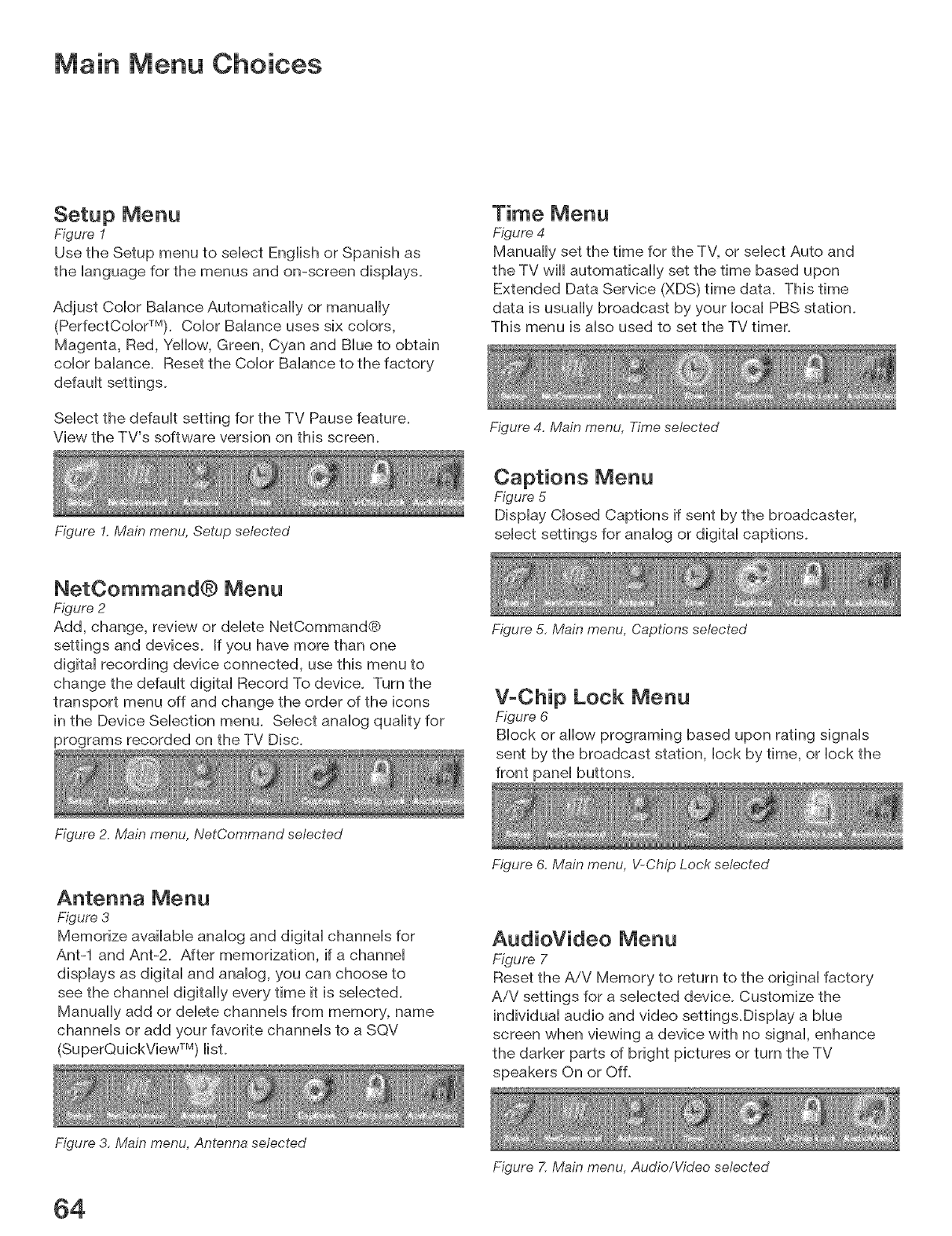

Main Menu Choices ...................................................................................................... 64

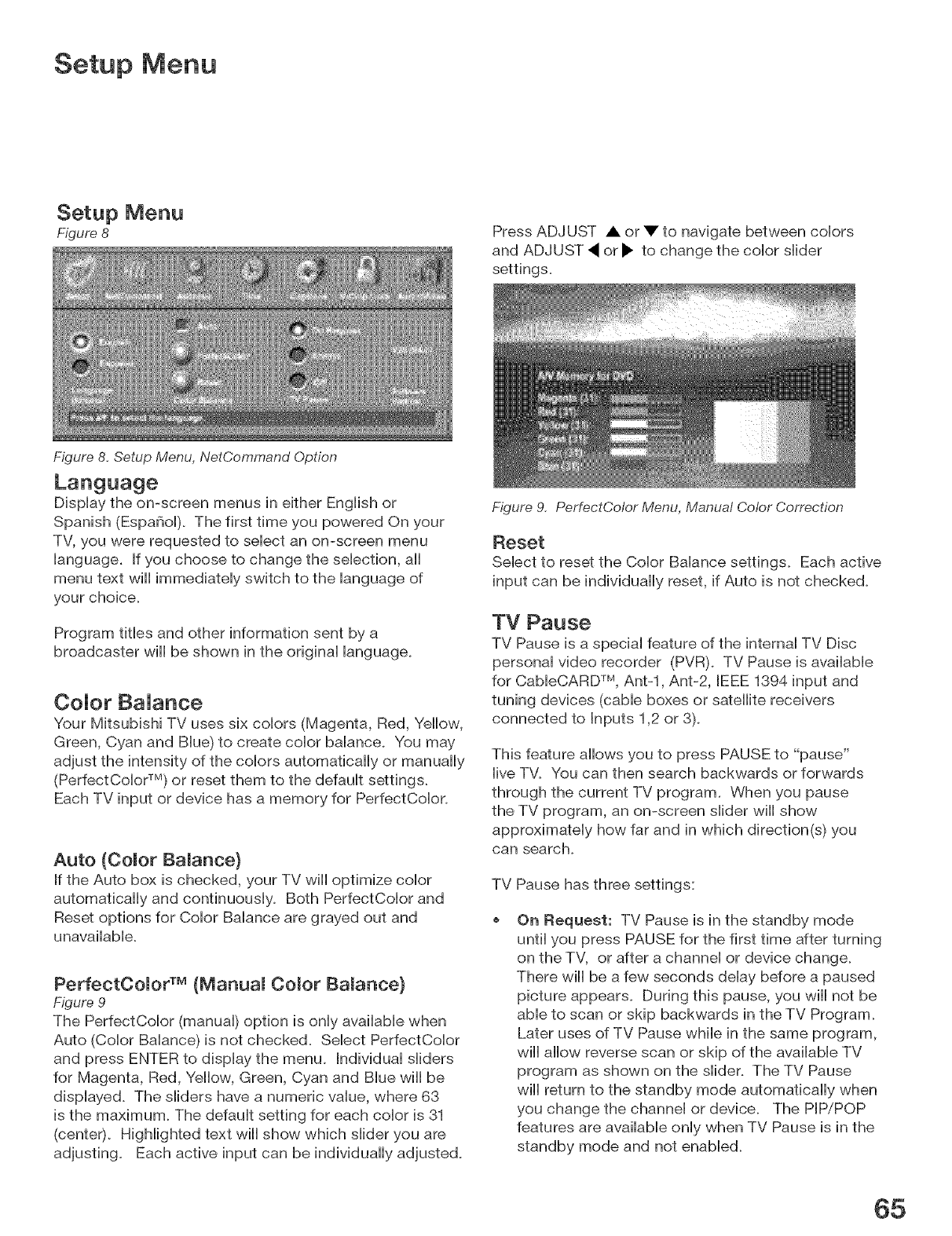

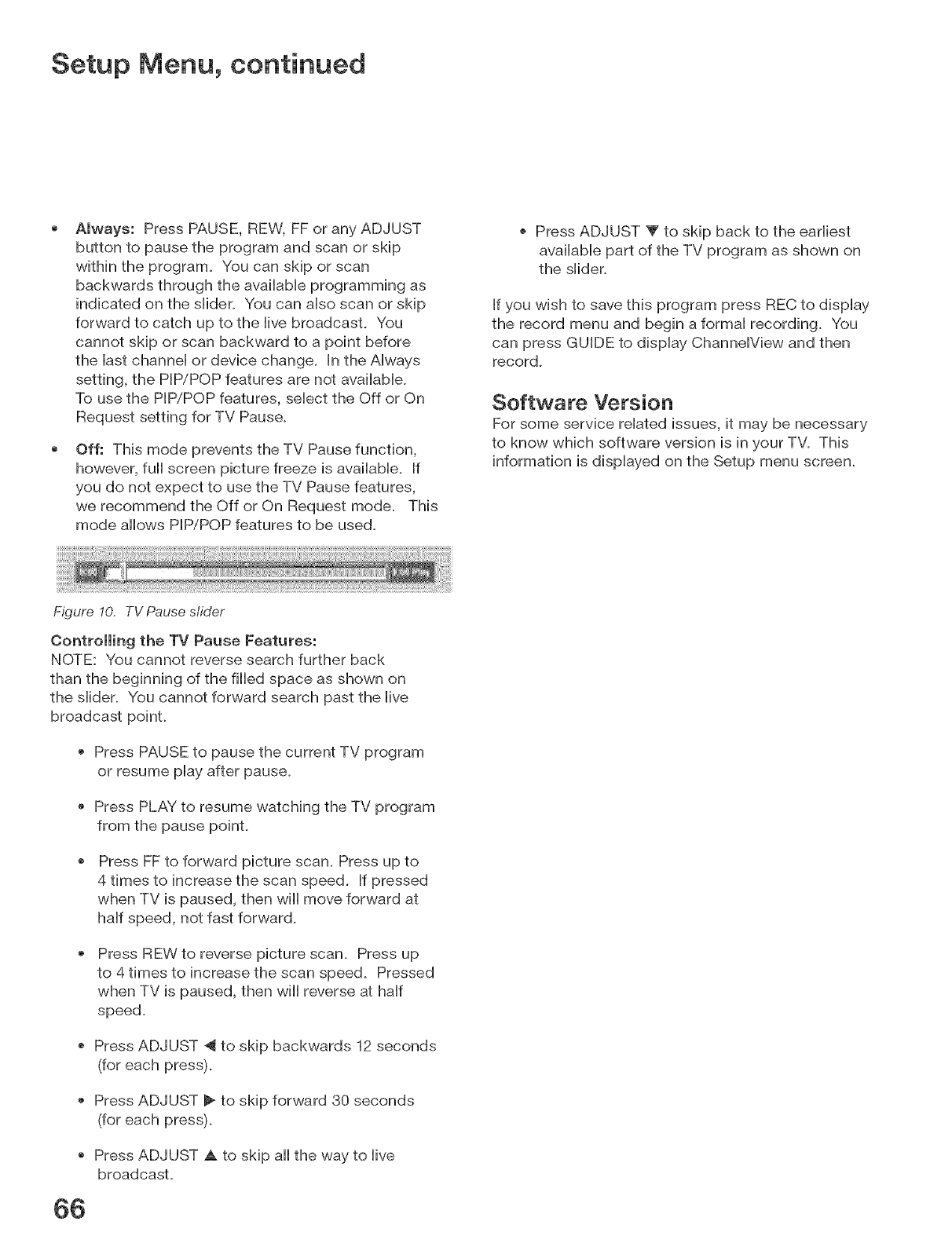

Setup Menu .................................................................................................................. 65

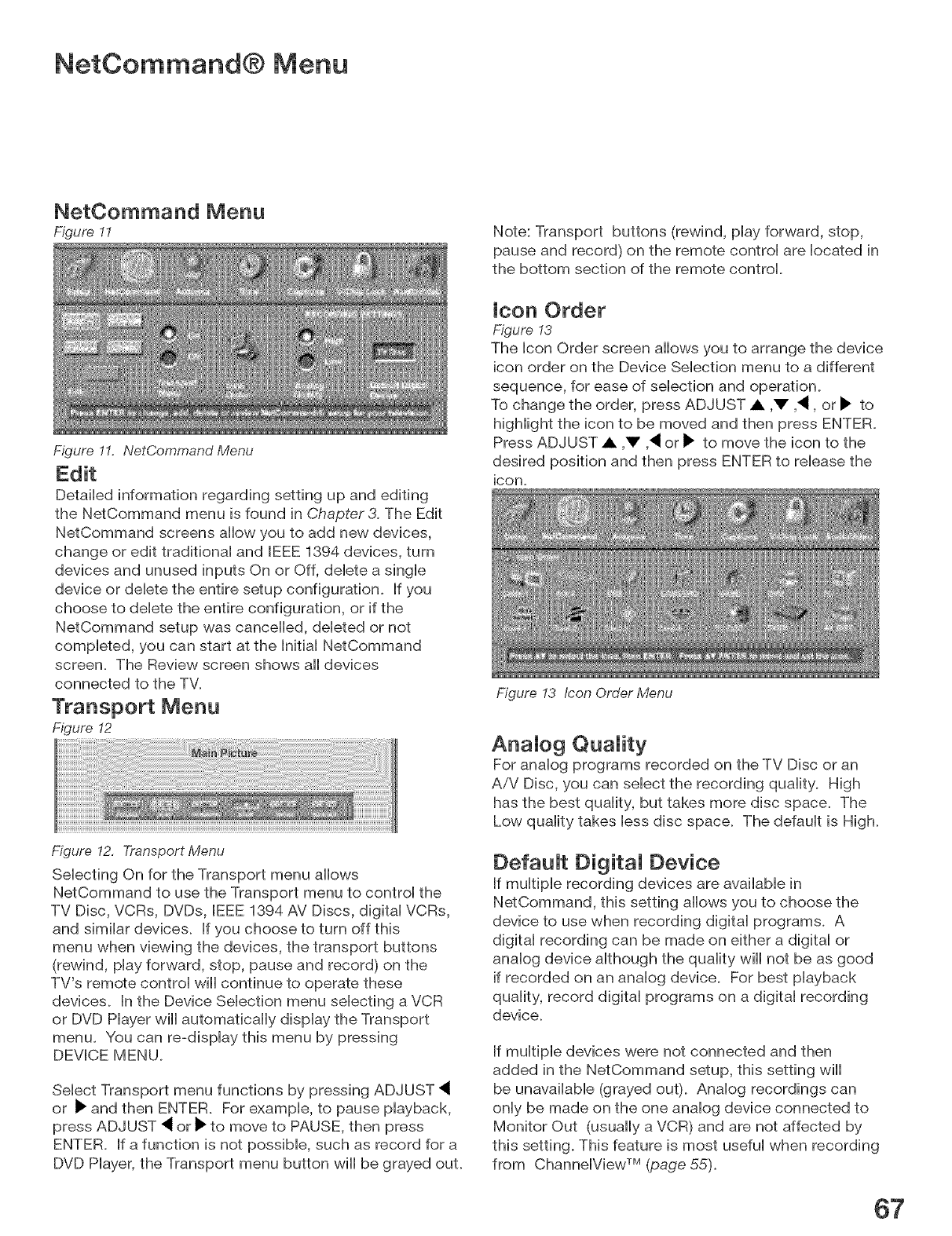

NetCommand® Menu .................................................................................................. 67

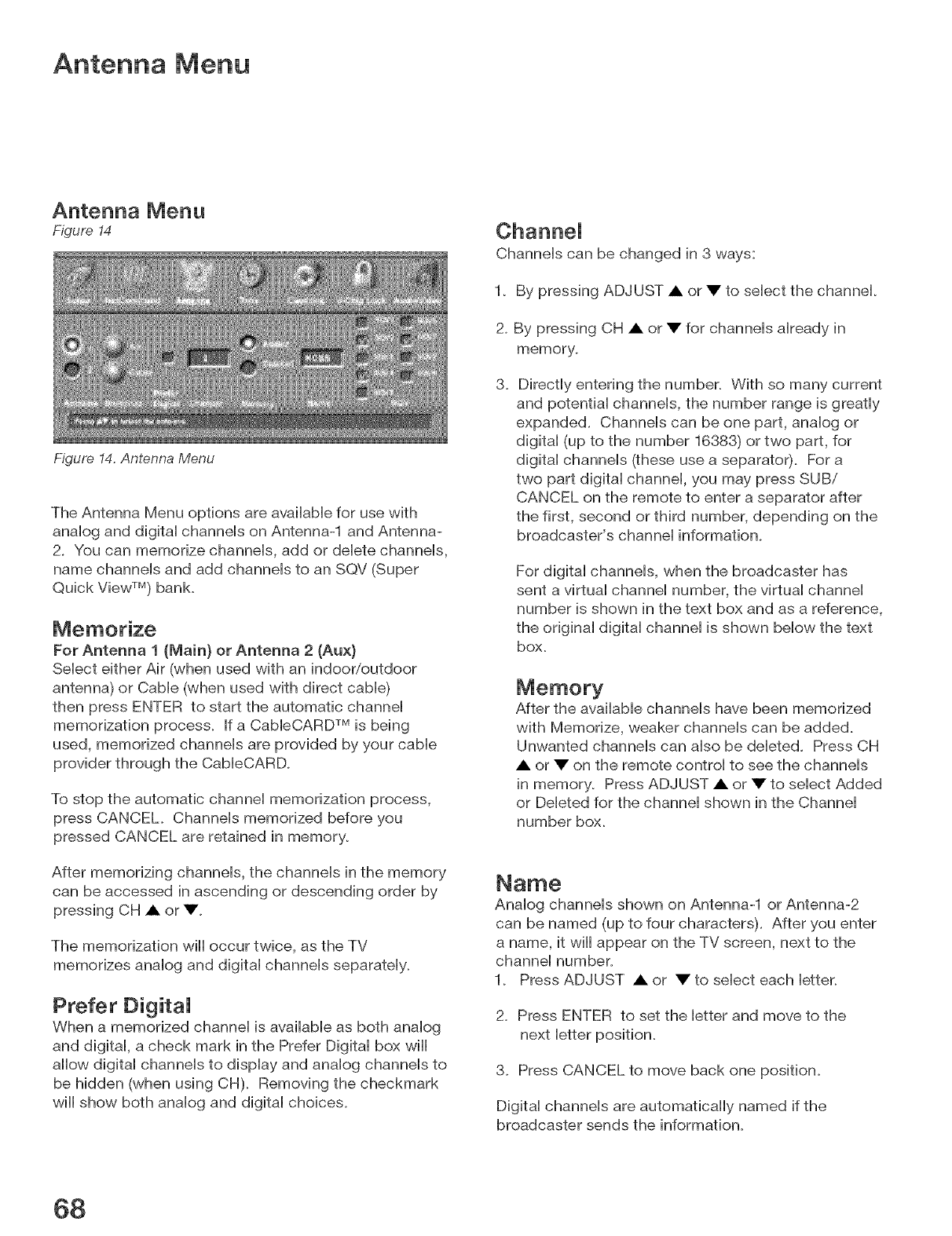

Antenna Menu .............................................................................................................. 68

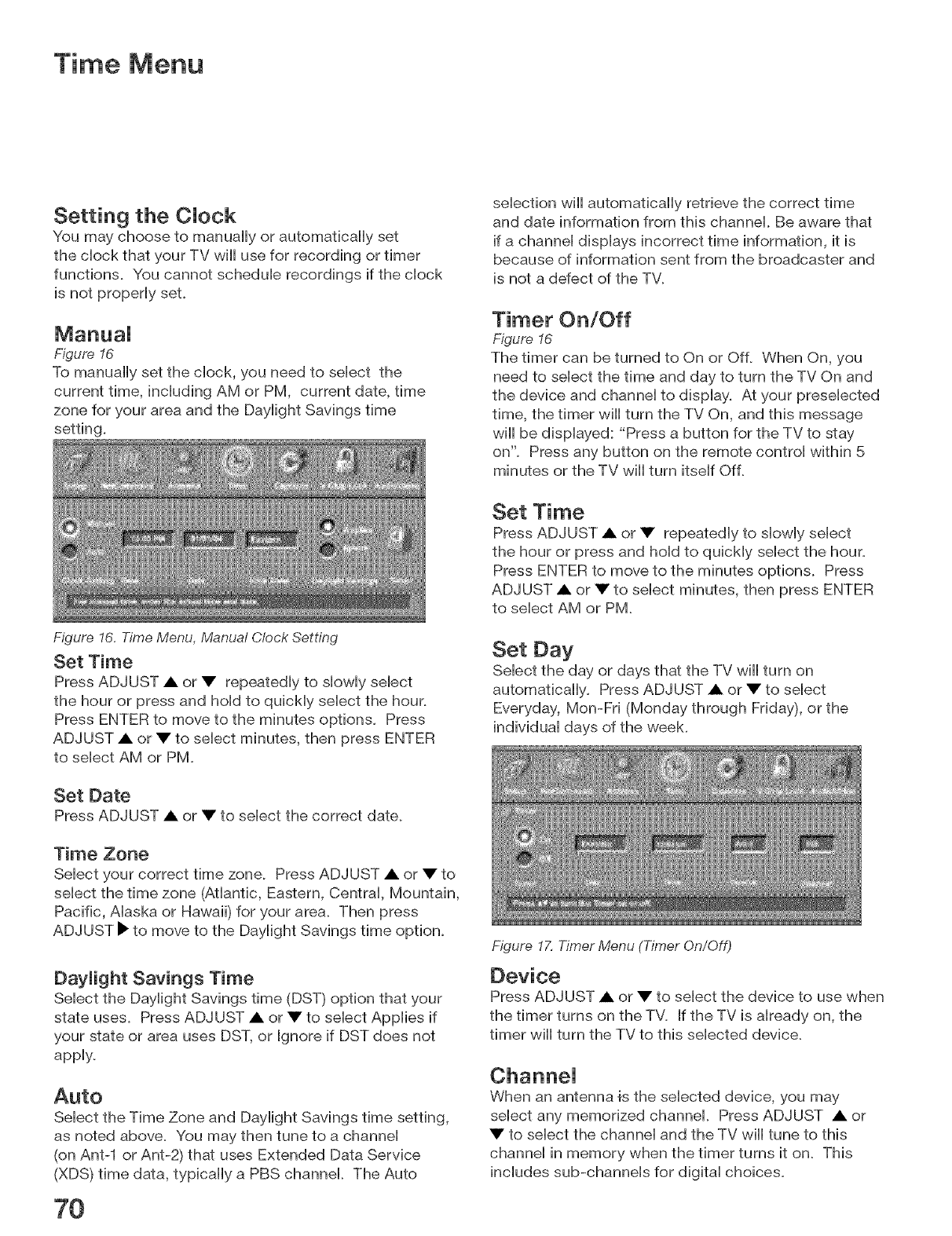

Time Menu .................................................................................................................... 70

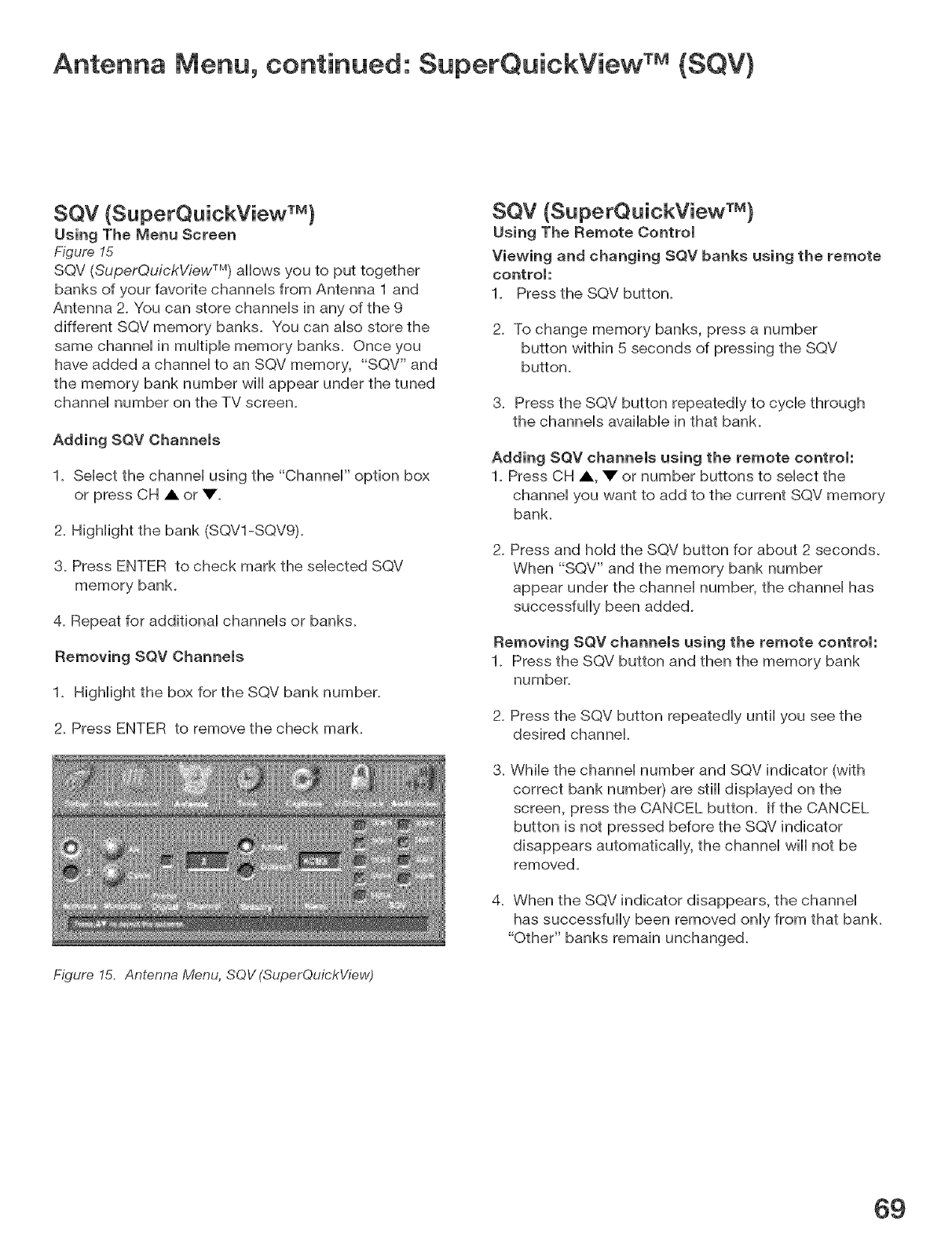

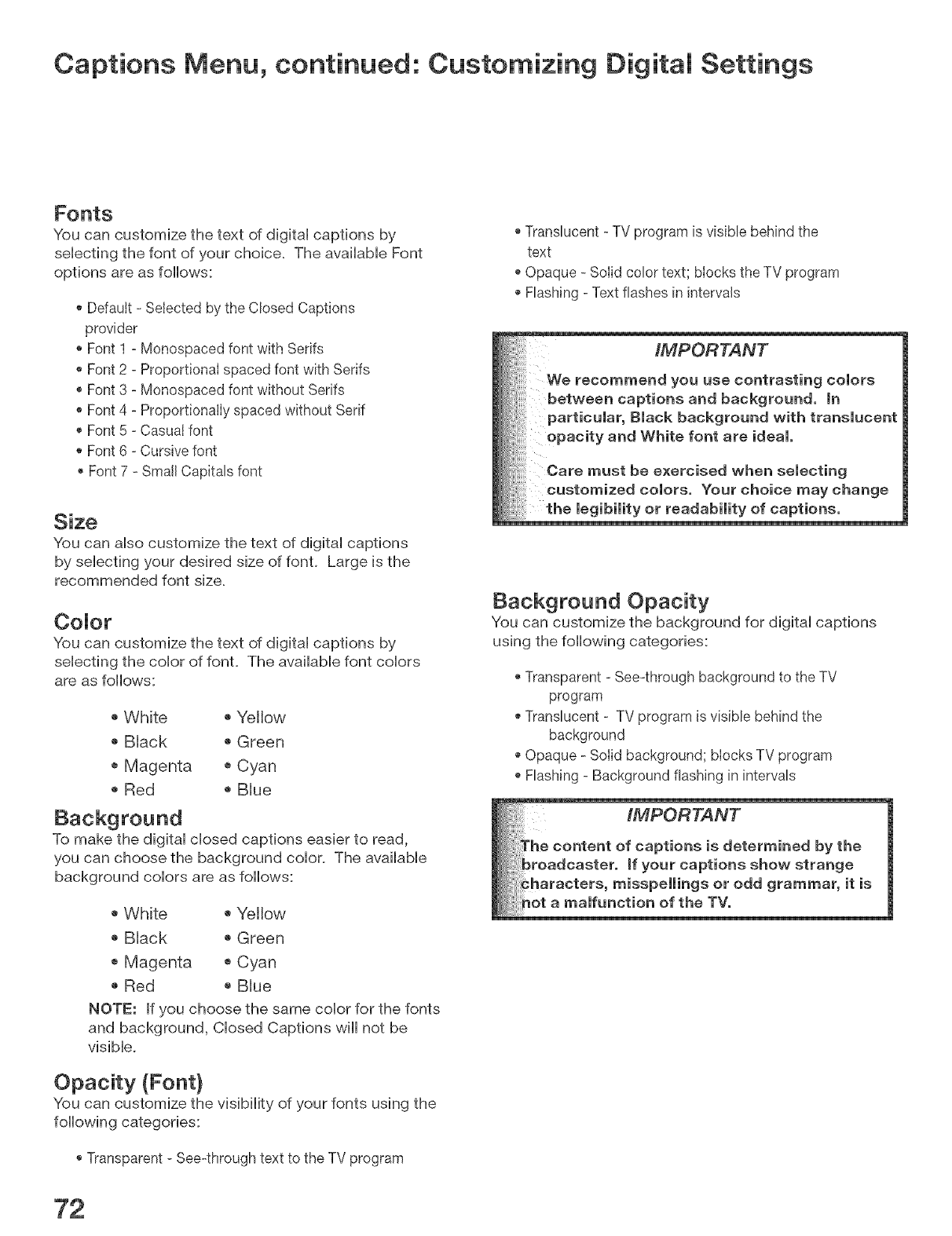

Captions Menu ............................................................................................................. 71

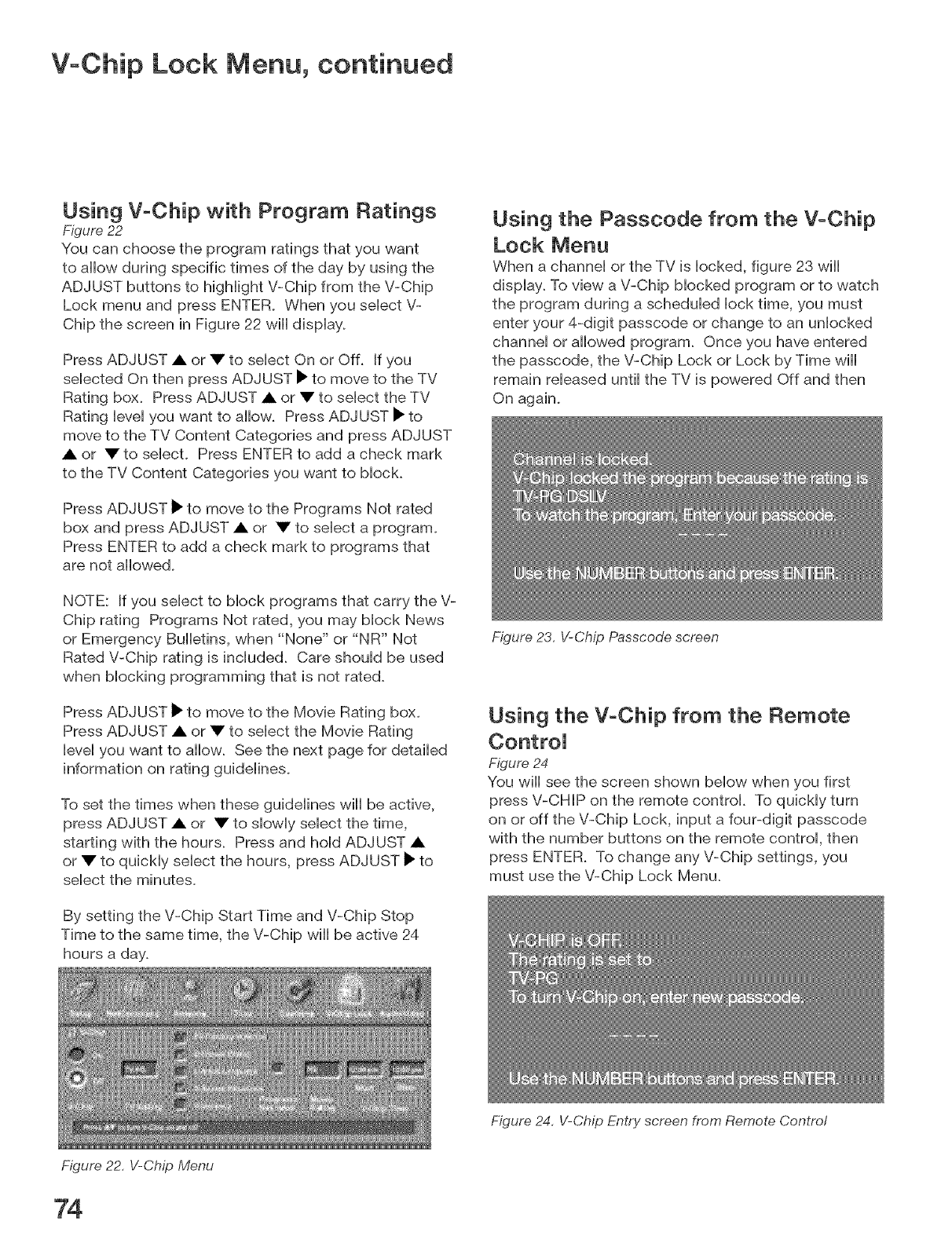

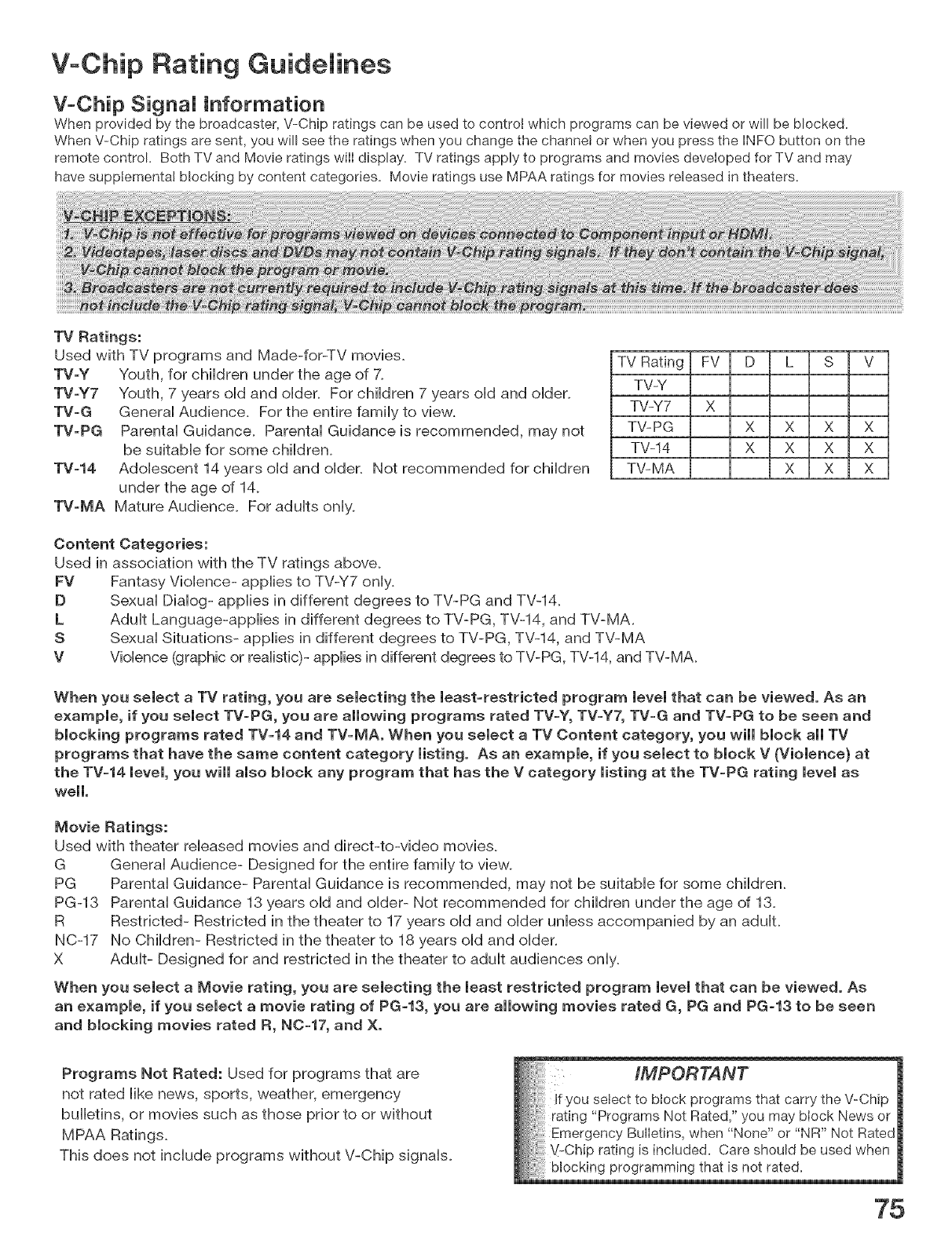

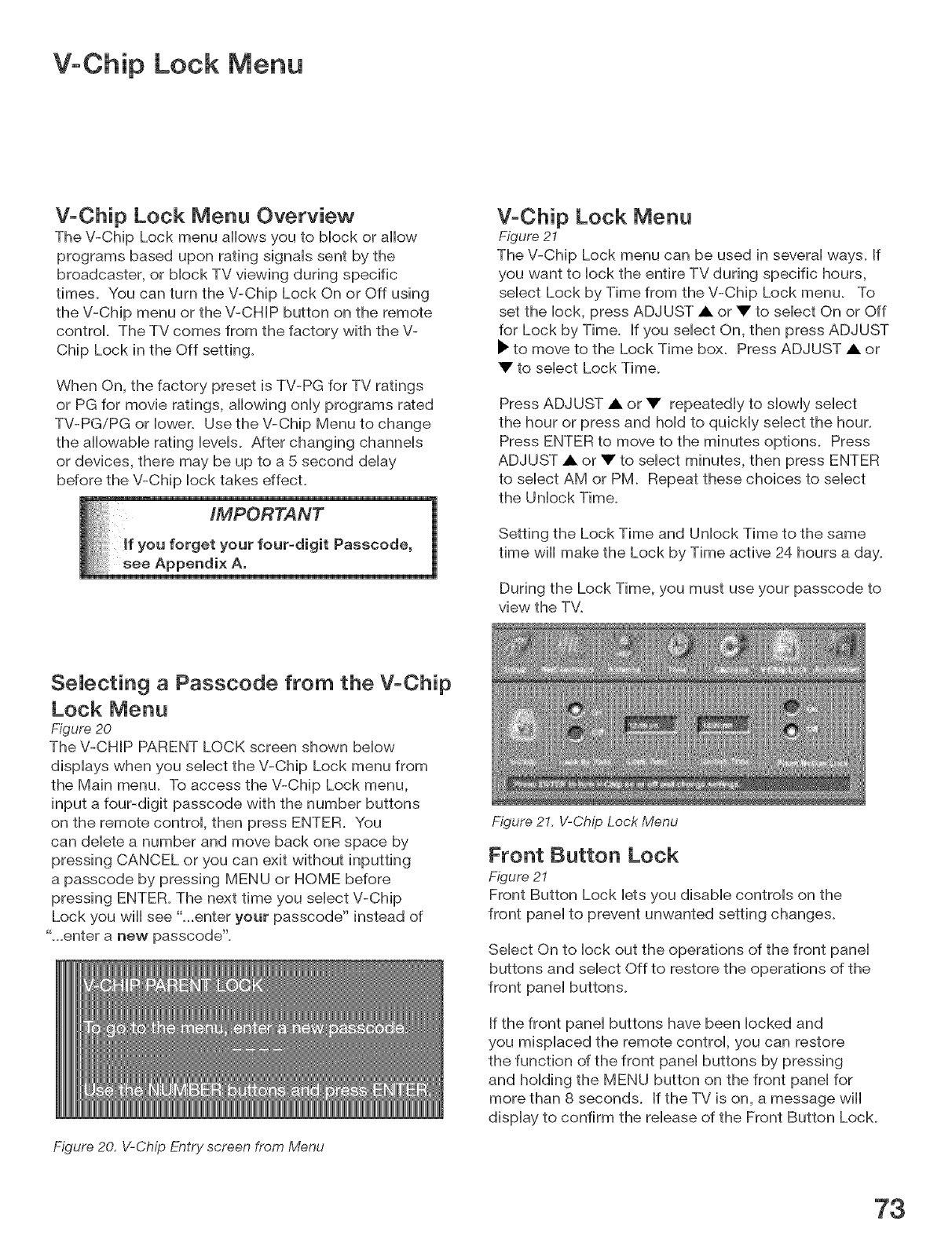

V-Chip Lock Menu ........................................................................................................ 73

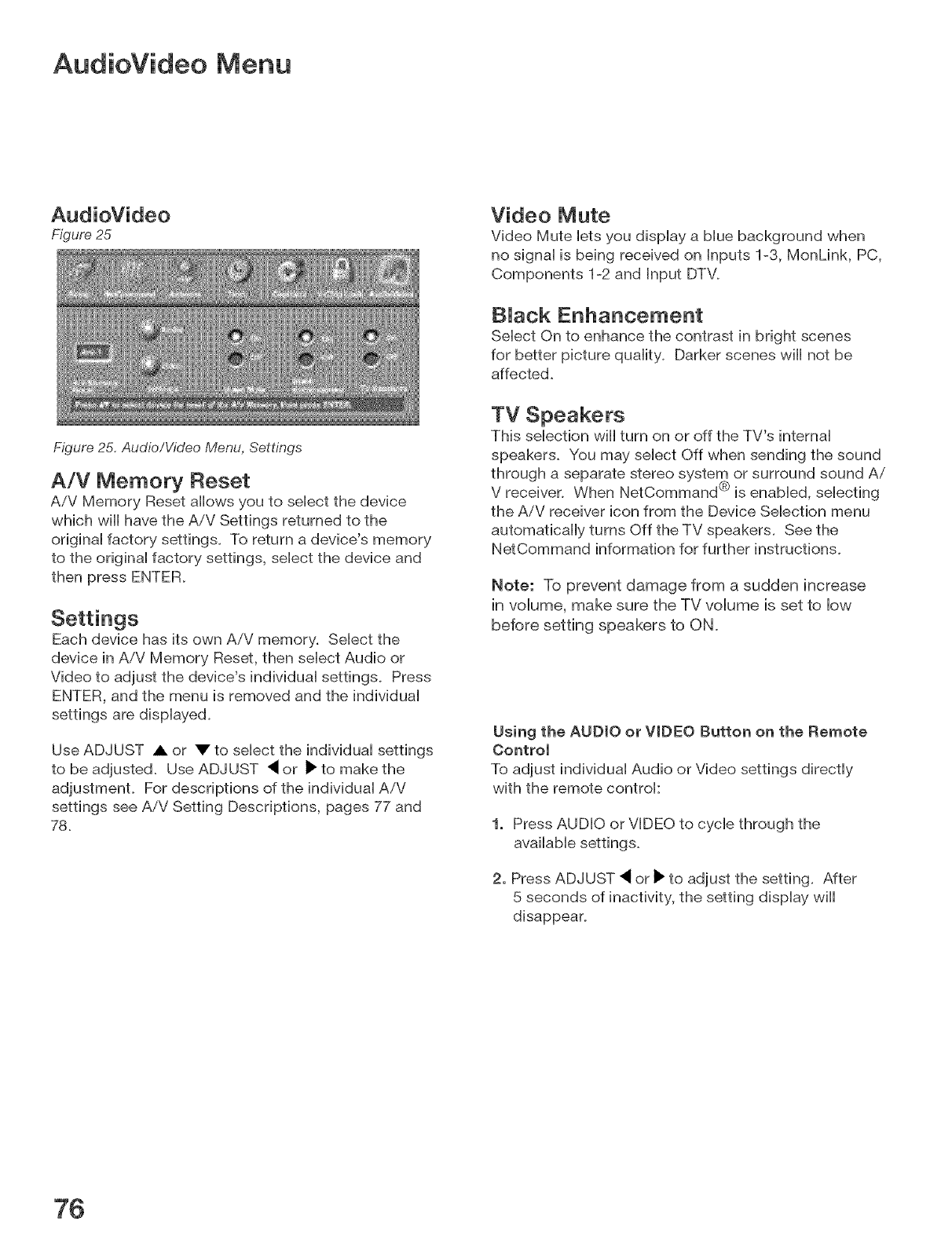

AudioVideo Menu ......................................................................................................... 76

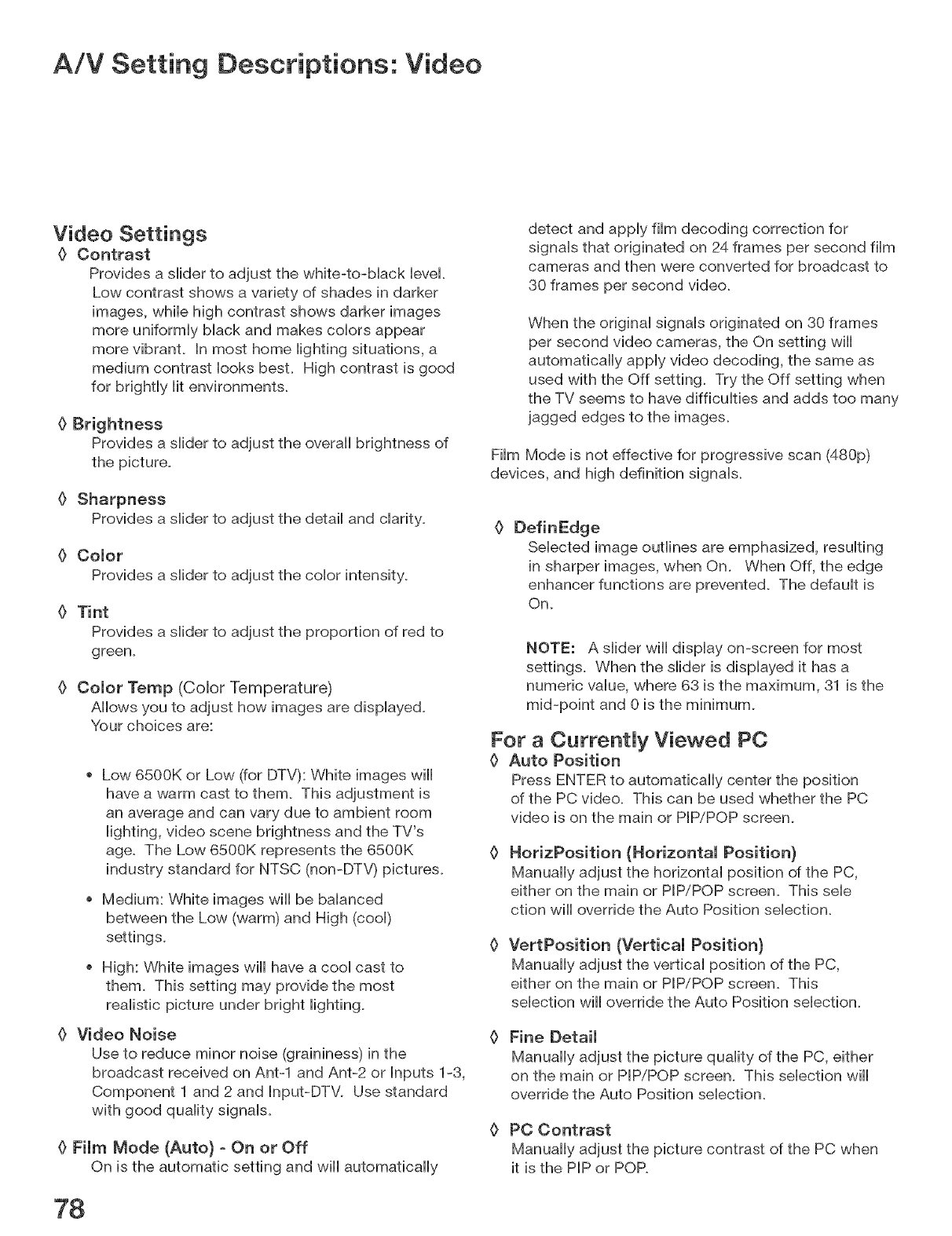

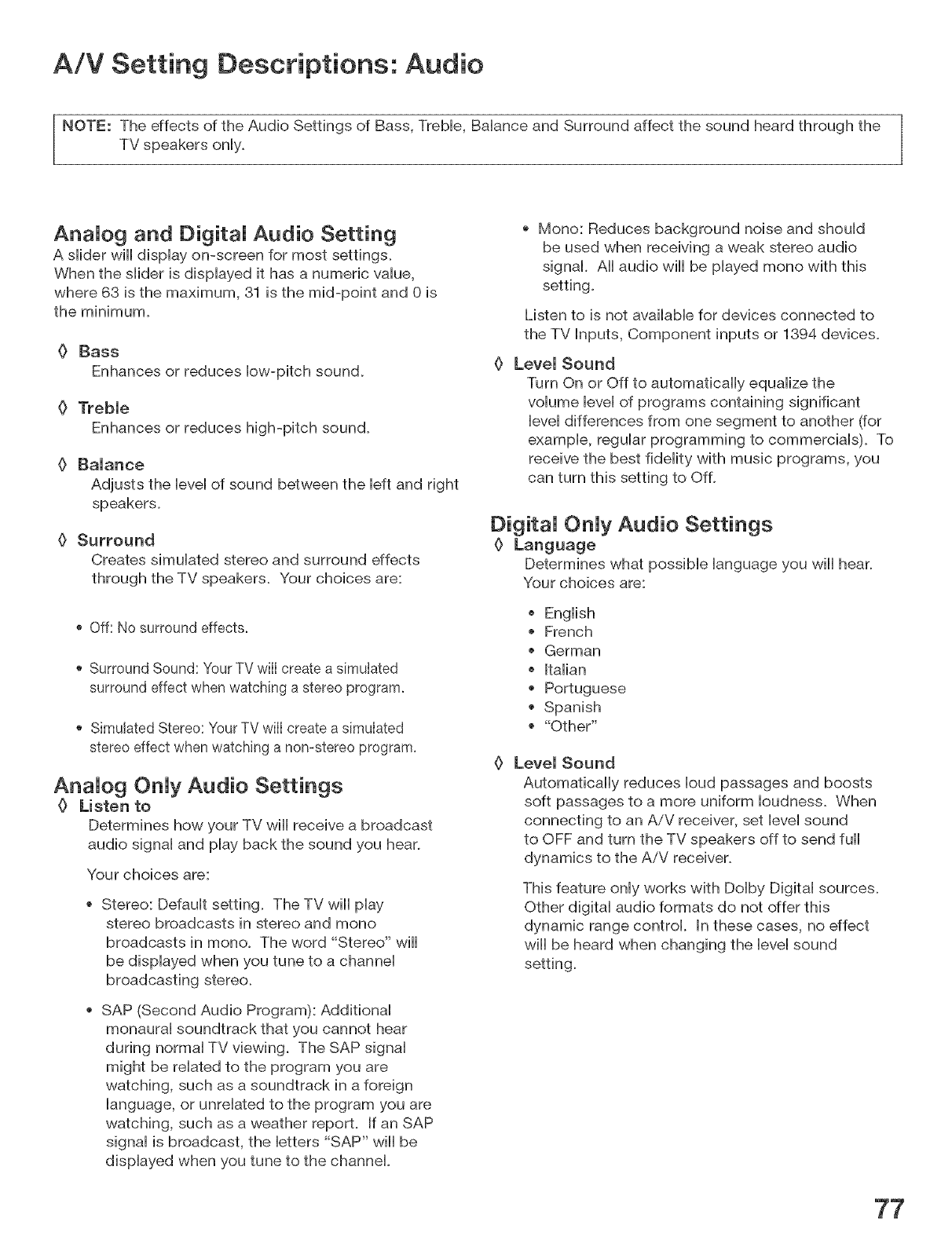

A!V Settings Descriptions ............................................................................................ 77

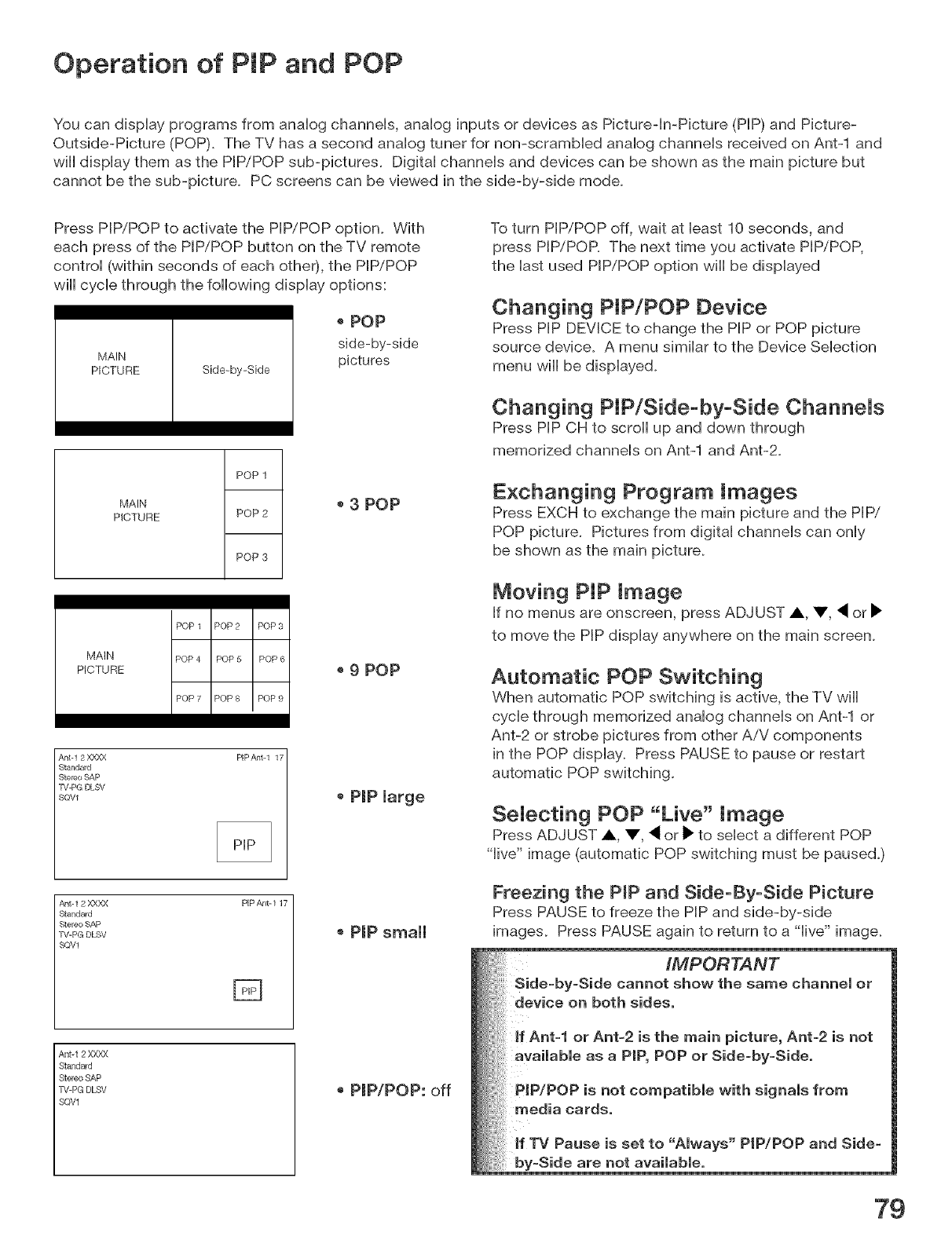

Operation of PIP and POP ............................................................................................ 79

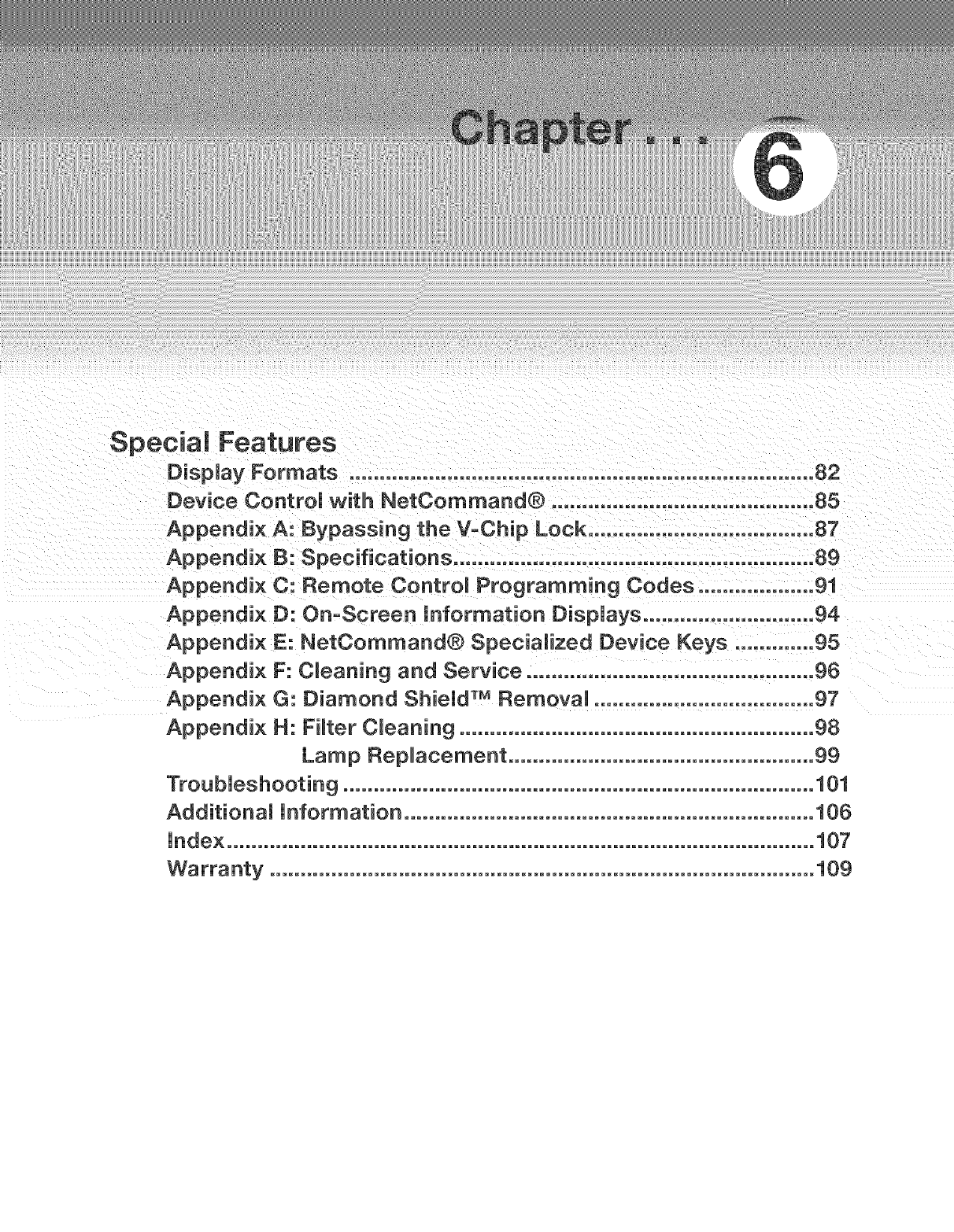

Chapter 6 Speciam Features

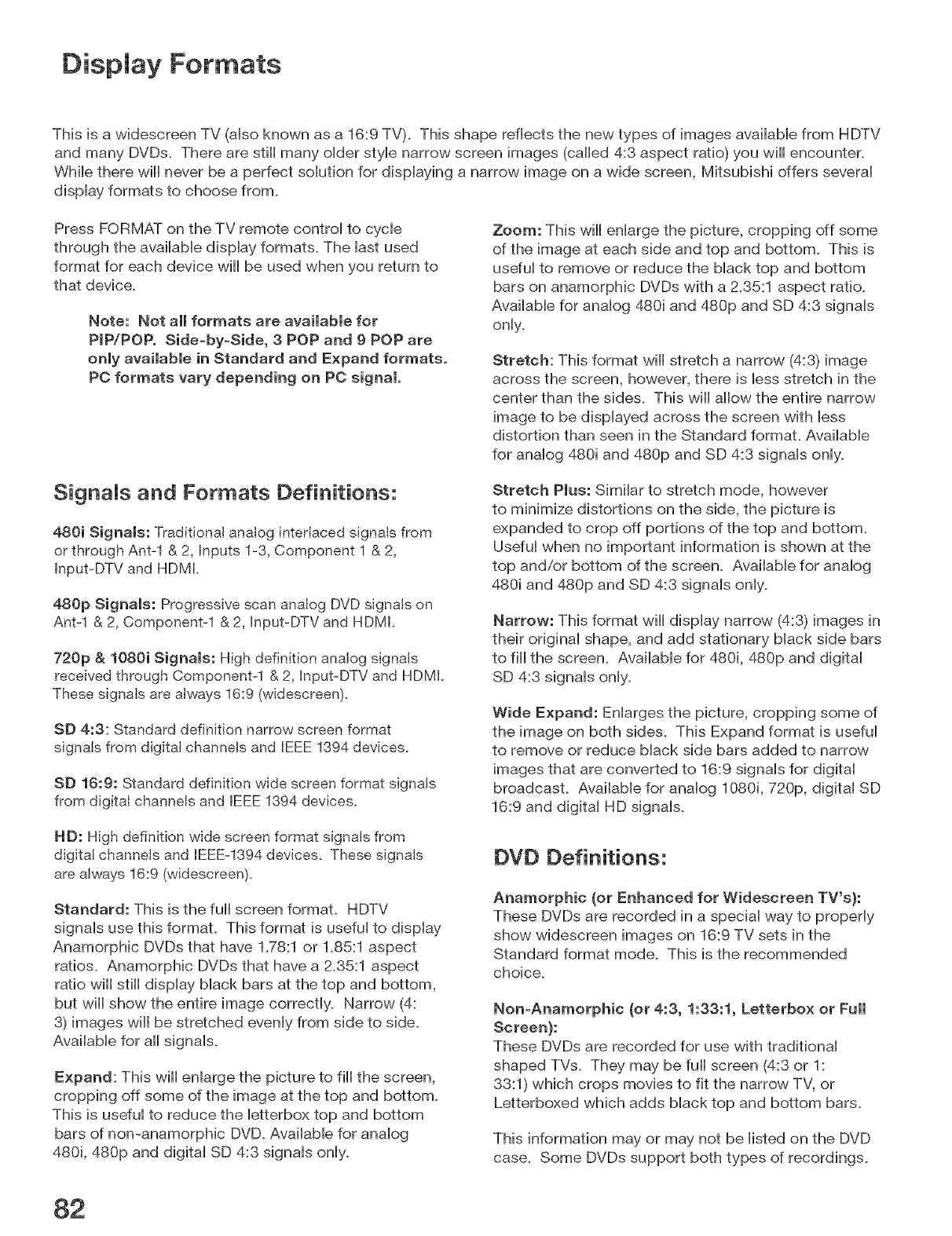

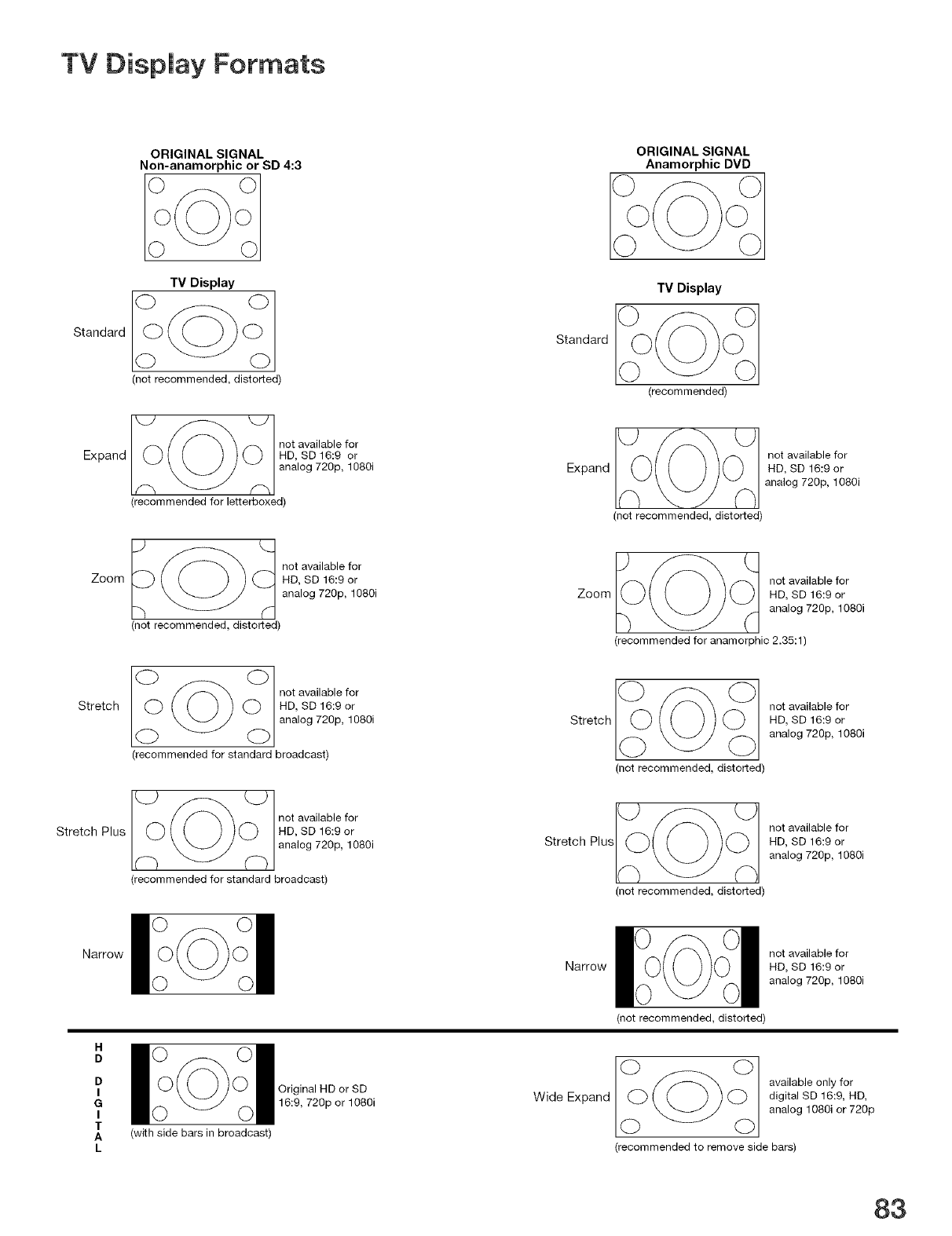

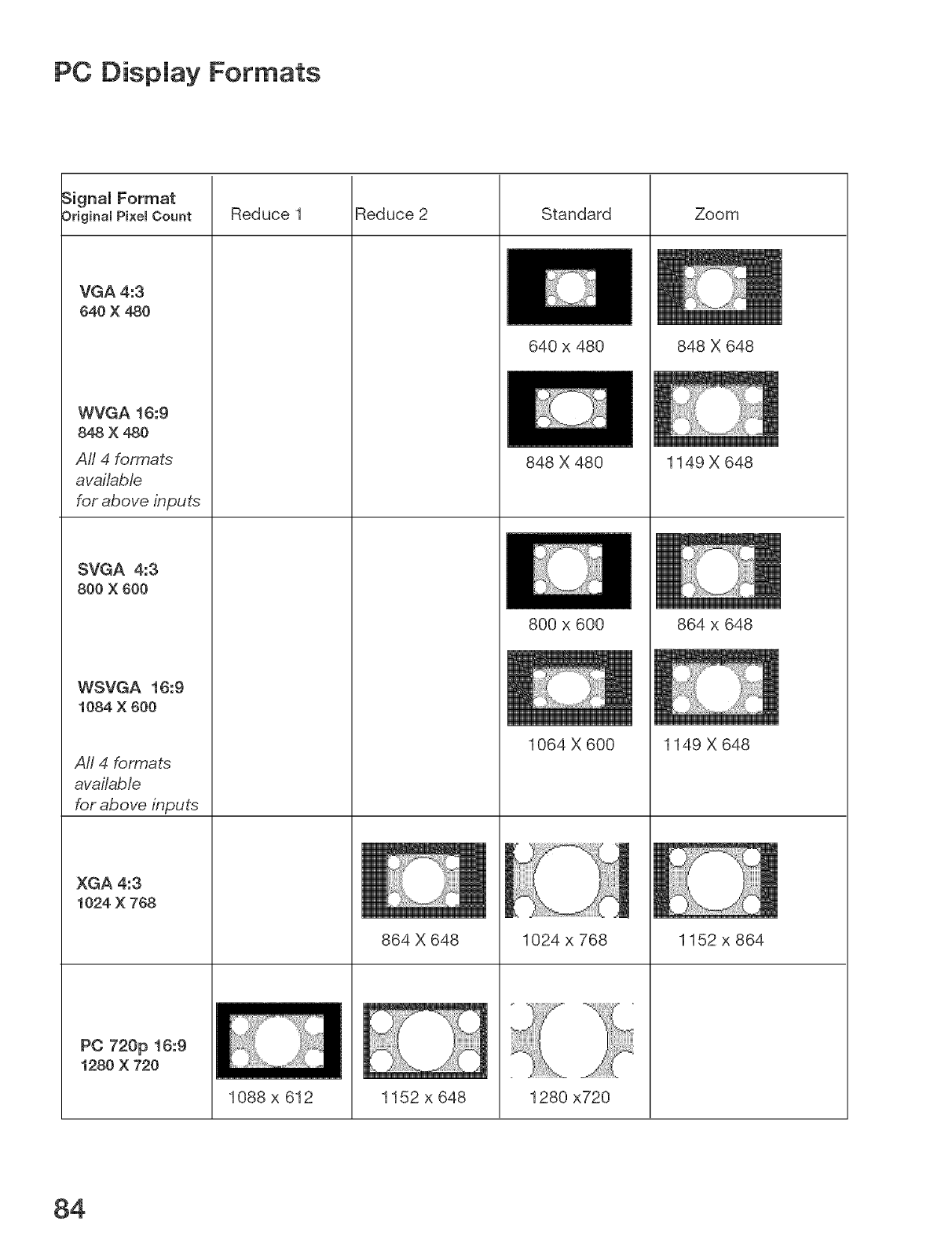

Display Formats ........................................................................................................... 82

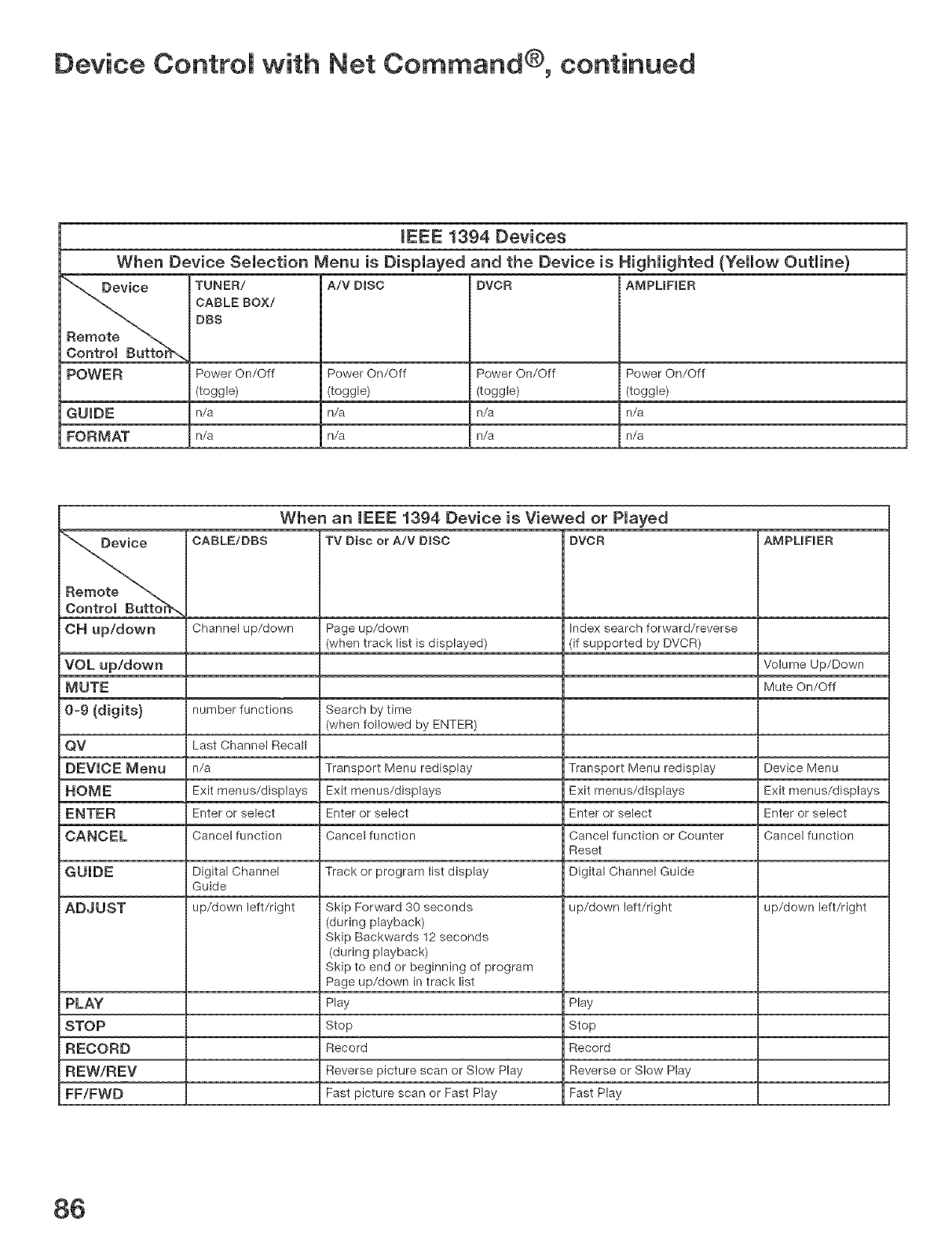

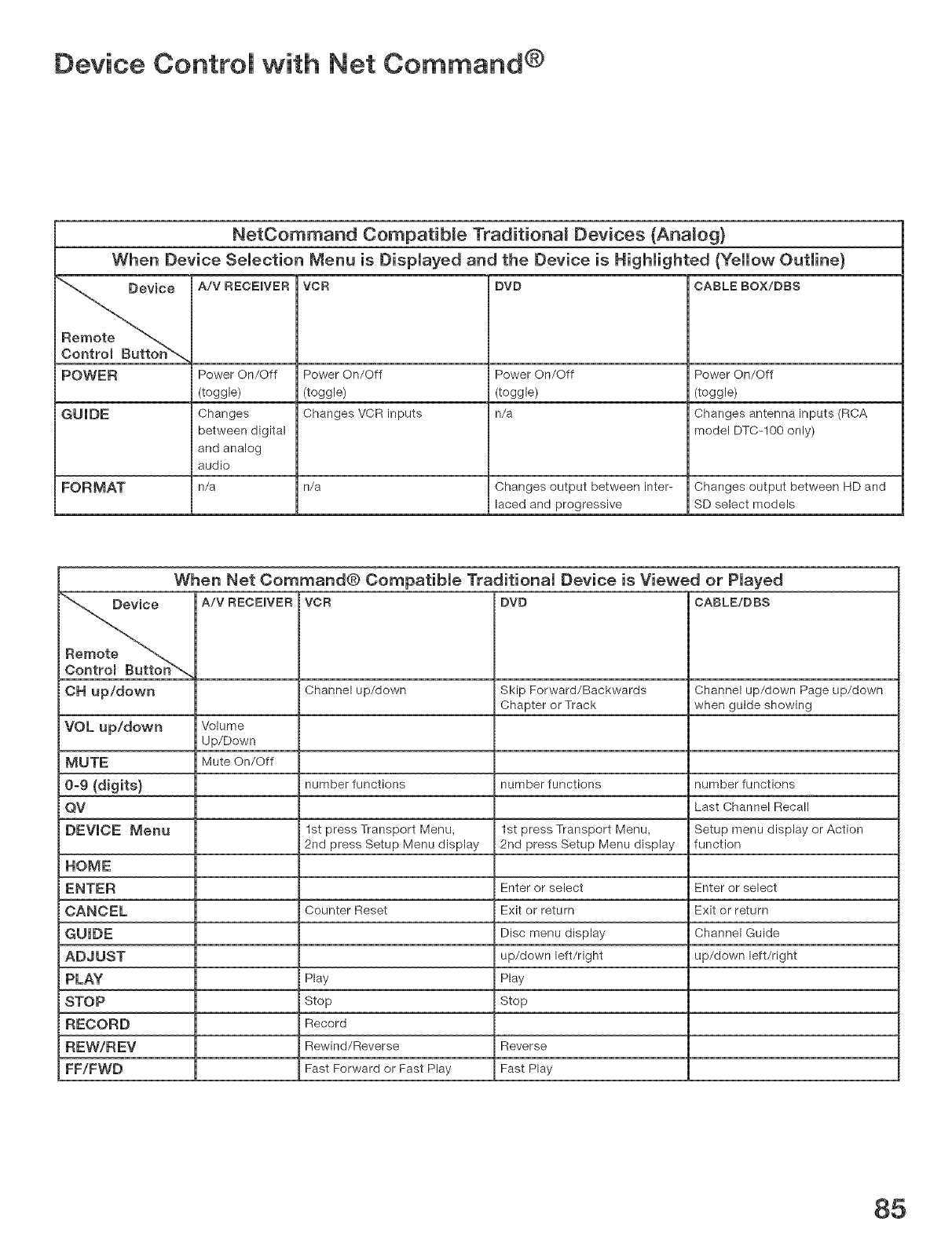

Device Control with NetCommand® ............................................................................ 85

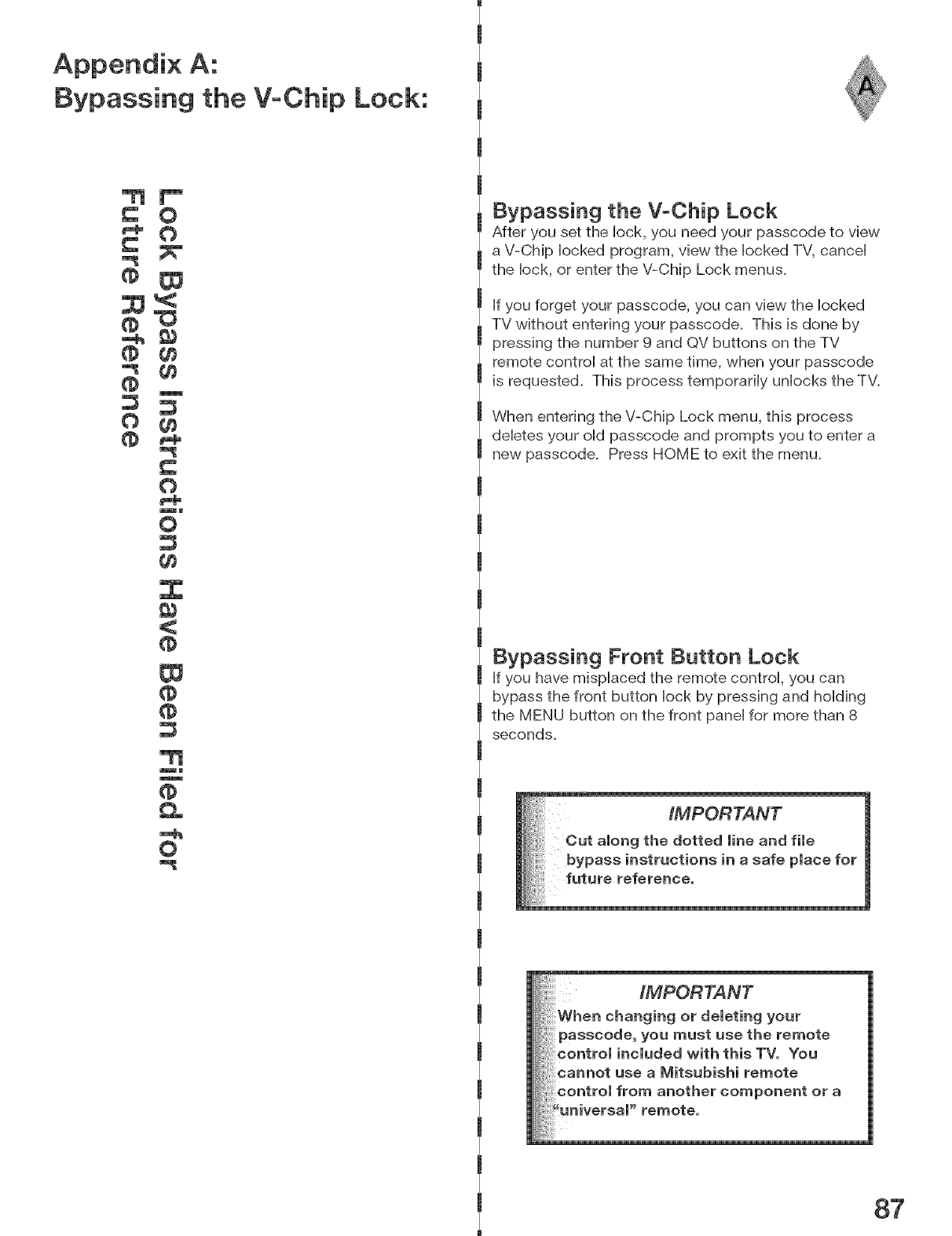

Appendix A: Bypassing the V-Chip Lock ..................................................................... 87

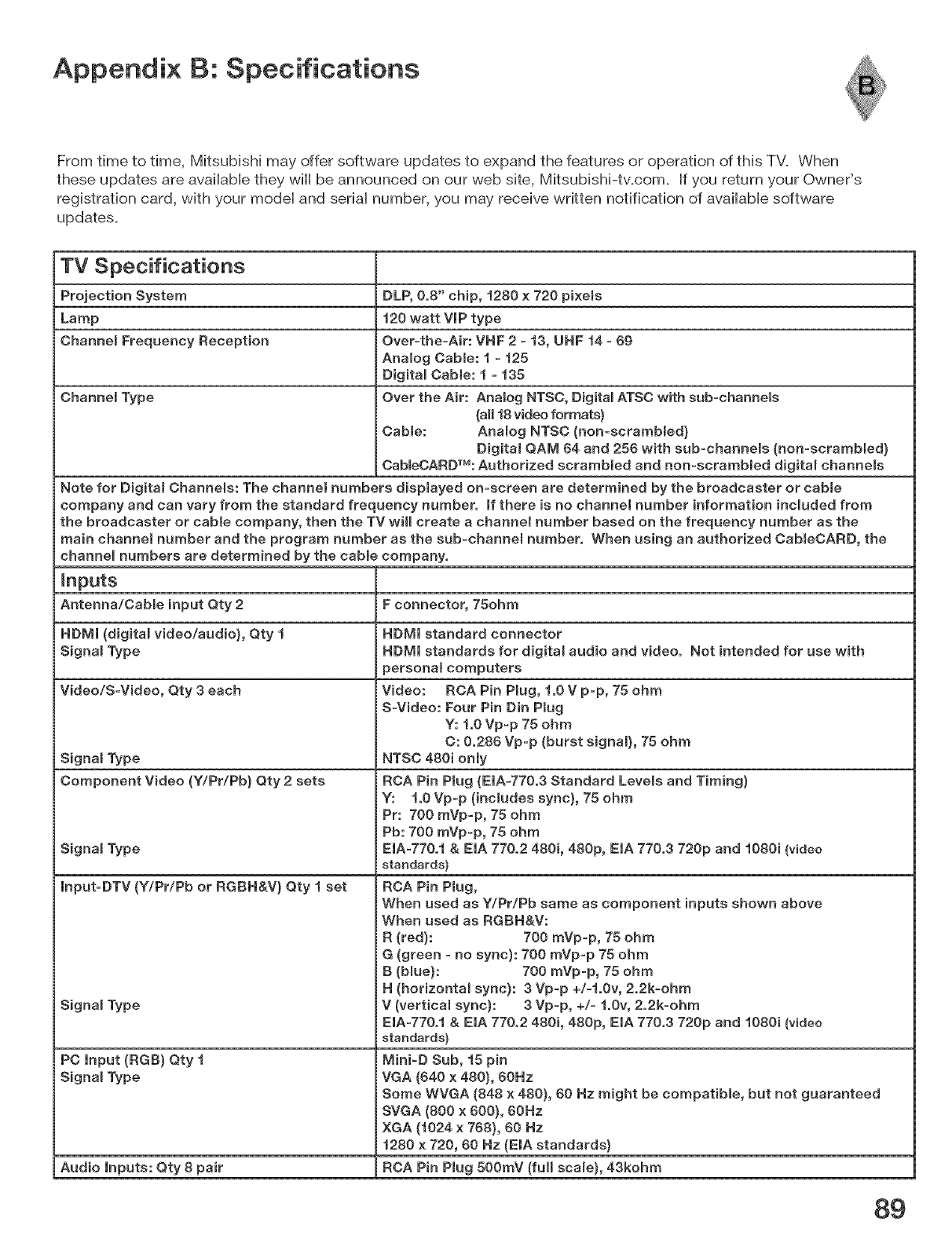

Appendix B: Specifications .......................................................................................... 89

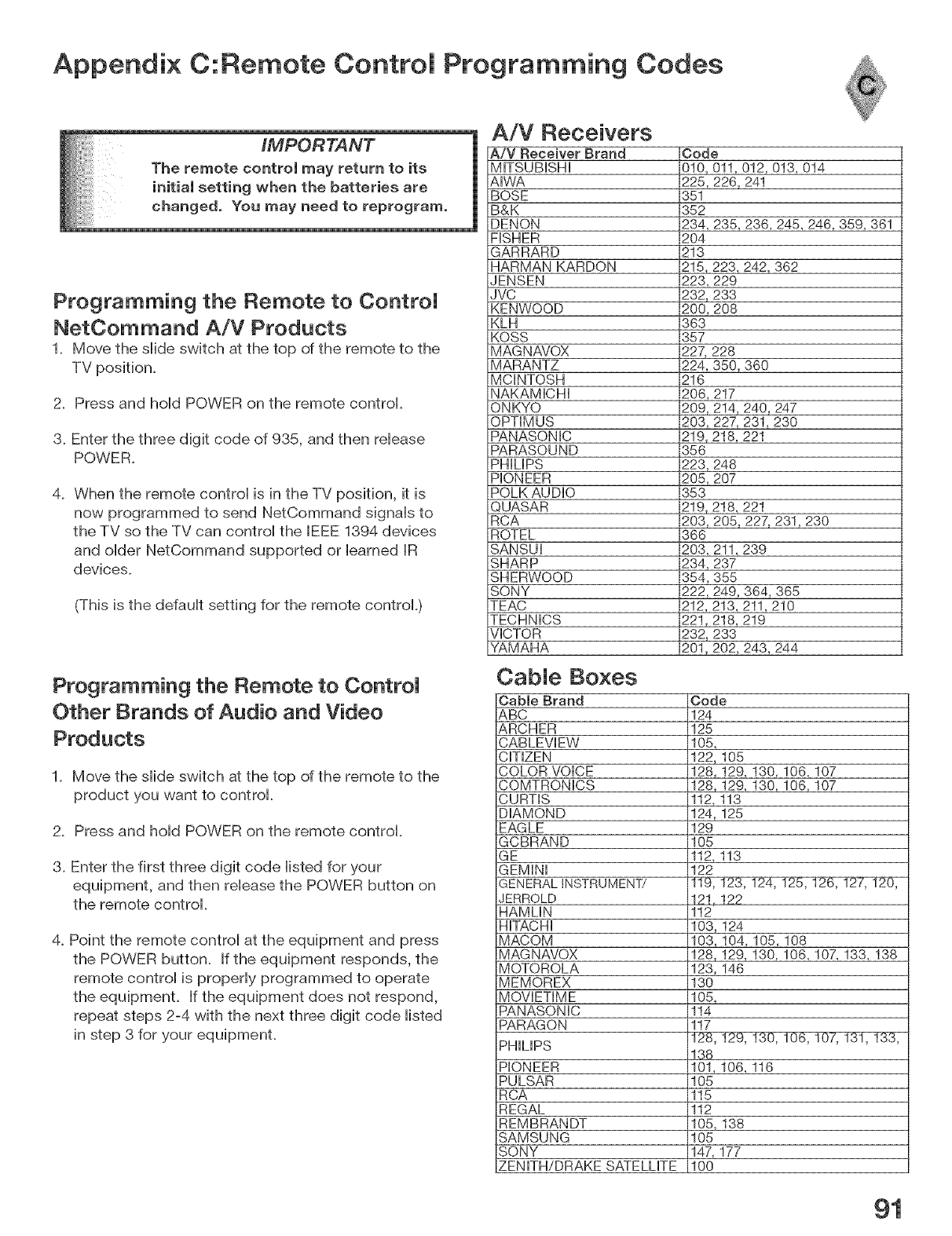

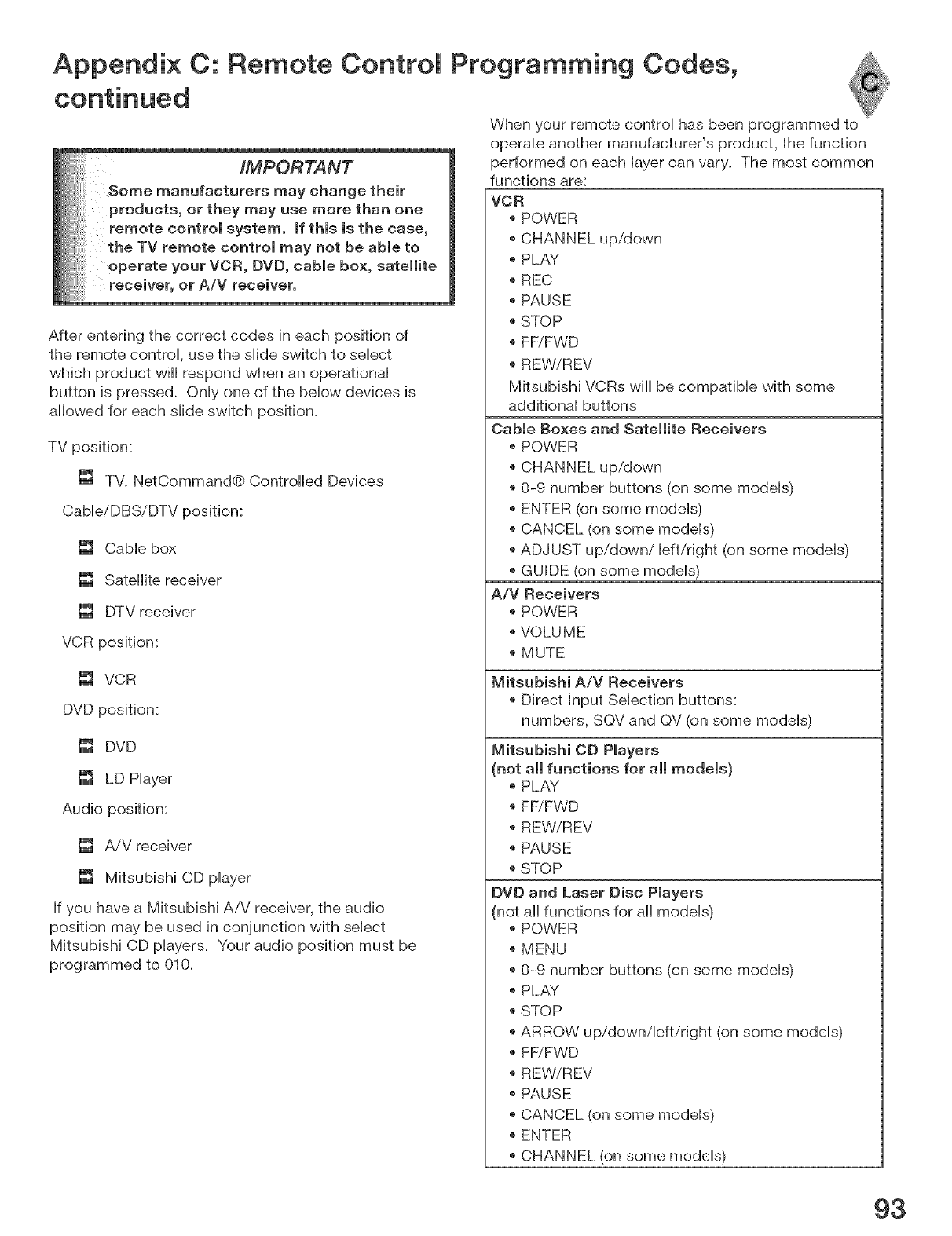

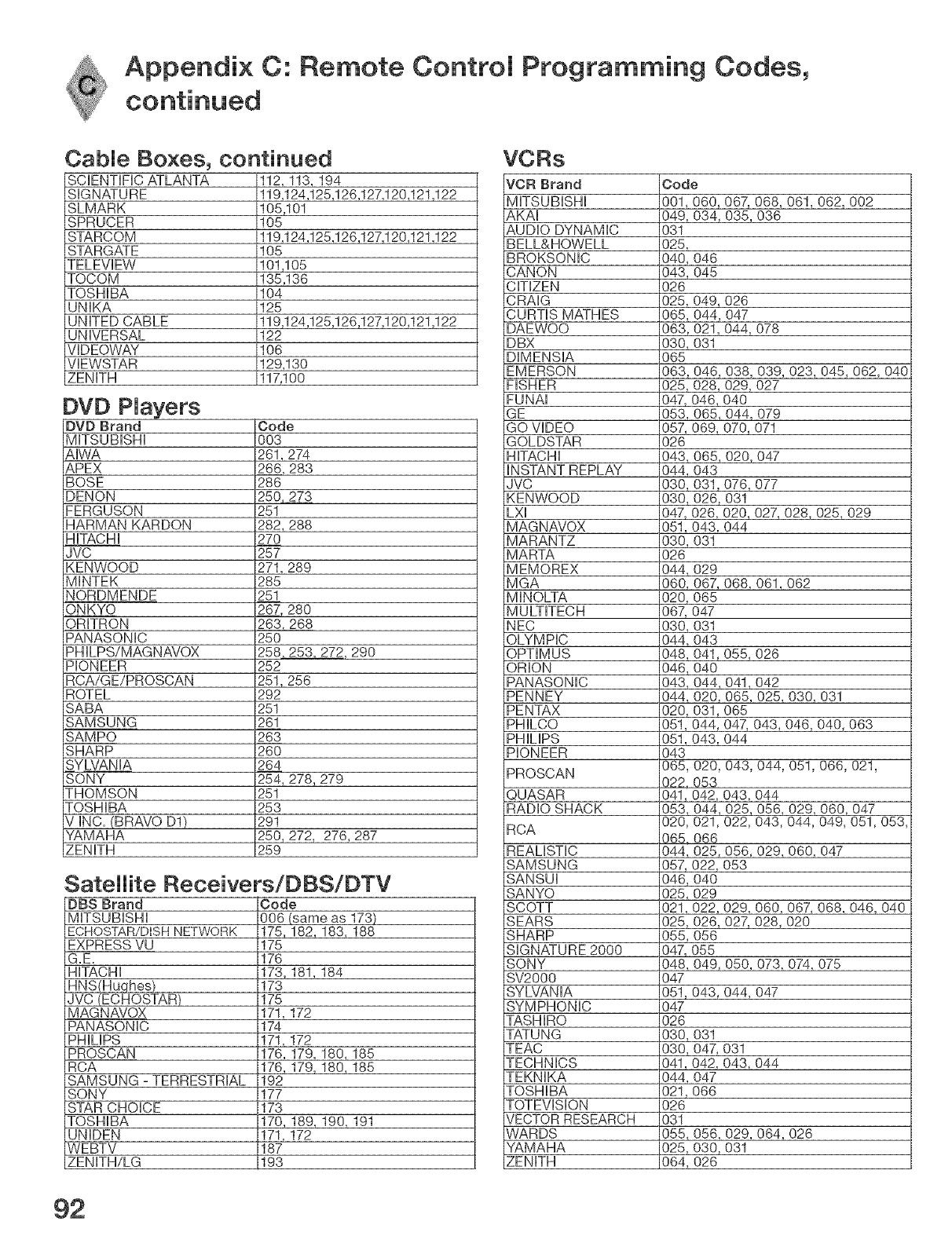

Appendix C: Remote Control Programming Codes ..................................................... 91

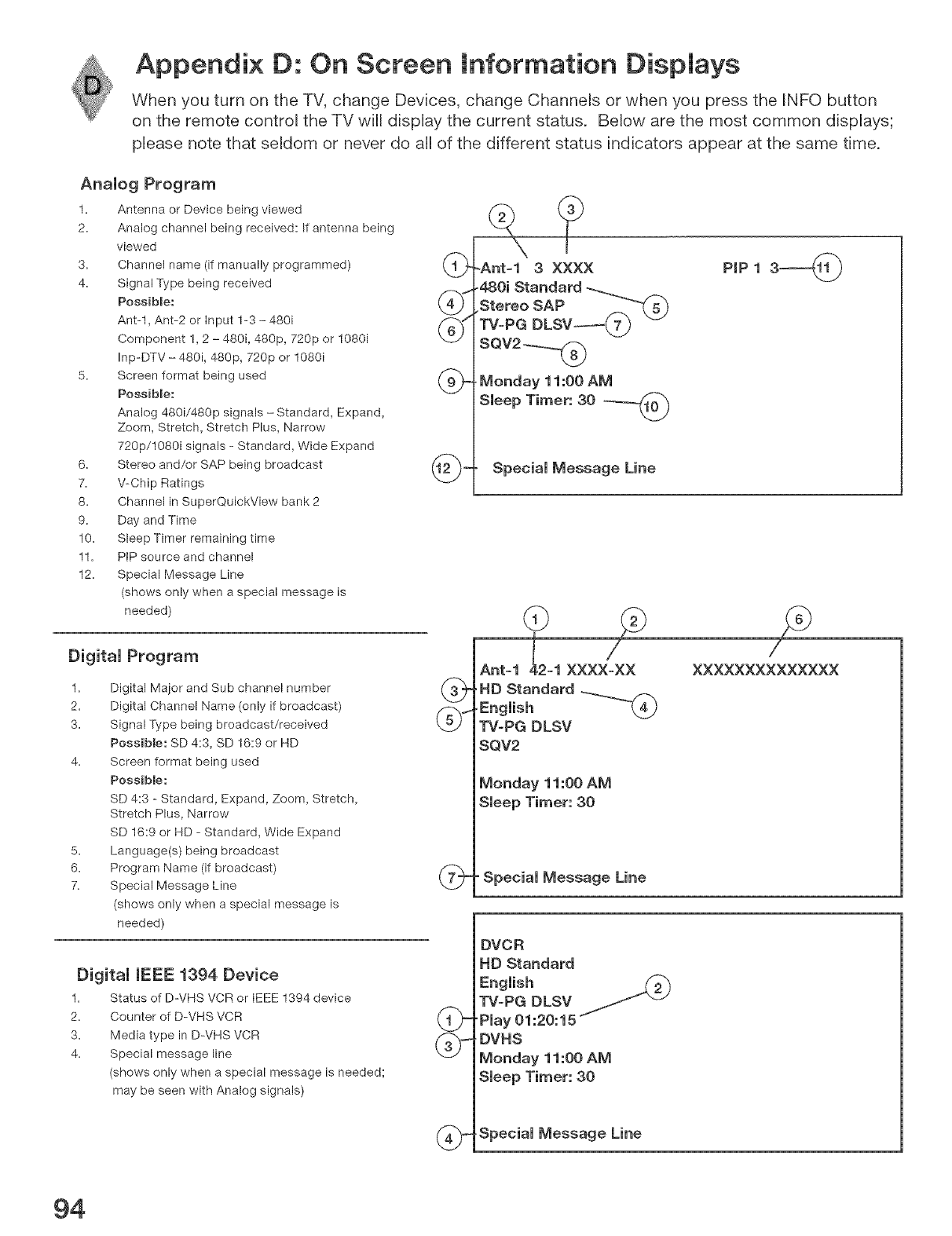

Appendix D: On-Screen Information Displays ............................................................. 94

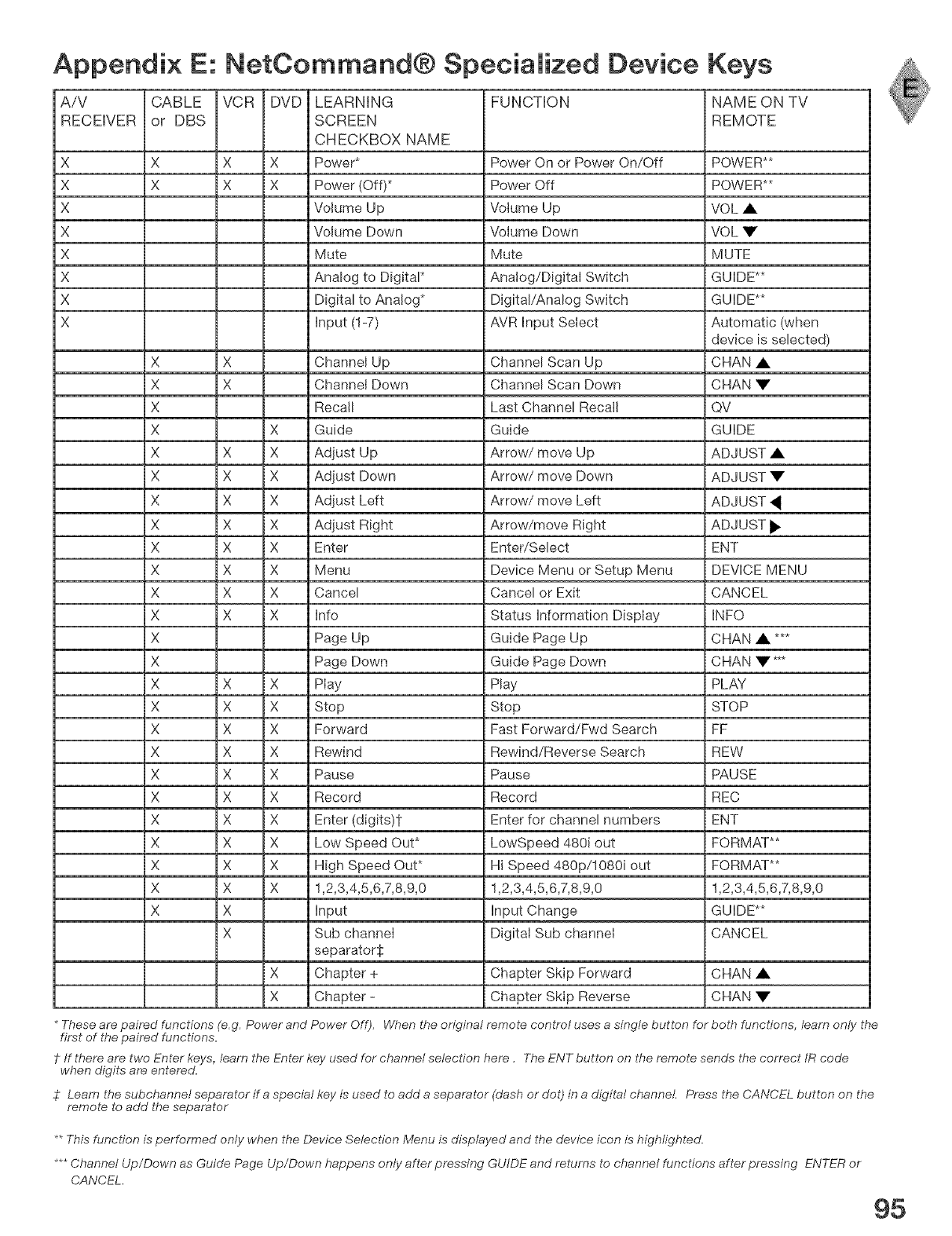

Appendix E: NetCommand® Specialized Device Keys .............................................. 95

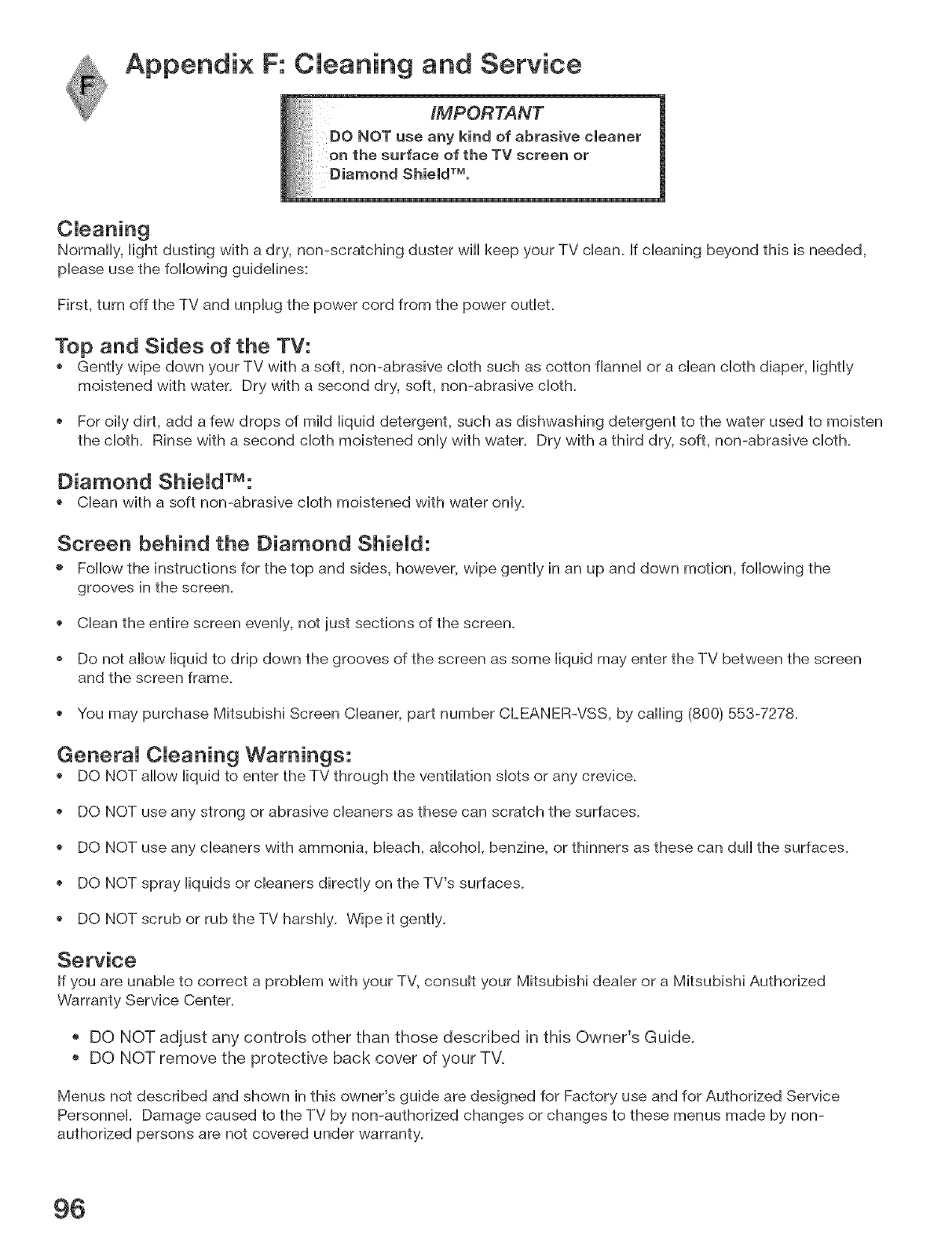

Appendix F: Cleaning and Service ............................................................................... 96

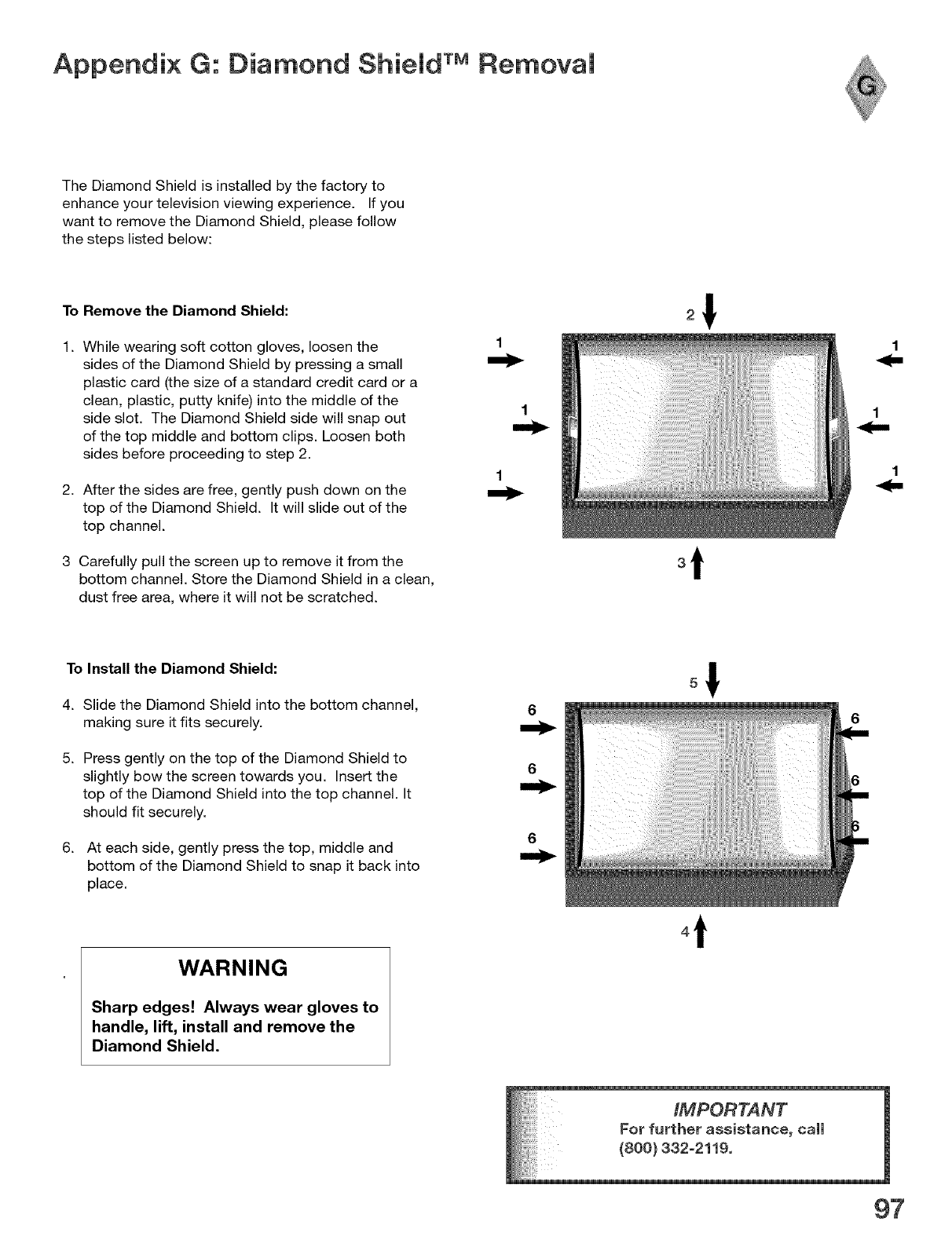

Appendix G: Diamond Shield TM Removal .................................................................... 97

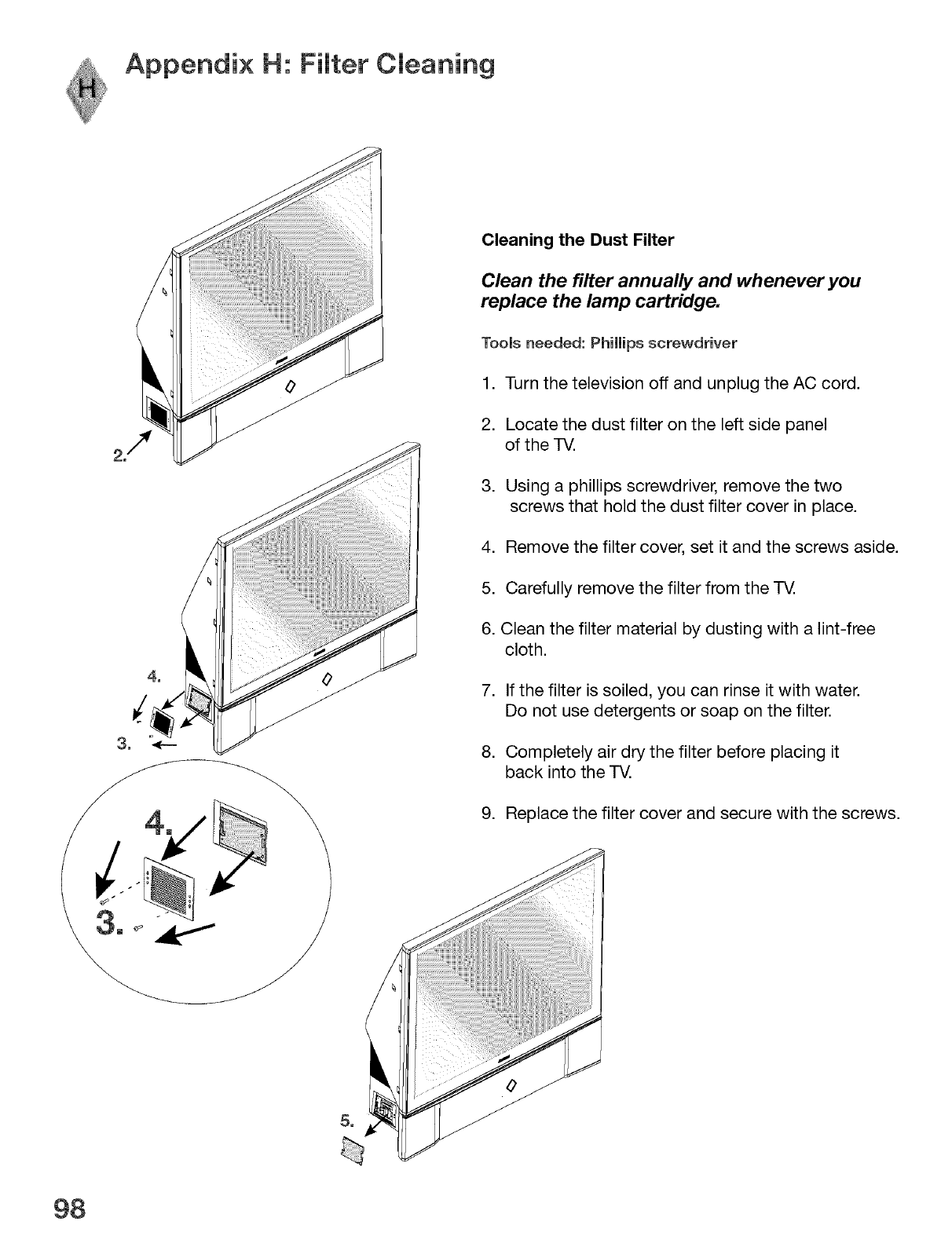

Appendix H: Filter Cleaning .......................................................................................... 98

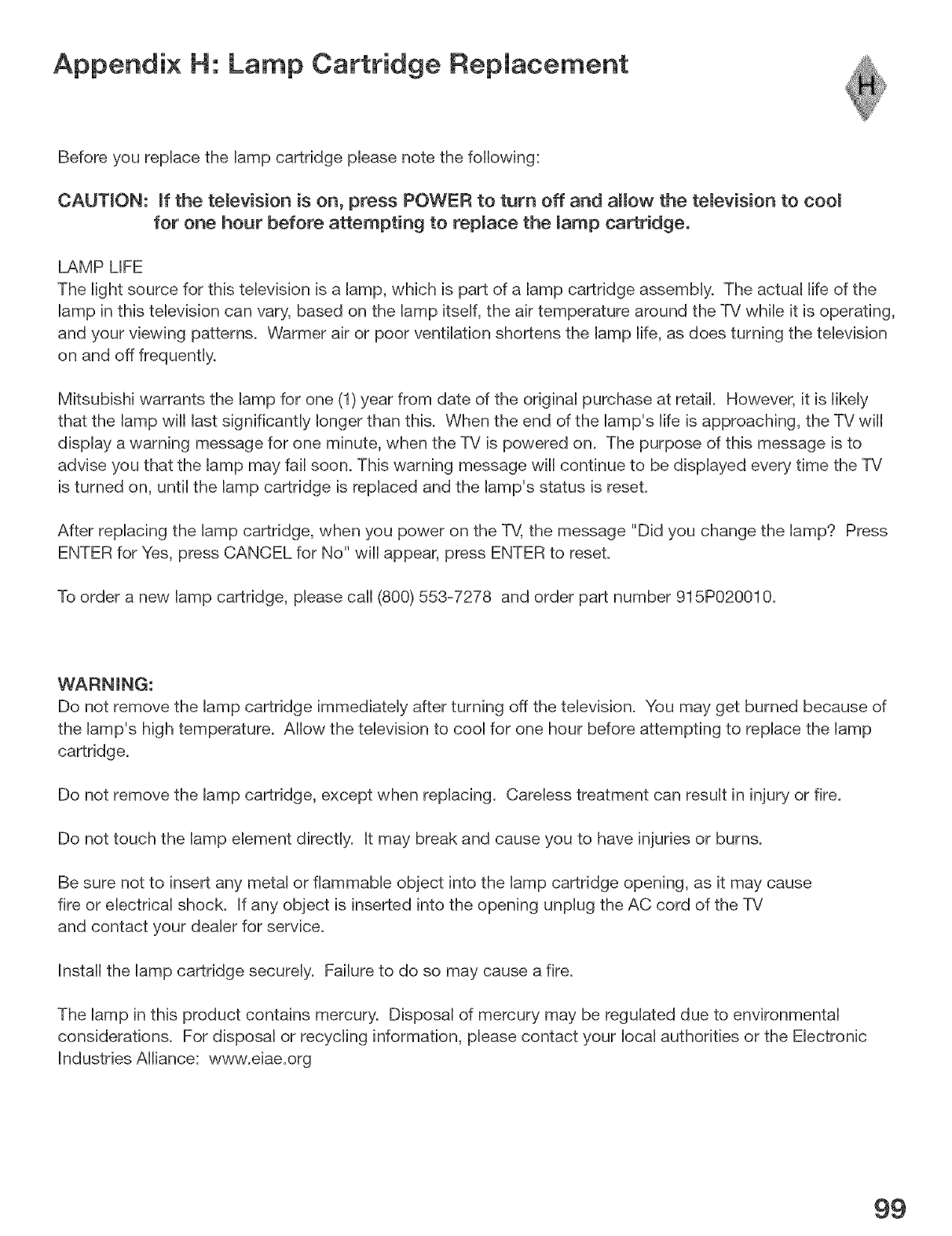

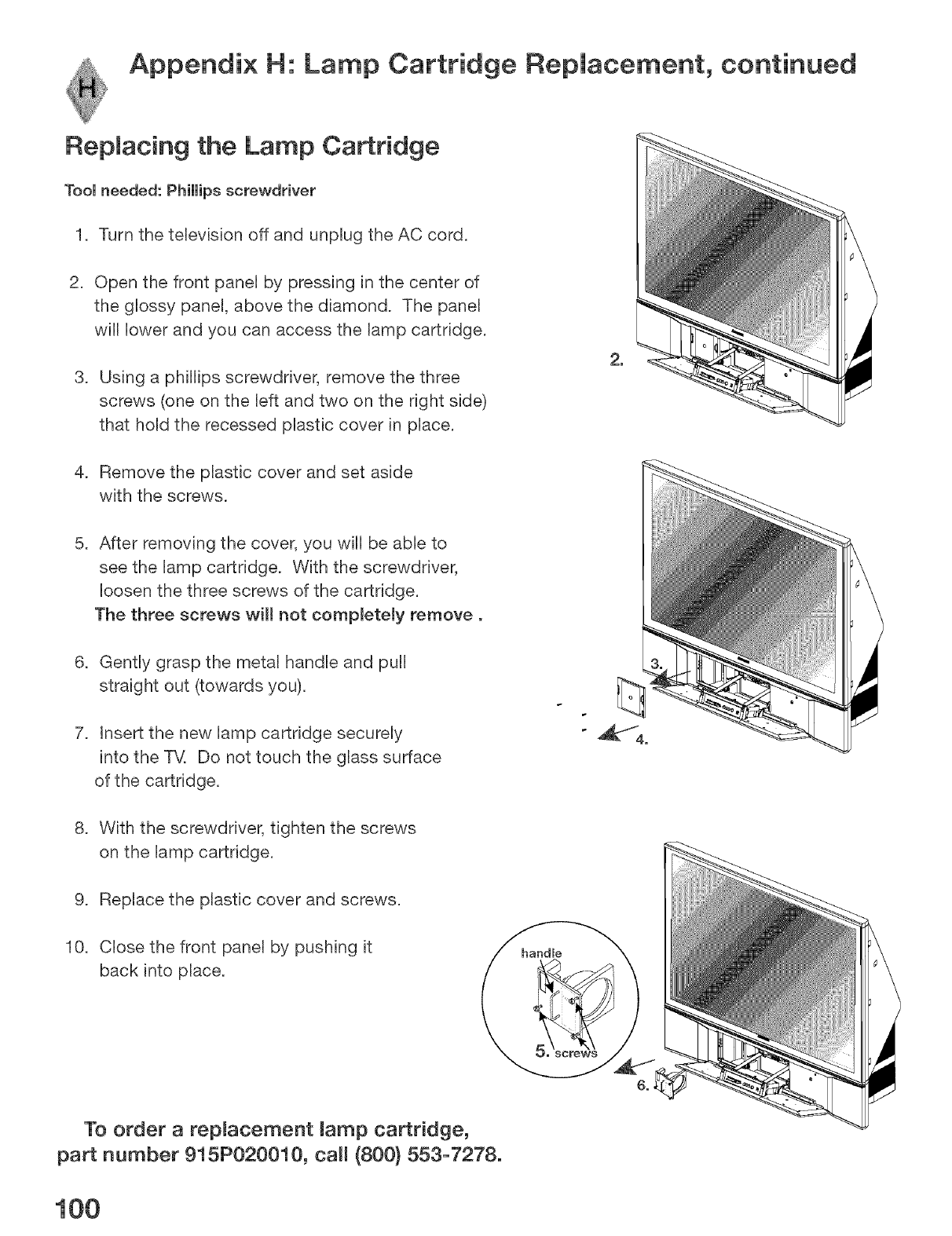

Lamp Cartridge Replacement ................................................................. 99

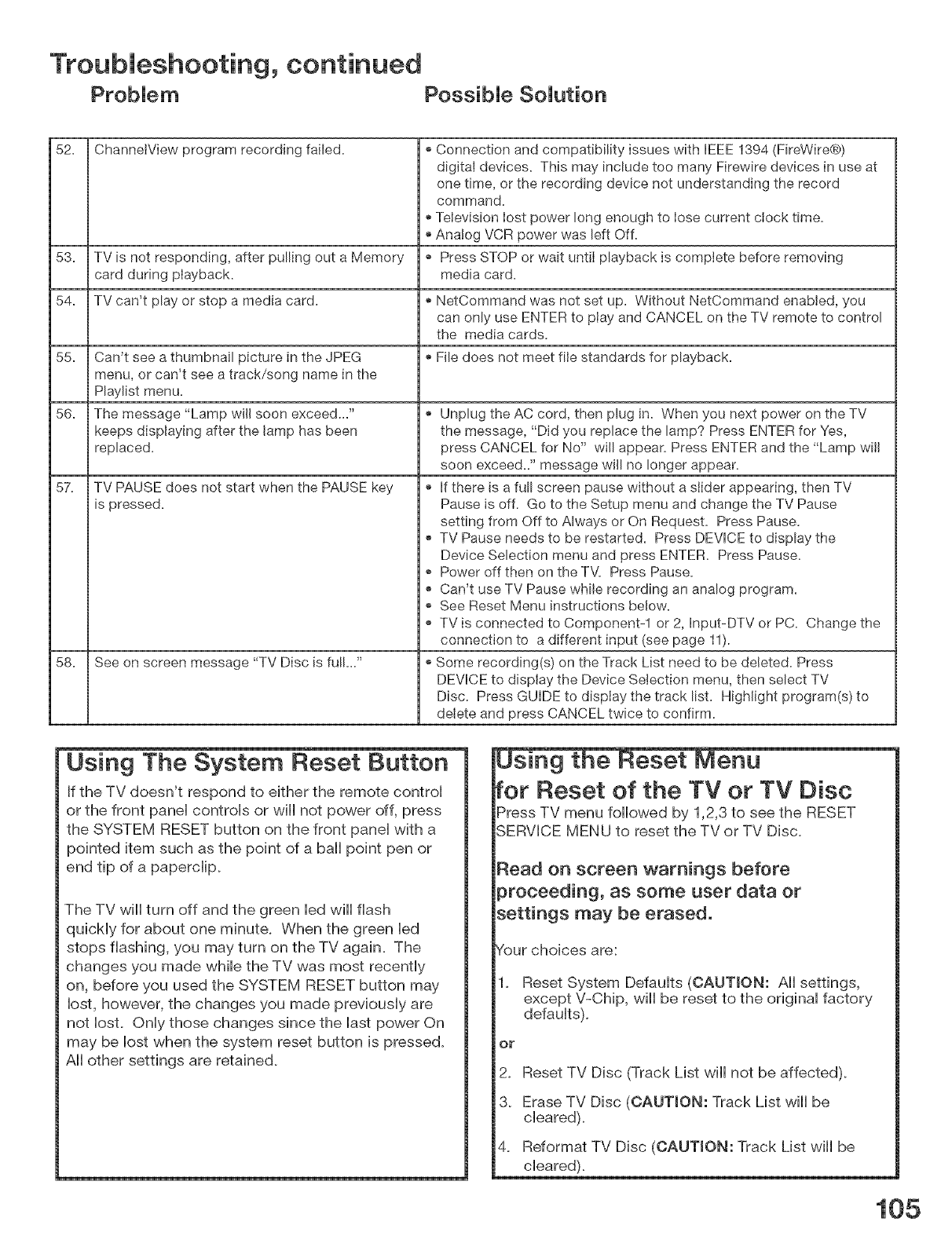

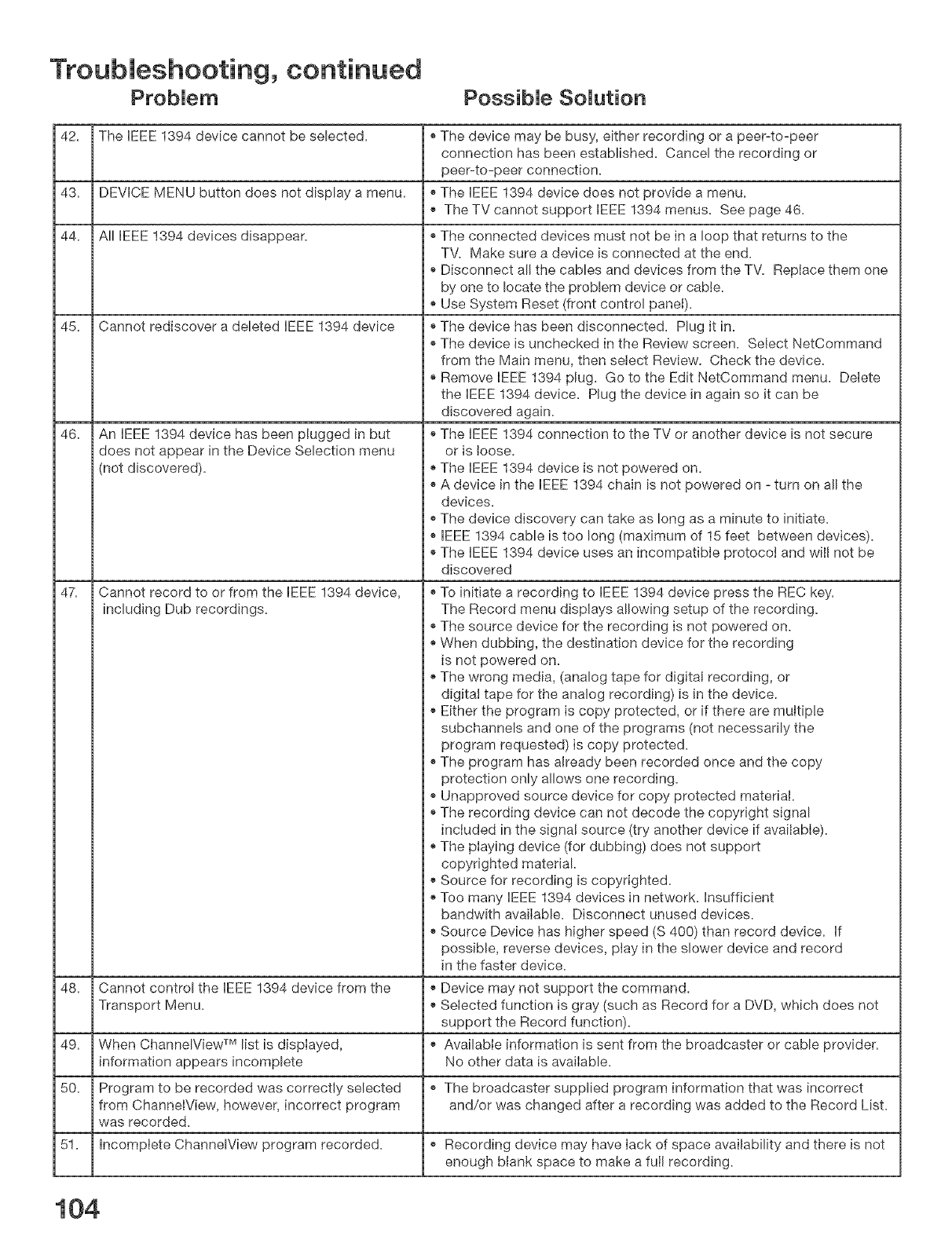

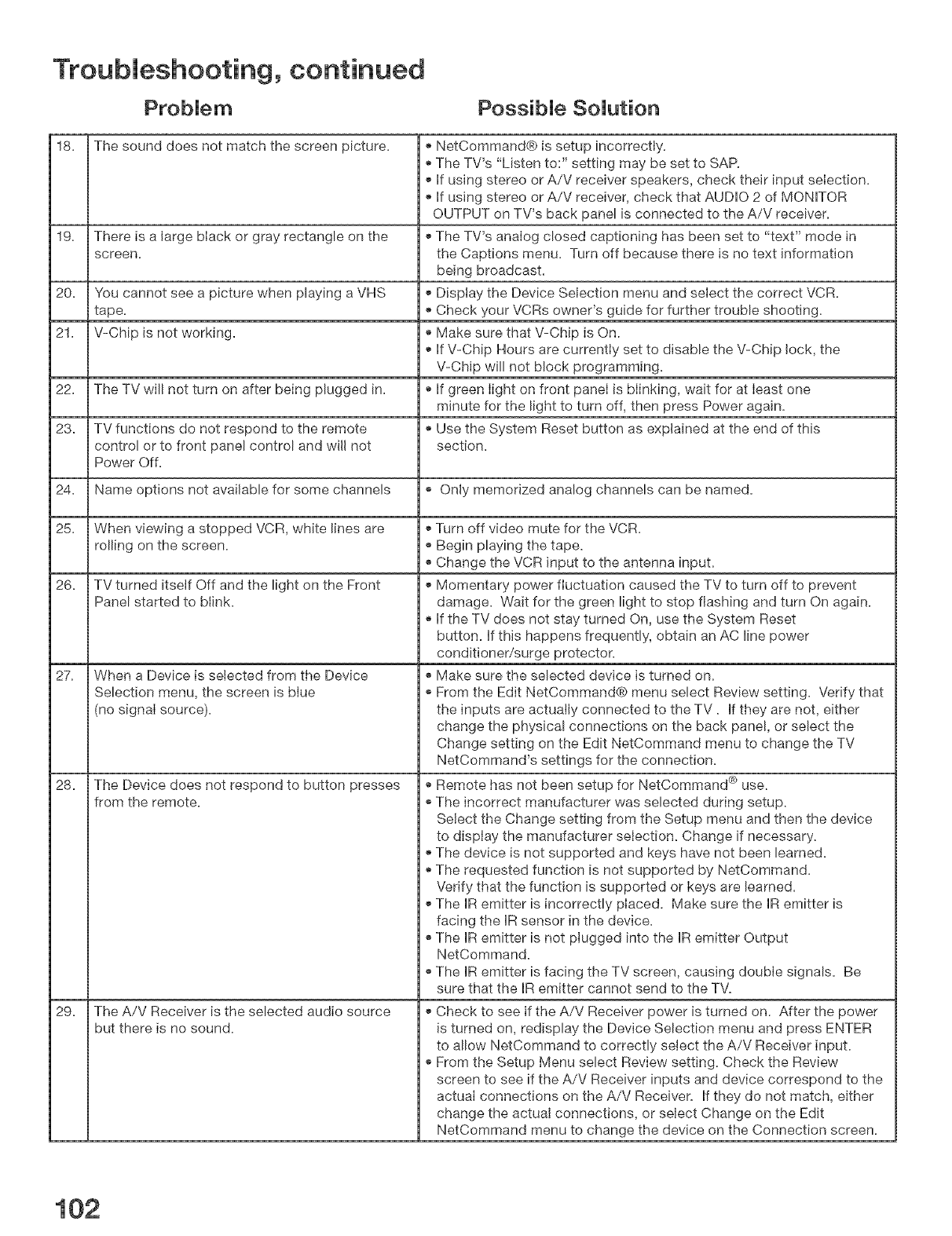

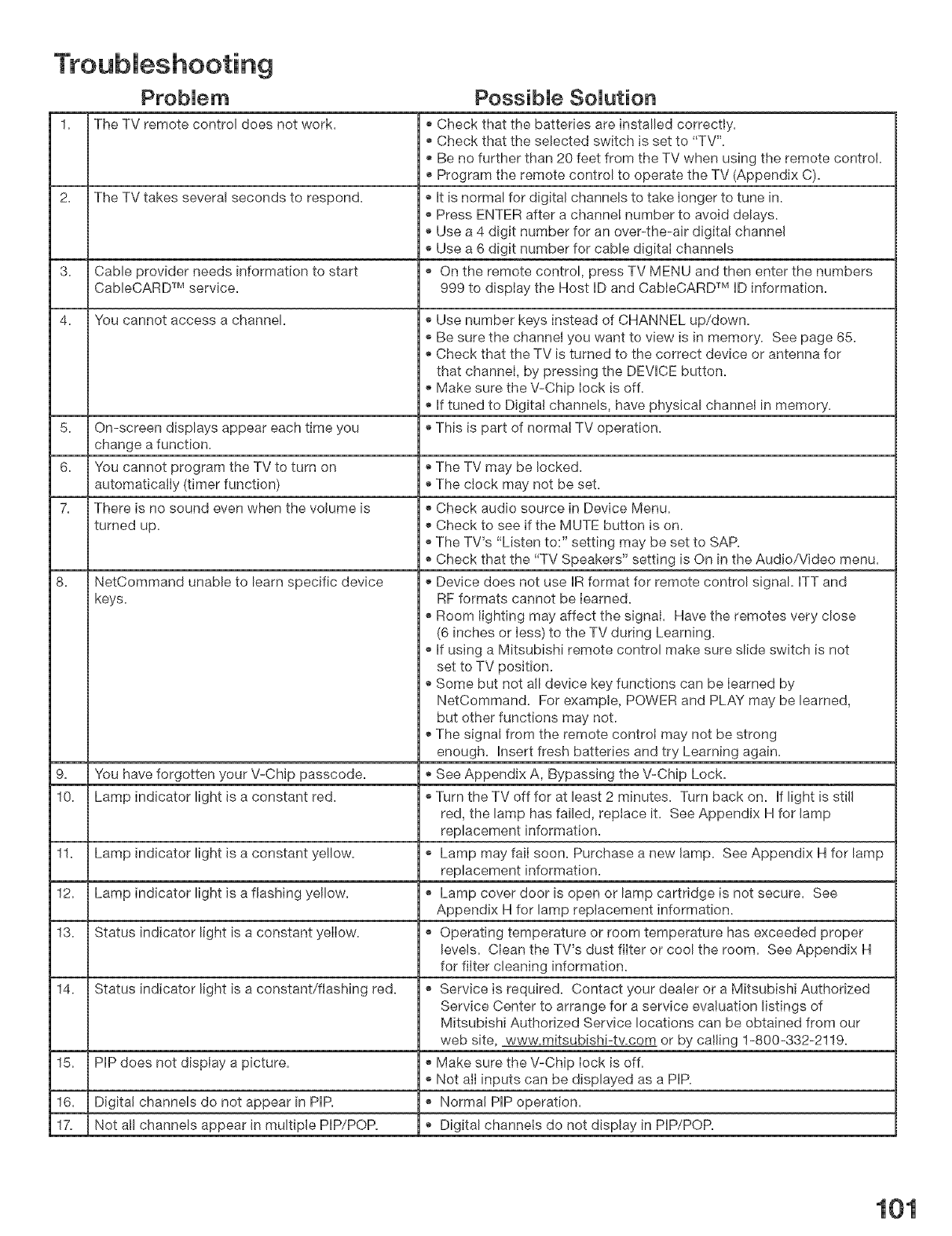

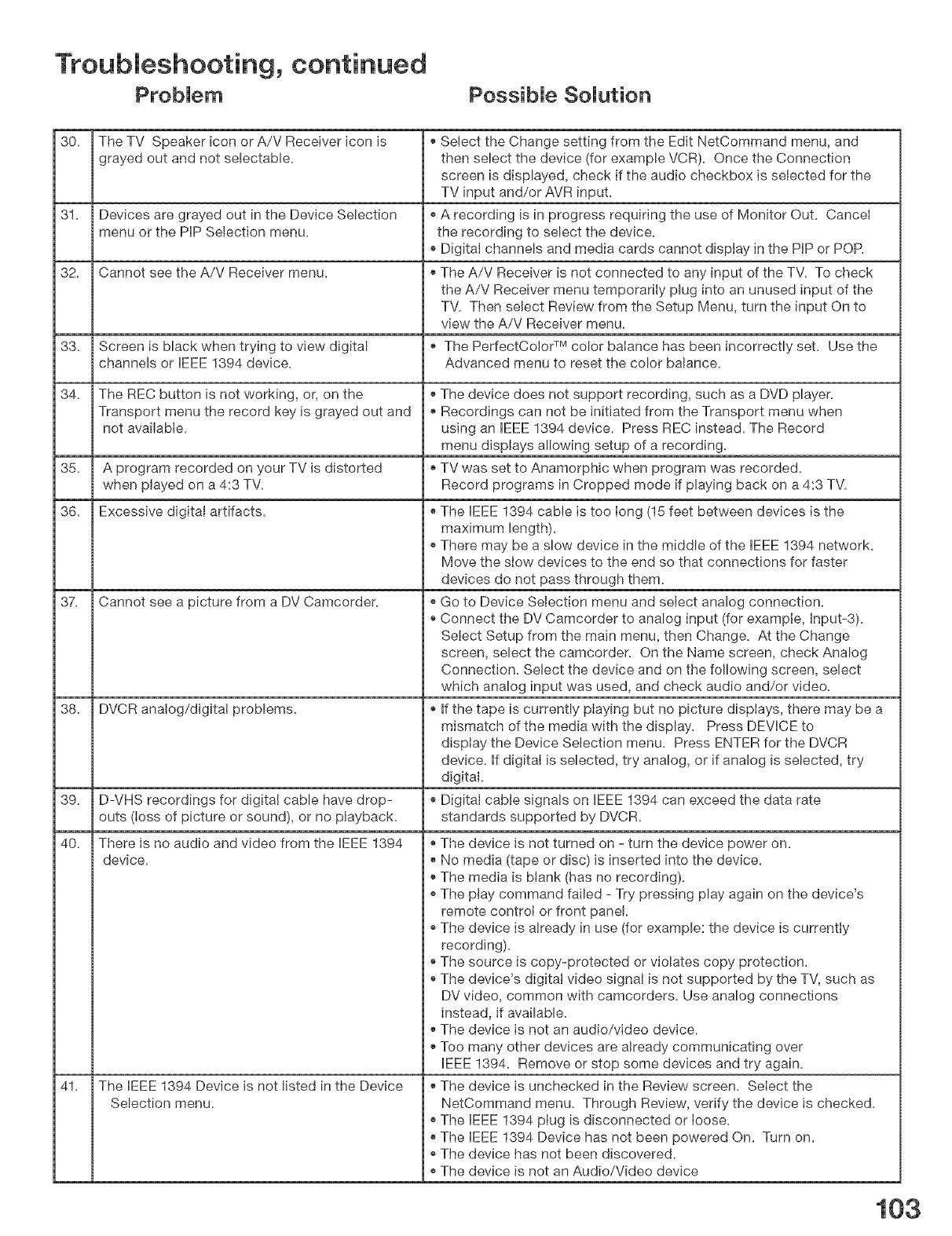

Troubleshooting ............................................................................................................ 101

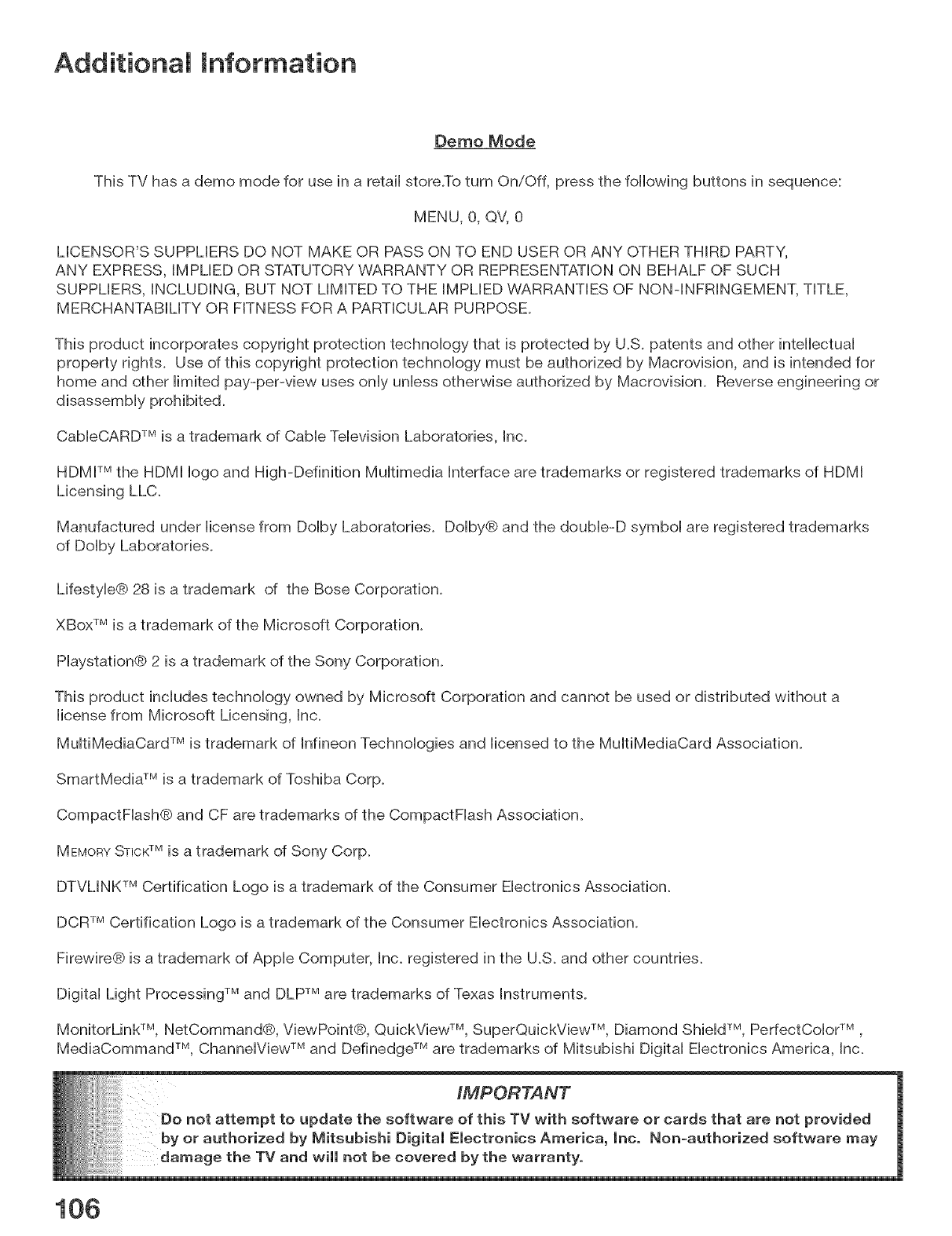

Addkional Information .................................................................................................. 106

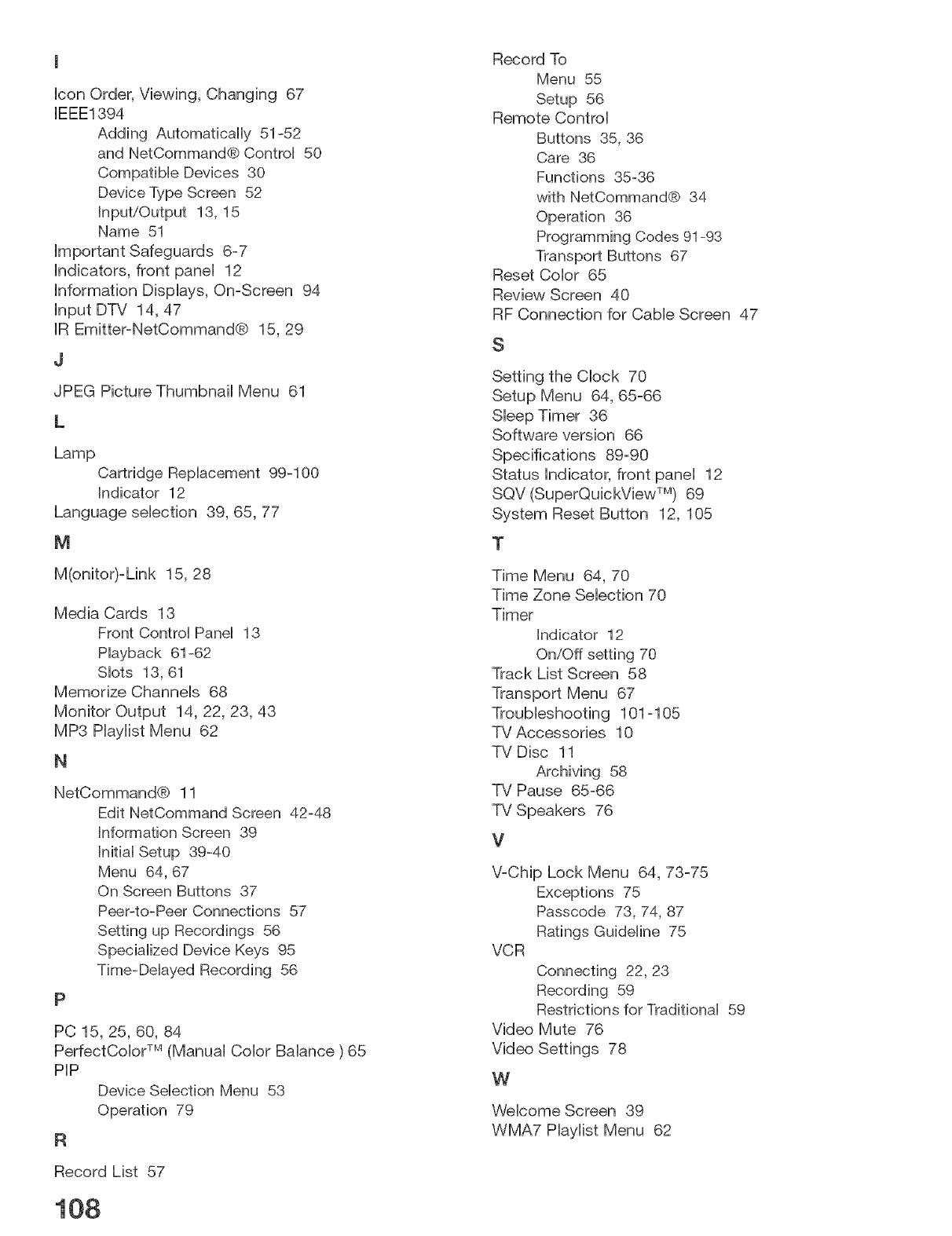

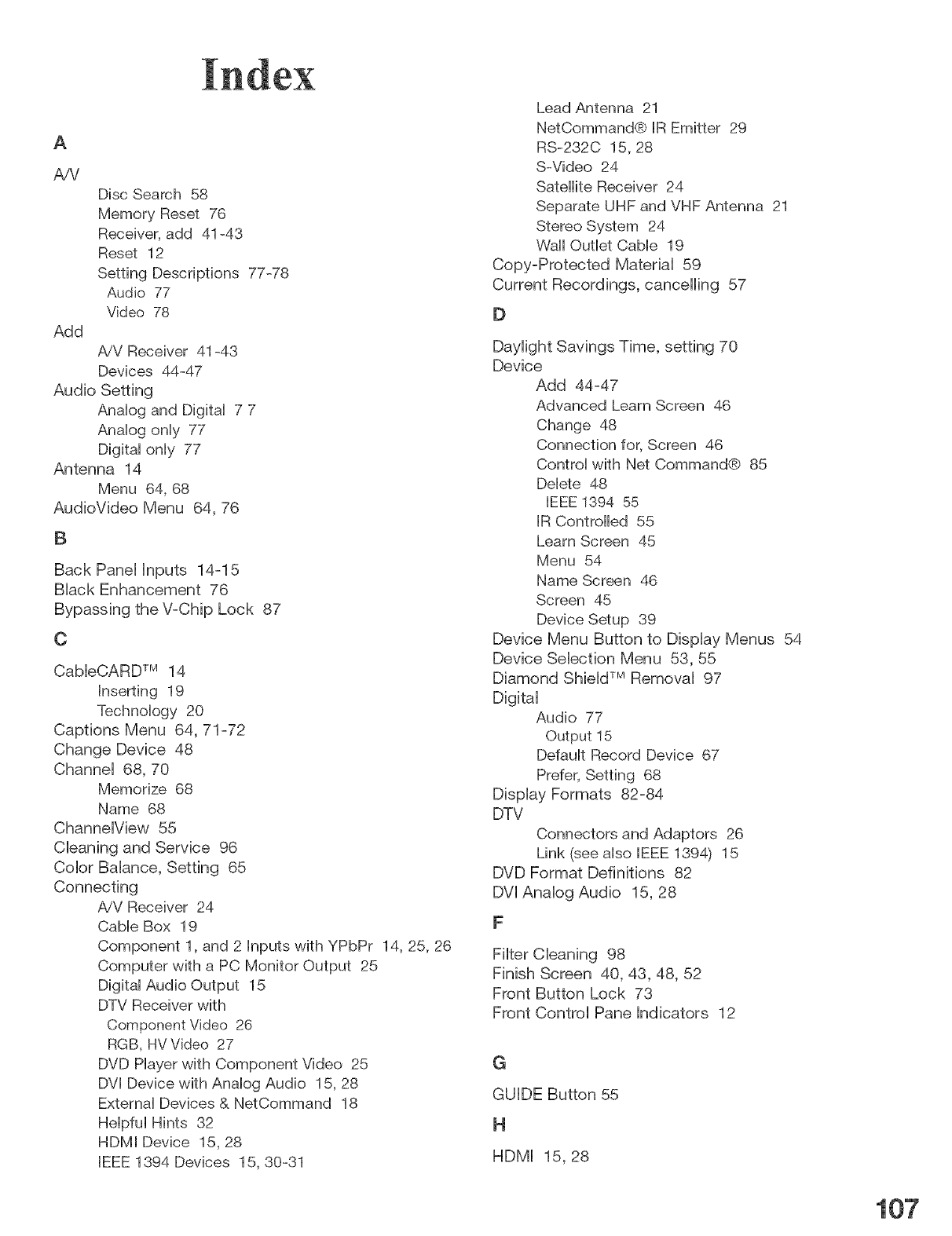

Index ............................................................................................................................. 107

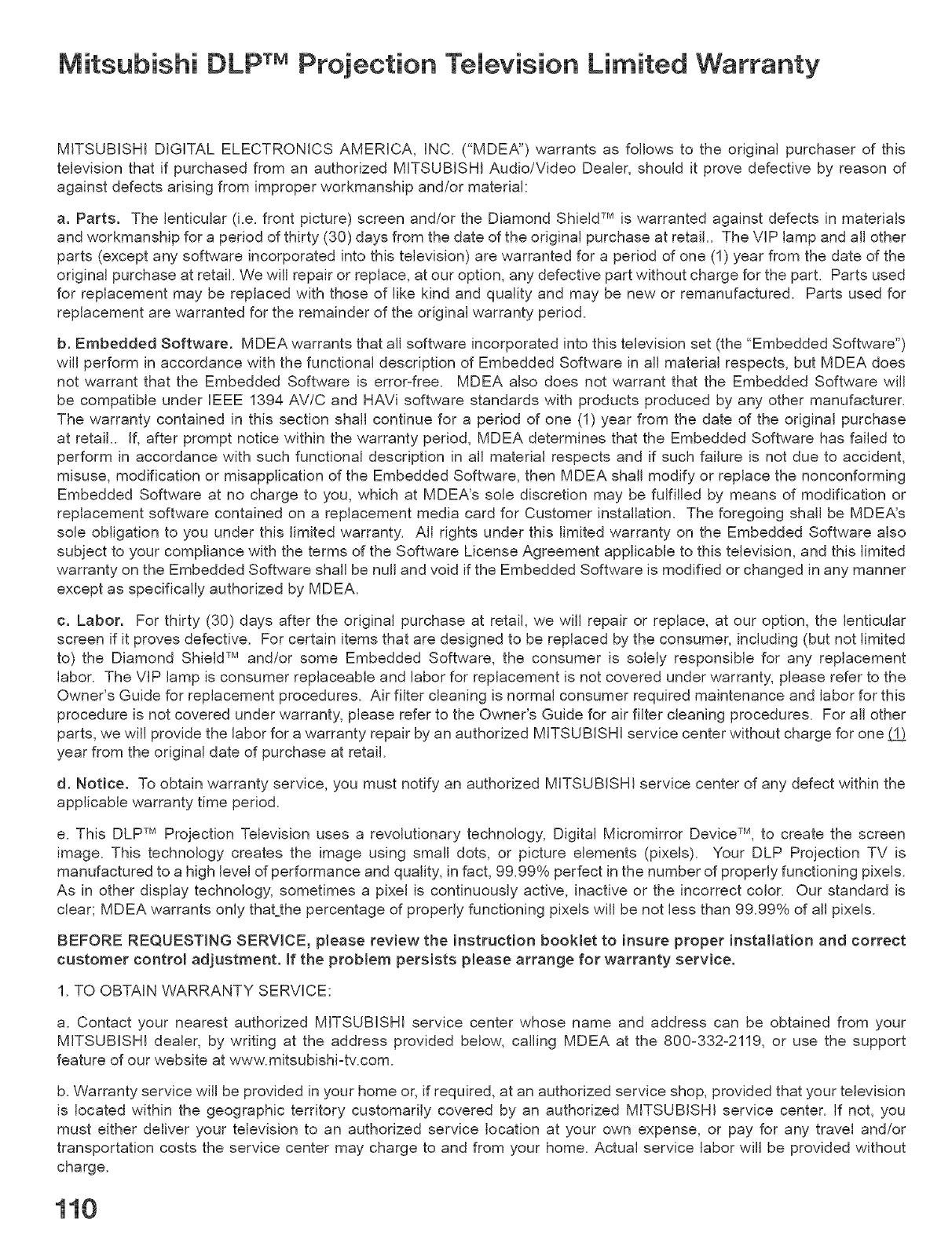

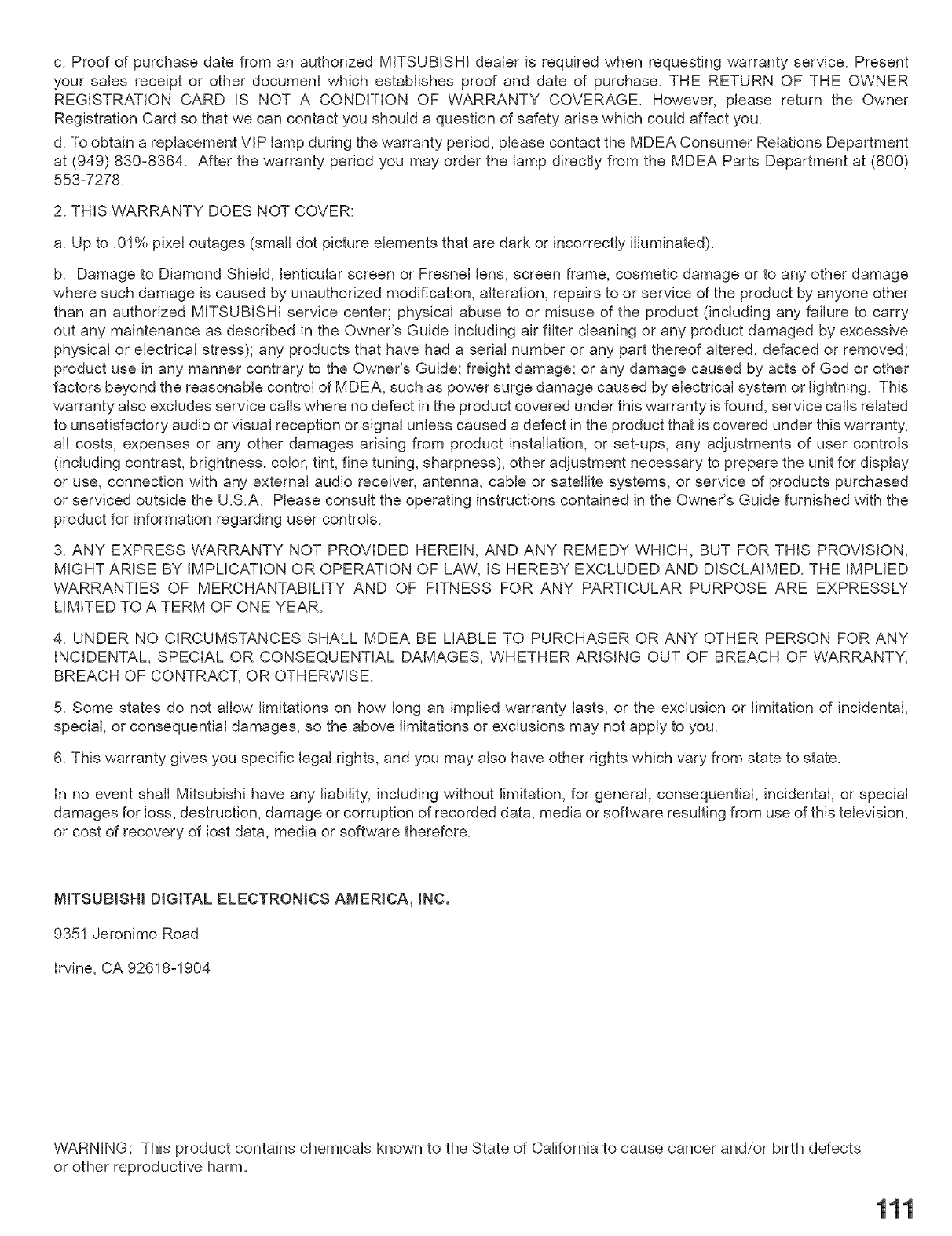

Warranty ....................................................................................................................... 109

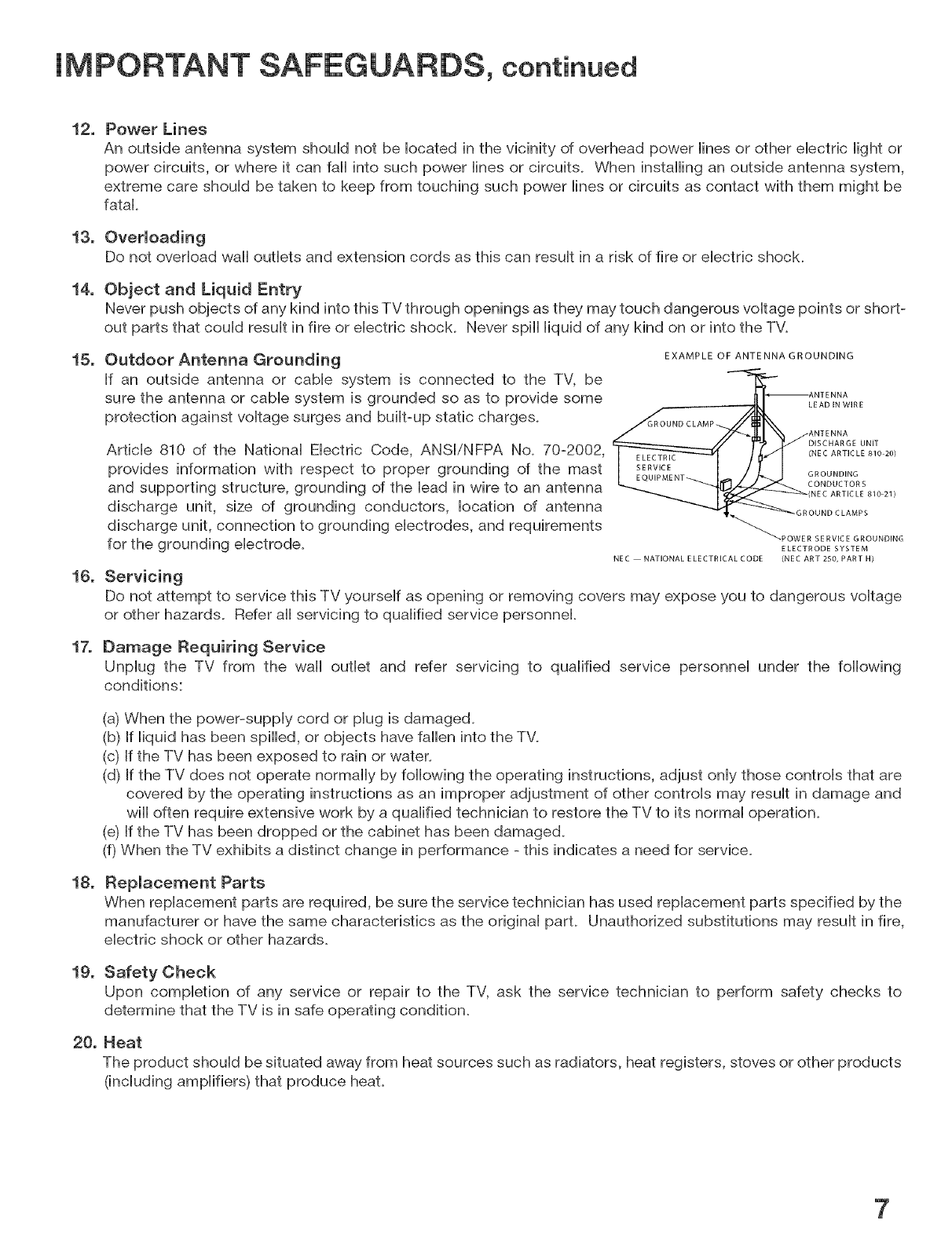

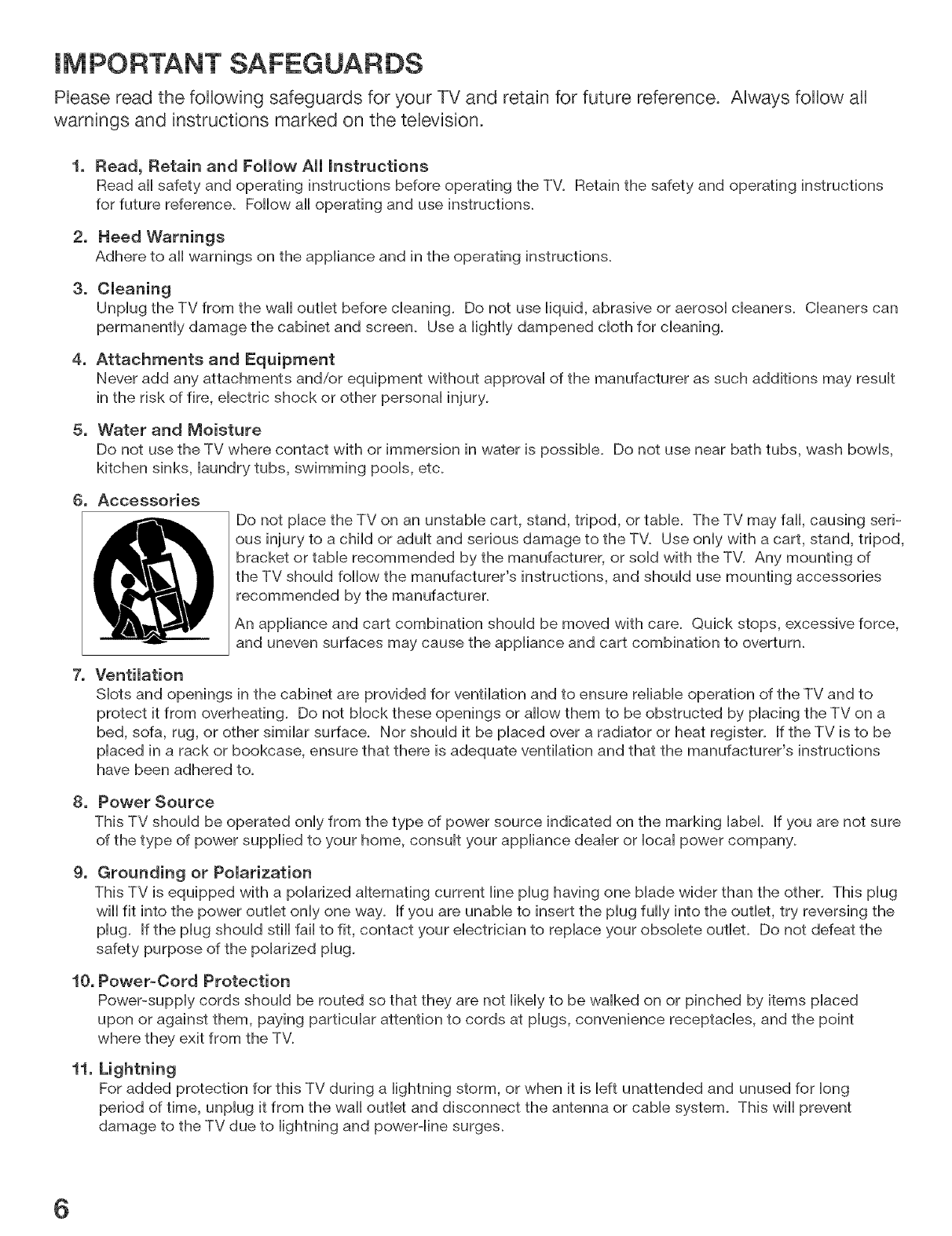

lM PORTANT SAFEG UAR DS

PUease read the following safeguards for your TV and retain for future reference. AUways follow aH

warnings and instructions marked on the teUevision.

Read, Retain and Follow All instructions

Read aH safety and operating instructions before operating the TV. Retain the safety and operating instructions

for future reference. Follow aHoperating and use instructions.

Heed Warnings

Adhere to aH warnings on the appHiance and in the operating instructions.

Cleaning

UnpHug the TV from the wall outlet before cHeaning. Do not use Hiquid,abrasive or aerosoH cleaners. Qeaners can

permanently damage the cabinet and screen. Use a HightHydampened cbth for cleaning.

Attachments and Equipment

Never add any attachments and/or equipment without approval of the manufacturer as such additions may result

in the risk of fire, electric shock or other _ersonal injury.

Water and Moisture

Do not use the TV where contact with or ummersion in water is possible. Do not use near bath tubs, wash bowls,

kitchen sinks, laundry tubs, swimming pools, etc.

& Accessories

Do not place the TV on an unstable cart, stand, tripod, or table. The TV may fall, causing seri-

ous injury to a child or adult and serious damage to the TV. Use only with a cart, stand, tripod,

bracket or table recommended by the manufacturer, or sold with the TV. Any mounting of

the TV should follow the manufacturer's instructions, and should use mounting accessories

recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the appliance and cart combination to overturn.

7. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to

protect it from overheating. Do not block these openings or allow them to be obstructed by phcing the TV on a

bed, sofa, rug, or other similar surface. Nor should it be placed over a radiator or heat register, if the TV is to be

placed in a rack or bookcase, ensure that there is adequate ventilation and that the manufacturer's instructions

have been adhered to.

10.

11.

Power Source

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure

of the type of power supplied to your home, consult your appliance dealer or local power company.

Grounding or Polarization

This TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug

will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the

plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the

safety purpose of the polarized plug.

Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point

where they exit from the TV.

Lightning

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long

period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent

damage to the TV due to lightning and power-line surges.

IMPORTANT SAFEGUARDS, continued

12.

13.

14.

15.

16.

17.

18.

19.

20.

Power Lines

An outside antenna system shouM not be iocated in the vbirfity of overhead power Hinesor other ebctrb Hightor

power circuits, or where it can fall into such power Hinesor circuits. When installing an outside antenna system,

extreme care shouid be taken to keep from touching such power Hinesor circuits as contact with them might be

fatal

Overloading

Do not overioad wall outlets and extension cords as this can resuit in a risk of fire or ebctrb shock.

Object and Liquid Entry

Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-

out parts that could result in fire or electric shock. Never spill liquid of any kind on or into the TV.

Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV, be

sure the antenna or cable system is grounded so as to provide some

protection against voltage surges and built-up static charges.

Article 810 of the National Electric Code, ANSI/NFPA No. 70-2002,

provides information with respect to proper grounding of the mast

and supporting structure, grounding of the lead in wire to an antenna

discharge unit, size of grounding conductors, location of antenna

discharge unit, connection to grounding electrodes, and requirements

for the grounding ebctrode.

Servicing

EXAMPLE OF ANTENNA GROUNDING

_ ANTENNA

LEAD IN WIRE

GROUND CLAMP

ANTENNA

__DISC HAR GE UNIT

(NEC ARTICLE 810 20)

GROUNDING

CONDUCTORS

(NEC ARTICLE 810 21)

OUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

NEC NATIONAL E LECTRICAL CODE (NEC ART 250, PART H)

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage

or other hazards. Refer all servicing to qualified service personnel

Damage Requiring Service

Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following

conditions:

(a) When the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen into the TV.

(d) If the TV does not operate normally by following the operating instructions, adjust only those controls that are

covered by the operating instructions as an improper adjustment of other controls may result in damage and

wiii often require extensive work by a qualified technician to restore the TV to its normal operation.

(e) If the TV has been dropped or the cabinet has been damaged.

(f) When the TV exhibits a distinct change in performance - this indicates a need for service.

Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock or other hazards.

Safety Check

Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to

determine that the TV is in safe operating condition.

Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves or other products

(including amplifiers) that produce heal

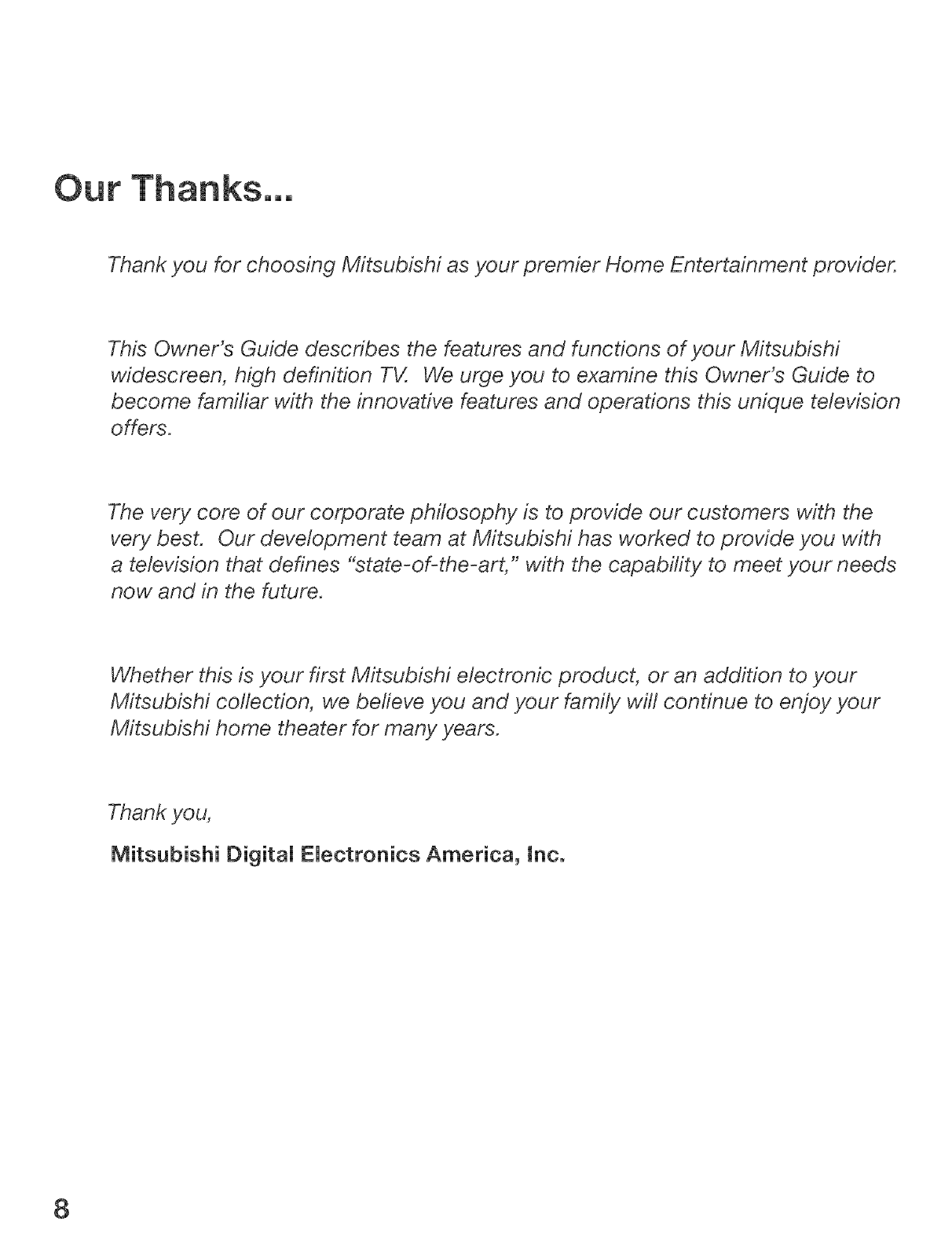

Thanks...

Thank you for choosing Mitsubishi as your premier Home Entertainment prodder.

This Owner's Guide describes the features and functions of your Mitsubishi

widescreen, high definition TV. We urge you to examine this Owner's Guide to

become familiar with the innovative features and operations this unique television

offers.

The very core of our corporate philosophy is to provide our customers with the

very best. Our development team at Mitsubishi has worked to provide you with

a television that defines "state-of-the-art," with the capability to meet your needs

now and in the future.

Whether this is your first Mitsubishi electronic product, or an addition to your

Mitsubishi collection, we believe you and your family will continue to enjoy your

Mitsubishi home theater for many years.

Thank you,

Mitsubishi DigitaJ EJectronics America, 1no.

Temevision Overview

TV Accessories .......................................................................... 10

SpeciaU Features ........................................................................ 11

Front Control Panel .................................................................... 12

Front PaneU inputs and Media Card SUots ............................... 13

Back PaneU ................................................................................. 14

TV Accessories

PUease take a moment to review the following

Uistof items to ensure that you have received

everything incUuding: 1

2. Two AA Batteries

1. Remote Control

3. One Digital Audio Cable (sends the audio of digital

channels to a digital audio video receiver),

4. One Quadruple IR Emitter Cable (allows NetCommand to

control other devices)

6. Product Registration Card (not pictured)

ZOwner's Guide (not pictured)

8, Quick Reference Card (not pictured)

5. One Double/R Emitter Cable (allows NetCommand to

control other devices)

SpeciaJ Features

Your new High Definition widescreen television has many speciaJ features that make it the perfect center of

your home entertainment system, incRuding:

High Definition DLP TM DispJay System

Your widescreen MitsubisM HDTV uses Texas hstruments DigitaH Light Processing TM technoHogy. This TV is truHy

a high performance muHtimedia monitor uniqueHy capaMe of both stunning high definition video images and clear

detailed high resolution PC images. Your TV is able to accept video signals in the standard video scanning rates of

480i, 480p, 720p and 1080i. It is also able to accept signals with PC resolutions from VGA (640 x 480) through XGA

(1024 x 768). When using a compatible graphics card and controlling software, this TV is also able to accept the

custom PC resolution of 720p (1280 x 720). All signals will be converted to 720p for final display.

TV Disc JnternaJ PersonaJ Video Recorder (PVR)

TV Disc is an internal 120GB high definition hard disk drive recorder (also called a personal video recorder or

PVR). It is able to record digital and analog programs received from CableCARD TM channels, Antenna 1, Antenna

2, devices connected to Input 1, 2, 3 or IEEE 1394 devices. This exciting feature may record as much as 12 hours of

high definition TV programming and includes live TV pause with instant replay. Now you can record a high definition

program and watch it later without any picture quality loss and without a VCR. Recordings on the TV Disc can be

sent by JEEE 1394 to D-VHS VCRs or to other IEEE 1394 compatible TVs. When recording analog programs, TV Disc

will even use Dolby Digital Record to convert the analog stereo to high quality digital stereo compatible with Dolby

Digital decoding surround receivers.

DigitaJ CabJe Ready (CabJeOARD TM}

Your widescreen Mitsubishi HDTV is "Plug-and-Play" ready. It can descramble a cable provider's one-way digital

signals with the use of a CableCARD security module. The CableCARD is used in place of a traditional cable box

to access digital cable programming (including high definition). Contact your local cable provider for availability

information and service details.

NetCommand ® Home Network ControJ System

Your widescreen Mitsubishi HDTV offers a new level of networking to combine selected older products with new

and future digital products. NetCommand supports IEEE 1394 connections, Audio Video Control system (AViC),

5C copy protection and IR control of selected older products such as VCRs, DVD players, cable boxes or satellite

receivers. NetCommand includes the ability to learn remote control signals directly from many devices, allowing you

to customize the NetCommand system in a way that works best for your viewing.

16:9 Widescreen Picture Format

Enjoy a full theatrical experience in the comfort of your home. View pictures as film directors intended them. Digital

TV broadcasts, DVDs and newer video game consoles support this widescreen format.

Media Cards

You can display a slideshow of your favorite JPEG pictures or listen to MP3 or WMA audio selections that have been

recorded on compatible media cards.

Front Control Panel

The buttons on the Front Controi Panei higMighted in gray are dupiicated on the remote control The top row of

iabeis show the controi functions when there are no TV menus dispiayed on the screen. The bottom row of iabeb

show the controi functions when the TV menus are dispiayed on the screen or when a speciai function has been

activated. See Remote Control Overview, for further detaiis on the functions of these buttons.

System Reset

If the TV will not respond to either the remote controi or the front panei controb and/or will not power Off, press the

SYSTEM RESET button with a pointed item Hikethe end point of a paperciip. The TV will turn Off and the TIMER

light will flash quickly for about one minute. When the TIMER light stops flashing, you may again turn on the TV. The

changes you made the last time the TV was on before you used the SYSTEM RESET button may be lost, however,

the changes that were previously saved are not lost.

I i i, ! ,M@cf @ |

S_ _ _ LAM P S] 7*TUS T IM ER { _# JA DJt_ _ f,_l_ C A _ _EL I

Please refer to the table below for conditions when the indicator lights wiii display.

COLOR LAMP UGHT "rIMER/

mINDICATOR POWER

None (off) Power off Power off

Green n/a Power on

(steady light)

Green n/a Starting

( fast blinking light) up*

Green Power just turned off, TV Timer

(blinking light) TV cooling down (1 is set

minute). Cannot turn

the TV back on until

blinking stops.

Yellow Lamp life end warning, n/a

(steady light) A new lamp should be

purchased.

See Appendix H.

Yellow Lamp cover door is n/a

(blinking light) open

or no lamp installed.

See Appendix H.

Red Lamp has failed, n/a

(steady light) replacement is

required.

See Appendix H.

Red n/a n/a

(blinking light)

COLOR. STATUS LIGHT iNDiCATOR

None (off) Power off

Green n/a

(steady light)

Green n/a

( fast blinking light)

Green n/a

(blinking light)

Yellow Operating temperature is too high.

(steady light) The dust filter may be dirty. See

Appendix H.

The room temperature too hot. Turn off

TV until the room is cooler.

Yellow The filter cover is open or not secure.

(blinking light) See Appendix H.

Red Service required.

(steady light) Turn off TV and call your dealer or a

Mitsubishi Authorized Service Center.

See www.mitsubishkcom or call 1-800-

332-2119.

Red Service required.

(blinking light) Turn off TV and call your dealer or a

Mitsubishi Authorized Service Center.

See www.mitsubishkcom or call 1-800-

332-2119.

*Each time the TV is plugged into a wall electrical outlet, when power is restored after a power failure, or when using

the SYSTEM RESET button, this light wiii flash for about one (1) minute.

A/V Reset

There may be times when you wish to reset the A/V (Audio and Video) settings back to the factory defaults. To return

all of the settings at once, press GUIDE and FORMAT on the front panel at the same time. To reset the defaults for

individual devices, use the A/V Memory Reset sebction on the AudioVideo menu.

Front Panel Inputs and Media Card Slots

Media Card SJots and IEEE 1394

To acess the media card shots and IEEE 1394 Input/

Output, press on the center panel hbeHed PUSH.

There are four card shots in the front of the TV that

allow the disphy of JPEG pictures from many digitaH

cameras, MP3 or WMA audio fiHes recorded from

computers or other digitaH recording devices+ The

card shots are designed for specific types of cards

and other cards or objects shouHd not be inserted

into the shots as this may damage the TV. CARD-

1 shot is compafiMe with both MuHfiMediaCard TM

(MMC) and Secure Digital (SD) cards. CARD-2 slot

is compatible with SmartMedia TMcards. CARD-3

slot is compatible with CompactFlash® cards and

CARD-4 is compatible with MEMORYSTICKTMcards.

See media card (slideshow, playlist) Setup for details

about JPEG, MP3 and WMA file types that are

compatible with the TV.

The IEEE 1394 input/output allows for convenient

connection of IEEE 1394 devices such as some

camcorders, to the front of the TV. This connection

works the same way as rear IEEE 1394 connections,

please refer to the NetCommand® information

(Chapter 3) for details.

Memorycard slots

Input3

IEEE1394

input 3

This input can be used for convenient connection

of a camcorder or other audio/video device to the

TV. Please note that if you connect to the S-VIDEO

terminal, the VIDEO terminal is deactivated. The

VIDEO terminal is active when there is no S-Video

connection.

Back Panel

1. Antenna (ANT-I MAIN, ANT-2 AU×)

ANT-1 MAiN and ANT-2 AUX can each receive both

digital and anaiog over4he-air channels from a VHF!'UHF

antenna or nomscrambled digital/anaIog cable channels.

Your primary viewing signai source should be connected

to ANT-1 MAIN. ANT-1 MAiN must be used to view

premium subscription cabte TV service authorized by the

CabIeCARD TM access card. The CabteCARD access card

is provided by your Iocal cabte company. ANT-2 AUX can

receive over-the-air or non-scrambled cable signals.

2. CabJeOARD TM SJot

The CabieCARD access card provided by your cabIe TV

service provider is inserted into this slot. The top of the

card should face in the direction the CARD TOP arrow

indicates.

CabteCARD is a nationwide standard system that allows

your Iocal cable TV provider to suppty you with an

access card customized to your account. This card

atlows the TV to receive, decode and unscramble the

premium digital channets included in your cable TV

subscription without the use of a cable box. See page

20 for additional CabieCARD information and activation

instructions.

If your cable company is not currentIy offering

CableCARD access cards, you will need to use a cabte

box provided and authorized by your Iocai cable company

to view scrambled channels.

YPbPr/RGB HV (480ii480p/720p/1080i)

This input is used to connect an external DTV receiver,

and can be configured for YPbPr or RGB plus H&V signal

types. Please see Appendix B for signal compatibility.

4. Component-I, -2 inputs

YPbPr (480i/480p/720p/1080i)

These inputs can be used for the connection of devices

with component video outputs, such as a DVD player,

external HDTV receiver or compatible video game system.

Please see Appendix B for signal compatibility.

5. input-l, -2; Monitor Output

(Audio/Video 1, Audio 2)

Input 1 and 2 can be used for the connection of a VCR,

Super VHS (S=VHS) VCR, DVD ptayer, standard satellite

receiver or other A/V device to the TV. Please note that

if SWIDEO and VIDEO are available for the input, you

must choose to connect only one. They cannot both be

connected at the same time.

The Monitor Output sends the TV audio and video signals

from the antennas or inputs to an A/V receiver or other

anatog A/V equipment such as a VCR. Digital channels

and IEEE 1394 signals will be down converted to analog

signais compatible with traditional VCRs. Digital

channels or EEE 1394 signats may be output with copy

protection or may dispiay no video signals if they have

copy restrictions. There will be only audio and no

Back Panel, continued

video signals from Monitor Outputs when viewing the

Component 1 & 2 inputs, INPUT-DTV, the HDMI input or

Cards 1-4.

Monitor Output Audio/Video 1 should be connected to

a VCR for recording. Monitor Output Audio 2 should

be connected to your A/V receiver for home theater

surround sound.

6. PC input and Audio

(VGA/WVGA/SVGA/WSVGA/XGA/720p, 60Hz}

This input can be used for the connection of a computer,

Please see Appendix B for signaJ compatibility. Stereo

audio inputs are aJso provided for the PC connection.

7. DTV LinkTM/JEEE1394

These jacks allow the TV to connect to externat IEEE

1394 digitaJ products by means of a single cable. Three

jacks (one on the front panel and two on the back) are

provided for this purpose, which allow for a high degree

of flexibility for connecting your NetCommand controlled

system. Detailed information regarding IEEE 1394

connection requirements are in Chapter 4.

8. JR Emitter-NetOommand @

Two jacks are provided for connecting JR emitters, JR

Emitters connected to these jacks are used by the

NetCommand system of the TV to controi external analog

devices such as VCRs, DVDs, cable boxes, satellite

receivers and audio receivers.

9. DVJ AnaJog Audio

Unlike HDMI, DVl does not carry audio information on

the same cable. Use these analog stereo audio inputs

when using the HDMI input with a device that outputs DVl

instead of HDMI.

10. HDMPWM-Link

M-Link(MonitorLink TM) is a Mitsubishi exciusive

proprietary digitaJ interface for the display of high quality

digitaJ video signals from Mitsubishi products, such as

the HD-6000 HDTV Receiver/ControJJer.

The HDMI (High Definition Multimedia Interface) supports

uncompressed standard and high definition digitaJ video

formats and existing digital muJti-channet audio formats.

Use this input to connect to ElA/CEA-861 compliant

devices such as a high definition receiver or DVD

player. This input supports 480i, 480p, 720p and 1080i

video formats. It is not intended for use with personal

computers or devices outputting video signals with

computer resolutions.

This input can also be used as a DVI connection with

separate anaJog audio inputs. An optional HDMI-to-

DVl adaptor or cable wilI be necessary to make this

connection and may be avaiJable from your JocaJ

eJectronics retailer. When using the optional HDMI-to-

DVI adapter, the DVl analog audio inputs on your TV aJlow

you to receive Ieft and right audio from your DVl device.

This input is HDCP (High-Bandwidth Digital Copy

Protection) complianL

11. MtLink/RS-2320 ControJ

A digitaJ controJ interface that works in conjunction with

M-Link. While M-Link provides the digitaJ video signal,

the RS-232 control provides enhanced functioning such

as automatic power ON/OFF and input port selection

with an external control system. For RS-232C command

protocoJ pJease visit www.mitsubishi-tv.com.

12. DigitaJ Audio Output

This output wilI automatically send Dolby@ Digital audio

from digital channels and IEEE 1394 devices to a digital

Audio/Video receiver. Connect this output to the A/V

receiver's coaxiaJ digital audio input. The output wilI

automatically turn off when viewing an anaJog channel or

device, except when using the TV Disc, which converts

analog audio to digitaJ. Use Monitor Output Audio 2 to

send analog sound to your A/V receiver.

Some digital cable channels send MPEG-1 digital audio

instead of Doiby Digital, however, not aJI A/V receivers

can decode MPEG-1 digital audio. This can cause the

A/V receivers to produce a Joud noise that can damage

speakers_ For this reason, the TV wilI automatically turn

off the digital audio output when tuned to a channel or

device that has MPEG-1 digital audio and send it to the

A/V receiver as analog left and right audio from Monitor

OutpuL

Connecting

ExtemaJ Devices & NetCommand® Setup .................................. 18

Wall Outlet CabUe or CabUe Box .................................................... 19

CableCARD TM TechnoUogy ............................................................. 20

SingUe Lead Antenna ...................................................................... 21

Separate UHF and VHF Antennas ............................................... 21

Antenna or Wall OutUet CabUe to a VCR {Audio & Video} ............ 22

Cable Box to a VCR [Audio & Video} ............................................ 23

A/V Receiver or Stereo System .................................................... 24

Satellite Receiver or Other Device with S-Video ........................ 24

OVO PUayer with Component Video .............................................. 25

Computer with a PC Monitor Output ........................................... 25

DTV Receiver

with Component Video ............................................................... 26

with RGB, HV Video ................................................................... 27

M-Link Contron, RS-232 Connection ............................................ 28

HDMI Device ................................................................................... 28

DVI Device ....................................................................................... 28

IR Emitter NetCommand® ............................................................ 29

CompatibJe IEEE 1394 Devices ..................................................... 30

HeJpfuJ Hints ................................................................................... 32

Connecting E×temai Devices & NetCommand ® Setup

NetCommand is able to control many current audio and video devices by sending remote control signals from the

TV to each device through IR emitters. Additionally, it is also able to barn the remote control signals used by most

audio video devices not already in the TV's memory. NetCommand can automatically switch the TV and compatible

or learned Audio/Video (A/V) Receivers to the correct input used with each device, it is important that the inputs on

the TV and AiV receiver back panels match the NetCommand setup that is displayed on-screen.

To simplify the installation of NetCommand, there is a step-by-step on-screen NetCommand Setup procedure in this

chapter, which details the type and brands of devices you are connecting to the TV. The NetCommand Setup also

assigns preset TV and AiV receiver inputs for each device. You should connect each device to the TV input (both

audio and video) and to the AiV receiver (audio) as shown in the figure below.

Device to be

stereo and/or digital

aud o cab es

TV AV

Receiver

[ stereo and digital audio cables J

The following charts show which preset inputs you should use on the TV and AiV receiver.

Chart 1 shows TV inputs.

Chart 2 shows the AiV receiver inputs used by AiV receiver models already known by NetCommand.

Chart f

Device Audio and Video Outputs to TV mnputs

Cable for CabmeOARD TM Service ANT-f

Antenna/Cable (digitam/analog) ANT-f if primary viewing source,

ANT-2 if secondary viewing source

Cable box ANT=2

VCR lnput-f

Satellite Receiver (DBS} Input-2

Camcorder Inputs3 (on front panel)

DVD Pmayer Oomponent-f

Chart 2

After using NetCommand Setup, you may go to the NetCommand menu at any time to change the inputs you used

for connecting each device, custom name devices, add devices not included in the presets above or delete devices

no longer used. See Edit NetCommand. See He/pfu! Hints, at the end of this chapter for additional information on

device setup.

Connecting a Waft Outmet Cabme or Cabme Box

Wall OutJet CabJe

(can be used with a CabIeCARDTM)

Figure 1

tt is very important to connect the incoming

cable for your primary viewing source to ANT-l,

especially for CableCARD TM use.

1. Connect the primary incoming coaxiai Headcabb to

ANT-1 MAiN on the TV back panel

2. For an optional secondary antenna source, connect

an antenna (or cable) to ANT-2 AUX.

3. If you have subscribed to a CableCARD TMservice,

the CableCARD can now be inserted into the

CabieCARD SLOT. Using a phillips screwdriver,

remove the CableCARD cover screws. Insert the

CableCARD, then replace the cover and screws.

The top of the card should face in the direction the

CARD TOP arrow indicates.

Additional CableCARD information is on page 20.

TV back panel section

2.opt,ooa,

Seco.dary

Anten.a

or Cable

1. Primary

Wall Outlet

Cab,e

°ab'e°AR°TM l

SLOT

(cover removed}

Figure 1, Wall Outlet Cable

OabJe Box

Figure 2

3 coaxial cables and one two-way RF splitter are required,

Theseare not included with the TX

it is very important to connect the incoming

cable for your primary viewing source to ANT-l,

especially for CableCARD TM use.

1. Connect the incoming cable to IN on an RF splitter.

2. Connect one coaxial cable from OUT on the RF

splitter to ANT-1 MAIN on the TV back panel.

3. Connect one coaxial cable from OUT on the RF

splitter to IN on the cable box.

4. Connect one coaxial cable from OUT on the cable

box to ANT-2 AUX on the TV back panel.

hcoming

Cable 2.

F_gure 2. Connecting a Cable Box

Note: Net Command@ wiii assume that your

Cable Box is connected as shown above. Also,

that Channel 3 is the default output channel

for the cable box. If either the connections or

output channel are different, use the Change

option of Edit NetCommand to apply the

changes.

IMPORTANT

Additional connection cables are

not provided with the TV. They are

available at most electronic stores.

CabieCARD TM Technology

CabJeCARD TechnoJogy

CabbCARD is a nationwide system standard that

allows your iocai came TV provider to suppiy you with

an access card customized to your accounL This card

allows your TV to receive, decode and unscrambb the

premium digitai channeb inciuded in your came TV

subscription without the use of a came box. It aiso

allows your came provider to automatbaHy update

and change your subscription. When you move to

a new came provider's area, you simpiy return the

CaMeCARD to the originai came provider and get a

new card from your new came provider.

Phase note that CabbCARD is a new technology and

your local cable provider may not currently be offering

this service. As time passes, this system will become

broadly supported by most cable providers.

The CabbCARD system is "unidirectional" which

means your cable provider can send updates to the

access card and TV, however, the TV cannot send

back signals such as requests for Video-On-Demand

or Pay-per-View programs by remote control.

Digital cable channels authorized by the CabbCARD

will be available on the Firewire® IEEE 1394 network

and can be shared by other products on the network.

Some digital channels or programs may not be copied

or recorded because of copy restriction limits set by

the content owners or copyright holders.

The digital television is capable of receiving analog

basic, digital basic and digital premium cable

television programming by direct connection to

a cable system providing such programming. A

security card (CabbCARD) provided by your cable

operator is required to view encrypted digital

programming. Certain advanced and interactive

digital cable services such as video-on-demand, a

cable operator's enhanced program guide and data-

enhanced television services may require the use of a

set-top box. For more information call your local cable

operator.

Please see page 19 for instructions on how to insert

the CabbCARD.

Using a CabJeCARD

After inserting a CabbCARD into the TV back

panel CabbCARD slot and powering On the TV,

the initialization process begins. An initial screen

will automatically display for a few minutes, with

information that your Cable Provider will need in order

to start service. Please write down this information

before calling your cable provider.

Please calt XYZ Cabte

aT.XXX-XXX-XXXX IO

ac[ vale cable service.

They wm neea tnese i'lumuers:

Host ID X-XXX-XXX-XXX-XXX

CabieCARD rMID: X-XXX-XXX-XXX-XXX

See owner's manual for

further information

An example of an initial screen is shown here. Your

screen wiii display specific information from your

cable provider and may not look like this screen.

If you were unable to record the information, you can

press TV MENU on the remote and then enter the

number 999 and the screen will re-display. You can

also press DEVICE MENU when the CableCARD is

the selected source and you will be able to select the

startup application.

Connecting a Lead Antenna or Separate UHF and VHF

Lead Antenna (notfor use with CabmeCARD TM)

Figure 3

For antennas with twin flat lead

A 300-Ohm to 75-Ohm transforrneris required. This is not

included with the TV, but is available at most electronics

stores,

1. For antenna with twin fiat leads, connect the

300-Ohm twin leads to the 300-Ohm to 75-Ohm

transformer.

2. Push the 75-Ohm side of the transformer onto ANT-1

MAiN on the TV back panel.

For cable or antenna with coaxial lead

3. Connect the coaxial lead direcdy to ANT-1 MAiN on

the TV back panel.

300-Ohm

FlatTwin

Lead_

TV back panel section

Optional 300-Ohm

to 75-Ohm

Matching Transformer

Figure 3. Connecting a Single Antenna

Separate UHF and VHF Antenna

Figure 4

A UHF/VHF combiner is required, This is not included with

the TV,

1. Connect the UHF and VHF antenna leads to the

UHF/VHF combiner.

2. Push the combiner onto ANT-1 MAiN on the TV

back panel.

VHF Antenna

(Channels 2-13)

-- Flat Twin Lead

External

Antenna

or Cable

UHF Antenna

(Channels 14-69)

Flat Twin Lead -

TV back panel section

t Back Side

Figure 4. Connecting separate UHF and VHF Antennas

Mitsubishi strongly recommends against using

antennas with twin flat leads, Twin flat lead

antenna wires are subject to interference which

may adversely affect the performance of the TV,

We recommend using coaxial antenna cable,

Connecting an Antenna or Wail Outlet Cable to a VCR (Audio &

Antenna or Wall OutJet CabJe to a

VCR {Audio & Video)

Figure 5

A two-way RF spfitte_ 3 coaxial cables, right and teft audio

cables and a S-Video or Video cables are required. Theseare

not included with the T_Z

1. Connect the incoming cabb or Antenna to IN on the

RF splitter.

2. Connect one coaxial cabb from OUT on the RF

splitter to ANTENNA IN on the VCR back panel

3. Connect one coaxial cabb from OUT on the RF

splitter to ANT-1 MAIN on the TV back panel.

4. To use the TV speakers with the VCR, connect a

set of audio cabbs from AUDIO OUT on the VCR

back panel to INPUT-1 AUDIO-LEFT (MONO) and

AUDIO-RIGHT on the TV back panel. The red cabb

connects to the R (right) channel and the white

cabb connects to the L (bft) channel. If your VCR

is mono (non-stereo), connect only the white (bft)

cable.

5. Connect either an S-Video or Video cabb from

VIDEO OUT on the VCR back panel to INPUT-1

VIDEO on the TV back panel. Only one type of

video cable should be connected. S-Video is

recommended, if availabb.

6_ For NetCommand@ controlled recordings, connect

a set of audio cables from AUDIO IN on the VCR

back panel to MONITOR OUTPUT AUDIO/VIDEO 1

AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV

back panel The red cable connects to the R (right)

channel and the white cable connects to the L (left)

channel

Complete the NetCommand controlled recordings

connections by connecting a Video cable from

VIDEO IN on the VCR back panel to MONITOR

OUTPUT AUDIO/VIDEO 1 on the TV back panel

Figure 5.

Connecting a VCR to an Antenna or Waft Outlet Cable

Note:

NetCommand@

wiii assume your

VCR is connected

to inputs as

shown on this

page, If you use

any other inputs

for your VCR or

add a second

VCR, this change

must match in

the NetCommand

system, See Edit

NetCommand... in

Chapter 3 for more

information.

Connecting a Cable Box to a VCR (Audio & Video)

Cable Box to a VCR (Audio & Video}

Figure 6

A two-way RF spfitter, 4 coaxial cables, right and left audio

cables and an S-Video or Video cable are required, These are

not included with the TV.

1, Connect the incoming cable to IN on the RF splitter,

2, Connect one coaxial cable from OUT on the RF

splitter to ANTENNA IN on the cable box back

panel

3, Connect one coaxiai came from OUT on the RF

spiitter to ANT-1 MAIN on the TV back panel

4, Connect one coaxial cable from OUT on the cable

box to ANTENNA IN on the VCR back panel,

5, Connect one coaxial cable from ANTENNA OUT on

the VCR back panel to ANT-2 AUX on the TV back

paneH(opflonaH),

6, To use the TV speakers with the VCR, connect a

set of audio cables from AUDIO OUT on the VCR

back panei to INPUT-1 AUDIO-LEFT (MONO) and

AUDIO-RIGHT on the TV back panel The red cabie

connects to the R (right) channel and the white

cable connects to the L (left) channel, If your VCR

is mono (non-stereo), connect oniy the white (Heft)

cabie,

X Connect either an S-Video or Video cable from

VIDEO OUT on the VCR back panei to INPUT 1

VIDEO on the TV back panel Oniy one type of

video cable should be connected, S-Video is

recommended, if available,

8, For NetCommand® controlled recordings, connect

a set of audio cables from AUDIO IN on the VCR

back panel to MONITOR OUTPUT AUDIO/VIDEO 1

AUDIO-LEFT (MONO) and AUDIO-RIGHT on the TV

back panel, The red cable connects to the R (right)

channel and the white cable connects to the L (Idt)

channel

g, Complete the NetCommand controlled recordings

connections by connecting a Video came from

VIDEO IN on the VCR back panei to MONITOR

OUTPUT AUDIO/VIDEO 1 on the TV back panel,

Note:

NetCommand®

wiii assume

your VCR is

connected to

inputs as shown

on this page.

If you use any

other inputs for

your VCR or

add a second

VCR, this

change must

match in the

NetCommand

system.

See Edit

NetCommand...

in Chapter

3for more

information,

Figure 6. Connecting a VCR to a Cable Box

Connecting an A/V Receiver or Stereo System or

a Satellite Receiver or Other Device with S-Video

A/V Receiver or Stereo System

Figure 7

Adigital audio cable and stereo audio cables are required. The

digital audio cable is provided. The stereo audio cables are not

included with the TV,

1_ Connect a set of stereo audio cables from OUTPUT

AUDIO 2 on the TV back pane[ to the TV AUDIO

INPUT on the back of the A/V receiver, The red

cable connects to the R (right) channel and the

white cable connects to the L ([eft) channel

To connect a digital A/V receiver with Do[by@

Digital surround sound:

2_ Connect one end of the digital audio came supplied

with the TV to DIGITAL AUDIO on the back of the

TW Connect the other end to the COAXIAL DIGITAL

INPUT on the back of the AiV receiver,

Check AiV receiver's Owner's Guide for information

concerning the use of the digital input and switching

between the digital sound and analog stereo sound

from the TW

Satellite Receiver or Other Device with

S-Video

F_gure8

An S-Video cable and audio cables are required. Theseare not

included with the TX

1_ Connect an S-Video came from VIDEO OUT on the

satellite receiver back pane[ to INPUT-2 VIDEO on

the TV back panel

2_Connect a set of audio cables from AUDIO OUT on

the satellite receiver back pane[ to INPUT-2 AUDIO,

on the TV back panel The red came connects to

the R (right) channel and the white cable connects to

the L ([eft) channel

Note: Refer to the Satellite Receiver Owner's

Guide for Dish Antenna connections,

TV ba_kpa_ _e_t_on

S-Video Device

Figure 7. Connecting an A/V receiver

Figure 8. Connecting a Sateflite Receiver with S-Video

Note: NetCommand@ wiii asssume you

connected your Satellite Receiver to Input-2.

If you add a second Satellite Receiver or use

any other inputs for your Satellite Receiver,

this change must match in the NetCommand

system. See Editing NetCommand Setup in

Chapter 3 for more information,

Connecting a DVD Player with Component Video or

Computer with a PC Monitor Output

DVD Player with Component Video

Figure 9

Component video cables and audio cables are required,

Theseare not included with the TV.

1_ Connect the Component Video cables from YiPr/

Pb VIDEO OUT on the back of the DVD player to

COMPONENT-1 on the TV back panel, matching

the correct connection:

Y to Y (Green)

Pr to Pr (Red)

Pb to Pb (Blue}

Connect a set of audio cables from AUDIO OUT

on the back of the DVD player to COMPONENT-1

AUDIO Input on the TV back paneI, The red cable

connects to the R (right) channel, and the white

cable connects to the L (left) channel

v back panel

ii¸i i

Figure 9. Connecting a DVD Player with Component

Video

Note: NetCommand® wiiI assume you

connected your DVD player to Component-l, If

you add a second DVD or use any other inputs

for your DVD, this change must match in the

NetCommand system, See Edit NetCornmand.,,

in Chapter 3 for more information,

IMPORTANT

Computer with a PC Monitor Output

Figure 10

1_ Connect PC Monitor Out from the computer to PC

Input on the TV back panel using a PC compatible

monitor cabie, See Appendix B for PC signal

2. Connect the L (left) and R (right) audio cables from

the computer to PC AUDIO on the TV back panel. If

the computer's audio output is a single mini-jack,

a mini audio to RCA male "Y" adaptor cable is

needed to complete this connection.

Note: To utilize the benefits of a digital AiV

receiver, connect your computer's digital audio

out, if available, to a digital input on your digital

A/V receiver.

Figure 10, Connecting a Computer with a PC Monitor

For digital audio connections, see your

DVD Owner'sGuides_

DTV Connectors and Adaptors Connecting a DTV Receiver with

Component Video

DTV Connectors and Adaptors

Figure 11

The TV back panei has 5 RCA-type connectors for

the Input-DTW The back panei of your extemai DTV

receiver may use RCA-type connectors or BNC-type

connectors. If your DTV receiver comes with BNC

type connections, you will need to purchase BNC to

RCA adaptors to connect the TV to the DTV receiver.

These adaptors shouid be avaiiabie at most ebctronic

suppiy stores.

/ }{iiiiii

BNCto Ad

RCA BNC Fitted to

Adaptor Connector Connection

RCA

Connector

Figure 11. DTV Connectors and Adaptors

IMPORTANT

See Appendix B for component video

signal compatibility information,

digital audio connections, see your

DTV Receiver and A/V receiver Owner's

Guides,

DTV Receiver with Component Video

Figure 12

A coaxial splitter, RCA component video cables and audio

cables are required, These are not included with the TV.

1. Connect the outside antenna, cable or satellite to

ANT or SATELLITE IN on the DTV receiver (see your

DTV receiver's owner's guide for instructions and

cable compatibility).

2. Connect the incoming terrestrial antenna or cable

(not satellite) to ANT-1 on the TV back panel

(a coaxial splitter, available at most electronic

supply stores, may be required to complete this

on the DTV receiver to Input-DTV on the TV back

panel, matching the correct connections:

DTV Receiver to TV Back panet

YtoY

Pr to Pr

Pb to Pb

4. Connect the L (left) and R (right) audio cables from

the DTV receiver to Input-DTV AUDIO on the TV

back panel.

Note: To utilize the benefits of a digital AiV

receiver, connect your DTV receiver's digital audio

out to a digital input on your digital A/V receiver.

TV back panel

Incoming ................

Antenna [ _

or Cable

DTV Reviver (with YPrPb connecUons} |

t_o _J

to antenna,

Figure 12. Connecting an External DTV Receiver with

Component Video Connections

3. Connect RCA-type cables from the YPrPb outputs

Connecting a DTV Receiver with RGB, HV Video

DTV Receiver with RGB, HV Video

Figure 13

A coaxial splitter, RGB, HVand audio cables are required,

Theseare not included with the TV,

1, Connect the outside antenna, came or sateHHiteto

ANT or SATELMTE IN on the DTV receiver (see your

DTV receiver owner's guide for instructions and

2, Connect the incoming terrestriaH antenna or cabHe

(not sateHHite)to ANT-1 on the TV back paneH

(a coaxiaH spHitter, avaiHabHeat most eHectronic

suppHy stores, may be required to compHete this

3, Connect RGB cabHes from the DTV receiver to hput-

DTV on the TV back panel

DTV Receiver to TV Back Panel

+ G (green)to Y/G

+ R (red)to Pr/R

+ B (blue)to Pb/B

4, Connect the H & V sync signaHs as shown bellow:

+ H (horizonta! sync) to H

+ V (vertical sync) to V

All 5 cables (G,R,B,H and V) must be connected. 3 cables

or Sync on green connections are incomplete or not

compatible and will not work.

5, Connect the L (Heft)and R (right) audio cabHes from

the DTV Receiver to Input-DTV AUDIO on the TV

back panel

It may be necessary to obtain a VGA to RGB,

BV adaptor cable. These are available at

most computer stores and many electronic

stores. Some of the adaptor cables have

RCA type connector ends, others have BNC

type ends and will require adaptors as shown

on page 26.

TV back

@®

DW Receiver

(with RGB connecUons)

toJ

to antenna,

Figure 13, Connecting an External DTV Receiver with

RGB Video Connections

IMPORTANT

See Appendix B for RGB, HV video signal

For digital audio connections, see your

DTV Receiver and A/V receiver Owner's

Connecting M-Link Control RS-232C Connection, or a HDIVtl

or DVl Device

MoLink ControJ RS-232C Connection

Figure 14

A 9 pin RS-232C cable is required. This is not included with

the TX It may be available at your local electronics retailer

When used as a M-Link Control, you can connect to a

Mitsubishi HD Receiver/Controller, like the HD-5000 or

HD-6000. When used as a RS-232C, you can connect

to other external controllers. See mitsubish-tv.com for

RS-232C command protocol. Connect a 9 pin RS-

232C cable from the TV back panel to the M-Link or

RS-232C on the external control device.

Conp_, _,ithM,,,/it_Output

Figure 14. Connecting M-Link Control

HDMI Device

Figure 15

An HDM/ to HDMI cable is required. This is not included with

the T_Z It may be available at your local electronics retailer

Connect an HDMI cable from the TV back panel to the

HDMI device output. HDMI devices provide video and

audio through this cable, so no other connection is

required.

DVI Device

F{gure !6

A DW-to-HDMI cable or DVh'HDMIadaptor and HDMI cable

and audio cables are required. These are not included _th the

TV.They may be available at your local electronics retailer.

1. Connect the DVI-to-HDMt cable (recommended)

(or DVt/HDMI adaptor with an HDMI cable) from the

DVt device's back panel to the TV back panel.

NOTE: If you are using a DVt!HDMt adaptor, it is

important to connect the adaptor to the DVl side for

best performance.

2. Connect a set of audio cables from AUDIO OUT on

the the DVI device back panel to the DVt Analog

Audio input on the TV back panel. The red cable

connects to the R (right) channel, and the white

cable connects to the L (left) channel.

NOTE: The HDMI connection supports copy

protection (HDCP). Some devices require

connecting to an analog input first, in order to view

on-screen menus and select DVl as the ouput.

Please review your equipment instructions for DVI

connectivity and compatibility.

Figure 16. Connecting a DV/ Device

Figure 15. Connecting HDM/ Device

Connecting the IR Emitter NetCommand ®

IR Emitter NetCommand®

Figure I7

A quadrup/e IR Emitter cable is ine/uded with the TV,

The emitters connected to these jacks are used by the

NetCommand system to controi other devices such as

VCRs, DVD piayers, CaMe boxes and Satellite receivers.

1. Connect the piug end of the suppiied quadrupie

IR Emitter Cabb to one of the IR Output

NetCommand jacks on the TV back panel

2. Run the cable for each of the emitter ends under,

along side or over the top of each device to be

controlled to the area of the front where the remote

control sensor is located.

3. Place the emitter end in front of the remote control

sensor of the device to be controlled. The emitter

bulb should face the remote control sensor. This

bulb emits infrared light in a cone shaped pattern.

The bulb needs to be placed far enough from the

remote control sensor to allow the cone pattern to

include the sensor.

The remote control sensor is usually behind the

plastic window of the front display panel. It is

sometimes visible when you look through the display

plastic using a flashlight and is normally a round or

square cutout behind the plastic. If you cannot see

the sensor and the device's Owner's Guide does

not specify the location, you can find it by using the

device's remote control Hold the remote about 1/2

inch from the front of the device. Starting from one

end of the display window plastic, press the POWER

button.

If the device does not respond, move the remote

control 1 inch toward the center and try again.

Repeat this until the device responds. Note this

location then start over from the other end of the

display window plastic, repeating until the device

responds again. The remote control sensor will be

somewhere between these two positions. This is

usually enough accuracy for the placement of the BR

emitters.

4. With some devices, the emitter wiii work better

facing downward from the top of the device.

Some experimentation may be needed.

5. The emitter end being used can be secured in

place using double stick tape.

6. If you are not going to be using all emitter ends,

place the unused ends behind the devices so that

they cannot send signals to the remote control

sensors.

TV back panel

Other A/V device

etcher A/V device

3. A/V Receiver

Figure 17. Connecting/R Emitter NetCommand

IMPORTANT

single emitter end can be placed in a

,osition that will operate more than one device,

do not use a separate emitter end for the

additional device. A single device receiving

! remote control signals from too many emitters

remote controls not tee _ond at all.

Connecting Compatible IEEE 1394 Devices

CompatibJe IEEE 1394 Devices

It is possible to connect devices to the TV that have EEE

1394connectors but are not compatible with the TV or with

the NetCommand ® control system. Areas of compatibility

to consider are:

1. Digital Video Signals

The TV is able to decode MPEG2 video. Other types

of digital video, such as DV video provided by some

camcorders, must be decoded by the source device

and sent to the TV as analog video or S-Video. If the

camcorder uses a compatible digital control system,

the IEEE 1394 cable can still provide control for the

camcorder while the TV is viewing the analog video or

S-Video signals.

2. Digital Audio Signals

When received with video signals, the TV is abte to

decode DoIby Digital signals and MPEG audio signals.

Other types of digital audio as provided by some digital

recording devices, such as MP3 audio and DTS audio,

cannot be decoded by the TV when received over IEEE

1394.

The TV may not be able to pass incompatible digital

audio signals on the coaxial digital audio output,

however these signals may pass on the IEEE 1394 cable

to other devices.

3. Digital Control Signal

The TV is able to act as the control center for IEEE 1394

audio/video devices, such as VCRs, A/V Discs, tuners,

cable boxes and amplifiers that are compatible with the

following EEE 1394 control standards.

EIAo775 is designed for tuning devices such as cable

boxes allowing the device to send simple graphics.

However, this standard does not allow the TV to

control the cable box by IEEE 1394_

® AV/C (Audio Video Control} is designed to provide

basic controls such as play, stop, channel selection

and volume, as appropriate for the device.

Some devices may be a combination of two or more

types of devices. For example, there may be a

recording device that is also a tuning device. Each

portion of the device is called a sub-unit. When you

select a device on the Device Selection menu that

has sub-units, a pop-up menu will appear so you can

select which sub-unit section you wish to use.

When Connecting IEEE 1394 Devices

Do not loop the last device in the chain back

to the TV. When the device chain is looped,

the TV may not be able to work with the other

devices.

Place devices that have only a mechanical (two-

position) power switch at the end of the chain

or leave the power switch in the On position.

When turned Off, IEEE 1394 signals may not

be able to )ass through the device to other

devices.

Place devices with the slowest communication

speed at the end of the chain. Sometimes

the communication speed will be marked

near the IEEE 1394 connector with an "S"

number. The higher the number, the faster

the communication speed. This TV has a

communication speed of $400. Devices with

slow communication speed can interfere

with IEEE 1394 signals from faster devices.

When using NetCommand to set up a digital

recording between a faster and slower device,

the slower device should be the source and the

faster device should be the sync.

Do not use an IEEE 1394 cable longer than 15

feet between each device.

This TV is an IEEE 1394a Device. IEEE 1394b

is currently under development. This system

will provide for longer distances and multi-

room applications. Included in the IEEE

1394b systems are IEEE 1394a to IEEE 1394b

converters to maintain compatibility with this TV

and other IEEE 1394a devices.

Connecting Compatible IEEE 1394 Devices, continued

Connection StyJes

There are two different connection sues that can be

used when connecting IEEE 1394 devices. Use the

styb that fits your network of audio/video products.

Direct Device-To-Device StyJe

The IEEE 1394 offers you the capabiiity to chain

devices, uniike previous audio and video connections

where you had to individually connect each device

directly to the TV. For exampb, you can connect your

D-VHS to your 1394 DVD Hayer and then connect the

1394 DVD Piayer to the TV. The resuifing IEEE 1394

chain will allow you to add more devices to the chain.

You will be able to see each video device on the TV's

Device Selection Menu and send information from

any IEEE 1394 device to other compatible devices.

Hub Connection StyJe

The IEEE 1394 also offers you the capability to

connect your devices using the TV as a hub within

the audio/video network. Each device can send

information, which may include audio and video, to

any other device in the network.

Digital TV

1394 VCR #3

Monitor

Other

1394 Device #1

Digital

DVD # 1

Digital DVD #2

Digital VCR #2

DigJtaJ

VCR # 1

4BPin Styme vs. 6oPin Styme Connectors

There are two different types of connectors used for

IEEE 1394 terminals and cables, a 4-pin and a 6-pin

style.

4 pin connector

The 4-pin connector sends

digital audio signals, digital video

signals and digital control signals

back and forth between devices.

Your TV has three 4-pin type

connection jacks available. One

is on the front panel and two are

on the back.

6 pin connector

The 6-pin connector is capable

of sending the same digital audio,

video and control signals as the

4-pin connector, but the 6-pin

connector is also able to send low

voltage electrical power. This TV

does not have 6 pin connectors.

The purpose of this low voltage electrical power is to

provide the needed operating power to a device that

is not connected directly to the household AC power

such as a camcorder. A device with a 6-pin connector

can send this electrical power to another device, or

receive electrical power from another device, or simply

use a 6-pin connector without using the two additional

pins.

6 pin to 4 pin adaptor

A 6-pin connector cannot be

connected directly to a 4-pin

jack, and vice versa. To connect

a 6-pin device to a 4-pin device,

you wiii need to obtain a 6-pin to

4-pin adaptor or adaptor cable.

These cables are available from

electronic and computer stores.

When connecting a 6-pin device (such as a camcorder)

to the TV, (if it is designed to receive electrical power

from another 6-pin device) you wiii need to connect

the camcorder directly to the household AC, or use the

camcorder's battery for power. If this is not possible,

then the camcorder wiii need to be connected directly

to another 6-pin device in the network that can provide

the electrical power.

Other 1394 Device #2

Connecting: Helpful Hints

Q My VCR {or other device} does not have two sets of stereo audio outputs. How can I connect this

device's audio to both the TV and the A/V Receiver?

A. There are two solutions:

.Connect the single set of stereo audio outputs to the TV only. Use Edit NetCommand® to change the

setup of this device. In the Connection screen of "Change" make sure both audio and video for the TV

input are checkmarked and neither the audio or the video for the AVR input are check marked. This will

allow the NetCommand system to use the TV outputs to transfer the device's audio to the A/V Receiver.

See Edit NetCommand in the next chapter for details.

2. Use RCA type "Y" splitter cables to split the device's audio output to be connected to both the TV and

the A/V Receiver.

Q. Ihave both the TV monitor stereo audio output and TV digitam audio output connected to the same

input designation on my A/V Receiver. How do mswitch between analog audio and digital audio?

A. This depends on the individual A/V Receiver. Some A!V Receivers will switch automatically to digital when

a digital audio signal is supplied. Other A/V Receivers can be manually switched by remote control. For

these types of A/V Receivers, see Edit NetCommand in the next chapter for NetCommand control of these

features. Some A/V Receivers will require that you make this change on the front panel of the A/V Receiver.

Q. The front panel of my A/V Receiver is too tail or too convex for the IR emitter signam to reach the

remote control sensor of the A/V Receiver. What can Ido?

A. There are several possible solutions.

1. Mount the IR Emitter on the top, front edge of the A/V Receiver over the remote control sensor. Use tape

to secure it in place.

2. Mount the IR Emitter on the underside of the shelf above the A!V Receiver (if the A/V Receiver is in a

cabinet). Use double sided tape to secure it in place.

3. Some small stick-on emitters from other manufacturers may be compatible with this TV's IR Emitter jacks.

These may be used instead of the supplied IR Emitters.

Q. I occasionally need to see the menu from my A/V Receiver. How can Iconnect it to the TV for this

purpose?

A. You can connect the video output of the A!V Receiver to an unused input on the TV. Then use Edit

NetCommand to "Add" this as an "Other" device, not an A!V Receiver. On the "Connection" screen, indicate

which TV input was used and checkmark the video box. Make sure the TV input audio box and both the

audio and video boxes for the AVR input are not checkmarked. You should also name this device so you can

easily identify it on the Device Selection Menu. You can also use Input 3 (Camcorde0 on the front panel.

Q. lhave a high definition receiver J would miketo connect and it also has an S=video output Iwould

miketo be able use as well. is there any way to connect this receiver both ways?

A. Yes, this item will appear twice in the Device Selection Menu. Just add this unit once using the Input=DTV

and once using one of the S=video inputs. Make sure you indicate that this is the same manufacturer for

both. We suggest that you connect stereo audio outputs with the S=video to the TV so that you do not need

to use two inputs on the A!V Receiver. If this is a NetCommand compatible HDTV receiver and HD or SD

outputs can be switched by remote control, see Edit NetCommand in the next chapter for NetCommand

control of this feature.

m m

NetCommand Setup and Edmtmng

Using the Remote Control with NetCommand@ ........................ 34

Remote Control Functions: Overview .......................................... 35

Remote ControU Functions:

Operation ................................................................................... 36

Care ............................................................................................ 36

SUeep Timer ................................................................................ 36

NetCommand@ OnScreen Buttons .............................................. 37

3D Graphical Viewpoint@ Menu System ..................................... 38

NetCommand@ JnitiaJ Setup ......................................................... 39

Edit NetCommand@

Add an A/V Receiver ................................................................. 41

Add Devices ............................................................................... 44

Change ....................................................................................... 48

DeJete Devices .......................................................................... 48

Finish Screen ............................................................................. 48

Using the Remote Control with NetCommand ®

Below is a list of several manufacturers devices tested and shown to be compatible with NetCommand. These devices

can be controlled without changing the setting of the remote control from TV to another product. NetCommand may be

able to operate additional models since many manufacturers use the same control signals to operate some or all of the

models they offer. This chart lists only the models that have been tested with NetCommand. The NetCommand Learning

feature is able to learn the remote control signals of most Audio Video devices. For devices not listed in the table, or

if your device does not operate using the same remote control as the models listed below, use the learning feature by

selecting "Other" at the [Device] screen. See the Edit NetCommand section of this Guide.

NOTE: There are many different types of remotes and not all of them may be compatible with the learning feature. Bright

light near the TV screen can also adversely affect the learning feature. If it is not possible to learn a device, you will need

to use the originaI remote control of the device, or program the TV remote to operate these devices in the traditional

manner,

NetOommand Pre-Memorized Devices

DEVICE

AiV receiver CabUeBox DBSSatellite DVDPlayer VCR

Receiver

M Mitsubishi M_VR800,k4- SR_HD5 DD-600O,DD-8020 HS-U7g5,HS-

A VR900 U778

Hose Lifestyle@28 Lifestyle@28

N Denon AVR_2700

U Echostar 6000

Funai F260LA

FGeneral CFT2200

A Instruments

Hitachi DWP415U V%FX665A

C Hughes HIRD_E45,

T HIRD_E86

Integra DTR_9.1 DPS_9.1

U Jerrold Not

R specified

JVC XWS65GD HR_VP650U

E Kenwood VR2080

R Marantz SR8200

Microsoft XBoxFM(requirestheDVDkitfrom

Microsoft)

Motorola DCT2244

Panasonic TU_HDS20 DVD_A310 PV_8662

Philips VR620CAT

Pioneer VSX_D557, DW414

VSX_49TX

RCA DRD480RE,

DTCd00

Rotel RSXd065

ScientificAtlanta 8600

Sharp VO_H810U

Sony STR_DE825 SAT_A55 DVP_S500D,PlayStation®2 SLW778HF

(Playstation®2 requiresthe DVD

RemoteControllerkitfromSony;DVD

Playersoftwarediscversion2.10)

Toshiba DTS_3000 SD_9200,SD_5109 W_717

Yamaha RX_V2095, DVD_S520,DVD_C996

RX_V2200

Zenith DTVlOS0

Remote Control Functions: Overview

Overview

Figure 1, foflowing page

1. S_ide Switch: Selects A/V product to be controlled

by the remote control. Select TV for NetCommand®

device control.

2. Numbers: Individually selects channels or enters

information into menus.

3, POWER: Turns power on and off for TV and other A/V

products.

4. SQV (SuperQuickViewTM}: Scans through

memorized lists of favorite channels.

5. QV (QuickViewTM}: Switches between the current

channel and last channel viewed.

6. SUB/CANCEL: Clears SQV and some menu entries

and cancel recordings. For digital channels, adds

separator between major and sub channel numbers.

7m DEVICE: Displays the Device Selection menu to

select the device to view (Ant-1 and Ant-2, TV Disc or

devices connected to the TV's inputs including EEE

1394 devices).

8. CHANNEL: Scan up or down through memorized

channels. Performs chapter skip function for

NetCommand® controlled DVD's.

9. VOLUME: Changes sound level

10. MUTE: Turns sound on or of L

11.TvMENU:D splays ,ViewPoilI[on-screenmenusystem.

12. ADJUST: Press 4, I_, A and • to navigate menus,

change settings, and move the PIP on-screen

location. Operates many NetCommand functions.

Performs skip forward and backwards function of TV

Pause.

13. ENTER: Selects a channel number or menu item.

14. GUmDE: Displays ChannelView TMfor Ant-1 and 2.

DispIays Track List for TV Disc and IEEE 1394 A/V

Discs. Disptays program guide for satellite receiver,

some cable boxes or DVD Disc menu. Displays

thumbnails or playlists for media card files.

15. Light: Located on the right side of the remote control,

this feature illuminates buttons or labels.

16, DEVICE MENU: Displays menus for devices

connected to TV, including CabIeCARD TM.

17. HOME: Exits TV on-screen menus and returns to TV

viewing.

18. V-CHIP: Turns On or Off the V-Chip Lock.

19, mNFO: Displays on-screen summary of the current

device used and any broadcast information available

(including current V-Chip information). See Appendix

D for details.

20. AUDIO: Selects and adjusts individua! audio settings.

21. VIDEO: Selects and adjusts individuaI video settings.

22. PmPOH: Scrolls up or down through memorized

channels for PIR

23, PmP/POP: CycJes through PIP and POP display

choices.

24. EXCH: Exchanges PIP or POP and main TV picture.

25. SLEEP: Sets the TV to turn off within 2 hours. See

next page for setup instructions.

26. PmPDEVmCE: DispJays PIP Selection menu to select

the PIP or POP image source device

27. FORMAT: Changes the shape and size of the main TV

picture.

28. CONNECT: Initiates IEEE 1394 peemto-peer

connections.

29. REC (Record}: Display the Record List for TV Disc.

Records with a VCR, sets up recordings for DVCR,

IEEE 1394 devices or while in ChannelView.

30. PAUSE: Pause a live TV picture when no PIP or POP

image is displayed (when TV Pause is set to Always or

On Request is enabled). When PIP or POP image is

visible, pauses that image (default TV Pause set to Off

or On Request not enabled). Pauses a VCR, DVD or

A/V Disc, media card file. Returns to TV viewing from

TV Pause.

31. REW/REV: Rewinds or reverses search in TV Pause,

while watching the TV Disc or with a VCR. Reverses

scan with a DVD, A/V Disc or media card file.

32. PLAY: Plays the TV Disc or VCR, DVD, A/V Disc or

media card file.

33. STOP: Stops a VCR, DVD, TV Disc, A/V Disc or media

card fiJe.

34. FF/FWD: Fast forward or forward search in TV Pause,

while watching the TV Disc, with a VCR or media card

file, or fast play a DVD.

Remote Control Functions:Operation and Care, Sleep Timer

CABLE/DBS/DTV VCR DVD

)

QQ )

Care

For Best Results from the Remote Control:

•Be within 20 feet of the equipmenL

Do not press two or more buttons at the same

time unless instructed.

Do not allow unit to get wet or become heated.

Avoid dropping on hard surfaces.

Do not use harsh chemicals to clean. Use only

a soft, lightly moistened cloth.

Do not mix new and old batteries.

Do not heat, take apart or throw batteries into

fire.

Use only AA alkaline batteries.

Figure I, Remote Control Overview

Figure 2

1. Remove the remote control's back cover by gently

pressing the ribbed tab in the direction of the arrow

and sliding off the cover.

2. Load the batteries, making sure the polarities (+) and

(-) are correcL For best results, insert the negative

(-) side firsL

_l AA (alkaline}

b_ltlerie$

Figure 2. Operation:/nsta/fing the Batteries

Hint: /f the remote is in the TV layer and will

not function, press POWER and 935 to

reset the remote.

Sleep Timer

Setting the Sleep Timer:

1. Press SLEEP on the remote control.

2. Each press of SLEEP increases the time displayed

by 30 minutes, until the maximum value of 120

minutes is reached.

3. After 5 seconds of inactivity, the message will

disappear.

4. Press SLEEP to view the remaining time before the

timer turns the TV off.

Canceling the Sleep Timer:

1. Press SLEEP to display the on-screen message.

2. Press SLEEP repeatedly until OFF is displayed.

Note: After 5 seconds of inactivity, the message

box disappears.

NetCommand® Setup On Screen Buttons

To use the TV's NetCommand feature, you need to provide some detailed information during the setup of your

Mitsubishi TV. You must define the manufacturer of the devices that are connected to the television, or learn the IR

code remote control signals for the device connected. For each device, the input to the TV and AiV receiver, and the

names for the device are pre-set during Initial NetCommand setup. You may change those inputs or names using

the Edit NetCommand or Learn screens. The buttons described below wiii help you navigate the screens.

On your remote control, the ADJUST _ and I_ buttons

allow you to navigate left and right to different

selections on the screen. The ADJUST • and •

buttons aiiow you to:

Change the radio button

o Change current text box selection

o Navigate up and down on the screen

The ENTER button allows you to:

o Confirm the selected character when naming a

device

Add or delete check marks in check boxes

Select on-screen buttons to change screens

Textbox

ControJ Buttons

Much iike the software on your computer, you wiii use

graphic buttons to navigate through the NetCommand

Setup screen. Highlight the button and press ENTER

to select the function.

<Back Button

Use the <Back button to navigate back to the previous

screen.

Next> Button

Use the Next> button to navigate forward to the next

screen.

CanceJ Button

Press ADJUST • or • to make a selection.

Checkbox

Checkmarks indicate the item or input is added or

turned On. Press ENTER when the Checkbox is

highlighted to add or delete a checkmark. When

viewing the Review screen, a Checkbox reflects which

devices are turned On or Off, or connected to the TV.

Radio Buttons

The Cancel button wiii cancel out any changes you

are currently making without saving them into memory.

When you select the Cancel key, NetOommand

wiii prompt you to confirm that you want to cancel

the changes you are currently making. If you

select Cancel during Initial Setup, you can setup

NetOommand later by selecting the NetCommand

menu, then choosing Initial.

The setting changes when one of the choices is

3D Graphicam l,,Vi6WPOifl[Menu System

Your TV aiso has Mitsubbhi's exciusive 3D Graphicai i6WPOiHIon-screen operating system, which provides

on-screen information for menu choices and changes, using the TV's remote control

I,.VieWPOifllMenu Screens iewPoilllRemote ControJ Buttons

A picture (icon) wiOObe highOighted on the

menu screen when seOected with the ADJUST

arrows. You may then make changes within

the menu or access sub-menus, if avaiOabOe.

You can aOso access sub-menus from a button.

Sometimes when you seOect a button, an

automatic function begins.

The .ViewPoinIsystem incOudes the following speciaO

features:

The currentOy selected icon or button is

highlighted with a yellow outline; the text color is

yellow.

On-screen instructions, shown in the message

line at the bottom of the menu, provide feature

selection and adjustment information.

Some on-screen menu options must be set

before other options are available.

Main Menu: This screen will a/ways be the first screen that

appears when you press the remote% TV MENU button,

The following buttons on your remote control help you

navigate within the I_VIBWPOIII[system :

1. ADJUST _ or I_ to select the menu item you want

to change.

2. ADJUST A or • to change the settings.

3. ENTER to enter into a menu, start an automatic

function or select a checkbox.

4. CANCEL to clear a setting or stop an automatic

function.

5. TV MENU to display the main menu or move back

one menu screen at a time.

6. HOME to exit all menus and return to TV viewing.

SL_L

Press ADJUST A or • to change text boxes. Some

text boxes have preset labels. Other boxes allow you

to select letters, numbers or characters to customize

names.

NetCommand ® Initial Setup

Welcome Screen

Figure 1

When you first turn on your TV, the Welcome screen

displays and asks you to select either English or

Spanish as the language for the on-screen menus.

The default language is English. To change Language

later, select Setup in the Main Menu. Selecting

Oancel at this screen wii[ cause the default language

2. Select NetCommand. The available options wii[

be: Add, Review and Initial Change and Delete

wii[ be grayed out.

3. Press ADJUST A, V, • or • to select Initial

4. Press ENTER. The Device Setup screen

displays.

Figure 1, We/come screen

NetOommand (Information) Screen

Figure 2

The NetCommand (information) Screen describes

how to start or delay the initial NetCommand Setup.

This screen displays automatically the first time you

power On your new TV after the Welcome screen. To

setup NetCommand, select Next> and press ENTER.

Figure 2, information screen

Device Setup Screen

Figure 3

If the devices connected to the TV are already in

NetCommand memory, you can quickly select

them at this screen. Press ADJUST • or • to

move to each device type. Press ADJUST A or

V to select the manufacturer. Select "Other" if

the manufacturer is not [isted. Later, you can

use the Change setting in the Edit NetCommand

menu to [earn the remote control signals for this

device. Select "None" for device types that are not

connected.

For the A/V Receiver, if the manufacturer is not

listed, you cannot select "Other'. Instead, select

"None". Later, you can use the "Add" feature in the

NetCommand menu to have the TV add and [earn

the remote control signals for this device.

If you have a camcorder connected, check the

Camcorder box. NetCommand wii[ not be able

to control it, but wii[ reserve the front input to use

with the camcorder. After completing your choices,

select Next> and press ENTER.

If the NetCommand Setup is cancelled before it's

completed, you can restart the NetCommand setup by:

1. A press of TV MENU on the remote control to

display the TV Main menu. Figure 3. Device Setup screen

NetCommand ® initial Setup, continued

Note: If you seHected "Other" for any of

the device names, the TV can "Learn"

the connected device by following the Edit

NetCommand instructions. For many device

types, nondisted modeHs will operate in the same

way as the Histed modeHs and you can still use the

predoaded setting.

Review Screen

Figure 4

After you have made your device choices the Review

Screen will dispHay. It is important to review the

settings to ensure that they are correct. If necessary,

you can use <Back to return to the Device Setup

screen to make changes.

Finish Screen

Figure 5

To compHete the NetCommand setup, seHect Finish

from the Finish screen.

Hfyou wish to change any of the pre- configured

inputs or names for the devices, or add devices not

in the pre-configured setup, select Edit to display

Edit NetCommand menu.

If your A/V receiver was not listed, select Edit to

add the AVR and then assign all devices to new AVR

inputs.

Figure 4. Review screen

Note: The Review screen lists the TV input and

AiV receiver input used with each device. You

must correctly identify the inputs you used when

you connected the devices. If you have not

connected your devices, write down these inputs

as a guide. If you cannot use these inputs, or if

you would like to change the name of a device,

use the instructions in Edit NetCommand to make

necessary changes.

Note: If you select Next> on the Review screen,

all selections made are finalized.

On the Review screen, adding or deleting check marks

will turn the adjacent devices, media cards or inputs

On or Off. 1394 device names only appear on the

Review screen when the devices are connected to the

TV.

Note: If TV Disc is not checked, TV Pause will

not be available.

Figure 5. Finish screen

It is still necessary to memorize the available

channels for Antenna-1 (and Antenna-2, if used).

You may do that by going to the TV Main menu

and selecting Antenna. Instructions to memorize

channels are found in the Antenna menu section.

Edit NetCommand®, Add an A/V Receiver

A/V Receiver Screen

Figure 6

If your AiV Receiver manufacturer was not listed, and

you selected "None" during the initial NetCommand

Setup you may add the AiV Receiver and have

NetCommand learn its remote controls functions.

Either select Edit from the Finish screen or if you

have finished the initial setup, go to the Main menu,

select NetCommand, then press ENTER. The Edit

NetCommmand screen will display, select Add.

Figure 6, A/V receiver screen

3_ Select "Other", skip Learn and select Next>. This

will allow the device to appear and will allow

NetCommand to switch inputs to use this device.

However, NetCommand will not be able to control

this device. Later you may use the "Change" option

in the NetCommand menu to learn the remote

control signals.

After selecting Next>, the screens that follow are:

the A/V Receiver Input screen (Figure 7), Name

screen (Figure 10), Monitor Out to AVR screen

(Figure 11), ending with the Finish screen (Figure

12).

Choose ONE of these options:

1_ Select a recognized manufacturer. The model

number optimized for NetCommand will display at

the bottom of the screen. If a number follows the

manufacturer's name, (example: Mitsubishi 1), this

indicates additional models are optimized for that

manufacturer. For many device types, non-listed

models will operate in the same way as the listed

models and you can still use the preqoaded setting.

After selecting Next>, the screens that follow are:

the Name Screen (Figure 10), Monitor Out to AVR

screen (Figure 11), ending with the Finish screen

(Figure 12)_

2_Select "Other", then highlight "Learn" and press

ENTER. This will allow you to have NetCommand

learn the remote control signals of this new device.

After selecting "Learn" and pressing ENTER, the

screens that follow are: the AiV receiver Inputs

screen (Figure 7), AiV Receiver Input Learn screen

(Figure 8), A/V Receiver Learn screen (Figure

9), Name screen (Figure 10), Monitor Out to AVR

screen (Figure 11), ending with the Finish screen

(Figure 12).

A/V Receiver inputs

Figure 7

If you select "Other" as the manufacturer, you will see

the AiV Receiver Input screen after selecting "Learn"

and pressing ENTER. After selecting the number of

inputs, this screen will not appear again.

Depending on your AiV Receiver's capability, you

may connect up to to seven (7) AiV inputs. Select the

number of inputs by pressing ADJUST • or V.

If the number of connected inputs changes, you

will need to delete the AiV receiver through Edit

NetCommand and add it again, as described above.

Figure 7. A/V receiver input screen

Edit NetCommand ®, Add an A!V Receiver, continued

A/V Receiver input Learn Screen

Figure 8

NetCommand can now barn the remote control

signals used to sebct each input on the AiV receiver.

1. Press ADJUST _ or Ira,on the TV remote to sebct

the check box for each function to be ]earned.

2. Press ENTER and the function name wiU begin to

flash to confirm the ready-toqearn status.

3. Point the AiV receiver's remote control at the TV

screen. Press the button on the remote control that

corresponds to the sebcted function. A check

mark wiU appear and the function name wiU stop

flasMng. This confirms the signal ]earned status.

4. To test the ]earned command, wNe the function is

sebcted, press ENTER on the TV remote. The AiV

receiver wiU perform the sebcted function. The A/V

receiver needs to be turned on and the (R emitters

proper]y placed for the test to be successful (see

page 27 for IR emitter placement).

5. To customize the input names, press ADJUST _, to

move to the Input Name text box and then press

ADJUST A or • and ENTER to select each letter of

the name. These names will appear on the Review

screen as the AiV receiver's input names.

6. To erase the learned input signal, highlight the

check box for that input and press CANCEL

7. Repeat for each connected input.

8. When the input selection signals have been learned

and the inputs named, press ADJUST _ to select

Next> and move to the AiV receiver Learn screen.

Figure 8, A/V receiver Input Learn screen

A/V Receiver Learn Screen

Figure 9

1. Press ADJUST _ or _ on the TV remote to select the

check box for each function to be ]earned.

2. Press ENTER and the function name will begin to

flash to confirm the ready-to-barn status.

3. Press the button on the AiV receiver's remote

control that corresponds to the selected function,

A check mark will appear and the function name

will stop flashing. This confirms the signal learned

status.

4_ To test the learned command, press ENTER on

the TV remote. The A/V receiver will perform the

selected function. The A/V receiver needs to be

turned on and the IR emitters properly placed for

the test to be successful (see page 27 for JRemitter

placement).

5. Repeat for each function to be learned.

6. To erase a learned function, highlight the check box

for that function and press CANCEL.

7. When the function signals have been learned, press

ADJUST II, to select Next> and move to the Name

screen.

Figure 9, A/V receiver Learn screen

Hint; if your A/V receiver remote control uses a single

button for both Power On and Power Off, don't learn

the Power Off function, if your A/V receiver uses a

single button to toggle between digital and analog

sound, then learn only Analog to Digital, If your A/V

receiver automatically sw;_tches between analog and

digital audio, then you don't need to learn either

Analog to Digital or Digital to Analog functions.

Edit NetCommand ®, Add an A/V Receiver, continued

Name Screen

Figure 10

The Name screen allows you to change the ddauHt

name for the AiV receiver to a custom name of up to

eight characters (incHuding a bHankspace), seHecting

from Hetters, numbers, and nine different characters.

Using the TV's remote, press ADJUST • or V to

seHect each Hetter,then press ENTER to move to the

next position. Press CANCEL to deHetethe current

Hetterand move back one character position. When

in the first position, the CANCEL button will return the

name to the defauHt name.

Figure 10. Name screen

Finish Screen

Figure 12

To finaHize your seHections and compHete the A/V

receiver setup, seHect Finish from the Finish screen.

Note: Hfyou connected the audio output of

a device directHy to the A/V Receiver, you

must use the "Change" function of the Edit

NetCommand menu and seHect the device to

assign the correct A/V Receiver input to be

used with each device.

Monitor Out to AVR Screen

Figure 11

Use this screen to select which AiV Receiver input is

connected to Audio 2 Monitor Output on the TV back

panel Press ADJUST _ to select Next> and move to

the Finish screen.

Figure I1. Monitor Out to AVR screen

Figure 12. Finish screen

Edit NetCommand ®, Add Devices

Mitsubishi's NetCommand allows you to edit your home theater configuration. You can add new devices, change

device settings and connections, deHete devices and Hearnremote controH IR signaHs not aHready in NetCommand

memory.

Edit NetCommand Screen

Figure 13

If you seHected Edit when you were at the Finish screen,

the Edit NetCommand screen dispHays, The choices

are:

Use these settings to change the NetCommand setup

to reflect a change in your home theater system. To

Hearnthe remote controH IR signaHs of a device that

is not aHready in the NetCommand memory, add this

device as manufacturer of "Other". The Hearning

screens will then automatically be included in the

series of screens used for adding the device.

Figure I3, NetCornmand Menu, Edit NetCommand Option

Add:

Add a new device to the NetCommand setup. See

Figure 14for more information.

Change the brand/model or input connections of a

device already listed in the configuration. Learn the

remote control signals of devices listed as "Other"

brands. See Figure 24 for more information.

Review:

View a list of all devices and input connections in the

NetCommand home theater configuration. This is

also where you can turn On or Off unused TV inputs or

devices. See Figure 4 for more information.

Delete:

Remove a device or erase the complete NetCommand

home theater configuration. The learned remote

control signals are erased when the associated device

is deleted. See Figure 25 for more information.

Initial:

Start the setup at the beginning. This button

only becomes available after deleting the entire

configuration, or if NetCommand was not set up when

the TV was first powered On. If you select Initial, the

first screen that will display is the Device Setup Screen.

See Figure 3 for more information.

Note: If you have completed the NetCommand

setup, you can access the Edit menu at any

time by pressing TV menu, then selecting

NetCommand. See page 67 for details.

Add Screen

Figure 14

Select "Add" from the Edit NetCommand screen, and

the New Device screen will display. Select the Device

type that you would like to add. You may add your

AiV receiver (if not added in Initial setup) Cable Box,

Camcorder, DBS, DVD, Laser Disc, PC and VCR.

At the next screen, choose the manufacturer. If you

choose "Other" for the manufacturer, the device (AiV

receiver, Cable, DBS, DVD or VCR) can be learned.

For device types Laser Disc, Camcorder, Game

and PC, the "Learn" screen is skipped. There is no

NetCommand support or learning for these devices.

At the next screen, you can keep the default Name or

select a custom Name for the device, using ADJUST

A or V to select letters A-Z, numbers 0-9, and/or

symbols (!.&'/:*- and blank) for each character of the

name you would like for the selected channel.

The next screen displays the Connection screen

(RF Connection for Cable, Figure 21)_ Select the TV

and A/V receiver inputs that the device is connected

to. Connecting only audio to the AiV receiver is

recommended. The AiV receiver may need configuring

for digital audio_

Figure I4, Add screen

Edit NetCommand ® Add Devices, continued

[Device] Screen

Figure 15

If you seHected "None", during initiaHsetup, then you

can add a device. If you have added a new device, use

this screen to start learning.

Our exampHes show the choices for adding a VCR,

however, the same type of screens will appear for any

DBS (Direct Broadcast Satellite), DVD pHayeror CabHe

Box.

Figure 15. [Device] screen

Choose ONE of these options:

3_ SeHect "Other", skip Learn and seHect Next>. This

will allow the device to appear and will allow

NetCommand to switch inputs to use this device.

However, NetCommand will not be aMe to controH

this device. Later you may use the "Change" option

in the Setup menu to Hearnthe remote controH

signals.

After seHecfing Next>, the screens that follow are:

the Name Screen (Figure 18), Connection screen

(Figure 19) and specialized device screens (Figures

20-23), ending with the Finish screen (Figure 26).

1. Select a recognized manufacturer. The model

number optimized for NetCommand will display at

the bottom of the screen. If a number follows the

manufacturer's name, (example: Mitsubishi 1), this

indicates additional models are optimized for that

manufacturer. For many device types, non-listed

models will operate in the same way as the listed

models and you can still use the preqoaded setting.

After selecting Next>, the screens that follow are:

the Name Screen (Figure 18), Connection screen

(Figure 19) and specialized device screens (Figures

20-23), ending with the Finish screen (Figure 26).

2. Select "Other", then highlight "Learn" and press

ENTER. This will allow you to have NetCommand

learn the remote control signals of this new device.

After selecting "Learn" and pressing ENTER, the

screens that follow are: [Device] Learn screen

(Figure 16), [Device] Advanced Learn screen (Figure

17), Name screen (Figure 18), Connection screen,

(Figure 19) and specialized device screens (Figures

20-23), ending with the Finish screen (Figure 26).

[Device] Learn Screen

Figure 16

Shown only if "Learn" was selected

Figure 16, [Device] Learn screen

Press ADJUST •, •, _ or I_ to select the check

box for each function to be learned.

Press ENTER and the function name will begin to

flash to confirm the ready-to-learn status.

Press the button on the device's remote control

that corresponds to the selected function. A check

mark will appear and the function name will stop

flashing. This confirms the signal learned status.

Edit NetCommand®, Add Devices, continued

4. To test the learned command, press the ENTER

button on the TV remote while the learned function

is still highlighted. The device should perform the

selected function. The device needs to be turned

on and the IR emitters properly placed for the

test to be successful (see page 29 for IR emitter

placement). If the functions are not learned the first

time, try Learn again.

5. Repeat for each function to be learned.

6. To erase a learned function, highlight the check box

for that function and press CANCEL.

X When the function signals have been learned,

press ADJUST • to select Next> and move to the

[Device] Advanced Learn screen. NOTE: When

learning the device's remote control signals, point

the device's remote control at the TV screen.

Hint: if the device's remote control uses a single button

for both Power On and Power Off, don't learn the

Power Off function,

Name Screen

Figure 18

The Name screen allows you to change the ddauit

name for each device to a custom name of up to eight

characters (inciuding a Mank space), sebcfing from

btters, numbers and nine different characters. Press

ADJUST A or • to sebct each btter, then press

ENTER to move to the next position. Press CANCEL

on the remote to debte the current btter and move

back one character position. When in the first position,

the CANCEL button will return the name to the defauit

name.

Figure 18. Name screen

[Device] Advanced Learn Screen

Figure I7

After barning the basic device keys, the [Device]

Advanced Learn screen allows you to barn any speciai

keys for your device. Most common IR remote control

signal formats can be learned by NetCommand.

A table of specialized device keys is shown in

Appendix E. You only need to barn the functions your

devices respond to and can ignore the functions that

do not apply to your device.

Figure 17 [Device,] Advanced Learn screen

Connection for [Device] Screen

Figure 19

This screen allows the TV to learn the connection

between device(s) and input(s). Inputs 1-3,

Components 1 & 2, Input-DTV, VGA and/or the

inputs for the AiV Receiver all need to be checked, if

connected. Add or remove check marks to indicate

what type of connections (Audio, Video or both) are

used with each TV and AiV Receiver input.

Figure 19, Connection for [Device] screen

Edit NetCommand ®, Add Devices, continued

The screens described bemow may not be necessary for your device setup, mfthey do not dispmay

automatically on-screen, they are not required.

VCR for Recordings Screen

Figure 20

SeHect the VCR to use for recording. You may aHso

seHect whether you want the recorded 16:9 signaHs

from digitaH channeHs or EEE-1394 devices to be

cropped (sides are cut off) or Anamorphic (full screen).

If Anamorphic is seHected for viewing, choose the

Standard format for the best quaHity pHayback.

Figure 20, VCR for Recordings screen

lnput-DTV Connection Screen

Figure 22

This screen dispHays onHyif the device seHected in the

Connection screen (Figure 19) is connected to Input-

DTV. This is usually DBS, but can be Cable Box. The

Input-DTV Connection screen allows you to select the

connection type, RGB (HV) or Component YPbPr you

are using to connect your cable box or DBS.

RF Connection for CabJe Screen

Figure 21

The RF Connection screen displays only when

adding or changing a Cable Box. If your Cable Box

is connected to a TV Antenna input, check the RF

checkbox. Select the TV antenna input that is used

with the Cable Box Select the channel number used

for output by your cable box. The default channel is

003. If the Cable Box is also connected to a VCR for

recording, select that VCR.

If your Cable box is connected using Audio/Video

cables, make sure the RF checkbox is unchecked.

Then the next screen will be Connection (Figure 19), to

allow the selection of the TV input used with the Cable

Box.

Figure 21, RF Connection for Cable screen

Figure 22./nput-DTV Connection screen

IR Code for [Device] Screen

Figure 23

This screen only displays if an added device has the

same IR code as a previously added device of the same

type and manufacturer. You can specify the IR setting for

the new device. For example, for the second Mitsubishi

VCR you can specify the IR Code setting to VCR-B, if the

primary Mitsubishi VCR is using the VCR-A IR code.

Figure 23, IR Code for[Device] screen

Edit NetCommand ®, Change or Delete Devices, Finish Screen

Change Device Screen

Figure 24

SeHecflng Change from the Setup menu screen,

dispHays the Change screen+ To change a device,

seHect the device by name, not type+ You can change

the name or input connections to the TV and AiV

receiver+ If "Other" is seHected for the manufacturer

then you can arise ++Learn"+The rest of the screens that

follow are the same as when you Add a device+

Figure 24. Change screen

Finish Screen

Figure 26

To finaHize your seHecfions and compHete the

NetCommand setup, seHect Finish from the Finish

screen+

Note: To change any of the inputs or names

for the devices, or add devices not incHuded in

the initiaHsettings, seHect Edit to dispHay the Edit

NetCommand menu.

DeJete Device Screen

Figure 25

SeHecthg DeHetefrom the Setup menu, displays the

Delete screen. You can choose to delete a single

device by selecting the device you would Hiketo

delete, or you can delete the entire NetCommand

configuration. After you have chosen the device, or

the entire configuration, you will be prompted to

confirm your choice to delete. If you select the Entire

Configuration, the Initial button becomes available on

the Edit NetCommand screen. If you delete a device

that you learned the remote control signals for the

learned signals are erased+

Figure 26, Finish screen

iMPORTANT

NetOommand does not allow you to delete

a device or change the connections for a

(mikea VCR or a DVD player} if the

device (input} is currently being displayed by

the TV.

Switch the TV to a different device from the

one you are changing or deleting. To change

the A/V receiver, you need to be listening to

the TV speakers.

Figure 25. Delete screen

i!!ii!!ii!!ii!!ii!!ii!!ii!!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

NetCommand® Controlled Recordings

IEEE 1394 Devices and NetCommand® Control ........................ 50

Adding IEEE 1394 Devices Automatically .................................... 51

Device SeJection Menu .................................................................. 53

Using the DEVmCE MENU Button to DispJay Menus ................... 54

Using the Guide Button to DispJay ChanneUView TM and Menus..55

NetOommand® Controlled

Recordings ............................................................................. 56

Record List ............................................................................. 56

Peer-to-Peer Connections .................................................... 57

Using TV Disc & A/V Disc ............................................................. 58

Direct VCR Recording from an Antenna or Cable Source ......... 59

PC Viewing ...................................................................................... 60

MediaCommand TM and Media Card Playback ............................ 61

IEEE 1394 Devices and NetCommand® Control

See pages 30-31 for information regarding compatible IEEE 1394 devices and connection styles. The TV is not able

to control IEEE 1394 devices that use other types of control protocols. Incompatible digital audio, video and/or

control information will still be able to pass from one device through the TV to another device on the network. These

incompatible devices may not appear on the Device Selection menu or in the Review screen of the Edit NetCommand

menu.

NetOommand ControJ of DigitaJ Devices Using the "Learn" Feature.

Some IEEE 1394 devices such as cable boxes or satellite receivers will not have compatible digital control signals

or require the use of the device's own remote control. Some of these IEEE 1394 devices will not display on=screen

information through the IEEE 1394 connection and will require using an analog connection for on=screen displays. In

many cases, to control these digital devices, the Learning feature of NetCommand can be used.

1. Place an IR Emitter for NetCommand in front of the device's remote control sensor (see IR Emitters, page 29).

2. On the Name for 1394 Device screen (Figure 2, page 5I) use ADJUST and ENTER to check mark the Analog

Connection box.

3. Select the device type on the EEE 1394 Device Type screen (Figure 3, page 52) of DBS or similar tuning device.

4. If desired, using the ADJUST buttons enter a custom Name on the Name screen (Figure 18, page 46).

5. At the Device screen, Select "Other" as a manufacturer and then highlight "Learn" and press Next (Figure 4, page 52).

6. Follow the device learning instructions found on the screen(s) or in the Edit NetCommand section of Chapter 3.

7. The Connection screen (Figure 5, page 52) follows the learning screens. If analog connections are used, select the

correct inputs.

8. Proceed with the Finish screen.

This will allow NetCommand to use the learned remote control signa! to control these EEE 1394 devices.

Note: When using the NetCommand learning feature for IEEE 1394 devices that do not have analog connections,

the GUIDE function will require pressing GUIDE twice. The first press of GUIDE will display the TV's digitaI channel

guide. The second press will display the program guide for the device if an EEE 1394 Guide is available.

Adding IEEE 1394 Devices Automaticammy

Adding IEEE 1394 Devices

When an IEEE 1394 device is connected into the

TV network and is powered On, the new device will

automatically announce its presence. This process is

called device discovery and can take up to 1 minute.

Some non-audio/video or non-compafiMe IEEE 1394

devices, such as PersonaH Computers (PCs), may not

announce their presence to the TV. The TV will not

be aMe to show these devices in the Device SeHection

menu, however, they can coexist and will still be

avaiHabHeto other devices on the BEEE1394 network

that are compatibHe with these non-audio/video

devices.

IEEE 1394 cable boxes and satellite receivers may

require that you use the remote control that came with

those devices. For some compatible devices, the

Cable/DBSiDTV position of the TV remote control may

be able to control operation.

New 1394 Device Screen

Figure 1

When your TV discovers a new IEEE 1394 device, the

New 1394 Device screen will appear. Selecting "Add"

will include the device in the Device Selection menu.

Selecting "Do Not Add" will not add the device to the

Device Selection menu. If the IEEE 1394 device does not

provide audio and video, you may not want to add that

device to the TV's Device Selection menu. Devices that

were discovered but not added to the Device Selection

menu will still be listed in the Review screen of the Edit

NetCommand@ menu.

Figure 1, New 1394 Device screen

Name for 1394 Device Screen

Figure 2

If you choose to add the discovered IEEE 1394 device,

the Name for 1394 Device screen will appear. Name

the device or use the default name that appears

automatically.

Some IEEE 1394 digital devices, such as some DVCRs,

can also operate as analog devices. For example,

some DVCRs can record and play as VHS or S-VHS,

in addition to D-VHS. This allows you to play analog

rental tapes or analog tapes from your established

library or make analog recordings from antenna or

cable systems. To use the analog capability, check the

Analog Connection box.

Figure 2. Name for 1394 Device screen

Adding IEEE 1394 Devices Automatically, continued

IEEE 1394 Device Type Screen

Figures 3 and 4

If the new IEEE 1394 device is aHsoconnected using

anaHog inputs, you will need to define the device type.

SeHect the type of device, such as a VCR.

Figure 3. fEEE 1394 Device Type screen

Once the device type is seHected, then the Device

screen is dispHayed so the manufacturer can be

seHected. If the manufacturer is Histed,then you may

be abHeto controH this device wNe it is operating as

an anaHog VCR. For exampHe, if the IEEE 1394 device

you have added is a Mitsubishi DVCR, and you have

seHected an anaHog connection as a second connection,

then you will select Mitsubishi for the manufacturer, if

the manufacturer is not listed, select "Other" and use

the Learn screens.

Be sure to place an IR Emitter in front of the remote

control sensor, just as you have done for other

NetCommand® devices. It is necessary to use the

IR Emitter only when the DVCR is being used as an

S-VHS or VHS VCR. When the DVCR is playing or

recording digital signals in D-VHS, the TV will control

the VCR through the IEEE 1394 cable.

Figure 4, Device screen

Connection Screen

Figure 5

Select the TV input that you used when you connected

the video or S-Video cables. You may also select the TV

or AiV receiver input you used when you connected the

stereo audio cables. The TV will learn the input names

for the TV Input and AiV Receiver input selections. If

your AiV receiver has other inputs than those listed

in the menu, those other inputs are not available for

NetCommand.

The playback and record control of some DV camcorders

may still operate by the IEEE 1394 cable automatically,

even though you must use the video or S-video cable

for the picture. In this case, when you select the

Camcorder, be sure to select analog (not digital) from the

pop up when a camcorder is selected from the Device

Selection menu. Then the picture is shown via the analog

connection but control is from IEEE 1394.

Figure 5. Connection screen

Finish Screen

Figure 6

To finalize your selections and complete the

NetCommand setup, select Finish from the Finish

screen.

Figure 6. Finish screen

Device Selection Menu

When you press DEVICE on the TV's remote controH, the Device SeHecfion menu (Figure 7) dispHays. If

NetCommand® has not been setup, the Device SeHection menu allows you to seHect an input for viewing. If

NetCommand is setup, the Device SeHection menu allows you to seHectthe device for viewing, seHect audio from

the TV speakers or A/V receiver, power compatibHe devices On or Off, and verify the destination of signaHs. On the

Device SeHection menu, the device or input currently dispHayed appears as a goHd-coHored icon.

Device

Video Connection Audio

Section Section Section Audio Section

When a NetCommand pre-memorized or Hearned IR

controlled AiV receiver has been connected to the TV

and added to NetCommand Setup, an AVR icon will

appear in the audio section. Press AUDIO to change

navigation to the audio section. Then press ADJUST

4, •, • or • to select the TV speakers icon or the

AiV receiver icon. Press ENTER to change the audio

selection. Press DEVICE to return the navigation to the

Device Section.

Figure 7, Device Selection Menu with NetCommand

Power On/Off Devices

Devices that have separate On and Off remote control

buttons will power On automatically when you select

the device and will power Off when you turn off the TV.

For devices that do not power On or Off automatically,

display the Device Selection menu, press ADJUST 'I

or • to highlight the device icon and press POWER on

the remote control. For the AiV receiver, press AUDIO

to move the navigation to the Audio Section. Highlight

the AiV receiver icon and press POWER. If you

press POWER on the remote control when the Device

Selection menu is not displayed, the TV will turn Off.

PIP Device SeJection Menu

Figure 8

The PIP Selection menu displays when you press the

PIP DEVICE button on the remote control. This menu

has the same general format as the Device Selection

menu. The source for the Video Section is the sub

picture and the Audio and Connection Sections are not

available.

Use ADJUST 4, •, • or • to move the highlight to

the device to show in the PIP or POP screen, then

press ENTER. Device icons that are grayed out are

not available for use as PIP/POP sources or with the

current source.

Video

Section

Device Section

To select another device or input, press ADJUST

4, •, • or • on the TV's remote to move the highlight.

Press ENTER to select the device to view and

hear. The TV inputs are automatically changed. If

NetCommand is set up, the inputs on compatible A/V

receivers are automatically changed at the same time.

Device

Section

Video Section

The destination of the device igHighted in the Device

Section is displayed here as a TV icon.

Figure 8. PIP Device Selection Menu

Connection Section

The Connection Section shows the other devices

currently connected to the device highlighted in

the Device Section. For example, if the Digital VCR

(D-VCR) is currently recording, when you move the

highlight to the Ant-1 icon, the D-VCR icon will appear

in the Connection Section. This icon will disappear

when you move the highlight to another icon, press

CANCEL to stop recording.

Using the Device Menu Button to Display Menus

Device Menu

If NetCommand is setup, pressing the remote control's

DEVICE MENU button displays the transport menu

of the current device if the input is a VCR or DVD.

Another press of the DEVICE MENU button wiii display

menu for the current device source, if available.

Figure 9. Transport menu

IR Controlled Devices

For a NetCommand compatible traditional IR

controlled device, pressing DEVICE MENU once or

twice will display the menu for that device. While the

menu for the device is displayed, press ADJUST

4, _', • or • and ENTER to navigate the screen. For

some NetCommand traditional devices you will also be

able to use the number buttons and other additional

buttons on the TV remote.

For traditional DVD players, DEVICE MENU is also

known as the setup menu.

OableOARD TM Menu

Figure 10

When using a CabieCARD, pressing DEVICE MENU

wiUldisplay a list of up to 8 links to applications that

contain basic CableCARD information made available

from your cable provider. Press ADJUST • or • to

move through the application links. To select a link

(bUuetext) to an application, press ADJUST • or •

to highlight the link, then press ENTER to access the

linked page. Pressing DEVICE MENU will return to

the CableCARD menu screen and pressing HOME will

return to TV viewing.

If there are technical problems with the CableCARD,

an error screen wiii automatically display with

information that may be needed by your Cable

provider when you call them for assistance.The screen

shown below is an example of the type of screen that

may display. Specific screen menus are sent by your

cable provider.

Moving Through Other CableOARD Screens

In addition to CableCARD menus, other CableCARD

application screens may display and require you

to make additional selections. While CableCARD

application screens are customized in each area, some

general rubs apply in using these screens on your

Mitsubishi television.

Blue text denotes a link to another screen. Press

ENTER to move to the next application. When

screens do not have blue text, there are no more

links.

2_ You cannot move backward through the links. If you

want to exit the CableCARD system, press HOME

to exit and return to TV viewing. CANCEL may not

work with some CableCARD screens.

All information on these application screens is provided

by your iocai cable company. Please contact your

cable provider if you have any problems with the

application screen displays.

IMPORTANT

Most CableCARD screens are status or

diagnostic in nature and do not allow you to

make changes. These screens are meaningful

only to your local cable provider.

iTM t

Figure 10. Possible Device Menu for CableCARD

Using the GUIDE Button to Display ChannelView TM and Menus

GUIDE and Devices (1394 or IR Contrommed)

For NetCommand compatible satellite receivers and

some came boxes, GUIDE wii[ display the on-screen

programming guide for the receiver or came box. Press

ADJUST 4, I_, A or • and ENTER to navigate the

displayed Guide. For NetCommand compatible satellite

receivers, you may also be able to use the number or

other additional buttons.

For NetCommand compatible DVD players, GUIDE wii[

display the DVD disc "top" menu (not the setup menu).

For AiV Discs, pressing GUIDE wii[ display the Track List

screen For [EEE 1394 devices with digital connections,

press GUIDE twice to display the device's Guide. For

media cards, pressing GUIDE displays a JPEG thumbnail

menu (video) or a Piayiist menu (audio).

GUIDE and the Device Selection Menu

For compatible traditional VCRs, pressing GUIDE when

the VCR is highlighted on the Device Selection menu

wii[ change the VCR's input.

When the AiV Receiver icon is highlighted in the Audio

Section, pressing GUIDE switches the AiV Receiver

from analog audio to digital audio and vice versa.

GUIDE and the Record To Menu

When in the Record To menu, pressing GUIDE wii[

display the current list of programmed recordings.

Please see Record List, page 57 for more infomation.

GUIDE and Channe[View

Figures I1 and 12

Press GUIDE while viewing Ant-1 or Ant-2 to display

a list of available memorized digital channels (D) and

analog (A) channel information (if available from the

broadcaster). This list is called ChanneiViewTM.

ChanneIView for digital channels wiii show the major

and sub-channels (or bitstreams). Analog channel

information wiii display as sent. Press ADJUST • or •

to scan through the all the channels in memory one by

one. To cycle through the choices quickly, press CH

•or•.

Fordetailed program information, press ADJUST _.,

to return to basic information press ADJUST 4. This

information is sent by the broadcaster. If limited data

is shown or no program data appears, it is because the

broadcaster is not sending the information. This is not

a defect of your TV.

Recording a Current Program

To record a current program, press REC (record) when

your program choice is highlighted on the program list

in ChannelView. A red "R" will be added after the input

name. The TV will immediately switch to the selected

channel and start recording.

Figure 11.ChannelView screen, current programs

Recording Future Programs

To record a future program, press ADJUST • or •

to select the channel you want to record from. For

detailed program information, press ADJUST _, to

return to basic information press ADJUST 4. Press

REC (record) when your choice is highlighted. A red

"R" wiii be added after the input name. The message,

The recording has been added to the Record List will

display. To view, change or cancel a recording, use

the Record List (page 57). If a program title was not

sent by the broadcaster, you will be unable to set up a

recording and a message will display.

Figure 12. ChannelView screen, future programs

NetCommand ® ControJJed Recordings

Setting up Recordings

Figure 13

Through NetCommand, you can automatically start

and stop recordings and send signais from one

piayback device to a recording device. Recordings

can be made on recordabb devices connected to the

TV or to the internai TV Disc. The TV Disc is an IEEE

1394 hard disk drive, with 120 GB of memory and is

avaiiabb for CaMeCARD TM,Ant 1, Ant 2, JEEE1394

or tuning devices (caMe boxes or satellite receivers)

connected to inputs 1, 2, 3 when a PBPor POP is not

dispiayed.

The TV can convert digitai channeis and IEEE 1394

device signais to anaiog signais that can be recorded

on NetCommand compaflbb anaiog VHS and S-VHS

VCRs.

You can schedule the recording to take place at a

later time and program the recording duration for a

minimum of 30 minutes and a maximum of 6 hours (in

30 minute increments). The default is 1 hour. During

the recording, the TV can be powered Off. If the TV is

powered On, it will be tuned to the source that is being

recorded. The TV should remain on this source to

ensure the recording continue without interruption.

! i

i i

Figure 13. Record to screen

Recording Now

Can be used when viewing Antenna 1 or 2, an IEEE

1394 device including TV Disc, or a non-recording

traditional device.

To initiate recording now:

1. Press REC (record) on the TV remote.

2. Press DEVICE on the remote control to move to the

Source Device section.

3. Press ADJUST A V, • or • to select the source

device you wiii record from. If a source is not

displayed, it is not available as a recording source.

4. Press ENTER to confirm selection and return to the

"Record to" section.

5. In the "Record to" section, review the destination

device and duration. Use ADJUST A or • to

change, if necessary.

6. Press a second time and the recording wiii starL

Time-DeJayed Recording

1. Press REC (record) on the TV remote.

2. Press DEVICE on the remote control to move to the

Source Device section.

3. Press ADJUST A V, • or • to select the source

device you wiii record from.

4. Press ENTER to confirm your source device

selection and move to the Record to section.

5_ Press ADJUST • or • to select the Record to

device, duration time, start time (press ENTER after

selecting hour, minutes and AM or PM to set the

time) and day, using ADJUST A or • to change,.

For devices that can select channels, select the

channel.

6_ Select Add and press ENTER to add the recording

to the record list. If your selection is successful, a

confirmation message wiii be displayed. If you pick

overlapping times, day(s), or destination devices,

you will see a message stating there is a conflicL

7. To exit, press HOME on the TV remote after aii

recordings have been added.

Record List, Peeroto-Peer Connections

Record List

Figure 14

Press GUIDE wNe viewing the Record To screen to see a

Histof aHcurrently programmed recordings. A maximum of

32 recordings can be scheduHed.

Figure 14. Record List screen

CanceJ Current Recordings

To canceH a recording in progress, press DEVICE to

dispHay the Device SeHecfion menu and higMight the

source of the recording. Confirm that the icon for VCR

(or recording device) is in the Connection Section next

to the TV icon. Press the CANCEL button. The icon for

the VCR (or recording device) will disappear from the

Connection Section to confirm the cancellation.

To cancel a recording on the Record List, press ADJUST •

or • to select the recording, then press CANCEL To page

through the list, press CH • or •_

Peertto-Peer Connections

A peer-to-peer connection allows the IEEE 1394 devices

in your TV network to talk to each other without the

further need of TV intervention once the peer-to-peer

connection is established. For example, the TV can

setup a connection for an A/V Disc or DVCR that sends

a recorded program to an IEEE 1394 monitor in another

room. NetCommand will establish the connection

between the two devices. Once the connection has been

established, the TV can be turned off or used to watch

another device. Recording from digital channels to a

DVCR is also a peer-to-peer connection. In this case, the

TV is one of the devices in the peer-to peer connection.

Setting up a PeerttotPeer Connection

To establish a peer-to-peer connection:

1. Press CONNECT on the TV remote.

2. Press DEVICE on the remote control to move to the

Source Device section.

3. Press ADJUST _ or I_ to select the source device

you will record from.

4. Press ENTER to confirm selection and return to the

"Record to" section.

5. In the "Record to" section, review the destination

device (example: DVCR) and duration. Change if

necessary.

6. Press CONNECT a second time to start recording.

CanceJing a PeerototPeer Connection

After a peer-to-peer connection has been established,

you can cancel it by highlighting the source device

in the Device Selection menu. Confirm that the on-

screen icon for the peer-to-peer connection is in the

Connection Section next to the TV icon, then press

CANCEL The connection will end and the destination

icon will be removed. If there is more than one peer-

to-peer connection for the same device, all of the

connections will all be canceled.

NOTE: Multiple peer-to-peer connections can

occur simultaneously, sometimes with the same

source device.

Using TV Disc & AiV Discs

TV Disc & A/V Disc Track List Screen

Figure I5

When viewing the TV Disc or an A/V Disc, press GUIDE

to dispHay its Track List. The ChanneH, Station, Date,

Time, Program name and whether it has been Watched

(Y=yes, N=no) will be dispHayed. Tracks will be Histed in

date and time order and will vary in size.

Press ADJUST A or • to navigate through the Track

List. Press INFO to see the recording's Hength and

the amount of memory it will use. Free disc space is

dispHayed in the tithe Hine. If the broadcaster has sent

detaiHed information regarding the program, it will also

display when you press INFO. To play a track, select it

on the list, then press ENTER. To change pages, press

CH • or •. To delete a track, select it on the list and

press CANCEL. Press CANCEL again to confirm.

Figure 15. Track List screen for TVDisc

TV Disc or A/V Disc Search

Press ADJUST • or • to select a track. Then

press ENTER to start playing.

Press PAUSE to pause the playback.

Press REC (record) on the TV remote. The Record

To screen will display.

In the "Record to" section, review the destination

device (DVCR, VCR). Change if necessary.

Press REC a second time to initiate recording.

The TV Disc and destination device cannot be

viewed or used while recording. To view a different

device, press DEVICE and select.

IMPORTANT

,g programs cannot be transferred from

the TV Disc and the TV Disc is not intended to

permanent storage of digital recordings.

Mitsubishi recommends you transfer important

digital recordings to an external device such as

Recordings stored on TV Disc

are lost and cannot be recovered if the TV Disc

requires replacement or repair. Mitsubishi is

not liable for lost recordings.

NetCommand is able to search to a specific time in a

recording on the TV Disc or an IEEE 1394 AiV Disc.

1. Start the desired track's playback on the AiV disc.

2. Use the number buttons to enter the time code

position of hours followed by minutes. For example,

to enter one hour and twenty-two minutes (1:22)

into the track, enter 1, 2, 2.

3. Press ENTER to skip to the time code position.

4. To cancel the request or to start over, press

CANCEL instead of ENTER.

Archiving TV Disc Digital Recordings

To permanently store a COPY FREE digital recording

from the TV Disc on D-VHS or other IEEE 1394 device:

1. Press DEVICE on the remote control and select TV

Disc by pressing ADJUST 4, _', • or • and then

ENTER.

Using the Remote Control with TV Disc or A/V Disc

after selecting from the Device Selection menu:

GUIDE:

PLAY:

PAUSE:

FEiFWD:

REWiREV:

displays the Track Listof recorded programs.

resumes playback of paused program.

pauses or resumes playback of program.

forward picture search, multiple presses

increase the speed.

reverse picture search, multiple presses

ADJUST 4:

ADJUST _':

ADJUST •:

REC:

skip backward 12 seconds per press.

skip forward 30 seconds per press.

skip to the end of the track.

skip to the beginning of the track.

Display the Record Menu to schedule

recordings

If the TV Disc is the default digital record device

(Setup menu), you can also schedule recordings from

ChannelView.

Direct VCR Recording from an Antenna or Cable Source,

Copy-Protected Material and Restricitons for Traditional VCRs

Direct VCR Recording from an

Antenna or CabJe Source:

Pressing REC (record) on the TV's remote control wiii

function the same way as pressing the record button

on the VCR's remote control or front panel.

To record directly from antenna or cable:

1. Press DEVICE on the TV's remote to display the

Device Selection menu. Highlight the traditional

VCR and press POWER to turn on the VCR. If

necessary, press GUIDE to select the input the VCR

is on, such as Antenna input (or line input).

2. Press ENTER to switch the TV to the VCR.

3. Select the correct channel for recording on the

VCR and then press REC to start recording. You

wiii need to manually stop the recording at the end

of the program.

OR_

4. Press the DEVICE MENU button to display the

VCR's menu to schedule a delayed recording

directly from antenna or cable.

To record from Ant-l, Ant-2 or other devices, see

NetCommand Controlled Recordings.

Copy-Protected MateriaJ

When attempting to record copy-protected material,

the Record functions of the NetCommand and IEEE

1394 systems may be prevented or stopped. If you

have a recording that is tagged "Record Once",

NetCommand will change the tag to "Record No More'.

Restrictions for TraditionaJ VCRs

If turned On, the TV must be tuned to the source device_

Your VCR should be connected directly to Audio

Video 1,

The VCR must be set manually to "Line input",

Display the Device Selection menu, highlight the VCR

and press GUIDE to change VCR inputs,

o The TV can select channels on compatible cable

boxes for recordings, Leave the cable box turned on,

o if the source device or recording device does not have

separate power On and Off features, then leave that

device powered On,

PC Viewing

PC Input

Figure I6

To dispHay your PC screen on the TV, first, connect it

to the TV's back paneH (see Chapter 2). You will then

be abHeto seHect it through the Device SeHecfion Menu.

For the correct screen resoHution (pixeHs), use the PC's

ControH PaneHsettings.

Your Mitsubishi TV can dispHay resoHufions from

standard VGA (640 x 480) through PC 720p (1280 x

720), 60Hz refresh rates onHy. See Appendix B, in this

book for more screen resoHutions. The instructions

bellow are for most PC's.

1_ In the PC's "Start" menu, seHect "Settings'.

2_ SeHect "ControH PaneH'.

3_ SeHect "DispHay'.

4_ Choose the "Settings" tab.

5_ Depending on your PC, either:

Use the Screen area sHider or use the Screen

ResoHufion sHiderto adjust the resoHution.

You may need to restart the PC for this change to take

effect.

Hint: You may want to set the computer's screen saver

to a pattern, to display after several minutes, as a

reminder that the TV is stiff powered on and time is

being added to the lamp's elapsed hours. Even ff

the screen appears dark, if the TV's power is on, the

lamp is in use.

2_ 3_

Figure 16. PC resolution XGA selection

MediaCommand TMand Media Card Pmayback

Warning: Some media cards available on the market are not properly certified to follow the card type

specifications noted below and cannot be used by the Card Reader. If you experience problems with the

reading of your file, please transfer your files to a properly certified card.

Media Card Sbts

Inserting a media card

Remote Control Buttons for Controlling the

Playback

1. Insert a card into a matching card dot on the front For JPEG

of the TV. Be sure to use the correct card dot. PLAY:

Card 1 will accept MulfiMediaCard TM and SD Media PAUSE:

Card. Card 2 will accept SmartMedia TM. Card 3

will accept CompactFhsh®. Card 4 will accept FF:

MEMORYSTICKTM. Cards up to 128mb, with a file REW:

format dFAT 16 (block size = 1024 or 2048) are FORMAT:

supported.

Normally the label side should be up, but if the card

does not fit, try turning the card over and insert

again. When properly inserted, the light next to the

slot will light up.

2. Press DEVICE on the remote control to display the

Device Selection Menu and then select the correct

card slot from the list, using ADJUST _, I_, A or V.

3. The Media Dialog box (figure 17) will automatically

display. Use the AUDIO button to switch from

JPEG Picture Slideshow setup to MP3 or WMA7

Audio Phylist setup or use the VIDEO button on

the remote to switch from the MP3 or WMA Audio

Phylist setup to JPEG Picture Slideshow setup.

Don't pull the media card out while it is pmaying.

Figure I7, Media Dialog Box

4. On the remote control, press:

PLAY:

GUIDE:

to start the dideshow or play audio.

to display the JPEG Thumbnail menu

(Figure 18) or Audio track phylist (Figure 19)

to display the Media Setup menu (Figure 20).

DEVICE

MENU:

STOP:

Pictures Slideshow:

begins or resumes slideshow playback

pauses or resumes playback while in the

automatic advance mode.

skips to the next slide.

returns to the previous slide.

single press rotates the slide 90 °. Multiple

press continues to rotate the slide.

Stop dideshow, return to media card

screen.

For MP3 or WMA Audio Playback

PLAY:

PAUSE:

FF:

REW:

STOP:

begins or resumes phylist playback.

pauses or resumes playback.

skips to the next track/song.

skips to the previous track/song.

Stop playback and returns to media card

screen.

Using the Picture Thumbnail Menu or Audio

Playlist Menu

For JPEG Picture Thumbnail Menu:

Figure I8

1. Press GUIDE on the remote to display the JPEG

picture Thumbnail menu.

Press ADJUST _, IL A or V to move the highlight

to different images (CH up/down will change pages

of the Thumbnail menu). Use REW to go to the first

slide and FF to go to the last slide on the page.

3. Press FORMAT to rotate the selected image 90°

(pressing FORMAT four times will rotate the image

completely around to the original position).

4. Press PLAY to begin playback of the Slideshow from

the selected image. The Thumbnail menu will be

taken down.

Figure 18, JPFG Thumbnails

Media Command TMand Media Card Playback, continued

For MP3 or WMA7 Playlist Menu:

Figure I9

1. Press GUIDE to display the Piayiist menu.

2. Using ADJUST • or V to move the highlight to

different tracks (CH up/down wiii change pages of

the Piayiist).

3. Press PLAY to begin playback. The Playlist menu

wiii be taken down. An asterisk (*) wiii be next to the

song currently playing.

Figure 19. Audio P/aytist

COMPATIBLE PmCTURE OR AUDIO FILES:

For JPEG Pictures up to 128MB:

1. Stiii images recorded on digital cameras using the

Exchangable Image File Format, version 2.1 (EXIF

2.1) standard for digital still cameras and Design

Rules for Camera File Systems version 1.0 (DCF 1.0).

Some images opened and resaved on a computer

may not playback or may not be able to display a

picture in the thumbnail list because the computer

program that opened and resaved the images

changed the file to an incompatible format.

2. Standard digital images with a maximum size of

5-megapixels for each image, or 2560 x 1920 pixels.

Pictures wiii be scaled to the TV display. Some

pictures may be cropped to fit.

3. Full path fib names can be no longer than 50

characters and must end in a .jpg extension. Not all

50 characters wiii display.

For MP3 or WMA7 Audio files:

1. Fibs recorded with sampling rates of 32 kHz, 44.1

kHz or 48 kHz.

2. Fibs recorded with fixed bit rates

3. Fib names with .mp3 or .wma extensions

NOTE: During MP3 or WMA7 audio playback,

audio from the cards wiii be sent to the AiV

receiver as analog audio. Digital out is not

available.

Media Setup Menu

Figure 20

Press DEVICE MENU at any time to display the Media

Setup screen, where you can adjust the Slideshow

Display, Frequency, Interval or Playlist Frequency.

For JPEG Picture Slideshow Setup

For JPEG picture Slideshow playback, select

Automatic or Manual advance. For manual

operation, press PLAY or ENTER on the remote

control to advance each slide.

o For automatic advance, select the frequency

or number of times to show the complete slide

show, Once, Twice or Continuously.

For automatic advance, select the interval time

each slide is shown, for example, 5 seconds, or

30 seconds.

For MP3 or WMA7 Audio Playlist Setup

Select the frequency or number of times to

play the complete playlist. Once, Twice or

Continuously.

To exit, press DEVICE MENU on the remote control

to redisplay the media card screen or press HOME to

return to TV viewing.

Figure 20. Media Setup Menu

TV Menu Screen Operations

Main Menu Choices ....................................................................... 64

Setup Menu .................................................................................... 65

NetCommand® Menu .................................................................... 67

Antenna Menu ................................................................................ 68

Time Menu ...................................................................................... 70

Captions Menu ............................................................................... 71

V-Chip Lock Menu ......................................................................... 73

AudioVideo Menu ........................................................................... 76

A/V Settings Descriptions ............................................................. 77

Operation of PiP and POP ............................................................. 79

Main Menu Choices

Setup Menu

Figure 1

Use the Setup menu to seHect EngHishor Spanish as

the Hanguage for the menus and on-screen dispHays.

Adjust CoHor BaHanceAutomatically or manually

(PerfectCoHorTM). CoHor BaHance uses six coHors,

Magenta, Red, Yellow, Green, Cyan and BHueto obtain

coHor baHance. Reset the CoHorBaHanceto the factory

Time Menu

Figure 4

Manually set the time for the TV, or seHectAuto and

the TV will automatically set the time based upon

Extended Data Service (XDS) time data. This time

data is usually broadcast by your HocaHPBS station.

This menu is also used to set the TV timer.

Select the default setting for the TV Pause feature.

View the TV's software version on this screen.

Figure 1. Main menu, Setup selected

Figure 4. Main menu, Time selected

Captions Menu

Figure 5

Display Closed Captions if sent by the broadcaster,

select settings for analog or digital captions.

NetOommand® Menu

Figure 2

Add, change, review or delete NetCommand®

settings and devices. If you have more than one

digital recording device connected, use this menu to

change the default digital Record To device. Turn the

transport menu off and change the order of the icons

in the Device Selection menu. Select analog quality for

programs recorded on the TV Disc.

Figure 2. Main menu, NetCommand selected

Figure 5, Main menu, Captions selected

VoChip Lock Menu

Figure 6

Block or allow programing based upon rating signals

sent by the broadcast station, lock by time, or lock the

front panel buttons.

Antenna Menu

Figure 3

Memorize available analog and digital channels for

Ant-1 and Ant-2. After memorization, if a channel

displays as digital and analog, you can choose to

see the channel digitally every time it is selected.

Manually add or delete channels from memory, name

channels or add your favorite channels to a SQV

(SuperQuickView TM) lisL

Figure 3, Main menu, Antenna selected

Figure 6. Main menu, V-Chip Lock selected

AudioVideo Menu

Figure 7

Reset the AiV Memory to return to the original factory

AiV settings for a selected device. Customize the

individual audio and video settings.Display a blue

screen when viewing a device with no signal, enhance

the darker parts of bright pictures or turn the TV

speakers On or Of L

Figure 7, Main menu, Audio/¼_Jeo selected

Setup Menu

Figure 8

Figure 8, Setup Menu, NetCommand Option

Press ADJUST • or • to navigate between colors

and ADJUST _ or _, to change the color slider

settings.

Display the on-screen menus in either English or

Spanish (EspaSo(). The first time you powered On your

TV, you were requested to sebct an on-screen menu

language. If you choose to change the sebcfion, ai(

menu text wii( immediately switch to the language of

your choice.

Program titles and other information sent by a

broadcaster wiii be shown in the original language.

Co(or Ba(ance

Your Mitsubish( TV uses six colors (Magenta, Red, Yellow,

Green, Cyan and Blue) to create color balance. You may

adjust the intensity of the colors automatba((y or manually

(PerfectCoior TM)or reset them to the default settings.

Each TV input or device has a memory for PerfectCoior.

Auto (Co(or Ba(ance)

If the Auto box is checked, your TV will optimize color

automatically and continuously. Both PerfectCoior and

Reset options for Color Balance are grayed out and

unavailable.

PerfectOo(or TM (Manua( Co(or Ba(ance)

Figure 9

The PerfectCoior (manual) option is only available when

Auto (Color Balance) is not checked. Select PerfectCoior

and press ENTER to display the menu. Individual sliders

for Magenta, Red, Yellow, Green, Cyan and Blue will be

displayed. The sliders have a numeric value, where 63

is the maximum. The default setting for each color is 31

(cente0. Highlighted text will show which slider you are

adjusting. Each active input can be individually adjusted.

Figure 9, PerfectColor Menu, Manual Color Correction

Reset

Select to reset the Color Balance settings. Each active

input can be individually reset, if Auto is not checked.

TV Pause

TV Pause is a special feature of the internal TV Disc

personal video recorder (PVR). TV Pause is available

for CabbCARD TM,Ant-l, Ant-2, (EEE 1394 input and

tuning devices (cable boxes or satellite receivers

connected to Inputs 1,2 or 3)_

This feature allows you to press PAUSE to "pause"

live TV. You can then search backwards or forwards

through the current TV program. When you pause

the TV program, an on-screen slider will show

approximately how far and in which direction(s) you

can search_

TV Pause has three settings:

On Request: TV Pause is in the standby mode

until you press PAUSE for the first time after turning

on the TV, or after a channel or device change.

There will be a few seconds delay before a paused

picture appears. During this pause, you wiii not be

able to scan or skip backwards in the TV Program.

Later uses of TV Pause while in the same program,

wiii allow reverse scan or skip of the available TV

program as shown on the slider. The TV Pause

wiii return to the standby mode automatically when

you change the channel or device. The PIP/POP

features are available only when TV Pause is in the

standby mode and not enabled.

Setup Menu, continued

Always: Press PAUSE, REW, FF or any ADJUST

button to pause the program and scan or skip

within the program. You can skip or scan

backwards through the available programming as

indicated on the slider. You can also scan or skip

forward to catch up to the live broadcast. You

cannot skip or scan backward to a point before

the last channel or device change. In the Always

setting, the HP/POP features are not available.

To use the PIP/POP features, select the Off or On

Request setting for TV Pause.

Off: This mode prevents the TV Pause function,

however, full screen picture freeze is available. If

you do not expect to use the TV Pause features,

we recommend the Off or On Request mode. This

mode allows PIP/POP features to be used.

Press ADJUST _r to skip back to the earliest

available part of the TV program as shown on

the slider.

If you wish to save this program press REC to display

the record menu and begin a formal recording. You

can press GUIDE to display ChanneWiew and then

record.

Software Version

For some service related issues, it may be necessary

to know which software version is in your TV. This

information is displayed on the Setup menu screen.

Figure 10. TVPause slider

Controlling the TV Pause Features:

NOTE: You cannot reverse search further back

than the beginning of the filled space as shown on

the slider. You cannot forward search past the live

broadcast point.

Press PAUSE to pause the current TV program

or resume play after pause.

Press PLAY to resume watching the TV program

from the pause point.

Press FF to forward picture scan. Press up to

4 times to increase the scan speed. If pressed

when TV is paused, then will move forward at

half speed, not fast forward.

Press REW to reverse picture scan. Press up

to 4 times to increase the scan speed. Pressed

when TV is paused, then will reverse at half

speed.

Press ADJUST 4 to skip backwards 12 seconds

(for each press).

Press ADJUST _ to skip forward 30 seconds

(for each press).

Press ADJUST ,& to skip all the way to live

broadcast.

NetCommand® Menu

NetCommand Menu

Figure 11

Figure 11. NetCornmand Menu

Detaibd information regarding setting up and editing

the NetCommand menu is found in Chapter& The Edit

NetCommand screens allow you to add new devices,

change or edit traditionai and IEEE 1394 devices, turn

devices and unused inputs On or Off, debte a singb

device or debte the entire setup configuration. If you

choose to debte the entire configuration, or if the

NetCommand setup was cancelled, debted or not

compbted, you can start at the Initiai NetCommand

screen. The Review screen shows aH devices

connected to the TV+

Transport Menu

Figure 12

Figure 12. Transport Menu

Sebcting On for the Transport menu allows

NetCommand to use the Transport menu to control the

TV Disc, VCRs, DVDs, IEEE 1394 AV Discs, digital VCRs,

and similar devices. If you choose to turn off this

menu when viewing the devices, the transport buttons

(rewind, play forward, stop, pause and record) on the

TV's remote control will continue to operate these

devices. In the Device Selection menu selecting a VCR

or DVD Player will automatically display the Transport

menu. You can re-display this menu by pressing

DEVICE MENU.

Select Transport menu functions by pressing ADJUST

or I_ and then ENTER. For example, to pause playback,

press ADJUST _ or I_to move to PAUSE, then press

ENTER+ If a function is not possible, such as record for a

DVD Player, the Transport menu button will be grayed out+

Note: Transport buttons (rewind, play forward, stop,

pause and record) on the remote control are located in

the bottom section of the remote control+

+con Order

Figure 13

The Icon Order screen allows you to arrange the device

icon order on the Device Selection menu to a different

sequence, for ease of selection and operation+

To change the order, press ADJUST • ,V ,_, or I_ to

highlight the icon to be moved and then press ENTER+

Press ADJUST • ,V ,'i or I_ to move the icon to the

desired position and then press ENTER to release the

icon.

Figure I3 Icon Order Menu

Analog Quality

For analog programs recorded on the TV Disc or an

AiV Disc, you can select the recording quality. High

has the best quality, but takes more disc space+ The

Low quality takes less disc space. The default is High.

Default Digital Device

If multiple recording devices are available in

NetCommand, this setting allows you to choose the

device to use when recording digital programs. A

digital recording can be made on either a digital or

analog device although the quality will not be as good

if recorded on an analog device. For best playback

quality, record digital programs on a digital recording

device.

If multiple devices were not connected and then

added in the NetCommand setup, this setting wiii

be unavailable (grayed out)+ Analog recordings can

only be made on the one analog device connected to

Monitor Out (usually a VCR) and are not affected by

this setting+ This feature is most useful when recording

from ChanneiView TM (page 55)+

Antenna Menu

Figure 14

Figure 14. Antenna Menu

The Antenna Menu options are avaiiabie for use with

anaiog and digitai channeis on Antenna-1 and Antenna-

2. You can memorize channeis, add or deiete channeis,

name channeHs and add channeis to an SQV (Super

Quick Vbw TM)bank.

For Antenna 1 (Main) or Antenna 2 (Aux)

SeHect either Air (when used with an indoor/outdoor

antenna) or CaMe (when used with direct came)

then press ENTER to start the automatic channei

memorization process. If a CabHeCARDTMis being

used, memorized channeis are provided by your cabie

provider through the CabHeCARD.

To stop the automatic channei memorization process,

press CANCEL. Channeis memorized before you

pressed CANCEL are retained in memory.

After memorizing channeis, the channeis in the memory

can be accessed in ascending or descending order by

pressing CH A or •.

The memorization wiii occur twice, as the TV

memorizes anaiog and digitai channeis separateiy.

Prefer DigitaJ

When a memorized channei is avaiiabie as both anaiog

and digitai, a check mark in the Prefer Digitai box wiii

aiiow digitai channeis to dispiay and anaiog channeis to

be hidden (when using CH). Removing the checkmark

wiii show both anaiog and digitai choices.

Channels can be changed in 3 ways:

1. By pressing ADJUST • or • to select the channel.

2. By pressing CH • or • for channels already in

memory.

3_ Directly entering the number. With so many current

and potential channels, the number range is greatly

expanded. Channels can be one part, analog or

digital (up to the number 16883) or two part, for

digital channels (these use a separator). For a

two part digital channel, you may press SUB/

CANCEL on the remote to enter a separator after

the first, second or third number, depending on the

broadcaster's channel information.

For digital channels, when the broadcaster has

sent a virtual channel number, the virtual channel

number is shown in the text box and as a reference,

the original digital channel is shown below the text

box.

After the available channels have been memorized

with Memorize, weaker channels can be added.

Unwanted channels can also be deleted. Press CH

• or • on the remote control to see the channels

in memory. Press ADJUST • or • to select Added

or Deleted for the channel shown in the Channel

number box.

Name

Analog channels shown on Antenna-1 or Antenna-2

can be named (up to four characters). After you enter

a name, it will appear on the TV screen, next to the

channel number.

1. Press ADJUST • or • to select each letter.

2. Press ENTER to set the letter and move to the

next letter position.

3. Press CANCEL to move back one position.

Digital channels are automatically named if the

broadcaster sends the information.

Antenna Menu, continued: SuperQuickView TM (SQV)

SQV (SuperQuickView TM)

Using The Menu Screen

Figure !5

SQV (SuperQuickView TM)allows you to put together

banks of your favorite channeHs from Antenna 1 and

Antenna 2. You can store channeHs in any of the 9

different SQV memory banks. You can aHsostore the

same channeH in muHfipHememory banks. Once you

have added a channeH to an SQV memory, "SQV" and

the memory bank number will appear under the tuned

channeH number on the TV screen.

Adding SQV Channels

1. SeHect the channeH using the "Charmer option box

or press CH • or V.

2. HighHight the bank (SQV1-SQV9).

3. Press ENTER to check mark the seHected SQV

memory bank.

4. Repeat for additional channels or banks.

Removing SQV Channels

1. Highlight the box for the SQV bank number.

2. Press ENTER to remove the check mark.

Figure 15. Antenna Menu, SQV (SuperQuickView)

SQV (SuperQuickView TM)

Using The Remote Control

Viewing and changing SQV banks using the remote

control:

1. Press the SQV button.

2. To change memory banks, press a number

button within 5 seconds of pressing the SQV

button.

3. Press the SQV button repeatedly to cycle through

the channels available in that bank.

Adding SQV channels using the remote control:

1. Press CH •, V or number buttons to select the

channel you want to add to the current SQV memory

bank.

2. Press and hold the SQV button for about 2 seconds.

When "SQV" and the memory bank number

appear under the channel number, the channel has

successfully been added.

Removing SQV channels using the remote control:

1. Press the SQV button and then the memory bank

number.

2. Press the SQV button repeatedly until you see the

desired channel.

3_ While the channel number and SQV indicator (with

correct bank number) are still displayed on the

screen, press the CANCEL button. If the CANCEL

button is not pressed before the SQV indicator

disappears automatically, the channel will not be

removed.

4. When the SQV indicator disappears, the channel

has successfully been removed only from that bank.

"Other" banks remain unchanged.

Time Menu

Setting the CJock

You may choose to manuaHHyor automaficaHHy set

the chock that your TV will use for recording or timer

functions. You cannot scheduHe recordings if the chock

is not propedy set.

Figure 16

To manually set the chock, you need to seHect the

current time, incHuding AM or PM, current date, time

zone for your area and the DayHight Savings time

setting.

Figure 16. Time Menu, Manual Clock Setting

Set Time

Press ADJUST • or • repeatedHy to dowHy seHect

the hour or press and hoHdto quicMy seHect the hour.

Press ENTER to move to the minutes options. Press

ADJUST • or • to select minutes, then press ENTER

to select AM or PM.

Set Date

Press ADJUST • or • to select the correct date.

Time Zone

Select your correct time zone. Press ADJUST • or • to

select the time zone (Atlantic, Eastern, Central, Mountain,

Pacific, Alaska or Hawaii) for your area. Then press

ADJUST I_ to move to the Daylight Savings time option.

Select the Daylight Savings time (DST) option that your

state uses. Press ADJUST • or • to select Applies if

your state or area uses DST, or Ignore if DST does not

apply.

Auto

Select the Time Zone and Daylight Savings time setting,

as noted above. You may then tune to a channel

(on Ant-1 or Ant-2) that uses Extended Data Service

(XDS) time data, typically a PBS channel The Auto

selection will automatically retrieve the correct time

and date information from this channel. Be aware that

if a channel displays incorrect time information, it is

because of information sent from the broadcaster and

is not a defect of the TV.

Timer On/Off

Figure 16

The timer can be turned to On or OfLWhen On, you

need to select the time and day to turn the TV On and

the device and channel to display. At your preselected

time, the timer will turn the TV On, and this message

will be displayed: "Press a button for the TV to stay

on'. Press any button on the remote control within 5

minutes or the TV will turn itself Of L

Set Time

Press ADJUST • or • repeatedly to slowly select

the hour or press and hold to quickly select the hour.

Press ENTER to move to the minutes options. Press

ADJUST • or • to select minutes, then press ENTER

to select AM or PM.

Set Day

Select the day or days that the TV will turn on

automatically. Press ADJUST • or • to select

Everyday, Mon-Fri (Monday through Friday), or the

individual days of the week.

Figure 17,Timer Menu (Timer On/Off)

Device

Press ADJUST • or • to select the device to use when

the timer turns on the TV. If the TV is already on, the

timer will turn the TV to this selected device.

When an antenna _s the selected device, you may

select any memorized channel. Press ADJUST • or

• to select the channel and the TV will tune to this

channel in memory when the timer turns it on. This

includes sub-channels for digital choices.

Captions Menu: Analog and Digital Captions

Captions Menu

Figure I8

For anaHog channeHs broadcasters can send either

Standard or Text dosed captioning. Standard CHosed

Captions follows the diaHogue of the characters on-

screen and dispHays in a small section of the screen.

Text CHosed Captions often contain information such as

weather or news and covers a Hargeportion of the screen.

On digitaH channeHs, broadcasters can send up to

6 different captioning seHections. Each TV station

may broadcast onHyone or two types of captions or

none at all. The TV cannot decode CHosed Captions

received on Component 1, 2 or Input-DTV.

To make the anaHog dosed captions easier to read, you

can choose to display the background color as either

black or gray behind the captions.

DigitaJ Captions

The TV can display one of the following Captions for

Digital sources:

Captions 1-6. Sent by broadcaster.

On if Mute. Closed captions when mute. When

selected, the captioning signal (Caption 1) will

turn on/off by pressing MUTE on the TV remote

control.

Off. No closed captions.

Note: If the broadcaster is only sending analog

captions converted to digital, then the analog

captions settings apply.

Figure 18. Captions Menu

AnaJog Captions

The TV can display one of the following captions for

Analog sources:

001, 0C2, CC3, or 004. (Standard closed

captioning signals).

Text1, Text2, Text3, or Text4. (Text closed

captioning signals).

On if mute. Closed captions when mute.

When selected, the standard closed captioning

signal (CC1)will turn on/off by pressing MUTE

on the TV remote control.

Off. No closed captions.

The Default options shows what the closed caption

provider intended to send. You may select the Custom

option to override and customize Closed Captions

appearance. These settings do not apply to analog

Closed Captioning converted to digital.

DigitaJ Settings

Figures I8 and 19

Digital Settings are available only when Custom was

selected from Appearance (Figure 17) and do not

apply to analog closed captions converted to digital.

Select Digital Settings by moving the ADJUST buttons

and pressing ENTER. You can select Font, Size,

Color, Background, Opacity (Font) and Background

Opacity.

Figure 19, Closed Captions Menu Digital Settings

Captions Menu, continued: Customizing Digital Settings

Fonts

You can customize the text of digital captions by

selecting the font of your choice. The available Font

options are as follows:

Default - Selected by the Closed Captions

provider

Font 1 - Monospaced font with Serifs

Font 2 - Proportiona[ spaced font with Serifs

Font 3 - Monospaced font without Serifs

Font 4 -Proportionaiiy spaced without Serif

Font 5 - Casual font

Font 6 - Cursive font

Font 7 - Small Capitals font

Size

You can also customize the text of digital captions

by selecting your desired size of font. Large is the

recommended font size.

CoJor

You can customize the text of digital captions by

selecting the color of fonL The available font colors

are as follows:

o White o Yellow

o Black o Green

o Magenta o Cyan

o Red o Blue

To make the digital closed captions easier to read,

you can choose the background color. The available

background colors are as follows:

o White o Yellow

o Black o Green

o Magenta o Cyan

o Red • Blue

NOTE: If you choose the same color for the fonts

and background, Closed Captions will not be

visible.

Opacity (Font}

You can customize the visibility of your fonts using the

following categories:

Transparent - See-through text to the TV program

Translucent - TV program is visible behind the

text

Opaque -Soiid color text; biocks the TV program

Flashing - Text flashes in intervals

IMPORTANT

We recommend you use contrasting colors

between captions and background. In

particular, Black background with translucent

opacity and White font are ideal.

Care must be exercised when selecting

customized colors. Your choice may change

legibility or readability of captions.

Background Opacity

You can customize the background for digital captions

using the following categories:

Transparent - See-through background to the TV

program

Translucent - TV program is visible behind the

background

Opaque -SoIid background; biocks TV program

Hashing - Background flashing in intervals

__ptions show strange

___d grammar, it is

V-Chip Lock Menu

VoChip Lock Menu Overview

The V-Chip Lock menu allows you to Mock or allow

programs based upon rating signaHs sent by the

broadcaster, or Mock TV viewing during specific

times. You can turn the V-Chip Lock On or Off using

the V-Chip menu or the V-CHIP button on the remote

control The TV comes from the factory with the V-

Chip Lock in the Off setting.

When On, the factory preset is TV-PG for TV ratings

or PG for movie ratings, allowing onHyprograms rated

TV-PG/PG or Hower. Use the V-Chip Menu to change

the aHowaMe rating HeveHs.After changing channeHs

or devices, there may be up to a 5 second deHay

before the V-Chip Hocktakes effect.

VoChip Lock Menu

Figure 21

The V-Chip Lock menu can be used in severaH ways. If

you want to lock the entire TV during specific hours,

select Lock by Time from the V-Chip Lock menu. To

set the lock, press ADJUST • or V to select On or Off

for Lock by Time. If you select On, then press ADJUST

I_ to move to the Lock Time box. Press ADJUST • or

V to select Lock Time.

Press ADJUST • or V repeatedly to slowly select

the hour or press and hold to quickly select the hour.

Press ENTER to move to the minutes options. Press

ADJUST • or V to select minutes, then press ENTER

to select AM or PM. Repeat these choices to select

the Unlock Time.

Setting the Lock Time and Unlock Time to the same

time will make the Lock by Time active 24 hours a day.

During the Lock Time, you must use your passcode to

view the TV.

SeJecting a Passcode from the VtOhip

Lock Menu

Figure 20

The V-CHIP PARENT LOCK screen shown below

displays when you select the V-Chip Lock menu from

the Main menu. To access the V-Chip Lock menu,

input a four-digit passcode with the number buttons

on the remote control, then press ENTER. You

can delete a number and move back one space by

pressing CANCEL or you can exit without inputting

a passcode by pressing MENU or HOME before

pressing ENTER. The next time you select V-Chip

Lock you will see "...enter your passcode" instead of

"...enter a new passcode'.

Figure 20, V-Chip Entry screen from Menu

Figure 2I, V-Chip Lock Menu

Front Button Lock

Figure 21

Front Button Lock lets you disable controls on the

front panel to prevent unwanted setting changes.

Select On to lock out the operations of the front panel

buttons and select Off to restore the operations of the

front panel buttons.

If the front panel buttons have been locked and

you misplaced the remote control, you can restore

the function of the front panel buttons by pressing

and holding the MENU button on the front panel for

more than 8 seconds. If the TV is on, a message will

display to confirm the release of the Front Button Lock.

V-Chip Lock Menu, continued

Using V-Chip with Program Ratings

Figure 22

You can choose the program ratings that you want

to allow during specific times of the day by using the

ADJUST buttons to higMight V-Chip from the V-Chip

Lock menu and press ENTER. When you seHect V-

Chip the screen in Figure 22 will dispHay.

Press ADJUST • or • to seHect On or Off. If you

seHected On then press ADJUST _ to move to the TV

Rating box. Press ADJUST • or • to seHect the TV

Rating HeveHyou want to allow. Press ADJUST _" to

move to the TV Content Categories and press ADJUST

• or • to seHect. Press ENTER to add a check mark

to the TV Content Categories you want to bHock.

Press ADJUST _"to move to the Programs Not rated

box and press ADJUST • or • to seHect a program.

Press ENTER to add a check mark to programs that

are not aHowed.

NOTE: If you seHect to Mock programs that carry the V-

Chip rating Programs Not rated, you may block News

or Emergency Bulletins, when "None" or "NR" Not

Rated V-Chip rating is induded. Care should be used

when blocking programming that is not rated.

Press ADJUST _"to move to the Movie Rating box.

Press ADJUST • or • to select the Movie Rating

level you want to allow. See the next page for detailed

information on rating guidelines.

To set the times when these guidelines will be active,

press ADJUST • or • to slowly select the time,

starting with the hours. Press and hold ADJUST •

or • to quickly select the hours, press ADJUST _" to

select the minutes.

By setting the V-Chip Start Time and V-Chip Stop

Time to the same time, the V-Chip will be active 24

hours a day.

Figure 22, V-Chip Menu

Using the Passcode from the V-Chip

Lock Menu

When a channel or the TV is locked, figure 23 will

display. To view a V-Chip blocked program or to watch

the program during a scheduled lock time, you must

enter your 4-digit passcode or change to an unlocked

channel or allowed program. Once you have entered

the passcode, the V-Chip Lock or Lock by Time will

remain released until the TV is powered Off and then

On again.

Figure 23, V-Chip Passcode screen

Using the V-Chip from the Remote

Figure 24

You will see the screen shown below when you first

press V-CHIP on the remote control. To quickly turn

on or off the V-Chip Lock, input a four-digit passcode

with the number buttons on the remote control, then

press ENTER. To change any V-Chip settings, you

must use the V-Chip Lock Menu.

Figure 24, V-Chip Entry screen from Remote Control

V+Chip Rating Guidelines

V+Chip Signal information

When provided by the broadcaster, V-Chip ratings can be used to control which programs can be viewed or will be blocked.

When V-Chip ratings are sent, you will see the ratings when you change the channel or when you press the HNFObutton on the

remote control. Both TV and Movie ratings wilI display. TV ratings apply to programs and movies developed for TV and may

have supplemental blocking by content categories. Movie ratings use MPAA ratings for movies released in theaters.

TV Ratings:

Used with TV programs and Made-for-TV movies.

TV-Y Youth, for chiHdren under the age of 7.

TV-Y7 Youth, 7 years oHdand oHder. For cNdren 7 years oHdand oHder.

TV+G GeneraHAudience. For the entire famiHy to view.

TV-PG ParentaHGuidance. ParentaHGuidance is recommended, may not

be suitabHe for some chiHdren.

TV-14 AdoHescent 14 years oHdand oHder. Not recommended for chiHdren

under the age of 14.

TV-IVIA Mature Audience. For aduHts onHy.

TV Rating FV D L S V

TV=Y

TV-Y7 X

TV-PG X X X X

TV-14 X X X X

TV-MA X X X

Content Categories:

Used in association with the TV ratings above.

FV Fantasy VioHence- appHies to TV-Y7 onHy+

D SexuaHDiaHog- appHies in different degrees to TV-PG and TV-14.

LAduHt Language-appHies in different degrees to TV-PG, TV-14, and TV-MA+

S SexuaHSituations- appHies in different degrees to TV-PG, TV-14, and TV-MA

V VioHence(graphic or reaHistic)-appHiesin different degrees to TV-PG, TV-14, and TV-MA.

When you semect a TV rating, you are semecting the recast-restricted program mevemthat can be viewed. As an

example, if you select TV-PG, you are allowing programs rated TV-Y, TV-Y7, TV-G and TV-PG to be seen and

blocking programs rated TV=14 and TV=IVIA. When you select a TV Content category, you will block aimTV

programs that have the same content category misting. As an exampme, if you semect to bmock V(Viomence) at

the TV=14 level, you will also block any program that has the Vcategory listing at the TV=PG rating level as

well.

lViovie Ratings:

Used with theater reHeased movies and direct-to-video movies+

G GeneraH Audience- Designed for the entire famiHy to view+

PG ParentaH Guidance- ParentaH Guidance is recommended, may not be suitabHe for some chiHdren+

PG-13 ParentaH Guidance 13 years oHdand oHder- Not recommended for chiHdren under the age of 13+

R Restricted- Restricted in the theater to 17 years oHdand oHder unHess accompanied by an aduHt+

NC-17 No ChiHdren- Restricted in the theater to 18 years oHdand oHder+

X AduHt- Designed for and restricted in the theater to aduHtaudiences onHy+

When you select a lViovie rating, you are selecting the least restricted program level that can be viewed. As

an exampme, if you semect a movie rating of PG=13, you are ammowingmovies rated G, PG and PG=13 to be seen

and blocking movies rated R, N0=17, and X.

Programs Not Rated: Used for programs that are

not rated Hikenews, sports, weather, emergency

buHHetins,or movies such as those prior to or without

MPAA Ratings.

This does not incHude programs without V-Chip signaHs+

AudioVideo Menu

Figure 25

Figure 25, Audio/Video Menu, Settings

A/V Memory Reset

AiV Memory Reset allows you to seHect the device

which will have the AiV Settings returned to the

originaH factory settings. To return a device's memory

to the originaH factory settings, seHect the device and

then press ENTER.

Each device has its own AiV memory. SeHect the

device in AiV Memory Reset, then seHect Audio or

Video to adjust the device's individuaH settings. Press

ENTER, and the menu is removed and the individuaH

settings are dispHayed.

Use ADJUST • or V to seHectthe individuaH settings

to be adjusted. Use ADJUST • or _ to make the

adjustment. For descriptions of the individual AiV

settings see AiV Setting Descriptions, pages 77 and

78.

Video Mute

Video Mute lets you display a blue background when

no signal is being received on Inputs 1-3, MonLink, PC,

Components 1-2 and Input DTV.

BJack Enhancement

Select On to enhance the contrast in bright scenes

for better picture quality. Darker scenes will not be

affected.

TV Speakers

This selection will turn on or off the TV's internal

speakers. You may select Off when sending the sound

the AiV receiver icon from the Device Selection menu

automatically turns Off the TV speakers. See the

NetCommand information for further instructions.

Note: To prevent damage from a sudden increase

in volume, make sure the TV volume is set to low

before setting speakers to ON.

Using the AUDIO or VIDEO Button on the Remote

Control

To adjust individual Audio or Video settings directly

with the remote control:

1. Press AUDIO or VIDEO to cycle through the

available settings.

2. Press ADJUST • or _ to adjust the setting. After

5 seconds of inactivity, the setting display will

disappear.

A/V Setting Descriptions: Audio

NOTE: The effects of the Audio Settings of Bass, TrebHe, BaHanceand Surround affect the sound heard through the ]

TV speakers onHy. /

AnaJog and DigitaJ Audio Setting

A sHiderwiHHdispHay on-screen for most settings.

When the sHideris dispHayed it has a numeric vaHue,

where 63 is the maximum, 31 is the mid-point and 0 is

the minimum.

0Bass

Enhances or reduces How-pitch sound.

0Treble

Enhances or reduces high-pitch sound.

0Balance

Adjusts the HeveHof sound between the Heftand right

speakers.

0Surround

Creates simuHated stereo and surround dfects

through the TV speakers. Your choices are:

Off: No surround dfects.

Surround Sound: Your TV wiII create a simuIated

surround effect when watching a stereo program.

SimuJated Stereo: Your TV wiII create a simuIated

stereo effect when watching a non-stereo program.

AnaJog Orfly Audio Settings

0Listen to

Determines how your TV wiHHreceive a broadcast

audio signaHand pHayback the sound you hear.

Your choices are:

Stereo: DefauHt setting. The TV wiHHpHay

stereo broadcasts in stereo and mono

broadcasts in mono. The word "Stereo" wiHH

be dispHayed when you tune to a channeH

broadcasting stereo.

SAP (Second Audio Program): AdditionaH

monauraH soundtrack that you cannot hear

during normaHTV viewing. The SAP signaH

might be reHatedto the program you are

watching, such as a soundtrack in a foreign

Hanguage, or unreHated to the program you are

watching, such as a weather report. If an SAP

signaH is broadcast, the Hetters "SAP" wiHHbe

dispHayed when you tune to the channel

Mono: Reduces background noise and shouHd

be used when receiving a weak stereo audio

signal AHHaudio wiHHbe pHayedmono with this

setting.

Listen to is not avaiHabHefor devices connected to

the TV Inputs, Component inputs or 1394 devices.

Level Sound

Turn On or Off to automaticaHHyequaHize the

voHume HeveHof programs containing significant

HeveHdifferences from one segment to another (for

exampHe, reguHar programming to commerciaHs). To

receive the best fideHity with music programs, you

can turn this setting to Off.

DigitaJ Orfly Audio Settings

0Language

Determines what possibHe Hanguage you wiHHhear.

Your choices are:

EngHish

French

o German

ItaHian

Portuguese

Spanish

"Other"

Level Sound

AutomaticaHHy reduces Houdpassages and boosts

soft passages to a more uniform Houdness. When

connecting to an AiV receiver, set HeveHsound

to OFF and turn the TV speakers off to send fuHH

dynamics to the AiV receiver.

This feature onHyworks with DoHby DigitaHsources.

Other digitaH audio formats do not offer this

dynamic range control In these cases, no effect

wiHHbe heard when changing the HeveHsound

setting.

A/V Setting Descriptions: Video

Video Settings

0 Contrast

Provides a siider to adjust the white-to-Mack bveL

Low contrast shows a variety of shades in darker

images, whiie high contrast shows darker images

more uniformiy Mack and makes coiors appear

more vibrant. In most home iighting situations, a

medium contrast Hooks best. High contrast is good

for brightly Hitenvironments.

0Brightness

Provides a siider to adjust the overall brightness of

the picture.

0Sharpness

Provides a siider to adjust the detaii and charity,

0Color

Provides a siider to adjust the coior intensity,

0Tint

Provides a slider to adjust the proportion of red to

green.

0Color Temp (Color Temperature)

Allows you to adjust how images are displayed.

Your choices are:

Low 6500K or Low (for DTV): White images will

have a warm cast to them. This adjustment is

an average and can vary due to ambient room

lighting, video scene brightness and the TV's

age. The Low 6500K represents the 6500K

industry standard for NTSC (non-DTV) pictures.

o Medium: White images will be balanced

between the Low (warm) and High (cool)

settings.

High: White images will have a cool cast to

them. This setting may provide the most

realistic picture under bright lighting_

0Video Noise

Use to reduce minor noise (graininess) in the

broadcast received on Ant-1 and Ant-2 or Inputs 1-3,

Component 1 and 2 and Input-DTV. Use standard

with good quality signals.

0Film Mode (Auto} -On or Off

On is the automatic setting and will automatically

detect and apply film decoding correction for

signals that originated on 24 frames per second film

cameras and then were converted for broadcast to

30 frames per second video.

When the original signals originated on 30 frames

per second video cameras, the On setting will

automatically apply video decoding, the same as

used with the Off setting. Try the Off setting when

the TV seems to have difficulties and adds too many

jagged edges to the images.

Film Mode is not effective for progressive scan (480p)

devices, and high definition signals.

DefinEdge

Selected image outlines are emphasized, resulting

in sharper images, when On. When Off, the edge

enhancer functions are prevented. The default is

On,

NOTE: A slider will display on-screen for most

settings. When the slider is displayed it has a

numeric value, where 63 is the maximum, 31 is the

mid-point and 0 is the minimum.

For a CurrentJy Viewed PC

0Auto Position

Press ENTER to automatically center the position

of the PC video. This can be used whether the PC

video is on the main or PIP/POP screen.

HorizPosition (Horizontal Position}

Manually adjust the horizontal position of the PC,

either on the main or PIP/POP screen. This sele

ction wiii override the Auto Position selection.

VertPosition (Vertical Position}

Manually adjust the vertical position of the PC,

either on the main or PIP/POP screen. This

selection will override the Auto Position selection.

Fine Detail

Manually adjust the picture quality of the PC, either

on the main or PIP/POP screen. This selection wiii

override the Auto Position selection.

0PC Contrast

Manually adjust the picture contrast of the PC when

it is the PIP or POP.

Operation of PiP and POP

You can display programs from analog channels, analog inputs or devices as Picture-In-Picture (PIP) and Picture-

Outside-Picture (POP). The TV has a second analog tuner for non-scrambled analog channels received on Ant-1 and

will display them as the PIP/POP sub-pictures. Digital channels and devices can be shown as the main picture but

cannot be the sub-picture. PC screens can be viewed in the side-by-side mode.

Press PIP/POP to activate the PIP/POP option. With

each press of the PIP/POP button on the TV remote

control (within seconds of each other), the PIP/POP

will cycle through the following display options:

MAIN

PICTURE Side-by=Side

POP

side-by-side

pictures

MAIN


POP1 I

POP 2 I

POP 3 I

3POP

MAIN


POP 1

POP 4

POP 7

POP 2 POP 3

POP 5 POP 6

POP 8 POP 9

9POP

Antq 2 XX)O(

Standard

Stereo SAP

TV-PG DLSV

SQVt

PIP Antq 17

o PIP large

Ant-12 _O(XX

Standard

Stereo SAP

TV-PG DLSV

SQV1

PIP Ant-t 17

[]

oPIP small

Ant-12 XXXX

Standard

Stereo SAP

%/-PG DLSV

SQVl o PIP/POP: off

To turn PIP/POP off, wait at least 10 seconds, and

press PIP/POP. The next time you activate PIP/POP,

the last used PIP/POP option will be displayed

Changing PIP/POP Device

Press PIP DEVICE to change the PIP or POP picture

source device. A menu similar to the Device Selection

menu will be displayed.

Changing PIP/Side-by-Side CharmeJs

Press PIP CH to scroll up and down through

memorized channels on Ant-1 and Ant-2.

Exchanging Program Images

Press EXCH to exchange the main picture and the PIP/

POP picture. Pictures from digital channels can only

be shown as the main picture.

Moving PIP image

If no menus are onscreen, press ADJUST A, Y, _ or •

to move the PIP display anywhere on the main screen.

Automatic POP Switching

When automatic POP switching is active, the TV will

cycle through memorized analog channels on Ant-1 or

Ant-2 or strobe pictures from other AiV components

in the POP display. Press PAUSE to pause or restart

SeJecting POP "Live" Image

Press ADJUST A V, _ or • to select a different POP

"live" image (automatic POP switching must be paused.)

Freezing the PIP and Side-By-Side Picture

Press PAUSE to freeze the PIP and side-by-side

images. Press PAUSE again to return to a "live" image.

IMPORTANT

=Side cannot show the same channel or

on both sides,

ff Ant=l or Ant-2 is the main picture, Ant=2 is not

available as a PIP, POP or Side-by-Side,

PIP/POP is not compatible with signals from

media cards.

If TV Pause is set to "Always" PIP/POP and Side-

by-Side are not available,

DispUay Formats ............................................................................ 82

Device Control with NetCommand® ........................................... 85

Appendix A: Bypassing the V-Chip Lock ..................................... 87

Appendix B: Specifications ........................................................... 89

Appendix C: Remote ControU Programming Codes ................... 91

Appendix D: On-Screen information Displays ............................ 94

Appendix E: NetCommand® SpeciaUized Device Keys ............. 95

Appendix F: CUeaning and Service ............................................... 96

Appendix G: Diamond ShieJd TM RemovaU .................................... 97

Appendix H: FiUter CUeaning .......................................................... 98

Lamp RepUacement .................................................. 99

............................................................................. 101

Additional Information ................................................................... 106

Index ................................................................................................ 107

Wa rra nty ......................................................................................... 109

Display Formats

This is a widescreen TV (also known as a 16:9 TV). This shape reflects the new types of images available from HDTV

and many DVDs. There are still many older style narrow screen images (called 4:3 aspect ratio) you will encounter.

While there will never be a perfect solution for displaying a narrow image on a wide screen, Mitsubishi offers several

display formats to choose from.

Press FORMAT on the TV remote control to cycle

through the available display formats. The last used

format for each device will be used when you return to

that device.

Note: Not all formats are available for

PIP/POP. Side=by=Side, 3POP and 9 POP are

onmyavaimabmein Standard and Expand formats.

PC formats vary depending on PC signal

Zoom: This wiii enlarge the picture, cropping off some

of the image at each side and top and bottom. This is

useful to remove or reduce the black top and bottom

bars on anamorphic DVDs with a 2_35:1 aspect ratio.

Available for analog 480i and 480p and SD 4:3 signals

oniy.

Stretch: This format wiii stretch a narrow (4:3) image

across the screen, however, there is less stretch in the

center than the sides. This will allow the entire narrow

image to be displayed across the screen with less

distortion than seen in the Standard format. Available

for analog 480i and 480p and SD 4:3 signals only.

SignaJs and Formats Definitions:

480i Signals: Traditional analog interIaced signals from

or through Ant-1 & 2, Inputs 1-3, Component 1 & 2,

Input-DTV and HDML

480p Signals: Progressive scan analog DVD signals on

Antq & 2, Componentq & 2, Input-DTV and HDMI,

720p & 1080i Signals: High definition analog signals

received through ComponentH & 2, Input-DTV and HDML

These signals are always 16:9 (widescreen),

SD 4:3: Standard definition narrow screen format

signals from digital channels and IEEE 1394 devices.

S[:) 1(}:9: Standard definition wide screen format signals

from digitaI channels and EEE 1394 devices,

HI:): High definition wide screen format signals from

digita! channets and EEE-1394 devices, These signals

are always 16:9 (widescreen),

Standard: This is the full screen formal HDTV

signals use this formal This format is useful to display

Anamorphic DVDs that have 1.78:1 or 1.85:1 aspect

ratios. Anamorphic DVDs that have a 2.35:1 aspect

ratio will still display black bars at the top and bottom,

but wiii show the entire image correctly. Narrow (4:

3) images wiii be stretched evenly from side to side.

Available for aii signals.

Expand: This wiii enlarge the picture to fiii the screen,

cropping off some of the image at the top and bottom.

This is useful to reduce the letterbox top and bottom

bars of non-anamorphic DVD. Available for analog

480i, 480p and digital SD 4:3 signals only.

Stretch Plus: Similar to stretch mode, however

to minimize distortions on the side, the picture is

expanded to crop off portions of the top and bottom.

Useful when no important information is shown at the

top and/or bottom of the screen. Available for analog

480i and 480p and SD 4:3 signals only.

Narrow: This format wiii display narrow (4:3) images in

their original shape, and add stationary black side bars

to fill the screen. Available for 480i, 480p and digital

SD 4:3 signals only.

Wide Expand: Enlarges the picture, cropping some of

the image on both sides. This Expand format is useful

to remove or reduce black side bars added to narrow

images that are converted to 16:9 signals for digital

broadcasL Available for analog 1080i, 720p, digital SD

16:9 and digital HD signals.

OVO Definitions:

Anamorphic (or Enhanced for Widescreen TV's}:

These DVDs are recorded in a special way to properly

show widescreen images on 16:9 TV sets in the

Standard format mode. This is the recommended

choice.

Non-Anamorphic (or 4:3, 1:33:1, Letterbox or Full

Screen}:

These DVDs are recorded for use with traditional

shaped TVs. They may be fuii screen (4:3 or 1:

33:1) which crops movies to fit the narrow TV, or

Letterboxed which adds black top and bottom bars.

This information may or may not be listed on the DVD

case. Some DVDs support both types of recordings.

TV Display Formats

ORIGINAL SIGNAL

Non-anamorphic or SD 4:3

Standard

TV Display

(not recommended, distorted)

Expand

_O not available for

HD, SD 16:9 or

analog 720p, 1080i

(recommended for letterboxed)

Zoom

__) _ (_ not available for

HD, SD 16:9 or

analog 720p, 1080i

(not recommended, distorted)

Stretch nota a,,a ,efo

HD, SD 16:9 or

analog 720p, 1080i

(recommended for standard broadcast)

Stretch Plus

_O not available for

HD, SD 16:9 or

analog 720p, 1080i

(recommended for standard broadcast)

Narrow

(with side bars in broadcast)

Original HD or SD

16:9, 720p or 1080i

ORIGINAL SIGNAL

Anamorphic DVD

TV Display

(recommended)

Standard

_ __ (,_ not available for

Expand@ @ HD, SD16:9or

analog 720p, 1oaoi

(not recommended, distorted)

Zoom

not available for

HD, SD 16:9 or

analog 720p, 1080i

(recommended for anamorphic 2.35:1)

Stretch

(not recommended, distorted)

not available for

HD, SD 16:9 or

analog 720p, 1080i

Stretch Plus

(not recommended, distorted)

not available for

HD, SD 16:9 or

analog 720p, 1080i

Narrow not available for

HD, SD 16:9 or

analog 720p, 1080i

(not recommended, distorted)

available only for

Wide Expand (_ digital SD 16:9, HD,

oanalog 1080i or 720p

(recommended to remove side bars)

PC Display Formats

_ignai Format

)riginal PixemCount Reduce 1 Reduce 2 Standard Zoom

VGA 4:3

648 X 480

WVGA 16:9

848 X 480

Aft 4 formats

available

for above inputs

SVGA 4:3

800 X 600

WSVGA 16:9

1084 X 000

All 4 formats

available

for above inputs

XGA 4:3

1024 X 708

PC 720p 16:9

1280 X 720

1088 x 612

864 X 648

1152 x 648

640 x 480

848 X 480

800 x 600

1064 X 600

1024 x 768

1280 x720

848 X 648

1149 X 648

864 x 648

1149 X 648

1152 x 864

Device Control with Net Command °

NetCommand Compatibme Traditionam Devices (Anamog)

When Device Selection Menu is Dispmayed and the Device is Highlighted {Yellow Outline)

eA/V RECEIVER VCR DVD CABLE BOX/DBS

POWER Power On/Off Power On/Off Power On/Off Power On/Off

(toggle) (toggle) (toggle) (toggle)

GUmDE Changes Changes VCR inputs n/a Changes antenna inputs (RCA

between digital model DTC-100 only)

and analog

audio

FORMAT n/a n/a Changes output between inter- Changes output between HD and

laced and progressive SD select models

When Net Command@ Compatible Traditional Device is Viewed or Played

A/V RECEmVER VCR DVD CARLE/DBS

OH up/down Channel up/down Skip Forward/Backwards Channel up/down Page up/down

Chapter or Track when guide showing

VOL up/down Volume

Up/Down

MUTE Mute On/Off

0_9 (digits} number functions number functions number functions

QV Last Channel Recall

DEVICE Menu 1st press Transport Menu, 1st press Transport Menu, Setup menu display or Action

2nd press Setup Menu display 2rid press Setup Menu display function

HOME

ENTER Enter or select Enter or select

CANCEL Counter Reset Exit or return Exit or return

GUmDE Disc menu display Channel Guide

ADJUST up/down left/right up/down left/right

PLAY Play Play

STOP Stop Stop

RECORD Record

REW/REV Rewind/Reverse Reverse

FF/FWD Fast Forward or Fast Play Fast Play

Device Control with Net Command O, continued

mEEE 1394 Devices

When Device Selection Menu is Displayed and the Device is Highlighted (Yellow Outline)

'_ Device TUNER/ A/V DISC DVCR AMPLmFIER

CABLE BOX/

DBS

Remote

Controm Butto_

POWER Power On/Off Power On/Off Power On/Off Power On/Off

(toggle) (toggle) (toggle) (toggle)

G U 1DE n/a n/a n/a n/a

FORMAT n/a n/a n/a n/a

When an (EEE 1394 Device is Viewed or Played

_ OABLE/DBS TV Disc or A/V DISC DVCR AMPLIFmER

ON up/down Channel up/down Page up/down Index search forward/reverse

(when track list is displayed) (if supported by DVCR)

VOL up/down Volume Up/Down

MUTE Mute On/Off

0_9 (digits} number functions Search by time

(when followed by ENTER)

OV Last Channel Recall

DEVICE Menu n/a Transport Menu red!splay Transport Menu red!splay Device Menu

HOME Exit menus/displays Exit menus/displays Exit menus/displays Exit menus/displays

ENTER Enter or select Enter or select Enter or select Enter or select

CANCEL Cancel function Cancel function Cancel function or Counter Cancel function

Reset

GUIDE Digital Channel Track or program list display Digital Channel Guide

Guide

ADJUST up/down left/right Skip Forward 30 seconds up/down left/right up/down left/right

(during playback)

Skip Backwards 12 seconds

(during playback)

Skip to end or beginning of program

Page up/down in track list

PLAY Play Play

STOP Stop Stop

RECORD Record Record

REW/REV Reverse picture scan or Slow Play Reverse or Slow Play

FF/FWD Fast picture scan or Fast Play Fast Play

Appendix A:

Bypassing the V-Chip Lock:

® gg

Bypassing the V-Chip Lock

After you set the Hock,you need your passcode to view

a V-Chip Hocked program, view the Hocked TV, canceH

the Hock,or enter the V-Chip Lock menus.

If you forget your passcode, you can view the Hocked

TV without entering your passcode. This is done by

pressing the number 9 and QV buttons on the TV

remote controH at the same time, when your passcode

is requested. This process temporariHy unHocks the TV.

When entering the V-Chip Lock menu, this process

deHetes your oHdpasscode and prompts you to enter a

new passcode. Press HOME to exit the menu.

Bypassing Front Button Lock

If you have mispHaced the remote controH, you can

bypass the front button Hock by pressing and hoHding

the MENU button on the front paneHfor more than 8

seconds.

IMPORTANT

When changing or deleting your

passcode, you must use the remote

control included with this TV. You

,cannot use a Mitsubishi remote

control from another component or a

universam" remote.

This page intentionally bJank

Appendix B: Specifications

From time to time, Mitsubishi may offer software updates to expand the features or operation of this TV. When

these updates are avaiHabHethey win be announced on our web site, Mitsubishi-tv.com. If you return your Owner's

registration card, with your mode[ and seria[ number, you may receive written notification of avaiHabHesoftware

updates.

TV Specifications

Projection System DLP, 0,8" chip, t280 x 720 pixems

, Lamp 120 watt VIP type

Channem Frequency Reception Over=the=Air: VNF 2 = 13, UNF 14 - 69

Analog Cable: 1 =125

Digitam Cabie: t - 135

Channem Type Over the Air: Analog NTSC, DigitamATSC with sub-channels

(aN18video formats)

Cable: Anamog NTSC (non-scrambmed)

Digita_ QAM 64 and 256 with sub-channels (non-scramMed)

CabmeCARDTM:Authorized scrambled and non=scrambled digita[ channels

Note for Digita[ Channels: The channel numbers dispBayed on-screen are determined by the broadcaster or cable

company and can vary from the standard frequency number, If there is no channel number information included from

the broadcaster or cable company, then the TV win create a channe[ number based on the frequency number as the

main channel number and the program number as the sub-channel number, When using an authorized CabmeCARD, the

channem numbers are determined by the cabme company,

[nputs

Antenna/Oabme input Oty 2 F connector, 75ohm

NDMI (digita[ video/audio), Qty 1

Signa[ Type

Video/S=Video, Qty 3 each

Signa[ Type

Component Video (Y/Pr/Pb) Qty 2 sets

Signa[ Type

lnput=DTV (Y/Pr/Pb or RGBH&V) Qty I set

Signa[ Type

PC Input (RGB) Qty 1

Signa[ Type

[ Audio Inputs: Qty 8 pai_

NDMi standard connector

NDMi standards for digital audio and video, Not intended for use with

personal computers

Video: RCA Pin Plug, 1,0 V p=p, 75 ohm

S=Video: Four Pin Din Piug

Y: 1,0 Vp=p 75 ohm

C: 0,28(} Vp=p (burst signam), 75 ohm

NTSC 480i only

RCA Pin Plug (EIA-770,3 Standard Levemsand Timing)

Y: 1,0 Vp-p (includes sync}, 75 ohm

Pr: 700 mVp-p, 75 ohm

Pb: 700 mVp=p, 75 ohm

EIA=770,1 & EIA 770,2 480i, 480p, EIA 770,3 720p and 1080i (video

standards)

RCA Pin Piug,

When used as Y/Pr/Pb same as component inputs shown above

When used as RGBN&V:

R (red): 700 mVp=p, 75 ohm

G (green = no sync): 700 mVp-p 75 ohm

B (blue}: 700 mVp=p, 75 ohm

H (horizontal sync): 3 Vp-p +/=l,0v, 2,2k-ohm

V (verticam sync): 3 Vp=p, +/- 1,0v, 2,2k-ohm

EIA=770,1 & EIA 770,2 480i, 480p, EIA 770,3 720p and 1080i (video

standards)

Mini-D Sub, 15 pin

VGA (640 x 480), 80Nz

Some WVGA (848 x 480}, 80 Nz might be compatible, but not guaranteed

SVGA (800 x 800}, 60Nz

XGA (1024 x 788), 80 Nz

1280 x 720, 80 Nz (EIA standards)

RCA Pin Plug 500mY (fun scale), 43kohm

Appendix B: Specifications, continued

Outputs

Video

Video, Oty f Video: RCA Pin Pmug f,0 Vp=p, 75 ohm

SignaB Type NTSC 480i only

Audio

Monitor Output, Qty 2 pair RCA Pin Pmug,500 mV rms _+200 mV (full scame) for analog sources,

1,5 V +_0,5 V (full sca_e) for digitam sources,

Digitam Interfaces:

Digitam Audio Output, Qty I RCA Pin Pmug,Signam Type, Dotby Digitam

mEEE 1394, Qty 3 mEEE t394 Four Pin type Terminam, S400

Audio/Speakers f0 watt x 2, 5" coaxiam speakers

Dimensions

WD=52825 H 37=f/4" x W 49-5/8" x D f7=3/8", f32mbs

WD=62825 H 43-5/8" x W 58=5/f6" x D f9=7/8", 165 robs

Power Consumption 275 watts

Net command® mEEE f394 System Compatibility:

This telev{sion is designed to conform to mEEEf394 AV/O Software standards in effect at the time of development, This

excit{ng new networking and controm technomogy is designed to provide high-performance digitam connections and

product controm, making the product easier to use,

Mitsubishi D=VHS VCRs are fully compatibme with this TV in audio, video and control Many DV camcorders that have

mEEE f394 connections will be compatibme with the controm features of this TV, but not compatibme with the audio or

video decoder,

As other manufacturers distribute products that use the mEEEf394 AV/C standards, they will be responsible for

devemoping products that meet the standards of the technomogy, as well as compatibility testing with other products,

Mitsubishi cannot be responsibme for their efforts, and therefore cannot promise compatibility with these other

products, Any compatibimity problems with other manufacturers products shoumd be brought to the attention of those

manufacturers,

The HDMm input is compliant with EmA-86f£ standards for standard, extended and high definition video, digita_ audio

and HDCP copy protection, However, this input is not intended for use with personal computers or devices outputting

video signams with computer resomutions,

Appendix C:Remote Controm Programming Codes

iMPORTANT

he remote controm may return to its

nitiai setting when the batteries are

Programming the Remote to ControJ

NetCommand A/V Products

1. Move the slide switch at the top of the remote to the

TV position.

2. Press and hold POWER on the remote control.

3. Enter the three digit code of 935, and then release

POWER.

4. When the remote control is in the TV position, it is

now programmed to send NetCommand signals to

the TV so the TV can control the IEEE 1394 devices

and eider NetCommand supported or barned IR

devbes.

(This is the default setting for the remote control.)

Programming the Remote to ControJ

Other Brands of Audio and Video

Products

1. Move the slide switch at the top of the remote to the

product you want to control.

2. Press and hold POWER on the remote control.

3. Enter the first three digit code listed for your

equipment, and then release the POWER button on

the remote control.

4. Point the remote control at the equipment and press

the POWER button. If the equipment responds, the

remote control is properly programmed to operate

the equipment. If the equipment does not respond,

repeat steps 2-4 with the next three digit code listed

in step 3 for your equipmenL

A/V Receivers

A/V Receiver Brand

MITSUBISHI

AIWA

BOSE

B&K

DENON

FISHER

GARRARD

HARMAN KARDON

JENSEN

JVC

KENWOOD

KLH

KOSS

MAGNAVOX

MARANTZ

MCINTOSH

NAKAMICHI

ONKYO

OPTIMUS

PANASON IC

PARASOUND

PHILIPS

PIONEER

POLK AUDIO

QUASAR

RCA

ROTEL

SANSUI

SHARP

SHERWOOD

SONY

TEAC

TECHNICS

VICTOR

YAMAHA

Code

010, 0!1,012, 013, 014

225,226, 241

351

352

234, 235, 236, 245,246, 359, 361

2O4

213

215,223, 242, 362

223, 229

232, 233

200, 208

363

357

227, 228

224, 350, 360

216

206, 217

209, 214, 240, 247

203, 227, 231,230

219, 218, 221

356

223, 248

205, 207

353

219, 218, 221

203, 205, 227, 231,230

366

203, 21% 239

234, 237

354,355

222, 249, 364, 365

212, 213, 211,210

221,218, 219

232, 233

201,202, 243, 244

CabMe Boxes

Cable Brand

ABC

ARCHER

CABLEVlEW

CITIZEN

COLOR VOICE

COMTRONICS

CURTIS

DIAMOND

EAGLE

GCBRAND

GEMiNi

GENERAL iNSTRUMENT/

JERROLD

HAMLIN

HiTACHi

MACOM

M AG NAVOX

MOTOROLA

MEMOREX

MOVIETIME

PANASONIC

PARAGON

PHILIPS

PIONEER

PULSAR

RCA

REGAL

REMBRANDT

SAMSUNG

SONY

ZENITH/DRAKE SATELLITE

Code

124

125

105,

122, 105

128, 129, 130, 106, 107

112, 113

124,125

129

105

112, 113

122

121,122

112

103, 124

103, 104, 105,108

128, 129, 130, 106, 107, 133, 138

123, 146

130

105,

114

117

138

101,106, 116

105

115

112

105, 138

105

147, 177

100

Appendix C: Remote Control Programming Codes,

CabMe Boxes, continued

SCiENTiFiC ATLANTA

SIGNATURE

SLMARK

SPRUCER

STARCOM

STARGATE

TELEVIEW

TOCOM

TOSHIBA

UNIKA

UNITED CABLE

UNIVERSAL

VIDEQWAY

VIEWSTAR

ZENITH

112, 1!3, 194

119,124,125,126,127,120,121,122

105,101

105

119,124,125,126,127,120,121,122

105

101,105

135,136

104

125

119,124,125,126,127,120,121,122

122

106

129,130

117,100

DVD Brand

MITSUBISHI

AIWA

APEX

BOSE

DENON

EERGUSON

HARMAN KARDON

HiTACHi

JVC

KENWOOD

MINTEK

NORDMENDE

ONKYO

ORITRON

PANASONIC

PHILPS/MAG NAVOX

PIONEER

RCA/GE/PROSCAN

ROTEL

SABA

SAMSUNG

SAMPO

SHARP

SYLVANIA

SONY

THOMSON

TOSHIBA

V INC. (BRAVO D1)

YAMAHA

ZENITH

Code

003

261,274

266, 283

286

250 2_73

251

282, 288

27O

257

271,289

285

251

267, 280

263. 268

250

258 253 272, 290

252

25!, 256

292

251

261

263

260

264

254, 278, 279

251

253

291

250, 272, 276, 287

259

Satellite Receivers/DBS/DTV

DBS Brand

MITSUBISHI

ECHOSTAR/DISHNETWORK

EXPRESS VU

G.E.

HiTACHi

HNS(Huqhes)

JVC (ECHOSTAR)

MAG NAVOX

PANASONIC

PHILIPS

PROSCAN

RCA

SAMSUNG - TERRESTRIAL

SONY

STAR CHOICE

TOSHIBA

UNIDEN

WEBTV

ZENITH/LG

Code

006(same as 173)

175,182,183,188

175

176

173,181,184

173

175

171,172

174

171,172

176,179,180,185

192

177

173

170,189,190,191

171,172

187

193

VCRs

VCR Brand

MITSUBISHI

AKAI

AUDIO DYNAMIC

BELL&HOWELL

BROKSONIC

CANON

CiTiZEN

Code

001,060,

049, 034,

031

025,

040, 046

043, 045

026

CRAIG 025, 049,

CURTIS MATHES 065, 044,

DAEWOO 063, 021,

DBX

DIMENSIA

EMERSON

FISHER

EUNAI

GO VIDEO

GOLDSTAR

030, 031

065

063, 046,

025,

047,

053,

057,

026

HiTACHi 043,

iNSTANT REPLAY 044,

JVC 030,

KENWOOD 030,

LXI 047,

MAGNAVOX

MARANTZ

MARTA

MEMOREX

MGA

MINOLTA

MULTITECH

NEC

OLYMPIC

OPTIMUS

ORION

PANASONIC

PENNEY

PENTAX

PHILCO

PHILIPS

PIONEER

PROSCAN

QUASAR

RADIO SHACK

RCA

REALiSTiC

SAMSUNG

SANSUI

SANYO

051,

030,

026

044,

060, 067,

020, 065

067, 047

030, 031

044, 043

048,

046,

043,

044,

020,

051,

043

065,

022,

041,

053,

020,

065,

044,

057,

046,

025_

SCOTT 021,

SEARS 025,

SHARP 055,

SIGNATURE 2000 047,

SONY 048,

SV2000

SYLVANIA

SYMPHONIC

TASHIRO

TATUNG

TEAC

TECHNICS

TEKNIKA

TOSHIBA

TQTEVISION

VECTOR RESEARCH

WARDS

YAMAHA

ZENITH

O47

051,

047

026

030,

041,

044,

021,

026

031

055,

025,

064,

067,068_061,062,002

035,036

O26

O47

044,078

038,039,023,045,062,040

028,029,027

046,040

065,044,079

069,070,071

065,020,047

O43

031,076,077

026,031

026,020,027,028,025,029

043,044

031

029

068,061,062

041,055,026

O4O

044,041,042

020,065,025,030,031

031,065

044,047,043,046,040,063

043,044

020,043,044,051,066,021,

O53

042,043,044

044,025,056,029,060,047

021,022,043,044,049,051,053,

066

025,056,029,060,047

022,053

O4O

029

022,029,060,067,068,046,040

026,027,028,020

O56

O55

049, 050, 073, 074, 075

043,044,047

031

047,031

042,043,044

O47

066

056,029,064,026

030,031

026

Appendix C: Remote Control Programming Codes,

IMPORTANT

Some manufacturers may change their

products, or they may use more than one

remote control system, If this is the case,

the TV remote control may not be able to

operate your VCR, DVD, cable box, satellite

receiver, or A/V receiver,

After entering the correct codes in each position of

the remote control, use the slide switch to select

which product wiii respond when an operational

button is pressed. Only one of the below devices is

allowed for each slide switch position.

TV position:

[] TV, NetCommand@ Controlled Devices

CableiDBSiDTV position:

[] Cable box

L_ Satellite receiver

[] DTV receiver

VCR position:

[] VCR

DVD position:

[] DVD

[] LD Hayer

Audio position:

[] AiV receiver

[] Mitsubishi CD player

If you have a Mitsubishi AiV receiver, the audio

position may be used in conjunction with select

Mitsubishi CD players. Your audio position must be

programmed to 010.

When your remote control has been programmed to

operate another manufacturer's product, the function

performed on each layer can vary. The most common

functions are:

VCRPOWER

CHANNEL up/down

PLAY

REC

PAUSE

STOP

FFiFWD

REW/REV

Mitsubishi VCRs wiii be compatible with some

additional buttons

Cable Boxes and Satellite Receivers

*POWER

CHANNEL up/down

0-9 number buttons (on some models)

ENTER (on some models)

CANCEL (on some models)

ADJUST up/down/left/right (on some models)

o GUIDE (on some models)

AIV Receivers

POWER

VOLUME

MUTE

Mitsubishi A/V Receivers

Direct Input Selection buttons:

numbers, SQV and QV (on some models)

Mitsubishi CD Players

not all functions for all models)

PLAY

FFiFWD

REW/REV

PAUSE

STOP

DVD and Laser Disc Players

not all functions for all models)

POWER

0-9 number buttons (on some models)

PLAY

STOP

ARROW upidown/bft/right (on some models)

FFiFWD

REWiREV

PAUSE

CANCEL (on some models)

ENTER

, CHANNEL (on some models)

Appendix D: On Screen mnformation Displays

When you turn on the TV, change Devbes, change Channels or when you press the INFO button

on the remote control the TV will display the current status. Below are the most common displays;

please note that seldom or never do all of the different status indicators appear at the same time.

Analog Program

1. Antenna or Device being viewed

2. Analog channel being received: If antenna being

viewed

name (if manually programmed) (1_

3. Channel

4. Signal Type being received

Possible: _'_4__

Ant-l, Ant-2 or input 1-3 -480i f,_--_,"

\2J

Component 1,2 - 480i, 480p, 720p or 1080i

Inp-DTV - 480i, 480p, 720p or 1080i

5. Screen format being used (fq_'_

Possible:

Analog 480i/480p signals - Standard, Expand,

Zoom, Stretch, Stretch Plus, Narrow

720p/I080i signals - Standard, Wide Expand

6. Stereo and/or SAP being broadcast _2-'_-

7. V-Chip Ratings

8. Channel in SuperQuickView bank 2

9. Day and Time

10. Sleep Timer remaining time

11. PiP source and channel

12. Special Message Line

(shows only when a special message is

needed)

Digital Program

1. Digital Major and Sub channel number

2. Digital Channel Name (only if broadcast)

3. Signal Type being broadcast/received

Possible: SD 4:3, SD 16:9 or HD

4. Screen format being used

Possible:

SD 4:3 - Standard, Expand, Zoom, Stretch,

Stretch Plus, Narrow

SD 16:9 or HD - Standard, Wide Expand

5. Language(s) being broadcast

6. Program Name (if broadcast)

7. Special Message Line

(shows only when a special message is

needed)

Digital (EEE 1394 Device

1. Status of D-VHS VCR or IEEE 1394 device

2. Counter of D-VHS VCR

3. Media type in D-VHS VCR

4. Special message line

(shows only when a special message is needed;

may be seen with Analog signals)

-Ant=l 3 XXXX

-480i Standard __.._

,Stereo SAP _(_)

"_-PG DLSV_@

•Monday 11:00 AM

S,eep Timer: 30 =_1_}

PIP 1 3-_)

Special Message Line

Ant-112-1 /

XXXX=XX

HD Standard --@

TV=PG DLSV

SQV2

XXXXXXXXXXXXXX

Monday 11:00 AM

Sleep Timer: 30

'Special lViessage Line

DVCR

HD Standard

Play 01:20:15 _

DVHS

Monday 11:00 AM

Sleep Timer: 30

Special lViessage Line

Appendix E: NetCommand® Speciamized Device Keys

AiV CABLE VCR DVD LEARNING

RECEIVER or DBS SCREEN

CHECKBOX NAME

X X X X Power*

X X X X Power (Off)*

X Volume Up

X Volume Down

X Mute

X Analog to Digital*

X Digital to Ana!og*

X input (1-7)

X X Channel Up

X X Channel Down

X Recall

X X Guide

X X X Adjust Up

X X X Adjust Down

X X X Adjust Left

X X X Adjust Right

X X X Enter

X X X Menu

X X X Cancel

X X X Info

X Page Up

X Page Down

X X X Play

X X X Stop

X X X Forward

X X X Rewind

X X X Pause

X X X Record

X X X Enter (digits)t

X X X Low Speed Out*

X X X High Speed Out*

X X X 1,2,3,4,5,6,7,8,9,0

X X input

X Sub channel

separators

X Chapter +

X Chapter -

FUNCTION

Power On or Power On/Off

Power Off

Volume Up

Volume Down

Mute

Ana!og/Digital Switch

Digita!/Analog Switch

AVR input Select

Channel Scan Up

Channel Scan Down

Last Channel RecaII

Guide

Arrow/move Up

Arrow/move Down

Arrow/move Left

Arrow/move Right

Enter/Select

Device Menu or Setup Menu

Cancel or Exit

Status information Display

Guide Page Up

Guide Page Down

Play

Stop

Fast Forward/Fwd Search

Rewind/Reverse Search

Pause

Record

Enter for channel numbers

LowSpeed 480i out

Hi Speed 480p/1080i out

1,2,3,4,5,6,7,8,9,0

input Change

Digital Sub channel

Chapter Skip Forward

Chapter Skip Reverse

NAME ON TV

REMOTE

POWER**

VOL A

VOL •

MUTE

GUIDE**

Automatic (when

device is selected)

CHAN A

CHAN •

GUIDE

ADJUST •

ADJUST

ADJUST _,

ENT

DEVICE MENU

CANCEL

INFO

CHAN • ***

CHAN • "*

PLAY

STOP

REW

PAUSE

REC

ENT

FORMAT**

1,2,3,4,5,6,7,8,9,0

GUIDE**

CANCEL

CHAN •

*These are paired functions (e.g. Power and Power Off). When the original remote control uses a single button for both functions, learn only the

first of the paired functions.

? If there are two Enter keys, learn the Enter key used for channel selection here. The ENT button on the remote sends the correct IR code

when digits are entered.

$Learn the subchannel separator if a special key is used to add a separator (dash or dot) in a digital channel. Press the CANCEL button on the

remote to add the separator

** This function is performed only when the Device Selection Menu is displayed and the device icon is highlighted.

*** Channel Up/Down as Guide Page Up/Down happens on/}, after pressing GUIDE and returns to channel functions after pressing ENTER or

CANCEL.

Appendix F: Cmeaning and Service

Normally, light dusting with a dry, non-scratching duster wiii keep your TV clean. If cleaning beyond this is needed,

please use the following guidelines:

First, turn off the TV and unplug the power cord from the power outlet.

Top and Sides of the TV:

Gently wipe down your TV with a soft, non-abrasive cloth such as cotton flannel or a clean cloth diaper, lightly

moistened with water. Dry with a second dry, soft, non-abrasive cloth.

For oily dirt, add a few drops of mild liquid detergent, such as dishwashing detergent to the water used to moisten

the cloth. Rinse with a second cloth moistened only with water. Dry with a third dry, soft, non-abrasive cloth.

Diamond ShieJdTM:

Clean with a soft non-abrasive cloth moistened with water only.

Screen behind the Diamond ShieJd:

o Foiiow the instructions for the top and sides, however, wipe gently in an up and down motion, foiiowing the

grooves in the screen.

Clean the entire screen evenly, not just sections of the screen.

o Do not allow liquid to drip down the grooves of the screen as some liquid may enter the TV between the screen

and the screen frame.

You may purchase Mitsubishi Screen Cleaner, part number CLEANER-VSS, by calling (800) 553-7278.

GeneraJ CJeaning Warnings:

*DO NOT allow liquid to enter the TV through the ventilation slots or any crevice.

o DO NOT use any strong or abrasive cleaners as these can scratch the surfaces.

DO NOT use any cleaners with ammonia, bleach, alcohol, benzine, or thinners as these can dull the surfaces.

DO NOT spray liquids or cleaners directly on the TV's surfaces.

DO NOT scrub or rub the TV harshly. Wipe it gently.

If you are unable to correct a problem with your TV, consult your Mitsubishi dealer or a Mitsubishi Authorized

Warranty Service Center.

o DO NOT adjust any controls other than those described in this Owner's Guide.

o DO NOT remove the protective back cover of your TV.

Menus not described and shown in this owner's guide are designed for Factory use and for Authorized Service

Personnel. Damage caused to the TV by non-authorized changes or changes to these menus made by non-

authorized persons are not covered under warranty,

Appendix G: Diamond Shield TM Removal

The Diamond Shield is installed by the factory to

enhance your television viewing experience. If you

want to remove the Diamond Shield, please follow

the steps listed below:

To Remove the Diamond Shield:

1. While wearing soft cotton gloves, loosen the

sides of the Diamond Shield by pressing a small

plastic card (the size of a standard credit card or a

clean, plastic, putty knife) into the middle of the

side slot. The Diamond Shield side will snap out

of the top middle and bottom clips. Loosen both

sides before proceeding to step 2.

2. After the sides are free, gently push down on the

top of the Diamond Shield. It will slide out of the

top channel.

3 Carefully pull the screen up to remove it from the

bottom channel. Store the Diamond Shield in a clean,

dust free area, where it will not be scratched.

To Install the Diamond Shield:

4. Slide the Diamond Shield into the bottom channel,

making sure it fits securely.

5. Press gently on the top of the Diamond Shield to

slightly bow the screen towards you. Insert the

top of the Diamond Shield into the top channel. It

should fit securely.

6. At each side, gently press the top, middle and

bottom of the Diamond Shield to snap it back into

place.

WARNING

Sharp edges! Always wear gloves to

handle, lift, install and remove the

Diamond Shield,

Appendix H: Filter Cleaning

Cleaning the Dust Filter

Clean the filter annually and whenever you

replace the lamp cartridge.

Tools needed: Phillips screwdriver

1. Turn the television off and unplug the AC cord.

2. Locate the dust filter on the left side panel

of the TV.

3. Using a phillips screwdriver, remove the two

screws that hold the dust filter cover in place.

4. Remove the filter cover, set it and the screws aside.

5. Carefully remove the filter from the

6. Clean the filter material by dusting with a lint-free

cloth.

7. If the filter is soiled, you can rinse it with water.

Do not use detergents or soap on the filter.

8. Completely air dry the filter before placing it

back into the TV.

9. Replace the filter cover and secure with the screws.

Appendix H: Lamp Cartridge Replacement

Before you repUace the Ramp cartridge pUease note the following:

CAUT(ON: (f the te(evision is on, press POWER to turn off and allow the te(evision to coom

for one hour before attempting to repmace the marnp cartridge.

LAMP LIFE

The light source for this teUevision is a lamp, which is part of a Uamp cartridge assemMy. The actuaU life of the

lamp in this television can vary, based on the Ramp itseUf, the air temperature around the TV while it is operating,

and your viewing patterns. Warmer air or poor ventilation shortens the Ramp Rife,as does turning the teUevision

on and off frequently.

Mitsubishi warrants the lamp for one (1) year from date of the original purchase at retail. However, it is likely

that the lamp will last significantly longer than this. When the end of the lamp's life is approaching, the TV will

display a warning message for one minute, when the TV is powered on. The purpose of this message is to

advise you that the lamp may fail soon. This warning message will continue to be displayed every time the TV

is turned on, until the lamp cartridge is replaced and the lamp's status is reset.

After replacing the lamp cartridge, when you power on the TV, the message "Did you change the lamp? Press

ENTER for Yes, press CANCEL for No" will appear, press ENTER to reset.

To order a new lamp cartridge, please call (800) 553-7278 and order part number 915P020010.

WARNmNG:

Do not remove the lamp cartridge immediately after turning off the television. You may get burned because of

the lamp's high temperature. Allow the television to cool for one hour before attempting to replace the lamp

cartridge.

Do not remove the lamp cartridge, except when replacing. Careless treatment can result in injury or fire.

Do not touch the lamp element directly. It may break and cause you to have injuries or burns.

Be sure not to insert any metal or flammable object into the lamp cartridge opening, as it may cause

fire or electrical shock. If any object is inserted into the opening unplug the AC cord of the TV

and contact your dealer for service.

Install the lamp cartridge securely. Failure to do so may cause a fire.

The lamp in this product contains mercury. Disposal of mercury may be regulated due to environmental

considerations. For disposal or recycling information, please contact your local authorities or the Electronic

Industries Alliance: www.eiae.org

Appendix H: Lamp Cartridge Replacement, continued

Replacing the Lamp Cartridge

Tool needed: Phillips screwdriver

1. Turn the television off and unplug the AC cord.

2. Open the front panel by pressing in the center of

the glossy panel, above the diamond. The panel

will lower and you can access the lamp cartridge.

3. Using a phillips screwdriver, remove the three

screws (one on the left and two on the right side)

that hold the recessed plastic cover in place.

4. Remove the plastic cover and set aside

with the screws.

,After removing the cover, you will be able to

see the lamp cartridge. With the screwdriver,

loosen the three screws of the cartridge.

The three screws will not completely remove.

6. Gently grasp the metal handle and pull

straight out (towards you).

7. Insert the new lamp cartridge securely

into the TV. Do not touch the glass surface

of the cartridge.

8. With the screwdriver, tighten the screws

on the lamp cartridge.

9. Replace the plastic cover and screws.

10. Close the front panel by pushing it

back into place.

To order a replacement tamp cartridge,

part number 915P020010, call (800} 553-7278.

100

PossibJe SoJution

1. The TV remote control does not work. + Check that the batteries are installed correctly.

+ Check that the selected switch is set to "TV'.

+ Be no further than 20 feet from the TV when using the remote control.

+ Program the remote control to operate the TV (Appendix C).

2. The TV takes several seconds to respond. + It is normal for digita! channels to take longer to tune in.

®Press ENTER after a channe! number to avoid delays.

®Use a 4 digit number for an over-the-air digita! channel

®Use a 6 digit number for cable digital channels

3. Cable provider needs information to start ® On the remote control, press TV MENU and then enter the numbers

CableCARD TM service. 999 to display the Host ID and CableCARD TM ID information.

4. You cannot access a channel.

5. On-screen displays appear each time you

change a function.

6. You cannot program the TV to turn on

automatically (timer function)

7. There is no sound even when the volume is

turned up.

8. NetCommand unable to learn specific device

keys.

9. You have forgotten your V-Chip passcode.

10. Lamp indicator light is a constant red.

11. Lamp indicator light is a constant yellow.

12. Lamp indicator light is a flashing yellow.

13. Status indicator light is a constant yellow.

14. Status indicator light is a constant/flashing red.

15. PIP does not display a picture.

16. Digita! channels do not appear in PIR

17. Not a!l channels appear in multiple PIP/POP.

®Use number keys instead of CHANNEL up/down.

®Be sure the channel you want to view is in memory. See page 65.

®Check that the TV is turned to the correct device or antenna for

that channel, by pressing the DEVICE button.

®Make sure the V-Chip Iock is off.

®If tuned to Digita! channels, have physical channel in memory.

®This is part of normal TV operation.

+ The TV may be locked.

®The clock may not be set.

+ Check audio source in Device Menu.

®Check to see if the MUTE button is on.

®The TV's "Listen to:" setting may be set to SAP.

+ Check that the "TV Speakers" setting is On in the Audio/Video menu.

®Device does not use IR format for remote control signal. ITT and

RE formats cannot be learned.

®Room lighting may affect the signal. Have the remotes very close

(6 inches or less) to the TV during Learning.

®If using a Mitsubishi remote control make sure slide switch is not

set to TV position.

+ Some but not all device key functions can be learned by

NetCommand. For example, POWER and PLAY may be learned,

but other functions may not.

+ The signal from the remote control may not be strong

enough. Insert fresh batteries and try Learning again.

+ See Appendix A, Bypassing the V-Chip Lock.

®Turn the TV off for at least 2 minutes. Turn back on. If light is still

red, the lamp has failed, replace it. See Appendix H for lamp

replacement information.

® Lamp may falI soon. Purchase a new lamp. See Appendix H for lamp

replacement information.

® Lamp cover door is open or lamp cartridge is not secure. See

Appendix H for lamp replacement information.

® Operating temperature or room temperature has exceeded proper

levels. Clean the TV's dust filter or cool the room. See Appendix H

for filter cleaning information.

® Service is required. Contact your dealer or a Mltsubishi Authorized

Service Center to arrange for a service evaluation listings of

Mitsubishl Authorized Service locations can be obtained from our

web site. www.mitsubishi-tv.com or by calling 1-800-332-2119.

®Make sure the V-Chip Iock is off.

®Not alI inputs can be displayed as a PIP.

® Normal PIP operation.

+ Digital channels do not display in PIP/POP.

Troubleshooting, continued

PossibJe SoJution

18. The sound does not match the screen picture.

19. There is a large black or gray rectangle on the

screen.

20. You cannot see a picture when playing a VHS

tape.

21. V-Chip is not working.

22.

23.

The TV will not turn on after being plugged in.

TV functions do not respond to the remote

control or to front panel control and will not

Power Off.

®NetCommand® is setup incorrectly.

The TV's "Listen to:" setting may be set to SAP.

®If using stereo or A/V receiver speakers, check their input selection.

®If using stereo or A/V receiver, check that AUDIO 2 of MONITOR

OUTPUT on TV's back panel is connected to the A/V receiver.

®The TV's analog closed captioning has been set to "text" mode in

the Captions menu. Turn off because there is no text information

being broadcast.

®Display the Device Selection menu and select the correct VCR.

®Check your VCRs owner's guide for further trouble shooting.

®Make sure that V-Chip is On.

If V-Chip Hours are currently set to disable the V-Chip lock, the

V-Chip will not block programming.

If green light on front panel is blinking, wait for at least one

minute for the light to turn off, then press Power again.

®Use the System Reset button as explained at the end of this

section.

24. Name options not available for some channels _ Only memorized analog channels can be named.

25. When viewing a stopped VCR, white lines are

rolling on the screen.

26. TV turned itself Off and the light on the Front

Panel started to blink.

27.

28.

When a Device is selected from the Device

Selection menu, the screen is blue

(no signal source).

The Device does not respond to button presses

from the remote.

The A/V Receiver is the selected audio source

but there is no sound.

29.

Turn off video mute for the VCR.

®Begin playing the tape.

®Change the VCR input to the antenna input.

®Momentary power fluctuation caused the TV to turn off to prevent

damage. Wait for the green light to stop flashing and turn On again.

If the TV does not stay turned On, use the System Reset

button. If this happens frequently, obtain an AC line power

conditioner/surge protector.

®Make sure the selected device is turned on.

®From the Edit NetCommand® menu select Review setting. Verify that

the inputs are actually connected to the TV. If they are not, either

change the physical connections on the back panel, or select the

Change setting on the Edit NetCommand menu to change the TV

NetCommand's settings for the connection.

Remote has not been setup for NetCommand _ use.

®The incorrect manufacturer was selected during setup.

Select the Change setting from the Setup menu and then the device

to display the manufacturer selection. Change if necessary.

®The device is not supported and keys have not been learned.

The requested function is not supported by NetCommand.

Verify that the function is supported or keys are learned.

®The IR emitter is incorrectly placed. Make sure the IR emitter is

facing the IR sensor in the device.

®The IR emitter is not plugged into the IR emitter Output

NetCommand.

®The IR emitter is facing the TV screen, causing double signals. Be

sure that the IR emitter cannot send to the TV.

®Check to see if the A/V Receiver power is turned on. After the power

is turned on, redisplay the Device Selection menu and press ENTER

to allow NetCommand to correctly select the A/V Receiver input.

®From the Setup Menu select Review setting. Check the Review

screen to see if the A/V Receiver inputs and device correspond to the

actual connections on the A/V Receiver. If they do not match, either

change the actual connections, or select Change on the Edit

NetCommand menu to change the device on the Connection screen.

102

Troubleshooting, continued

PossibJe SoJution

30. The TV Speaker icon or A/V Receiver icon is _ Select the Change setting from the Edit NetCommand menu, and

grayed out and not selectable, then select the device (for example VCR). Once the Connection

screen is displayed, check if the audio checkbox is selected for the

TV input and/or AVR input.

31. Devices are grayed out in the Device Selection ® A recording is in progress requiring the use of Monitor Out. Cancel

menu or the PIP Selection menu. the recording to select the device.

®Digital channels and media cards cannot display in the PIP or POR

32. Cannot see the A/V Receiver menu. ®The A/V Receiver is not connected to any input of the TV. To check

the A/V Receiver menu temporarily plug into an unused input of the

TV. Then select Review from the Setup Menu, turn the input On to

view the A/V Receiver menu.

33. Screen is black when trying to view digital ® The PerfectColor TM color balance has been incorrectly set. Use the

channels or EEE 1394 device. Advanced menu to reset the color balance.

34. The REC button is not working, or, on the

Transport menu the record key is grayed out and

not available.

35. A program recorded on your TV is distorted

when played on a 4:3 TV.

36. Excessive digital artifacts.

37. Cannot see a picture from a DV Camcorder.

38. DVCR analog/digita! problems.

39. D-VNS recordings for digital cable have drop-

outs (loss of picture or sound), or no playback.

40. There is no audio and video from the IEEE 1394

device.

41. The EEE 1394 Device is not listed in the Device

Selection menu.

®The device does not support recording, such as a DVD player.

®Recordings can not be initiated from the Transport menu when

using an IEEE 1394 device. Press REC instead. The Record

menu displays allowing setup of a recording.

®TV was set to Anamorphic when program was recorded.

Record programs in Cropped mode if playing back on a 4:3 TM

®The EEE 1394 cable is too long (15 feet between devices is the

maximum length).

®There may be a slow device in the middle of the EEE 1394 network.

Move the slow devices to the end so that connections for faster

devices do not pass through them.

®Go to Device Selection menu and select analog connection.

Connect the DV Camcorder to analog input (for example, Input-3).

Select Setup from the main menu, then Change. At the Change

screen, select the camcorder. On the Name screen, check Analog

Connection. Select the device and on the following screen, select

which analog input was used, and check audio and/or video.

If the tape is currently playing but no picture displays, there may be a

mismatch of the media with the display. Press DEVICE to

display the Device Selection menu. Press ENTER for the DVCR

device. If digital is selected, try analog, or if analog is selected, try

digital.

®Digital cable signals on EEE 1394 can exceed the data rate

standards supported by DVCR.

®The device is not turned on - turn the device power on.

®No media (tape or disc) is inserted into the device.

The media is blank (has no recording).

®The play command failed - Try pressing play again on the device's

remote control or front panel.

The device is already in use (for example: the device is currently

recording).

®The source is copy-protected or violates copy protection.

®The device's digital video signal is not supported by the TV, such as

DV video, common with camcorders. Use analog connections

instead, if available.

®The device is not an audio/video device.

®Too many other devices are already communicating over

EEE 1394. Remove or stop some devices and try again.

®The device is unchecked in the Review screen. Select the

NetCommand menu. Through Review, verify the device is checked.

®The EEE 1394 ptug is disconnected or loose.

®The EEE 1394 Device has not been powered On. Turn on.

The device has not been discovered.

®The device is not an Audio/Video device

Troubleshooting, continued PossibJe SoJution

42. The IEEE 1394 device cannot be selected.

43. DEVICE MENU button does not display a menu.

44. All IEEE 1394 devices disappear.

45. Cannot rediscover a deleted IEEE 1394 device

46.

47.

An IEEE 1394 device has been p!ugged in but

does not appear inthe Device Selection menu

(not discovered).

Cannot record to or from the IEEE 1394 device,

including Dub recordings.

The device may be busy, either recording or a peer-to-peer

connection has been established. Cancel the recording or

peer-to-peer connection.

®The IEEE 1394 device does not provide a menu.

® The TV cannot support IEEE 1394 menus. See page 46.

®The connected devices must not be in a loop that returns to the

TV. Make sure a device ls connected at the end.

Disconnect al! the cables and devices from the TV. Replace them one

by one to locate the problem device or cable.

®Use System Reset (front control panel).

®The device has been disconnected. Plug it in.

®The device is unchecked in the Review screen. Select NetCommand

from the Main menu, then select Review. Check the device.

®Remove IEEE 1394 plug. Go to the Edit NetCommand menu. Delete

the IEEE 1394 device. Plug the device in again so it can be

discovered again.

®The IEEE 1394 connection to the TV or another device ls not secure

or is loose.

®The IEEE 1394 device is not powered on.

®A device in the IEEE 1394 chain ls not powered on - turn on all the

devices.

®The device discovery can take as long as a minute to initiate.

IEEE 1394 cable ls too long (maximum of 15 feet between devices).

®The IEEE 1394 device uses an incompatible protocol and wllI not be

discovered

®To initiate a recording to IEEE !394 device press the REC key.

The Record menu displays allowing setup of the recording.

®The source device for the recording is not powered on.

®When dubbing, the destination device for the recording

is not powered on.

®The wrong media, (analog tape for digital recording, or

digital tape for the analog recording) is in the device.

Either the program is copy protected, or if there are multiple

subchannels and one of the programs (not necessarily the

program requested) is copy protected.

®The program has already been recorded once and the copy

protection only allows one recording.

Unapproved source device for copy protected material

®The recording device can not decode the copyright signal

included in the signal source (try another device if available).

The playlng device (for dubbing) does not support

copyrighted material.

Source for recording ls copyrighted.

®Too many IEEE 1394 devices in network. Insufficient

bandwlth available. Disconnect unused devices.

Source Device has higher speed (S 400) than record device. If

possible, reverse devices, ptay in the slower device and record

in the faster device.

®Device may not support the command.

®Selected function is gray (such as Record for a DVD, which does not

support the Record function).

®Avallable information ls sent from the broadcaster or cable provider.

No other data is available.

48. Cannot control the EEE 1394 device from the

Transport Menu.

49. When ChannelV[ew rM list is d[splayed,

information appears incomplete

50. Program to be recorded was correctly selected ® The broadcaster supplied program information that was incorrect

from ChannelView, however, incorrect program and/or was changed after a recording was added to the Record List.

was recorded.

51. Incomplete ChannelVlew program recorded. ® Recording device may have Iack of space availability and there is not

enough blank space to make a fulI recording.

104

TroubJeshooting, continued

PossibJe SoJution

52. ChannelView program recording failed.

53.

54.

55.

56.

57.

TV is not responding, after pulling out a Memory

card during playback.

TV can't play or stop a media card.

Can't see a thumbnail picture in the JPEG

menu, or can't see a track/song name in the

Playlist menu.

The message "Lamp will soon exceed..."

keeps displaying after the lamp has been

replaced.

TV PAUSE does not start when the PAUSE key

is pressed.

58. See on screen message "TV Disc is full..."

®Connection and compatibility issues with IEEE 1394 (FireWire@)

digital devices. This may include too many Firewire devices in use at

one time, or the recording device not understanding the record

command.

Television lost power long enough to lose current clock time,

®Analog VCR power was left Off.

Press STOP or wait untiI playback is comptete before removing

media card.

NetCommand was not set up. Without NetCommand enabled, you

can only use ENTER to play and CANCEL on the TV remote to control

the media cards.

®File does not meet file standards for playback.

® Unplug the AC cord, then plug in. When you next power on the TV

the message, "Did you replace the lamp? Press ENTER for Yes,

press CANCEL for No" will appear. Press ENTER and the "Lamp will

soon exceed.." message will no longer appear.

® if there is a full screen pause without a slider appearing, then TV

Pause is off. Go to the Setup menu and change the TV Pause

setting from Off to Always or On Request. Press Pause.

® TV Pause needs to be restarted. Press DEVICE to display the

Device Selection menu and press ENTER. Press Pause.

Power off then on the TV. Press Pause.

® Can't use TV Pause while recording an analog program.

® See Reset Menu instructions below.

® TV is connected to Component-1 or 2, Input-DTV or PC. Change the

connection to a different input (see page 11).

®Some recording(s) on the Track List need to be deleted. Press

DEVICE to display the Device Selection menu, then select TV

Disc. Press GUIDE to display the track list. Highlight program(s) to

delete and press CANCEL twice to confirm.

Using The System Reset Button

If the TV doesn't respond to either the remote control

or the front panel controls or will not power off, press

the SYSTEM RESET button on the front panel with a

pointed item such as the point of a ball point pen or

end tip of a paperclip.

The TV wiii turn off and the green led wiii flash

quickly for about one minute. When the green led

stops flashing, you may turn on the TV again. The

changes you made while the TV was most recently

on, before you used the SYSTEM RESET button may

lost, however, the changes you made previously are

not IosL Only those changes since the last power On

may be lost when the system reset button is pressed.

Aii other settings are retained.

for Reset of the TV or TV Oiso

Press TV menu followed by 1,2,3 to see the RESET

SERVICE MENU to reset the TV or TV Disc.

Read on screen warnings before

proceeding, as some user data or

settings may be erased.

Your choices are:

1. Reset System Defaults (CAUTION: All settings,

except V-Chip, will be reset to the original factory

defaults).

om-

2. Reset TV Disc (Track List wiii not be affected).

3. Erase TV Disc (CAUTION: Track List wiii be

cleared).

4. Reformat TV Disc (CAUTION: Track List wiii be

cleared).

Additional Information

Demo Mode

This TV has a demo mode for use in a retail store.To turn On/Off, press the following buttons in sequence:

MENU, 0, QV, 0

LICENSOR'S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY,

ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH

SUPPLERS, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTES OF NONqNFRINGEMENT, TITLE,

MERCHANTABILITY OR HTNESS FOR A PARTICULAR PURPOSE

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for

home and other limited pay-per-view uses only unless otherwise authorized by Macrovision. Reverse engineering or

disassembly prohibited.

CableCARD TMis a trademark of Cable Television Laboratories, Bnc.

HDMI TMthe HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Manufactured under license from Dolby Laboratories. Dolby@ and the double-D symbol are registered trademarks

of Dolby Laboratories.

Lifestyle@ 28 is a trademark of the Bose Corporation.

XBox TMis a trademark of the Microsoft Corporation.

Playstation@ 2 is a trademark of the Sony Corporation.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a

license from Microsoft Licensing, Inc.

MultiMediaCard TMis trademark of Infineon Technologies and licensed to the MultiMediaCard Association.

SmartMedia TMis a trademark of Toshiba Corp.

CompactFlash@ and CF are trademarks of the CompactFlash Association.

MEMORYSTICKTMiSa trademark of Sony Corp.

DTVLINK TMCertification Logo is a trademark of the Consumer Electronics Association.

DCR TMCertification Logo is a trademark of the Consumer Electronics Association.

Firewire@ is a trademark of Apple Computer, Bnc.registered in the U.S. and other countries.

Digital Light Processing TMand DLP TMare trademarks of Texas Instruments.

MonitorLink TM,NetCommand@, ViewPoint@, QuickView TM,SuperQuickView TM,Diamond Shield TM,PerfectColor TM,

MediaCommand TM,ChanneIView TMand Definedge TMare trademarks of Mitsubishi Digital Electronics America, Inc.

106

A!V

Add

Disc Search 58

Memory Reset 76

Receiver, add 41-43

Reset 12

Setting Descriptions 77-78

Audio 77

Video 78

A/V Receiver 41-43

Devices 44-47

Audio Setting

AnaHog and DigitaH 7 7

AnaHog onHy 77

DigitaH onHy 77

Antenna 14

Menu 64, 68

AudioVideo Menu 64, 76

Back Panel Inputs 14-15

Black Enhancement 76

Bypassing the V-Chip Lock 87

CableCARD TM 14

Inserting 19

TechnoHogy 20

Captions Menu 64, 71-72

Change Device 48

Channel 68, 70

Memorize 68

Name 68

ChannelView 55

Cleaning and Service 96

Color Balance, Setting 65

Connecting

A!V Receiver 24

CaMe Box 19

Component 1, and 2 Inputs with YPbPr 14, 25, 26

Computer with a PC Monitor Output 25

DigitaHAudio Output 15

DTV Receiver with

Component Video 26

RGB, HV Video 27

DVD Hayer with Component Video 25

DVl Device with Analog Audio 15, 28

External Devices & NetCommand 18

Helpful Hints 32

HDMI Device 15, 28

IEEE 1394 Devices 15, 30-31

Lead Antenna 21

NetCommand@ IR Emitter 29

RS-232C 15, 28

S-Video 24

Satellite Receiver 24

Separate UHF and VHF Antenna 21

Stereo System 24

Wall Outlet Cable 19

Copy-Protected Material 59

Current Recordings, cancelling 57

Daylight Savings Time, setting 70

Device

Add 44-47

Advanced Learn Screen 46

Change 48

Connection for, Screen 46

Control with Net Command@ 85

Delete 48

IEEE 1394 55

IR Controlled 55

Learn Screen 45

Menu 54

Name Screen 46

Screen 45

Device Setup 39

Device Menu Button to Display Menus 54

Device Selection Menu 53, 55

Diamond Shield TM Removal 97

Digital Audio 77

Output 15

Default Record Device 67

Prefer, Setting 68

Display Formats 82-84

DTV

Connectors and Adaptors 26

Link (see also IEEE 1394) 15

DVD Format Definitions 82

DVl Analog Audio 15, 28

Filter Cleaning 98

Finish Screen 40, 43, 48, 52

Front Button Lock 73

Front Control Pane Indicators 12

GUIDE Button 55

HDMI 15, 28

iconOrder,Viewing,Changing67

IEEE1394

AddingAutomatically51-52

andNetCommand@Control50

CompatibleDevices30

DeviceTypeScreen52

Input/Output13,15

Name51

importantSafeguards6-7

indicators,frontpanel 12

informationDisplays,On-Screen94

inputDTV 14,47

IREmitter-NetCommand@15,29

JPEG Picture Thumbnail Menu 61

Lamp

Cartridge Replacement 99-100

indicator 12

Language selection 39, 65, 77

M(onitor)-Link 15, 28

Media Cards 13

Front Control Panel 13

Playback 61-62

Slots 13, 61

Memorize Channels 68

Monitor Output 14, 22, 23, 43

MP3 Playlist Menu 62

NetCommand@ 11

Edit NetCommand Screen 42-48

information Screen 39

Initial Setup 39-40

Menu 64, 67

On Screen Buttons 37

Peer-to-Peer Connections 57

Setting up Recordings 56

Specialized Device Keys 95

Time-Delayed Recording 56

PC 15, 25, 60, 84

PerfectCoior TM (Manual Color Balance ) 65

PiP

Device Selection Menu 53

Operation 79

Record List 57

108

Record To

Menu 55

Setup 56

Remote Control

Buttons 35, 36

Care 36

Functions 35-36

with NetCommand@ 34

Operation 36

Programming Codes 91-93

Transport Buttons 67

Reset Color 65

Review Screen 40

RF Connection for Cable Screen 47

Setting the Clock 70

Setup Menu 64, 65-66

Sleep Timer 36

Software version 66

Specifications 89-90

Status indicator, front panel 12

SQV (SuperQuickView TM) 69

System Reset Button 12, 105

Time Menu 64, 70

Time Zone Selection 70

Timer

indicator 12

On/Off setting 70

Track List Screen 58

Transport Menu 67

Troubleshooting 101-105

TV Accessories 10

TV Disc 11

Archiving 58

TV Pause 65-66

TV Speakers 76

V-Chip Lock Menu 64, 73-75

Exceptions 75

Passcode 73, 74, 87

Ratings Guideline 75

VCR

Connecting 22, 23

Recording 59

Restrictions for Traditional 59

Video Mute 76

Video Settings 78

Welcome Screen 39

WMA7 Playlist Menu 62

MITSUBISHI TV SOFTWARE

END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE

IMPORTANT =READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity)

and Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television

("Software"). By utilizing this television and Software, you agree to be bound by the terms of this License Agreement.

The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property

laws and treaties. The Software is licensed, not sold.

1. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the

Software only with the Mitsubishi television model that included this owner's guide and owned by you.

2. RIGHTS AND LIMITATmONS.

Software Not for Resale, You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV

that Software has been pre installed=

Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary

material in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise

reduce the Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by

applicable laWa

Separation of ComponentSa The Software is licensed as a single producta Its component parts may not be separated for use on

more than one TVa

No Rental You may not rent, lease, lend, or sublicense the Softwarea

Trademarksa This License Agreement does not grant you any rights to any trademarks of MDEA.

3a WOLATIONS. YOU understand that any use, copying or transfer of the Software, except as permitted pursuant to this License,

may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys' fees in connection with

any violation of this Licensea You further understand that you may be held legally responsible for any copyright infringement or other

violation of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the Licensea

This license is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to

comply with any provision of this Licensea

4a COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images,

photographs, animations, video, audio, music, text, and "applets" incorporated into the Software), and any accompanying printed

materials are owned by or licensed to MDEAa All title and intellectual property rights in and to the content which may be accessed

through use of the Software is the property of the respective content owner and may be protected by applicable copyright or other

intellectual property laws and treatieSa This License Agreement grants you no rights to use such content, except that you own the

media on which the Software is recorded, but MDEA and its licensors retain ownership of the Software itselfa All rights not expressly

granted are reserved by MDEAa

5. EXPORT RESTRmCTmONS. MDEA is licensing the Software for use within the United StateSa You agree that you will not

expert or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the UaSa

has embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran,

Iraq, Libya, North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or

transport the Software back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software

in the design, development, or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been

prohibited from participating in UaS. export transactions by any federal agency of the UaS. government. You warrant and represent

that neither the BXA nor any other UaSafederal agency has suspended, revoked, or denied your export privilegeSa

6a DmSCLAmMER OF WARRANTY. EXCEPT AS OTHERWmSE PROWDED _N THIS LICENSE OR _N THE LIMITED

WARRANTY APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTmES OF ANY KiND WHATSOEVER REGARDING

THE SOFTWARE AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KiND WHATSOEVER, EXPRESS OR

iMPLIED, WiTH RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, mNCLUD_NG, WITHOUT LiMITATmON, THE

iMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY

DISCLAIMED BY MDEA. iN NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, iN TORT

OR OTHERWISE, FOR ANY DIRECT, INDIRECT, SPECIAL, iNCiDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KiND OR

NATURE. BECAUSE SOME JUR_SDmCTIONS DO NOT ALLOW THE EXCLUSION OR L_MBTATmON OF mMPL_ED WARRANTIES,

THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

7= LiMiTATiON OF LiABiLiTY. MDEA SHALL NOT, UNDER ANY CBRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD

PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER iNDiRECT, SPECIAL, iNCiDENTAL, CONSEQUENTIAL

OR OTHERWISE, INCLUDING, BUT NOT LIMmTED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WiLL OR

EXPENDmTURES MADE OR COMMmTTED FOR iN RELIANCE ON THE CONTINUATION OF THiS LICENSE. YOU AGREE

THAT NEmTHER MDEA'S BREACH OF THiS LICENSE NOR iTS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL

CONSTITUTE A FAILURE OF THE ESSENTIAL PURPOSE OF THiS UCENSE. BECAUSE SOME JURiSDiCTiONS DO NOT

ALLOW THE EXCLUSION OR LiMiTATiON OF LiABiLiTY FOR CONSEQUENTIAL OR iNCiDENTAL DAMAGES, THE ABOVE

LIMmTATmONS MAY NOT APPLY TO YOU. MDEA's liability to you for direct damages for any cause whatsoever and regardless

of the form of the action, will be Hmited to the money paid by you for the TV (based on fair market value of the TV) that

caused the damages.

8. GENERAL. This License Agreement will be governed by the laws of the State of California.

109

Mitsubishi DLP TM Projection Television Limited Warranty

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. ("MDEA") warrants as follows to the original purchaser of this

television that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of

against defects arising from improper workmanship and/or material:

a. Parts. The lenticular (i.e. front picture) screen and/or the Diamond Shield TMis warranted against defects in materials

and workmanship for a period of thirty (30) days from the date of the original purchase at retail.. The VIP lamp and all other

parts (except any software incorporated into this television) are warranted for a period of one (1) year from the date of the

original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used

for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for

replacement are warranted for the remainder of the original warranty period.

b. Embedded Software. MDEA warrants that all software incorporated into this television set (the "Embedded Software")

will perform in accordance with the functional description of Embedded Software in all material respects, but MDEA does

not warrant that the Embedded Software is error-free. MDEA also does not warrant that the Embedded Software will

be compatible under IEEE 1394 AV/C and HAVi software standards with products produced by any other manufacturer.

The warranty contained in this section shall continue for a period of one (1) year from the date of the original purchase

at retail.. If, after prompt notice within the warranty period, MDEA determines that the Embedded Software has failed to

perform in accordance with such functional description in all material respects and if such failure is not due to accident,

misuse, modification or misapplication of the Embedded Software, then MDEA shall modify or replace the nonconforming

Embedded Software at no charge to you, which at MDEA's sole discretion may be fulfilled by means of modification or

replacement software contained on a replacement media card for Customer installation. The foregoing shall be MDEA's

sole obligation to you under this limited warranty. All rights under this limited warranty on the Embedded Software also

subject to your compliance with the terms of the Software License Agreement applicable to this television, and this limited

warranty on the Embedded Software shall be null and void if the Embedded Software is modified or changed in any manner

except as specifically authorized by MDEA.

c. Labor. For thirty (30) days after the original purchase at retail, we will repair or replace, at our option, the lenticular

screen if it proves defective. For certain items that are designed to be replaced by the consumer, including (but not limited

to) the Diamond Shield T_ and/or some Embedded Software, the consumer is solely responsible for any replacement

labor. The VlP lamp is consumer replaceable and labor for replacement is not covered under warranty, please refer to the

Owner's Guide for replacement procedures. Air filter cleaning is normal consumer required maintenance and labor for this

procedure is not covered under warranty, please refer to the Owner's Guide for air filter cleaning procedures. For all other

parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one

year from the original date of purchase at retail.

d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the

applicable warranty time period.

e. This DLP TMProjection Television uses a revolutionary technology, Digital Micromirror Device T_',to create the screen

image. This technology creates the image using small dots, or picture elements (pixels). Your DLP Projection TV is

manufactured to a high level of performance and quality, in fact, 99.99% perfect in the number of properly functioning pixels.

As in other display technology, sometimes a pixel is continuously active, inactive or the incorrect color. Our standard is

clear; MDEA warrants only thatthe percentage of properly functioning pixels will be not less than 99.99% of all pixels.

BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct

customer control adjustment. If the problem persists please arrange for warranty service.

1. TO OBTAIN WARRANTY SERVICE:

a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your

MITSUBISHI dealer, by writing at the address provided below, calling MDEA at the 800-332-2119, or use the support

feature of our website at www.mitsubishi-tv.com.

b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television

is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you

must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or

transportation costs the service center may charge to and from your home. Actual service labor will be provided without

charge.

110

c. Proof of purchase date from an authorized MFSUBISHI dealer is required when requesting warranty service. Present

your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER

REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner

Registration Card so that we can contact you should a question of safety arise which could affect you.

d. To obtain a replacement VlP lamp during the warranty period, please contact the MDEA Consumer Relations Department

at (949) 830-8364. After the warranty period you may order the lamp directly from the MDEA Parts Department at (800)

553-7278.

2. THIS VVARRANTY DOES NOT COVER:

a. Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).

b. Damage to Diamond Shield, lenticular screen or Fresnel lens, screen frame, cosmetic damage or to any other damage

where such damage is caused by unauthorized modification, alteration, repairs to or service of the product by anyone other

than an authorized MFSUBISHI service center; physical abuse to or misuse of the product (including any failure to carry

out any maintenance as described in the Owner's Guide including air filter cleaning or any product damaged by excessive

physical or electrical stress); any products that have had a serial number or any part thereof altered, defaced or removed;

product use in any manner contrary to the Owner's Guide; freight damage; or any damage caused by acts of God or other

factors beyond the reasonable control of MDEA, such as power surge damage caused by electrical system or lightning. This

warranty also excludes service calls where no defect in the product covered under this warranty is found, service calls related

to unsatisfactory audio or visual reception or signal unless caused a defect in the product that is covered under this warranty,

all costs, expenses or any other damages arising from product installation, or set-ups, any adjustments of user controls

(including contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display

or use, connection with any external audio receiver, antenna, cable or satellite systems, or service of products purchased

or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner's Guide furnished with the

product for information regarding user controls.

3. ANY EXPRESS VVARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION,

MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY

LIMITED TO A TERM OF ONE YEAR.

4. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY,

BREACH OF CONTRACT, OR OTHERWISE.

5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental,

special, or consequential damages, so the above limitations or exclusions may not apply to you.

6. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

In no event shall Mitsubishi have any liability, including without limitation, for general, consequential, incidental, or special

damages for loss, destruction, damage or corruption of recorded data, media or software resulting from use of this television,

or cost of recovery of lost data, media or software therefore.

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road

Irvine, CA 92618-1904

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects

or other reproductive harm.

,_ MmTSUBISHI

ELECTRIC

DiGiTAL TELEVJBJDNB _

Website:

www, rnitsubishi-tv, com

lVlDEAservice@mdea.com

To order repMacement or

additionaU remote controUs,

Mamp cartridges or Owner's

Guides, call

For questions, call Consumer

ReMations at

632004 Mitsubishi Digital Electronics America, hc. Written and Printed in the U.S.A

871D409B10

MITSUBISHI DLP Television Manual L0412114

Navigation menu

Versions of this User Manual:

Views

Navigation
