MOBASE ELECTRONICS SEKS-TF10ATX Remote Keyless Entry System User Manual
Daedong Co. Ltd. Remote Keyless Entry System
User manual
2. PRODUCT SPECIFICATION

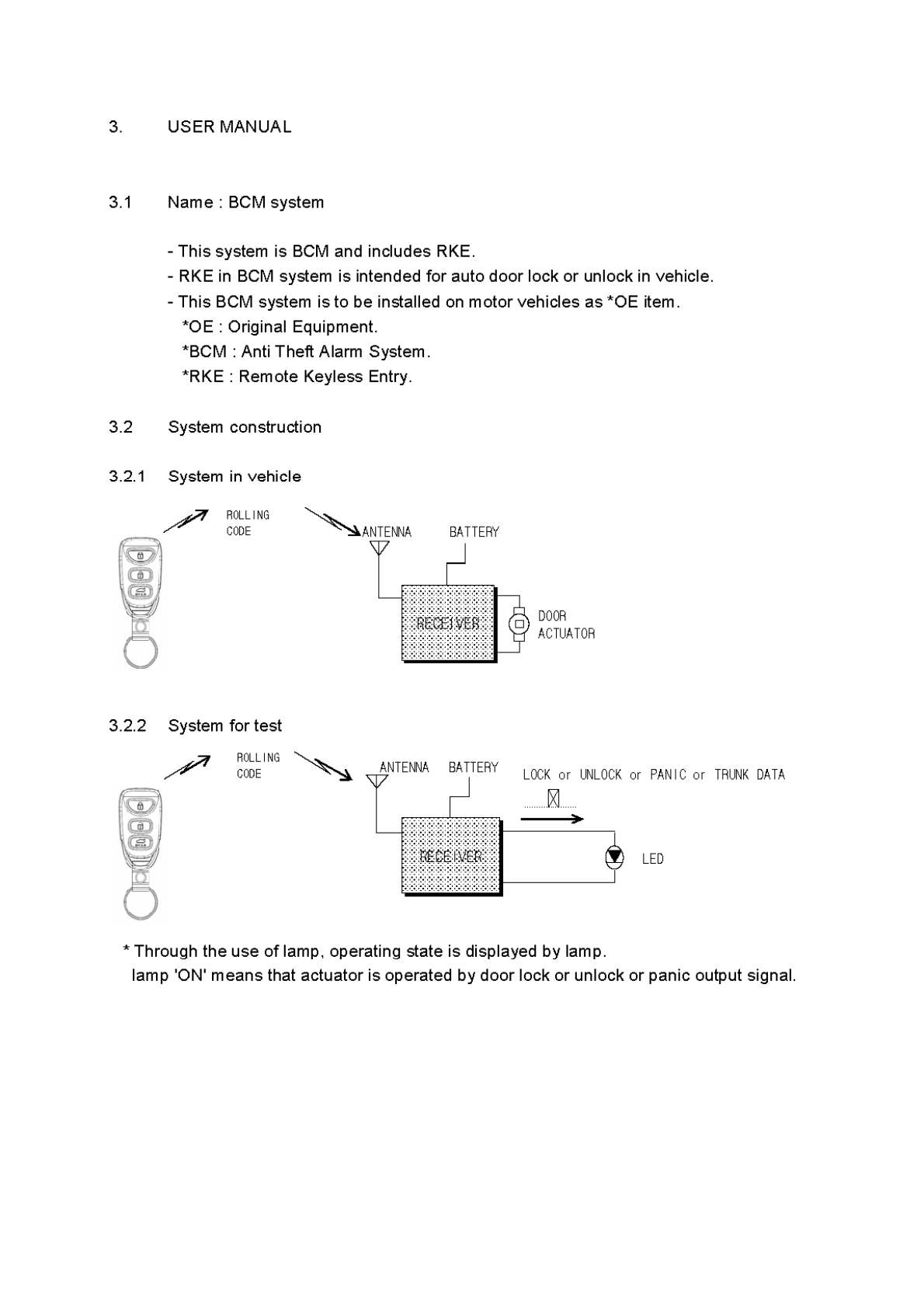

2.1 Scope of Remote Keyless Entry in BCM system.
21.1 Key part : TRANSMITTER is inside of the remote key, and it
sends the rolling code to the RECEIVER by radio frequency.
2.1.2 RECEIVER : It receives the rolling code and decodes that,
thereafter RECEIVER drives the actuator.
2.2 Specification
2.2.1 TRANSMITTER
2.2.2 RECEIVER
Storage temperature range -30 ~ 80℃
Modulation FSK
ITEM SPECIFICATION
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature range -20 ~+60℃
Frequency 315.00MHz
Code Rolling Code(Hopping Algorithm)
- 30 ~ + 80℃
Max Humidity 95%
Battery life 2 Year(10Times/Day)(Lithium 3V 1EA)
Below than 5.5mA
(in alarm setting condition)
Standby Current
Specification
Item
DC 9 ~ 16V Operating Voltage
DC 12V Rated Supply Voltage
Operating Temperature
