MOBASE ELECTRONICS SYEC3FOB1608 FOB-SMART KEY User Manual
SEOYON ELECTRONICS CO., LTD. FOB-SMART KEY
User Manual
적용차종 페이지(SHT/SHTS)
작성처
전자설계2팀
Information Document
(5 sheets: Include cover)
Attachment 1 - System diagram (1 sheet)
Attachment 2 - Fob block diagram (1 sheet)
Attachment 3 - Schematic of fob (Each 1 sheet)
Attachment 4 - Layout of fob (1 sheet)
Attachment 5 - Part List (1 sheet)
2016.05.13 임현수
부호 관련 PAGE 개정일자 작성자
제정일자 참고자료 구분 작 성 검 토 승 인
신 규 작 성
전 PAGE
변 경 내 역
2016. 05. 13
결
재
Title : RELATING TO APPROVAL
AS SEPARATE TECHNICAL UNIT
OF VEHICLE RF REMOTE KEYLESS ENTRY IN SMART KEY SYSTEM
목차
PD
1/11
INFORMATION DOCUMENT NO.
Title : NO.
Date
SHT/SHTS : 2/11
0. GENERAL
0.1. Make
SEOYON ELECTRONICS Co.,Ltd.
0.2.
Model No.
- Transmitter : FOB
- Receiver : SMART KEY SYSTEM
0.3. Name and address of manufacturer
SEOYON ELECTRONICS Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
0.4. Address of assembly plant
SEOYON ELECTRONICS Co.,Ltd.
734-2, Wonshi-Dong, Ansan-Si, Kyonggi-Do, Korea.
Information Document
Title : NO.
Date
SHT/SHTS : 3/11
2. PRODUCT SPECIFICATION
2.1 Scope of RKE, passive entry control, passive start control in SMART Key system.
2.1.1 FOB KEY : It has the functions for passive entry and passive start including
RKE functions. It also has the TP for emergency authentication for passive start
2.1.2 SMART Key system : It is an ECU to control the whole smart key system.
It has the functions such as passive entry control, passive start control, RKE functions.
2.2 SPECIFICATIONS
2.2.1 FOB KEY
2.2.2 RECEIVER
Standby Current
Below than 5.5mA
(in alarm setting condition)
Operating Voltage
DC 9 ~ 16V
Operating Temperature
- 30 ~ + 80℃
Max Humidity
95%
Battery life
2 Year(10Times/Day)(Lithium 3V 1EA)
Item
Specification
Rated Supply Voltage
DC 12V
Frequency
433.92MHz
Code
Rolling Code(Hopping Algorithm)
Electric field strength
10mW (433.92MHz)
Operating temperature range
- 10 ~ + 60℃ with Battery
Storage temperature range
- 40 ~ + 85℃ without Battery
Modulation
FSK
ITEM
SPECIFICATION
Rated supply voltage
DC 3V
Operating voltage range
DC 2.5 ~ 3.2V
Information Document
Title : NO.
Date
SHT/SHTS : 4/11
2.3 Operating summary
-RKE
① TRANSMITTER's button is pushed.
② TRANSMITTER sends the code by radio frequency.
③ RECEIVER gets the code and decodes it.
④ RECEIVER judges the code whether it is right code or not.
⑤ RECEIVER checks door lock or unlock, trunk state.
⑥ RECEIVER drives the actuator.
- Passive Start
① the SSB button of SMK is pressed to start the engine.
② The indoor ANT of the car transmits the code via the Low Frequency.
③ Fob(receiver) decrypts the received code from SMK.
④ Fob transmits the code via radio frequency.
⑤ SMK should check the boot state.
⑥ SMK controls a start-up operation and the transition of supply power.
2.3.1 LOCK & UNLOCK
① If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
② If TRUNK button is pushed for more than 1 sec, then
TRANSMITTER sends the TRUNK DATA.
2.4 Caution
① Danger of explosion if battery is incorrectly replaced.
② Replace only with the same or equivalent type recommended by the manufacturer.
③ Dispose of used batteries according to the manufacturer's instructions.
Information Document
Title : NO.
Date
SHT/SHTS : 5/11
3. USER MANUAL
3.1 ITEM : SMK system
- This system is SMK and inculdes RKE.
- RKE in SMK system is intended for auto door lock or unlock or TRUNK in vehicle.
- This SMK system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*SMK : Smart Key System
*RKE : Remote Keyless Entry.
3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
① When the lamp of "B+" is 'On', it means that power is supplied.
② When the SSB is pressed in position of INT1 ANT Switch on,
it means a start-up function that ACC_RLY and IGN1_RLY lamp is 'On'(SSB_SW1, SW_2 'On').
③ When the SSB is pressed repeatively, ACC_RLY and IGN1_RLY is 'On' and 'Off', repeatively.
* It shows the status of operation through the lamp used.
Information Document
Information Document
Information Document
Information Document

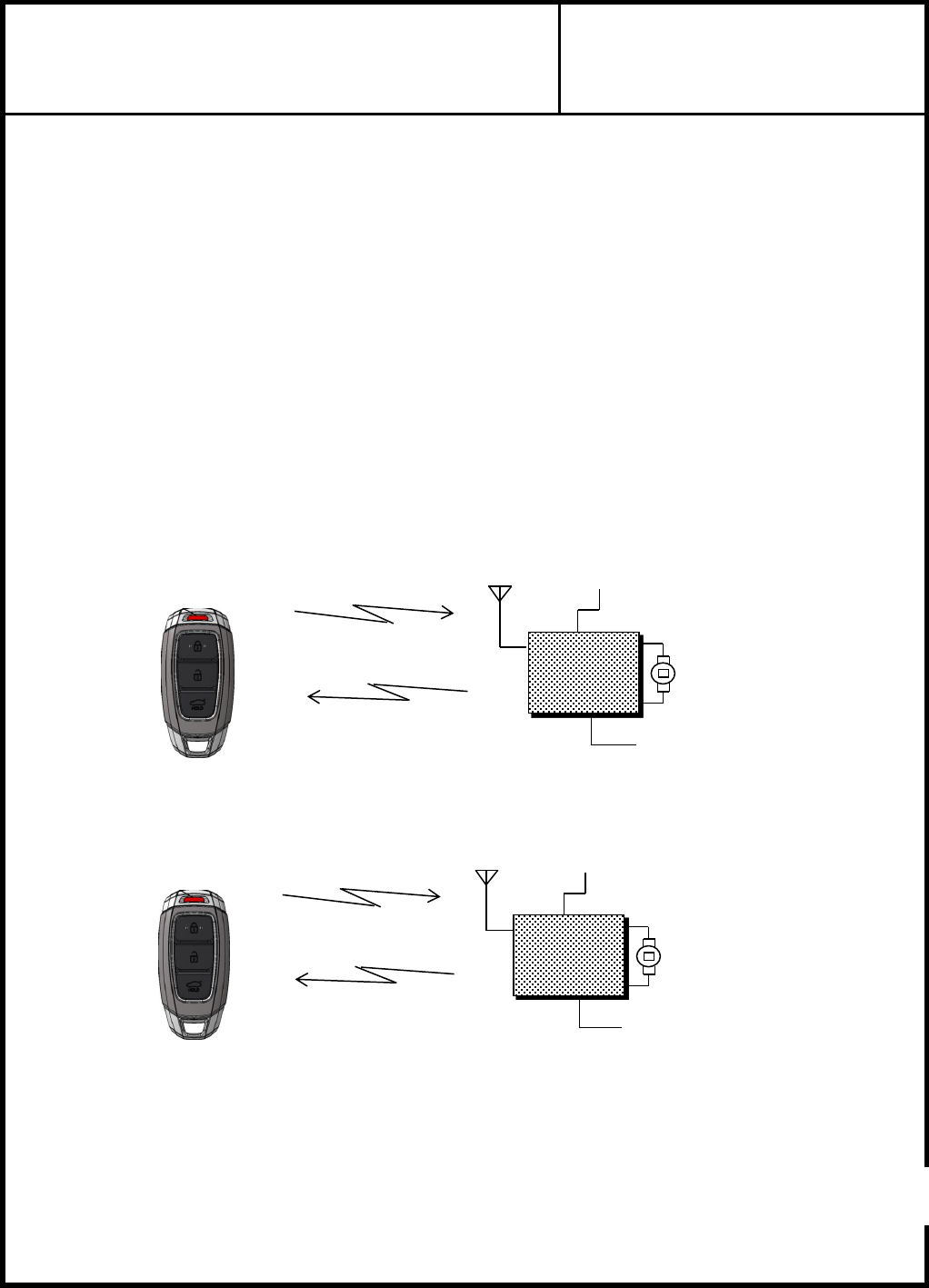

Radio Frequency
(433.92MHz)
ANTENNA
BATTERY
LF ANT
SMK
Low Frequency
(134.2KHz)
SSB
Radio Frequency
(433.92MHz)
ANTENNA
BATTERY
LF ANT
SMK
Low Frequency
(134.2KHz)
SSB
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal
operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the
FCC radio frequency exposure limit.
"ATTENTION: L'exposition aux rayonnements à fréquence radioélectrique.
Antenne doit être montée de telle manière à minimiser le risque de contact humain pendant l'utilisation
normale. L'antenne ne doit pas être contacté pendant le fonctionnement pour éviter la possibilité de
dépasser la limite de l'exposition aux fréquences radio de la FCC.
