MOBASE ELECTRONICS SYECSMK1608 UNIT ASSY - SMART KEY User Manual A164A 026R2 Product Manual PD SMK 160511 ID1
SEOYON ELECTRONICS CO., LTD. UNIT ASSY - SMART KEY A164A 026R2 Product Manual PD SMK 160511 ID1
User Manual
INFORMATION DOCUMENT NO.
RELATING TO SRRC TYPE-APPROVAL
AS SEPARATE TECHNICAL UNIT
CONTENTS LIST
Information Document (10 sheets:
including this sheet)
Attachment 1 - System diagram (6 sheet)
Attachment 2 - Drawing of the smk (9 sheets)
SEOYON ELECTRONICS Co.,Ltd.
- 11. May. 2016 -
Page 1 of 29
Title : Information Document
NO. :
Date : 11. May. 2016
0. GENERAL
0.1. Make
SEOYON ELECTRONICS Co.,Ltd.
0.2. Model No.:SYECSMK1608
- SMART KEY SYSTEM : 설계지원파트 작성
0.3. Name and address of manufacturer
SEOYON ELECTRONICS Co.,Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-Si, Kyonggi-Do, Korea.
0.4. Address of assembly plant
SEOYON ELECTRONICS Co.,Ltd.
424, Sinwon-ro, Danwon-gu, Ansan-Si, Kyonggi-Do, Korea.
Page 2 of 29
Information Document
Title : Information Document
NO. :
Date : 11. May. 2016
1. PRODUCT SPECIFICATION
1.1 Scope of passive entry control, passive start control in SMART Key system.
1.1.1 SMK UNIT : It is an ECU to control the whole smart key system. It has functions
such
as passive entry control, passive start control
FOB KEY : It has the functions for passive entry and passive start including the previous
RKE functions. It also has the TP for emergency authentication for passive start
2.2.3 SSB : It is a button to control engine start including power transition according to each
terminal status
2.2.4 ESCL : It is the abbreviation of "Electrical Steering Column Lock" and fully controlled by
SMK. It has two hall sensors to detect unlock, lock position firmly.
2.3 Specification
2.3.3 SMK UNIT
FOB KEY
Page 3 of 29
1.1.2
1.2.2
Item
Specification
Operating voltage range
DC 9 ~ 16V
Operating voltage range
-35 ~+75℃
Storage temperature range
-40 ~+85℃
Power Consumption
Dark Current, Max 4mA
Item
Specification
Operating Voltage
DC 2.5 ~ 3.2V
Operating Temperature
- 10 ~ +60℃
Storage temperature range
- 40 ~ + 85℃(W/O Battery)
Modulation
FM
Frequency
433.92MHz
Code
Rolling code(Hopping algorithm)
Information Document
Title : Information Document
NO. :
Date : 11. May. 2016
1.2.3 SSB(Start Stop Button)
Page 4 of 29
Item
Specification
Operating voltage range
DC 9 ~ 16V
Operating voltage range
-35 ~+75℃
Storage temperature range
-40 ~+85℃
Power Consumption
Dark Current, 0mA
Modulation
ASK
Frequency (Transmitting)
(Data Receiving between Fob Key and SSB)
134.2kHz
s
Information Document
Information Document
Information Document
LO
Title :
Information Document
NO. :
Date : 11. May. 2016

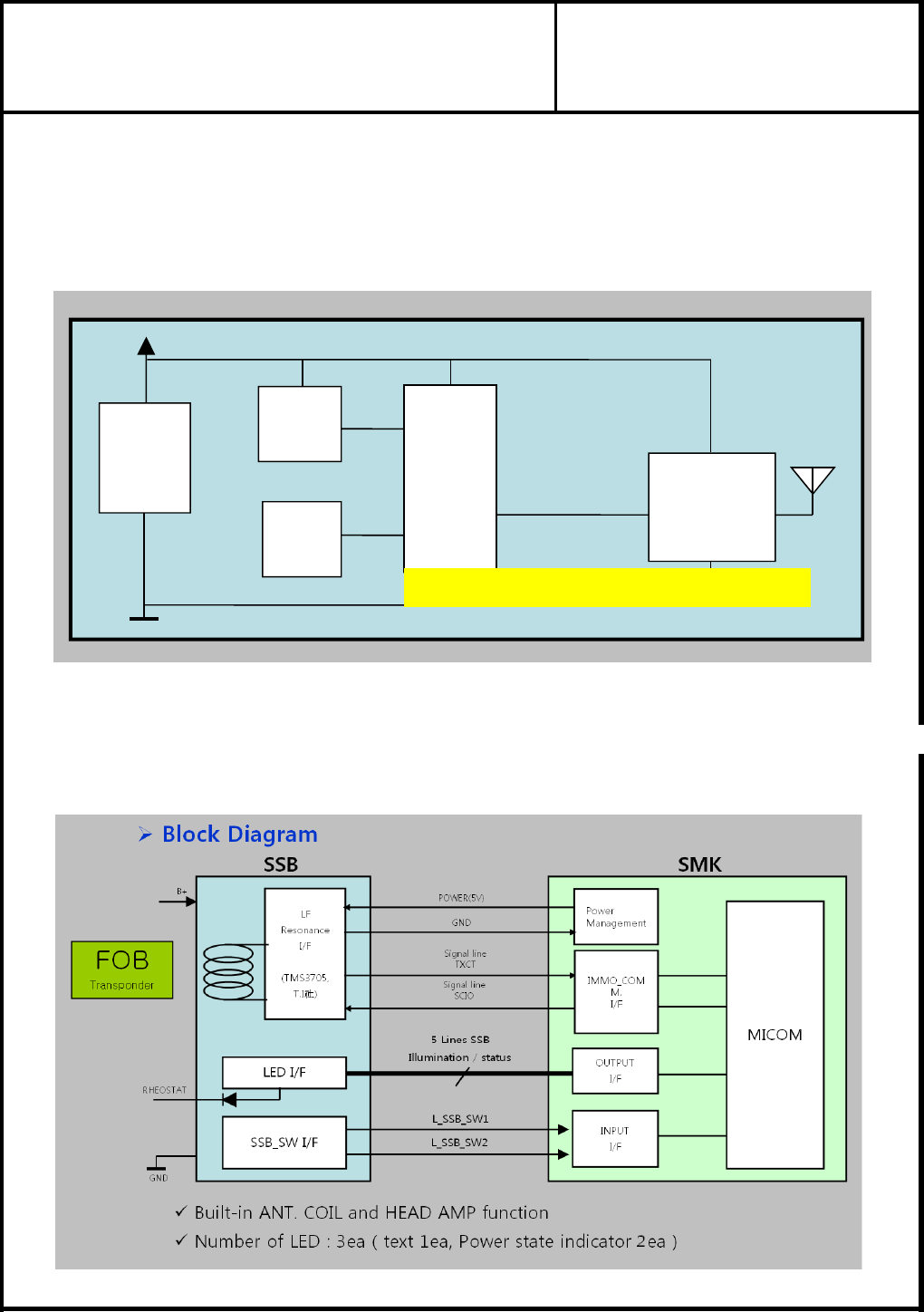

2. USER MANUAL
2.1 Operation summary
2.1.1 Fob Key
①It has the functions for passive entry and passive start including the previous RKE functions
BATT
SW
INPUTS
3D
ANT
ASIC
RF
Modulato
r
MCU + LF Demodulator + Transponder
2.1.2 Immobilizer & SSB(StartStopButton) Function
①Fob Key has the TP for emergency authentication for passive start.
②It's a button to control engine start including power transition according to each terminal statu
③To indicate terminal status,two LEDs for backlight and one for text illumination are used
④It also has TP coil to take action for emergency.
Page 5 of 29
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal
operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the
FCC radio frequency exposure limit.
"ATTENTION: L'exposition aux rayonnements à fréquence radioélectrique.
Antenne doit être montée de telle manière à minimiser le risque de contact humain pendant l'utilisation
normale. L'antenne ne doit pas être contacté pendant le fonctionnement pour éviter la possibilité de
dépasser la limite de l'exposition aux fréquences radio de la FCC.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s), Son utilisation est
soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d’interférences et (2) cet
appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement du dispositif.
