Foreword
Safety
In order to ensure the phone is used safely and correctly,
please read the precautions below carefully before use.
1.1 General precaution
·Your phone is only suitable for the battery and charger
approved by our company or else it may cause the battery
to leak, overheat, explode or even catch fire.
·Do not knock, vibrate or throw the phone heavily to avoid
malfunction, fire, overheating, explosion or fire.
·If there are abnormal phenomena, like temperature rising,
color change or distortion during the usage, charging or
storage of the battery, please stop using it and replace it
with a new battery.
·It may burn the skin if liquid in the battery leaks onto skin
or clothes. If this happens please flush with plenty of
clean water immediately and go to a hospital at once.
·Please keep the battery away from fire to avoid fire and
explosion if the battery leaks or emits a strange smell.
·Do not place expose the battery to moisture or it may
cause overheating, fumes and corrosion.
·Do not use or place the battery under direct sunlight, or in
hot places, it may cause leakage and overheating, thus
reducing performance and shortening the lifespan.
·Do not charge the battery for over 24 hours continuously.
·Use careful with the earphone maybe possible excessive
sound presure from earphones and headphones can cause
hearing loss.
1.2 Precaution for the use of charger
·Do not cause short circuit to the charger, or it may cause
electric shock, fumes and damage to the charger.
·Do not use the charger if the power wire is broken, or it
may cause fire and electric shock.
·Please remove accumulated dust on the power plug.
·Do not put water containers next to the power supply to
avoid overheating, fire, electric shock and malfunction in
case they come into contact.
·Do not disassemble or tamper with the charger or it may
cause personal injury, electric shock, fire and the damage
of the charger.
·Do not use the charger in places of high humidity, like
bathrooms, or it may cause electric shock, fire and damage
of charger.
3
·Do not touch the charger, power cord or power plug with
wet hands or it can cause electric shock.
·Do not put heavy objects on the power cord or change the
power cord or it may cause electric shock and fire.
·Please unplug the power socket before cleaning and
maintenance.
·Please hold the charger to unplug the socket as pulling the
power cord may damage the power wire and cause electric
shock and fire.
1.3 Cleaning and maintenance
·As the phone, battery and charger are not waterproof, do
not use them in places of high humidity and avoid them
being wet by rain.
·Please clean the battery and charger with a soft dry cloth.
·Never use alcohol, thinner or solutions, like benzene, to
wipe the phone.
·Dirty sockets can cause poor contact and power down,
and even make recharging unavailable. So, please clean
them periodically.
1.4 Common Precaution
Mobile Phone:
·Please use the phone in an environment with temperature
between -20℃- 45℃and humidity of <75%.
·Please use the phone far away from regular telephones,
TV sets, radio sets and office automation equipment, to
avoid affecting the normal use of these equipments and
mobile phone.
Battery:
·Store the battery in cool and ventilated place without direct
sunlight.
·The battery has a limited lifespan. The usage of battery will
be shortened progressively due to frequent charging. Once
the battery is out of use, it means that its lifespan has
ended, and you will need to replace it with an approved
new battery.
·Do not dispose of old batteries as household waste. Give
them to specified disposal places and follow any stipulated
instructions for disposal.
CAUTION:RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.DISPOSE OF
USED BATTERIES ACCORDING TO THE
INSTRUCYIONS.
Charger:
·Do not charge under following conditions:
4
-- places with direct sunlight
-- places with ambient temperature less than 0℃ or over
40℃, wet or dusty places with strong vibrations (it may
cause malfunction)
-- places near electrical appliances (it may affect the image
and sound) like TV set, radio, etc
-- Adapter shall be installed near the equipment and shall
be easily accessible. The plug considered as disconnect
device of adapter.
5

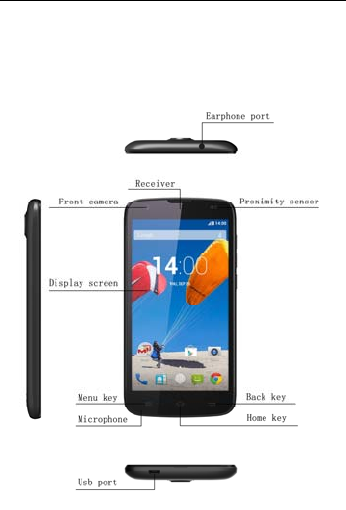

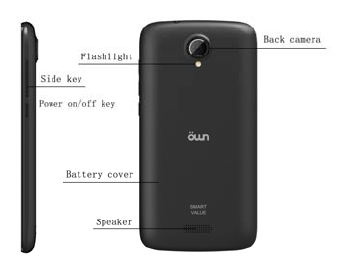

Getting to know your touch phone
6
7
Starting up the device
To remove the back cover
·Make sure your device is turned off.
·Firmly hold the device with the front panel facing down.
·Slide your finger into the groove at the bottom of the phone
and gently pull open the back cover.
To install the SIM card
·Remove the battery if it is installed.
·Locate the SIM card slot, and then insert the SIM card with
its gold contacts facing down and its cut-off corner facing
out of the card slot .

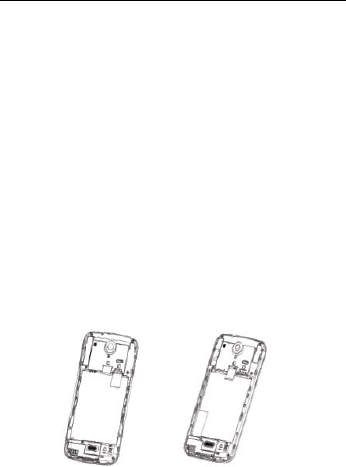

·Slide the SIM card completely into the slot.(See picture1)
Note: The phone supports one SIM card. The card will
support 4G card,3G card and 2G card. If you need to use
4G operation, please insert a 4G card in the card slot.
To install a memory card
To have additional storage for your images, videos, music
and files, you can purchase a memory card and install it in
your device.
Locate the memory card slot on the upper part of the
exposed right panel.
Insert the memory card into the slot with its gold contacts
facing down until it clicks into place.(See picture2)
P1 P2
To install the battery
1. Align the battery’s exposed copper contacts with the
battery connectors at the bottom part of the battery
compartment.
2. Insert the contacts side of the battery first and then
gently push the battery into place. Replace the back cover.
8
Charging the Battery
New batteries are shipped partially charged. Before you
start using your device, it is recommended that you install
and charge the battery. Some batteries perform best after
several full charge/discharge cycles.
Note: Only the AC adapter and USB sync cable provided
with your device must be used to charge the device.
Connect the USB connector of the AC adapter to the sync
connector on your device, and then plug in the AC adapter
to an electrical outlet to start charging the battery.
As the battery is being charged while the device is on, a
charging icon appears in the title bar of the Home screen.
After the battery has been fully charged, a full battery icon
appears in the title bar of the Home screen.
Warning:
• Do not remove the battery from the device while you are
charging it using the AC or car adapter.
• As a safety precaution, the battery stops charging before
it overheats.
Power on/off
To power off your phone, press & hold POWER. On release,
the phone options menu opens. Select ‘Power off’ and
confirm.
To power on again, press & hold power.
9
Introduce the basic phone function

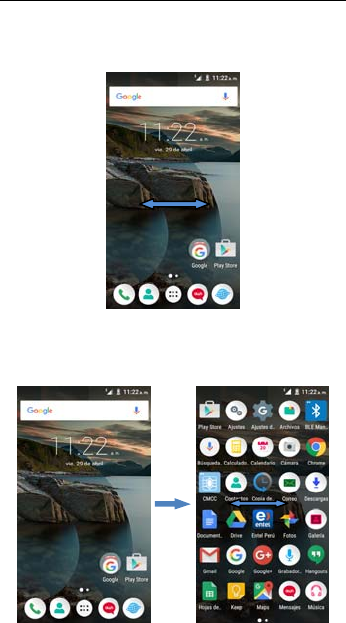

1. Switch MainMenu style
(1) In default Home screen, slide your fingertip left and right
along the screen to reveal the more home screen.
(2) On Home screen, click icon on the bottom of the screen
(Main menu icon) to enter the main menu screen, slide
your fingertip left and right along the screen to reveal
the more applications.
10
2. Home screen
(1) Read your notifications
When you see a notification in the status bar, touch the bar
and slide your finger down the screen to open the list of
notifications displayed in the sliding window.
Ongoing notifications report activities such as call
forwarding ON, current call status, song playing.
Notifications report the arrival of new messages, calendar
events, and alarms. You can clear notifications list by
selecting ‘Clear’ notifications at the bottom of the
notifications window.
To open the message, reminder or other notification, you
can touch the items. To close the notifications window,
slide your finger up the screen.

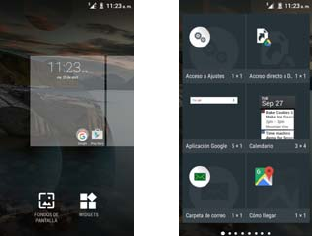

(2) Create Home screen shortcuts and widgets:
From the Home screen, touch and hold the blank screen,
and select "WIDGETS". Enter the main menu screen, slide
your fingertip left to reveal the widget, touch&hold to pick
up a widget to select a shortcut to some of your saved
information (such as a play list), a widget (a clock) for your
Home screen.
(3) Move objects on the Home screen
·To move an icon or other item on the Home screen, you
must first touch & hold it to enter move mode. The object
will magnify when it’s ready to be moved.
·Without lifting your finger (or you’ll drop out of move
mode), drag the object to the new position. To move an
item to a section of the Home screen not in view, move it to
11
the edge of the screen and hold it there for a moment. The
screen view will shift; position the object and release.
3. Camera
All the pictures you can capture or view on your phone are
stored on a memory card , which must be installed in your
phone. Before you can use the Camera or view pictures in
Gallery, make sure you have a card installed.
4. GPRS/WLAN network
Your device’s networking capabilities allow you to access
the Internet or your corporate network through WLAN,
GPRS.
You can also add and set up a VPN or proxy connection.
To use WLAN on your device, you need access to a
wireless access point
Note: The availability and range of your device’s WLAN
signal depends on the number, infrastructure, and other
objects through which the signal passes.
To open the Browser you need to be connected to a
network.
12

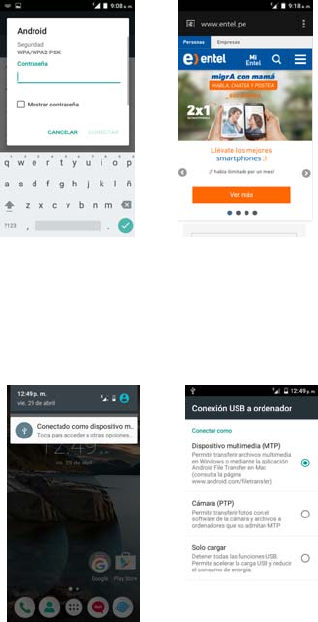

5. U-disk storage
This phone supports movable storage, i.e., the U-disk
function.
When the phone is switched on, you see the icon in the
status bar on the top of the screen when its connected to a
PC by a data line. Touch the bar and slide your finger down
the screen to open the list of notifications displayed in the
sliding window. You can use the phone as a U-disk.
6. Music
Your music is organized into three categories: Listen Now,
13
My Library, Shop. Select a category to view the lists within
each. Once in a category, keep selecting until you reach
the music you want to play.
7. Bluetooth
The phone supports Bluetooth(BT) functions, you can
establish a wireless connection between the phone with
other compatible devices, and data transmission, you can
establish a wireless connection between devices in the
phone with a distance of up to 10 meters. Bluetooth
connection may be interference by obstacles, such as walls
or other electronic device.
1. Enter the setting menu, Touch the Bluetooth to open the
function, idle screen will display BT icon in the status bar.
2. BT is visible to nearby devices while Bluetooth settings is
open, and other devices can search the phone.
3. Before using the phone as a Bluetooth device, you need
to pair the phone with the target device as follows:
-Sure your phone has Bluetooth-enabled.
-Touch the icon of menu and select "Refresh" , Bluetooth
devices within the range of the phone will start scanning.
-Touch the device you want to pair, to confirm password to
complete the pairing
You can use Bluetooth to share the pictures, videos or
music files with family and friends.
14
8.MAPS
The phone supports GPS function and built in google maps
app, maps can provide contain administrative zones and
transportation, and business information of vector maps,
satellite images of different resolution, and can be used to
display the terrain contour view.
9.FM radio
The phone supports FM radio, but you need an earphone
as a radio antenna, please plug in an earphone before
searching for channels.
15
Technical Specifications
Technical Specifications
Weight: 159g (Including battery)
Dimensions: 143.7*72.8*9.4mm
Band:GSM850MHz/DCS1800MHz/PCS1900MHz
WCDMA850MHz/WCDMA1900MHz
LTE1700MHz/LTE2600MHz
Battery Type: Li-ion
Battery Voltage：3.8V
Battery Capacity: 2100mAH
Talk Time: about 7h
Standby Time: about 200h
Battery Time (No prior or separate notice is required for
capacity changes)
Note: Actual operating conditions depend on the local
network environment, SIM, and user behavior.
Warning: Any consequence caused by misuse, abuse, or
not following any and all of the above-written suggestions
and instructions shall not hold the producer in any way
responsible to any degree.
Announcement: The manufacturer reserves the right to
change or upgrade specifications or software versions
without prior or separate notice. Trade marks mentioned or
used in this material belong to their respective owners.
16
SAR
Body-worn Operation
This device was tested for typical body-worn operations. To
comply with RF exposure requirements, a minimum
separation distance of 1.0 cm must be maintained between
the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories
used by this device should not contain any metallic
components. Body-worn accessories that do not meet
these requirements may not comply with RF exposure
requirements and should be avoided. Use only the supplied
or an approved antenna.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does
not cause harmful interference.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
17
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help
