MOJIX WENODE Wireless eNode User Manual Addendum

MOJIX, Inc. Wireless eNode Users Manual Addendum

Contents

Users Manual Addendum

.
Addendum to User Manual
Wireless STAR & eNode
September 2009
Mojix Incorporated
11075 Santa Monica Blvd., Suite 350
Los Angeles, CA 90025
Web: www.mojix.com
Tel: (877) 886-6549
E-mail: service@mojix.com
Addendum to User Manual - Wireless STAR & eNode
Page 2 of 9
Mojix Incorporated
www.mojix.com
Table of Contents
LEGALNOTICES..................................................................................................................................................3
1.WIRELESSSTARSYSTEMCOMPONENTS.....................................................................................................4
1.1.MOJIXWIRELESSENODES:DISTRIBUTEDTRANSMITTERS.........................................................................................4
1.2.STARINTERROGATIONSPACES..........................................................................................................................4
1.3.MASTERCONTROLLER......................................................................................................................................4
1.4.WIRELESSSTARSYSTEMTOPOLOGY...................................................................................................................5
2.INSTALLATIONGUIDELINES......................................................................................................................6
2.1.WIRELESSSTARCOMMANDLINKANTENNA.........................................................................................................6
2.2.WIRELESSENODEINTERFACES............................................................................................................................7
APPENDIXF:FCCNOTICE....................................................................................................................................8
Addendum to User Manual - Wireless STAR & eNode
Page 3 of 9
Mojix Incorporated
www.mojix.com
Legal Notices
Copyright 2009 Mojix, Inc. All Rights Reserved.
All content contained within this document, including text, graphics, logos, icons,
images, and other materials, is the exclusive property of Mojix or its content suppliers
and is protected by U.S. and international copyright laws. The compilation (meaning the
collection, arrangement, and assembly) of all content within this document is the
exclusive property of Mojix and is also protected by U.S. and international copyright
laws. The content within this document may be used as a resource. Any other use,
including the reproduction, modification, distribution, transmission, republication,
display, or performance, of the content on this website is strictly prohibited.
MOJIX, Mojix STAR, Mojix eNode, Mojix eGroup, and the Mojix logo are trademarks or
registered trademarks of Mojix. All other trademarks mentioned in this document are the
property of their respective owners. The trademarks and logos contained in this
document may not be used without the prior written consent of Mojix or their respective
owners.
Portions, features and/or functionality of Mojix's products are protected under Mojix
patents, as well as patents pending.
This User Manual is provided as a reference for persons who are properly trained and
qualified to install and/or operate Mojix’s RFID products. Whereas Mojix makes every
effort to ensure the accuracy and currency of its technical documentation, Mojix cannot
be responsible for errors that occur in this User Manual or for changes to Mojix’s
products that might render information in this Manual obsolete. For information
regarding Mojix technical training, visit Mojix’s website (www.Mojix.com) or contact
Mojix at service@mojix.com.
Improper handling or use of RF equipment can result in damage to property or injury to
personnel.
FCC Compliance
This equipment has been tested and found to comply with the limits for Class B digital
devices, pursuant to Part 15 of the FCC Rules. Any change or modification to this
product voids the user’s authority to operate per FCC Part 15 Subpart A. Section 15.21
regulations.
Addendum to User Manual - Wireless STAR & eNode
Page 4 of 9
Mojix Incorporated
www.mojix.com
1. Wireless STAR System Components
The Mojix Wireless STAR system is a single network element at the enterprise edge.
Based on Mojix's innovative distributed architecture, a single system consists of one or
more STAR units managing up to 512 low-cost Mojix eNode transmitters. Mojix eNodes
provide energy to all passive RFID tags within their specified interrogation spaces, while
the centralized, high-sensitivity Mojix STAR reads the resulting tag signals from across
the system's potentially vast coverage area of up to 250,000 sq. feet.
A Wireless STAR communicates configures and manages wireless eNodes through a
command link. A command link antenna replaces the cabled interface between STAR
and eNodes.
1.1. Mojix Wireless eNodes: Distributed Transmitters
Each Wireless eNode excites all passive RFID tags within its designated interrogation
space and can be deployed as needed to shape discrete, overlapping or contiguous
interrogation spaces, including configurations to create virtual fences for securing
tagged items.
Mojix Wireless eNodes are designed to excite all EPC UHF Gen2 RFID tags within their
designated interrogation spaces with an excite range of over 30 feet and a coverage
area of more than 2,500 square feet, depending on tag sensitivity. While the wireless
STAR can manage up to 512 wireless eNodes, it also shares in the management of a
deployable sensor network in support of numerous concurrent business processes.
1.2. STAR Interrogation Spaces
Fixed or mobile interrogation spaces are business process specific and can be
optimized for tag density or coverage. Each individually controlled interrogation space is
created by the deployment of single or multiple wireless eNodes and is dynamically
sized by the wireless STAR system, through individual exciter power output control.
1.3. Master Controller
The STAR-1000 signal processing platform is linked to an edge appliance called a Master
Controller (MCON), and communicates via a standard Ethernet 10BaseT (RJ45)interface.
The MCON can drive an arbitrary number of STAR-1000 systems and includes interfaces to
the enterprise middleware. In a larger enterprise deployment, multiple STAR domains would
exist in various locations and would require one or more controllers a clustered
configuration.
Addendum to User Manual - Wireless STAR & eNode
Page 5 of 9
Mojix Incorporated
www.mojix.com

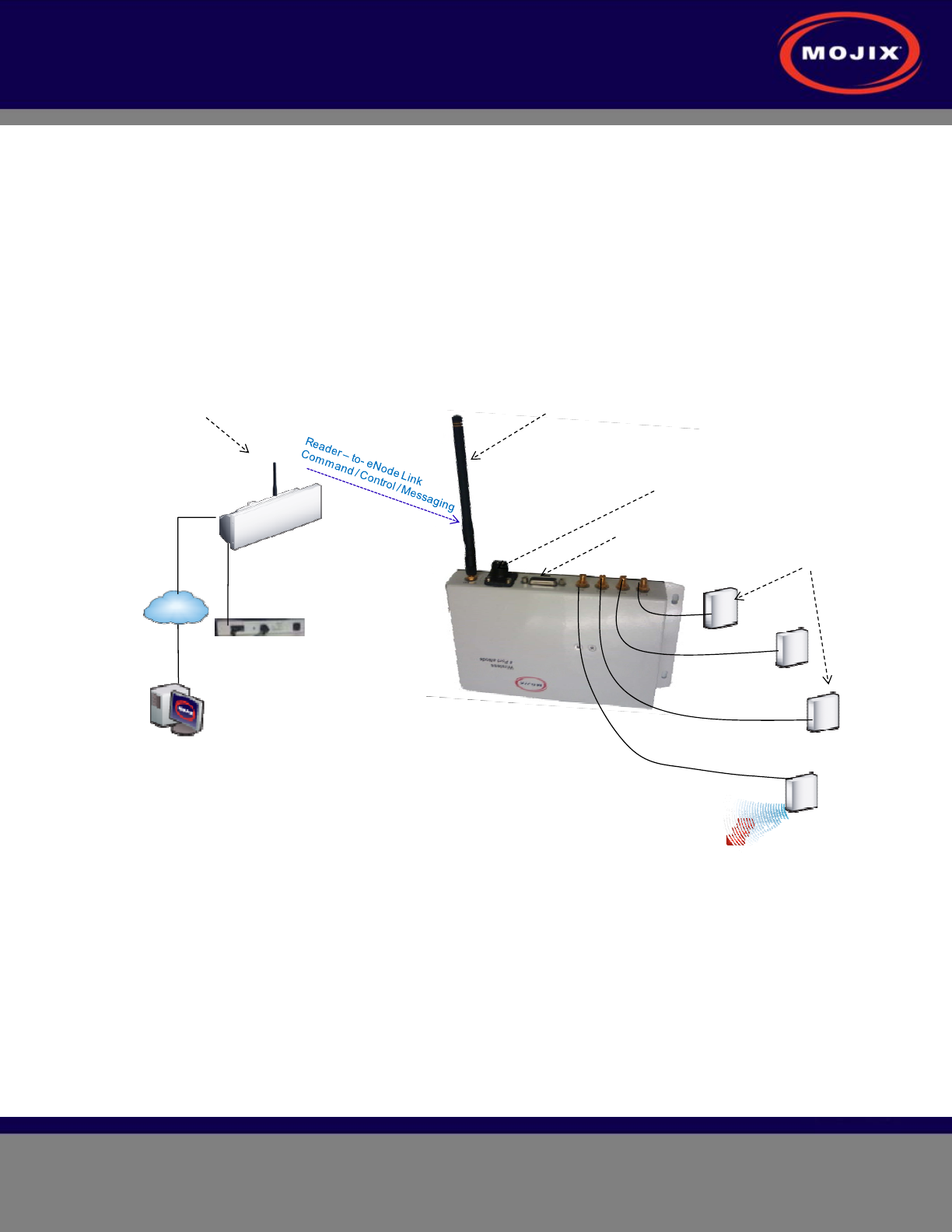

1.4. Wireless STAR System Topology
Figure 1 illustrates Wireless STAR system topology, showing:
1. Wireless STAR 1000 and power supply, including the command link antenna
2. Wireless 4-port eNode, including the command link antenna
3. Sensor interface
4. eNode transmit antennas
5. MCON
LAN line
Master Controller
Wireless
TAR Reader
LAN
Power Supply
Transmit Antenna
Wireless
4 Port eNode Coaxial Cable
Sensors
External Power Supply
Command Link
Receive Only Antenna
Command Link
Transmit Only Antenna
Tag
Figure 1: Wireless STAR System Topology
The following section details the Mojix Wireless STAR system installation and
interfaces.
Addendum to User Manual - Wireless STAR & eNode
Page 6 of 9
Mojix Incorporated
www.mojix.com
2. Installation Guide Lines
The detailed hardware specifications, including mechanical requirements, are identical
to the cabled version of the STAR system and are detailed in the STAR-1000 user
manual, as well as the configuration and operational guidelines.
What follows is an addendum to the user manual detailing the specifics applied to the
installation and interfaces of the Wireless STAR and eNode.
2.1. Wireless STAR Command link antenna
Wireless STAR uses the command link antenna to communicate with wireless eNodes.
The command link antenna specification is detailed in Table 1:
Command Link Antenna Specification Comment
Center Freq. 916MHz
Bandwidth 30MHz
Wavelength 1/2-wave
VSWR <2.0 typ. at center
Impedance 50 ohms
Gain 2dBi Maximum
Connector SMA
Model # ANT-916-CW-HWR
Table 1: STAR Command Link Antenna Specifications
Addendum to User Manual - Wireless STAR & eNode
Page 7 of 9
Mojix Incorporated
www.mojix.com

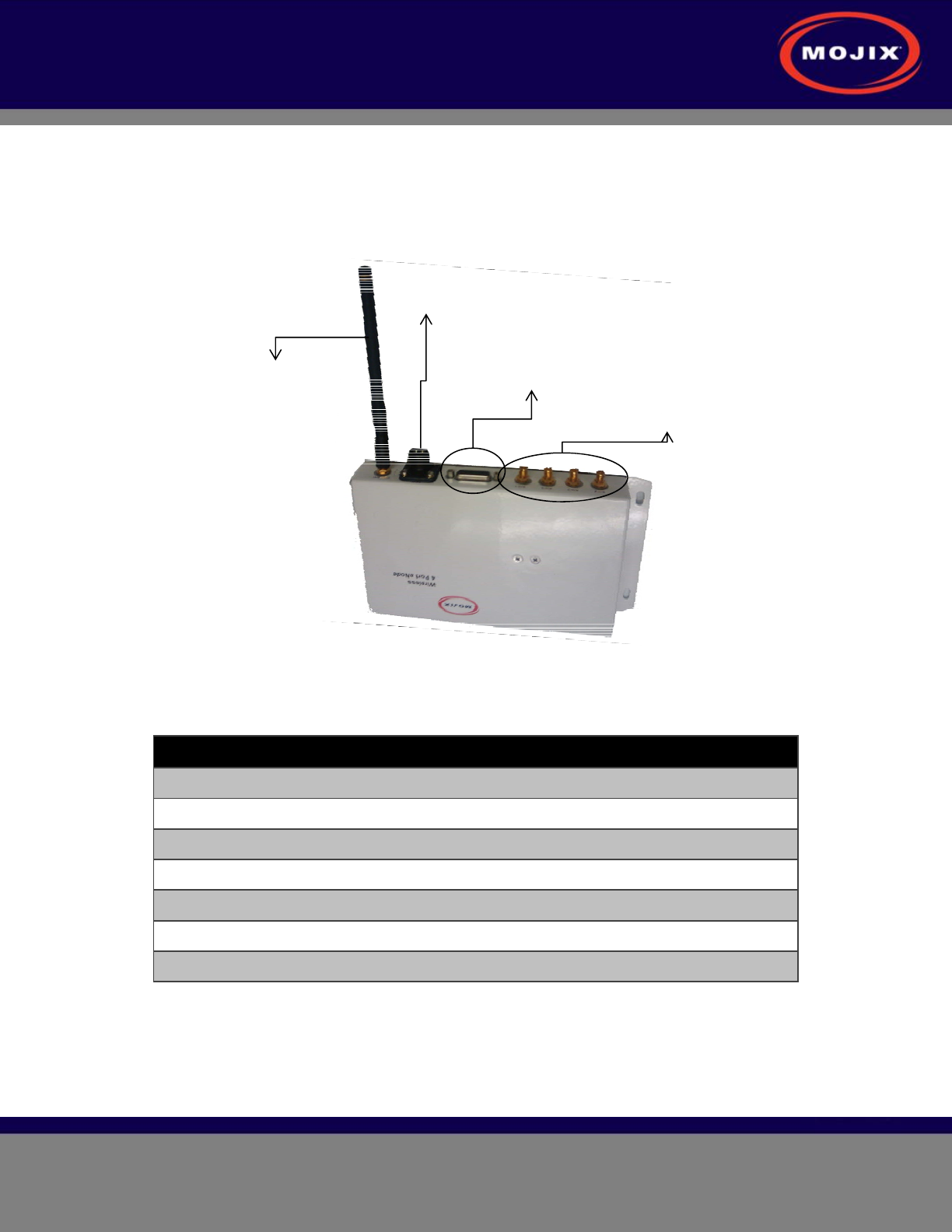

2.2. Wireless eNode interfaces
Wireless eNode interfaces are depicted in Figure 2, and summarized in Table 2.
4 – TX Antenna
Ports
HD-26
Connector
Power
Supply
Command Link
Receive Antenna
Figure 2: Wireless 4-port eNode Interfaces
4-port eNode Specification Comment
Command Link Antenna SMA connector - Receive only
Power Supply External 24V 1A, power supply
Antenna – 1 output connector R-SMA connector
Antenna – 2 output connector R-SMA connector
Antenna – 3 output connector R-SMA connector
Antenna – 4 output connector R-SMA connector
External I/O connector HD-26
Table 2: Wireless 4-Port eNode Interfaces
Addendum to User Manual - Wireless STAR & eNode
Page 8 of 9
Mojix Incorporated
www.mojix.com
Appendix F: FCC Notice
INSTRUCTION TO THE USER
The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
INSTRUCTION TO THE USER
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing
device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations,
shielded cables must be used with this equipment. Operation with non-approved
equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment
without the approval of manufacturer could void the user's authority to operate this
equipment.
CAUTION: To comply with FCC RF exposure compliance requirements, a separation
distance of 20 cm must be maintained between the antenna of this device and all persons.
Addendum to User Manual - Wireless STAR & eNode
Page 9 of 9
Mojix Incorporated
www.mojix.com
Addendum to User Manual
Wireless STAR & eNode
Mojix Incorporated
11075 Santa Monica Blvd., Suite 350
Los Angeles, CA 90025
Web: www.mojix.com
Tel: (877) 886-6549
E-mail: service@mojix.com
Need More Help? Our product support team is comprised of individuals highly
experienced in RFID deployments across a broad spectrum of application and use
cases. If you are an existing customer of Mojix, please login to the secure area and
submit a service request if you have additional questions. If you are unable to login,
then please send us an email at: service@mojix.com
