H2-iBeacon Datasheet
1. Revision History
Revision
Description
Approved
Date
V1.0
Initial Release
Kevin

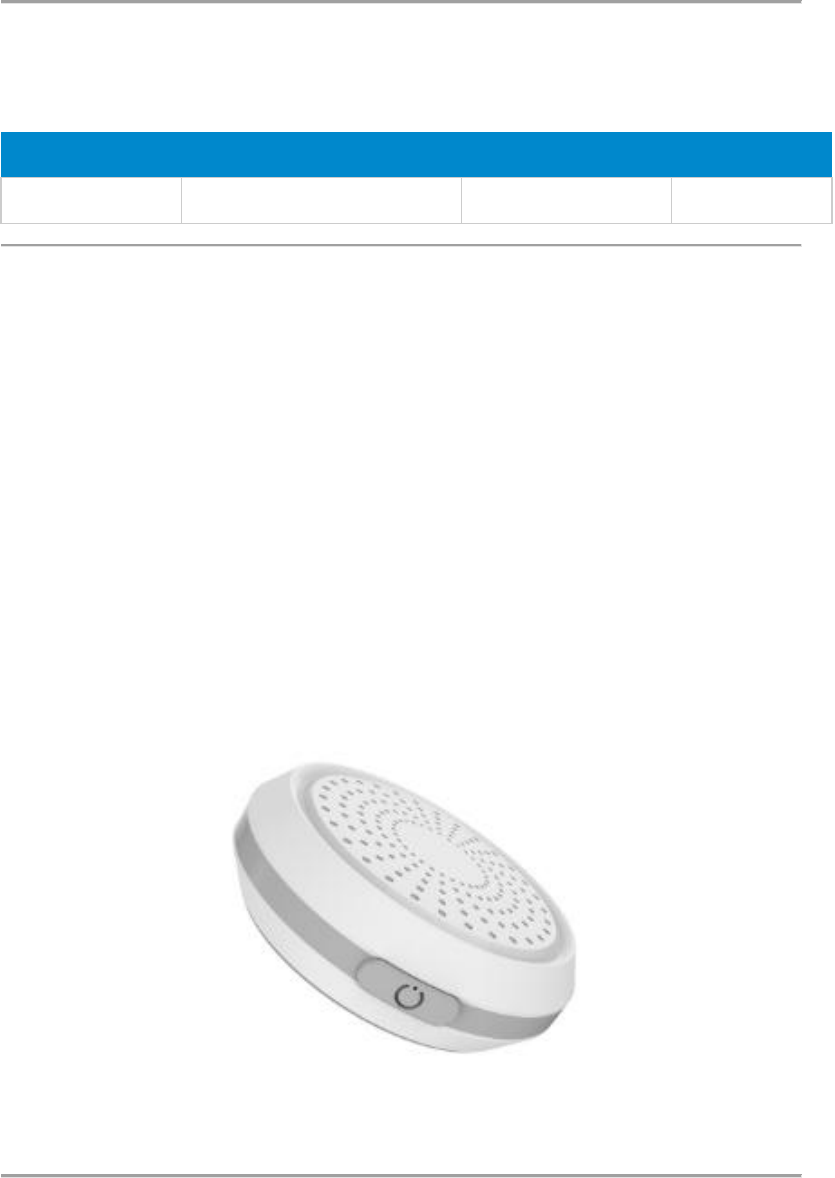

2. Description
The H2-iBeacon is a portable iBeacon tag with ultra low power ARM chipset
nRF52832 and leverage BLE 4.0 technology; it has a portable case shape,
waterproof structure, accurate hardware, robust firmware and external push
button. It is designed for the commercial advertising and indoor location-based
service. H2-iBeacon broadcasts 2.4GHz radio signals at regular and adjustable
intervals. H2-iBeacon can be heard and interpreted by iOS and Android BLE-
enabled devices that are equipped with many mobile apps.
3. Features
• Programmed Moko standard iBeacon firmware
• Portable H2-iBeacon with external ON/OFF push button;
• The max. 100 meters advertising distance
• Ultra-low power consumption chipset nRF52832 with ARM core
• Easy to print a customization logo/branding on the case.
4. Specification
Compatibility
• Supported iOS 7.0+ and Android 4.3+ system;
• Compatible with Apple iBeaconTM standard;
• Compatible with all Bluetooth 4.0 (BLE) devices.
Replaceable Battery
• High quality replaceable CR2477 coin battery(1000mAh);
• More than 3 years battery lifetime (at default settings);
• Easy to get the real-time battery level notification.
Configurable Parameters
• UUID, Major, Minor, Device Name, Device ID, Password, Advertising Interval,
RSSI@0m, Tx Power etc;
• Special Configuration APP(MokoBeacon, Pls visit
http://doc.mokotechnology.com/index.php?s=/16 for more ).
Transmission Power Levels
• 9 adjustable grades;
• Transmission power range: -40dBm to +4dBm.
Long Range
• The max. Range 100 meters in the open space;
• The range depends on the physical environment.
Security
• 8 characters password (Lock/Unlock parameters);
• AES HW encryption.
Low power reminder
• Led flashes every 10 seconds if the battery capcity is under 5%.
Connection Mode
• Advertising mode, non-connectable;
• Configuration mode, connectable.
Custom made mounting
• Keychain / neck chain;
• 3M sticker.
OTA and DFU
• Supported upgrade via Over-The-Air;
• Nordic official Device Firmware Upgrade(DFU);
• Reserved J-Link port on the board for programming.
5. Turn ON/OFF H2-iBeacon
Turn ON H2-iBeacon:
Press the button (at the side of the device) and keep holding 3 seconds; The red led
flashes several times then turns off, it means that the beacon is on and starts
broadcasting.
Turn OFF H2-iBeacon: Press the button (at the side of the device) and keep
holding 3 seconds; The red led lights on 2 seconds then turns off, it means that the
beacon is off and stops broadcasting.
6. Configurable parameters
Characteristic
Item
Default Setting
0xFF01
UUID
E2C56DB5-DFFB-48D2-B060-
D0F5A71096E0
0xFF02
Major
0
0xFF03
Minor
0
0xFF04
Measured Power
(RSSI@1m)
-80dBm
0xFF05
TX Power
-4dBm
0xFF06
Password
Moko4321
0xFF07
Advertising Interval
1000ms
0xFF08
Serial ID
00000-99999，5 numbers
0xFF09
Device Name
MkiBeacon_
0xFF0E
Connection Mode
0（Connectable）
0xFF0F
Soft Reboot
Moko4321（It is same as the value of
password）
7. Electronic parameters
Item
Value
Remarks
Case Color
White
Other colors can be customized
Battery Model
CR2477
Coin battery, 1pc, 1000mAh
Operation Voltage
1.8-3.6V
DC
Waterproof level
IP67
Transmission
Current
2.5mA
Tested at -4dBm transmission power and 900ms
Advertising Interval
Average Current
20uA
Tested at -4dBm transmission power and 900ms
Advertising Interval
Item
Value
Remarks
Transmission
Range
80m(+4dBm)
The range depends on the physical environment
Antenna
50ohm
On board/PCB Antenna/Ceramic Antenna
Size
Φ48*13.89mm
--
Net Weight
24g
With battery
8. Technical support
Item
File Name
Remarks
Configure
APP for
IOS&Android
MokoBeacon
http://doc.mokotechnology.com/index.php?s=/page/38
SDK for APP
--
http://p29zydyfu.bkt.clouddn.com/MokoBeacon%20APP%20SDK20180122.rar
User Mannul
H2-iBeacon
User Manual
http://doc.mokotechnology.com/index.php?s=/page/102
Datesheet
H2-iBeacon
Datasheet
http://doc.mokotechnology.com/index.php?s=/page/104
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. The statements should be displayed in the user manual: changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Declaration
The contents of this datasheet are subject to change without prior notice for further
improvement. MOKO team reserves all the rights for the final explanation. Please
contact MOKO sales team or visit http://www.mokosmart.com to get more related
information if needed.
Contact Information
MOKO TECHNOLOGY CO. LTD Address : 4F,Buidling2, Guanghui Technology
Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Telephone : 86-
75523573370 Fax : 86-75523573370-808
Website : http://www.mokosmart.com
