MOKO TECHNOLOGY H2 H3-iBeacon User Manual

MOKO TECHNOLOGY LIMITED H3-iBeacon

Contents

User manual

H3-iBeacon Datasheet
1. Revision History
Revision
Description
Approved
Date
V1.0
Initial Release
Kevin
2. Description

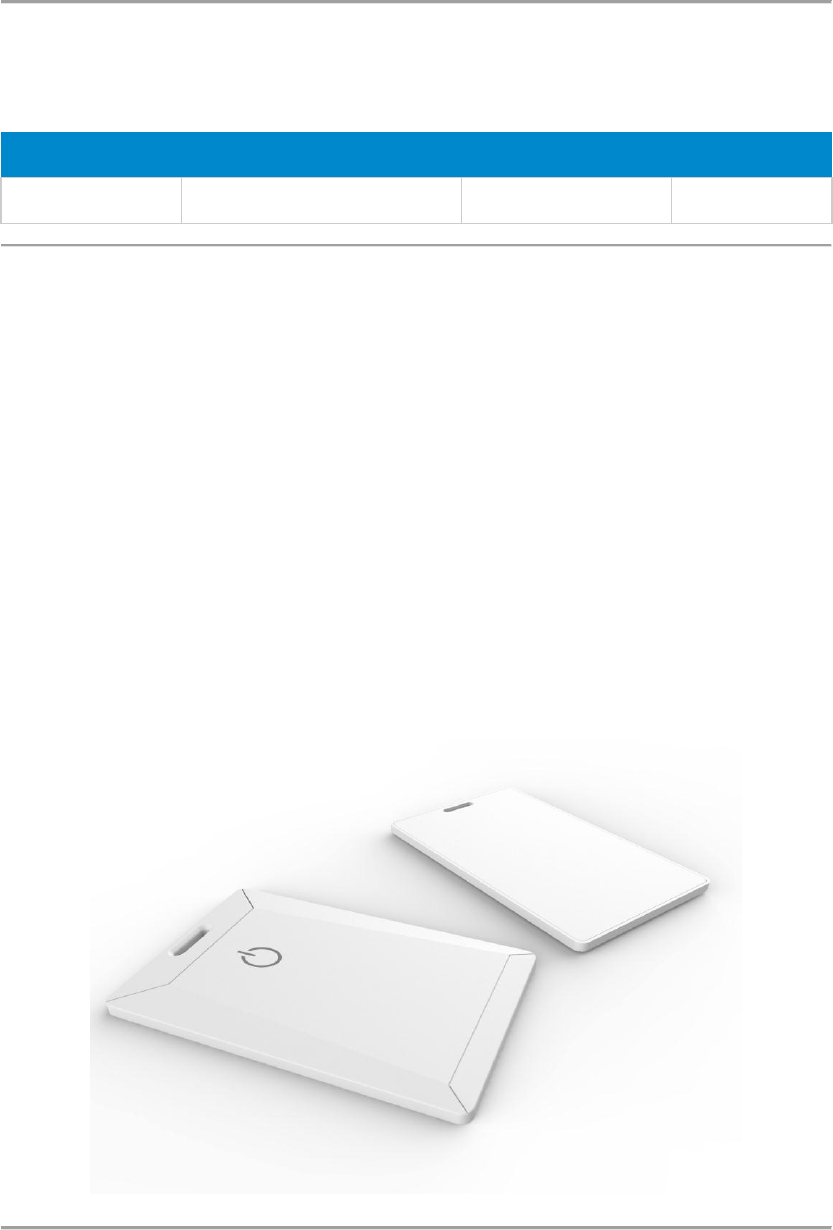

The H3-iBeacon is a portable iBeacon card with ultra low power ARM chipset
nRF52832 and leverage BLE 4.0 technology; it looks like a bank/RFID card and has
packed a soft-packed Li-MnO2 battery. H3-iBeacon has a portable case shape,
waterproof structure, accurate hardware, robust firmware and external push button.
It is designed for the commercial advertising and indoor location-based service. H3-
iBeacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. H3-
iBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that
are equipped with many mobile apps.
3. Features
• Programmed Moko standard iBeacon firmware;
• Portable H3-iBeacon with external ON/OFF push button;
• The max. 100 meters advertising distance;
• Ultra-low power consumption chipset nRF52832 with ARM core;
• Easy to print a customization Logo/branding on the case;
• Ultrasonic welding structural design.
4. Specification
Compatibility
• Supported iOS 7.0+ and Android 4.3+ system;
• Compatible with Apple iBeaconTM standard;
• Compatible with all Bluetooth 4.0 (BLE) devices.
High quality and long life soft-packed Li-MnO2 battery
• Soft-packed Li-MnO2 battery(CP224248/850mAh);
• More than 3 years battery lifetime (at default settings);
• Easy to get the real-time battery level notification.
Configurable Parameters
• UUID, Major, Minor, Device Name, Device ID, Password, Advertising
Interval, RSSI@0m, Tx Power etc;
• Special Configuration APP(MokoBeacon, Pls visit
http://doc.mokotechnology.com/index.php?s=/16 for more ).
Transmission Power Levels
• 9 adjustable grades;
• Transmission power range: -40dBm to +4dBm.
Long Range
• The max. Range 100 meters in the open space;
• The range depends on the physical environment.
Security
• 8 characters password (Lock/Unlock parameters);
• AES HW encryption.
Low power reminder
• Led flashes every 10 seconds if the battery capcity is under 5%.
Connection Mode
• Advertising mode, non-connectable;
• Configuration mode, connectable.
Custom made mounting
• Card design and easy to carry;
• Keychain / neck chain;
• 3M sticker.
OTA and DFU
• Supported upgrade via Over-The-Air;
• Nordic official Device Firmware Upgrade(DFU);
• Reserved J-Link port on the board for programming.
5. Turn ON/OFF H3-iBeacon
Turn ON H3-iBeacon:
Press the button (at the top cover of the device) and keep holding 3 seconds; The red
led flashes several times then turns off, it means that the beacon is on and starts
broadcasting.
Turn OFF H3-iBeacon: Press the button (at the top cover of the device) and keep
holding 3 seconds; The red led lights on 2 seconds then turns off, it means that the
beacon is off and stops broadcasting.
6. Configurable parameters
Characteristic
Item
Default Setting
0xFF01
UUID
E2C56DB5-DFFB-48D2-B060-
D0F5A71096E0
0xFF02
Major
0
0xFF03
Minor
0
0xFF04
Measured Power
(RSSI@1m)
-80dBm
0xFF05
TX Power
-4dBm
0xFF06
Password
Moko4321
0xFF07
Advertising Interval
1000ms
0xFF08
Serial ID
00000-99999，5 numbers
0xFF09
Device Name
MkiBeacon_
0xFF0E
Connection Mode
0（Connectable）
0xFF0F
Soft Reboot
Moko4321（It is same as the value of
password）
7. Electronic parameters
Item
Value
Remarks
Case Color
Other colors can be customized
Battery Model
Li-MnO2 battery/Not replaceable/850mAh
Operation Voltage
DC
Waterproof level
Transmission
Current
Tested at -4dBm transmission power and 900ms
Advertising Interval
Average Current
Tested at -4dBm transmission power and 900ms
Advertising Interval
Item
Value
Remarks
Transmission
Range
The range depends on the physical environment
Antenna
On board/PCB Antenna/Ceramic Antenna
Size
Net Weight
With battery
8. Technical support
Item
File Name
Remarks
Configure
APP for
IOS&Android
MokoBeacon
http://doc.mokotechnology.com/index.php?s=/page/38
SDK for APP
--
http://p29zydyfu.bkt.clouddn.com/MokoBeacon%20APP%20SDK20180122.rar
User Mannul
H3-iBeacon
User Manual
http://doc.mokotechnology.com/index.php?s=/page/103
Datesheet
H3-iBeacon
Datasheet
http://doc.mokotechnology.com/index.php?s=/page/106
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
2. The statements should be displayed in the user manual: changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Declaration
The contents of this datasheet are subject to change without prior notice for further
improvement. MOKO team reserves all the rights for the final explanation. Please
contact MOKO sales team or visit http://www.mokosmart.com to get more related
information if needed.
Contact Information
MOKO TECHNOLOGY CO. LTD Address : 4F,Buidling2, Guanghui Technology
Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Telephone : 86-
75523573370 Fax : 86-75523573370-808
Website : http://www.mokosmart.com
