MOKO TECHNOLOGY MK100 WiFi Smart Plug Mini User Manual
MOKO TECHNOLOGY LIMITED WiFi Smart Plug Mini
User Manual
WiFi Smart Plug Mini
Product Overview
Smart Wi-Fi Plug Mini can turn your normal electrical device into smart, controllable,
and multi-functional, enabling you to control your household electronic devices on
and off remotely via MiaoHome mobile APP no matter where you are. It also
supports the functions of timing, countdown and scene.
Warning: The devices are not intended for use in location where the temperature may by
less than actual room conditions such as unheated warehouses or garages.
Avertissement: les dispositifs ne sont pas destinés à l'endroit où la température peut par
moins de chambre ou de conditions telles que les entrepôts non chauffé
Key Features
1. Control the plugged-in devices whenever/wherever you are by MiaoHome APP, if
the smart plug and your control device connected to the Internet.
2. Countdown and timer functions turn your home appliance into a smart device
3. Control the light turn on and turn off the home to stop potential intruders in the
field.
4. Compatible with Amazon Alexa/Echo (sold separately), You can control your
device via your voice.

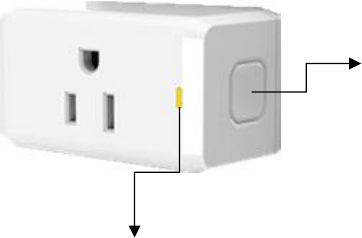

WiFi Smart Plug Mini
Press to turn the socket ON or
OFF
Press and hold (for 10 seconds)
until the LED flashes yellow
rapidly to reset the Smart Plug
Mini.
Flashing Blue Rapidly: After the configuration is successful, the specified WiFi
router is being connected
Solid Blue: Smart socket has connected to the WiFi router. Smart plug is
switched on.
Flashing Yellow Rapidly: Factory reset. Phone can connect it with MiaoHome
APP
Off: The Smart Plug Mini is powered OFF.
Getting Started
Step 1: Download MiaoHome from App Store or Google Play.
Step 2: Connect mobile device to your 2.4 GHz Wi-Fi network.
Note: The Smart Plug Mini only supports 2.4 GHz Networks.
Step 3: Launch MiaoHome and follow the in-app instructions to
connect the Smart Plug Mini to your network.
Plug smart socket into power
Press and hold the button(for 10 seconds) until the LED flashes yellow rapidly to
reset the Smart Plug Mini.
Click Miaohome APP, then click button “ “ , and follow in-app instructions to
add smart plug mini.
Note: If the connection is not successful, long press button for 10S to reset the smart
plug (LED flashes yellow rapidly). Then follow the steps again to add smart
plug mini.
Specifications
NETWORK
Protocol
IEEE 802.11b/g/n
Wireless Type
2.4GHz, 1T1R
System Requirements
Android 4.1 or higher, iOS 8 or higher
GENERAL
Certification
RoHS, FCC, UL
Environment
• Operating Temperature: 0 ºC~ 40 ºC ( 32°F ~ 104°F )
• Shipping/Storage: -40℃to 50℃
• Temperature: -40-50°C
• Humidity Range: 0%~90% RH. (Non-condensing)
Degree of protection
IP20
Dimensions( H X W X D
66*40*40mm
Material
PC
Buttons
Power and Setting button
Supported Load Types:
(Resistive, Motor, TV)
Coffee Maker: 800 W
Desk LED Lamp: 235.2 W
LCD: 270 W
Heater: 1500 W
Humidifier: 260 W
Iron: 1500 W
Toaster: 850 W
Tower Fan: 50 W
WORKING STATUS
Input voltage
120VAC
Output voltage
120VAC
Maximum Load
Resistive: 120V, 15A Max./ Motor: 1/2HP Max./TV: 120V, 470W max.
Troubleshooting
1. What should I do when I can’t Using MiaoHome with Smart Wi-Fi Plug Mini?
Make sure the smart plug and MiaoHome APP are paired successfully
Make sure smart plug and phones are connected to the network
2. What should I do when MiaoHome smart Wi-Fi Plug Mini fails to connect to the
Wi-Fi?
Check your network connectivity
Ensure that the router password is correct
Reset MiaoHome smart Wi-Fi plug (indicator blink yellow light)
Repeat the app onboarding process.
3. How to connect Smart Plug Mini to Amazon Echo?
Refer to the manual:《Quick Guide of connecting neutral app to Amazon Echo》
Limited Warranty
MOKO provides a limited warranty on all eligible MOKO products purchased in the
United States. The limited warranty covers failures due to defects in material or
workmanship on devices, antennas and accessories*. Packaging, software products,
and technical data are not covered under the limited warranty. The limited warranty is
only applicable to the original purchaser of the product. Proof of purchase and a
complete product serial number are required to receive any services guaranteed as part
of the limited warranty. The maximum liability of MOKO is equal to and no higher
than the product's purchase price.
MOKO does not provide refunds under the limited warranty in any conditions.
MOKO will replace defective units with factory refurbished products. If a factory
refurbished unit is not available, then the defective unit will be replaced with a brand
new product. If the defective unit is discontinued, MOKO will replace it with
product(s) of equivalent value and features. Product warranty periods do not renew
with replacement units. The original purchase date and warranty period will apply to
replacement products.
MiaoHome WiFi Smart Plug Mini’s warranty period is 12 months.
Website: MOKOSMART.COM
Manufacturer: MOKO Technology Limited
Address:4F, Building2, Guanghui Technology Park, Mingqing Rd. Longhua.
Shenzhen. Guangdong Province, China
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference. (2) This device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
RF Exposure
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
device should be installed and operated with minimum distance 20cm between the radiator & your body.
Note: The devices are not intended for use in location where the temperature may by less than actual room
conditions such as unheated warehouses or garages.
