Monday FR500M THE PRODUCT IS RF CARD READER User Manual

MONDAY THE PRODUCT IS RF CARD READER Users Manual

Users Manual

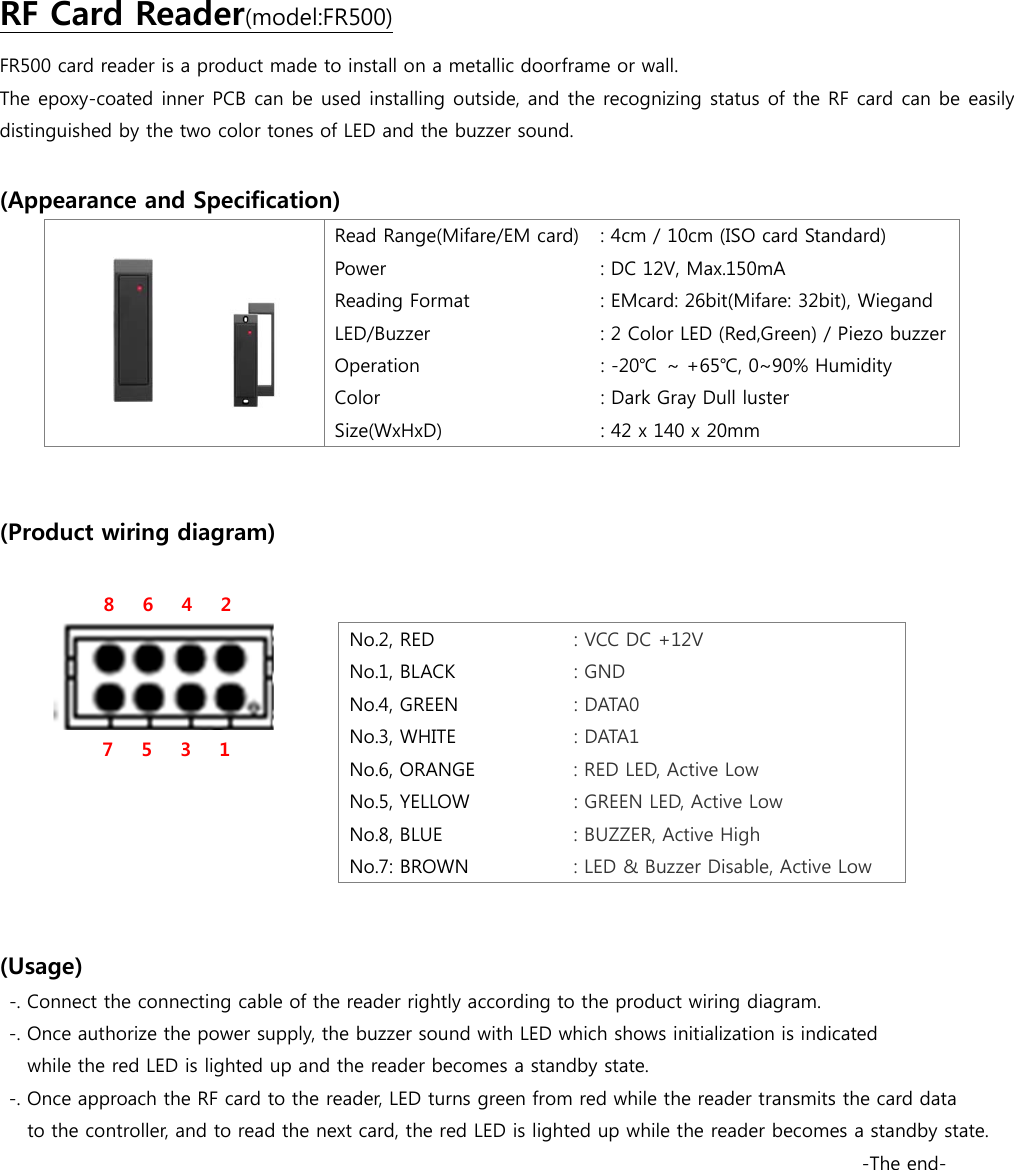

FR500 card reader is a product made to install on a metallic doorframe or wall. RF Card Reader(model:FR500) The epoxy-coated inner PCB can be used installing outside, and the recognizing status of the RF card can be easily distinguished by the two color tones of LED and the buzzer sound. (Appearance and Specification) Read Range(Mifare/EM card) Power Reading Format LED/Buzzer Operation Color Size(WxHxD) : 4cm / 10cm (ISO card Standard) : DC 12V, Max.150mA : EMcard: 26bit(Mifare: 32bit), Wiegand : 2 Color LED (Red,Green) / Piezo buzzer : -20℃ ~ +65℃, 0~90% Humidity : Dark Gray Dull luster : 42 x 140 x 20mm (Product wiring diagram) 8 6 4 2 7 5 3 1 (Usage) -. Connect the connecting cable of the reader rightly according to the product wiring diagram. -. Once authorize the power supply, the buzzer sound with LED which shows initialization is indicated while the red LED is lighted up and the reader becomes a standby state. -. Once approach the RF card to the reader, LED turns green from red while the reader transmits the card data to the controller, and to read the next card, the red LED is lighted up while the reader becomes a standby state. -The end- No.2, RED : VCC DC +12V No.1, BLACK : GND No.4, GREEN : DATA0 No.3, WHITE : DATA1 No.6, ORANGE : RED LED, Active Low No.5, YELLOW : GREEN LED, Active Low No.8, BLUE : BUZZER, Active High No.7: BROWN : LED & Buzzer Disable, Active Low

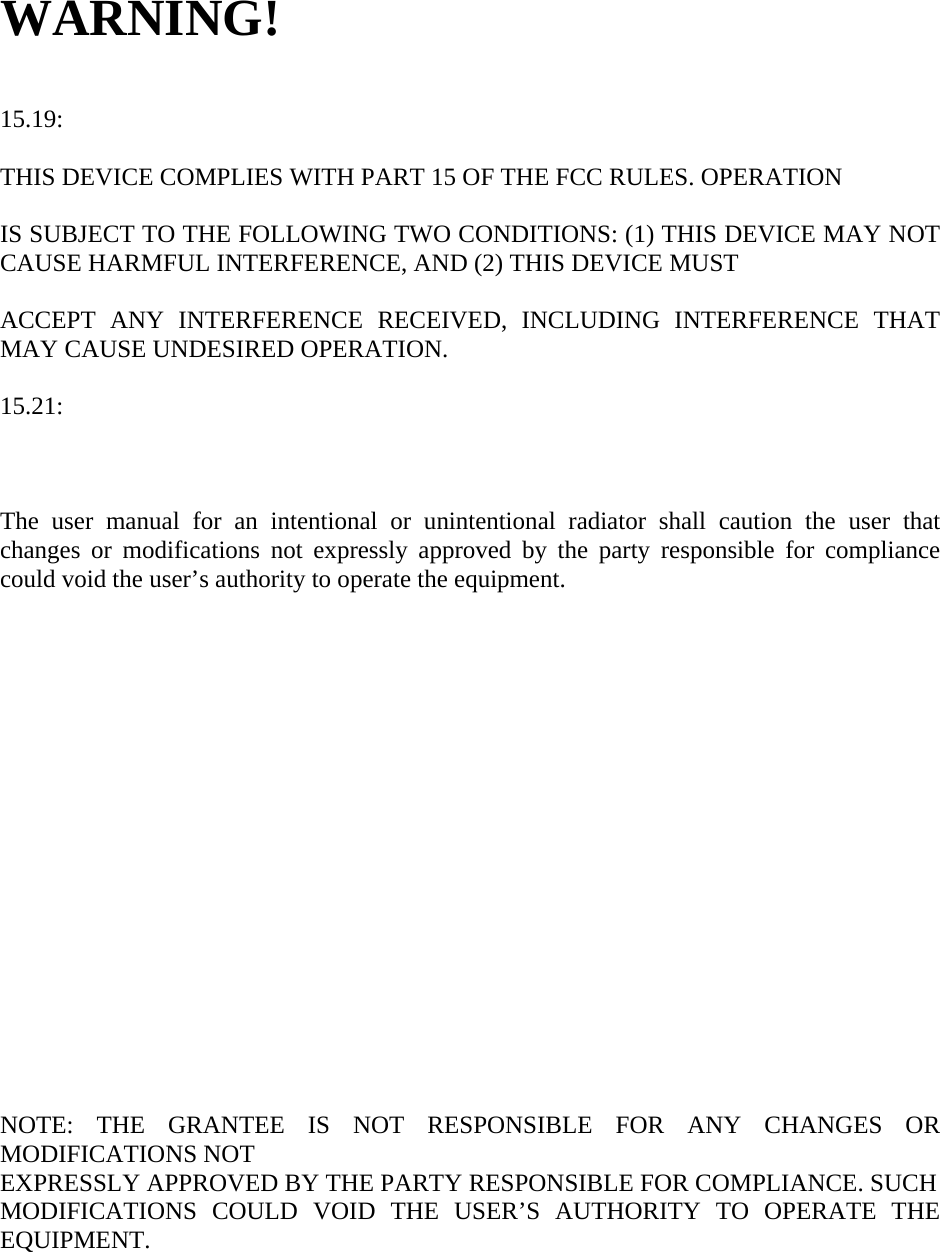

WARNING! 15.19: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 15.21: The user manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
