Monday FR500M THE PRODUCT IS RF CARD READER User Manual
MONDAY THE PRODUCT IS RF CARD READER Users Manual
Monday >
Users Manual
FR500 card reader is a product made to install on a metallic doorframe or wall.
RF Card Reader(model:FR500)
The epoxy-coated inner PCB can be used installing outside, and the recognizing status of the RF card can be easily
distinguished by the two color tones of LED and the buzzer sound.

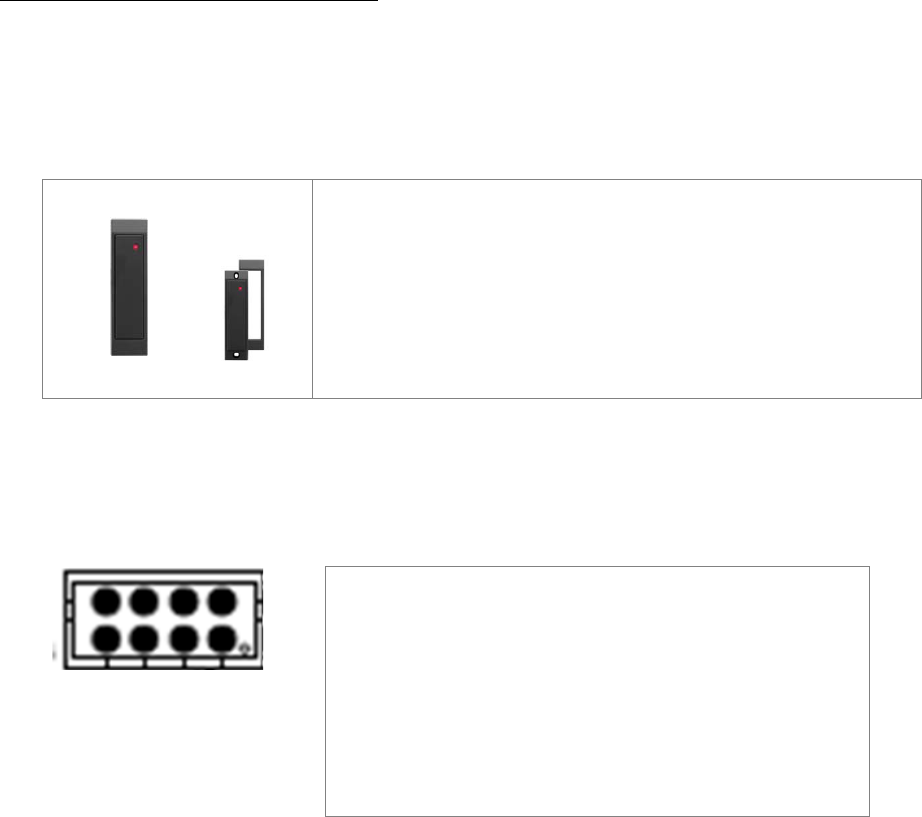

(Appearance and Specification)
Read Range(Mifare/EM card)
Power
Reading Format
LED/Buzzer
Operation
Color
Size(WxHxD)
: 4cm / 10cm (ISO card Standard)
: DC 12V, Max.150mA
: EMcard: 26bit(Mifare: 32bit), Wiegand
: 2 Color LED (Red,Green) / Piezo buzzer
: -20℃ ~ +65℃, 0~90% Humidity
: Dark Gray Dull luster
: 42 x 140 x 20mm
(Product wiring diagram)
8 6 4 2
7 5 3 1
(Usage)
-. Connect the connecting cable of the reader rightly according to the product wiring diagram.
-. Once authorize the power supply, the buzzer sound with LED which shows initialization is indicated
while the red LED is lighted up and the reader becomes a standby state.
-. Once approach the RF card to the reader, LED turns green from red while the reader transmits the card data
to the controller, and to read the next card, the red LED is lighted up while the reader becomes a standby state.
-The end-
No.2, RED : VCC DC +12V
No.1, BLACK : GND
No.4, GREEN : DATA0
No.3, WHITE : DATA1
No.6, ORANGE : RED LED, Active Low
No.5, YELLOW : GREEN LED, Active Low
No.8, BLUE : BUZZER, Active High
No.7: BROWN : LED & Buzzer Disable, Active Low
WARNING!
15.19:
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
15.21:
The user manual for an intentional or unintentional radiator shall caution the user that
changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR
MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
