MOTOTECH MT-FLIP01 Transmitter Assy - Folding Key User Manual
MOTOTECH Co., Ltd. Transmitter Assy - Folding Key Users Manual
MOTOTECH >
User Manual
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
1
PRODUCT SPECIFICATION AND MANUAL
2014.07
BUYER / PROJECT
SYMC / X100 / MT FLIP 01
BUYER MODEL
PCB PACKAGE ASSAY - FOLDINGKEY
PART No.
COMPANY
Mototech Co,.
MAKER/NATION
Mototech Co,./Republic of Korea
DRAFT PART
Research Center
DRAFTER
J. H. SHIN
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
2
Table of Contents
1. CONTENTS ............................................................................................................ 3
2. ELECTRONIC SPEC.............................................................................................. 3
3. SPECIFICATION .................................................................................................... 4
4. REPAIR OF UNIT & CIRCUIT EXPLANATION ...................................................... 4
5. THE METHOD OF UNIT OPERATING ................................................................... 5
6. THE SYSTEM OF EACH UNIT CODE DISCRIMINATION .................................... 6
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
3
1. Contents
TYPE
Wireless controller about wireless electronic equipment of specific
low output radio station
MODEL NAME
USE
Vehicle of door keyless controller what use 433.92 MHz frequency
SUMMARY
1. This equipment use semiconductor and integrated circuit, so it
designs to get high reliability.
2. This equipment use oscillation circuit of crystal, so it designs to
satisfy about legally frequency an allowable error and bandwidth of
exclusive frequency.
3. The transmitter has each other specific identification code.
4. The power use Li-ion coin Battery (DC 3.0V)
COMPOSITION
1. RF Transmitter part
2. Pattern Antenna
2. ELECTRONIC SPEC
UNIT
List
FOLDINGKEY
Rated voltage
DC 3.0V
Voltage range
UNIT 2.1 ~ 3.6V
( except Battery influence)
Operating Temperature range
-10 ~ +60℃
Storage temperature range
-20 ~ +70℃
Dark current
Lower than 1uA
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
4
3. Specification
TYPE
PCB PACKAGE ASSAY - FOLDINGKEY
NAME
Wireless controller about wireless electronic equipment of
specific low output radio station
Equipment List
RF Transmission
Frequency
433.920MHz
Antenna composition
Pattern ANTENNA
Oscillation method
Crystal oscillation
Modulation method
FSK
Communication method
One-Way Communication
Frequency multiplier
32 multiplier
4. Repair of Unit & Circuit Explanation
4.1 Repair of Unit
Exchange an old unit.
4.2 Circuit Explanation
If User presses specific Switch of transmitter, MCU makes inherent serial value
and Encryption value, so it print what CPU make data, at the same time RF IC get to
be ENABLE.
Printing data are falsified into TxIC and it synthesize through CRYSTAL. Compound
frequency are amplified by TxIC and it transmit through antenna from matching circuit
diagram of output.
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
5

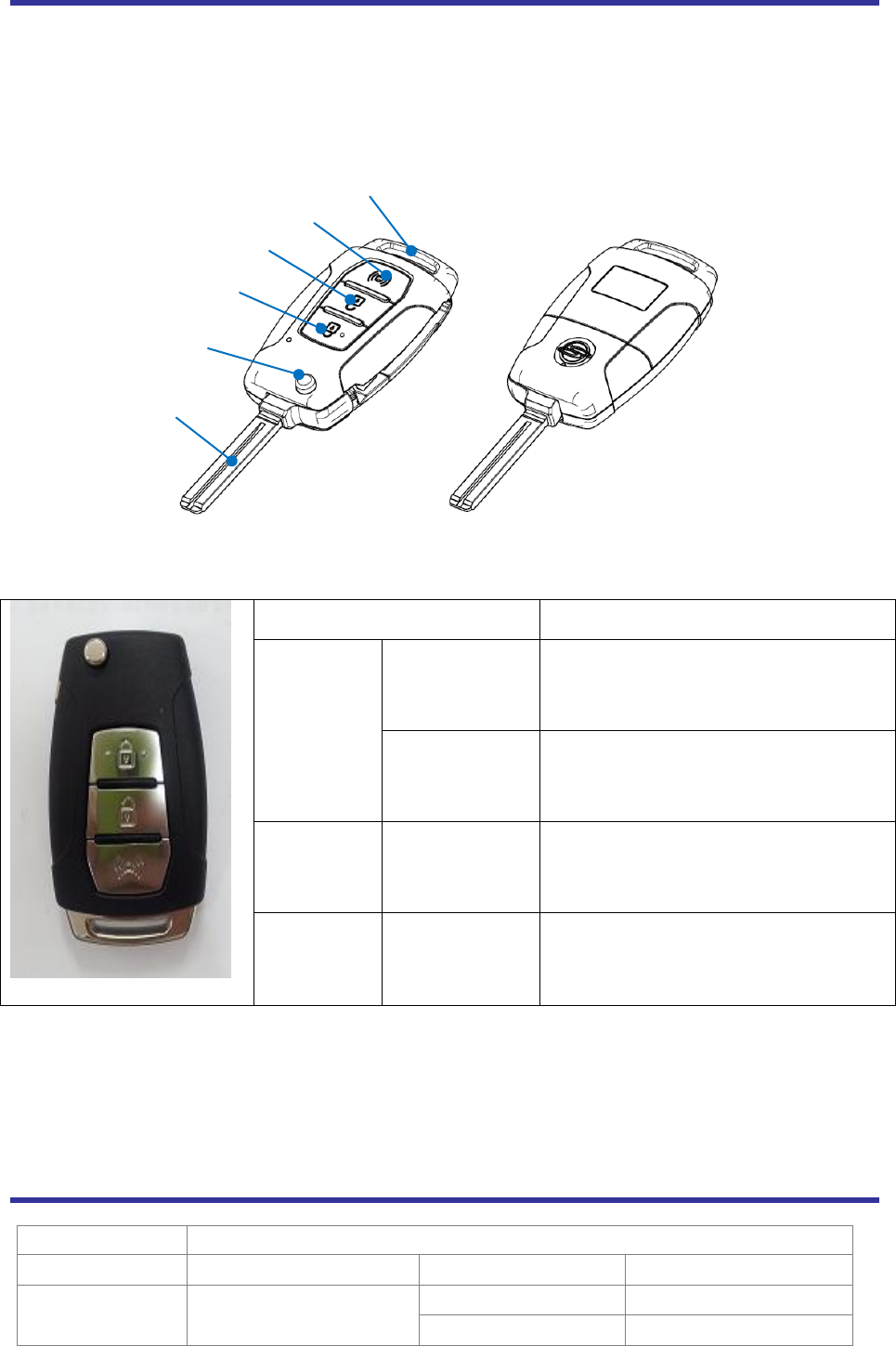

5. The Method of Unit Operating
PICTURE OF UNIT
FUNCTION
SWITCH FUNCTION
LOCK
BUTTON
DOOR LOCK
SHORT PRESSING LOCK BUTTON
UNDER 0.5s
- LED flicker only once as long time
ESCORT
(DOM ONLY)
LONG PRESSING LOCK BUTTON
OVER 0.5s
- LED flicker twice as short time
UNLOCK
BUTTON
DOOR
UNLOCK
SHORT PRESSING UNLOCK
BUTTON UNDER 0.5s
- LED flicker only once as long time
PANIC
BUTTON
PANIC
LONG PRESSING PANIC BUTTON
OVER 2s
- LED flicker twice as short time
RELEASE BUTTON
LOCK BUTTON
UNLOCK BUTTON
PANIC BUTTON
KEY RING
KEY BLADE
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
6

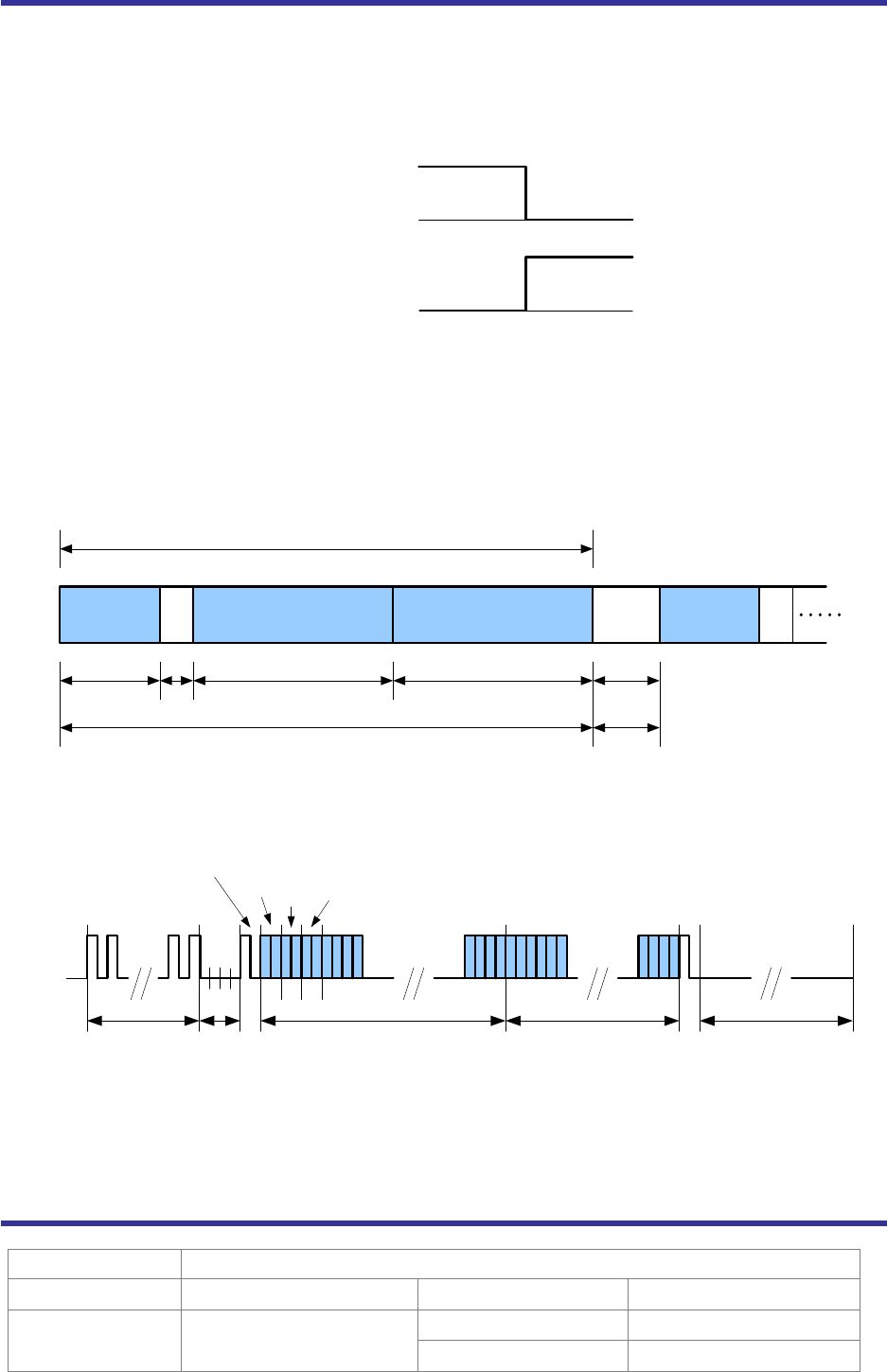

6. The System of Each Unit Code Discrimination
6.1 STRUCTURE OF DATA (“1", "0”)
송신 “1”
“0”
400us 400us
400us 400us
6.2 FOLDINGKEY PROTOCOL FORMAT
(1) ONE TIME TRANSMITTING DATA CONSIST OF 10 FRAMES
(2) EACH FRAME DATA THANSMISSION INTERVAL IS 6.8 ± 1ms
(3) ALL OF BIT (0 AND 1) DIFFERENTIATE THE PULSE FORM
(4) CODE WORD TRANSMISSION SEQUENCE (73.6msec)
Preamble Hea
-der Encrypt Fixed PreambleGuard Hea
-der
16bit 4TE 32bit 32bit 16TE
66.8ms 9.3ms
1 CODE WORD
(5) TRANSMISSION FORMAT (MANCHESTER)
1 2 16
Preamble Header Encrypted
Portion Fixed Code
Portion Guard
Time
STOP bit
bit 2
bit 1
bit 0
START bit
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
X100
Drawn
2014-05-13
Model Name
Released
2014-07-14
Made by
J. H. SHIN
7
(6) CODE WORD TRANSMISSION DATA FORMAT
Fixed Code Portion (32 bits)Encrypted Portion (32bits)
BUT.
4bits
Not
used
4bits
SERIAL NUMBER
24bits
BUT.
4bits
Not
used
4bits
0x5A
DISC
4bits
Synchronization
Counter
16 bits
15 0
S2 S1 S0 S3S2 S1 S0 S3
FCC (Federal Communications Commission)
WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless the modifications
are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or
modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may cause
undesirable operation.
