MOTOTECH MT-FLIP03 Transmitter Assy-Smart Key User Manual
MOTOTECH Co., Ltd. Transmitter Assy-Smart Key Users Manual
MOTOTECH >
Product Manual
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
1
PRODUCT SPECIFICATION AND MANUAL
2016.07
BUYER / PROJECT
SYMC / Y400
BUYER MODEL
Transmitter Assy-Smart Key
PART No.
MT FLIP 03
COMPANY
MOTOTECH Co., Ltd.
MAKER/NATION
Huf Korea Ltd,./Republic of Korea
DRAFT PART
Research Center/Safety control team
DRAFTER
H.J.Myung
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
2
Table of Contents
1. CONTENTS ............................................................................................................ 3
2. ELECTRONIC SPEC.............................................................................................. 3
3. SPECIFICATION .................................................................................................... 4
4. REPAIR OF UNIT & CIRCUIT EXPLANATION ...................................................... 4
5. THE METHOD OF UNIT OPERATING ................................................................... 5
6. THE SYSTEM OF EACH UNIT CODE DISCRIMINATION .................................... 6
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
3
1. Contents
TYPE
Wireless controller about wireless electronic equipment of specific
low output radio station
MODEL NAME
Transmitter Assy-Smart Key
USAGE
Vehicle of door keyless controller what use 133.3KHz & 433.92 MHz
frequency
SUMMARY
1. This equipment use semiconductor and integrated circuit, so it
designs to get high reliability.
2. This equipment use oscillation circuit of crystal, so it designs to
satisfy about legally frequency an allowable error and bandwidth of
exclusive frequency.
3. The transmitter has each other specific identification code.
4. The power use Li-ion coin Battery (DC 3.0V)
COMPOSITION
1. RF Transmitter part
- Pattern Antenna
2. LF Receiver part
- 3D LF Antenna
2. ELECTRONIC SPEC
UNIT
List
Transmitter Assy-Smart Key
Rated voltage
DC 3.0V
Voltage range
DC 2.7 ~ 3.3V
Operating Temperature range
-10 ~ +55℃
Storage temperature range
-30 ~ +80℃
Dark current
6.0μA ±0.4uA
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
4
3. Specification
TYPE
Transmitter Assy-Smart Key
NAME
Wireless controller about wireless electronic equipment of
specific low output radio station
Equipment List
RF Transmitter, LF Receiver
Frequency
RF : 433.920MHz, LF : 133.3KHz
Antenna composition
Pattern ANTENNA, LF ANTENNA
Oscillation method
Crystal oscillation
Modulation method
FSK
Communication method
Two-Way Communication
Frequency multiplier
32 multiplier
Working voltage
DC 3.0V(Li-ion Battery CR2032 x 1EA)
4. Repair of Unit & Circuit Explanation
4.1 Repair of Unit
- Exchange an old unit.
4.2 Circuit Explanation
- If User presses specific Switch of transmitter, MCU(U1) makes inherent serial value
and encryption value, so it is transmitted to the FSK&ASK pin of TX_IC, at the same time,
TX_IC gets to be ENABLE.
- Printing data are falsified into Tx_IC and it synthesize through crystal(X1). synthesized
frequency is multiplied and amplified by Tx_IC, it transmits through pattern antenna
from output matching circuit.
- FOB receives random data through LF Antenna and prints to encrypt result value from
MCU, at the same time TX_IC get to be ENABLE. As following, it transmits pattern
antenna how to change falsification, synthesis, and multiplier.
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
5

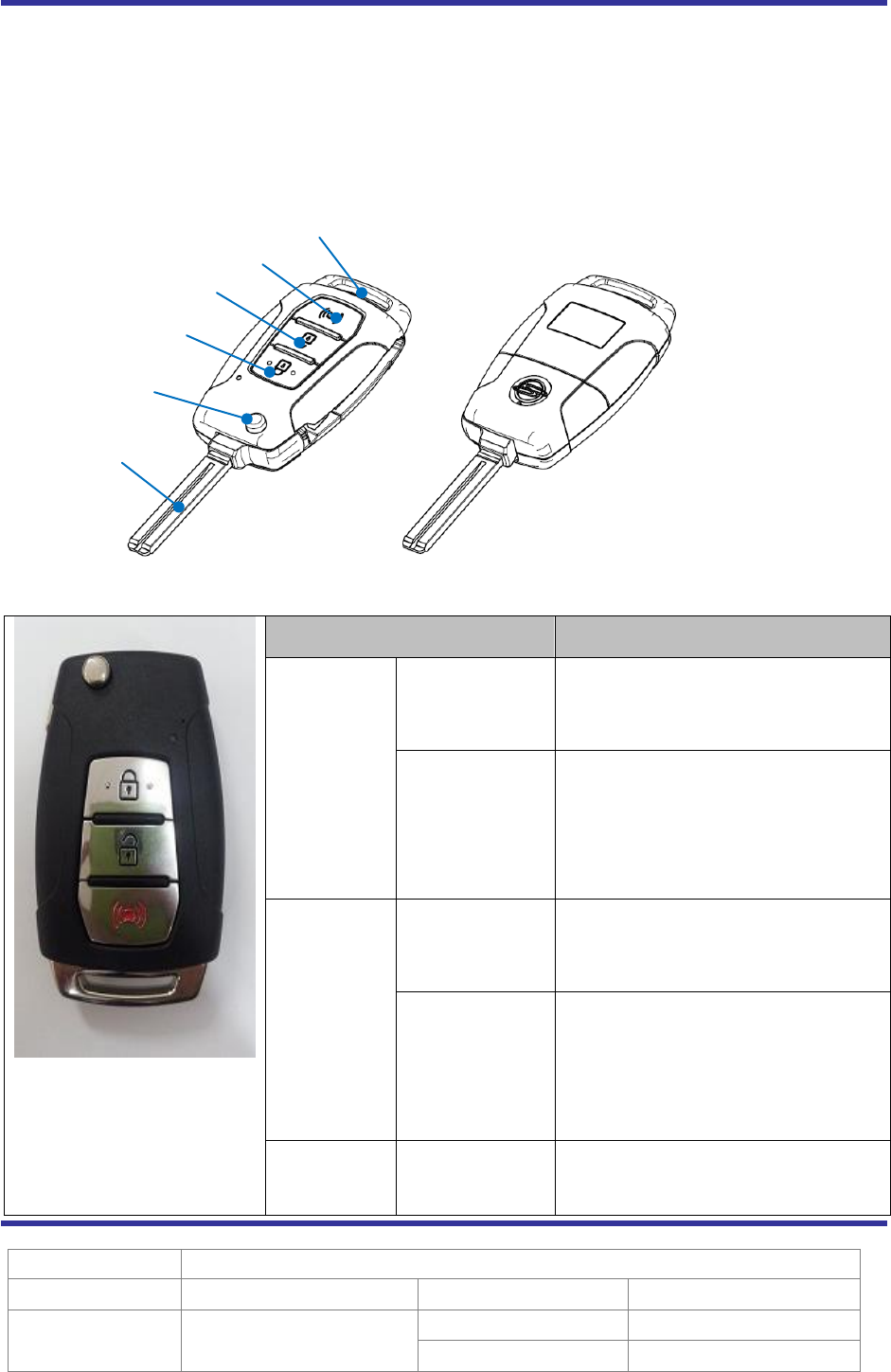

5. The Method of Unit Operating
5.1 REMOTE OPERATING METHOD
[PICTURE OF UNIT]
FUNCTION
SWITCH FUNCTION
LOCK
BUTTON
DOOR LOCK
SHORT PRESSING LOCK BUTTON
OVER 0.03s
- LED flicker once as short time
TOTAL
WINDOW
CLOSE
LONG PRESSING LOCK BUTTON
OVER 1.5s
- TOTAL WINDOW CLOSE signal
output After LOCK signal output,
- LED flicker 12 times as short time
After LOCK LED flicker
UNLOCK
BUTTON
DOOR UNLOCK
SHORT PRESSING UNLOCK
BUTTON OVER 0.03s
- LED flicker once as long time
TOTAL
WINDOW OPEN
LONG PRESSING LOCK BUTTON
OVER 1.5s
- TOTAL WINDOW CLOSE signal
output After LOCK signal output,
- LED flicker 12 times as short time
After LOCK LED flicker
PANIC
BUTTON
(Non-PTG)
PANIC
LONG PRESSING PANIC BUTTON
OVER 1.5s
- LED flicker once as short time
RELEASE BUTTON
LOCK BUTTON
UNLOCK BUTTON
PANIC BUTTON
KEY RING
KEY BLADE
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
6
Tailgate
Open
BUTTON
(PTG)
TAILGATE
STOP
SHORT PRESSING PANIC BUTTON
OVER 0.03s
TAIL GATE
OPEN
LONG PRESSING PANIC BUTTON
OVER 1.5s
- LED flicker once as short time
6. The System of Each Unit Code Discrimination
6.1 TRANSMISSION CODE
RKE RF DATA : 88 Manchester Code(176bits) + 4개 Bits
- 16 Codes : Preamble
- 4 bits : Header(‘0000’)
- 24 Codes : Signature
- 40 Codes : Random Data
- 8 Codes : Serial & Button Data & Battery Voltage Low Data
AFTER LF RECIVE, RF DATA : 48 Manchester Code(96bits) + 4 Bits
- 16 Codes : Preamble
- 4 bits : Header(‘0000’)
- 24 Codes : Signature
- 8 Codes : Serial & Battery Voltage Low Data

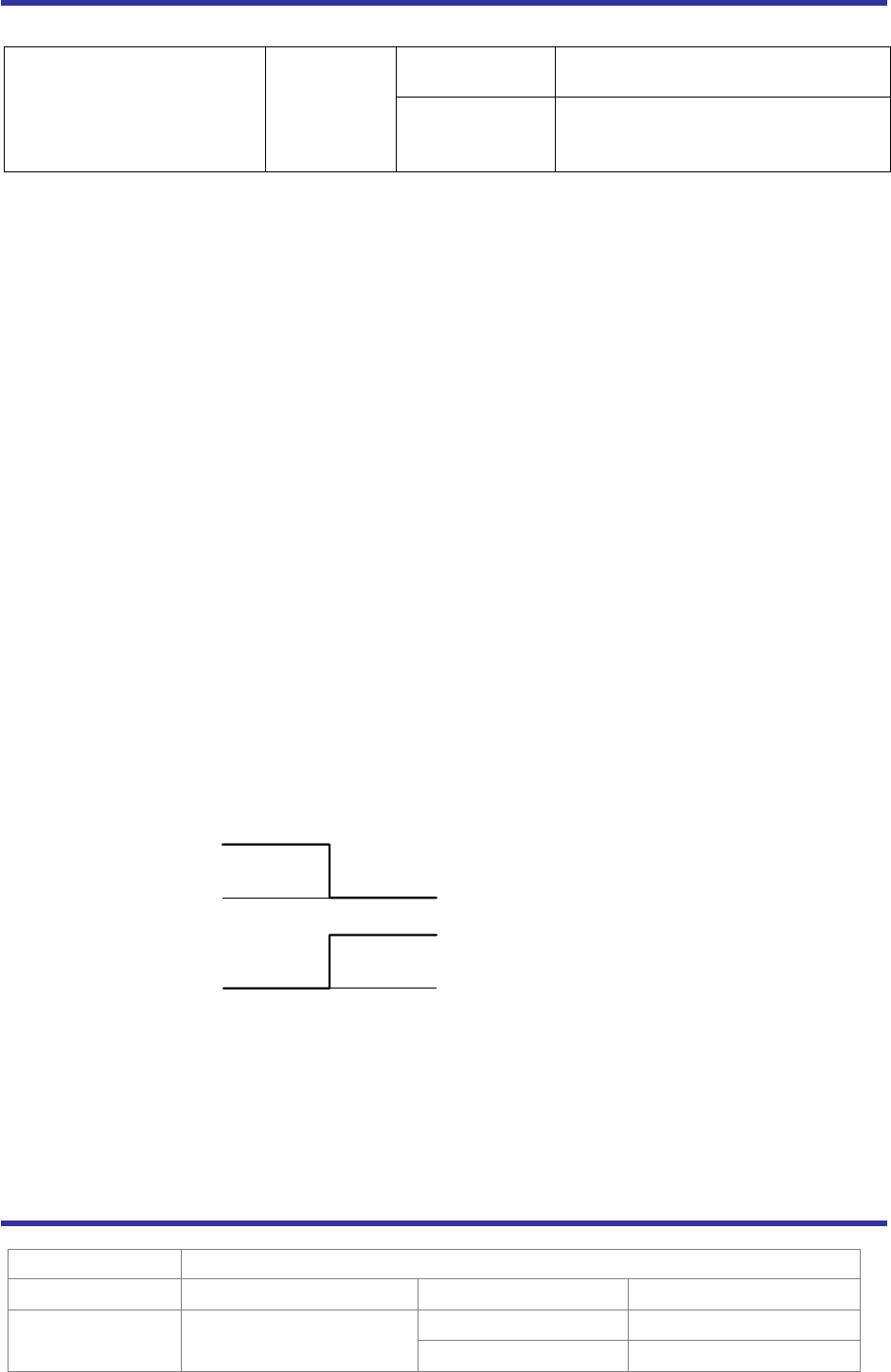

6.2 DATA STRUCTURE (“1", "0”)
송신 “1”
“0”
400us 400us
400us 400us
MOTOTECH CO., LTD.
Title
Certification Request Document
Project Name
Y400
Drawn
2016-07-26
Model Name
MT FLIP 03
Released
2016-07-26
Made by
H.J.Myung
7
FCC (Federal Communications Commission)
WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless the modifications
are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or
modification is made.
This device complies with Part 15 of the FCC’s Rules. Operation is subject to the following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may cause
undesirable operation.
