MOTOTECH MT-FOBG02 Transmitter Assy - Smart Key User Manual
MOTOTECH Co., Ltd. Transmitter Assy - Smart Key Users Manual
MOTOTECH >
Users Manual
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
1
PRODUCT SPECIFICATION AND
MANUAL
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
2
Table of Contents
1. CONTENTS ............................................................................................................ 3
2. ELECTRONIC SPEC.............................................................................................. 3
3. SPECIFICATION .................................................................................................... 4
4. REPAIRABLE EQUIPMENT AND CIRCUIT EXPLANATION ................................ 4
5. USER’S MANUAL .................................................................................................. 5
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
3
1. Contents
Kind of Radio
station
Wireless controller about wireless electronic equipment of specific low output
radio station
Name of device Transmitter
Use Vehicle of door keyless controller what use 433.92 MHz frequency
summary
1. This equipment use semiconductor and integrated circuit, so it designs to get
high reliability.
2. This equipment use oscillation circuit of crystal, so it designs to satisfy about
legally frequency an allowable error and bandwidth of exclusive frequency.
3. The transmitter has each other specific identification code.
4. The power use Li-ion coin Battery what is DC 3.0V
Composition
1. RF Transmissive part
2. Pattern Antenna
3. LF Receiver
4. 3D LF Antenna.
2. Electronic spec
UNIT
List TRANSMITTER
Rated voltage DC 3.0V
Using voltage range DC 2.7 ~ 3.2V
Using temperature range -10 ~ +60℃
Preservable temperature range -20 ~ +70℃
Dark current 1μA이하 (under 1μA)
Receiving distance 10m이상 (OPEN SITE) (over 10m)
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
4
3. Specification
Form name of equipment TRANSMITTER ASSY – SMART KEY
Title of equipment Wireless controller about wireless electronic equipment of specific
low output radio station
Breakdown of equipment RF Transmitter, LF Receiver
Using frequency TX:433.920MHz
Form of radio wave F2D
Antenna power 5mW이하 (under 5mW)
Antenna composition Pattern ANTENNA, 3D LF ANTENNA
Circuit method Crystal circuit
Modulation method FSK
Communication method bilateralness
Number of Chanel 1 CH
Frequency multiplier 32 multiplier
Use of equipment Vehicle of door keyless controller
Using voltage DC 3.0V(Li-ion Battery CR2032 x 1EA)
Temperature of motion -10℃~ +60℃
weight 100g
size 39.2 x 65 x 16.8mm(width x vertical axis x thickness) Case outside)
4. Repairable equipment and circuit explanation
4.1 Repairing method
If Transmitter cannot send output message, it have to change new one
4.2 Circuit explanation
If User press specific Switch of transmitter, CPU (U3) make inherent serial value and
Encr yption value, so it print what CPU make data, at the same time , RF IC get to be ENABLE.
Printing data are falsified into TxIC(U2) and it synthesize through X1. Compound frequency
are amplified by TxIC(U2) and it transmit through antenna from matching circuit diagram of
output or it transmit RANDOM DATA through 3D LF Antenna and print to encrypt result
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
5
value from CPU(U1), at the same time RF IC get to be ENABLE. As following, it transmit
PATTERN Antenna how to change falsification, synthesis, multiplier.

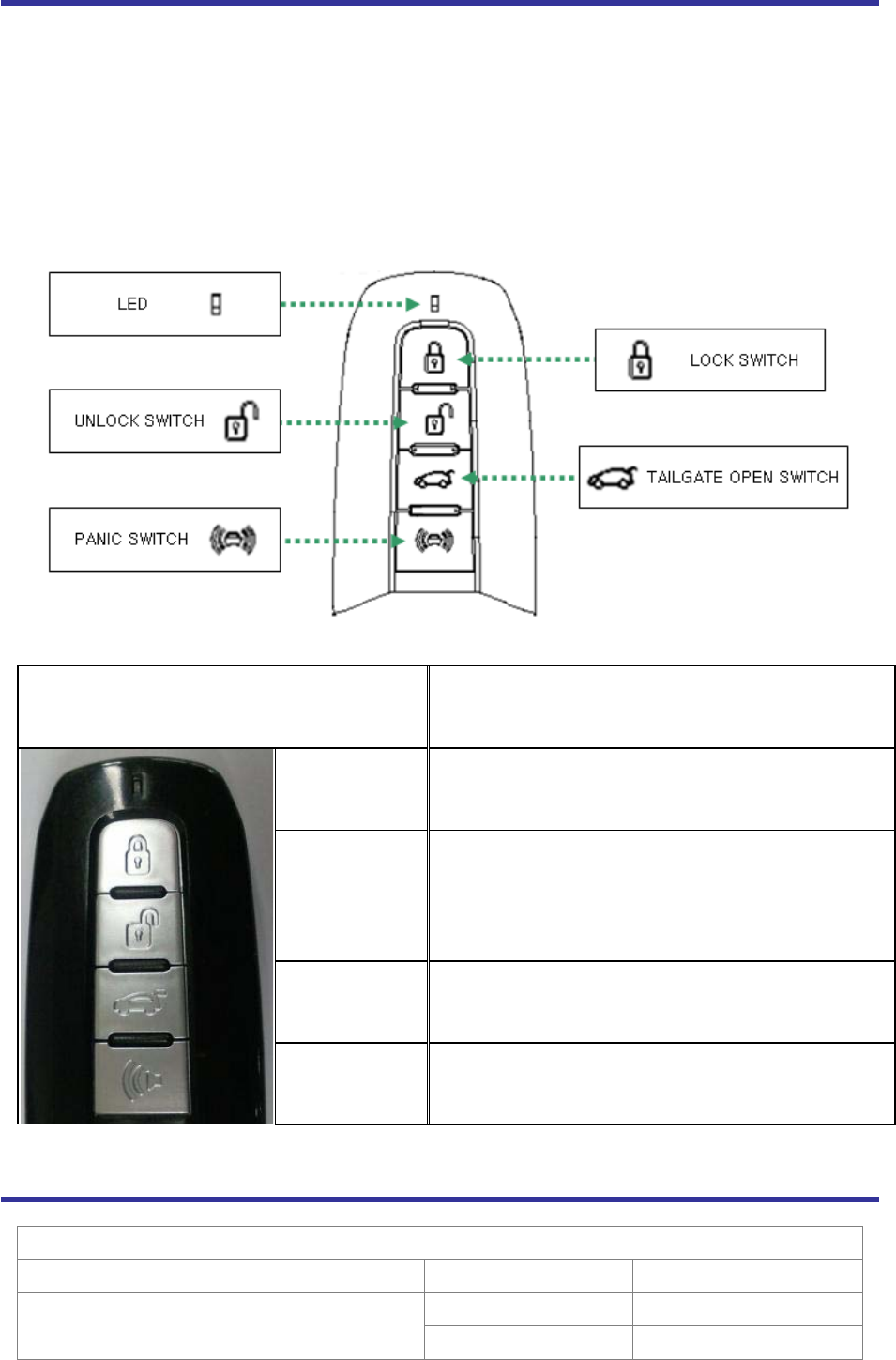

5. User’s manual
function Switch movement
DOOR
LOCK
Pushing LOCK SWITCH for a short time (under 1 sec)
- GREEN LED long flicker on and off for a once
ESCORT
Pushing LOCK SWITCH for a long time(over 1 sec)
- GREEN LED long flicker on and off for a once
and then it shortly flicker on and off for a twice
DOOR
UNLOCK
Pushing UNLOCK SWITCH
- RED LED long flicker on and off for a once
TAILGATE OPEN Pushing LOCK SWITCH for a short time(over 1 sec)
- RED LED shortly flicker on and off for a twice
MOTOTECH CO., LTD.
Title Document
Project Name C205 Date 2010-06-17
Project Name KORANDO C Finish Date 2010-06-17
Made by B.S.Choi
6
Outside picture
PANIC Pushing LOCK SWITCH for a short time(over 1 sec)
- RED LED long flicker on and off for a once
LF Receive Transmitting certification RF after receive LF
- GREEN LED shortly flicker on and off for a once
LOW VOLTAGE When it is LOW VOLTAGE and receive RF
- AMBER LED shortly flicker on and off for a once
FCC (Federal Communications Commission)
WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless the modifications
are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or
modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may cause
undesirable operation.
