MOTOTECH MT-IMMO-02 Unit Assy - Immobilizer User Manual
MOTOTECH Co., Ltd. Unit Assy - Immobilizer
MOTOTECH >
User Manual
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
1
PRODUCT SPECIFICATION AND MANUAL
2011.09
BUYER / PROJECT SANGYONG / MT-IMMO-02
BUYER MODEL
PART No.
COMPANY Mototech Co,.
MAKER/NATION Mototech Co,./Republic of Korea
DRAFT PART Research Center
DRAFTER
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
2
Table of Contents
1. CONTENTS ............................................................................................................ 3
3. SPECIFICATION .................................................................................................. 4
4. DESCRIPTION ....................................................................................................... 5
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
3
1. Contents
IMMO & RECHARGEABLE KEY
Name Unit Ass’y IMMO & RECHARGEABLE KEY
Use Encryption code communication ( protect thief)
Summary
1. Immobilizer can protect vehicle thief
2. Encryption code communication between transponder of
transmitter and immobilizer
Composition Bobbin ( Coil )
2. ELECTRONIC CHARACTERISTICS
IMMOBILIZER & RECHARGEABLE KEY
Name Unit Ass’y Immo & Rechargeable Key
Operational operating temperature
range : -30°C / +80°C
Storage temperature -40°C / +85°C
Operational voltage range 6V to 16V
Operational voltage range for CAN 6V to 18V
Dark Current 1.0mA
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
4
3. SPECIFICATION
IMMOBILIZER Antenna
COIL INDUCTANCE 420uH ± 20
COIL TURNS 95T
COIL WIRE RICH WIRE (TBD)
MODULATION ASK
INPUT/OUTPUT
FREQUENCY 134.2kHz ± 4KHz/PWM
ANT CABLE TWIST - RICH WIRE (TBD)
Transponder
FREQUENCY 134.2kHz ± 4KHz
OPERATION TEMP -40℃ - +85℃
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
5
4. DESCRIPTION

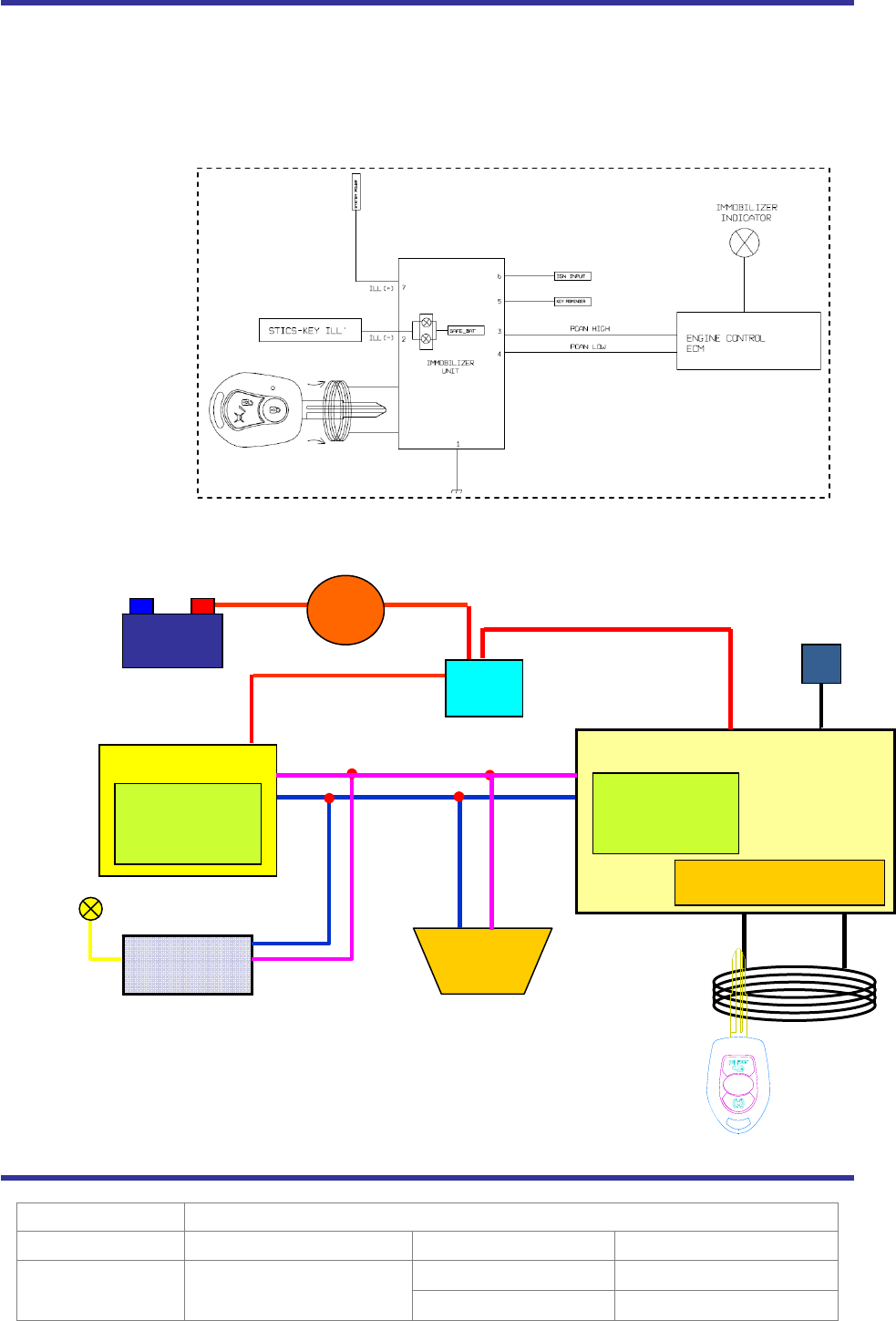

System construction of Immobilizer
그림 1. Immo & Rechargeable Key Block Diagram
그림 2. Immo & Rechargeable Key System Block Diagram
OBD
Connect
or
Cluster
HS_CAN_High
HS_CAN_Low
Diagnosis CAN
(KWP2000)
Control by
EMS
Status Lamp control
by EMS
EMS IMMO
Immobilizer
Authentication
Immobilizer
Authentication
Transponder Authentication
IGN1
11
BAT.
Fuse
B+
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
6
(1) A car key is inserted into a key-lock body and the key is put IGN_ON position,
Immobilizer & Rechargeable Key Set UNIT accomplishes the DIAGNOSIS.
(2) After completing the DIAGNOSIS, UNIT
FCC (Federal Communications Commission)
WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to
the following two Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received,
including interference that may cause undesirable operation.
