1. Contents
IMMOBILIZER
Name Unit Ass’y IMMOBILIZER
Use Encryption code communication ( protect thief)
Summary
1. Immobilizer can protect vehicle thief
2. Encryption code communication between transponder of
transmitter and immobilizer
Composition Bobbin ( Coil )
2. ELECTRONIC CHARACTERISTICS
IMMOBILIZER
Name Unit Ass’y Immobilizer
Operational operating temperature
range : -30°C / +80°C
Storage temperature -40°C / +85°C
Operational voltage range 6V to 16V
Operational voltage range for CAN 6V to 18V
Dark Current 1.0mA
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
4
3. SPECIFICATION
IMMOBILIZER Antenna
COIL INDUCTANCE 440uH ± 20
COIL TURNS 89T
COIL WIRE RICH WIRE (TBD)
MODULATION ASK
INPUT/OUTPUT
FREQUENCY 134.2kHz ± 4KHz/PWM
ANT CABLE TWIST - RICH WIRE (TBD)
Transponder
FREQUENCY 134.2kHz ± 4KHz
OPERATION TEMP -40℃ - +85℃
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
5
4. DESCRIPTION
System construction of Immobilizer

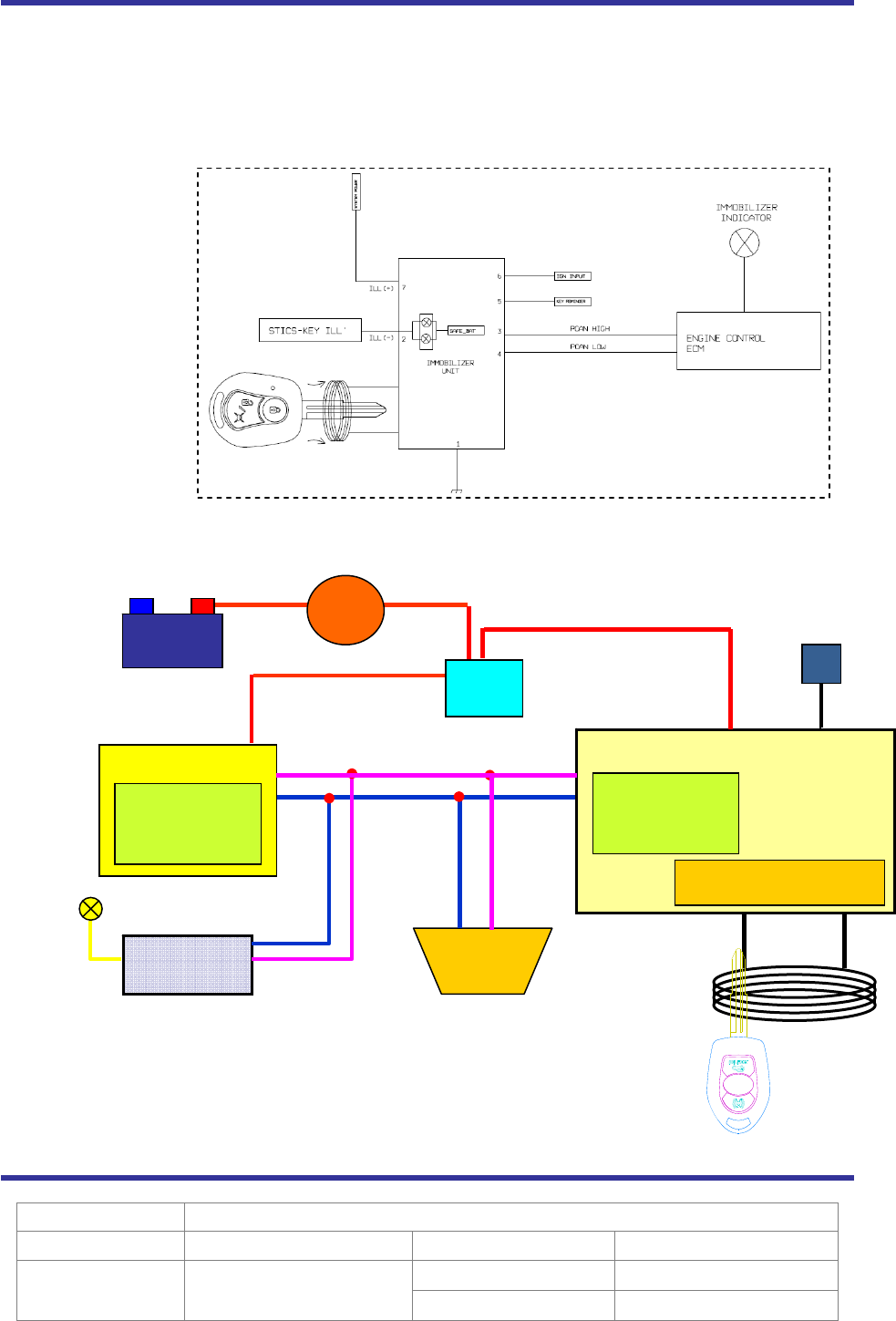

그림 1. Immobilizer Unit Block Diagram
그림 2. Immobilizer Unit System Block Diagram
OBD
Connect
or
Cluster
HS_CAN_High
HS_CAN_Low
Diagnosis CAN
(KWP2000)
Control by
EMS
Status Lamp control
by EMS
EMS IMMO
Immobilizer
Authentication
Immobilizer
Authentication
Transponder Authentication
IGN1
11
BAT.
Fuse
B+
MOTOTECH CO., LTD.
Title Certification Request Document
Project Name Drawn
Model Name Released
Made by
6
(1) A car key is inserted into a key-lock body and the key is put IGN_ON position,
Immobilizer UNIT accomplishes the DIAGNOSIS.
(2) After completing the DIAGNOSIS, UNIT
FCC (Federal Communications Commission)
WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or
modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the
following two
Conditions:
1. This device may not cause harmful interference, and
2. This device must accept ant interference received, including interference that may
cause undesirable operation.
