MOTOTECH MT-SKM05 Unit Assy - Smart Key User Manual

MOTOTECH Co., Ltd. Unit Assy - Smart Key Users Manual

User manual

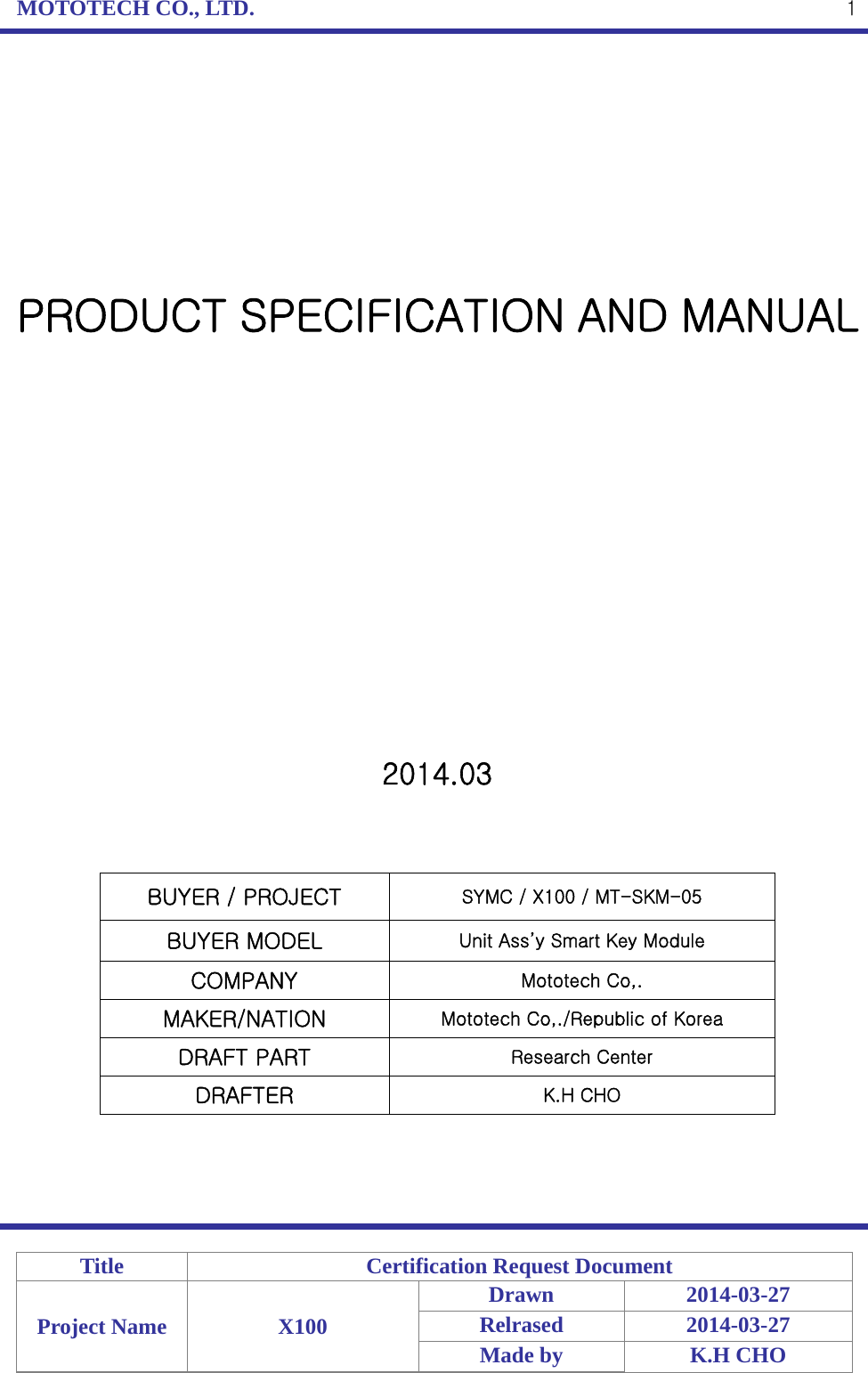

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name  X100 Drawn 2014-03-27 Relrased 2014-03-27 Made by  K.H CHO  1        PRODUCT SPECIFICATION AND MANUAL                2014.03    BUYER / PROJECT  SYMC / X100 / MT-SKM-05 BUYER MODEL  Unit Ass’y Smart Key Module COMPANY  Mototech Co,. MAKER/NATION  Mototech Co,./Republic of Korea DRAFT PART  Research Center DRAFTER  K.H CHO

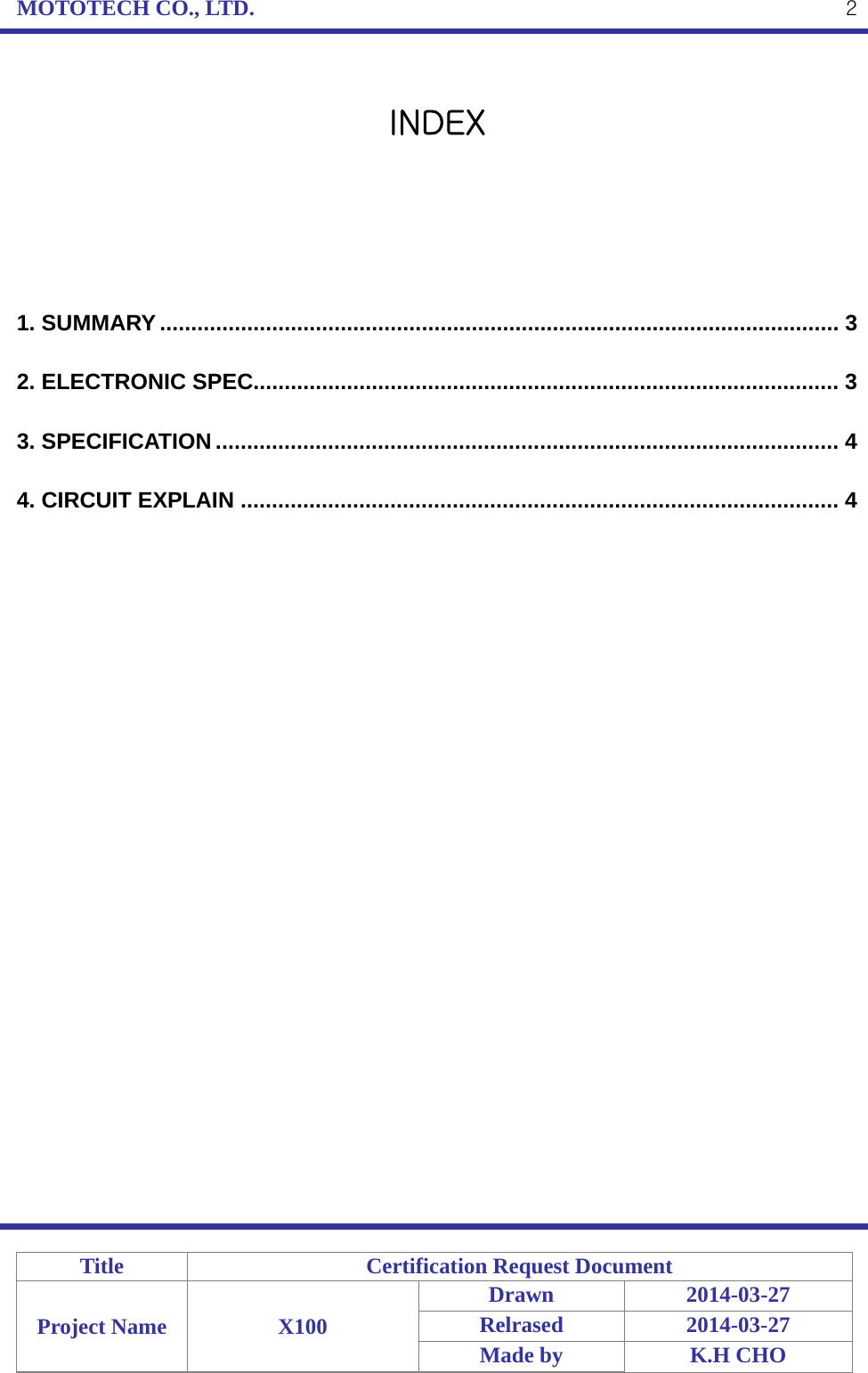

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name  X100 Drawn 2014-03-27 Relrased 2014-03-27 Made by  K.H CHO  2 INDEX      1. SUMMARY ............................................................................................................. 3 2. ELECTRONIC SPEC.............................................................................................. 3 3. SPECIFICATION .................................................................................................... 4 4. CIRCUIT EXPLAIN ................................................................................................ 4

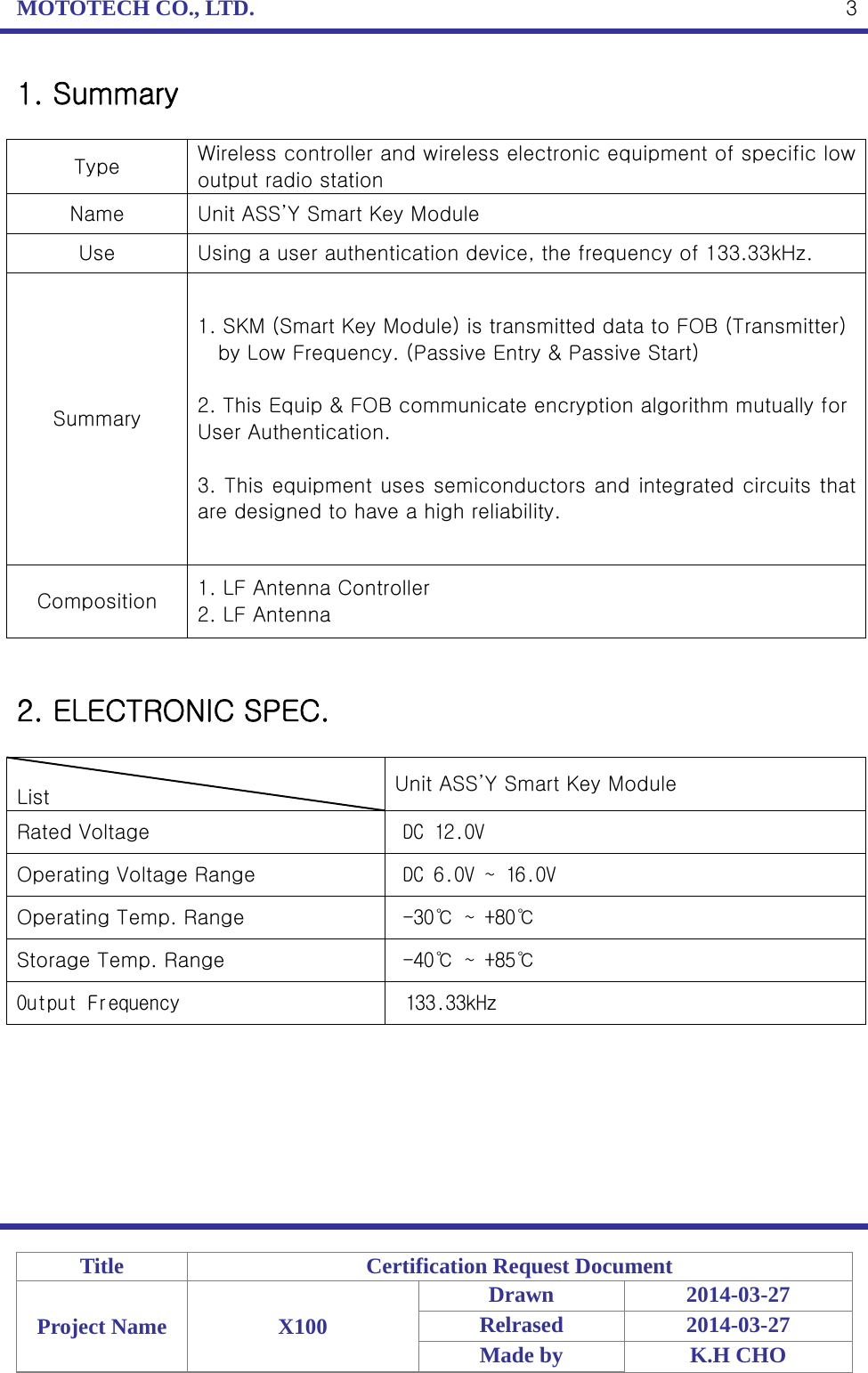

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name  X100 Drawn 2014-03-27 Relrased 2014-03-27 Made by  K.H CHO  31. Summary  Type  Wireless controller and wireless electronic equipment of specific low output radio station Name  Unit ASS’Y Smart Key Module Use  Using a user authentication device, the frequency of 133.33kHz. Summary 1. SKM (Smart Key Module) is transmitted data to FOB (Transmitter) by Low Frequency. (Passive Entry & Passive Start)  2. This Equip & FOB communicate encryption algorithm mutually for User Authentication.  3. This equipment uses semiconductors and integrated circuits that are designed to have a high reliability. Composition  1. LF Antenna Controller 2. LF Antenna   2. ELECTRONIC SPEC.                                  List  Unit ASS’Y Smart Key Module Rated Voltage  DC 12.0V Operating Voltage Range  DC 6.0V ~ 16.0V Operating Temp. Range  -30℃ ~ +80℃ Storage Temp. Range  -40℃ ~ +85℃ Output Frequency  133.33kHz

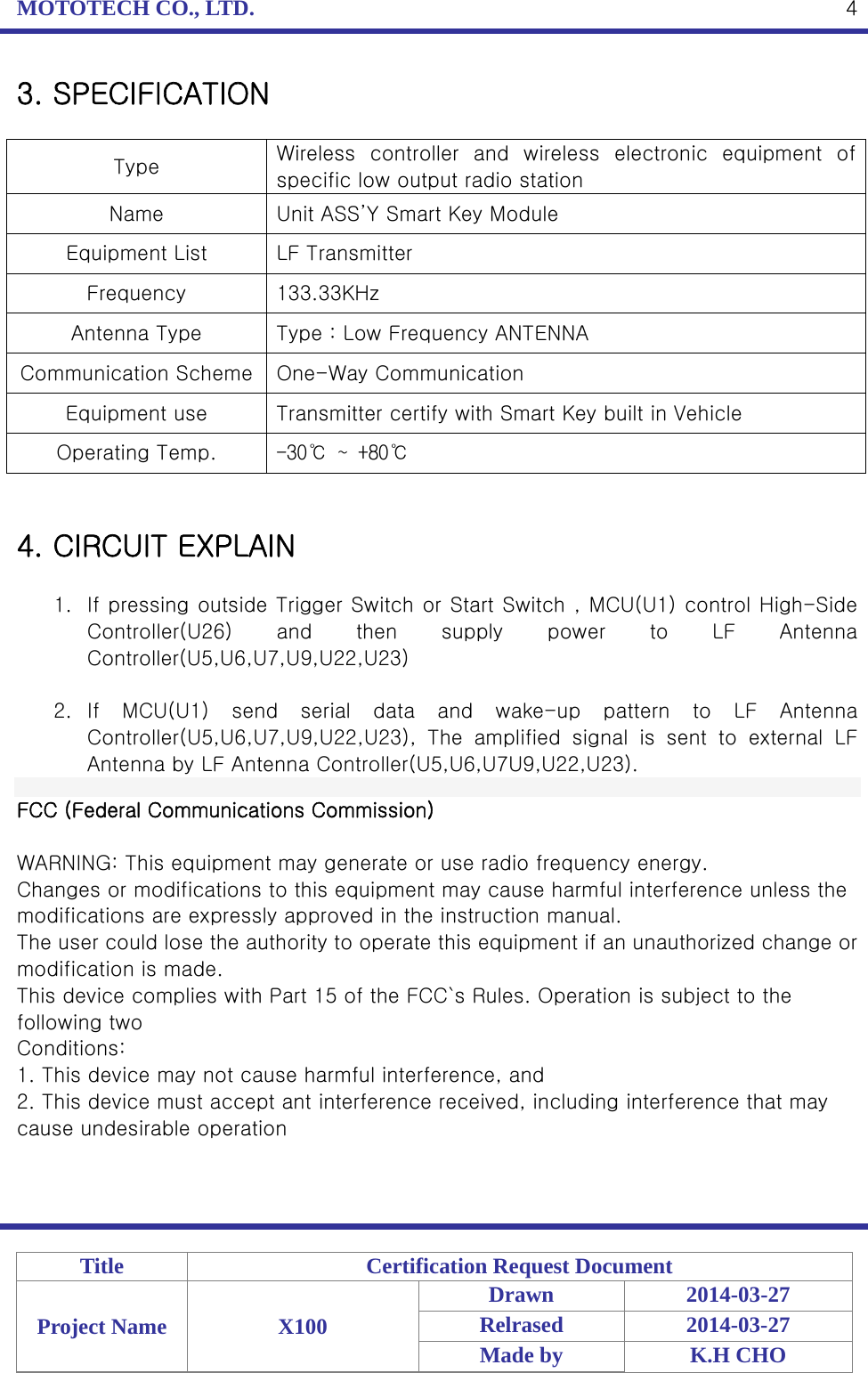

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name  X100 Drawn 2014-03-27 Relrased 2014-03-27 Made by  K.H CHO  43. SPECIFICATION  Type  Wireless  controller  and  wireless  electronic  equipment  of specific low output radio station Name  Unit ASS’Y Smart Key Module Equipment List  LF Transmitter Frequency  133.33KHz Antenna Type  Type : Low Frequency ANTENNA Communication Scheme  One-Way Communication Equipment use  Transmitter certify with Smart Key built in Vehicle Operating Temp.  -30℃ ~ +80℃   4. CIRCUIT EXPLAIN  1. If pressing outside Trigger Switch or Start Switch , MCU(U1) control High-Side Controller(U26)  and  then  supply  power  to  LF  Antenna Controller(U5,U6,U7,U9,U22,U23)    2. If  MCU(U1)  send  serial  data  and  wake-up  pattern  to  LF  Antenna Controller(U5,U6,U7,U9,U22,U23),  The  amplified  signal  is  sent  to  external  LF Antenna by LF Antenna Controller(U5,U6,U7U9,U22,U23).    FCC (Federal Communications Commission)  WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation
