MOTOTECH MT-SKM08 Unit Assy-Body Control User Manual

MOTOTECH Co., Ltd. Unit Assy-Body Control Users Manual

Product Manual

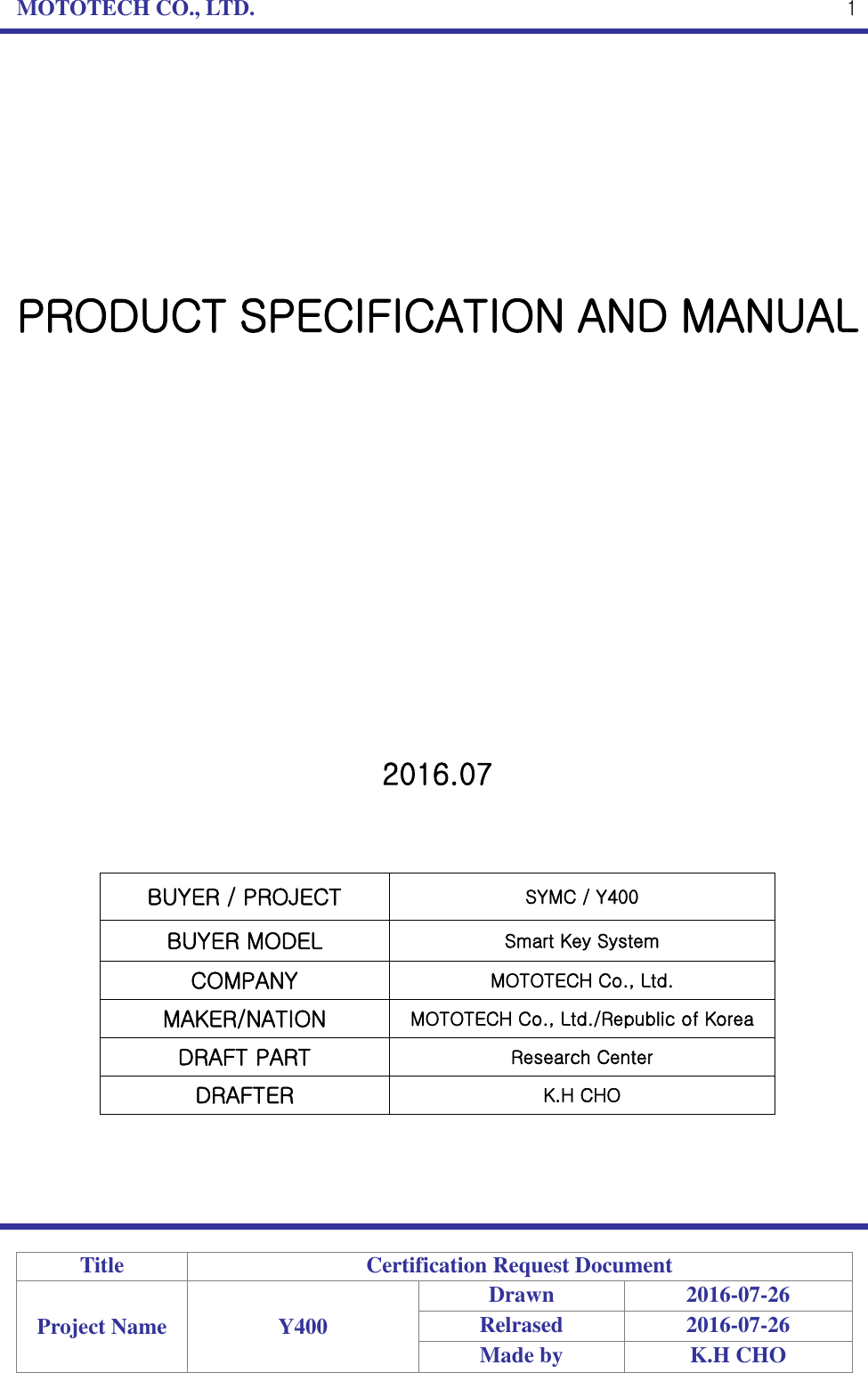

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Relrased 2016-07-26 Made by K.H CHO 1 PRODUCT SPECIFICATION AND MANUAL 2016.07 BUYER / PROJECT SYMC / Y400 BUYER MODEL Smart Key System COMPANY MOTOTECH Co., Ltd. MAKER/NATION MOTOTECH Co., Ltd./Republic of Korea DRAFT PART Research Center DRAFTER K.H CHO

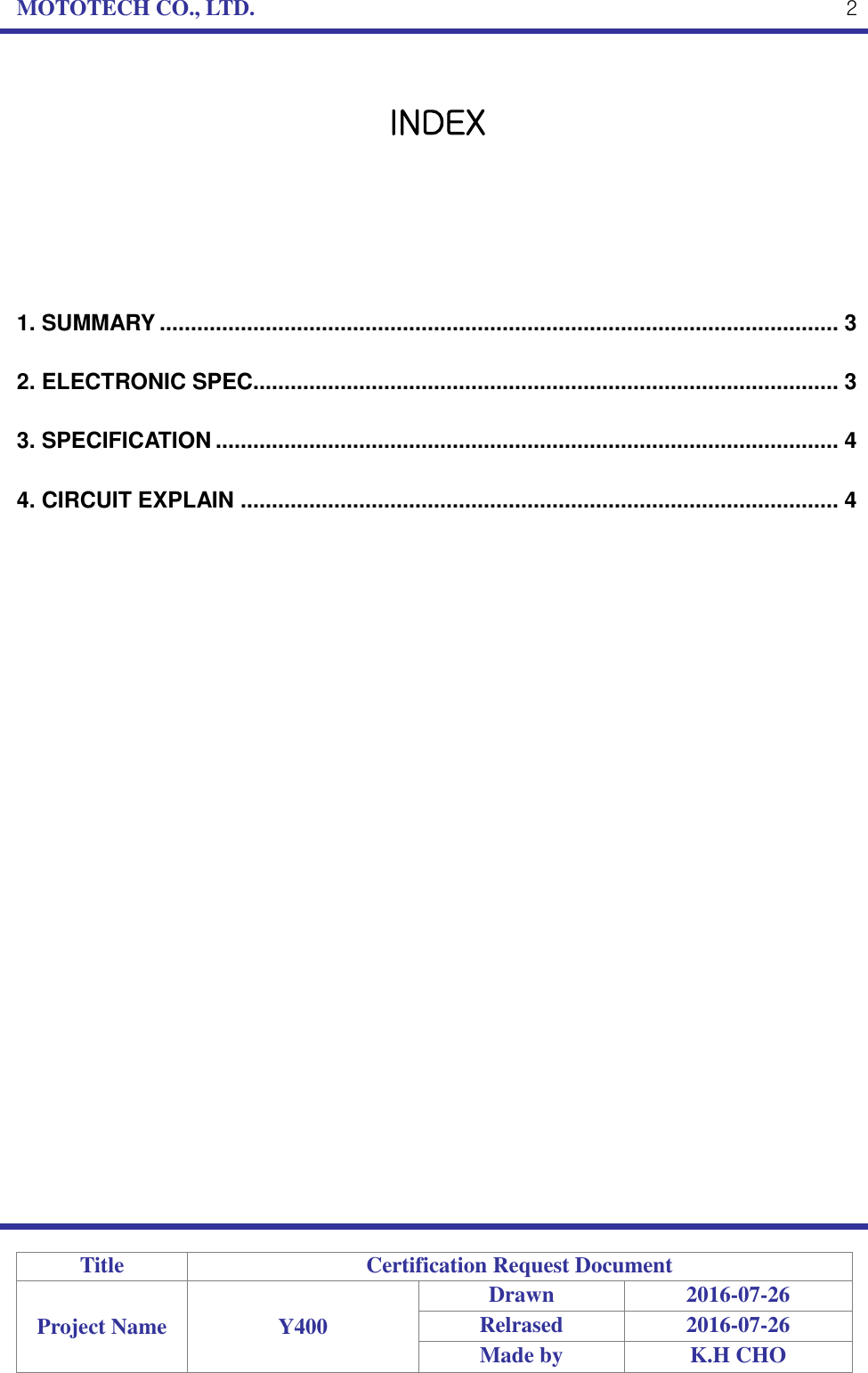

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Relrased 2016-07-26 Made by K.H CHO 2 INDEX 1. SUMMARY ............................................................................................................. 3 2. ELECTRONIC SPEC.............................................................................................. 3 3. SPECIFICATION .................................................................................................... 4 4. CIRCUIT EXPLAIN ................................................................................................ 4

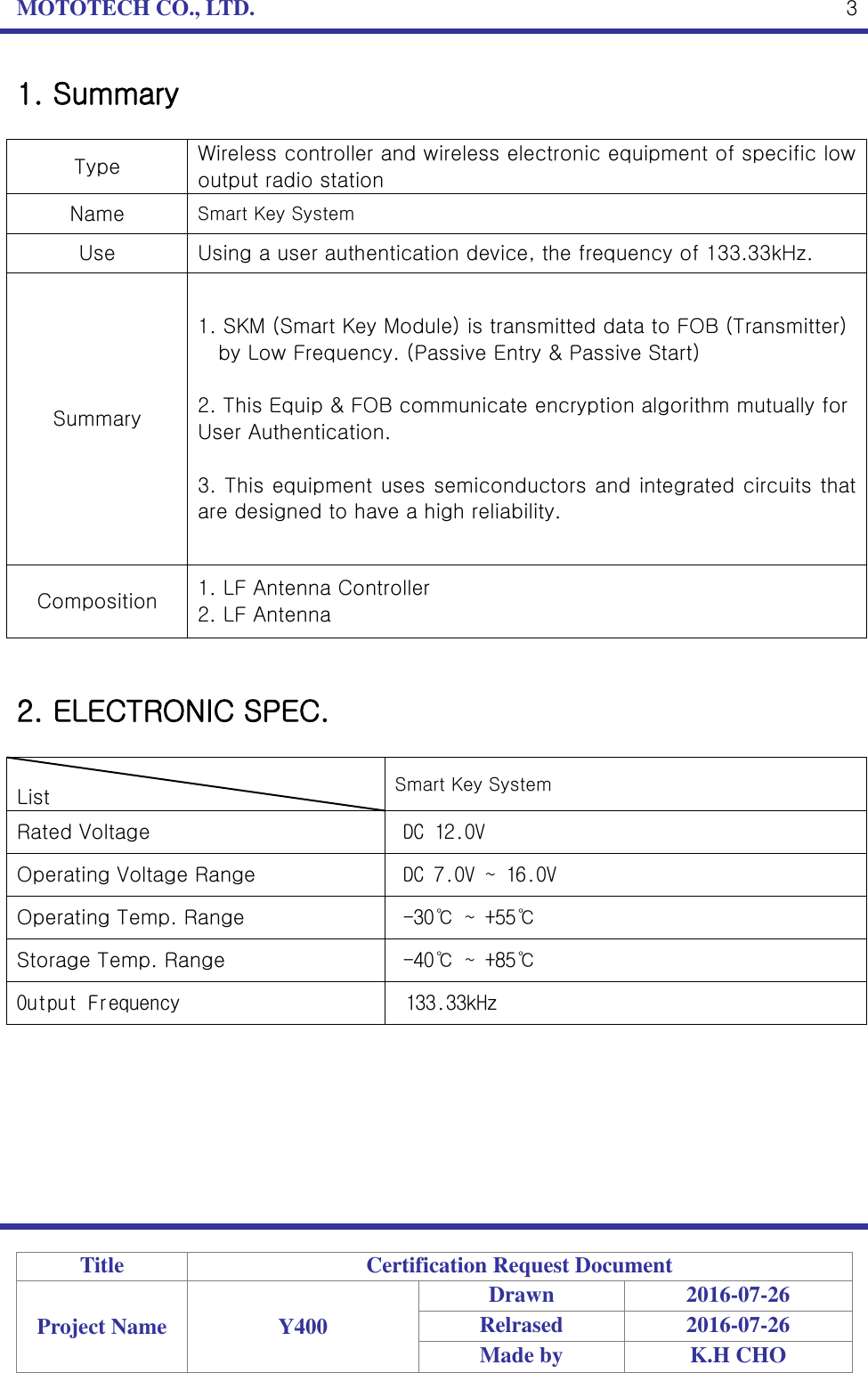

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Relrased 2016-07-26 Made by K.H CHO 3 1. Summary Type Wireless controller and wireless electronic equipment of specific low output radio station Name Smart Key System Use Using a user authentication device, the frequency of 133.33kHz. Summary 1. SKM (Smart Key Module) is transmitted data to FOB (Transmitter) by Low Frequency. (Passive Entry & Passive Start) 2. This Equip & FOB communicate encryption algorithm mutually for User Authentication. 3. This equipment uses semiconductors and integrated circuits that are designed to have a high reliability. Composition 1. LF Antenna Controller 2. LF Antenna 2. ELECTRONIC SPEC. List Smart Key System Rated Voltage DC 12.0V Operating Voltage Range DC 7.0V ~ 16.0V Operating Temp. Range -30℃ ~ +55℃ Storage Temp. Range -40℃ ~ +85℃ Output Frequency 133.33kHz

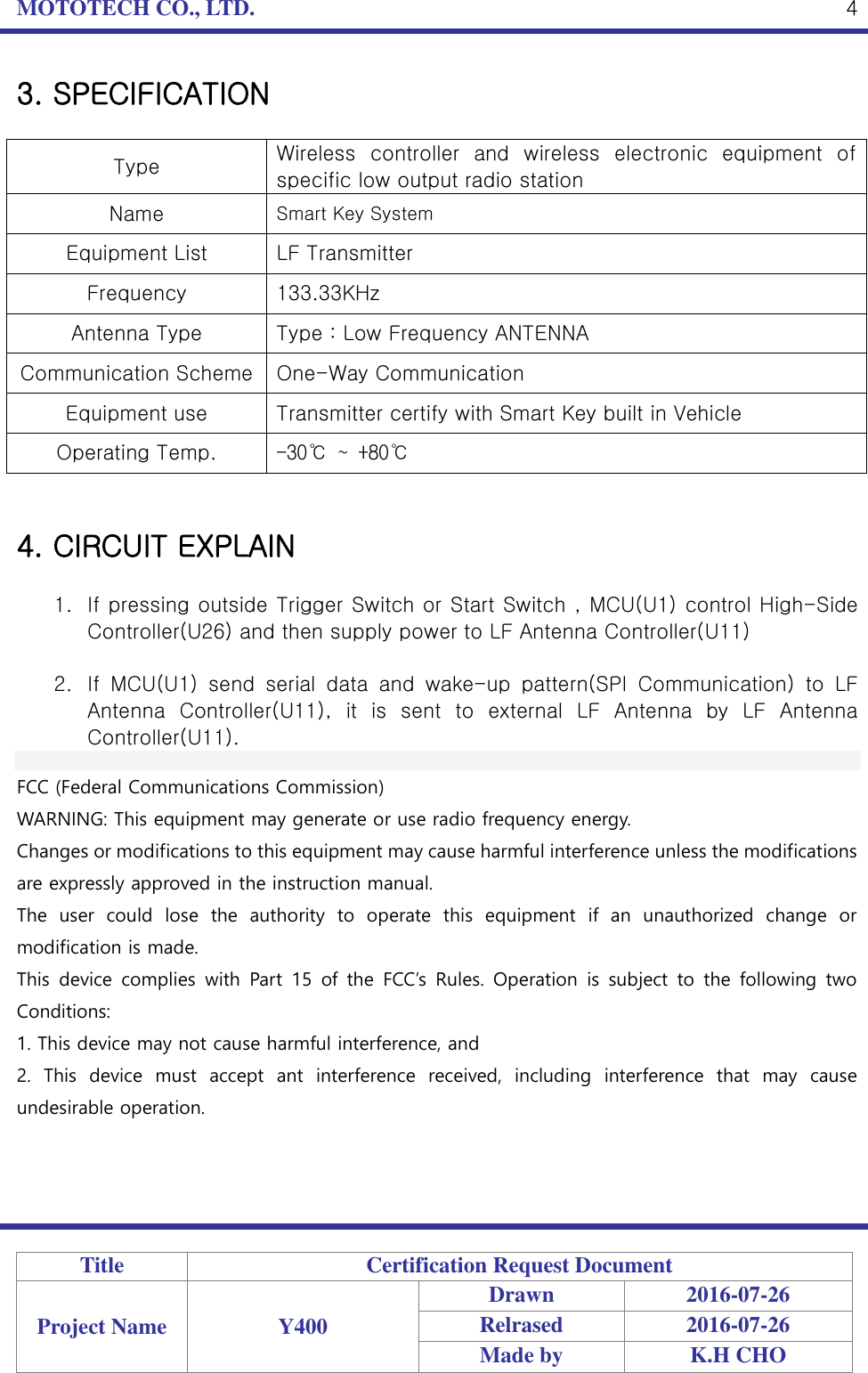

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Relrased 2016-07-26 Made by K.H CHO 4 3. SPECIFICATION Type Wireless controller and wireless electronic equipment of specific low output radio station Name Smart Key System Equipment List LF Transmitter Frequency 133.33KHz Antenna Type Type : Low Frequency ANTENNA Communication Scheme One-Way Communication Equipment use Transmitter certify with Smart Key built in Vehicle Operating Temp. -30℃ ~ +80℃ 4. CIRCUIT EXPLAIN 1. If pressing outside Trigger Switch or Start Switch , MCU(U1) control High-Side Controller(U26) and then supply power to LF Antenna Controller(U11) 2. If MCU(U1) send serial data and wake-up pattern(SPI Communication) to LF Antenna Controller(U11), it is sent to external LF Antenna by LF Antenna Controller(U11). FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC’s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.
