MOTREX MTXW120UM Smart display User Manual Part II

MOTREX CO., LTD. Smart display Part II

Contents

User Manual Part II

35
Android Auto™
ENGLISH
About Android Auto™
Android Auto™ brings the most useful apps from
your phone to your vehicle´s screen, optimized
for easy glancing and control while driving. You
will be able to control things like navigation,
maps, calls, text messages, and music, all from
your vehicle´s screen.
To learn about Android Auto™ and its features,
visit the Android website at http://www.android.
com/auto/
NOTE
• You can verify countries that support Android Auto
through the website. This feature is unavailable in
non-supported countries.
• Availability in supported countries may change
without prior notice.
Precautions
•
•Android Auto™ extends the Android platform
from your mobile phone into the car. When
users connect their handheld devices running
Android 5.0 or higher to a compatible vehicle,
the Android Auto™ user interface provides a
car-optimized Android experience on the car
screen. Users may interact with compatible
apps and services through voice actions and
the car input controls.
•
•Android Auto™ will be unavailable if the
version of communication protocol is not
supported or your mobile phone is unable to
be recognized due to a shutdown caused by a
failure or defect in the device.
•
•If you repeatedly connect and disconnect the
USB cable on the device in a short period of
time, your phone may malfunction. This can
also cause a device failure.
•
•With your mobile phone connected, Android
Auto™ will appear on the car display. Available
functions and operations may differ depend-
ing on the company model.
•
•Make sure the vehicle gear is in park and that
you have time to set up Android Auto™ before
driving and that you have time to set up
Android Auto™.
•
•Android Auto™ features may operate differ-
ently than on your phone.
•
•Message and data charges may apply when
using Android Auto™. Please check with your
mobile phone company.
•
•Android Auto™ relies on the performance of
your phone. If you experience performance
issues:
- Close all apps and then restart them
- Disconnect and then reconnect your phone
•
•Using the micro USB cable that was provided
with your phone is recommended.
Android Auto help:
support.google.com/androidauto
What you need?
1. An Android phone running Android 5.0
(Lollipop) or higher with a data plan.
2. A vehicle that’s compatible with Android
Auto™.
3. A USB cable.
36
Android Auto™
Before starting Android Auto™
Installing the Android Auto™
Application
Install Android Auto™ Application by following
below procedure.

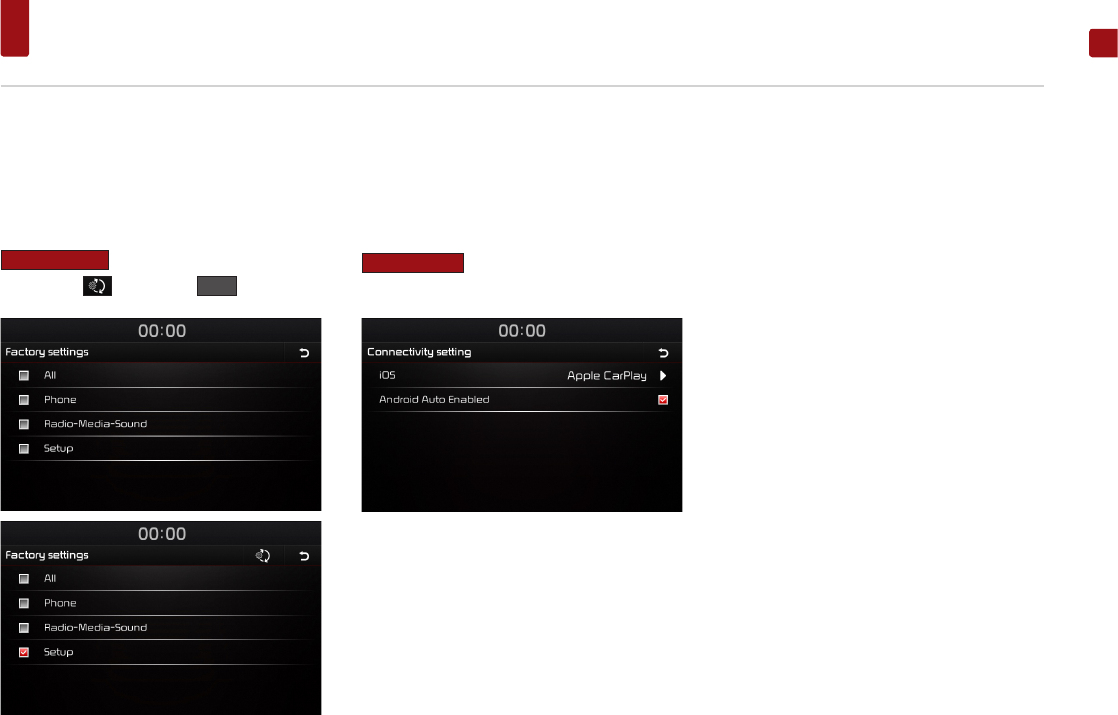

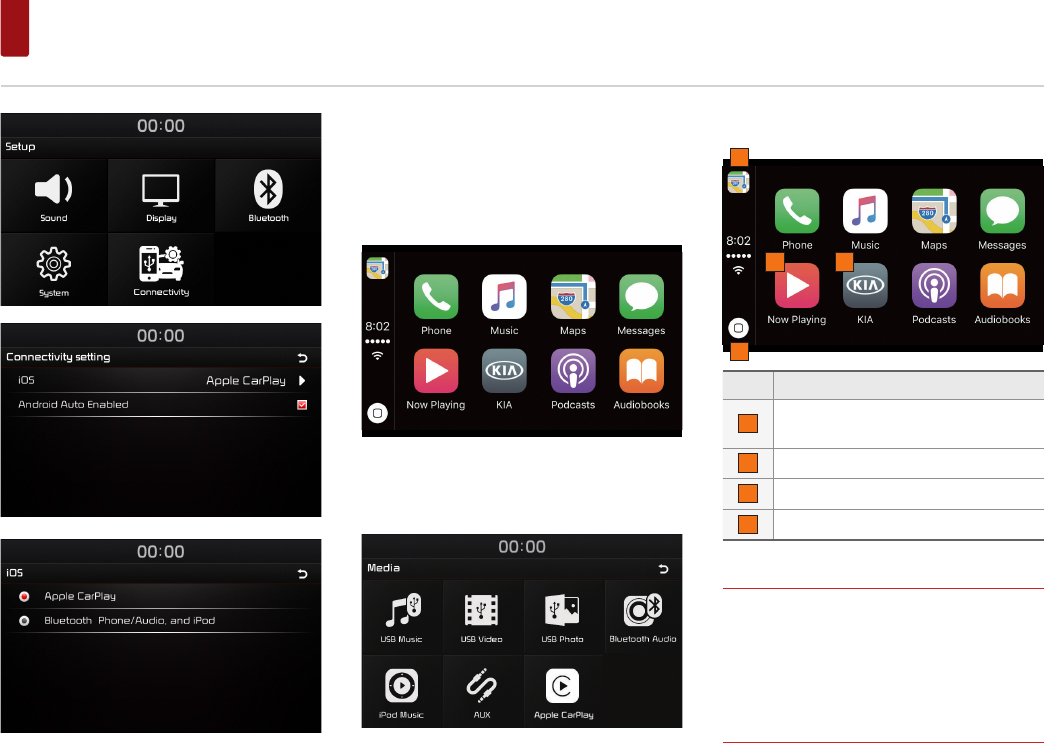

Setting the system
Before connecting your mobile phone, check
whether Android Auto is set to be used in Setup
▶
Connectivity
.
Check the
Android Auto Enabled
box ▶ Press
OK
to turn the feature on.
NOTE
• The use of Android Auto™ can generate charges
from your service provider for the use of
applications that consume data.
• Android Auto™ is a registered trademark of Google,
Inc.
• The design and the specifications of this guide is
subject to change without notice.
• The screens that are shown in this manual can be
different to the real screens of the product.

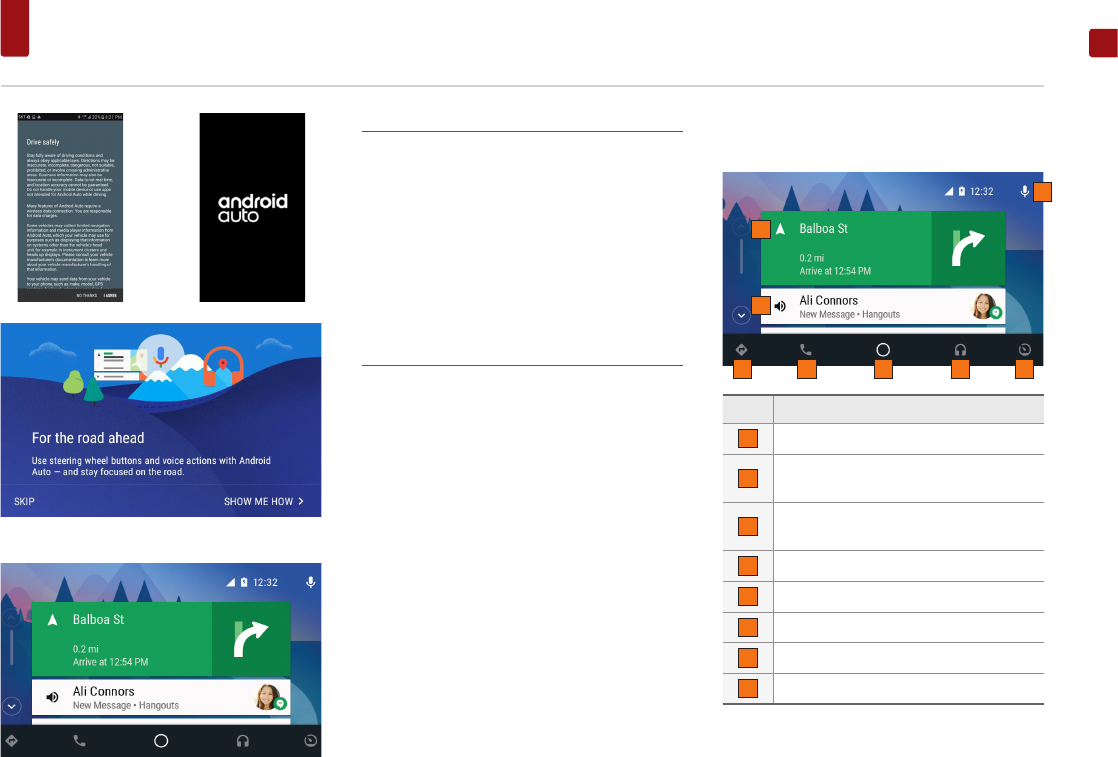

Starting mode
1. Unlock your mobile phone screen.
2. Connect your mobile phone to your vehicle
using an original USB cable.
3. Touch [Accept] to turn on notifications in
Android Auto™.
4. Updating mobile applications such as Google
Maps is recommended.
5. Review the Terms & Conditions from both your
mobile phone and vehicle’s device, and then
ACCEPT to use Android Auto™. (It is required
only the first time that the application is used.)
1. Accept screen 2. Permission for
apps
3. Permission for
mobile phone fea-
tures
※ The screens shown in this manual may differ from the
actual screens of Android phone.
※ The screens shown in this manual may differ from the
actual screens of Android phone.
37
Android Auto™
ENGLISH
NOTE
• Using the USB cable that was provided with your
phone is recommended.
• The Functionality and performance of Audio-Video
system of the vehicle may vary depending on the
brand, model, and specifications of connected
smart phones.
• Your phone might ask you to download or update
certain apps, like Google Maps.
• If you're running Android 6.0 (Marshmallow) or
higher, Bluetooth® will be turned on automatically
when Android Auto™ is active.
Home Screen
No Description
1Microphone
2Navigation suggestions and recent
places
3Reminders, messages, calls, and other
alerts
4Maps and navigation
5Calls and messages
6Home screen
7Music and audio
8Exit Android Auto
In smart phone
1
4
2
3
65 7 8
38
Android Auto™
Talk to Google
1. Press the microphone [ ] button on the
display or press and hold the [ ] Call key
on your steering wheel until you hear the
beep.
2. Say commands you want to use. Then you can
do things like send or reply to a text, search for
a location, make a call, or play your music.
Return to your car’s Media
screen
Press the [ ] button on the display.
Return to the Android Auto
Home screen
Press the [ ] button on the display.
NOTE
• Wireless signal reception may vary, reception
dependent features may temporarily pause then
resume when signal strength has been regained.
39
Apple CarPlay
ENGLISH
About Apple CarPlay
•
•CarPlay puts key iPhone apps - the ones
you want to use while driving - on your car’s
built-in display. With CarPlay, you can get
turn-by-turn directions, make phone calls,
exchange text messages, listen to music, and
more. Apple CarPlay is available on select
automobiles navigation systems, and works
with iPhone 5 or higher with iOS 7.1 or higher.
•
•You operate CarPlay using your car’s built-in
controls - a touchscreen, a rotary knob con-
troller, or both. To learn how to operate your
display, see the user guide that came with
your car. Or just use Siri voice control to tell
CarPlay what you want. In fact, Siri often steps
in automatically to help you, depending on
the app you’re using.
For more information, refer to the iPhone manual
or visit the Apple website.
Precautions
•
•Apple CarPlay is unavailable if the version of
communication protocol is not supported or
your phone is unable to be recognized due
to a shutdown caused by a failure or defect in
the device itself.
•
•Your phone may not be recognized if its bat-
tery is low. Charge your phone then try again.
•
•If your phone is shut down due to a defect
in the device itself, reset your phone and try
again.
•
•If you repeatedly connect and disconnect the
USB cable on the device in a short period of
time, your phone may malfunction. This can
also cause a device failure.
•
•The device recognition time may differ
depending on the device type and firmware/
OS version.
•
•When using this feature, the use of a ded-
icated cable is recommended. (Using a
non-genuine product may cause noise or
malfunction.)
•
•Apple CarPlay may not operate normally due
to mobile phone issues.
What you need?
1. An iPhone5 or higher.
2. Apple® Lightning to USB Cable recommended
*Duplicate USB cables may effect connection.
3. A USB cable.
Before starting Apple CarPlay
Setting Siri on the iPhone

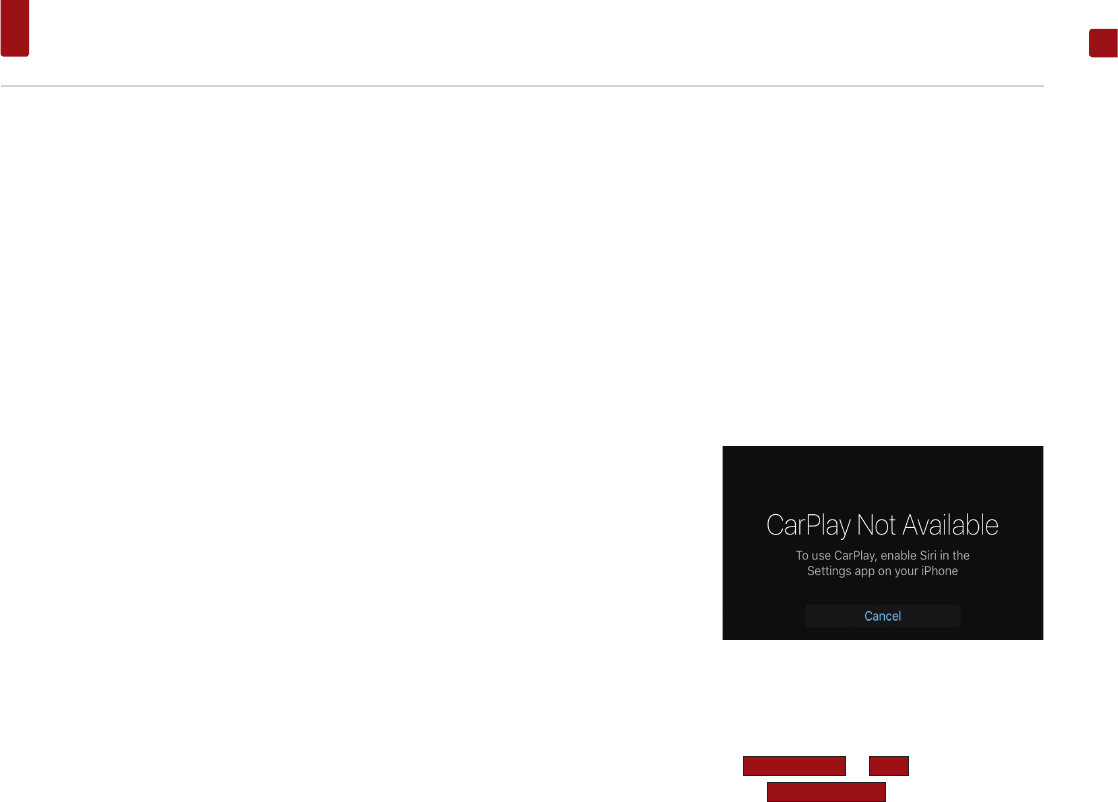

Siri must be enabled on your iPhone. If Siri is
turned off, a notice will be displayed.
Go to Settings ▶ General ▶ Siri ▶ Turn on Siri.
Setting the system
Before connecting your mobile phone, check
whether Apple CarPlay is set to be used in Setup
▶
Connectivity
▶
iOS
.
Check
Apple CarPlay
.
40
Apple CarPlay
Starting mode
Connect your phone to your car using a USB
cable. The CarPlay Home screen will be displayed
automatically.
When in a different mode, press Media ▶ Apple
CarPlay.
Home Screen
No Description
1Return to a call, or to turn-by-turn
directions
2Home button
3View current audio source
4Return to your car’s Home screen
NOTE
• Map and Turn by Turn features are available only
in countries supported by Apple (check link for
information on supported countries). (http://www.
apple.com/ios/feature-availability/#applecarplayap
plecarplay)
• The position of the Home button changes
according to driver seat location.
1
2
3 4
41
Apple CarPlay
ENGLISH
Speak to Siri
Press and hold the button on the steering
wheel, or touch and hold the Home button on
the CarPlay Home screen, until Siri beeps.
Then say commands you want to use. Then you
can do things like send or reply to a text, search
for a location, make a call, or play your music.
Open an app
Tap the app on the touchscreen.
Return to the CarPlay Home
screen
Tap the Home button on the touchscreen.
Return to your car’s screen
Tap the car logo. Or press the
HOME
key or
the desired key on the device.
View additional apps
If you have more than eight apps, some apps
may appear on another page of the Home
screen. Swipe left on the touchscreen.
Return to a phone call or to
turn-by-turn directions
Tap the icon in the upper-left corner of the
touchscreen.
View and control the current
audio source
Tap Now Playing to see the current audio app.
42

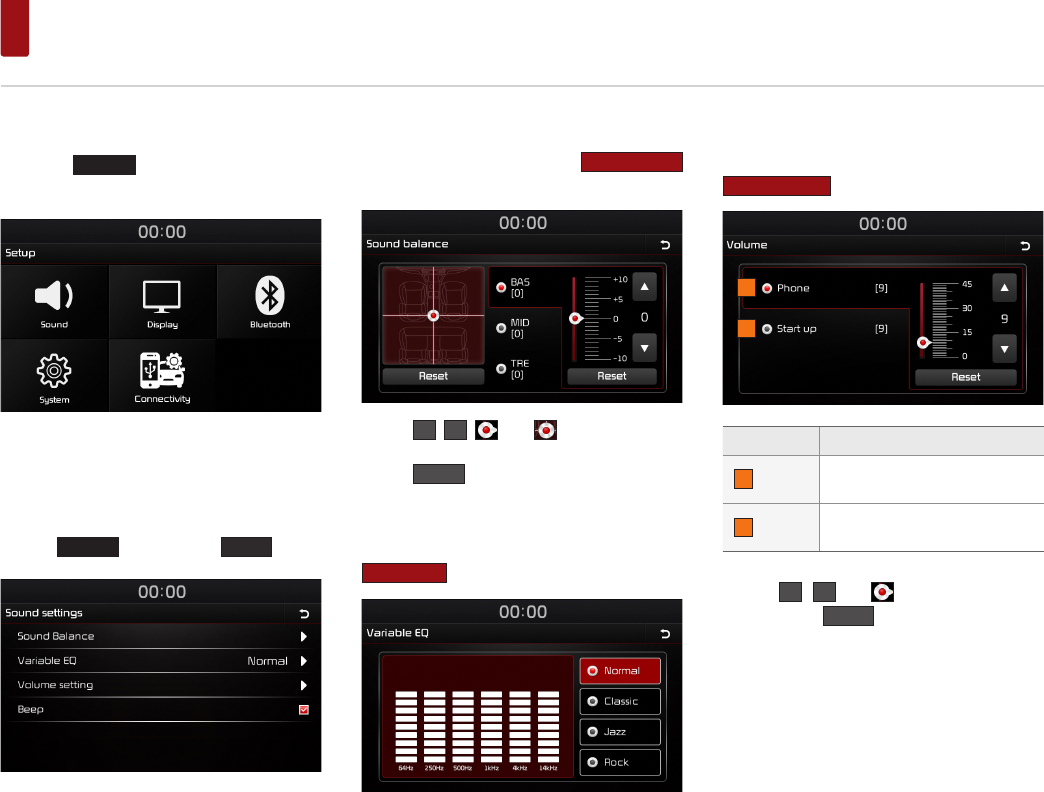

Setup
Starting mode
Press the
SETUP
key to display the Setup
screen.
Sound
This menu is used to adjust the sound effects
for the whole system.
Press the
SETUP
key ▶ Press the
Sound
button.
Sound Balance
In Sound settings screen ▶ Press the
Sound Balance
button▶ Set the desired sound balance.
Use the
▲
,
▼
, , and buttons to adjust
settings.
Press the
Reset
to restore sound to the center position.
Variable EQ
In Sound settings screen ▶ Press the
Variable EQ
▶ Set the desired mode.
Volume setting
In Sound settings screen ▶ Press the
Volume setting
button ▶ Set the desired volume.
Name Description
1 Phone Controls the volume related to
phone.
2 Start up Controls the audio volume
when starting the system.
Use the
▲
,
▼
and buttons to adjust set-
tings. Press the
Reset
to initialize the settings.
1
2
43
Setup
ENGLISH
Beep
This menu allows you to play a beep sound
whenever you operate the touch screen.
In Sound settings screen ▶ Press the
Beep
to
turn on/off.
Display
This menu allows you to adjust the brightness
and set the dimming mode for the whole sys-
tem.
Press the
SETUP
key ▶ Press the
Display
button.
Brightness
In Display settings screen ▶ Press the
Brightness
button ▶ Set the desired brightness.
Use the
▲
,
▼
and buttons to adjust set-
tings.
Press the
Reset
to initialize the settings.
44
Setup

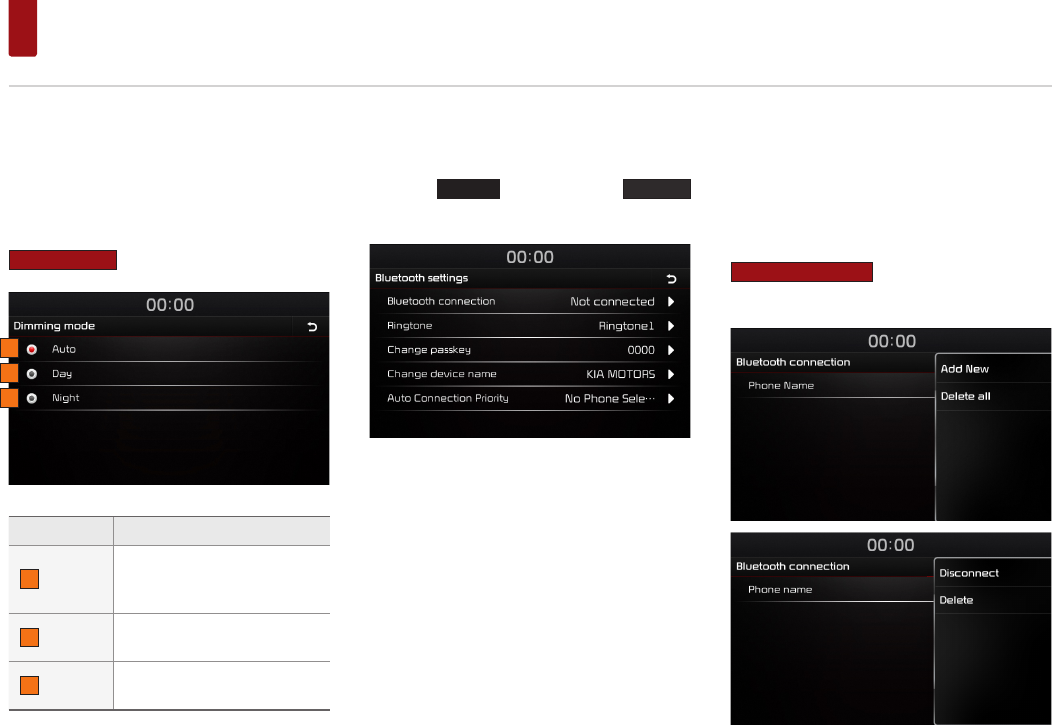

Dimming mode
This menu allows you to set the brightness
according to mode changes.
In Display settings screen ▶ Press the
Dimming mode
button ▶ Set the desired mode.
Name Description
1 Auto
Adjusts the brightness
automatically according to sur-
rounding brightness.
2 Day Brightness level always set on
high.
3 Night Brightness level always set on
low.
Bluetooth settings
This menu allow you to set Bluetooth® settings.
Press the
SETUP
key ▶ Press the
Bluetooth
button.
Bluetooth® connection
This menu allow you to manage the Bluetooth®
device list, such as pairing, connecting or delet-
ing Bluetooth® devices.
In Bluetooth® settings screen ▶ Press the
Bluetooth connection
button ▶ Set the desired
settings.
Press and hold the phone name to disconnect/
delete the device.
1
2
3
45
Setup

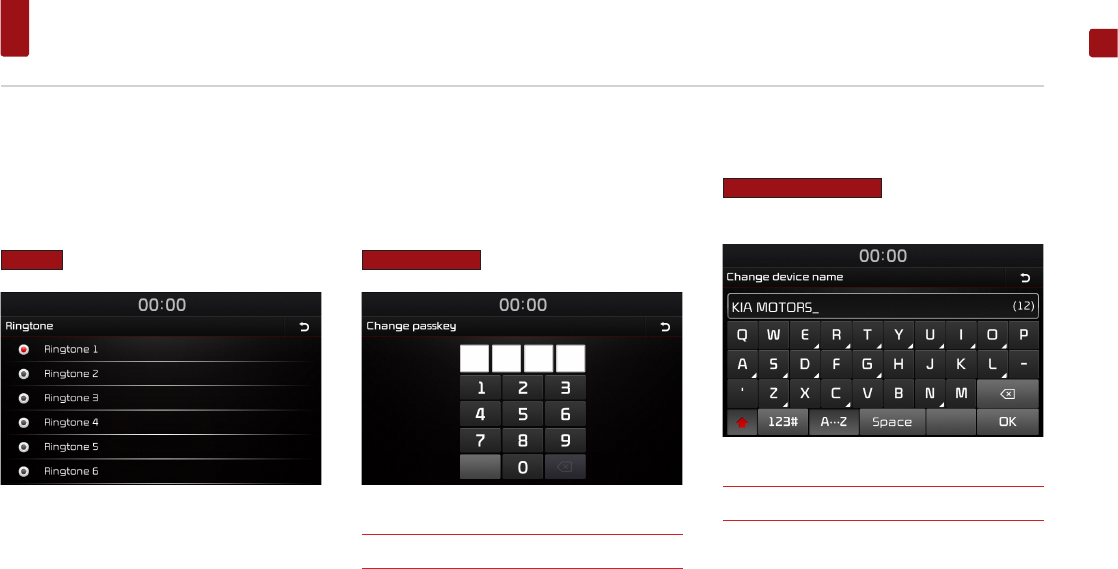

ENGLISH
Ringtone
The configured ringtone is played through the
vehicle speakers when you receive a call.
In Bluetooth® settings screen ▶ Press the
Ringtone
button ▶ Set the desired ringtone.
Change passkey
This feature allows you to change the passkey
used for Bluetooth® device authentication.
In Bluetooth® settings screen ▶ Press the
Change passkey
button ▶ Enter the passkey.
NOTE
• The default passkey is 0000.
Changing device name
In Bluetooth® settings screen ▶ Press the
Change device name
button ▶ Enter the
name.
NOTE
• The default device name is KIA MOTORS.
46
Setup

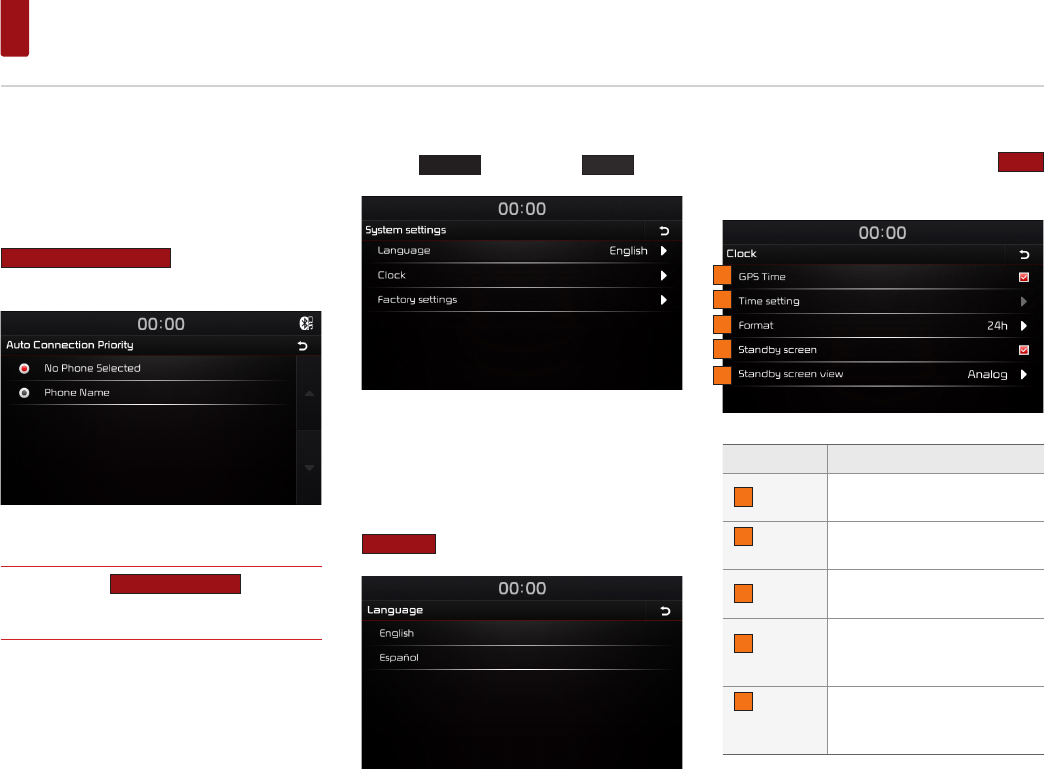

Auto Connection Priority
The Bluetooth® device will automatically be con-
nected according to the option set when the car
ignition is turned on.
In Bluetooth® settings screen ▶ Press the
Auto Connections Priority
button ▶ Set the
desired settings.
NOTE
• If you press
No Phone Selected
, the most
recently connected Bluetooth® phone will connect
automatically.
System
Press the
SETUP
key ▶ Press the
System
button.
Language
This menu allows you to set the language of the
system.
In System settings screen ▶ Press the
Language
button▶ Press the desired language.
Clock
In System settings screen ▶ Press the
Clock
button ▶Set the desired settings.
Button Description
1 GPS Time Displays time according to
the received GPS time.
2 Time
setting Sets the current time.
3 Format Converts the digital clock
display to 12 or 24 hours.
4 Standby
screen
Turns on/off the screen
displayed when the system
power is turned off.
5 Standby
screen
view
Sets the type of Standby
screen.
1
2
3
4
5
47
Setup
ENGLISH
Factory settings
This menu allows you to reset settings specified
by the user.
In System settings screen ▶ Press the
Factory settings
button ▶ Press the desired item
▶ Press the ▶ Press the
YES
.
Connectivity
This menu allows you to set the car connectivity
of your system.
In System settings screen ▶ Press the
Connectivity
button ▶ Press the desired set-
tings.
48
Specification
USB MP3 Specification
Category Description
MP3 File Specification Response Specification: MPEG1 AUDIO
LAYER3
Recommended Bitrate and
Sampling Frequency
Response Sampling Frequency : 32, 44.1, 48
(KHz)
Response Bitrate: 32, 40, 48, 56, 64, 80, 96,
112, 128, 160, 192 ,224 ,256 ,320 (Kbps)
ID3 TAG ID3 v1.1 and ID3 v2.x TAG
Detailed Specification
•
•Max Directory Layers: 15 layers
•
•Max length of folder names and file
names: 255Bytes
•
•Characters supported for folder/file
names: English, Español and numbers
•
•Max number of files recognized from
one USB device: 5000
Video and Image Specification
Category Description
File Format AVI(DivX), MPEG
Image Format jpg, gif, bmp, png
Extensions avi, divx, mpg, mpeg, mp4, wmv
Supported Image Resolution Max 4000x3000
Supported Image File Size Max 4 Mbytes
Supported image zoom in/out Max 300%
Video Codec MPEG4-ASP, MPEG4-AVC(H.264), AVS, VP8
Video Resolution
1920 x 1080
(WMV 9: Max 8Mbps, 1280x720,
WMV 8: 640x480)
Audio Codec MP3, OGG, WMA …
(AC3 not Supported)
Subtitles SMI
Unsupported files
•
•Files not compatible with supported
specifications
•
•Modified files (files with modified file
formats)
•
•Transformed files (example: AVI files
encoded with WMV video codec)
•
•Files without indexes
49
Specification
ENGLISH
TFT-LCD
Screen Size 8.0 inches(203.2mm) diagonal
Resolution 384,000 pixels (Resolution : 800 x 480)
Viewing Angle Left/Right, Top/Bottom: (89°, 89°, 89°, 89°)
Internal Lighting LED
Radio
Channels FM: 87.5MHz ~ 108.0MHz(Step: 50KHz)
AM:522 kHz ~ 1620kHz(Step: 9kHz)
Sensitivity FM : Under 10 dBuV / AM: Under 35dBu
EMF
Distortion Factor Within 2%
Bluetooth® Wireless Technology
Frequency Range : 2400 ~ 2483.5 Mhz
Supported Bluetooth
Specification : 2.1+EDR
Supported Profile : HFP (1.6) , A2DP (1.3) , AVRCP (1.5) ,
PBAP(1.2)
Bluetooth Power Class2
Number of Channels : 79 channels
Common
Power Supply DC 14.4V Operating Power DC 9V ~ DC 16V
Sleep Current LESS THAN 1mA
Operating
Temperature
-20 ~ +70 ℃
(-4 ~ +158℉)
Storage
Temperature
-30 ~ +80 ℃
(-22 ~ +176℉)
Dimension W208 x H138.5 x D174.7 mm
Current
Consumption 10A
50
Trouble shooting
1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions listed below.
3. If the problems persist, contact your dealer
Problem Possible Cause
There are small red, blue, or green dots on the
screen
Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency may
occur within 0.01% of total pixels.
The sound or image is not working •
•Has the Switch for the vehicle been turned to [ACC] or [ON]?
•
•Has the SYSTEM been turned OFF?
The screen is being displayed but sound is not
working
•
•Has the volume been set to a low level?
•
•Has the volume been muted?
When the power is turned on, the corners of the
screen are dark
•
•The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a
malfunction.
•
•If the screen is very dark, contact your nearest dealer for assistance.
Sound is working from only one speaker Are the positions of Fader or Balance sound controls adjusted to only one side?
Sound does not work in AUX mode Are the audio connector jacks fully inserted into the AUX terminal?
The external device is not working Is the external device connected with a standard connector cable?
When turning power on, the most recent mode
screen is not displayed
Within modes that play files by reading external sources, such as USB, iPod®, or Bluetooth® streaming mode, the
most recently played mode screen prior to turning off power may not properly load.
•
•If the corresponding device is not connected, the mode operated prior to the most recent mode will operate.
•
•If the previous mode still cannot be properly played, the mode operated prior to that will operate.
51
Trouble shooting
ENGLISH
Problem Possible Cause Countermeasure
The power does not
turn on.
The fuse is disconnected. •
•Replace with a suitable fuse.
•
•If the fuse is disconnected again, please contact your point of purchase or service center.
Device is not properly connected. Check to see that the device has been properly connected.
The system does not
play. The vehicle battery is low. Charge the battery if the problem persists, contact your point of purchase or service center.
The image colour/ tone
quality is low.
The brightness, and contrast levels are
not set properly. Properly adjust the brightness, and contrast levels through Display Setup.
Sound does not work.
The volume level is set to the lowest
level. Adjust the volume level.
The connection is not proper. Check to see that the device has been properly connected.
The device is currently fast-forwarding,
rewinding, scanning, or playing in slow
mode.
The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing
in slow mode.
52
Trouble shooting
Problem Possible Cause Countermeasure
The sound or image
quality is low.
Vibration is occurring from where the
conversion switch has been installed. The sound may be short circuited and the image distorted if the device vibrates.
Image colour/tone quality is low. The device will return to normal once vibrations stop.
The USB does not work
USB memory is damaged. Please use after formatting the USB into FAT 12/16/32 format.
USB memory has been contaminated. Remove any foreign substances on the contact surface of the USB memory and multimedia
terminal.
A separately purchased USB HUB is being
used. Directly connect the USB memory with the multimedia terminal on the vehicle.
A USB extension cable is being used. Directly connect the USB memory with the multimedia terminal on the vehicle.
A USB which is not a Metal Cover Type
USB Memory is being used. Use standard USB Memory.
An HDD type, CF, SD Memory is being
used. Use standard USB Memory.
There are no music files which can be
played.
Only MP3, WMA file formats are supported. Please use only the supported music file for-
mats.
The iPod® is not rec-
ognised even though it
has been connected
There are no titles which can be played. Use iTunes to download and save MP3 files into the iPod®.
The iPod® firmware version has not been
properly updated. Use iTunes to update the firmware version and reconnect the iPod® with the device.
The iPod® device does not recognise
downloads. Reset the iPod® and reconnect with the device.
53
Limited Warranty
ENGLISH
LIMITED WARRANTY
ORIGINAL HEAD UNIT SUPPLIED BY VEHICLE DEALER
Product :
Product No. :
WHAT THIS WARRANTY COVERS
1. Vehicle Dealer Shop (“Dealer”) warrants to you that the Hardware will be free from defects in workmanship and materials under Normal use (“Defects”)
from the original date of the registration of the motor vehicle (“Warranty Period”). During the Warranty Period the Hardware will be repaired or replaced at
DEALER’s choice (“Limited Warranty”) without charge to you for either parts or labor. This Limited Warranty covers the replacement of the head unit including
of the Hardware only.
Period Warranty Mileage Warranty
3years 60,000 km
*Whichever Occurs earlier.
*The term of the warranty shall commence from the date of delivery of the new vehicle to the first purchaser.
WHAT THIS WARRANTY DOES NOT COVER
2. The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone liquids, proximity or
exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty
does not cover physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may accompany or be installed on
the Hardware.
The Limited Warranty does not cover the installation, removal or maintenance of the Hardware or any costs related herewith.
HOW TO MAKE A WARRANTY CLAIM
3. In order to make a claim of a Defect, you must contact DEALER. If a defect arises and a valid claim under this Limited Warranty is received by DEALER after the
first 3yrs/60,000 km of the Warranty Period, DEALER is entitled to charge you for any reasonable shipping and handling costs made in connection with the
repair or replacement of the Hardware. You must comply with any other return procedures stipulated by DEALER, if any.
54
Limited Warranty
DEALER LIMITED WARRANTY
YOUR LEGAL RIGHTS
4. Some countries may not allow the exclusion or limitation of damages. If any part of this Limited Warranty is held to be invalid or
unenforceable, the remainder of the Limited Warranty shall nonetheless remain in full force and effect.
5. This Limited Warranty is the only express warranty made to you and is provided in place of any other express warranties or similar obligations (if any) created
by any advertising, documentation, packaging, or other communications.
6. Except for the Limited Warranty and to the maximum extent permitted by applicable law, DEALER and its suppliers provide the Hardware “AS IS AND WITH
ALL FAULTS”, and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied
warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses,
of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of or failure to provide
support or other services, information, software, and related content through the Hardware or otherwise arising out of the use of the Hardware. Also, there is
no warranty or condition of quiet enjoyment, quiet possession, or non-infringement with regard to the Hardware.
7. This Limited Warranty does not affect any legal rights under applicable national legislation governing the sale of consumer goods.
8. This Limited Warranty cannot be transferred to any other person.
LIMITATION OF LIABILITY
9. Neither DEALER nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise
(including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits, business
interruption or the like) arising out of the use of or inability to use the Hardware even if DEALER has been advised of the possibility of such damages.
10. Notwithstanding any damages that you might incur for any reason whatsoever, the entire liability of DEALER and any of its suppliers shall be limited to the
amount actually paid by you for the Hardware.
11. DEALER shall not be liable for
(I) any fraud on the part of its employees and/or agents; or
(II) any fraudulent misrepresentation on the part of its employees and/or agents.
12. Notwithstanding the above, neither party’s liability for death or personal injury resulting from its own negligence shall be limited.
55
(%%9CTPKPI
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
ˍReorient or relocate the receiving antenna.
ˍIncrease the separation between the equipment and receiver.
ˍConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ˍConsult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not expressly approved by the party responsible for compliance could void your authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or oper-
ating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

Navigation menu
