MOVON S845 BLUETOOTH HEADSET User Manual USERS MANUAL
MOVON Corporation BLUETOOTH HEADSET USERS MANUAL
MOVON >
USERS MANUAL
Using your headset
Turing ON/OFF
Turning ON: Please press Multi function button for 3sec.
Turning OFF: Please press Multi function button for 4 sec.
CHARGE THE BATTERY
Before using your stereo headset, charge the battery completely. Connect an adapter to the charging
port of the headset and plug it into home power outlet. The Red LED remains on while the headset is
charging and LED turns into Blue when charging is completed.
[NOTE] Please use supplied power adaptor only.
CHECKING THE BATTERY LEVEL
Press volume down button for 4 sec. Then SWING will announce battery level.
iPhone/iPad shows the current battery level on screen when connected.
LOW Battery Alarm
When the battery is low, Blue LED will be turned into RED and alarm with beep sound every
10 minutes. Once you hear beep alert, please charge immediately.
What’s in the box?
Stereo Headset AC Charger head USB cable Carrier pouch User manual
Getting to know the SWING
-1- -2-
※
Please, use provided adapter.
Charging port
Multi-function
Button(MFB)
LED
Volum up
Volum down
Microphone
MIC
3 sec. 4 sec.
Turning ON Turning OFF
PAIR THE HEADSET TO YOUR MOBILE PHONE

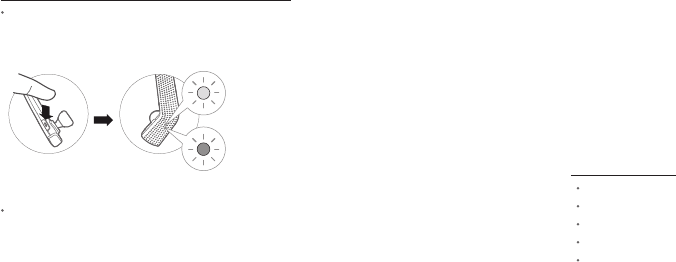

Turn the headset on. When turned on for the first time, headset will go to pairing mode automatically.
(LED will blink Blue and Red)
Or Press the Multi-function buttons for 4 sec. until LED blink as Blink as Blue and Red.
Search the headset via your mobile phone and confirm it when the connection confirmation message
appears on your mobile phone.
PIN code is “0000” (4 zero)
※ Auto reconnection
SWING will try to connect to the latest paired mobile phone as you turn on or re-connected.
※ Simple pairing
If your mobile phone supports Bluetooth version spec. 2.1, you don’t need to put PIN code to pair.
(This function is only available when your mobile phone supports Bluetooth version 2.1)
-3- -4-
※ Easy pairing
The headset goes into pairing mode (Proximity pairing) mode automatically the first time
you use it.
※ Proximity pairing
1. Set your mobile phone to Bluetooth discoverable mode or set visibility on.
(See your phone’s manual for the detailed instruction)
2. Set your headset to pairing mode then press the volume button twice.
3. Place the headset near to (10cm) to your mobile phone.
4. Headset will pair automatically with your mobile phone.
PLAYING MUSIC
Play music: Press Multi-function button one time shortly.
Pause music: Press Multi-function button one time shortly to pause music play.
Stop music: Press volume down button for 4 sec. to stop music play.
Previous music: Press volume down button for 2 sec. to play previous music.
Next music: Press volume up button for 2 sec. to play next music.
1.SWING
블루투스 연결
인증번호 입력
1.헤드셋
2.핸즈프리
3.
스테레오헤드셋
1.설정
2.해제
MAKING A CALL
Last call re-dialing: Press the Multi-function button for 2 sec.
Voice dialing : Press volume up button twice then the voice dialing is activated.
You can also deactivate voice dialing by press volume up button twice.
[NOTE] Please make sure that your phone supports voice dialing feature. (Check your phone’s manual for the detailed instruction)
RECEIVING A CALL
Press the Multi-function button for 2sec. when there is an incoming call.
ENDING A CALL
Press the Multi-function button during the call or just press the “END” button on your mobile phone.
TRANSFERRING A CALL
To transfer a call from headset to your mobile phone and vice versa, press the Multi-function button
on headset for 2 sec.
-5- -6-
ADJUSTING A VOLUME
Please press volume up or down button while you are listening music or making a call.
There are 7 volume levels and you will hear beep sound as you change volume. And when the volume
reaches to Max or Min. you will hear beep alarm.
MIC MUTE
If you press the volume down button for 2 sec while you are on the line, the microphone will be muted
and you will hear a beep every 5second during the mute mode.
[NOTE] You can deactivate microphone mute by push volume down button for 2sec.
CALL WAITING
To activate call waiting function, you must subscribe to call waiting through your service provider.
To put your current call on hold and switch to the waiting call, press volume up button for 4 sec.
If you want to switch back to the current call, press volume up button for 4 sec. again.
To terminate your current call and answer to the waiting call, press volume down button for 4 sec.
-7- -8-
MULTIPOINT: Using the headset with 2 mobile phones simultaneously.
You can connect with 2 mobile phones at the same time.
Multipoint connect(Pairing)
: Set please put headset in pairing mode first. After then search headset from each mobile phones
at the same time. Please connect first mobile phone. Once the connection is completed, please
connect the second mobile phones.
MUSIC Play
: You can switch music source between 2 mobile phones by pressing volume up button for 4 sec.
Once you select mobile phones, please follow the instruction of “PLAYING MUSIC”.
Making a phone call
Last call redialing : Press the volume down button for 2 sec. for last call redialing from the second
mobile phone.
Voice dialing : Press the volume down button twice.
[NOTE] Making a call via the first mobile phones, please follow the same instruction of “MAKING A CALL”.
Receiving a call : Press Multi-function button.
[NOTE] Each mobile phone plays different ring tones.
USING WIRED HEADPHONE

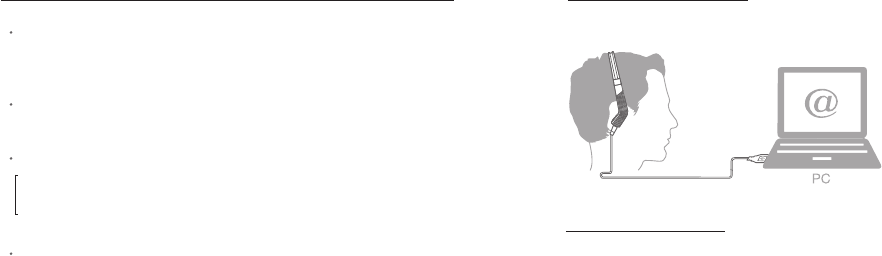

Please connect USB cable to your PC & Headset. Then you can listen audio through your headset
while charging. Your PC will be automatically switch audio path to your headset
.
RESETTING THE Headset
Press volume up and down button simultaneously for 4 sec. when disconnected with your
mobile phone.
Status LED Lighting Beep & Voice prompt
Power ON Flash Blue LED 3 times “Power ON”
Pairing Mode Flash Blue & Red LED 2 beeps
Disconnected Mode Flash Blue LED every 5 sec. “Disconnected”
Connected Mode Flash Blue LED 2times every 5 sec. “Connected”
Making a call
Flash Blue LED 3times every 5sec.
Incoming call
Flash Blue LED 2times every 2sec.
Ringtone
Calling
Flash Blue LED 3times every 5sec.
Beep sound when make/end call
Low battery alarm
Blue LED turns into RED
Beep one time every 10 minutes.
Battery status Battery High
Battery Medium
Battery Low
Charging Turn RED LED On
Charging complete Turn BLUE LED On
STATUS
-9- -10-
SPECIFICATION
Model Name SWING
Bluetooth Core Spec Bluetooth Specification 3.0
Profile HSP/HFP1.6(Wide Band Speech), A2DP, AVRCP
Carrier Frequency 2402 MHz to 2480 MHz
Modulation Method GFSK, 1Mbps, 0.5BT Gaussian
Maximum Data Rate Asynchronous : 723.2 kbps / 57.6 kbps, Synchronous : 433.9 kbps / 433.9 kbps
Bluetooth Class Class 2
Hopping 1600 hops/sec, 1MHz Channel Space
Transmit Power 1 dBm
Coverage Range 10 Meters
Receiver Sensitivity -81 dBm / 0.1 % BER
Continuous Talk Time Max Hour
Standby Time Max Hour
Weight 44g
Dimension ( W ) x ( L ) x ( T ) mm
Charging Voltage DC 5.0 V
Charging Time About Hour
Operating Temperature -10° to +50°C
Storage Temperature -20° to +80°C
Battery Lithium Polymer 3.7V mA/h
SAFETY AND GENERAL INFORMATION
1. Please read this guidebook carefully and follow the instruction.
2. To avoid any damage or malfunction of the unit, do not drop it from high place.
3. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture and other liquid directly, then
do not operate it normally to avoid any electrical shock, explosion and damage of the unit.
4. Do not place or keep the unit near the heat sources such as direct sun light, radiators, stoves or other apparatus which produce heat.
It may cause explosion, degrade of performance and reduce battery life.
5. Do not modify, repair & disassemble unit at discretion (especially battery: it may cause an explosion.
6. Do not place the heavy objects on the unit.
7. Use only supplied and approved charger.
8. Replacement or service must be done at a qualied service center or manufacturer.
9. Unplug this unit when unused for long period of time or during lightening storms.
[CAUTIONS] ELECTRIC SHOCK HAZARD
The battery used in this device may present a risk of re or chemical burn if mis-treated.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modications to this equipment may cause harmful interference
unless the modications are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or modication is made.
[NOTE] This equipment has been tested and found to comply with the limits for a Class B digital device, purchant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference by one or more of the following measures:
-11-
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.”
FCC RF Radiation Exposure Statement
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
IC (Industry Canada) Notice
Operation is subject to the following two conditions : (1) This device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
The term “IC:” before the certication/registration number only signies that the Industry Canada technical specication were met.
EU
This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).
Here by MOVON Corporation, declares that this product is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC. Please note that this product uses radio frequency bands not harmonized within EU.
Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France,Germany, Greece, Ireland, Italy, Luxem-
bourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland.
Bluetooth is a trademark owned by the Bluetooth SIG, Inc.
WARRANTY
The condition of this warranty and our responsibilities under this warranty are as follows:
Supplier’s warranty is non-transferable. And this warranty is limited to the original purchaser only.
You must be able to prove the date of original purchase of the unit with a dated receipt.
The warranty is not applicable if the product has been subject to physical abuse, improper installation, modication or repair
by unauthorized third party.
The responsibility of supplier’s products shall be limited to the repair or replacement of the product at it’s sole discretion.
Specically exempt from any warranty are limited-life consumable components subject to normal wear and tear such as batteries,
decorates and other accessories.
A supplier will not take any responsibility if the failure of the unit has resulted from accident, abuse,misuse or any unauthorized repair,
modication or disassemble.
Modication and repair of the unit should be done by authorized and qualied service personnel,center or returned to the manufacturer.
This warranty gives you specic legal rights and you may also have other rights which vary under local laws.
WEEE SYMBOL INFORMATION
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its
literature, indicates that it should not be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product or their local government oce, for details of where
and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
[IMPORTANT NOTE] To comply with RF exposure requirements, this device may not be co-located with any other transmitter
or antenna.
