MS Sedco CP-TXHH CP/TX DUAL FREQUENCY R/C TRANSMITTER User Manual CP TXHH Inst

MANUAL

8701 Castle Park Drive n Indianapolis, Indiana 46256

Telephone: (800) 842-2545/(317) 842-2545 n www.mssedco.com n custsvc@mssedco.com

Page 1

Section 1

General Description

Section 2

CP-TXHH

Universal 300/390 MHz Handheld Transmitter

The CP-TXHH radio transmitter is designed to provide reliable WIRELESS activation of any automatic door. It is part

of the most extensive line of programmable wireless products available.

The CP-TXHH radio transmitter is a universal unit which can operate in either the 300MHz or 390MHz systems.

The CP-TXHH transmitter is housed in a lightweight, ergonomic handheld enclosure. Two screws allow access for

easy battery replacement and programming/setup.

Basic Operation

1) Remove the cover of the handheld enclosure by removing the two screws on the back side of the unit.

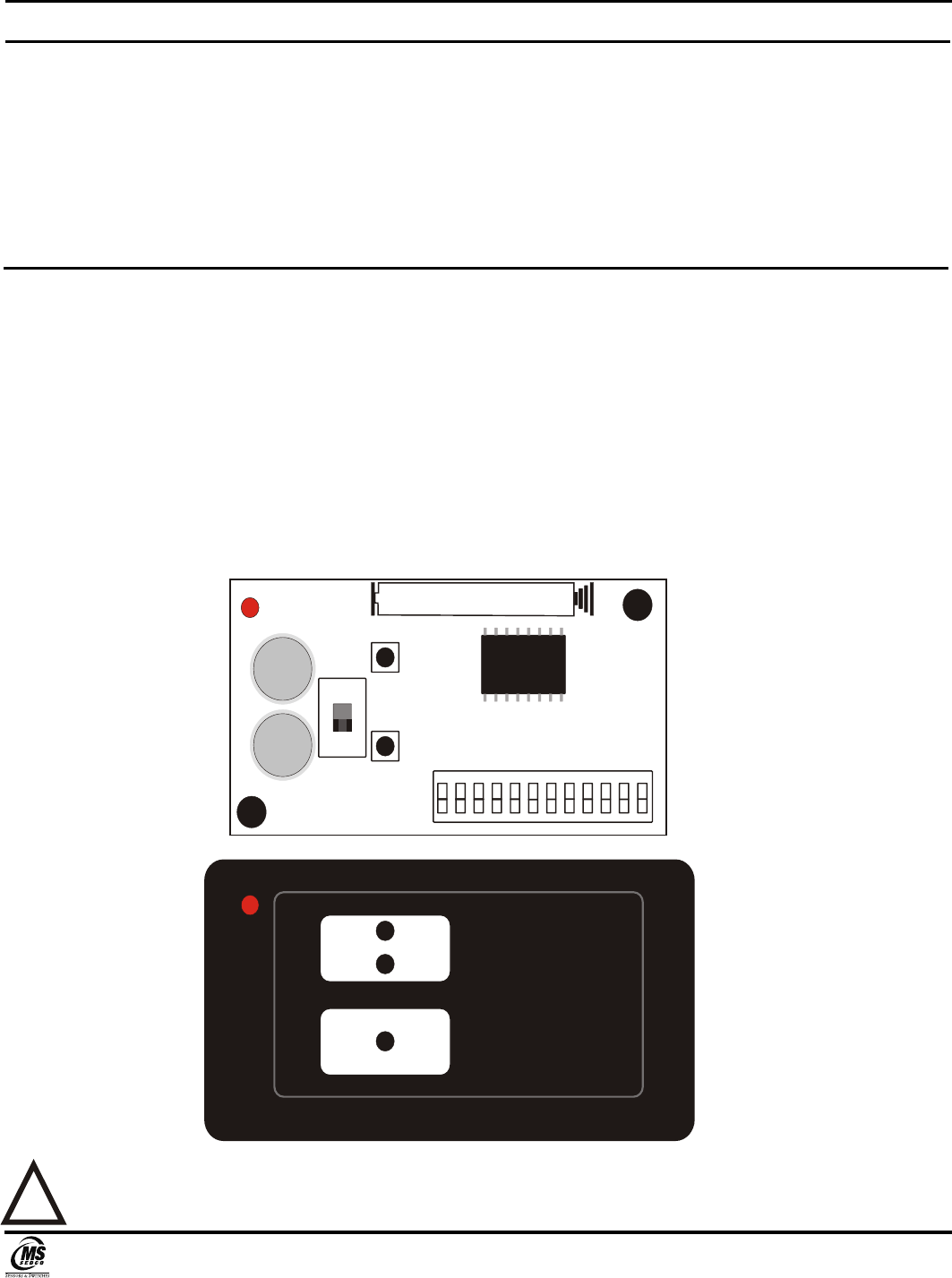

2) Program the transmitter by setting the 12 dip switches on the printed circuit board (PCB) to match the receiver.

Only use the first 10 switches for the 300MHz system. Then, set the slide switch (SW2) to either 300MHz or

390MHz as shown below (fig. 1)

4) Pushbutton 1 will transmit the code on the dip switches, while pushbutton 2 will transmit the same code with

dip switch #2 in the opposite position.

3) Reassemble the unit into the enclosure and tighten the two screws.

CP-TX

CP-TXHH

Figure 1

WARNING: Any changes or modifications not expressly approved by MS Sedco could void the user’s authority to operate

this equipment

OPERATING INSTRUCTIONS

CP-TXHH PCB

390

300

SW2

TYPE A23

BATTERY

CP-TXHH ENCLOSURE
