MSA Innovation 10060782 Integrated Control Module User Manual

Mine Safety Appliances Company Integrated Control Module

User Manual

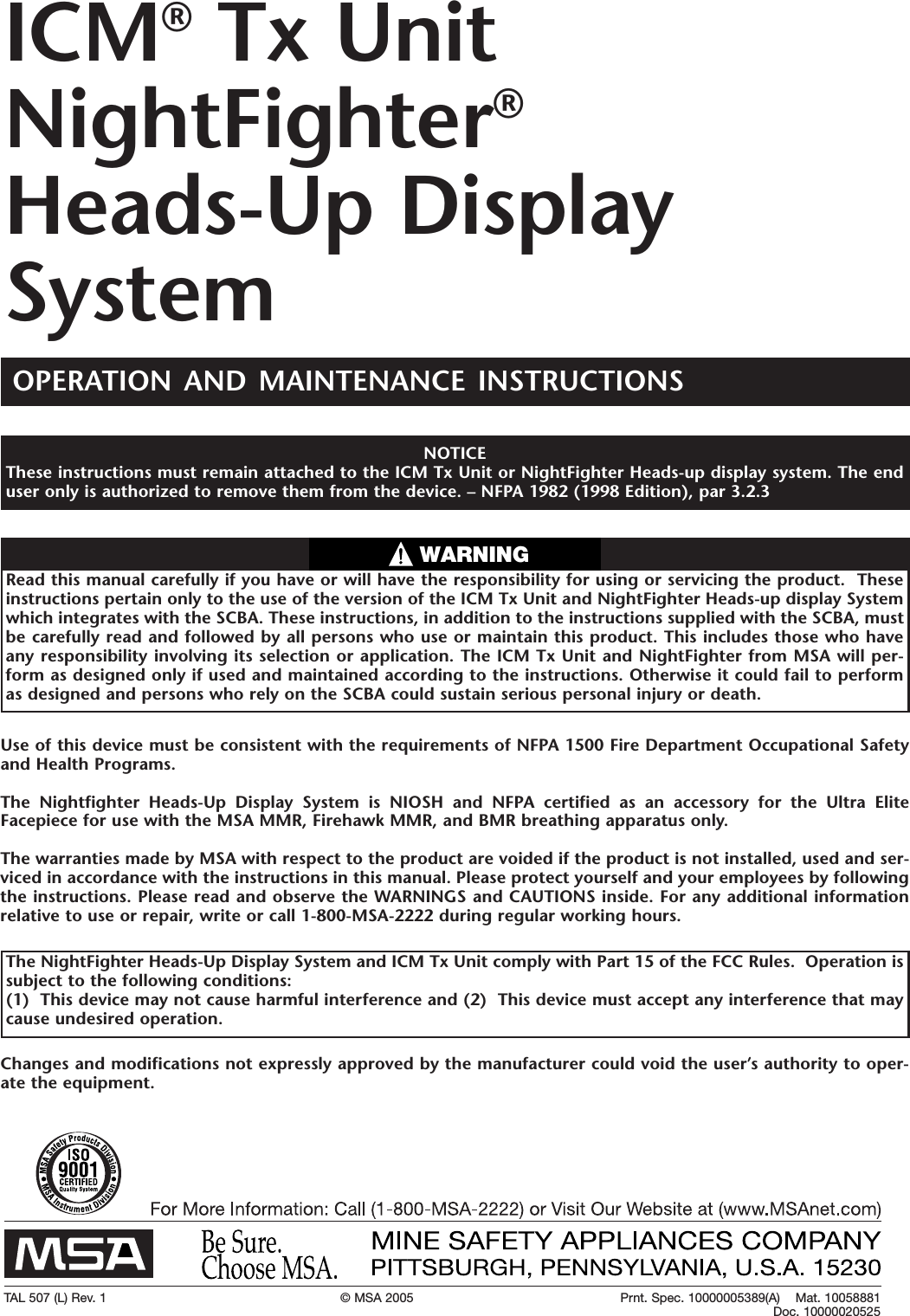

TAL 507 (L) Rev. 1 © MSA 2005 Prnt. Spec. 10000005389(A) Mat. 10058881Doc. 10000020525Use of this device must be consistent with the requirements of NFPA 1500 Fire Department Occupational Safetyand Health Programs.The Nightfighter Heads-Up Display System is NIOSH and NFPAcertified as an accessory for the Ultra EliteFacepiece for use with the MSA MMR, Firehawk MMR, and BMR breathing apparatus only. The warranties made by MSA with respect to the product are voided if the product is not installed, used and ser-viced in accordance with the instructions in this manual. Please protect yourself and your employees by followingthe instructions. Please read and observe the WARNINGS and CAUTIONS inside. For any additional informationrelative to use or repair,write or call 1-800-MSA-2222 during regular working hours.Read this manual carefully if you have or will have the responsibility for using or servicing the product. Theseinstructions pertain only to the use of the version of the ICM Tx Unit and NightFighter Heads-up display Systemwhich integrates with the SCBA. These instructions, in addition to the instructions supplied with the SCBA, mustbe carefully read and followed by all persons who use or maintain this product. This includes those who haveany responsibility involving its selection or application. The ICM Tx Unit and NightFighter from MSA will per-formas designed only if used and maintained according to the instructions. Otherwise it could fail to performas designed and persons who rely on the SCBA could sustain serious personal injury or death.WARNINGICM®Tx UnitNightFighter®Heads-Up DisplaySystemNOTICEThese instructions must remain attached to the ICM Tx Unit or NightFighter Heads-up display system. The enduser only is authorized to remove them from the device. – NFPA1982 (1998 Edition), par 3.2.3OPERATION AND MAINTENANCE INSTRUCTIONSThe NightFighter Heads-Up Display System and ICM Tx Unit comply with Part 15 of the FCC Rules. Operation issubject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference that maycause undesired operation. Changes and modifications not expressly approved by the manufacturer could void the user’s authority to oper-ate the equipment.

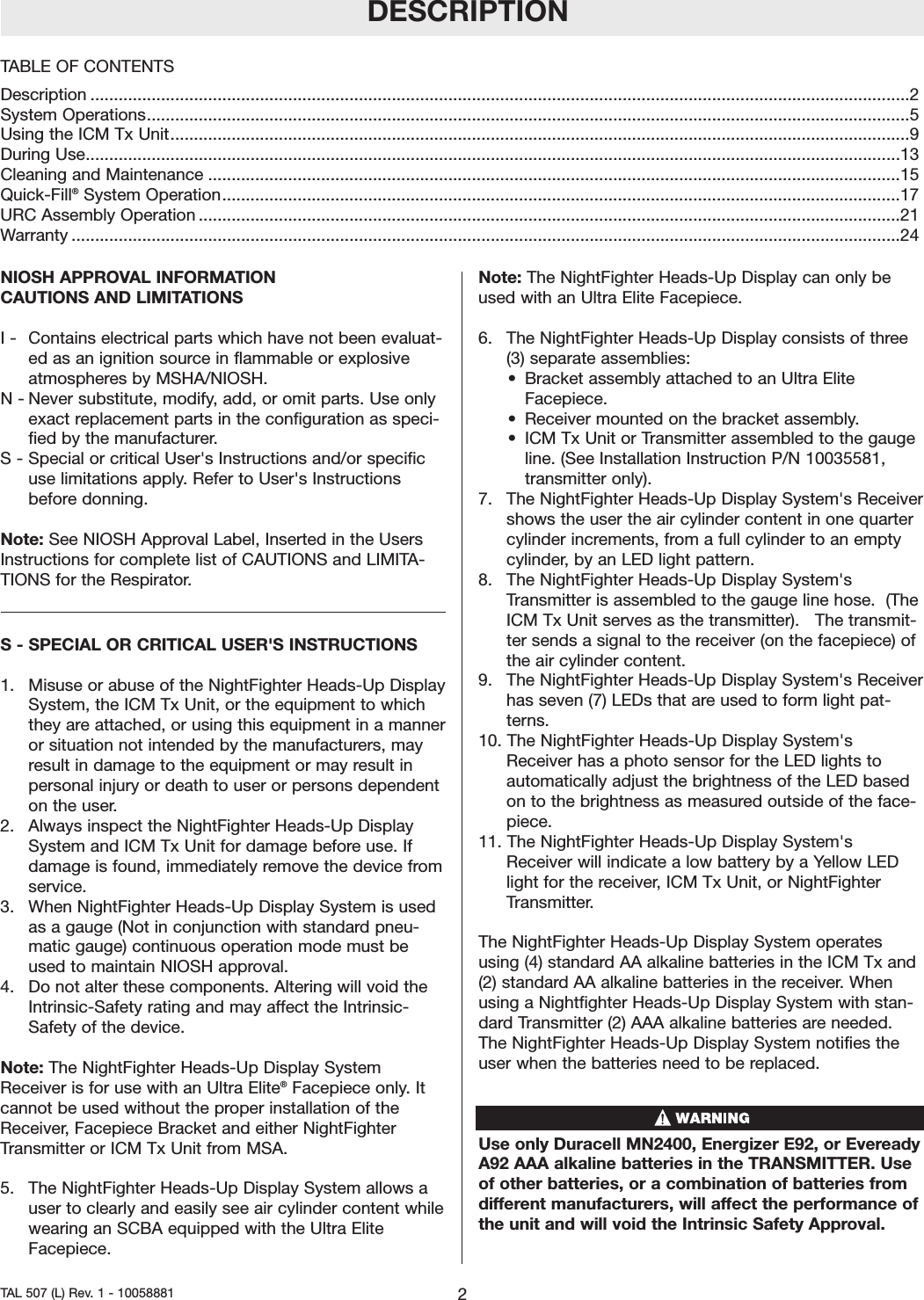

NIOSH APPROVAL INFORMATIONCAUTIONS AND LIMITATIONSI - Contains electrical parts which have not been evaluat-ed as an ignition source in flammable or explosiveatmospheres by MSHA/NIOSH.N - Never substitute, modify, add, or omit parts. Use onlyexact replacement parts in the configuration as speci-fied by the manufacturer.S- Special or critical User's Instructions and/or specificuse limitations apply. Refer to User's Instructionsbefore donning.Note: See NIOSH Approval Label, Inserted in the UsersInstructions for complete list of CAUTIONS and LIMITA-TIONS for the Respirator.S-SPECIAL OR CRITICAL USER'S INSTRUCTIONS1. Misuse or abuse of the NightFighter Heads-Up DisplaySystem, the ICM Tx Unit, or the equipment to whichthey areattached, or using this equipment in a manneror situation not intended by the manufacturers, mayresult in damage to the equipment or may result inpersonal injuryor death to user or persons dependenton the user.2. Always inspect the NightFighter Heads-Up DisplaySystem and ICM Tx Unit for damage beforeuse. Ifdamage is found, immediately remove the device fromservice.3. When NightFighter Heads-Up Display System is usedas a gauge (Not in conjunction with standard pneu-matic gauge) continuous operation mode must beused to maintain NIOSH approval.4. Do not alter these components. Altering will void theIntrinsic-Safety rating and may affect the Intrinsic-Safety of the device.Note: The NightFighter Heads-Up Display SystemReceiver is for use with an Ultra Elite®Facepiece only. Itcannot be used without the proper installation of theReceiver, Facepiece Bracket and either NightFighterTransmitter or ICM Tx Unit from MSA.5. The NightFighter Heads-Up Display System allows auser to clearly and easily see air cylinder content whilewearing an SCBA equipped with the Ultra EliteFacepiece.Note: The NightFighter Heads-Up Display can only beused with an Ultra Elite Facepiece.6. The NightFighter Heads-Up Display consists of three(3) separate assemblies:• Bracket assembly attached to an Ultra EliteFacepiece.• Receiver mounted on the bracket assembly.• ICM Tx Unit or Transmitter assembled to the gaugeline. (See Installation Instruction P/N 10035581,transmitter only).7. The NightFighter Heads-Up Display System's Receivershows the user the air cylinder content in one quartercylinder increments, from a full cylinder to an emptycylinder, by an LED light pattern.8. The NightFighter Heads-Up Display System'sTransmitter is assembled to the gauge line hose. (TheICM Tx Unit serves as the transmitter). The transmit-ter sends a signal to the receiver (on the facepiece) ofthe air cylinder content.9. The NightFighter Heads-Up Display System's Receiverhas seven (7) LEDs that are used to form light pat-terns.10. The NightFighter Heads-Up Display System'sReceiver has a photo sensor for the LED lights toautomatically adjust the brightness of the LED basedon to the brightness as measured outside of the face-piece.11. The NightFighter Heads-Up Display System'sReceiver will indicate a low batteryby a Yellow LEDlight for the receiver, ICM Tx Unit, or NightFighterTransmitter.The NightFighter Heads-Up Display System operatesusing (4) standardAA alkaline batteries in the ICM Tx and(2) standardAA alkaline batteries in the receiver.Whenusing a Nightfighter Heads-Up Display System with stan-dard Transmitter (2) AAA alkaline batteries are needed.The NightFighter Heads-Up Display System notifies theuser when the batteries need to be replaced.Use only Duracell MN2400, Energizer E92, or EvereadyA92 AAA alkaline batteries in the TRANSMITTER. Useof other batteries, or a combination of batteries fromdifferent manufacturers, will affect the performance ofthe unit and will void the Intrinsic Safety Approval. TABLE OF CONTENTSDescription ..............................................................................................................................................................................2System Operations..................................................................................................................................................................5Using the ICM Tx Unit.............................................................................................................................................................9During Use.............................................................................................................................................................................13Cleaning and Maintenance ...................................................................................................................................................15Quick-Fill®System Operation................................................................................................................................................17URC Assembly Operation .....................................................................................................................................................21Warranty ................................................................................................................................................................................24DESCRIPTION2TAL 507 (L) Rev. 1 - 10058881

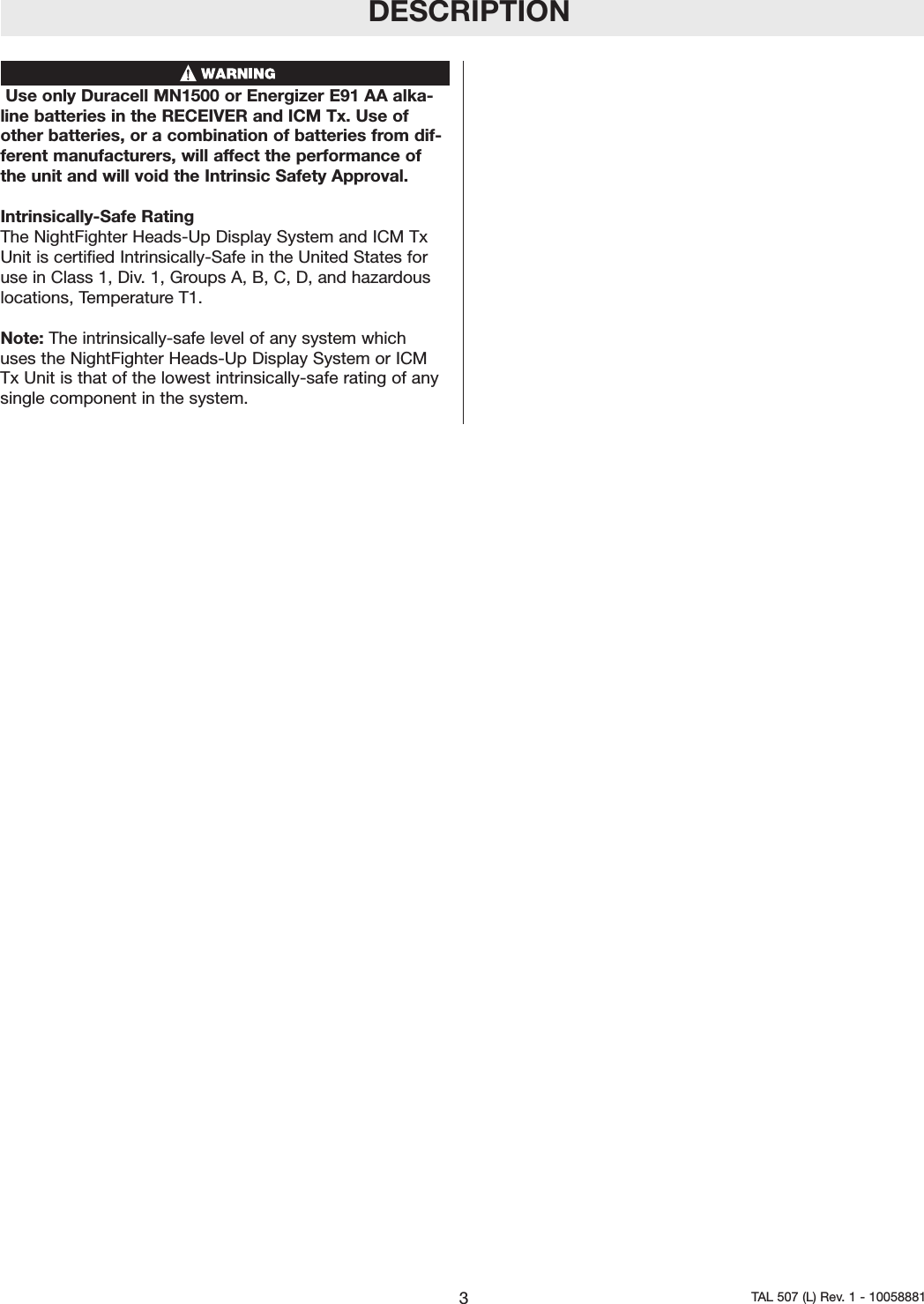

Use only Duracell MN1500 or Energizer E91 AA alka-line batteries in the RECEIVER and ICM Tx. Use ofother batteries, or a combination of batteries from dif-ferent manufacturers, will affect the performance ofthe unit and will void the Intrinsic Safety Approval. Intrinsically-Safe RatingThe NightFighter Heads-Up Display System and ICM TxUnit is certified Intrinsically-Safe in the United States foruse in Class 1, Div. 1, Groups A, B, C, D, and hazardouslocations, Temperature T1.Note: The intrinsically-safe level of any system whichuses the NightFighter Heads-Up Display System or ICMTx Unit is that of the lowest intrinsically-safe rating of anysingle component in the system.DESCRIPTION3TAL 507 (L) Rev. 1 - 10058881
4TAL 507 (L) Rev. 1 - 10058881NOTES

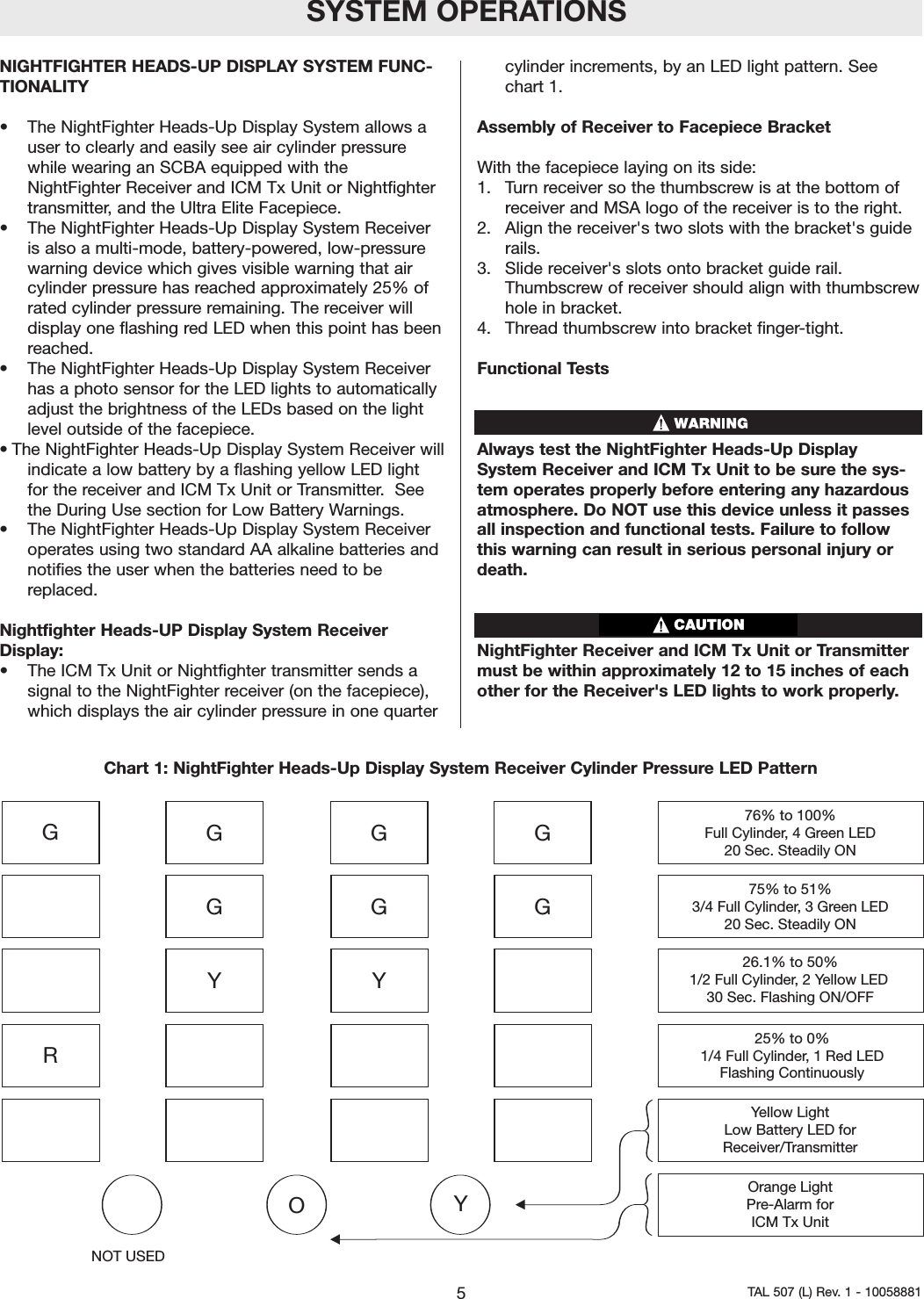

SYSTEM OPERATIONSNIGHTFIGHTER HEADS-UP DISPLAY SYSTEM FUNC-TIONALITY• The NightFighter Heads-Up Display System allows auser to clearly and easily see air cylinder pressurewhile wearing an SCBA equipped with theNightFighter Receiver and ICM Tx Unit or Nightfightertransmitter, and the Ultra Elite Facepiece.•The NightFighter Heads-Up Display System Receiveris also a multi-mode, battery-powered, low-pressurewarning device which gives visible warning that aircylinder pressure has reached approximately 25% ofrated cylinder pressure remaining. The receiver willdisplay one flashing red LED when this point has beenreached.• The NightFighter Heads-Up Display System Receiverhas a photo sensor for the LED lights to automaticallyadjust the brightness of the LEDs based on the lightlevel outside of the facepiece.• The NightFighter Heads-Up Display System Receiver willindicate a low battery by a flashing yellow LED lightfor the receiver and ICM Tx Unit or Transmitter.Seethe During Use section for Low Battery Warnings.• The NightFighter Heads-Up Display System Receiveroperates using two standard AA alkaline batteries andnotifies the user when the batteries need to bereplaced.Nightfighter Heads-UP Display System ReceiverDisplay:•The ICM Tx Unit or Nightfighter transmitter sends asignal to the NightFighter receiver (on the facepiece),which displays the air cylinder pressurein one quartercylinder increments, by an LED light pattern. See chart 1.Assembly of Receiver to Facepiece BracketWith the facepiece laying on its side:1.Turn receiver so the thumbscrew is at the bottom ofreceiver and MSA logo of the receiver is to the right.2.Align the receiver's two slots with the bracket's guiderails.3. Slide receiver's slots onto bracket guide rail.Thumbscrew of receiver should align with thumbscrewhole in bracket.4. Thread thumbscrew into bracket finger-tight.Functional TestsAlways test the NightFighter Heads-Up DisplaySystem Receiver and ICM Tx Unit to be sure the sys-tem operates properly beforeentering any hazardousatmosphere. Do NOT use this device unless it passesall inspection and functional tests. Failure to followthis warning can result in serious personal injury ordeath.NightFighter Receiver and ICM Tx Unit or Transmittermust be within approximately 12 to 15 inches of eachother for the Receiver's LED lights to work properly.5TAL 507 (L) Rev. 1 - 10058881RGGGYGGGGY76% to 100%Full Cylinder, 4 Green LED20 Sec. Steadily ON75% to 51%3/4 Full Cylinder, 3 Green LED20 Sec. Steadily ON26.1% to 50%1/2 Full Cylinder, 2 Yellow LED30 Sec. Flashing ON/OFF25% to 0%1/4 Full Cylinder, 1 Red LEDFlashing ContinuouslyYellow LightLow Battery LED forReceiver/TransmitterOrange LightPre-Alarm forICM Tx UnitYONOT USEDChart 1: NightFighter Heads-Up Display System Receiver Cylinder Pressure LED PatternCAUTION
6TAL 507 (L) Rev. 1 - 10058881NOTES

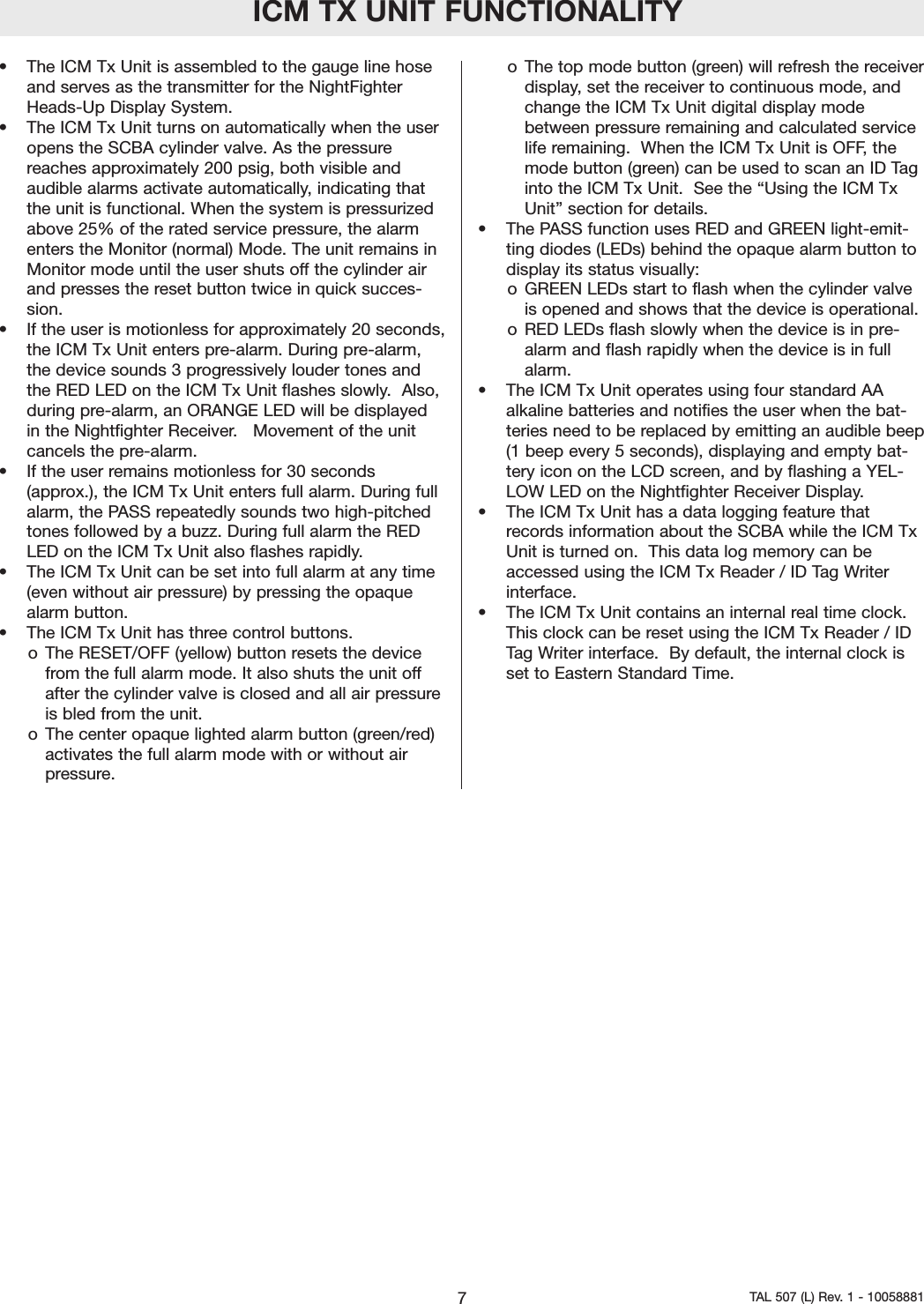

ICM TX UNIT FUNCTIONALITY• The ICM Tx Unit is assembled to the gauge line hoseand serves as the transmitter for the NightFighterHeads-Up Display System.• The ICM Tx Unit turns on automatically when the useropens the SCBA cylinder valve. As the pressurereaches approximately 200 psig, both visible andaudible alarms activate automatically, indicating thatthe unit is functional. When the system is pressurizedabove 25% of the rated service pressure, the alarmenters the Monitor (normal) Mode. The unit remains inMonitor mode until the user shuts off the cylinder airand presses the reset button twice in quick succes-sion.• If the user is motionless for approximately 20 seconds,the ICM Tx Unit enters pre-alarm. During pre-alarm,the device sounds 3 progressively louder tones andthe RED LED on the ICM Tx Unit flashes slowly. Also,during pre-alarm, an ORANGE LED will be displayedin the Nightfighter Receiver. Movement of the unitcancels the pre-alarm.• If the user remains motionless for 30 seconds(approx.), the ICM Tx Unit enters full alarm. During fullalarm, the PASS repeatedly sounds two high-pitchedtones followed by a buzz. During full alarm the REDLED on the ICM Tx Unit also flashes rapidly.• The ICM Tx Unit can be set into full alarm at any time(even without air pressure) by pressing the opaquealarm button.• The ICM Tx Unit has three control buttons.o The RESET/OFF (yellow) button resets the devicefrom the full alarmmode. It also shuts the unit offafter the cylinder valve is closed and all air pressureis bled from the unit.o The center opaque lighted alarm button (green/red)activates the full alarm mode with or without airpressure.o The top mode button (green) will refresh the receiverdisplay, set the receiver to continuous mode, andchange the ICM Tx Unit digital display modebetween pressure remaining and calculated servicelife remaining. When the ICM Tx Unit is OFF, themode button (green) can be used to scan an ID Taginto the ICM Tx Unit. See the “Using the ICM TxUnit” section for details.•The PASS function uses RED and GREEN light-emit-ting diodes (LEDs) behind the opaque alarm button todisplay its status visually:o GREEN LEDs start to flash when the cylinder valveis opened and shows that the device is operational.o RED LEDs flash slowly when the device is in pre-alarm and flash rapidly when the device is in fullalarm.• The ICM Tx Unit operates using four standard AAalkaline batteries and notifies the user when the bat-teries need to be replaced by emitting an audible beep(1 beep every 5 seconds), displaying and empty bat-tery icon on the LCD screen, and by flashing a YEL-LOW LED on the Nightfighter Receiver Display.• The ICM Tx Unit has a data logging feature thatrecords information about the SCBA while the ICM TxUnit is turned on. This data log memory can beaccessed using the ICM Tx Reader / ID Tag Writerinterface.• The ICM Tx Unit contains an internal real time clock.This clock can be reset using the ICM Tx Reader / IDTag Writer interface. By default, the internal clock isset to EasternStandard Time. 7TAL 507 (L) Rev. 1 - 10058881
8TAL 507 (L) Rev. 1 - 10058881NOTES

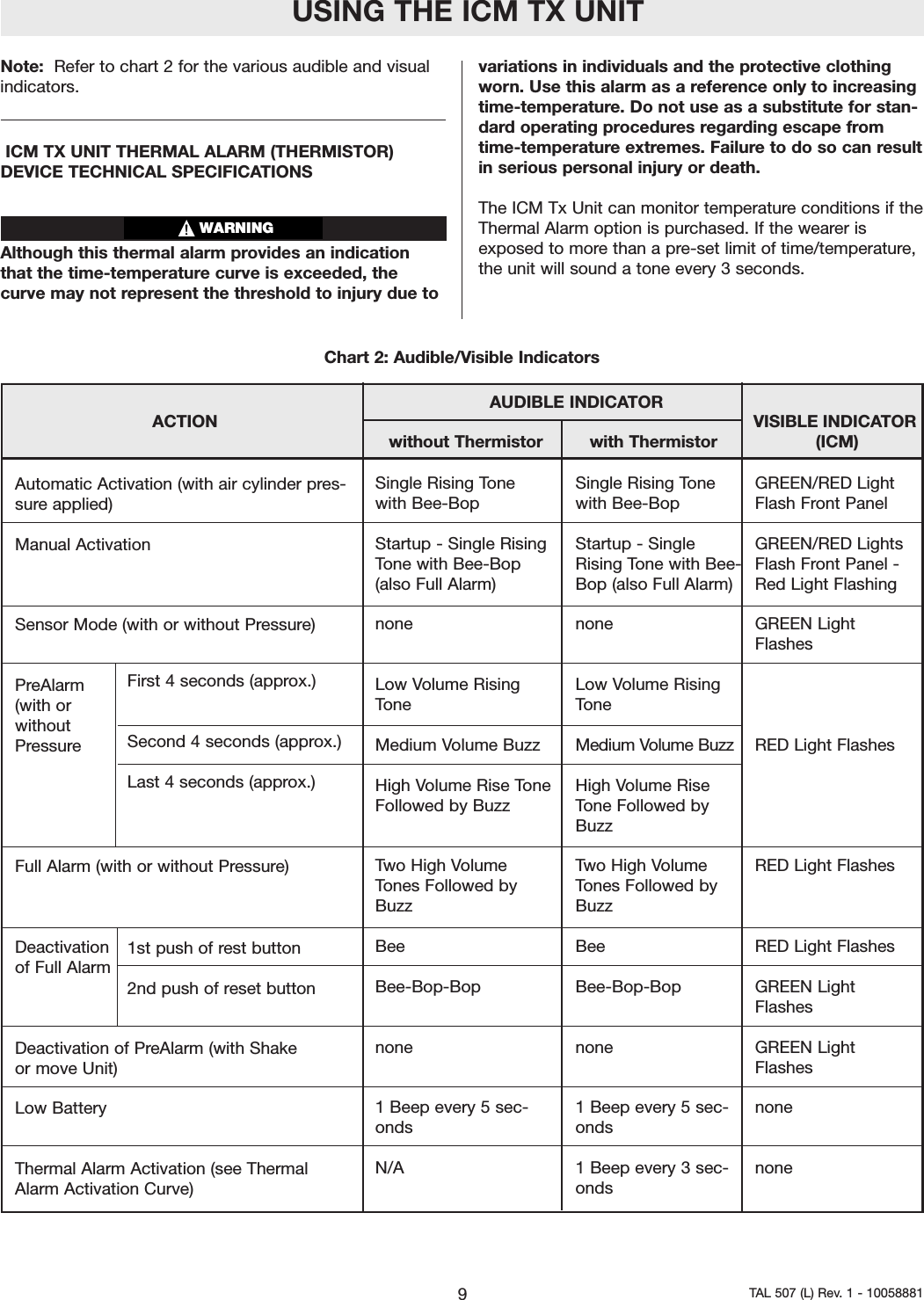

Note: Refer to chart 2 for the various audible and visualindicators.ICM TX UNIT THERMAL ALARM (THERMISTOR)DEVICE TECHNICAL SPECIFICATIONSAlthough this thermal alarm provides an indicationthat the time-temperature curve is exceeded, thecurve may not represent the threshold to injury due tovariations in individuals and the protective clothingworn. Use this alarm as a reference only to increasingtime-temperature. Do not use as a substitute for stan-dard operating procedures regarding escape fromtime-temperature extremes. Failure to do so can resultin serious personal injury or death.The ICM Tx Unit can monitor temperature conditions if theThermal Alarm option is purchased. If the wearer isexposed to more than a pre-set limit of time/temperature,the unit will sound a tone every 3 seconds. USING THE ICM TX UNIT9TAL 507 (L) Rev. 1 - 10058881WARNINGAUDIBLE INDICATORACTION VISIBLE INDICATOR without Thermistor with Thermistor (ICM)Automatic Activation (with air cylinder pres-sureapplied)Manual ActivationSensor Mode (with or without Pressure)PreAlarm(with orwithoutPressureFull Alarm(with or without Pressure)Deactivationof Full AlarmDeactivation of PreAlarm (with Shakeor move Unit)Low BatteryThermal Alarm Activation (see ThermalAlarm Activation Curve)Single Rising Tonewith Bee-BopStartup - Single RisingTone with Bee-Bop(also Full Alarm)noneLow Volume RisingToneMedium Volume BuzzHigh Volume Rise ToneFollowed by BuzzTwo High VolumeTones Followed by BuzzBeeBee-Bop-Bopnone1Beep every5sec-ondsN/ASingle Rising Tonewith Bee-BopStartup - SingleRising Tone with Bee-Bop (also Full Alarm)noneLow Volume RisingToneMedium Volume BuzzHigh Volume RiseTone Followed byBuzzTwo High VolumeTones Followed by BuzzBeeBee-Bop-Bopnone1Beep every5sec-onds1Beep every 3 sec-ondsGREEN/RED LightFlash Front PanelGREEN/RED LightsFlash Front Panel -Red Light FlashingGREEN LightFlashesRED Light FlashesRED Light FlashesRED Light FlashesGREEN LightFlashesGREEN LightFlashesnonenoneFirst 4 seconds (approx.)Second 4 seconds (approx.)Last 4 seconds (approx.)1st push of rest button2nd push of reset buttonChart 2: Audible/Visible Indicators

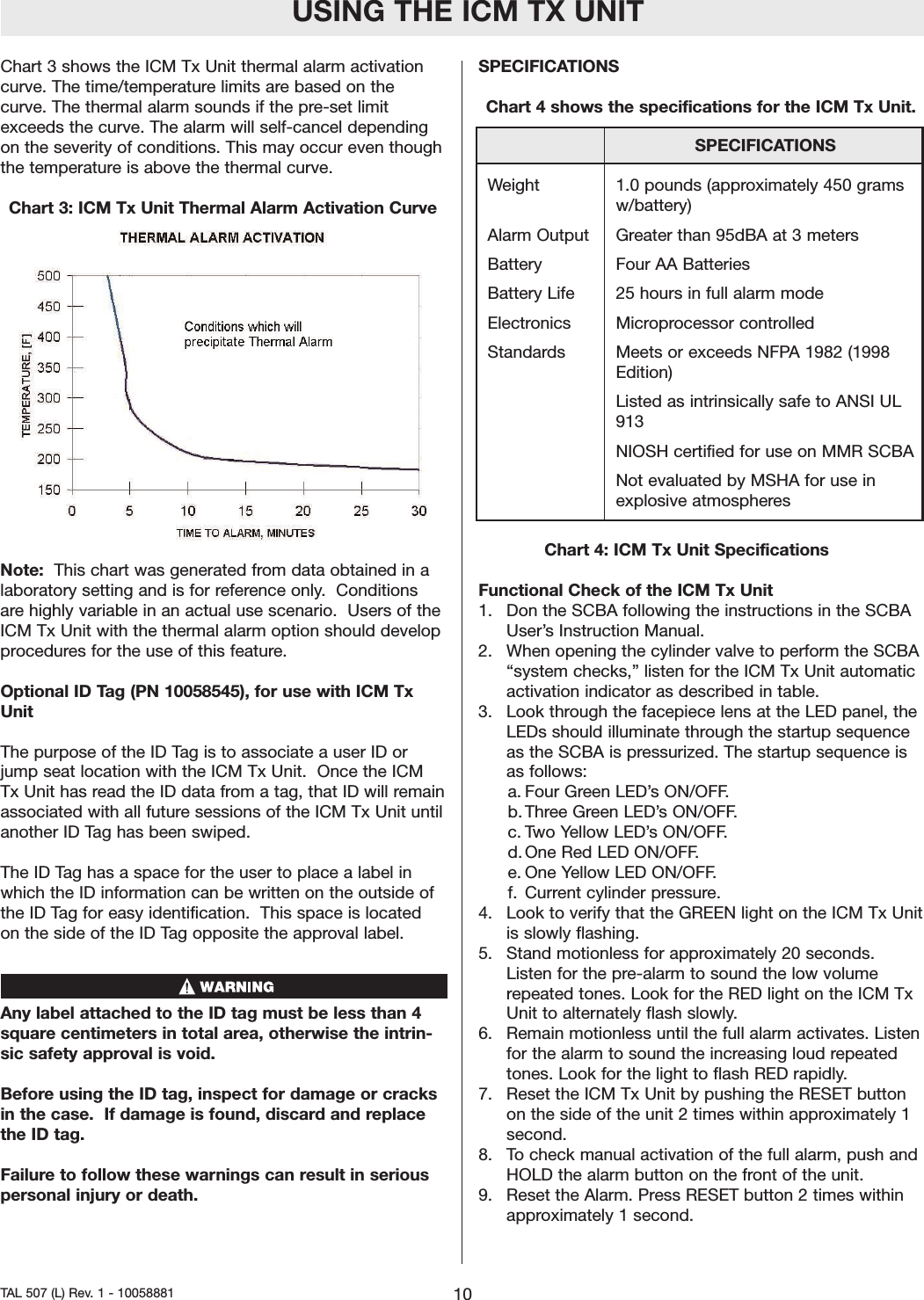

Chart 3 shows the ICM Tx Unit thermal alarm activationcurve. The time/temperature limits are based on thecurve. The thermal alarm sounds if the pre-set limitexceeds the curve. The alarm will self-cancel dependingon the severity of conditions. This may occur even thoughthe temperature is above the thermal curve.Chart 3: ICM Tx Unit Thermal Alarm Activation CurveNote: This chart was generated from data obtained in alaboratorysetting and is for reference only. Conditionsare highly variable in an actual use scenario. Users of theICM Tx Unit with the thermal alarmoption should developprocedures for the use of this feature. Optional ID Tag (PN 10058545), for use with ICM TxUnitThe purpose of the ID Tag is to associate a user ID orjump seat location with the ICM Tx Unit. Once the ICMTx Unit has read the ID data from a tag, that ID will remainassociated with all future sessions of the ICM Tx Unit untilanother ID Tag has been swiped. The ID Tag has a space for the user to place a label inwhich the ID information can be written on the outside ofthe ID Tag for easy identification. This space is locatedon the side of the ID Tag opposite the approval label. Any label attached to the ID tag must be less than 4squarecentimeters in total area, otherwise the intrin-sic safety approval is void.Before using the ID tag, inspect for damage or cracksin the case. If damage is found, discardand replacethe ID tag. Failureto follow these warnings can result in seriouspersonal injury or death.SPECIFICATIONSChart 4 shows the specifications for the ICM Tx Unit.Chart 4: ICM Tx Unit SpecificationsFunctional Check of the ICM Tx Unit1. Don the SCBA following the instructions in the SCBAUser’sInstruction Manual.2. When opening the cylinder valve to perform the SCBA“system checks,” listen for the ICM Tx Unit automaticactivation indicator as described in table.3. Look through the facepiece lens at the LED panel, theLEDs should illuminate through the startup sequenceas the SCBA is pressurized. The startup sequence isas follows:a. Four Green LED’s ON/OFF.b. Three Green LED’s ON/OFF.c. Two Yellow LED’s ON/OFF.d. One Red LED ON/OFF.e. One Yellow LED ON/OFF.f. Current cylinder pressure.4. Look to verify that the GREEN light on the ICM Tx Unitis slowly flashing.5. Stand motionless for approximately 20 seconds.Listen for the pre-alarm to sound the low volumerepeated tones. Look for the RED light on the ICM TxUnit to alternately flash slowly.6. Remain motionless until the full alarmactivates. Listenfor the alarm to sound the increasing loud repeatedtones. Look for the light to flash RED rapidly.7. Reset the ICM Tx Unit by pushing the RESET buttonon the side of the unit 2 times within approximately 1second.8. To check manual activation of the full alarm, push andHOLD the alarmbutton on the front of the unit.9. Reset the Alarm. Press RESET button 2 times withinapproximately 1 second.USING THE ICM TX UNIT10TAL 507 (L) Rev. 1 - 10058881SPECIFICATIONSWeight 1.0 pounds (approximately 450 grams w/battery)Alarm Output Greater than 95dBA at 3 metersBattery Four AA BatteriesBattery Life 25 hours in full alarm modeElectronics Microprocessor controlledStandards Meets or exceeds NFPA 1982 (1998 Edition)Listed as intrinsically safe to ANSI UL 913NIOSH certified for use on MMR SCBANot evaluated by MSHA for use in explosive atmospheres

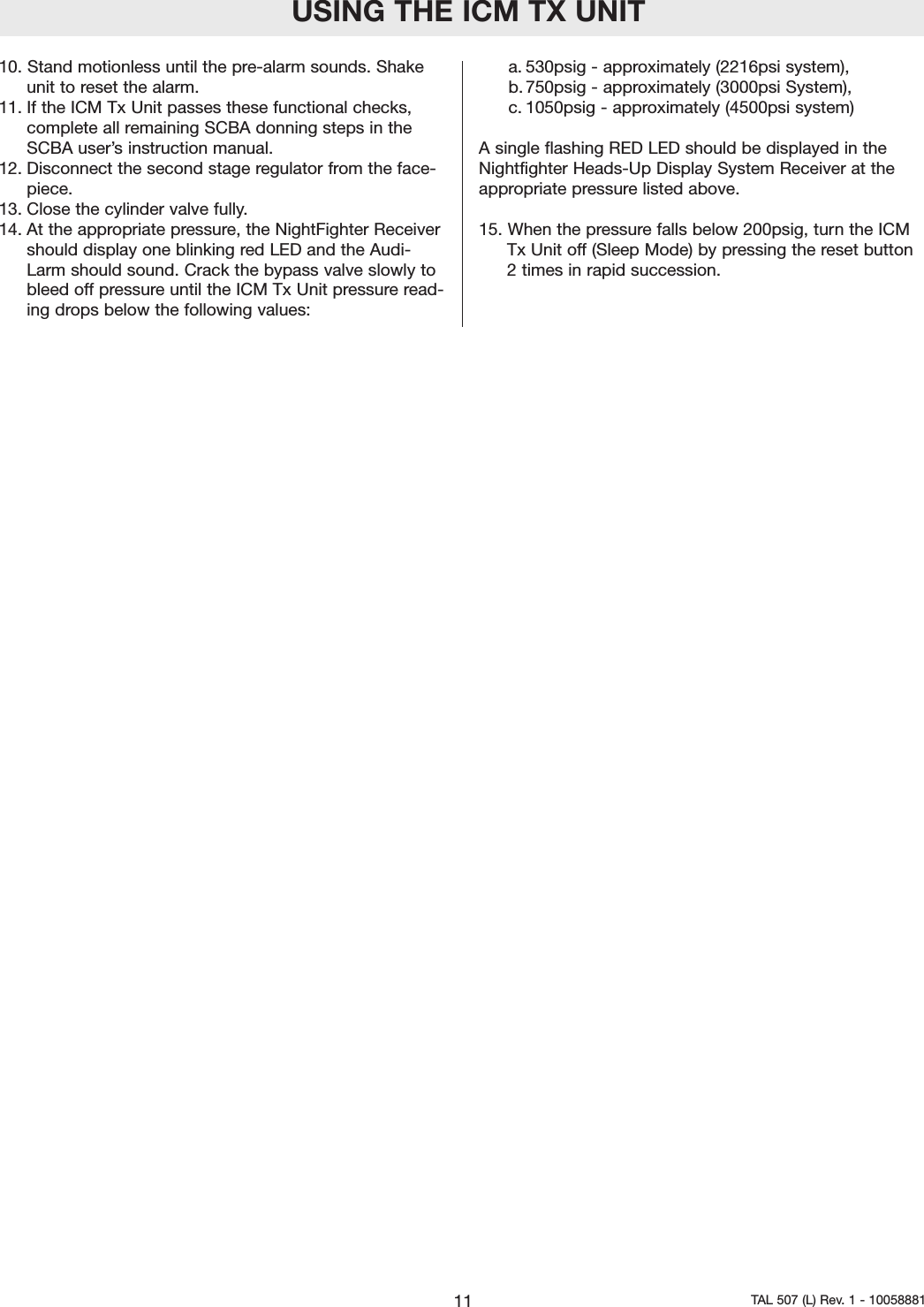

10. Stand motionless until the pre-alarm sounds. Shakeunit to reset the alarm.11. If the ICM Tx Unit passes these functional checks,complete all remaining SCBA donning steps in theSCBA user’s instruction manual.12. Disconnect the second stage regulator from the face-piece.13. Close the cylinder valve fully.14. At the appropriate pressure, the NightFighter Receivershould display one blinking red LED and the Audi-Larm should sound. Crack the bypass valve slowly tobleed off pressure until the ICM Tx Unit pressure read-ing drops below the following values: a. 530psig - approximately (2216psi system),b. 750psig - approximately (3000psi System),c. 1050psig - approximately (4500psi system)Asingle flashing RED LED should be displayed in theNightfighter Heads-Up Display System Receiver at theappropriate pressure listed above. 15. When the pressure falls below 200psig, turn the ICMTx Unit off (Sleep Mode) by pressing the reset button2times in rapid succession.USING THE ICM TX UNIT11 TAL 507 (L) Rev. 1 - 10058881
NOTES12TAL 507 (L) Rev. 1 - 10058881

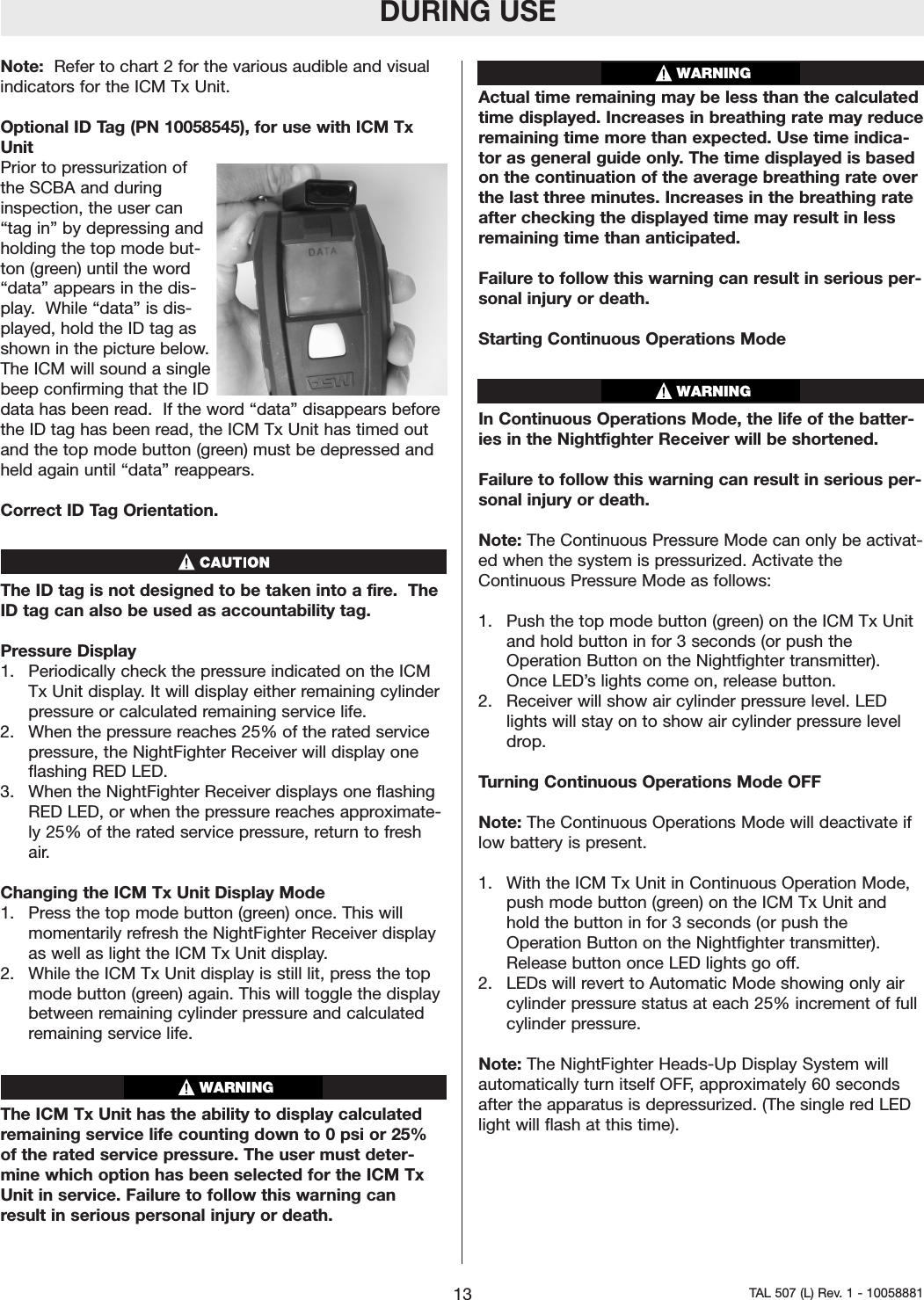

Note: Refer to chart 2 for the various audible and visualindicators for the ICM Tx Unit.Optional ID Tag (PN 10058545), for use with ICM TxUnitPrior to pressurization ofthe SCBA and duringinspection, the user can“tag in” by depressing andholding the top mode but-ton (green) until the word“data” appears in the dis-play. While “data” is dis-played, hold the ID tag asshown in the picture below.The ICM will sound a singlebeep confirming that the IDdata has been read. If the word “data” disappears beforethe ID tag has been read, the ICM Tx Unit has timed outand the top mode button (green) must be depressed andheld again until “data” reappears. Correct ID Tag Orientation. The ID tag is not designed to be taken into a fire. TheID tag can also be used as accountability tag. Pressure Display1. Periodically check the pressureindicated on the ICMTx Unit display. It will display either remaining cylinderpressureor calculated remaining service life.2. When the pressure reaches 25% of the rated servicepressure, the NightFighter Receiver will display oneflashing RED LED.3. When the NightFighter Receiver displays one flashingRED LED, or when the pressure reaches approximate-ly 25% of the rated service pressure, return to freshair.Changing the ICM Tx Unit Display Mode1. Press the top mode button (green) once. This willmomentarily refresh the NightFighter Receiver displayas well as light the ICM Tx Unit display.2. While the ICM Tx Unit display is still lit, press the topmode button (green) again. This will toggle the displaybetween remaining cylinder pressure and calculatedremaining service life.The ICM Tx Unit has the ability to display calculatedremaining service life counting down to 0 psi or 25%of the rated service pressure. The user must deter-mine which option has been selected for the ICM TxUnit in service. Failure to follow this warning canresult in serious personal injuryor death.Actual time remaining may be less than the calculatedtime displayed. Increases in breathing rate may reduceremaining time more than expected. Use time indica-tor as general guide only. The time displayed is basedonthe continuation of the average breathing rate overthe last three minutes. Increases in the breathing rateafter checking the displayed time may result in lessremaining time than anticipated.Failure to follow this warning can result in serious per-sonal injury or death.Starting Continuous Operations ModeIn Continuous Operations Mode, the life of the batter-ies in the Nightfighter Receiver will be shortened. Failure to follow this warning can result in serious per-sonal injury or death.Note: The Continuous PressureMode can only be activat-ed when the system is pressurized. Activate theContinuous PressureMode as follows:1. Push the top mode button (green) on the ICM Tx Unitand hold button in for 3 seconds (or push theOperation Button on the Nightfighter transmitter).Once LED’slights come on, release button.2. Receiver will show air cylinder pressure level. LEDlights will stay on to show air cylinder pressure leveldrop.Turning Continuous Operations Mode OFFNote: The Continuous Operations Mode will deactivate iflow batteryis present.1. With the ICM Tx Unit in Continuous Operation Mode,push mode button (green) on the ICM Tx Unit andhold the button in for 3 seconds (or push theOperation Button on the Nightfighter transmitter).Release button once LED lights go off.2. LEDs will revert to Automatic Mode showing only aircylinder pressure status at each 25% increment of fullcylinder pressure.Note: The NightFighter Heads-Up Display System willautomatically turnitself OFF,approximately 60 secondsafter the apparatus is depressurized. (The single red LEDlight will flash at this time).WARNINGDURING USE13 TAL 507 (L) Rev. 1 - 10058881WARNINGWARNING

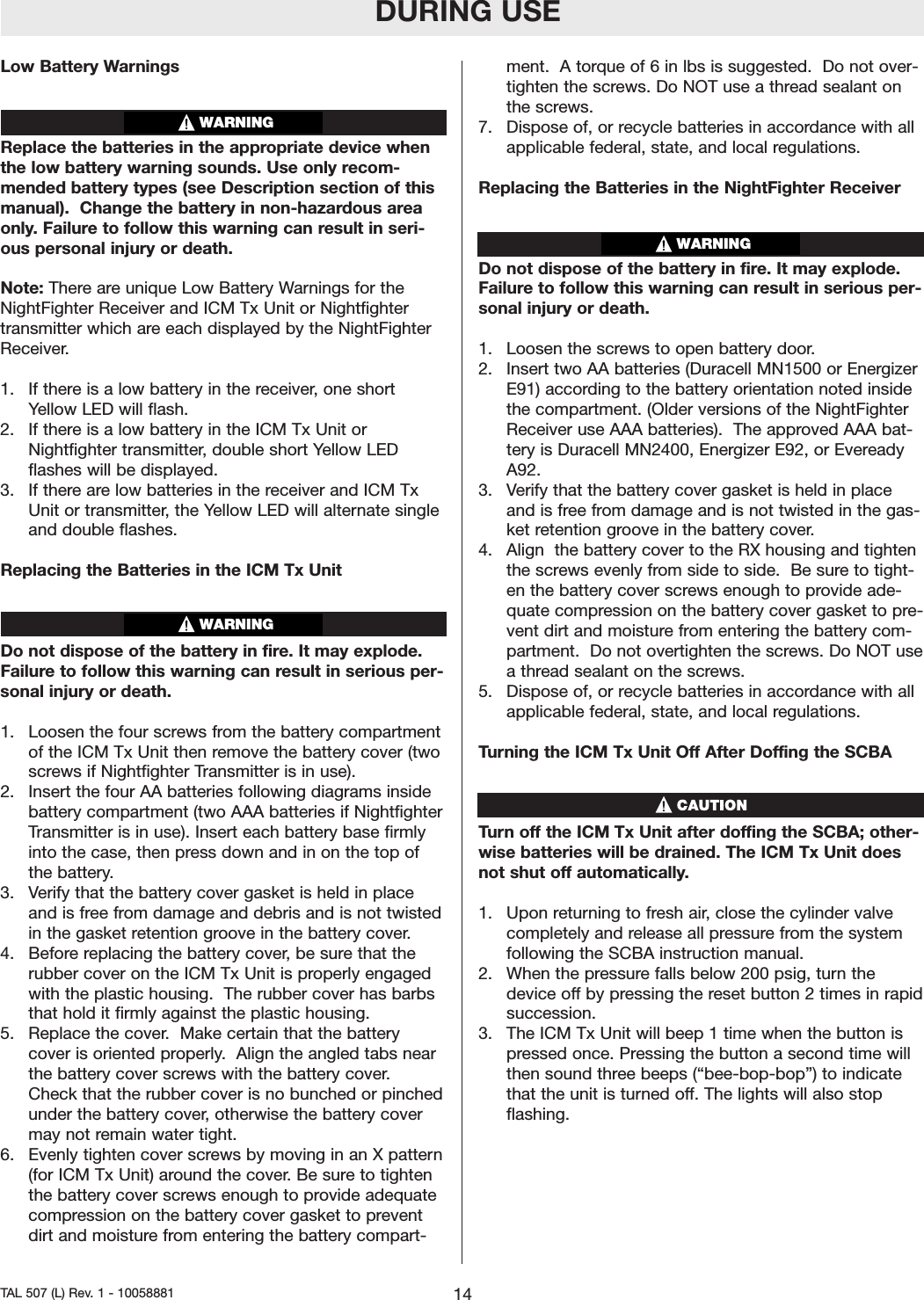

Low Battery WarningsReplace the batteries in the appropriate device whenthe low battery warning sounds. Use only recom-mended battery types (see Description section of thismanual). Change the battery in non-hazardous areaonly. Failure to follow this warning can result in seri-ous personal injury or death.Note: There are unique Low Battery Warnings for theNightFighter Receiver and ICM Tx Unit or Nightfightertransmitter which are each displayed by the NightFighterReceiver.1. If there is a low battery in the receiver, one shortYellow LED will flash.2. If there is a low battery in the ICM Tx Unit orNightfighter transmitter, double short Yellow LEDflashes will be displayed.3. If therearelow batteries in the receiver and ICM TxUnit or transmitter, the Yellow LED will alternate singleand double flashes.Replacing the Batteries in the ICM Tx UnitDo not dispose of the battery in fire. It may explode.Failureto follow this warning can result in serious per-sonal injury or death.1. Loosen the four screws from the battery compartmentof the ICM Tx Unit then remove the battery cover (twoscrews if Nightfighter Transmitter is in use).2. Insert the four AA batteries following diagrams insidebattery compartment (two AAA batteries if NightfighterTransmitter is in use). Insert each battery base firmlyinto the case, then press down and in on the top ofthe battery.3. Verify that the battery cover gasket is held in placeand is free from damage and debris and is not twistedin the gasket retention groove in the batterycover.4. Before replacing the battery cover, be sure that therubber cover on the ICM Tx Unit is properly engagedwith the plastic housing. The rubber cover has barbsthat hold it firmly against the plastic housing. 5. Replace the cover.Make certain that the batterycover is oriented properly. Align the angled tabs nearthe battery cover screws with the battery cover.Check that the rubber cover is no bunched or pinchedunder the batterycover,otherwise the batterycovermay not remain water tight. 6. Evenly tighten cover screws by moving in an X pattern(for ICM Tx Unit) around the cover. Be sure to tightenthe battery cover screws enough to provide adequatecompression on the batterycover gasket to preventdirt and moisture from entering the battery compart-ment. A torque of 6 in lbs is suggested. Do not over-tighten the screws. Do NOT use a thread sealant onthe screws. 7. Dispose of, or recycle batteries in accordance with allapplicable federal, state, and local regulations.Replacing the Batteries in the NightFighter ReceiverDo not dispose of the battery in fire. It may explode.Failure to follow this warning can result in serious per-sonal injury or death.1. Loosen the screws to open battery door.2. Insert two AA batteries (Duracell MN1500 or EnergizerE91) according to the battery orientation noted insidethe compartment. (Older versions of the NightFighterReceiver use AAA batteries). The approved AAA bat-tery is Duracell MN2400, Energizer E92, or EvereadyA92.3. Verify that the batterycover gasket is held in placeand is free from damage and is not twisted in the gas-ket retention groove in the battery cover.4. Align the battery cover to the RX housing and tightenthe screws evenly from side to side. Be sure to tight-en the batterycover screws enough to provide ade-quate compression on the battery cover gasket to pre-vent dirtand moisturefrom entering the battery com-partment. Do not overtighten the screws. Do NOT useathread sealant on the screws. 5. Dispose of, or recycle batteries in accordance with allapplicable federal, state, and local regulations.Turning the ICM Tx Unit Off After Doffing the SCBA Turn off the ICM Tx Unit after doffing the SCBA; other-wise batteries will be drained. The ICM Tx Unit doesnot shut off automatically.1. Upon returning to fresh air, close the cylinder valvecompletely and release all pressurefrom the systemfollowing the SCBA instruction manual.2. When the pressure falls below 200 psig, turn thedevice offby pressing the reset button 2 times in rapidsuccession.3. The ICM Tx Unit will beep 1 time when the button ispressed once. Pressing the button a second time willthen sound three beeps (“bee-bop-bop”) to indicatethat the unit is turned off. The lights will also stopflashing.WARNINGWARNINGDURING USE14TAL 507 (L) Rev. 1 - 10058881WARNING

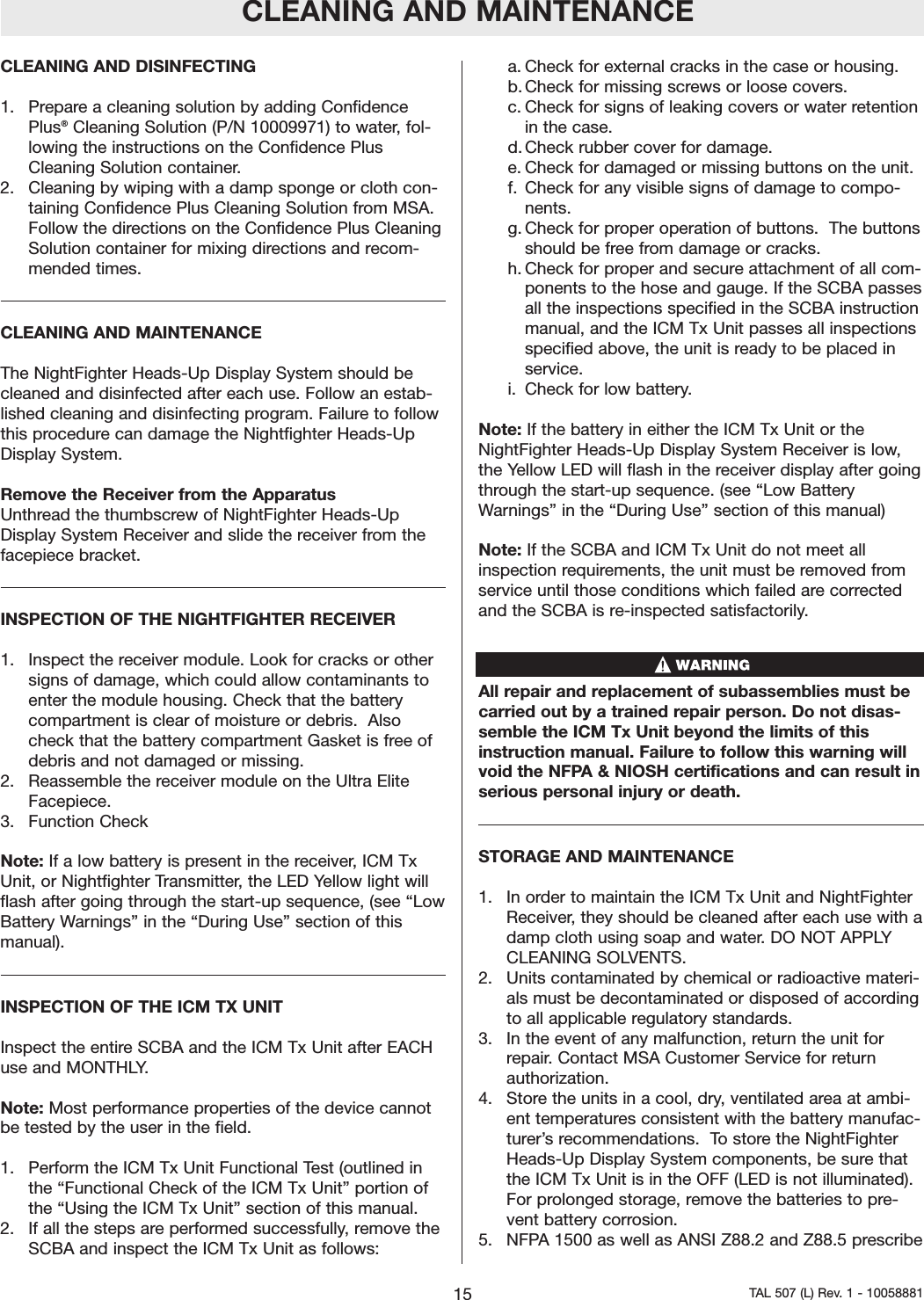

CLEANING AND DISINFECTING1. Prepare a cleaning solution by adding ConfidencePlus®Cleaning Solution (P/N 10009971) to water, fol-lowing the instructions on the Confidence PlusCleaning Solution container.2.Cleaning by wiping with a damp sponge or cloth con-taining Confidence Plus Cleaning Solution from MSA.Follow the directions on the Confidence Plus CleaningSolution container for mixing directions and recom-mended times.CLEANING AND MAINTENANCEThe NightFighter Heads-Up Display System should becleaned and disinfected after each use. Follow an estab-lished cleaning and disinfecting program. Failure to followthis procedure can damage the Nightfighter Heads-UpDisplay System.Remove the Receiver from the ApparatusUnthread the thumbscrew of NightFighter Heads-UpDisplay System Receiver and slide the receiver from thefacepiece bracket.INSPECTION OF THE NIGHTFIGHTER RECEIVER1. Inspect the receiver module. Look for cracks or othersigns of damage, which could allow contaminants toenter the module housing. Check that the batterycompartment is clear of moisture or debris. Alsocheck that the batterycompartment Gasket is free ofdebris and not damaged or missing.2. Reassemble the receiver module on the Ultra EliteFacepiece.3. Function CheckNote: If a low battery is present in the receiver, ICM TxUnit, or Nightfighter Transmitter, the LED Yellow light willflash after going through the start-up sequence, (see “LowBattery Warnings” in the “During Use” section of thismanual).INSPECTION OF THE ICM TX UNITInspect the entire SCBA and the ICM Tx Unit after EACHuse and MONTHLY.Note: Most performance properties of the device cannotbe tested by the user in the field.1. Performthe ICM Tx Unit Functional Test (outlined inthe “Functional Check of the ICM Tx Unit” portion ofthe “Using the ICM Tx Unit” section of this manual. 2. If all the steps are performed successfully, remove theSCBA and inspect the ICM Tx Unit as follows:a. Check for external cracks in the case or housing.b. Check for missing screws or loose covers.c. Check for signs of leaking covers or water retentionin the case.d. Check rubber cover for damage.e. Check for damaged or missing buttons on the unit.f. Check for any visible signs of damage to compo-nents.g. Check for proper operation of buttons. The buttonsshould be free from damage or cracks. h. Check for proper and secure attachment of all com-ponents to the hose and gauge. If the SCBA passesall the inspections specified in the SCBA instructionmanual, and the ICM Tx Unit passes all inspectionsspecified above, the unit is ready to be placed inservice. i. Check for low battery.Note: If the battery in either the ICM Tx Unit or theNightFighter Heads-Up Display System Receiver is low,the Yellow LED will flash in the receiver display after goingthrough the start-up sequence. (see “Low BatteryWarnings” in the “During Use” section of this manual)Note: If the SCBA and ICM Tx Unit do not meet allinspection requirements, the unit must be removed fromservice until those conditions which failed are correctedand the SCBA is re-inspected satisfactorily. All repair and replacement of subassemblies must becarried out by a trained repair person. Do not disas-semble the ICM Tx Unit beyond the limits of thisinstruction manual. Failure to follow this warning willvoid the NFPA & NIOSH certifications and can result inserious personal injuryor death.STORAGE AND MAINTENANCE1. In order to maintain the ICM Tx Unit and NightFighterReceiver,they should be cleaned after each use with adamp cloth using soap and water. DO NOT APPLYCLEANING SOLVENTS.2. Units contaminated by chemical or radioactive materi-als must be decontaminated or disposed of accordingto all applicable regulatory standards.3. In the event of any malfunction, return the unit forrepair. Contact MSA Customer Service for returnauthorization.4. Storethe units in a cool, dry, ventilated area at ambi-ent temperatures consistent with the battery manufac-turer’s recommendations. To store the NightFighterHeads-Up Display System components, be sure thatthe ICM Tx Unit is in the OFF (LED is not illuminated).For prolonged storage, remove the batteries to pre-vent battery corrosion.5. NFPA 1500 as well as ANSI Z88.2 and Z88.5 prescribeCLEANING AND MAINTENANCE15 TAL 507 (L) Rev. 1 - 10058881

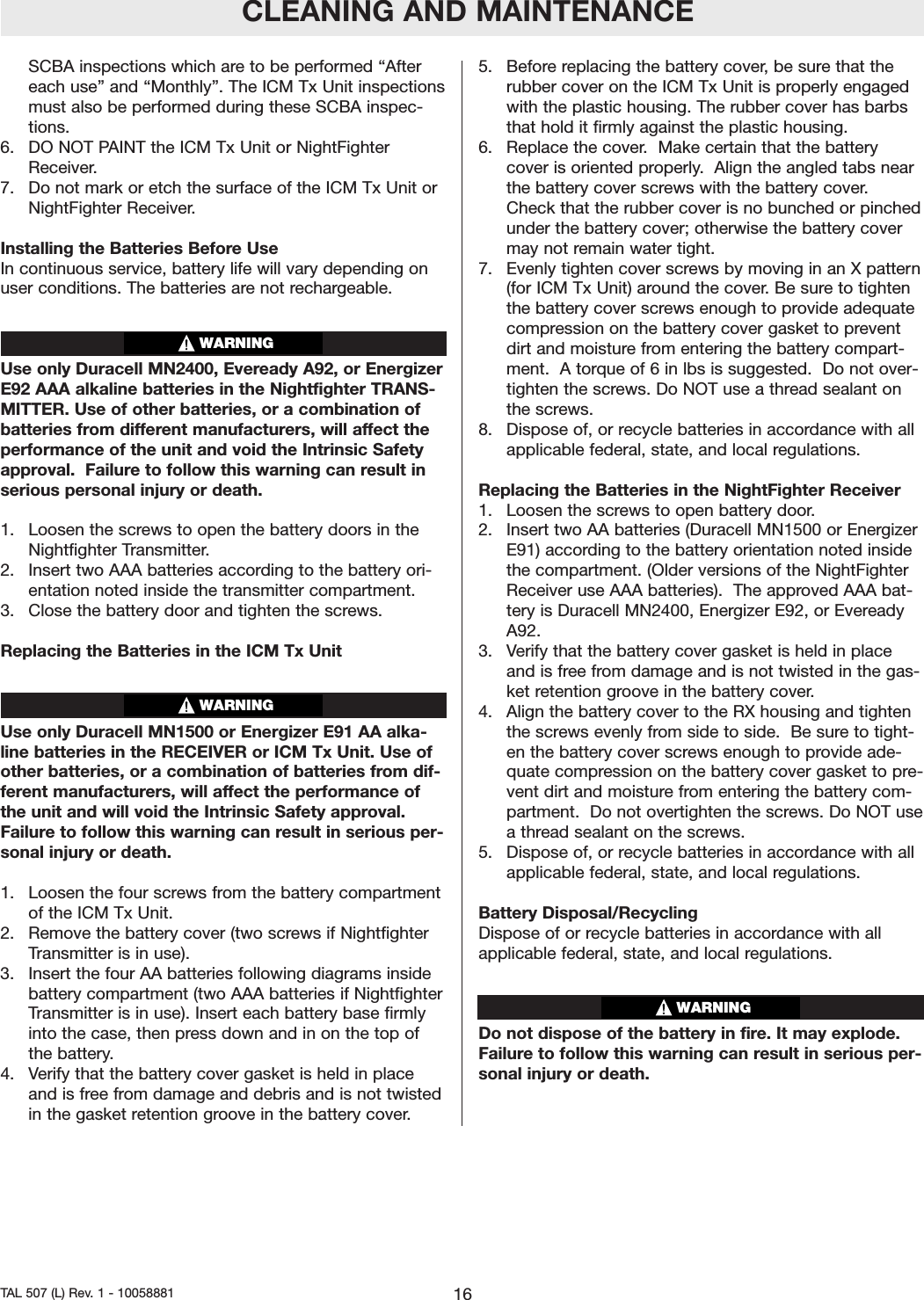

SCBA inspections which are to be performed “Aftereach use” and “Monthly”. The ICM Tx Unit inspectionsmust also be performed during these SCBA inspec-tions.6. DO NOT PAINT the ICM Tx Unit or NightFighterReceiver.7.Do not mark or etch the surface of the ICM Tx Unit orNightFighter Receiver.Installing the Batteries Before UseIn continuous service, battery life will vary depending onuser conditions. The batteries are not rechargeable.Use only Duracell MN2400, Eveready A92, or EnergizerE92 AAA alkaline batteries in the Nightfighter TRANS-MITTER. Use of other batteries, or a combination ofbatteries from different manufacturers, will affect theperformance of the unit and void the Intrinsic Safetyapproval. Failure to follow this warning can result inserious personal injuryor death. 1. Loosen the screws to open the battery doors in theNightfighter Transmitter.2. Insert two AAA batteries according to the battery ori-entation noted inside the transmitter compartment.3. Close the battery door and tighten the screws.Replacing the Batteries in the ICM Tx UnitUse only Duracell MN1500 or Energizer E91 AA alka-line batteries in the RECEIVER or ICM Tx Unit. Use ofother batteries, or a combination of batteries from dif-ferent manufacturers, will affect the performance ofthe unit and will void the Intrinsic Safety approval.Failure to follow this warning can result in serious per-sonal injury or death. 1. Loosen the four screws from the battery compartmentof the ICM Tx Unit.2. Remove the batterycover (two screws if NightfighterTransmitter is in use).3. Insert the four AA batteries following diagrams insidebatterycompartment (two AAA batteries if NightfighterTransmitter is in use). Insert each battery base firmlyinto the case, then press down and in on the top ofthe battery.4. Verify that the battery cover gasket is held in placeand is free from damage and debris and is not twistedin the gasket retention groove in the batterycover.5. Before replacing the battery cover, be sure that therubber cover on the ICM Tx Unit is properly engagedwith the plastic housing. The rubber cover has barbsthat hold it firmly against the plastic housing. 6. Replace the cover. Make certain that the batterycover is oriented properly. Align the angled tabs nearthe battery cover screws with the battery cover.Check that the rubber cover is no bunched or pinchedunder the battery cover; otherwise the battery covermay not remain water tight. 7. Evenly tighten cover screws by moving in an X pattern(for ICM Tx Unit) around the cover. Be sure to tightenthe battery cover screws enough to provide adequatecompression on the battery cover gasket to preventdirt and moisture from entering the battery compart-ment. A torque of 6 in lbs is suggested. Do not over-tighten the screws. Do NOT use a thread sealant onthe screws. 8. Dispose of, or recycle batteries in accordance with allapplicable federal, state, and local regulations.Replacing the Batteries in the NightFighter Receiver1. Loosen the screws to open battery door.2. Insert two AA batteries (Duracell MN1500 or EnergizerE91) according to the battery orientation noted insidethe compartment. (Older versions of the NightFighterReceiver use AAA batteries). The approved AAA bat-tery is Duracell MN2400, Energizer E92, or EvereadyA92.3. Verify that the battery cover gasket is held in placeand is free from damage and is not twisted in the gas-ket retention groove in the battery cover.4. Align the batterycover to the RX housing and tightenthe screws evenly from side to side. Be sure to tight-en the battery cover screws enough to provide ade-quate compression on the battery cover gasket to pre-vent dirtand moisture from entering the battery com-partment. Do not overtighten the screws. Do NOT useathread sealant on the screws. 5. Dispose of, or recycle batteries in accordance with allapplicable federal, state, and local regulations.Battery Disposal/RecyclingDispose of or recycle batteries in accordance with allapplicable federal, state, and local regulations.Do not dispose of the batteryin fire. It may explode.Failure to follow this warning can result in serious per-sonal injury or death.WARNINGCLEANING AND MAINTENANCE16TAL 507 (L) Rev. 1 - 10058881WARNINGWARNING

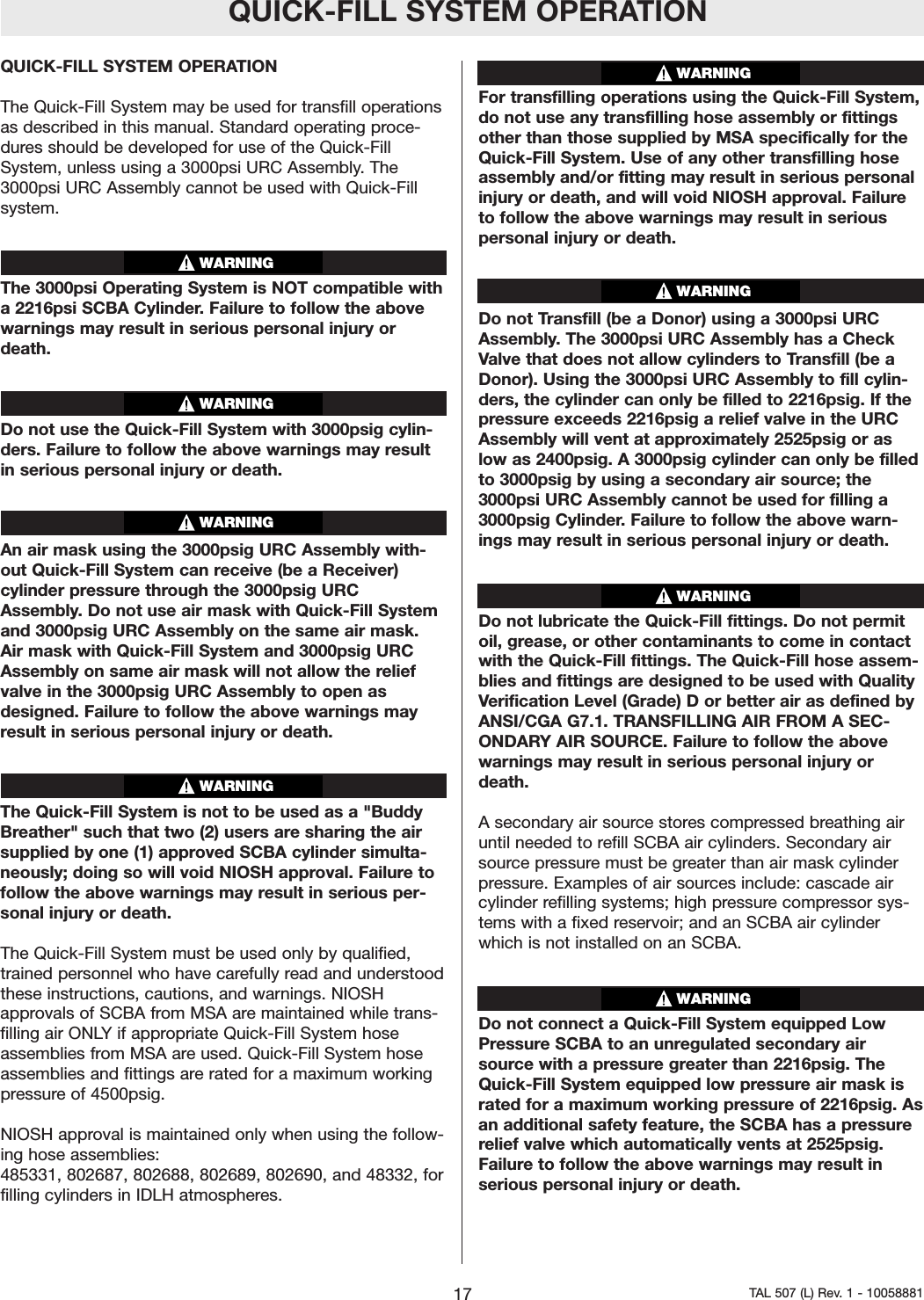

QUICK-FILL SYSTEM OPERATIONQUICK-FILL SYSTEM OPERATIONThe Quick-Fill System may be used for transfill operationsas described in this manual. Standard operating proce-dures should be developed for use of the Quick-FillSystem, unless using a 3000psi URC Assembly. The3000psi URC Assembly cannot be used with Quick-Fillsystem.The 3000psi Operating System is NOT compatible witha2216psi SCBA Cylinder. Failure to follow the abovewarnings may result in serious personal injury ordeath.Do not use the Quick-Fill System with 3000psig cylin-ders. Failure to follow the above warnings may resultin serious personal injury or death.An air mask using the 3000psig URC Assembly with-out Quick-Fill System can receive (be a Receiver)cylinder pressure through the 3000psig URCAssembly. Do not use air mask with Quick-Fill Systemand 3000psig URC Assembly on the same air mask.Air mask with Quick-Fill System and 3000psig URCAssembly on same air mask will not allow the reliefvalve in the 3000psig URC Assembly to open asdesigned. Failureto follow the above warnings mayresult in serious personal injury or death.The Quick-Fill System is not to be used as a "BuddyBreather" such that two (2) users are sharing the airsupplied by one (1) approved SCBA cylinder simulta-neously; doing so will void NIOSH approval. Failure tofollow the above warnings may result in serious per-sonal injury or death.The Quick-Fill System must be used only by qualified,trained personnel who have carefully read and understoodthese instructions, cautions, and warnings. NIOSHapprovals of SCBA from MSA are maintained while trans-filling air ONLYif appropriate Quick-Fill System hoseassemblies from MSA are used. Quick-Fill System hoseassemblies and fittings are rated for a maximum workingpressure of 4500psig. NIOSH approval is maintained only when using the follow-ing hose assemblies: 485331, 802687, 802688, 802689, 802690, and 48332, forfilling cylinders in IDLH atmospheres.For transfilling operations using the Quick-Fill System,do not use any transfilling hose assembly or fittingsother than those supplied by MSA specifically for theQuick-Fill System. Use of any other transfilling hoseassembly and/or fitting may result in serious personalinjury or death, and will void NIOSH approval. Failuretofollow the above warnings may result in seriouspersonal injury or death.Do not Transfill (be a Donor) using a 3000psi URCAssembly. The 3000psi URC Assembly has a CheckValve that does not allow cylinders to Transfill (be aDonor). Using the 3000psi URC Assembly to fill cylin-ders, the cylinder can only be filled to 2216psig. If thepressure exceeds 2216psig a relief valve in the URCAssembly will vent at approximately 2525psig or aslow as 2400psig. A 3000psig cylinder can only be filledto 3000psig by using a secondary air source; the3000psi URC Assembly cannot be used for filling a3000psig Cylinder.Failure to follow the above warn-ings may result in serious personal injuryor death. Do not lubricate the Quick-Fill fittings. Do not permitoil, grease, or other contaminants to come in contactwith the Quick-Fill fittings. The Quick-Fill hose assem-blies and fittings aredesigned to be used with QualityVerification Level (Grade) D or better air as defined byANSI/CGA G7.1. TRANSFILLING AIR FROM A SEC-ONDARYAIR SOURCE. Failureto follow the abovewarnings may result in serious personal injuryordeath.Asecondary air source stores compressed breathing airuntil needed to refill SCBA air cylinders. Secondaryairsource pressure must be greater than air mask cylinderpressure. Examples of air sources include: cascade aircylinder refilling systems; high pressurecompressor sys-tems with a fixed reservoir; and an SCBA air cylinderwhich is not installed on an SCBA.Do not connect a Quick-Fill System equipped LowPressure SCBA to an unregulated secondary airsource with a pressure greater than 2216psig. TheQuick-Fill System equipped low pressureair mask israted for a maximum working pressure of 2216psig. Asan additional safety feature, the SCBA has a pressurerelief valve which automatically vents at 2525psig.Failure to follow the above warnings may result inserious personal injury or death.17 TAL 507 (L) Rev. 1 - 10058881WARNINGWARNINGWARNINGWARNINGWARNINGWARNINGWARNINGWARNING

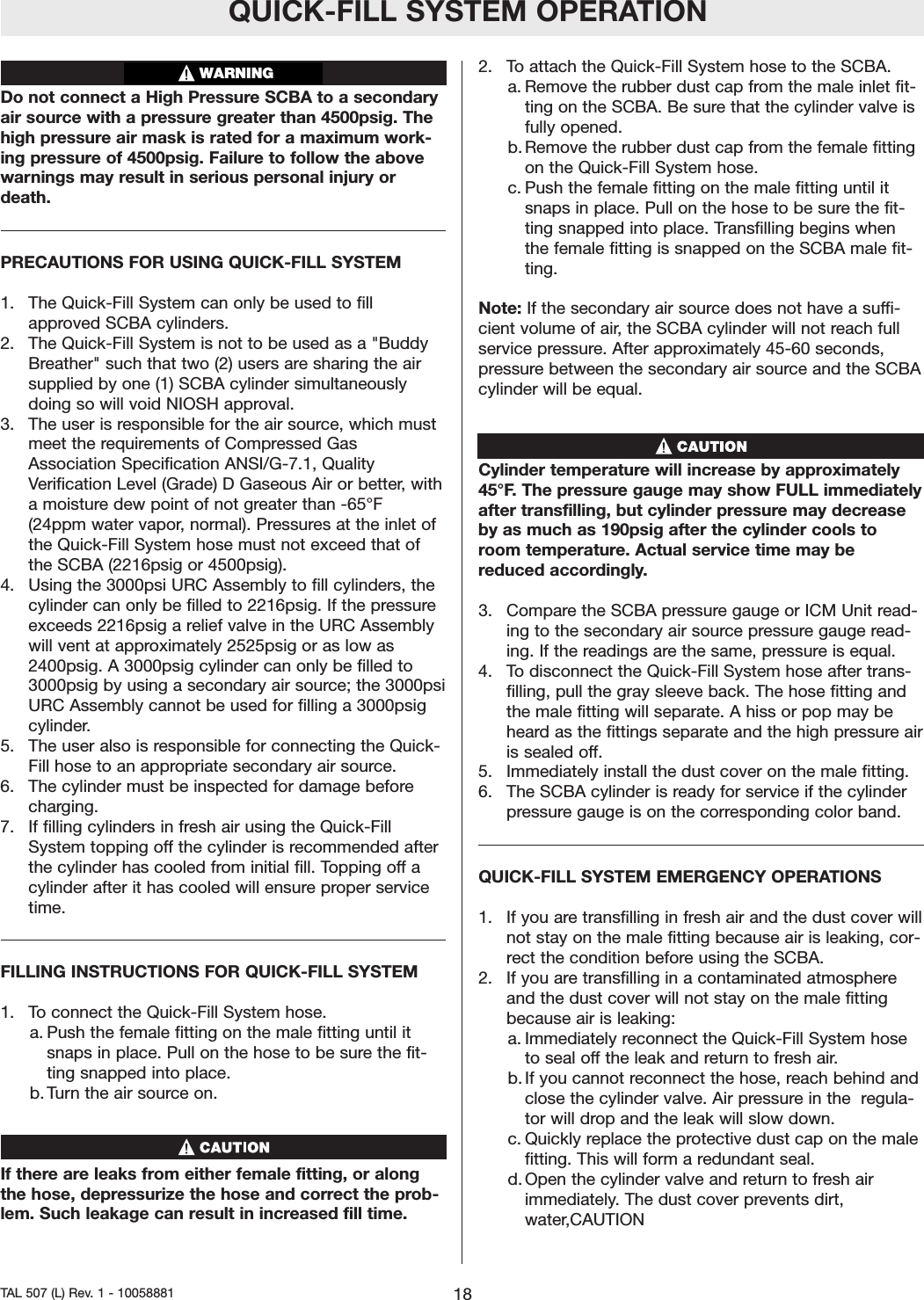

QUICK-FILL SYSTEM OPERATIONDo not connect a High Pressure SCBA to a secondaryair source with a pressure greater than 4500psig. Thehigh pressure air mask is rated for a maximum work-ing pressure of 4500psig. Failure to follow the abovewarnings may result in serious personal injury ordeath.PRECAUTIONS FOR USING QUICK-FILL SYSTEM1. The Quick-Fill System can only be used to fillapproved SCBA cylinders.2. The Quick-Fill System is not to be used as a "BuddyBreather" such that two (2) users are sharing the airsupplied by one (1) SCBA cylinder simultaneouslydoing so will void NIOSH approval.3. The user is responsible for the air source, which mustmeet the requirements of Compressed GasAssociation Specification ANSI/G-7.1, QualityVerification Level (Grade) D Gaseous Air or better,withamoisture dew point of not greater than -65°F(24ppm water vapor,normal). Pressures at the inlet ofthe Quick-Fill System hose must not exceed that ofthe SCBA (2216psig or 4500psig).4. Using the 3000psi URC Assembly to fill cylinders, thecylinder can only be filled to 2216psig. If the pressureexceeds 2216psig a relief valve in the URC Assemblywill vent at approximately 2525psig or as low as2400psig. A 3000psig cylinder can only be filled to3000psig by using a secondary air source; the 3000psiURC Assembly cannot be used for filling a 3000psigcylinder.5. The user also is responsible for connecting the Quick-Fill hose to an appropriate secondary air source.6. The cylinder must be inspected for damage beforecharging.7. If filling cylinders in fresh air using the Quick-FillSystem topping off the cylinder is recommended afterthe cylinder has cooled from initial fill. Topping off acylinder after it has cooled will ensure proper servicetime.FILLING INSTRUCTIONS FOR QUICK-FILL SYSTEM1. To connect the Quick-Fill System hose.a. Push the female fitting on the male fitting until itsnaps in place. Pull on the hose to be sure the fit-ting snapped into place.b. Turnthe air source on.If there are leaks from either female fitting, or alongthe hose, depressurize the hose and correct the prob-lem. Such leakage can result in increased fill time.2. To attach the Quick-Fill System hose to the SCBA.a. Remove the rubber dust cap from the male inlet fit-ting on the SCBA. Be sure that the cylinder valve isfully opened.b. Remove the rubber dust cap from the female fittingon the Quick-Fill System hose.c. Push the female fitting on the male fitting until itsnaps in place. Pull on the hose to be sure the fit-ting snapped into place. Transfilling begins whenthe female fitting is snapped on the SCBA male fit-ting.Note: If the secondary air source does not have a suffi-cient volume of air, the SCBA cylinder will not reach fullservice pressure. After approximately 45-60 seconds,pressure between the secondary air source and the SCBAcylinder will be equal.Cylinder temperature will increase by approximately45°F.The pressuregauge may show FULL immediatelyafter transfilling, but cylinder pressure may decreaseby as much as 190psig after the cylinder cools toroom temperature. Actual service time may bereduced accordingly.3. Compare the SCBA pressure gauge or ICM Unit read-ing to the secondaryair source pressure gauge read-ing. If the readings are the same, pressure is equal.4. Todisconnect the Quick-Fill System hose after trans-filling, pull the gray sleeve back. The hose fitting andthe male fitting will separate. A hiss or pop may beheard as the fittings separate and the high pressure airis sealed off.5. Immediately install the dust cover on the male fitting.6. The SCBA cylinder is ready for service if the cylinderpressure gauge is on the corresponding color band.QUICK-FILL SYSTEM EMERGENCY OPERATIONS1. If you aretransfilling in fresh air and the dust cover willnot stay on the male fitting because air is leaking, cor-rect the condition before using the SCBA.2. If you are transfilling in a contaminated atmosphereand the dust cover will not stay on the male fittingbecause air is leaking:a. Immediately reconnect the Quick-Fill System hoseto seal offthe leak and return to fresh air.b. If you cannot reconnect the hose, reach behind andclose the cylinder valve. Air pressurein the regula-tor will drop and the leak will slow down.c. Quickly replace the protective dust cap on the malefitting. This will form a redundant seal.d. Open the cylinder valve and returnto fresh airimmediately. The dust cover prevents dirt,water,CAUTION18TAL 507 (L) Rev. 1 - 10058881WARNING

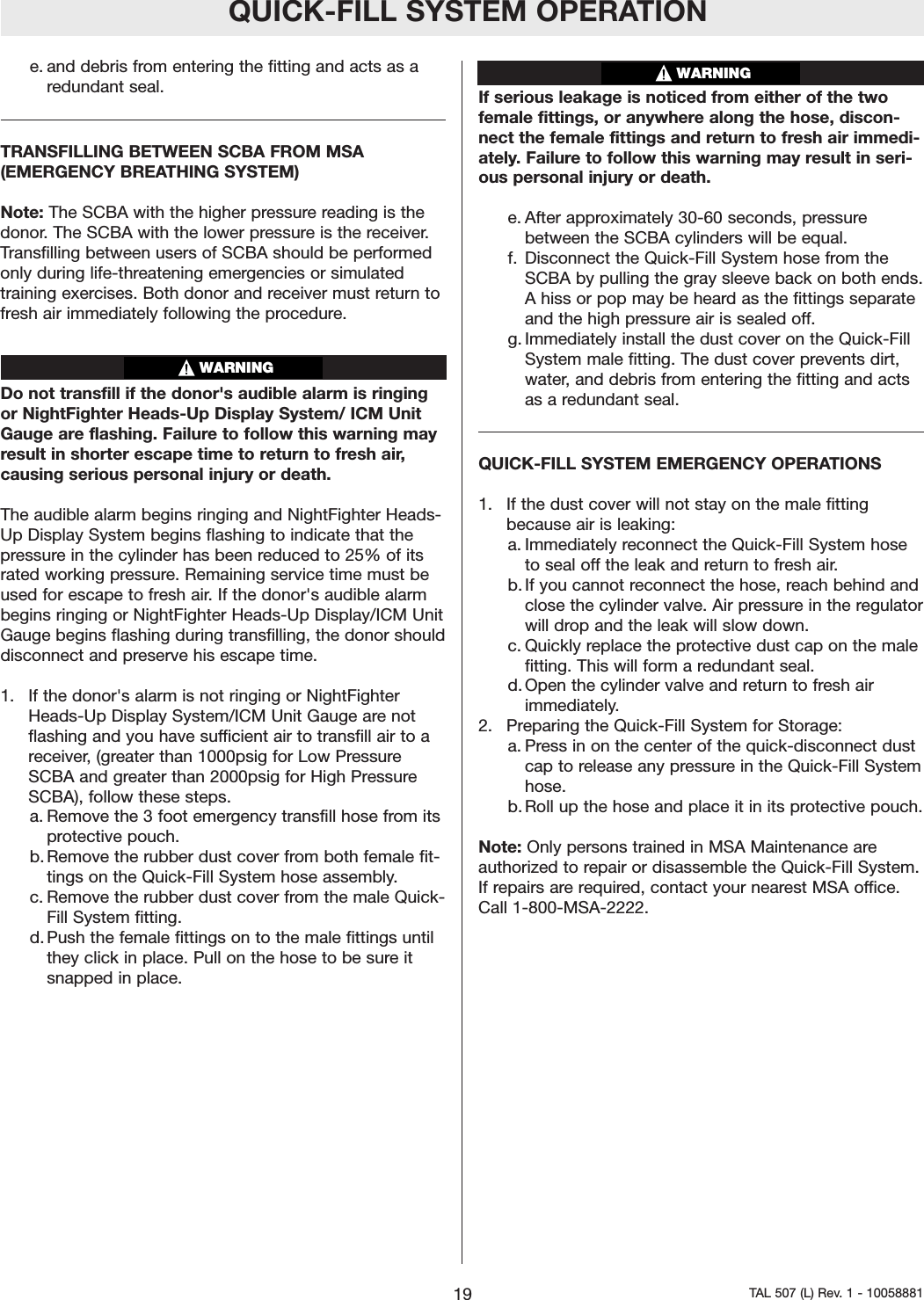

QUICK-FILL SYSTEM OPERATIONe. and debris from entering the fitting and acts as aredundant seal.TRANSFILLING BETWEEN SCBA FROM MSA (EMERGENCY BREATHING SYSTEM)Note: The SCBA with the higher pressure reading is thedonor. The SCBA with the lower pressure is the receiver.Transfilling between users of SCBA should be performedonly during life-threatening emergencies or simulatedtraining exercises. Both donor and receiver must return tofresh air immediately following the procedure.Do not transfill if the donor's audible alarm is ringingor NightFighter Heads-Up Display System/ ICM UnitGauge are flashing. Failure to follow this warning mayresult in shorter escape time to return to fresh air,causing serious personal injury or death.The audible alarmbegins ringing and NightFighter Heads-Up Display System begins flashing to indicate that thepressurein the cylinder has been reduced to 25% of itsrated working pressure. Remaining service time must beused for escape to fresh air. If the donor's audible alarmbegins ringing or NightFighter Heads-Up Display/ICM UnitGauge begins flashing during transfilling, the donor shoulddisconnect and preserve his escape time.1. If the donor's alarm is not ringing or NightFighterHeads-Up Display System/ICM Unit Gauge are notflashing and you have sufficient air to transfill air to areceiver,(greater than 1000psig for Low PressureSCBA and greater than 2000psig for High PressureSCBA), follow these steps.a. Remove the 3 foot emergency transfill hose from itsprotective pouch.b. Remove the rubber dust cover from both female fit-tings on the Quick-Fill System hose assembly.c. Remove the rubber dust cover from the male Quick-Fill System fitting.d. Push the female fittings on to the male fittings untilthey click in place. Pull on the hose to be sure itsnapped in place.If serious leakage is noticed from either of the twofemale fittings, or anywhere along the hose, discon-nect the female fittings and return to fresh air immedi-ately. Failure to follow this warning may result in seri-ous personal injury or death.e. After approximately 30-60 seconds, pressurebetween the SCBA cylinders will be equal.f. Disconnect the Quick-Fill System hose from theSCBA by pulling the gray sleeve back on both ends.Ahiss or pop may be heard as the fittings separateand the high pressure air is sealed off.g. Immediately install the dust cover on the Quick-FillSystem male fitting. The dust cover prevents dirt,water, and debris from entering the fitting and actsas a redundant seal.QUICK-FILL SYSTEM EMERGENCY OPERATIONS1. If the dust cover will not stay on the male fittingbecause air is leaking:a. Immediately reconnect the Quick-Fill System hoseto seal off the leak and return to fresh air.b. If you cannot reconnect the hose, reach behind andclose the cylinder valve. Air pressure in the regulatorwill drop and the leak will slow down.c. Quickly replace the protective dust cap on the malefitting. This will form a redundant seal.d. Open the cylinder valve and return to fresh airimmediately.2. Preparing the Quick-Fill System for Storage:a. Press in on the center of the quick-disconnect dustcap to release any pressure in the Quick-Fill Systemhose.b. Roll up the hose and place it in its protective pouch.Note: Only persons trained in MSA Maintenance areauthorized to repair or disassemble the Quick-Fill System.If repairs are required, contact your nearest MSA office.Call 1-800-MSA-2222.19 TAL 507 (L) Rev. 1 - 10058881WARNINGWARNING

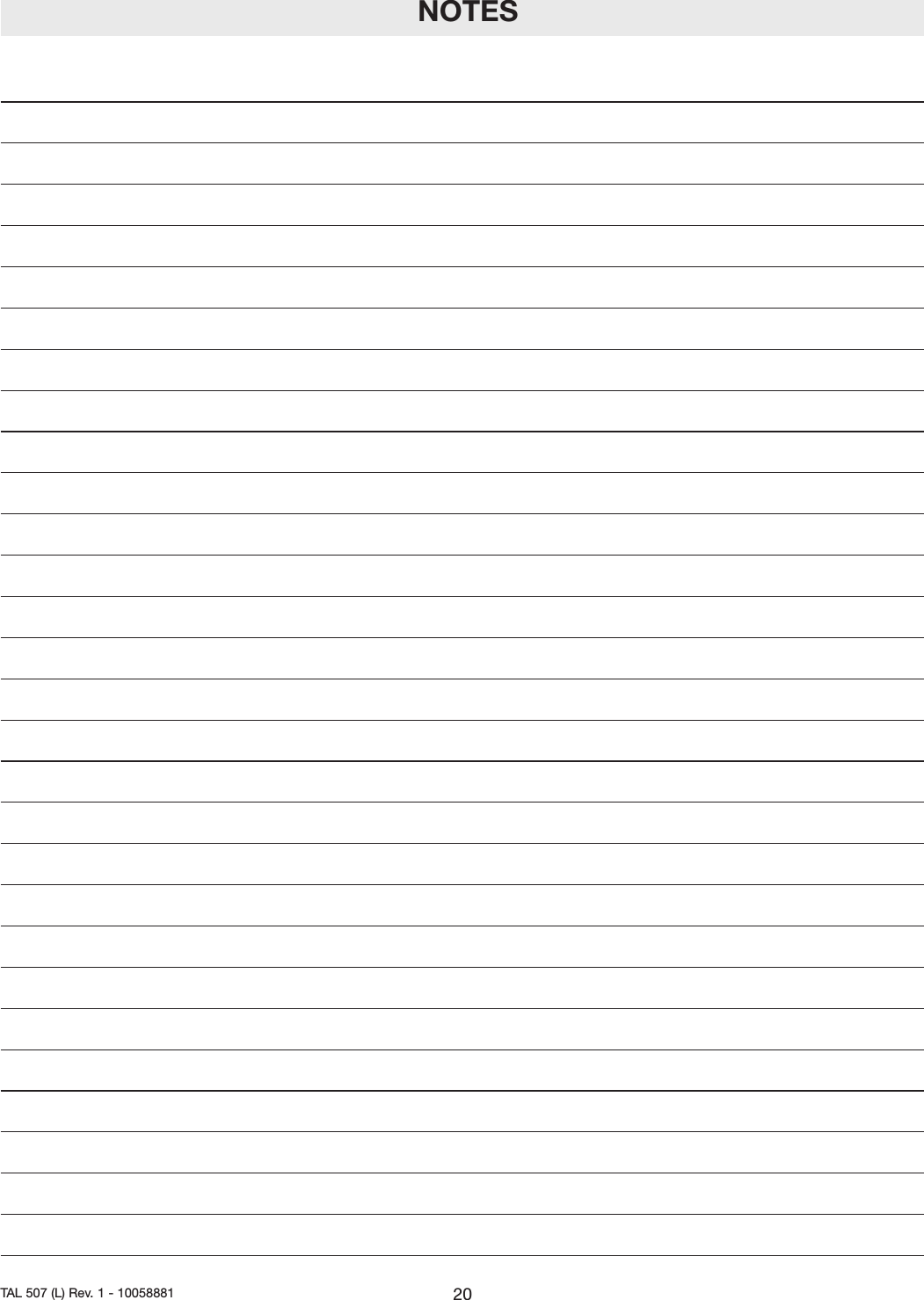

NOTES20TAL 507 (L) Rev. 1 - 10058881

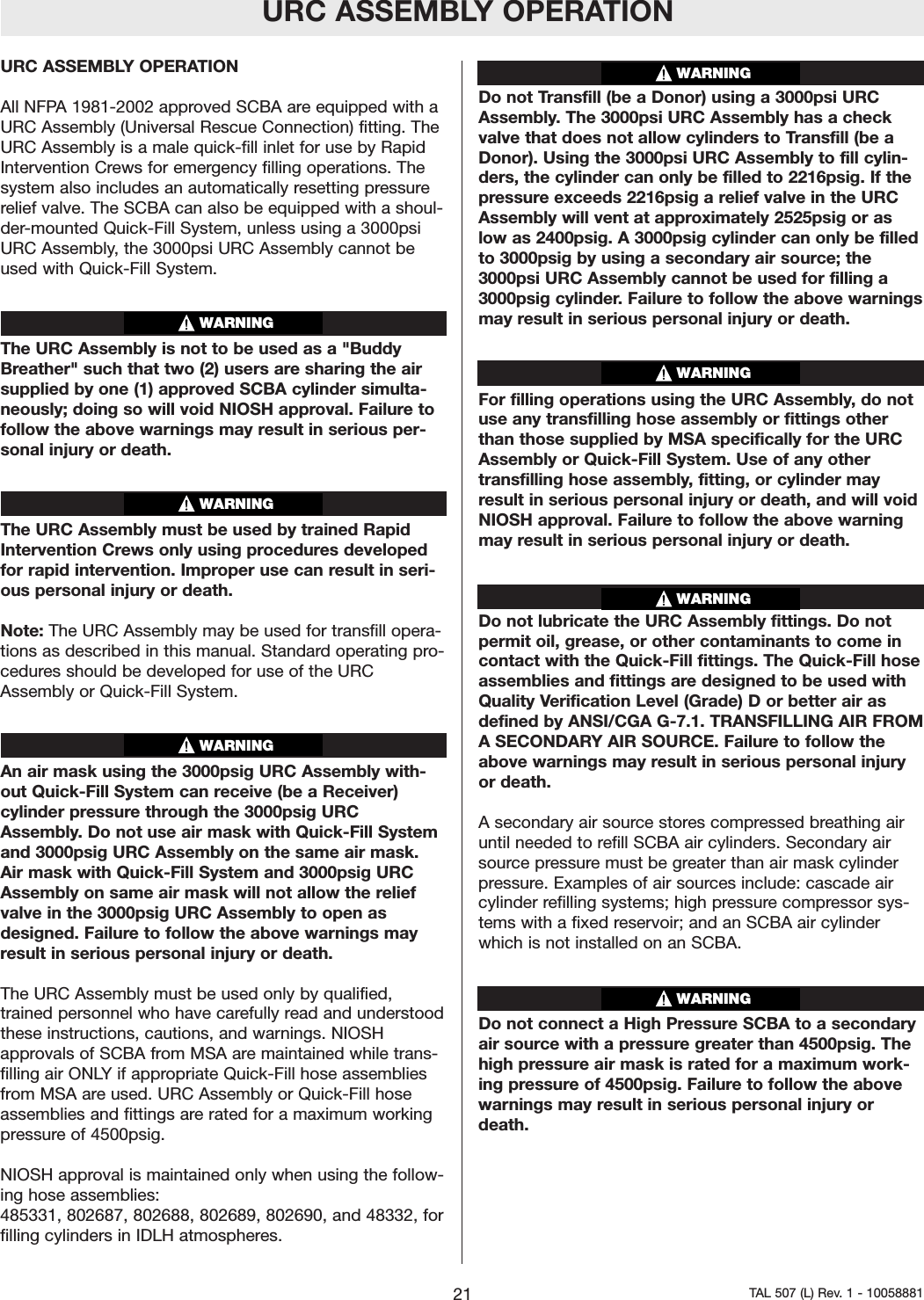

URC ASSEMBLY OPERATIONURC ASSEMBLY OPERATIONAll NFPA 1981-2002 approved SCBA are equipped with aURC Assembly (Universal Rescue Connection) fitting. TheURC Assembly is a male quick-fill inlet for use by RapidIntervention Crews for emergency filling operations. Thesystem also includes an automatically resetting pressurerelief valve. The SCBA can also be equipped with a shoul-der-mounted Quick-Fill System, unless using a 3000psiURC Assembly, the 3000psi URC Assembly cannot beused with Quick-Fill System.The URC Assembly is not to be used as a "BuddyBreather" such that two (2) users are sharing the airsupplied by one (1) approved SCBA cylinder simulta-neously; doing so will void NIOSH approval. Failure tofollow the above warnings may result in serious per-sonal injury or death.The URC Assembly must be used by trained RapidIntervention Crews only using procedures developedfor rapid intervention. Improper use can result in seri-ous personal injuryor death.Note: The URC Assembly may be used for transfill opera-tions as described in this manual. Standard operating pro-cedures should be developed for use of the URCAssembly or Quick-Fill System.An air mask using the 3000psig URC Assembly with-out Quick-Fill System can receive (be a Receiver)cylinder pressure through the 3000psig URCAssembly. Do not use air mask with Quick-Fill Systemand 3000psig URC Assembly on the same air mask.Air mask with Quick-Fill System and 3000psig URCAssembly on same air mask will not allow the reliefvalve in the 3000psig URC Assembly to open asdesigned. Failureto follow the above warnings mayresult in serious personal injury or death.The URC Assembly must be used only by qualified,trained personnel who have carefully read and understoodthese instructions, cautions, and warnings. NIOSHapprovals of SCBA from MSA are maintained while trans-filling air ONLY if appropriate Quick-Fill hose assembliesfrom MSA are used. URC Assembly or Quick-Fill hoseassemblies and fittings arerated for a maximum workingpressure of 4500psig.NIOSH approval is maintained only when using the follow-ing hose assemblies:485331, 802687, 802688, 802689, 802690, and 48332, forfilling cylinders in IDLH atmospheres.Do not Transfill (be a Donor) using a 3000psi URCAssembly. The 3000psi URC Assembly has a checkvalve that does not allow cylinders to Transfill (be aDonor). Using the 3000psi URC Assembly to fill cylin-ders, the cylinder can only be filled to 2216psig. If thepressure exceeds 2216psig a relief valve in the URCAssembly will vent at approximately 2525psig or aslow as 2400psig. A 3000psig cylinder can only be filledto 3000psig by using a secondary air source; the3000psi URC Assembly cannot be used for filling a3000psig cylinder. Failure to follow the above warningsmay result in serious personal injury or death.For filling operations using the URC Assembly, do notuse any transfilling hose assembly or fittings otherthan those supplied by MSA specifically for the URCAssembly or Quick-Fill System. Use of any othertransfilling hose assembly, fitting, or cylinder mayresult in serious personal injury or death, and will voidNIOSH approval. Failure to follow the above warningmay result in serious personal injuryor death.Do not lubricate the URC Assembly fittings. Do notpermit oil, grease, or other contaminants to come incontact with the Quick-Fill fittings. The Quick-Fill hoseassemblies and fittings aredesigned to be used withQuality Verification Level (Grade) D or better air asdefined by ANSI/CGA G-7.1. TRANSFILLING AIR FROMASECONDARYAIR SOURCE. Failureto follow theabove warnings may result in serious personal injuryor death.Asecondary air source stores compressed breathing airuntil needed to refill SCBA air cylinders. Secondaryairsource pressure must be greater than air mask cylinderpressure. Examples of air sources include: cascade aircylinder refilling systems; high pressurecompressor sys-tems with a fixed reservoir; and an SCBA air cylinderwhich is not installed on an SCBA.Do not connect a High PressureSCBA to a secondaryair source with a pressure greater than 4500psig. Thehigh pressure air mask is rated for a maximum work-ing pressureof 4500psig. Failure to follow the abovewarnings may result in serious personal injury ordeath.21 TAL 507 (L) Rev. 1 - 10058881WARNINGWARNINGWARNINGWARNINGWARNINGWARNINGWARNING

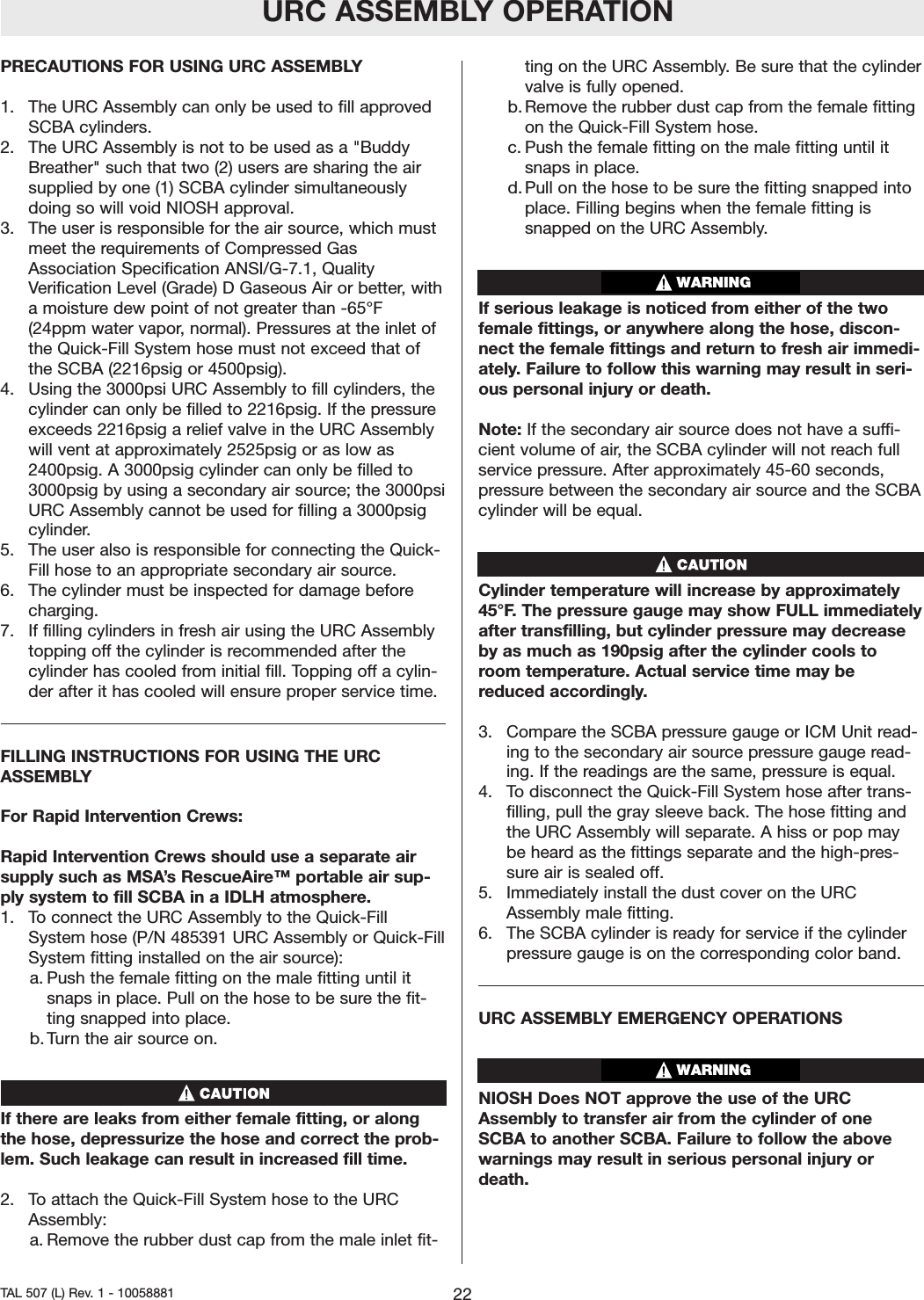

URC ASSEMBLY OPERATIONPRECAUTIONS FOR USING URC ASSEMBLY1. The URC Assembly can only be used to fill approvedSCBA cylinders.2. The URC Assembly is not to be used as a "BuddyBreather" such that two (2) users are sharing the airsupplied by one (1) SCBA cylinder simultaneouslydoing so will void NIOSH approval.3.The user is responsible for the air source, which mustmeet the requirements of Compressed GasAssociation Specification ANSI/G-7.1, QualityVerification Level (Grade) D Gaseous Air or better, withamoisture dew point of not greater than -65°F(24ppm water vapor, normal). Pressures at the inlet ofthe Quick-Fill System hose must not exceed that ofthe SCBA (2216psig or 4500psig).4. Using the 3000psi URC Assembly to fill cylinders, thecylinder can only be filled to 2216psig. If the pressureexceeds 2216psig a relief valve in the URC Assemblywill vent at approximately 2525psig or as low as2400psig. A 3000psig cylinder can only be filled to3000psig by using a secondaryair source; the 3000psiURC Assembly cannot be used for filling a 3000psigcylinder.5. The user also is responsible for connecting the Quick-Fill hose to an appropriate secondary air source.6. The cylinder must be inspected for damage beforecharging.7. If filling cylinders in fresh air using the URC Assemblytopping off the cylinder is recommended after thecylinder has cooled from initial fill. Topping offacylin-der after it has cooled will ensure proper service time.FILLING INSTRUCTIONS FOR USING THE URCASSEMBLYFor Rapid Intervention Crews:Rapid Intervention Crews should use a separate airsupply such as MSA’sRescueAire™ portable air sup-ply system to fill SCBA in a IDLH atmosphere.1. Toconnect the URC Assembly to the Quick-FillSystem hose (P/N 485391 URC Assembly or Quick-FillSystem fitting installed on the air source):a. Push the female fitting on the male fitting until itsnaps in place. Pull on the hose to be surethe fit-ting snapped into place.b. Turn the air source on.If there are leaks from either female fitting, or alongthe hose, depressurize the hose and correct the prob-lem. Such leakage can result in increased fill time.2. To attach the Quick-Fill System hose to the URCAssembly:a. Remove the rubber dust cap from the male inlet fit-ting on the URC Assembly. Be sure that the cylindervalve is fully opened.b. Remove the rubber dust cap from the female fittingon the Quick-Fill System hose.c. Push the female fitting on the male fitting until itsnaps in place. d. Pull on the hose to be sure the fitting snapped intoplace. Filling begins when the female fitting issnapped on the URC Assembly.If serious leakage is noticed from either of the twofemale fittings, or anywhere along the hose, discon-nect the female fittings and return to fresh air immedi-ately. Failure to follow this warning may result in seri-ous personal injury or death.Note: If the secondary air source does not have a suffi-cient volume of air, the SCBA cylinder will not reach fullservice pressure. After approximately 45-60 seconds,pressurebetween the secondaryair source and the SCBAcylinder will be equal.Cylinder temperaturewill increase by approximately45°F. The pressure gauge may show FULL immediatelyafter transfilling, but cylinder pressuremay decreaseby as much as 190psig after the cylinder cools toroom temperature. Actual service time may bereduced accordingly.3. Compare the SCBA pressure gauge or ICM Unit read-ing to the secondary air source pressure gauge read-ing. If the readings are the same, pressure is equal.4. To disconnect the Quick-Fill System hose after trans-filling, pull the gray sleeve back. The hose fitting andthe URC Assembly will separate. A hiss or pop maybe heard as the fittings separate and the high-pres-sure air is sealed off.5. Immediately install the dust cover on the URCAssembly male fitting.6. The SCBA cylinder is ready for service if the cylinderpressure gauge is on the corresponding color band.URC ASSEMBLY EMERGENCY OPERATIONS NIOSH Does NOT approve the use of the URCAssembly to transfer air from the cylinder of oneSCBA to another SCBA. Failure to follow the abovewarnings may result in serious personal injury ordeath.22TAL 507 (L) Rev. 1 - 10058881WARNINGWARNING

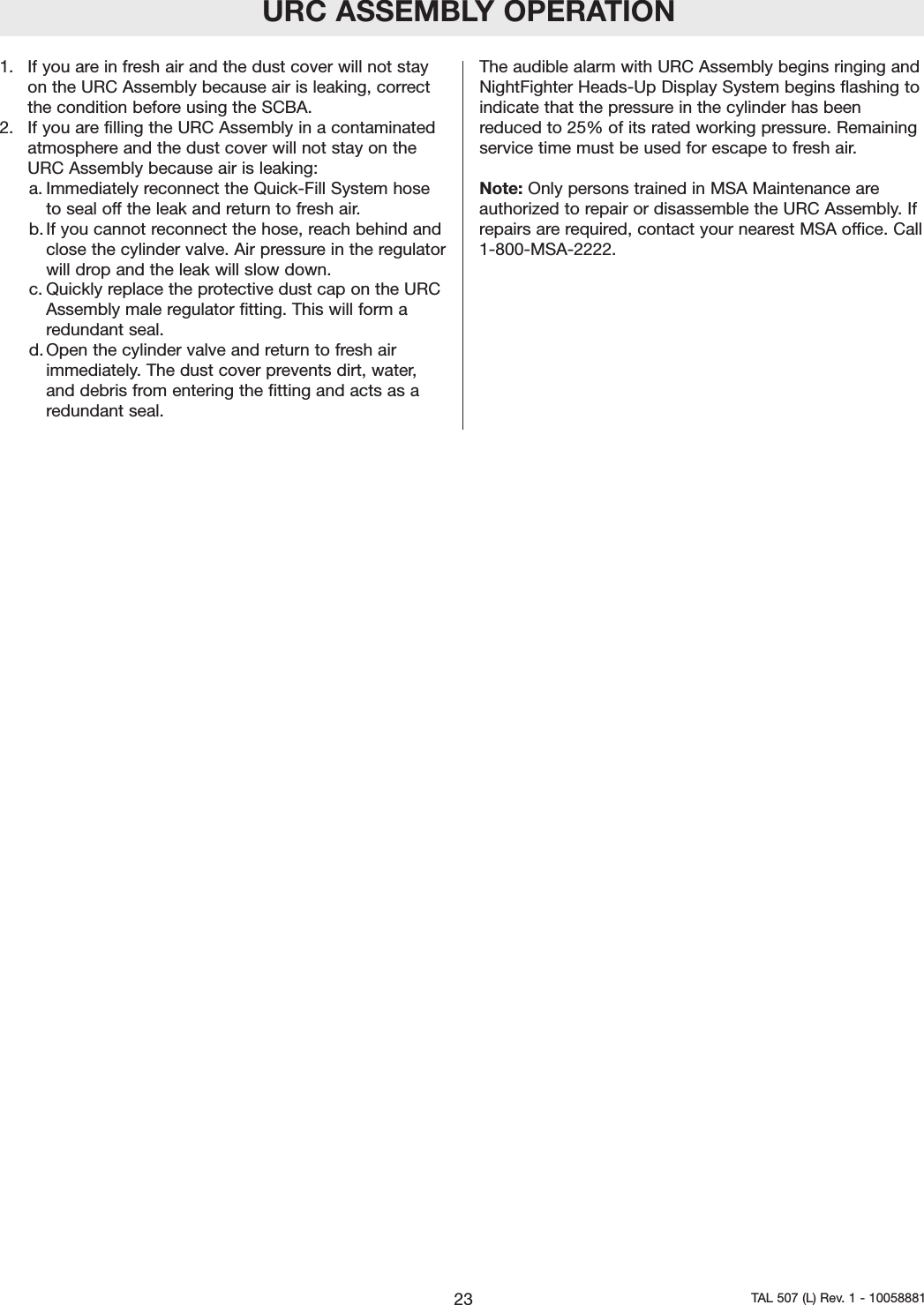

URC ASSEMBLY OPERATION1. If you are in fresh air and the dust cover will not stayon the URC Assembly because air is leaking, correctthe condition before using the SCBA.2. If you are filling the URC Assembly in a contaminatedatmosphere and the dust cover will not stay on theURC Assembly because air is leaking:a. Immediately reconnect the Quick-Fill System hosetoseal off the leak and return to fresh air.b. If you cannot reconnect the hose, reach behind andclose the cylinder valve. Air pressure in the regulatorwill drop and the leak will slow down.c. Quickly replace the protective dust cap on the URCAssembly male regulator fitting. This will form aredundant seal.d. Open the cylinder valve and return to fresh airimmediately. The dust cover prevents dirt, water,and debris from entering the fitting and acts as aredundant seal.The audible alarm with URC Assembly begins ringing andNightFighter Heads-Up Display System begins flashing toindicate that the pressure in the cylinder has beenreduced to 25% of its rated working pressure. Remainingservice time must be used for escape to fresh air.Note: Only persons trained in MSA Maintenance areauthorized to repair or disassemble the URC Assembly. Ifrepairs are required, contact your nearest MSA office. Call1-800-MSA-2222.23 TAL 507 (L) Rev. 1 - 10058881

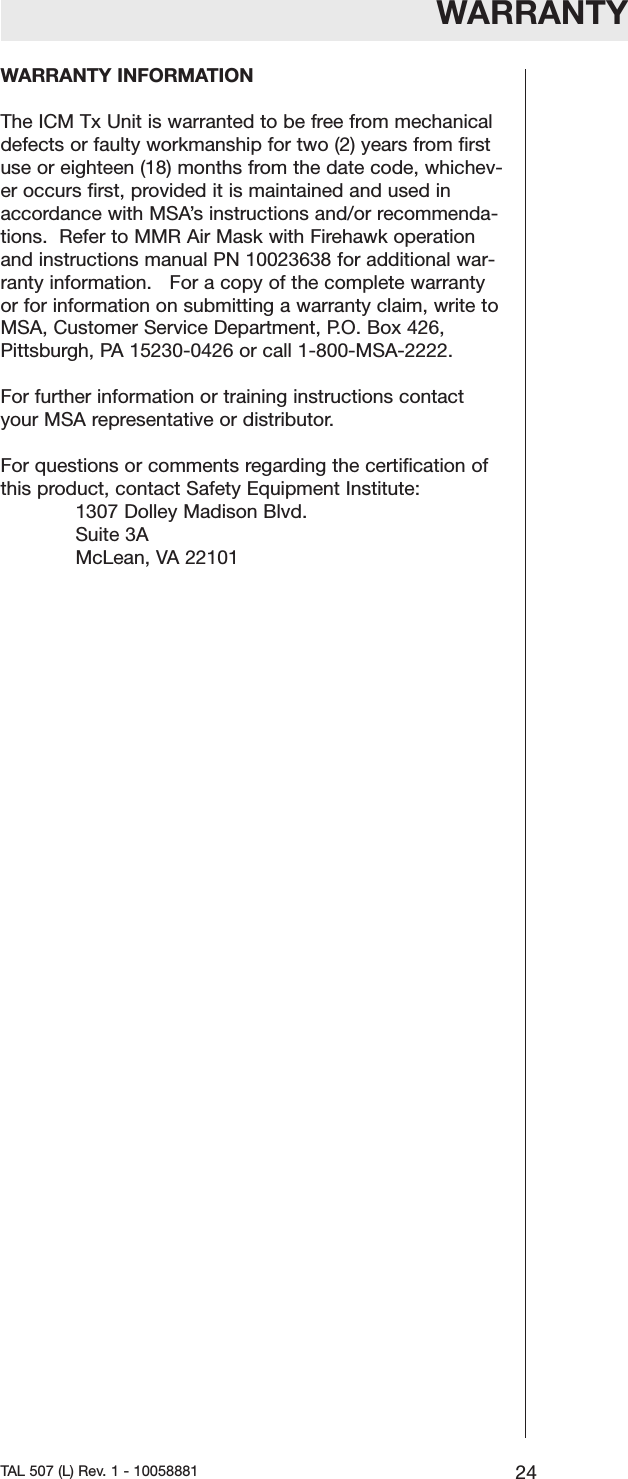

WARRANTYWARRANTY INFORMATIONThe ICM Tx Unit is warranted to be free from mechanicaldefects or faulty workmanship for two (2) years from firstuse or eighteen (18) months from the date code, whichev-er occurs first, provided it is maintained and used inaccordance with MSA’s instructions and/or recommenda-tions. Refer to MMR Air Mask with Firehawk operationand instructions manual PN 10023638 for additional war-ranty information. For a copy of the complete warrantyor for information on submitting a warranty claim, write toMSA, Customer Service Department, P.O. Box 426,Pittsburgh, PA 15230-0426 or call 1-800-MSA-2222.For further information or training instructions contactyour MSA representative or distributor.For questions or comments regarding the certification ofthis product, contact Safety Equipment Institute:1307 Dolley Madison Blvd.Suite 3AMcLean, VA2210124TAL 507 (L) Rev. 1 - 10058881
