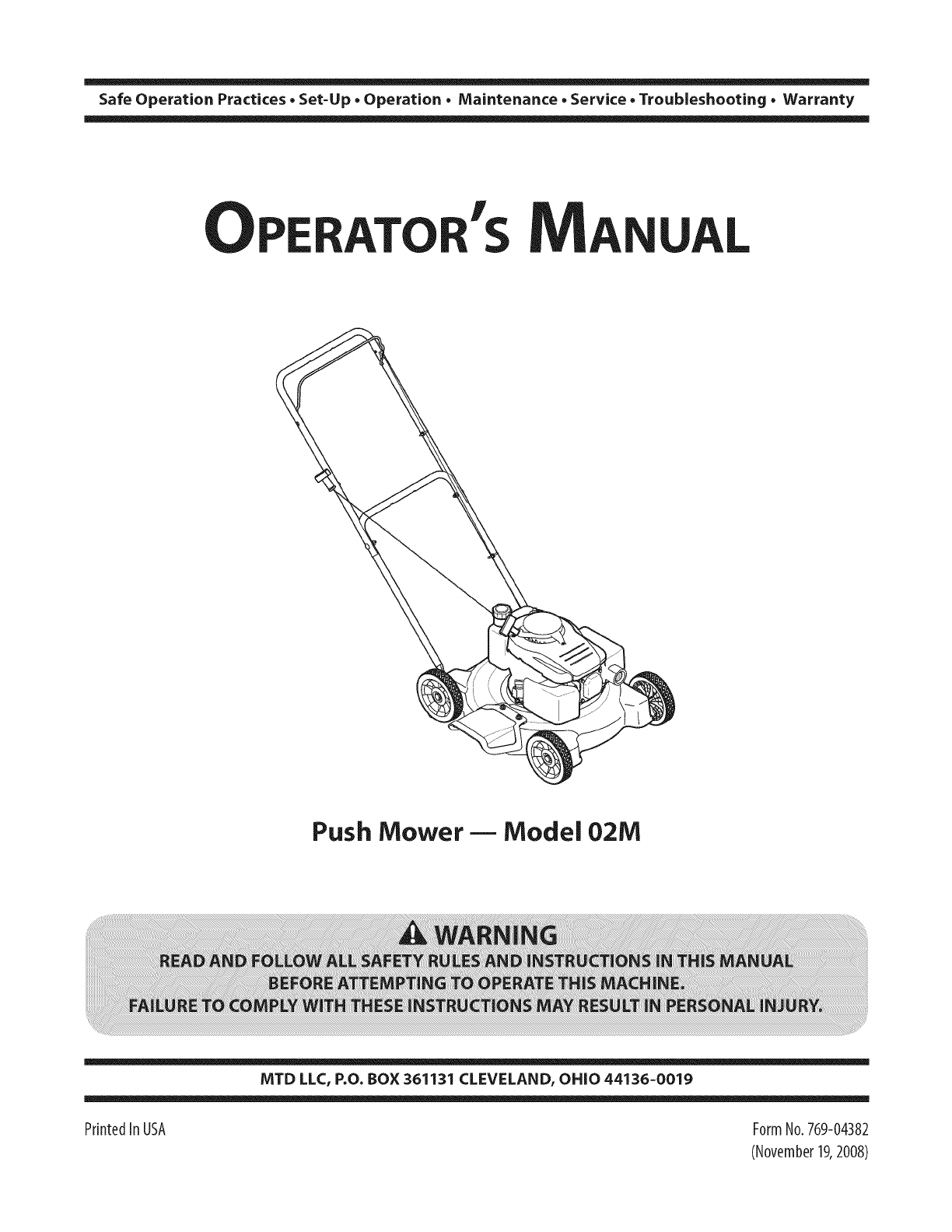

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

's L

Push Mower mModel 02M

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019

PrintedIn USA FormNo.769-04382

(November19,2008)

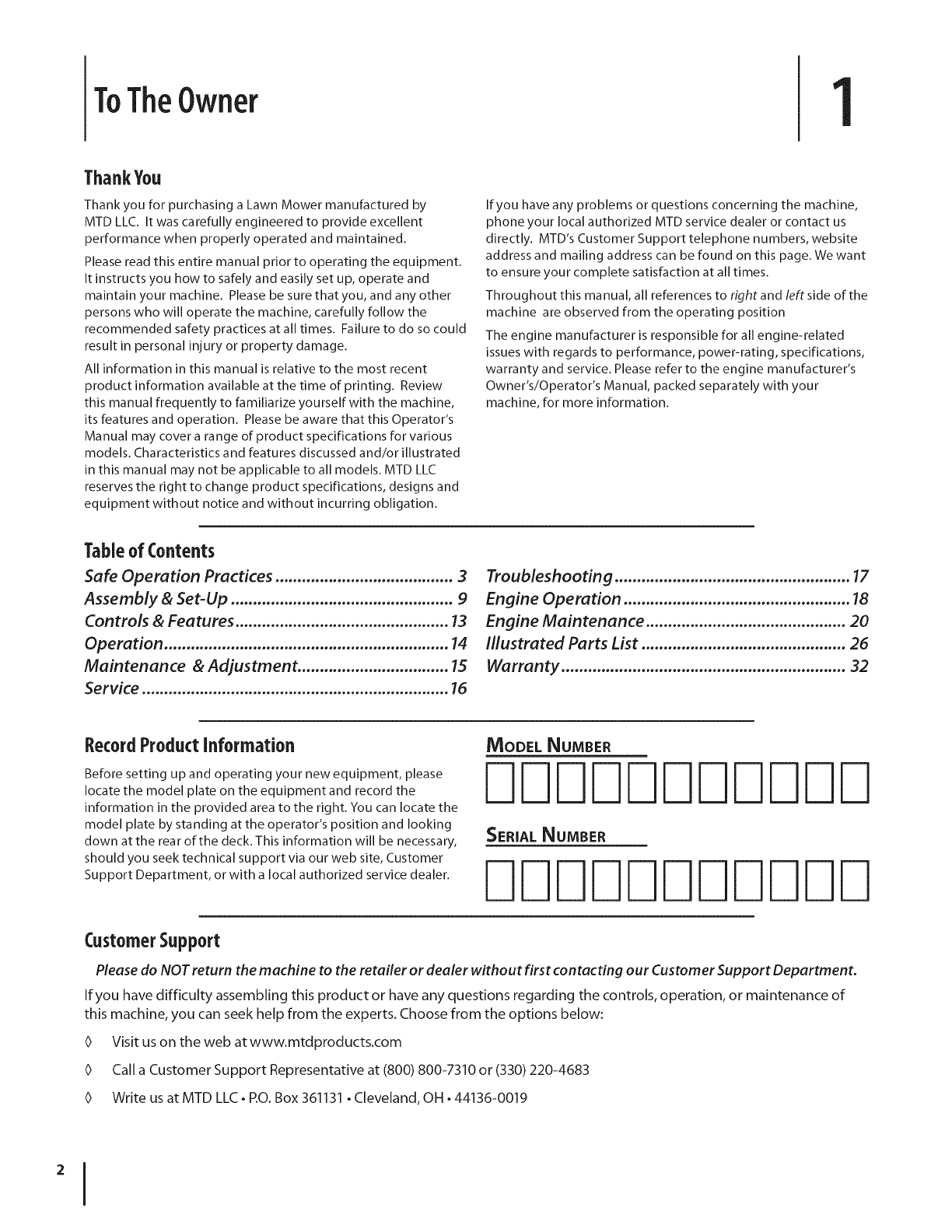

ToTheOwner 1

ThankYou

Thank you for purchasing a Lawn Mower manufactured by

MTD LLC. It was carefully engineered to provide excellent

performance when properly operated and maintained.

Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and

maintain your machine. Please be sure that you, and any other

persons who will operate the machine, carefully follow the

recommended safety practices at all times. Failure to do so could

result in personal injury or property damage.

All information in this manual is relative to the most recent

product information available at the time of printing. Review

this manual frequently to familiarize yourself with the machine,

its features and operation. Please be aware that this Operator's

Manual may cover a range of product specifications for various

models. Characteristics and features discussed and/or illustrated

in this manual may not be applicable to all models. MTD LLC

reserves the right to change product specifications, designs and

equipment without notice and without incurring obligation.

If you have any problems or questions concerning the machine,

phone your local authorized MTD service dealer or contact us

directly. MTD's Customer Support telephone numbers, website

address and mailing address can be found on this page. We want

to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the

machine are observed from the operating position

The engine manufacturer is responsible for all engine-related

issues with regards to performance, power-rating, specifications,

warranty and service. Please refer to the engine manufacturer's

Owner's/Operator's Manual, packed separately with your

machine, for more information.

Table of Contents

Safe Operation Practices ........................................ 3

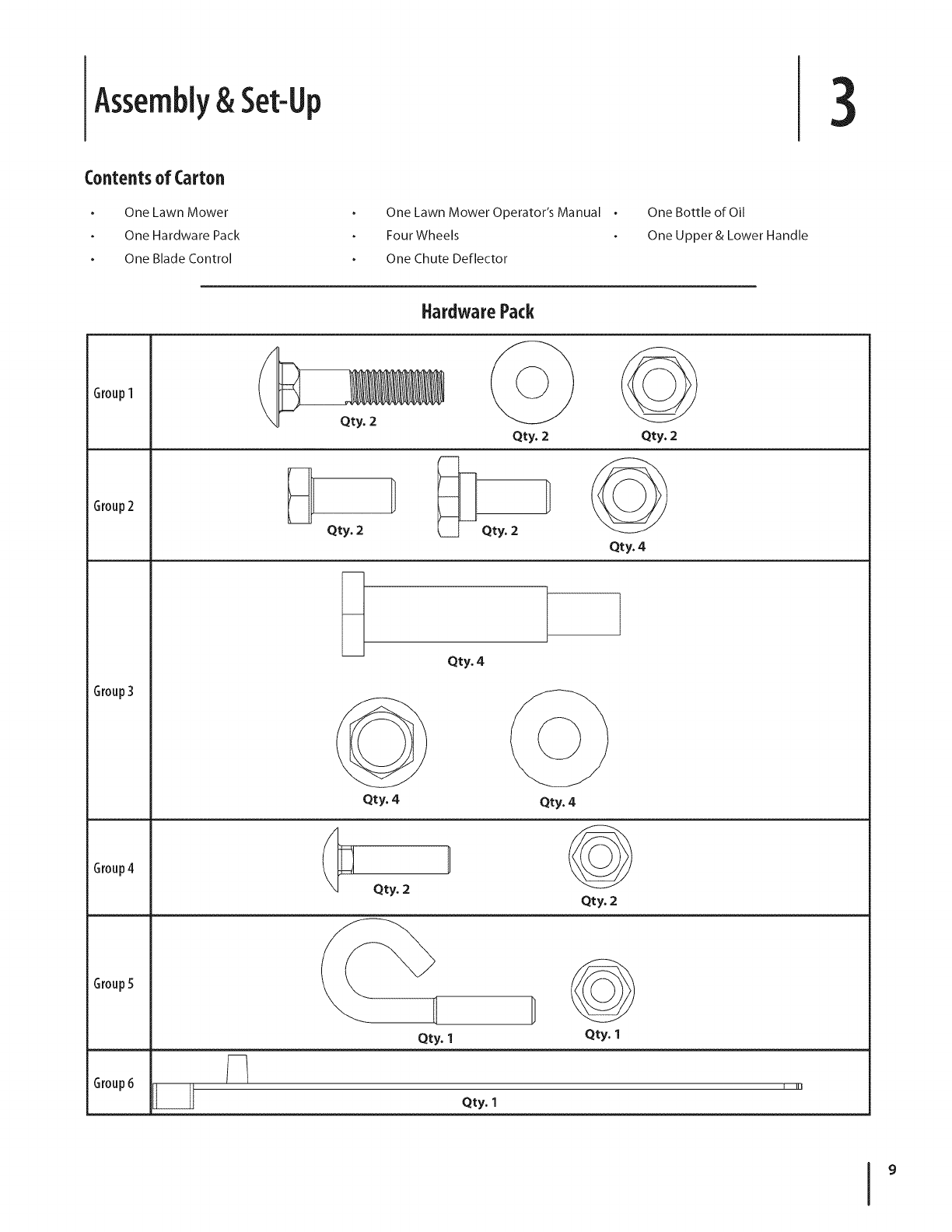

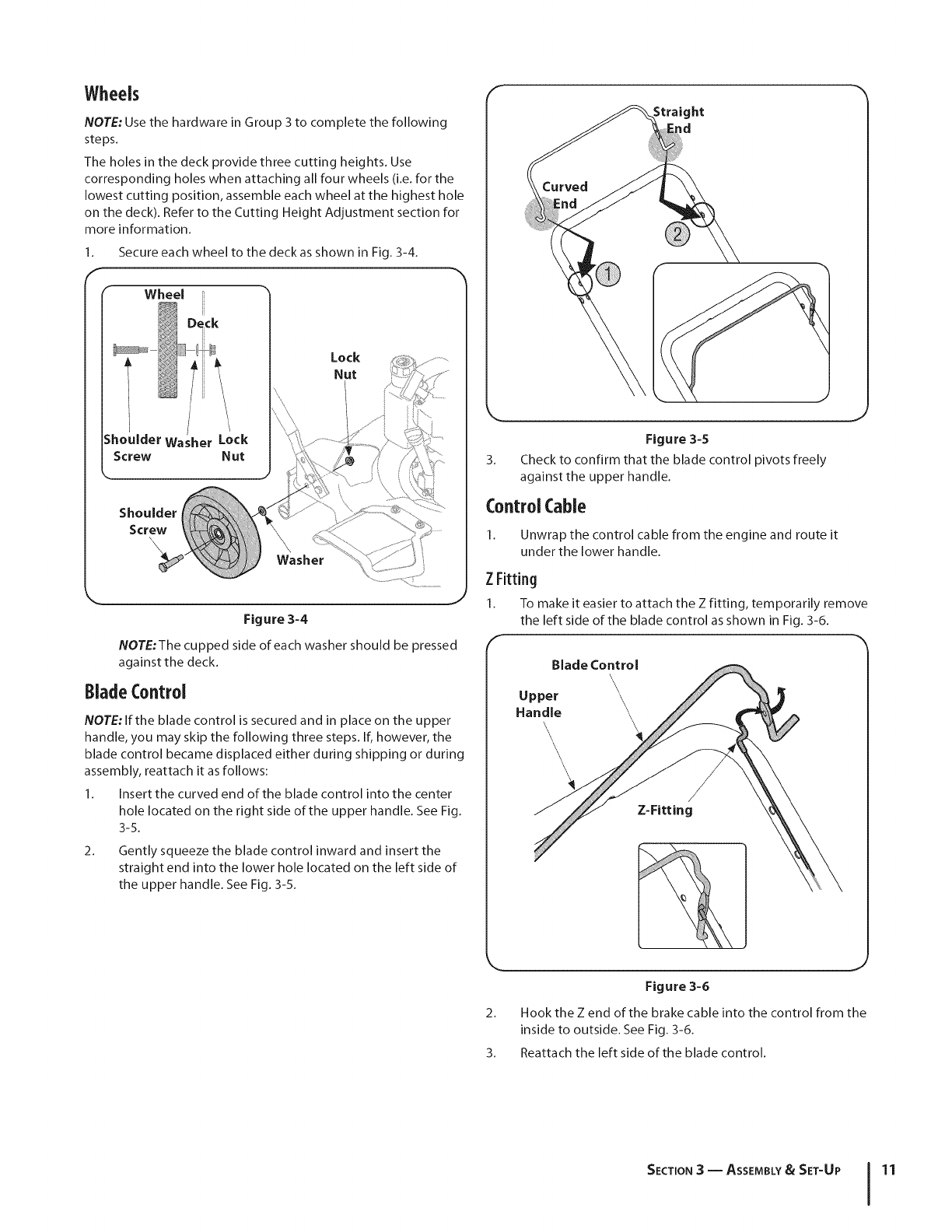

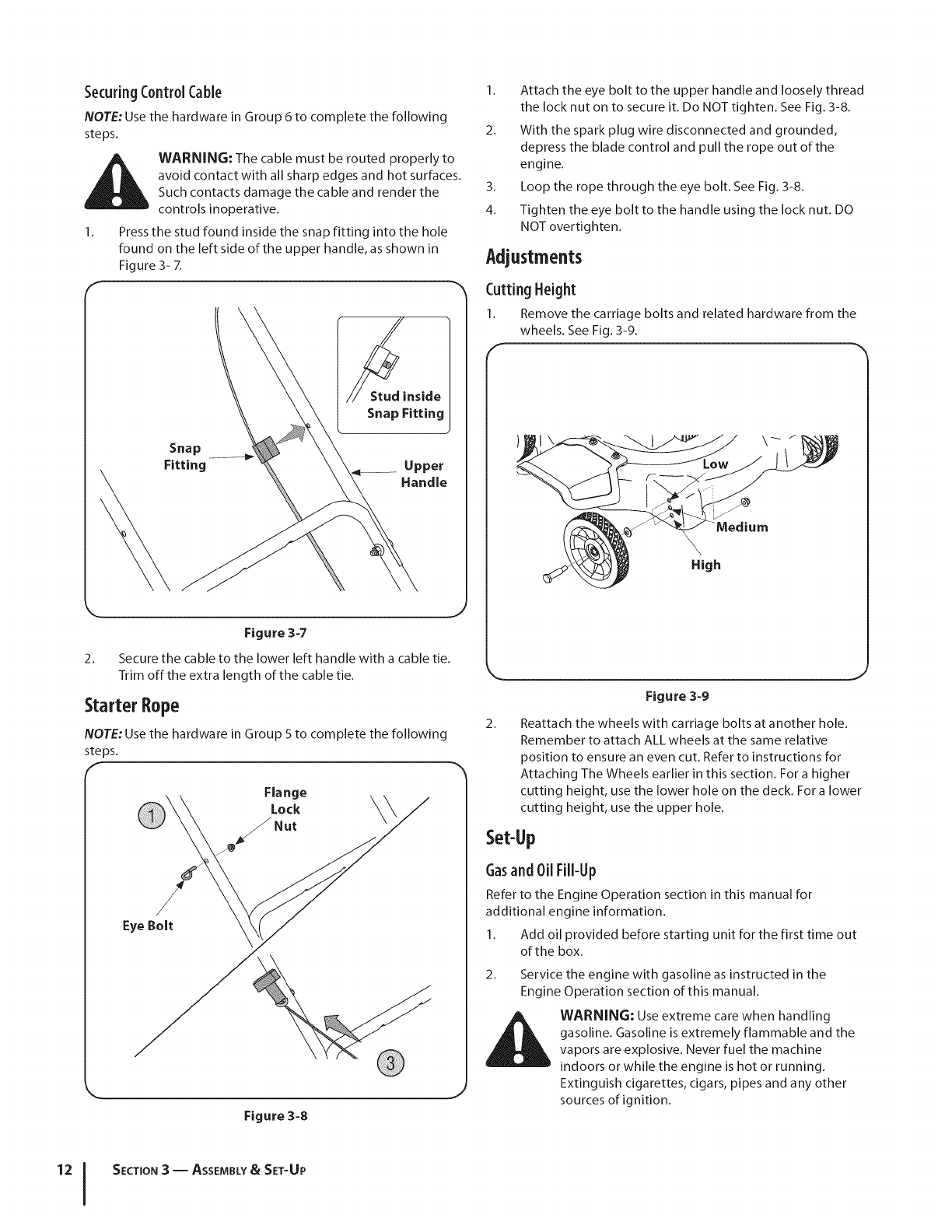

Assembly &Set-Up .................................................. 9

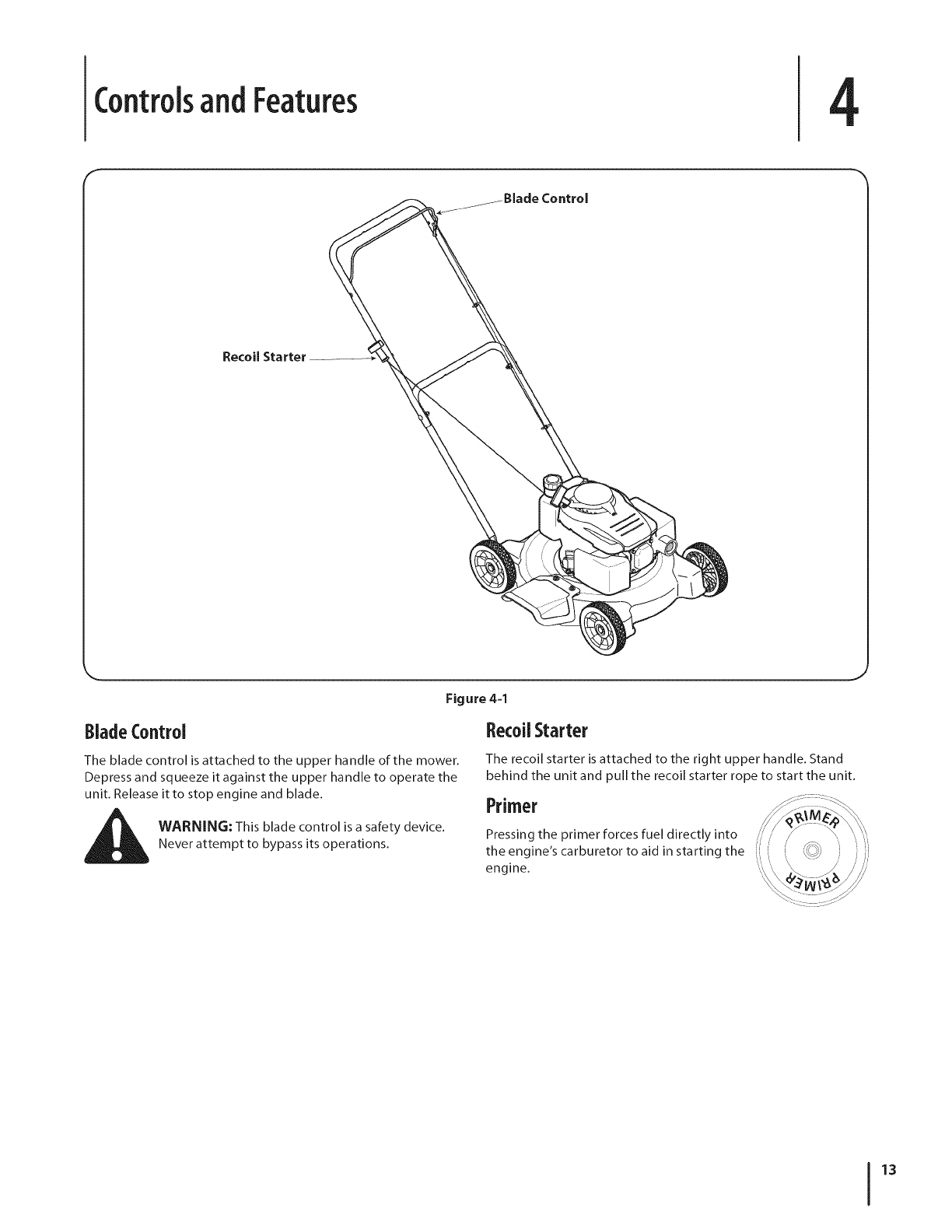

Controls & Features ................................................ 13

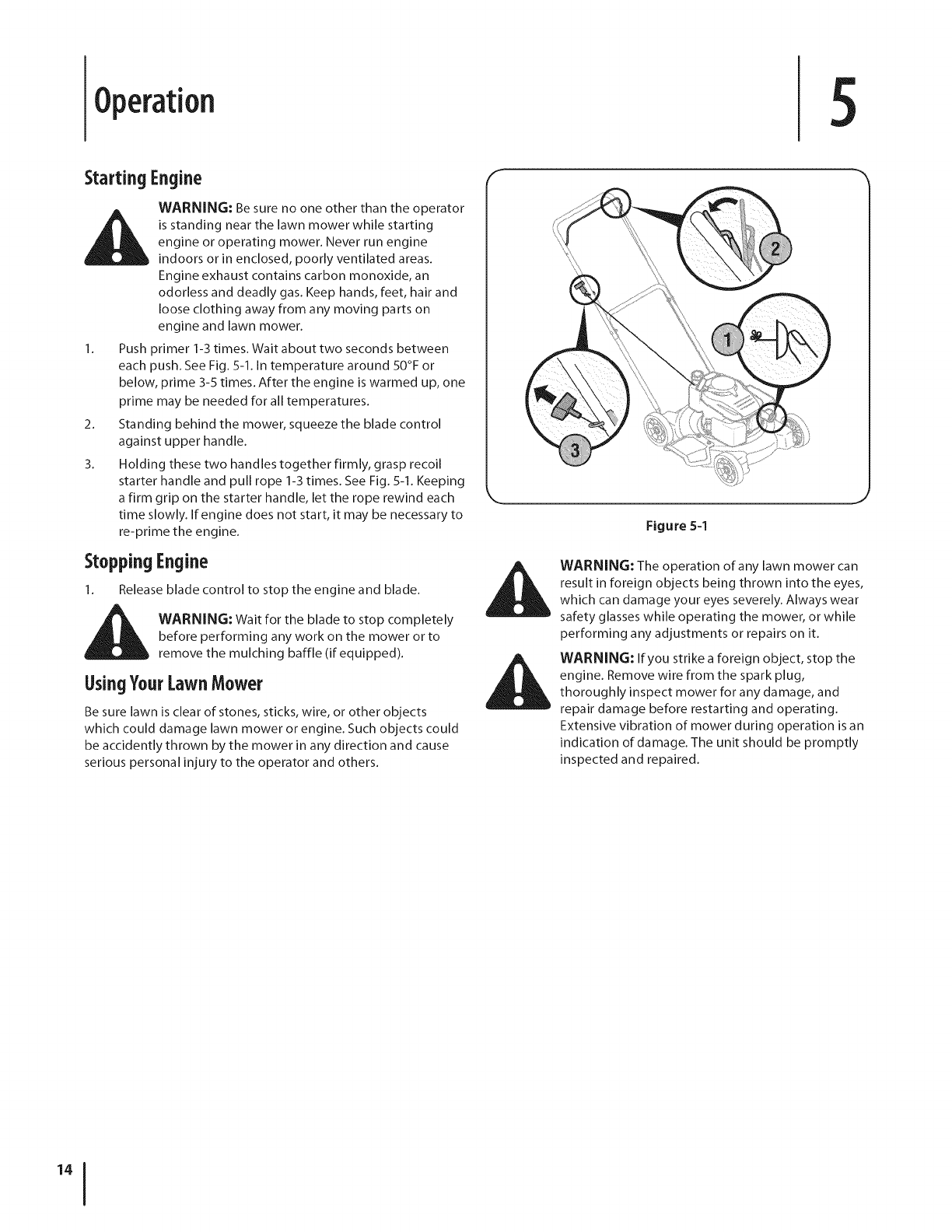

Operation ................................................................ 14

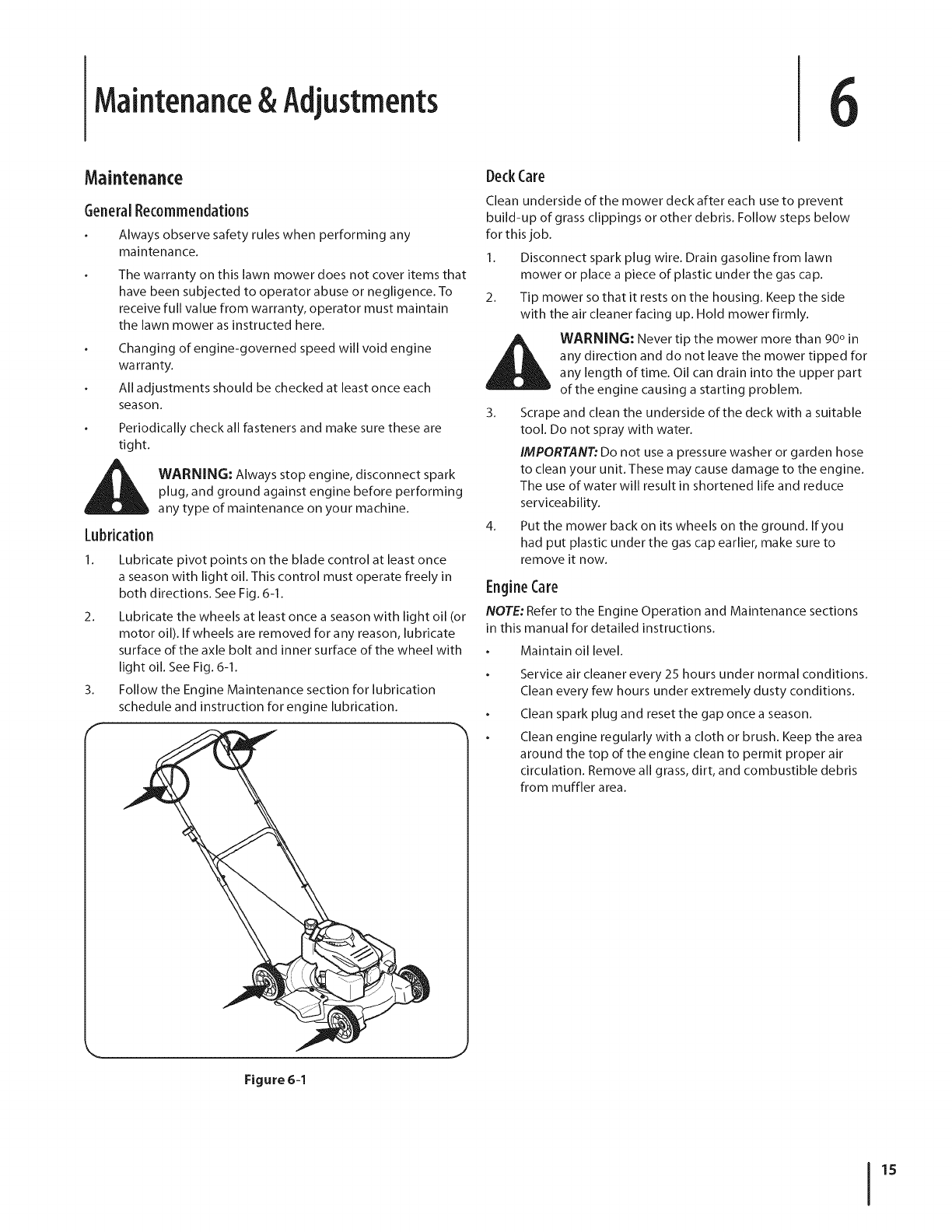

Maintenance &Adjustment. ................................. 15

Service ..................................................................... 16

Troubleshooting ..................................................... 17

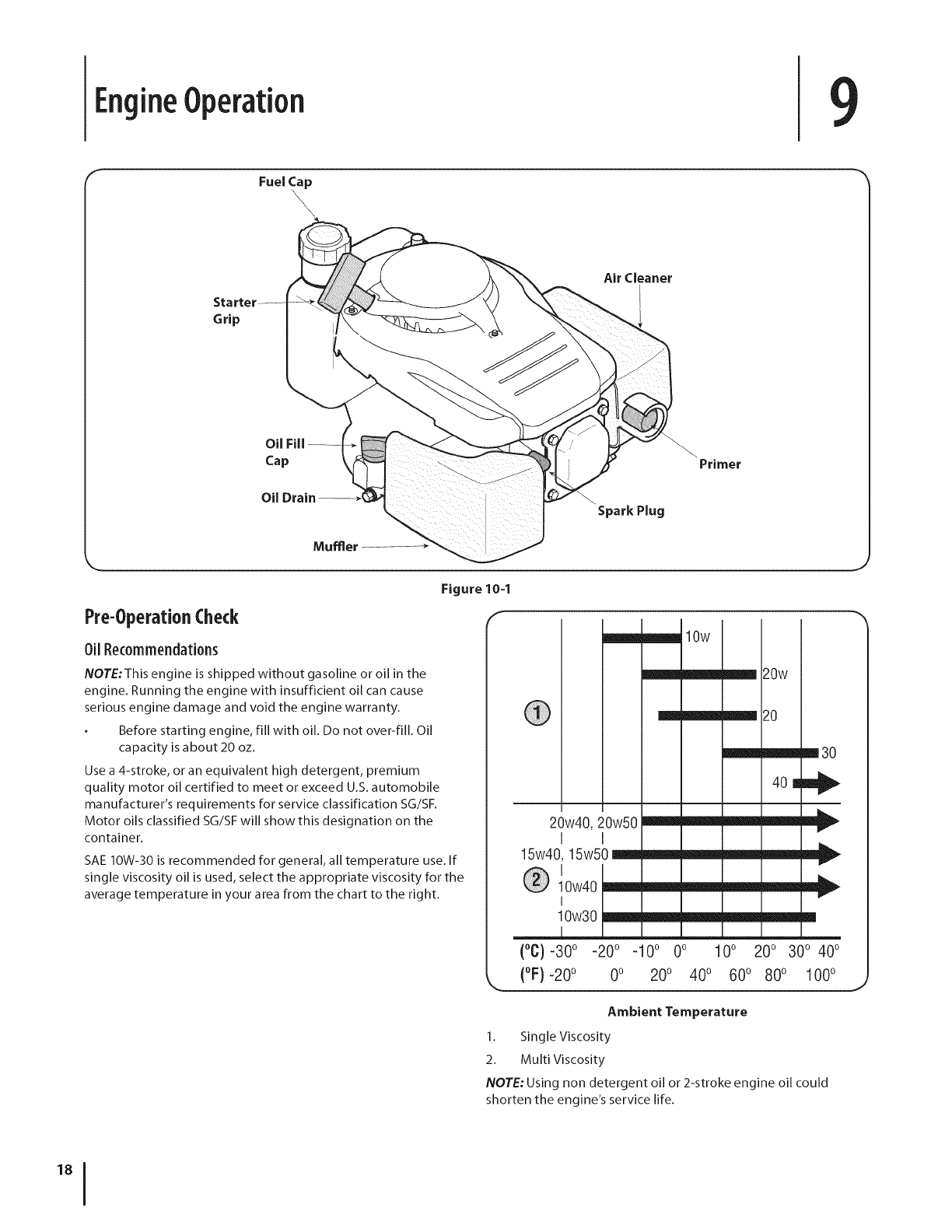

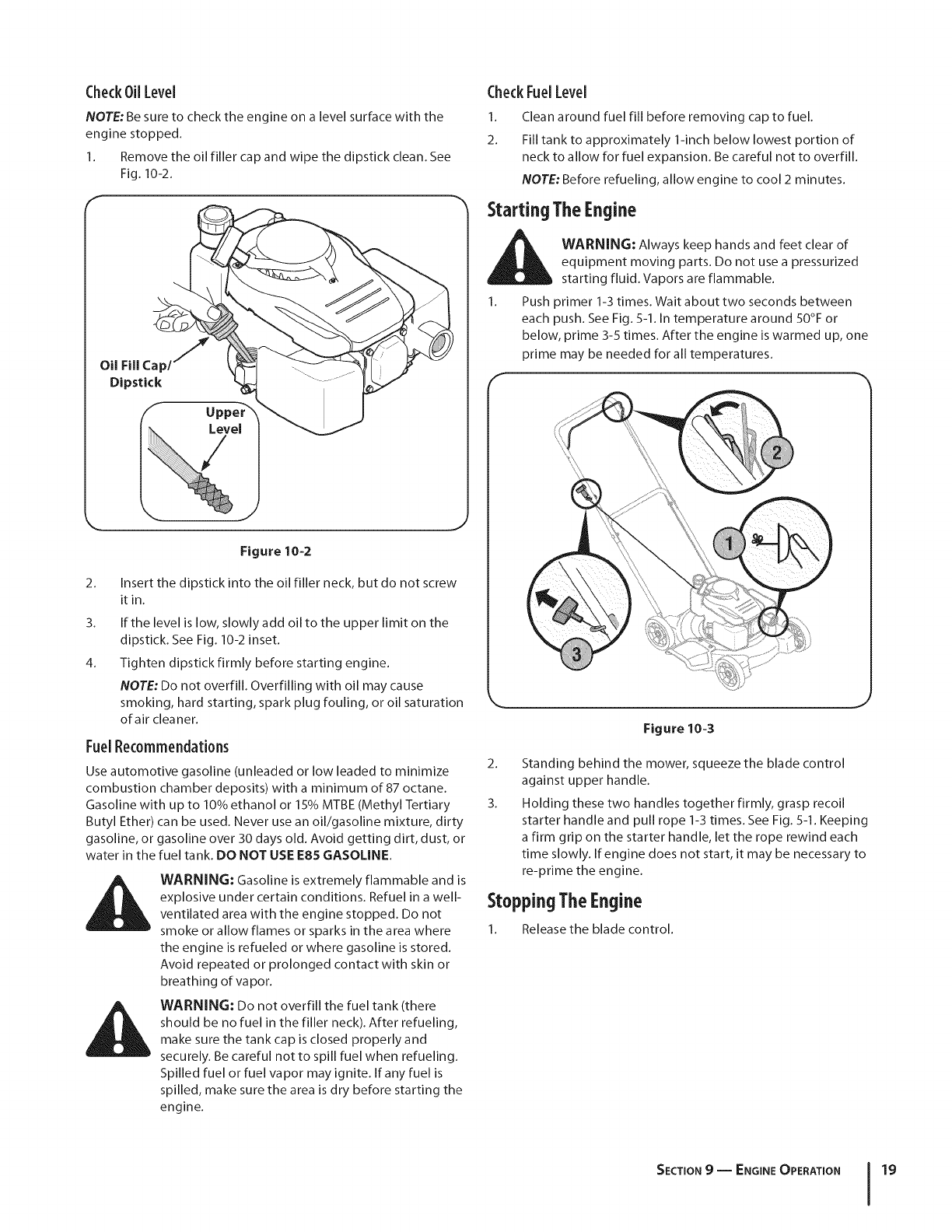

Engine Operation ................................................... 18

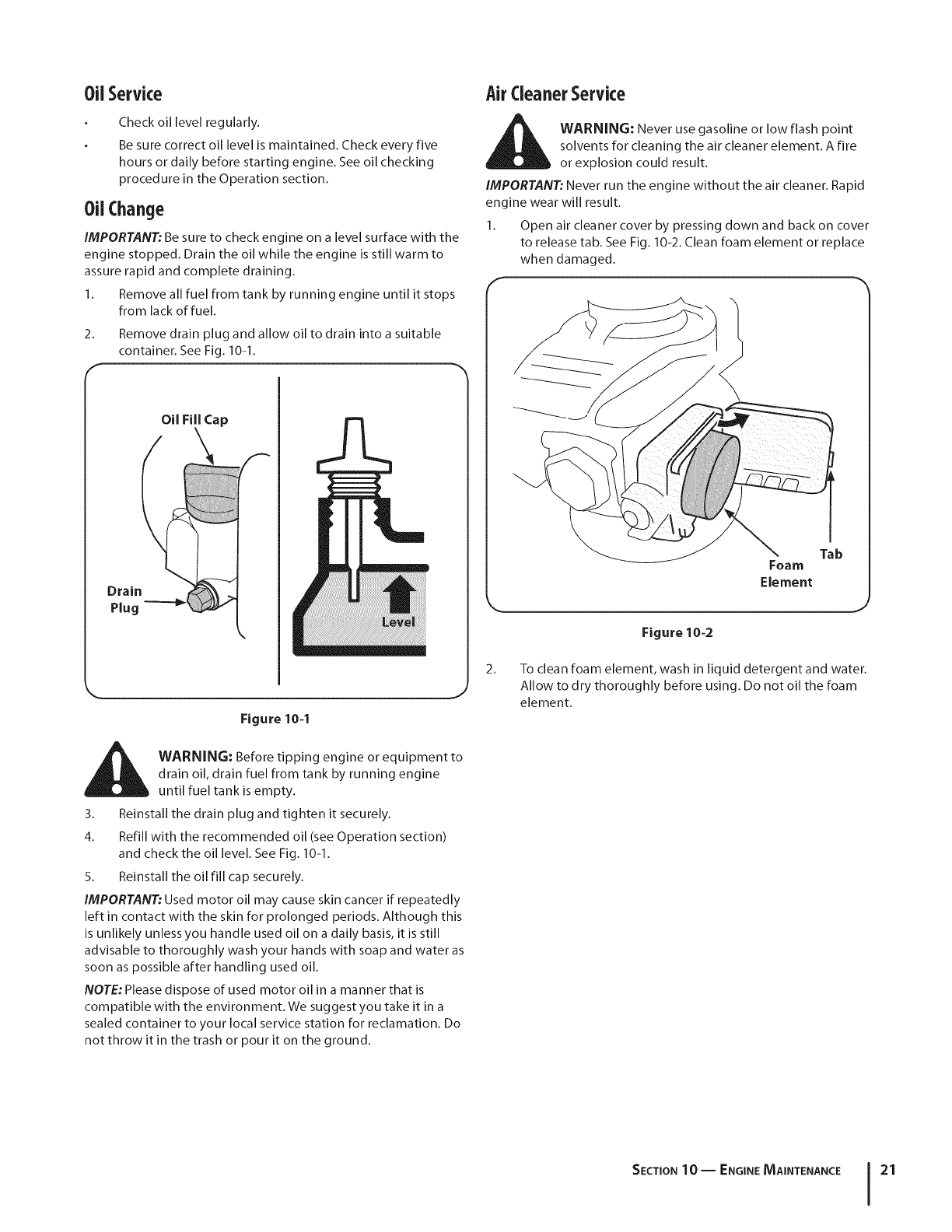

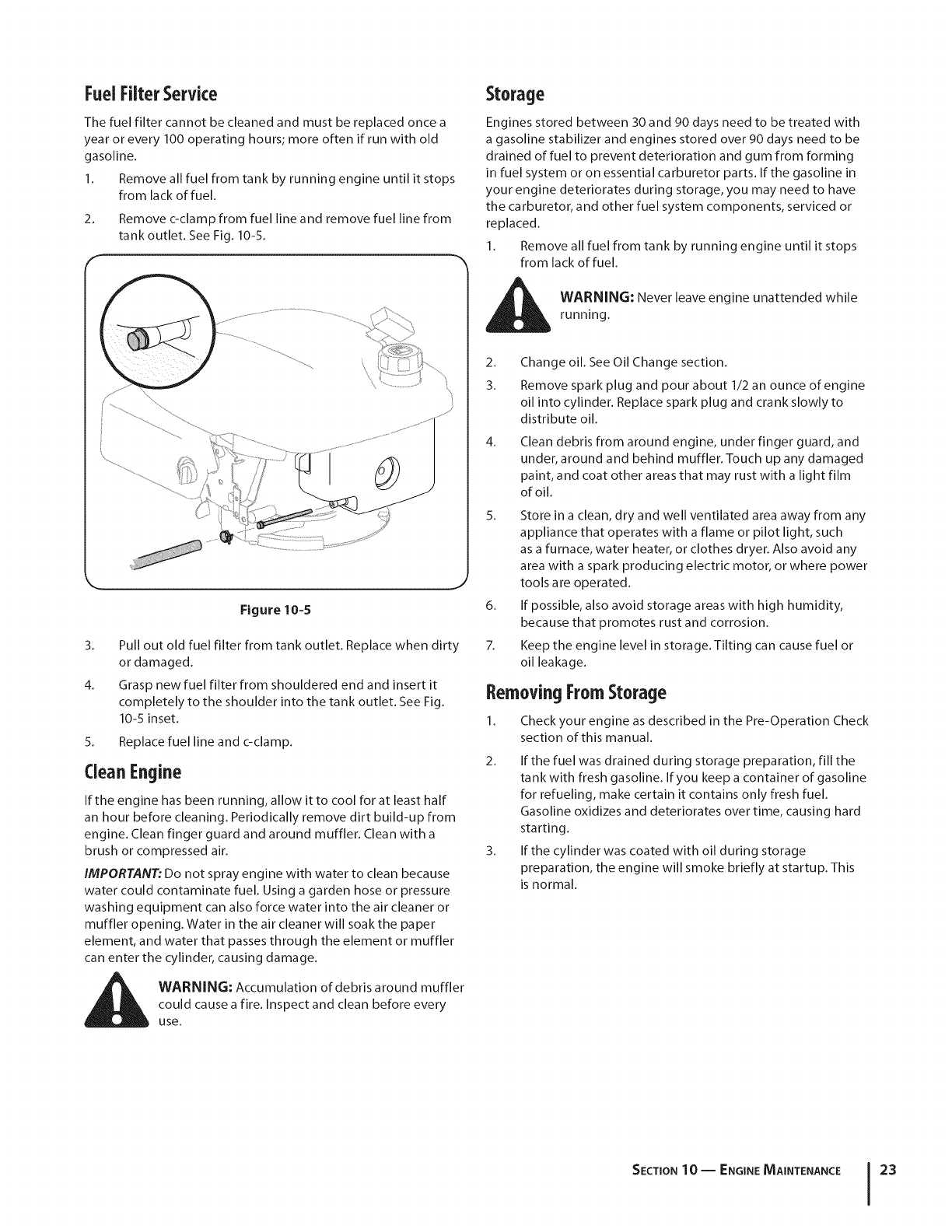

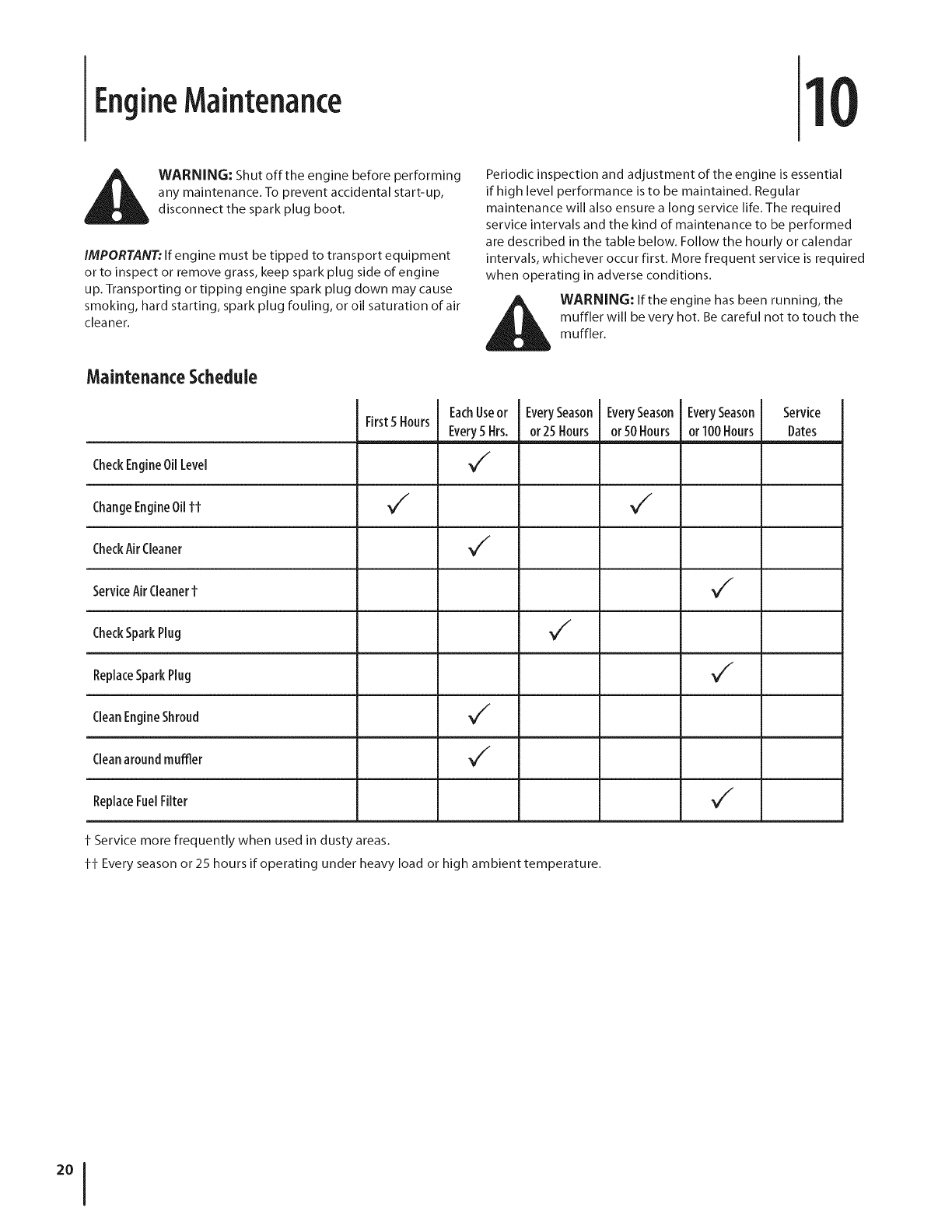

Engine Maintenance ............................................. 20

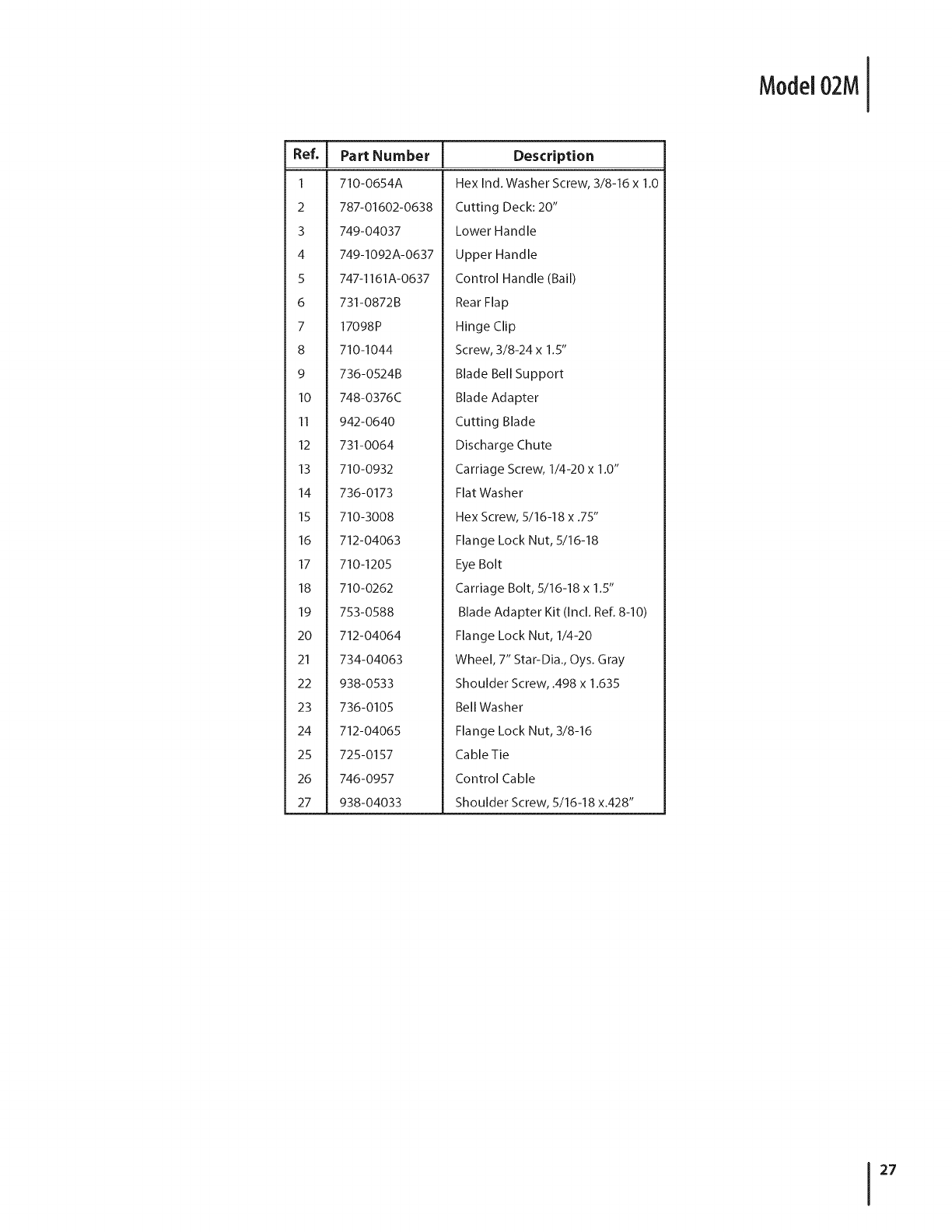

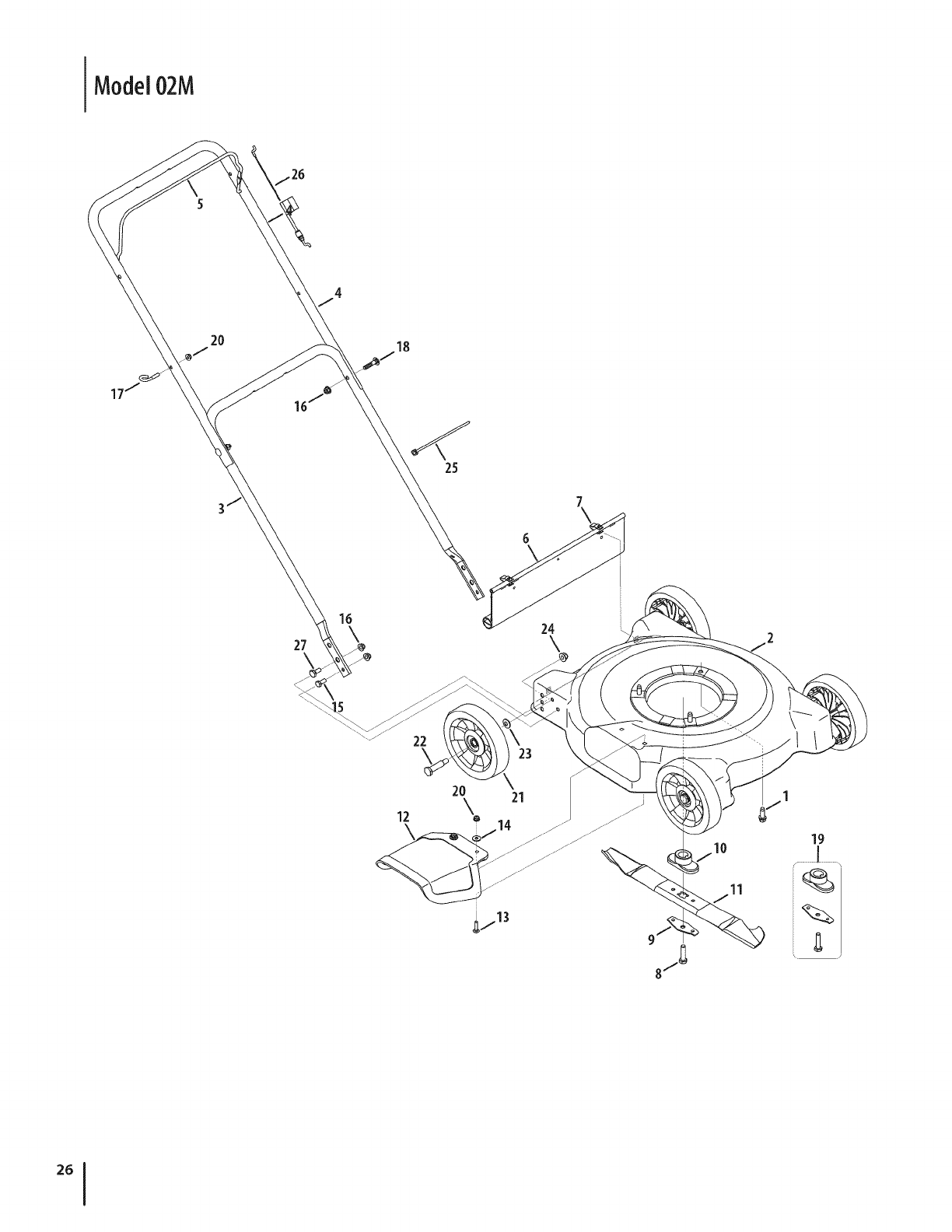

Illustrated Parts List .............................................. 26

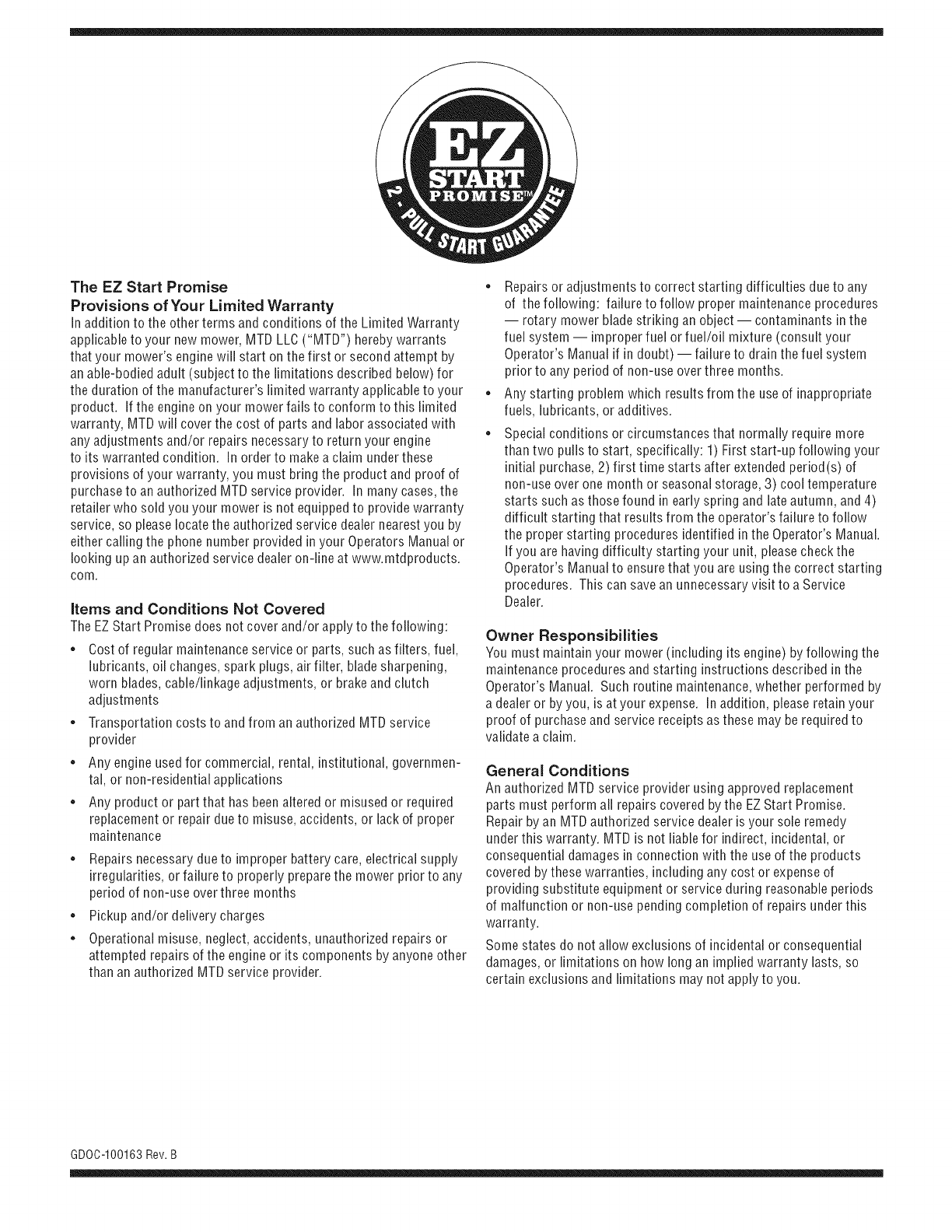

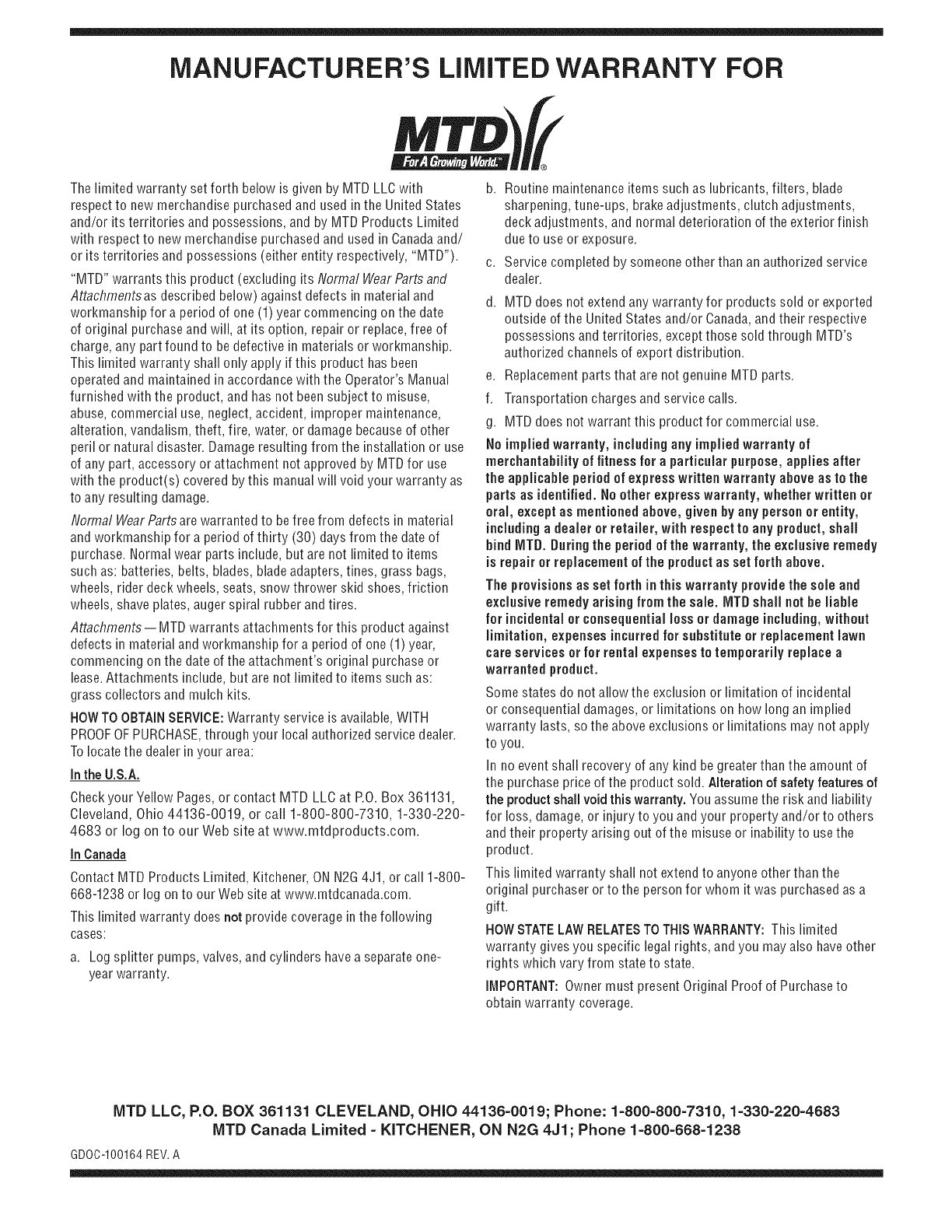

Warranty ................................................................ 32

RecordProductInformation

Before setting up and operating your new equipment, please

locate the model plate on the equipment and record the

information in the provided area to the right. You can locate the

model plate by standing at the operator's position and looking

down at the rear of the deck. This information will be necessary,

should you seek technical support via our web site, Customer

Support Department, or with a local authorized service dealer.

MODEL NUMBER

DIqFIIqFIIqFIIqFIIqD

SERIALNUMBER

DIqFllqFllqFllqNIqD

CustomerSupport

Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of

this machine, you can seek help from the experts. Choose from the options below:

0 Visit us on the web at www.mtdproducts.com

0 Call a Customer Support Representative at (800) 800-7:310 or (330) 220-468:3

0 Write us at MTD LLC •RO. Box :3611:31 •Cleveland, OH •441:36-0019

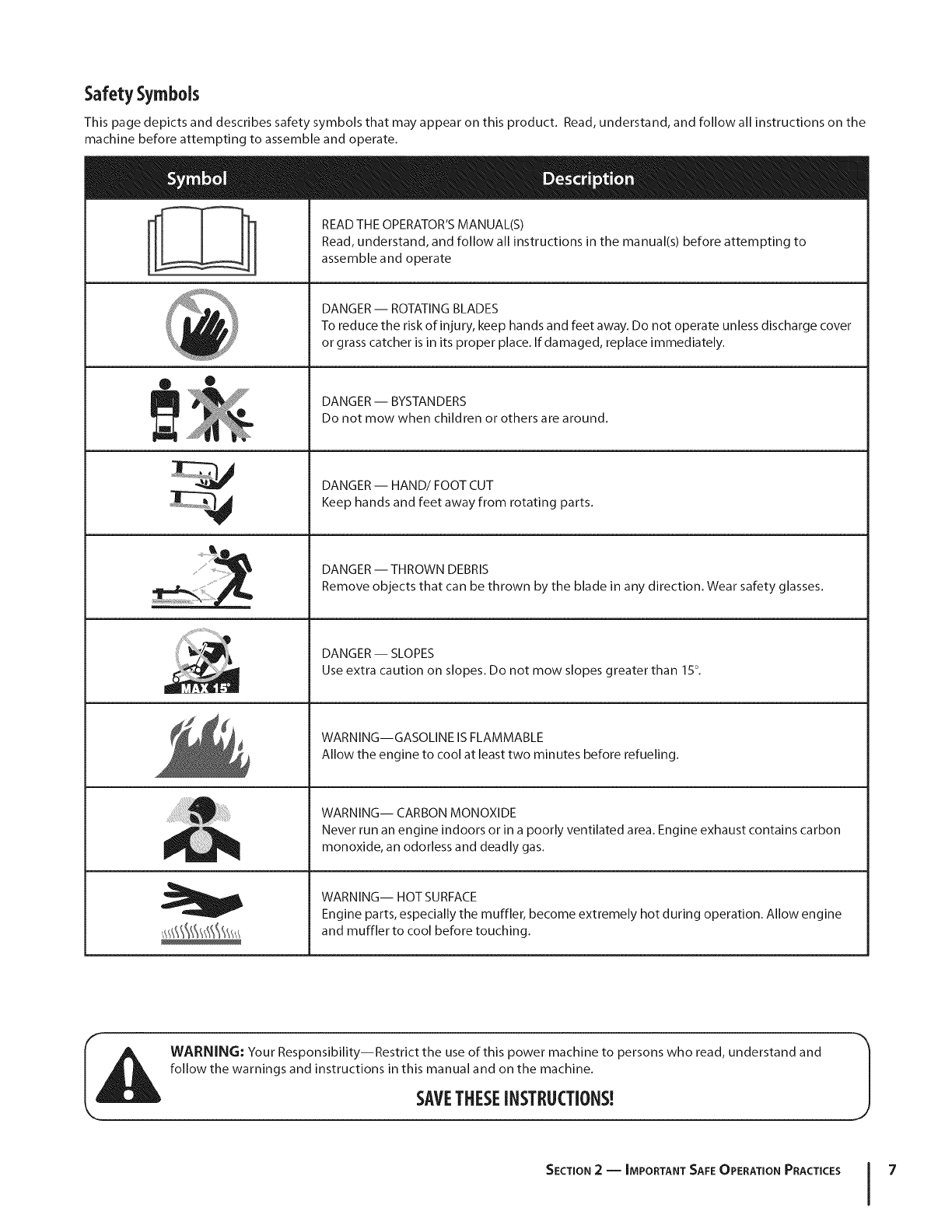

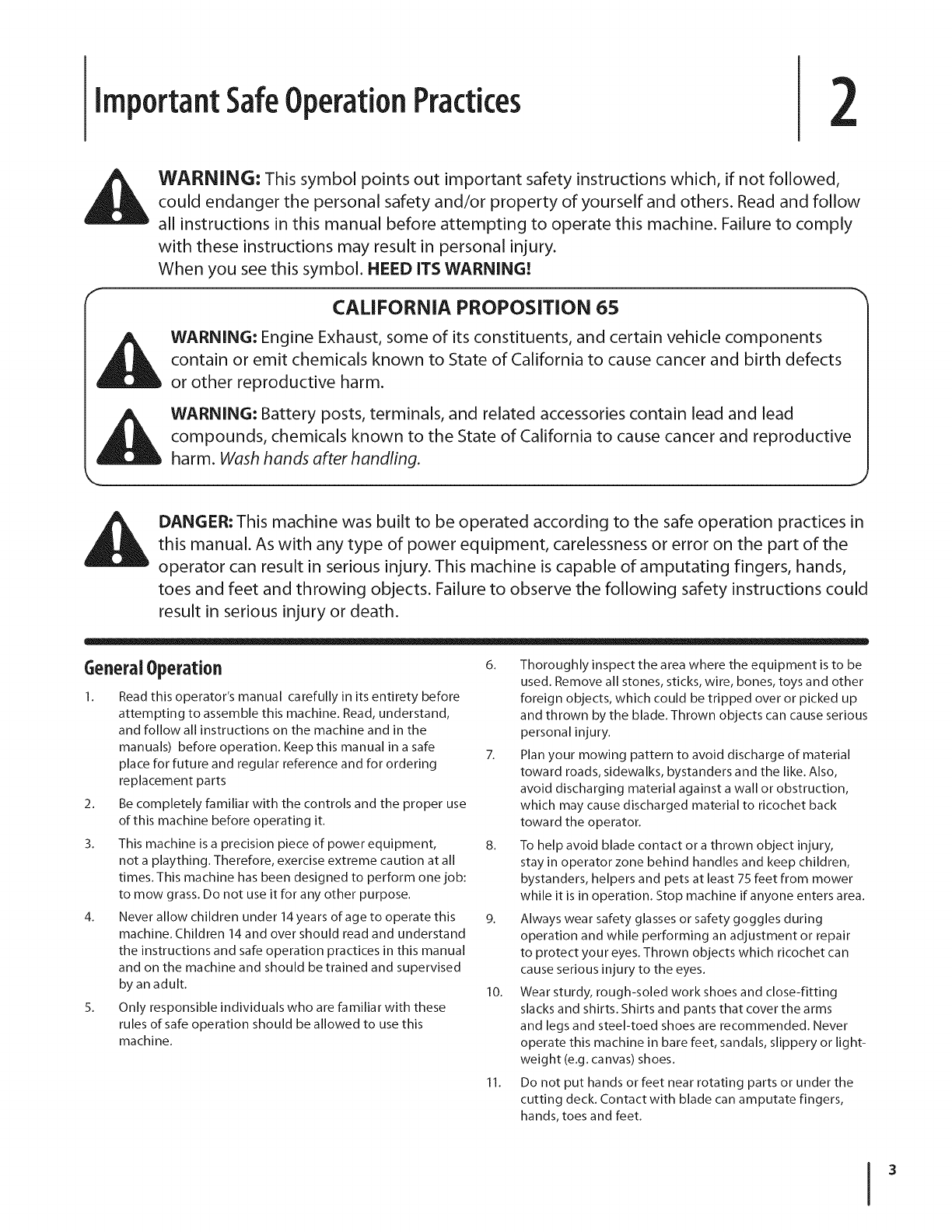

importantSafeOperationPractices 2

WARNING: This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow

all instructions in this manual before attempting to operate this machine. Failure to comply

with these instructions may result in personal injury.

When you see this symbol. HEED ITS WARNING!

CALIFORNIA PROPOSITION 65

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to State of California to cause cancer and birth defects

or other reproductive harm.

WARNING: Battery posts, terminals, and related accessories contain lead and lead

compounds, chemicals known to the State of California to cause cancer and reproductive

harm. Wash hands after handling.

DANGER: This machine was built to be operated according to the safe operation practices in

this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This machine is capable of amputating fingers, hands,

toes and feet and throwing objects. Failure to observe the following safety instructions could

result in serious injury or death.

GeneralOperation

1. Read this operator's manual carefully in its entirety before

attempting to assemble this machine. Read, understand,

and follow all instructions on the machine and in the

manuals) before operation. Keep this manual in a safe

place for future and regular reference and for ordering

replacement parts

2. Be completely familiar with the controls and the proper use

of this machine before operating it.

3. This machine is a precision piece of power equipment,

not a plaything. Therefore, exercise extreme caution at all

times. This machine has been designed to perform one job:

to mow grass. Do not use it for any other purpose.

4. Never allow children under 14 years of age to operate this

machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual

and on the machine and should be trained and supervised

by an adult.

5. Only responsible individuals who are familiar with these

rules of safe operation should be allowed to use this

machine.

6. Thoroughly inspect the area where the equipment is to be

used. Remove all stones, sticks, wire, bones, toys and other

foreign objects, which could be tripped over or picked up

and thrown by the blade. Thrown objects can cause serious

personal injury.

7. Plan your mowing pattern to avoid discharge of material

toward roads, sidewalks, bystanders and the like. Also,

avoid discharging material against a wall or obstruction,

which may cause discharged material to ricochet back

toward the operator.

8. To help avoid blade contact or a thrown object injury,

stay in operator zone behind handles and keep children,

bystanders, helpers and pets at least 75 feet from mower

while it is in operation. Stop machine if anyone enters area.

9. Always wear safety glasses or safety goggles during

operation and while performing an adjustment or repair

to protect your eyes. Thrown objects which ricochet can

cause serious injury to the eyes.

10. Wear sturdy, rough-soled work shoes and close-fitting

slacks and shirts. Shirts and pants that cover the arms

and legs and steel-toed shoes are recommended. Never

operate this machine in bare feet, sandals, slippery or light-

weight (e.g. canvas) shoes.

11. Do not put hands or feet near rotating parts or under the

cutting deck. Contact with blade can amputate fingers,

hands, toes and feet.

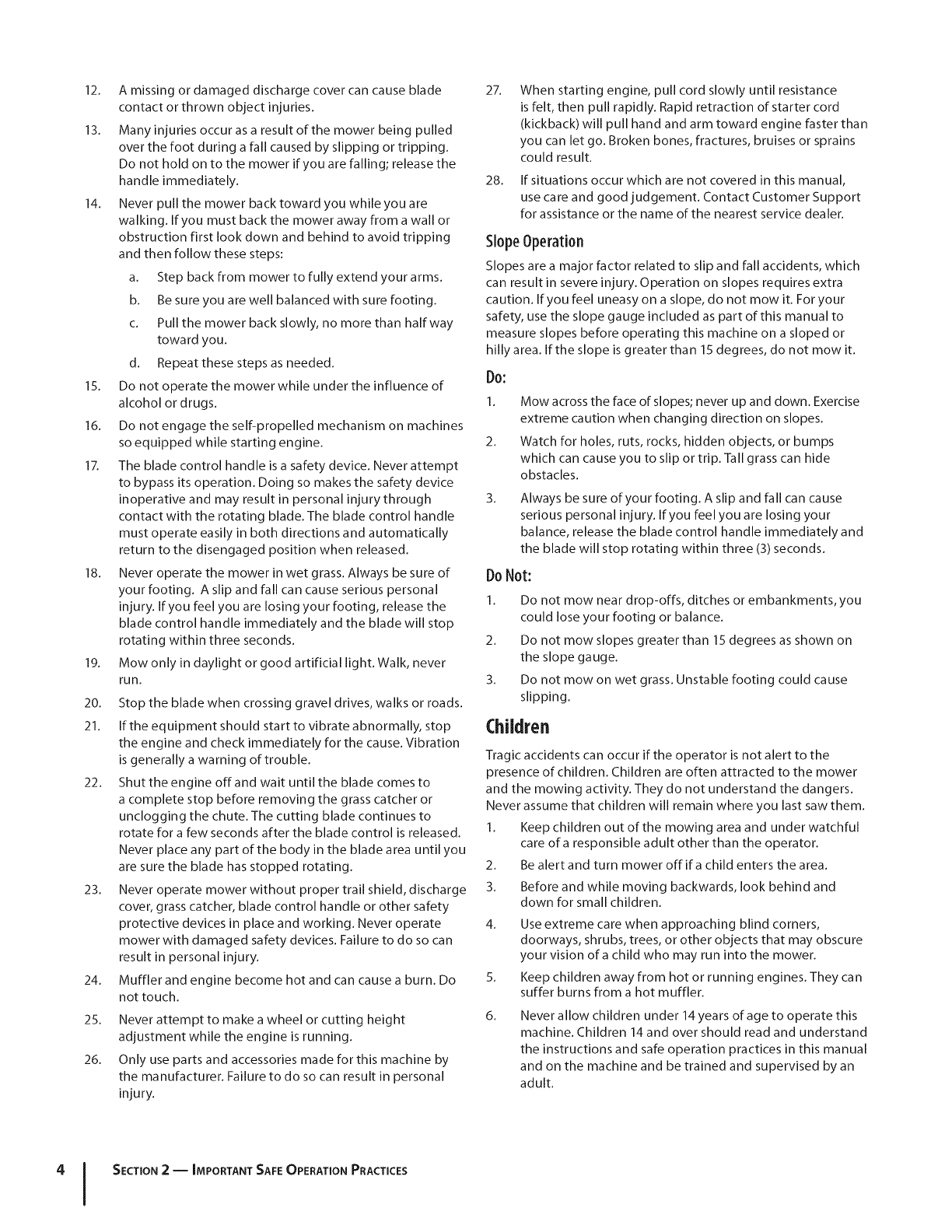

12. Amissingordamageddischargecovercancauseblade 27.

contactorthrownobjectinjuries.

13. Manyinjuriesoccurasaresultofthemowerbeingpulled

overthefootduringafallcausedbyslippingortripping.

Donotholdontothemowerifyouarefalling;releasethe

handleimmediately. 28.

14. Neverpullthemowerbacktowardyouwhileyouare

walking.Ifyoumustbackthemowerawayfromawallor

obstructionfirstlookdownandbehindtoavoidtripping

andthenfollowthesesteps:

a. Stepbackfrommowertofullyextendyourarms.

b. Besureyouarewellbalancedwithsurefooting.

c. Pullthemowerbackslowly,nomorethanhalfway

towardyou.

d. Repeatthesestepsasneeded. Do:

15. Do not operate the mower while under the influence of

alcohol or drugs. 1.

16. Do not engage the self-propelled mechanism on machines

so equipped while starting engine. 2.

17. The blade control handle is a safety device. Never attempt

to bypass its operation. Doing so makes the safety device

inoperative and may result in personal injury through 3.

contact with the rotating blade. The blade control handle

must operate easily in both directions and automatically

return to the disengaged position when released.

18. Never operate the mower in wet grass. Always be sure of Do Not:

your footing. A slip and fall can cause serious personal

injury. If you feel you are losing your footing, release the

blade control handle immediately and the blade will stop

rotating within three seconds.

Mow only in daylight or good artificial light. Walk, never

run.

19.

20.

21.

22.

23.

24.

25.

26.

Stop the blade when crossing gravel drives, walks or roads.

If the equipment should start to vibrate abnormally, stop

the engine and check immediately for the cause. Vibration

is generally a warning of trouble.

Shut the engine off and wait until the blade comes to

a complete stop before removing the grass catcher or

unclogging the chute. The cutting blade continues to

rotate for a few seconds after the blade control is released.

Never place any part of the body in the blade area until you

are sure the blade has stopped rotating.

Never operate mower without proper trail shield, discharge

cover, grass catcher, blade control handle or other safety

protective devices in place and working. Never operate

mower with damaged safety devices. Failure to do so can

result in personal injury.

Muffler and engine become hot and can cause a burn. Do

not touch.

Never attempt to make a wheel or cutting height

adjustment while the engine is running.

Only use parts and accessories made for this machine by

the manufacturer. Failure to do so can result in personal

injury.

When starting engine, pull cord slowly until resistance

is felt, then pull rapidly. Rapid retraction of starter cord

(kickback) will pull hand and arm toward engine faster than

you can let go. Broken bones, fractures, bruises or sprains

could result.

If situations occur which are not covered in this manual,

use care and good judgement. Contact Customer Support

for assistance or the name of the nearest service dealer.

Slope Operation

Slopes are a major factor related to slip and fall accidents, which

can result in severe injury. Operation on slopes requires extra

caution. If you feel uneasy on a slope, do not mow it. For your

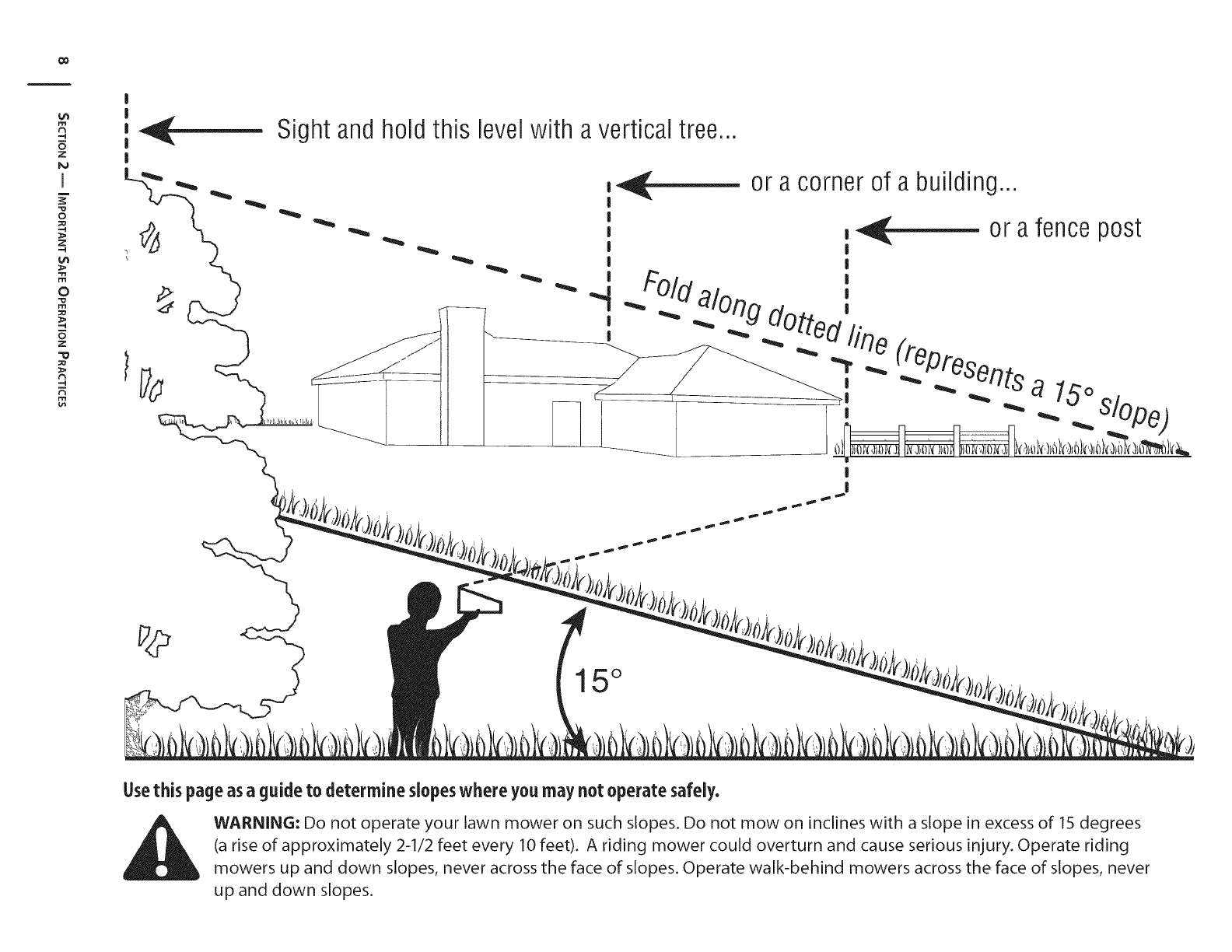

safety, use the slope gauge included as part of this manual to

measure slopes before operating this machine on a sloped or

hilly area. If the slope is greater than 15 degrees, do not mow it.

Mow across the face of slopes; never up and down. Exercise

extreme caution when changing direction on slopes.

Watch for holes, ruts, rocks, hidden objects, or bumps

which can cause you to slip or trip. Tall grass can hide

obstacles.

Always be sure of your footing. A slip and fall can cause

serious personal injury. If you feel you are losing your

balance, release the blade control handle immediately and

the blade will stop rotating within three (3) seconds.

1. Do not mow near drop-offs, ditches or embankments, you

could lose your footing or balance.

2. Do not mow slopes greater than 15 degrees as shown on

the slope gauge.

3. Do not mow on wet grass. Unstable footing could cause

slipping.

Children

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the mower

and the mowing activity. They do not understand the dangers.

Never assume that children will remain where you last saw them.

Keep children out of the mowing area and under watchful

care of a responsible adult other than the operator.

Be alert and turn mower off if a child enters the area.

Before and while moving backwards, look behind and

down for small children.

Use extreme care when approaching blind corners,

doorways, shrubs, trees, or other objects that may obscure

your vision of a child who may run into the mower.

Keep children away from hot or running engines. They can

suffer burns from a hot muffler.

Never allow children under 14 years of age to operate this

machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual

and on the machine and be trained and supervised by an

adult.

4 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

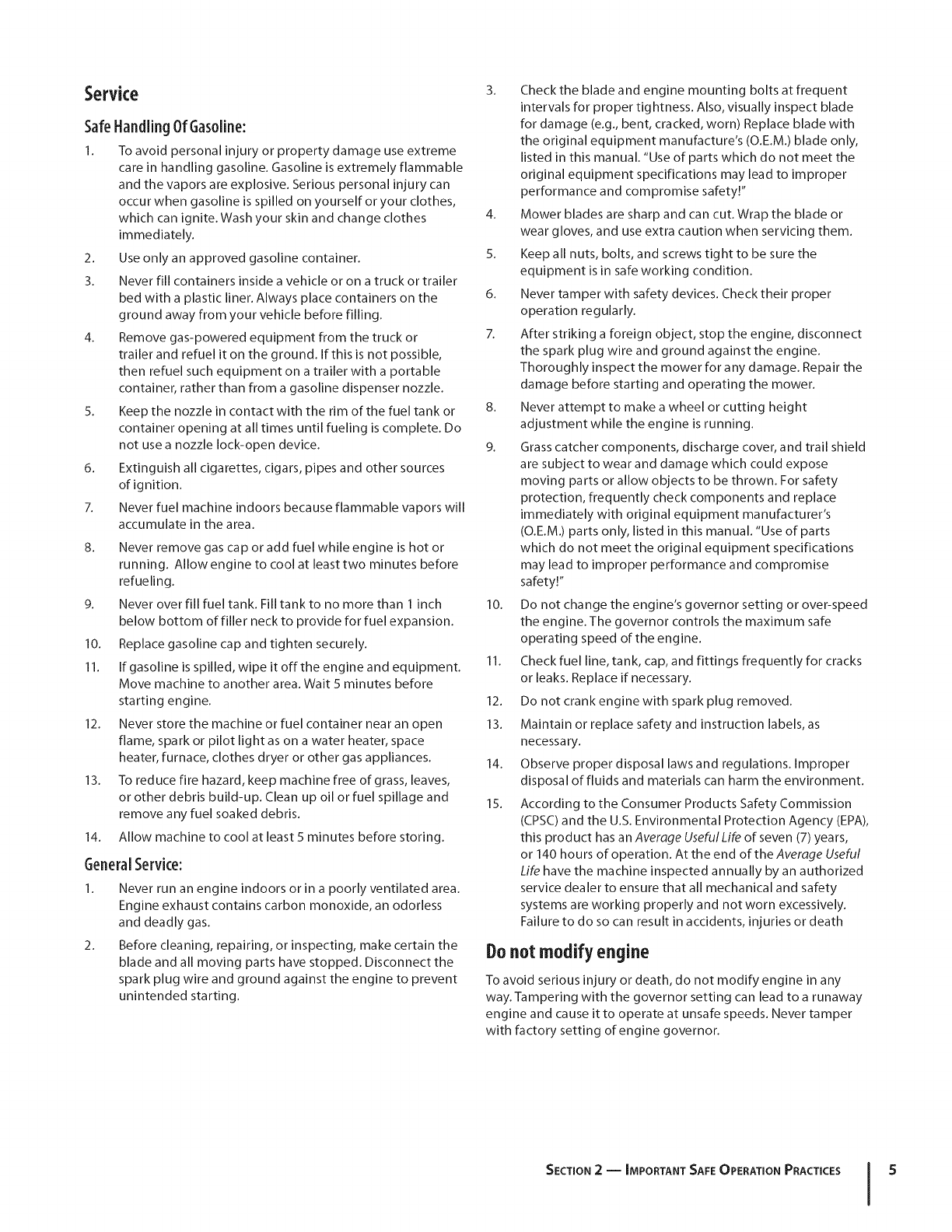

Service

SafeHandling Of Gas01ine:

I. To avoid personal injury or property damage use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive. Serious personal injury can

occur when gasoline is spilled on yourself or your clothes,

which can ignite. Wash your skin and change clothes

immediately.

2. Use only an approved gasoline container.

3. Never fill containers inside a vehicle or on a truck or trailer

bed with a plastic liner. Always place containers on the

ground away from your vehicle before filling.

4. Remove gas-powered equipment from the truck or

trailer and refuel it on the ground. If this is not possible,

then refuel such equipment on a trailer with a portable

container, rather than from a gasoline dispenser nozzle.

5. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do

not use a nozzle lock-open device.

Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

Never fuel machine indoors because flammable vapors will

accumulate in the area.

8. Never remove gas cap or add fuel while engine is hot or

running. Allow engine to cool at least two minutes before

refueling.

9. Never overfill fuel tank. Filltankto no more than I inch

below bottom of filler neck to provide for fuel expansion.

I0. Replace gasoline cap and tighten securely.

1I. If gasoline is spilled, wipe it off the engine and equipment.

Move machine to another area. Wait 5 minutes before

starting engine.

12. Never store the machine or fuel container near an open

flame, spark or pilot light as on a water heater, space

heater, furnace, clothes dryer or other gas appliances.

13. To reduce fire hazard, keep machine free of grass, leaves,

or other debris build-up. Clean up oil or fuel spillage and

remove any fuel soaked debris.

14. Allow machine to cool at least 5 minutes before storing.

GeneralService:

I. Never run an engine indoors or in a poorly ventilated area.

Engine exhaust contains carbon monoxide, an odorless

and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain the

blade and all moving parts have stopped. Disconnect the

spark plug wire and ground against the engine to prevent

unintended starting.

3. Check the blade and engine mounting bolts at frequent

intervals for proper tightness. Also, visually inspect blade

for damage (e.g., bent, cracked, worn) Replace blade with

the original equipment manufacture's (O.E.M.) blade only,

listed in this manual. "Use of parts which do not meet the

original equipment specifications may lead to improper

performance and compromise safety!"

4. Mower blades are sharp and can cut. Wrap the blade or

wear gloves, and use extra caution when servicing them.

5. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

6. Never tamper with safety devices. Check their proper

operation regularly.

7. After striking a foreign object, stop the engine, disconnect

the spark plug wire and ground against the engine.

Thoroughly inspect the mower for any damage. Repair the

damage before starting and operating the mower.

8. Never attempt to make a wheel or cutting height

adjustment while the engine is running.

9. Grass catcher components, discharge cover, and trail shield

are subject to wear and damage which could expose

moving parts or allow objects to be thrown. For safety

protection, frequently check components and replace

immediately with original equipment manufacturer's

(O.E.M.) parts only, listed in this manual. "Use of parts

which do not meet the original equipment specifications

may lead to improper performance and compromise

safety!"

10. Do not change the engine's governor setting or over-speed

the engine. The governor controls the maximum safe

operating speed of the engine.

11. Check fuel line, tank, cap, and fittings frequently for cracks

or leaks. Replace if necessary.

12. Do not crank engine with spark plug removed.

13. Maintain or replace safety and instruction labels, as

necessary.

14. Observe proper disposal laws and regulations. Improper

disposal of fluids and materials can harm the environment.

15. According to the Consumer Products Safety Commission

(CPSC) and the U.S. Environmental Protection Agency (EPA),

this product has an Average Useful Life of seven (7) years,

or 140 hours of operation. At the end of the Average Useful

Life have the machine inspected annually by an authorized

service dealer to ensure that all mechanical and safety

systems are working properly and not worn excessively.

Failure to do so can result in accidents, injuries or death

Donot modify engine

To avoid serious injury or death, do not modify engine in any

way. Tampering with the governor setting can lead to a runaway

engine and cause it to operate at unsafe speeds. Never tamper

with factory setting of engine governor.

SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES S

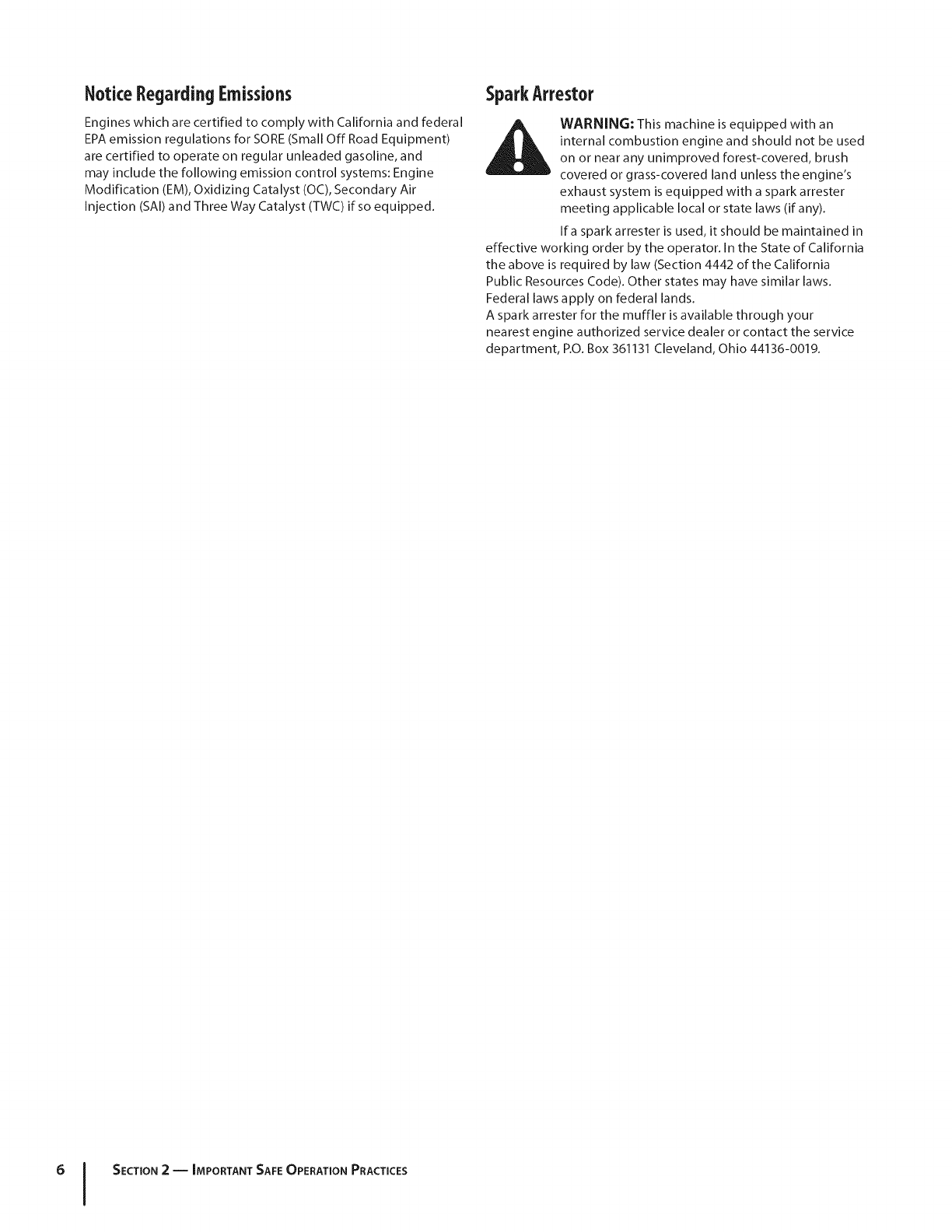

Notice Regarding Emissions

Engines which are certified to comply with California and federal

EPA emission regulations for SORE (Small Off Road Equipment)

are certified to operate on regular unleaded gasoline, and

may include the following emission control systems: Engine

Modification (EM), Oxidizing Catalyst (OC), Secondary Air

Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

SparkArrestor

_1 ARNING: This machine is equipped with an

internal combustion engine and should not be used

on or near any unimproved forest-covered, brush

covered or grass-covered land unless the engine's

exhaust system is equipped with a spark arrester

meeting applicable local or state laws (if any).

If a spark arrester is used, it should be maintained in

effective working order by the operator. In the State of California

the above is required by law (Section 4442 of the California

Public Resources Code). Other states may have similar laws.

Federal laws apply on federal lands.

A spark attester for the muffler is available through your

nearest engine authorized service dealer or contact the service

department, RO. Box 361131 Cleveland, Ohio 44136-0019.

6I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the

machine before attempting to assemble and operate.

READ THE OPERATOR'S MANUAL(S)

Read, understand, and follow all instructions in the manual(s) before attempting to

assemble and operate

DANGER -- ROTATING BLADES

To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover

or grass catcher is in its proper place. If damaged, replace immediately.

i|1_ Do not mow when children or others are around.

IRFS

_1_ DANGER-- HAND/FOOT CUT

Keep hands and feet away from rotating parts.

DANGER -- THROWN DEBRIS

Remove objects that can be thrown by the blade in any direction. Wear safety glasses.

DANGER -- SLOPES

Use extra caution on slopes. Do not mow slopes greater than 15°.

,_ _ WARNING--GASOLINEIS FLAMMABLE

Allow the engine to cool at least two minutes before refueling.

WARNING-- CARBON MONOXIDE

Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

WARNING-- HOT SURFACE

Engine parts, especially the muffler, become extremely hot during operation. Allow engine

__\_%._ and muffler to cool before touching.

Ii_ WARNING: Your Responsibility--Restrict the use of this power machine to persons who read, understand and |

follow the warnings and instructions in this manual and on the machine. J

SAVETHESEINSTRUCTIONS!

SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES 7

¢0

¢3

Sight and hold this level with a vertical tree...

,_ or a corner of a building...

, , _ or a fence post

| I

i I

15 °

Usethis pageasa guideto determine slopeswhereyoumay not operatesafely.

WARNING: Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees

(a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding

mowers up and down slopes, never across the face of slopes. Operate walk-behind mowers across the face of slopes, never

up and down slopes.

Assembly& Set-Up 3

Contents of Carton

One Lawn Mower

One Hardware Pack

One Blade Control

One Lawn Mower Operator's Manual

Four Wheels

One Chute Deflector

One Bottle of Oil

One Upper & Lower Handle

Group1

Group2

Hardware Pack

Qty. 2 Qty. 2

Qty. 2 _ Qty. 2

Qty. 4

-- Qty. 4

Group3

Qty. 4 Qty. 4

Group4 /_ I

\ I Qty. 2 QTY. 2

\--_ 1 D \\

Qty. 1Qty. 1

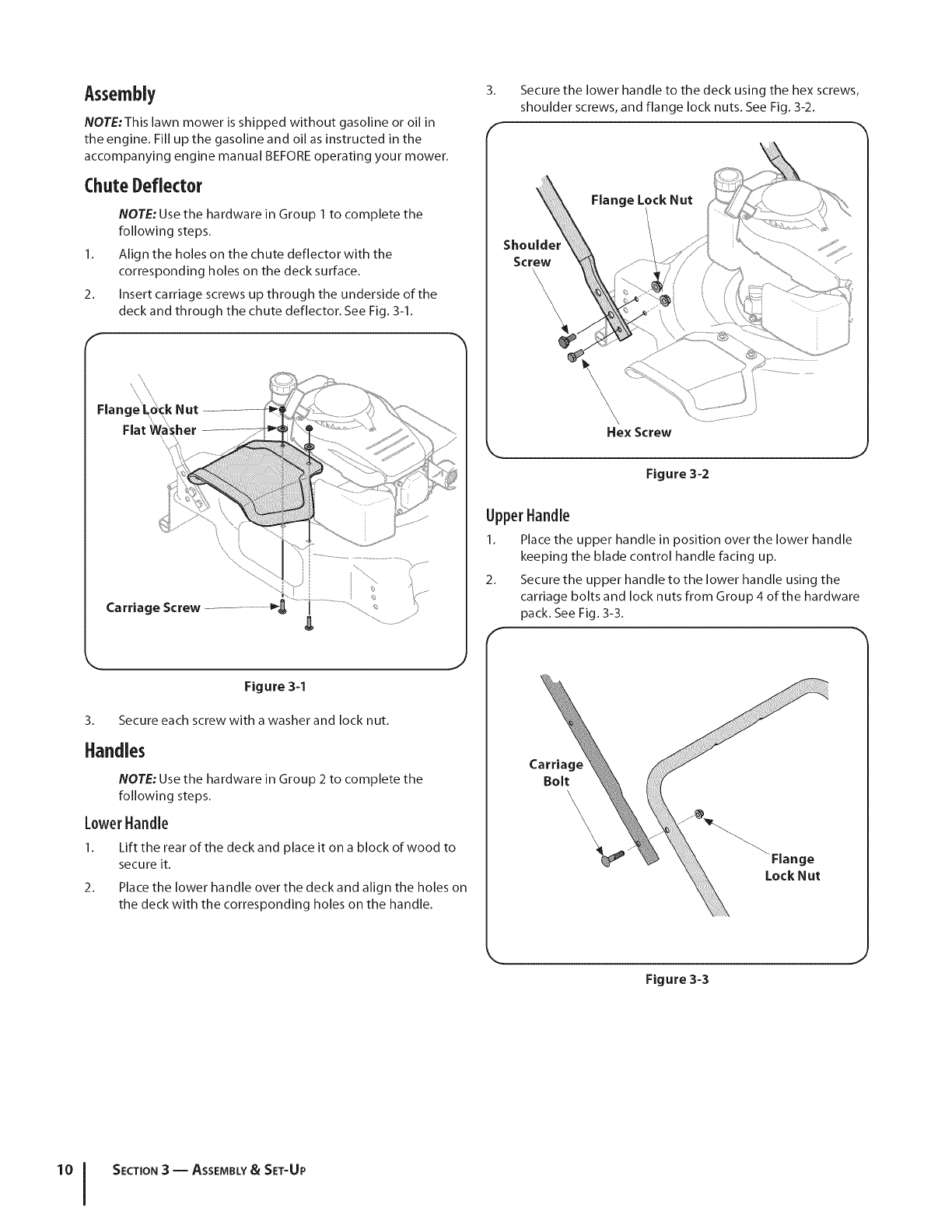

Assembly

NOTE:This lawn mower is shipped without gasoline or oil in

the engine. Fill up the gasoline and oil as instructed in the

accompanying engine manual BEFORE operating your mower.

Chute Deflector

NOTE: Use the hardware in Group 1 to complete the

following steps.

Align the holes on the chute deflector with the

corresponding holes on the deck surface.

Insert carriage screws up through the underside of the

deck and through the chute deflector. See Fig. 3-1.

Carriage Screw _

Figure 3-1

3, Secure each screw with a washer and lock nut.

Handles

NOTE: Use the hardware in Group 2 to complete the

following steps.

Lower Handle

1, Lift the rear of the deck and place it on a block of wood to

secure it.

2, Place the lower handle over the deck and align the holes on

the deck with the corresponding holes on the handle.

3. Secure the lower handle to the deck using the hex screws,

shoulder screws, and flange lock nuts. See Fig. 3-2.

Shouldel

Screw

FlangeLockNut

He× Screw

Figure 3-2

UpperHandle

1, Place the upper handle in position over the lower handle

keeping the blade control handle facing up.

2. Secure the upper handle to the lower handle using the

carriage bolts and lock nuts from Group 4 of the hardware

pack. See Fig. 3-3.

Carriage

Bolt

\\\\

"Flange

Lock Nut

Figure 3-3

'°1SECTION 3-- ASSEMBLY& SET-UP

Wheels

NOTE: Use the hardware in Group 3 to complete the following

steps.

The holes in the deck provide three cutting heights. Use

corresponding holes when attaching all four wheels (i.e. for the

lowest cutting position, assemble each wheel at the highest hole

on the deck). Refer to the Cutting Height Adjustment section for

more information.

1. Secure each wheel to the deck as shown in Fig. 3-4.

Wheel i "_J

Deck

Nut

Lock

Nut

Shoulder

Screw

Washer

Figure 3-4

NOTE:The cupped side of each washer should be pressed

against the deck.

fllade Control

NOTE: If the blade control is secured and in place on the upper

handle, you may skip the following three steps. If, however, the

blade control became displaced either during shipping or during

assembly, reattach it as follows:

1. Insert the curved end of the blade control into the center

hole located on the right side of the upper handle. See Fig.

3-5.

2. Gently squeeze the blade control inward and insert the

straight end into the lower hole located on the left side of

the upper handle. See Fig. 3-5.

Fht

Figure 3-5

Check to confirm that the blade control pivots freely

against the upper handle.

Control Cable

Unwrap the control cable from the engine and route it

under the lower handle.

Z Fitting

1. To make it easier to attach the Z fitting, temporarily remove

the left side of the blade control as shown in Fig. 3-6.

\\\

Z=Fitting

Figure 3-6

2. Hook the Z end of the brake cable into the control from the

inside to outside. See Fig. 3-6.

3. Reattach the left side of the blade control.

SECTION3 -- ASSEMBLY& SET-UP 11

SecuringControl Cable

NOTE: Use the hardware in Group 6 to complete the following

steps.

WARNING: The cable must be routed properly to

avoid contact with all sharp edges and hot surfaces.

Such contacts damage the cable and render the

controls inoperative.

1. Press the stud found inside the snap fitting into the hole

found on the left side of the upper handle, as shown in

Figure 3- 7.

Snap

Fitting

_Stu//d inside •

Snap Fitting

....... Upper

Handle

Figure 3=7

2. Secure the cable to the lower left handle with a cable tie.

Trim off the extra length of the cable tie.

Starter Rope

NOTE: Use the hardware in Group 5 to complete the following

steps.

Flange

Lock _

Eye Bolt

Figure 3=8

1. Attach the eye bolt to the upper handle and loosely thread

the lock nut on to secure it. Do NOT tighten. See Fig. 3-8.

2. With the spark plug wire disconnected and grounded,

depress the blade control and pull the rope out of the

engine.

3. Loop the rope through the eye bolt. See Fig. 3-8.

4. Tighten the eye bolt to the handle using the lock nut. DO

NOT overtighten.

Adjustments

Cutting Height

1. Remove the carriage bolts and related hardware from the

wheels. See Fig. 3-9.

Medium

High

Figure 3=9

2. Reattach the wheels with carriage bolts at another hole.

Remember to attach ALL wheels at the same relative

position to ensure an even cut. Refer to instructions for

Attaching The Wheels earlier in this section. For a higher

cutting height, use the lower hole on the deck. For a lower

cutting height, use the upper hole.

Set-Up

Gasand OilFill-Up

Refer to the Engine Operation section in this manual for

additional engine information.

1. Add oil provided before starting unit for the first time out

of the box.

Service the engine with gasoline as instructed in the

Engine Operation section of this manual.

WARNING: Use extreme care when handling

gasoline. Gasoline is extremely flammable and the

vapors are explosive. Never fuel the machine

indoors or while the engine is hot or running.

Extinguish cigarettes, cigars, pipes and any other

sources of ignition.

12 I SECTION3 -- ASSEMBLY& SET-UP

Controlsand Features 4

Recoil Starter

Figure 4-1

BladeControl RecoilStarter

The blade control is attached to the upper handle of the mower.

Depress and squeeze it against the upper handle to operate the

unit. Release it to stop engine and blade.

_lk ARNING: This blade control is a safety device.

Never attempt to bypass its operations.

The recoil starter is attached to the right upper handle. Stand

behind the unit and pull the recoil starter rope to start the unit.

Primer

Pressing the primer forces fuel directly into

the engine's carburetor to aid in starting the

engine.

Operation

Starting Engine

WARNING: Be sure no one other than the operator

isstanding near the lawn mower while starting

engine or operating mower. Never run engine

indoors or in enclosed, poorly ventilated areas.

Engine exhaust contains carbon monoxide, an

odorless and deadly gas. Keep hands, feet, hair and

loose clothing away from any moving parts on

engine and lawn mower.

Push primer 1-3 times. Wait about two seconds between

each push. See Fig. 5-1. In temperature around 50°F or

below, prime 3-5 times. After the engine is warmed up, one

prime may be needed for all temperatures.

Standing behind the mower, squeeze the blade control

against upper handle.

Holding these two handles together firmly, grasp recoil

starter handle and pull rope 1-3times. See Fig. 5-1. Keeping

a firm grip on the starter handle, let the rope rewind each

time slowly. If engine does not start, it may be necessary to

re-prime the engine.

Stopping Engine

1. Release blade control to stop the engine and blade.

WARNING: Wait for the blade to stop completely

before performing any work on the mower or to

remove the mulching baffle (if equipped).

UsingYourLawn Mower

Be sure lawn is clear of stones, sticks, wire, or other objects

which could damage lawn mower or engine. Such objects could

be accidently thrown by the mower in any direction and cause

serious personal injury to the operator and others.

Figure 5-1

WARNING: The operation of any lawn mower can

result in foreign objects being thrown into the eyes,

which can damage your eyes severely. Always wear

safety glasses while operating the mower, or while

performing any adjustments or repairs on it.

WARNING: If you strike a foreign object, stop the

engine. Remove wire from the spark plug,

thoroughly inspect mower for any damage, and

repair damage before restarting and operating.

Extensive vibration of mower during operation is an

indication of damage. The unit should be promptly

inspected and repaired.

Maintenance& Adjustments

Maintenance

GeneralRecommendations

Always observe safety rules when performing any

maintenance.

The warranty on this lawn mower does not cover items that

have been subjected to operator abuse or negligence. To

receive full value from warranty, operator must maintain

the lawn mower as instructed here.

Changing of engine-governed speed will void engine

wa rra nty.

All adjustments should be checked at least once each

season.

Periodically check all fasteners and make sure these are

tight.

Lubrication

WARNING: Always stop engine, disconnect spark

plug, and ground against engine before performing

any type of maintenance on your machine.

1. Lubricate pivot points on the blade control at least once

a season with light oil. This control must operate freely in

both directions. See Fig. 6-1.

2. Lubricate the wheels at least once a season with light oil (or

motor oil). If wheels are removed for any reason, lubricate

surface of the axle bolt and inner surface of the wheel with

light oil. See Fig. 6-1.

3. Follow the Engine Maintenance section for lubrication

schedule and instruction for engine lubrication.

DeckCare

Clean underside of the mower deck after each use to prevent

build-up of grass clippings or other debris. Follow steps below

for this job.

1. Disconnect spark plug wire. Drain gasoline from lawn

mower or place a piece of plastic under the gas cap.

2. Tip mower so that it rests on the housing. Keep the side

with the air cleaner facing up. Hold mower firmly.

_ll WARNING: Never tip the mower more than 90 ° in

any direction and do not leave the mower tipped for

any length of time. Oil can drain into the upper part

of the engine causing a starting problem.

3. Scrape and clean the underside of the deck with a suitable

tool. Do not spray with water.

IMPORTANT: Do not use a pressure washer or garden hose

to clean your unit. These may cause damage to the engine.

The use of water will result in shortened life and reduce

serviceability.

4. Put the mower back on its wheels on the ground. Ifyou

had put plastic under the gas cap earlier, make sure to

remove it now.

EngineCare

NOTE: Refer to the Engine Operation and Maintenance sections

in this manual for detailed instructions.

Maintain oil level.

Service air cleaner every 25 hours under normal conditions.

Clean every few hours under extremely dusty conditions.

Clean spark plug and reset the gap once a season.

Clean engine regularly with a cloth or brush. Keep the area

around the top of the engine clean to permit proper air

circulation. Remove all grass, dirt, and combustible debris

from muffler area.

Figure 6-1

Service 7

Blade Care

WARNING: When removing the cutting blade for

sharpening or replacement, protect your hands with

a pair of heavy gloves or use a heavy rag to hold the

blade.

Periodically inspect the blade adapter for cracks, especially if you

strike a foreign object. Replace when necessary. Follow the steps

below for blade service.

1. Disconnect spark plug boot from spark plug. Turn mower

on its side making sure that the air filter and the carburetor

are facing up.

2. Remove the bolt and the blade bell support which hold the

blade and the blade adapter to the engine crankshaft. See

Fig. 7-1.

..........

Figure 7-1

Remove blade and adapter from the crankshaft. See Fig.

7-1.

Remove blade from the adapter for testing balance.

Balance the blade on a round shaft screwdriver to check.

Remove metal from the heavy side until it balances evenly.

When sharpening the blade, follow the original angle of

grind. Grind each cutting edge equally to keep the blade

balanced.

i_hlill WARNING: An unbalanced blade will cause

excessive vibration when rotating at high speeds. It

may cause damage to mower and could break

causing personal injury.

5. Lubricate the engine crankshaft and the inner surface of

the blade adapter with light oil. Slide the blade adapter

onto the engine crankshaft. Place the blade on the adapter

such that the side of the blade marked "Bottom" (or with

part number) faces the ground when the mower is in the

operating position. Make sure that the blade is aligned and

seated on the blade adapter flanges.

6. Place blade bell support on the blade. Align notches on the

blade bell support with small holes in blade.

7. Replace hex bolt and tighten hex bolt to torque: 450 in. Ibs.

rain., 600 in. Ibs. max.

To ensure safe operation of your mower, periodically check the

blade bolt for correct torque.

Off-SeasonStorage

The following steps should be taken to prepare your lawn mower

for storage.

Clean and lubricate mower thoroughly as described in the

lubrication instructions.

Do not use a pressure washer or garden hose to clean your

unit.

Coat mower's cutting blade with chassis grease to prevent

rusting.

Store mower in a dry, clean area. Do not store next to

corrosive materials, such as fertilizer.

When storing any type of power equipment in a poorly

ventilated or metal storage shed, care should be taken to

rust-proof the equipment. Using a light oil or silicone, coat the

equipment, especially cables and all moving parts of your lawn

mower before storage.

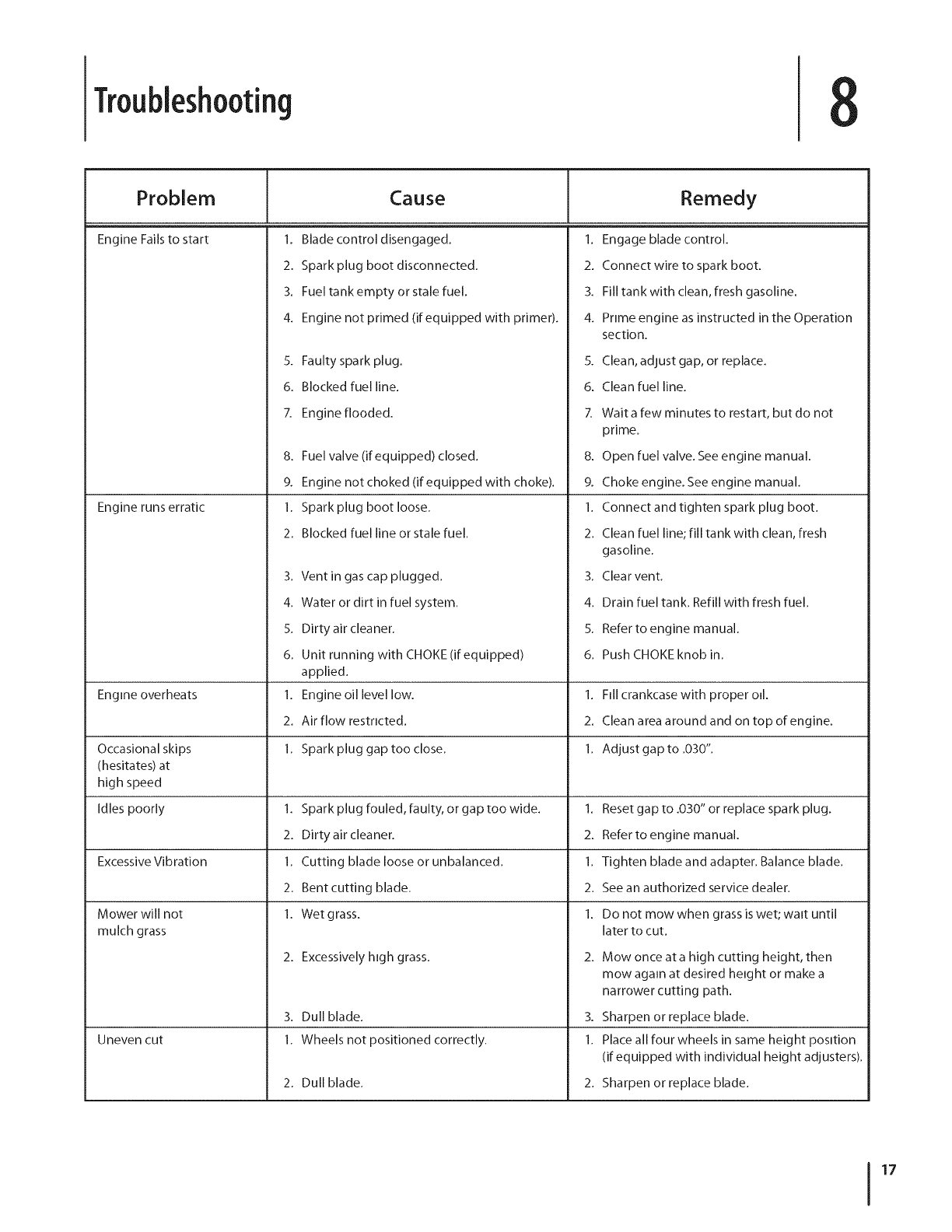

Troubleshooting

Problem

Engine Fails to start

Engine runs erratic

Cause

Blade control disengaged. 1.

Spark plug boot disconnected. 2.

Fuel tank empty or stale fuel. 3.

Engine not primed (if equipped with primer). 4.

Remedy

Engage blade control.

Connect wire to spark boot.

Filltank with clean, fresh gasoline.

Prime engine as instructed in the Operation

section.

5. Faulty spark plug.

6. Blocked fuel line.

7. Engine flooded.

8. Fuel valve (if equipped) closed.

5. Clean, adjust gap, or replace.

6. Clean fuel line.

7. Wait a few minutes to restart, but do not

prime.

8. Open fuel valve. See engine manual.

Engine not choked (if equipped with choke). 9.

Spark plug boot loose. 1.

Blocked fuel line or stale fuel. 2.

3. Ventin gas cap plugged. 3.

4. Water or dirt in fuel system. 4.

Dirty air cleaner. 5.

Unit running with CHOKE (if equipped) 6.

Choke engine. See engine manual.

Connect and tighten spark plug boot.

Clean fuel line; fill tank with clean, fresh

gasoline.

Clear vent.

Drain fuel tank. Refill with fresh fuel.

Refer to engine manual.

Push CHOKE knob in.

applied.

Engine overheats 1. Engine oil level low. 1. Fill crankcase with proper od.

2. Air flow restricted. 2. Clean area around and on top of engine.

Occasional skips 1. Spark plug gap too close. 1. Adjust gap to .030".

(hesitates) at

high speed

Idles poorly 1. Spark plug fouled, faulty, or gap too wide. 1.

2. Dirty air cleaner. 2.

Excessive Vibration 1. Cutting blade loose or unbalanced. 1.

2. Bent cutting blade. 2.

Mower will not 1. Wet grass. 1.

mulch grass

2. Excessively high grass. 2.

3. Dull blade. 3.

1. Wheels not positioned correctly. 1.

2. Dull blade. 2.

Uneven cut

Reset gap to .030" or replace spark plug.

Refer to engine manual.

Tighten blade and adapter. Balance blade.

See an authorized service dealer.

Do not mow when grass is wet; wait until

later to cut.

Mow once at a high cutting height, then

mow again at desired height or make a

narrower cutting path.

Sharpen or replace blade.

Place all four wheels in same height posttion

(if equipped with individual height adjusters).

Sharpen or replace blade.

EngineOperation

Fuel Cap

\\\

Air Cleaner

Grip

OU Fill ........

Cap

Mumer

Primer

Spark Plug

Pre-OperationCheck

OilRecommendations

NOTE:This engine is shipped without gasoline or oil in the

engine. Running the engine with insufficient oil can cause

serious engine damage and void the engine warranty.

Before starting engine, fill with oil. Do not over-fill. Oil

capacity is about 20 oz.

Use a 4-stroke, or an equivalent high detergent, premium

quality motor oil certified to meet or exceed U.S. automobile

manufacturer's requirements for service classification SG/SF.

Motor oils classified SG/SF will show this designation on the

container.

SAE 10W-30 is recommended for general, all temperature use. If

single viscosity oil is used, select the appropriate viscosity for the

average temperature in your area from the chart to the right.

Figure 10-1

_ 20w

m__ 20

mlmlllm Iilmllm m,3o

2ow4o, _ow5o_____

15w40, O_____m/b.

Q lOW40 Iilmmmmlll ml_lmmlmmmmmm

I v

lOw30_____u

(°C)-30 ° -20° -10° 0° 10° 20o 30o 40o

(°F)-20 ° 0° 20o 40o 60o 80o 100o

Ambient Temperature

1. Single Viscosity

2. Multi Viscosity

NOTE: Using non detergent oil or 2-stroke engine oil could

shorten the engine's service life.

CheckOilLevel

NOTE: Be sure to check the engine on a level surface with the

engine stopped.

1. Remove the oil filler cap and wipe the dipstick clean. See

Fig. 10-2.

Oil Fill Ca

Dipstick l

Figure 10-2

Insert the dipstick into the oil filler neck, but do not screw

itin.

If the level is low, slowly add oil to the upper limit on the

dipstick. See Fig. 10-2 inset.

Tighten dipstick firmly before starting engine.

NOTE: Do not overfill. Overfilling with oil may cause

smoking, hard starting, spark plug fouling, or oil saturation

of air cleaner.

Fuel Recommendations

Use automotive gasoline (unleaded or low leaded to minimize

combustion chamber deposits) with a minimum of 87 octane,

Gasoline with up to 10% ethanol or 15 _ MTBE (Methyl Tertiary 3.

Butyl Ether) can be used. Never use an oil/gasoline mixture, dirty

gasoline, or gasoline over 30 days old. Avoid getting dirt, dust, or

water in the fuel tank. DO NOT USE E85 GASOLINE.

WARNING: Gasoline is extremely flammable and is

explosive under certain conditions. Refuel in a well-

ventilated area with the engine stopped. Do not

smoke or allow flames or sparks in the area where

the engine is refueled or where gasoline is stored.

Avoid repeated or prolonged contact with skin or

breathing of va pot.

WARNING: Do not overfill the fuel tank (there

should be no fuel in the filler neck). After refueling,

make sure the tank cap is closed properly and

securely. Be careful not to spill fuel when refueling.

Spilled fuel or fuel vapor may ignite. If any fuel is

spilled, make sure the area is dry before starting the

engine.

CheckFuel Level

1. Clean around fuel fill before removing cap to fuel.

2. Fill tank to approximately 1-inch below lowest portion of

neck to allow for fuel expansion. Be careful not to overfill.

NOTE: Before refueling, allow engine to cool 2 minutes.

Starting TheEngine

_ARNING: Always keep hands and feet clear of

equipment moving parts. Do not use a pressurized

starting fluid. Vapors are flammable.

1. Push primer 1-3 times. Wait about two seconds between

each push. See Fig. 5-1. In temperature around 50°F or

below, prime 3-5 times. After the engine is warmed up, one

prime may be needed for all temperatures.

Figure 10-3

Standing behind the mower, squeeze the blade control

against upper handle.

Holding these two handles together firmly, grasp recoil

starter handle and pull rope 1-3 times. See Fig. 5-1. Keeping

a firm grip on the starter handle, let the rope rewind each

time slowly. If engine does not start, it may be necessary to

re-prime the engine.

StoppingTheEngine

1. Release the blade control.

SECTION 9 -- ENGINEOPERATION 19

EngineMaintenance 1

_ARNING: Shut offthe engine before performing

any maintenance. To prevent accidental start-up,

disconnect the spark plug boot.

IMPORTANT: If engine must be tipped to transport equipment

or to inspect or remove grass, keep spark plug side of engine

up. Transporting or tipping engine spark plug down may cause

smoking, hard starting, spark plug fouling, or oil saturation of air

cleaner.

MaintenanceSchedule

Periodic inspection and adjustment of the engine is essential

if high level performance is to be maintained. Regular

maintenance will also ensure a long service life. The required

service intervals and the kind of maintenance to be performed

are described in the table below. Follow the hourly or calendar

intervals, whichever occur first. More frequent service is required

when operating in adverse conditions.

_1 WARNING: If the engine has been running, the

muffler will be very hot. Be careful not to touch the

muffler.

EachUseor

EveryS Hrs.

EverySeason

or25 Hours

EverySeason

or SOHours

EverySeason

or 100Hours

Service

Dates

FirstSHours

CheckEngineOil Level

ChangeEngineOil ff _/ _/

CheckAir Cleaner M/

ServiceAirCleanerf M/

CheckSparkPlug V /

ReplaceSparkPlug V /

CleanEngineShroud V /

Cleanaroundmuffler V /

ReplaceFuelFilter M/

f Service more frequently when used in dusty areas.

ff Every season or 25 hours if operating under heavy load or high ambient temperature.

Oil Service

Check oil level regularly.

Be sure correct oil level is maintained. Check every five

hours or daily before starting engine. See oil checking

procedure in the Operation section.

OilChange

IMPORTANT: Be sure to check engine on a level surface with the

engine stopped. Drain the oil while the engine is still warm to

assure rapid and complete draining.

1. Remove all fuel from tank by running engine until it stops

from lack of fuel.

2. Remove drain plug and allow oil to drain into a suitable

container. See Fig. 10-1.

Oil Fill Cap

(

Drain

Plug

Figure 10-1

i_ WARNING: Before tipping engine or equipment to

drain oil, drain fuel from tank by running engine

until fuel tank is empty.

3. Reinstall the drain plug and tighten it securely.

4. Refill with the recommended oil (see Operation section)

and check the oil level. See Fig. 10-1.

5. Reinstall the oil fill cap securely.

IMPORTANT: Used motor oil may cause skin cancer if repeatedly

left in contact with the skin for prolonged periods. Although this

is unlikely unless you handle used oil on a daily basis, it is still

advisable to thoroughly wash your hands with soap and water as

soon as possible after handling used oil.

NOTE: Please dispose of used motor oil in a manner that is

compatible with the environment. We suggest you take it in a

sealed container to your local service station for reclamation. Do

not throw it in the trash or pour it on the ground.

AirCleanerService

i_ll WARNING: Never use gasoline or low flash point

solvents for cleaning the air cleaner element. A fire

or explosion could result.

IMPORTANT: Never run the engine without the air cleaner. Rapid

engine wear will result.

1. Open air cleaner cover by pressing down and back on cover

to release tab. See Fig. 10-2. Clean foam element or replace

when damaged.

Tab

Foam

Element

Figure 10=2

2_ To clean foam element, wash in liquid detergent and water.

Allow to dry thoroughly before using. Do not oil the foam

element.

SECTION10 -- ENGINE MAINTENANCE 21

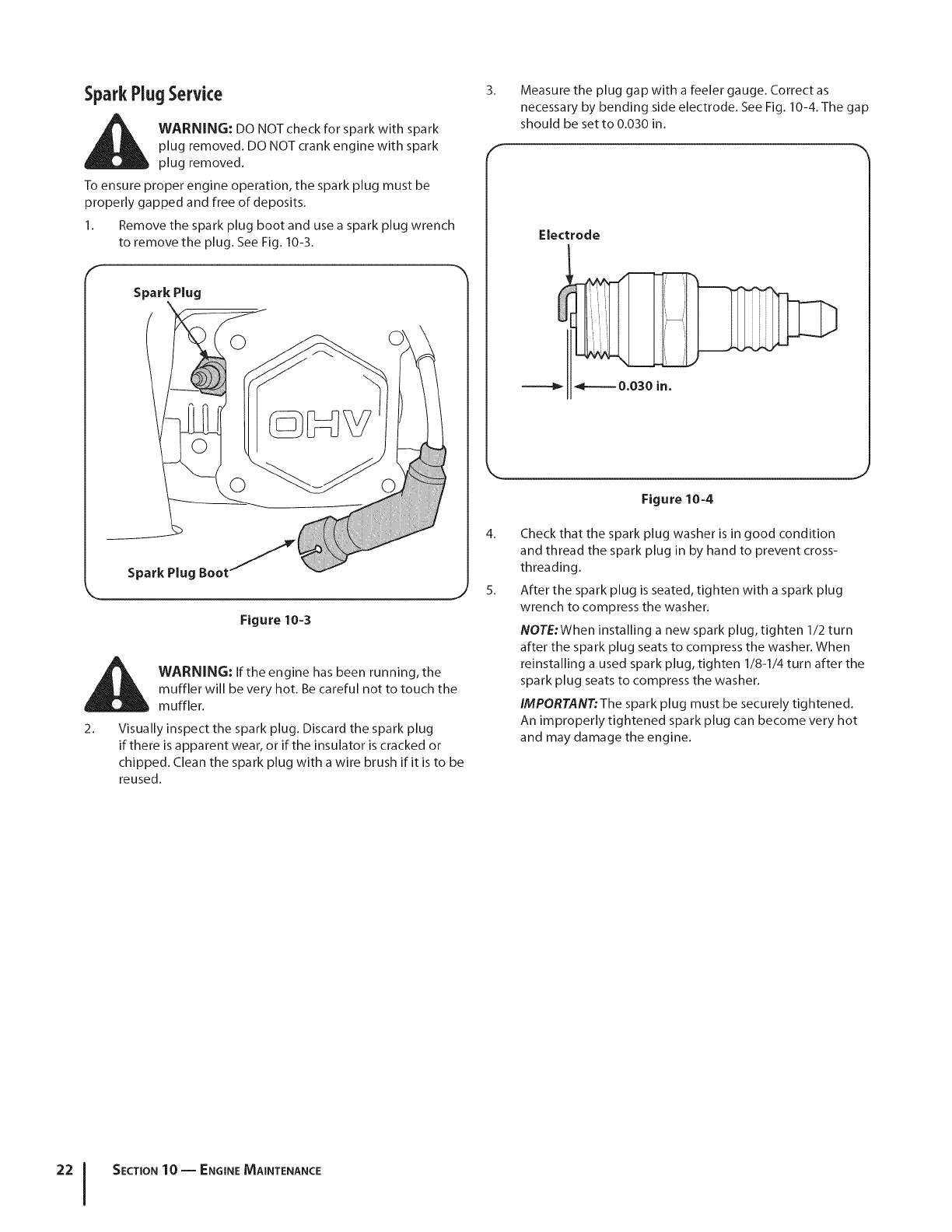

SparkPlugService

_ WARNING: DO NOT check for spark with spark

plug removed. DO NOT crank engine with spark

plug removed.

To ensure proper engine operation, the spark plug must be

properly gapped and free of deposits.

1. Remove the spark plug boot and use a spark plug wrench

to remove the plug. See Fig. 10-3.

Spark Plug

Figure 10=3

i_ WARNING: If the engine has been running, the

muffler will be very hot. Be careful not to touch the

muffler.

2. Visually inspect the spark plug. Discard the spark plug

if there is apparent wear, or if the insulator is cracked or

chipped. Clean the spark plug with a wire brush if it is to be

reused.

Measure the plug gap with a feeler gauge. Correct as

necessary by bending side electrode. See Fig. 10-4. The gap

should be set to 0.030 in.

Electrode

Figure 10-4

Check that the spark plug washer is in good condition

and thread the spark plug in by hand to prevent cross-

threading.

After the spark plug is seated, tighten with a spark plug

wrench to compress the washer.

NOTE:When installing a new spark plug, tighten 1/2 turn

after the spark plug seats to compress the washer. When

reinstalling a used spark plug, tighten 1/8-1/4 turn after the

spark plug seats to compress the washer.

IMPORTANT:The spark plug must be securely tightened.

An improperly tightened spark plug can become very hot

and may damage the engine.

SECTION10 -- ENGINE MAINTENANCE

FuelFilter Service

The fuel filter cannot be cleaned and must be replaced once a

year or every 100 operating hours; more often if run with old

gasoline.

1. Remove all fuel from tank by running engine until it stops

from lack of fuel.

2. Remove c-clamp from fuel line and remove fuel line from

tank outlet. See Fig. 10-5.

Figure 10-5

3. Pull out old fuel filter from tank outlet. Replace when dirty

or damaged.

4. Grasp new fuel filter from shouldered end and insert it

completely to the shoulder into the tank outlet. See Fig.

10-5 inset.

5. Replace fuel line and c-clamp.

CleanEngine

If the engine has been running, allow it to cool for at least half

an hour before cleaning. Periodically remove dirt build-up from

engine. Clean finger guard and around muffler. Clean with a

brush or compressed air.

IMPORTANT'. Do not spray engine with water to clean because

water could contaminate fuel. Using a garden hose or pressure

washing equipment can also force water into the air cleaner or

muffler opening. Water in the air cleaner will soak the paper

element, and water that passes through the element or muffler

can enter the cylinder, causing damage.

i_lk WARNING: Accumulation of debris around muffler

could cause a fire. Inspect and clean before every

use.

Storage

Engines stored between 30 and 90 days need to be treated with

a gasoline stabilizer and engines stored over 90 days need to be

drained of fuel to prevent deterioration and gum from forming

in fuel system or on essential carburetor parts. If the gasoline in

your engine deteriorates during storage, you may need to have

the carburetor, and other fuel system components, serviced or

replaced.

1. Remove all fuel from tank by running engine until it stops

from lack of fuel.

_i ARNING: Never leave engine unattended while

running.

Change oil. See Oil Change section.

Remove spark plug and pour about 1/2 an ounce of engine

oil into cylinder. Replace spark plug and crank slowly to

distribute oil.

Clean debris from around engine, under finger guard, and

under, around and behind muffler. Touch upany damaged

paint, and coat other areas that may rust with a light film

of oil.

5. Store in a clean, dry and well ventilated area away from any

appliance that operates with a flame or pilot light, such

as a furnace, water heater, or clothes dryer. Also avoid any

area with a spark producing electric motor, or where power

tools are operated.

6. If possible, also avoid storage areas with high humidity,

because that promotes rust and corrosion.

7. Keep the engine level in storage. Tilting can cause fuel or

oil leakage.

Removing FromStorage

Check your engine as described in the Pre-Operation Check

section of this manual.

If the fuel was drained during storage preparation, fill the

tank with fresh gasoline. If you keep a container of gasoline

for refueling, make certain it contains only fresh fuel.

Gasoline oxidizes and deteriorates over time, causing hard

starting.

If the cylinder was coated with oil during storage

preparation, the engine will smoke briefly at startup. This

is normal.

SECTION10 -- ENGINE MAINTENANCE 23

TheEZStartPromise

ProvisionsofYourLimitedWarranty

In addition to the other terms and conditions of the Limited Warranty

applicable to your new mower, MTD LLC ("MTD") hereby warrants

that your mower's engine will start on the first or second attempt by

an able-bodied adult (subject to the limitations described below) for

the duration of the manufacturer's limited warranty applicable to your .

product. If the engine on your mower fails to conform to this limited

warranty, MTD will cover the cost of parts and labor associated with e

any adjustments and/or repairs necessary to return your engine

to its warranted condition. In order to make a claim under these

provisions of your warranty, you must bring the product and proof of

purchase to an authorized MTD service provider. In many cases,the

retailer who sold you your mower is not equipped to provide warranty

service, so please locate the authorized service dealer nearest you by

either calling the phone number provided in your Operators Manual or

looking up an authorized service dealer on-line at www.mtdproducts.

com.

Items and Conditions Not Covered

The EZStart Promise does not cover and/or apply to the following:

• Cost of regular maintenance service or parts, such as filters, fuel,

lubricants, oil changes, spark plugs, air filter, blade sharpening,

worn blades, cable/linkage adjustments, or brake and clutch

adjustments

= Transportation costs to and from an authorized MTD service

provider

= Any engine used for commercial, rental, institutional, governmen-

tal, or non-residential applications

= Any product or part that has been altered or misused or required

replacement or repair due to misuse, accidents, or lack of proper

maintenance

• Repairs necessary due to improper battery care, electrical supply

irregularities, or failure to properly prepare the mower prior to any

period of non-use over three months

= Pickup and/or delivery charges

• Operational misuse, neglect, accidents, unauthorized repairs or

attempted repairs of the engine or its components by anyone other

than an authorized MTD service provider.

Repairs or adjustments to correct starting difficulties dueto any

of the following: failure to follow proper maintenance procedures

-- rotary mower blade striking an object -- contaminants in the

fuel system --improper fuel or fuel/oil mixture (consult your

Operator's Manual if in doubt) -- failure to drain the fuel system

prior to any period of non-use over three months.

Any starting problem which results from the use of inappropriate

fuels, lubricants, or additives.

Special conditions or circumstances that normally require more

than two pulls to start, specifically: 1) First start-up following your

initial purchase, 2) first time starts after extended period(s) of

non-use over one month or seasonal storage, 3) cool temperature

starts such as those found in early spring and late autumn, and 4)

difficult starting that results from the operator's failure to follow

the proper starting procedures identified in the Operator's Manual.

If you are having difficulty starting your unit, please check the

Operator's Manual to ensure that you are using the correct starting

procedures. This can save an unnecessary visit to a Service

Dealer.

Owner Responsibilities

You must maintain your mower (including its engine) by following the

maintenance procedures and starting instructions described in the

Operator's Manual. Such routine maintenance, whether performed by

a dealer or by you, is at your expense. In addition, please retain your

proof of purchase and service receipts as these may be required to

validate a claim.

General Conditions

An authorized MTD service provider using approved replacement

parts must perform all repairs covered by the EZ Start Promise.

Repair by an MTD authorized service dealer is your sole remedy

under this warranty. MTD is not liable for indirect, incidental, or

consequential damages in connection with the useof the products

covered by these warranties, including any cost or expense of

providing substitute equipment or service during reasonable periods

of malfunction or non-use pending completion of repairs under this

warranty.

Some states do not allow exclusions of incidental or consequential

damages, or limitations on how long an implied warranty lasts, so

certain exclusions and limitations may not apply to you.

GDO0-100163 Rev.B

Notes

Model02M

27 24

Model02M

Ref, [

Part Number

710-0654A

787-01602-0638

749-04037

749-I092A-0637

747-I 161A-0637

731-0872B

17098P

710-I044

736-0524B

748-0376C

942-0640

731-0064

710-0932

736-0173

710-3008

712-04063

710-1205

710-0262

753-0588

712-04064

734-04063

938-0533

736-0105

712-04065

725-0157

746-0957

938-04033

Description

Hex Ind. Washer Screw, 3/8-16 x 1.0

Cutting Deck: 20"

Lower Handle

Upper Handle

Control Handle (Bail)

Rear Flap

Hinge Clip

Screw, 3/8-24 x 1.5"

Blade Bell Support

Blade Adapter

Cutting Blade

Discharge Chute

Carriage Screw, 1/4-20 x 1.0"

Flat Washer

Hex Screw, 5/16-18 x .75"

Flange Lock Nut, 5/16-18

Eye Bolt

Carriage Bolt, 5/16-18 x 1.5"

Blade Adapter Kit (Incl. Ref. 8-10)

Flange Lock Nut, 1/4-20

Wheel, 7" Star-Dia., Oys. Gray

Shoulder Screw, .498 x 1.635

Bell Washer

Flange Lock Nut, 3/8-16

Cable Tie

Control Cable

Shoulder Screw, 5/16-18 x.428"

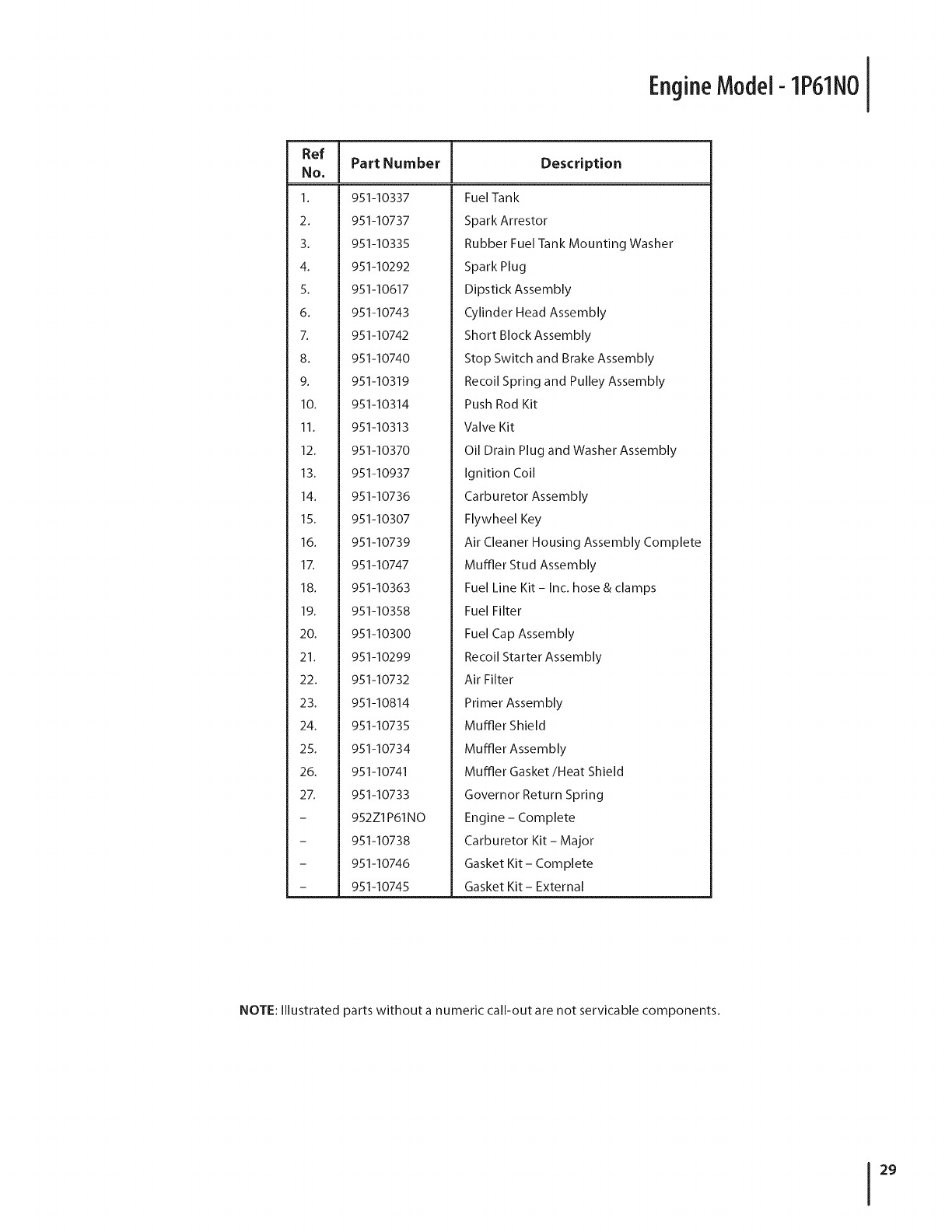

EngineModel- 1P61NO

m24

EngineModel-1P61NO

Rof]

NO,

I. 951-I0337

2. 951-10737

3. 951-10335

4. 951-10292

5. 951-10617

6. 951-10743

7. 951-10742

8. 951-10740

9. 951-10319

10. 951-10314

11. 951-10313

12. 951-10370

13. 951-10937

14. 951-10736

15. 951-10307

16. 951-10739

IZ 951-10747

18. 951-10363

19. 951-10358

20. 951-10300

21. 951-10299

22. 951-10732

23. 951-10814

24. 951-10735

25. 951-10734

26. 951-10741

27. 951-10733

- 952ZIP61NO

- 951-10738

- 951-10746

- 951-10745

Part Number Description

Fuel Tank

Spark Arrestor

Rubber Fuel Tank Mounting Washer

Spark Plug

Dipstick Assembly

Cylinder Head Assembly

Short Block Assembly

Stop Switch and Brake Assembly

Recoil Spring and Pulley Assembly

Push Rod Kit

Valve Kit

Oil Drain Plug and Washer Assembly

Ignition Coil

Carburetor Assembly

Flywheel Key

Air Cleaner Housing Assembly Complete

Muffler Stud Assembly

Fuel Line Kit - Inc. hose & clamps

Fuel Filter

Fuel Cap Assembly

Recoil Starter Assembly

Air Filter

Primer Assembly

Muffler Shield

Muffler Assembly

Muffler Gasket/Heat Shield

Governor Return Spring

Engine - Complete

Carburetor Kit - Major

Gasket Kit - Complete

Gasket Kit - External

NOTE: Illustrated parts without a numeric call-out are not servicable components.

MTD CONSUMER GROUP (MTD) and the United States Environment Protection Agency (U. S. EPA)

Emission Control System Warranty Statement

(Owner's Defect Warranty Rights and Obligations)

The U.S. EPAand MTDarepleasedto explaintheemissionscontrolsystemwarrantyonyour modelyear 2005and latersmalloff-roadengine.

Newsmalloff-roadenginesmustbe designed,builtandequippedto meetthe stringentanti-smogstandards.MTDmustwarrantythe emission

controlsystemonyour enginefor the periodof timelistedbelow,providedtherehas beennoabuse,neglector impropermaintenanceof yoursmall

off-roadengine.

Youremissioncontrolsystemmayincludepartssuchas the carburetor,aircleaner,ignitionsystem,exhaustsystem,andotherassociatedemis-

sion-relatedcomponents.

Wherea warrantableconditionexists,MTDwill repairyoursmalloff-roadengineat nocost to yourincludingdiagnosis,partsand labor.

MANUFACTURER'S WARRANTY COVERAGE:

Thisemissionscontrolsystemis warrantedfor twoyears.If anyemission-relatedpart onyourengineis defective,the part will berepairedor

replacedby MTD.

OWNER'S WARRANTY RESPONSIBILITIES:

As the smalloff-roadengineowner,youare responsibleforthe performanceof the requiredmaintenancelistedinyour Owner'sManual.MTD

recommendsthatyou retainall yourreceiptscoveringmaintenanceson yoursmalloff-roadengine,but MTDcan not denywarrantysolelyfor the

lackof receiptsor foryour failureto ensurethe performanceto allscheduledmaintenance.

As the smalloff-roadengineowner,youshouldhoweverbeawarethat MTDmaydenyyour warrantycoverageif yoursmalloff-roadengineorpart

hasfaileddue toabuse,neglect,impropermaintenanceor unapprovedmodifications.

Youare responsiblefor presentingyour smalloff-roadengineto an AuthorizedMTDServiceDealeras soonas a problemexists.Thewarranted

repairsshouldbe completedina reasonableamountof time,notto exceed30 days.

Ifyou haveanyquestionsregardingyourwarrantyrightsand responsibilities,you shouldcontacta MTDServiceRepresentativeat 1-800-800-7310

andaddressis MTDLLC,RO.Box361131,ClevelandOH,44136-0019.

DEFECTS WARRANTY REQUIREMENTS FOR 1995 AND LATER SMALL OFF-ROAD ENGINES:

Thissectionappliesto 1995andlater smalloff-roadengines.The warrantyperiodbeginsonthe datethe engineor equipmentis deliveredto an

ultimatepurchaser.

(a) GeneralEmissionsWarrantyCoverage_

MTDmustwarrantto the ultimatepurchaserandeachsubsequentpurchaserthatthe engineis:

(1)Designed,built,andequippedsoas to conformwithallapplicableregulationsadoptedby the AirResourcesBoardpursuantto itsauthorityin

Chapters1and2,Part5, Division26of the HealthandSafetyCode;and

(2) Freefromdefectsin materialsandworkmanshipthatcausethe failureof a warrantedpart to beidenticalin all materialrespectsto the partas

describedin theenginemanufacturer'sapplicationfor certificationfora periodof twoyears.

.(b)The warrantyonemissions-relatedpartswill be interpretedas follows:

(1)Anywarrantedpart thatis not scheduledfor replacementas requiredmaintenanceinthe writteninstructionsrequiredby Subsection(c)

mustbewarrantedfor the warrantyperioddefinedinSubsection(a)(2). Ifany suchpartfailsduringthe periodof warrantycoverage,it mustbe

repairedor replacedby MTDaccordingto Subsection(4)below.Anysuchpart repairedor replacedunderthewarrantymustbewarrantedfor

the remainingwarrantyperiod.

(2)Any warrantedpartthat is scheduledonlyfor regularinspectioninthe writteninstructionsrequiredby Subsection(c) must bewarrantedfor

thewarrantyperioddefinedin Subsection(a)(2).A statementinsuchwritteninstructionsto the effectof "repairor replaceas necessary"will

not reducethe periodof warrantycoverage.Anysuchpart repairedor replacedunderwarrantymustbe warrantedforthe remainingwarranty

period.

(3) Anywarrantedpartthat whichis scheduledfor replacementas requiredmaintenancein the writteninstructionsrequiredby Subsection(c)

mustbewarrantedfor the periodof timepriorto the first scheduledreplacementpointforthat part.Ifthe part failspriorto thefirst scheduled

replacement,the part mustbe repairedor replacedby MTDaccordingto Subsection(4) below.Any suchpart repairedor replacedunder

warrantymustbewarrantedfor the remainderof the periodpriorto the first scheduledreplacementpointfor the part.

(4) Repairor replacementof any warrantedpartunderthewarrantyprovisionsof thisarticlemustbe performedat nochargeto the ownerat a

warrantystation.

(5) Notwithstandingthe provisionsof Subsection(4)above,warrantyservicesor repairsmustbe providedat all MTDdistributioncentersthat

arefranchisedto servicethe subjectengines.

(6) Theownermustnot bechargedfor diagnosticlaborthatleadsto thedeterminationthata warrantedpart is in fact defective,providedthat

suchdiagnosticworkis performedat a warrantystation.

(7)Theenginemanufacturerisliablefordamagestootherenginecomponentsproximatelycausedbyafailureunderwarrantyofanywarranted

part.

(8)Throughouttheengine'swarrantyperioddefinedinSubsection(a)(2),MTDwillmaintainasupplyofwarrantedpartssufficienttomeetthe

expecteddemandforsuchparts.

(9)Anyreplacementpartmaybeusedintheperformanceofanywarrantymaintenanceorrepairsandmustbeprovidedwithoutchargetothe

owner.SuchusewillnotreducethewarrantyobligationsofMTD.

(10)Add-onormodifiedpartsthatarenotexemptedbytheAirResourcesBoardmaynotbeused.Theuseofanynon-exemptedadd-onor

modifiedpartsshallbegroundsfordisallowingawarrantyclaimmadeinaccordancewiththisarticle.Theenginemanufacturershallnotbe

liableunderthisarticletowarrantfailuresofwarrantedpartscausedbytheuseofnon-exemptedadd-onormodifiedpart.

(c) MTDwill includea copyof the followingemissionwarrantypartslistwitheach newengine,usingthoseportionsof the listapplicableto the

e__&gine.

(1)FuelMeteringSystem

• Coldstart enrichmentsystem(soft choke)

• Carburetorand internalparts

• Fuel Pump

(2)Air InductionSystem

• Aircleaner

• Intakemanifold

(3) IgnitionSystem

• Sparkplug(s)

MagnetoIgnitionSystem

(4)ExhaustSystem

(5) MiscellaneousItemsUsedin AboveSystem

Vacuum,temperature,position,timesensitivevalvesand switches

Connectorsandassemblies

GDOC-100173Rev.A

MANUFACTURER'S LiMiTED WARRANTY FOR

The limited warranty set forth below is given by MTD LLC with

respect to new merchandise purchased and used in the United States

and/or its territories and possessions, and by MTD Products Limited

with respect to new merchandise purchased and used in Canadaand/

or its territories and possessions (either entity respectively, "MTD").

"MTD" warrants this product (excluding its Normal WearParts and

Attachments as described below) against defects in material and

workmanship for a period of one (1)year commencing on the date

of original purchase and will, at its option, repair or replace, free of

charge, any part found to be defective in materials or workmanship.

This limited warranty shall only apply if this product has been

operated and maintained in accordance with the Operator's Manual

furnished with the product, and has not been subject to misuse,

abuse, commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of other

peril or natural disaster. Damage resulting from the installation or use

of any part, accessory or attachment not approved by MTD for use

with the product(s) covered by this manual will void your warranty as

to any resulting damage.

Normal WearParts are warranted to be free from defects in material

and workmanship for a period of thirty (30) days from the date of

purchase. Normal wear parts include, but are not limited to items

such as: batteries, belts, blades, blade adapters, tines, grass bags,

wheels, rider deck wheels, seats, snow thrower skid shoes, friction

wheels, shave plates, auger spiral rubber and tires.

Attachments-- MTD warrants attachments for this product against

defects in material and workmanship for a period of one (1) year,

commencing on the date of the attachment's original purchase or

lease. Attachments include, but are not limited to items such as:

grass collectors and mulch kits.

HOWTO OBTAINSERVICE:Warranty service is available, WITH

PROOFOFPURCHASE,through your local authorized service dealer.

To locate the dealer in your area:

In the U.S.A.

Check your Yellow Pages, or contact MTD LLC at RO. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-

4683 or log on to our Web site at www.mtdproducts.com.

In Canada

Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-

668-1238 or log on to our Web site at www.mtdcanada.com.

This limited warranty does not provide coverage in the following

cases:

a. Log splitter pumps, valves, and cylinders havea separate one-

year warranty.

b. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments,

deck adjustments, and normal deterioration of the exterior finish

due to use or exposure.

c. Service completed by someone other than an authorized service

dealer.

d. MTD does not extend any warranty for products sold or exported

outside of the United States and/or Canada, and their respective

possessions and territories, except those sold through MTD's

authorized channels of export distribution.

e. Replacement parts that are not genuine MTD parts.

f. Transportation charges and service calls.

g. MTD does not warrant this product for commercial use.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose, applies after

the applicable period of express written warranty above as to the

parts as identified. No other express warranty, whether written or

oral, except as mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,shall

bind MTD. Duringthe period of the warranty, the exclusive remedy

is repair or replacement of the productas set forth above.

The provisions as set forth inthis warranty providethe sole and

exclusive remedy arising from the sale. MTD shall not be liable

for incidental orconsequential loss or damage including, without

limitation, expenses incurred for substitute or replacement lawn

care services or for rental expenses to temporarily replace a

warranted product.

Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long an implied

warranty lasts, so the above exclusions or limitations may not apply

to you.

In no event shall recovery of any kind begreater than the amount of

the purchase price of the product sold. Alteration of safety features of

the product shall void this warranty. You assume the risk and liability

for loss, damage, or injury to you and your property and/or to others

and their property arising out of the misuse or inability to use the

product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased as a

gift.

HOWSTATELAW RELATESTOTHIS WARRANTY: This limited

warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

IMPORTANT: Owner must present Original Proof of Purchase to

obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683

MTD Canada Limited = KITCHENER, ON N2G 4J1; Phone 1=800=668=1238

GD00-100164 REV.A

MTD 11A 02MG000 User Manual LAWN MOWER Manuals And Guides 1108161L

Navigation menu

Versions of this User Manual:

Views

Navigation
