Operator's Manual

22" Rotary Mowers

Model Series

500 Thru 509

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO.770-10334E

(10/03)

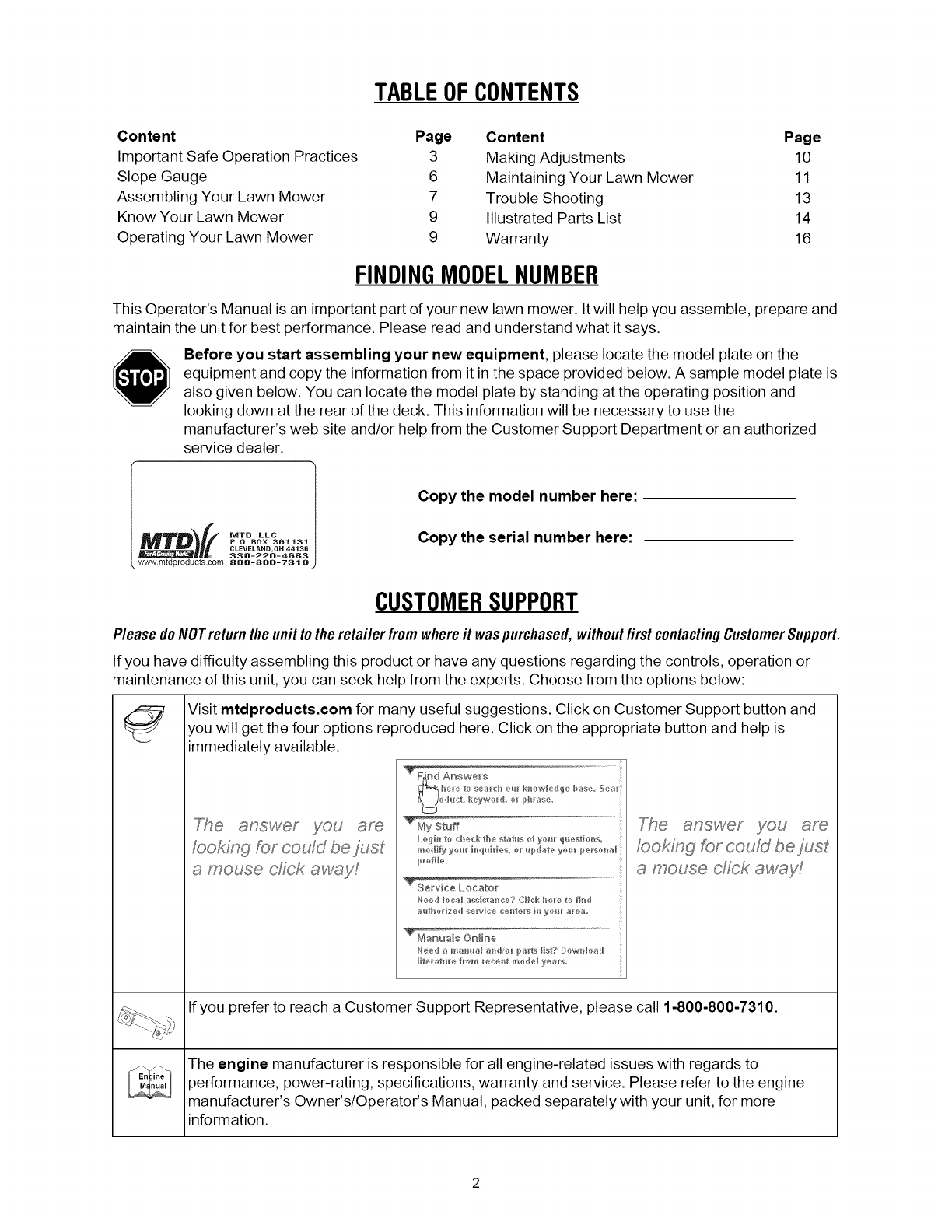

TABLEOFCONTENTS

Content

Important Safe Operation Practices

Slope Gauge

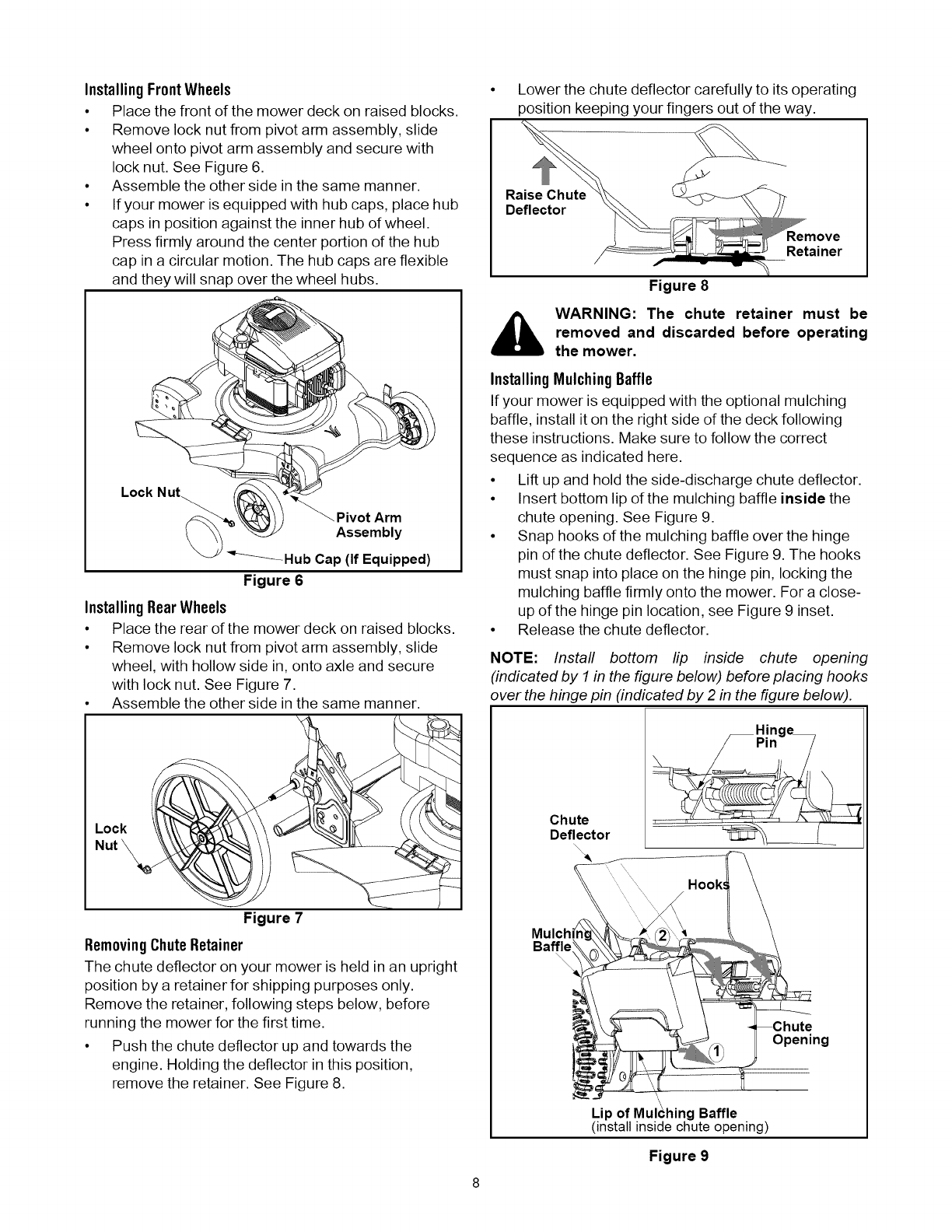

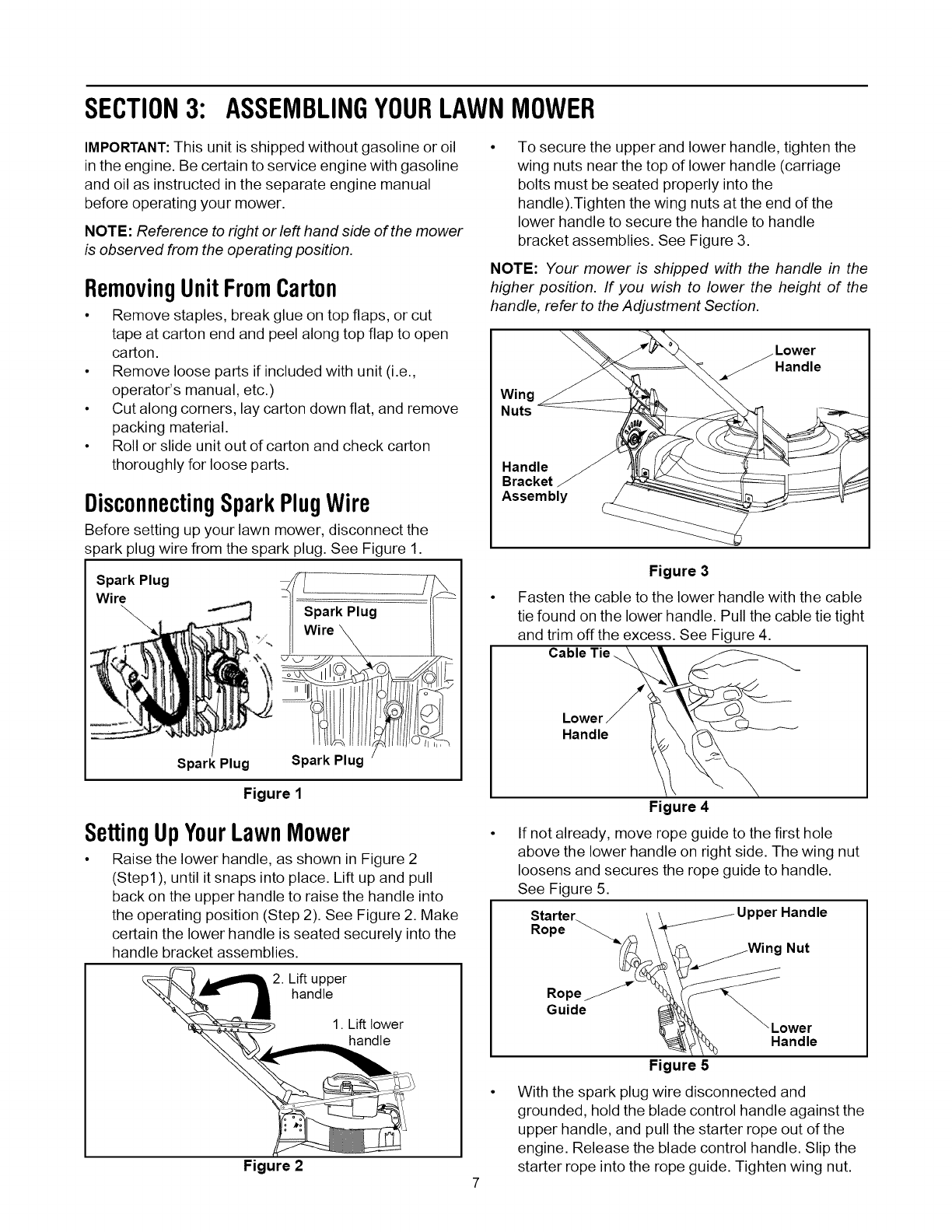

Assembling Your Lawn Mower

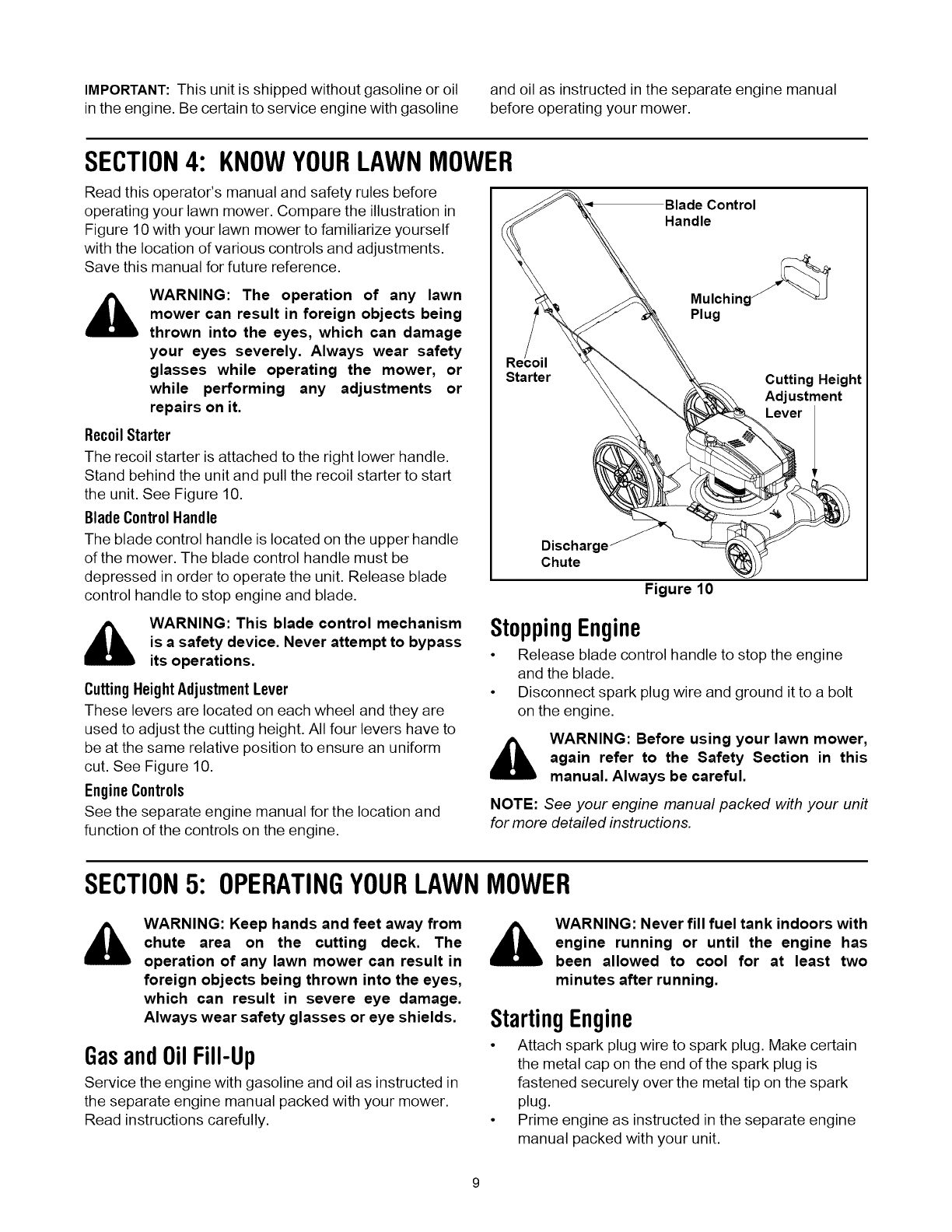

Know Your Lawn Mower

Operating Your Lawn Mower

Page Content Page

3 Making Adjustments 10

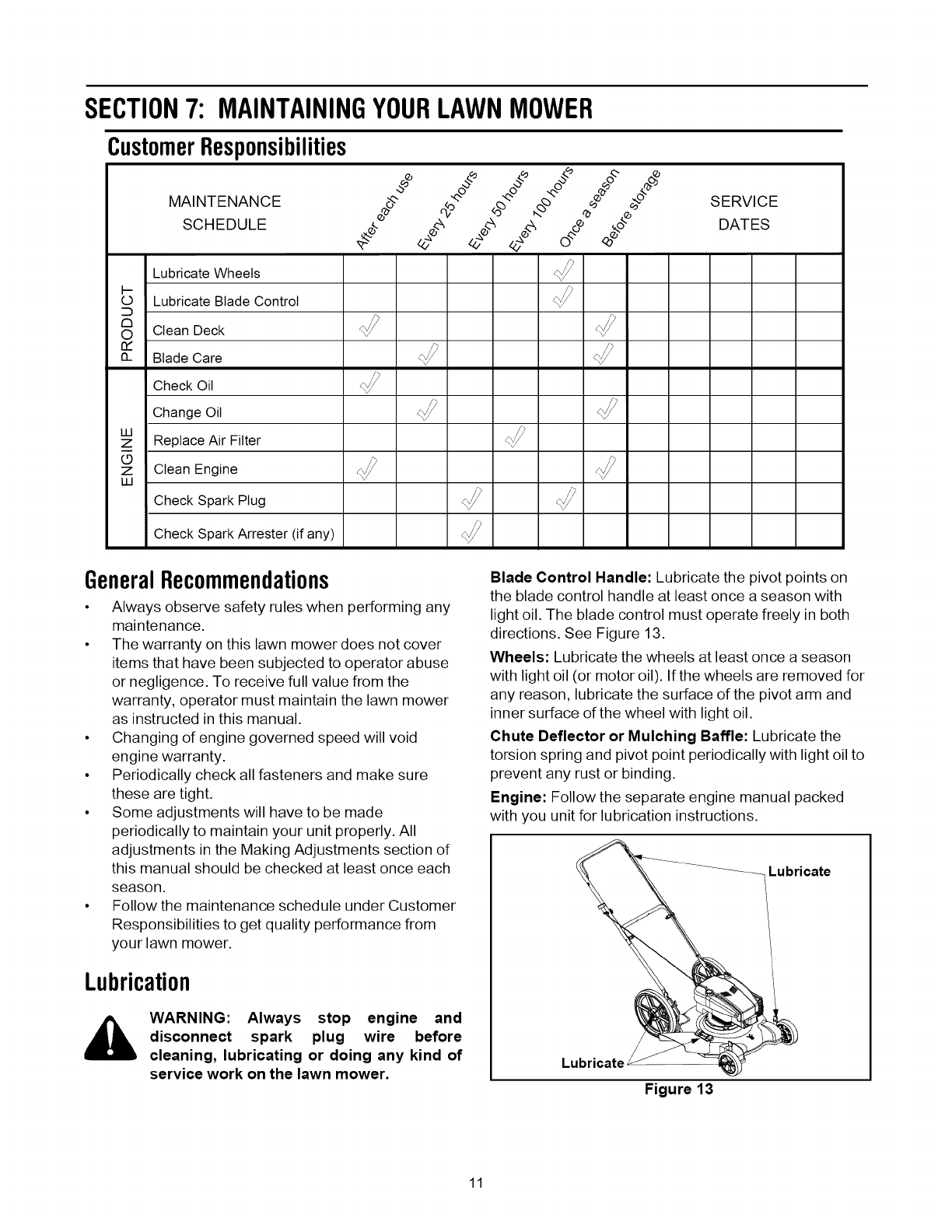

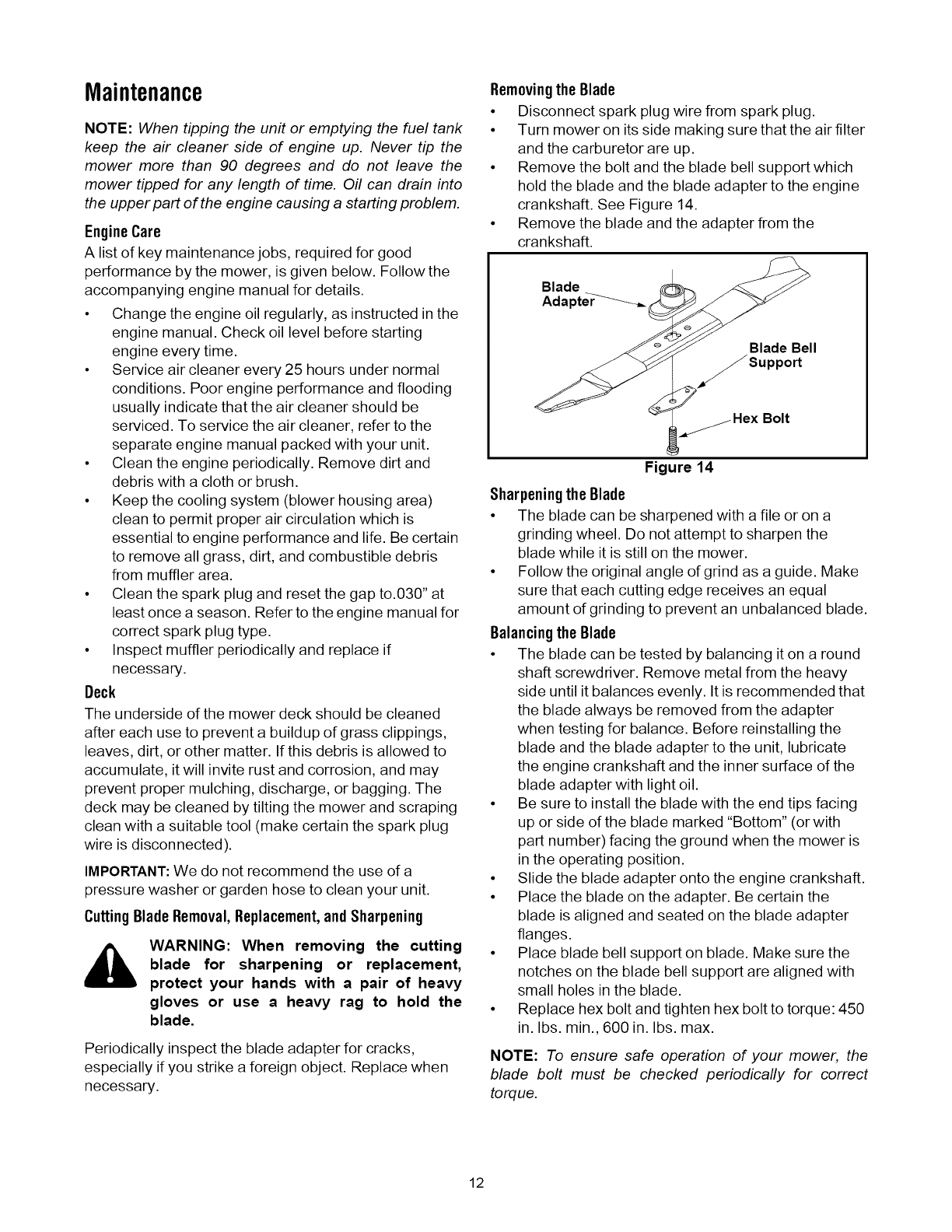

6 Maintaining Your Lawn Mower 11

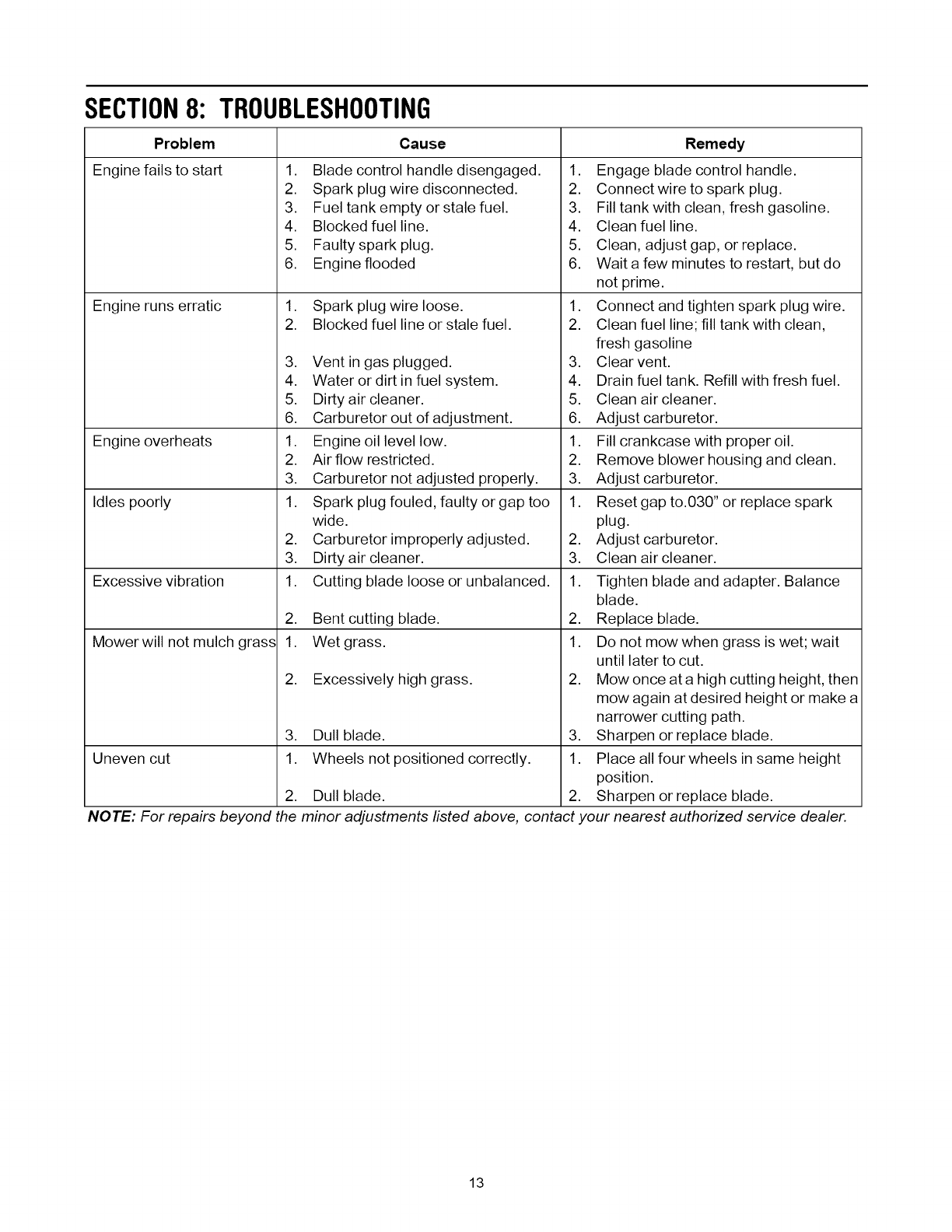

7 Trouble Shooting 13

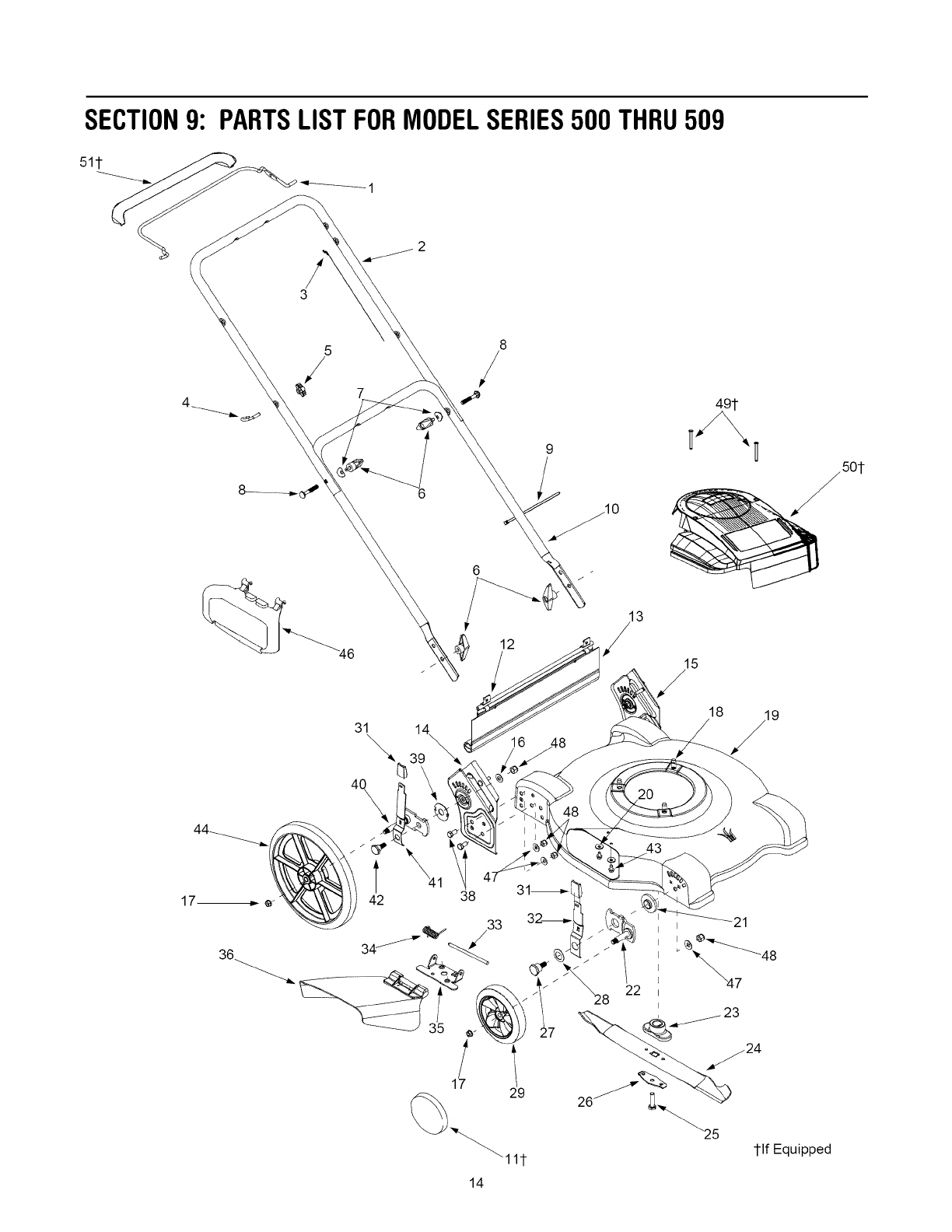

9 Illustrated Parts List 14

9 Warranty 16

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new lawn mower. It will help you assemble, prepare and

maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. A sample model plate is

also given below. You can locate the model plate by standing at the operating position and

looking down at the rear of the deck. This information will be necessary to use the

manufacturer's web site and/or help from the Customer Support Department or an authorized

service dealer.

__,_ MTDLLC

P. O. BOX 361131

CLEVELAND,OH 44136

338-228-4683

www.m_u_rouuc_s.com_-_ " 888-888-7318 •

Copy the model number here:

Copy the serial number here:

CUSTOMERSUPPORT

Please doNOTreturntheunit to the retailer fromwhereit waspurchased,withoutfirstcontactingCustomerSupport.

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

En ine

Visit mtdproducts.com for many useful suggestions. Click on Customer Support button and

you will get the four options reproduced here. Click on the appropriate button and help is

immediately available.

answer you are

looking for could be just

"f

a mouse c//cA awayf

answer aye

looking for could be just

"f

a mouse c/_cA away]

If you prefer to reach a Customer Support Representative, please call 1-800-800-7310.

The engine manufacturer is responsible for all engine-related issues with regards to

performance, power-rating, specifications, warranty and service. Please refer to the engine

manufacturer's Owner's/Operator's Manual, packed separately with your unit, for more

information.

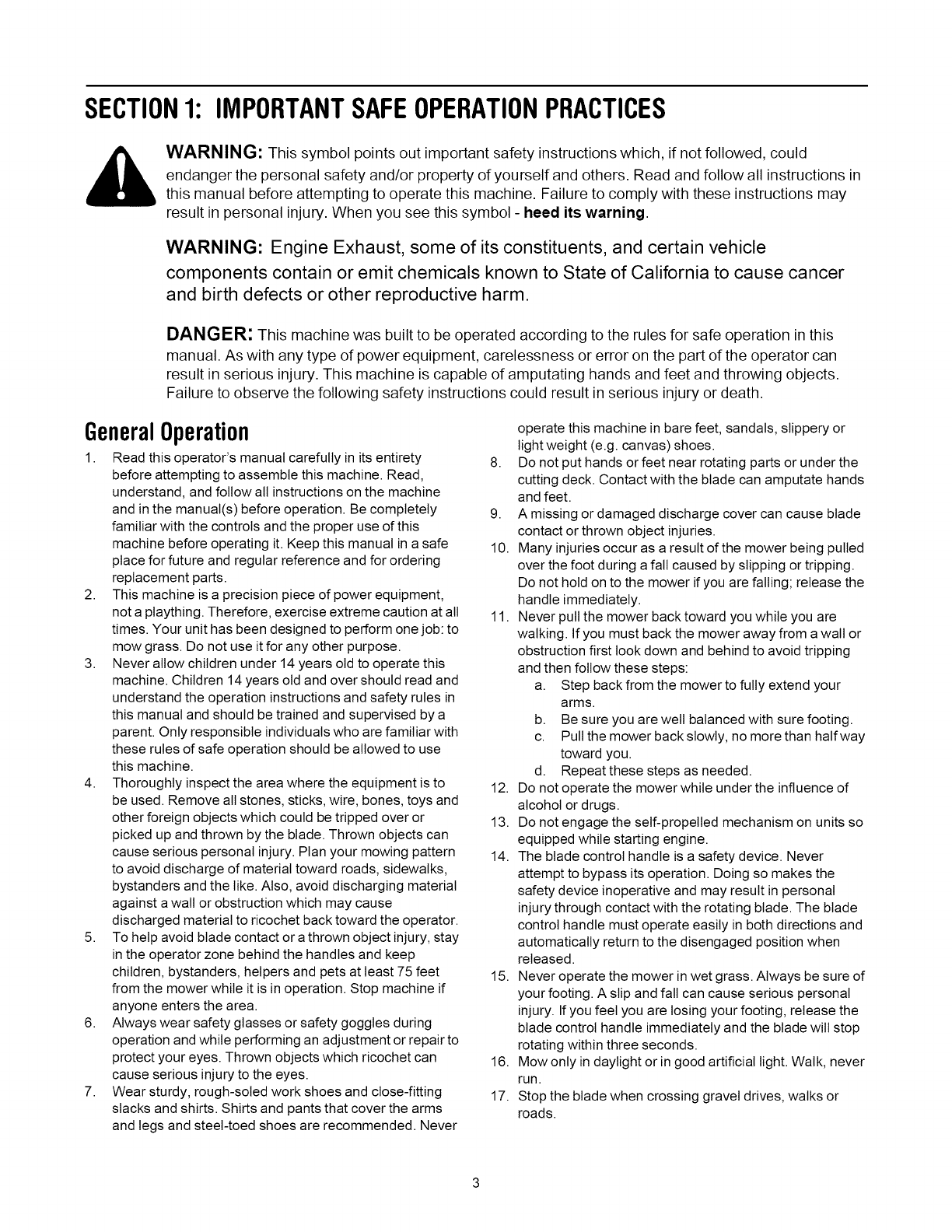

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all instructions in

this manual before attempting to operate this machine. Failure to comply with these instructions may

result in personal injury. When you see this symbol - heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to State of California to cause cancer

and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

GeneralOperation

1. Read this operator's manual carefully in its entirety

before attempting to assemble this machine. Read,

understand, and follow all instructions on the machine

and in the manual(s) before operation. Be completely

familiar with the controls and the proper use of this

machine before operating it. Keep this manual in a safe

place for future and regular reference and for ordering

replacement parts.

2. This machine is a precision piece of power equipment,

not a plaything. Therefore, exercise extreme caution at all

times. Your unit has been designed to perform one job: to

mow grass. Do not use it for any other purpose.

3. Never allow children under 14 years old to operate this

machine. Children 14 years old and over should read and

understand the operation instructions and safety rules in

this manual and should be trained and supervised by a

parent. Only responsible individuals who are familiar with

these rules of safe operation should be allowed to use

this machine.

4. Thoroughly inspect the area where the equipment is to

be used. Remove all stones, sticks, wire, bones, toys and

other foreign objects which could be tripped over or

picked up and thrown by the blade. Thrown objects can

cause serious personal injury. Plan your mowing pattern

to avoid discharge of material toward roads, sidewalks,

bystanders and the like. Also, avoid discharging material

against a walt or obstruction which may cause

discharged material to ricochet back toward the operator.

5. To help avoid blade contact or a thrown object injury, stay

in the operator zone behind the handles and keep

children, bystanders, helpers and pets at least 75 feet

from the mower while it is in operation. Stop machine if

anyone enters the area.

6. Always wear safety glasses or safety goggles during

operation and while performing an adjustment or repair to

protect your eyes. Thrown objects which ricochet can

cause serious injury to the eyes.

7. Wear sturdy, rough-soled work shoes and close-fitting

slacks and shirts. Shirts and pants that cover the arms

and legs and steel-toed shoes are recommended. Never

operate this machine in bare feet, sandals, slippery or

light weight (e.g. canvas) shoes.

8. Do not put hands or feet near rotating parts or under the

cutting deck. Contact with the blade can amputate hands

and feet.

9. A missing or damaged discharge cover can cause blade

contact or thrown object injuries.

10. Many injuries occur as a result of the mower being pulled

over the foot during a fall caused by slipping or tripping.

Do not hold on to the mower if you are falling; release the

handle immediately.

11. Never pull the mower back toward you while you are

walking. If you must back the mower away from a wall or

obstruction first took down and behind to avoid tripping

and then follow these steps:

a. Step back from the mower to fully extend your

arms.

b. Be sure you are welt balanced with sure footing.

c. Pull the mower back slowly, no more than halfway

toward you.

d. Repeat these steps as needed.

12. Do not operate the mower while under the influence of

alcohol or drugs.

13. Do not engage the self-propelled mechanism on units so

equipped while starting engine.

14. The blade control handle is a safety device. Never

attempt to bypass its operation. Doing so makes the

safety device inoperative and may result in personal

injury through contact with the rotating blade. The blade

control handle must operate easily in both directions and

automatically return to the disengaged position when

released.

15. Never operate the mower in wet grass. Always be sure of

your footing. A slip and fall can cause serious personal

injury. If you feel you are losing your footing, release the

blade control handle immediately and the blade will stop

rotating within three seconds.

16. Mow only in daylight or in good artificial light. Walk, never

run.

17. Stop the blade when crossing gravel drives, walks or

roads.

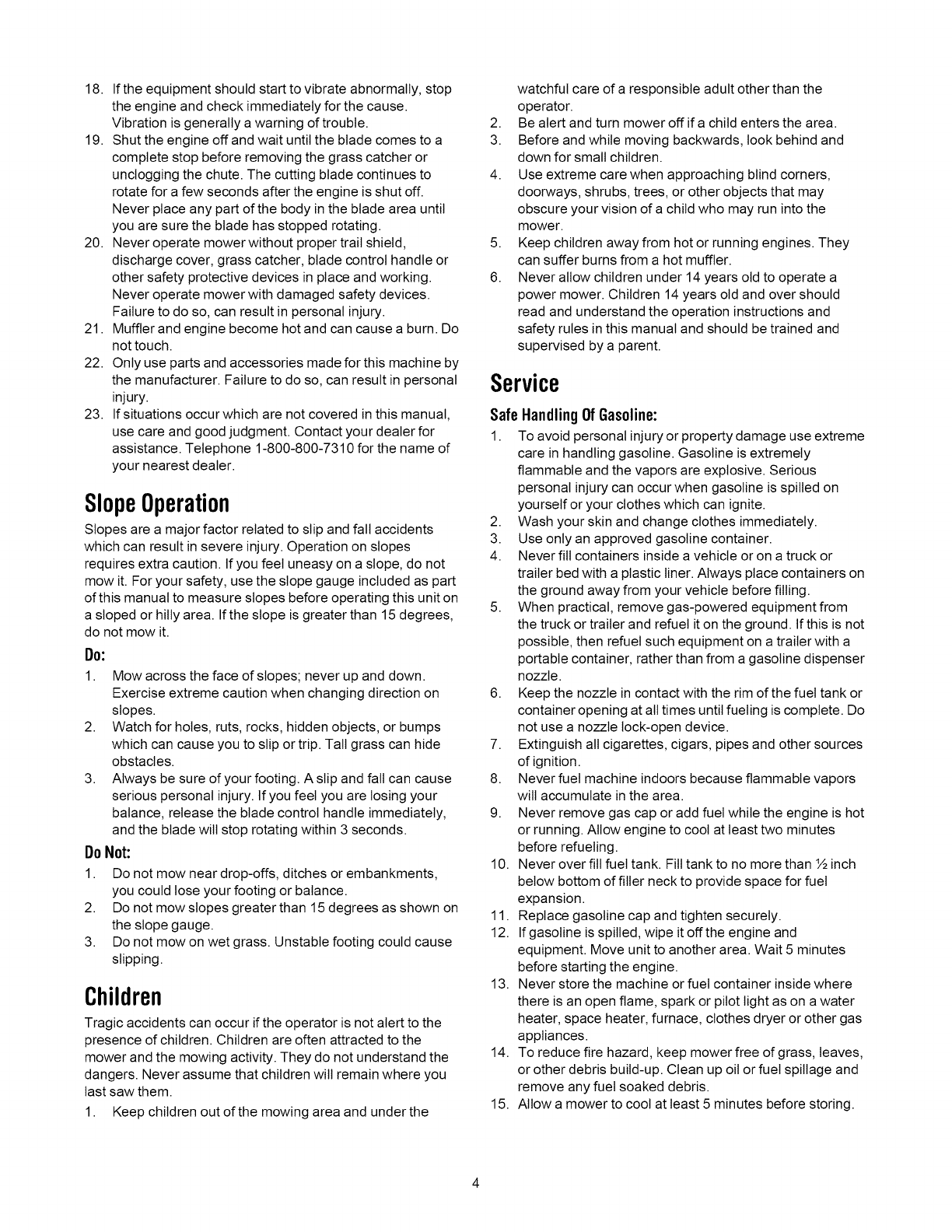

18.Iftheequipmentshouldstarttovibrateabnormally,stop

theengineandcheckimmediatelyforthecause.

Vibrationisgenerallyawarningoftrouble.

19.Shuttheengineoffandwaituntilthebladecomestoa

completestopbeforeremovingthegrasscatcheror

uncloggingthechute.Thecuttingbladecontinuesto

rotateforafewsecondsaftertheengineisshutoff.

Neverplaceanypartofthebodyinthebladeareauntil

youaresurethebladehasstoppedrotating.

20.Neveroperatemowerwithoutpropertrailshield,

dischargecover,grasscatcher,bladecontrolhandleor

othersafetyprotectivedevicesinplaceandworking.

Neveroperatemowerwithdamagedsafetydevices.

Failuretodoso,canresultinpersonalinjury.

21.Mufflerandenginebecomehotandcancauseaburn.Do

nottouch.

22.Onlyusepartsandaccessoriesmadeforthismachineby

themanufacturer.Failuretodoso,canresultinpersonal

injury.

23.Ifsituationsoccurwhicharenotcoveredinthismanual,

usecareandgoodjudgment.Contactyourdealerfor

assistance.Telephone1-800-800-7310forthenameof

yournearestdealer.

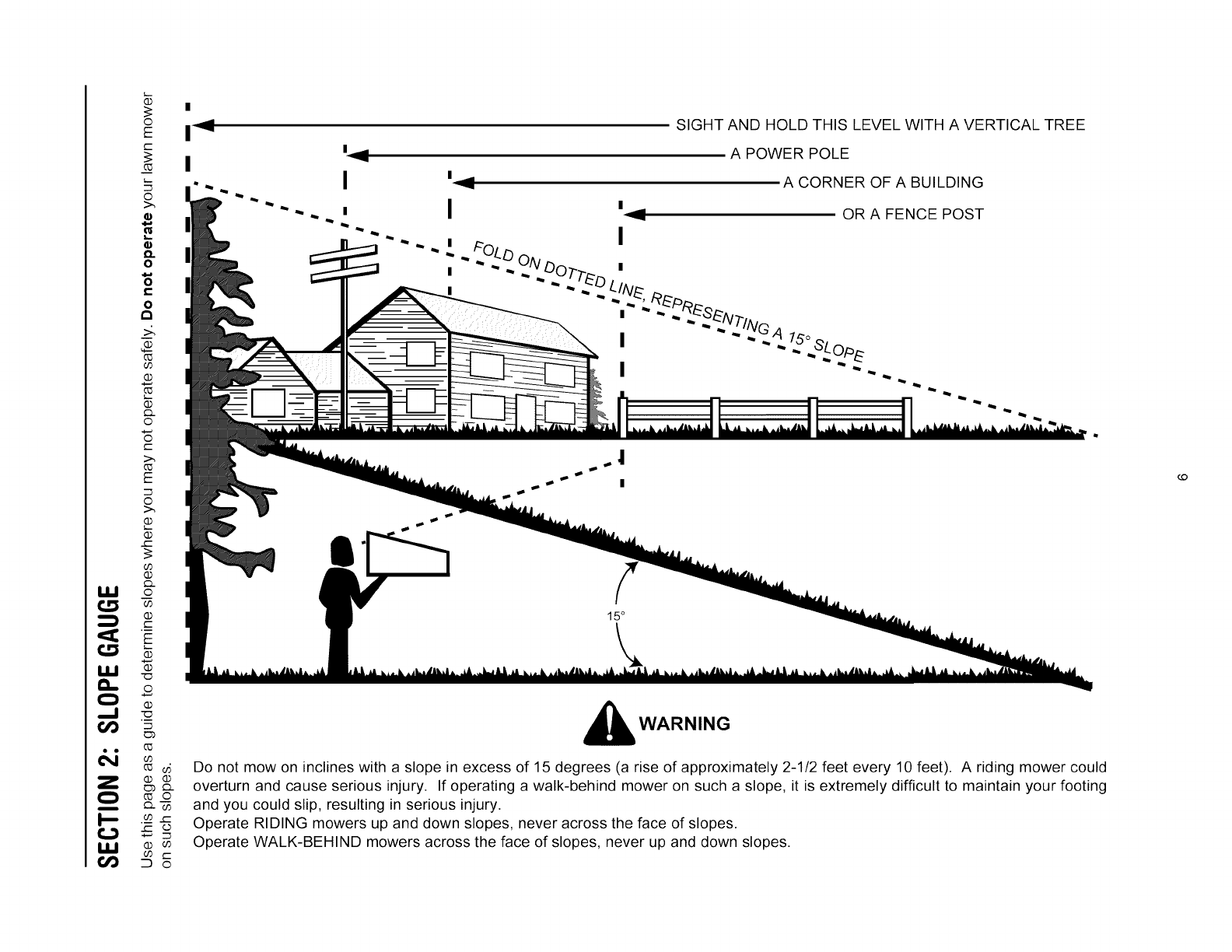

SlopeOperation

Slopes are a major factor related to slip and fall accidents

which can result in severe injury. Operation on slopes

requires extra caution. If you feel uneasy on a slope, do not

mow it. For your safety, use the slope gauge included as part

of this manual to measure slopes before operating this unit on

a sloped or hilly area. If the slope is greater than 15 degrees,

do not mow it.

Do:

1. Mow across the face of slopes; never up and down.

Exercise extreme caution when changing direction on

slopes.

2. Watch for holes, ruts, rocks, hidden objects, or bumps

which can cause you to slip or trip. Tall grass can hide

obstacles.

3. Always be sure of your footing. A slip and fall can cause

serious personal injury. If you feel you are losing your

balance, release the blade control handle immediately,

and the blade will stop rotating within 3 seconds.

DoNot:

1. Do not mow near drop-offs, ditches or embankments,

you could lose your footing or balance.

2. Do not mow slopes greater than 15 degrees as shown on

the slope gauge.

3. Do not mow on wet grass. Unstable footing could cause

slipping.

Children

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

mower and the mowing activity. They do not understand the

dangers. Never assume that children will remain where you

last saw them.

1. Keep children out of the mowing area and under the

watchful care of a responsible adult other than the

operator.

2. Be alert and turn mower off if a child enters the area.

3. Before and while moving backwards, look behind and

down for small children.

4. Use extreme care when approaching blind corners,

doorways, shrubs, trees, or other objects that may

obscure your vision of a child who may run into the

mower.

5. Keep children away from hot or running engines. They

can suffer burns from a hot muffler.

6. Never allow children under 14 years old to operate a

power mower. Children 14 years old and over should

read and understand the operation instructions and

safety rules in this manual and should be trained and

supervised by a parent.

Service

SafeHandlingOfGasoline:

1. To avoid personal injury or property damage use extreme

care in handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Serious

personal injury can occur when gasoline is spilled on

yourself or your clothes which can ignite.

2. Wash your skin and change clothes immediately.

3. Use only an approved gasoline container.

4. Never fill containers inside a vehicle or on a truck or

trailer bed with a plastic liner. Always place containers on

the ground away from your vehicle before filling.

5. When practical, remove gas-powered equipment from

the truck or trailer and refuel it on the ground. If this is not

possible, then refuel such equipment on a trailer with a

portable container, rather than from a gasoline dispenser

nozzle.

6. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do

not use a nozzle lock-open device.

7. Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

8. Never fuel machine indoors because flammable vapors

wilt accumulate in the area.

9. Never remove gas cap or add fuel while the engine is hot

or running. Allow engine to cool at least two minutes

before refueling.

10. Never over tilt fuel tank. Fill tank to no more than ½ inch

below bottom of filler neck to provide space for fuel

expansion.

11. Replace gasoline cap and tighten securely.

12. If gasoline is spilled, wipe it offthe engine and

equipment. Move unit to another area. Wait 5 minutes

before starting the engine.

13. Never store the machine or fuel container inside where

there is an open flame, spark or pilot light as on a water

heater, space heater, furnace, clothes dryer or other gas

appliances.

14. To reduce fire hazard, keep mower free of grass, leaves,

or other debris build-up. Clean up oil or fuel spillage and

remove any fuel soaked debris.

15. Allow a mower to cool at least 5 minutes before storing.

GeneralService:

1. Never run an engine indoors or in a poorly ventilated

area. Engine exhaust contains carbon monoxide, an

odorless and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain

the blade and all moving parts have stopped. Disconnect

the spark plug wire and ground against the engine to

prevent unintended starting.

3. Check the blade and engine mounting bolts at frequent

intervals for proper tightness. Also, visually inspect blade

for damage (e.g., bent, cracked, worn) Replace blade

with the original equipment manufacture's (O.E.M.) blade

only, listed in this manual. "Use of parts which do not

meet the original equipment specifications may lead to

improper performance and compromise safety!"

4. Mower blades are sharp and can cut. Wrap the blade or

wear gloves, and use extra caution when servicing them.

5. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

6. Never tamper with safety devices. Check their proper

operation regularly.

7. After striking a foreign object, stop the engine, disconnect

the spark plug wire and ground against the engine.

Thoroughly inspect the mower for any damage. Repair

the damage before starting and operating the mower.

8. Never attempt to make a wheel or cutting height

adjustment while the engine is running.

9. Grass catcher components, discharge cover, and trail

shield are subject to wear and damage which could

expose moving parts or allow objects to be thrown. For

safety protection, frequently check components and

replace immediately with original equipment

manufacturer's (O.E.M.) parts only, listed in this manual.

"Use of parts which do not meet the original equipment

specifications may lead to improper performance and

compromise safety!"

10. Do not change the engine governor setting or overspeed

the engine. The governor controls the maximum safe

operating speed of the engine.

11. Maintain or replace safety and instruction labels, as

necessary.

12. Observe proper disposal taws and regulations. Improper

disposal of fluids and materials can harm the

environment.

_, ARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who read,

understand and follow the warnings and instructions in this manual and on the machine.

NOTE: Not all safety labels shown may apply to your lawn mower.

o

E

t-

O

QI

O

c-

O

r_

d)

o

*6

r-

E

o

(D

r-

d)

o

r,D

o

O3

64 cu

o

i,,II SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

I

I

A POWER POLE

A CORNER OF A BUILDING

OR A FENCE POST

I

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could

overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain your footing

and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

cO

SECTION3: ASSEMBLINGYOURLAWNMOWER

IMPORTANT: This unit is shipped without gasoline or oil

in the engine. Be certain to service engine with gasoline

and oil as instructed in the separate engine manual

before operating your mower.

NOTE: Reference to right or left hand side of the mower

is observed from the operating position.

RemovingUnitFromCarton

• Remove staples, break glue on top flaps, or cut

tape at carton end and peel along top flap to open

carton.

• Remove loose parts if included with unit (i.e.,

operator's manual, etc.)

• Cut along corners, lay carton down flat, and remove

packing material.

• Roll or slide unit out of carton and check carton

thoroughly for loose parts.

DisconnectingSparkPlugWire

Before setting up your lawn mower, disconnect the

spark plug wire from the spark plug. See Figure 1.

Spark Plug

Wire SwParkPlug =_

ire\

Spark Plug '

Spark Plug

Figure 1

SettingUpYourLawnMower

• Raise the lower handle, as shown in Figure 2

(Step1), until it snaps into place. Lift up and pull

back on the upper handle to raise the handle into

the operating position (Step 2). See Figure 2. Make

certain the lower handle is seated securely into the

handle bracket assemblies.

2. Lift upper

handle

1. Lift lower

handle

To secure the upper and lower handle, tighten the

wing nuts near the top of lower handle (carriage

bolts must be seated properly into the

handle).Tighten the wing nuts at the end of the

lower handle to secure the handle to handle

bracket assemblies. See Figure 3.

NOTE: Your mower is shipped with the handle in the

higher position. If you wish to lower the height of the

handle, refer to the Adjustment Section.

Wing

Nuts

Lower

Handle

Handle

Bracket

Assembly

Figure 3

Fasten the cable to the lower handle with the cable

tie found on the lower handle. Pull the cable tie tight

and trim off the excess. See Figure 4.

Cable Tie

Lower

Handle

Figure 4

If not already, move rope guide to the first hole

above the lower handle on right side. The wing nut

loosens and secures the rope guide to handle.

See Figure 5.

Starter. Handle

Rope Nut

Rope

Guide

"Lower

Handle

Figure 5

With the spark plug wire disconnected and

grounded, hold the blade control handle against the

upper handle, and pull the starter rope out of the

engine. Release the blade control handle. Slip the

starter rope into the rope guide. Tighten wing nut.

Figure 2 7

InstallingFrontWheels

•Place the front of the mower deck on raised blocks.

• Remove lock nut from pivot arm assembly, slide

wheel onto pivot arm assembly and secure with

lock nut. See Figure 6.

• Assemble the other side in the same manner.

• If your mower is equipped with hub caps, place hub

caps in position against the inner hub of wheel.

Press firmly around the center portion of the hub

cap in a circular motion. The hub caps are flexible

and they will snap over the wheel hubs.

Lock

Arm

Assembly

Hub Cap(If Equipped)

Figure 6

InstallingRearWheels

• Place the rear of the mower deck on raised blocks.

• Remove lock nut from pivot arm assembly, slide

wheel, with hollow side in, onto axle and secure

with lock nut. See Figure 7.

Assemble the other side in the same manner.

Lock

Figure 7

RemovingChute Retainer

The chute deflector on your mower is held in an upright

position by a retainer for shipping purposes only.

Remove the retainer, following steps below, before

running the mower for the first time.

• Push the chute deflector up and towards the

engine. Holding the deflector in this position,

remove the retainer. See Figure 8.

• Lower the chute deflector carefully to its operating

position keeping your fingers out of the way.

Figure 8

_, WARNING: The chute retainer must be

removed and discarded before operating

the mower.

InstallingMulchingBaffle

If your mower is equipped with the optional mulching

baffle, install it on the right side of the deck following

these instructions. Make sure to follow the correct

sequence as indicated here.

• Lift up and hold the side-discharge chute deflector.

• Insert bottom lip of the mulching baffle inside the

chute opening. See Figure 9.

• Snap hooks of the mulching baffle over the hinge

pin of the chute deflector. See Figure 9. The hooks

must snap into place on the hinge pin, locking the

mulching baffle firmly onto the mower. For a close-

up of the hinge pin location, see Figure 9 inset.

• Release the chute deflector.

NOTE: Install bottom lip inside chute opening

(indicated by I in the figure below) before placing hooks

over the hinge pin (indicated by 2 in the figure below).

Chute

Deflector

\\\

Baffle

Opening

Lip of Mul ,,hing Baffle

(install inside chute opening)

Figure 9

IMPORTANT: This unit is shipped without gasoline or oil

in the engine. Be certain to service engine with gasoline

and oil as instructed in the separate engine manual

before operating your mower.

SECTION4: KNOWYOURLAWNMOWER

Read this operator's manual and safety rules before

operating your lawn mower. Compare the illustration in

Figure 10 with your lawn mower to familiarize yourself

with the location of various controls and adjustments.

Save this manual for future reference.

WARNING: The operation of any lawn

mower can result in foreign objects being

thrown into the eyes, which can damage

your eyes severely. Always wear safety

glasses while operating the mower, or

while performing any adjustments or

repairs on it.

RecoilStarter

The recoil starter is attached to the right lower handle.

Stand behind the unit and pull the recoil starter to start

the unit. See Figure 10.

BladeControlHandle

The blade control handle is located on the upper handle

of the mower. The blade control handle must be

depressed in order to operate the unit. Release blade

control handle to stop engine and blade.

WARNING: This blade control mechanism

is asafety device. Never attempt to bypass

its operations.

CuttingHeightAdjustmentLever

These levers are located on each wheel and they are

used to adjust the cutting height. All four levers have to

be at the same relative position to ensure an uniform

cut. See Figure 10.

EngineControls

See the separate engine manual for the location and

function of the controls on the engine.

Blade Control

Handle

Mulching _

Plug

Starter Cutting Height

Adjustment

Discharge

Chute

Figure 10

StoppingEngine

• Release blade control handle to stop the engine

and the blade.

• Disconnect spark plug wire and ground it to a bolt

on the engine.

WARNING: Before using your lawn mower,

again refer to the Safety Section in this

manual. Always be careful.

NOTE: See your engine manual packed with your unit

for more detailed instructions.

SECTION5: OPERATINGYOURLAWNMOWER

WARNING: Keep hands and feet away from _1_

chute area on the cutting deck. The 41k

operation of any lawn mower can result in

foreign objects being thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye shields.

GasandOilFill-Up

Service the engine with gasoline and oil as instructed in

the separate engine manual packed with your mower.

Read instructions carefully.

WARNING: Never fill fuel tank indoors with

engine running or until the engine has

been allowed to cool for at least two

minutes after running.

StartingEngine

• Attach spark plug wire to spark plug. Make certain

the metal cap on the end of the spark plug is

fastened securely over the metal tip on the spark

plug.

• Prime engine as instructed in the separate engine

manual packed with your unit.

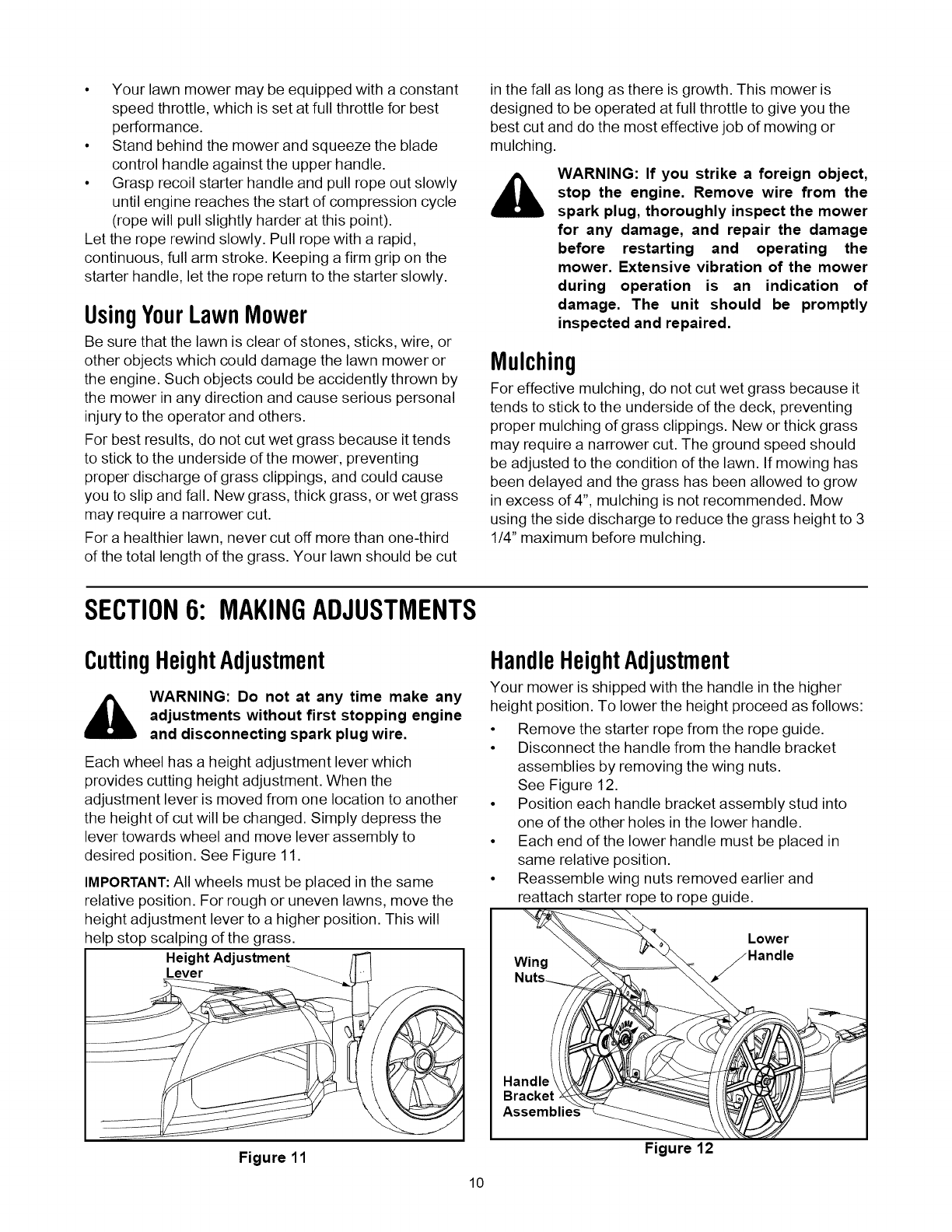

• Yourlawnmowermaybeequippedwithaconstant

speedthrottle,whichissetatfullthrottleforbest

performance.

• Standbehindthemowerandsqueezetheblade

controlhandleagainsttheupperhandle.

• Grasprecoilstarterhandleandpullropeoutslowly

untilenginereachesthestartofcompressioncycle

(ropewillpullslightlyharderatthispoint).

Lettheroperewindslowly.Pullropewitharapid,

continuous,fullarmstroke.Keepingafirmgriponthe

starterhandle,lettheropereturntothestarterslowly.

UsingYourLawnMower

Be sure that the lawn is clear of stones, sticks, wire, or

other objects which could damage the lawn mower or

the engine. Such objects could be accidently thrown by

the mower in any direction and cause serious personal

injury to the operator and others.

For best results, do not cut wet grass because it tends

to stick to the underside of the mower, preventing

proper discharge of grass clippings, and could cause

you to slip and fall. New grass, thick grass, or wet grass

may require a narrower cut.

For a healthier lawn, never cut off more than one-third

of the total length of the grass. Your lawn should be cut

in the fall as long as there is growth. This mower is

designed to be operated at full throttle to give you the

best cut and do the most effective job of mowing or

mulching.

WARNING: If you strike aforeign object,

stop the engine. Remove wire from the

spark plug, thoroughly inspect the mower

for any damage, and repair the damage

before restarting and operating the

mower. Extensive vibration of the mower

during operation is an indication of

damage. The unit should be promptly

inspected and repaired.

Mulching

For effective mulching, do not cut wet grass because it

tends to stick to the underside of the deck, preventing

proper mulching of grass clippings. New or thick grass

may require a narrower cut. The ground speed should

be adjusted to the condition of the lawn. If mowing has

been delayed and the grass has been allowed to grow

in excess of 4", mulching is not recommended. Mow

using the side discharge to reduce the grass height to 3

114"maximum before mulching.

SECTION6: MAKINGADJUSTMENTS

CuttingHeightAdjustment

WARNING: Do not at any time make any

adjustments without first stopping engine

and disconnecting spark plug wire.

Each wheel has a height adjustment lever which

provides cutting height adjustment. When the

adjustment lever is moved from one location to another

the height of cut will be changed. Simply depress the

lever towards wheel and move lever assembly to

desired position. See Figure 11.

IMPORTANT:All wheels must be placed in the same

relative position. For rough or uneven lawns, move the

height adjustment lever to a higher position. This will

help stop scalping of the grass.

Height Adjustment

Lever

Figure 11

HandleHeightAdjustment

Your mower is shipped with the handle in the higher

height position. To lower the height proceed as follows:

• Remove the starter rope from the rope guide.

• Disconnect the handle from the handle bracket

assemblies by removing the wing nuts.

See Figure 12.

• Position each handle bracket assembly stud into

one of the other holes in the lower handle.

• Each end of the lower handle must be placed in

same relative position.

• Reassemble wing nuts removed earlier and

reattach starter rope to rope guide.

Lower

f/f Handle

Figure 12

10

SECTION7: MAINTAININGYOURLAWNMOWER

CustomerResponsibilities

£

MAINTENANCE Qe_

SCHEDULE ,_,,_,,, <e _ ,,J -,u

SERVICE

DATES

Lubricate Wheels

t---

© Lubricate Blade Control

_) Clean Deck

n_

a_ Blade Care

Check Oil

Change Oil

7m Replace Air Filter

z_ Clean Engine

uJ

Check Spark Plug

Check Spark Arrester (if any)

GeneralRecommendations

• Always observe safety rules when performing any

maintenance.

• The warranty on this lawn mower does not cover

items that have been subjected to operator abuse

or negligence. To receive full value from the

warranty, operator must maintain the lawn mower

as instructed in this manual.

• Changing of engine governed speed will void

engine warranty.

• Periodically check all fasteners and make sure

these are tight.

• Some adjustments will have to be made

periodically to maintain your unit properly. All

adjustments in the Making Adjustments section of

this manual should be checked at least once each

season.

• Follow the maintenance schedule under Customer

Responsibilities to get quality performance from

your lawn mower.

Lubrication

_, WARNING: Always stop engine and

disconnect spark plug wire before

cleaning, lubricating or doing any kind of

service work on the lawn mower.

Blade Control Handle: Lubricate the pivot points on

the blade control handle at least once a season with

light oil. The blade control must operate freely in both

directions. See Figure 13.

Wheels: Lubricate the wheels at least once a season

with light oil (or motor oil). If the wheels are removed for

any reason, lubricate the surface of the pivot arm and

inner surface of the wheel with light oil.

Chute Deflector or Mulching Baffle: Lubricate the

torsion spring and pivot point periodically with light oil to

prevent any rust or binding.

Engine: Follow the separate engine manual packed

with you unit for lubrication instructions.

Lubricate

Lubricate

Figure 13

11

Maintenance

NOTE: When tipping the unit or emptying the fuel tank

keep the air cleaner side of engine up. Never tip the

mower more than 90 degrees and do not leave the

mower tipped for any length of time. Oil can drain into

the upper part of the engine causing a starting problem.

EngineCare

A list of key maintenance jobs, required for good

performance by the mower, is given below. Follow the

accompanying engine manual for details.

• Change the engine oil regularly, as instructed in the

engine manual. Check oil level before starting

engine every time.

• Service air cleaner every 25 hours under normal

conditions. Poor engine performance and flooding

usually indicate that the air cleaner should be

serviced. To service the air cleaner, refer to the

separate engine manual packed with your unit.

• Clean the engine periodically. Remove dirt and

debris with a cloth or brush.

• Keep the cooling system (blower housing area)

clean to permit proper air circulation which is

essential to engine performance and life. Be certain

to remove all grass, dirt, and combustible debris

from muffler area.

• Clean the spark plug and reset the gap to.030" at

least once a season. Refer to the engine manual for

correct spark plug type.

• Inspect muffler periodically and replace if

necessary.

Deck

The underside of the mower deck should be cleaned

after each use to prevent a buildup of grass clippings,

leaves, dirt, or other matter. If this debris is allowed to

accumulate, it will invite rust and corrosion, and may

prevent proper mulching, discharge, or bagging. The

deck may be cleaned by tilting the mower and scraping

clean with a suitable tool (make certain the spark plug

wire is disconnected).

IMPORTANT:We do not recommend the use of a

pressure washer or garden hose to clean your unit.

CuttingBlade Removal,Replacement,andSharpening

,_ WARNING: When removing the cutting

blade for sharpening or replacement,

protect your hands with apair of heavy

gloves or use a heavy rag to hold the

blade.

Periodically inspect the blade adapter for cracks,

especially if you strike a foreign object. Replace when

necessary.

Removingthe Blade

• Disconnect spark plug wire from spark plug.

• Turn mower on its side making sure that the air filter

and the carburetor are up.

• Remove the bolt and the blade bell support which

hold the blade and the blade adapter to the engine

crankshaft. See Figure 14.

• Remove the blade and the adapter from the

crankshaft.

Blade

Ada

Blade Bell

)ort

Bolt

Figure 14

Sharpening the Blade

• The blade can be sharpened with a file or on a

grinding wheel. Do not attempt to sharpen the

blade while it is still on the mower.

• Follow the original angle of grind as a guide. Make

sure that each cutting edge receives an equal

amount of grinding to prevent an unbalanced blade.

Balancingthe Blade

• The blade can be tested by balancing it on a round

shaft screwdriver. Remove metal from the heavy

side until it balances evenly. It is recommended that

the blade always be removed from the adapter

when testing for balance. Before reinstalling the

blade and the blade adapter to the unit, lubricate

the engine crankshaft and the inner surface of the

blade adapter with light oil.

• Be sure to install the blade with the end tips facing

up or side of the blade marked "Bottom" (or with

part number) facing the ground when the mower is

in the operating position.

• Slide the blade adapter onto the engine crankshaft.

• Place the blade on the adapter. Be certain the

blade is aligned and seated on the blade adapter

flanges.

• Place blade bell support on blade. Make sure the

notches on the blade bell support are aligned with

small holes in the blade.

• Replace hex bolt and tighten hex bolt to torque: 450

in. Ibs. min., 600 in. Ibs. max.

NOTE: To ensure safe operation of your mower, the

blade bolt must be checked periodically for correct

torque.

12

SECTION8: TROUBLESHOOTING

Problem Cause Remedy

Engine fails to start

Engine runs erratic

Engine overheats

Idles poorly

Excessive vibration

Mower will not mulch grass

Uneven cut

1. Blade control handle disengaged.

2. Spark plug wire disconnected.

3. Fuel tank empty or stale fuel.

4. Blocked fuel line.

5. Faulty spark plug.

6. Engine flooded

1. Spark plug wire loose.

2. Blocked fuel line or stale fuel.

3. Vent in gas plugged.

4. Water or dirt in fuel system.

5. Dirty air cleaner.

6. Carburetor out of adjustment.

1. Engine oil level low.

2. Air flow restricted.

3. Carburetor not adjusted properly.

1. Spark plug fouled, faulty or gap too

wide.

2. Carburetor improperly adjusted.

3. Dirty air cleaner.

1. Cutting blade loose or unbalanced.

2. Bent cutting blade.

1. Wet grass.

2. Excessively high grass.

3. Dull blade.

1. Wheels not positioned correctly.

2. Dull blade.

1. Engage blade control handle.

2. Connect wire to spark plug.

3. Fill tank with clean, fresh gasoline.

4. Clean fuel line.

5. Clean, adjust gap, or replace.

6. Wait a few minutes to restart, but do

not prime.

1. Connect and tighten spark plug wire.

2. Clean fuel line; fill tank with clean,

fresh gasoline

3. Clear vent.

4. Drain fuel tank. Refill with fresh fuel.

5. Clean air cleaner.

6. Adjust carburetor.

1. Fill crankcase with proper oil.

2. Remove blower housing and clean.

3. Adjust carburetor.

1. Reset gap to.030" or replace spark

plug.

2. Adjust carburetor.

3. Clean air cleaner.

1. Tighten blade and adapter. Balance

blade.

2. Replace blade.

1. Do not mow when grass is wet; wait

until later to cut.

2. Mow once at a high cutting height, then

mow again at desired height or make a

narrower cutting path.

3. Sharpen or replace blade.

1. Place all four wheels in same height

position.

2. Sharpen or replace blade.

NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer.

13

SECTION9: PARTSLISTFORMODELSERIES500 THRU509

8

/

491-

,_/ ,5o1.

15

31 16

14

18 19

23

1-If Equipped

ModelSeries500 thru509

Ref,

No,

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

Part No.

747-1161A

749-1092A

746-0957

746-1130

746-0946

710-1205

720-0279

720-0284

736-0451

710-1174

725-0157

749-04037

731-0981A1.

17098

731-2537

682-3062A

682-3063A

736-3050

712-0431

710-0654A

687-02048

736-0270

741-0751

687-02094

748-0376C

742-0742A

Part Description

Blade Control Handle

Upper Handle

Blade Control Cable - B&S 37.25"

Blade Control Cable - B&S 40"

Blade Control Cable - Tec 48.25"

Eye Bolt

Wing Nut

Wing Nut

Shoulder Washer.320 ID x.93 OD

Carriage Bolt 5/16-18 x 2.0

Cable Tie

Lower Handle

Hub Cap

Hinge Clip

Trail Shield

Handle Bracket Assembly - RH

Handle Bracket Assembly- LH

Flat Washer.406 ID x.812 OD

Lock Nut 3/8 -16

Hex Washer Screw 3/8-16 x 1.0

22" Deck Assembly

Belt Washer.265 x.75

Height Adjuster Bearing

Pivot Arm Assembly

Blade Adapter

22" Mulching Blade

Ref. Part No.

No.

25. 710-1044

26. 736-0524A

27. 738-1172

28. 736-0741

29. 734-1988

31. 720-0426

32. 732-1026

33. 747-0710

34. 732-1014

35. 17032A

36. 731-1034B

38. 710-0514

39. 741-0717

40. 687-02080

687-02079

41. 732-0984B

42. 738-1127

43. 710-0599

44. 734-04082

46. 631-04045

47. 736-0105

48. 712-0130

49. 710-12561-

50. 731-1396A1-

51. 731-26261.

1.If Equipped

Part Description

Hex Cap Screw 3/8-24 x 1.5

Blade Bell Support

Shoulder Screw 3/8 - 16 x.302

Bell Washer.760 ID x 1.25 OD

Front Wheel Assembly 7 x 1.8

Height Adjuster Knob

Front Spring Lever

Hinge Pin

Torsion Spring

Deflector Chute Adapter

Side Discharge Chute Assembly

Hex Cap Screw 3/8-16 x 1.00

Thrust Bearing.688 ID x 1.938 OD

Rear Pivot Arm Assembly - RH

Rear Pivot Arm Assembly - LH

Rear Spring Lever

Shoulder Screw 3/8 - 16 x.442

Screw 1/4-20 x.50

Rear Wheel Assembly 12 x 1.8

Snap Mulching Plug

Bell Washer.401 ID x.870 OD

Hex Lock Nut 3/8-16

Screw #8-18 x 1.25

Engine Shroud

Deluxe Bail Cover

15

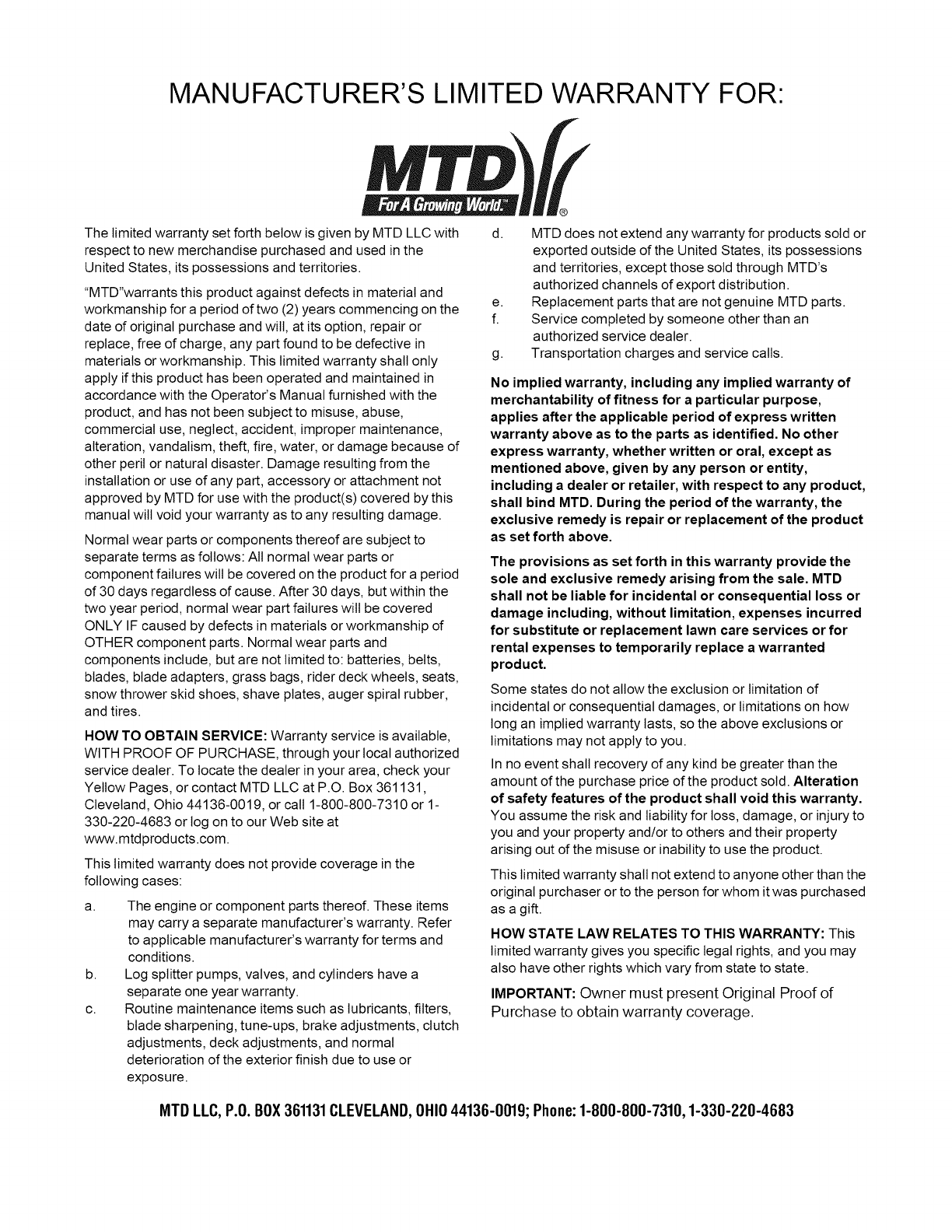

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with

respect to new merchandise purchased and used in the

United States, its possessions and territories.

"MTD"warrants this product against defects in material and

workmanship for a period of two (2) years commencing on the

date of original purchase and wilt, at its option, repair or

replace, free of charge, any part found to be defective in

materials or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the

product, and has not been subject to misuse, abuse,

commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of

other peril or natural disaster. Damage resulting from the

installation or use of any part, accessory or attachment not

approved by MTD for use with the product(s) covered by this

manual will void your warranty as to any resulting damage.

Normal wear parts or components thereof are subject to

separate terms as follows: All normal wear parts or

component failures wilt be covered on the product for a period

of 30 days regardless of cause. After 30 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in materials or workmanship of

OTHER component parts. Normal wear parts and

components include, but are not limited to: batteries, belts,

blades, blade adapters, grass bags, rider deck wheels, seats,

snow thrower skid shoes, shave plates, auger spiral rubber,

and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact MTD LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-

330-220-4683 or tog on to our Web site at

www.mtdproducts.com.

This limited warranty does not provide coverage in the

following cases:

a,

b,

C.

The engine or component parts thereof. These items

may carry a separate manufacturer's warranty. Refer

to applicable manufacturer's warranty for terms and

conditions.

Log splitter pumps, valves, and cylinders have a

separate one year warranty.

Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposu_.

d,

e,

f.

g,

MTD does not extend any warranty for products sold or

exported outside of the United States, its possessions

and territories, except those sold through MTD's

authorized channels of export distribution.

Replacement parts that are not genuine MTD parts.

Service completed by someone other than an

authorized service dealer.

Transportation charges and service calls.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind MTD. During the period of the warranty, the

exclusive remedy is repair or replacement of the product

as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. MTD

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred

for substitute or replacement lawn care services or for

rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for toss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased

as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT:Owner must present Original Proof of

Purchase to obtain warranty coverage.

MTD LLC, P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-800-800-7310,1-330-220-4683
